TTAMachine::Unit Class Reference

#include <Unit.hh>

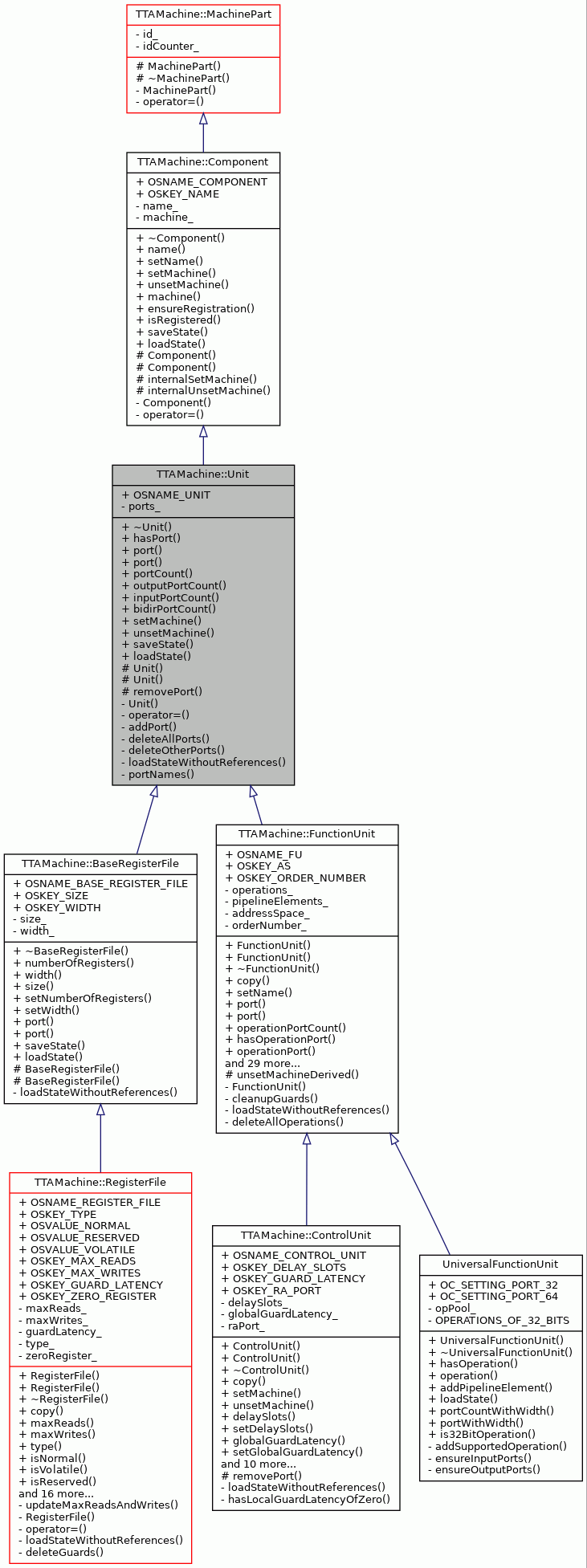

Inheritance diagram for TTAMachine::Unit:

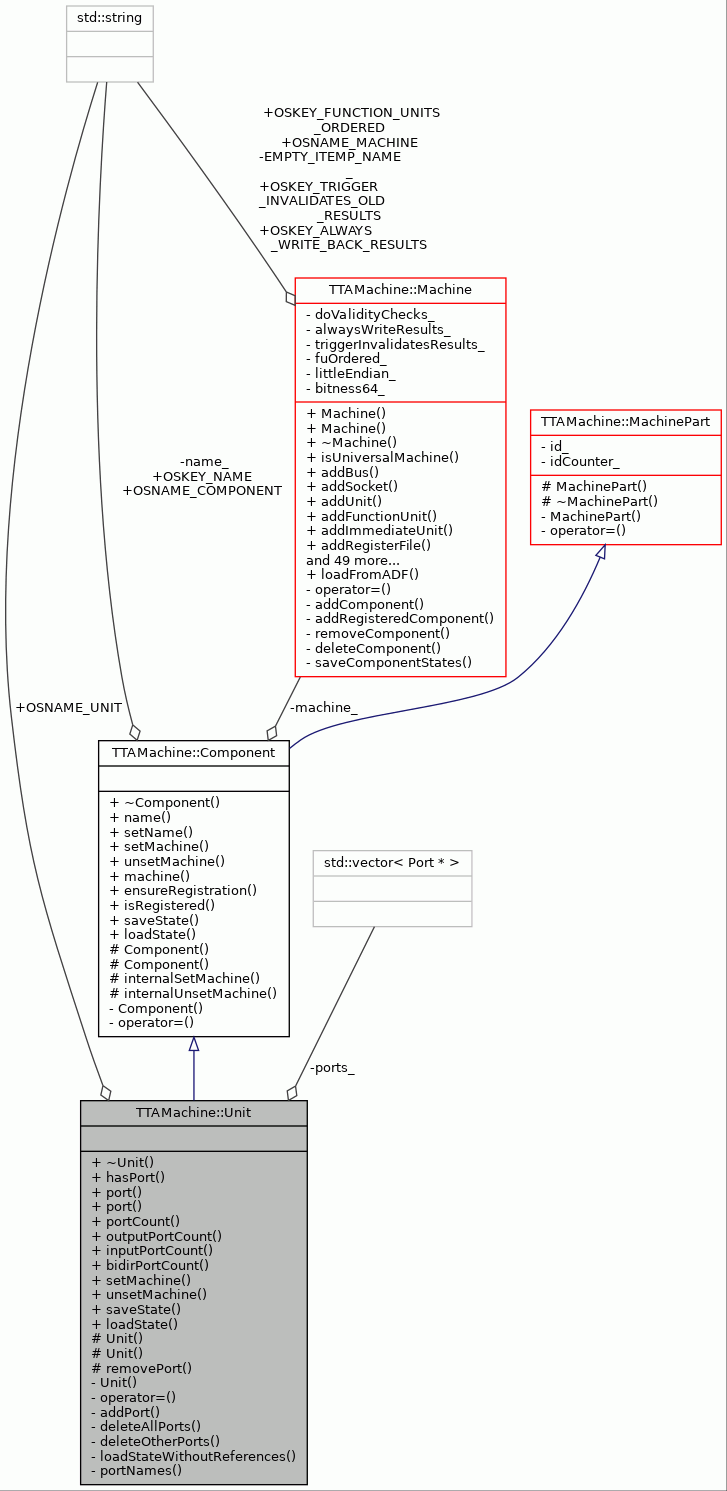

Collaboration diagram for TTAMachine::Unit:

Public Member Functions
virtual	~Unit ()
virtual bool	hasPort (const std::string &name) const
virtual Port *	port (const std::string &name) const
virtual Port *	port (int index) const
virtual int	portCount () const
virtual int	outputPortCount (bool countBidir=false) const
virtual int	inputPortCount (bool countBidir=false) const
virtual int	bidirPortCount () const
virtual void	setMachine (Machine &mach)
virtual void	unsetMachine ()
virtual ObjectState *	saveState () const
virtual void	loadState (const ObjectState *state)
Public Member Functions inherited from TTAMachine::Component
virtual	~Component ()
virtual TCEString	name () const
virtual void	setName (const std::string &name)
virtual Machine *	machine () const
virtual void	ensureRegistration (const Component &component) const
virtual bool	isRegistered () const
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_UNIT = "unit"
	ObjectState name for Unit.
Static Public Attributes inherited from TTAMachine::Component
static const std::string	OSNAME_COMPONENT = "component"
	ObjectState name for component.
static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for the name of the component.

Protected Member Functions
	Unit (const std::string &name)
	Unit (const ObjectState *state)
virtual void	removePort (Port &port)
Protected Member Functions inherited from TTAMachine::Component
	Component (const std::string &name)
	Component (const ObjectState *state)
void	internalSetMachine (Machine &machine)
void	internalUnsetMachine ()
Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()
virtual	~MachinePart ()

Private Types
typedef std::vector< Port * >	PortTable
	Container for ports.
typedef std::set< std::string >	NameSet
	Set type for strings.

Private Member Functions
	Unit (const Unit &)
	Copying forbidden.
Unit &	operator= (const Unit &)
	Assingment forbidden.
void	addPort (Port &port)
void	deleteAllPorts ()
void	deleteOtherPorts (const NameSet &portsToLeave)
void	loadStateWithoutReferences (const ObjectState *state)

Static Private Member Functions
static NameSet	portNames (const ObjectState *state)

Private Attributes
PortTable	ports_
	Contains all the ports of the unit.

Friends
class	Port

Detailed Description

An Abstract base class for the different units in the machine.

Definition at line 51 of file Unit.hh.

Member Typedef Documentation

NameSet

typedef std::set<std::string> TTAMachine::Unit::NameSet

private

Set type for strings.

Definition at line 82 of file Unit.hh.

PortTable

typedef std::vector<Port*> TTAMachine::Unit::PortTable

private

Container for ports.

Definition at line 80 of file Unit.hh.

Constructor & Destructor Documentation

~Unit()

TTAMachine::Unit::~Unit ( )

virtual

Destructor.

Definition at line 84 of file Unit.cc.

            {
    deleteAllPorts();
}

References deleteAllPorts().

Here is the call graph for this function:

Unit() [1/3]

TTAMachine::Unit::Unit ( const std::string &  name )

protected

Constructor.

Parameters

name	The name of the unit.

Exceptions

InvalidName

If the given name is not a valid component name.

Definition at line 59 of file Unit.cc.

: Component(name) {}

Unit() [2/3]

TTAMachine::Unit::Unit ( const ObjectState *  state )

protected

Constructor.

Loads the state of the unit from the given ObjectState instance. Does not load connections to other components.

Parameters

state

The ObjectState instance from which the name is taken.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

Definition at line 71 of file Unit.cc.

                                   : Component(state) {
    try {
        loadStateWithoutReferences(state);
    } catch (const Exception&) {
        // delete the ports that were loaded
        deleteAllPorts();
        throw;
    }
}

References deleteAllPorts(), and loadStateWithoutReferences().

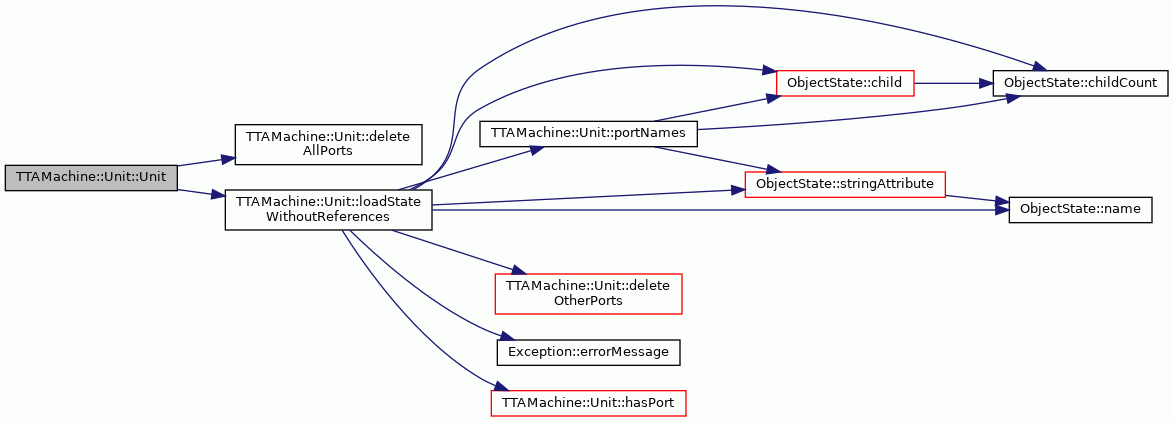

Here is the call graph for this function:

Unit() [3/3]

TTAMachine::Unit::Unit ( const Unit &  )

private

Copying forbidden.

Member Function Documentation

addPort()

void TTAMachine::Unit::addPort ( Port &  port )

private

Adds a port to the unit.

This method can be called from Port constructor only.

Parameters

port	Port to be added.

Exceptions

ComponentAlreadyExists

If another port with the same name exists.

Definition at line 213 of file Unit.cc.

                        {
    // check that this method is called from Port constructor only
    assert(port.parentUnit() == NULL);

    // check that a port with same name does not exist
    if (!hasPort(port.name())) {
        ports_.push_back(&port);
        return;
    }

    string procName = "Unit::addPort";
    throw ComponentAlreadyExists(__FILE__, __LINE__, procName);
}

References assert, hasPort(), TTAMachine::Port::name(), TTAMachine::Port::parentUnit(), port(), and ports_.

Referenced by TTAMachine::Port::Port(), and TTAMachine::Port::Port().

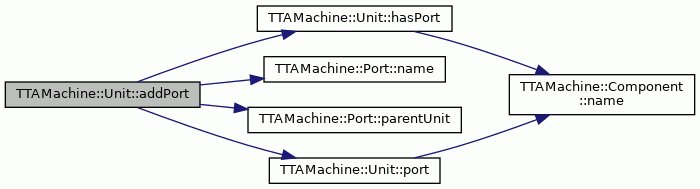

Here is the call graph for this function:

bidirPortCount()

int TTAMachine::Unit::bidirPortCount ( ) const

virtual

Returns

The number of bidirectional ports in the unit.

Definition at line 174 of file Unit.cc.

                           {
    unsigned count = 0;
    for (auto &port : ports_) {
        if (port->isInput() && port->isOutput())
            count++;
    }
    return count;
}

References TTAMachine::Port::isInput(), TTAMachine::Port::isOutput(), port(), and ports_.

Referenced by ProGeTools::checkForSelectableRF(), and Automagic::checkForSelectableRF().

Here is the call graph for this function:

deleteAllPorts()

void TTAMachine::Unit::deleteAllPorts ( )

private

Deletes all the ports from the unit.

Definition at line 373 of file Unit.cc.

                     {
    while (ports_.size() > 0) {
        // the size of the vector is decreased when the code of Port
        // destructor is executed
        delete ports_[0];
    }
}

References ports_.

Referenced by Unit(), and ~Unit().

deleteOtherPorts()

void TTAMachine::Unit::deleteOtherPorts ( const NameSet &  portsToLeave )

private

Deletes all the ports which has a name that does not appear in the given name set.

Parameters

portsToLeave

A set of names of ports to leave.

Definition at line 389 of file Unit.cc.

                                                  {
    for (int i = 0; i < portCount();) {
        Port* port = this->port(i);
        if (!AssocTools::containsKey(portsToLeave, port->name())) {
            delete port;
        } else {
            i++;
        }
    }
}

References AssocTools::containsKey(), TTAMachine::Port::name(), port(), and portCount().

Referenced by loadStateWithoutReferences().

Here is the call graph for this function:

hasPort()

bool TTAMachine::Unit::hasPort ( const std::string &  name ) const

virtual

Returns true if the requested port is found, otherwise false.

Parameters

name	Name of the port.

Returns

Tru if the port is found, otherwise false.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 96 of file Unit.cc.

                                         {
    PortTable::const_iterator iter = ports_.begin();
    while (iter != ports_.end()) {
        if ((*iter)->name() == name) {
            return true;
        }
        iter++;
    }
    return false;
}

References TTAMachine::Component::name(), and ports_.

Referenced by addPort(), TTAProgram::TPEFProgramFactory::findGuard(), TTAProgram::TPEFProgramFactory::findPort(), MachineResourceManager::functionUnitPortResource(), TTAMachine::FunctionUnit::hasOperationPort(), TTAMachine::ControlUnit::hasSpecialRegisterPort(), TTAProgram::TPEFResourceUpdater::initCache(), loadStateWithoutReferences(), GCUDialog::onAddFUPort(), FUDialog::onAddPort(), IUDialog::onAddPort(), RFDialog::onAddPort(), GCUDialog::onAddSRPort(), TTAMachine::FunctionUnit::port(), and TTAMachine::ControlUnit::specialRegisterPort().

Here is the call graph for this function:

inputPortCount()

int TTAMachine::Unit::inputPortCount ( bool  countBidir = false ) const

virtual

Parameters

countBidir

True if we should count bidirectional ports

Returns

The number of input ports in the unit.

Definition at line 160 of file Unit.cc.

                                          {
    unsigned count = 0;
    for (auto &port : ports_) {
        if (port->isInput() && (!port->isOutput() || countBidir))
            count++;
    }
    return count;
}

References TTAMachine::Port::isInput(), TTAMachine::Port::isOutput(), port(), and ports_.

Referenced by ProGeTools::checkForSelectableRF(), Automagic::checkForSelectableRF(), and ProGe::RV32MicroCodeGenerator::findRF().

Here is the call graph for this function:

loadState()

void TTAMachine::Unit::loadState ( const ObjectState *  state )

virtual

Loads the state of the unit from the given ObjectState instance.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid or if references to sockets cannot be made.

Reimplemented from TTAMachine::Component.

Reimplemented in TTAMachine::BaseRegisterFile, TTAMachine::ControlUnit, TTAMachine::FunctionUnit, TTAMachine::ImmediateUnit, TTAMachine::NullRegisterFile, TTAMachine::RegisterFile, UnboundedRegisterFile, and UniversalFunctionUnit.

Definition at line 309 of file Unit.cc.

                                        {
    loadStateWithoutReferences(state);

    // create port-socket connections
    for (int i = 0; i < state->childCount(); i++) {
        ObjectState* child = state->child(i);
        if (child->name() == FUPort::OSNAME_FUPORT ||
            child->name() == RFPort::OSNAME_RFPORT ||
            child->name() == SpecialRegisterPort::OSNAME_SPECIAL_REG_PORT) {
            string portName = child->stringAttribute(Port::OSKEY_NAME);
            Port* port = this->port(portName);
            port->loadState(child);
        }
    }
}

References ObjectState::child(), ObjectState::childCount(), TTAMachine::Port::loadState(), loadStateWithoutReferences(), ObjectState::name(), TTAMachine::Port::OSKEY_NAME, TTAMachine::FUPort::OSNAME_FUPORT, TTAMachine::RFPort::OSNAME_RFPORT, TTAMachine::SpecialRegisterPort::OSNAME_SPECIAL_REG_PORT, port(), and ObjectState::stringAttribute().

Referenced by TTAMachine::BaseRegisterFile::loadState(), and TTAMachine::FunctionUnit::loadState().

Here is the call graph for this function:

loadStateWithoutReferences()

void TTAMachine::Unit::loadStateWithoutReferences ( const ObjectState *  state )

private

Loads its state from the given ObjectState instance without references to other components.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

Definition at line 334 of file Unit.cc.

                                                         {
    const string procName = "Unit::loadStateWithoutReferences";

    // load ports
    try {
        // cannot delete all the ports because there might be guards
        // referencing to them
        NameSet newPortNames = portNames(state);
        deleteOtherPorts(newPortNames);

        for (int i = 0; i < state->childCount(); i++) {
            ObjectState* child = state->child(i);
            string portName = child->stringAttribute(Port::OSKEY_NAME);

            if (!hasPort(portName)) {
                if (child->name() == RFPort::OSNAME_RFPORT) {
                    // port is attached automatically
                    new RFPort(child, *this);
                } else if (child->name() == FUPort::OSNAME_FUPORT) {
                    // port is attached automatically
                    new FUPort(child, *this);
                } else if (child->name() ==
                           SpecialRegisterPort::OSNAME_SPECIAL_REG_PORT) {
                    // port is attached automatically
                    new SpecialRegisterPort(child, *this);
                }
            }
        }

    } catch (const Exception& exception) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, exception.errorMessage());
    }
}

References ObjectState::child(), ObjectState::childCount(), deleteOtherPorts(), Exception::errorMessage(), hasPort(), ObjectState::name(), TTAMachine::Port::OSKEY_NAME, TTAMachine::FUPort::OSNAME_FUPORT, TTAMachine::RFPort::OSNAME_RFPORT, TTAMachine::SpecialRegisterPort::OSNAME_SPECIAL_REG_PORT, portNames(), and ObjectState::stringAttribute().

Referenced by loadState(), and Unit().

Here is the call graph for this function:

operator=()

Unit & TTAMachine::Unit::operator= ( const Unit &  )

private

Assingment forbidden.

outputPortCount()

int TTAMachine::Unit::outputPortCount ( bool  countBidir = false ) const

virtual

Parameters

countBidir

True if we should count bidirectional ports

Returns

The number of output ports in the unit.

Definition at line 145 of file Unit.cc.

                                           {
    unsigned count = 0;
    for (auto &port : ports_) {
        if (port->isOutput() && (!port->isInput() || countBidir))
            count++;
    }
    return count;
}

References TTAMachine::Port::isInput(), TTAMachine::Port::isOutput(), port(), and ports_.

Referenced by ProGeTools::checkForSelectableRF(), Automagic::checkForSelectableRF(), ProGe::RV32MicroCodeGenerator::findRF(), and DefaultDecoderGenerator::verifyCompatibility().

Here is the call graph for this function:

port() [1/2]

Port * TTAMachine::Unit::port ( const std::string &  name ) const

virtual

Returns the requested port.

Parameters

name	Name of the port.

Returns

The requested port.

Exceptions

InstanceNotFound

If a port is not found by the given name.

Reimplemented in TTAMachine::BaseRegisterFile, and TTAMachine::FunctionUnit.

Definition at line 116 of file Unit.cc.

                                      {
    PortTable::const_iterator iter = ports_.begin();
    while (iter != ports_.end()) {
        if ((*iter)->name() == name) {
            return *iter;
        }
        iter++;
    }

    string procName = "Unit::port";
    throw InstanceNotFound(__FILE__, __LINE__, procName);
}

References TTAMachine::Component::name(), and ports_.

Referenced by addPort(), MachineConnectivityCheck::appendConnectedDestinationBuses(), MachineConnectivityCheck::appendConnectedSourceBuses(), bidirPortCount(), MachineConnectivityCheck::busConnectedToRF(), ADFCombiner::connectPorts(), deleteOtherPorts(), MachineConnectivityCheck::findReadPorts(), MachineConnectivityCheck::findWritePorts(), inputPortCount(), loadState(), IUPortDialog::onOK(), RFPortDialog::onOK(), TTAMachine::FunctionUnit::operationPort(), TTAMachine::FunctionUnit::operationPort(), TTAMachine::FunctionUnit::operationPortCount(), outputPortCount(), TTAMachine::BaseRegisterFile::port(), TTAMachine::FunctionUnit::port(), TTAMachine::BaseRegisterFile::port(), TTAMachine::FunctionUnit::port(), removePort(), saveState(), TTAMachine::Port::setName(), and unsetMachine().

Here is the call graph for this function:

port() [2/2]

Port * TTAMachine::Unit::port ( int  index ) const

virtual

Returns a port by the given index.

The index must be greater or equal to 0 and smaller than the number of ports in the unit.

Parameters

index

Index.

Returns

The port by the given index.

Exceptions

OutOfRange

If the given index is out of range.

Reimplemented in TTAMachine::BaseRegisterFile, and TTAMachine::FunctionUnit.

Definition at line 195 of file Unit.cc.

                          {
    if (index < 0 || index >= portCount()) {
        string procName = "Unit::port";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }
    return ports_[index];
}

References portCount(), and ports_.

Here is the call graph for this function:

portCount()

int TTAMachine::Unit::portCount ( ) const

virtual

Returns the number of ports in the unit.

Returns

The number of ports in the unit.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 135 of file Unit.cc.

                      {
    return ports_.size();
}

References ports_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), ProGe::NetlistGenerator::addGCUToNetlist(), ProGe::NetlistGenerator::addGeneratableFUsToNetlist(), DefaultDecoderGenerator::addGlockPortToDecoder(), DefaultDecoderGenerator::addLockReqPortToDecoder(), MachineStateBuilder::addVirtualOpcodeSettingPortsToFU(), InputPSocketBroker::allAvailableResources(), OutputPSocketBroker::allAvailableResources(), TDGen::analyzeMachineRegisters(), TDGen::analyzeRegisters(), MachineConnectivityCheck::appendConnectedDestinationBuses(), MachineConnectivityCheck::appendConnectedSourceBuses(), CostDatabase::buildFunctionUnits(), MachineStateBuilder::buildMachineState(), MachineConnectivityCheck::busConnectedToRF(), MachineTester::canConnect(), FullyConnectedCheck::check(), FullyConnectedCheck::check(), RFPortCheck::check(), SimulatorFrontend::compareState(), DefaultDecoderGenerator::completeDecoderBlock(), ADFCombiner::connectPorts(), ProGe::RV32MicroCodeGenerator::connectRF(), ADFCombiner::copyGuards(), RegisterCopyAdder::countAndAddConnectionRegisterCopiesToRR(), FUFactory::createEditPart(), IUFactory::createEditPart(), RFFactory::createEditPart(), FUGen::createMandatoryPorts(), FUGen::createOutputPipeline(), FUGen::createPortPipeline(), ADFCombiner::createPortsAndSockets(), FUGen::createShadowRegisters(), llvm::LLVMTCEBuilder::createTerminalRegister(), TTAProgram::CodeGenerator::createTerminalRegister(), deleteOtherPorts(), ProximFUDetailsCmd::Do(), AddFUImplementationCmd::Do(), llvm::LLVMTCEBuilder::emitMove(), llvm::LLVMTCEBuilder::emitSPInitialization(), UniversalFunctionUnit::ensureInputPorts(), InfoPortsCommand::execute(), ProgrammabilityValidator::findConnections(), MachineConnectivityCheck::findPossibleSourcePorts(), MachineConnectivityCheck::findReadPorts(), BasicBlockScheduler::findTriggerFromUnit(), ProgramOperation::findTriggerFromUnit(), MachineConnectivityCheck::findWritePorts(), TTAMachine::RegisterFile::firstReadPort(), TTAMachine::RegisterFile::firstWritePort(), FullyConnectedCheck::fix(), MachineConnectivityCheck::fromRfConnected(), HDBToHtml::fuArchToHtml(), CompiledSimCodeGenerator::fuOutputPorts(), TTAMachine::FUPort::FUPort(), DefaultDecoderGenerator::glockPortWidth(), DefaultDecoderGenerator::glockRequestWidth(), MachineConnectivityCheck::immBits(), OutputPSocketBroker::isAnyResourceAvailable(), TTAMachine::RegisterFile::isArchitectureEqual(), ExecutionPipelineResource::isAvailable(), MachineConnectivityCheck::isConnected(), MachineConnectivityCheck::isConnected(), DefaultICGenerator::isGcuPort(), ComponentImplementationSelector::iuImplementations(), TTAMachine::FUPort::loadStateWithoutReferences(), MachineAnalysis::MachineAnalysis(), AddFUFromHDBDialog::onAdd(), AddWatchDialog::onFUChoice(), FUGuardDialog::onFUChoice(), BlockImplementationDialog::onHDBSelection(), FUArchitectureDialog::onOK(), FUPortDialog::onOK(), IUPortDialog::onOK(), RFPortDialog::onOK(), SRPortDialog::onOK(), TTAMachine::FunctionUnit::operationPort(), TTAMachine::FunctionUnit::operationPortCount(), port(), UniversalFunctionUnit::portWithWidth(), MachineResourceManager::registerFileIndexReference(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), ComponentImplementationSelector::rfImplementations(), MachineResourceManager::rFPortOrFUIndexReference(), saveState(), TTAMachine::Port::setName(), TTAMachine::FUPort::setTriggering(), ExecutionPipelineBroker::setupResourceLinks(), InputFUBroker::setupResourceLinks(), IUBroker::setupResourceLinks(), OutputFUBroker::setupResourceLinks(), TTAMachine::ControlUnit::specialRegisterPort(), TTAMachine::ControlUnit::specialRegisterPortCount(), MachineConnectivityCheck::toRfConnected(), TTAMachine::FunctionUnit::triggerPort(), unsetMachine(), ProximPortWindow::update(), FUArchitectureDialog::update(), TTAMachine::RegisterFile::updateMaxReadsAndWrites(), FUDialog::updatePortList(), GCUDialog::updatePortList(), IUDialog::updatePortList(), RFDialog::updatePortList(), DefaultDecoderGenerator::writeControlRegisterMappings(), DefaultDecoderGenerator::writeFUCntrlSignals(), DefaultDecoderGenerator::writeRFCntrlSignals(), DefaultDecoderGenerator::writeRFSRAMDecodingProcess(), DefaultDecoderGenerator::writeRulesForDestinationControlSignals(), and DefaultDecoderGenerator::writeRulesForSourceControlSignals().

portNames()

Unit::NameSet TTAMachine::Unit::portNames ( const ObjectState *  state )

staticprivate

Creates a set of port names that exists in the given ObjectState tree.

Parameters

state

An ObjectState instance representing an unit.

Returns

Set of port names.

Exceptions

KeyNotFound

If the given ObjectState instance is invalid.

Definition at line 409 of file Unit.cc.

                                        {
    NameSet names;
    for (int i = 0; i < state->childCount(); i++) {
        ObjectState* child = state->child(i);
        names.insert(child->stringAttribute(Port::OSKEY_NAME));
    }

    return names;
}

References ObjectState::child(), ObjectState::childCount(), TTAMachine::Port::OSKEY_NAME, and ObjectState::stringAttribute().

Referenced by loadStateWithoutReferences().

Here is the call graph for this function:

removePort()

void TTAMachine::Unit::removePort ( Port &  port )

protectedvirtual

Removes the given port.

This method should only be called by Port destructor.

Parameters

port	Port to be removed.

Reimplemented in TTAMachine::ControlUnit.

Definition at line 235 of file Unit.cc.

                           {

    // sanity check to verify that this is called from Port's destructor
    // only
    assert(port.parentUnit() == NULL);
    bool removed = ContainerTools::removeValueIfExists(ports_, &port);
    assert(removed);
}

References assert, TTAMachine::Port::parentUnit(), port(), ports_, and ContainerTools::removeValueIfExists().

Referenced by TTAMachine::ControlUnit::removePort(), and TTAMachine::Port::~Port().

Here is the call graph for this function:

saveState()

ObjectState * TTAMachine::Unit::saveState ( ) const

virtual

Saves the state of the object to an ObjectState tree.

Returns

The newly created ObjectState tree.

Reimplemented from TTAMachine::Component.

Reimplemented in TTAMachine::BaseRegisterFile, TTAMachine::ControlUnit, TTAMachine::FunctionUnit, TTAMachine::ImmediateUnit, TTAMachine::NullRegisterFile, and TTAMachine::RegisterFile.

Definition at line 285 of file Unit.cc.

                      {

    ObjectState* state = Component::saveState();
    state->setName(OSNAME_UNIT);

    // add ports
    for (int i = 0; i < portCount(); i++) {
        Port* port = this->port(i);
        state->addChild(port->saveState());
    }

    return state;
}

References ObjectState::addChild(), OSNAME_UNIT, port(), portCount(), TTAMachine::Component::saveState(), TTAMachine::Port::saveState(), and ObjectState::setName().

Referenced by TTAMachine::BaseRegisterFile::saveState(), and TTAMachine::FunctionUnit::saveState().

Here is the call graph for this function:

setMachine()

void TTAMachine::Unit::setMachine ( Machine &  mach )

virtual

Registers the unit to a machine.

Parameters

mach	Machine to which the unit is to be registered.

Exceptions

ComponentAlreadyExists

If there is another unit by the same name and type in the machine.

Implements TTAMachine::Component.

Reimplemented in TTAMachine::ControlUnit, and TTAMachine::NullRegisterFile.

Definition at line 253 of file Unit.cc.

                              {
    internalSetMachine(mach);
    mach.addUnit(*this);
}

References TTAMachine::Machine::addUnit(), and TTAMachine::Component::internalSetMachine().

Referenced by AddFUCmd::Do(), AddIUCmd::Do(), and AddRFCmd::Do().

Here is the call graph for this function:

unsetMachine()

void TTAMachine::Unit::unsetMachine ( )

virtual

Removes registration of the unit from its current machine.

Implements TTAMachine::Component.

Reimplemented in TTAMachine::ControlUnit, TTAMachine::FunctionUnit, TTAMachine::ImmediateUnit, TTAMachine::NullRegisterFile, and TTAMachine::RegisterFile.

Definition at line 262 of file Unit.cc.

                   {

    if (machine() == NULL) {
        return;
    }

    internalUnsetMachine();

    // detach all ports from sockets
    int ports = portCount();
    for (int i = 0; i < ports; i++) {
        Port* unitPort = port(i);
        unitPort->detachAllSockets();
    }
}

References TTAMachine::Port::detachAllSockets(), TTAMachine::Component::internalUnsetMachine(), TTAMachine::Component::machine(), port(), and portCount().

Referenced by TTAMachine::FunctionUnit::unsetMachineDerived().

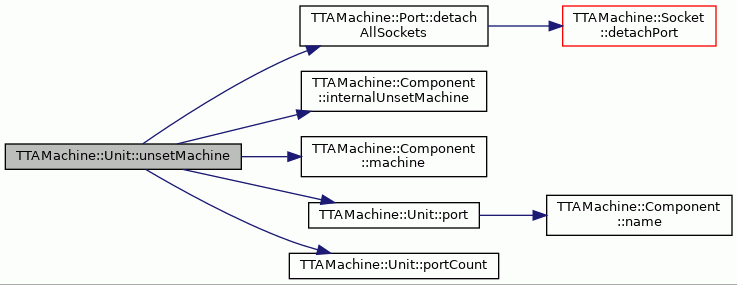

Here is the call graph for this function:

Friends And Related Symbol Documentation

Port

friend class Port

friend

Definition at line 99 of file Unit.hh.

Member Data Documentation

OSNAME_UNIT

const string TTAMachine::Unit::OSNAME_UNIT = "unit"

static

ObjectState name for Unit.

Definition at line 70 of file Unit.hh.

Referenced by saveState().

ports_

PortTable TTAMachine::Unit::ports_

private

Contains all the ports of the unit.

Definition at line 96 of file Unit.hh.

Referenced by addPort(), bidirPortCount(), deleteAllPorts(), hasPort(), inputPortCount(), outputPortCount(), port(), port(), portCount(), and removePort().

---

The documentation for this class was generated from the following files:

• Unit.hh
• Unit.cc
