BasicBlockPass Class Reference

#include <BasicBlockPass.hh>

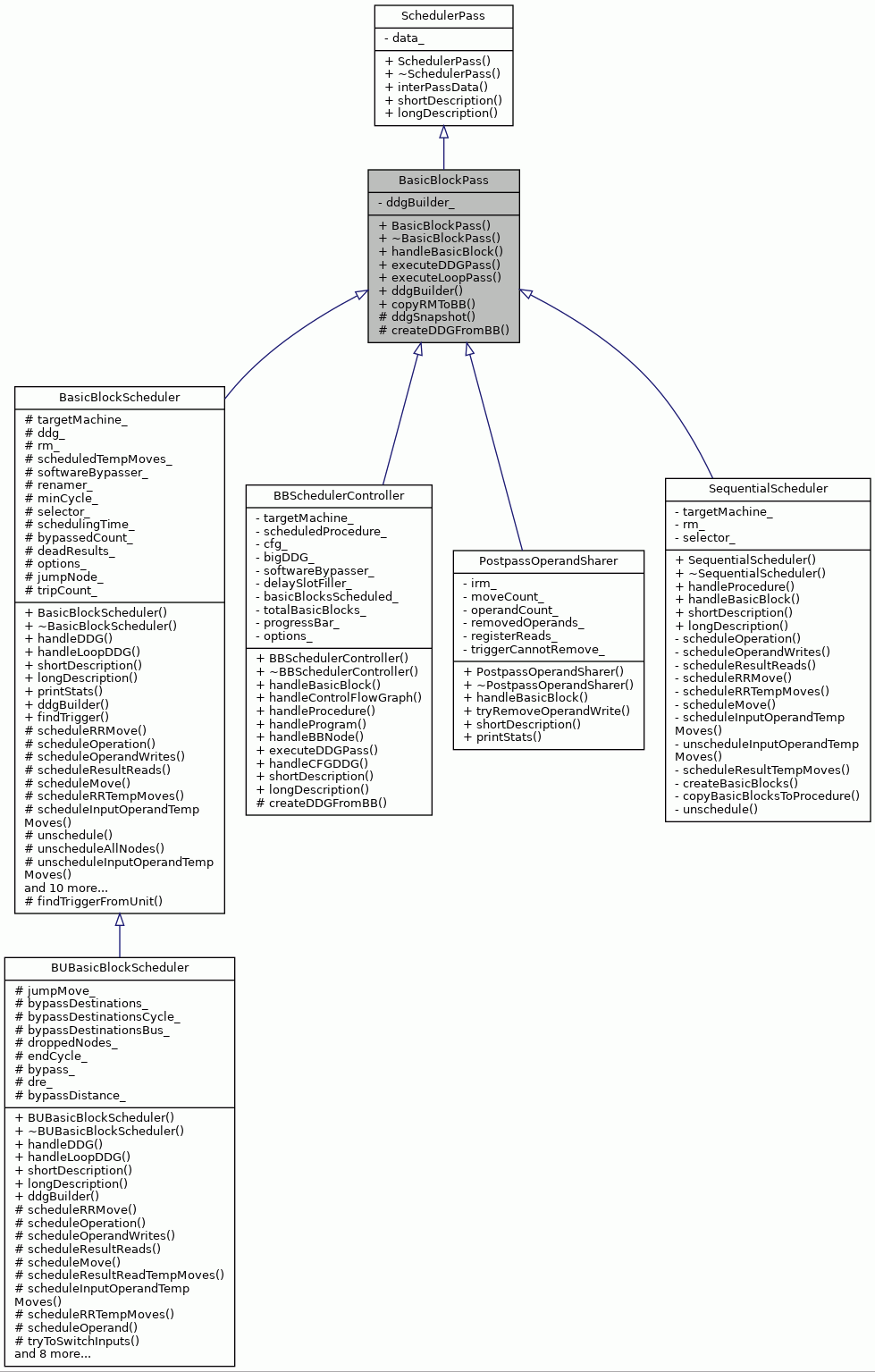

Inheritance diagram for BasicBlockPass:
Inheritance graph

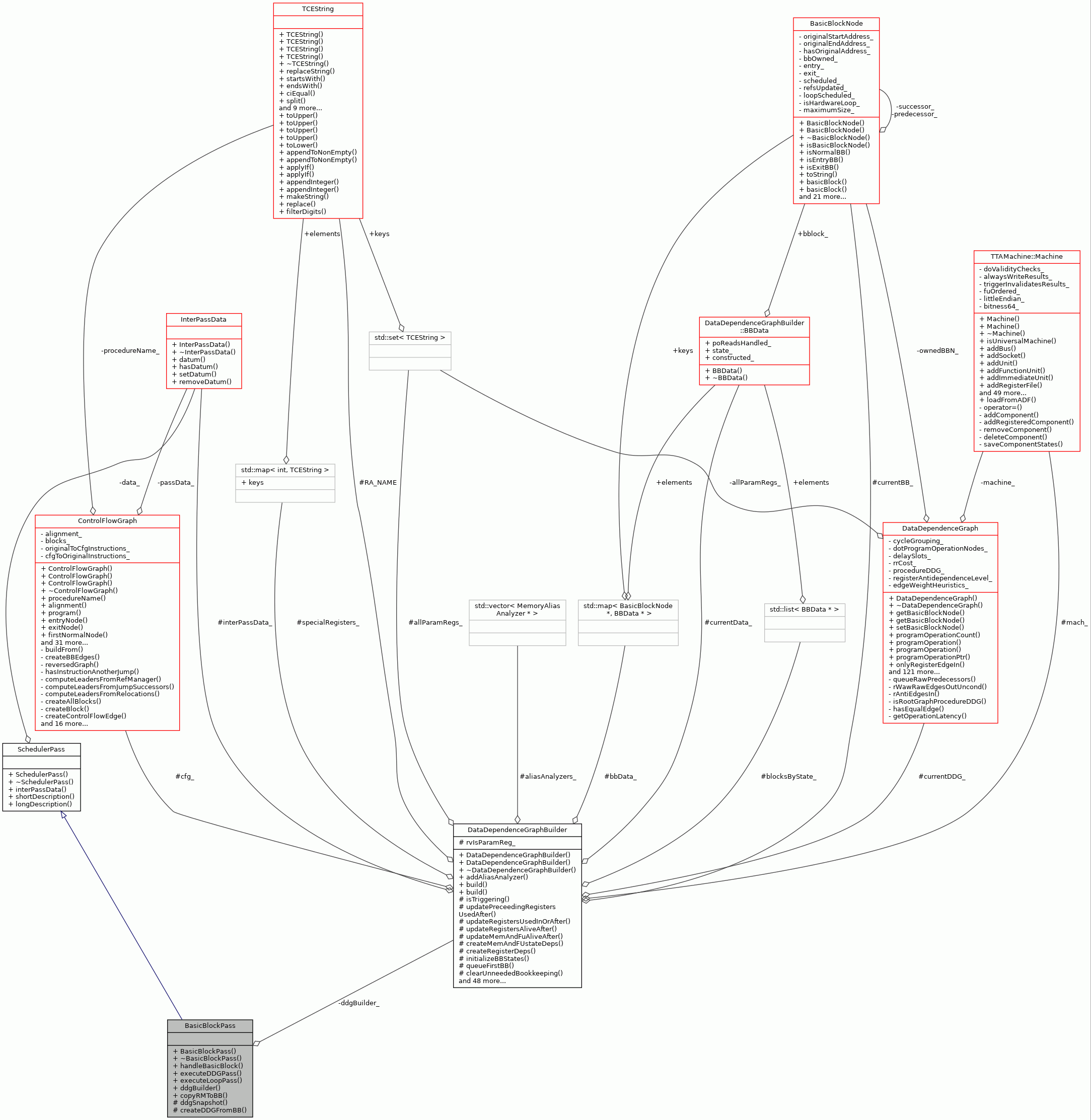

Collaboration diagram for BasicBlockPass:
Collaboration graph

Public Member Functions

 BasicBlockPass (InterPassData &data)

virtual ~BasicBlockPass ()

virtual void handleBasicBlock (TTAProgram::BasicBlock &basicBlock, const TTAMachine::Machine &targetMachine, TTAProgram::InstructionReferenceManager &irm, BasicBlockNode *bbn=NULL)

virtual void executeDDGPass (TTAProgram::BasicBlock &bb, const TTAMachine::Machine &targetMachine, TTAProgram::InstructionReferenceManager &irm, std::vector< DDGPass * > ddgPasses, BasicBlockNode *bbn=NULL)

virtual bool executeLoopPass (TTAProgram::BasicBlock &bb, const TTAMachine::Machine &targetMachine, TTAProgram::InstructionReferenceManager &irm, std::vector< DDGPass * > ddgPasses, BasicBlockNode *bbn=NULL)

virtual DataDependenceGraphBuilderddgBuilder ()

- Public Member Functions inherited from SchedulerPass
 SchedulerPass (InterPassData &data)

virtual ~SchedulerPass ()

InterPassDatainterPassData ()

virtual std::string shortDescription () const =0

virtual std::string longDescription () const


Static Public Member Functions

static void copyRMToBB (SimpleResourceManager &rm, TTAProgram::BasicBlock &bb, const TTAMachine::Machine &targetMachine, TTAProgram::InstructionReferenceManager &irm, int lastCycle=-1)


Protected Member Functions

void ddgSnapshot (DataDependenceGraph *ddg, std::string &name, DataDependenceGraph::DumpFileFormat format, bool final)

virtual DataDependenceGraphcreateDDGFromBB (TTAProgram::BasicBlock &bb, const TTAMachine::Machine &mach)


Private Attributes

DataDependenceGraphBuilder ddgBuilder_


Detailed Description

Interface for scheduler passes that handle basic blocks.

Definition at line 60 of file BasicBlockPass.hh.

Constructor & Destructor Documentation

◆ BasicBlockPass()

BasicBlockPass::BasicBlockPass ( InterPassData data)

Constructor.

Definition at line 51 of file BasicBlockPass.cc.

51 :
52 SchedulerPass(data), ddgBuilder_(data) {
53}
DataDependenceGraphBuilder ddgBuilder_

◆ ~BasicBlockPass()

BasicBlockPass::~BasicBlockPass ( )
virtual

Destructor.

Definition at line 58 of file BasicBlockPass.cc.

58 {
59}

Member Function Documentation

◆ copyRMToBB()

void BasicBlockPass::copyRMToBB ( SimpleResourceManager rm,
TTAProgram::BasicBlock bb,
const TTAMachine::Machine targetMachine,
TTAProgram::InstructionReferenceManager irm,
int  lastCycle = -1
)
static

Copies moves back from resourcemanager to basicblock, putting them to correct instructions based in their cycle, and adding the final delay slots.

Parameters
rmthe resourcemanager
bbthe basicblock
targetMachinemachine we are scheduling for.
irmIRM to keep book of the instruction references.
lastCyclethe last instruction cycle of BB to copy.
Returns
number of cycles/instructions copied.

Definition at line 213 of file BasicBlockPass.cc.

216 {
217
218 // find the largest cycle any of a pipelines is still used
219 if (lastCycle == -1) {
220 const int rmLastCycle = rm.largestCycle();
221 lastCycle = rmLastCycle;
222 }
223
224 // only first ins of bb may have incoming references
225 for (int i = 1; i < bb.instructionCount(); i++) {
226 if (irm.hasReference(bb.instructionAtIndex(i))) {
227 std::cerr << "non-first has ref:, index: " << i <<
228 " bb size: " << bb.instructionCount() << std::endl;
229 }
231 }
232
233 TTAProgram::Instruction refHolder;
234 if (bb.instructionCount() && irm.hasReference(bb.instructionAtIndex(0))) {
235 irm.replace(bb.instructionAtIndex(0), refHolder);
236 }
237
238 int moveCount = 0;
239
240 // update the BB with the new instructions
241 bb.clear();
242
243 int index = rm.smallestCycle();
244 if (rm.initiationInterval() > 0 && rm.initiationInterval() != INT_MAX) {
245 lastCycle = rm.initiationInterval() -1;
246 index = 0;
247 }
248
249 for (; index <= lastCycle; ++index) {
250 TTAProgram::Instruction* newInstruction = rm.instruction(index);
251 if (newInstruction->hasControlFlowMove()) {
252 // Add delay slots of the last control flow instruction
253 // to loop end count. There can be multiple control
254 // flow instructions in a basic block in case thread yield
255 // emitter is enabled and it has inserted one or more
256 // calls to thread_yield().
257
258 // only this this when not modulo-scheduling.
259 if (rm.initiationInterval() < 1 ||
260 rm.initiationInterval() == INT_MAX) {
261 lastCycle =
262 std::max(
263 lastCycle,
264 index + targetMachine.controlUnit()->delaySlots());
265// assert(lastCycle >= rmLastCycle);
266 }
267 }
268
269 moveCount += newInstruction->moveCount();
270 bb.add(newInstruction);
271#if 0
273 << newInstruction->instructionTemplate().name() << ": "
274 << newInstruction->toString() << std::endl;
275#endif
276 rm.loseInstructionOwnership(index);
277 }
278
279 if (irm.hasReference(refHolder)) {
280 irm.replace(refHolder, bb.firstInstruction());
281 }
282
283 const int instructionCount = lastCycle + 1 - rm.smallestCycle();
284 if (Application::verboseLevel() > 1 && bb.isInInnerLoop()) {
285 const int busCount = targetMachine.busNavigator().count();
286 const int moveSlotCount = busCount * instructionCount;
288 << "BB -- inner loop with trip count: " << bb.tripCount()
289 << std::endl
290 << "BB -- instruction count: " << instructionCount << std::endl;
292 << "BB -- move slots used: " << moveCount << " of "
293 << moveSlotCount << " (" << (float)moveCount * 100 / moveSlotCount
294 << "%)" << std::endl;
295 }
296
297 return;
298}
#define assert(condition)
static int verboseLevel()
static std::ostream & logStream()
virtual int smallestCycle() const override
virtual unsigned initiationInterval() const
virtual TTAProgram::Instruction * instruction(int cycle) const override
virtual void loseInstructionOwnership(int cycle)
virtual int largestCycle() const override
virtual TCEString name() const
virtual BusNavigator busNavigator() const
Definition Machine.cc:356
virtual ControlUnit * controlUnit() const
Definition Machine.cc:345
virtual void clear()
bool isInInnerLoop() const
returns true in case the BB is known to be inside an inner loop
unsigned tripCount() const
in case the BB is inside a loop and trip count is known, returns it, otherwise returns 0
virtual Instruction & firstInstruction() const
virtual void add(Instruction *ins)
virtual int instructionCount() const
virtual Instruction & instructionAtIndex(int index) const
void replace(Instruction &insA, Instruction &insB)
std::string toString() const
bool hasControlFlowMove() const
const TTAMachine::InstructionTemplate & instructionTemplate() const

References TTAProgram::CodeSnippet::add(), assert, TTAMachine::Machine::busNavigator(), TTAProgram::BasicBlock::clear(), TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::ControlUnit::delaySlots(), TTAProgram::CodeSnippet::firstInstruction(), TTAProgram::Instruction::hasControlFlowMove(), TTAProgram::InstructionReferenceManager::hasReference(), SimpleResourceManager::initiationInterval(), SimpleResourceManager::instruction(), TTAProgram::CodeSnippet::instructionAtIndex(), TTAProgram::CodeSnippet::instructionCount(), TTAProgram::Instruction::instructionTemplate(), TTAProgram::BasicBlock::isInInnerLoop(), SimpleResourceManager::largestCycle(), Application::logStream(), SimpleResourceManager::loseInstructionOwnership(), TTAProgram::Instruction::moveCount(), TTAMachine::Component::name(), TTAProgram::InstructionReferenceManager::replace(), SimpleResourceManager::smallestCycle(), TTAProgram::Instruction::toString(), TTAProgram::BasicBlock::tripCount(), and Application::verboseLevel().

Referenced by LoopPrologAndEpilogBuilder::addPrologFromRM(), executeDDGPass(), BBSchedulerController::executeDDGPass(), and SequentialScheduler::handleBasicBlock().

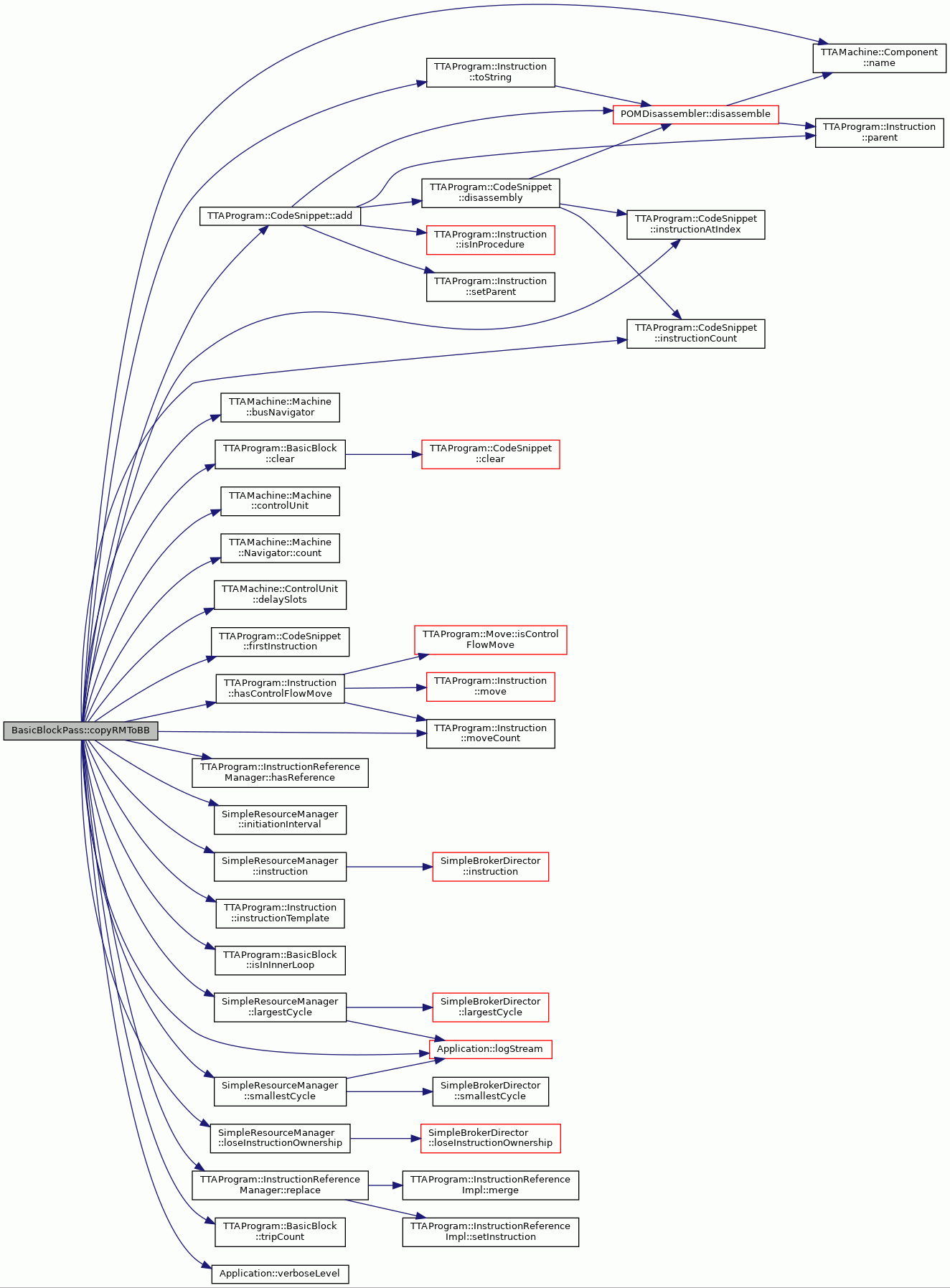

Here is the call graph for this function:

◆ createDDGFromBB()

DataDependenceGraph * BasicBlockPass::createDDGFromBB ( TTAProgram::BasicBlock bb,
const TTAMachine::Machine mach
)
protectedvirtual

Reimplemented in BBSchedulerController.

Definition at line 302 of file BasicBlockPass.cc.

303 {
304 return ddgBuilder().build(
305 bb, DataDependenceGraph::INTRA_BB_ANTIDEPS, mach, "unknown_bb");
306}
virtual DataDependenceGraphBuilder & ddgBuilder()
virtual DataDependenceGraph * build(ControlFlowGraph &cGraph, DataDependenceGraph::AntidependenceLevel antidependenceLevel, const TTAMachine::Machine &mach, const UniversalMachine *um=NULL, bool createMemAndFUDeps=true, bool createDeathInformation=true, llvm::AliasAnalysis *AA=NULL)

References DataDependenceGraphBuilder::build(), ddgBuilder(), and DataDependenceGraph::INTRA_BB_ANTIDEPS.

Referenced by executeDDGPass().

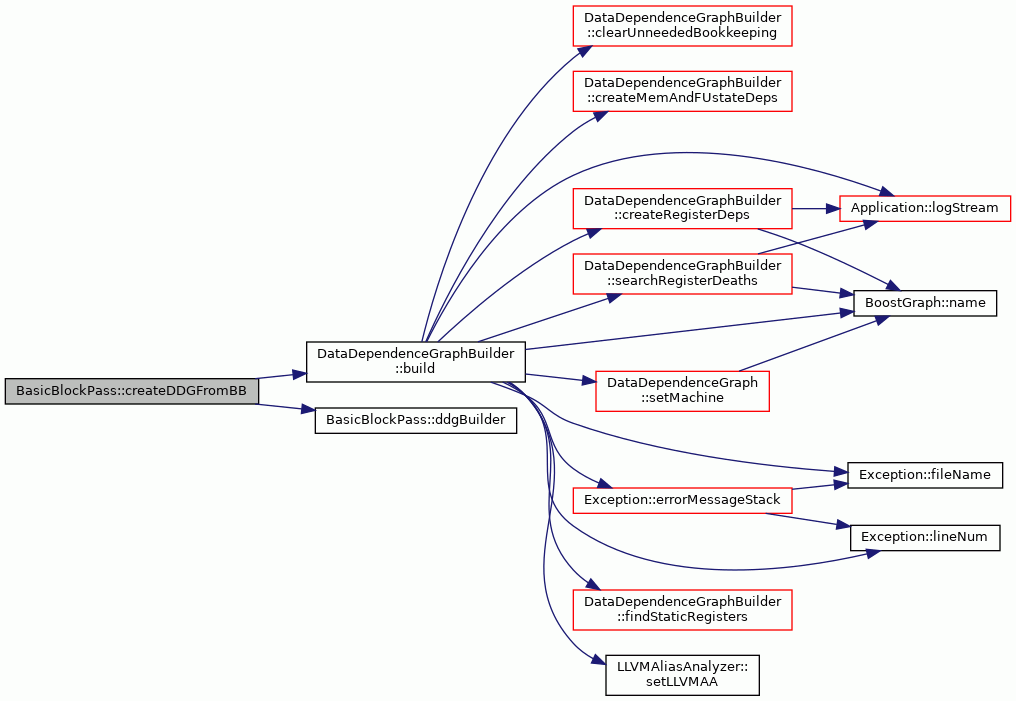

Here is the call graph for this function:

◆ ddgBuilder()

virtual DataDependenceGraphBuilder & BasicBlockPass::ddgBuilder ( )
inlinevirtual

◆ ddgSnapshot()

void BasicBlockPass::ddgSnapshot ( DataDependenceGraph ddg,
std::string &  name,
DataDependenceGraph::DumpFileFormat  format,
bool  final
)
protected

Prints DDG to a dot file before and after scheudling

Parameters
ddgto print
nameoperation name for ddg
finalspecify if ddg is after scheduling
formatformat of the file
Returns
number of cycles/instructions copied.

Definition at line 172 of file BasicBlockPass.cc.

176 {
177 static int bbCounter = 0;
178
179 if (final) {
180 if (format == DataDependenceGraph::DUMP_DOT) {
181 ddg->writeToDotFile(
182 (boost::format("bb_%.4d_1_after_%2%.dot") % bbCounter % name).str());
183 } else {
184 ddg->writeToXMLFile(
185 (boost::format("bb_%.4d_1_after_%2%.xml") % bbCounter % name).str());
186 }
187 ++bbCounter;
188 } else {
189 if (format == DataDependenceGraph::DUMP_DOT) {
190 ddg->writeToDotFile(
191 (boost::format("bb_%.4d_0_before_%2%.dot") % bbCounter % name).str());
192 } else {
193 ddg->writeToXMLFile(
194 (boost::format("bb_%.4d_0_before_%2%.xml") % bbCounter % name).str());
195 }
196 Application::logStream() << "\nBB " << bbCounter << std::endl;
197 }
198}
void writeToXMLFile(std::string fileName) const
virtual void writeToDotFile(const TCEString &fileName) const

References DataDependenceGraph::DUMP_DOT, Application::logStream(), GraphBase< GraphNode, GraphEdge >::writeToDotFile(), and DataDependenceGraph::writeToXMLFile().

Referenced by executeDDGPass(), and BBSchedulerController::executeDDGPass().

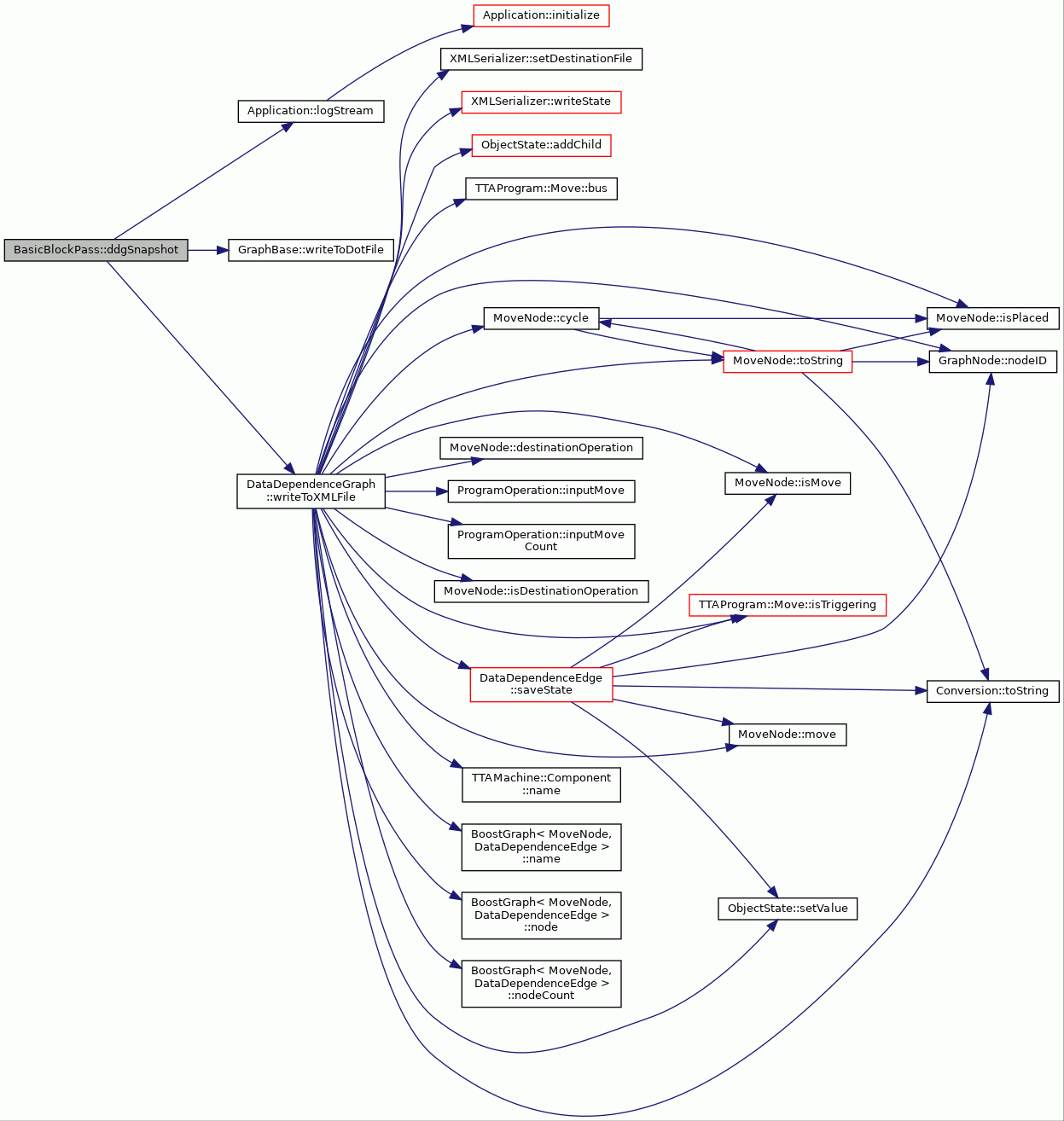

Here is the call graph for this function:

◆ executeDDGPass()

void BasicBlockPass::executeDDGPass ( TTAProgram::BasicBlock bb,
const TTAMachine::Machine targetMachine,
TTAProgram::InstructionReferenceManager irm,
std::vector< DDGPass * >  ddgPasses,
BasicBlockNode bbn = NULL
)
virtual

Creates a DDG from the given basic block and executes a DDG pass for that.

Reimplemented in BBSchedulerController.

Definition at line 101 of file BasicBlockPass.cc.

104 {
105 std::cerr << "Calling bbpass::executedgpass." << std::endl;
106
107 DataDependenceGraph* ddg = createDDGFromBB(bb, targetMachine);
108
109 // Used for live info dumping.
110 static int bbNumber = 0;
111
112#ifdef DDG_SNAPSHOTS
113 std::string name = "scheduling";
114 ddgSnapshot(ddg, name, false);
115#endif
116
118 ddgPasses[0]->handleDDG(*ddg, *rm, targetMachine);
119
120#ifdef DDG_SNAPSHOTS
121 std::string name = "scheduling";
122 ddgSnapshot(ddg, name, true);
123#endif
124
125 copyRMToBB(*rm, bb, targetMachine, irm);
126
127 // Print the live range count for each cycle for the sched_yield emitting
128 // paper.
129 if (Application::verboseLevel() > 1 ||
130 getenv("TCE_DUMP_LIVE_INFO") != NULL) {
131 for (int index = 0; index < bb.instructionCount(); ++index) {
132 if (bb.liveRangeData_ != NULL) {
134 << "liveinfo:" << bbNumber << ":" << index + rm->smallestCycle() << ":"
136 rm->smallestCycle()+index, targetMachine.controlUnit()->delaySlots(), *ddg).
137 size()
138 << std::endl;
139 }
140 }
141 bbNumber++;
142 }
143
144 delete ddg;
146}
static void copyRMToBB(SimpleResourceManager &rm, TTAProgram::BasicBlock &bb, const TTAMachine::Machine &targetMachine, TTAProgram::InstructionReferenceManager &irm, int lastCycle=-1)
virtual DataDependenceGraph * createDDGFromBB(TTAProgram::BasicBlock &bb, const TTAMachine::Machine &mach)
void ddgSnapshot(DataDependenceGraph *ddg, std::string &name, DataDependenceGraph::DumpFileFormat format, bool final)
static void disposeRM(SimpleResourceManager *rm, bool allowReuse=true)
static SimpleResourceManager * createRM(const TTAMachine::Machine &machine, unsigned int ii=0)
LiveRangeData * liveRangeData_
std::set< TCEString > registersAlive(int cycle, int delaySlots, class DataDependenceGraph &ddg)

References TTAMachine::Machine::controlUnit(), copyRMToBB(), createDDGFromBB(), SimpleResourceManager::createRM(), ddgSnapshot(), TTAMachine::ControlUnit::delaySlots(), SimpleResourceManager::disposeRM(), TTAProgram::CodeSnippet::instructionCount(), TTAProgram::BasicBlock::liveRangeData_, Application::logStream(), LiveRangeData::registersAlive(), SimpleResourceManager::smallestCycle(), and Application::verboseLevel().

Referenced by handleBasicBlock().

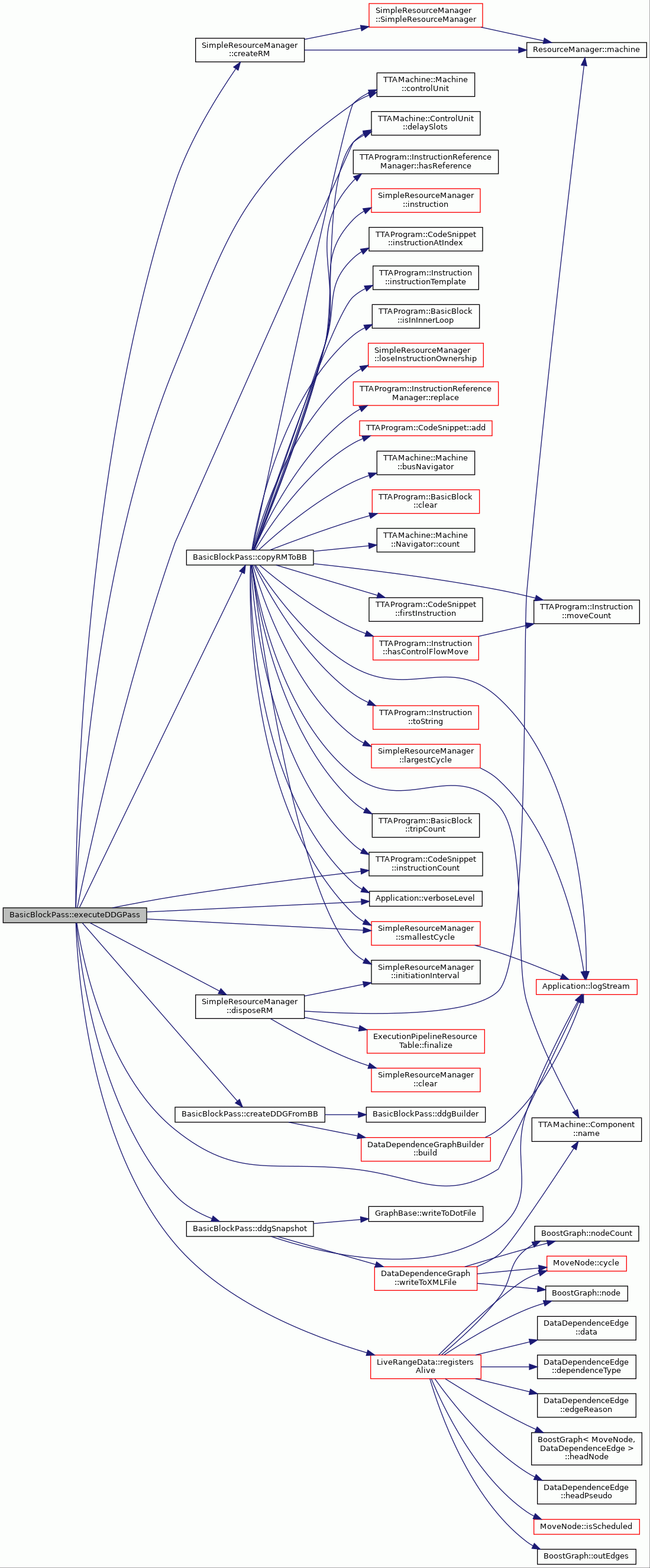

Here is the call graph for this function:

◆ executeLoopPass()

bool BasicBlockPass::executeLoopPass ( TTAProgram::BasicBlock bb,
const TTAMachine::Machine targetMachine,
TTAProgram::InstructionReferenceManager irm,
std::vector< DDGPass * >  ddgPasses,
BasicBlockNode bbn = NULL
)
virtual

Creates a DDG from the given basic block and executes a Loop pass for that.

Definition at line 152 of file BasicBlockPass.cc.

155 {
156 // not implemented
157 assert(0 && "should not be here?");
158 return false;
159}

References assert.

Referenced by BBSchedulerController::handleBasicBlock().

◆ handleBasicBlock()

void BasicBlockPass::handleBasicBlock ( TTAProgram::BasicBlock basicBlock,
const TTAMachine::Machine targetMachine,
TTAProgram::InstructionReferenceManager irm,
BasicBlockNode bbn = NULL
)
virtual

Handles a single basic block.

Modifies the given basic block, so if the old one is to be preserved, client should copy the original. Does not restore the BB even though handling was not successful.

Todo:
: Why both BB and BBN as arguments? If BBN is needed then I think BB argument can be replaced with a BBN one. We always should have it anyways.
Parameters
basicBlockThe basic block to handle.
machineThe target machine if any. (NullMachine::instance() if target machine is irrelevant).
Exceptions
Incase handling is unsuccesful for any reason (basicBlock might still get modified).

Reimplemented in PostpassOperandSharer, SequentialScheduler, and BBSchedulerController.

Definition at line 79 of file BasicBlockPass.cc.

82 {
83 if (basicBlock.instructionCount() == 0)
84 return;
85
86 DDGPass* ddgPass = dynamic_cast<DDGPass*>(this);
87 std::vector<DDGPass*> ddgPasses;
88 ddgPasses.push_back(ddgPass);
89 if (ddgPass != NULL) {
90 executeDDGPass(basicBlock, targetMachine, irm, ddgPasses, bbn);
91 } else {
92 abortWithError("basic block pass is not also a ddg pass so you "
93 "must overload handleBasicBlock method!");
94 }
95}
#define abortWithError(message)
virtual void executeDDGPass(TTAProgram::BasicBlock &bb, const TTAMachine::Machine &targetMachine, TTAProgram::InstructionReferenceManager &irm, std::vector< DDGPass * > ddgPasses, BasicBlockNode *bbn=NULL)

References abortWithError, executeDDGPass(), and TTAProgram::CodeSnippet::instructionCount().

Referenced by ControlFlowGraphPass::executeBasicBlockPass().

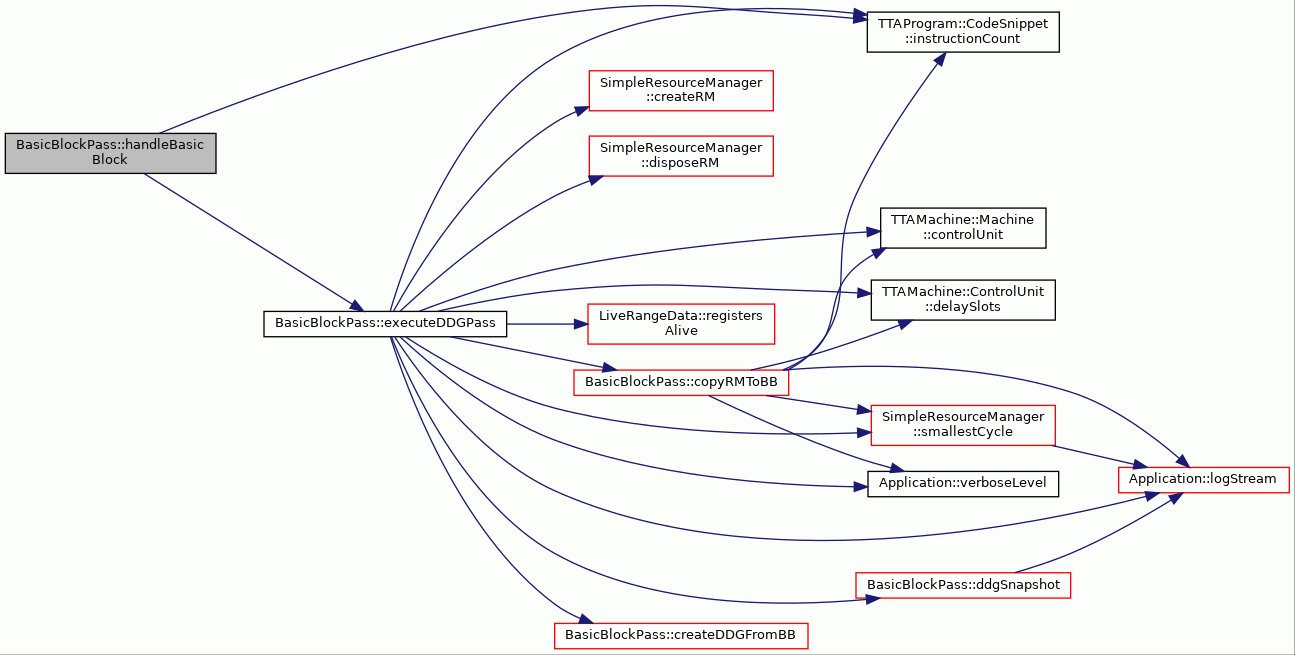

Here is the call graph for this function:

Member Data Documentation

◆ ddgBuilder_

DataDependenceGraphBuilder BasicBlockPass::ddgBuilder_
private

Definition at line 100 of file BasicBlockPass.hh.

Referenced by ddgBuilder().


The documentation for this class was generated from the following files:
