TTAMachine::Connection Class Reference

#include <Connection.hh>

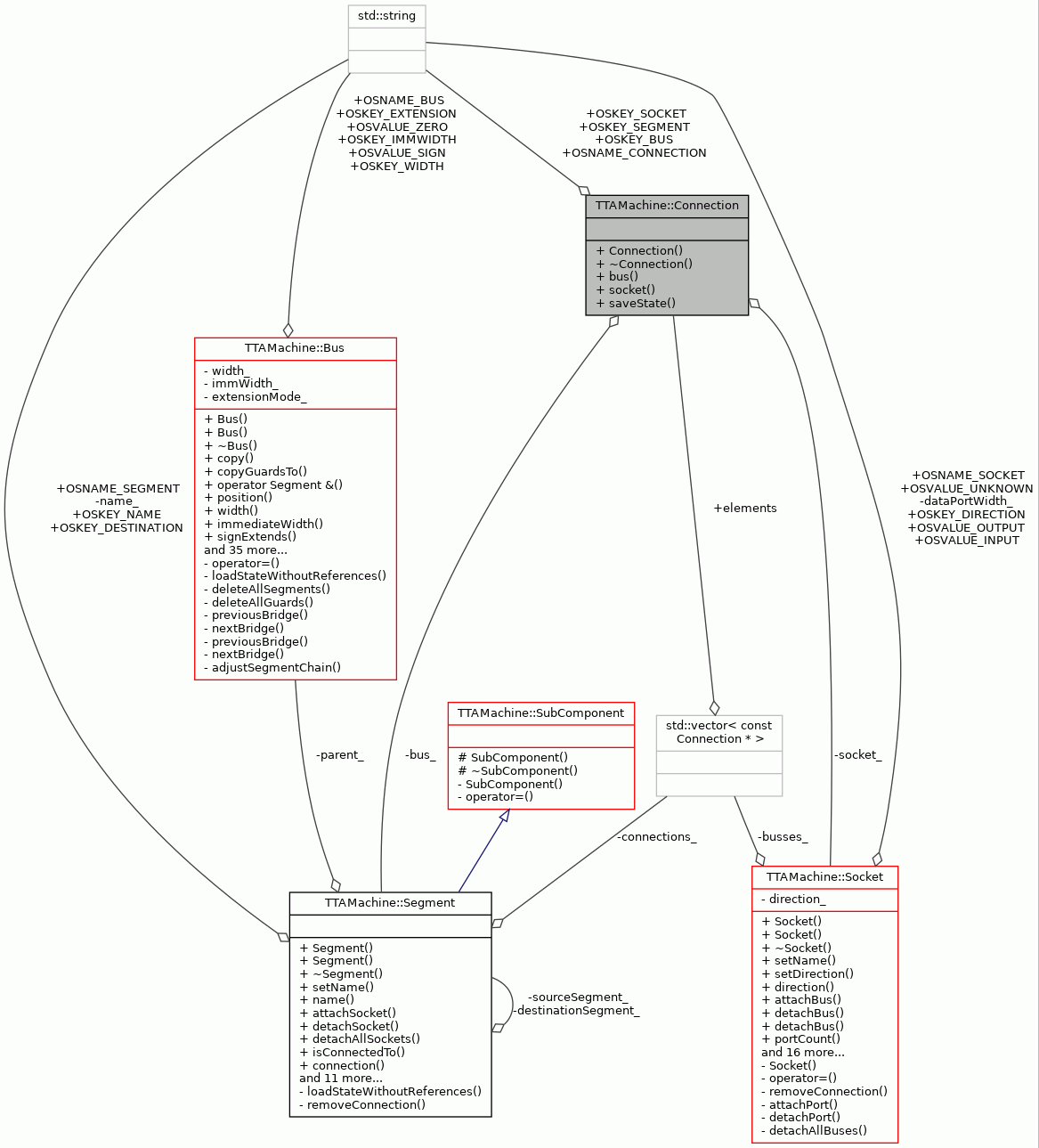

Collaboration diagram for TTAMachine::Connection:

Public Member Functions
	Connection (Socket &socket, Segment &bus)
	~Connection ()
Segment *	bus () const
Socket *	socket () const
ObjectState *	saveState () const

Static Public Attributes
static const std::string	OSNAME_CONNECTION = "connection"
	ObjectState name for Connection.
static const std::string	OSKEY_SOCKET = "socket"
	ObjectState attribute key for socket name.
static const std::string	OSKEY_BUS = "bus"
	ObjectState attribute key for bus name.
static const std::string	OSKEY_SEGMENT = "segment"
	ObjectState attribute key for segment name.

Private Attributes
Socket *	socket_
	Socket which is connected to the bus.
Segment *	bus_
	Bus which is connected to the socket.

Detailed Description

Joins Bus and Socket objects if they are connected in the machine.

Definition at line 48 of file Connection.hh.

Constructor & Destructor Documentation

Connection()

TTAMachine::Connection::Connection	(	Socket &	socket,
		Segment &	bus
	)

Constructor.

Parameters

socket	Socket which is connected to the given segment.
bus	Segment of a bus which is connected to the socket.

Definition at line 58 of file Connection.cc.

                                                   :
    socket_(&socket), bus_(&bus) {
}

~Connection()

TTAMachine::Connection::~Connection

(

)

Destructor.

 If Connection object still joins a socket and a segment, they are detached before destructing the Connection object.

Definition at line 68 of file Connection.cc.

                        {
    if (socket_->isConnectedTo(*bus_)) {
        assert(bus_->isConnectedTo(*socket_)); // sanity check
        socket_->detachBus(*bus_); // or bus_->detachSocket(socket_)
    } else {
        // this is for when destructor is called by a detach methods
        assert(!bus_->isConnectedTo(*socket_));
    }
}

References assert, bus_, TTAMachine::Socket::detachBus(), TTAMachine::Socket::isConnectedTo(), TTAMachine::Segment::isConnectedTo(), and socket_.

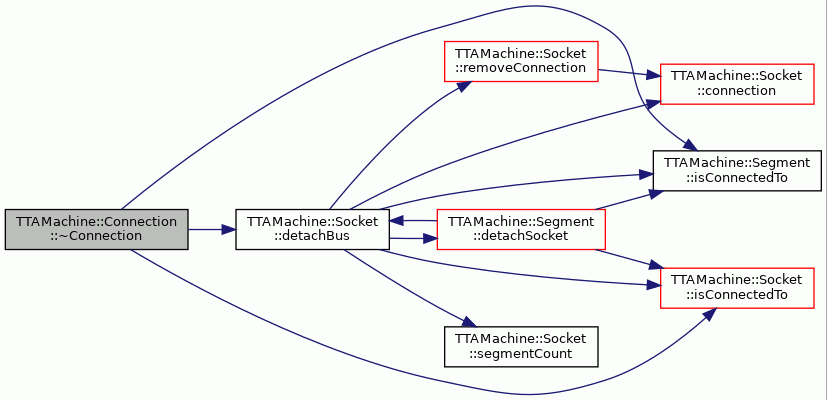

Here is the call graph for this function:

Member Function Documentation

bus()

Segment * TTAMachine::Connection::bus

(

)

const

Referenced by ConnectionSweeper::removeConnection(), and saveState().

saveState()

ObjectState * TTAMachine::Connection::saveState

(

)

const

Saves its state to an ObjectState instance.

Returns

The newly created ObjectState instance.

Definition at line 85 of file Connection.cc.

                            {
    ObjectState* state = new ObjectState(OSNAME_CONNECTION);
    state->setAttribute(OSKEY_SOCKET, socket()->name());
    state->setAttribute(OSKEY_BUS, bus()->parentBus()->name());
    state->setAttribute(OSKEY_SEGMENT, bus()->name());
    return state;
}

References bus(), OSKEY_BUS, OSKEY_SEGMENT, OSKEY_SOCKET, OSNAME_CONNECTION, ObjectState::setAttribute(), and socket().

Referenced by TTAMachine::Socket::saveState().

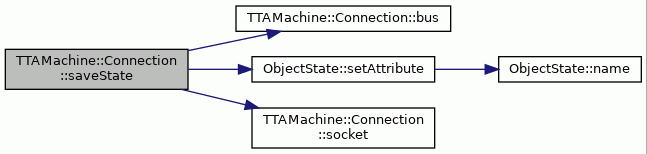

Here is the call graph for this function:

socket()

Socket * TTAMachine::Connection::socket

(

)

const

Referenced by ConnectionSweeper::removeConnection(), saveState(), ConnectionSweeper::sweepBypasses(), and ConnectionSweeper::sweepRFs().

Member Data Documentation

bus_

Segment* TTAMachine::Connection::bus_

private

Bus which is connected to the socket.

Definition at line 70 of file Connection.hh.

Referenced by ~Connection().

OSKEY_BUS

const string TTAMachine::Connection::OSKEY_BUS = "bus"

static

ObjectState attribute key for bus name.

Definition at line 62 of file Connection.hh.

Referenced by TTAMachine::Socket::loadState(), saveState(), ADFSerializer::socketToMachine(), and ADFSerializer::socketToMDF().

OSKEY_SEGMENT

const string TTAMachine::Connection::OSKEY_SEGMENT = "segment"

static

ObjectState attribute key for segment name.

Definition at line 64 of file Connection.hh.

Referenced by TTAMachine::Socket::loadState(), saveState(), ADFSerializer::socketToMachine(), and ADFSerializer::socketToMDF().

OSKEY_SOCKET

const string TTAMachine::Connection::OSKEY_SOCKET = "socket"

static

ObjectState attribute key for socket name.

Definition at line 60 of file Connection.hh.

Referenced by saveState(), and ADFSerializer::socketToMachine().

OSNAME_CONNECTION

const string TTAMachine::Connection::OSNAME_CONNECTION = "connection"

static

ObjectState name for Connection.

Definition at line 58 of file Connection.hh.

Referenced by TTAMachine::Socket::loadState(), saveState(), and ADFSerializer::socketToMachine().

socket_

Socket* TTAMachine::Connection::socket_

private

Socket which is connected to the bus.

Definition at line 68 of file Connection.hh.

Referenced by ~Connection().

---

The documentation for this class was generated from the following files:

• Connection.hh
• Connection.cc
