TTAUnitTesterCmdLineOptions Class Reference

#include <TTAUnitTesterCmdLineOptions.hh>

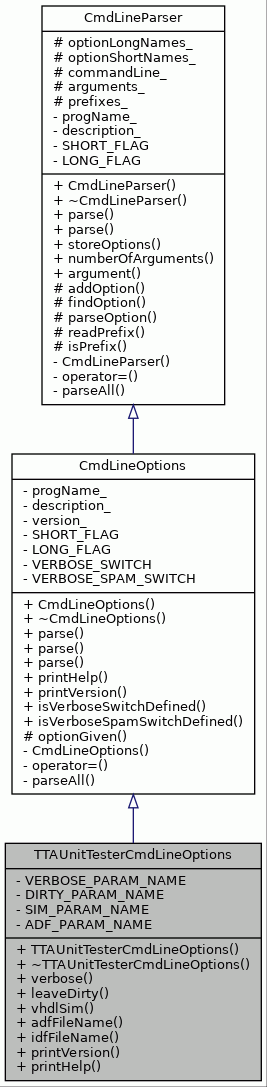

Inheritance diagram for TTAUnitTesterCmdLineOptions:

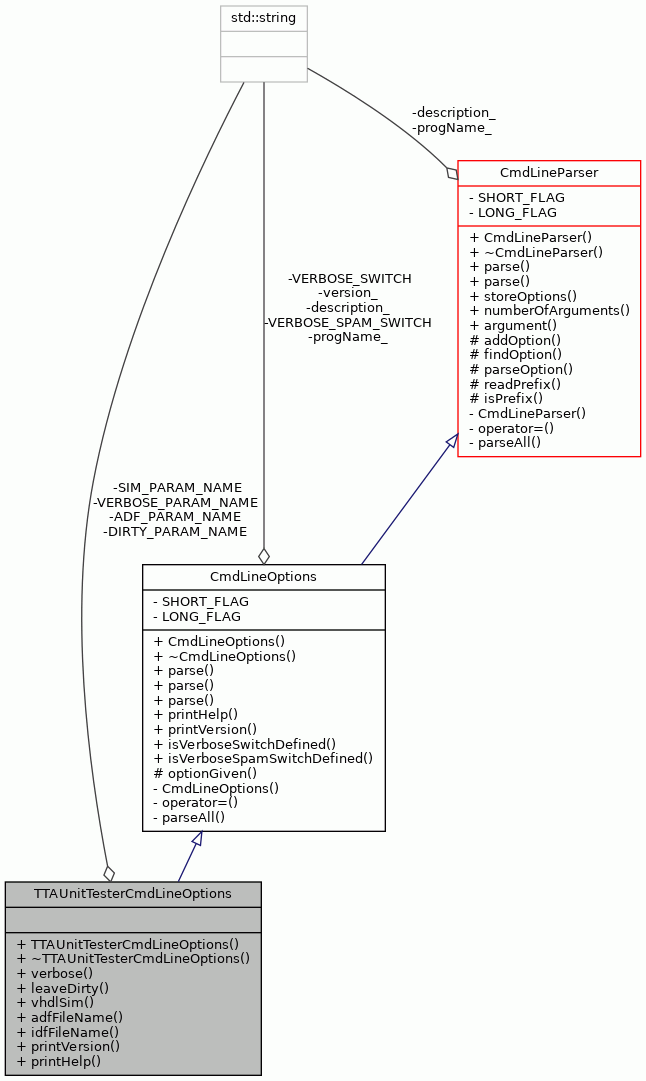

Collaboration diagram for TTAUnitTesterCmdLineOptions:

Public Member Functions
	TTAUnitTesterCmdLineOptions ()
	~TTAUnitTesterCmdLineOptions ()
bool	verbose () const
bool	leaveDirty () const
std::string	vhdlSim () const
std::string	adfFileName () const
std::string	idfFileName () const
void	printVersion () const
void	printHelp () const
Public Member Functions inherited from CmdLineOptions
	CmdLineOptions (std::string description, std::string version="")
virtual	~CmdLineOptions ()
void	parse (char *argv[], int argc)
void	parse (std::string argv[], int argc)
void	parse (std::vector< std::string > argv)
virtual bool	isVerboseSwitchDefined () const
virtual bool	isVerboseSpamSwitchDefined () const
Public Member Functions inherited from CmdLineParser
	CmdLineParser (std::string description)
virtual	~CmdLineParser ()
virtual void	storeOptions (Options &options)
virtual int	numberOfArguments () const
virtual std::string	argument (int index) const

Static Private Attributes
static const std::string	VERBOSE_PARAM_NAME = "verbose"
	Long name of verbose output parameter.
static const std::string	DIRTY_PARAM_NAME
	Long name of leave dirty parameter.
static const std::string	SIM_PARAM_NAME = "simulator"
	Long name of VHDL simulator parameter.
static const std::string	ADF_PARAM_NAME = "adf"
	Long name of ADF file parameter.

Additional Inherited Members
Protected Member Functions inherited from CmdLineOptions
bool	optionGiven (std::string key) const
Protected Member Functions inherited from CmdLineParser
void	addOption (CmdLineOptionParser *opt)
CmdLineOptionParser *	findOption (std::string name) const
bool	parseOption (std::string option, std::string &name, std::string &arguments, std::string &prefix, bool &hasArgument) const
bool	readPrefix (std::string &option, std::string &prefix, bool &longOption) const
bool	isPrefix (std::string name) const
Protected Attributes inherited from CmdLineParser
std::map< std::string, CmdLineOptionParser * >	optionLongNames_
	Database for holding options with their long names as a key.
std::map< std::string, CmdLineOptionParser * >	optionShortNames_
	Database for holding options with their short names as a key.
std::vector< std::string >	commandLine_
	Command line is stored here.
std::vector< std::string >	arguments_
	Command line arguments are stored here.
std::vector< std::string >	prefixes_
	Legal prefixes are stored here.

Detailed Description

Definition at line 39 of file TTAUnitTesterCmdLineOptions.hh.

Constructor & Destructor Documentation

TTAUnitTesterCmdLineOptions()

TTAUnitTesterCmdLineOptions::TTAUnitTesterCmdLineOptions

(

)

Definition at line 44 of file TTAUnitTesterCmdLineOptions.cc.

                                                        :
    CmdLineOptions("") {

    BoolCmdLineOptionParser* verbose =
        new BoolCmdLineOptionParser(
            VERBOSE_PARAM_NAME, "Enable verbose output", "v");
    addOption(verbose);
    BoolCmdLineOptionParser* dirty =
        new BoolCmdLineOptionParser(
            DIRTY_PARAM_NAME, "Don't delete created files", "d");
    addOption(dirty);
    StringCmdLineOptionParser* simulator =
        new StringCmdLineOptionParser(
            SIM_PARAM_NAME, "HDL simulator used to simulate testbench. "
            "Accepted values are 'ghdl' and 'modelsim'. Default is ghdl",
            "s");
    addOption(simulator);
    StringCmdLineOptionParser* adfFile =
        new StringCmdLineOptionParser(
            ADF_PARAM_NAME, "If ADF file is given IDF will be validated",
            "a");
    addOption(adfFile);

}

References CmdLineParser::addOption(), ADF_PARAM_NAME, DIRTY_PARAM_NAME, SIM_PARAM_NAME, verbose(), and VERBOSE_PARAM_NAME.

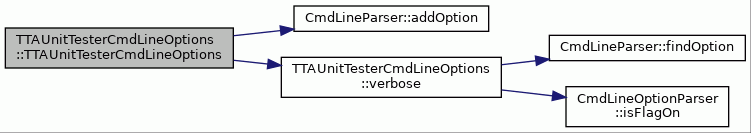

Here is the call graph for this function:

~TTAUnitTesterCmdLineOptions()

TTAUnitTesterCmdLineOptions::~TTAUnitTesterCmdLineOptions

(

)

Definition at line 69 of file TTAUnitTesterCmdLineOptions.cc.

                                                          {
}

Member Function Documentation

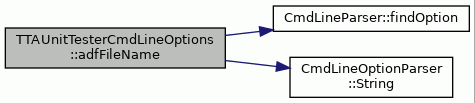

adfFileName()

std::string TTAUnitTesterCmdLineOptions::adfFileName

(

)

const

Definition at line 95 of file TTAUnitTesterCmdLineOptions.cc.

                                               {
    CmdLineOptionParser* option = findOption(ADF_PARAM_NAME);
    return option->String();
}

References ADF_PARAM_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::String().

Here is the call graph for this function:

idfFileName()

std::string TTAUnitTesterCmdLineOptions::idfFileName

(

)

const

Definition at line 102 of file TTAUnitTesterCmdLineOptions.cc.

                                               {
     return argument(numberOfArguments());
}

References CmdLineParser::argument(), and CmdLineParser::numberOfArguments().

Here is the call graph for this function:

leaveDirty()

bool TTAUnitTesterCmdLineOptions::leaveDirty

(

)

const

Definition at line 81 of file TTAUnitTesterCmdLineOptions.cc.

                                              {
    CmdLineOptionParser* option = findOption(DIRTY_PARAM_NAME);
    return option->isFlagOn();
}

References DIRTY_PARAM_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Here is the call graph for this function:

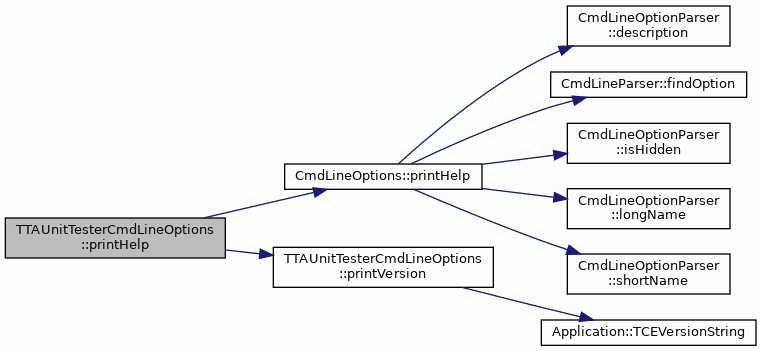

printHelp()

void TTAUnitTesterCmdLineOptions::printHelp ( ) const

virtual

Prints the help menu of the program.

Reimplemented from CmdLineOptions.

Definition at line 114 of file TTAUnitTesterCmdLineOptions.cc.

                                             {
    printVersion();
    std::cout << "Usage: ttaunittester <options> IDF-file" << std::endl;
    CmdLineOptions::printHelp();
}

References CmdLineOptions::printHelp(), and printVersion().

Here is the call graph for this function:

printVersion()

void TTAUnitTesterCmdLineOptions::printVersion ( ) const

virtual

Implements CmdLineOptions.

Definition at line 107 of file TTAUnitTesterCmdLineOptions.cc.

                                                {
    std::cout << "ttaunittester "
              << Application::TCEVersionString() << std::endl;
}

References Application::TCEVersionString().

Referenced by printHelp().

Here is the call graph for this function:

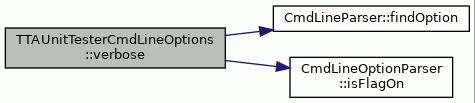

verbose()

bool TTAUnitTesterCmdLineOptions::verbose

(

)

const

Definition at line 74 of file TTAUnitTesterCmdLineOptions.cc.

                                           {
    CmdLineOptionParser* option = findOption(VERBOSE_PARAM_NAME);
    return option->isFlagOn();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and VERBOSE_PARAM_NAME.

Referenced by TTAUnitTesterCmdLineOptions().

Here is the call graph for this function:

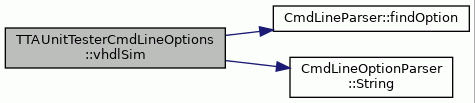

vhdlSim()

std::string TTAUnitTesterCmdLineOptions::vhdlSim

(

)

const

Definition at line 88 of file TTAUnitTesterCmdLineOptions.cc.

                                           {
    CmdLineOptionParser* option = findOption(SIM_PARAM_NAME);
    return option->String();
}

References CmdLineParser::findOption(), SIM_PARAM_NAME, and CmdLineOptionParser::String().

Here is the call graph for this function:

Member Data Documentation

ADF_PARAM_NAME

const std::string TTAUnitTesterCmdLineOptions::ADF_PARAM_NAME = "adf"

staticprivate

Long name of ADF file parameter.

Definition at line 66 of file TTAUnitTesterCmdLineOptions.hh.

Referenced by adfFileName(), and TTAUnitTesterCmdLineOptions().

DIRTY_PARAM_NAME

const std::string TTAUnitTesterCmdLineOptions::DIRTY_PARAM_NAME

staticprivate

Initial value:

=
    "leave-dirty"

Long name of leave dirty parameter.

Definition at line 62 of file TTAUnitTesterCmdLineOptions.hh.

Referenced by leaveDirty(), and TTAUnitTesterCmdLineOptions().

SIM_PARAM_NAME

const std::string TTAUnitTesterCmdLineOptions::SIM_PARAM_NAME = "simulator"

staticprivate

Long name of VHDL simulator parameter.

Definition at line 64 of file TTAUnitTesterCmdLineOptions.hh.

Referenced by TTAUnitTesterCmdLineOptions(), and vhdlSim().

VERBOSE_PARAM_NAME

const std::string TTAUnitTesterCmdLineOptions::VERBOSE_PARAM_NAME = "verbose"

staticprivate

Long name of verbose output parameter.

Definition at line 60 of file TTAUnitTesterCmdLineOptions.hh.

Referenced by TTAUnitTesterCmdLineOptions(), and verbose().

---

The documentation for this class was generated from the following files:

• TTAUnitTesterCmdLineOptions.hh
• TTAUnitTesterCmdLineOptions.cc
