llvm::TCETargetLowering Class Reference

#include <TCEISelLowering.hh>

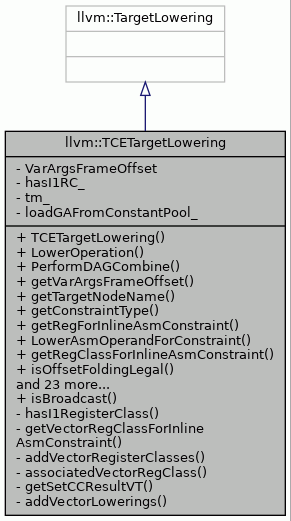

Inheritance diagram for llvm::TCETargetLowering:

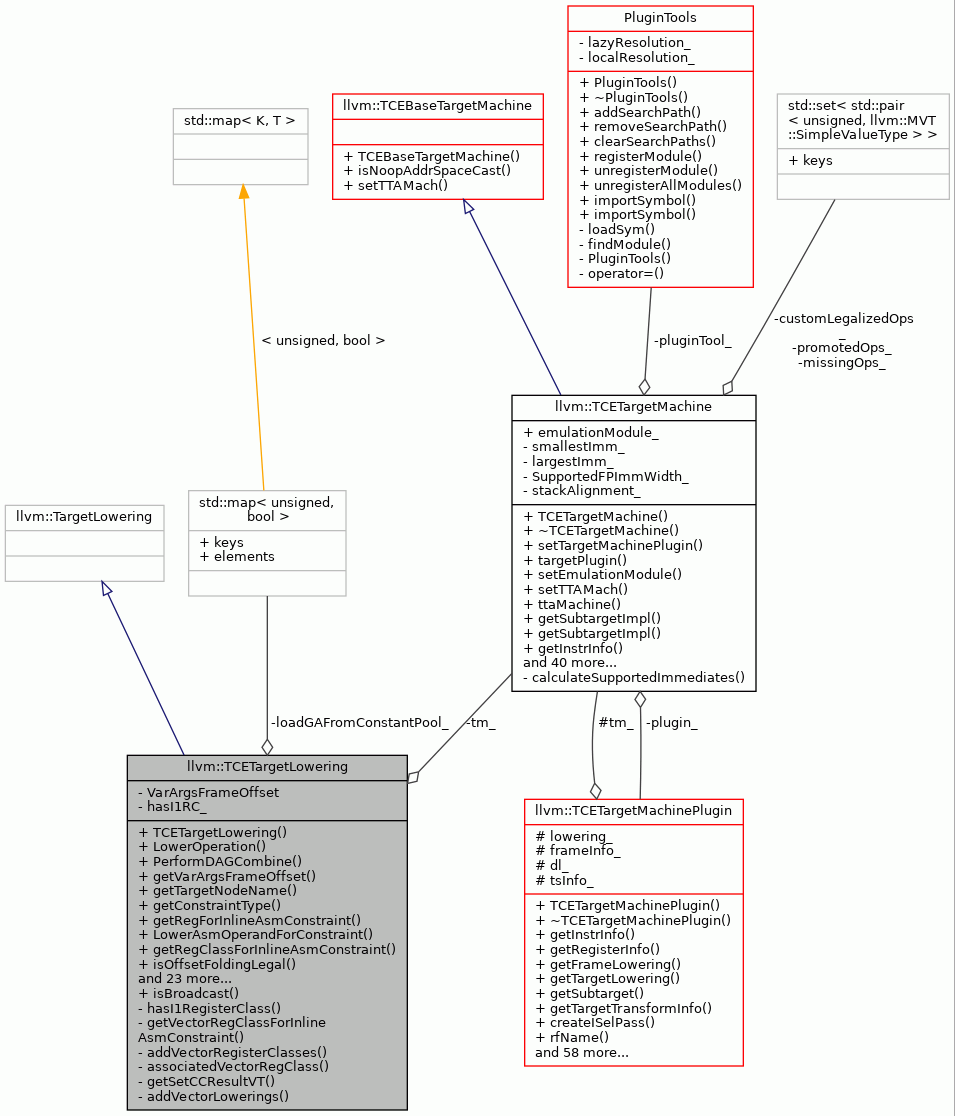

Collaboration diagram for llvm::TCETargetLowering:

Public Member Functions
	TCETargetLowering (TargetMachine &TM, const TCESubtarget &subt)

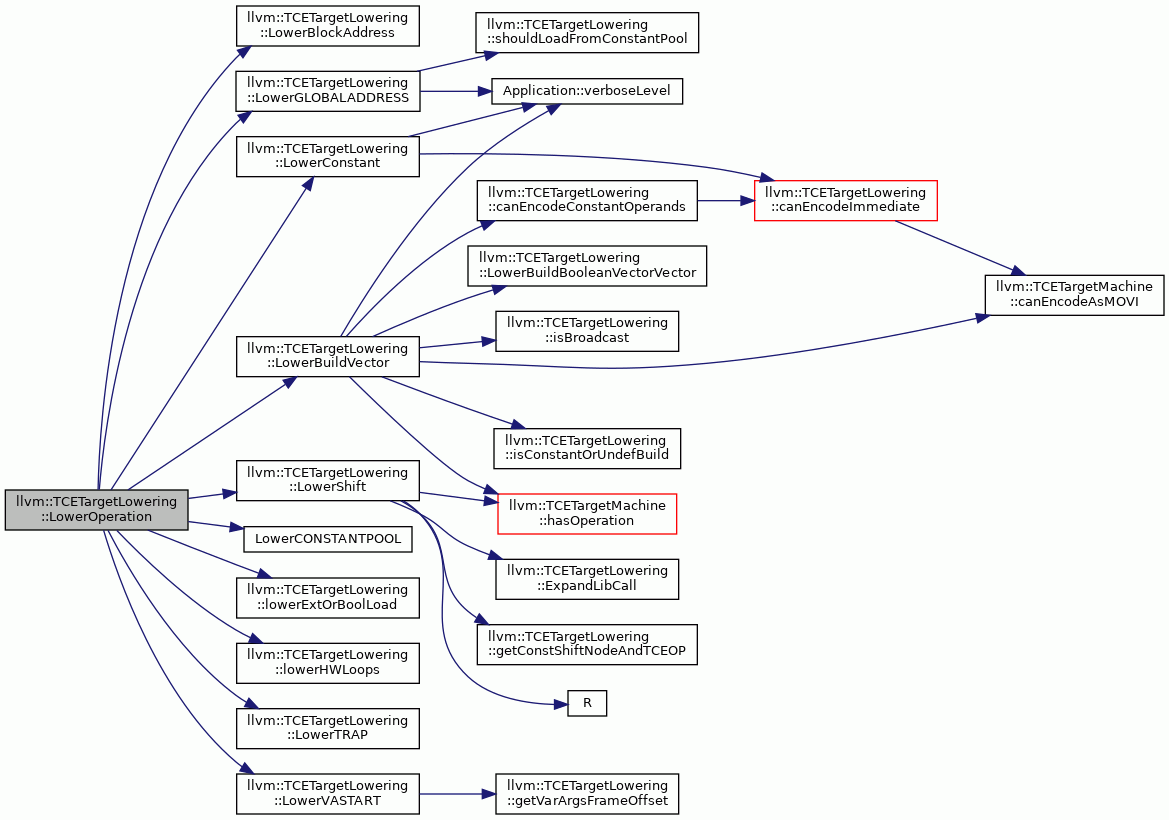

virtual SDValue	LowerOperation (SDValue Op, SelectionDAG &DAG) const override
virtual SDValue	PerformDAGCombine (SDNode *N, DAGCombinerInfo &DCI) const override
int	getVarArgsFrameOffset () const
virtual const char *	getTargetNodeName (unsigned opcode) const override
ConstraintType	getConstraintType (StringRef Constraint) const override
	getConstraintType - Given a constraint letter, return the type of constraint it is for this target.

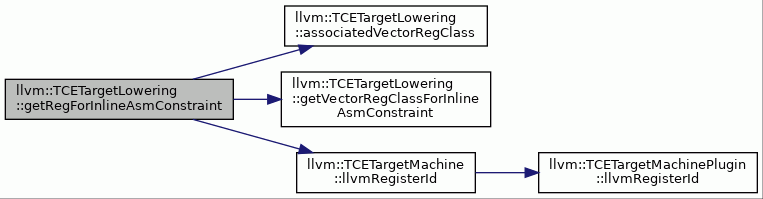

std::pair< unsigned, const TargetRegisterClass * >	getRegForInlineAsmConstraint (const TargetRegisterInfo *TRI, StringRef Constraint, MVT VT) const override

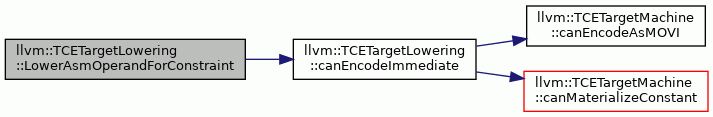

void	LowerAsmOperandForConstraint (SDValue Op, std::string &Constraint, std::vector< SDValue > &Ops, SelectionDAG &DAG) const override
std::vector< unsigned >	getRegClassForInlineAsmConstraint (const std::string &Constraint, EVT VT) const
virtual bool	isOffsetFoldingLegal (const GlobalAddressSDNode *GA) const override
virtual SDValue	LowerFormalArguments (SDValue Chain, CallingConv::ID CallConv, bool isVarArg, const SmallVectorImpl< ISD::InputArg > &Ins, SDLOC_PARAM_TYPE dl, SelectionDAG &DAG, SmallVectorImpl< SDValue > &InVals) const override
	getFunctionAlignment - Return the Log2 alignment of this function.
SDValue	LowerTRAP (SDValue Op, SelectionDAG &DAG) const
SDValue	LowerVASTART (SDValue Op, SelectionDAG &DAG) const
SDValue	LowerBlockAddress (SDValue Op, SelectionDAG &DAG) const

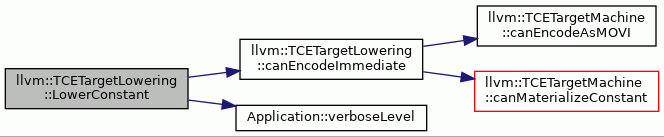

SDValue	LowerConstant (SDValue Op, SelectionDAG &DAG) const

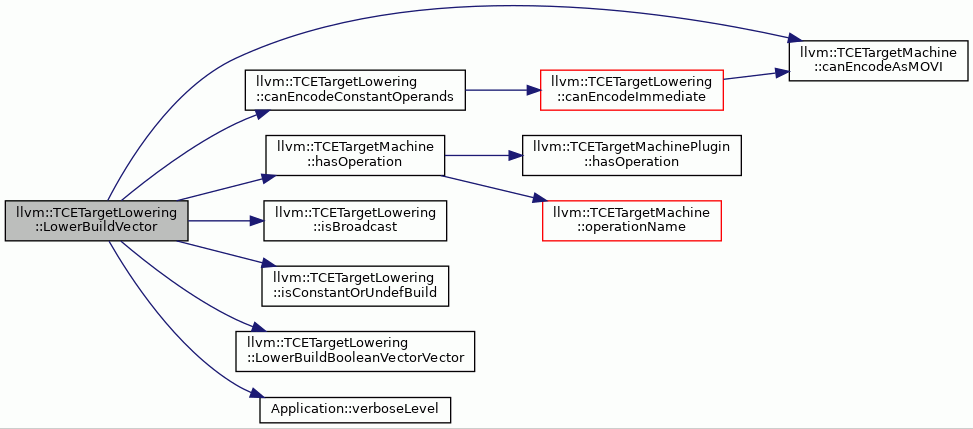

SDValue	LowerBuildVector (SDValue Op, SelectionDAG &DAG) const
SDValue	LowerINLINEASM (SDValue Op, SelectionDAG &DAG) const

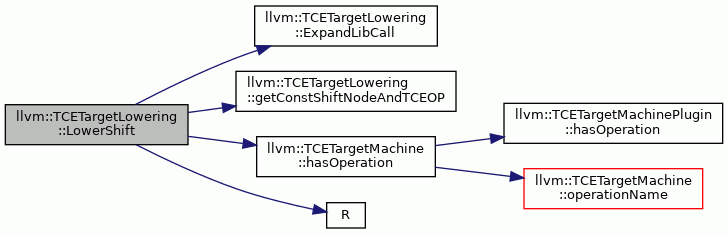

SDValue	LowerShift (SDValue op, SelectionDAG &dag) const
SDValue	LowerBuildBooleanVectorVector (SDValue Op, MVT newElementVT, int elemCount, SelectionDAG &DAG) const
SDValue	lowerHWLoops (SDValue op, SelectionDAG &dag) const
SDValue	lowerFABS (SDValue op, SelectionDAG &dag) const
SDValue	lowerExtOrBoolLoad (SDValue op, SelectionDAG &DAG) const
std::pair< int, TCEString >	getConstShiftNodeAndTCEOP (SDValue op) const
virtual SDValue	LowerCall (TargetLowering::CallLoweringInfo &CLI, SmallVectorImpl< SDValue > &InVals) const override
virtual SDValue	LowerReturn (SDValue Chain, CallingConv::ID CallConv, bool isVarArg, const SmallVectorImpl< ISD::OutputArg > &Outs, const SmallVectorImpl< SDValue > &OutVals, SDLOC_PARAM_TYPE dl, SelectionDAG &DAG) const override
bool	isConstantOrUndefBuild (const SDNode &node) const

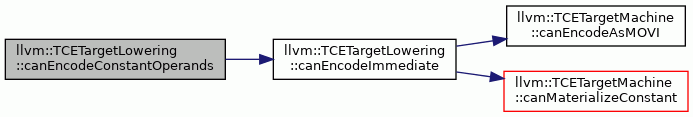

bool	canEncodeConstantOperands (const SDNode &node) const

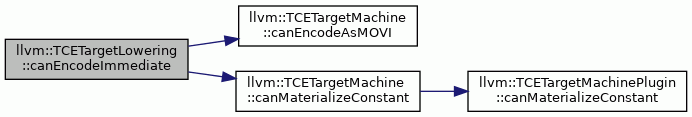

bool	canEncodeImmediate (const ConstantSDNode &node) const
bool	shouldLoadFromConstantPool (unsigned addressSpace) const

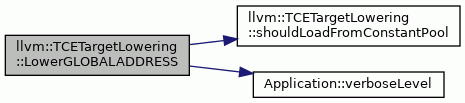

SDValue	LowerGLOBALADDRESS (SDValue Op, SelectionDAG &DAG) const
llvm::EVT	getSetCCResultType (const DataLayout &DL, LLVMContext &Context, EVT VT) const override
virtual bool	isFPImmLegal (const APFloat &apf, EVT VT, bool forCodeSize) const override
SDValue	ExpandLibCall (RTLIB::Libcall LC, SDNode *Node, bool isSigned, SelectionDAG &DAG) const
void	ReplaceNodeResults (SDNode *node, SmallVectorImpl< SDValue > &, SelectionDAG &) const override

Static Public Member Functions
static bool	isBroadcast (SDNode *n)

Private Member Functions
bool	hasI1RegisterClass () const
const TargetRegisterClass *	getVectorRegClassForInlineAsmConstraint (const TargetRegisterInfo *TRI, MVT VT) const
void	addVectorRegisterClasses ()
	Implementation generated to Backend.inc from TDGenSIMD.cc.
std::pair< unsigned, const TargetRegisterClass * >	associatedVectorRegClass (const EVT &vt) const
	Implementation generated to Backend.inc from TDGenSIMD.cc.
virtual llvm::EVT	getSetCCResultVT (const EVT &VT) const
	Implementation generated to Backend.inc from TDGenSIMD.cc.
void	addVectorLowerings ()
	Implementation generated to Backend.inc from TDGenSIMD.cc.

Private Attributes
int	VarArgsFrameOffset
bool	hasI1RC_ = false
	Tells if the target machine has boolean register file.
TCETargetMachine &	tm_
std::map< unsigned, bool >	loadGAFromConstantPool_
	Predicates to tell whenever the addresses belonging to a address space should be loaded from constant pool instead of immediates. Address space as index maps to the predicate.

Detailed Description

Lowers LLVM code to SelectionDAG for the TCE backend.

Definition at line 83 of file TCEISelLowering.hh.

Constructor & Destructor Documentation

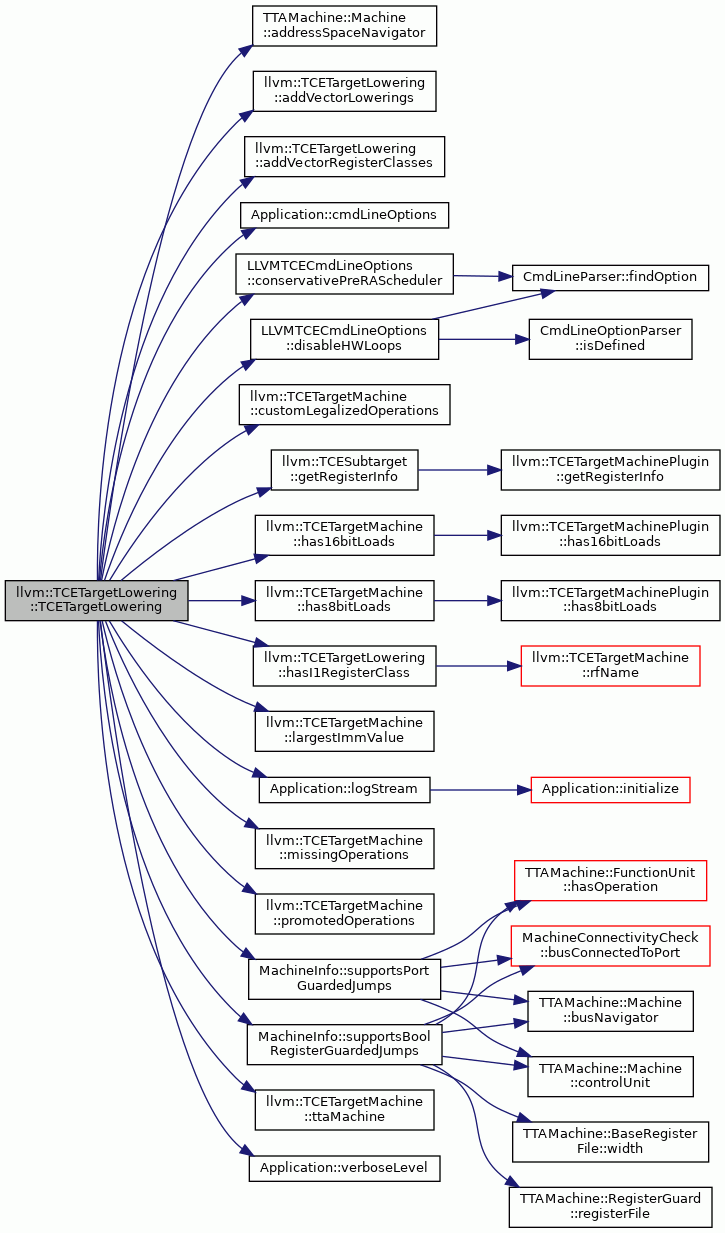

TCETargetLowering()

TCETargetLowering::TCETargetLowering	(	TargetMachine &	TM,
		const TCESubtarget &	subt
	)

The Constructor.

Initializes the target lowering.

Definition at line 532 of file TCEISelLowering.cc.

    : TargetLowering(TM), tm_(static_cast<TCETargetMachine &>(TM)) {
    LLVMTCECmdLineOptions* opts = dynamic_cast<LLVMTCECmdLineOptions*>(
        Application::cmdLineOptions());

    if (opts != NULL && opts->conservativePreRAScheduler()) {
        setSchedulingPreference(llvm::Sched::RegPressure);
    }

    hasI1RC_ = hasI1RegisterClass();
    if (hasI1RC_)
        addRegisterClass(MVT::i1, &TCE::R1RegsRegClass);

#ifdef TARGET64BIT
    addRegisterClass(MVT::i64, &TCE::R64IRegsRegClass);
    addRegisterClass(MVT::f64, &TCE::R64DFPRegsRegClass);
#else
    addRegisterClass(MVT::i32, &TCE::R32IRegsRegClass);
#endif
    addRegisterClass(MVT::f32, &TCE::FPRegsRegClass);
    addRegisterClass(MVT::f16, &TCE::HFPRegsRegClass);

    setOperationAction(ISD::UINT_TO_FP, MVT::i1   , Promote);
    setOperationAction(ISD::UINT_TO_FP, MVT::i8   , Promote);
    setOperationAction(ISD::UINT_TO_FP, MVT::i16  , Promote);

    setOperationAction(ISD::SINT_TO_FP, MVT::i1   , Promote);
    setOperationAction(ISD::SINT_TO_FP, MVT::i8   , Promote);
    setOperationAction(ISD::SINT_TO_FP, MVT::i16  , Promote);

    setOperationAction(ISD::FP_TO_UINT, MVT::i1   , Promote);
    setOperationAction(ISD::FP_TO_UINT, MVT::i8   , Promote);
    setOperationAction(ISD::FP_TO_UINT, MVT::i16  , Promote);

    setOperationAction(ISD::FP_TO_SINT, MVT::i1   , Promote);
    setOperationAction(ISD::FP_TO_SINT, MVT::i8   , Promote);
    setOperationAction(ISD::FP_TO_SINT, MVT::i16  , Promote);

    setOperationAction(ISD::FABS, MVT::f32  , Custom);
    setOperationAction(ISD::FABS, MVT::f64  , Custom);

    setOperationAction(ISD::GlobalAddress, DEFAULT_TYPE, Custom);
    setOperationAction(ISD::BlockAddress, DEFAULT_TYPE, Custom);
    setOperationAction(ISD::ConstantPool , DEFAULT_TYPE, Custom);

    setOperationAction(ISD::TRAP, MVT::Other, Custom);

// TODO: define TCE instruction for leading/trailing zero count
    setOperationAction(ISD::CTLZ, DEFAULT_TYPE, Expand);
    setOperationAction(ISD::CTTZ, DEFAULT_TYPE, Expand);
    setOperationAction(ISD::CTPOP, DEFAULT_TYPE, Expand);
    // Using 'old way' MVT::Other to cover all value types is illegal now.
    setOperationAction(ISD::SELECT_CC, MVT::f16, Expand);
    setOperationAction(ISD::SELECT_CC, MVT::f32, Expand);
    setOperationAction(ISD::SELECT_CC, MVT::f64, Expand);
    setOperationAction(ISD::SELECT_CC, MVT::f80, Expand);
    setOperationAction(ISD::SELECT_CC, MVT::i1, Expand);
    setOperationAction(ISD::SELECT_CC, MVT::i8, Expand);
    setOperationAction(ISD::SELECT_CC, MVT::i16, Expand);
    setOperationAction(ISD::SELECT_CC, MVT::i32, Expand);
    setOperationAction(ISD::SELECT_CC, MVT::i64, Expand);


    // not needed when we uses xor for boolean comparison
//    setOperationAction(ISD::SETCC, MVT::i1, Promote);

    setOperationAction(ISD::SIGN_EXTEND_INREG, MVT::i1 , Expand);

    // Expand indirect branches.
    setOperationAction(ISD::BRIND, MVT::Other, Expand);
    // Expand jumptable branches.
    setOperationAction(ISD::BR_JT, MVT::Other, Expand);
    // Expand conditional branches.

    // only port-guarded jumps..
    if (!MachineInfo::supportsBoolRegisterGuardedJumps(tm_.ttaMachine())
        && MachineInfo::supportsPortGuardedJumps(tm_.ttaMachine())) {
        std::cerr << "Only port guarded jumps supported, not expanding bc_cc" << std::endl;

        setOperationAction(ISD::BRCOND, MVT::Other, Expand);
        setOperationAction(ISD::BRCOND, MVT::i1, Expand);
        setOperationAction(ISD::BRCOND, MVT::i32, Expand);
        setOperationAction(ISD::BRCOND, MVT::f16, Expand);
        setOperationAction(ISD::BRCOND, MVT::f32, Expand);
        setOperationAction(ISD::BRCOND, MVT::i64, Expand);
    } else {
        setOperationAction(ISD::BR_CC, MVT::Other, Expand);
        setOperationAction(ISD::BR_CC, MVT::i1, Expand);
        setOperationAction(ISD::BR_CC, MVT::i32, Expand);
        setOperationAction(ISD::BR_CC, MVT::f16, Expand);
        setOperationAction(ISD::BR_CC, MVT::f32, Expand);
        setOperationAction(ISD::BR_CC, MVT::i64, Expand);
    }

    // Hardware loop ops
    setOperationAction(ISD::INTRINSIC_VOID, MVT::Other, Custom);
    if (!opts->disableHWLoops()) {
        setTargetDAGCombine(ISD::BRCOND);
    }

#ifdef TARGET64BIT
    setOperationAction(ISD::BR_CC, MVT::f64, Expand);
#endif
    setOperationAction(ISD::MULHU,  MVT::i32, Expand);
    setOperationAction(ISD::MULHS,  MVT::i32, Expand);

#ifdef TARGET64BIT
    setOperationAction(ISD::MULHU,  MVT::i64, Expand);
    setOperationAction(ISD::MULHS,  MVT::i64, Expand);
#endif
    setOperationAction(ISD::SHL_PARTS, MVT::i32, Expand);
    setOperationAction(ISD::SRA_PARTS, MVT::i32, Expand);
    setOperationAction(ISD::SRL_PARTS, MVT::i32, Expand);

    setOperationAction(ISD::VASTART           , MVT::Other, Custom);

    setOperationAction(ISD::VAARG             , MVT::Other, Expand);
    setOperationAction(ISD::VACOPY            , MVT::Other, Expand);
    setOperationAction(ISD::VAEND             , MVT::Other, Expand);
    setOperationAction(ISD::STACKSAVE         , MVT::Other, Expand);
    setOperationAction(ISD::STACKRESTORE      , MVT::Other, Expand);

    setOperationAction(ISD::DYNAMIC_STACKALLOC, DEFAULT_TYPE, Expand);

    setOperationAction(ISD::FCOPYSIGN, MVT::f64, Expand);
    setOperationAction(ISD::FCOPYSIGN, MVT::f32, Expand);

    setOperationAction(ISD::ConstantFP, MVT::f64, Expand);

    setOperationAction(ISD::SMUL_LOHI, MVT::i32, Expand);
    setOperationAction(ISD::UMUL_LOHI, MVT::i32, Expand);
    setOperationAction(ISD::SMUL_LOHI, MVT::i64, Expand);
    setOperationAction(ISD::UMUL_LOHI, MVT::i64, Expand);

    setOperationAction(ISD::BSWAP, DEFAULT_TYPE, Expand);

    setOperationAction(ISD::SDIVREM, MVT::i32, Expand);
    setOperationAction(ISD::UDIVREM, MVT::i32, Expand);

#ifdef TARGET64BIT
    setOperationAction(ISD::SDIVREM, MVT::i64, Expand);
    setOperationAction(ISD::UDIVREM, MVT::i64, Expand);
    setTruncStoreAction(MVT::f64, MVT::f32, Expand);
#endif

    setTruncStoreAction(MVT::f32, MVT::f16, Expand);
    // 3.7 requires the types as target type second parameter,
    // mem type thid parameter
    setLoadExtAction(ISD::EXTLOAD, MVT::f32, MVT::f16, Expand);
    setLoadExtAction(ISD::EXTLOAD, MVT::v2f32, MVT::v2f16, Expand);
    setLoadExtAction(ISD::EXTLOAD, MVT::v4f32, MVT::v4f16, Expand);
    setLoadExtAction(ISD::EXTLOAD, MVT::v8f32, MVT::v8f16, Expand);
    setLoadExtAction(ISD::EXTLOAD, MVT::v16f32, MVT::v16f16, Expand);
    setLoadExtAction(ISD::EXTLOAD, MVT::v32f32, MVT::v32f16, Expand);

#ifdef TARGET64BIT
    setLoadExtAction(ISD::EXTLOAD, MVT::f64, MVT::f32, Expand);
#endif

#if LLVM_HAS_CUSTOM_VECTOR_EXTENSION == 2
    setLoadExtAction(ISD::EXTLOAD, MVT::v64f32, MVT::v64f16, Expand);
    setLoadExtAction(ISD::EXTLOAD, MVT::v128f32, MVT::v128f16, Expand);
#endif

    if (!tm_.has8bitLoads()) {
        if (Application::verboseLevel() > 0) {
            std::cout << "No 8-bit loads in the processor. "
                      << "Emulating 8-bit loads with wider loads. "
                      << "This may be very slow if the program performs "
                      << "lots of 8-bit loads." << std::endl;
        }

#ifdef TARGET64BIT
        setLoadExtAction(ISD::EXTLOAD, MVT::i64, MVT::i8, Custom);
        setLoadExtAction(ISD::SEXTLOAD, MVT::i64, MVT::i8, Custom);
        setLoadExtAction(ISD::ZEXTLOAD, MVT::i64, MVT::i8, Custom);
        setOperationAction(ISD::LOAD, MVT::i8, Custom);
        setOperationAction(ISD::LOAD, MVT::i1, Custom);

        setLoadExtAction(ISD::EXTLOAD, MVT::i64, MVT::i1, Custom);
        setLoadExtAction(ISD::SEXTLOAD, MVT::i64, MVT::i1, Custom);
        setLoadExtAction(ISD::ZEXTLOAD, MVT::i64, MVT::i1, Custom);
#else
        setLoadExtAction(ISD::EXTLOAD, MVT::i32, MVT::i8, Custom);
        setLoadExtAction(ISD::SEXTLOAD, MVT::i32, MVT::i8, Custom);
        setLoadExtAction(ISD::ZEXTLOAD, MVT::i32, MVT::i8, Custom);
        setOperationAction(ISD::LOAD, MVT::i8, Custom);
        setOperationAction(ISD::LOAD, MVT::i1, Custom);

        setLoadExtAction(ISD::EXTLOAD, MVT::i32, MVT::i1, Custom);
        setLoadExtAction(ISD::SEXTLOAD, MVT::i32, MVT::i1, Custom);
        setLoadExtAction(ISD::ZEXTLOAD, MVT::i32, MVT::i1, Custom);
#endif
    }

    if (!tm_.has16bitLoads()) {
        if (Application::verboseLevel() > 0) {
            std::cout << "No 16-bit loads in the processor. "
                      << "Emulating 16-bit loads with wider loads. "
                      << "This may be very slow if the program performs "
                      << "lots of 16-bit loads." << std::endl;
        }
#ifdef TARGET64BIT
        setLoadExtAction(ISD::EXTLOAD, MVT::i64, MVT::i16, Custom);
        setLoadExtAction(ISD::SEXTLOAD, MVT::i64, MVT::i16, Custom);
        setLoadExtAction(ISD::ZEXTLOAD, MVT::i64, MVT::i16, Custom);
        setOperationAction(ISD::LOAD, MVT::i16, Custom);
#else
        setLoadExtAction(ISD::EXTLOAD, MVT::i32, MVT::i16, Custom);
        setLoadExtAction(ISD::SEXTLOAD, MVT::i32, MVT::i16, Custom);
        setLoadExtAction(ISD::ZEXTLOAD, MVT::i32, MVT::i16, Custom);
        setOperationAction(ISD::LOAD, MVT::i16, Custom);
#endif
    }

    setOperationAction(ISD::ADDE, MVT::i32, Expand);
    setOperationAction(ISD::ADDC, MVT::i32, Expand);
    setOperationAction(ISD::ADDE, MVT::i16, Expand);
    setOperationAction(ISD::ADDC, MVT::i16, Expand);
    setOperationAction(ISD::ADDE, MVT::i8, Expand);
    setOperationAction(ISD::ADDC, MVT::i8, Expand);
#ifdef TARGET64BIT
    setOperationAction(ISD::Constant, MVT::i64, Custom);
#else
    setOperationAction(ISD::Constant, MVT::i32, Custom);
#endif

    setStackPointerRegisterToSaveRestore(TCE::SP);

    // Set missing operations that can be emulated with emulation function
    // or LLVM built-in emulation pattern to be expanded.
    const std::set<std::pair<unsigned, llvm::MVT::SimpleValueType> >*
        missingOps = tm_.missingOperations();

    std::set<std::pair<unsigned, llvm::MVT::SimpleValueType> >::const_iterator
        iter = missingOps->begin();

    if (Application::verboseLevel() > 0) {
        Application::logStream() << "Missing ops: ";
    }

    while (iter != missingOps->end()) {
        unsigned nodetype = (*iter).first;
        llvm::MVT::SimpleValueType valuetype = (*iter).second;
        if (Application::verboseLevel() > 0) {
            switch (nodetype) {
            case ISD::SDIV: std::cerr << "SDIV,"; break;
            case ISD::UDIV: std::cerr << "UDIV,"; break;
            case ISD::SREM: std::cerr << "SREM,"; break;
            case ISD::UREM: std::cerr << "UREM,"; break;
            case ISD::ROTL: std::cerr << "ROTL,"; break;
            case ISD::ROTR: std::cerr << "ROTR,"; break;
            case ISD::MUL:  std::cerr << "MUL,"; break;
            case ISD::SIGN_EXTEND_INREG:
                if (valuetype == MVT::i8) std::cerr << "SXQW,";
                if (valuetype == MVT::i16) std::cerr << "SXHW,";
                break;
            default: std::cerr << nodetype << ", "; break;
            };
        }
        setOperationAction(nodetype, valuetype, Expand);
        iter++;
    }

    const std::set<std::pair<unsigned, llvm::MVT::SimpleValueType> >*
        promotedOps = tm_.promotedOperations();

    iter = promotedOps->begin();
    while (iter != promotedOps->end()) {
        unsigned nodetype = (*iter).first;
        llvm::MVT::SimpleValueType valuetype = (*iter).second;
        llvm::EVT evt(valuetype);
        setOperationAction(nodetype, valuetype, Promote);
        iter++;
    }

    if (Application::verboseLevel() > 0) {
        std::cerr << std::endl;
    }

    auto customLegalizedOps = tm_.customLegalizedOperations();
    for (auto i : *customLegalizedOps) {
        unsigned nodetype = i.first;
        llvm::MVT::SimpleValueType valuetype = i.second;
        llvm::EVT evt(valuetype);
        setOperationAction(nodetype, valuetype, Custom);
    }

    setJumpIsExpensive(true);

    //setShouldFoldAtomicFences(true);

    PredictableSelectIsExpensive = false;

    // Determine which of global addresses by address space id should be //
    // loaded from constant pool due to limited immediate support.       //
    // Reverse for default address space.
    loadGAFromConstantPool_[0] = false;
    for (const auto& as : tm_.ttaMachine().addressSpaceNavigator()) {
        if (as->numericalIds().empty()) {
            // No IDs specified, assume default address space ID (0)
            if (as->end() > tm_.largestImmValue()) {
                if (Application::verboseLevel() > 0) {
                    std::cerr << "Global addresses by "
                              << "address space id of 0"
                              << " (implicitly specified by AS: " << as->name()
                              << ") will be stored in constant pool."
                              << std::endl;
                }
                loadGAFromConstantPool_[0] = true;
            } else {
                loadGAFromConstantPool_[0] |= false;
            }
            continue;
        }

        for (unsigned id : as->numericalIds()) {
            if (as->end() > tm_.largestImmValue()) {
                if (Application::verboseLevel() > 0) {
                    std::cerr << "Global addresses belonging to "
                              << "address space id of " << id
                              << " (specified by AS: " << as->name()
                              << ") will be stored in constant pool."
                              << std::endl;
                }
                loadGAFromConstantPool_[id] = true;
            } else {
                loadGAFromConstantPool_[id] |= false;
            }
        }
    }

    setBooleanContents(ZeroOrOneBooleanContent);
    setBooleanVectorContents(ZeroOrNegativeOneBooleanContent);

    addVectorRegisterClasses();
    addVectorLowerings();
    computeRegisterProperties(subt.getRegisterInfo());
}

References TTAMachine::Machine::addressSpaceNavigator(), addVectorLowerings(), addVectorRegisterClasses(), Application::cmdLineOptions(), LLVMTCECmdLineOptions::conservativePreRAScheduler(), llvm::TCETargetMachine::customLegalizedOperations(), DEFAULT_TYPE, LLVMTCECmdLineOptions::disableHWLoops(), llvm::TCESubtarget::getRegisterInfo(), llvm::TCETargetMachine::has16bitLoads(), llvm::TCETargetMachine::has8bitLoads(), hasI1RC_, hasI1RegisterClass(), llvm::TCETargetMachine::largestImmValue(), loadGAFromConstantPool_, Application::logStream(), llvm::TCETargetMachine::missingOperations(), llvm::TCETargetMachine::promotedOperations(), MachineInfo::supportsBoolRegisterGuardedJumps(), MachineInfo::supportsPortGuardedJumps(), tm_, llvm::TCETargetMachine::ttaMachine(), and Application::verboseLevel().

Here is the call graph for this function:

Member Function Documentation

addVectorLowerings()

void llvm::TCETargetLowering::addVectorLowerings ( )

private

Implementation generated to Backend.inc from TDGenSIMD.cc.

Referenced by TCETargetLowering().

addVectorRegisterClasses()

void llvm::TCETargetLowering::addVectorRegisterClasses ( )

private

Implementation generated to Backend.inc from TDGenSIMD.cc.

Referenced by TCETargetLowering().

associatedVectorRegClass()

std::pair< unsigned, const TargetRegisterClass * > llvm::TCETargetLowering::associatedVectorRegClass ( const EVT &  vt ) const

private

Implementation generated to Backend.inc from TDGenSIMD.cc.

Referenced by getRegForInlineAsmConstraint().

canEncodeConstantOperands()

bool TCETargetLowering::canEncodeConstantOperands

(

const SDNode &

node

)

const

Check if constant operands used by the SDNode can be encoded as immediate on the target machine.

Definition at line 1725 of file TCEISelLowering.cc.

                                                                     {
    for (unsigned i = 0; i < node.getNumOperands(); i++) {
        if (node.getOperand(i)->getOpcode() != ISD::Constant) continue;
        ConstantSDNode* cn =
            cast<ConstantSDNode>(node.getOperand(i).getNode());
        if (!canEncodeImmediate(*cn)) return false;
    }
    return true;
}

References canEncodeImmediate().

Referenced by LowerBuildVector().

Here is the call graph for this function:

canEncodeImmediate()

bool TCETargetLowering::canEncodeImmediate

(

const ConstantSDNode &

node

)

const

Check if the constant can be generally encoded as immediate on the target machine.

Definition at line 1740 of file TCEISelLowering.cc.

                                                                      {
    int64_t val = node.getSExtValue();
    MVT vt = node.getSimpleValueType(0);

    // We accept here only constant that can be materialized in instruction
    // selection in some way and this must be done by the lowest common
    // denominator.

    // can encode as MOVI?
    // Assuming here, that the immediate can be transported to any target
    // machine operation.
    if (tm_.canEncodeAsMOVI(vt, val))
        return true;

    // can encode as immediate to operation
    // TODO?

    // can encode as immToOp for user that is exactly known to be selected
    // to certain target instruction?

    // can encode through ISEL transformation?
    if (tm_.canMaterializeConstant(*node.getConstantIntValue()))
        return true;

    return false;
}

References llvm::TCETargetMachine::canEncodeAsMOVI(), llvm::TCETargetMachine::canMaterializeConstant(), and tm_.

Referenced by canEncodeConstantOperands(), LowerAsmOperandForConstraint(), and LowerConstant().

Here is the call graph for this function:

ExpandLibCall()

SDValue TCETargetLowering::ExpandLibCall	(	RTLIB::Libcall	LC,
		SDNode *	Node,
		bool	isSigned,
		SelectionDAG &	DAG
	)		const

Definition at line 1834 of file TCEISelLowering.cc.

                                                                             {

  TargetLowering::ArgListTy Args;
  TargetLowering::ArgListEntry Entry;
  for (const SDValue &Op : Node->op_values()) {
    EVT ArgVT = Op.getValueType();
    Type *ArgTy = ArgVT.getTypeForEVT(*DAG.getContext());
    Entry.Node = Op;
    Entry.Ty = ArgTy;
    Entry.IsSExt = shouldSignExtendTypeInLibCall(ArgVT, isSigned);
    Entry.IsZExt = !shouldSignExtendTypeInLibCall(ArgVT, isSigned);
    Args.push_back(Entry);
  }
  SDValue Callee = DAG.getExternalSymbol(getLibcallName(LC),
                                         getPointerTy(DAG.getDataLayout(),0));

  EVT RetVT = Node->getValueType(0);
  Type *RetTy = RetVT.getTypeForEVT(*DAG.getContext());

  // By default, the input chain to this libcall is the entry node of the
  // function. If the libcall is going to be emitted as a tail call then
  // TLI.isUsedByReturnOnly will change it to the right chain if the return
  // node which is being folded has a non-entry input chain.
  SDValue InChain = DAG.getEntryNode();

  // isTailCall may be true since the callee does not reference caller stack
  // frame. Check if it's in the right position and that the return types match.
  SDValue TCChain = InChain;
  const Function &F = DAG.getMachineFunction().getFunction();
  bool isTailCall =
      isInTailCallPosition(DAG, Node, TCChain) &&
      (RetTy == F.getReturnType() || F.getReturnType()->isVoidTy());
  if (isTailCall)
    InChain = TCChain;

  TargetLowering::CallLoweringInfo CLI(DAG);
  bool signExtend = shouldSignExtendTypeInLibCall(RetVT, isSigned);
  CLI.setDebugLoc(SDLoc(Node))
      .setChain(InChain)
      .setLibCallee(getLibcallCallingConv(LC), RetTy, Callee,
                    std::move(Args))
      .setTailCall(isTailCall)
      .setSExtResult(signExtend)
      .setZExtResult(!signExtend)
      .setIsPostTypeLegalization(true);

  std::pair<SDValue, SDValue> CallInfo = LowerCallTo(CLI);

  if (!CallInfo.second.getNode()) {
    // It's a tailcall, return the chain (which is the DAG root).
    return DAG.getRoot();
  }

  return CallInfo.first;
}

Referenced by LowerShift().

getConstraintType()

TCETargetLowering::ConstraintType TCETargetLowering::getConstraintType ( StringRef  Constraint ) const

override

getConstraintType - Given a constraint letter, return the type of constraint it is for this target.

Definition at line 1539 of file TCEISelLowering.cc.

                                                               {
  if (Constraint.size() == 1) {
    switch (Constraint[0]) {
    default:  break;
    case 'r': return C_RegisterClass;
    }
  }
  return TargetLowering::getConstraintType(Constraint);
}

getConstShiftNodeAndTCEOP()

std::pair< int, TCEString > TCETargetLowering::getConstShiftNodeAndTCEOP

(

SDValue

op

)

const

Definition at line 1267 of file TCEISelLowering.cc.

                                                                                     {
    switch(op.getOpcode()) {
    case ISD::SRA:
        return std::make_pair(TCEISD::SRA_Const, TCEString("SHR"));
    case ISD::SRL:
        return std::make_pair(TCEISD::SRL_Const, TCEString("SHRU"));
    case ISD::SHL:
        return std::make_pair(TCEISD::SHL_Const, TCEString("SHL"));
    default:
        return std::make_pair(0, TCEString("unknown op"));
    }
}

References TCEISD::SHL_Const, TCEISD::SRA_Const, and TCEISD::SRL_Const.

Referenced by LowerShift().

getRegClassForInlineAsmConstraint()

std::vector< unsigned > TCETargetLowering::getRegClassForInlineAsmConstraint	(	const std::string &	Constraint,
		EVT	VT
	)		const

Definition at line 1674 of file TCEISelLowering.cc.

                                                {
  if (Constraint.size() != 1)
    return std::vector<unsigned>();

  switch (Constraint[0]) {
  default: break;
  case 'r':
      // TODO: WHAT TO DO WITH THESE?
      return std::vector<unsigned>(1,0);

  }

  return std::vector<unsigned>();
}

getRegForInlineAsmConstraint()

std::pair< unsigned, const TargetRegisterClass * > TCETargetLowering::getRegForInlineAsmConstraint ( const TargetRegisterInfo *  TRI, StringRef  Constraint, MVT  VT  ) const

override

Returns proper register class for given value type.

Parameters

Constraint

A constraint defined for an inline asm operation operand.

Returns

Proper register class for the operand value type.

Definition at line 1575 of file TCEISelLowering.cc.

                                        {
    if (Constraint.size() == 1) {
        // check if value type is a vector and return associated reg class
        std::pair<unsigned, const TargetRegisterClass *> rcPair =
            associatedVectorRegClass(VT);

        switch (Constraint[0]) {
            case 'r':
                // if found associated vector reg class
                if (rcPair.second != NULL) {
                    return rcPair;
                }
        }
    }

    bool isPhysicalRegister = Constraint.size() > 3
        && Constraint.front() == '{' && Constraint.back() == '}';

    const TargetRegisterClass* vrc = nullptr;
    if (Constraint.size() == 1) {
        switch (Constraint[0]) {
            case 'r':
                // Prefer vector RFs for vector types and then try
                // scalar RFs.
                vrc = getVectorRegClassForInlineAsmConstraint(TRI, VT);
                if (vrc) return std::make_pair(0U, vrc);

                switch (VT.getSizeInBits()) {
                    case 8:
                    case 16:
                    case 32:
                    case 64:
                        return std::make_pair(0U, &DEFAULT_REG_CLASS);
                     default:
                         break;
                }
                return std::make_pair(0U, nullptr); // return error.
            // TODO: this should be some other char. But change it in devel64b
            case 's':
                return std::make_pair(0U, &TCE::R64RegsRegClass);
            case 'f':
                if (VT == MVT::f32) {
                    return std::make_pair(0U, &TCE::FPRegsRegClass);
                }
#ifdef TARGET64BIT
            case 'd':
                return std::make_pair(0U, &TCE::R64DFPRegsRegClass);
#endif
        }
    } else if (isPhysicalRegister) {
        // Constraint = {<RF-name>.<Register-index>}
        const std::string regName = Constraint.substr(1, Constraint.size()-2).str();
        unsigned regId = tm_.llvmRegisterId(regName);
        if (regId == TCE::NoRegister) {
            // No such register. Return error.
            return std::make_pair(0, nullptr);
        }

        // In case the reg is boolean register via local register
        // variable (ie. "register int foo asm("BOOL.1") = ...").
        if (TCE::R1RegsRegClass.contains(regId)) {
            return std::make_pair(regId, &TCE::R1RegsRegClass);
        }
        if (TCE::GuardRegsRegClass.contains(regId)) {
            return std::make_pair(regId, &TCE::GuardRegsRegClass);
        }

        return std::make_pair(regId, TRI->getMinimalPhysRegClass(regId, VT));
    }
    return TargetLowering::getRegForInlineAsmConstraint(TRI, Constraint, VT);
}

References associatedVectorRegClass(), DEFAULT_REG_CLASS, getVectorRegClassForInlineAsmConstraint(), llvm::TCETargetMachine::llvmRegisterId(), and tm_.

Here is the call graph for this function:

getSetCCResultType()

EVT TCETargetLowering::getSetCCResultType ( const DataLayout &  DL, LLVMContext &  Context, EVT  VT  ) const

override

Returns the preferred result type of comparison operations.

Parameters

VT	Result type of the comparison operation.

Returns

Preferred comparison result type.

Definition at line 1190 of file TCEISelLowering.cc.

                                                                  {
    if (VT.isVector()) {
        EVT resultVectorType = getSetCCResultVT(VT);
        if (resultVectorType != MVT::INVALID_SIMPLE_VALUE_TYPE) {
            return resultVectorType;
        }
    }
    if (!VT.isVector()) return hasI1RC_ ? llvm::MVT::i1 : llvm::MVT::i32;
    return VT.changeVectorElementTypeToInteger();
}

References getSetCCResultVT(), and hasI1RC_.

Here is the call graph for this function:

getSetCCResultVT()

virtual llvm::EVT llvm::TCETargetLowering::getSetCCResultVT ( const EVT &  VT ) const

privatevirtual

Implementation generated to Backend.inc from TDGenSIMD.cc.

Referenced by getSetCCResultType().

getTargetNodeName()

const char * TCETargetLowering::getTargetNodeName ( unsigned  opcode ) const

overridevirtual

Returns target node opcode names for debugging purposes.

Parameters

opcode

Opcode to convert to string.

Returns

Opcode name.

Definition at line 880 of file TCEISelLowering.cc.

                                                          {
    switch (opcode) {
    default: return NULL;
    case TCEISD::CALL: return "TCEISD::CALL";
    case TCEISD::RET_FLAG: return "TCEISD::RET_FLAG";
    case TCEISD::GLOBAL_ADDR: return "TCEISD::GLOBAL_ADDR";
    case TCEISD::CONST_POOL: return "TCEISD::CONST_POOL";
    case TCEISD::FTOI: return "TCEISD::FTOI";
    case TCEISD::ITOF: return "TCEISD::ITOF";
    case TCEISD::SELECT_I1: return "TCEISD::SELECT_I1";
    case TCEISD::SELECT_I8: return "TCEISD::SELECT_I8";
    case TCEISD::SELECT_I16: return "TCEISD::SELECT_I16";
    case TCEISD::SELECT_I32: return "TCEISD::SELECT_I32";
    case TCEISD::SELECT_I64: return "TCEISD::SELECT_I64";
    case TCEISD::SELECT_F16: return "TCEISD::SELECT_F16";
    case TCEISD::SELECT_F32: return "TCEISD::SELECT_F32";
    case TCEISD::SELECT_F64: return "TCEISD::SELECT_F64";
    }
}

References TCEISD::CALL, TCEISD::CONST_POOL, TCEISD::FTOI, TCEISD::GLOBAL_ADDR, TCEISD::ITOF, TCEISD::RET_FLAG, TCEISD::SELECT_F16, TCEISD::SELECT_F32, TCEISD::SELECT_F64, TCEISD::SELECT_I1, TCEISD::SELECT_I16, TCEISD::SELECT_I32, TCEISD::SELECT_I64, and TCEISD::SELECT_I8.

getVarArgsFrameOffset()

int llvm::TCETargetLowering::getVarArgsFrameOffset ( ) const

inline

Definition at line 92 of file TCEISelLowering.hh.

{ return VarArgsFrameOffset; }

References VarArgsFrameOffset.

Referenced by LowerVASTART().

getVectorRegClassForInlineAsmConstraint()

const TargetRegisterClass * TCETargetLowering::getVectorRegClassForInlineAsmConstraint ( const TargetRegisterInfo *  TRI, MVT  VT  ) const

private

Definition at line 1550 of file TCEISelLowering.cc.

                  {

    if (!VT.isVector()) return nullptr;

    const TargetRegisterClass* bestVRC = nullptr;
    // Find smallest RF by using stack spill size as reg size indication.
    for (unsigned i = 0U; i < TRI->getNumRegClasses(); i++) {
        auto vrc = TRI->getRegClass(i);
        if (TRI->isTypeLegalForClass(*vrc, VT) &&
            (!bestVRC || vrc->MC->RegsSize < bestVRC->MC->RegsSize)) {
            bestVRC = vrc;
        }
    }
    return bestVRC;
}

Referenced by getRegForInlineAsmConstraint().

hasI1RegisterClass()

bool TCETargetLowering::hasI1RegisterClass ( ) const

private

Returns true if the target machine has register class for i1 types.

Definition at line 1787 of file TCEISelLowering.cc.

                                            {
    if (TCE::R1RegsRegClass.getNumRegs() == 0) return false;

    // TDGen generates dummy register class for the machines without boolean
    // RFs.
    if (TCE::R1RegsRegClass.getNumRegs() == 1) {
        std::string regName = tm_.rfName(TCE::R1RegsRegClass.getRegister(0));
        if (regName.find("dummy") != std::string::npos) return false;
    }

    return true;
}

References llvm::TCETargetMachine::rfName(), and tm_.

Referenced by TCETargetLowering().

Here is the call graph for this function:

isBroadcast()

bool TCETargetLowering::isBroadcast ( SDNode *  n )

static

Definition at line 1813 of file TCEISelLowering.cc.

                                        {
    if (n->getOpcode() != ISD::BUILD_VECTOR) {
        return false;
    }
    SDValue val = n->getOperand(0);
    int operandCount = n->getNumOperands();
    for (unsigned i = 1; i <operandCount; i++) {
        SDValue val2 = n->getOperand(i);
        SDNode* node2 = dyn_cast<SDNode>(val2);
        if (node2->getOpcode() != ISD::UNDEF) {
            if (val2 != val)
                return false;
        }
    }
    return true;
}

Referenced by TCEDAGToDAGISel::isBroadcast(), and LowerBuildVector().

isConstantOrUndefBuild()

bool TCETargetLowering::isConstantOrUndefBuild

(

const SDNode &

node

)

const

Returns true if all operands of the SDNode are constants or undefined.

Definition at line 1710 of file TCEISelLowering.cc.

                                                                  {
    for (unsigned i = 0; i < node.getNumOperands(); i++) {
        auto opc = node.getOperand(i)->getOpcode();
        if (opc != ISD::Constant && opc != ISD::UNDEF) {
            return false;
        }
    }
    return true;
}

Referenced by LowerBuildVector().

isFPImmLegal()

bool TCETargetLowering::isFPImmLegal ( const APFloat &  apf, EVT  VT, bool  forCodeSize  ) const

overridevirtual

Check the FP in bits can be fit in machine's immediates.

Definition at line 1804 of file TCEISelLowering.cc.

                                                            {
    if (VT==MVT::f32 || VT==MVT::f16) {
        return tm_.canEncodeAsMOVF(apf);
    }
    return false;
}

References llvm::TCETargetMachine::canEncodeAsMOVF(), and tm_.

Here is the call graph for this function:

isOffsetFoldingLegal()

bool TCETargetLowering::isOffsetFoldingLegal ( const GlobalAddressSDNode *  GA ) const

overridevirtual

Definition at line 1692 of file TCEISelLowering.cc.

                                                                           {
  return false;
}

LowerAsmOperandForConstraint()

void TCETargetLowering::LowerAsmOperandForConstraint ( SDValue  Op, std::string &  Constraint, std::vector< SDValue > &  Ops, SelectionDAG &  DAG  ) const

override

Definition at line 1651 of file TCEISelLowering.cc.

                             {

    if (Constraint.length() == 1) {
        switch (Constraint[0]) {
            case 'i':
                if (ConstantSDNode *C = dyn_cast<ConstantSDNode>(Op)) {
                    if (!canEncodeImmediate(*C)) {
                        return;
                    }
                }
                break;
            default:
                break;
        }
    }

    TargetLowering::LowerAsmOperandForConstraint(Op, Constraint, Ops, DAG);
}

References canEncodeImmediate().

Here is the call graph for this function:

LowerBlockAddress()

SDValue TCETargetLowering::LowerBlockAddress	(	SDValue	Op,
		SelectionDAG &	DAG
	)		const

Definition at line 963 of file TCEISelLowering.cc.

                                                                        {
  const BlockAddress *BA = cast<BlockAddressSDNode>(Op)->getBlockAddress();

  SDValue BA_SD =  DAG.getTargetBlockAddress(BA, DEFAULT_TYPE);
  SDLoc dl(Op);
  return DAG.getNode(
      TCEISD::BLOCK_ADDR, dl,
      getPointerTy(getTargetMachine().createDataLayout(), 0), BA_SD);
}

References TCEISD::BLOCK_ADDR, and DEFAULT_TYPE.

Referenced by LowerOperation().

LowerBuildBooleanVectorVector()

SDValue TCETargetLowering::LowerBuildBooleanVectorVector	(	SDValue	Op,
		MVT	newElementVT,
		int	elemCount,
		SelectionDAG &	DAG
	)		const

Definition at line 1011 of file TCEISelLowering.cc.

                                                                      {

    BuildVectorSDNode* node = cast<BuildVectorSDNode>(Op);
    MVT mvt = Op.getSimpleValueType();
    int laneWidth = newElementVT.getSizeInBits();

    std::vector<SDValue> packedConstants(elemCount/laneWidth);
    for (int i = 0; i < elemCount; i+=laneWidth) {
        unsigned int packedVal = 0;
        for (int j = 0; j < laneWidth; j++) {
            const SDValue& operand = node->getOperand(i+j);
            SDNode* opdNode = operand.getNode();
            if (isa<ConstantSDNode>(opdNode)) {
                ConstantSDNode* cn = cast<ConstantSDNode>(opdNode);
                if (cn->isOne()) {
                    packedVal += (1<< j);
                }
            }
        }
        packedConstants[i/laneWidth] = DAG.getConstant(packedVal, Op, newElementVT);
    }
    EVT wvt = EVT::getVectorVT(*DAG.getContext(), newElementVT, elemCount/laneWidth);
    SDValue intVectorBuild = DAG.getNode(ISD::BUILD_VECTOR, Op, wvt, packedConstants);
    SDValue retValue = DAG.getNode(ISD::BITCAST, Op, mvt, intVectorBuild);
    return retValue;
}

Referenced by LowerBuildVector().

LowerBuildVector()

SDValue TCETargetLowering::LowerBuildVector	(	SDValue	Op,
		SelectionDAG &	DAG
	)		const

Definition at line 1040 of file TCEISelLowering.cc.

                                                                       {

    MVT elemVT = Op.getSimpleValueType().getScalarType();
    BuildVectorSDNode* node = cast<BuildVectorSDNode>(Op);
    int elemCount = node->getNumOperands();

    if (isConstantOrUndefBuild(*node)) {
        if (!isBroadcast(node)) {
            // Convert boolean vector into wider vector.
            // Use int here.

            auto vt = Op.getValueType();
            bool scalarizedPack = false;
            if (vt.isVector() && vt.getSizeInBits() == 32) {
                unsigned int packedVal = 0;
                unsigned int laneW = vt.getScalarSizeInBits();
                for (int i = 0;
                     i < vt.getVectorElementCount().getKnownMinValue(); i++) {
                    auto oprd = node->getOperand(i);
                    ConstantSDNode* cn = cast<ConstantSDNode>(oprd);
                    unsigned int val = cn->getZExtValue();
                    val = val & (~0u >> (32 - laneW));
                    packedVal |= (val << (laneW*i));
                }
                if (tm_.canEncodeAsMOVI(MVT::i32, packedVal)) {
                    auto packedNode =
                        DAG.getConstant(packedVal, Op, MVT::i32);
                    return DAG.getNode(ISD::BITCAST, Op, vt, packedNode);
                }
            }

            if (elemVT == MVT::i1) {
                if (elemCount > 31) {
                    assert(elemCount % 32 == 0);
                    int intElemCount = elemCount/32;
                    TCEString wideOpName = "PACK32X"; wideOpName << intElemCount;
                    if (tm_.hasOperation(wideOpName)) {
                        return LowerBuildBooleanVectorVector(
                            Op, MVT::i32, elemCount, DAG);
                    }
                }
/* TODO: this does not work if u16 and i8 value types not legal.
                if (elemCount > 15 && elemCount < 4096) {
                    assert(elemCount % 16 == 0);
                    int shortElemCount = elemCount/16;
                    TCEString wideOpName = "PACK16X"; wideOpName << shortElemCount;
                    if (tm_.hasOperation(wideOpName)) {
                        return LowerBuildBooleanVectorVector(
                        Op, MVT::i16, elemCount, DAG);
                    }
                }
                if (elemCount > 7 && elemCount < 2048) {
                    assert(elemCount % 8 == 0);
                    int charElemCount = elemCount/8;
                    TCEString wideOpName = "PACK8X"; wideOpName << charElemCount;
                    if (tm_.hasOperation(wideOpName)) {
                        return LowerBuildBooleanVectorVector(
                        Op, MVT::i8, elemCount, DAG);
                    }
                }
*/
                if (elemCount > 255) {
                    std::cerr << "Warning: Lowering Boolean vector build with"
                              << " more than 255 elements. LLVM does not"
                              << " support instructions with more than"
                              << " 255 operands so this will probably fail."
                              << " Add a pack instruction using wider lane"
                              << " width, such as PACK32X" << (elemCount/32)
                              << " into your architecture."
                              << std::endl;
                }
            } else { // not boolean.
                // makes no sense to have zillion inputs to build_vector.
                // load from const pool instead.
                TCEString packName = "PACK";
                switch (elemVT.SimpleTy) {
                case MVT::i8: packName << "8"; break;
                case MVT::i16: packName << "16"; break;
                case MVT::i32: packName << "32"; break;
                default: std::cerr << elemVT.SimpleTy << ", "; break;
                }
                packName << "X" << elemCount;
                // pack op not found from the adf or too big
                if (elemCount > 4 || !tm_.hasOperation(packName)) {
                    return SDValue(nullptr, 0);
                }
            }
        }

        if (canEncodeConstantOperands(*node)) {
            return Op;
        }
    }

    // TODO: Check if there is enough register for the build_vector needed by
    // LLVM's register allocator.

    // There is issue with build_vector to be selected as all-register-operand
    // version of PACK (i.e. PACKtrrrrrrrr). LLVM's register allocator tries
    // allocate as many i32 registers as there is register operands. For
    // example with PACK8X64, the allocator tries to reserve 64 i32 register(!)
    // and likely runs out of them.

    if (Application::verboseLevel() > 1) {
        std::cerr << "Expanding build_vector of "
                  << Op->getValueType(0).getEVTString()
                  << " = { ";
        for (unsigned i = 0; i < node->getNumOperands(); i++) {
            auto opdNode = node->getOperand(i).getNode();
            if (isa<ConstantSDNode>(opdNode)) {
                ConstantSDNode* cn = cast<ConstantSDNode>(opdNode);
                std::cerr << cn->getSExtValue() << " ";
            } else {
                std::cerr << "Reg ";
            }
        }
        std::cerr << "}" << std::endl;
    }

    // TODO: Expand to insert_vector_elt chain rather than to expansion done by
    // LLVM

    // Expand to a load from constant pool or to an in-stack fabrication.
    return SDValue(nullptr, 0);
}

References assert, llvm::TCETargetMachine::canEncodeAsMOVI(), canEncodeConstantOperands(), llvm::TCETargetMachine::hasOperation(), isBroadcast(), isConstantOrUndefBuild(), LowerBuildBooleanVectorVector(), tm_, and Application::verboseLevel().

Referenced by LowerOperation().

Here is the call graph for this function:

LowerCall()

SDValue TCETargetLowering::LowerCall ( TargetLowering::CallLoweringInfo &  CLI, SmallVectorImpl< SDValue > &  InVals  ) const

overridevirtual

Definition at line 327 of file TCEISelLowering.cc.

                                                                     {

    SelectionDAG &DAG                     = CLI.DAG;
    SDLoc &dl                             = CLI.DL;
    SmallVector<ISD::OutputArg, 32> &Outs = CLI.Outs;
    SmallVector<SDValue, 32> &OutVals     = CLI.OutVals;
    SmallVector<ISD::InputArg, 32> &Ins   = CLI.Ins;
    SDValue Chain                         = CLI.Chain;
    SDValue Callee                        = CLI.Callee;
    bool &isTailCall                      = CLI.IsTailCall;
    CallingConv::ID CallConv              = CLI.CallConv;
    bool isVarArg                         = CLI.IsVarArg;

    // we do not yet support tail call optimization.
    isTailCall = false;

    (void)CC_TCE;

    const unsigned maxMemAlignment = isVarArg? 4 : tm_.stackAlignment();
    int regParams = 0;
    unsigned ArgsSize = 0;

    // Count the size of the outgoing arguments.
    for (unsigned i = 0, e = Outs.size(); i != e; ++i) {
        EVT ObjectVT = Outs[i].VT;
        MVT sType = Outs[i].VT.SimpleTy;
#ifndef TARGET64BIT
        if (sType == MVT::i1 || sType == MVT::i8 || sType == MVT::i16 ||
            sType == MVT::i32 || sType == MVT::f16 || sType == MVT::f32) {
            if (regParams < argRegCount) {
                regParams++;
            }
        } else if (sType == MVT::i64 || sType == MVT::f64) {
            // Nothing to do.
        } else if (sType.isVector()) {
            // Nothing to do.
        } else {
            std::cerr << "Unknown argument type: "
                      << ObjectVT.getEVTString() << std::endl;
            assert(false);
        }
#else
        if (sType == MVT::i1 || sType == MVT::i8 || sType == MVT::i16 ||
            sType == MVT::i32 || sType == MVT::i64 || sType == MVT::f16 ||
            sType == MVT::f32 || sType == MVT::f64) {
            if (regParams < argRegCount) {
                regParams++;
            }
        } else if (sType.isVector()) {
            // Nothing to do.
        } else {
            std::cerr << "Unknown argument type: "
                      << ObjectVT.getEVTString() << std::endl;
            assert(false);
        }
#endif

        unsigned argumentByteSize = sType.getStoreSize();

        // Align parameter to stack correctly.
        if (argumentByteSize <= maxMemAlignment) {
            ArgsSize += maxMemAlignment;
        } else {
            unsigned alignBytes = maxMemAlignment - 1;
            ArgsSize += (argumentByteSize + alignBytes) & (~alignBytes);
        }
    }
    Chain = DAG.getCALLSEQ_START(Chain, ArgsSize, 0, dl);
    SmallVector<SDValue, 8> MemOpChains;

    SmallVector<std::pair<unsigned, SDValue>, argRegCount> RegsToPass;

    unsigned ArgOffset = 0;

  for (unsigned i = 0, e = Outs.size(); i != e; ++i) {
    SDValue Val = OutVals[i];
    EVT ObjectVT = Val.getValueType();
    MVT sType = ObjectVT.getSimpleVT().SimpleTy;
    SDValue ValToStore(0, 0);

#ifndef TARGET64BIT
    if (sType == MVT::i1 || sType == MVT::i8 || sType == MVT::i16 ||
        sType == MVT::i32 || sType == MVT::f32 || sType == MVT::f16) {
        if (RegsToPass.size() >= argRegCount || isVarArg) {
            ValToStore = Val;
        }
        if (RegsToPass.size() < argRegCount) {
            RegsToPass.push_back(
                std::make_pair(ArgRegs[RegsToPass.size()], Val));
        }
    } else if (sType.isVector()) {
        ValToStore = Val;
    } else {
        std::cerr << "Unknown argument type: "
                  << ObjectVT.getEVTString() << std::endl;
        assert(false);
    }
#else // is 64-bit
    if (sType == MVT::i1 || sType == MVT::i8 || sType == MVT::i16 ||
        sType == MVT::i32 || sType == MVT::i64 || sType == MVT::f32 ||
        sType == MVT::f64) {
        if (RegsToPass.size() >= argRegCount || isVarArg) {
            ValToStore = Val;
        }
        if (RegsToPass.size() < argRegCount) {
            RegsToPass.push_back(
                std::make_pair(ArgRegs[RegsToPass.size()], Val));
        }
    } else if (sType.isVector()) {
        ValToStore = Val;
    } else {
        std::cerr << "Unknown argument type: "
                      << ObjectVT.getEVTString() << std::endl;
        assert(false);
    }
#endif

    if (ValToStore.getNode()) {
        SDValue StackPtr = DAG.getCopyFromReg(
            Chain, dl, TCE::SP, getPointerTy(
                getTargetMachine().createDataLayout(), 0));
      SDValue PtrOff = DAG.getConstant(ArgOffset, dl, DEFAULT_TYPE);
      PtrOff = DAG.getNode(ISD::ADD, dl, DEFAULT_TYPE, StackPtr, PtrOff);

      MemOpChains.push_back(DAG.getStore(Chain, dl, ValToStore,
                                         PtrOff, MachinePointerInfo()));
    }

    unsigned argumentByteSize = sType.getStoreSize();

    // Align parameter to stack correctly.
    if (argumentByteSize <= maxMemAlignment) {
        ArgOffset += maxMemAlignment;
    } else {
        unsigned alignBytes = maxMemAlignment - 1;
        ArgOffset += (argumentByteSize + alignBytes) & (~alignBytes);
    }
  }

  // Emit all stores, make sure the occur before any copies into physregs.
  if (!MemOpChains.empty()) {
      Chain = DAG.getNode(
          ISD::TokenFactor, dl, MVT::Other, ArrayRef<SDValue>(MemOpChains));
  }

  // Build a sequence of copy-to-reg nodes chained together with token
  // chain and flag operands which copy the outgoing args into registers.
  // The InFlag in necessary since all emited instructions must be
  // stuck together.
  SDValue InFlag;

  for (unsigned i = 0, e = RegsToPass.size(); i != e; ++i) {
    unsigned Reg = RegsToPass[i].first;
    Chain = DAG.getCopyToReg(Chain, dl, Reg, RegsToPass[i].second, InFlag);
    InFlag = Chain.getValue(1);
  }

  // If the callee is a GlobalAddress node (quite common, every direct call is)
  // turn it into a TargetGlobalAddress node so that legalize doesn't hack it.
  // Likewise ExternalSymbol -> TargetExternalSymbol.
  if (GlobalAddressSDNode *G = dyn_cast<GlobalAddressSDNode>(Callee))
      Callee = DAG.getTargetGlobalAddress(G->getGlobal(), dl, DEFAULT_TYPE);
  else if (ExternalSymbolSDNode *E = dyn_cast<ExternalSymbolSDNode>(Callee))
    Callee = DAG.getTargetExternalSymbol(E->getSymbol(), DEFAULT_TYPE);
  std::vector<EVT> NodeTys;
  NodeTys.push_back(MVT::Other);   // Returns a chain
  NodeTys.push_back(MVT::Glue);    // Returns a flag for retval copy to use.
  SDValue Ops[] = { Chain, Callee, InFlag };

  Chain = DAG.getNode(
      TCEISD::CALL, dl, ArrayRef<EVT>(NodeTys),
      ArrayRef<SDValue>(Ops, InFlag.getNode() ? 3 : 2));

  InFlag = Chain.getValue(1);

  Chain = DAG.getCALLSEQ_END(Chain, DAG.getIntPtrConstant(ArgsSize, dl, true),
                             DAG.getIntPtrConstant(0, dl, true), InFlag, dl);
  InFlag = Chain.getValue(1);

  // Assign locations to each value returned by this call.
  SmallVector<CCValAssign, 16> RVLocs;
  CCState RVInfo(CallConv, isVarArg, DAG.getMachineFunction(),
                 RVLocs, *DAG.getContext());

  RVInfo.AnalyzeCallResult(Ins, RetCC_TCE);

  // Copy all of the result registers out of their specified physreg. (only one rv reg)
  for (unsigned i = 0; i != RVLocs.size(); ++i) {
      unsigned Reg = RVLocs[i].getLocReg();

    Chain = DAG.getCopyFromReg(Chain, dl, Reg,
                               RVLocs[i].getValVT(), InFlag).getValue(1);
    InFlag = Chain.getValue(2);
    InVals.push_back(Chain.getValue(0));
  }

  return Chain;
}

References assert, TCEISD::CALL, DEFAULT_TYPE, llvm::TCETargetMachine::stackAlignment(), and tm_.

Here is the call graph for this function:

LowerConstant()

SDValue TCETargetLowering::LowerConstant	(	SDValue	Op,
		SelectionDAG &	DAG
	)		const

Definition at line 992 of file TCEISelLowering.cc.

                                                                    {
    ConstantSDNode* cn = cast<ConstantSDNode>(Op.getNode());
    assert(cn);

    if (canEncodeImmediate(*cn)) {
        return Op;
    } else {
        // The constant is not supported immediate, return empty SDValue, so
        // it gets converted to a load from a constant pool.
        if (Application::verboseLevel() > 0) {
            std::cerr << "Expand constant of " << cn->getSExtValue();
            std::cerr << " to a load from the constant pool." << std::endl;
        }
        // Since LLVM 3.8 LLVM's DAG Legalization does the expansion from
        // constant to constant pool load.
        return SDValue(nullptr, 0);
    }
}

References assert, canEncodeImmediate(), and Application::verboseLevel().

Referenced by LowerOperation().

Here is the call graph for this function:

lowerExtOrBoolLoad()

SDValue TCETargetLowering::lowerExtOrBoolLoad	(	SDValue	op,
		SelectionDAG &	DAG
	)		const

Lowers extension load of 8- or 16-bit load to 32-bit little-endian load.

Definition at line 2028 of file TCEISelLowering.cc.

                             {

    auto lsdn = dyn_cast<LoadSDNode>(op.getNode());
    if (lsdn == nullptr) {
        assert(false && "Not a lodsdnode on LowerExtLoad!");
    }

    auto chain = op.getOperand(0);
    SDValue alignedAddr;
    SDValue lowBits;

    #ifdef LLVM_OLDER_THAN_16
    if (lsdn->getAlignment() >= 4) {
    #else
    if (lsdn->getAlign() >= 4) {
    #endif
        alignedAddr = lsdn->getBasePtr();
        lowBits = DAG.getConstant(0l, op, MVT::i32);
    } else {
        alignedAddr = DAG.getNode(
            ISD::AND, op, MVT::i32, lsdn->getBasePtr(),
            DAG.getConstant(-4l, op, MVT::i32));

        auto lowBytes = DAG.getNode(
            ISD::AND, op, MVT::i32, lsdn->getBasePtr(),
            DAG.getConstant(3l, op, MVT::i32));

        lowBits = DAG.getNode(
            ISD::SHL, op, MVT::i32, lowBytes,
            DAG.getConstant(3l, op, MVT::i32));
    }

    auto load = DAG.getLoad(
        MVT::i32, op, chain, alignedAddr, MachinePointerInfo());

    // this is little-endian code. big endian needs different.
    if (lsdn->getExtensionType() == ISD::ZEXTLOAD) {
        #ifdef LLVM_OLDER_THAN_16
        auto shiftedValue = lsdn->getAlignment() < 4 ?
        #else
        auto shiftedValue = lsdn->getAlign() < 4 ?
        #endif
            DAG.getNode(ISD::SRA, op, MVT::i32, load, lowBits) :
            load;
        if (lsdn->getMemoryVT() == MVT::i16) {
            #ifdef LLVM_OLDER_THAN_16
            assert(lsdn->getAlignment() >= 2 &&
            #else
            assert(lsdn->getAlign() >= 2 &&
            #endif
                   "Cannot (yet?) emulate a 16-bit load which has 1-byte alignment. "
                   " 16-bit memory operations needed to compile this code." );
            std::cerr << "\t\tSource is 16 bits." << std::endl;
            auto zext = DAG.getNode(
                ISD::AND, op, MVT::i32, shiftedValue,
                DAG.getConstant(65535l, op, MVT::i32));
            return zext;
        } else if (lsdn->getMemoryVT() == MVT::i8) {
            auto zext = DAG.getNode(
                ISD::AND, op, MVT::i32, shiftedValue,
                DAG.getConstant(255l, op, MVT::i32));
            return zext;
        } else if (lsdn->getMemoryVT() == MVT::i1) {
            auto zext = DAG.getNode(
                ISD::AND, op, MVT::i32, shiftedValue,
                DAG.getConstant(1l, op, MVT::i32));
            return zext;
        } else {
            assert(false && "Unknown data type on LowerSExtLoad!");
        }
    }
    if (lsdn->getExtensionType() == ISD::SEXTLOAD) {

        // shift left to get it to upper bits, then arithmetic right.
        if (lsdn->getMemoryVT() == MVT::i16) {
            #ifdef LLVM_OLDER_THAN_16
            auto shiftsLeft = lsdn->getAlignment() < 4 ?
            #else
            auto shiftsLeft = lsdn->getAlign() < 4 ?
            #endif
                DAG.getNode(ISD::SUB, op, MVT::i32,
                            DAG.getConstant(16l, op, MVT::i32),
                            lowBits) :
                DAG.getConstant(16l, op, MVT::i32);
            auto shiftUp = DAG.getNode(
                ISD::SHL, op, MVT::i32, load, shiftsLeft);
            auto shiftDown = DAG.getNode(
                ISD::SRA, op, MVT::i32, shiftUp,
                DAG.getConstant(16l, op, MVT::i32));
            return shiftDown;
        } else if (lsdn->getMemoryVT() == MVT::i8) {
            #ifdef LLVM_OLDER_THAN_16
            auto shiftsLeft = lsdn->getAlignment() < 4 ?
            #else
            auto shiftsLeft = lsdn->getAlign() < 4 ?
            #endif
                DAG.getNode(ISD::SUB, op, MVT::i32,
                            DAG.getConstant(24l, op, MVT::i32),
                            lowBits) :
                DAG.getConstant(24l, op, MVT::i32);
            auto shiftUp =
                DAG.getNode(ISD::SHL, op, MVT::i32, load, shiftsLeft);
            auto shiftDown = DAG.getNode(
                ISD::SRA, op, MVT::i32, shiftUp,
                DAG.getConstant(24l, op, MVT::i32));
            return shiftDown;
        } else if (lsdn->getMemoryVT() == MVT::i1) {
            #ifdef LLVM_OLDER_THAN_16
            auto shiftsLeft = lsdn->getAlignment() < 4 ?
            #else
            auto shiftsLeft = lsdn->getAlign() < 4 ?
            #endif
                DAG.getNode(ISD::SUB, op, MVT::i32,
                            DAG.getConstant(31l, op, MVT::i32),
                            lowBits) :
                DAG.getConstant(31l, op, MVT::i32);

            auto shiftUp =
                DAG.getNode(ISD::SHL, op, MVT::i32, load, shiftsLeft);
            auto shiftDown = DAG.getNode(
                ISD::SRA, op, MVT::i32, shiftUp,
                DAG.getConstant(31l, op, MVT::i32));
            return shiftDown;
        } else {
            assert(false && "Unknown data type on Lower(Z)ExtLoad!");
        }
    }

    // anyext?
    if (lsdn->getExtensionType() == ISD::EXTLOAD) {
        #ifdef LLVM_OLDER_THAN_16
        auto shiftedValue = lsdn->getAlignment() < 4 ?
        #else
        auto shiftedValue = lsdn->getAlign() < 4 ?
        #endif
            DAG.getNode(ISD::SRA, op, MVT::i32, load, lowBits) :
            load;
        auto shiftDown = DAG.getNode(ISD::SRA, op, MVT::i32, load, lowBits);
        return shiftDown;
    } else {
        // normal, not-extload.
        MVT vt = op->getSimpleValueType(0);
        if  (vt == MVT::i1 && lsdn->getMemoryVT() == MVT::i1) {
            SDValue trunc = DAG.getAnyExtOrTrunc(load, op, MVT::i1);
            return trunc;
        }

        assert(false && "Should not be here, non-ext-load");
    }
    return SDValue();
}

References assert.

Referenced by LowerOperation().

lowerFABS()

SDValue TCETargetLowering::lowerFABS	(	SDValue	op,
		SelectionDAG &	dag
	)		const

Lowers FABS operation.

TODO: Do not custom lower if FABS supported by machine.

Definition at line 1423 of file TCEISelLowering.cc.

                                                                {
    MVT VT = op.getSimpleValueType();
    assert(VT == MVT::f32 || VT == MVT::f64);

    SDLoc DL(op);
    MVT castType = (VT == MVT::f32) ? MVT::i32 : MVT::i64;

    // Bitcast to integer type.
    SDValue tmp = dag.getNode(ISD::BITCAST, DL, castType, op.getOperand(0));
    // Mask with MSB set to zero.
    SDValue mask = (VT == MVT::f32) ? dag.getConstant(0x7fffffff, DL, MVT::i32)
                 : dag.getConstant(0x7fffffffffffffff, DL, MVT::i64);
    // Bitcast back to floating point type.
    SDValue tmp2 = dag.getNode(ISD::AND, DL, castType, tmp, mask);
    return dag.getNode(ISD::BITCAST, DL, VT, tmp2);
}

References assert.

Referenced by LowerOperation().

LowerFormalArguments()

SDValue TCETargetLowering::LowerFormalArguments ( SDValue  Chain, CallingConv::ID  CallConv, bool  isVarArg, const SmallVectorImpl< ISD::InputArg > &  Ins, SDLOC_PARAM_TYPE  dl, SelectionDAG &  DAG, SmallVectorImpl< SDValue > &  InVals  ) const

overridevirtual

getFunctionAlignment - Return the Log2 alignment of this function.

Lowers formal arguments.

Todo:

This probably doesn't work with vector arguments currently.

Definition at line 145 of file TCEISelLowering.cc.

{

    MachineFunction &MF = DAG.getMachineFunction();
    auto& frameInfo = MF.getFrameInfo();
    MachineRegisterInfo &RegInfo = MF.getRegInfo();

    // Assign locations to all of the incoming arguments.
    SmallVector<CCValAssign, 16> ArgLocs;
    CCState CCInfo(
        CallConv, isVarArg, DAG.getMachineFunction(),
        ArgLocs, *DAG.getContext());

    CCInfo.AnalyzeFormalArguments(Ins, CC_TCE);

    const unsigned *CurArgReg = ArgRegs, *ArgRegEnd = ArgRegs + argRegCount;
    const unsigned maxMemAlignment = isVarArg ? 4 : tm_.stackAlignment();
    unsigned ArgOffset = 0;

    for (unsigned i = 0, e = ArgLocs.size(); i != e; ++i) {
        SDValue ArgValue;
        CCValAssign &VA = ArgLocs[i];
        // FIXME: We ignore the register assignments of AnalyzeFormalArguments
        // because it doesn't know how to split a double into two i32 registers.
        EVT ObjectVT = VA.getValVT();
        MVT sType = ObjectVT.getSimpleVT().SimpleTy;

        if (sType == MVT::i1 || sType == MVT::i8 || sType == MVT::i16 ||
#ifdef TARGET64BIT
            sType == MVT::i64 ||
#endif
            sType == MVT::i32) {
            // There may be a bug that marked as not used if varargs
            if (!Ins[i].Used) {
                if (CurArgReg < ArgRegEnd) {
                    ++CurArgReg;
                }

                InVals.push_back(DAG.getUNDEF(ObjectVT));
            } else if (CurArgReg < ArgRegEnd && !isVarArg) {
                unsigned VReg = RegInfo.createVirtualRegister(
                    &DEFAULT_REG_CLASS);
                MF.getRegInfo().addLiveIn(*CurArgReg++, VReg);
                SDValue Arg = DAG.getCopyFromReg(Chain, dl, VReg, DEFAULT_TYPE);
                if (ObjectVT != DEFAULT_TYPE) {
                    unsigned AssertOp = ISD::AssertSext;
                    Arg = DAG.getNode(
                        AssertOp, dl, DEFAULT_TYPE, Arg,
                        DAG.getValueType(ObjectVT));
                    Arg = DAG.getNode(ISD::TRUNCATE, dl, ObjectVT, Arg);
                }
                InVals.push_back(Arg);

            } else {
                int FrameIdx = frameInfo.CreateFixedObject(
                    DEFAULT_SIZE, ArgOffset, /*immutable=*/true);

                SDValue FIPtr = DAG.getFrameIndex(FrameIdx, DEFAULT_TYPE);
                SDValue Load;
                if (ObjectVT == DEFAULT_TYPE) {
                    Load = DAG.getLoad(
                    DEFAULT_TYPE, dl, Chain, FIPtr, MachinePointerInfo());
                } else {
                    ISD::LoadExtType LoadOp = ISD::SEXTLOAD;

#ifndef LITTLE_ENDIAN_TARGET // big endian extload hack starts

                    // TODO: WHAT IS THIS??
                    // TCE IS NO LONGER ALWAYS BIG-ENDIAN!
                    // TCE is big endian, add an offset based on the ObjectVT.
                    unsigned Offset = DEFAULT_SIZE - std::max(
                        #ifdef LLVM_OLDER_THAN_16
                        1UL, ObjectVT.getSizeInBits().getFixedSize()/8);
                        #else
                        1UL, ObjectVT.getSizeInBits().getFixedValue()/8);
                        #endif
                    FIPtr = DAG.getNode(
                        ISD::ADD, dl, DEFAULT_TYPE, FIPtr,
                        DAG.getConstant(Offset, dl, DEFAULT_TYPE));

#endif // big endian hack ends

                    Load = DAG.getExtLoad(
                        LoadOp, dl, DEFAULT_TYPE, Chain, FIPtr,
                        MachinePointerInfo(), ObjectVT);
                    Load = DAG.getNode(ISD::TRUNCATE, dl, ObjectVT, Load);
                }
                InVals.push_back(Load);
            }
        } else if (sType == MVT::f16) {
            if (!Ins[i].Used) {                  // Argument is dead.
                if (CurArgReg < ArgRegEnd) {
                    ++CurArgReg;
                }
                InVals.push_back(DAG.getUNDEF(ObjectVT));
            } else if (CurArgReg < ArgRegEnd && !isVarArg) {
                unsigned VReg = RegInfo.createVirtualRegister(
                    &TCE::HFPRegsRegClass);
                MF.getRegInfo().addLiveIn(*CurArgReg++, VReg);
                SDValue Arg = DAG.getCopyFromReg(Chain, dl, VReg, MVT::f16);
                InVals.push_back(Arg);
            } else {
                int FrameIdx = frameInfo.CreateFixedObject(
                    DEFAULT_SIZE, ArgOffset, /*immutable=*/true);
                SDValue FIPtr = DAG.getFrameIndex(FrameIdx, DEFAULT_TYPE);
                SDValue Load = DAG.getLoad(
                    MVT::f16, dl, Chain, FIPtr, MachinePointerInfo());
                InVals.push_back(Load);
            }
        } else if (sType == MVT::f32 || sType == MVT::f64) {
            if (!Ins[i].Used) {                  // Argument is dead.
                if (CurArgReg < ArgRegEnd) {
                    ++CurArgReg;
                }
                InVals.push_back(DAG.getUNDEF(ObjectVT));
            } else if (CurArgReg < ArgRegEnd && !isVarArg) { // reg argument
                auto regClass = sType == MVT::f32 ?
                    &TCE::FPRegsRegClass:
                    &TCE::R64DFPRegsRegClass;
                unsigned VReg = RegInfo.createVirtualRegister(regClass);
                MF.getRegInfo().addLiveIn(*CurArgReg++, VReg);
                SDValue Arg = DAG.getCopyFromReg(Chain, dl, VReg, sType);
                InVals.push_back(Arg);
            } else { // argument in stack.
                int FrameIdx = frameInfo.CreateFixedObject(
                    DEFAULT_SIZE, ArgOffset, /*immutable=*/true);
                SDValue FIPtr = DAG.getFrameIndex(FrameIdx, DEFAULT_TYPE);
                SDValue Load = DAG.getLoad(
                    sType, dl, Chain, FIPtr, MachinePointerInfo());
                InVals.push_back(Load);
            }
        } else if (sType.isVector()) {
            if (!Ins[i].Used) {
                InVals.push_back(DAG.getUNDEF(ObjectVT));
            } else {
                int FrameIdx = MF.getFrameInfo().CreateFixedObject(
                    sType.getStoreSize(), ArgOffset, true);
                SDValue FIPtr = DAG.getFrameIndex(FrameIdx, DEFAULT_TYPE);
                SDValue Load = DAG.getLoad(
                    sType, dl, Chain, FIPtr, MachinePointerInfo());
                InVals.push_back(Load);
            }
        } else {
            std::cerr << "Unhandled argument type: "
                      << ObjectVT.getEVTString() << std::endl;
            std::cerr << "sType size in bits: " << sType.getSizeInBits()  << std::endl;
            std::cerr << "is a vector? " << sType.isVector() << std::endl;
            assert(false);
        }

        unsigned argumentByteSize = sType.getStoreSize();

        // Align parameter to stack correctly.
        if (argumentByteSize <= maxMemAlignment) {
            ArgOffset += maxMemAlignment;
        } else {
            unsigned alignBytes = maxMemAlignment - 1;
            ArgOffset += (argumentByteSize + alignBytes) & (~alignBytes);
        }
    }

    // inspired from ARM
    if (isVarArg) {
        /// @todo This probably doesn't work with vector arguments currently.
        // This will point to the next argument passed via stack.

        VarArgsFrameOffset = frameInfo.CreateFixedObject(
            DEFAULT_SIZE, ArgOffset, /*immutable=*/true);
    }

    return Chain;
}

References assert, DEFAULT_REG_CLASS, DEFAULT_SIZE, DEFAULT_TYPE, llvm::TCETargetMachine::stackAlignment(), tm_, and VarArgsFrameOffset.

Here is the call graph for this function:

LowerGLOBALADDRESS()

SDValue TCETargetLowering::LowerGLOBALADDRESS	(	SDValue	Op,
		SelectionDAG &	DAG
	)		const

Definition at line 930 of file TCEISelLowering.cc.

                                                                         {
    const GlobalAddressSDNode* gn = cast<GlobalAddressSDNode>(Op);
    const GlobalValue* gv = gn->getGlobal();
    // FIXME there isn't really any debug info here
    SDLoc dl(Op);

#if 0
    std::cerr << "lowering GA: AS = " << gn->getAddressSpace() << ", ";
    gv->getValueType()->dump();
#endif

    if (shouldLoadFromConstantPool(gn->getAddressSpace())) {
        // Immediate support for the address space is limited. Therefore,
        // the address must be loaded from constant pool.
        auto vt = getPointerTy(DAG.getDataLayout(), gn->getAddressSpace());
        SDValue cpIdx = DAG.getConstantPool(
            gv, getPointerTy(DAG.getDataLayout()));
    llvm::Align Alignment = cast<ConstantPoolSDNode>(cpIdx)->getAlign();
        SDValue result = DAG.getLoad(vt, dl, DAG.getEntryNode(), cpIdx,
            MachinePointerInfo::getConstantPool(DAG.getMachineFunction())
            );

        if (Application::verboseLevel() > 0) {
            std::cerr << "Expanded Global Value to a load from "
                      << "the constant pool." << std::endl;
        }
        return result;
    }
    SDValue tga = DAG.getTargetGlobalAddress(gv, dl, DEFAULT_TYPE);
    return DAG.getNode(TCEISD::GLOBAL_ADDR, SDLoc(Op), DEFAULT_TYPE, tga);
}

References DEFAULT_TYPE, TCEISD::GLOBAL_ADDR, shouldLoadFromConstantPool(), and Application::verboseLevel().

Referenced by LowerOperation().

Here is the call graph for this function:

lowerHWLoops()

SDValue TCETargetLowering::lowerHWLoops	(	SDValue	op,
		SelectionDAG &	dag
	)		const

Definition at line 1347 of file TCEISelLowering.cc.

                                                                   {
    if (cast<ConstantSDNode>(op->getOperand(1))->getZExtValue() !=
        Intrinsic::set_loop_iterations) {
        std::cerr << "Trying to lower invalid hwloop instruction"
                  << std::endl;
        return op;
    }

    // If hwloop is last instruction, let TDGen do the lowering.
    if (op->use_empty()) return op;

    // If we see a jump after hwloop, we have the hwloop
    // in correct place. Let TDGen handle the hwloop lowering.
    if (op->use_size() > 1) {
        dag.dump();
        assert(false && "HWLoop should not have more than one Use");
    }
    auto linkNode = op->use_begin();
    auto linkOpc = linkNode->getOpcode();
    if (linkOpc == ISD::BR || linkOpc == ISD::HANDLENODE) {
        // hwloop follows branch (or) last instruction of BB,
        // No action needed.
        return op;
    }

    // Sanity check for known pattern. Expected patterns,
    //   - hwloop -> TokenFactor -> BR (or)
    //   - hwloop -> TokenFactor
    if (linkOpc != ISD::TokenFactor || linkNode->use_size() > 1) {
        dag.dump();
        assert(false && "HWLoop loop pattern not implemented.");
    }

    // Create HWLOOP operands with link to ISD::BR node
    // i.e. TokenFactor -> HWLOOP -> BR
    SmallVector<SDValue, 8> ops;
    SmallVector<SDValue, 8> linkOps;
    bool replaceLinkNode = false;
    for (int i = 0; i < op.getNumOperands(); i++) {
        // Swap the use list of op and linkNode
        if (i == 0) {
            // Set TokenFactor as 1st operand
            ops.push_back(SDValue(*linkNode, 0));

            // Create operand list for linkNode
            for (int j = 0; j < linkNode->getNumOperands(); j++) {
                if (linkNode->getOperand(j) == op) {
                    linkOps.push_back(op.getOperand(i));
                } else {
                    linkOps.push_back(linkNode->getOperand(j));
                }
            }
            replaceLinkNode = true;
        } else {
            // Keep rest of the operands as it is in hwloop
            ops.push_back(op.getOperand(i));
        }
    }
    SDLoc dl(op);
    dag.ReplaceAllUsesWith(*linkNode, &op);
    auto Chain = dag.UpdateNodeOperands(op.getNode(), ArrayRef<SDValue>(ops));
    if (replaceLinkNode) {
        SDValue newLinkNode = dag.getNode(
            linkNode->getOpcode(), dl, MVT::Other,
            ArrayRef<SDValue>(linkOps));
        dag.ReplaceAllUsesWith(*linkNode, &newLinkNode);
    }
    return op;
}

References assert.

Referenced by LowerOperation().

LowerINLINEASM()

SDValue llvm::TCETargetLowering::LowerINLINEASM	(	SDValue	Op,
		SelectionDAG &	DAG
	)		const

LowerOperation()

SDValue TCETargetLowering::LowerOperation ( SDValue  op, SelectionDAG &  dag  ) const

overridevirtual

Handles custom operation lowerings.

Definition at line 1444 of file TCEISelLowering.cc.

                                                                     {
    switch(op.getOpcode()) {
    case ISD::TRAP: return LowerTRAP(op, dag);
    case ISD::GlobalAddress: return LowerGLOBALADDRESS(op, dag);
    case ISD::BlockAddress: return LowerBlockAddress(op, dag);
    case ISD::VASTART: return LowerVASTART(op, dag);
    case ISD::ConstantPool: return LowerCONSTANTPOOL(op, dag);
    case ISD::Constant: return LowerConstant(op, dag);
    case ISD::BUILD_VECTOR: return LowerBuildVector(op, dag);
    case ISD::SHL:
    case ISD::SRA:
    case ISD::SRL: return LowerShift(op, dag);
    case ISD::LOAD: return lowerExtOrBoolLoad(op, dag);
    case ISD::INTRINSIC_VOID:
        return lowerHWLoops(op, dag);
    case ISD::DYNAMIC_STACKALLOC: {
        assert(false && "Dynamic stack allocation not yet implemented.");
    }
    case ISD::FABS: return lowerFABS(op, dag);
#ifdef OLD_VECTOR_CODE
    case ISD::LOAD: return LowerLOAD(op, dag);
#endif
    }
    op.getNode()->dump(&dag);
    assert(0 && "Custom lowerings not implemented!");
}

References assert, LowerBlockAddress(), LowerBuildVector(), LowerConstant(), LowerCONSTANTPOOL(), lowerExtOrBoolLoad(), lowerFABS(), LowerGLOBALADDRESS(), lowerHWLoops(), LowerShift(), LowerTRAP(), and LowerVASTART().

Here is the call graph for this function:

LowerReturn()

SDValue TCETargetLowering::LowerReturn ( SDValue  Chain, CallingConv::ID  CallConv, bool  isVarArg, const SmallVectorImpl< ISD::OutputArg > &  Outs, const SmallVectorImpl< SDValue > &  OutVals, SDLOC_PARAM_TYPE  dl, SelectionDAG &  DAG  ) const

overridevirtual

Definition at line 97 of file TCEISelLowering.cc.

{

  // CCValAssign - represent the assignment of the return value to locations.
  SmallVector<CCValAssign, 16> RVLocs;

  // CCState - Info about the registers and stack slot.
  CCState CCInfo(CallConv, isVarArg, DAG.getMachineFunction(),
                 RVLocs, *DAG.getContext());

  // Analize return values.
  CCInfo.AnalyzeReturn(Outs, RetCC_TCE);

  SmallVector<SDValue, 4> RetOps(1, Chain);

  SDValue Flag;

  // Copy the result values into the output registers.
  for (unsigned i = 0; i != RVLocs.size(); ++i) {
    CCValAssign &VA = RVLocs[i];
    assert(VA.isRegLoc() && "Can only return in registers!");

    Chain = DAG.getCopyToReg(Chain, dl, VA.getLocReg(),
                             OutVals[i], Flag);

    // Guarantee that all emitted copies are stuck together with flags.
    Flag = Chain.getValue(1);
    RetOps.push_back(DAG.getRegister(VA.getLocReg(), VA.getLocVT()));
  }

  RetOps[0] = Chain;  // Update chain.

  // Add the flag if we have it.
  if (Flag.getNode())
    RetOps.push_back(Flag);

  return DAG.getNode(
      TCEISD::RET_FLAG, dl, MVT::Other, ArrayRef<SDValue>(RetOps));
}

References assert, and TCEISD::RET_FLAG.

LowerShift()

SDValue TCETargetLowering::LowerShift	(	SDValue	op,
		SelectionDAG &	dag
	)		const

Definition at line 1281 of file TCEISelLowering.cc.

                                                                 {

    auto shiftOpcodes = getConstShiftNodeAndTCEOP(op);
    int shiftOpcode = shiftOpcodes.first;
    assert(shiftOpcode && "Shift opcide not supported, should not be here");

    SDValue R = op.getOperand(0);
    SDValue Amt = op.getOperand(1);
    const DebugLoc& dl = op.getDebugLoc();
    std::set<unsigned long> supportedShifts;


    // find all the constant shifts
    for (int i = 1; i < 32; i++) {
        TCEString opName = shiftOpcodes.second; opName << i << "_32";
        if (tm_.hasOperation(opName)) {
            supportedShifts.insert(i);
        }
    }

    // add also 1-bit shift for add
    // we should ALWAYS have an add but - lets check to be sure ;)
    if (tm_.hasOperation("ADD")) {
        supportedShifts.insert(1);
    }

    if (Amt.getOpcode() == ISD::Constant) {
        unsigned long amount = op.getConstantOperandVal(1);
        // if has no correct-width shift, need to break down into multiple.
        if (supportedShifts.find(amount) == supportedShifts.end()) {
            // find the biggest suitable shift.
            for (auto i = supportedShifts.rbegin();
                 i != supportedShifts.rend(); i++) {
                if (amount > *i) {
                    auto shiftVal =
                        dag.getConstant(*i, op, Amt.getValueType());
                    auto remVal =
                        dag.getConstant(amount - *i, op, Amt.getValueType());
                    SDValue remaining = dag.getNode(
                        op.getOpcode(), op, op.getValueType(), R, remVal);
                    SDValue lowered = LowerShift(remaining, dag);
                    SDValue shift = dag.getNode(
                        shiftOpcode, op, op.getValueType(), lowered, shiftVal);
                    return shift;
                }
            }
        }
        return op;

    } else {
        unsigned Opc = op.getOpcode();
        switch(Opc) {
        case ISD::SRA:
            return ExpandLibCall(RTLIB::SRA_I32, op.getNode(), true, dag);
        case ISD::SRL:
            return ExpandLibCall(RTLIB::SRL_I32, op.getNode(), false, dag);
        case ISD::SHL:
            return ExpandLibCall(RTLIB::SHL_I32, op.getNode(), false, dag);
        default:
            std::cerr << "Invalid dynamic shift opcode" << std::endl;
        }
    }
    return op;
}

References assert, ExpandLibCall(), getConstShiftNodeAndTCEOP(), llvm::TCETargetMachine::hasOperation(), LowerShift(), R(), and tm_.

Referenced by LowerOperation(), and LowerShift().

Here is the call graph for this function:

LowerTRAP()

SDValue TCETargetLowering::LowerTRAP	(	SDValue	Op,
		SelectionDAG &	DAG
	)		const

Definition at line 900 of file TCEISelLowering.cc.

                                                                        {
    SDLoc dl(Op);

    TargetLowering::ArgListTy Args;

    TargetLowering::CallLoweringInfo CLI(DAG);
    CLI.setDebugLoc(dl);
    CLI.setChain(Op->getOperand(0));
    CLI.setCallee(
        CallingConv::C,
        Type::getVoidTy(*DAG.getContext()),
        DAG.getExternalSymbol("_exit",
             getPointerTy(getTargetMachine().createDataLayout(), 0)),
        std::move(Args));
    CLI.setInRegister(false);
    CLI.setNoReturn(true);
    CLI.setVarArg(false);
    CLI.setTailCall(false);
    CLI.setDiscardResult(false);
    CLI.setSExtResult(false);
    CLI.setZExtResult(false);

    std::pair<SDValue, SDValue> CallResult =
        LowerCallTo(CLI);
    return CallResult.second;

}

Referenced by LowerOperation().

LowerVASTART()

SDValue TCETargetLowering::LowerVASTART	(	SDValue	Op,
		SelectionDAG &	DAG
	)		const

Definition at line 1167 of file TCEISelLowering.cc.

                                                                   {

    // ARM ripoff

    // vastart just stores the address of the VarArgsFrameIndex slot into the
    // memory location argument.
    SDLoc dl(Op);
    EVT PtrVT =
        DAG.getTargetLoweringInfo().getPointerTy(
            getTargetMachine().createDataLayout(), 0);
    SDValue FR = DAG.getFrameIndex(getVarArgsFrameOffset(), PtrVT);
    const Value *SV = cast<SrcValueSDNode>(Op.getOperand(2))->getValue();
    return DAG.getStore(
        Op.getOperand(0), dl, FR, Op.getOperand(1), MachinePointerInfo(SV));
}

References getVarArgsFrameOffset().

Referenced by LowerOperation().

Here is the call graph for this function:

PerformDAGCombine()

SDValue TCETargetLowering::PerformDAGCombine ( SDNode *  N, DAGCombinerInfo &  DCI  ) const

overridevirtual

Replace the decrement use chain with it predecessor The decrement should connect to BRCOND node directly or via TokeneFactor. If it is connected via TokenFactor, move the decrement close to BRCOND by updating the chain

Definition at line 1472 of file TCEISelLowering.cc.

                                                                          {
    SelectionDAG &DAG = DCI.DAG;
    SDLoc dl(N);
    switch (N->getOpcode()) {
        default:
            break;
        case ISD::BRCOND: {
            SDValue Cond = N->getOperand(1);
            SDValue Target = N->getOperand(2);
            // Corner case for decrement -> setcc -> brcond link
            if (Cond.getOpcode() == ISD::SETCC)
                Cond = Cond.getOperand(0);
            if (Cond.getOpcode() == ISD::INTRINSIC_W_CHAIN &&
                cast<ConstantSDNode>(Cond.getOperand(1))->getZExtValue() ==
                    Intrinsic::loop_decrement) {
                /// Replace the decrement use chain with it predecessor
                /// The decrement should connect to BRCOND node directly or
                /// via TokeneFactor. If it is connected via TokenFactor, move
                /// the decrement close to BRCOND by updating the chain
                auto chain = N->getOperand(0);
                // Correct form. no action needed
                if (chain.getNode() == Cond.getNode()) {
                    DAG.SelectNodeTo(N, TCE::LJUMP, MVT::Other,
                            N->getOperand(2), Cond->getOperand(0));
                } else {
                    assert((chain.getOpcode() == ISD::TokenFactor) &&
                        "chain to brcond is not TokenFactor.");
                    assert((N->use_begin()->getOpcode() == ISD::BR) &&
                        "brcond is not connected to br.");
                    SmallVector<SDValue, 8> Ops;
                    bool hasDecrement = false;
                    for (unsigned i = 0, e = chain->getNumOperands(); i != e;
                         ++i) {
                        if (chain->getOperand(i).getNode() ==
                            Cond.getNode()) {
                            hasDecrement = true;
                            Ops.push_back(Cond->getOperand(0));
                        } else {
                            Ops.push_back(chain->getOperand(i));
                        }
                    }
                    assert(hasDecrement &&
                        "Unable to find Chain for loop decrement");
                    auto newChain = DAG.getNode(
                        ISD::TokenFactor, SDLoc(chain), MVT::Other, Ops);
                    DAG.ReplaceAllUsesOfValueWith(chain, newChain);

                    // Custom ISEL for LJUMP
                    DAG.UpdateNodeOperands(
                        N, newChain, N->getOperand(1), N->getOperand(2));
                    DAG.SelectNodeTo(
                        N, TCE::LJUMP, MVT::Other, N->getOperand(2),
                        newChain);
                }
            }
        }
    }
    return SDValue();
}

References assert.

ReplaceNodeResults()

void TCETargetLowering::ReplaceNodeResults ( SDNode *  node, SmallVectorImpl< SDValue > &  Results, SelectionDAG &  DAG  ) const

override

Definition at line 1891 of file TCEISelLowering.cc.

                             {
    auto fnName = DAG.getMachineFunction().getName().str();

    SDValue shiftedVal;
    SDValue truncAnd;
    if (node->getOpcode() == ISD::LOAD) {
        auto lsdn = dyn_cast<LoadSDNode>(node);
        if (lsdn == nullptr) {
            std::cerr << "Error: null loadsdnde!" << std::endl;
            return;
        }
        #ifdef LLVM_OLDER_THAN_16
        if (lsdn->getAlignment() < 2 &&
        #else
        if (lsdn->getAlign() < 2 &&
        #endif
            lsdn->getMemoryVT() != MVT::i8 && lsdn->getMemoryVT() != MVT::i1) {
            assert(0 && "Cannot lower 16-bit memory op with only one byte alignment");
        }

        auto chain = node->getOperand(0);

        SDValue load;
        SDValue lowBits;
        #ifdef LLVM_OLDER_THAN_16
        if (lsdn->getAlignment() >= 4) {
        #else
        if (lsdn->getAlign() >= 4) {
        #endif
            load = DAG.getLoad(
            MVT::i32, node, chain, lsdn->getBasePtr(), MachinePointerInfo());
        } else {
            auto alignedAddr =
                DAG.getNode(
                    ISD::AND, node, MVT::i32, lsdn->getBasePtr(),
                    DAG.getConstant(-4l, node, MVT::i32));

            auto lowBytes = DAG.getNode(
                ISD::AND, node, MVT::i32, lsdn->getBasePtr(),
                DAG.getConstant(3l, node, MVT::i32));

            lowBits = DAG.getNode(
                ISD::SHL, node, MVT::i32, lowBytes,
                DAG.getConstant(3l, node, MVT::i32));

            load = DAG.getLoad(
                MVT::i32, node, chain, alignedAddr, MachinePointerInfo());
        }

        // TODO: breaks with 64 bits!
        // TODO: also breaks with 16-bit floats?
        MVT vt = node->getSimpleValueType(0);
        if (vt == MVT::i32) {
            assert(0 && "Result i32? this should be extload?");
            Results.push_back(SDValue(load));
            Results.push_back(SDValue(load.getNode(),1));
            return;
        }

        SDValue finalVal;
        if (lsdn->getExtensionType() == ISD::ZEXTLOAD) {
            #ifdef LLVM_OLDER_THAN_16
            shiftedVal = lsdn->getAlignment() < 4 ?
            #else
            shiftedVal = lsdn->getAlign() < 4 ?
            #endif
                DAG.getNode(ISD::SRA, node, MVT::i32, load, lowBits):
                load;

            if (lsdn->getMemoryVT() == MVT::i1) {
                finalVal = DAG.getNode(
                    ISD::AND, node, MVT::i32, shiftedVal,
                    DAG.getConstant(1l, node, MVT::i32));
            } else if (lsdn->getMemoryVT() == MVT::i8) {
                finalVal = DAG.getNode(
                    ISD::AND, node, MVT::i32, shiftedVal,
                    DAG.getConstant(255l, node, MVT::i32));
            } else {
                // TODO: 64-bit port needs to add option for 32-bit here.
                assert(0 && "Wrong memory vt in zextload!");
            }
        } else if (lsdn->getExtensionType() == ISD::SEXTLOAD) {
            if (lsdn->getMemoryVT() == MVT::i1) {
                auto shiftsLeft =
                    DAG.getNode(ISD::SUB, node, MVT::i32,
                                DAG.getConstant(31l, node, MVT::i32),lowBits);
                auto shiftUp = DAG.getNode(
                    ISD::SHL, node, MVT::i32, load, shiftsLeft);
                finalVal = DAG.getNode(
                    ISD::SRA, node, MVT::i32, shiftUp,
                    DAG.getConstant(31l, node, MVT::i32));
            } else if (lsdn->getMemoryVT() == MVT::i8) {
                auto shiftsLeft =
                    DAG.getNode(ISD::SUB, node, MVT::i32,
                                DAG.getConstant(24l, node, MVT::i32),lowBits);
                auto shiftUp = DAG.getNode(
                    ISD::SHL, node, MVT::i32, load, shiftsLeft);
                finalVal = DAG.getNode(
                    ISD::SRA, node, MVT::i32, shiftUp,
                    DAG.getConstant(24l, node, MVT::i32));
            } else {
                // TODO: 64-bit port needs to add option for 32-bit here.
                assert(0 && "Wrong memory vt in sextload!");
            }
        } else { // anyext/noext.
            #ifdef LLVM_OLDER_THAN_16
            finalVal = lsdn->getAlignment() < 4 ?
            #else
            finalVal = lsdn->getAlign() < 4 ?
            #endif
                DAG.getNode(ISD::SRA, node, MVT::i32, load, lowBits):
                load;
        }

        SDValue rv;
        if (vt == MVT::i16) {
            rv = DAG.getAnyExtOrTrunc(finalVal, node, MVT::i16);
        } else if (vt == MVT::i8) {
            rv = DAG.getAnyExtOrTrunc(finalVal, node, MVT::i8);
        } else if (vt == MVT::i1) {
            rv = DAG.getAnyExtOrTrunc(finalVal, node, MVT::i1);
        } else {
            assert(0 && "Wrong vt in load lowering!");
        }

        Results.push_back(rv);
        Results.push_back(SDValue(load.getNode(),1));
    } else {
        assert(false && "ReplaceNodeResults not load!");
    }
}

References assert.

shouldLoadFromConstantPool()

bool TCETargetLowering::shouldLoadFromConstantPool

(

unsigned

addressSpace

)

const

Returns true if the address values should be loaded from constant pool due to limited immediate support.

Definition at line 1773 of file TCEISelLowering.cc.

                                                                         {
    if (loadGAFromConstantPool_.count(addressSpace) == 0) {
        // Default behavior for unspecified address spaces.
        assert(loadGAFromConstantPool_.count(0));
        return loadGAFromConstantPool_.at(0);
    }

    return loadGAFromConstantPool_.at(addressSpace);
}

References assert, and loadGAFromConstantPool_.

Referenced by LowerGLOBALADDRESS().

Member Data Documentation

hasI1RC_

bool llvm::TCETargetLowering::hasI1RC_ = false

private

Tells if the target machine has boolean register file.

Definition at line 175 of file TCEISelLowering.hh.

Referenced by getSetCCResultType(), and TCETargetLowering().

loadGAFromConstantPool_

std::map<unsigned, bool> llvm::TCETargetLowering::loadGAFromConstantPool_

private

Predicates to tell whenever the addresses belonging to a address space should be loaded from constant pool instead of immediates. Address space as index maps to the predicate.

Definition at line 182 of file TCEISelLowering.hh.

Referenced by shouldLoadFromConstantPool(), and TCETargetLowering().

tm_

TCETargetMachine& llvm::TCETargetLowering::tm_

private

Definition at line 177 of file TCEISelLowering.hh.

Referenced by canEncodeImmediate(), getRegForInlineAsmConstraint(), hasI1RegisterClass(), isFPImmLegal(), LowerBuildVector(), LowerCall(), LowerFormalArguments(), LowerShift(), and TCETargetLowering().

VarArgsFrameOffset

int llvm::TCETargetLowering::VarArgsFrameOffset

mutableprivate

Definition at line 84 of file TCEISelLowering.hh.

Referenced by getVarArgsFrameOffset(), and LowerFormalArguments().

---

The documentation for this class was generated from the following files:

• TCEISelLowering.hh
• TCEISelLowering.cc
