llvm::TCETargetMachine Class Reference

#include <TCETargetMachine.hh>

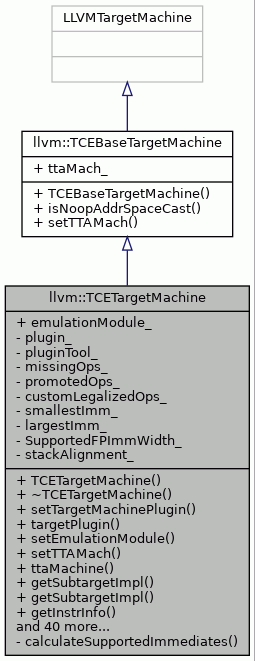

Inheritance diagram for llvm::TCETargetMachine:

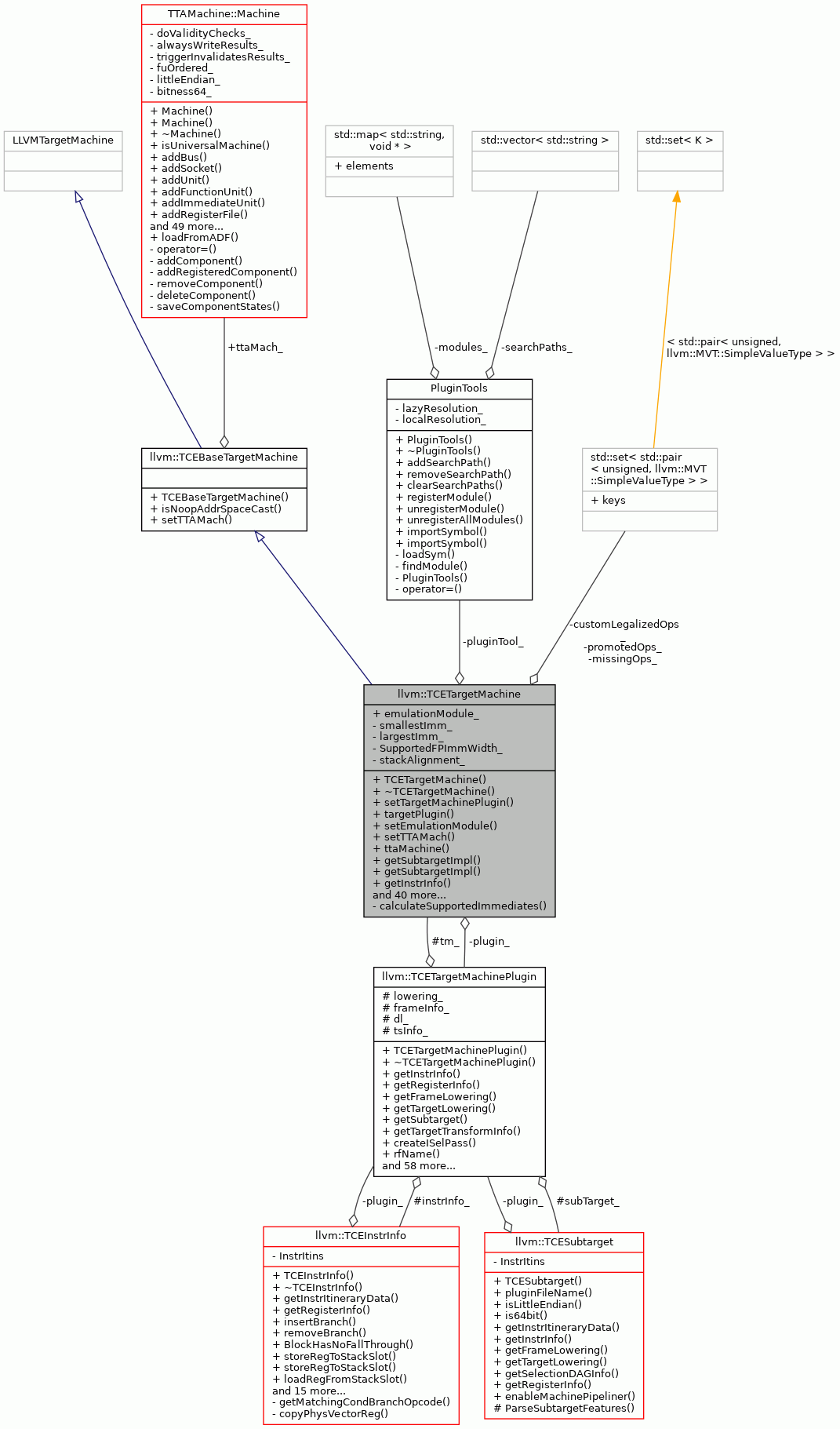

Collaboration diagram for llvm::TCETargetMachine:

Public Member Functions
	TCETargetMachine (const Target &T, const Triple &TTriple, const llvm::StringRef &CPU, const llvm::StringRef &FS, const TargetOptions &Options, std::optional< Reloc::Model > RM, std::optional< CodeModel::Model > CM, CodeGenOpt::Level OL, bool isLittle)
virtual	~TCETargetMachine ()
virtual void	setTargetMachinePlugin (TCETargetMachinePlugin &plugin, TTAMachine::Machine &target)
virtual TCETargetMachinePlugin &	targetPlugin () const
virtual void	setEmulationModule (Module *mod)
virtual void	setTTAMach (const TTAMachine::Machine *mach) override
virtual const TTAMachine::Machine &	ttaMachine () const
virtual const TCESubtarget *	getSubtargetImpl () const
virtual const TargetSubtargetInfo *	getSubtargetImpl (const Function &) const override
virtual const TargetInstrInfo *	getInstrInfo () const
virtual const TargetRegisterInfo *	getRegisterInfo () const
virtual const DataLayout *	getDataLayout () const
virtual const TargetFrameLowering *	getFrameLowering () const
virtual TargetLowering *	getTargetLowering () const
virtual TargetPassConfig *	createPassConfig (PassManagerBase &PM) override
TargetTransformInfo	getTargetTransformInfo (const Function &F) const override
std::string	operationName (unsigned opc) const
bool	validStackAccessOperation (const std::string &opName) const
bool	hasOperation (TCEString operationName) const
std::string	rfName (unsigned dwarfRegNum) const
unsigned	registerIndex (unsigned dwarfRegNum) const
std::string	registerName (unsigned dwarfRegNum) const
unsigned	llvmRegisterId (const TCEString &ttaRegister)
TTAMachine::Machine *	createMachine ()
std::string	dataASName ()
unsigned	raPortDRegNum () const
void	loadPlugin ()
unsigned	spDRegNum () const
unsigned	opcode (TCEString operationName) const
int	getMinOpcode (llvm::SDNode *n)
int	getMinuOpcode (llvm::SDNode *n)
int	getMaxOpcode (llvm::SDNode *n)
int	getMaxuOpcode (llvm::SDNode *n)
int	getAddOpcode (const llvm::EVT &vt) const
int	getShlOpcode (const llvm::EVT &vt) const
int	getIorOpcode (const llvm::EVT &vt) const
void	setStackAlignment (unsigned align)
unsigned	stackAlignment () const
bool	has8bitLoads () const
bool	has16bitLoads () const
int	bitness () const
const std::set< std::pair< unsigned, llvm::MVT::SimpleValueType > > *	missingOperations ()
const std::set< std::pair< unsigned, llvm::MVT::SimpleValueType > > *	promotedOperations ()
const std::set< std::pair< unsigned, llvm::MVT::SimpleValueType > > *	customLegalizedOperations ()
int64_t	smallestImmValue () const
uint64_t	largestImmValue () const
bool	canEncodeAsMOVI (const llvm::MVT &vt, int64_t val) const
bool	canEncodeAsMOVF (const llvm::APFloat &fp) const
bool	canMaterializeConstant (const ConstantInt &ci) const
int	getLoadOpcode (int asid, int align, const llvm::EVT &vt) const
Public Member Functions inherited from llvm::TCEBaseTargetMachine
	TCEBaseTargetMachine (const Target &T, const Triple &TT, const llvm::StringRef &CPU, const llvm::StringRef &FS, const TargetOptions &Options, Reloc::Model RM, CodeModel::Model CM, CodeGenOpt::Level OL)
virtual bool	isNoopAddrSpaceCast (unsigned SrcAS, unsigned DestAS) const override

Public Attributes
Module *	emulationModule_
Public Attributes inherited from llvm::TCEBaseTargetMachine
const TTAMachine::Machine *	ttaMach_

Private Member Functions
void	calculateSupportedImmediates ()

Private Attributes
TCETargetMachinePlugin *	plugin_
PluginTools *	pluginTool_
std::set< std::pair< unsigned, llvm::MVT::SimpleValueType > >	missingOps_
	llvm::ISD opcode list of operations that have to be expanded.
std::set< std::pair< unsigned, llvm::MVT::SimpleValueType > >	promotedOps_
std::set< std::pair< unsigned, llvm::MVT::SimpleValueType > >	customLegalizedOps_
int64_t	smallestImm_ = std::numeric_limits<int64_t>::max()
uint64_t	largestImm_ = std::numeric_limits<int64_t>::min()
int	SupportedFPImmWidth_ = std::numeric_limits<int>::min()
unsigned	stackAlignment_

Detailed Description

TCE Universal machine target description.

Definition at line 106 of file TCETargetMachine.hh.

Constructor & Destructor Documentation

TCETargetMachine()

TCETargetMachine::TCETargetMachine	(	const Target &	T,
		const Triple &	TTriple,
		const llvm::StringRef &	CPU,
		const llvm::StringRef &	FS,
		const TargetOptions &	Options,
		std::optional< Reloc::Model >	RM,
		std::optional< CodeModel::Model >	CM,
		CodeGenOpt::Level	OL,
		bool	isLittle
	)

Definition at line 148 of file TCETargetMachine.cc.

                                                                                    :
    #else
    std::optional<Reloc::Model> RM, std::optional<CodeModel::Model> CM, CodeGenOpt::Level OL, bool) :
    #endif
    TCEBaseTargetMachine(T, TTriple, CPU, FS, Options,
                         RM?*RM:Reloc::Model::Static, CM?*CM:CodeModel::Small, OL),
    // Note: Reloc::Model does not have "Default" named member. "Static" is ok?
    // Note: CodeModel does not have "Default" named member. "Small" is ok?
    plugin_(NULL), pluginTool_(NULL) {
}

~TCETargetMachine()

TCETargetMachine::~TCETargetMachine ( )

virtual

The Destructor.

Definition at line 167 of file TCETargetMachine.cc.

                                    {
    if (pluginTool_ != NULL) {
        delete pluginTool_;
        pluginTool_ = NULL;
    }
}

References pluginTool_.

Member Function Documentation

bitness()

int llvm::TCETargetMachine::bitness ( ) const

inline

Definition at line 298 of file TCETargetMachine.hh.

                            {
            return plugin_->is64bit() ? 64 : 32;
        }

References llvm::TCETargetMachinePlugin::is64bit(), and plugin_.

Here is the call graph for this function:

calculateSupportedImmediates()

void TCETargetMachine::calculateSupportedImmediates ( )

private

Definition at line 400 of file TCETargetMachine.cc.

                                               {
    using MCC = MachineConnectivityCheck;

    // FIX ME: All 32 bit regs are assumed to be RF-connected.
    std::pair<int64_t, uint64_t> moveImm{
        std::numeric_limits<int64_t>::max(),
        std::numeric_limits<uint64_t>::min() };
    assert(ttaMach_);
    for (auto& rf : ttaMach_->registerFileNavigator()) {
        if (rf->width() != 32) continue;

        for (auto& bus : ttaMach_->busNavigator()) {
            if (!MCC::busConnectedToRF(*bus, *rf)
                || bus->immediateWidth() == 0) {
                continue;
            }

            if (bus->immediateWidth() >= 32) {
                moveImm.first = -(1ll << (32-1));
                moveImm.second = (1ll << 32)-1;
                break;
            } else {
                std::pair<int64_t, uint64_t> imm =
                    MathTools::bitsToIntegerRange<int64_t, uint64_t>(
                        bus->immediateWidth(),
                        bus->signExtends());

                moveImm.first = std::min(moveImm.first, imm.first);
                moveImm.second = std::max(moveImm.second, imm.second);
            }
        }
    }

    for (auto& iu : ttaMach_->immediateUnitNavigator()) {
        for (auto& it : ttaMach_->instructionTemplateNavigator()) {
            int supportedWidth = it->supportedWidth(*iu);
            if (supportedWidth >= 32) {
                moveImm.first = -(1ll << (32-1));
                moveImm.second = (1ll << 32)-1;
                break;
            } else {
                std::pair<int64_t, uint64_t> imm =
                    MathTools::bitsToIntegerRange<int64_t, uint64_t>(
                        supportedWidth, iu->signExtends());

                moveImm.first = std::min(moveImm.first, imm.first);
                moveImm.second = std::max(moveImm.second, imm.second);
            }
        }
    }
    smallestImm_ = moveImm.first;
    largestImm_ = moveImm.second;

    for (auto* rf : ttaMach_->registerFileNavigator()) {
        if (!MCC::rfConnected(*rf)) continue;

        SupportedFPImmWidth_ = std::max(
            SupportedFPImmWidth_,
            ImmInfo::registerImmediateLoadWidth(*rf, false));
    }
}

References assert, TTAMachine::Machine::busNavigator(), TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Machine::instructionTemplateNavigator(), largestImm_, TTAMachine::Machine::registerFileNavigator(), ImmInfo::registerImmediateLoadWidth(), smallestImm_, SupportedFPImmWidth_, and llvm::TCEBaseTargetMachine::ttaMach_.

Referenced by setTTAMach().

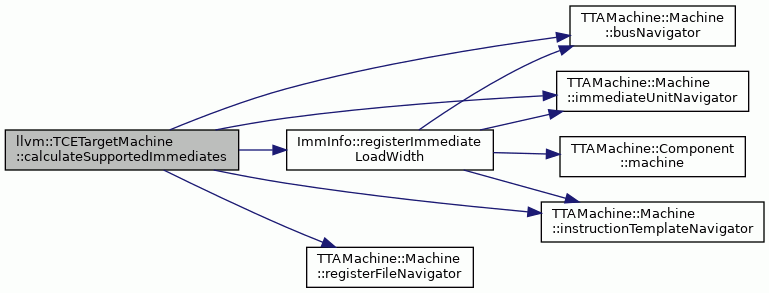

Here is the call graph for this function:

canEncodeAsMOVF()

bool TCETargetMachine::canEncodeAsMOVF

(

const llvm::APFloat &

fp

)

const

Returns true if the floating point value can be encoded as immediate to register.

Definition at line 393 of file TCETargetMachine.cc.

                                                             {
    int fpBitWidth = static_cast<int>(
        llvm::APFloat::getSizeInBits(fp.getSemantics()));
    return fpBitWidth <= SupportedFPImmWidth_;
}

References SupportedFPImmWidth_.

Referenced by llvm::TCETargetLowering::isFPImmLegal().

canEncodeAsMOVI()

bool TCETargetMachine::canEncodeAsMOVI	(	const llvm::MVT &	vt,
		int64_t	val
	)		const

Returns true if the value can be encoded as immediate to register.

Definition at line 370 of file TCETargetMachine.cc.

                                                                      {
    // setTargetMachinePlugin() calls calculateSupportedImmediateLimits.
    assert(ttaMach_ && "setTargetMachinePlugin() was not called");
    switch (vt.SimpleTy) {
        case MVT::i1:
            return (1 <= largestImm_);
        case MVT::i8:
        case MVT::i16:
        case MVT::i32:
        case MVT::i64:
            return smallestImm_ == INT64_MIN || largestImm_ == UINT64_MAX ||
                ((int64_t)smallestImm_ <= val &&
                (val < 0 || val <= (int64_t)largestImm_));
        default: assert(false && "Not implemented or supported.");
    }
    return false;
}

References assert, largestImm_, smallestImm_, and llvm::TCEBaseTargetMachine::ttaMach_.

Referenced by llvm::TCETargetLowering::canEncodeImmediate(), and llvm::TCETargetLowering::LowerBuildVector().

canMaterializeConstant()

bool llvm::TCETargetMachine::canMaterializeConstant ( const ConstantInt &  ci ) const

inline

Definition at line 325 of file TCETargetMachine.hh.

                                                                 {
            return plugin_->canMaterializeConstant(ci);
        }

References llvm::TCETargetMachinePlugin::canMaterializeConstant(), and plugin_.

Referenced by llvm::TCETargetLowering::canEncodeImmediate().

Here is the call graph for this function:

createMachine()

TTAMachine::Machine * TCETargetMachine::createMachine

(

)

Creates a TTAMachine::Machine object of the target architecture.

Definition at line 311 of file TCETargetMachine.cc.

                                {
    LLVMTCECmdLineOptions* options =
        dynamic_cast<LLVMTCECmdLineOptions*>(Application::cmdLineOptions());

    assert(options->isMachineFileDefined() && "ADF not defined");
    assert(options->machineFile() != "" && "ADF not defined");
    ADFSerializer serializer;
    serializer.setSourceFile(options->machineFile());
    return serializer.readMachine();
}

References assert, Application::cmdLineOptions(), options, ADFSerializer::readMachine(), and XMLSerializer::setSourceFile().

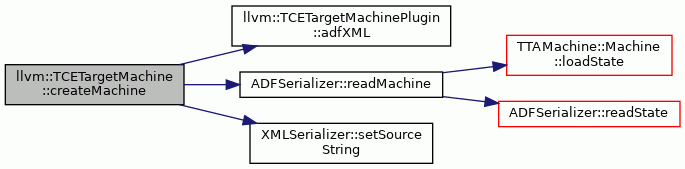

Here is the call graph for this function:

createPassConfig()

TargetPassConfig * TCETargetMachine::createPassConfig ( PassManagerBase &  PM )

overridevirtual

Definition at line 356 of file TCETargetMachine.cc.

                         {
    TCEPassConfig *tpc;
    tpc =  new TCEPassConfig(this, PM, plugin_);
    // TODO: is this false by default if not set?
    // false seems to give slightly better performance than true.
    tpc->setEnableTailMerge(false);
    return tpc;
}

References plugin_.

customLegalizedOperations()

const std::set< std::pair< unsigned, llvm::MVT::SimpleValueType > > * TCETargetMachine::customLegalizedOperations

(

)

Returns list of llvm::ISD SelectionDAG opcodes for operations that are not supported in the target architecture but will be custom-selected.

Definition at line 351 of file TCETargetMachine.cc.

                                            {
    return &customLegalizedOps_;
}

References customLegalizedOps_.

Referenced by llvm::TCETargetLowering::TCETargetLowering().

dataASName()

std::string llvm::TCETargetMachine::dataASName ( )

inline

Definition at line 231 of file TCETargetMachine.hh.

                               {
            return plugin_->dataASName();
        }

References llvm::TCETargetMachinePlugin::dataASName(), and plugin_.

Here is the call graph for this function:

getAddOpcode()

int llvm::TCETargetMachine::getAddOpcode ( const llvm::EVT &  vt ) const

inline

Definition at line 265 of file TCETargetMachine.hh.

                                                  {
            return plugin_->getAddOpcode(vt);
        }

References llvm::TCETargetMachinePlugin::getAddOpcode(), and plugin_.

Here is the call graph for this function:

getDataLayout()

virtual const DataLayout * llvm::TCETargetMachine::getDataLayout ( ) const

inlinevirtual

Definition at line 166 of file TCETargetMachine.hh.

                                                        {
            return plugin_->getDataLayout();
        }

References llvm::TCETargetMachinePlugin::getDataLayout(), and plugin_.

Here is the call graph for this function:

getFrameLowering()

virtual const TargetFrameLowering * llvm::TCETargetMachine::getFrameLowering ( ) const

inlinevirtual

Definition at line 170 of file TCETargetMachine.hh.

                                                                    {
            return plugin_->getFrameLowering();
        }

References llvm::TCETargetMachinePlugin::getFrameLowering(), and plugin_.

Here is the call graph for this function:

getInstrInfo()

virtual const TargetInstrInfo * llvm::TCETargetMachine::getInstrInfo ( ) const

inlinevirtual

Definition at line 158 of file TCETargetMachine.hh.

                                                            {
            return plugin_->getInstrInfo();
        }

References llvm::TCETargetMachinePlugin::getInstrInfo(), and plugin_.

Here is the call graph for this function:

getIorOpcode()

int llvm::TCETargetMachine::getIorOpcode ( const llvm::EVT &  vt ) const

inline

Definition at line 273 of file TCETargetMachine.hh.

                                                  {
            return plugin_->getIorOpcode(vt);
        }

References llvm::TCETargetMachinePlugin::getIorOpcode(), and plugin_.

Here is the call graph for this function:

getLoadOpcode()

int TCETargetMachine::getLoadOpcode	(	int	asid,
		int	align,
		const llvm::EVT &	vt
	)		const

Definition at line 467 of file TCETargetMachine.cc.

                                                                                {
    int laneCount = vt.getVectorElementCount().getKnownMinValue();

    int laneSize = vt.getScalarSizeInBits();
    int vecSize = laneCount * laneSize;
    TCEString relaxedName = "LD"; relaxedName << laneSize << "X" << laneCount;
    TCEString strictName = "LD"; strictName << vecSize;
    bool allowStrict = vecSize <= align;

    auto fuNav = ttaMach_->functionUnitNavigator();
    bool found = false;
    for (int i = 0; i < fuNav.count(); i++) {
        auto fu =  fuNav.item(i);
        if (fu->hasOperation(relaxedName) && fu->hasAddressSpace()) {
            auto as = fu->addressSpace();
            if (as->hasNumericalId(asid)) {
                found = true;
                break;
            }
        }
        if (allowStrict) {
            if (fu->hasOperation(strictName) && fu->hasAddressSpace()) {
                auto as = fu->addressSpace();
                if (as->hasNumericalId(asid)) {
                    found = true;
                    break;
                }
            }
        }
    }
    return found ? plugin_->getLoadOpcode(vt) : -1;
}

References TTAMachine::Machine::functionUnitNavigator(), llvm::TCETargetMachinePlugin::getLoadOpcode(), TTAMachine::Machine::Navigator< ComponentType >::item(), plugin_, and llvm::TCEBaseTargetMachine::ttaMach_.

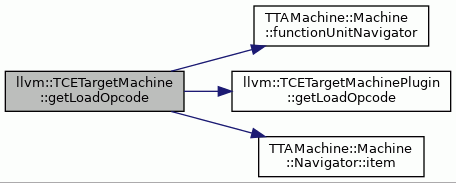

Here is the call graph for this function:

getMaxOpcode()

int llvm::TCETargetMachine::getMaxOpcode ( llvm::SDNode *  n )

inline

Definition at line 257 of file TCETargetMachine.hh.

                                        {
            return plugin_->getMaxOpcode(n);
        }

References llvm::TCETargetMachinePlugin::getMaxOpcode(), and plugin_.

Referenced by TCEDAGToDAGISel::Select().

Here is the call graph for this function:

getMaxuOpcode()

int llvm::TCETargetMachine::getMaxuOpcode ( llvm::SDNode *  n )

inline

Definition at line 261 of file TCETargetMachine.hh.

                                         {
            return plugin_->getMaxuOpcode(n);
        }

References llvm::TCETargetMachinePlugin::getMaxuOpcode(), and plugin_.

Referenced by TCEDAGToDAGISel::Select().

Here is the call graph for this function:

getMinOpcode()

int llvm::TCETargetMachine::getMinOpcode ( llvm::SDNode *  n )

inline

Definition at line 249 of file TCETargetMachine.hh.

                                        {
            return plugin_->getMinOpcode(n);
        }

References llvm::TCETargetMachinePlugin::getMinOpcode(), and plugin_.

Referenced by TCEDAGToDAGISel::Select().

Here is the call graph for this function:

getMinuOpcode()

int llvm::TCETargetMachine::getMinuOpcode ( llvm::SDNode *  n )

inline

Definition at line 253 of file TCETargetMachine.hh.

                                         {
            return plugin_->getMinuOpcode(n);
        }

References llvm::TCETargetMachinePlugin::getMinuOpcode(), and plugin_.

Referenced by TCEDAGToDAGISel::Select().

Here is the call graph for this function:

getRegisterInfo()

virtual const TargetRegisterInfo * llvm::TCETargetMachine::getRegisterInfo ( ) const

inlinevirtual

Definition at line 162 of file TCETargetMachine.hh.

                                                                  {
            return plugin_->getRegisterInfo();
        }

References llvm::TCETargetMachinePlugin::getRegisterInfo(), and plugin_.

Here is the call graph for this function:

getShlOpcode()

int llvm::TCETargetMachine::getShlOpcode ( const llvm::EVT &  vt ) const

inline

Definition at line 269 of file TCETargetMachine.hh.

                                                  {
            return plugin_->getShlOpcode(vt);
        }

References llvm::TCETargetMachinePlugin::getShlOpcode(), and plugin_.

Here is the call graph for this function:

getSubtargetImpl() [1/2]

virtual const TCESubtarget * llvm::TCETargetMachine::getSubtargetImpl ( ) const

inlinevirtual

Definition at line 148 of file TCETargetMachine.hh.

                                                             {
            // compiler does not know it's derived without the plugin,
            // but this class cannow include the plugin.
            return reinterpret_cast<const TCESubtarget*>(plugin_->getSubtarget());
        }

References llvm::TCETargetMachinePlugin::getSubtarget(), and plugin_.

Here is the call graph for this function:

getSubtargetImpl() [2/2]

virtual const TargetSubtargetInfo * llvm::TCETargetMachine::getSubtargetImpl ( const Function &  ) const

inlineoverridevirtual

Definition at line 154 of file TCETargetMachine.hh.

                                                                                            {
            return plugin_->getSubtarget();
        }

References llvm::TCETargetMachinePlugin::getSubtarget(), and plugin_.

Here is the call graph for this function:

getTargetLowering()

virtual TargetLowering * llvm::TCETargetMachine::getTargetLowering ( ) const

inlinevirtual

Definition at line 173 of file TCETargetMachine.hh.

                                                          {
            return plugin_->getTargetLowering();
        }

References llvm::TCETargetMachinePlugin::getTargetLowering(), and plugin_.

Here is the call graph for this function:

getTargetTransformInfo()

TargetTransformInfo llvm::TCETargetMachine::getTargetTransformInfo ( const Function &  F ) const

inlineoverride

Definition at line 187 of file TCETargetMachine.hh.

                                                                 {
            return plugin_->getTargetTransformInfo(F);
        }

References llvm::TCETargetMachinePlugin::getTargetTransformInfo(), and plugin_.

Here is the call graph for this function:

has16bitLoads()

bool llvm::TCETargetMachine::has16bitLoads ( ) const

inline

Definition at line 294 of file TCETargetMachine.hh.

                                   {
            return plugin_->has16bitLoads();
        }

References llvm::TCETargetMachinePlugin::has16bitLoads(), and plugin_.

Referenced by llvm::TCETargetLowering::TCETargetLowering().

Here is the call graph for this function:

has8bitLoads()

bool llvm::TCETargetMachine::has8bitLoads ( ) const

inline

Definition at line 290 of file TCETargetMachine.hh.

                                  {
            return plugin_->has8bitLoads();
        }

References llvm::TCETargetMachinePlugin::has8bitLoads(), and plugin_.

Referenced by llvm::TCETargetLowering::TCETargetLowering().

Here is the call graph for this function:

hasOperation()

bool llvm::TCETargetMachine::hasOperation ( TCEString  operationName ) const

inline

Definition at line 204 of file TCETargetMachine.hh.

                                                         {
            return plugin_->hasOperation(operationName);
        }

References llvm::TCETargetMachinePlugin::hasOperation(), operationName(), and plugin_.

Referenced by llvm::TCERegisterInfo::eliminateFrameIndex(), llvm::TCETargetLowering::LowerBuildVector(), and llvm::TCETargetLowering::LowerShift().

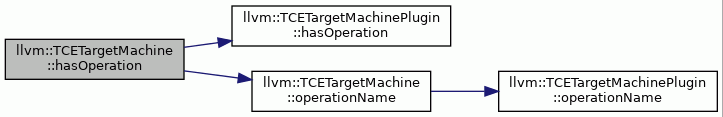

Here is the call graph for this function:

largestImmValue()

uint64_t llvm::TCETargetMachine::largestImmValue ( ) const

inline

Definition at line 318 of file TCETargetMachine.hh.

                                         {
            assert(ttaMach_ && "setTargetMachinePlugin() was not called");
            return largestImm_;
        }

References assert, largestImm_, and llvm::TCEBaseTargetMachine::ttaMach_.

Referenced by llvm::TCETargetLowering::TCETargetLowering().

llvmRegisterId()

unsigned llvm::TCETargetMachine::llvmRegisterId ( const TCEString &  ttaRegister )

inline

Definition at line 225 of file TCETargetMachine.hh.

                                                              {
            return plugin_->llvmRegisterId(ttaRegister);
        }

References llvm::TCETargetMachinePlugin::llvmRegisterId(), and plugin_.

Referenced by llvm::TCETargetLowering::getRegForInlineAsmConstraint().

Here is the call graph for this function:

loadPlugin()

void llvm::TCETargetMachine::loadPlugin

(

)

missingOperations()

const std::set< std::pair< unsigned, llvm::MVT::SimpleValueType > > * TCETargetMachine::missingOperations

(

)

Returns list of llvm::ISD SelectionDAG opcodes for operations that are not supported in the target architecture.

The returned operations have to be expanded to emulation function calls or emulation patterns in TCETargetLowering.

Definition at line 330 of file TCETargetMachine.cc.

                                    {
    return &missingOps_;
}

References missingOps_.

Referenced by llvm::TCETargetLowering::TCETargetLowering().

opcode()

unsigned llvm::TCETargetMachine::opcode ( TCEString  operationName ) const

inline

Definition at line 245 of file TCETargetMachine.hh.

                                                       {
            return plugin_->opcode(operationName);
        }

References llvm::TCETargetMachinePlugin::opcode(), operationName(), and plugin_.

Referenced by llvm::TCERegisterInfo::eliminateFrameIndex().

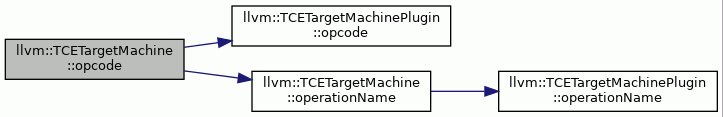

Here is the call graph for this function:

operationName()

std::string llvm::TCETargetMachine::operationName ( unsigned  opc ) const

inline

Definition at line 192 of file TCETargetMachine.hh.

                                                    {
            return plugin_->operationName(opc);
        }

References llvm::TCETargetMachinePlugin::operationName(), and plugin_.

Referenced by llvm::TCERegisterInfo::eliminateFrameIndex(), hasOperation(), opcode(), osalInputIndex(), and ConstantTransformer::runOnMachineFunction().

Here is the call graph for this function:

promotedOperations()

const std::set< std::pair< unsigned, llvm::MVT::SimpleValueType > > * TCETargetMachine::promotedOperations

(

)

Returns list of llvm::ISD SelectionDAG opcodes for operations that are not supported in the target architecture but will be promoted.

The returned operations have to be promoted to emulation function calls or emulation patterns in TCETargetLowering.

Definition at line 342 of file TCETargetMachine.cc.

                                     {
    return &promotedOps_;
}

References promotedOps_.

Referenced by llvm::TCETargetLowering::TCETargetLowering().

raPortDRegNum()

unsigned llvm::TCETargetMachine::raPortDRegNum ( ) const

inline

Definition at line 235 of file TCETargetMachine.hh.

                                       {
            return plugin_->raPortDRegNum();
        }

References plugin_, and llvm::TCETargetMachinePlugin::raPortDRegNum().

Here is the call graph for this function:

registerIndex()

unsigned llvm::TCETargetMachine::registerIndex ( unsigned  dwarfRegNum ) const

inline

Definition at line 212 of file TCETargetMachine.hh.

                                                           {
            return plugin_->registerIndex(dwarfRegNum);
        }

References plugin_, and llvm::TCETargetMachinePlugin::registerIndex().

Referenced by llvm::LLVMTCEBuilder::emitWriteSP(), and registerName().

Here is the call graph for this function:

registerName()

std::string llvm::TCETargetMachine::registerName ( unsigned  dwarfRegNum ) const

inline

Returns full name of the register.

Definition at line 220 of file TCETargetMachine.hh.

                                                           {
            return rfName(dwarfRegNum) + "."
                + std::to_string(registerIndex(dwarfRegNum));
        }

References registerIndex(), and rfName().

Referenced by llvm::LLVMTCEBuilder::emitInlineAsm(), InlineAsmParser::registerName(), and InlineAsmParser::substituteAsmString().

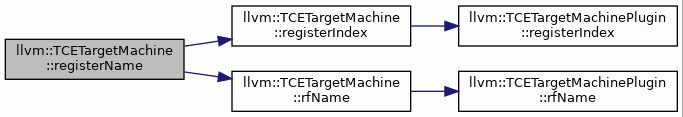

Here is the call graph for this function:

rfName()

std::string llvm::TCETargetMachine::rfName ( unsigned  dwarfRegNum ) const

inline

Definition at line 208 of file TCETargetMachine.hh.

                                                     {
            return plugin_->rfName(dwarfRegNum);
        }

References plugin_, and llvm::TCETargetMachinePlugin::rfName().

Referenced by llvm::LLVMTCEBuilder::emitWriteSP(), llvm::TCETargetLowering::hasI1RegisterClass(), and registerName().

Here is the call graph for this function:

setEmulationModule()

virtual void llvm::TCETargetMachine::setEmulationModule ( Module *  mod )

inlinevirtual

Definition at line 131 of file TCETargetMachine.hh.

                                                     {
            emulationModule_ = mod;
        }

References emulationModule_.

Referenced by LLVMBackend::compile().

setStackAlignment()

void llvm::TCETargetMachine::setStackAlignment ( unsigned  align )

inline

Definition at line 277 of file TCETargetMachine.hh.

                                               {
            stackAlignment_ = align;
        }

References stackAlignment_.

Referenced by LLVMBackend::compile().

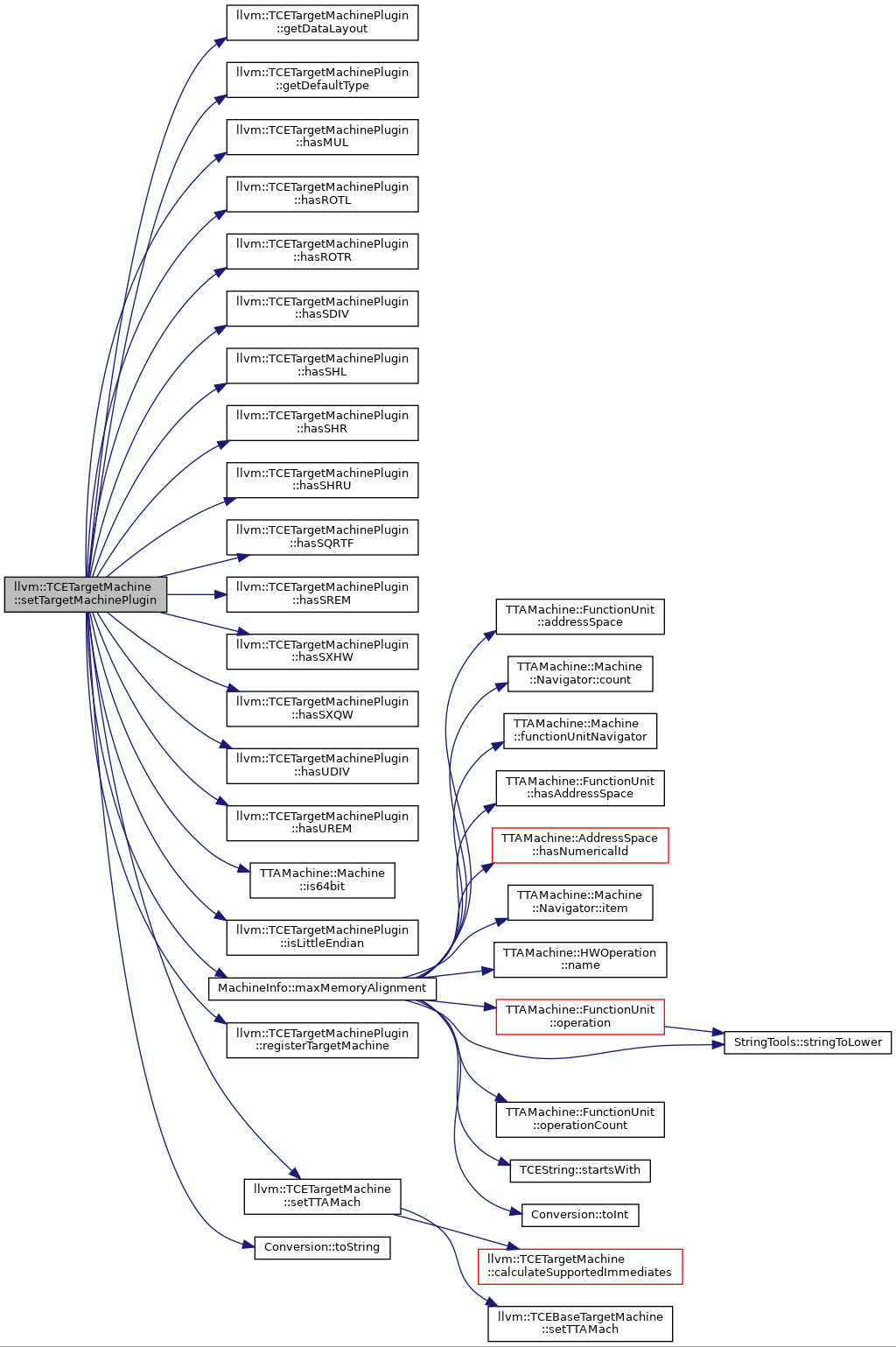

setTargetMachinePlugin()

void TCETargetMachine::setTargetMachinePlugin ( TCETargetMachinePlugin &  plugin, TTAMachine::Machine &  target  )

virtual

Definition at line 175 of file TCETargetMachine.cc.

                                                               {

    setTTAMach(&target);
    plugin_ = &plugin;
    missingOps_.clear();
    promotedOps_.clear();
    MVT::SimpleValueType defType = plugin_->getDefaultType();
    if (!plugin_->hasSDIV()) missingOps_.insert(std::make_pair(llvm::ISD::SDIV, defType));
    if (!plugin_->hasUDIV()) missingOps_.insert(std::make_pair(llvm::ISD::UDIV, defType));
    if (!plugin_->hasSREM()) missingOps_.insert(std::make_pair(llvm::ISD::SREM, defType));
    if (!plugin_->hasUREM()) missingOps_.insert(std::make_pair(llvm::ISD::UREM, defType));
    if (!plugin_->hasMUL()) missingOps_.insert(std::make_pair(llvm::ISD::MUL, defType));
    if (!plugin_->hasROTL()) missingOps_.insert(std::make_pair(llvm::ISD::ROTL, defType));
    if (!plugin_->hasROTR()) missingOps_.insert(std::make_pair(llvm::ISD::ROTR, defType));

    if (!plugin_->hasSHL()) customLegalizedOps_.insert(std::make_pair(llvm::ISD::SHL, MVT::i32));
    if (!plugin_->hasSHR()) customLegalizedOps_.insert(std::make_pair(llvm::ISD::SRA, MVT::i32));
    if (!plugin_->hasSHRU()) customLegalizedOps_.insert(std::make_pair(llvm::ISD::SRL, MVT::i32));

    if (!plugin_->hasSXHW()) missingOps_.insert(
        std::make_pair(llvm::ISD::SIGN_EXTEND_INREG, MVT::i16));

    if (!plugin_->hasSXQW()) missingOps_.insert(
        std::make_pair(llvm::ISD::SIGN_EXTEND_INREG, MVT::i8));

    if (!plugin_->hasSQRTF()) {
        missingOps_.insert(std::make_pair(llvm::ISD::FSQRT, MVT::f32));
    }

    // register machine to plugin
    plugin_->registerTargetMachine(*this);

    initAsmInfo();

    // Set data layout with correct stack alignment.
    unsigned alignBits = MachineInfo::maxMemoryAlignment(target) * 8;
    TCEString dataLayoutStr("");
    if (plugin_->isLittleEndian()) {
        dataLayoutStr += target.is64bit() ? "e-p:64:64:64" : "e-p:32:32:32";
    } else {
        dataLayoutStr += "E-p:32:32:32";
    }
    dataLayoutStr += "-a0:0:" + Conversion::toString(alignBits);
    if (target.is64bit()) {
        dataLayoutStr += "-i1:8:64";
        dataLayoutStr += "-i8:8:64";
        dataLayoutStr += "-i16:16:64";
        dataLayoutStr += "-i32:32:64";
        dataLayoutStr += "-i64:64:64";
        dataLayoutStr += "-f16:16:64";
        dataLayoutStr += "-f32:32:64";
    } else {
        dataLayoutStr += "-i1:8:8";
        dataLayoutStr += "-i8:8:32";
        dataLayoutStr += "-i16:16:32";
        dataLayoutStr += "-i32:32:32";
        dataLayoutStr += "-i64:64:64";
        dataLayoutStr += "-f16:16:16";
        dataLayoutStr += "-f32:32:32";
    }
    dataLayoutStr += "-f64:64:64";
    dataLayoutStr += "-v64:64:64";
    dataLayoutStr += "-v128:128:128";
    dataLayoutStr += "-v256:256:256";
    dataLayoutStr += "-v512:512:512";
    dataLayoutStr += "-v1024:1024:1024";
#if LLVM_HAS_CUSTOM_VECTOR_EXTENSION == 2
    dataLayoutStr += "-v2048:2048:2048";
    dataLayoutStr += "-v4096:4096:4096";
#endif

    DataLayout* dl = plugin_->getDataLayout();
    dl->reset(dataLayoutStr.c_str());
}

References customLegalizedOps_, llvm::TCETargetMachinePlugin::getDataLayout(), llvm::TCETargetMachinePlugin::getDefaultType(), llvm::TCETargetMachinePlugin::hasMUL(), llvm::TCETargetMachinePlugin::hasROTL(), llvm::TCETargetMachinePlugin::hasROTR(), llvm::TCETargetMachinePlugin::hasSDIV(), llvm::TCETargetMachinePlugin::hasSHL(), llvm::TCETargetMachinePlugin::hasSHR(), llvm::TCETargetMachinePlugin::hasSHRU(), llvm::TCETargetMachinePlugin::hasSQRTF(), llvm::TCETargetMachinePlugin::hasSREM(), llvm::TCETargetMachinePlugin::hasSXHW(), llvm::TCETargetMachinePlugin::hasSXQW(), llvm::TCETargetMachinePlugin::hasUDIV(), llvm::TCETargetMachinePlugin::hasUREM(), TTAMachine::Machine::is64bit(), llvm::TCETargetMachinePlugin::isLittleEndian(), MachineInfo::maxMemoryAlignment(), missingOps_, plugin_, promotedOps_, llvm::TCETargetMachinePlugin::registerTargetMachine(), setTTAMach(), and Conversion::toString().

Referenced by LLVMBackend::compile().

Here is the call graph for this function:

setTTAMach()

virtual void llvm::TCETargetMachine::setTTAMach ( const TTAMachine::Machine *  mach )

inlineoverridevirtual

Reimplemented from llvm::TCEBaseTargetMachine.

Definition at line 135 of file TCETargetMachine.hh.

                                                    {
            TCEBaseTargetMachine::setTTAMach(mach);
            calculateSupportedImmediates();
        }

References calculateSupportedImmediates(), and llvm::TCEBaseTargetMachine::setTTAMach().

Referenced by setTargetMachinePlugin().

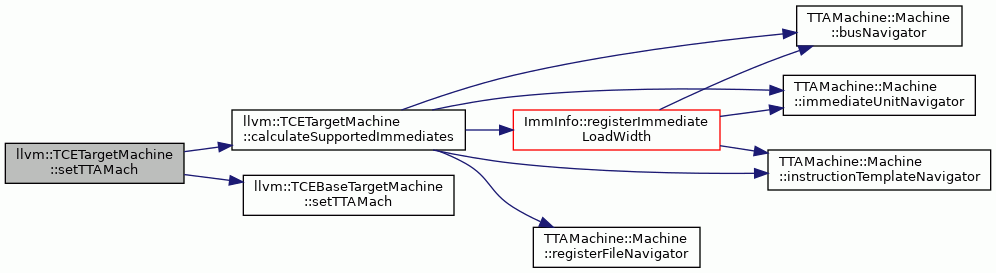

Here is the call graph for this function:

smallestImmValue()

int64_t llvm::TCETargetMachine::smallestImmValue ( ) const

inline

Definition at line 314 of file TCETargetMachine.hh.

                                         {
            assert(ttaMach_ && "setTargetMachinePlugin() was not called");
            return smallestImm_;
        }

References assert, smallestImm_, and llvm::TCEBaseTargetMachine::ttaMach_.

spDRegNum()

unsigned llvm::TCETargetMachine::spDRegNum ( ) const

inline

Definition at line 241 of file TCETargetMachine.hh.

                                   {
            return plugin_->spDRegNum();
        }

References plugin_, and llvm::TCETargetMachinePlugin::spDRegNum().

Referenced by llvm::LLVMTCEBuilder::emitWriteSP().

Here is the call graph for this function:

stackAlignment()

unsigned llvm::TCETargetMachine::stackAlignment ( ) const

inline

Definition at line 281 of file TCETargetMachine.hh.

                                        {
            if (stackAlignment_ == 0) {
                std::cerr << "ZERO STACK ALIGN\n";
                abort();
            }
            assert(stackAlignment_ > 0);
            return stackAlignment_;
        }

References assert, and stackAlignment_.

Referenced by llvm::LLVMTCEBuilder::emitSPInitialization(), llvm::LLVMTCEBuilder::initDataSections(), llvm::TCETargetLowering::LowerCall(), llvm::TCETargetLowering::LowerFormalArguments(), and llvm::GeneratedTCEPlugin::registerTargetMachine().

targetPlugin()

virtual TCETargetMachinePlugin & llvm::TCETargetMachine::targetPlugin ( ) const

inlinevirtual

Definition at line 124 of file TCETargetMachine.hh.

{ return *plugin_; }

References plugin_.

Referenced by ConstantTransformer::runOnMachineFunction().

ttaMachine()

virtual const TTAMachine::Machine & llvm::TCETargetMachine::ttaMachine ( ) const

inlinevirtual

Definition at line 141 of file TCETargetMachine.hh.

                                                            {
            return *ttaMach_;
        }

References llvm::TCEBaseTargetMachine::ttaMach_.

Referenced by InlineAsmParser::parse(), and llvm::TCETargetLowering::TCETargetLowering().

validStackAccessOperation()

bool llvm::TCETargetMachine::validStackAccessOperation ( const std::string &  opName ) const

inline

Returns true if LLVM opcode if valid for stack variable accesses.

Definition at line 200 of file TCETargetMachine.hh.

                                                                      {
            return plugin_->validStackAccessOperation(opName);
        }

References plugin_, and llvm::TCETargetMachinePlugin::validStackAccessOperation().

Referenced by llvm::TCERegisterInfo::eliminateFrameIndex().

Here is the call graph for this function:

Member Data Documentation

customLegalizedOps_

std::set<std::pair<unsigned, llvm::MVT::SimpleValueType> > llvm::TCETargetMachine::customLegalizedOps_

private

Definition at line 339 of file TCETargetMachine.hh.

Referenced by customLegalizedOperations(), and setTargetMachinePlugin().

emulationModule_

Module* llvm::TCETargetMachine::emulationModule_

These two parameter passing should be rethought... maybe TTAMach can be avoided by changing pass to use plugin_ instead.

Definition at line 130 of file TCETargetMachine.hh.

Referenced by setEmulationModule().

largestImm_

uint64_t llvm::TCETargetMachine::largestImm_ = std::numeric_limits<int64_t>::min()

private

Definition at line 344 of file TCETargetMachine.hh.

Referenced by calculateSupportedImmediates(), canEncodeAsMOVI(), and largestImmValue().

missingOps_

std::set<std::pair<unsigned, llvm::MVT::SimpleValueType> > llvm::TCETargetMachine::missingOps_

private

llvm::ISD opcode list of operations that have to be expanded.

Definition at line 337 of file TCETargetMachine.hh.

Referenced by missingOperations(), and setTargetMachinePlugin().

plugin_

TCETargetMachinePlugin* llvm::TCETargetMachine::plugin_

private

Definition at line 334 of file TCETargetMachine.hh.

Referenced by bitness(), canMaterializeConstant(), createPassConfig(), dataASName(), getAddOpcode(), getDataLayout(), getFrameLowering(), getInstrInfo(), getIorOpcode(), getLoadOpcode(), getMaxOpcode(), getMaxuOpcode(), getMinOpcode(), getMinuOpcode(), getRegisterInfo(), getShlOpcode(), getSubtargetImpl(), getSubtargetImpl(), getTargetLowering(), getTargetTransformInfo(), has16bitLoads(), has8bitLoads(), hasOperation(), llvmRegisterId(), opcode(), operationName(), raPortDRegNum(), registerIndex(), rfName(), setTargetMachinePlugin(), spDRegNum(), targetPlugin(), and validStackAccessOperation().

pluginTool_

PluginTools* llvm::TCETargetMachine::pluginTool_

private

Definition at line 335 of file TCETargetMachine.hh.

Referenced by ~TCETargetMachine().

promotedOps_

std::set<std::pair<unsigned, llvm::MVT::SimpleValueType> > llvm::TCETargetMachine::promotedOps_

private

Definition at line 338 of file TCETargetMachine.hh.

Referenced by promotedOperations(), and setTargetMachinePlugin().

smallestImm_

int64_t llvm::TCETargetMachine::smallestImm_ = std::numeric_limits<int64_t>::max()

private

Definition at line 343 of file TCETargetMachine.hh.

Referenced by calculateSupportedImmediates(), canEncodeAsMOVI(), and smallestImmValue().

stackAlignment_

unsigned llvm::TCETargetMachine::stackAlignment_

private

Definition at line 348 of file TCETargetMachine.hh.

Referenced by setStackAlignment(), and stackAlignment().

SupportedFPImmWidth_

int llvm::TCETargetMachine::SupportedFPImmWidth_ = std::numeric_limits<int>::min()

private

Definition at line 345 of file TCETargetMachine.hh.

Referenced by calculateSupportedImmediates(), and canEncodeAsMOVF().

---

The documentation for this class was generated from the following files:

• TCETargetMachine.hh
• TCETargetMachine.cc
