HDBToHtml Class Reference

#include <HDBToHtml.hh>

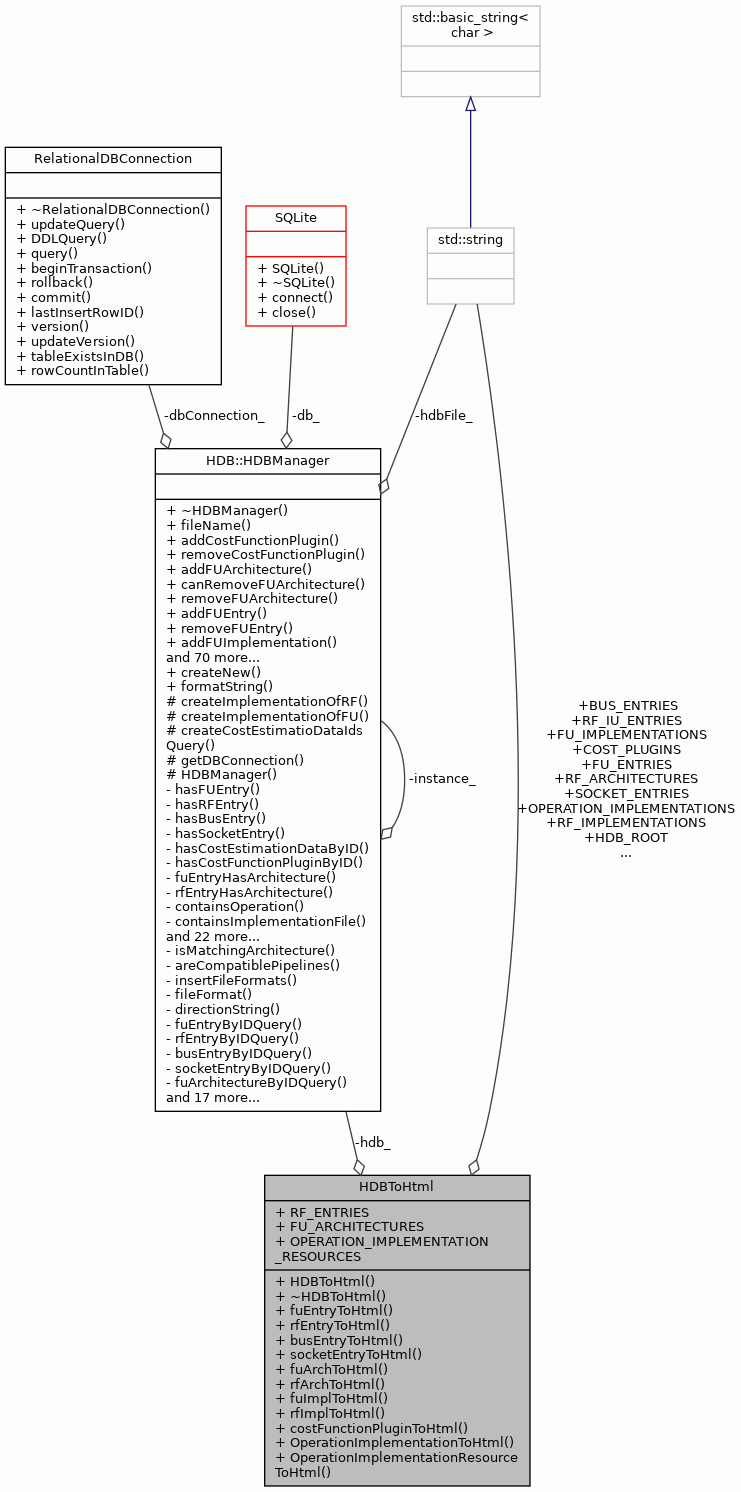

Collaboration diagram for HDBToHtml:
Collaboration graph

Public Member Functions

 HDBToHtml (const HDB::HDBManager &hdb)

virtual ~HDBToHtml ()

void fuEntryToHtml (RowID id, std::ostream &stream)

void rfEntryToHtml (RowID id, std::ostream &stream)

void busEntryToHtml (RowID id, std::ostream &stream)

void socketEntryToHtml (RowID id, std::ostream &stream)

void fuArchToHtml (RowID id, std::ostream &stream)

void rfArchToHtml (RowID id, std::ostream &stream)

void fuImplToHtml (RowID id, std::ostream &stream)

void rfImplToHtml (RowID id, std::ostream &stream)

void costFunctionPluginToHtml (RowID id, std::ostream &stream)

void OperationImplementationToHtml (RowID id, std::ostream &stream)

void OperationImplementationResourceToHtml (RowID id, std::ostream &stream)


Static Public Attributes

static const std::string HDB_ROOT

static const std::string FU_ENTRIES = "FU Entries"

static const std::string RF_ENTRIES = "RF Entries"

static const std::string RF_IU_ENTRIES = "RF/IU Entries"

static const std::string BUS_ENTRIES = "Bus Entries"

static const std::string SOCKET_ENTRIES = "Socket Entries"

static const std::string FU_ARCHITECTURES = "Function Units"

static const std::string RF_ARCHITECTURES = "Register Files"

static const std::string FU_IMPLEMENTATIONS = "FU Implementations"

static const std::string RF_IMPLEMENTATIONS = "RF Implementations"

static const std::string COST_PLUGINS = "Cost Function Plugins"

static const std::string OPERATION_IMPLEMENTATIONS

static const std::string OPERATION_IMPLEMENTATION_RESOURCES


Private Attributes

const HDB::HDBManager & hdb_
 HDB to create html from. More...


Detailed Description

Collection of functions for generating html pages displaying information of HDB elements.

Definition at line 47 of file HDBToHtml.hh.

Constructor & Destructor Documentation

◆ HDBToHtml()

HDBToHtml::HDBToHtml ( const HDB::HDBManager &  hdb)

The Cosntructor.

Parameters
hdbHDB

Definition at line 86 of file HDBToHtml.cc.

86  :
87  hdb_(hdb) {
88 }

◆ ~HDBToHtml()

HDBToHtml::~HDBToHtml ( )
virtual

The Destructor.

Definition at line 93 of file HDBToHtml.cc.

93  {
94 }

Member Function Documentation

◆ busEntryToHtml()

void HDBToHtml::busEntryToHtml ( RowID  id,
std::ostream &  stream
)

Generates a html page of a bus entry.

Parameters
idID of the bus entry.
streamStream where the html is written to.

Definition at line 250 of file HDBToHtml.cc.

250  {
251
252  stream << "<html><body><small>" << endl;
253  stream << "<b>Bus entry " << id << "</b><br>" << endl;
254
255  stream << "<tr><td align=right><b>Cost estimation data:</b></td><td>";
256
257  // Cost estimation data
258  const std::set<RowID> costDataIDs = hdb_.busCostEstimationDataIDs(id);
259  if (!costDataIDs.empty()) {
260  stream << "<b>Cost estimation data:</b>" << endl;
261  stream << "<table bgcolor=#bbbbbb>" << endl;
262  stream << "<tr><th>Name</th><th>Value</th>"
263  << "<th>Plugin</th></tr>" << endl;
264  } else {
265  stream << "No cost estimation data.<br>" << endl;
266  }
267  std::set<RowID>::const_iterator iter = costDataIDs.begin();
268  for (; iter != costDataIDs.end(); iter++) {
269  const CostEstimationData data = hdb_.costEstimationData(*iter);
270  stream << "<tr><td>" << data.name() << "</td>"
271  << "<td align=right>";
272  stream << data.value().stringValue();
273  stream << "</td><td align=center><a href=\"/" << COST_PLUGINS
274  << "/" << data.pluginID() << "\">"
275  << data.pluginID() << "</a></td></tr>" << endl;
276  }
277  stream << "</table>" << endl;
278  stream << "</small></body></html>" << endl;
279 }

References HDB::HDBManager::busCostEstimationDataIDs(), COST_PLUGINS, HDB::HDBManager::costEstimationData(), hdb_, CostEstimationData::name(), CostEstimationData::pluginID(), DataObject::stringValue(), and CostEstimationData::value().

Referenced by HDBBrowserInfoPanel::displayBusEntry().

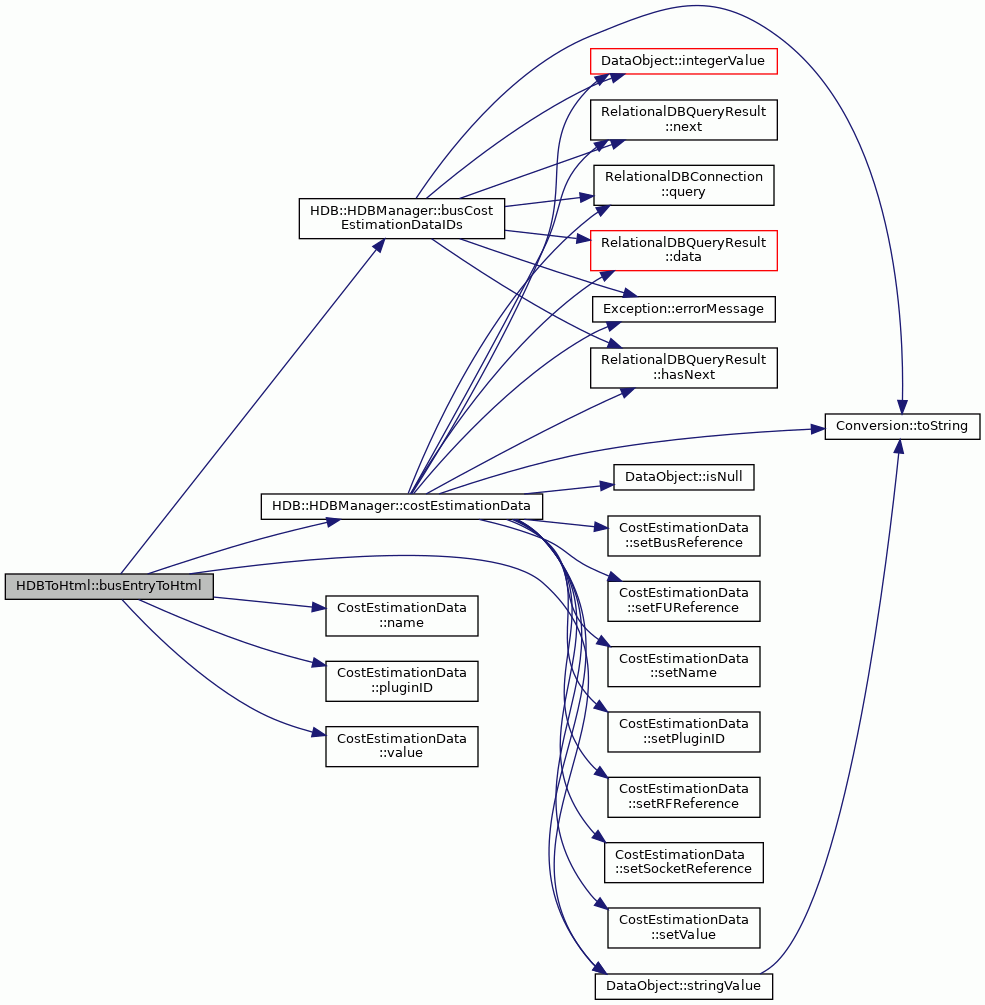

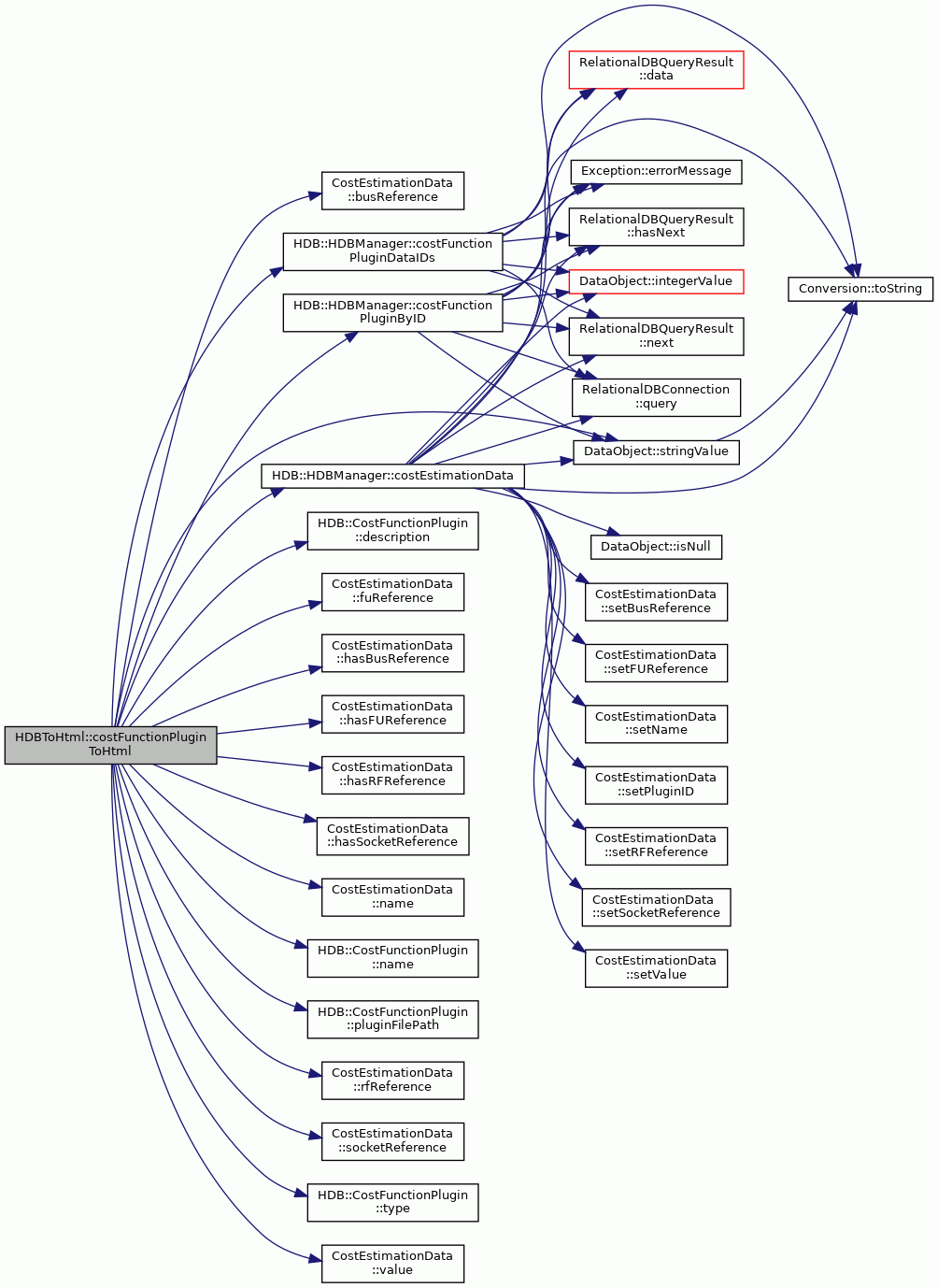

Here is the call graph for this function:

◆ costFunctionPluginToHtml()

void HDBToHtml::costFunctionPluginToHtml ( RowID  id,
std::ostream &  stream
)

Generates html page of a cost function plugin information.

Parameters
idRow id of the cost estimation plugin.
stremStream where the html is written to.

Definition at line 900 of file HDBToHtml.cc.

900  {
901
902  CostFunctionPlugin* plugin = hdb_.costFunctionPluginByID(id);
903
904  stream << "<html><body><small>" << endl;
905  stream << "<table bgcolor=#bbbbbb>"<< endl;
906
907  // Plugin name.
908  stream << "<tr><td align=right>Name:</td><td>" << plugin->name()
909  << "</td></tr>" << endl;
910
911  // Plugin type.
912  stream << "<tr><td align=right>Type:</td><td>";
913  if (plugin->type() == CostFunctionPlugin::COST_FU) {
914  stream << "Function unit cost estimator.";
915  } else if (plugin->type() == CostFunctionPlugin::COST_RF) {
916  stream << "Register file cost estimator.";
917  } else if (plugin->type() == CostFunctionPlugin::COST_DECOMP) {
918  stream << "Decompressor cost estimator.";
919  } else if (plugin->type() == CostFunctionPlugin::COST_ICDEC) {
920  stream << "Interconnection network & decoder cost estimator.";
921  } else {
922  stream << "unknown";
923  }
924  stream << "</td></tr>" << endl;
925
926  // Plugin file path.
927  stream << "<tr><td align=right>File path:</td><td>"
928  << plugin->pluginFilePath() << "</td></tr>" << endl;
929
930  // Plugin description.
931  stream << "<tr><td align=right>Description:</td><td>"
932  << plugin->description() << "</td></tr>" << endl;
933
934  stream << "</table><br><br>"<< endl;
935
936
937  // Cost estiamtion data
938  stream << "<b>Cost estimation data:</b>" << endl;
939  stream << "<table bgcolor=#bbbbbb>"<< endl;
940  stream << "<tr><th>Entry type</th><th>Entry ID</th>"
941  << "<th>Key</th><th>Value</th></tr>" << endl;
942
943  const std::set<RowID> dataIDs = hdb_.costFunctionPluginDataIDs(id);
944  std::set<RowID>::const_iterator iter = dataIDs.begin();
945  for (; iter != dataIDs.end(); iter++) {
946  CostEstimationData data = hdb_.costEstimationData(*iter);
947  stream << "<tr>";
948  if (data.hasFUReference()) {
949  // Function unit reference.
950  stream << "<td>FU</td><td><a href=\"/" << FU_ENTRIES << "/"
951  << data.fuReference() << "\">"
952  << data.fuReference() << "</a>";
953  stream << "</td>";
954  } else if (data.hasRFReference()) {
955  // Register file entry reference.
956  stream << "<td>RF</td><td><a href=\"/" << RF_ENTRIES << "/"
957  << data.rfReference() << "\">"
958  << data.rfReference() << "</a>";
959  stream << "</td>";
960  } else if (data.hasBusReference()) {
961  // Bus entry reference.
962  stream << "<td>Bus</td><td>"
963  << data.busReference() << "</a>";
964  stream << "</td>";
965  } else if (data.hasSocketReference()) {
966  // Socket entry reference.
967  stream << "<td>Socket</td><td>"
968  << data.socketReference() << "</a>";
969  stream << "</td>";
970  } else {
971  stream << "<td>-</td><td>-</td>";
972  }
973
974  stream << "<td>" << data.name() << "</td><td>"
975  << data.value().stringValue() << "</td></tr>" << endl;
976
977  }
978  stream << "</table>"<< endl;
979  stream << "</small></body></html>" << endl;
980
981  delete plugin;
982 }

References CostEstimationData::busReference(), HDB::HDBManager::costEstimationData(), HDB::HDBManager::costFunctionPluginByID(), HDB::HDBManager::costFunctionPluginDataIDs(), HDB::CostFunctionPlugin::description(), FU_ENTRIES, CostEstimationData::fuReference(), CostEstimationData::hasBusReference(), CostEstimationData::hasFUReference(), CostEstimationData::hasRFReference(), CostEstimationData::hasSocketReference(), hdb_, CostEstimationData::name(), HDB::CostFunctionPlugin::name(), HDB::CostFunctionPlugin::pluginFilePath(), RF_ENTRIES, CostEstimationData::rfReference(), CostEstimationData::socketReference(), DataObject::stringValue(), HDB::CostFunctionPlugin::type(), and CostEstimationData::value().

Referenced by HDBBrowserInfoPanel::displayCostFunctionPlugin().

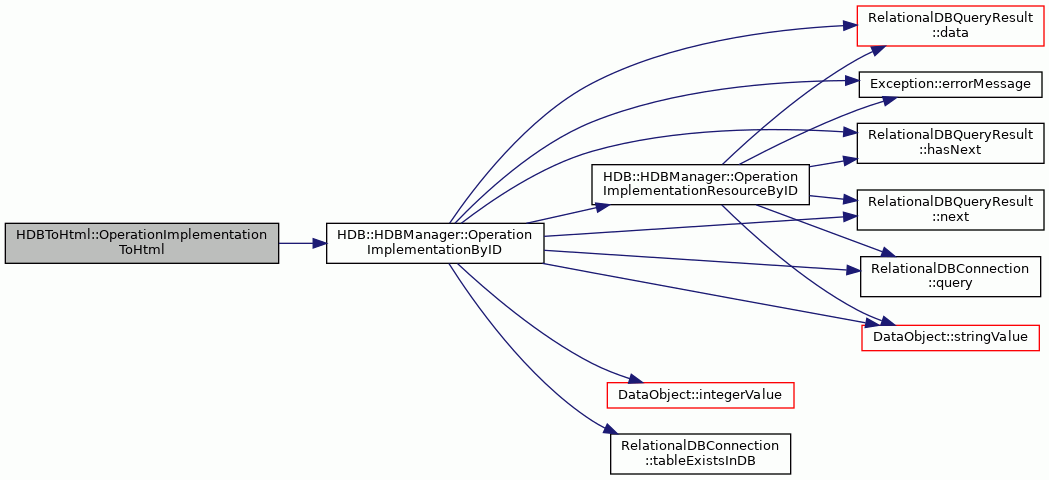

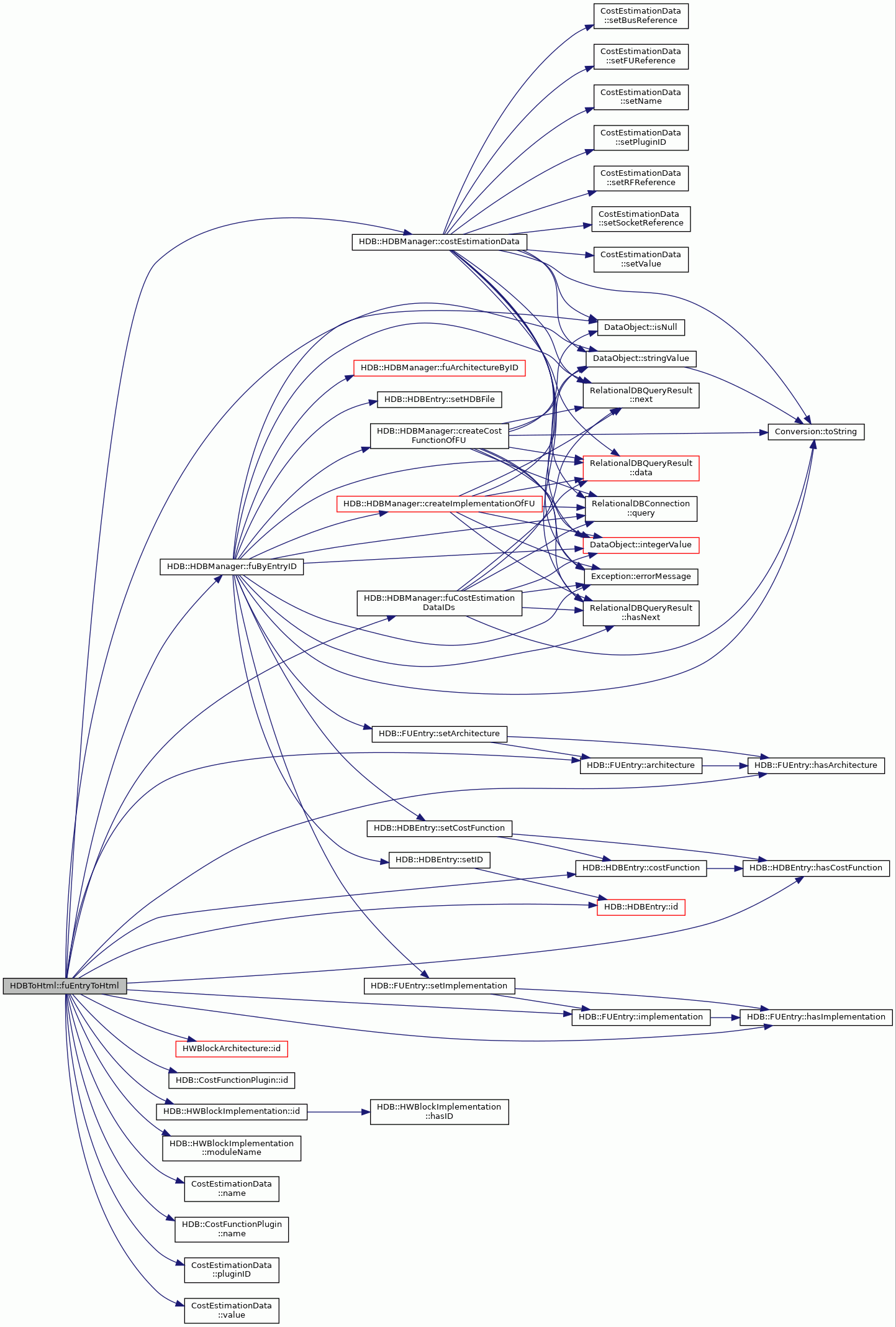

Here is the call graph for this function:

◆ fuArchToHtml()

void HDBToHtml::fuArchToHtml ( RowID  id,
std::ostream &  stream
)

Generates a html page of a function unit architecture.

Parameters
idID of the FU architecture.
streamStream where the html is written to.

Definition at line 328 of file HDBToHtml.cc.

328  {
329
330  const FUArchitecture* arch = hdb_.fuArchitectureByID(id);
331  const FunctionUnit& fu = arch->architecture();
332
333  stream << "<html><body><small>" << endl;
334
335  //
336  // PORTS
337  //
338  stream << "<b>Ports:</b><br>" << endl;
339  stream << "<table bgcolor=#bbbbbb>" << endl;
340  stream << "<tr><th>Name</th><th>Width</th>"
341  << "<th>Triggering</th>"
342  << "<th>Opcode</th>"
343  << "<th>Guard</th></tr>"
344  << endl;
345
346  for (int i = 0; i < fu.portCount(); i++) {
347
348  const BaseFUPort& port = *fu.port(i);
349
350  stream << "<tr><td align=left>" << port.name() << "</td>";
351
352  if (arch->hasParameterizedWidth(port.name())) {
353  stream << "<td align=right>param</td>";
354  } else {
355  stream << "<td align=right>" << port.width() << "</td>";
356  }
357
358  if (port.isTriggering()) {
359  stream << "<td align=center><font color=#009900>yes</font></td>";
360  } else {
361  stream << "<td align=center><font color=#ff0000>no</font></td>";
362  }
363
364  if (port.isOpcodeSetting()) {
365  stream << "<td align=center><font color=#009900>yes</font></td>";
366  } else {
367  stream << "<td align=center><font color=#ff0000>no</font></td>";
368  }
369
370  if (arch->hasGuardSupport(port.name())) {
371  stream << "<td align=center><font color=#009900>yes</font></td>";
372  } else {
373  stream << "<td align=center><font color=#ff0000>no</font></td>";
374  }
375  stream << "</tr>" << endl;
376  }
377  stream << "</table><br><br>" << endl;
378
379  //
380  // OPERATIONS
381  //
382  stream << "<b>Operations:</b><br><br>" << endl;
383  for (int i = 0; i < fu.operationCount(); i++) {
384
385  const HWOperation& operation = *fu.operation(i);
386  const ExecutionPipeline& pipeline = *operation.pipeline();
387
388  stream << "<b>" << operation.name() << "</b><br>" << endl;
389  stream << "Latency: " << operation.latency() << endl;
390  stream << "<br>" << endl;
391  stream << "<table><tr><td valing=top>" << endl;
392  stream << "<table bgcolor=#bbbbbb><tr><th>operand</th><th>port</th>";
393  for (int cycle = 0; cycle < operation.latency(); cycle++) {
394  stream << "<th width=20>" << cycle << "</th>";
395  }
396  stream << "</tr>" << endl;
397
398  // Reads operands.
399  ExecutionPipeline::OperandSet read = pipeline.readOperands();
400  ExecutionPipeline::OperandSet::iterator iter = read.begin();
401  for (; iter != read.end(); iter++) {
402  stream << "<tr><td>" << *iter << "</td><td>"
403  << operation.port(*iter)->name() << "</td>";
404  for (int cycle = 0; cycle < operation.latency(); cycle++) {
405  if (ContainerTools::containsValue(
406  pipeline.readOperands(cycle), *iter)) {
407  stream << "<td align=center><b>R</b></td>";
408  } else {
409  stream << "<td></td>";
410  }
411  }
412  stream << "</tr>" << endl;
413  }
414
415  // Written operands.
416  ExecutionPipeline::OperandSet written = pipeline.writtenOperands();
417  iter = written.begin();
418  for (; iter != written.end(); iter++) {
419  stream << "<tr><td>" << *iter << "</td><td>"
420  << operation.port(*iter)->name() << "</td>";
421  for (int cycle = 0; cycle < operation.latency(); cycle++) {
422  if (ContainerTools::containsValue(
423  pipeline.writtenOperands(cycle), *iter)) {
424  stream << "<td align=center><b>W</b></td>";
425  } else {
426  stream << "<td></td>";
427  }
428  }
429  stream << "</tr>" << endl;
430  }
431  stream << "</table></td>" << endl;
432
433  stream << "<td valign=top><table bgcolor=#bbbbbb>"
434  << "<tr><th>resource</th>";
435  for (int cycle = 0; cycle < operation.latency(); cycle++) {
436  stream << "<th width=20>" << cycle << "</th>";
437  }
438  stream << "</tr>" << endl;
439
440  // Resources used.
441  for (int r = 0; r < fu.pipelineElementCount(); r++) {
442  const PipelineElement& res = *fu.pipelineElement(r);
443  stream << "<tr><td>" << res.name() << "</td>";
444  for (int cycle = 0; cycle < operation.latency(); cycle++) {
445  if (pipeline.isResourceUsed(res.name(), cycle)) {
446  stream << "<td align=center><b>X</b></td>";
447  } else {
448  stream << "<td></td>";
449  }
450  }
451  stream << "</tr>" << endl;
452  }
453
454  stream << "</table></td></tr></table><br><br>" << endl;
455  }
456  stream << "</small></body></html>" << endl;
457
458  delete arch;
459 }

References HDB::FUArchitecture::architecture(), ContainerTools::containsValue(), HDB::HDBManager::fuArchitectureByID(), HDB::FUArchitecture::hasGuardSupport(), HDB::FUArchitecture::hasParameterizedWidth(), hdb_, TTAMachine::BaseFUPort::isOpcodeSetting(), TTAMachine::ExecutionPipeline::isResourceUsed(), TTAMachine::BaseFUPort::isTriggering(), TTAMachine::HWOperation::latency(), TTAMachine::PipelineElement::name(), TTAMachine::HWOperation::name(), TTAMachine::Port::name(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), TTAMachine::HWOperation::pipeline(), TTAMachine::FunctionUnit::pipelineElement(), TTAMachine::FunctionUnit::pipelineElementCount(), TTAMachine::FunctionUnit::port(), TTAMachine::HWOperation::port(), TTAMachine::Unit::portCount(), TTAMachine::ExecutionPipeline::readOperands(), TTAMachine::BaseFUPort::width(), and TTAMachine::ExecutionPipeline::writtenOperands().

Referenced by HDBBrowserInfoPanel::displayFUArchitecture().

Here is the call graph for this function:

◆ fuEntryToHtml()

void HDBToHtml::fuEntryToHtml ( RowID  id,
std::ostream &  stream
)

Generates a html page of a function unit entry->

Parameters
idID of the FU entry in the HDB.
streamStream where the html is written to.

Definition at line 103 of file HDBToHtml.cc.

103  {
104
105  const HDB::FUEntry* entry = hdb_.fuByEntryID(id);
106
107  stream << "<html><body><small>" << endl;
108  stream << "<b>Function unit entry " << entry->id() << "</b><br>" << endl;
109
110  stream << "<table>" << endl;
111  stream << "<tr><td align=right><b>Architecture:</b></td><td>";
112  if (entry->hasArchitecture()) {
113  stream << "<a href=\"/" << FU_ARCHITECTURES << "/"
114  << entry->architecture().id() << "\">"
115  << entry->architecture().id() << "</a>"
116  << "</td></tr>" << endl;
117  } else {
118  stream << "-</td></tr>";
119  }
120
121  stream << "<tr><td align=right><b>Implementation:</b></td><td>";
122  if (entry->hasImplementation()) {
123  stream << "<a href=\"/" << FU_IMPLEMENTATIONS << "/"
124  << entry->implementation().id() << "\">"
125  << entry->implementation().moduleName()
126  << "</a></td></tr>" << endl;
127  } else {
128  stream << "-</td></tr>" << endl;
129  }
130
131  stream << "<tr><td align=right><b>Cost function plugin:</b></td><td>";
132  if (entry->hasCostFunction()) {
133  const CostFunctionPlugin& plugin = entry->costFunction();
134  stream << "<a href=\"/" << COST_PLUGINS << "/"
135  << plugin.id() << "\">"
136  << plugin.name()
137  << "</a></td></tr>" << endl;
138  } else {
139  stream << "-</td></tr>" << endl;
140  }
141
142  stream << "</table>";
143
144  // Cost estimation data
145  const std::set<RowID> costDataIDs = hdb_.fuCostEstimationDataIDs(id);
146  if (!costDataIDs.empty()) {
147  stream << "<b>Cost estimation data:</b>" << endl;
148  stream << "<table bgcolor=#bbbbbb>" << endl;
149  stream << "<tr><th>Name</th><th>Value</th>"
150  << "<th>Plugin</th></tr>" << endl;
151  } else {
152  stream << "No cost estimation data.<br>" << endl;
153  }
154  std::set<RowID>::const_iterator iter = costDataIDs.begin();
155  for (; iter != costDataIDs.end(); iter++) {
156  const CostEstimationData data = hdb_.costEstimationData(*iter);
157  stream << "<tr><td>" << data.name() << "</td>"
158  << "<td align=right>";
159  stream << data.value().stringValue();
160  stream << "</td><td align=center><a href=\"/" << COST_PLUGINS
161  << "/" << data.pluginID() << "\">"
162  << data.pluginID() << "</a></td></tr>" << endl;
163  }
164  stream << "</table>" << endl;
165  stream << "</small></body></html>" << endl;
166
167  delete entry;
168 }

References HDB::FUEntry::architecture(), COST_PLUGINS, HDB::HDBManager::costEstimationData(), HDB::HDBEntry::costFunction(), FU_ARCHITECTURES, FU_IMPLEMENTATIONS, HDB::HDBManager::fuByEntryID(), HDB::HDBManager::fuCostEstimationDataIDs(), HDB::FUEntry::hasArchitecture(), HDB::HDBEntry::hasCostFunction(), HDB::FUEntry::hasImplementation(), hdb_, HWBlockArchitecture::id(), HDB::HDBEntry::id(), HDB::CostFunctionPlugin::id(), HDB::HWBlockImplementation::id(), HDB::FUEntry::implementation(), HDB::HWBlockImplementation::moduleName(), CostEstimationData::name(), HDB::CostFunctionPlugin::name(), CostEstimationData::pluginID(), DataObject::stringValue(), and CostEstimationData::value().

Referenced by HDBBrowserInfoPanel::displayFUEntry().

Here is the call graph for this function:

◆ fuImplToHtml()

void HDBToHtml::fuImplToHtml ( RowID  id,
std::ostream &  stream
)

Generates a html page of a function unit implementation.

Parameters
idID of the fu implementation.
streamStream where the html is written to.

Definition at line 539 of file HDBToHtml.cc.

539  {
540
541  RowID entryID = hdb_.fuEntryIDOfImplementation(id);
542  const HDB::FUEntry* entry = hdb_.fuByEntryID(entryID);
543  const HDB::FUImplementation& impl = entry->implementation();
544
545  stream << "<html><body>" << endl;
546  stream << "<small><table>" << endl;
547
548  stream << "<tr><td align=right><b>Module name:</b></td><td align=left>"
549  << impl.moduleName() << "</td></tr>" << endl;
550
551  stream << "<tr><td align=right><b>Opcode port:</b></td><td align=left>"
552  << impl.opcodePort() << "</td></tr>" << endl;
553
554  stream << "<tr><td align=right><b>Clock port:</b></td><td align=left>"
555  << impl.clkPort() << "</td></tr>" << endl;
556
557  stream << "<tr><td align=right><b>Reset port:</b></td><td align=left>"
558  << impl.rstPort() << "</td></tr>" << endl;
559
560  stream << "<tr><td align=right><b>Global lock port:</b></td>"
561  << "<td align=left>"
562  << impl.glockPort() << "</td></tr>" << endl;
563
564  stream << "<tr><td align=right><b>Global lock req. port:</b></td>"
565  << "<td align=left>"
566  << impl.glockReqPort() << "</td></tr>" << endl;
567
568  stream << "</table><br><br>" << endl;
569
570  // Architecture ports.
571  if (impl.architecturePortCount() > 0) {
572  stream << "<b>Architecture ports:</b>" << endl;
573  stream << "<table bgcolor=#bbbbbb>" << endl;
574  stream << "<tr><th>Name</th>"
575  << "<th>Architecture port</th>"
576  << "<th>Load port</th>"
577  << "<th>Guard port</th>"
578  << "<th>Width formula</th></tr>" << endl;
579  } else {
580  stream << "No architecture ports.<br>" << endl;
581  }
582  for (int i = 0; i < impl.architecturePortCount(); i++) {
583
584  const HDB::FUPortImplementation& port = impl.architecturePort(i);
585  stream << "<tr><td>" << port.name() << "</td>"
586  << "<td>" << port.architecturePort() << "</td>"
587  << "<td>" << port.loadPort() << "</td>"
588  << "<td>" << port.guardPort() << "</td>"
589  << "</td><td>" << port.widthFormula() << "</td></td>" << endl;
590  }
591  stream << "</table><br><br>" << endl;
592
593
594  // Opcodes
595  if (impl.opcodeCount() > 0) {
596  stream << "<b>Opcodes:</b>" << endl;
597  stream << "<table bgcolor=#bbbbbb>" << endl;
598  stream << "<tr><th>Operation</th><th>Opcode</th></tr>" << endl;
599  } else {
600  stream << "No opcodes.<br>" << endl;
601  }
602  for (int i = 0; i < impl.opcodeCount(); i++) {
603  stream << "<tr><td>" << impl.opcodeOperation(i) << "</td>"
604  << "<td align=center>" << impl.opcode(impl.opcodeOperation(i))
605  << "</td></tr>" << endl;
606  }
607  stream << "</table><br><br>" << endl;
608
609  // External ports
610  if (impl.externalPortCount() > 0) {
611  stream << "<b>External ports:</b>" << endl;
612  stream << "<table bgcolor=#bbbbbb>" << endl;
613  stream << "<tr><th>Name</th><th>Direction</th><th>Width formula</th>"
614  << "<th>Parameter dependencies</th>"
615  << "<th>Description</th></tr>" << endl;
616  } else {
617  stream << "No external ports.<br>" << endl;
618  }
619  for (int i = 0; i < impl.externalPortCount(); i++) {
620
621  const HDB::FUExternalPort& port = impl.externalPort(i);
622  stream << "<tr><td>" << port.name() << "</td><td align=center>";
623  if (port.direction() == HDB::IN) {
624  stream << "in";
625  } else if (port.direction() == HDB::OUT) {
626  stream << "out";
627  } else if (port.direction() == HDB::BIDIR) {
628  stream << "bidir";
629  }
630  stream << "</td><td>" << port.widthFormula() << "</td>";
631  stream << "<td>";
632  for (int dep = 0; dep < port.parameterDependencyCount(); dep++) {
633  if (dep > 0) {
634  stream << ", ";
635  }
636  stream << port.parameterDependency(dep);
637  }
638  stream << "</td><td>" << port.description() << "</td></tr>" << endl;
639  }
640  stream << "</table><br><br>" << endl;
641
642
643
644  // Parameters
645  if (impl.parameterCount() > 0) {
646  stream << "<b>Parameters:</b>" << endl;
647  stream << "<table bgcolor=#bbbbbb>" << endl;
648  stream << "<tr><th>Name</th><th>Type</th><th>Value</th></tr>" << endl;
649  } else {
650  stream << "No parameters.<br>" << endl;
651  }
652  for (int i = 0; i < impl.parameterCount(); i++) {
653
654  const HDB::FUImplementation::Parameter& parameter = impl.parameter(i);
655  stream << "<tr><td>" << parameter.name << "</td>"
656  << "<td align=center>" << parameter.type << "</td>"
657  << "<td>" << parameter.value << "</td></tr>" << endl;
658  }
659  stream << "</table><br><br>" << endl;
660
661
662  // Implementation files
663  if (impl.implementationFileCount() > 0) {
664  stream << "<b>Implementation files:</b>" << endl;
665  stream << "<table bgcolor=#bbbbbb>" << endl;
666  stream << "<tr><th>Path</th><th>Format</th></tr>" << endl;
667  } else {
668  stream << "No implementation files.<br>" << endl;
669  }
670  for (int i = 0; i < impl.implementationFileCount(); i++) {
671  const HDB::BlockImplementationFile& file = impl.file(i);
672  stream << "<tr><td>" << file.pathToFile() << "</td>"
673  << "<td align=center>";
674  if (file.format() == HDB::BlockImplementationFile::VHDL) {
675  stream << "VHDL";
676  }else
677  if (file.format() == HDB::BlockImplementationFile::Verilog) {
678  stream << "Verilog";
679  }
680
681  stream << "</td></tr>" << endl;
682  }
683  stream << "</table><br><br>" << endl;
684
685
686  // Cost estimation data
687  const std::set<RowID> costDataIDs = hdb_.fuCostEstimationDataIDs(entryID);
688  if (!costDataIDs.empty()) {
689  stream << "<b>Cost estimation data:</b>" << endl;
690  stream << "<table bgcolor=#bbbbbb>" << endl;
691  stream << "<tr><th>Name</th><th>Value</th>"
692  << "<th>Plugin</th></tr>" << endl;
693  } else {
694  stream << "No cost estimation data.<br>" << endl;
695  }
696  std::set<RowID>::const_iterator iter = costDataIDs.begin();
697  for (; iter != costDataIDs.end(); iter++) {
698  const CostEstimationData data = hdb_.costEstimationData(*iter);
699  stream << "<tr><td>" << data.name() << "</td>"
700  << "<td align=right>";
701  stream << data.value().stringValue();
702  stream << "</td><td align=center><a href=\"/" << COST_PLUGINS
703  << "/" << data.pluginID() << "\">"
704  << data.pluginID() << "</a></td></tr>" << endl;
705  }
706  stream << "</table>" << endl;
707  stream << "</small></body></html>" << endl;
708
709
710  delete entry;
711 }

References HDB::FUPortImplementation::architecturePort(), HDB::FUImplementation::architecturePort(), HDB::FUImplementation::architecturePortCount(), HDB::BIDIR, HDB::HWBlockImplementation::clkPort(), COST_PLUGINS, HDB::HDBManager::costEstimationData(), HDB::ExternalPort::description(), HDB::ExternalPort::direction(), HDB::FUImplementation::externalPort(), HDB::FUImplementation::externalPortCount(), HDB::HWBlockImplementation::file(), HDB::BlockImplementationFile::format(), HDB::HDBManager::fuByEntryID(), HDB::HDBManager::fuCostEstimationDataIDs(), HDB::HDBManager::fuEntryIDOfImplementation(), HDB::HWBlockImplementation::glockPort(), HDB::FUImplementation::glockReqPort(), HDB::FUPortImplementation::guardPort(), hdb_, HDB::FUEntry::implementation(), HDB::HWBlockImplementation::implementationFileCount(), HDB::IN, HDB::PortImplementation::loadPort(), HDB::HWBlockImplementation::moduleName(), HDB::Parameter::name, CostEstimationData::name(), HDB::PortImplementation::name(), HDB::ExternalPort::name(), HDB::FUImplementation::opcode(), HDB::FUImplementation::opcodeCount(), HDB::FUImplementation::opcodeOperation(), HDB::FUImplementation::opcodePort(), HDB::OUT, HDB::FUImplementation::parameter(), HDB::FUImplementation::parameterCount(), HDB::ExternalPort::parameterDependency(), HDB::ExternalPort::parameterDependencyCount(), HDB::BlockImplementationFile::pathToFile(), CostEstimationData::pluginID(), HDB::HWBlockImplementation::rstPort(), DataObject::stringValue(), HDB::Parameter::type, HDB::Parameter::value, CostEstimationData::value(), HDB::BlockImplementationFile::Verilog, HDB::BlockImplementationFile::VHDL, HDB::FUPortImplementation::widthFormula(), and HDB::ExternalPort::widthFormula().

Referenced by HDBBrowserInfoPanel::displayFUImplementation().

Here is the call graph for this function:

◆ OperationImplementationResourceToHtml()

void HDBToHtml::OperationImplementationResourceToHtml ( RowID  id,
std::ostream &  stream
)

Definition at line 1003 of file HDBToHtml.cc.

1003  {
1004  OperationImplementationResource res
1005  = hdb_.OperationImplementationResourceByID(id);
1006
1007  stream << "<html><body>";
1008  stream << "<b>Operation Implementation Resource</b><br/>";
1009  stream << "name : " << res.name << "<br/>";
1010  for (const auto& sim : res.simFiles) {
1011  stream << "simulation file : " << sim << "<br/>";
1012  }
1013  for (const auto& syn : res.synFiles) {
1014  stream << "synthesis file : " << syn << "<br/>";
1015  }
1016  stream << "</body></html>";
1017 }

References hdb_, HDB::OperationImplementationResource::name, HDB::HDBManager::OperationImplementationResourceByID(), HDB::OperationImplementationResource::simFiles, and HDB::OperationImplementationResource::synFiles.

Referenced by HDBBrowserInfoPanel::displayOperationImplementationResource().

Here is the call graph for this function:

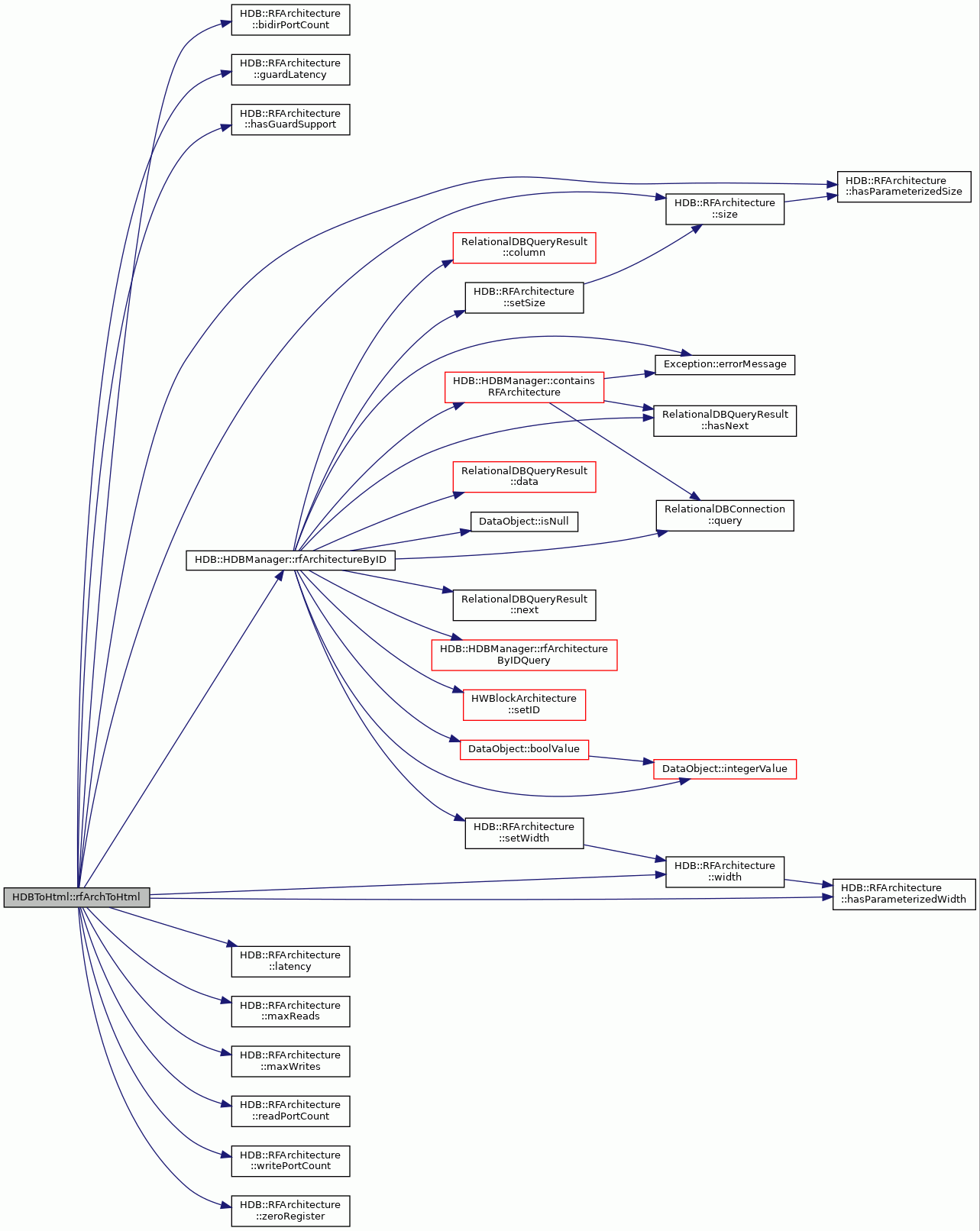

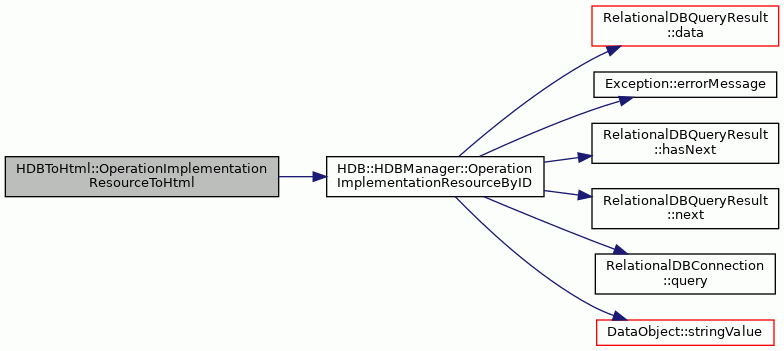

◆ OperationImplementationToHtml()

void HDBToHtml::OperationImplementationToHtml ( RowID  id,
std::ostream &  stream
)

Definition at line 986 of file HDBToHtml.cc.

986  {
987  OperationImplementation op = hdb_.OperationImplementationByID(id);
988
989  stream << "<html><body>";
990  stream << "<b>Operation Implementation</b><br/>";
991  stream << "operation : " << op.name << "<br/>";
992  stream << "implementation (VHDL) : " << op.implFileVhdl << "<br/>";
993  stream << "implementation (Verilog) : " << op.implFileVerilog << "<br/>";
994  for(const auto& r : op.resources) {
995  stream << "resource : " << r.name
996  << " * " << r.count
997  << "<br/>";
998  }
999  stream << "</body></html>\n";
1000 }

References hdb_, HDB::OperationImplementation::implFileVerilog, HDB::OperationImplementation::implFileVhdl, HDB::OperationImplementation::name, HDB::HDBManager::OperationImplementationByID(), and HDB::OperationImplementation::resources.

Referenced by HDBBrowserInfoPanel::displayOperationImplementation().

Here is the call graph for this function:

◆ rfArchToHtml()

void HDBToHtml::rfArchToHtml ( RowID  id,
std::ostream &  stream
)

Generates a html page of a register file architecture.

Parameters
idID of the register file architecture.
streamStream where the html is written to.

Definition at line 469 of file HDBToHtml.cc.

469  {
470
471  const HDB::RFArchitecture* arch = hdb_.rfArchitectureByID(id);
472
473  stream << "<html><body><small>" << endl;
474  stream << "<table>" << endl;
475
476  // Width
477  stream << "<tr><td align=right><b>Width:</b></td>";
478  if (arch->hasParameterizedWidth()) {
479  stream << "<td>param</td>";
480  } else {
481  stream << "<td align=center>" << arch->width() << "</td>";
482  }
483  stream << "</tr>" << endl;
484
485  // Size
486  stream << "<tr><td align=right><b>Size:</b></td>";
487  if (arch->hasParameterizedSize()) {
488  stream << "<td align=center>param</td>";
489  } else {
490  stream << "<td align=center>" << arch->size() << "</td>";
491  }
492  stream << "</tr>" << endl;
493
494  stream << "<tr><td align=right><b>Read ports:</b></td><td align=center>"
495  << arch->readPortCount() << "</td></tr>" << endl;
496
497  stream << "<tr><td align=right><b>Write ports:</b></td><td align=center>"
498  << arch->writePortCount() << "</td></tr>" << endl;
499
500  stream << "<tr><td align=right><b>Bidirectional ports:</b></td>"
501  << "<td align=center>" << arch->bidirPortCount() << "</td></tr>"
502  << endl;
503
504  stream << "<tr><td align=right><b>Max reads:</b></td><td align=center>"
505  << arch->maxReads() << "</td></tr>" << endl;
506
507  stream << "<tr><td align=right><b>Max Writes:</b></td><td align=center>"
508  << arch->maxWrites() << "</td></tr>" << endl;
509
510  stream << "<tr><td align=right><b>Latency:</b></td><td align=center>"
511  << arch->latency() << "</td></tr>" << endl;
512
513  stream << "<tr><td align=right><b>Guard support:</b></td>";
514  if (arch->hasGuardSupport()) {
515  stream << "<td align=center>yes</td></tr>";
516  stream << "<tr><td align=right><b>Guard Latency:</b></td>"
517  << "<td align=center>" << arch->guardLatency()
518  << "</td></tr>" << endl;
519  } else {
520  stream << "<td align=center>no</td></tr>";
521  }
522  stream << "<tr><td align=right><b>Zero Register:</b></td><td" <<
523  " align=center>" << arch->zeroRegister() << "</td></tr>" << endl;
524
525  stream << "</table></small><br>" << endl;
526  stream << "</body></html>" << endl;
527
528  delete arch;
529 }

References HDB::RFArchitecture::bidirPortCount(), HDB::RFArchitecture::guardLatency(), HDB::RFArchitecture::hasGuardSupport(), HDB::RFArchitecture::hasParameterizedSize(), HDB::RFArchitecture::hasParameterizedWidth(), hdb_, HDB::RFArchitecture::latency(), HDB::RFArchitecture::maxReads(), HDB::RFArchitecture::maxWrites(), HDB::RFArchitecture::readPortCount(), HDB::HDBManager::rfArchitectureByID(), HDB::RFArchitecture::size(), HDB::RFArchitecture::width(), HDB::RFArchitecture::writePortCount(), and HDB::RFArchitecture::zeroRegister().

Referenced by HDBBrowserInfoPanel::displayRFArchitecture().

Here is the call graph for this function:

◆ rfEntryToHtml()

void HDBToHtml::rfEntryToHtml ( RowID  id,
std::ostream &  stream
)

Generates a html page of a register file entry.

Parameters
idID of the register file entry.
streamStream where the html is written to.

Definition at line 177 of file HDBToHtml.cc.

177  {
178
179  const HDB::RFEntry* entry = hdb_.rfByEntryID(id);
180
181  stream << "<html><body><small>" << endl;
182  stream << "<b>Register file entry " << entry->id() << "</b><br>" << endl;
183
184  stream << "<table>" << endl;
185  stream << "<tr><td>Architecture:</td><td>";
186  if (entry->hasArchitecture()) {
187  stream << "<a href=\"/" << RF_ARCHITECTURES << "/"
188  << entry->architecture().id() << "\">"
189  << entry->architecture().id() << "</a>"
190  << "</td></tr>" << endl;
191  } else {
192  stream << "-</td></tr>";
193  }
194
195  stream << "<tr><td><b>Implementation:</b></td><td>";
196  if (entry->hasImplementation()) {
197  stream << "<td><a href=\"/" << RF_IMPLEMENTATIONS << "/"
198  << entry->implementation().id() << "\">"
199  << entry->implementation().moduleName() << "</a>"
200  << "</td></tr>" << endl;
201  } else {
202  stream << "-</td></tr>" << endl;
203  }
204
205  stream << "<tr><td align=right><b>Cost function plugin:</b></td><td>";
206  if (entry->hasCostFunction()) {
207  const CostFunctionPlugin& plugin = entry->costFunction();
208  stream << "<a href=\"/" << COST_PLUGINS << "/"
209  << plugin.id() << "\">"
210  << plugin.name()
211  << "</a></td></tr>" << endl;
212  } else {
213  stream << "-</td></tr>" << endl;
214  }
215  stream << "</table>";
216
217  // Cost estimation data
218  const std::set<RowID> costDataIDs = hdb_.rfCostEstimationDataIDs(id);
219  if (!costDataIDs.empty()) {
220  stream << "<b>Cost estimation data:</b>" << endl;
221  stream << "<table bgcolor=#bbbbbb>" << endl;
222  stream << "<tr><th>Name</th><th>Value</th>"
223  << "<th>Plugin</th></tr>" << endl;
224  } else {
225  stream << "No cost estimation data.<br>" << endl;
226  }
227  std::set<RowID>::const_iterator iter = costDataIDs.begin();
228  for (; iter != costDataIDs.end(); iter++) {
229  const CostEstimationData data = hdb_.costEstimationData(*iter);
230  stream << "<tr><td>" << data.name() << "</td>"
231  << "<td align=right>";
232  stream << data.value().stringValue();
233  stream << "</td><td align=center><a href=\"/" << COST_PLUGINS
234  << "/" << data.pluginID() << "\">"
235  << data.pluginID() << "</a></td></tr>" << endl;
236  }
237  stream << "</table>" << endl;
238  stream << "</small></body></html>" << endl;
239  delete entry;
240 }

References HDB::RFEntry::architecture(), COST_PLUGINS, HDB::HDBManager::costEstimationData(), HDB::HDBEntry::costFunction(), HDB::RFEntry::hasArchitecture(), HDB::HDBEntry::hasCostFunction(), HDB::RFEntry::hasImplementation(), hdb_, HWBlockArchitecture::id(), HDB::HDBEntry::id(), HDB::CostFunctionPlugin::id(), HDB::HWBlockImplementation::id(), HDB::RFEntry::implementation(), HDB::HWBlockImplementation::moduleName(), CostEstimationData::name(), HDB::CostFunctionPlugin::name(), CostEstimationData::pluginID(), RF_ARCHITECTURES, RF_IMPLEMENTATIONS, HDB::HDBManager::rfByEntryID(), HDB::HDBManager::rfCostEstimationDataIDs(), DataObject::stringValue(), and CostEstimationData::value().

Referenced by HDBBrowserInfoPanel::displayRFEntry().

Here is the call graph for this function:

◆ rfImplToHtml()

void HDBToHtml::rfImplToHtml ( RowID  id,
std::ostream &  stream
)

Generates a html page of a register file implementation.

Parameters
idID of the RF implementation.
streamStream where the html is written to.

Definition at line 720 of file HDBToHtml.cc.

720  {
721
722  RowID entryID = hdb_.rfEntryIDOfImplementation(id);
723  const RFEntry* entry = hdb_.rfByEntryID(entryID);
724  const RFImplementation& impl = entry->implementation();
725
726  stream << "<html><body>" << endl;
727  stream << "<small><table>" << endl;
728
729  stream << "<tr><td align=right><b>Module name:</b></td><td align=center>"
730  << impl.moduleName() << "</td></tr>" << endl;
731
732  stream << "<tr><td align=right><b>Clock port:</b></td><td align=center>"
733  << impl.clkPort() << "</td></tr>" << endl;
734
735  stream << "<tr><td align=right><b>Reset port:</b></td><td align=center>"
736  << impl.rstPort() << "</td></tr>" << endl;
737
738  stream << "<tr><td align=right><b>Global lock port:</b></td>"
739  << "<td align=center>"
740  << impl.glockPort() << "</td></tr>" << endl;
741
742  stream << "<tr><td align=right><b>Guard port:</b></td>"
743  << "<td align=center>"
744  << impl.guardPort() << "</td></tr>" << endl;
745
746  stream << "<tr><td align=right><b>Size parameter:</b></td>"
747  << "<td align=center>" << impl.sizeParameter() << "</td></tr>"
748  << endl;
749
750  stream << "<tr><td align=right><b>Width parameter:</b></td>"
751  << "<td align=center>" << impl.widthParameter() << "</td></tr>"
752  << endl;
753
754  std::string sac_flag(impl.separateAddressCycleParameter() ?
755  "true" : "false");
756  stream << "<tr><td align=right><b>Separate address cycle:</b></td>"
757  << "<td align=center>"
758  << sac_flag << "</td></tr>" << endl;
759
760  stream << "</table><br><br>" << endl;
761
762
763  // Ports
764  if (impl.portCount() > 0) {
765  stream << "<b>Ports:</b>" << endl;
766  stream << "<table bgcolor=#bbbbbb>" << endl;
767  stream << "<tr><th>Name</th>"
768  << "<th>Direction</th>"
769  << "<th>Load port</th>"
770  << "<th>Opcode port</th>"
771  << "<th>Opcode port width formula</th></tr>" << endl;
772  } else {
773  stream << "No ports.<br>" << endl;
774  }
775  for (int i = 0; i < impl.portCount(); i++) {
776
777  const HDB::RFPortImplementation& port = impl.port(i);
778  stream << "<tr><td>" << port.name() << "</td><td align=center>";
779  if (port.direction() == HDB::IN) {
780  stream << "in";
781  } else if (port.direction() == HDB::OUT) {
782  stream << "out";
783  } else if (port.direction() == HDB::BIDIR) {
784  stream << "bidir";
785  }
786  stream << "</td><td>" << port.loadPort() << "</td>"
787  << "<td>" << port.opcodePort() << "</td>"
788  << "</td><td>" << port.opcodePortWidthFormula()
789  << "</td></td>" << endl;
790  }
791  stream << "</table><br><br>" << endl;
792
793  // External ports
794  if (impl.externalPortCount() > 0) {
795  stream << "<b>External ports:</b>" << endl;
796  stream << "<table bgcolor=#bbbbbb>" << endl;
797  stream << "<tr><th>Name</th><th>Direction</th><th>Width formula</th>"
798  << "<th>Parameter dependencies</th>"
799  << "<th>Description</th></tr>" << endl;
800  } else {
801  stream << "No external ports.<br>" << endl;
802  }
803  for (int i = 0; i < impl.externalPortCount(); i++) {
804
805  const HDB::RFExternalPort& port = impl.externalPort(i);
806  stream << "<tr><td>" << port.name() << "</td><td align=center>";
807  if (port.direction() == HDB::IN) {
808  stream << "in";
809  } else if (port.direction() == HDB::OUT) {
810  stream << "out";
811  } else if (port.direction() == HDB::BIDIR) {
812  stream << "bidir";
813  }
814  stream << "</td><td>" << port.widthFormula() << "</td>";
815  stream << "<td>";
816  for (int dep = 0; dep < port.parameterDependencyCount(); dep++) {
817  if (dep > 0) {
818  stream << ", ";
819  }
820  stream << port.parameterDependency(dep);
821  }
822  stream << "</td><td>" << port.description() << "</td></tr>" << endl;
823  }
824  stream << "</table><br><br>" << endl;
825
826  // Parameters
827  if (impl.parameterCount() > 0) {
828  stream << "<b>Parameters:</b>" << endl;
829  stream << "<table bgcolor=#bbbbbb>" << endl;
830  stream << "<tr><th>Name</th><th>Type</th><th>Value</th></tr>" << endl;
831  } else {
832  stream << "No parameters.<br>" << endl;
833  }
834  for (int i = 0; i < impl.parameterCount(); i++) {
835
836  const HDB::RFImplementation::Parameter& parameter = impl.parameter(i);
837  stream << "<tr><td>" << parameter.name << "</td>"
838  << "<td align=center>" << parameter.type << "</td>"
839  << "<td>" << parameter.value << "</td></tr>" << endl;
840  }
841  stream << "</table><br><br>" << endl;
842
843  // Implementation files
844  if (impl.implementationFileCount() > 0) {
845  stream << "<b>Implementation files:</b>" << endl;
846  stream << "<table bgcolor=#bbbbbb>" << endl;
847  stream << "<tr><th>Path</th><th>Format</th></tr>" << endl;
848  } else {
849  stream << "No implementation files.<br>" << endl;
850  }
851
852  for (int i = 0; i < impl.implementationFileCount(); i++) {
853  const HDB::BlockImplementationFile& file = impl.file(i);
854  stream << "<tr><td>" << file.pathToFile() << "</td>"
855  << "<td align=center>";
856  if (file.format() == HDB::BlockImplementationFile::VHDL) {
857  stream << "VHDL";
858  }else
859  if (file.format() == HDB::BlockImplementationFile::Verilog) {
860  stream << "Verilog";
861  }
862
863  stream << "</td></tr>" << endl;
864  }
865  stream << "</table><br><br>" << endl;
866
867  // Cost estimation data
868  const std::set<RowID> costDataIDs = hdb_.rfCostEstimationDataIDs(entryID);
869  if (!costDataIDs.empty()) {
870  stream << "<b>Cost estimation data:</b>" << endl;
871  stream << "<table bgcolor=#bbbbbb>" << endl;
872  stream << "<tr><th>Name</th><th>Value</th>"
873  << "<th>Plugin</th></tr>" << endl;
874  } else {
875  stream << "No cost estimation data.<br>" << endl;
876  }
877  std::set<RowID>::const_iterator iter = costDataIDs.begin();
878  for (; iter != costDataIDs.end(); iter++) {
879  const CostEstimationData data = hdb_.costEstimationData(*iter);
880  stream << "<tr><td>" << data.name() << "</td>"
881  << "<td align=right>";
882  stream << data.value().stringValue();
883  stream << "</td><td align=center><a href=\"/" << COST_PLUGINS
884  << "/" << data.pluginID() << "\">"
885  << data.pluginID() << "</a></td></tr>" << endl;
886  }
887  stream << "</table>" << endl;
888  stream << "</small></body></html>" << endl;
889
890  delete entry;
891 }

References HDB::BIDIR, HDB::HWBlockImplementation::clkPort(), COST_PLUGINS, HDB::HDBManager::costEstimationData(), HDB::ExternalPort::description(), HDB::RFPortImplementation::direction(), HDB::ExternalPort::direction(), HDB::RFImplementation::externalPort(), HDB::RFImplementation::externalPortCount(), HDB::HWBlockImplementation::file(), HDB::BlockImplementationFile::format(), HDB::HWBlockImplementation::glockPort(), HDB::RFImplementation::guardPort(), hdb_, HDB::RFEntry::implementation(), HDB::HWBlockImplementation::implementationFileCount(), HDB::IN, HDB::PortImplementation::loadPort(), HDB::HWBlockImplementation::moduleName(), HDB::Parameter::name, CostEstimationData::name(), HDB::PortImplementation::name(), HDB::ExternalPort::name(), HDB::RFPortImplementation::opcodePort(), HDB::RFPortImplementation::opcodePortWidthFormula(), HDB::OUT, HDB::RFImplementation::parameter(), HDB::RFImplementation::parameterCount(), HDB::ExternalPort::parameterDependency(), HDB::ExternalPort::parameterDependencyCount(), HDB::BlockImplementationFile::pathToFile(), CostEstimationData::pluginID(), HDB::RFImplementation::port(), HDB::RFImplementation::portCount(), HDB::HDBManager::rfByEntryID(), HDB::HDBManager::rfCostEstimationDataIDs(), HDB::HDBManager::rfEntryIDOfImplementation(), HDB::HWBlockImplementation::rstPort(), HDB::RFImplementation::separateAddressCycleParameter(), HDB::RFImplementation::sizeParameter(), DataObject::stringValue(), HDB::Parameter::type, HDB::Parameter::value, CostEstimationData::value(), HDB::BlockImplementationFile::Verilog, HDB::BlockImplementationFile::VHDL, HDB::ExternalPort::widthFormula(), and HDB::RFImplementation::widthParameter().

Referenced by HDBBrowserInfoPanel::displayRFImplementation().

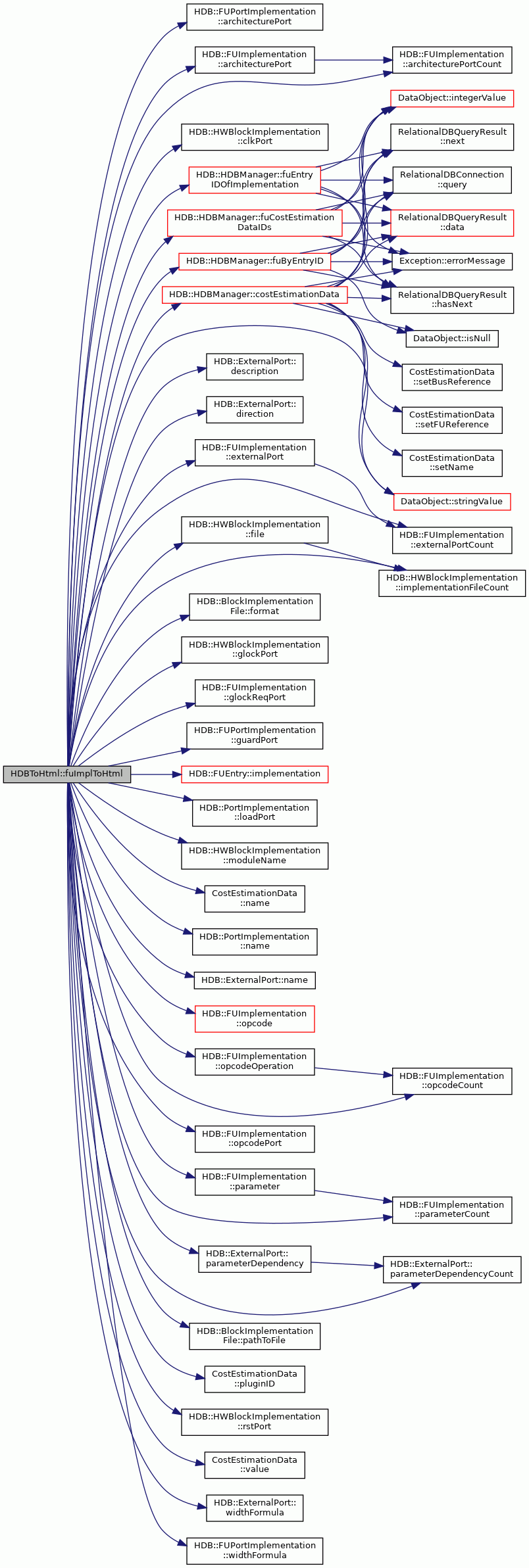

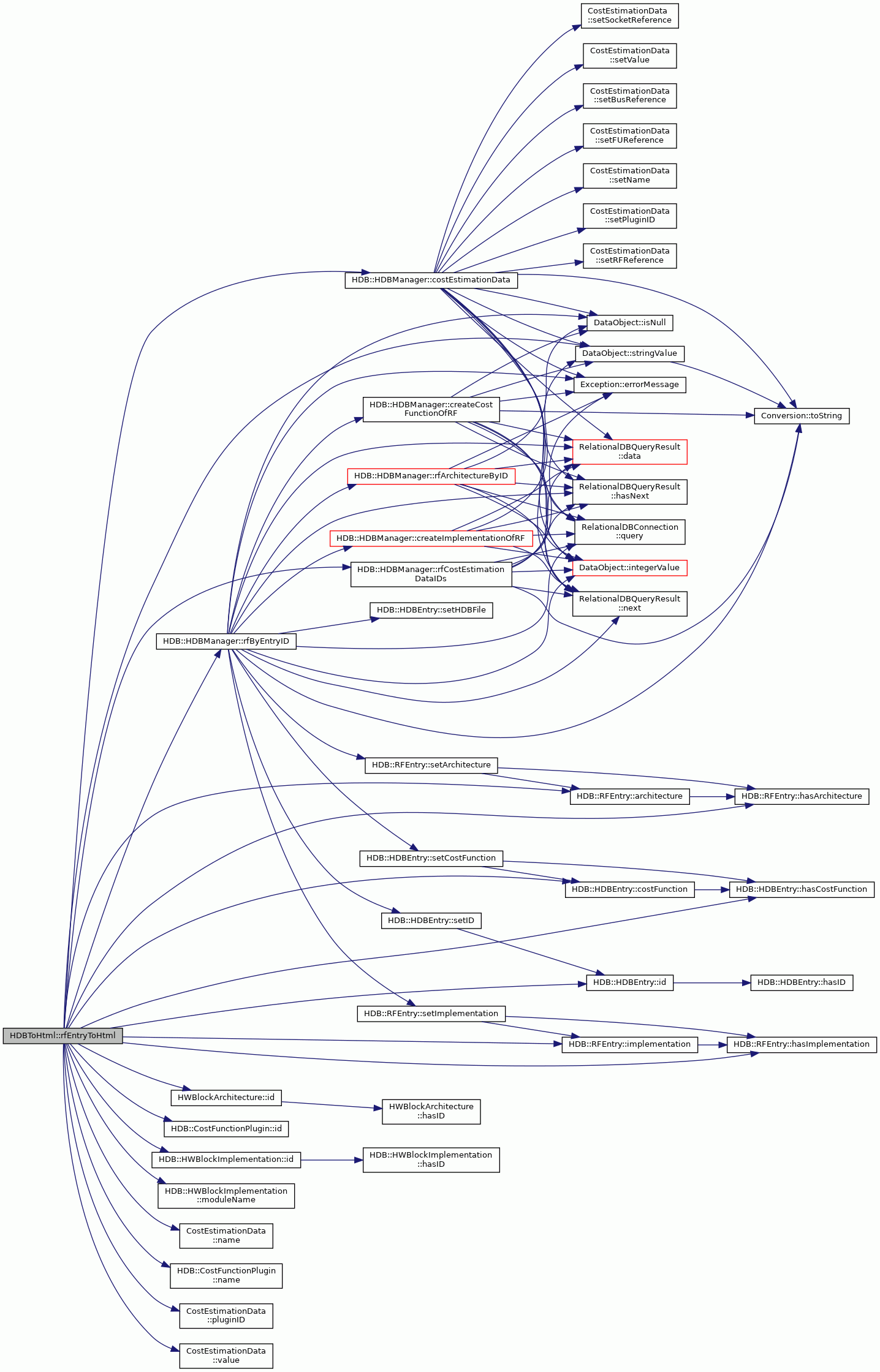

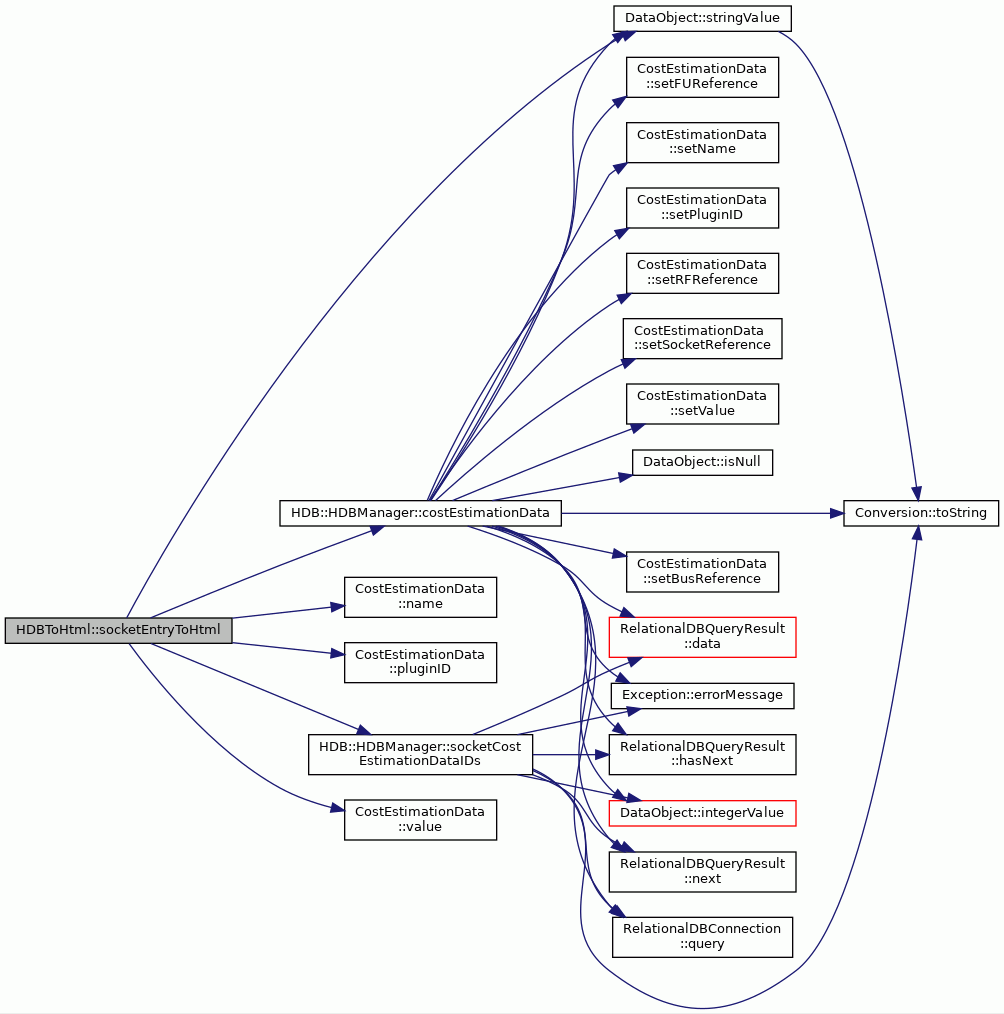

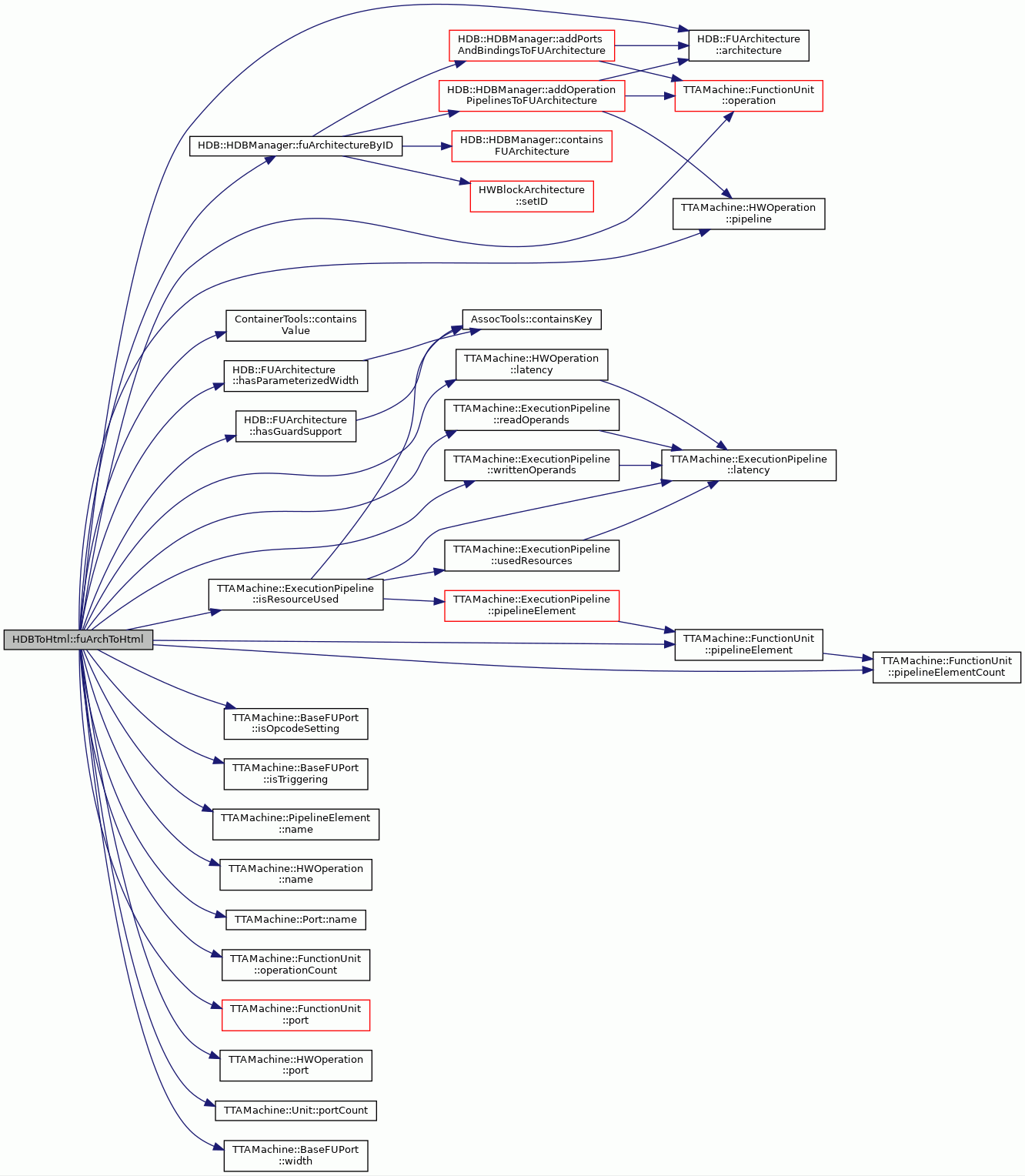

Here is the call graph for this function:

◆ socketEntryToHtml()

void HDBToHtml::socketEntryToHtml ( RowID  id,
std::ostream &  stream
)

Generates a html page of a socket entry.

Parameters
idID of the sovket entry.
streamStream where the html is written to.

Definition at line 289 of file HDBToHtml.cc.

289  {
290
291  stream << "<html><body><small>" << endl;
292  stream << "<b>Socket entry " << id << "</b><br>" << endl;
293
294  stream << "<tr><td align=right><b>Cost estimation data:</b></td><td>";
295
296  // Cost estimation data
297  const std::set<RowID> costDataIDs = hdb_.socketCostEstimationDataIDs(id);
298  if (!costDataIDs.empty()) {
299  stream << "<b>Cost estimation data:</b>" << endl;
300  stream << "<table bgcolor=#bbbbbb>" << endl;
301  stream << "<tr><th>Name</th><th>Value</th>"
302  << "<th>Plugin</th></tr>" << endl;
303  } else {
304  stream << "No cost estimation data.<br>" << endl;
305  }
306  std::set<RowID>::const_iterator iter = costDataIDs.begin();
307  for (; iter != costDataIDs.end(); iter++) {
308  const CostEstimationData data = hdb_.costEstimationData(*iter);
309  stream << "<tr><td>" << data.name() << "</td>"
310  << "<td align=right>";
311  stream << data.value().stringValue();
312  stream << "</td><td align=center><a href=\"/" << COST_PLUGINS
313  << "/" << data.pluginID() << "\">"
314  << data.pluginID() << "</a></td></tr>" << endl;
315  }
316  stream << "</table>" << endl;
317  stream << "</small></body></html>" << endl;
318 }

References COST_PLUGINS, HDB::HDBManager::costEstimationData(), hdb_, CostEstimationData::name(), CostEstimationData::pluginID(), HDB::HDBManager::socketCostEstimationDataIDs(), DataObject::stringValue(), and CostEstimationData::value().

Referenced by HDBBrowserInfoPanel::displaySocketEntry().

Here is the call graph for this function:

Member Data Documentation

◆ BUS_ENTRIES

const std::string HDBToHtml::BUS_ENTRIES = "Bus Entries"
static

Definition at line 68 of file HDBToHtml.hh.

Referenced by HDBBrowserWindow::openLink(), and HDBBrowserWindow::update().

◆ COST_PLUGINS

const std::string HDBToHtml::COST_PLUGINS = "Cost Function Plugins"
static

Definition at line 74 of file HDBToHtml.hh.

Referenced by busEntryToHtml(), fuEntryToHtml(), fuImplToHtml(), HDBBrowserWindow::openLink(), rfEntryToHtml(), rfImplToHtml(), socketEntryToHtml(), and HDBBrowserWindow::update().

◆ FU_ARCHITECTURES

const std::string HDBToHtml::FU_ARCHITECTURES = "Function Units"
static

Definition at line 70 of file HDBToHtml.hh.

Referenced by fuEntryToHtml(), HDBBrowserWindow::openLink(), and HDBBrowserWindow::update().

◆ FU_ENTRIES

const std::string HDBToHtml::FU_ENTRIES = "FU Entries"
static

Definition at line 65 of file HDBToHtml.hh.

Referenced by costFunctionPluginToHtml(), HDBBrowserWindow::openLink(), and HDBBrowserWindow::update().

◆ FU_IMPLEMENTATIONS

const std::string HDBToHtml::FU_IMPLEMENTATIONS = "FU Implementations"
static

Definition at line 72 of file HDBToHtml.hh.

Referenced by fuEntryToHtml(), and HDBBrowserWindow::openLink().

◆ hdb_

const HDB::HDBManager& HDBToHtml::hdb_
private

HDB to create html from.

Definition at line 80 of file HDBToHtml.hh.

Referenced by busEntryToHtml(), costFunctionPluginToHtml(), fuArchToHtml(), fuEntryToHtml(), fuImplToHtml(), OperationImplementationResourceToHtml(), OperationImplementationToHtml(), rfArchToHtml(), rfEntryToHtml(), rfImplToHtml(), and socketEntryToHtml().

◆ HDB_ROOT

const std::string HDBToHtml::HDB_ROOT
static

Definition at line 64 of file HDBToHtml.hh.

◆ OPERATION_IMPLEMENTATION_RESOURCES

const std::string HDBToHtml::OPERATION_IMPLEMENTATION_RESOURCES
static
Initial value:
=
"Operation Implementation Resources"

Definition at line 76 of file HDBToHtml.hh.

Referenced by HDBBrowserWindow::onItemSelected(), and HDBBrowserWindow::update().

◆ OPERATION_IMPLEMENTATIONS

const std::string HDBToHtml::OPERATION_IMPLEMENTATIONS
static
Initial value:
=
"Operation Implementations"

Definition at line 75 of file HDBToHtml.hh.

Referenced by HDBBrowserWindow::onItemSelected(), and HDBBrowserWindow::update().

◆ RF_ARCHITECTURES

const std::string HDBToHtml::RF_ARCHITECTURES = "Register Files"
static

Definition at line 71 of file HDBToHtml.hh.

Referenced by HDBBrowserWindow::openLink(), rfEntryToHtml(), and HDBBrowserWindow::update().

◆ RF_ENTRIES

const std::string HDBToHtml::RF_ENTRIES = "RF Entries"
static

Definition at line 66 of file HDBToHtml.hh.

Referenced by costFunctionPluginToHtml(), and HDBBrowserWindow::openLink().

◆ RF_IMPLEMENTATIONS

const std::string HDBToHtml::RF_IMPLEMENTATIONS = "RF Implementations"
static

Definition at line 73 of file HDBToHtml.hh.

Referenced by HDBBrowserWindow::openLink(), and rfEntryToHtml().

◆ RF_IU_ENTRIES

const std::string HDBToHtml::RF_IU_ENTRIES = "RF/IU Entries"
static

Definition at line 67 of file HDBToHtml.hh.

Referenced by HDBBrowserWindow::update().

◆ SOCKET_ENTRIES

const std::string HDBToHtml::SOCKET_ENTRIES = "Socket Entries"
static

Definition at line 69 of file HDBToHtml.hh.

Referenced by HDBBrowserWindow::openLink(), and HDBBrowserWindow::update().

The documentation for this class was generated from the following files:
HDB::FUArchitecture
Definition: FUArchitecture.hh:55
HDB::FUEntry
Definition: FUEntry.hh:49
HDB::FUExternalPort
Definition: FUExternalPort.hh:52
CostEstimationData::rfReference
RowID rfReference() const
Definition: CostEstimationData.cc:118
HDB::HWBlockImplementation::clkPort
std::string clkPort() const
Definition: HWBlockImplementation.cc:175
HDBToHtml::RF_IMPLEMENTATIONS
static const std::string RF_IMPLEMENTATIONS
Definition: HDBToHtml.hh:73
HDB::HWBlockImplementation::file
BlockImplementationFile & file(int index) const
Definition: HWBlockImplementation.cc:267
HDB::HDBEntry::costFunction
CostFunctionPlugin & costFunction() const
Definition: HDBEntry.cc:111
HDB::RFPortImplementation::opcodePortWidthFormula
std::string opcodePortWidthFormula() const
Definition: RFPortImplementation.cc:132
HDB::RFArchitecture::maxReads
int maxReads() const
Definition: RFArchitecture.cc:447
HDB::HDBManager::fuArchitectureByID
virtual FUArchitecture * fuArchitectureByID(RowID id) const
Definition: HDBManager.cc:2940
CostEstimationData::name
std::string name() const
Definition: CostEstimationData.cc:58
HDB::RFEntry::hasImplementation
virtual bool hasImplementation() const
Definition: RFEntry.cc:74
HDB::FUArchitecture::hasParameterizedWidth
bool hasParameterizedWidth(const std::string &port) const
Definition: FUArchitecture.cc:86
HDB::FUImplementation::opcodeCount
int opcodeCount() const
Definition: FUImplementation.cc:194
HDB::CostFunctionPlugin::description
std::string description() const
Definition: CostFunctionPlugin.cc:74
TTAMachine::HWOperation
Definition: HWOperation.hh:52
HDB::RFArchitecture::latency
int latency() const
Definition: RFArchitecture.cc:497
DataObject::stringValue
virtual std::string stringValue() const
Definition: DataObject.cc:344
HDB::HDBEntry::id
RowID id() const
Definition: HDBEntry.cc:85
CostEstimationData::pluginID
RowID pluginID() const
Definition: CostEstimationData.cc:88
HDB::BlockImplementationFile::VHDL
@ VHDL
VHDL file.
Definition: BlockImplementationFile.hh:48
HDB::FUPortImplementation
Definition: FUPortImplementation.hh:46
CostEstimationData::hasSocketReference
bool hasSocketReference() const
HDB::RFArchitecture::zeroRegister
bool zeroRegister() const
Definition: RFArchitecture.cc:541
HDB::CostFunctionPlugin::id
int id() const
Definition: CostFunctionPlugin.cc:64
HDB::HDBManager::costFunctionPluginDataIDs
std::set< RowID > costFunctionPluginDataIDs(RowID pluginID) const
Definition: HDBManager.cc:6589
TTAMachine::BaseFUPort
Definition: BaseFUPort.hh:44
HDB::RFEntry
Definition: RFEntry.hh:47
HDB::HWBlockImplementation::implementationFileCount
int implementationFileCount() const
Definition: HWBlockImplementation.cc:254
HDB::FUArchitecture::architecture
TTAMachine::FunctionUnit & architecture() const
Definition: FUArchitecture.cc:131
HDB::RFPortImplementation::direction
Direction direction() const
Definition: RFPortImplementation.cc:88
RowID
int RowID
Type definition of row ID in relational databases.
Definition: DBTypes.hh:37
HDB::FUImplementation::externalPort
FUExternalPort & externalPort(int index) const
Definition: FUImplementation.cc:390
HDBToHtml::FU_IMPLEMENTATIONS
static const std::string FU_IMPLEMENTATIONS
Definition: HDBToHtml.hh:72
CostEstimationData::hasFUReference
bool hasFUReference() const
TTAMachine::FunctionUnit::port
virtual BaseFUPort * port(const std::string &name) const
Definition: FunctionUnit.cc:145
HDB::HDBManager::OperationImplementationResourceByID
OperationImplementationResource OperationImplementationResourceByID(RowID id) const
Definition: HDBManager.cc:2410
HDB::RFImplementation::parameterCount
int parameterCount() const
Definition: RFImplementation.cc:352
TTAMachine::ExecutionPipeline::writtenOperands
OperandSet writtenOperands(int cycle) const
Definition: ExecutionPipeline.cc:429
HDB::RFArchitecture::hasParameterizedSize
bool hasParameterizedSize() const
Definition: RFArchitecture.cc:282
TTAMachine::PipelineElement::name
const std::string & name() const
TTAMachine::ExecutionPipeline::readOperands
OperandSet readOperands(int cycle) const
Definition: ExecutionPipeline.cc:408
HDB::FUImplementation::opcodePort
std::string opcodePort() const
Definition: FUImplementation.cc:135
HDB::HDBManager::costEstimationData
CostEstimationData costEstimationData(RowID id) const
Definition: HDBManager.cc:6323
HDB::HDBManager::costFunctionPluginByID
CostFunctionPlugin * costFunctionPluginByID(RowID pluginID) const
Definition: HDBManager.cc:6631
HDB::RFImplementation::widthParameter
std::string widthParameter() const
Definition: RFImplementation.cc:154
HDB::BlockImplementationFile
Definition: BlockImplementationFile.hh:44
HDB::HDBEntry::hasCostFunction
bool hasCostFunction() const
Definition: HDBEntry.cc:99
HDB::RFArchitecture::width
int width() const
Definition: RFArchitecture.cc:343
TTAMachine::BaseFUPort::isOpcodeSetting
virtual bool isOpcodeSetting() const =0
HDB::HDBManager::rfEntryIDOfImplementation
RowID rfEntryIDOfImplementation(RowID implID) const
Definition: HDBManager.cc:2796
HDB::RFEntry::architecture
RFArchitecture & architecture() const
Definition: RFEntry.cc:145
HDB::HWBlockImplementation::rstPort
std::string rstPort() const
Definition: HWBlockImplementation.cc:197
HDB::FUImplementation::glockReqPort
std::string glockReqPort() const
Definition: FUImplementation.cc:157
HDB::OperationImplementationResource::synFiles
std::vector< std::string > synFiles
Definition: OperationImplementationResource.hh:45
TTAMachine::FunctionUnit
Definition: FunctionUnit.hh:55
HDB::FUImplementation::parameterCount
int parameterCount() const
Definition: FUImplementation.cc:443
TTAMachine::HWOperation::port
virtual FUPort * port(int operand) const
Definition: HWOperation.cc:320
HDB::RFExternalPort
Definition: RFExternalPort.hh:41
HDB::RFImplementation::externalPort
RFExternalPort & externalPort(int index) const
Definition: RFImplementation.cc:299
CostEstimationData::busReference
RowID busReference() const
Definition: CostEstimationData.cc:133
HDB::RFImplementation
Definition: RFImplementation.hh:50
HDB::RFImplementation::sizeParameter
std::string sizeParameter() const
Definition: RFImplementation.cc:132
HDBToHtml::FU_ENTRIES
static const std::string FU_ENTRIES
Definition: HDBToHtml.hh:65
HDB::FUArchitecture::hasGuardSupport
bool hasGuardSupport(const std::string &port) const
Definition: FUArchitecture.cc:109
HDB::FUEntry::hasArchitecture
virtual bool hasArchitecture() const
Definition: FUEntry.cc:117
TTAMachine::HWOperation::name
const std::string & name() const
Definition: HWOperation.cc:141
HDBToHtml::COST_PLUGINS
static const std::string COST_PLUGINS
Definition: HDBToHtml.hh:74
TTAMachine::FunctionUnit::pipelineElement
virtual PipelineElement * pipelineElement(int index) const
Definition: FunctionUnit.cc:523
HDB::RFArchitecture::maxWrites
int maxWrites() const
Definition: RFArchitecture.cc:472
HDB::OperationImplementation::implFileVerilog
std::string implFileVerilog
Definition: OperationImplementation.hh:52
HDB::OperationImplementationResource::simFiles
std::vector< std::string > simFiles
Definition: OperationImplementationResource.hh:46
HDB::ExternalPort::parameterDependency
std::string parameterDependency(int index) const
Definition: ExternalPort.cc:203
HDB::BIDIR
@ BIDIR
Bidirectional port.
Definition: HDBTypes.hh:43
HDB::FUEntry::architecture
FUArchitecture & architecture() const
Definition: FUEntry.cc:129
HDB::HDBManager::rfArchitectureByID
virtual RFArchitecture * rfArchitectureByID(RowID id) const
Definition: HDBManager.cc:2963
HDBToHtml::hdb_
const HDB::HDBManager & hdb_
HDB to create html from.
Definition: HDBToHtml.hh:80
HDB::Parameter::type
std::string type
Type of the parameter.
Definition: HDBTypes.hh:48
TTAMachine::FunctionUnit::operationCount
virtual int operationCount() const
Definition: FunctionUnit.cc:419
HDB::HDBManager::fuEntryIDOfImplementation
RowID fuEntryIDOfImplementation(RowID implID) const
Definition: HDBManager.cc:2765
HDB::RFArchitecture::hasParameterizedWidth
bool hasParameterizedWidth() const
Definition: RFArchitecture.cc:271
HDBToHtml::RF_ENTRIES
static const std::string RF_ENTRIES
Definition: HDBToHtml.hh:66
HDB::OperationImplementation::name
std::string name
Definition: OperationImplementation.hh:50
HDB::RFEntry::implementation
RFImplementation & implementation() const
Definition: RFEntry.cc:102
HDB::OperationImplementationResource
Definition: OperationImplementationResource.hh:38
CostEstimationData::socketReference
RowID socketReference() const
Definition: CostEstimationData.cc:148
HDB::PortImplementation::loadPort
std::string loadPort() const
Definition: PortImplementation.cc:96
HDB::RFArchitecture::guardLatency
int guardLatency() const
Definition: RFArchitecture.cc:551
HDB::BlockImplementationFile::pathToFile
std::string pathToFile() const
Definition: BlockImplementationFile.cc:61
HDB::FUImplementation::opcodeOperation
std::string opcodeOperation(int index) const
Definition: FUImplementation.cc:207
HDB::BlockImplementationFile::Verilog
@ Verilog
Verilog file.
Definition: BlockImplementationFile.hh:49
TTAMachine::ExecutionPipeline::OperandSet
std::set< int > OperandSet
Set for operand indexes.
Definition: ExecutionPipeline.hh:58
HDB::HDBManager::busCostEstimationDataIDs
std::set< RowID > busCostEstimationDataIDs(RowID busID) const
Definition: HDBManager.cc:6514
TTAMachine::BaseFUPort::isTriggering
virtual bool isTriggering() const =0
CostEstimationData
Definition: CostEstimationData.hh:42
TTAMachine::Unit::portCount
virtual int portCount() const
Definition: Unit.cc:135
CostEstimationData::value
DataObject value() const
Definition: CostEstimationData.cc:73
TTAMachine::FunctionUnit::pipelineElementCount
virtual int pipelineElementCount() const
Definition: FunctionUnit.cc:507
HDB::OperationImplementation::resources
std::vector< OperationImplementationResource > resources
Definition: OperationImplementation.hh:58
HDB::RFImplementation::port
RFPortImplementation & port(int index) const
Definition: RFImplementation.cc:281
HWBlockArchitecture::id
RowID id() const
Definition: HWBlockArchitecture.cc:79
HDB::RFArchitecture::hasGuardSupport
bool hasGuardSupport() const
Definition: RFArchitecture.cc:519
CostEstimationData::hasBusReference
bool hasBusReference() const
HDB::Parameter::name
std::string name
Name of the parameter.
Definition: HDBTypes.hh:47
HDB::FUImplementation
Definition: FUImplementation.hh:53
HDB::RFArchitecture
Definition: RFArchitecture.hh:50
HDB::RFPortImplementation
Definition: RFPortImplementation.hh:43
HDB::FUImplementation::opcode
int opcode(const std::string &operation) const
Definition: FUImplementation.cc:242
HDB::HDBManager::socketCostEstimationDataIDs
std::set< RowID > socketCostEstimationDataIDs(RowID socketID) const
Definition: HDBManager.cc:6473
HDB::FUPortImplementation::architecturePort
std::string architecturePort() const
Definition: FUPortImplementation.cc:93
HDB::HDBManager::OperationImplementationByID
OperationImplementation OperationImplementationByID(RowID id) const
Definition: HDBManager.cc:2248
TTAMachine::PipelineElement
Definition: PipelineElement.hh:46
HDB::PortImplementation::name
std::string name() const
Definition: PortImplementation.cc:74
HDB::HWBlockImplementation::id
RowID id() const
Definition: HWBlockImplementation.cc:128
CostEstimationData::fuReference
RowID fuReference() const
Definition: CostEstimationData.cc:103
TTAMachine::Port::name
virtual std::string name() const
Definition: Port.cc:141
HDB::CostFunctionPlugin::pluginFilePath
std::string pluginFilePath() const
Definition: CostFunctionPlugin.cc:94
HDB::FUImplementation::parameter
Parameter parameter(int index) const
Definition: FUImplementation.cc:457
HDB::RFPortImplementation::opcodePort
std::string opcodePort() const
Definition: RFPortImplementation.cc:110
HDB::BlockImplementationFile::format
Format format() const
Definition: BlockImplementationFile.cc:70
HDB::HDBManager::rfCostEstimationDataIDs
std::set< RowID > rfCostEstimationDataIDs(RowID rfImplID) const
Definition: HDBManager.cc:6432
HDB::FUImplementation::architecturePortCount
int architecturePortCount() const
Definition: FUImplementation.cc:326
CostEstimationData::hasRFReference
bool hasRFReference() const
HDB::OperationImplementationResource::name
std::string name
Definition: OperationImplementationResource.hh:41
HDB::RFArchitecture::readPortCount
int readPortCount() const
Definition: RFArchitecture.cc:372
HDB::IN
@ IN
Input port.
Definition: HDBTypes.hh:41
HDB::RFImplementation::guardPort
std::string guardPort() const
Definition: RFImplementation.cc:176
HDB::RFImplementation::portCount
int portCount() const
Definition: RFImplementation.cc:255
HDB::RFArchitecture::size
int size() const
Definition: RFArchitecture.cc:326
TTAMachine::HWOperation::pipeline
ExecutionPipeline * pipeline() const
Definition: HWOperation.cc:201
HDB::Parameter::value
std::string value
Value of the parameter.
Definition: HDBTypes.hh:49
TTAMachine::ExecutionPipeline
Definition: ExecutionPipeline.hh:55
HDB::RFImplementation::parameter
Parameter parameter(int index) const
Definition: RFImplementation.cc:366
ContainerTools::containsValue
static bool containsValue(const ContainerType &aContainer, const ElementType &aKey)
HDB::Parameter
Definition: HDBTypes.hh:46
HDB::HWBlockImplementation::moduleName
std::string moduleName() const
Definition: HWBlockImplementation.cc:153
TTAMachine::FunctionUnit::operation
virtual HWOperation * operation(const std::string &name) const
Definition: FunctionUnit.cc:363
TTAMachine::HWOperation::latency
int latency() const
Definition: HWOperation.cc:216
HDB::ExternalPort::description
std::string description() const
Definition: ExternalPort.cc:150
HDB::ExternalPort::name
std::string name() const
Definition: ExternalPort.cc:84
HDB::HDBManager::fuCostEstimationDataIDs
std::set< RowID > fuCostEstimationDataIDs(RowID fuImplID) const
Definition: HDBManager.cc:6391
HDB::RFArchitecture::bidirPortCount
int bidirPortCount() const
Definition: RFArchitecture.cc:422
HDB::FUEntry::hasImplementation
virtual bool hasImplementation() const
Definition: FUEntry.cc:74
HDB::CostFunctionPlugin::type
CostFunctionPluginType type() const
Definition: CostFunctionPlugin.cc:104
HDB::FUEntry::implementation
FUImplementation & implementation() const
Definition: FUEntry.cc:86
HDB::HWBlockImplementation::glockPort
std::string glockPort() const
Definition: HWBlockImplementation.cc:219
HDB::FUPortImplementation::guardPort
std::string guardPort() const
Definition: FUPortImplementation.cc:115
HDB::RFImplementation::externalPortCount
int externalPortCount() const
Definition: RFImplementation.cc:266
HDB::HDBManager::fuByEntryID
FUEntry * fuByEntryID(RowID id) const
Definition: HDBManager.cc:2828
HDB::ExternalPort::direction
Direction direction() const
Definition: ExternalPort.cc:106
HDB::FUImplementation::architecturePort
FUPortImplementation & architecturePort(int index) const
Definition: FUImplementation.cc:351
HDB::CostFunctionPlugin::name
std::string name() const
Definition: CostFunctionPlugin.cc:84
HDB::ExternalPort::widthFormula
std::string widthFormula() const
Definition: ExternalPort.cc:128
HDBToHtml::FU_ARCHITECTURES
static const std::string FU_ARCHITECTURES
Definition: HDBToHtml.hh:70
HDB::RFImplementation::separateAddressCycleParameter
bool separateAddressCycleParameter() const
Definition: RFImplementation.cc:194
HDB::OUT
@ OUT
Output port.
Definition: HDBTypes.hh:42
HDB::RFEntry::hasArchitecture
virtual bool hasArchitecture() const
Definition: RFEntry.cc:117
HDBToHtml::RF_ARCHITECTURES
static const std::string RF_ARCHITECTURES
Definition: HDBToHtml.hh:71
HDB::CostFunctionPlugin
Definition: CostFunctionPlugin.hh:43
HDB::FUImplementation::externalPortCount
int externalPortCount() const
Definition: FUImplementation.cc:337
HDB::ExternalPort::parameterDependencyCount
int parameterDependencyCount() const
Definition: ExternalPort.cc:189
HDB::OperationImplementation
Definition: OperationImplementation.hh:47
TTAMachine::BaseFUPort::width
virtual int width() const
Definition: BaseFUPort.cc:109
HDB::RFArchitecture::writePortCount
int writePortCount() const
Definition: RFArchitecture.cc:397
TTAMachine::ExecutionPipeline::isResourceUsed
bool isResourceUsed(const std::string &name, int cycle) const
Definition: ExecutionPipeline.cc:300
HDB::OperationImplementation::implFileVhdl
std::string implFileVhdl
Definition: OperationImplementation.hh:51
HDB::HDBManager::rfByEntryID
RFEntry * rfByEntryID(RowID id) const
Definition: HDBManager.cc:2885
HDB::FUPortImplementation::widthFormula
std::string widthFormula() const
Definition: FUPortImplementation.cc:137
Generated by   doxygen 1.8.17
