HelpCommand Class Reference

#include <HelpCommand.hh>

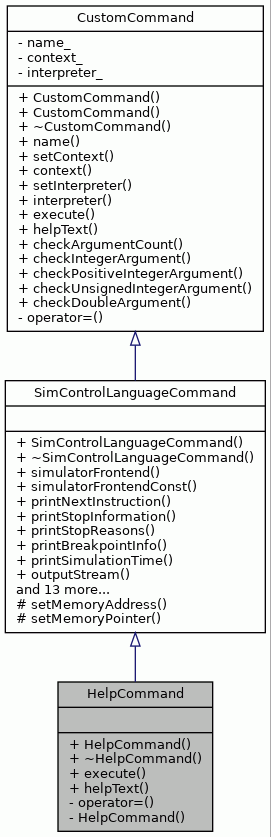

Inheritance diagram for HelpCommand:

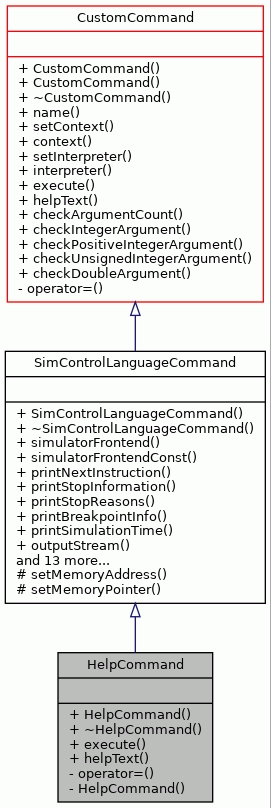

Collaboration diagram for HelpCommand:

Public Member Functions
	HelpCommand ()
virtual	~HelpCommand ()
virtual bool	execute (const std::vector< DataObject > &arguments)
virtual std::string	helpText () const
Public Member Functions inherited from SimControlLanguageCommand
	SimControlLanguageCommand (const std::string &name)
virtual	~SimControlLanguageCommand ()
SimulatorFrontend &	simulatorFrontend ()
const SimulatorFrontend &	simulatorFrontendConst ()
virtual void	printNextInstruction ()
virtual void	printStopInformation ()
virtual void	printStopReasons ()
virtual bool	printBreakpointInfo (unsigned int breakpointHandle)
virtual void	printSimulationTime ()
virtual std::ostream &	outputStream ()
bool	checkSimulationInitialized ()
bool	checkSimulationNotAlreadyRunning ()
bool	checkSimulationStopped ()
bool	checkSimulationEnded ()
bool	checkProgramLoaded ()
bool	checkMachineLoaded ()
InstructionAddress	parseInstructionAddressExpression (const std::string &expression)
TTAProgram::Address	parseDataAddressExpression (const std::string &expression)
bool	parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)
bool	askConditionFromUser (TclConditionScript &target)
bool	askExpressionFromUser (ExpressionScript &target)
bool	verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)
void	setErrorMessage (const TCEString &errorMsg)
Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)
	CustomCommand (const CustomCommand &cmd)
virtual	~CustomCommand ()
std::string	name () const
void	setContext (InterpreterContext *context)
InterpreterContext *	context () const
void	setInterpreter (ScriptInterpreter *si)
ScriptInterpreter *	interpreter () const
bool	checkArgumentCount (int argumentCount, int minimum, int maximum)
bool	checkIntegerArgument (const DataObject &argument)
bool	checkPositiveIntegerArgument (const DataObject &argument)
bool	checkUnsignedIntegerArgument (const DataObject &argument)
bool	checkDoubleArgument (const DataObject &argument)

Private Member Functions
HelpCommand &	operator= (const HelpCommand &)
	Assignment not allowed. More...
	HelpCommand (const HelpCommand &cmd)
	Copying not allowed. More...

Additional Inherited Members
Protected Member Functions inherited from SimControlLanguageCommand
bool	setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)
bool	setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)

Detailed Description

Implementation of the "help" command of the Simulator Control Language.

Definition at line 45 of file HelpCommand.hh.

Constructor & Destructor Documentation

HelpCommand() [1/2]

HelpCommand::HelpCommand

(

)

Constructor.

Definition at line 47 of file HelpCommand.cc.

                         : SimControlLanguageCommand("help") {
}

~HelpCommand()

HelpCommand::~HelpCommand ( )

virtual

Destructor.

Definition at line 53 of file HelpCommand.cc.

                          {
}

HelpCommand() [2/2]

HelpCommand::HelpCommand ( const HelpCommand &  cmd )

private

Copying not allowed.

Member Function Documentation

execute()

bool HelpCommand::execute ( const std::vector< DataObject > &  arguments )

virtual

Executes the help command.

Prints a help message briefly describing command command. If no command is given, prints general help and a listing of available commands.

Parameters

arguments

Arguments for the command.

Returns

True if execution is succesfull, false otherwise

Exceptions

NumberFormatException

If conversion of DataObject fails.

Implements CustomCommand.

Definition at line 67 of file HelpCommand.cc.

                                                           {
    if (!checkArgumentCount(arguments.size() - 1, 0, 1)) {
        return false;
    }

    if (arguments.size() == 1) {
        outputStream() << SimulatorToolbox::textGenerator().text(
                           Texts::TXT_CLI_ONLINE_HELP).str()
                       << std::endl << std::endl;

        outputStream() << SimulatorToolbox::textGenerator().text(
            Texts::TXT_INTERP_HELP_COMMANDS_AVAILABLE).str() << std::endl;

        vector<string> names = interpreter()->customCommandsSortedByName();
        for (size_t i = 0; i < names.size(); i++) {
            outputStream() << names[i] + " ";
        }
        outputStream() << std::endl;
        return true;
    }

    DataObject* obj = new DataObject();
    string cmdName = arguments[1].stringValue();
    CustomCommand* command = interpreter()->customCommand(cmdName);
    if (command == NULL) {
        obj->setString(
            SimulatorToolbox::textGenerator().text(
                Texts::TXT_UNKNOWN_COMMAND).str());
        interpreter()->setResult(obj);
        return false;
    } else {
        outputStream() << command->helpText() << std::endl;
        return true;
    }

    return true;
}

References CustomCommand::checkArgumentCount(), ScriptInterpreter::customCommand(), ScriptInterpreter::customCommandsSortedByName(), CustomCommand::helpText(), CustomCommand::interpreter(), SimControlLanguageCommand::outputStream(), ScriptInterpreter::setResult(), DataObject::setString(), Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), Texts::TXT_CLI_ONLINE_HELP, Texts::TXT_INTERP_HELP_COMMANDS_AVAILABLE, and Texts::TXT_UNKNOWN_COMMAND.

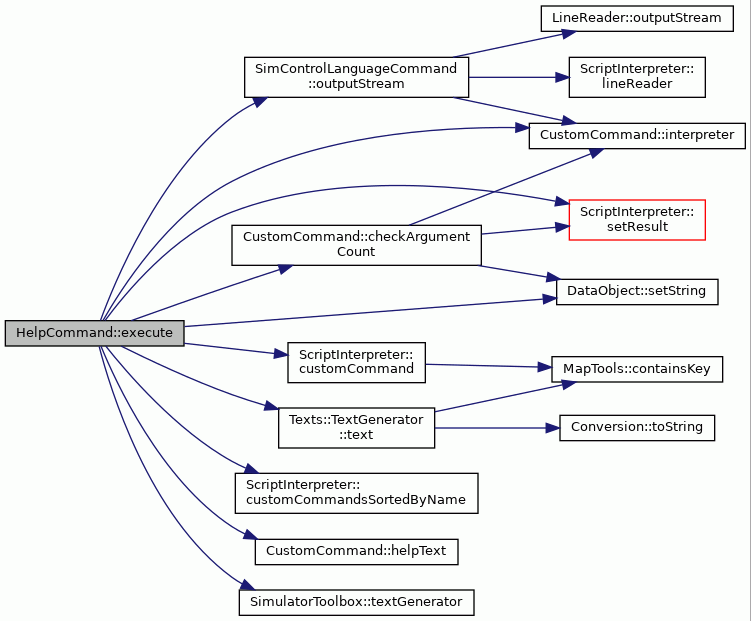

Here is the call graph for this function:

helpText()

string HelpCommand::helpText ( ) const

virtual

Returns help text.

Returns

Help text.

Todo:

TextGenerator.

Implements CustomCommand.

Definition at line 112 of file HelpCommand.cc.

                            {
    return SimulatorToolbox::textGenerator().text(
        Texts::TXT_INTERP_HELP_HELP).str();
}

References Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), and Texts::TXT_INTERP_HELP_HELP.

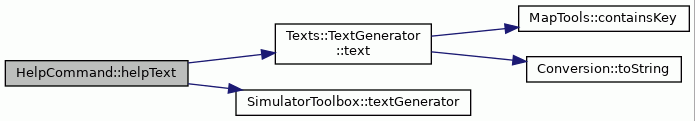

Here is the call graph for this function:

operator=()

HelpCommand& HelpCommand::operator= ( const HelpCommand &  )

private

Assignment not allowed.

---

The documentation for this class was generated from the following files:

• HelpCommand.hh
• HelpCommand.cc
