SimulateDialog Class Reference

#include <SimulateDialog.hh>

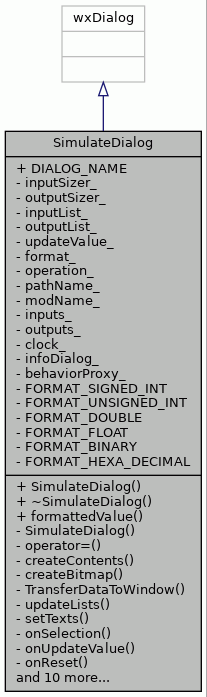

Inheritance diagram for SimulateDialog:

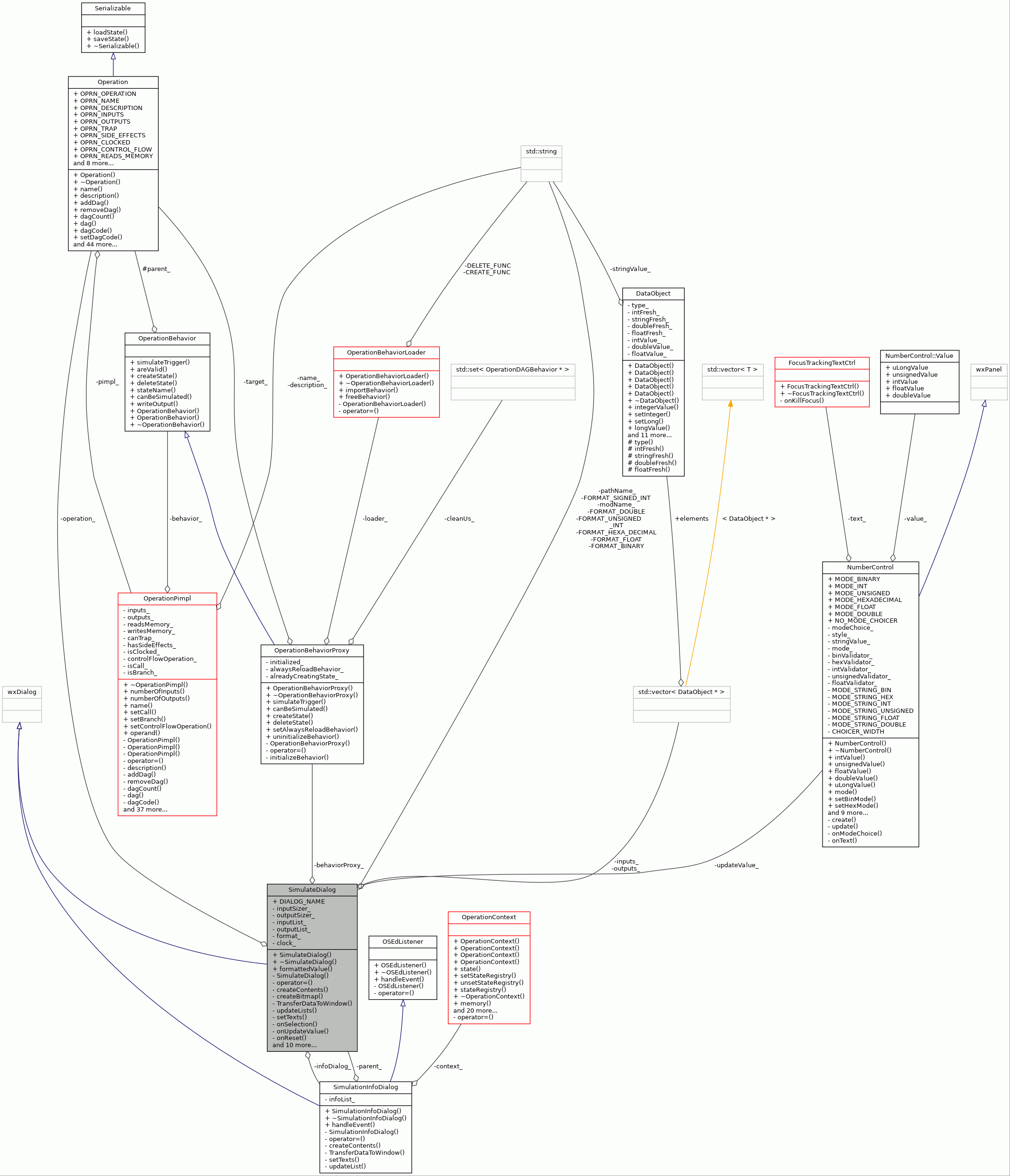

Collaboration diagram for SimulateDialog:

Public Member Functions
	SimulateDialog (wxWindow *parent, Operation *operation, const std::string &pathName, const std::string &modName)
virtual	~SimulateDialog ()
std::string	formattedValue (SimValue *value)

Static Public Attributes
static const wxString	DIALOG_NAME = _T("SimulateDialog")
	Name of the dialog so it can be found with wxWindow::FindWindowByName. More...

Private Types
enum	{   ID_INPUT_LIST = 12000, ID_VALUE, ID_BUTTON_UPDATE, ID_OUTPUT_LIST,   ID_TEXT_READY, ID_BITMAP_READY, ID_TEXT_UPDATE, ID_BITMAP_UPDATE,   ID_TEXT_CLOCK, ID_TEXT_CLOCK_VALUE, ID_BUTTON_RESET, ID_BUTTON_TRIGGER,   ID_BUTTON_LATE_RESULT, ID_BUTTON_ADVANCE_LOCK, ID_BUTTON_SHOW_HIDE_REGISTERS, ID_FORMAT_TEXT,   ID_FORMAT }

Private Member Functions
	SimulateDialog (const SimulateDialog &)
	Copying not allowed. More...
SimulateDialog &	operator= (const SimulateDialog &)
	Assignment not allowed. More...
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
wxBitmap	createBitmap (unsigned int index)
virtual bool	TransferDataToWindow ()
void	updateLists ()
void	setTexts ()
void	onSelection (wxListEvent &event)
void	onUpdateValue (wxCommandEvent &event)
void	onReset (wxCommandEvent &event)
void	onTrigger (wxCommandEvent &event)
void	onLateResult (wxCommandEvent &event)
void	onAdvanceClock (wxCommandEvent &event)
void	onFormatChanged (wxCommandEvent &event)
void	showOrHideRegisters (wxCommandEvent &event)
void	onOK (wxCommandEvent &event)
void	onClose (wxCloseEvent &)
void	setInputValues (std::vector< SimValue * > inputs)
void	setOutputValues (std::vector< SimValue * > outputs)
void	createState ()

Private Attributes
wxStaticBoxSizer *	inputSizer_
	Input operand sizer. More...
wxStaticBoxSizer *	outputSizer_
	Output operand sizer. More...
wxListCtrl *	inputList_
	Input list. More...
wxListCtrl *	outputList_
	Output list. More...
NumberControl *	updateValue_
	Text control for updating input values. More...
wxChoice *	format_
	Choice list of possible output formats. More...
Operation *	operation_
	Bitmap for Trigger result. More...
std::string	pathName_
	Path in which operation module belongs to. More...
std::string	modName_
	Module in which operation belongs to. More...
std::vector< DataObject * >	inputs_
	List of input values. More...
std::vector< DataObject * >	outputs_
	List of output values. More...
unsigned int	clock_
	Variable where the value of clock is kept. More...
SimulationInfoDialog *	infoDialog_
	Dialog for showing additional information. More...
OperationBehaviorProxy *	behaviorProxy_
	The behavior proxy that loads the behavior. Used to "freeze" the behavior loading for the duration of the simulation. More...

Static Private Attributes
static const std::string	FORMAT_SIGNED_INT = "signed int"
	Signed int format. More...
static const std::string	FORMAT_UNSIGNED_INT = "unsigned int"
	Unsigned int format. More...
static const std::string	FORMAT_DOUBLE = "double"
	Double format. More...
static const std::string	FORMAT_FLOAT = "float"
	Float format. More...
static const std::string	FORMAT_BINARY = "binary"
	Binary format. More...
static const std::string	FORMAT_HEXA_DECIMAL = "hexadecimal"
	Hexadecimal format. More...

Detailed Description

Class for simulating operation behavior.

Definition at line 53 of file SimulateDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Component ids.

Enumerator
ID_INPUT_LIST
ID_VALUE
ID_BUTTON_UPDATE
ID_OUTPUT_LIST
ID_TEXT_READY
ID_BITMAP_READY
ID_TEXT_UPDATE
ID_BITMAP_UPDATE
ID_TEXT_CLOCK
ID_TEXT_CLOCK_VALUE
ID_BUTTON_RESET
ID_BUTTON_TRIGGER
ID_BUTTON_LATE_RESULT
ID_BUTTON_ADVANCE_LOCK
ID_BUTTON_SHOW_HIDE_REGISTERS
ID_FORMAT_TEXT
ID_FORMAT

Definition at line 109 of file SimulateDialog.hh.

         {
        ID_INPUT_LIST = 12000,
        ID_VALUE,
        ID_BUTTON_UPDATE,
        ID_OUTPUT_LIST,
        ID_TEXT_READY,
        ID_BITMAP_READY,
        ID_TEXT_UPDATE,
        ID_BITMAP_UPDATE,
        ID_TEXT_CLOCK,
        ID_TEXT_CLOCK_VALUE,
        ID_BUTTON_RESET,
        ID_BUTTON_TRIGGER,
        ID_BUTTON_LATE_RESULT,
        ID_BUTTON_ADVANCE_LOCK,
        ID_BUTTON_SHOW_HIDE_REGISTERS,
        ID_FORMAT_TEXT,
        ID_FORMAT
    };

Constructor & Destructor Documentation

SimulateDialog() [1/2]

SimulateDialog::SimulateDialog	(	wxWindow *	parent,
		Operation *	operation,
		const std::string &	pathName,
		const std::string &	modName
	)

Constructor.

Parameters

parent	Parent window.
operation	Operation to be simulated.

Definition at line 98 of file SimulateDialog.cc.

                              :
    wxDialog(parent, -1, _T(""),
             DialogPosition::getPosition(DialogPosition::DIALOG_SIMULATE),
             wxDefaultSize, wxRESIZE_BORDER, DIALOG_NAME),
    operation_(operation), pathName_(pathName), modName_(modName), clock_(0) {

    createContents(this, true, true);

    for (int i = 0; i < operation_->numberOfInputs(); i++) {
        inputs_.push_back(new DataObject());
        inputs_[i]->setString("0");
    }

    for (int i = 0; i < operation_->numberOfOutputs(); i++) {
        outputs_.push_back(new DataObject());
        outputs_[i]->setString("0");
    }

    inputList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_INPUT_LIST));
    outputList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_OUTPUT_LIST));
    updateValue_ = dynamic_cast<NumberControl*>(FindWindow(ID_VALUE));
    format_ = dynamic_cast<wxChoice*>(FindWindow(ID_FORMAT));
    //triggerBM_ = dynamic_cast<wxStaticBitmap*>(FindWindow(ID_BITMAP_READY));

    //lateResultBM_ =
    //    dynamic_cast<wxStaticBitmap*>(FindWindow(ID_BITMAP_UPDATE));

    FindWindow(wxID_OK)->SetFocus();

    format_->Append(WxConversion::toWxString(FORMAT_SIGNED_INT));
    format_->Append(WxConversion::toWxString(FORMAT_UNSIGNED_INT));
    format_->Append(WxConversion::toWxString(FORMAT_DOUBLE));
    format_->Append(WxConversion::toWxString(FORMAT_FLOAT));
    format_->Append(WxConversion::toWxString(FORMAT_BINARY));
    format_->Append(WxConversion::toWxString(FORMAT_HEXA_DECIMAL));

    format_->SetSelection(0);

    setTexts();

    infoDialog_ = new SimulationInfoDialog(
        this, &OperationContainer::operationContext());
    OSEdInformer* informer = wxGetApp().mainFrame()->informer();
    informer->registerListener(OSEdInformer::EVENT_REGISTER, infoDialog_);
    informer->registerListener(OSEdInformer::EVENT_RESET, infoDialog_);

    /* Ensure we won't refresh the behavior from the plugin file again
       during the simulation. This leads to crashes due to using a state
       instance created by a behavior definition created by a previously
       loaded behavior instance. This effectively "freezes" the behavior
       to the one loaded in the next behavior function call. */
    behaviorProxy_ =
        dynamic_cast<OperationBehaviorProxy*>(&operation->behavior());
    assert(behaviorProxy_ != NULL);
    behaviorProxy_->setAlwaysReloadBehavior(false);
}

References assert, OSEdInformer::EVENT_REGISTER, OSEdInformer::EVENT_RESET, OperationContainer::operationContext(), OSEdInformer::registerListener(), and WxConversion::toWxString().

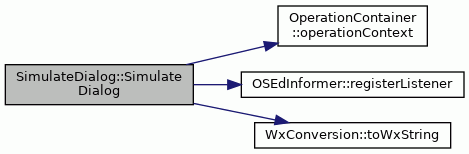

Here is the call graph for this function:

~SimulateDialog()

SimulateDialog::~SimulateDialog ( )

virtual

Destructor.

Definition at line 162 of file SimulateDialog.cc.

                                {

    SequenceTools::deleteAllItems(inputs_);
    SequenceTools::deleteAllItems(outputs_);

    int x, y;
    GetPosition(&x, &y);
    wxPoint point(x, y);
    DialogPosition::setPosition(DialogPosition::DIALOG_SIMULATE, point);

    /* Ensure we won't use the old state object the next time because
       the behavior will be reloaded from the dynlib. It would crash. */
    OperationBehavior& behavior = operation_->behavior();
    behavior.deleteState(OperationContainer::operationContext());

    /* "Unfreeze" the OperationBehavior. Now it will be reloaded always
       when accessing the methods to enable the dynamic menu items in
       the operation list. */
    behaviorProxy_->setAlwaysReloadBehavior(true);
    behaviorProxy_->uninitializeBehavior();

}

References Operation::behavior(), behaviorProxy_, SequenceTools::deleteAllItems(), OperationBehavior::deleteState(), DialogPosition::DIALOG_SIMULATE, inputs_, operation_, OperationContainer::operationContext(), outputs_, OperationBehaviorProxy::setAlwaysReloadBehavior(), DialogPosition::setPosition(), and OperationBehaviorProxy::uninitializeBehavior().

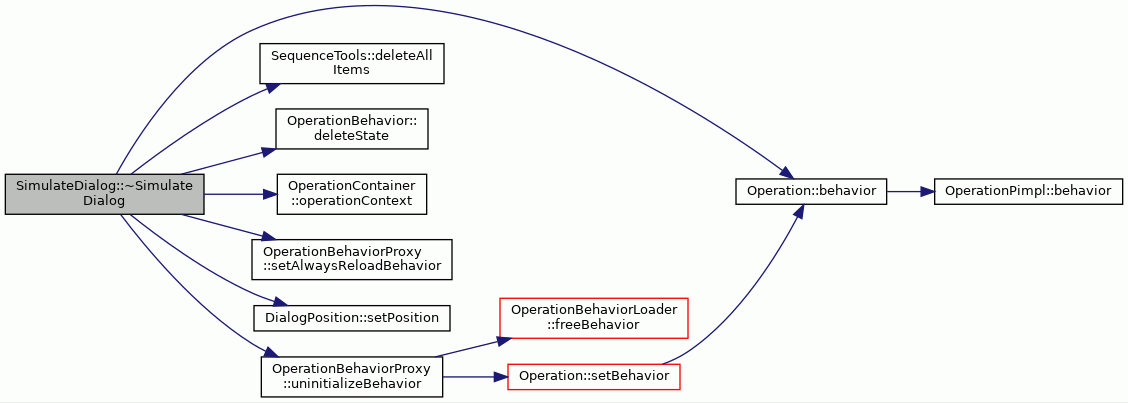

Here is the call graph for this function:

SimulateDialog() [2/2]

SimulateDialog::SimulateDialog ( const SimulateDialog &  )

private

Copying not allowed.

Member Function Documentation

createBitmap()

wxBitmap SimulateDialog::createBitmap ( unsigned int  index )

private

Definition at line 693 of file SimulateDialog.cc.

                                               {

    if (index == 0)
    {
        /* XPM */
        static const char *xpm_data[] = {
            /* columns rows colors chars-per-pixel */
            "16 15 2 1",
            "  c None",
            "a c #FF0000",
            /* pixels */
            "                ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            "                "
        };
        wxBitmap bitmap( xpm_data );
        return bitmap;
    }
    if (index == 1)
    {
        /* XPM */
        static const char *xpm_data[] = {
            /* columns rows colors chars-per-pixel */
            "16 15 2 1",
            "  c None",
            "b c #00FF00",
            /* pixels */
            "                ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            " bbbbbbbbbbbbbb ",
            "                "
        };
        wxBitmap bitmap( xpm_data );
        return bitmap;
    }
    if (index == 2)
    {
        /* XPM */
        static const char *xpm_data[] = {
            /* columns rows colors chars-per-pixel */
            "16 15 2 1",
            "  c None",
            "a c Black",
            /* pixels */
            "                ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            " aaaaaaaaaaaaaa ",
            "                "
        };
        wxBitmap bitmap( xpm_data );
        return bitmap;
    }
    return wxNullBitmap;
}

createContents()

wxSizer * SimulateDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the contents of the dialog.

NOTE! This function was generated by wxDesigner.

Parameters

parent	Parent window.
call_fit	If true fits the contenst inside the dialog.
set_sizer	If true sets the main sizer as dialog contents.

Returns

The created sizer.

Definition at line 582 of file SimulateDialog.cc.

                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxBoxSizer *item1 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticBox *item3 = new wxStaticBox( parent, -1, wxT("Input values") );
    wxStaticBoxSizer *item2 = new wxStaticBoxSizer( item3, wxVERTICAL );
    inputSizer_ = item2;

    wxListCtrl *item4 = new wxListCtrl( parent, ID_INPUT_LIST, wxDefaultPosition, wxSize(160,120), wxLC_REPORT|wxSUNKEN_BORDER );
    item2->Add( item4, 1, wxGROW|wxALL, 5 );

    wxBoxSizer *item5 = new wxBoxSizer( wxHORIZONTAL );

    NumberControl *item6 = new NumberControl(
        parent, ID_VALUE, wxDefaultPosition, wxSize(200, -1),
        NumberControl::MODE_BINARY | NumberControl::MODE_INT |
        NumberControl::MODE_UNSIGNED | NumberControl::MODE_HEXADECIMAL |
        NumberControl::MODE_FLOAT | NumberControl::MODE_DOUBLE);

    item5->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item7 = new wxButton( parent, ID_BUTTON_UPDATE, wxT("Update"), wxDefaultPosition, wxDefaultSize, 0 );
    item5->Add( item7, 0, wxALIGN_CENTER|wxALL, 5 );

    item2->Add( item5, 0, wxALIGN_CENTER|wxALL, 5 );

    item1->Add( item2, 1, wxGROW|wxALL, 5 );

    wxStaticBox *item9 = new wxStaticBox( parent, -1, wxT("Output values") );
    wxStaticBoxSizer *item8 = new wxStaticBoxSizer( item9, wxVERTICAL );
    outputSizer_ = item8;

    wxListCtrl *item10 = new wxListCtrl( parent, ID_OUTPUT_LIST, wxDefaultPosition, wxSize(200,120), wxLC_REPORT|wxSUNKEN_BORDER );
    item8->Add( item10, 1, wxGROW|wxALL, 5 );

    item1->Add( item8, 1, wxGROW|wxALL, 5 );

    wxGridSizer *item11 = new wxGridSizer( 2, 0, 0 );

    //wxStaticText *item12 = new wxStaticText( parent, ID_TEXT_READY, wxT("Ready"), wxDefaultPosition, wxDefaultSize, 0 );
    //item11->Add( item12, 0, wxALIGN_CENTER|wxALL, 5 );

    //wxStaticBitmap *item13 = new wxStaticBitmap( parent, ID_BITMAP_READY, createBitmap( 2 ), wxDefaultPosition, wxDefaultSize );
    //item11->Add( item13, 0, wxALIGN_CENTER|wxALL, 5 );

    //wxStaticText *item14 = new wxStaticText( parent, ID_TEXT_UPDATE, wxT("Update"), wxDefaultPosition, wxDefaultSize, 0 );
    //item11->Add( item14, 0, wxALIGN_CENTER|wxALL, 5 );

    //wxStaticBitmap *item15 = new wxStaticBitmap( parent, ID_BITMAP_UPDATE, createBitmap( 2 ), wxDefaultPosition, wxDefaultSize );
    //item11->Add( item15, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item16 = new wxStaticText( parent, ID_TEXT_CLOCK, wxT("Clock count:"), wxDefaultPosition, wxDefaultSize, 0 );
    item11->Add( item16, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item17 = new wxStaticText( parent, ID_TEXT_CLOCK_VALUE, wxT("0"), wxDefaultPosition, wxDefaultSize, 0 );
    item11->Add( item17, 0, wxALIGN_CENTER|wxALL, 5 );

    item1->Add( item11, 0, wxGROW|wxALL, 5 );

    item0->Add( item1, 1, wxGROW|wxALL, 5 );

    wxBoxSizer *item18 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticText *item19 = new wxStaticText( parent, ID_FORMAT_TEXT, wxT("Format:"), wxDefaultPosition, wxDefaultSize, 0 );
    item18->Add( item19, 0, wxALIGN_CENTER|wxALL, 5 );

    wxString *strs20 = (wxString*) NULL;
    wxChoice *item20 = new wxChoice( parent, ID_FORMAT, wxDefaultPosition, wxSize(130,-1), 0, strs20, 0 );
    item18->Add( item20, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item18, 0, wxALIGN_CENTER|wxALL, 5 );

    wxBoxSizer *item21 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item22 = new wxButton( parent, ID_BUTTON_RESET, wxT("Reset"), wxDefaultPosition, wxDefaultSize, 0 );
    item21->Add( item22, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item23 = new wxButton( parent, ID_BUTTON_TRIGGER, wxT("Trigger"), wxDefaultPosition, wxDefaultSize, 0 );
    item21->Add( item23, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item25 = new wxButton( parent, ID_BUTTON_ADVANCE_LOCK, wxT("Advance Clock"), wxDefaultPosition, wxDefaultSize, 0 );
    item21->Add( item25, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item26 = new wxButton( parent, ID_BUTTON_SHOW_HIDE_REGISTERS, wxT("Show registers"), wxDefaultPosition, wxDefaultSize, 0 );
    item21->Add( item26, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item27 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item21->Add( item27, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item21, 0, wxALIGN_CENTER|wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;

}

References ID_BUTTON_ADVANCE_LOCK, ID_BUTTON_RESET, ID_BUTTON_SHOW_HIDE_REGISTERS, ID_BUTTON_TRIGGER, ID_BUTTON_UPDATE, ID_FORMAT, ID_FORMAT_TEXT, ID_INPUT_LIST, ID_OUTPUT_LIST, ID_TEXT_CLOCK, ID_TEXT_CLOCK_VALUE, ID_VALUE, inputSizer_, NumberControl::MODE_BINARY, NumberControl::MODE_DOUBLE, NumberControl::MODE_FLOAT, NumberControl::MODE_HEXADECIMAL, NumberControl::MODE_INT, NumberControl::MODE_UNSIGNED, and outputSizer_.

createState()

void SimulateDialog::createState ( )

private

Creates the state for the operation.

Definition at line 566 of file SimulateDialog.cc.

                            {
    OperationBehavior& beh = operation_->behavior();
    beh.createState(OperationContainer::operationContext());
}

References Operation::behavior(), OperationBehavior::createState(), operation_, and OperationContainer::operationContext().

Referenced by onAdvanceClock(), and onTrigger().

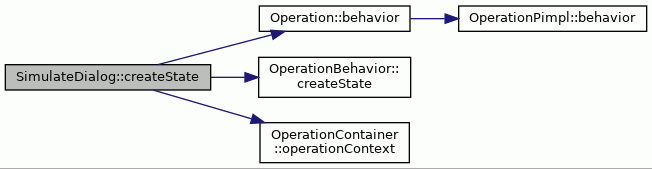

Here is the call graph for this function:

formattedValue()

string SimulateDialog::formattedValue

(

SimValue *

value

)

Formats the value of the SimValue.

Parameters

value

Value to be formatted.

Definition at line 532 of file SimulateDialog.cc.

                                              {

    string format = WxConversion::toString(format_->GetStringSelection());
    if (format == FORMAT_SIGNED_INT) {
        SIntWord intSigned = value->sIntWordValue();
        return Conversion::toString(static_cast<int>(intSigned));
    } else if (format == FORMAT_UNSIGNED_INT) {
        UIntWord intUnsigned = value->uIntWordValue();
        return Conversion::toString(intUnsigned);
    } else if (format == FORMAT_DOUBLE) {
        DoubleWord doubleWord = value->doubleWordValue();
        return Conversion::toString(doubleWord);
    } else if (format == FORMAT_FLOAT) {
        FloatWord floatWord = value->floatWordValue();
        string floatString = Conversion::toString(floatWord);
        if (floatString.find(".") == string::npos) {
            floatString += ".0";
        }
        floatString += "f";
        return floatString;
    } else if (format == FORMAT_BINARY) {
        UIntWord binary = value->uIntWordValue();
        return Conversion::toBinString(static_cast<int>(binary));
    } else if (format == FORMAT_HEXA_DECIMAL) {
        UIntWord hex = value->uIntWordValue();
        return Conversion::toHexString(hex);
    }
    return "";
}

References SimValue::doubleWordValue(), SimValue::floatWordValue(), format_, FORMAT_BINARY, FORMAT_DOUBLE, FORMAT_FLOAT, FORMAT_HEXA_DECIMAL, FORMAT_SIGNED_INT, FORMAT_UNSIGNED_INT, SimValue::sIntWordValue(), Conversion::toBinString(), Conversion::toHexString(), WxConversion::toString(), Conversion::toString(), and SimValue::uIntWordValue().

Referenced by onUpdateValue(), setInputValues(), setOutputValues(), and SimulationInfoDialog::updateList().

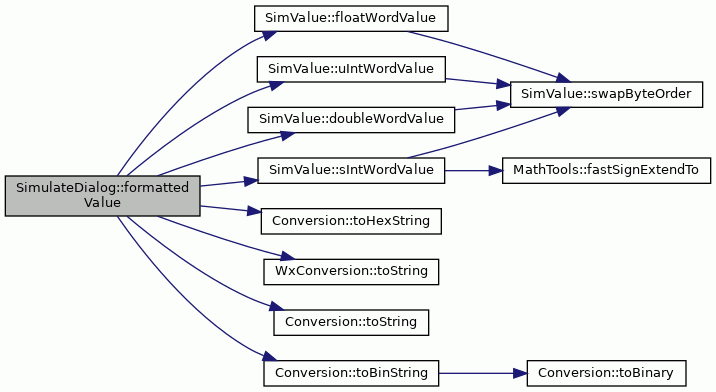

Here is the call graph for this function:

onAdvanceClock()

void SimulateDialog::onAdvanceClock ( wxCommandEvent &  event )

private

Handles the event when advance clock button is pushed.

Definition at line 399 of file SimulateDialog.cc.

                                              {
    createState();
    OperationContainer::operationContext().advanceClock();
    OperationContainer::memory().advanceClock();
    clock_++;
    FindWindow(ID_TEXT_CLOCK_VALUE)->SetLabel(WxConversion::toWxString(clock_));
    OSEdInformer* informer = wxGetApp().mainFrame()->informer();
    informer->handleEvent(OSEdInformer::EVENT_MEMORY);
}

References Memory::advanceClock(), OperationContext::advanceClock(), clock_, createState(), OSEdInformer::EVENT_MEMORY, OSEdInformer::handleEvent(), ID_TEXT_CLOCK_VALUE, OperationContainer::memory(), OperationContainer::operationContext(), and WxConversion::toWxString().

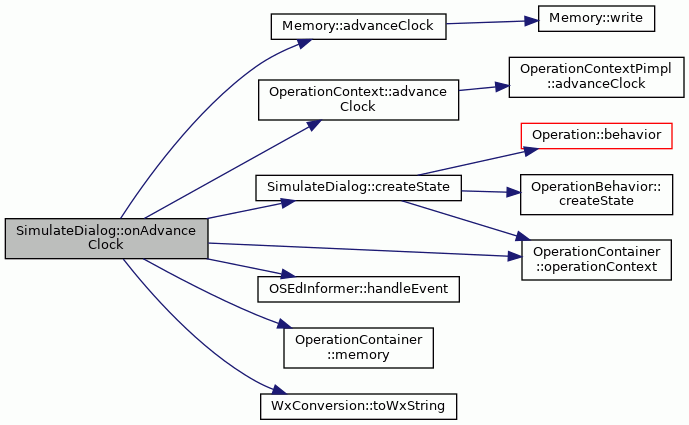

Here is the call graph for this function:

onClose()

void SimulateDialog::onClose ( wxCloseEvent &  event )

private

Handles the event when window is closed.

Parameters

event

Event to be handled.

Definition at line 485 of file SimulateDialog.cc.

                                          {
    OSEdInformer* informer = wxGetApp().mainFrame()->informer();
    informer->unregisterListener(OSEdInformer::EVENT_REGISTER, infoDialog_);
    informer->unregisterListener(OSEdInformer::EVENT_RESET, infoDialog_);
    infoDialog_->Destroy();
    event.Skip();
}

References OSEdInformer::EVENT_REGISTER, OSEdInformer::EVENT_RESET, infoDialog_, and OSEdInformer::unregisterListener().

Here is the call graph for this function:

onFormatChanged()

void SimulateDialog::onFormatChanged ( wxCommandEvent &  event )

private

Handles the event when intput and output format is changed.

Definition at line 413 of file SimulateDialog.cc.

                                               {

    vector<SimValue*> outputs;

    OperationSimulator& simulator = OperationSimulator::instance();
    string result = "";

    for (size_t i = 0; i < inputs_.size(); i++) {
        SimValue* sim = new SimValue(32);
        string value = inputs_[i]->stringValue();
        simulator.initializeSimValue(value, sim, result);
        outputs.push_back(sim);
    }

    for (size_t i = 0; i < outputs_.size(); i++) {
        SimValue* sim = new SimValue(32);
        string value = outputs_[i]->stringValue();
        simulator.initializeSimValue(value, sim, result);
        outputs.push_back(sim);
    }

    setInputValues(outputs);
    setOutputValues(outputs);
    updateLists();
    SequenceTools::deleteAllItems(outputs);
    OSEdInformer* informer = wxGetApp().mainFrame()->informer();
    informer->handleEvent(OSEdInformer::EVENT_REGISTER);
}

References SequenceTools::deleteAllItems(), OSEdInformer::EVENT_REGISTER, OSEdInformer::handleEvent(), OperationSimulator::initializeSimValue(), inputs_, OperationSimulator::instance(), outputs_, setInputValues(), setOutputValues(), and updateLists().

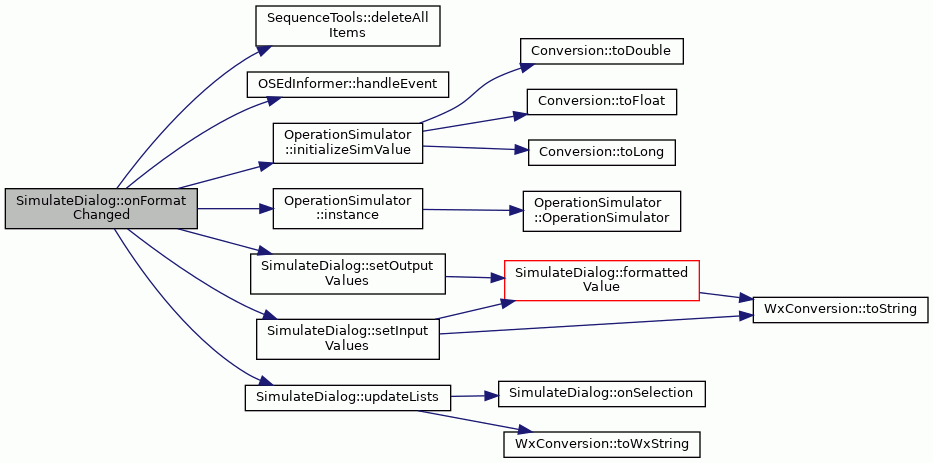

Here is the call graph for this function:

onLateResult()

void SimulateDialog::onLateResult ( wxCommandEvent &  event )

private

onOK()

void SimulateDialog::onOK ( wxCommandEvent &  event )

private

Handles the event when OK button is pushed.

Definition at line 471 of file SimulateDialog.cc.

                                    {
    OSEdInformer* informer = wxGetApp().mainFrame()->informer();
    informer->unregisterListener(OSEdInformer::EVENT_REGISTER, infoDialog_);
    informer->unregisterListener(OSEdInformer::EVENT_RESET, infoDialog_);
    infoDialog_->Destroy();
    Destroy();
}

References OSEdInformer::EVENT_REGISTER, OSEdInformer::EVENT_RESET, infoDialog_, and OSEdInformer::unregisterListener().

Here is the call graph for this function:

onReset()

void SimulateDialog::onReset ( wxCommandEvent &  event )

private

Handles the event when Reset button is pushed.

Reset sets all values to their defaults.

Definition at line 336 of file SimulateDialog.cc.

                                       {

    OperationBehavior& behavior = operation_->behavior();
    behavior.deleteState(OperationContainer::operationContext());

    for (size_t i = 0; i < inputs_.size(); i++) {
        inputs_[i]->setString("0");
    }

    for (size_t i = 0; i < outputs_.size(); i++) {
        outputs_[i]->setString("0");
    }

    //triggerBM_->SetBitmap(createBitmap(2));
    //lateResultBM_->SetBitmap(createBitmap(2));
    clock_ = 0;
    FindWindow(ID_TEXT_CLOCK_VALUE)->
        SetLabel(WxConversion::toWxString(clock_));
    updateLists();
    OSEdInformer* informer = wxGetApp().mainFrame()->informer();
    informer->handleEvent(OSEdInformer::EVENT_RESET);
}

References Operation::behavior(), clock_, OperationBehavior::deleteState(), OSEdInformer::EVENT_RESET, OSEdInformer::handleEvent(), ID_TEXT_CLOCK_VALUE, inputs_, operation_, OperationContainer::operationContext(), outputs_, WxConversion::toWxString(), and updateLists().

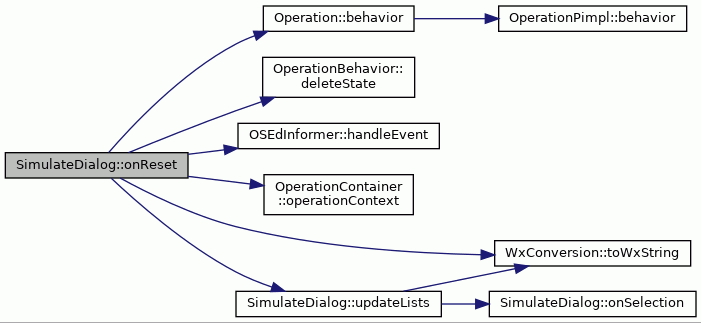

Here is the call graph for this function:

onSelection()

void SimulateDialog::onSelection ( wxListEvent &  event )

private

Handles the event when a value is selected or deselected on input list.

Definition at line 299 of file SimulateDialog.cc.

                                        {
    if (inputList_->GetSelectedItemCount() != 1) {
        FindWindow(ID_BUTTON_UPDATE)->Disable();
    } else {
        FindWindow(ID_BUTTON_UPDATE)->Enable();
    }
}

References ID_BUTTON_UPDATE, and inputList_.

Referenced by updateLists().

onTrigger()

void SimulateDialog::onTrigger ( wxCommandEvent &  event )

private

Handles the event when Trigger button is pushed.

Definition at line 363 of file SimulateDialog.cc.

                                         {

    OperationSimulator& simulator = OperationSimulator::instance();
    vector<SimValue*> outputs;
    vector<DataObject> inputs;
    for (size_t i = 0; i < inputs_.size(); i++) {
        inputs.push_back(*inputs_[i]);
    }

    string result = "";

    createState();
    OperationContext& context = OperationContainer::operationContext();
    if (simulator.simulateTrigger(
            *operation_, inputs, outputs, context, result)) {

        //triggerBM_->SetBitmap(createBitmap(1));
        setOutputValues(outputs);
        updateLists();
    } else {
        //triggerBM_->SetBitmap(createBitmap(0));
        if (result != "") {
            ErrorDialog dialog(this, WxConversion::toWxString(result));
            dialog.ShowModal();
        }
    }
    SequenceTools::deleteAllItems(outputs);
    OSEdInformer* informer = wxGetApp().mainFrame()->informer();
    informer->handleEvent(OSEdInformer::EVENT_REGISTER);
    informer->handleEvent(OSEdInformer::EVENT_MEMORY);
}

References createState(), SequenceTools::deleteAllItems(), OSEdInformer::EVENT_MEMORY, OSEdInformer::EVENT_REGISTER, OSEdInformer::handleEvent(), inputs_, OperationSimulator::instance(), operation_, OperationContainer::operationContext(), setOutputValues(), OperationSimulator::simulateTrigger(), WxConversion::toWxString(), and updateLists().

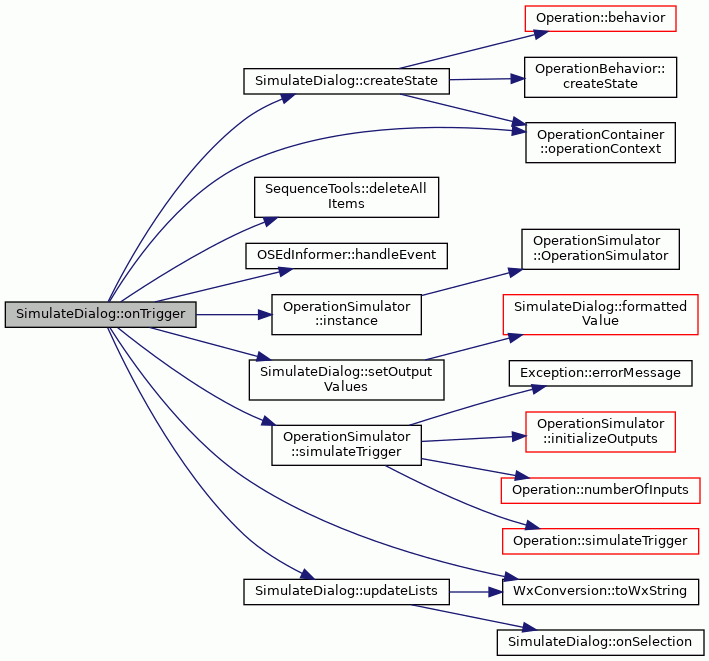

Here is the call graph for this function:

onUpdateValue()

void SimulateDialog::onUpdateValue ( wxCommandEvent &  event )

private

Handles the event when input value is updated.

Definition at line 311 of file SimulateDialog.cc.

                                             {
    TransferDataFromWindow();
    string inputString = WidgetTools::lcStringSelection(inputList_, 0);
    if (inputString != "") {
        int input = Conversion::toInt(inputString);
        SimValue* temp = new SimValue(32);
        if (updateValue_->mode() == NumberControl::MODE_DOUBLE) {
            double value = updateValue_->doubleValue();
            *temp = value;
        } else {
            int value = updateValue_->intValue();
            *temp = value;
        }
        inputs_[input - 1]->setString(formattedValue(temp));
        delete temp;
        updateLists();
    }
}

References NumberControl::doubleValue(), formattedValue(), inputList_, inputs_, NumberControl::intValue(), WidgetTools::lcStringSelection(), NumberControl::mode(), NumberControl::MODE_DOUBLE, Conversion::toInt(), updateLists(), and updateValue_.

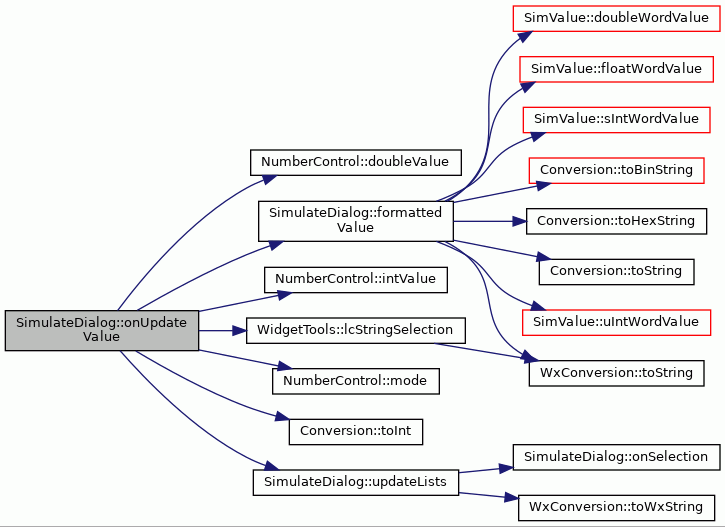

Here is the call graph for this function:

operator=()

SimulateDialog& SimulateDialog::operator= ( const SimulateDialog &  )

private

Assignment not allowed.

setInputValues()

void SimulateDialog::setInputValues ( std::vector< SimValue * >  inputs )

private

Sets the input values after the format has changed.

Parameters

inputs

Input values of operation.

Definition at line 499 of file SimulateDialog.cc.

                                                          {

    string inputFormat = WxConversion::toString(format_->GetStringSelection());

    for (size_t i = 0; i < inputs_.size(); i++) {
        SimValue* current = inputs[i];
        inputs_[i]->setString(formattedValue(current));
    }
}

References format_, formattedValue(), inputs_, and WxConversion::toString().

Referenced by onFormatChanged().

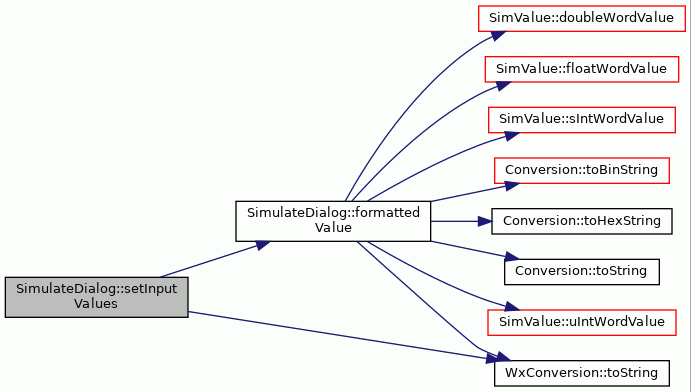

Here is the call graph for this function:

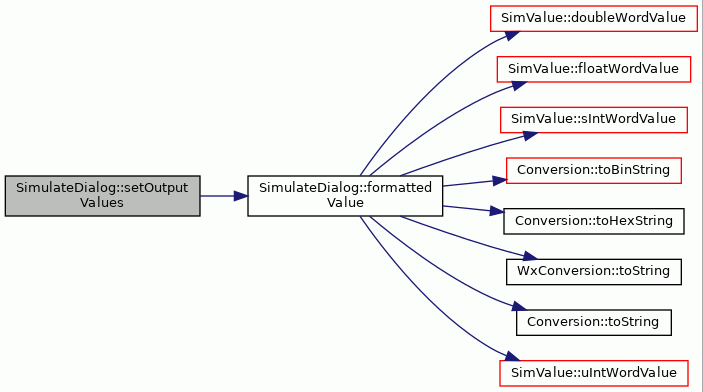

setOutputValues()

void SimulateDialog::setOutputValues ( std::vector< SimValue * >  outputs )

private

Sets the output values of the operation after executing a command.

Parameters

outputs

Output values of operation.

Definition at line 515 of file SimulateDialog.cc.

                                                            {

    int k = 0;
    size_t upperBound = inputs_.size() + outputs_.size();
    for (size_t i = inputs_.size(); i < upperBound; i++) {
        SimValue* current = outputs[i];
        outputs_[k]->setString(formattedValue(current));
        k++;
    }
}

References formattedValue(), inputs_, and outputs_.

Referenced by onFormatChanged(), and onTrigger().

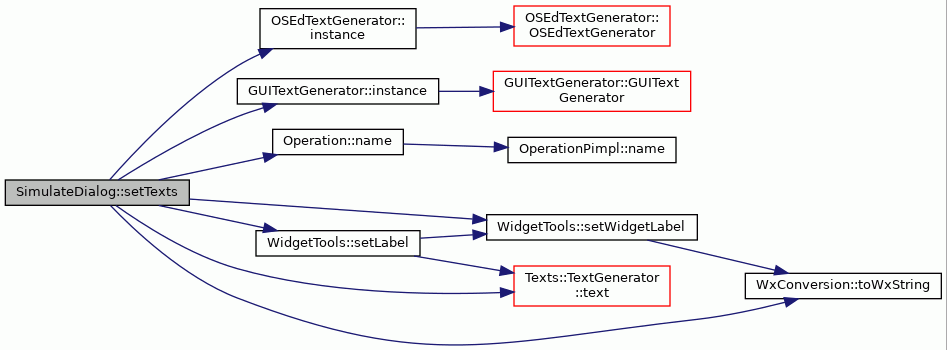

Here is the call graph for this function:

setTexts()

void SimulateDialog::setTexts ( )

private

Set texts to widgets.

Definition at line 198 of file SimulateDialog.cc.

                         {

    GUITextGenerator& guiText = *GUITextGenerator::instance();
    OSEdTextGenerator& osedText = OSEdTextGenerator::instance();

    // title
    format fmt = osedText.text(OSEdTextGenerator::TXT_SIMULATE_DIALOG_TITLE);
    fmt % operation_->name();
    SetTitle(WxConversion::toWxString(fmt.str()));

    // static texts
    //WidgetTools::setLabel(&osedText, FindWindow(ID_TEXT_READY),
    //                      OSEdTextGenerator::TXT_LABEL_READY);

    //WidgetTools::setLabel(&osedText, FindWindow(ID_TEXT_UPDATE),
    //                      OSEdTextGenerator::TXT_LABEL_UPDATE);

    WidgetTools::setLabel(&osedText, FindWindow(ID_TEXT_CLOCK),
                          OSEdTextGenerator::TXT_LABEL_CLOCK);

    WidgetTools::setLabel(&osedText, FindWindow(ID_FORMAT_TEXT),
                          OSEdTextGenerator::TXT_LABEL_FORMAT);

    // buttons
    WidgetTools::setLabel(&guiText, FindWindow(wxID_OK),
                          GUITextGenerator::TXT_BUTTON_OK);

    WidgetTools::setLabel(&osedText, FindWindow(ID_BUTTON_RESET),
                          OSEdTextGenerator::TXT_BUTTON_RESET);

    WidgetTools::setLabel(&osedText, FindWindow(ID_BUTTON_TRIGGER),
                          OSEdTextGenerator::TXT_BUTTON_TRIGGER);

    WidgetTools::setLabel(&osedText, FindWindow(ID_BUTTON_ADVANCE_LOCK),
                          OSEdTextGenerator::TXT_BUTTON_ADVANCE_LOCK);

    WidgetTools::setLabel(&osedText, FindWindow(ID_BUTTON_SHOW_HIDE_REGISTERS),
                          OSEdTextGenerator::TXT_BUTTON_SHOW_REGISTERS);

    WidgetTools::setLabel(&osedText, FindWindow(ID_BUTTON_UPDATE),
                          OSEdTextGenerator::TXT_BUTTON_UPDATE);

    // column titles
    fmt = osedText.text(OSEdTextGenerator::TXT_COLUMN_OPERAND);
    inputList_->InsertColumn(
        0, WxConversion::toWxString(fmt.str()), wxLIST_FORMAT_LEFT,
        OSEdConstants::DEFAULT_COLUMN_WIDTH/2);

    outputList_->InsertColumn(
        0, WxConversion::toWxString(fmt.str()), wxLIST_FORMAT_LEFT,
        OSEdConstants::DEFAULT_COLUMN_WIDTH/2);

    fmt = osedText.text(OSEdTextGenerator::TXT_COLUMN_VALUE);
    inputList_->InsertColumn(
        1, WxConversion::toWxString(fmt.str()), wxLIST_FORMAT_LEFT,
        OSEdConstants::DEFAULT_COLUMN_WIDTH);

    outputList_->InsertColumn(
        1, WxConversion::toWxString(fmt.str()), wxLIST_FORMAT_LEFT,
        OSEdConstants::DEFAULT_COLUMN_WIDTH);

    // box sizers
    fmt = osedText.text(OSEdTextGenerator::TXT_BOX_INPUT_VALUES);
    WidgetTools::setWidgetLabel(inputSizer_, fmt.str());

    fmt = osedText.text(OSEdTextGenerator::TXT_BOX_OUTPUT_VALUES);
    WidgetTools::setWidgetLabel(outputSizer_, fmt.str());
}

References OSEdConstants::DEFAULT_COLUMN_WIDTH, ID_BUTTON_ADVANCE_LOCK, ID_BUTTON_RESET, ID_BUTTON_SHOW_HIDE_REGISTERS, ID_BUTTON_TRIGGER, ID_BUTTON_UPDATE, ID_FORMAT_TEXT, ID_TEXT_CLOCK, inputList_, inputSizer_, OSEdTextGenerator::instance(), GUITextGenerator::instance(), Operation::name(), operation_, outputList_, outputSizer_, WidgetTools::setLabel(), WidgetTools::setWidgetLabel(), Texts::TextGenerator::text(), WxConversion::toWxString(), OSEdTextGenerator::TXT_BOX_INPUT_VALUES, OSEdTextGenerator::TXT_BOX_OUTPUT_VALUES, OSEdTextGenerator::TXT_BUTTON_ADVANCE_LOCK, GUITextGenerator::TXT_BUTTON_OK, OSEdTextGenerator::TXT_BUTTON_RESET, OSEdTextGenerator::TXT_BUTTON_SHOW_REGISTERS, OSEdTextGenerator::TXT_BUTTON_TRIGGER, OSEdTextGenerator::TXT_BUTTON_UPDATE, OSEdTextGenerator::TXT_COLUMN_OPERAND, OSEdTextGenerator::TXT_COLUMN_VALUE, OSEdTextGenerator::TXT_LABEL_CLOCK, OSEdTextGenerator::TXT_LABEL_FORMAT, and OSEdTextGenerator::TXT_SIMULATE_DIALOG_TITLE.

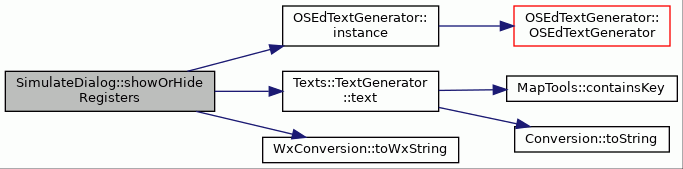

Here is the call graph for this function:

showOrHideRegisters()

void SimulateDialog::showOrHideRegisters ( wxCommandEvent &  event )

private

Handles the event when registers are shown or hidden.

Definition at line 446 of file SimulateDialog.cc.

                                                   {
    wxButton* button =
        dynamic_cast<wxButton*>(FindWindow(ID_BUTTON_SHOW_HIDE_REGISTERS));
    OSEdTextGenerator& texts = OSEdTextGenerator::instance();
    format fmt = texts.text(OSEdTextGenerator::TXT_BUTTON_SHOW_REGISTERS);
    if (button->GetLabel() == WxConversion::toWxString(fmt.str())) {
        int x, y;
        GetPosition(&x, &y);
        int width, height;
        GetSize(&width, &height);
        y += height + 25;
        infoDialog_->Move(x, y);
        infoDialog_->Show(true);
        fmt = texts.text(OSEdTextGenerator::TXT_BUTTON_HIDE_REGISTERS);
        button->SetLabel(WxConversion::toWxString(fmt.str()));
    } else {
        infoDialog_->Show(false);
        button->SetLabel(WxConversion::toWxString(fmt.str()));
    }
}

References ID_BUTTON_SHOW_HIDE_REGISTERS, infoDialog_, OSEdTextGenerator::instance(), Texts::TextGenerator::text(), WxConversion::toWxString(), OSEdTextGenerator::TXT_BUTTON_HIDE_REGISTERS, and OSEdTextGenerator::TXT_BUTTON_SHOW_REGISTERS.

Here is the call graph for this function:

TransferDataToWindow()

bool SimulateDialog::TransferDataToWindow ( )

privatevirtual

Transfers data to window.

Definition at line 189 of file SimulateDialog.cc.

                                     {
    updateLists();
    return wxWindow::TransferDataToWindow();
}

References updateLists().

Here is the call graph for this function:

updateLists()

void SimulateDialog::updateLists ( )

private

Updates input and output value lists.

Definition at line 271 of file SimulateDialog.cc.

                            {

    inputList_->DeleteAllItems();
    outputList_->DeleteAllItems();
    for (unsigned int i = 0; i < inputs_.size(); i++) {
        wxString id = WxConversion::toWxString(i + 1);
        inputList_->InsertItem(i, id);
        inputList_->SetItem(
            i, 1, WxConversion::toWxString(inputs_[i]->stringValue()));
    }

    int k = inputs_.size() + 1;
    for (unsigned int i = 0; i < outputs_.size(); i++) {
        wxString id = WxConversion::toWxString(k);
        outputList_->InsertItem(i, id);
        outputList_->SetItem(
            i, 1, WxConversion::toWxString(outputs_[i]->stringValue()));
        k++;
    }

    wxListEvent dummy;
    onSelection(dummy);
}

References dummy, inputList_, inputs_, onSelection(), outputList_, outputs_, and WxConversion::toWxString().

Referenced by onFormatChanged(), onReset(), onTrigger(), onUpdateValue(), and TransferDataToWindow().

Here is the call graph for this function:

Member Data Documentation

behaviorProxy_

OperationBehaviorProxy* SimulateDialog::behaviorProxy_

private

The behavior proxy that loads the behavior. Used to "freeze" the behavior loading for the duration of the simulation.

Definition at line 161 of file SimulateDialog.hh.

Referenced by ~SimulateDialog().

clock_

unsigned int SimulateDialog::clock_

private

Variable where the value of clock is kept.

Definition at line 156 of file SimulateDialog.hh.

Referenced by onAdvanceClock(), and onReset().

DIALOG_NAME

const wxString SimulateDialog::DIALOG_NAME = _T("SimulateDialog")

static

Name of the dialog so it can be found with wxWindow::FindWindowByName.

Definition at line 66 of file SimulateDialog.hh.

Referenced by OSEdBuildAllCmd::Do(), and OSEdBuildCmd::Do().

format_

wxChoice* SimulateDialog::format_

private

Choice list of possible output formats.

Definition at line 140 of file SimulateDialog.hh.

Referenced by formattedValue(), and setInputValues().

FORMAT_BINARY

const string SimulateDialog::FORMAT_BINARY = "binary"

staticprivate

Binary format.

Definition at line 102 of file SimulateDialog.hh.

Referenced by formattedValue().

FORMAT_DOUBLE

const string SimulateDialog::FORMAT_DOUBLE = "double"

staticprivate

Double format.

Definition at line 98 of file SimulateDialog.hh.

Referenced by formattedValue().

FORMAT_FLOAT

const string SimulateDialog::FORMAT_FLOAT = "float"

staticprivate

Float format.

Definition at line 100 of file SimulateDialog.hh.

Referenced by formattedValue().

FORMAT_HEXA_DECIMAL

const string SimulateDialog::FORMAT_HEXA_DECIMAL = "hexadecimal"

staticprivate

Hexadecimal format.

Definition at line 104 of file SimulateDialog.hh.

Referenced by formattedValue().

FORMAT_SIGNED_INT

const string SimulateDialog::FORMAT_SIGNED_INT = "signed int"

staticprivate

Signed int format.

Definition at line 94 of file SimulateDialog.hh.

Referenced by formattedValue().

FORMAT_UNSIGNED_INT

const string SimulateDialog::FORMAT_UNSIGNED_INT = "unsigned int"

staticprivate

Unsigned int format.

Definition at line 96 of file SimulateDialog.hh.

Referenced by formattedValue().

infoDialog_

SimulationInfoDialog* SimulateDialog::infoDialog_

private

Dialog for showing additional information.

Definition at line 158 of file SimulateDialog.hh.

Referenced by onClose(), onOK(), and showOrHideRegisters().

inputList_

wxListCtrl* SimulateDialog::inputList_

private

Input list.

Definition at line 134 of file SimulateDialog.hh.

Referenced by onSelection(), onUpdateValue(), setTexts(), and updateLists().

inputs_

std::vector<DataObject*> SimulateDialog::inputs_

private

List of input values.

Definition at line 152 of file SimulateDialog.hh.

Referenced by onFormatChanged(), onReset(), onTrigger(), onUpdateValue(), setInputValues(), setOutputValues(), updateLists(), and ~SimulateDialog().

inputSizer_

wxStaticBoxSizer* SimulateDialog::inputSizer_

private

Input operand sizer.

Definition at line 130 of file SimulateDialog.hh.

Referenced by createContents(), and setTexts().

modName_

std::string SimulateDialog::modName_

private

Module in which operation belongs to.

Definition at line 150 of file SimulateDialog.hh.

operation_

Operation* SimulateDialog::operation_

private

Bitmap for Trigger result.

Bitmap for Late Result result. Operation to be simulated.

Definition at line 146 of file SimulateDialog.hh.

Referenced by createState(), onReset(), onTrigger(), setTexts(), and ~SimulateDialog().

outputList_

wxListCtrl* SimulateDialog::outputList_

private

Output list.

Definition at line 136 of file SimulateDialog.hh.

Referenced by setTexts(), and updateLists().

outputs_

std::vector<DataObject*> SimulateDialog::outputs_

private

List of output values.

Definition at line 154 of file SimulateDialog.hh.

Referenced by onFormatChanged(), onReset(), setOutputValues(), updateLists(), and ~SimulateDialog().

outputSizer_

wxStaticBoxSizer* SimulateDialog::outputSizer_

private

Output operand sizer.

Definition at line 132 of file SimulateDialog.hh.

Referenced by createContents(), and setTexts().

pathName_

std::string SimulateDialog::pathName_

private

Path in which operation module belongs to.

Definition at line 148 of file SimulateDialog.hh.

updateValue_

NumberControl* SimulateDialog::updateValue_

private

Text control for updating input values.

Definition at line 138 of file SimulateDialog.hh.

Referenced by onUpdateValue().

---

The documentation for this class was generated from the following files:

• SimulateDialog.hh
• SimulateDialog.cc
