SymbolAddressCommand Class Reference

#include <SymbolAddressCommand.hh>

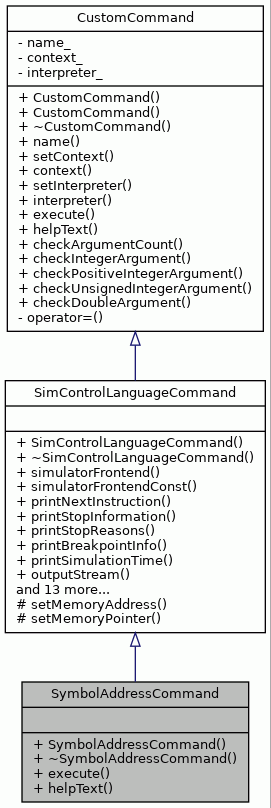

Inheritance diagram for SymbolAddressCommand:

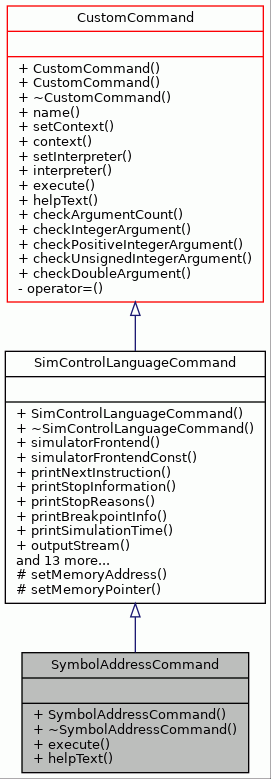

Collaboration diagram for SymbolAddressCommand:

Public Member Functions
	SymbolAddressCommand ()
virtual	~SymbolAddressCommand ()
virtual bool	execute (const std::vector< DataObject > &arguments)
virtual std::string	helpText () const
Public Member Functions inherited from SimControlLanguageCommand
	SimControlLanguageCommand (const std::string &name)
virtual	~SimControlLanguageCommand ()
SimulatorFrontend &	simulatorFrontend ()
const SimulatorFrontend &	simulatorFrontendConst ()
virtual void	printNextInstruction ()
virtual void	printStopInformation ()
virtual void	printStopReasons ()
virtual bool	printBreakpointInfo (unsigned int breakpointHandle)
virtual void	printSimulationTime ()
virtual std::ostream &	outputStream ()
bool	checkSimulationInitialized ()
bool	checkSimulationNotAlreadyRunning ()
bool	checkSimulationStopped ()
bool	checkSimulationEnded ()
bool	checkProgramLoaded ()
bool	checkMachineLoaded ()
InstructionAddress	parseInstructionAddressExpression (const std::string &expression)
TTAProgram::Address	parseDataAddressExpression (const std::string &expression)
bool	parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)
bool	askConditionFromUser (TclConditionScript &target)
bool	askExpressionFromUser (ExpressionScript &target)
bool	verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)
void	setErrorMessage (const TCEString &errorMsg)
Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)
	CustomCommand (const CustomCommand &cmd)
virtual	~CustomCommand ()
std::string	name () const
void	setContext (InterpreterContext *context)
InterpreterContext *	context () const
void	setInterpreter (ScriptInterpreter *si)
ScriptInterpreter *	interpreter () const
bool	checkArgumentCount (int argumentCount, int minimum, int maximum)
bool	checkIntegerArgument (const DataObject &argument)
bool	checkPositiveIntegerArgument (const DataObject &argument)
bool	checkUnsignedIntegerArgument (const DataObject &argument)
bool	checkDoubleArgument (const DataObject &argument)

Additional Inherited Members
Protected Member Functions inherited from SimControlLanguageCommand
bool	setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)
bool	setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)

Detailed Description

Implementation of the "symbol_address" command of the Simulator Control Language.

Definition at line 48 of file SymbolAddressCommand.hh.

Constructor & Destructor Documentation

SymbolAddressCommand()

SymbolAddressCommand::SymbolAddressCommand

(

)

Constructor.

Sets the name of the command to the base class.

Definition at line 53 of file SymbolAddressCommand.cc.

                                           :
    SimControlLanguageCommand("symbol_address") {
}

~SymbolAddressCommand()

SymbolAddressCommand::~SymbolAddressCommand ( )

virtual

Destructor.

Does nothing.

Definition at line 62 of file SymbolAddressCommand.cc.

                                            {
}

Member Function Documentation

execute()

bool SymbolAddressCommand::execute ( const std::vector< DataObject > &  arguments )

virtual

Executes the "symbol_address" command.

Prints the address of a data symbol.

Parameters

arguments

The symbol to print.

Returns

True in case simulation is initialized and arguments are ok.

Exceptions

NumberFormatException

Is never thrown by this command.

Implements CustomCommand.

Definition at line 75 of file SymbolAddressCommand.cc.

                                                                    {
    const int argumentCount = arguments.size() - 1;
    if (!checkArgumentCount(argumentCount, 1, 1)) {
        return false;
    }

    if (!checkProgramLoaded()) {
        return false;
    }

    const TTAProgram::GlobalScope& globalScope =
        simulatorFrontend().program().globalScopeConst();
    try {
        TTAProgram::Address address =
            globalScope.dataLabel(arguments.at(1).stringValue()).address();
        interpreter()->setResult(static_cast<int>(address.location()));
        interpreter()->setError(false);
        return true;
    } catch (const KeyNotFound&) {
        // couldn't evaluate the label
        interpreter()->setResult(
            "Symbol not found. Try adding '_' prefix to the symbol, "
            "e.g. '_foo'.");
        interpreter()->setError(true);
        return false;
    }
}

References TTAProgram::Label::address(), CustomCommand::checkArgumentCount(), SimControlLanguageCommand::checkProgramLoaded(), TTAProgram::Scope::dataLabel(), TTAProgram::Program::globalScopeConst(), CustomCommand::interpreter(), TTAProgram::Address::location(), SimulatorFrontend::program(), ScriptInterpreter::setError(), ScriptInterpreter::setResult(), and SimControlLanguageCommand::simulatorFrontend().

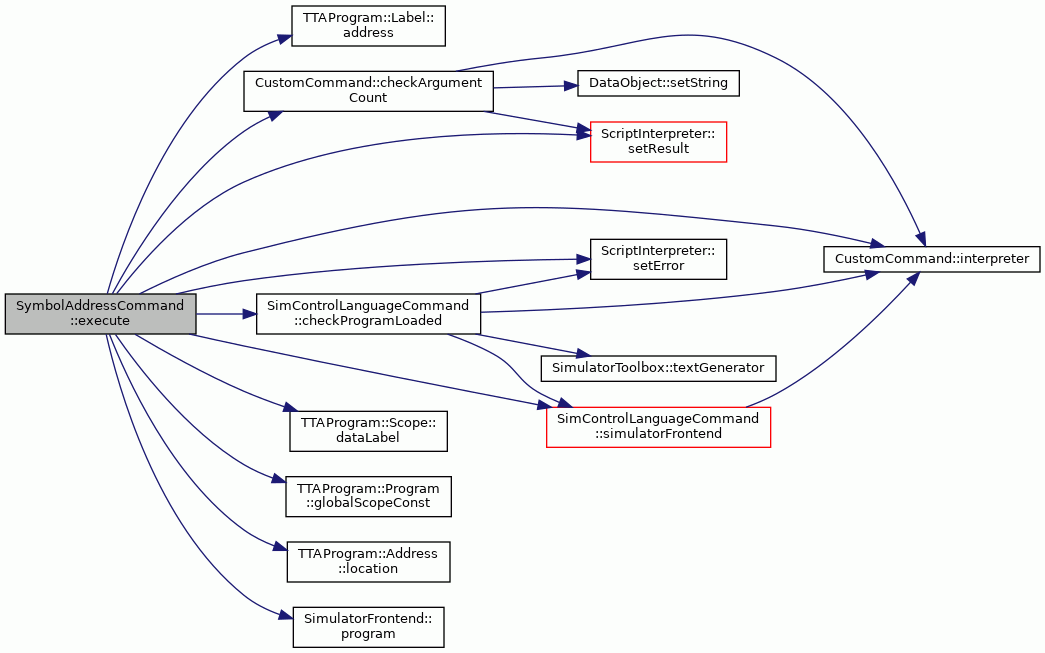

Here is the call graph for this function:

helpText()

std::string SymbolAddressCommand::helpText ( ) const

virtual

Returns the help text for this command.

Help text is searched from SimulatorTextGenerator.

Returns

The help text.

Implements CustomCommand.

Definition at line 111 of file SymbolAddressCommand.cc.

                                     {
    return "Returns the address of the given data symbol (global variable).";
}

---

The documentation for this class was generated from the following files:

• SymbolAddressCommand.hh
• SymbolAddressCommand.cc
