#include <TracedSimulatorFrontend.hh>

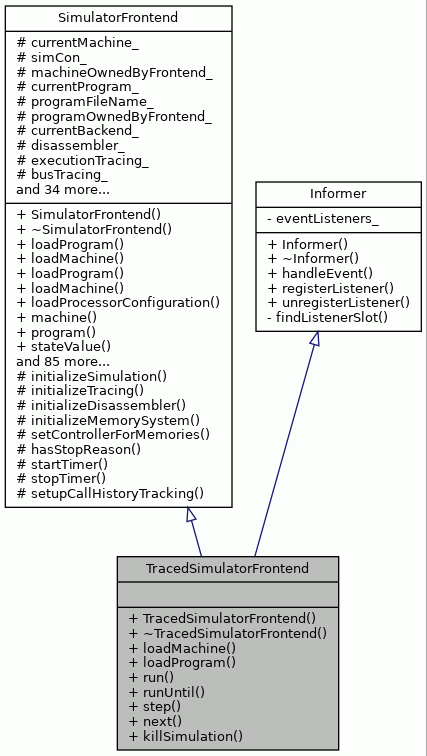

Inheritance diagram for TracedSimulatorFrontend:

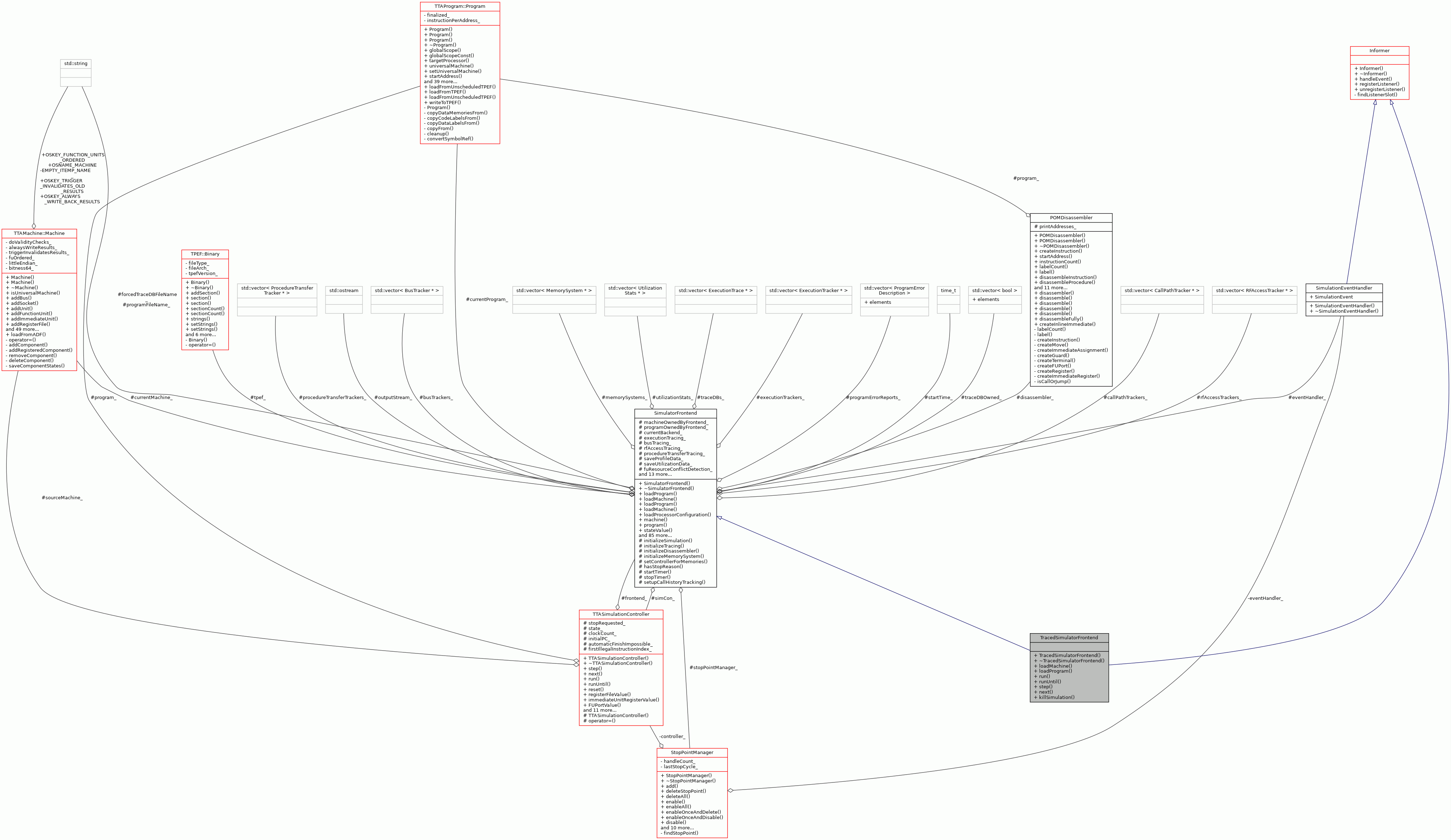

Collaboration diagram for TracedSimulatorFrontend:

Public Types
enum	event { SIMULATOR_MACHINE_LOADED = 0, SIMULATOR_PROGRAM_LOADED, SIMULATOR_START, SIMULATOR_STOP, SIMULATOR_RUN, SIMULATOR_LOADING_PROGRAM, SIMULATOR_LOADING_MACHINE, SIMULATOR_RESET }
	IDs for the simulator events. More...

Public Types inherited from SimulatorFrontend
enum	RuntimeErrorSeverity { RES_MINOR, RES_FATAL }
	The severities of runtime errors. More...

enum	SimulationType { SIM_NORMAL, SIM_COMPILED, SIM_REMOTE, SIM_CUSTOM, SIM_OTA }
	Which type of simulation this SimulatorFrontend controls or connects to. More...

Public Member Functions
	TracedSimulatorFrontend ()

virtual	~TracedSimulatorFrontend ()

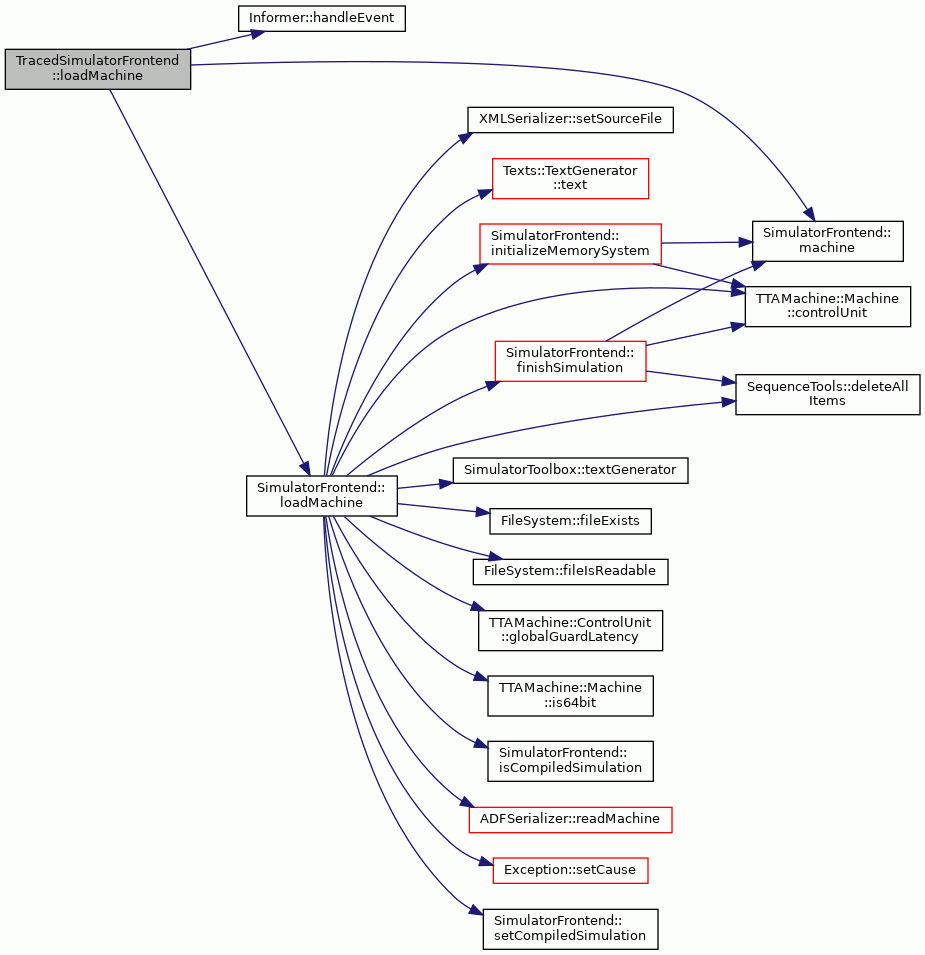

virtual void	loadMachine (const std::string &fileName)

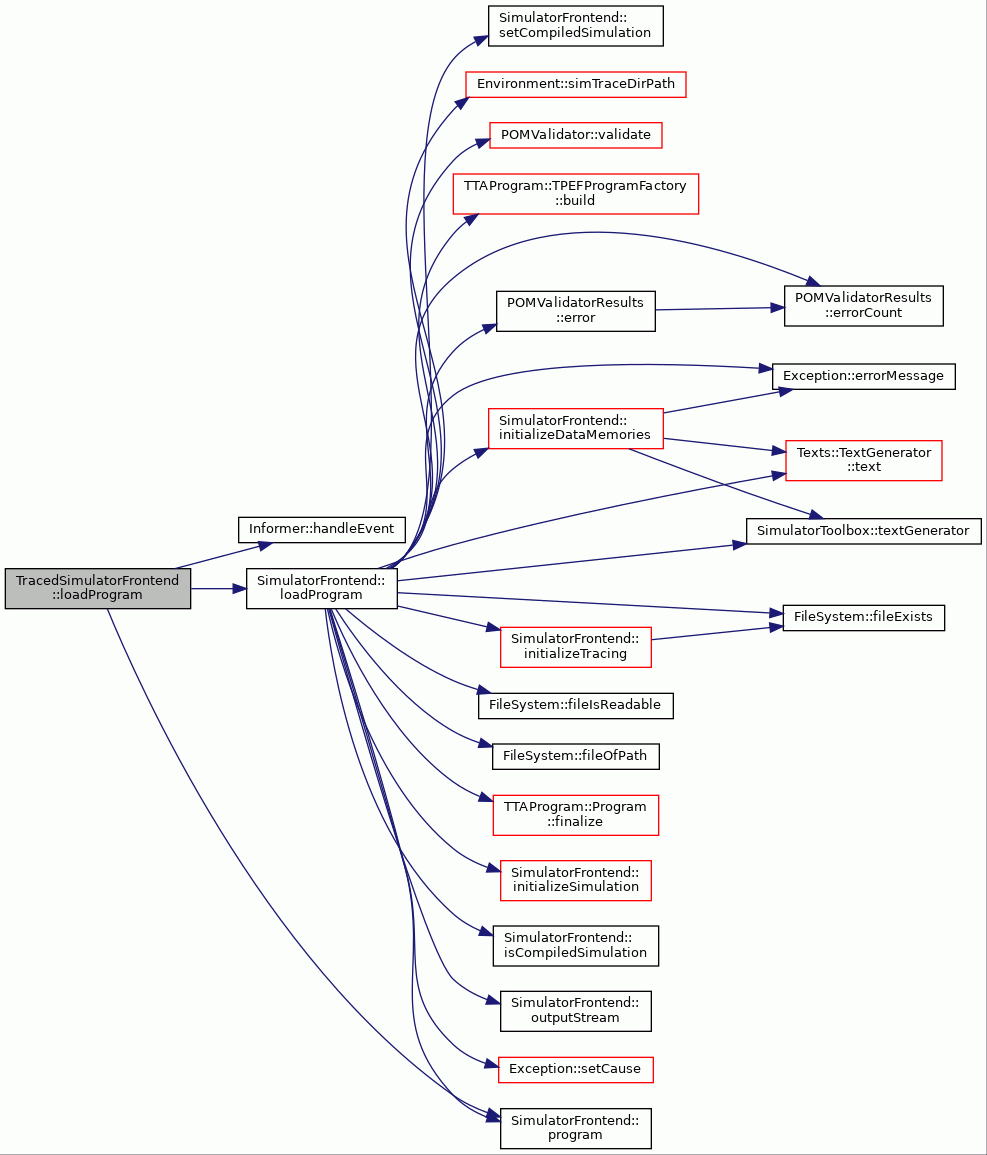

virtual void	loadProgram (const std::string &fileName)

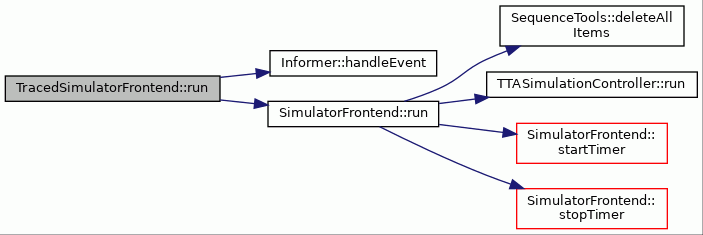

virtual void	run ()

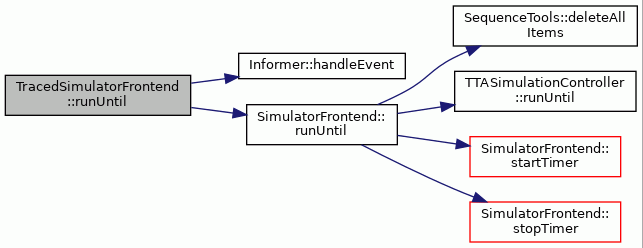

virtual void	runUntil (UIntWord address)

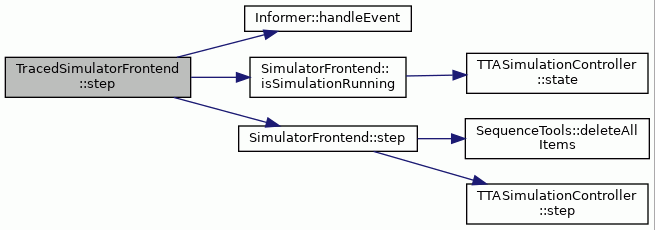

virtual void	step (double count=1)

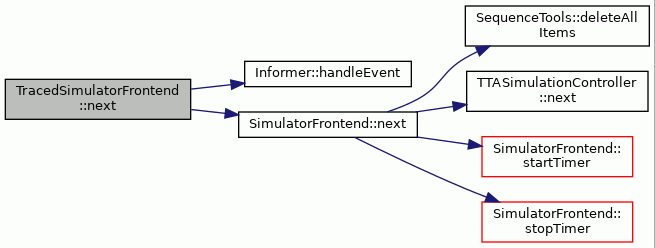

virtual void	next (int count=1)

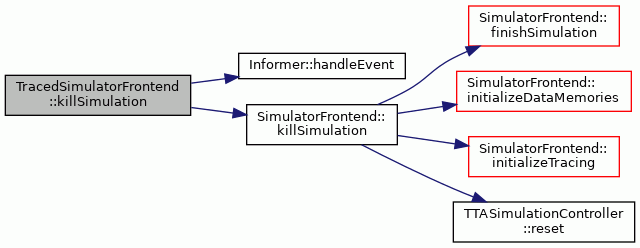

virtual void	killSimulation ()

Public Member Functions inherited from SimulatorFrontend
	SimulatorFrontend (SimulationType backend=SIM_NORMAL)

virtual	~SimulatorFrontend ()

void	loadProgram (const TTAProgram::Program &program)

void	loadMachine (const TTAMachine::Machine &machine)

void	loadProcessorConfiguration (const std::string &fileName)

const TTAMachine::Machine &	machine () const

const TTAProgram::Program &	program () const

const SimValue &	stateValue (std::string searchString)

StateData &	state (std::string searchString)

MachineState &	machineState (int core=-1)

void	prepareToStop (StopReason reason)

unsigned int	stopReasonCount () const

StopReason	stopReason (unsigned int index) const

bool	stoppedByUser () const

StopPointManager &	stopPointManager ()

MemorySystem &	memorySystem (int coreId=-1)

bool	isSimulationInitialized () const

bool	isSimulationRunning () const

bool	isSimulationStopped () const

bool	isProgramLoaded () const

bool	isMachineLoaded () const

bool	hasSimulationEnded () const

bool	isCompiledSimulation () const

bool	isTCEDebugger () const

bool	isCustomDebugger () const

void	setCompiledSimulationLeaveDirty (bool dirty)

bool	executionTracing () const

bool	busTracing () const

bool	rfAccessTracing () const

bool	procedureTransferTracing () const

bool	profileDataSaving () const

bool	utilizationDataSaving () const

bool	staticCompilation () const

const RFAccessTracker &	rfAccessTracker () const

void	setCompiledSimulation (bool value)

void	setExecutionTracing (bool value)

void	setBusTracing (bool value)

void	setRFAccessTracing (bool value)

void	setProcedureTransferTracing (bool value)

void	setProfileDataSaving (bool value)

void	setUtilizationDataSaving (bool value)

void	forceTraceDBFileName (const std::string &fileName)

void	setTimeout (unsigned int value)

void	setStaticCompilation (bool value)

std::ostream &	outputStream ()

void	setOutputStream (std::ostream &stream)

std::string	disassembleInstruction (UIntWord instructionAddress) const

std::string	programLocationDescription () const

InstructionAddress	programCounter () const

virtual InstructionAddress	lastExecutedInstruction (int coreId=-1) const

ClockCycleCount	cycleCount () const

const TTAProgram::Procedure &	currentProcedure () const

virtual std::string	registerFileValue (const std::string &rfName, int registerIndex=-1)

virtual SimValue	immediateUnitRegisterValue (const std::string &iuName, int index=-1)

virtual SimValue	FUPortValue (const std::string &fuName, const std::string &portName)

StateData &	findRegister (const std::string &rfName, int registerIndex)

StateData &	findBooleanRegister ()

StateData &	findPort (const std::string &fuName, const std::string &portName)

const UtilizationStats &	utilizationStatistics (int core=-1)

const ExecutableInstruction &	lastExecInstruction () const

const ExecutableInstruction &	executableInstructionAt (InstructionAddress address) const

bool	automaticFinishImpossible () const

void	setFUResourceConflictDetection (bool value)

bool	fuResourceConflictDetection () const

void	setNextInstructionPrinting (bool value)

bool	nextInstructionPrinting () const

void	setSimulationTimeStatistics (bool value)

bool	simulationTimeStatistics () const

ExecutionTrace *	lastTraceDB (int core=-1)

void	setMemoryAccessTracking (bool value)

bool	memoryAccessTracking () const

void	finishSimulation ()

void	setZeroFillMemoriesOnReset (bool val)

void	setDetailedSimulation (bool val)

CycleCount	lastRunCycleCount () const

SimulationEventHandler &	eventHandler ()

double	lastRunTime () const

void	reportSimulatedProgramError (RuntimeErrorSeverity severity, const std::string &description)

std::string	programErrorReport (RuntimeErrorSeverity severity, std::size_t index)

std::size_t	programErrorReportCount (RuntimeErrorSeverity severity)

void	clearProgramErrorReports ()

int	selectedCore () const

void	selectCore (int core)

bool	compareState (SimulatorFrontend &other, std::ostream *differences=NULL)

std::size_t	callHistoryLength () const

void	setCallHistoryLength (std::size_t length)

const CallPathTracker &	callPathTracker (int core=-1) const

void	initializeDataMemories (const TTAMachine::AddressSpace *onlyOne=NULL)

Public Member Functions inherited from Informer
	Informer ()

virtual	~Informer ()

void	handleEvent (int event)

virtual bool	registerListener (int event, Listener *listener)

virtual bool	unregisterListener (int event, Listener *listener)

Additional Inherited Members
Protected Types inherited from SimulatorFrontend
typedef std::pair< RuntimeErrorSeverity, std::string >	ProgramErrorDescription
	A type for storing a program error description. More...

typedef std::vector< ProgramErrorDescription >	ProgramErrorDescriptionList
	Container for simulated program error descriptions. More...

Protected Member Functions inherited from SimulatorFrontend
virtual void	initializeSimulation ()

void	initializeTracing ()

void	initializeDisassembler () const

void	initializeMemorySystem ()

void	setControllerForMemories (RemoteController *con)

bool	hasStopReason (StopReason reason) const

void	startTimer ()

void	stopTimer ()

void	setupCallHistoryTracking ()

Protected Attributes inherited from SimulatorFrontend
const TTAMachine::Machine *	currentMachine_
	Machine to run simulation with. More...

TTASimulationController *	simCon_
	If simulation is initialized, this contains a pointer to the simulation controller. More...

bool	machineOwnedByFrontend_
	Is the machine owned by SimulatorFrontend or by the client? More...

const TTAProgram::Program *	currentProgram_
	Program to be simulated. More...

std::string	programFileName_
	The source file of the program to be simulated. Used to generate the file name of the trace data base. More...

bool	programOwnedByFrontend_
	Is the program owned by SimulatorFrontend or by the client? More...

SimulationType	currentBackend_
	Type of "backend" this Frontend has. More...

POMDisassembler *	disassembler_
	The disassembler used to print out instructions. This is initialized on demand. More...

bool	executionTracing_
	Is execution tracing, i.e., storing the executed instruction addresses to the trace database, enabled. More...

bool	busTracing_
	Is bus tracing, i.e., storing the values of buses in each clock cycle enabled. More...

bool	rfAccessTracing_
	Is register file (concurrent) access tracking enabled. More...

bool	procedureTransferTracing_
	Is procedure transfer access tracking enabled. More...

bool	saveProfileData_
	Is saving of profile data to TraceDB enabled. More...

bool	saveUtilizationData_
	Is saving of utilization data to TraceDB enabled. More...

std::vector< ExecutionTrace * >	traceDBs_
	The database to use for execution trace data. More...

std::vector< bool >	traceDBOwned_
	Whether traceDB at index is owned by simulator (or taken away by client using lastTraceDB()) More...

std::vector< ExecutionTracker * >	executionTrackers_
	The simple execution tracker for storing trace of executed instructions. More...

std::vector< BusTracker * >	busTrackers_
	The tracker for saving bus trace. More...

std::vector< RFAccessTracker * >	rfAccessTrackers_
	The register file access tracker. More...

std::vector< ProcedureTransferTracker * >	procedureTransferTrackers_
	The procedure transfer tracker. More...

StopPointManager *	stopPointManager_
	The breakpoint manager to be used to bookkeep breakpoints. More...

std::vector< UtilizationStats * >	utilizationStats_
	Processor utilization statistics. More...

TPEF::Binary *	tpef_
	The source TPEF file. More...

bool	fuResourceConflictDetection_
	If this is enabled before initialization, FU resource conflicts are detected (slows down simulation). More...

bool	printNextInstruction_
	If true, the next simulated instructions is printed to stdout when simulation stops. More...

bool	printSimulationTimeStatistics_
	True if the simulation time statistics should be printed out. More...

bool	staticCompilation_
	True if the compiled simulation should use static compilation. More...

bool	traceFileNameSetByUser_
	Flag that indicates is the trace file name set by user. More...

std::ostream *	outputStream_
	Default output stream. More...

bool	memoryAccessTracking_
	If this is enabled before initialization, memory access tracking is enabled. (slows down simulation) More...

SimulationEventHandler *	eventHandler_
	Per simulation instance of SimulationEventHandler. More...

ClockCycleCount	lastRunCycleCount_
	The cycle count of the last non-interrupted simulation phase. More...

double	lastRunTime_
	The wall clock time of the last non-interrupted simulation phase in seconds. More...

std::time_t	startTime_
	The time of the last simulation start. Used to compute simulation speed. More...

CycleCount	startCycleCount_
	The cycle count when the latest simulation was started. Used to compute simulation speed. More...

unsigned int	simulationTimeout_
	Simulation timeout in seconds. More...

ProgramErrorDescriptionList	programErrorReports_
	Runtime error reports. More...

bool	leaveCompiledDirty_
	True in case the compilation simulation should not cleanup at destruction the engine source files. More...

std::size_t	callHistoryLength_
	The length of call history to store in memory for the commands that need it. More...

std::vector< CallPathTracker * >	callPathTrackers_
	The call path trackers for each core, in case tracking is enabled. More...

std::string	forcedTraceDBFileName_
	If set, forces the SQLite filename of trace DB to this name. More...

std::vector< MemorySystem * >	memorySystems_
	The simulation models of the memories in the currently loaded machine for each core. More...

bool	zeroFillMemoriesOnReset_
	Set to true in case the memories should be set to zero at reset. More...

bool	detailedSimulation_
	Set to true in case should build a detailed model which simulates FU stages, possibly with an external system-level model. More...

Detailed Description

TracedSimulatorFrontend is a class which adds event passing to the SimulatorFrontend baseclass.

TracedSimulatorFrontend implements the Informer interface and passes events whenever the simulator state changes. This allows a client to track the simulator state by registering itself as a listener of the simulator events.

Definition at line 49 of file TracedSimulatorFrontend.hh.

Member Enumeration Documentation

◆ event

enum TracedSimulatorFrontend::event

IDs for the simulator events.

Enumerator
SIMULATOR_MACHINE_LOADED
SIMULATOR_PROGRAM_LOADED
SIMULATOR_START
SIMULATOR_STOP
SIMULATOR_RUN
SIMULATOR_LOADING_PROGRAM
SIMULATOR_LOADING_MACHINE
SIMULATOR_RESET

Definition at line 69 of file TracedSimulatorFrontend.hh.

                {
     SIMULATOR_MACHINE_LOADED = 0,
     SIMULATOR_PROGRAM_LOADED,
     SIMULATOR_START,
     SIMULATOR_STOP,
         SIMULATOR_RUN,
         SIMULATOR_LOADING_PROGRAM,
         SIMULATOR_LOADING_MACHINE,
         SIMULATOR_RESET
     };

Constructor & Destructor Documentation

◆ TracedSimulatorFrontend()

TracedSimulatorFrontend::TracedSimulatorFrontend ( )

The constructor.

Definition at line 40 of file TracedSimulatorFrontend.cc.

                                                  :
     SimulatorFrontend(SIM_NORMAL) {
 }

◆ ~TracedSimulatorFrontend()

TracedSimulatorFrontend::~TracedSimulatorFrontend ( )

virtual

The Destrcutor.

Definition at line 47 of file TracedSimulatorFrontend.cc.

47 {

48 }

Member Function Documentation

◆ killSimulation()

void TracedSimulatorFrontend::killSimulation ( )

virtual

Informs listeners when simulation is killed.

Reimplemented from SimulatorFrontend.

Definition at line 94 of file TracedSimulatorFrontend.cc.

                                         {
     SimulatorFrontend::killSimulation();
     handleEvent(SIMULATOR_STOP);
 }

References Informer::handleEvent(), SimulatorFrontend::killSimulation(), and SIMULATOR_STOP.

Referenced by ProximSimulationThread::killSimulation().

Here is the call graph for this function:

◆ loadMachine()

void TracedSimulatorFrontend::loadMachine ( const std::string & machine )

virtual

Informs listeners whenever a new machine is loaded to the simulator.

Parameters

machine Machine file name passed to the baseclass.

Reimplemented from SimulatorFrontend.

Definition at line 57 of file TracedSimulatorFrontend.cc.

                                                              {
     handleEvent(SIMULATOR_RESET);
     handleEvent(SIMULATOR_LOADING_MACHINE);
     SimulatorFrontend::loadMachine(machine);
     handleEvent(SIMULATOR_MACHINE_LOADED);
 }

References Informer::handleEvent(), SimulatorFrontend::loadMachine(), SimulatorFrontend::machine(), SIMULATOR_LOADING_MACHINE, SIMULATOR_MACHINE_LOADED, and SIMULATOR_RESET.

Here is the call graph for this function:

◆ loadProgram()

void TracedSimulatorFrontend::loadProgram ( const std::string & program )

virtual

Informs listeners when a new program is loaded to the simulator.

Parameters

program Program file name passed to the baseclass.

Reimplemented from SimulatorFrontend.

Definition at line 70 of file TracedSimulatorFrontend.cc.

                                                              {

     handleEvent(SIMULATOR_RESET);
     handleEvent(SIMULATOR_LOADING_PROGRAM);
     SimulatorFrontend::loadProgram(program);
     handleEvent(SIMULATOR_PROGRAM_LOADED);
 }

References Informer::handleEvent(), SimulatorFrontend::loadProgram(), SimulatorFrontend::program(), SIMULATOR_LOADING_PROGRAM, SIMULATOR_PROGRAM_LOADED, and SIMULATOR_RESET.

Here is the call graph for this function:

◆ next()

void TracedSimulatorFrontend::next ( int count = 1 )

virtual

Informs listeners when the simulation starts and stops.

Parameters

count Number of nexts passed to the baseclass.

Reimplemented from SimulatorFrontend.

Definition at line 118 of file TracedSimulatorFrontend.cc.

                                        {
     handleEvent(SIMULATOR_START);
     handleEvent(SIMULATOR_RUN);
     SimulatorFrontend::next(count);
     handleEvent(SIMULATOR_STOP);
 }

References Informer::handleEvent(), SimulatorFrontend::next(), SIMULATOR_RUN, SIMULATOR_START, and SIMULATOR_STOP.

Here is the call graph for this function:

◆ run()

void TracedSimulatorFrontend::run ( )

virtual

Informs listeners when the simulation starts and stops.

Reimplemented from SimulatorFrontend.

Definition at line 83 of file TracedSimulatorFrontend.cc.

                              {
     handleEvent(SIMULATOR_START);
     handleEvent(SIMULATOR_RUN);
     SimulatorFrontend::run();
     handleEvent(SIMULATOR_STOP);
 }

References Informer::handleEvent(), SimulatorFrontend::run(), SIMULATOR_RUN, SIMULATOR_START, and SIMULATOR_STOP.

Here is the call graph for this function:

◆ runUntil()

void TracedSimulatorFrontend::runUntil ( UIntWord address )

virtual

Informs listeners when the simulation starts and stops.

Parameters

address Address passed to the baseclass.

Reimplemented from SimulatorFrontend.

Definition at line 105 of file TracedSimulatorFrontend.cc.

                                                   {
     handleEvent(SIMULATOR_START);
     handleEvent(SIMULATOR_RUN);
     SimulatorFrontend::runUntil(address);
     handleEvent(SIMULATOR_STOP);
 }

References Informer::handleEvent(), SimulatorFrontend::runUntil(), SIMULATOR_RUN, SIMULATOR_START, and SIMULATOR_STOP.

Here is the call graph for this function:

◆ step()

void TracedSimulatorFrontend::step ( double count = 1 )

virtual

Informs listeners when the simulation starts and stops.

Parameters

count Number of steps passed to the baseclass.

Reimplemented from SimulatorFrontend.

Definition at line 131 of file TracedSimulatorFrontend.cc.

                                           {
     if (!isSimulationRunning()) {
     handleEvent(SIMULATOR_START);
     }

     SimulatorFrontend::step(count);

     if (!isSimulationRunning()) {
     handleEvent(SIMULATOR_STOP);
     }
 }

References Informer::handleEvent(), SimulatorFrontend::isSimulationRunning(), SIMULATOR_START, SIMULATOR_STOP, and SimulatorFrontend::step().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ event

Constructor & Destructor Documentation

◆ TracedSimulatorFrontend()

◆ ~TracedSimulatorFrontend()

Member Function Documentation

◆ killSimulation()

◆ loadMachine()

◆ loadProgram()

◆ next()

◆ run()

◆ runUntil()

◆ step()
