#include <BusResource.hh>

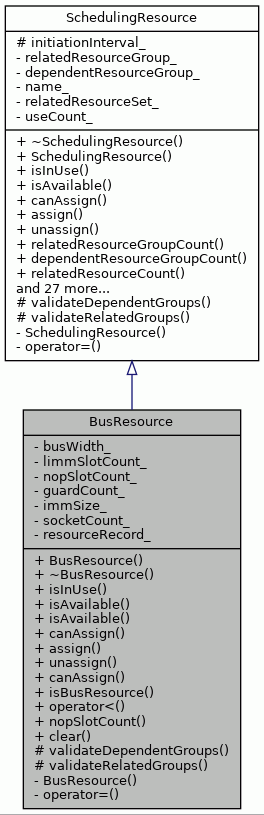

Inheritance diagram for BusResource:

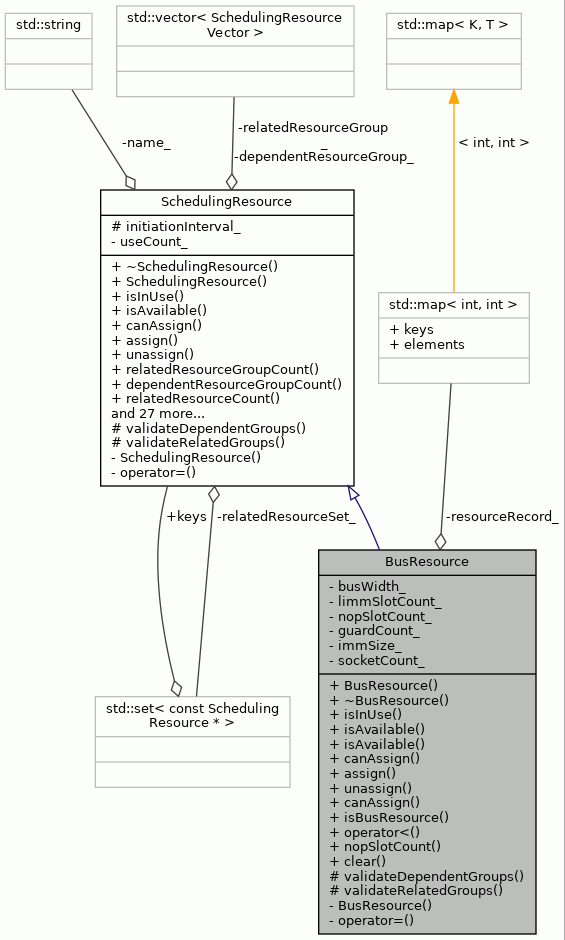

Collaboration diagram for BusResource:

Public Member Functions
	BusResource (const std::string &name, int width, int limmSlotCount, int nopSlotCount, int guardCount, int immSize, int socketCount, unsigned int initiationInterval=0)

virtual	~BusResource ()

virtual bool	isInUse (const int cycle) const override

virtual bool	isAvailable (const int cycle) const override

virtual bool	isAvailable (const int cycle, const SchedulingResource &inputPSocket, const SchedulingResource &outputPSocket) const

virtual bool	canAssign (const int cycle, const MoveNode &node) const override

virtual void	assign (const int cycle, MoveNode &node) override

virtual void	unassign (const int cycle, MoveNode &node) override

virtual bool	canAssign (const int cycle, const MoveNode &node, const SchedulingResource &inputPSocket, const SchedulingResource &outputPSocket) const

virtual bool	isBusResource () const override

virtual bool	operator< (const SchedulingResource &other) const override

int	nopSlotCount ()

void	clear () override

Public Member Functions inherited from SchedulingResource
virtual	~SchedulingResource ()

	SchedulingResource (const std::string &name, const unsigned int ii=0)

virtual int	relatedResourceGroupCount () const

virtual int	dependentResourceGroupCount () const

int	relatedResourceCount (const int group) const

int	dependentResourceCount (const int group) const

virtual void	addToRelatedGroup (const int group, SchedulingResource &resource)

virtual void	addToDependentGroup (const int group, SchedulingResource &resource)

virtual SchedulingResource &	relatedResource (const int group, const int index) const

virtual SchedulingResource &	dependentResource (const int group, const int index) const

virtual bool	hasRelatedResource (const SchedulingResource &sResource) const

virtual bool	hasDependentResource (const SchedulingResource &sResource) const

virtual const std::string &	name () const

virtual int	useCount () const

virtual void	increaseUseCount ()

virtual void	decreaseUseCount ()

virtual bool	isInputPSocketResource () const

virtual bool	isOutputPSocketResource () const

virtual bool	isShortImmPSocketResource () const

virtual bool	isInputFUResource () const

virtual bool	isOutputFUResource () const

virtual bool	isExecutionPipelineResource () const

virtual bool	isSegmentResource () const

virtual bool	isIUResource () const

virtual bool	isITemplateResource () const

int	instructionIndex (int cycle) const

void	setInitiationInterval (unsigned int ii)

int	initiationInterval () const

virtual void	setMaxCycle (unsigned int)

Protected Member Functions
virtual bool	validateDependentGroups () override

virtual bool	validateRelatedGroups () override

Private Types
typedef std::map< int, int >	ResourceRecordType

Private Member Functions
	BusResource (const BusResource &)

BusResource &	operator= (const BusResource &)

Private Attributes
int	busWidth_

int	limmSlotCount_

int	nopSlotCount_

int	guardCount_

int	immSize_

int	socketCount_

ResourceRecordType	resourceRecord_

Additional Inherited Members
Protected Attributes inherited from SchedulingResource
int	initiationInterval_

Detailed Description

An interface for scheduling resources of Resource Model The derived class BusResource

Definition at line 46 of file BusResource.hh.

Member Typedef Documentation

◆ ResourceRecordType

typedef std::map<int, int> BusResource::ResourceRecordType

private

Definition at line 97 of file BusResource.hh.

Constructor & Destructor Documentation

◆ BusResource() [1/2]

BusResource::BusResource	(	const std::string &	name,
		int	width,
		int	limmSlotCount,
		int	nopSlotCount,
		int	guardCount,
		int	immSize,
		int	socketCount,
		unsigned int	initiationInterval = `0`
	)

Constructor Creates new resource with defined name

Parameters

name	Name of resource
width	short immediate width of the bus
limmSlotCount	how many itemplates use this bus in limm field

Definition at line 54 of file BusResource.cc.

                                                                   :
    SchedulingResource(name, initiationInterval), busWidth_(width),
    limmSlotCount_(limmSlotCount), nopSlotCount_(nopSlotCount),
    guardCount_(guardCount),
    immSize_(immSize), socketCount_(socketCount) {
}

◆ ~BusResource()

BusResource::~BusResource ( )

virtual

Empty destructor

Definition at line 67 of file BusResource.cc.

67{}

◆ BusResource() [2/2]

BusResource::BusResource ( const BusResource & )

private

Member Function Documentation

◆ assign()

void BusResource::assign	(	const int	cycle,
		MoveNode &	node
	)

overridevirtual

Assign resource to given node for given cycle without testing Input or Output PSocket, assign ALL segments of bus.

Parameters

cycle	Cycle to assign
node	MoveNode assigned

Exceptions

In	case assignment can not be done

Implements SchedulingResource.

Definition at line 124 of file BusResource.cc.

{
   if (canAssign(cycle, node)) {
        resourceRecord_[instructionIndex(cycle)] = 1;
        increaseUseCount();
        return;
    }
}

References canAssign(), SchedulingResource::increaseUseCount(), SchedulingResource::instructionIndex(), and resourceRecord_.

Referenced by BusBroker::assign().

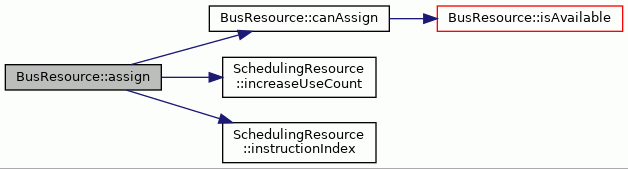

Here is the call graph for this function:

◆ canAssign() [1/2]

bool BusResource::canAssign	(	const int	cycle,
		const MoveNode &	node
	)		const

overridevirtual

Return true if resource can be assigned for given node in given cycle

Parameters

cycle	Cycle to test
node	MoveNode to test

Returns: true if node can be assigned to cycle

Implements SchedulingResource.

Definition at line 164 of file BusResource.cc.

                                                             {
    return isAvailable(cycle);
}

References isAvailable().

Referenced by BusBroker::allAvailableResources(), assign(), and BusBroker::isAvailable().

Here is the call graph for this function:

◆ canAssign() [2/2]

bool BusResource::canAssign	(	const int	cycle,
		const MoveNode &	node,
		const SchedulingResource &	inputPSocket,
		const SchedulingResource &	outputPSocket
	)		const

virtual

Return true if resource can be assigned for given node in given cycle

Parameters

cycle	Cycle to test
node	MoveNode to test
inputPSocket	PSocket connected to source of move
outputPSocket	PSocket connected to destination of move

Returns: true if node can be assigned to cycle

Definition at line 177 of file BusResource.cc.

                                                   {

    if (!isAvailable(cycle, inputPSocket, outputPSocket)) {
        return false;
    }

    int defBits = node.isSourceConstant()?
        busWidth_ : node.move().source().port().width();
    // TODO: Check if source is from an operation result that defines less bits.
    int useBits = node.move().destination().port().width();
    if (useBits > busWidth_ && node.destinationOperationCount()) {
        // Writing undefined bits *1 to upper bits of the destination port.
        // Check if none of the destinations use those bits.
        //     *1: DefaultICDecoderPlugin zero extends when writing to port from
        //         narrower bus, but this is not documented semantic?
        int maxOpdWidth = 0;
        for (size_t i = 0; i < node.destinationOperationCount(); i++) {
            const auto& op = node.destinationOperation(i).operation();
            int opdIdx = node.move().destination().operationIndex();
            int opdWidth = op.operand(opdIdx).width();
            maxOpdWidth = std::max(maxOpdWidth, opdWidth);
        }
        assert(maxOpdWidth > 0);
        useBits = std::min(useBits, maxOpdWidth);
    }
    // Define bit width of the value transportation as in below statement to
    // allow cases such as:
    // - Move from ALU compare to boolean reg.
    // - Move from boolean reg to LSU store.
    int transportWidth = std::min(defBits, useBits);
    if (transportWidth > busWidth_) {
        return false;
    }

    if (!inputPSocket.isOutputPSocketResource() ||
        !hasRelatedResource(inputPSocket)) {
        return false;
    }
    if (!outputPSocket.isInputPSocketResource() ||
        !hasRelatedResource(outputPSocket)) {
        return false;
    }

    return true;
}

References assert, busWidth_, TTAProgram::Move::destination(), MoveNode::destinationOperation(), MoveNode::destinationOperationCount(), SchedulingResource::hasRelatedResource(), isAvailable(), SchedulingResource::isInputPSocketResource(), SchedulingResource::isOutputPSocketResource(), MoveNode::isSourceConstant(), MoveNode::move(), ProgramOperation::operation(), TTAProgram::Terminal::operationIndex(), TTAProgram::Terminal::port(), TTAProgram::Move::source(), and TTAMachine::Port::width().

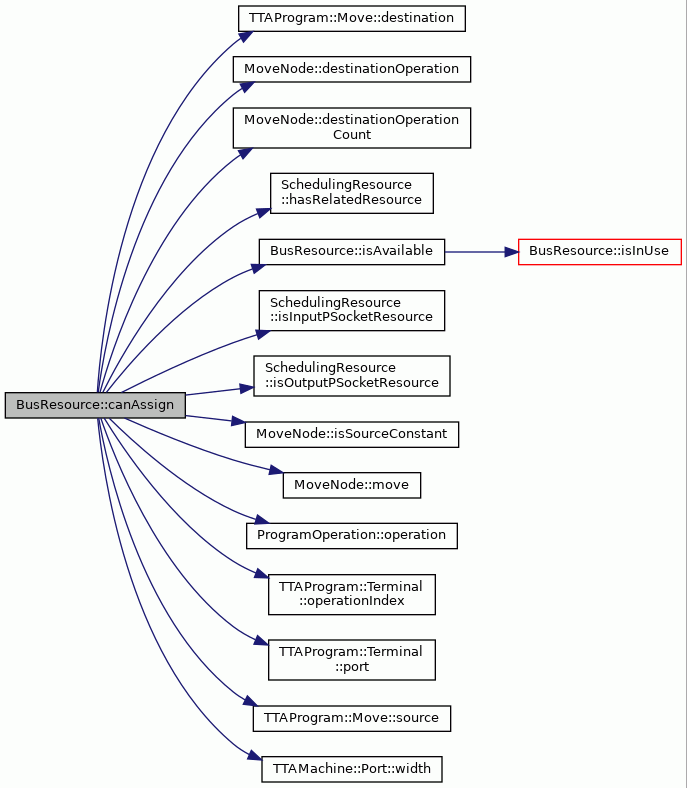

Here is the call graph for this function:

◆ clear()

void BusResource::clear ( )

overridevirtual

Clears bookkeeping of the scheduling resource.

After this call the state of the resource should be identical to a newly-created and initialized resource.

Reimplemented from SchedulingResource.

Definition at line 334 of file BusResource.cc.

                   {
    SchedulingResource::clear();
    resourceRecord_.clear();
}

References SchedulingResource::clear(), and resourceRecord_.

Here is the call graph for this function:

◆ isAvailable() [1/2]

bool BusResource::isAvailable ( const int cycle ) const

overridevirtual

Test if resource BusResource is available

Parameters

cycle Cycle which to test

Returns: False if all the segments of bus are InUse

Implements SchedulingResource.

Definition at line 90 of file BusResource.cc.

                                              {
    return !isInUse(cycle);
}

References isInUse().

Referenced by canAssign(), canAssign(), and isAvailable().

Here is the call graph for this function:

◆ isAvailable() [2/2]

bool BusResource::isAvailable	(	const int	cycle,
		const SchedulingResource &	inputPSocket,
		const SchedulingResource &	outputPSocket
	)		const

virtual

Test if resource BusResource is available.

Parameters

cycle Cycle which to test

Returns: False if all the segments of bus are InUse

Definition at line 101 of file BusResource.cc.

                                                   {

    if (!(hasRelatedResource(inputPSocket) &&
        hasRelatedResource(outputPSocket))) {
        // BusBroker does not need to test if sockets
        // are connected to the bus...
       return false;
    }

    return isAvailable(cycle);
}

References SchedulingResource::hasRelatedResource(), and isAvailable().

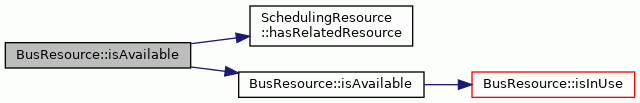

Here is the call graph for this function:

◆ isBusResource()

bool BusResource::isBusResource ( ) const

overridevirtual

Return allways true

Returns: true

Reimplemented from SchedulingResource.

Definition at line 232 of file BusResource.cc.

                                 {
    return true;
}

◆ isInUse()

bool BusResource::isInUse ( const int cycle ) const

overridevirtual

Test if resource BusResource is used in given cycle

Parameters

cycle Cycle which to test

Returns: True if any of segments of bus isInUse in given cycle

Implements SchedulingResource.

Definition at line 75 of file BusResource.cc.

                                          {
    ResourceRecordType::const_iterator i =
        resourceRecord_.find(instructionIndex(cycle));
    if (i != resourceRecord_.end() && i->second != 0) {
        return true;
    }
    return false;
}

References SchedulingResource::instructionIndex(), and resourceRecord_.

Referenced by isAvailable(), BusBroker::isInUse(), and unassign().

Here is the call graph for this function:

◆ nopSlotCount()

int BusResource::nopSlotCount ( )

inline

Definition at line 72 of file BusResource.hh.

72{ return nopSlotCount_; }

References nopSlotCount_.

◆ operator<()

bool BusResource::operator< ( const SchedulingResource & other ) const

overridevirtual

Comparison operator.

Favours busses which have less limm slots associated to then in instruction templates, ie. busses which do not get into way of limm writes.

Reimplemented from SchedulingResource.

Definition at line 274 of file BusResource.cc.

                                                             {
    const BusResource *busr = static_cast<const BusResource*>(&other);

    // favour buses with less nop slots
    if (nopSlotCount_ < busr->nopSlotCount_) {
        return true;
    }
    if (nopSlotCount_ > busr->nopSlotCount_) {
        return false;
    }

    if (busr == NULL) {
        return false;
    }

    // then try to use busses without guards, if possible.
    if (guardCount_ < busr->guardCount_) {
        return true;
    }
    if (guardCount_ > busr->guardCount_) {
        return false;
    }

    // then favour busses with less sockets.
    if (socketCount_ < busr->socketCount_) {
        return true;
    }
    if (socketCount_ > busr->socketCount_) {
        return false;
    }

    // first priority are limm slots.
    if (limmSlotCount_ < busr->limmSlotCount_) {
        return true;
    }
    if (limmSlotCount_ > busr->limmSlotCount_) {
        return false;
    }

    // then favour busses with smallest immediate.
    if (immSize_ < busr->immSize_) {
        return true;
    }
    if (immSize_ > busr->immSize_) {
        return false;
    }

    // then use the default use count, name comparison,
    // but in opposite direction, facouring already used
    return other.SchedulingResource::operator<(*this);
}

References guardCount_, immSize_, limmSlotCount_, nopSlotCount_, and socketCount_.

◆ operator=()

BusResource & BusResource::operator= ( const BusResource & )

private

◆ unassign()

void BusResource::unassign	(	const int	cycle,
		MoveNode &	node
	)

overridevirtual

Unassign resource from given node for given cycle without testing Input or Output PSocket, unassign all segments of bus

Parameters

cycle	Cycle to remove assignment from
node	MoveNode to remove assignment from

Exceptions

In	case bus was not assigned

Implements SchedulingResource.

Definition at line 142 of file BusResource.cc.

                                                {

    if (isInUse(cycle)) {
        resourceRecord_[instructionIndex(cycle)] = 0;
        return;
    } else{
        std::string msg = "Bus ";
        msg += name();
        msg += " can not be unassigned in cycle ";
        msg += Conversion::toString(cycle);
        msg += ", it was not in use!";
        throw ModuleRunTimeError(__FILE__, __LINE__,__func__, msg);
    }
}

References __func__, SchedulingResource::instructionIndex(), isInUse(), SchedulingResource::name(), resourceRecord_, and Conversion::toString().

Referenced by BusBroker::unassign().

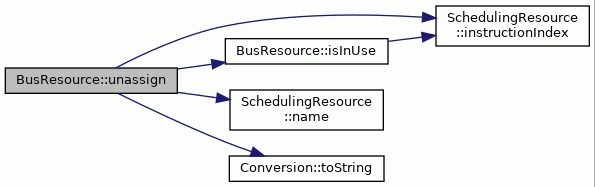

Here is the call graph for this function:

◆ validateDependentGroups()

bool BusResource::validateDependentGroups ( )

overrideprotectedvirtual

Tests if all referred resources in dependent groups are of proper types

Returns: true If all resources in dependent groups are Segment resources

Reimplemented from SchedulingResource.

Definition at line 243 of file BusResource.cc.

                                     {
    return true;
}

◆ validateRelatedGroups()

bool BusResource::validateRelatedGroups ( )

overrideprotectedvirtual

Tests if all resources in related resource groups are of proper types

Returns: true If all resources in related resource groups are PSockets

Reimplemented from SchedulingResource.

Definition at line 254 of file BusResource.cc.

                                   {
    for (int i = 0; i < relatedResourceGroupCount(); i++) {
        for (int j = 0, count = relatedResourceCount(i);
            j < count;
            j++) {
            if (!(relatedResource(i, j).isInputPSocketResource() ||
                relatedResource(i, j).isOutputPSocketResource()))
                return false;
        }
    }
    return true;
}

References SchedulingResource::isInputPSocketResource(), SchedulingResource::isOutputPSocketResource(), SchedulingResource::relatedResource(), SchedulingResource::relatedResourceCount(), and SchedulingResource::relatedResourceGroupCount().

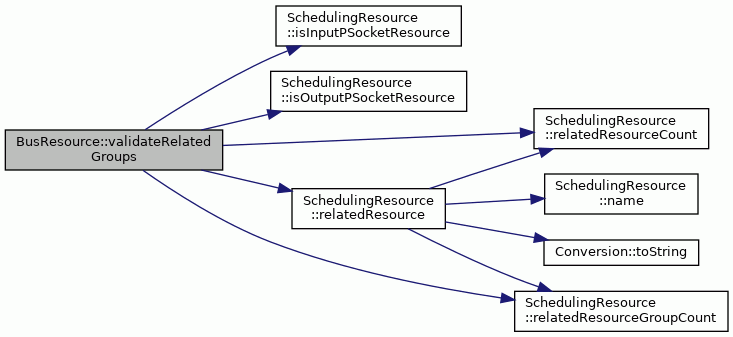

Here is the call graph for this function:

Member Data Documentation

◆ busWidth_

int BusResource::busWidth_

private

Definition at line 84 of file BusResource.hh.

Referenced by canAssign().

◆ guardCount_

int BusResource::guardCount_

private

Definition at line 90 of file BusResource.hh.

Referenced by operator<().

◆ immSize_

int BusResource::immSize_

private

Definition at line 92 of file BusResource.hh.

Referenced by operator<().

◆ limmSlotCount_

int BusResource::limmSlotCount_

private

Definition at line 86 of file BusResource.hh.

Referenced by operator<().

◆ nopSlotCount_

int BusResource::nopSlotCount_

private

Definition at line 88 of file BusResource.hh.

Referenced by nopSlotCount(), and operator<().

◆ resourceRecord_

ResourceRecordType BusResource::resourceRecord_

private

Definition at line 98 of file BusResource.hh.

Referenced by assign(), clear(), isInUse(), and unassign().

◆ socketCount_

int BusResource::socketCount_

private

Definition at line 94 of file BusResource.hh.

Referenced by operator<().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ResourceRecordType

Constructor & Destructor Documentation

◆ BusResource() [1/2]

◆ ~BusResource()

◆ BusResource() [2/2]

Member Function Documentation

◆ assign()

◆ canAssign() [1/2]

◆ canAssign() [2/2]

◆ clear()

◆ isAvailable() [1/2]

◆ isAvailable() [2/2]

◆ isBusResource()

◆ isInUse()

◆ nopSlotCount()

◆ operator<()

◆ operator=()

◆ unassign()

◆ validateDependentGroups()

◆ validateRelatedGroups()

Member Data Documentation

◆ busWidth_

◆ guardCount_

◆ immSize_

◆ limmSlotCount_

◆ nopSlotCount_

◆ resourceRecord_

◆ socketCount_
