#include <FUDialog.hh>

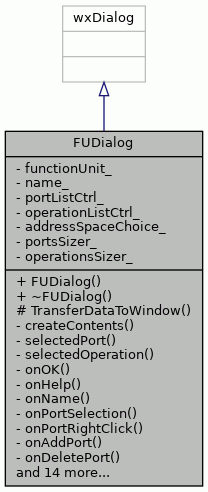

Inheritance diagram for FUDialog:

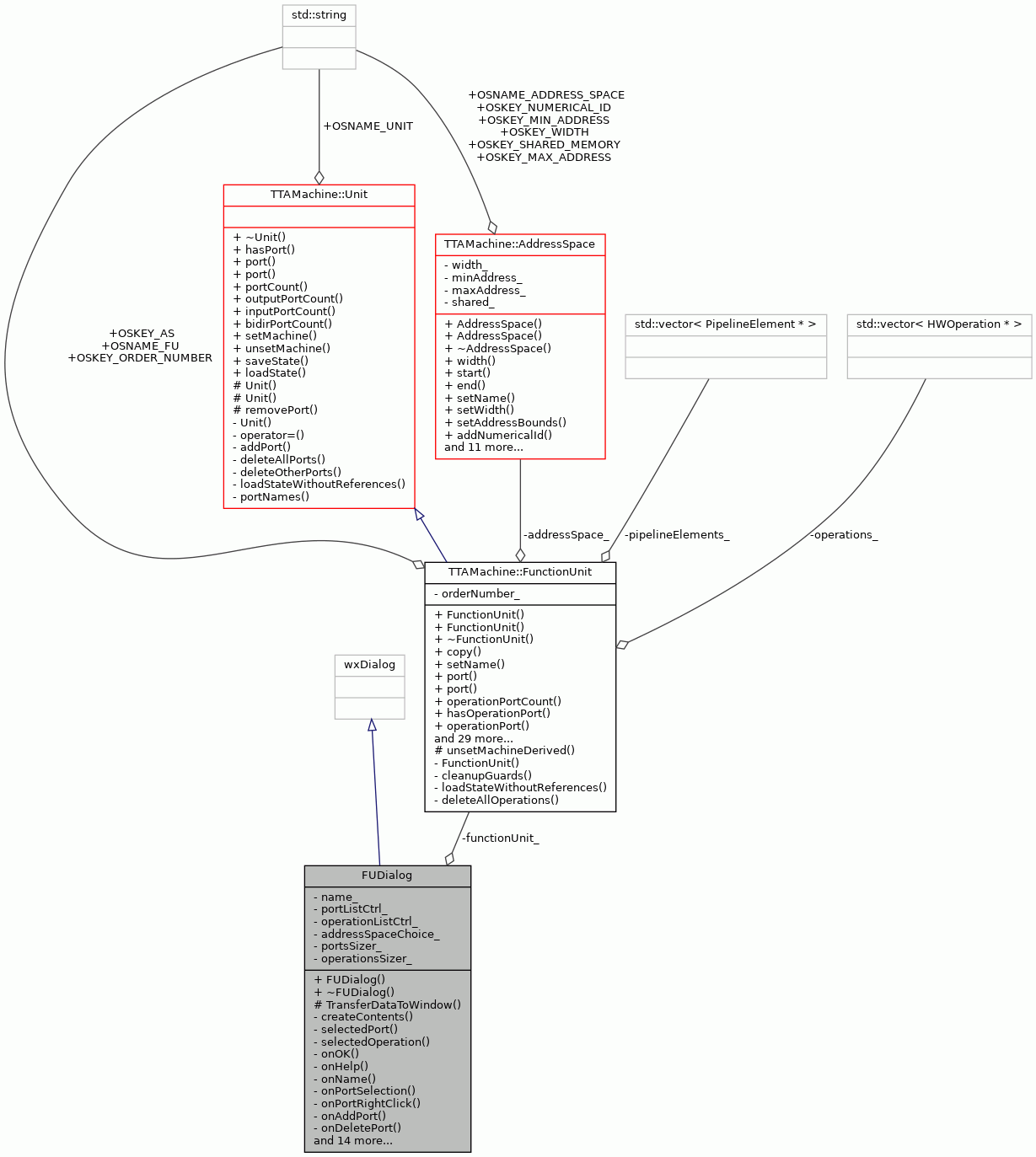

Collaboration diagram for FUDialog:

Public Member Functions
	FUDialog (wxWindow parent, TTAMachine::FunctionUnit functionUnit)

virtual	~FUDialog ()

Protected Member Functions
virtual bool	TransferDataToWindow ()

Private Types
enum	{ ID_NAME =10000 , ID_ADDRESS_SPACE , ID_OPERATION_LIST , ID_ADD_OPERATION , ID_EDIT_OPERATION , ID_ADD_OPERATION_FROM_OPSET , ID_DELETE_OPERATION , ID_PORT_LIST , ID_ADD_PORT , ID_EDIT_PORT , ID_DELETE_PORT , ID_HELP , ID_LABEL_NAME , ID_LABEL_AS }

Private Member Functions
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)

TTAMachine::FUPort *	selectedPort ()

TTAMachine::HWOperation *	selectedOperation ()

void	onOK (wxCommandEvent &event)

void	onHelp (wxCommandEvent &event)

void	onName (wxCommandEvent &event)

void	onPortSelection (wxListEvent &event)

void	onPortRightClick (wxListEvent &event)

void	onAddPort (wxCommandEvent &event)

void	onDeletePort (wxCommandEvent &event)

void	onEditPort (wxCommandEvent &event)

void	onActivatePort (wxListEvent &event)

void	onOperationSelection (wxListEvent &event)

void	onAddOperation (wxCommandEvent &event)

void	onAddOperationFromOpset (wxCommandEvent &event)

void	onDeleteOperation (wxCommandEvent &event)

void	onEditOperation (wxCommandEvent &event)

void	onSetAddressSpace (wxCommandEvent &event)

void	onActivateOperation (wxListEvent &event)

void	onOperationRightClick (wxListEvent &event)

void	updateAddressSpaceChoice ()

void	updatePortList ()

void	updateOperationList ()

void	setTexts ()

Private Attributes
TTAMachine::FunctionUnit *	functionUnit_
	FunctionUnit to modify.

wxString	name_
	Name of the function unit.

wxListCtrl *	portListCtrl_
	Port list control.

wxListCtrl *	operationListCtrl_
	Operation list control.

wxChoice *	addressSpaceChoice_
	Address Space choice control.

wxStaticBoxSizer *	portsSizer_
	Sizer for the port list controls.

wxStaticBoxSizer *	operationsSizer_
	Sizer for the operation list controls.

Detailed Description

Dialog for querying FunctionUnit parameters from the user.

Definition at line 48 of file FUDialog.hh.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Enumerator
ID_NAME
ID_ADDRESS_SPACE
ID_OPERATION_LIST
ID_ADD_OPERATION
ID_EDIT_OPERATION
ID_ADD_OPERATION_FROM_OPSET
ID_DELETE_OPERATION
ID_PORT_LIST
ID_ADD_PORT
ID_EDIT_PORT
ID_DELETE_PORT
ID_HELP
ID_LABEL_NAME
ID_LABEL_AS

Definition at line 99 of file FUDialog.hh.

         {
    ID_NAME=10000,
    ID_ADDRESS_SPACE,
    ID_OPERATION_LIST,
    ID_ADD_OPERATION,
    ID_EDIT_OPERATION,
        ID_ADD_OPERATION_FROM_OPSET,
    ID_DELETE_OPERATION,
        ID_PORT_LIST,
    ID_ADD_PORT,
    ID_EDIT_PORT,
    ID_DELETE_PORT,
    ID_HELP,
        ID_LABEL_NAME,
        ID_LABEL_AS
    };

Constructor & Destructor Documentation

◆ FUDialog()

FUDialog::FUDialog	(	wxWindow *	parent,
		TTAMachine::FunctionUnit *	functionUnit
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
functionUnit	A function unit to be shown in the dialog.

Definition at line 109 of file FUDialog.cc.

                               :
    wxDialog(parent, -1, _T(""), wxDefaultPosition),
    functionUnit_(functionUnit),
    name_(_T("")),
    portListCtrl_(NULL),
    operationListCtrl_(NULL),
    addressSpaceChoice_(NULL) {

    createContents(this, true, true);

    portListCtrl_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_PORT_LIST));
    operationListCtrl_ =
        dynamic_cast<wxListCtrl*>(FindWindow(ID_OPERATION_LIST));
    addressSpaceChoice_ =
        dynamic_cast<wxChoice*>(FindWindow(ID_ADDRESS_SPACE));

    FindWindow(ID_NAME)->SetValidator(wxTextValidator(wxFILTER_ASCII, &name_));

    FindWindow(wxID_OK)->Disable();

    // set widget texts
    setTexts();

    TransferDataToWindow();
}

◆ ~FUDialog()

FUDialog::~FUDialog ( )

virtual

The Destructor.

Definition at line 141 of file FUDialog.cc.

141 {

142}

Member Function Documentation

◆ createContents()

wxSizer * FUDialog::createContents	(	wxWindow *	parent,
		bool	call_fit,
		bool	set_sizer
	)

private

Creates the dialog window contents.

This method was initially generated with wxDesigner, code will be cleaned up later.

Returns: Main sizer of the created contents.

Parameters

parent	The dialog window.
call_fit	If true, fits the contents inside the dialog.
set_sizer	If true, sets the main sizer as dialog contents.

Definition at line 747 of file FUDialog.cc.

                                                                        {

    wxFlexGridSizer *item0 = new wxFlexGridSizer( 2, 0, 10 );

    wxBoxSizer *item1 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticText *item2 = new wxStaticText( parent, ID_LABEL_NAME, wxT("Name:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item2, 0, wxALIGN_CENTER|wxALL, 5 );

    wxTextCtrl *item3 = new wxTextCtrl( parent, ID_NAME, wxT(""), wxDefaultPosition, wxSize(150,-1), 0 );
    item1->Add( item3, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item1, 0, wxALIGN_CENTER_VERTICAL|wxALL, 5 );

    wxBoxSizer *item4 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticText *item5 = new wxStaticText( parent, ID_LABEL_AS, wxT("Address Space:"), wxDefaultPosition, wxDefaultSize, 0 );
    item4->Add( item5, 0, wxALIGN_CENTER|wxALL, 5 );

    wxString *strs6 = (wxString*) NULL;
    wxChoice *item6 = new wxChoice( parent, ID_ADDRESS_SPACE, wxDefaultPosition, wxSize(150,-1), 0, strs6, 0 );
    item4->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item4, 0, wxALIGN_CENTER_VERTICAL|wxALL, 5 );

    wxStaticBox *item8 = new wxStaticBox( parent, -1, wxT("Operations:") );
    wxStaticBoxSizer *item7 = new wxStaticBoxSizer( item8, wxVERTICAL );
    operationsSizer_ = item7;

    wxListCtrl *item9 = new wxListCtrl( parent, ID_OPERATION_LIST, wxDefaultPosition, wxSize(160,200), wxLC_REPORT|wxSUNKEN_BORDER );
    item7->Add( item9, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item10 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item11 = new wxButton( parent, ID_ADD_OPERATION, wxT("Add..."), wxDefaultPosition, wxDefaultSize, 0 );
    item10->Add( item11, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item12 = new wxButton( parent, ID_EDIT_OPERATION, wxT("Edit..."), wxDefaultPosition, wxDefaultSize, 0 );
    item10->Add( item12, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item13 = new wxButton( parent, ID_DELETE_OPERATION, wxT("Delete"), wxDefaultPosition, wxDefaultSize, 0 );
    item10->Add( item13, 0, wxALIGN_CENTER|wxALL, 5 );

    item7->Add( item10, 0, wxALIGN_CENTER, 5 );

    wxButton *item14 = new wxButton( parent, ID_ADD_OPERATION_FROM_OPSET, wxT(" Add from  Opset... "), wxDefaultPosition, wxDefaultSize, 0 );
    item7->Add( item14, 0, wxALL, 5 );

    item0->Add( item7, 0, wxGROW|wxALL, 5 );

    wxStaticBox *item16 = new wxStaticBox( parent, -1, wxT("Ports:") );
    wxStaticBoxSizer *item15 = new wxStaticBoxSizer( item16, wxVERTICAL );
    portsSizer_ = item15;

    wxListCtrl *item17 = new wxListCtrl( parent, ID_PORT_LIST, wxDefaultPosition, wxSize(160,200), wxLC_REPORT|wxSUNKEN_BORDER );
    item15->Add( item17, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item18 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item19 = new wxButton( parent, ID_ADD_PORT, wxT("Add..."), wxDefaultPosition, wxDefaultSize, 0 );
    item18->Add( item19, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item20 = new wxButton( parent, ID_EDIT_PORT, wxT("Edit..."), wxDefaultPosition, wxDefaultSize, 0 );
    item18->Add( item20, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item21 = new wxButton( parent, ID_DELETE_PORT, wxT("Delete"), wxDefaultPosition, wxDefaultSize, 0 );
    item18->Add( item21, 0, wxALIGN_CENTER|wxALL, 5 );

    item15->Add( item18, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item15, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item25 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item26 = new wxButton( parent, ID_HELP, wxT("&Help"), wxDefaultPosition, wxDefaultSize, 0 );
    item25->Add( item26, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item25, 0, wxALL, 5 );

    wxBoxSizer *item27 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item28 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item27->Add( item28, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item29 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item27->Add( item29, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item27, 0, wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_ADD_OPERATION, ID_ADD_OPERATION_FROM_OPSET, ID_ADD_PORT, ID_ADDRESS_SPACE, ID_DELETE_OPERATION, ID_DELETE_PORT, ID_EDIT_OPERATION, ID_EDIT_PORT, ID_HELP, ID_LABEL_AS, ID_LABEL_NAME, ID_NAME, ID_OPERATION_LIST, ID_PORT_LIST, operationsSizer_, and portsSizer_.

◆ onActivateOperation()

void FUDialog::onActivateOperation ( wxListEvent & event )

private

Handles left mouse button double clicks on the operation list.

Definition at line 729 of file FUDialog.cc.

                                          {
    wxCommandEvent dummy;
    onEditOperation(dummy);
}

References dummy, and onEditOperation().

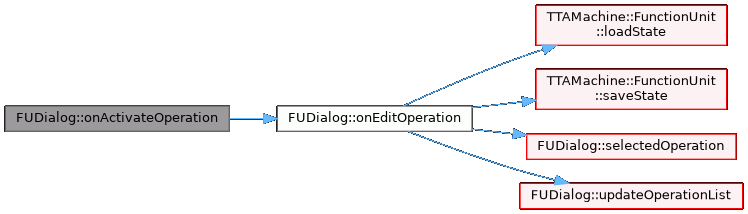

Here is the call graph for this function:

◆ onActivatePort()

void FUDialog::onActivatePort ( wxListEvent & event )

private

Handles left mouse button double clicks on the port list.

Definition at line 380 of file FUDialog.cc.

                                     {
    wxCommandEvent dummy;
    onEditPort(dummy);
}

References dummy, and onEditPort().

Here is the call graph for this function:

◆ onAddOperation()

void FUDialog::onAddOperation ( wxCommandEvent & event )

private

Creates and shows an empty Function Unit Operation Dialog for adding operations.

Not Implemented.

Definition at line 430 of file FUDialog.cc.

                                        {
    ObjectState* fu = functionUnit_->saveState();

    // Generate name for the new operation.
    int i = 1;
    string newName = ProDeConstants::COMP_NEW_NAME_PREFIX_OPERATION +
        Conversion::toString(i);
    while (functionUnit_->hasOperation(newName)) {
        newName = ProDeConstants::COMP_NEW_NAME_PREFIX_OPERATION +
            Conversion::toString(i);
        i++;
    }
    HWOperation* operation = NULL;
    operation = new HWOperation(newName, *functionUnit_);

    OperationDialog dialog(this, operation);
    if (dialog.ShowModal() == wxID_OK) {
        delete fu;
    } else {
        functionUnit_->loadState(fu);
    }
    updateOperationList();
}

References ProDeConstants::COMP_NEW_NAME_PREFIX_OPERATION, functionUnit_, TTAMachine::FunctionUnit::hasOperation(), TTAMachine::FunctionUnit::loadState(), TTAMachine::FunctionUnit::saveState(), Conversion::toString(), and updateOperationList().

Here is the call graph for this function:

◆ onAddOperationFromOpset()

void FUDialog::onAddOperationFromOpset ( wxCommandEvent & event )

private

Event handler for the add operation from opset button.

Definition at line 458 of file FUDialog.cc.

                                                 {

    try {
        OpsetDialog opsetDialog(this);
        if (opsetDialog.ShowModal() != wxID_OK) {
            return;
        }

        HWOperation* operation = opsetDialog.createOperation(*functionUnit_);

        if (operation == NULL) {
            return;
        }

        OperationDialog operationDialog(this, operation);
        if (operationDialog.ShowModal() != wxID_OK) {
            delete operation;
        }

        updateOperationList();
    } catch (Exception & e) {
        wxString message = WxConversion::toWxString(e.errorMessage());
        ErrorDialog dialog(this, message);
        dialog.ShowModal();
        return;
    }
}

References OpsetDialog::createOperation(), Exception::errorMessage(), functionUnit_, WxConversion::toWxString(), and updateOperationList().

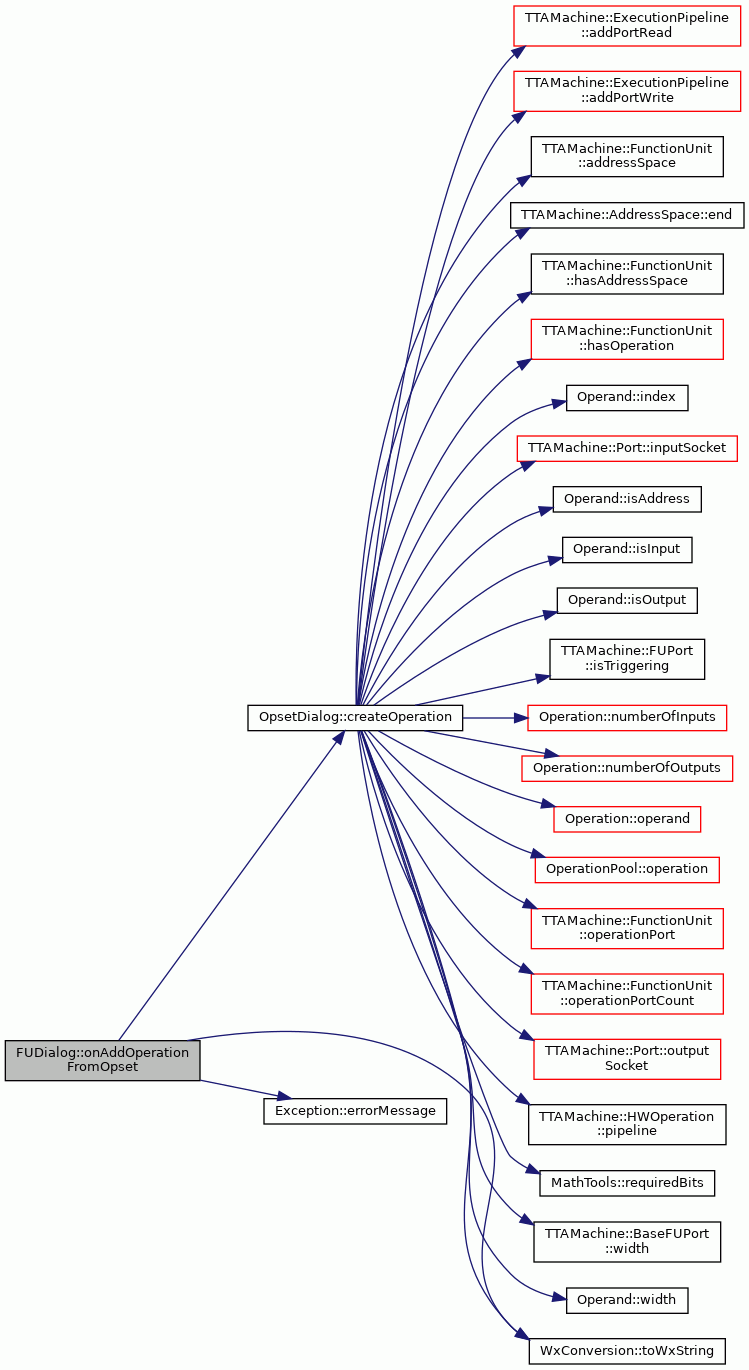

Here is the call graph for this function:

◆ onAddPort()

void FUDialog::onAddPort ( wxCommandEvent & event )

private

Creates and shows an empty Function Unit Port Dialog for adding ports.

Definition at line 321 of file FUDialog.cc.

                                   {

    // Generate name for the new port.
    int i = 1;
    string newName = ProDeConstants::COMP_NEW_NAME_PREFIX_PORT +
        Conversion::toString(i);
    while (functionUnit_->hasPort(newName)) {
        newName = ProDeConstants::COMP_NEW_NAME_PREFIX_PORT +
            Conversion::toString(i);
        i++;
    }

    FUPort* port = new FUPort(
        newName, ModelConstants::DEFAULT_WIDTH, *functionUnit_, false, false);
    FUPortDialog portDialog(this, port);
    if (portDialog.ShowModal() == wxID_CANCEL) {
        // adding port was cancelled
        delete port;
    }
    updatePortList();
}

References ProDeConstants::COMP_NEW_NAME_PREFIX_PORT, ModelConstants::DEFAULT_WIDTH, functionUnit_, TTAMachine::Unit::hasPort(), Conversion::toString(), and updatePortList().

Here is the call graph for this function:

◆ onDeleteOperation()

void FUDialog::onDeleteOperation ( wxCommandEvent & event )

private

Deletes selected operation from the operation list.

Definition at line 490 of file FUDialog.cc.

                                           {
    string name = WidgetTools::lcStringSelection(operationListCtrl_, 0);
    if (name == "") {
        return;
    }
    delete functionUnit_->operation(name);
    updateOperationList();
}

References functionUnit_, WidgetTools::lcStringSelection(), TTAMachine::FunctionUnit::operation(), operationListCtrl_, and updateOperationList().

Here is the call graph for this function:

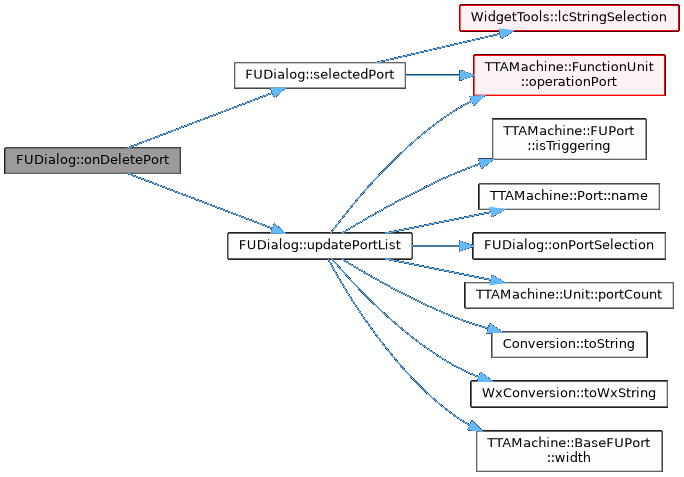

◆ onDeletePort()

void FUDialog::onDeletePort ( wxCommandEvent & event )

private

Deletes selected port from the port list.

Definition at line 349 of file FUDialog.cc.

                                      {
    FUPort* selected = selectedPort();
    if (selected == NULL) {
        return;
    }
    assert(selected != NULL);
    delete selected;
    updatePortList();
}

References assert, selectedPort(), and updatePortList().

Here is the call graph for this function:

◆ onEditOperation()

void FUDialog::onEditOperation ( wxCommandEvent & event )

private

Handles the 'Edit Operation' button event.

Opens a FUOperationDialog with the selected operation's attributes set.

Definition at line 507 of file FUDialog.cc.

                                         {

    HWOperation* selected = selectedOperation();
    if (selected == NULL) {
        // No operation selected.
        return;
    }

    ObjectState* fu = functionUnit_->saveState();
    OperationDialog dialog(this, selected);
    if (dialog.ShowModal() == wxID_OK) {
        delete fu;
    } else {
        functionUnit_->loadState(fu);
    }
    updateOperationList();
}

References functionUnit_, TTAMachine::FunctionUnit::loadState(), TTAMachine::FunctionUnit::saveState(), selectedOperation(), and updateOperationList().

Referenced by onActivateOperation().

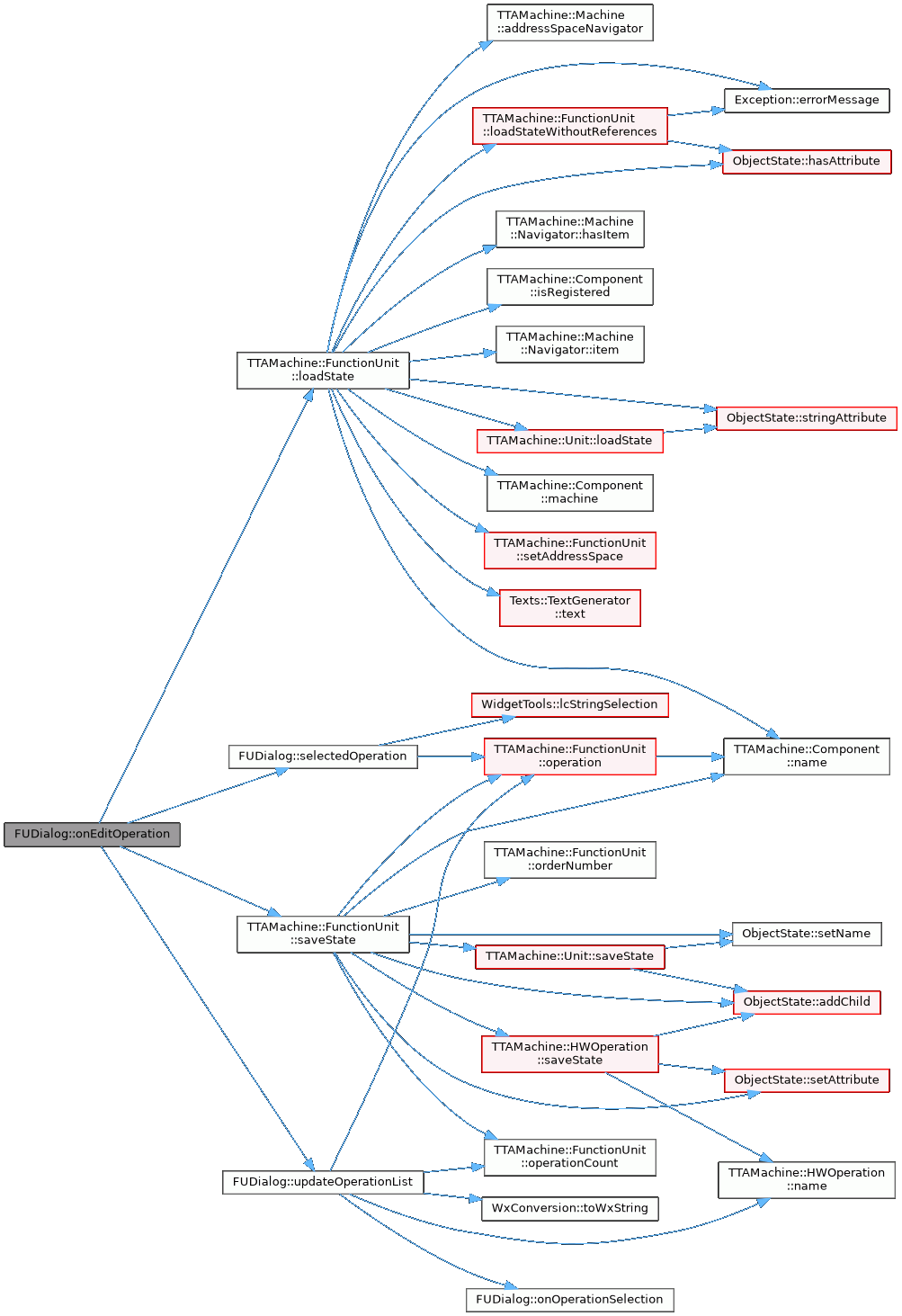

Here is the call graph for this function:

◆ onEditPort()

void FUDialog::onEditPort ( wxCommandEvent & event )

private

Handles the 'Edit Port' button event.

Opens a FUPortDialog with the selected port set.

Definition at line 392 of file FUDialog.cc.

                                    {
    FUPort* port = selectedPort();
    if (port == NULL) {
        return;
    }
    FUPortDialog portDialog(this, port);
    portDialog.ShowModal();
    updatePortList();
}

References selectedPort(), and updatePortList().

Referenced by onActivatePort().

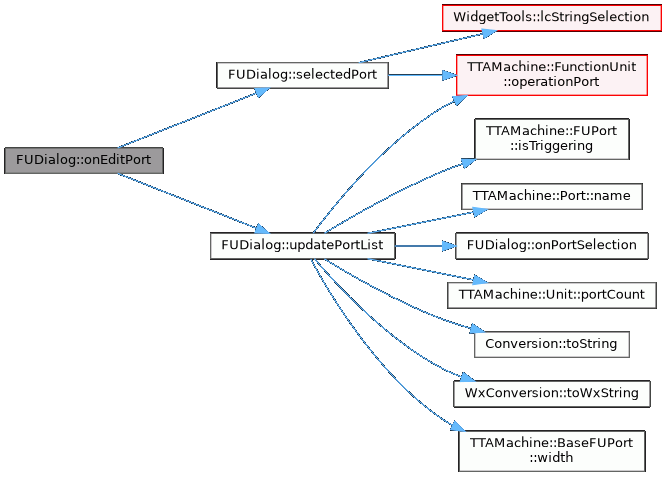

Here is the call graph for this function:

◆ onHelp()

void FUDialog::onHelp ( wxCommandEvent & event )

private

◆ onName()

void FUDialog::onName ( wxCommandEvent & event )

private

Checks whether name field is empty and disables OK button of the dialog if it is.

Definition at line 531 of file FUDialog.cc.

                                {
    if (!TransferDataFromWindow()) {
        assert(false);
    }
    wxString trimmedName = name_.Trim(false).Trim(true);
    if (trimmedName == _T("")) {
        FindWindow(wxID_OK)->Disable();
    } else {
        FindWindow(wxID_OK)->Enable();
    }
}

References assert, and name_.

◆ onOK()

void FUDialog::onOK ( wxCommandEvent & event )

private

Validates input in the controls, and updates the FunctionUnit.

Definition at line 243 of file FUDialog.cc.

                              {

    if (!Validate()) {
        return;
    }

    if (!TransferDataFromWindow()) {
        return;
    }

    string trimmedName =
        WxConversion::toString(name_.Trim(false).Trim(true));

    // Check the name validity.
    if (!MachineTester::isValidComponentName(trimmedName)) {
        ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
        format message =
            prodeTexts->text(ProDeTextGenerator::MSG_ERROR_ILLEGAL_NAME);
        InformationDialog warning(
            this, WxConversion::toWxString(message.str()));
        warning.ShowModal();
        return;
    }

    if (trimmedName != functionUnit_->name()) {
        Machine::FunctionUnitNavigator navigator =
            functionUnit_->machine()->functionUnitNavigator();
        for (int i = 0; i < navigator.count(); i++) {
            FunctionUnit* fu = navigator.item(i);
            if (trimmedName == fu->name()) {
                ProDeTextGenerator* prodeTexts =
                    ProDeTextGenerator::instance();
                format message =
                    prodeTexts->text(ProDeTextGenerator::MSG_ERROR_SAME_NAME);
                format a_fu =
                    prodeTexts->text(ProDeTextGenerator::COMP_A_FUNCTION_UNIT);
                format machine =
                    prodeTexts->text(ProDeTextGenerator::COMP_MACHINE);
                format fu =
                    prodeTexts->text(ProDeTextGenerator::COMP_FUNCTION_UNIT);
                message % trimmedName % a_fu.str() % machine.str() % fu.str();
                WarningDialog warning(
                    this, WxConversion::toWxString(message.str()));
                warning.ShowModal();
                return;
            }
        }
    }
    functionUnit_->setName(trimmedName);
    EndModal(wxID_OK);
}

References ProDeTextGenerator::COMP_A_FUNCTION_UNIT, ProDeTextGenerator::COMP_FUNCTION_UNIT, ProDeTextGenerator::COMP_MACHINE, TTAMachine::Machine::Navigator< ComponentType >::count(), functionUnit_, TTAMachine::Machine::functionUnitNavigator(), ProDeTextGenerator::instance(), MachineTester::isValidComponentName(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), machine, ProDeTextGenerator::MSG_ERROR_ILLEGAL_NAME, ProDeTextGenerator::MSG_ERROR_SAME_NAME, TTAMachine::Component::name(), name_, TTAMachine::FunctionUnit::setName(), Texts::TextGenerator::text(), WxConversion::toString(), and WxConversion::toWxString().

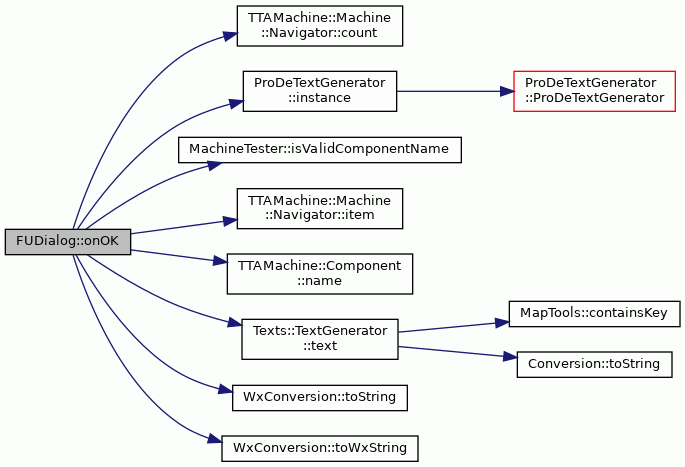

Here is the call graph for this function:

◆ onOperationRightClick()

void FUDialog::onOperationRightClick ( wxListEvent & event )

private

Opens a pop-up menu when right mouse button was pressed on the operation list.

Parameters

event Information about right mouse click event.

Definition at line 705 of file FUDialog.cc.

                                                  {

    operationListCtrl_->SetItemState(event.GetIndex(), wxLIST_STATE_SELECTED,
                                wxLIST_STATE_SELECTED);

    wxMenu* contextMenu = new wxMenu();

    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
    format button = prodeTexts->text(
        ProDeTextGenerator::TXT_LABEL_BUTTON_EDIT);
    contextMenu->Append(
        ID_EDIT_OPERATION, WxConversion::toWxString(button.str()));
    button = prodeTexts->text(
        ProDeTextGenerator::TXT_LABEL_BUTTON_DELETE);
    contextMenu->Append(
        ID_DELETE_OPERATION, WxConversion::toWxString(button.str()));
    operationListCtrl_->PopupMenu(contextMenu, event.GetPoint());
}

References ID_DELETE_OPERATION, ID_EDIT_OPERATION, ProDeTextGenerator::instance(), operationListCtrl_, Texts::TextGenerator::text(), WxConversion::toWxString(), ProDeTextGenerator::TXT_LABEL_BUTTON_DELETE, and ProDeTextGenerator::TXT_LABEL_BUTTON_EDIT.

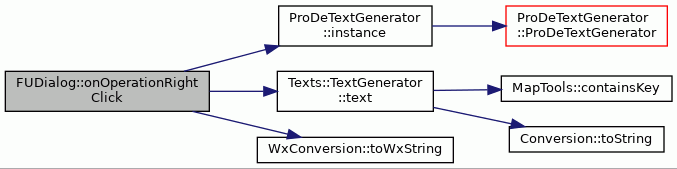

Here is the call graph for this function:

◆ onOperationSelection()

void FUDialog::onOperationSelection ( wxListEvent & event )

private

Disables and enables Edit and Delete buttons under the operation list.

If a operation is selected, buttons are enabled. If no operation is selected the buttons will be disabled.

Parameters

event ListEvent, which may have changed the selection.

Definition at line 568 of file FUDialog.cc.

                                           {
    if (operationListCtrl_->GetSelectedItemCount() != 1) {
        FindWindow(ID_DELETE_OPERATION)->Disable();
        FindWindow(ID_EDIT_OPERATION)->Disable();
        return;
    }
    FindWindow(ID_DELETE_OPERATION)->Enable();
    FindWindow(ID_EDIT_OPERATION)->Enable();
}

References ID_DELETE_OPERATION, ID_EDIT_OPERATION, and operationListCtrl_.

Referenced by updateOperationList().

◆ onPortRightClick()

void FUDialog::onPortRightClick ( wxListEvent & event )

private

Opens a pop-up menu when right mouse button was pressed.

Parameters

event Information about right mouse click event.

Definition at line 678 of file FUDialog.cc.

                                             {

    portListCtrl_->SetItemState(event.GetIndex(), wxLIST_STATE_SELECTED,
                                wxLIST_STATE_SELECTED);

    wxMenu* contextMenu = new wxMenu();

    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
    format button = prodeTexts->text(
        ProDeTextGenerator::TXT_LABEL_BUTTON_EDIT);
    contextMenu->Append(
        ID_EDIT_PORT, WxConversion::toWxString(button.str()));
    button = prodeTexts->text(
        ProDeTextGenerator::TXT_LABEL_BUTTON_DELETE);
    contextMenu->Append(
        ID_DELETE_PORT, WxConversion::toWxString(button.str()));
    portListCtrl_->PopupMenu(contextMenu, event.GetPoint());
}

References ID_DELETE_PORT, ID_EDIT_PORT, ProDeTextGenerator::instance(), portListCtrl_, Texts::TextGenerator::text(), WxConversion::toWxString(), ProDeTextGenerator::TXT_LABEL_BUTTON_DELETE, and ProDeTextGenerator::TXT_LABEL_BUTTON_EDIT.

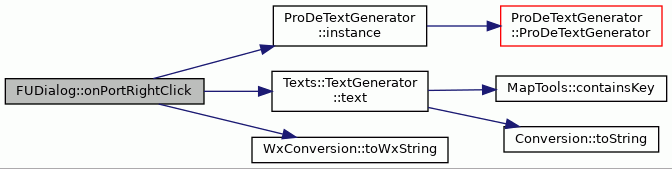

Here is the call graph for this function:

◆ onPortSelection()

void FUDialog::onPortSelection ( wxListEvent & event )

private

Disables and enables Edit and Delete buttons under the port list.

If a port is selected, buttons are enabled. If no port is selected the buttons will be disabled.

Parameters

event ListEvent, which may have changed the selection.

Definition at line 412 of file FUDialog.cc.

                                      {
    if (portListCtrl_->GetSelectedItemCount() != 1) {
        FindWindow(ID_DELETE_PORT)->Disable();
        FindWindow(ID_EDIT_PORT)->Disable();
        return;
    }
    FindWindow(ID_DELETE_PORT)->Enable();
    FindWindow(ID_EDIT_PORT)->Enable();
}

References ID_DELETE_PORT, ID_EDIT_PORT, and portListCtrl_.

Referenced by updatePortList().

◆ onSetAddressSpace()

void FUDialog::onSetAddressSpace ( wxCommandEvent & event )

private

Sets the function unit address space when user changes it.

Definition at line 299 of file FUDialog.cc.

                                           {

    string asName =
        WxConversion::toString(addressSpaceChoice_->GetStringSelection());

    if (asName == WxConversion::toString(ProDeConstants::NONE)) {
        functionUnit_->setAddressSpace(NULL);
    } else {

        Machine::AddressSpaceNavigator navigator =
            functionUnit_->machine()->addressSpaceNavigator();

        AddressSpace* as = navigator.item(asName);
        functionUnit_->setAddressSpace(as);
    }
}

References addressSpaceChoice_, TTAMachine::Machine::addressSpaceNavigator(), functionUnit_, TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), ProDeConstants::NONE, TTAMachine::FunctionUnit::setAddressSpace(), and WxConversion::toString().

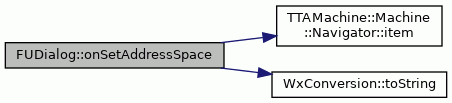

Here is the call graph for this function:

◆ selectedOperation()

HWOperation * FUDialog::selectedOperation ( )

private

Returns pointer to the operation, which is selected on the operation list.

Returns: Pointer to the selected operation.

Definition at line 550 of file FUDialog.cc.

                            {
    string name = WidgetTools::lcStringSelection(operationListCtrl_, 0);
    if (name == "") {
        return NULL;
    }
    return functionUnit_->operation(name);
}

References functionUnit_, WidgetTools::lcStringSelection(), TTAMachine::FunctionUnit::operation(), and operationListCtrl_.

Referenced by onEditOperation().

Here is the call graph for this function:

◆ selectedPort()

FUPort * FUDialog::selectedPort ( )

private

Returns a pointer to the function unit port which is selected.

Returns: Pointer to the port selected in the port list.

Definition at line 366 of file FUDialog.cc.

                       {
    string name = WidgetTools::lcStringSelection(portListCtrl_, 1);
    if (name == "") {
        return NULL;
    }
    FUPort* port = functionUnit_->operationPort(name);
    return port;
}

References functionUnit_, WidgetTools::lcStringSelection(), TTAMachine::FunctionUnit::operationPort(), and portListCtrl_.

Referenced by onDeletePort(), and onEditPort().

Here is the call graph for this function:

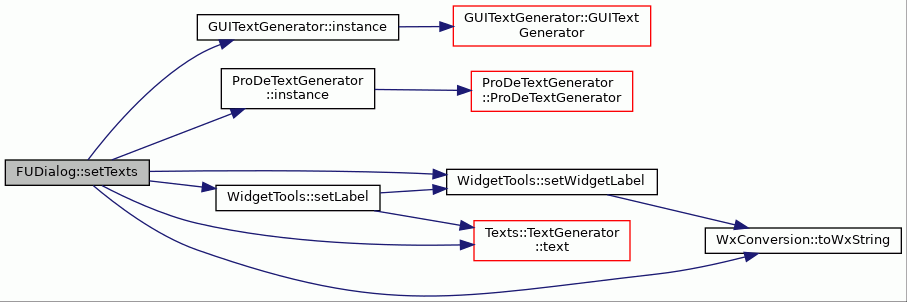

◆ setTexts()

void FUDialog::setTexts ( )

private

Sets texts for widgets.

Definition at line 149 of file FUDialog.cc.

                   {
    GUITextGenerator* generator = GUITextGenerator::instance();
    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();

    // Dialog title
    format fmt = prodeTexts->text(ProDeTextGenerator::TXT_FU_DIALOG_TITLE);
    SetTitle(WxConversion::toWxString(fmt.str()));

    // buttons
    WidgetTools::setLabel(generator, FindWindow(wxID_OK),
                          GUITextGenerator::TXT_BUTTON_OK);

    WidgetTools::setLabel(generator, FindWindow(wxID_CANCEL),
                          GUITextGenerator::TXT_BUTTON_CANCEL);

    WidgetTools::setLabel(generator, FindWindow(ID_HELP),
                          GUITextGenerator::TXT_BUTTON_HELP);

    WidgetTools::setLabel(generator, FindWindow(ID_ADD_PORT),
                          GUITextGenerator::TXT_BUTTON_ADD_DIALOG);

    WidgetTools::setLabel(generator, FindWindow(ID_EDIT_PORT),
                          GUITextGenerator::TXT_BUTTON_EDIT_DIALOG);

    WidgetTools::setLabel(generator, FindWindow(ID_DELETE_PORT),
                          GUITextGenerator::TXT_BUTTON_DELETE);

    WidgetTools::setLabel(generator, FindWindow(ID_ADD_OPERATION),
                          GUITextGenerator::TXT_BUTTON_ADD_DIALOG);

    WidgetTools::setLabel(generator, FindWindow(ID_EDIT_OPERATION),
                          GUITextGenerator::TXT_BUTTON_EDIT_DIALOG);

    WidgetTools::setLabel(generator, FindWindow(ID_DELETE_OPERATION),
                          GUITextGenerator::TXT_BUTTON_DELETE);

    // widget labels
    WidgetTools::setLabel(prodeTexts, FindWindow(ID_LABEL_NAME),
                          ProDeTextGenerator::TXT_LABEL_NAME);

    WidgetTools::setLabel(prodeTexts, FindWindow(ID_LABEL_AS),
                          ProDeTextGenerator::TXT_LABEL_ADDRESS_SPACE);

    // box sizer labels
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_FU_PORTS_BOX);
    WidgetTools::setWidgetLabel(portsSizer_, fmt.str());

    fmt = prodeTexts->text(ProDeTextGenerator::TXT_FU_OPERATIONS_BOX);
    WidgetTools::setWidgetLabel(operationsSizer_, fmt.str());

    // Create port list columns.
    wxListCtrl* portList =
        dynamic_cast<wxListCtrl*>(FindWindow(ID_PORT_LIST));
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_COLUMN_TRIGGERS);
    portList->InsertColumn(0, WxConversion::toWxString(fmt.str()),
                           wxLIST_FORMAT_CENTER, 30);
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_COLUMN_NAME);
    portList->InsertColumn(1, WxConversion::toWxString(fmt.str()),
                           wxLIST_FORMAT_LEFT, 110);
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_COLUMN_WIDTH);
    portList->InsertColumn(2, WxConversion::toWxString(fmt.str()),
                           wxLIST_FORMAT_LEFT, 110);

    // Create operation list column.
    wxListCtrl* operationList =
        dynamic_cast<wxListCtrl*>(FindWindow(ID_OPERATION_LIST));
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_COLUMN_NAME);
    operationList->InsertColumn(0, WxConversion::toWxString(fmt.str()),
                                wxLIST_FORMAT_LEFT, 250);

    Layout();
}

Here is the call graph for this function:

◆ TransferDataToWindow()

bool FUDialog::TransferDataToWindow ( )

protectedvirtual

Transfers data from the MOM to the dialog widgets.

Returns: False, if an error occured in the transfer, true otherwise.

Definition at line 228 of file FUDialog.cc.

                               {

    name_ = WxConversion::toWxString(functionUnit_->name());
    updatePortList();
    updateOperationList();
    updateAddressSpaceChoice();

    return wxWindow::TransferDataToWindow();
}

References functionUnit_, TTAMachine::Component::name(), name_, WxConversion::toWxString(), updateAddressSpaceChoice(), updateOperationList(), and updatePortList().

Here is the call graph for this function:

◆ updateAddressSpaceChoice()

void FUDialog::updateAddressSpaceChoice ( )

private

Updates 'Address Space' choice control.

Clears all items from the choicer and adds all address spaces plus an item 'NONE' indicating empty selection.

Definition at line 586 of file FUDialog.cc.

                                   {

    addressSpaceChoice_->Clear();
    addressSpaceChoice_->Append(ProDeConstants::NONE);

    Machine::AddressSpaceNavigator navigator =
        functionUnit_->machine()->addressSpaceNavigator();

    // put each address space of the Machine to the control.
    for (int i = 0; i < navigator.count(); i++) {
        AddressSpace* as = navigator.item(i);
        wxString name = WxConversion::toWxString(as->name());
        addressSpaceChoice_->Append(name);
    }

    // set address space selection
    AddressSpace* as = functionUnit_->addressSpace();
    if (as != NULL) {
        wxString name = WxConversion::toWxString(as->name());
        addressSpaceChoice_->SetStringSelection(name);
    } else {
        addressSpaceChoice_->SetStringSelection(ProDeConstants::NONE);
    }
}

References TTAMachine::FunctionUnit::addressSpace(), addressSpaceChoice_, TTAMachine::Machine::addressSpaceNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), functionUnit_, TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), TTAMachine::Component::name(), ProDeConstants::NONE, and WxConversion::toWxString().

Referenced by TransferDataToWindow().

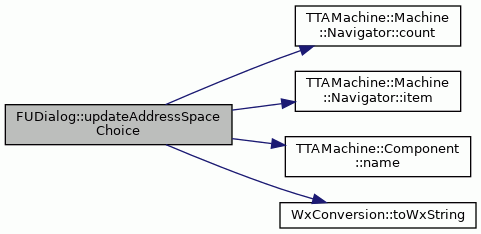

Here is the call graph for this function:

◆ updateOperationList()

void FUDialog::updateOperationList ( )

private

Updates operation list.

Definition at line 650 of file FUDialog.cc.

                              {

    operationListCtrl_->DeleteAllItems();

    // Operation names are put in a set, which will sort the operation
    // names automatically.
    std::set<std::string> operations;
    for (int i=0; i < functionUnit_->operationCount(); i++) {
        operations.insert(functionUnit_->operation(i)->name());
    }

    std::set<std::string>::reverse_iterator iter = operations.rbegin();
    for (; iter != operations.rend(); iter++) {
        wxString name = WxConversion::toWxString(*iter);
        operationListCtrl_->InsertItem(0, name);
    }

    wxListEvent dummy;
    onOperationSelection(dummy);
}

References dummy, functionUnit_, TTAMachine::HWOperation::name(), onOperationSelection(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), operationListCtrl_, and WxConversion::toWxString().

Referenced by onAddOperation(), onAddOperationFromOpset(), onDeleteOperation(), onEditOperation(), and TransferDataToWindow().

Here is the call graph for this function:

◆ updatePortList()

void FUDialog::updatePortList ( )

private

Updates 'Ports' list control.

Clears all items from the choicer and adds all ports.

Definition at line 618 of file FUDialog.cc.

                         {

    portListCtrl_->DeleteAllItems();

    for (int i = 0; i < functionUnit_->portCount(); i++) {

        FUPort* port = functionUnit_->operationPort(i);

        bool triggers = port->isTriggering();
        string width = Conversion::toString(port->width());
        string name = port->name();

        // set asterisk symbol in the "T" column if port triggers
        if (!triggers) {
            portListCtrl_->InsertItem(i, _T(""), 0);
        } else {
            portListCtrl_->InsertItem(i, _T("*"), 0);
        }

        portListCtrl_->SetItem(i, 1, WxConversion::toWxString(name));
        portListCtrl_->SetItem(i, 2, WxConversion::toWxString(width));

    }
    wxListEvent dummy;
    onPortSelection(dummy);
}

References dummy, functionUnit_, TTAMachine::FUPort::isTriggering(), TTAMachine::Port::name(), onPortSelection(), TTAMachine::FunctionUnit::operationPort(), TTAMachine::Unit::portCount(), portListCtrl_, Conversion::toString(), WxConversion::toWxString(), and TTAMachine::BaseFUPort::width().

Referenced by onAddPort(), onDeletePort(), onEditPort(), and TransferDataToWindow().

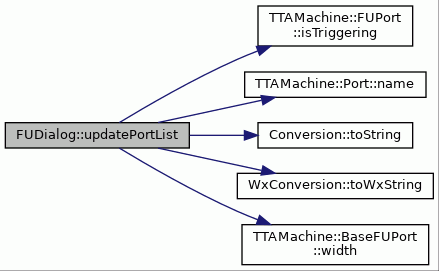

Here is the call graph for this function:

Member Data Documentation

◆ addressSpaceChoice_

wxChoice* FUDialog::addressSpaceChoice_

private

Address Space choice control.

Definition at line 92 of file FUDialog.hh.

Referenced by onSetAddressSpace(), and updateAddressSpaceChoice().

◆ functionUnit_

TTAMachine::FunctionUnit* FUDialog::functionUnit_

private

FunctionUnit to modify.

Definition at line 83 of file FUDialog.hh.

Referenced by onAddOperation(), onAddOperationFromOpset(), onAddPort(), onDeleteOperation(), onEditOperation(), onOK(), onSetAddressSpace(), selectedOperation(), selectedPort(), TransferDataToWindow(), updateAddressSpaceChoice(), updateOperationList(), and updatePortList().

◆ name_

wxString FUDialog::name_

private

Name of the function unit.

Definition at line 85 of file FUDialog.hh.

Referenced by onName(), onOK(), and TransferDataToWindow().

◆ operationListCtrl_

wxListCtrl* FUDialog::operationListCtrl_

private

Operation list control.

Definition at line 90 of file FUDialog.hh.

Referenced by onDeleteOperation(), onOperationRightClick(), onOperationSelection(), selectedOperation(), and updateOperationList().

◆ operationsSizer_

wxStaticBoxSizer* FUDialog::operationsSizer_

private

Sizer for the operation list controls.

Definition at line 97 of file FUDialog.hh.

Referenced by createContents(), and setTexts().

◆ portListCtrl_

wxListCtrl* FUDialog::portListCtrl_

private

Port list control.

Definition at line 88 of file FUDialog.hh.

Referenced by onPortRightClick(), onPortSelection(), selectedPort(), and updatePortList().

◆ portsSizer_

wxStaticBoxSizer* FUDialog::portsSizer_

private

Sizer for the port list controls.

Definition at line 95 of file FUDialog.hh.

Referenced by createContents(), and setTexts().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ FUDialog()

◆ ~FUDialog()

Member Function Documentation

◆ createContents()

◆ onActivateOperation()

◆ onActivatePort()

◆ onAddOperation()

◆ onAddOperationFromOpset()

◆ onAddPort()

◆ onDeleteOperation()

◆ onDeletePort()

◆ onEditOperation()

◆ onEditPort()

◆ onHelp()

◆ onName()

◆ onOK()

◆ onOperationRightClick()

◆ onOperationSelection()

◆ onPortRightClick()

◆ onPortSelection()

◆ onSetAddressSpace()

◆ selectedOperation()

◆ selectedPort()

◆ setTexts()

◆ TransferDataToWindow()

◆ updateAddressSpaceChoice()

◆ updateOperationList()

◆ updatePortList()

Member Data Documentation

◆ addressSpaceChoice_

◆ functionUnit_

◆ name_

◆ operationListCtrl_

◆ operationsSizer_

◆ portListCtrl_

◆ portsSizer_
