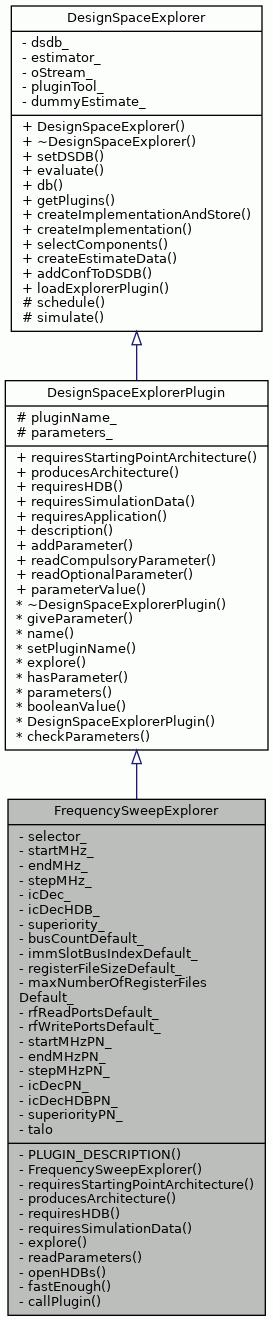

Inheritance diagram for FrequencySweepExplorer:

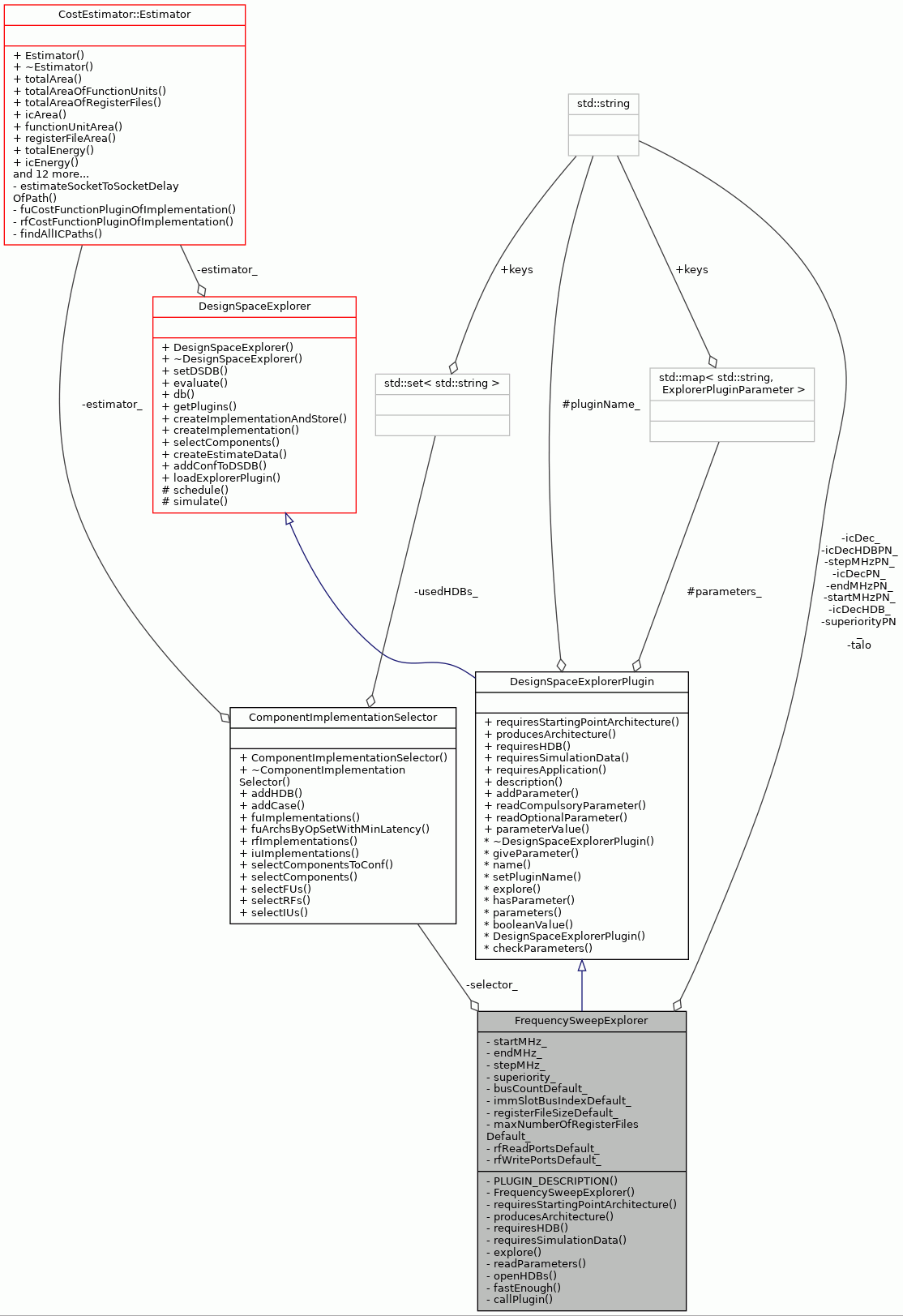

Collaboration diagram for FrequencySweepExplorer:

Private Member Functions
	PLUGIN_DESCRIPTION ("Frequency sweep algorithm.")

	FrequencySweepExplorer ()

virtual bool	requiresStartingPointArchitecture () const

virtual bool	producesArchitecture () const

virtual bool	requiresHDB () const

virtual bool	requiresSimulationData () const

virtual std::vector< RowID >	explore (const RowID &startPointConfigurationID, const unsigned int &)

void	readParameters ()

void	openHDBs ()

bool	fastEnough (const RowID &id, const int &freq, DSDBManager &dsdb)

DSDBManager::MachineConfiguration	callPlugin (DesignSpaceExplorerPlugin *plugin, const RowID &arch, DSDBManager &dsdb)

Private Attributes
ComponentImplementationSelector	selector_
	Selector used by the plugin.

unsigned int	startMHz_

unsigned int	endMHz_

unsigned int	stepMHz_

std::string	icDec_
	name of the ic decoder plugin for idf

std::string	icDecHDB_
	name of the hdb used by ic decoder

unsigned int	superiority_
	Superirity percentage for the GrowMachine plugin.

Static Private Attributes
static const int	busCountDefault_ = 4
	Default value of busCount_.

static const unsigned int	immSlotBusIndexDefault_ = 0

static const int	registerFileSizeDefault_ = 4

static const int	maxNumberOfRegisterFilesDefault_ = 16

static const int	rfReadPortsDefault_ = 1

static const int	rfWritePortsDefault_ = 1

static const std::string	startMHzPN_

static const std::string	endMHzPN_

static const std::string	stepMHzPN_

static const std::string	icDecPN_

static const std::string	icDecHDBPN_

static const std::string	superiorityPN_

static const std::string	talo

Additional Inherited Members
Public Types inherited from DesignSpaceExplorerPlugin
typedef std::pair< std::string, ExplorerPluginParameter >	Parameter

typedef std::map< std::string, ExplorerPluginParameter >	ParameterMap

typedef std::map< std::string, ExplorerPluginParameter >::iterator	PMIt

typedef std::map< std::string, ExplorerPluginParameter >::const_iterator	PMCIt

Public Member Functions inherited from DesignSpaceExplorerPlugin
virtual bool	requiresApplication () const

virtual std::string	description () const

void	addParameter (TCEString name, ExplorerPluginParameterType type, bool compulsory=true, TCEString defaultValue="", TCEString description="")

template<typename T >
void	readCompulsoryParameter (const std::string paramName, T &param) const

template<typename T >
void	readOptionalParameter (const std::string paramName, T &param) const

template<typename RT >
RT	parameterValue (const std::string &paramName) const

virtual	~DesignSpaceExplorerPlugin ()

virtual void	giveParameter (const std::string &name, const std::string &value)

virtual std::string	name () const

virtual void	setPluginName (const std::string &pluginName)

virtual bool	hasParameter (const std::string &paramName) const

ParameterMap	parameters () const

virtual bool	booleanValue (const std::string &parameter) const

Public Member Functions inherited from DesignSpaceExplorer
	DesignSpaceExplorer ()

virtual	~DesignSpaceExplorer ()

virtual void	setDSDB (DSDBManager &dsdb)

virtual bool	evaluate (const DSDBManager::MachineConfiguration &configuration, CostEstimates &results=dummyEstimate_, bool estimate=false)

virtual DSDBManager &	db ()

std::vector< DesignSpaceExplorerPlugin * >	getPlugins ()

RowID	createImplementationAndStore (const DSDBManager::MachineConfiguration &conf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

bool	createImplementation (const DSDBManager::MachineConfiguration &conf, DSDBManager::MachineConfiguration &newConf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

IDF::MachineImplementation *	selectComponents (const TTAMachine::Machine &mach, const double &frequency=0.0, const double &maxArea=0.0, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb") const

void	createEstimateData (const TTAMachine::Machine &mach, const IDF::MachineImplementation &idf, CostEstimator::AreaInGates &area, CostEstimator::DelayInNanoSeconds &longestPathDelay)

RowID	addConfToDSDB (const DSDBManager::MachineConfiguration &conf)

Static Public Member Functions inherited from DesignSpaceExplorer
static DesignSpaceExplorerPlugin *	loadExplorerPlugin (const std::string &pluginName, DSDBManager *dsdb=NULL)

Protected Member Functions inherited from DesignSpaceExplorerPlugin
	DesignSpaceExplorerPlugin ()

void	checkParameters () const

Protected Member Functions inherited from DesignSpaceExplorer
TTAProgram::Program *	schedule (const std::string applicationFile, TTAMachine::Machine &machine, TCEString paramOptions="-O3")

const ExecutionTrace *	simulate (const TTAProgram::Program &program, const TTAMachine::Machine &machine, const TestApplication &testApplication, const ClockCycleCount &maxCycles, ClockCycleCount &runnedCycles, const bool tracing, const bool useCompiledSimulation=false, std::vector< ClockCycleCount > *executionCounts=NULL)

Protected Attributes inherited from DesignSpaceExplorerPlugin
std::string	pluginName_
	the name of the explorer plugin

ParameterMap	parameters_
	Parameters for the plugin.

Detailed Description

Explorer plugin for finding processor configurations that satisfy the runtime requirements with certain clock frequencies.

Sweeps the user-set allowed frequency range with the given steps and collects all configurations that are suitable for running the given applications in the given clock frequencies.

Uses all HDBs found in the HDB registry to create the configurations.

Supported parameters:

start_freq_mhz, lowest frequency in the swept range in MHz
end_freq_mhz, highest frequency in the range in MHz
step_freq_mhz, frequency step in MHz
ic_dec, name of the ic decoder plugin, default is DefaultICDecoder
ic_hdb, name of the HDB that is used in IC estimation

Definition at line 102 of file FrequencySweepExplorer.cc.

Constructor & Destructor Documentation

◆ FrequencySweepExplorer()

FrequencySweepExplorer::FrequencySweepExplorer ( )

inlineprivate

Definition at line 105 of file FrequencySweepExplorer.cc.

                            : DesignSpaceExplorerPlugin(),
        icDec_("DefaultICDecoder"),
        icDecHDB_("asic_130nm_1.5V.hdb"),
        superiority_(10) {

        // compulsory parameters
        addParameter(startMHzPN_, UINT);
        addParameter(endMHzPN_, UINT);
        addParameter(stepMHzPN_, UINT);

        // parameters that have a default value
        addParameter(icDecPN_, STRING, false, icDec_);
        addParameter(icDecHDBPN_, STRING, false, icDecHDB_);
        addParameter(superiorityPN_, UINT, false,
                Conversion::toString(superiority_));
    }

References DesignSpaceExplorerPlugin::addParameter(), endMHzPN_, icDec_, icDecHDB_, icDecHDBPN_, icDecPN_, startMHzPN_, stepMHzPN_, STRING, superiority_, superiorityPN_, Conversion::toString(), and UINT.

Here is the call graph for this function:

Member Function Documentation

◆ callPlugin()

DSDBManager::MachineConfiguration FrequencySweepExplorer::callPlugin	(	DesignSpaceExplorerPlugin *	plugin,
		const RowID &	arch,
		DSDBManager &	dsdb
	)

inlineprivate

Calls an explorer plugin.

Parameters

plugin	The plugin to be called.
arch	Row id of the architechture to be passed to the plugin.

Returns: dsdb Design space database to be used.

Definition at line 393 of file FrequencySweepExplorer.cc.

                           {

        vector<RowID> resultConfs = plugin->explore(arch);

        DSDBManager::MachineConfiguration resultConf;
        if (resultConfs.size() == 1) {
            resultConf = dsdb.configuration(resultConfs.at(0));
        } else {
            throw InvalidData(
                __FILE__, __LINE__, __func__,
                (boost::format(
                    "%s failed to optimize "
                    "configuration %d. Possible bug in Optimizer,"
                    " Estimator or missing data from HDB."
                    ) % arch % plugin->name()).str());
        }

        if (Application::verboseLevel() > 2) {
            std::ostringstream msg(std::ostringstream::out);
            msg << plugin->name()
                << " plugin produced config: "
                << resultConfs.at(0) << endl;
            verboseLog(msg.str())
        }

        return resultConf;
    }

References __func__, DSDBManager::configuration(), DesignSpaceExplorerPlugin::explore(), DesignSpaceExplorerPlugin::name(), Application::verboseLevel(), and verboseLog.

Referenced by explore().

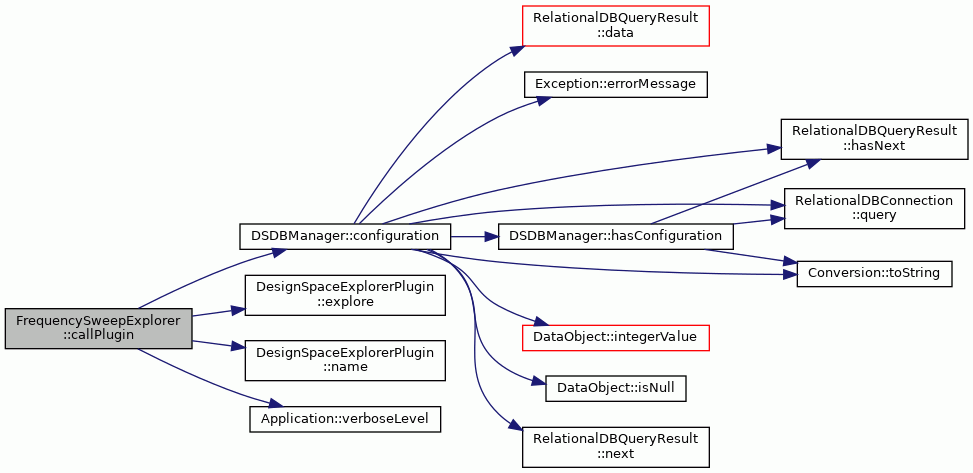

Here is the call graph for this function:

◆ explore()

virtual std::vector< RowID > FrequencySweepExplorer::explore	(	const RowID &	startPointConfigurationID,
		const unsigned int &
	)

inlineprivatevirtual

Explores from the given start configuration.

Parameters

startPointConfigurationID Configuration ID to start the exploration from.

Returns: Returns a set of best found configuration IDs.

Todo:: Optimization of the instruction size not required for 1st version!

Todo:: Final optimization/tuning not required for 1st version!

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 136 of file FrequencySweepExplorer.cc.

                                                                         {

        checkParameters();
        readParameters();

        openHDBs();
        std::vector<RowID> result;

        RowID startPointConfID = startPointConfigurationID;

        // other explorer plugins used
        DesignSpaceExplorerPlugin* icOptimizer =
            DesignSpaceExplorer::loadExplorerPlugin(
                    "SimpleICOptimizer", &db());
        DesignSpaceExplorerPlugin* minimizeMachine =
            DesignSpaceExplorer::loadExplorerPlugin(
                    "MinimizeMachine", &db());
        DesignSpaceExplorerPlugin* growMachine =
            DesignSpaceExplorer::loadExplorerPlugin(
                    "GrowMachine", &db());

        DSDBManager& dsdb = db();

        // Sweep is always done from the lowest frequency towards the highest
        // frequency.
        if (startMHz_ > endMHz_) {
            int tempMHz = startMHz_;
            startMHz_ = endMHz_;
            endMHz_ = tempMHz;
        }

        // helper for returning the stepped frequencies in order
        FrequencySweep sweeper(startMHz_, endMHz_, stepMHz_);

        // parameters for GrowMachine plugin
        growMachine->giveParameter("superiority", Conversion::toString(superiority_));

        // find new configurations by adding components until the cycle
        // count stops going down
        vector<RowID> cycleOptimizedConfs =
            growMachine->explore(startPointConfID);
        if (Application::verboseLevel() > 1) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "GrowMachine plugin produced initial configs: ";
            for (unsigned int i = 0; i < cycleOptimizedConfs.size(); ++i) {
                msg << cycleOptimizedConfs.at(i) << " ";
            }
            msg << endl;
            verboseLog(msg.str())
        }
        delete growMachine;
        growMachine = NULL;

        int currentFrequencyMHz = sweeper.nextFrequency();
        vector<RowID>::const_iterator archIter;
        while (currentFrequencyMHz != 0) {

            verboseLogC("Testing frequency: " + Conversion::toString(
                        currentFrequencyMHz), 3)
            /* Find the configurations that are fast enough for the
               real time requirements of the applications at the
               currently examined frequency. */
            for (archIter = cycleOptimizedConfs.begin();
                 archIter != cycleOptimizedConfs.end();
                 archIter++) {

                verboseLogC("Testing (fast enough) init config: " +
                        Conversion::toString(*archIter), 3)
                // if is fast enough for all apps
                if (fastEnough(*archIter, currentFrequencyMHz, dsdb)) {
                    verboseLogC("Calling minimize machine for init config: " +
                            Conversion::toString(*archIter), 3)

                    // calling MimimizeMachine plugin with confToMinimize
                    // (architer) and currentFrequencyMHz
                    minimizeMachine->giveParameter("frequency",
                            Conversion::toString(currentFrequencyMHz));
                    DSDBManager::MachineConfiguration minConf =
                        callPlugin(minimizeMachine, *archIter, dsdb);

                    // create implementation for configuration
                    RowID selectedConf = createImplementationAndStore(minConf,
                            currentFrequencyMHz, 0, true, icDec_, icDecHDB_);

                    verboseLogC("Implementation selection produced a config: "
                            + Conversion::toString(selectedConf), 3)

                    // check if component selection failed
                    if (selectedConf == 0) {
                        verboseLogC("Component selection failed for minimized"
                            " arch: " + Conversion::toString(
                                minConf.architectureID), 3)
                        continue;
                    }

                    // IC optimization with SimpleICOptimizer plugin
                    vector<RowID> icOptimizedResult =
                        icOptimizer->explore(selectedConf);
                    if (icOptimizedResult.size() == 1) {
                        if (Application::verboseLevel()) {
                            std::ostringstream msg(std::ostringstream::out);
                            msg << "Config " << icOptimizedResult.at(0)
                                << " created for frequency "
                                << currentFrequencyMHz << "." << endl;
                            verboseLogC(msg.str(), 1)
                        }
                        result.push_back(icOptimizedResult.at(0));
                    } else {
                        // simpleICOptimizer can make a machine not fully
                        // connected, and so, register file requirements can
                        // change. Meaning evaluating the machine can fail in
                        // the plugin.
                        verboseLogC("SimpleICOptimzer failed for arch: "
                            + Conversion::toString(selectedConf), 3)
                        continue;
                    }

                    /// @todo Optimization of the instruction size
                    /// not required for 1st version!

                    /// @todo Final optimization/tuning
                    /// not required for 1st version!

                } else {
                    verboseLogC("Init config was too slow.", 3)
                    // the architecture was too slow
                }

            }
            // advance to next frequency
            currentFrequencyMHz = sweeper.nextFrequency();
        }

        delete minimizeMachine;
        minimizeMachine = NULL;
        delete icOptimizer;
        icOptimizer = NULL;

        // Idea:
        // All results will be given to a result explorer that returns
        // the given number of best configuration id:s that can be returned
        // to the user.
        // BestResultExplorer resultExplorer(dsdb, explorer.results());
        // result = resultExplorer.find(5);

        return result;
    }

References DSDBManager::MachineConfiguration::architectureID, callPlugin(), DesignSpaceExplorerPlugin::checkParameters(), DesignSpaceExplorer::createImplementationAndStore(), DesignSpaceExplorer::db(), endMHz_, DesignSpaceExplorerPlugin::explore(), fastEnough(), DesignSpaceExplorerPlugin::giveParameter(), icDec_, icDecHDB_, DesignSpaceExplorer::loadExplorerPlugin(), FrequencySweep::nextFrequency(), openHDBs(), readParameters(), startMHz_, stepMHz_, superiority_, Conversion::toString(), Application::verboseLevel(), verboseLog, and verboseLogC.

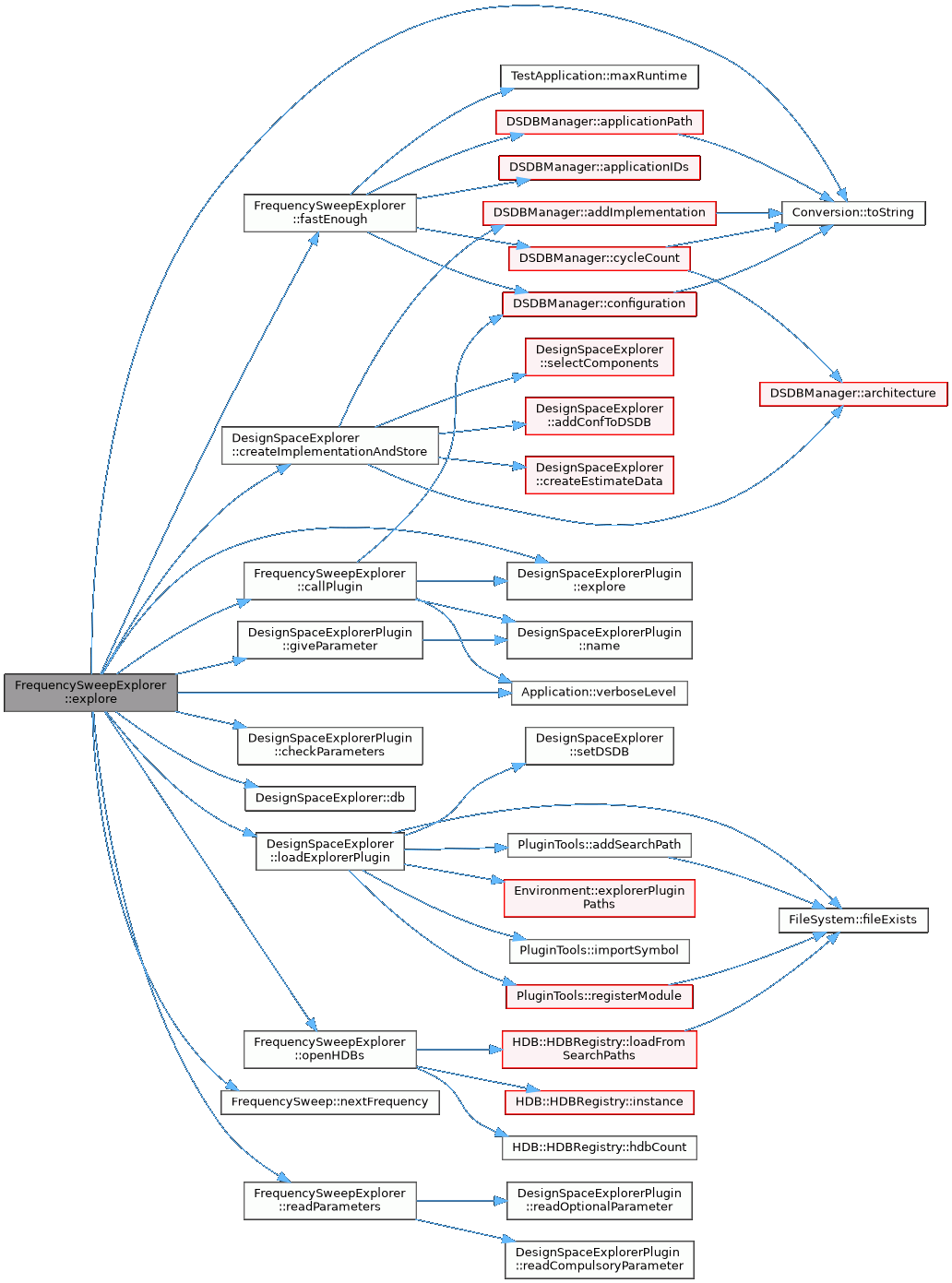

Here is the call graph for this function:

◆ fastEnough()

bool FrequencySweepExplorer::fastEnough	(	const RowID &	id,
		const int &	freq,
		DSDBManager &	dsdb
	)

inlineprivate

Check if architecture is fast enough.

Parameters

id	Row id of the architecture.
freq	Frequency in MHz for testing the run time.
dsdb	Desing Space Explorer database.

Definition at line 356 of file FrequencySweepExplorer.cc.

                                                                         {
        set<RowID>::const_iterator applicationIter;
        set<RowID> applicationIDs = dsdb.applicationIDs();
        DSDBManager::MachineConfiguration configuration =
            dsdb.configuration(id);
        for (applicationIter = applicationIDs.begin();
                applicationIter != applicationIDs.end();
                applicationIter++) {

            ClockCycleCount cycleCount =
                dsdb.cycleCount(
                        *applicationIter, configuration.architectureID);
            TestApplication testApplication(
                    dsdb.applicationPath(*applicationIter));
            // test if application max runtime is set
            if (testApplication.maxRuntime() <= 0) {
                continue;
            }

            if ((static_cast<double>(cycleCount) / (static_cast<double>(freq) * static_cast<double>(1000000))) >
                    testApplication.maxRuntime()) {
                // we can skip this architecture since it won't
                // meet the speed requirements
                return false;
            }
        }
        return true;
    }

References DSDBManager::applicationIDs(), DSDBManager::applicationPath(), DSDBManager::MachineConfiguration::architectureID, DSDBManager::configuration(), DSDBManager::cycleCount(), and TestApplication::maxRuntime().

Referenced by explore().

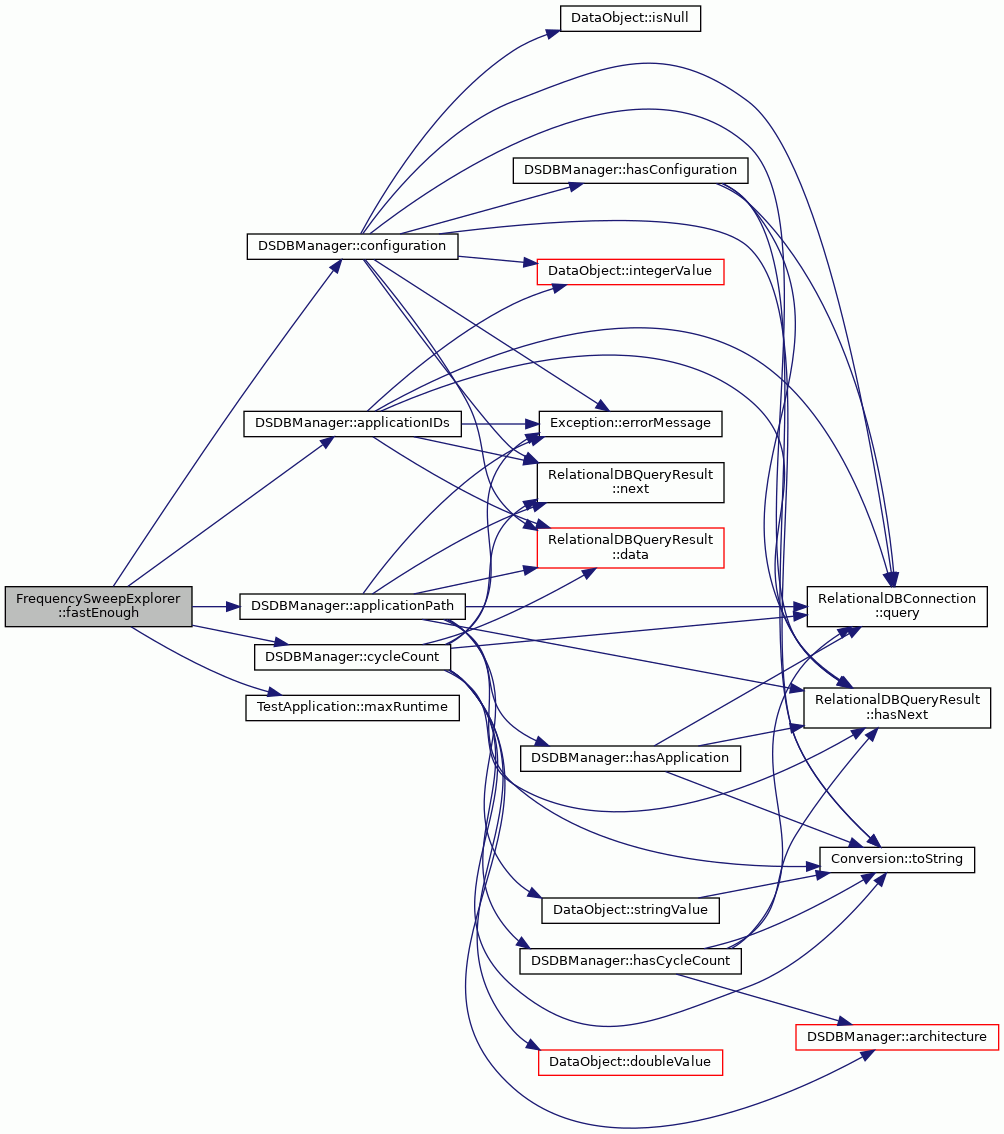

Here is the call graph for this function:

◆ openHDBs()

void FrequencySweepExplorer::openHDBs ( )

inlineprivate

Loads HDBs that are used into the registry.

Definition at line 339 of file FrequencySweepExplorer.cc.

                    {
        HDBRegistry& hdbRegistry = HDBRegistry::instance();

        // if HDBRegistry contains no HDBManagers load from default paths
        if (hdbRegistry.hdbCount() == 0) {
            hdbRegistry.loadFromSearchPaths();
        }
    }

References HDB::HDBRegistry::hdbCount(), HDB::HDBRegistry::instance(), and HDB::HDBRegistry::loadFromSearchPaths().

Referenced by explore().

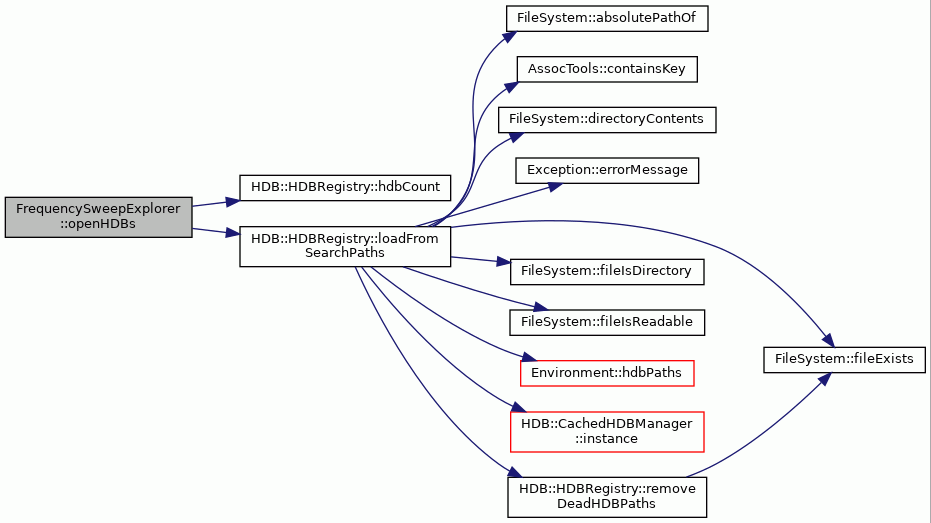

Here is the call graph for this function:

◆ PLUGIN_DESCRIPTION()

FrequencySweepExplorer::PLUGIN_DESCRIPTION ( "Frequency sweep algorithm." )

private

◆ producesArchitecture()

virtual bool FrequencySweepExplorer::producesArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 123 of file FrequencySweepExplorer.cc.

123{ return false; }

◆ readParameters()

void FrequencySweepExplorer::readParameters ( )

inlineprivate

Reads the parameters given to the plugin.

Definition at line 323 of file FrequencySweepExplorer.cc.

                          {
        // compulsory parameters
        readCompulsoryParameter(startMHzPN_, startMHz_);
        readCompulsoryParameter(endMHzPN_, endMHz_);
        readCompulsoryParameter(stepMHzPN_, stepMHz_);

        // optional parameters
        readOptionalParameter(icDecPN_, icDec_);
        readOptionalParameter(icDecHDBPN_, icDecHDB_);
        readOptionalParameter(superiorityPN_, superiority_);
    }

References endMHz_, endMHzPN_, icDec_, icDecHDB_, icDecHDBPN_, icDecPN_, DesignSpaceExplorerPlugin::readCompulsoryParameter(), DesignSpaceExplorerPlugin::readOptionalParameter(), startMHz_, startMHzPN_, stepMHz_, stepMHzPN_, superiority_, and superiorityPN_.

Referenced by explore().

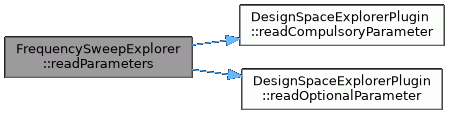

Here is the call graph for this function:

◆ requiresHDB()

virtual bool FrequencySweepExplorer::requiresHDB ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 124 of file FrequencySweepExplorer.cc.

124{ return true; }

◆ requiresSimulationData()

virtual bool FrequencySweepExplorer::requiresSimulationData ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 125 of file FrequencySweepExplorer.cc.

125{ return false; }

◆ requiresStartingPointArchitecture()

virtual bool FrequencySweepExplorer::requiresStartingPointArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 122 of file FrequencySweepExplorer.cc.

122{ return true; }

Member Data Documentation

◆ busCountDefault_

const int FrequencySweepExplorer::busCountDefault_ = 4

staticprivate

Default value of busCount_.

Definition at line 288 of file FrequencySweepExplorer.cc.

◆ endMHz_

unsigned int FrequencySweepExplorer::endMHz_

private

Definition at line 308 of file FrequencySweepExplorer.cc.

Referenced by explore(), and readParameters().

◆ endMHzPN_

const std::string FrequencySweepExplorer::endMHzPN_

staticprivate

Definition at line 299 of file FrequencySweepExplorer.cc.

Referenced by FrequencySweepExplorer(), and readParameters().

◆ icDec_

std::string FrequencySweepExplorer::icDec_

private

name of the ic decoder plugin for idf

Definition at line 312 of file FrequencySweepExplorer.cc.

Referenced by explore(), FrequencySweepExplorer(), and readParameters().

◆ icDecHDB_

std::string FrequencySweepExplorer::icDecHDB_

private

name of the hdb used by ic decoder

Definition at line 314 of file FrequencySweepExplorer.cc.

Referenced by explore(), FrequencySweepExplorer(), and readParameters().

◆ icDecHDBPN_

const std::string FrequencySweepExplorer::icDecHDBPN_

staticprivate

Definition at line 303 of file FrequencySweepExplorer.cc.

Referenced by FrequencySweepExplorer(), and readParameters().

◆ icDecPN_

const std::string FrequencySweepExplorer::icDecPN_

staticprivate

Definition at line 302 of file FrequencySweepExplorer.cc.

Referenced by FrequencySweepExplorer(), and readParameters().

◆ immSlotBusIndexDefault_

const unsigned int FrequencySweepExplorer::immSlotBusIndexDefault_ = 0

staticprivate

Definition at line 290 of file FrequencySweepExplorer.cc.

◆ maxNumberOfRegisterFilesDefault_

const int FrequencySweepExplorer::maxNumberOfRegisterFilesDefault_ = 16

staticprivate

Definition at line 293 of file FrequencySweepExplorer.cc.

◆ registerFileSizeDefault_

const int FrequencySweepExplorer::registerFileSizeDefault_ = 4

staticprivate

Definition at line 292 of file FrequencySweepExplorer.cc.

◆ rfReadPortsDefault_

const int FrequencySweepExplorer::rfReadPortsDefault_ = 1

staticprivate

Definition at line 294 of file FrequencySweepExplorer.cc.

◆ rfWritePortsDefault_

const int FrequencySweepExplorer::rfWritePortsDefault_ = 1

staticprivate

Definition at line 295 of file FrequencySweepExplorer.cc.

◆ selector_

ComponentImplementationSelector FrequencySweepExplorer::selector_

private

Selector used by the plugin.

Definition at line 286 of file FrequencySweepExplorer.cc.

◆ startMHz_

unsigned int FrequencySweepExplorer::startMHz_

private

Definition at line 307 of file FrequencySweepExplorer.cc.

Referenced by explore(), and readParameters().

◆ startMHzPN_

const std::string FrequencySweepExplorer::startMHzPN_

staticprivate

Definition at line 298 of file FrequencySweepExplorer.cc.

Referenced by FrequencySweepExplorer(), and readParameters().

◆ stepMHz_

unsigned int FrequencySweepExplorer::stepMHz_

private

Definition at line 309 of file FrequencySweepExplorer.cc.

Referenced by explore(), and readParameters().

◆ stepMHzPN_

const std::string FrequencySweepExplorer::stepMHzPN_

staticprivate

Definition at line 300 of file FrequencySweepExplorer.cc.

Referenced by FrequencySweepExplorer(), and readParameters().

◆ superiority_

unsigned int FrequencySweepExplorer::superiority_

private

Superirity percentage for the GrowMachine plugin.

Definition at line 316 of file FrequencySweepExplorer.cc.

Referenced by explore(), FrequencySweepExplorer(), and readParameters().

◆ superiorityPN_

const std::string FrequencySweepExplorer::superiorityPN_

staticprivate

Definition at line 304 of file FrequencySweepExplorer.cc.

Referenced by FrequencySweepExplorer(), and readParameters().

◆ talo

const std::string FrequencySweepExplorer::talo

staticprivate

Definition at line 318 of file FrequencySweepExplorer.cc.

The documentation for this class was generated from the following file:

FrequencySweepExplorer.cc

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FrequencySweepExplorer()

Member Function Documentation

◆ callPlugin()

◆ explore()

◆ fastEnough()

◆ openHDBs()

◆ PLUGIN_DESCRIPTION()

◆ producesArchitecture()

◆ readParameters()

◆ requiresHDB()

◆ requiresSimulationData()

◆ requiresStartingPointArchitecture()

Member Data Documentation

◆ busCountDefault_

◆ endMHz_

◆ endMHzPN_

◆ icDec_

◆ icDecHDB_

◆ icDecHDBPN_

◆ icDecPN_

◆ immSlotBusIndexDefault_

◆ maxNumberOfRegisterFilesDefault_

◆ registerFileSizeDefault_

◆ rfReadPortsDefault_

◆ rfWritePortsDefault_

◆ selector_

◆ startMHz_

◆ startMHzPN_

◆ stepMHz_

◆ stepMHzPN_

◆ superiority_

◆ superiorityPN_

◆ talo
