HDBEditorMainFrame Class Reference

#include <HDBEditorMainFrame.hh>

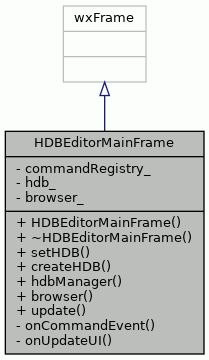

Inheritance diagram for HDBEditorMainFrame:

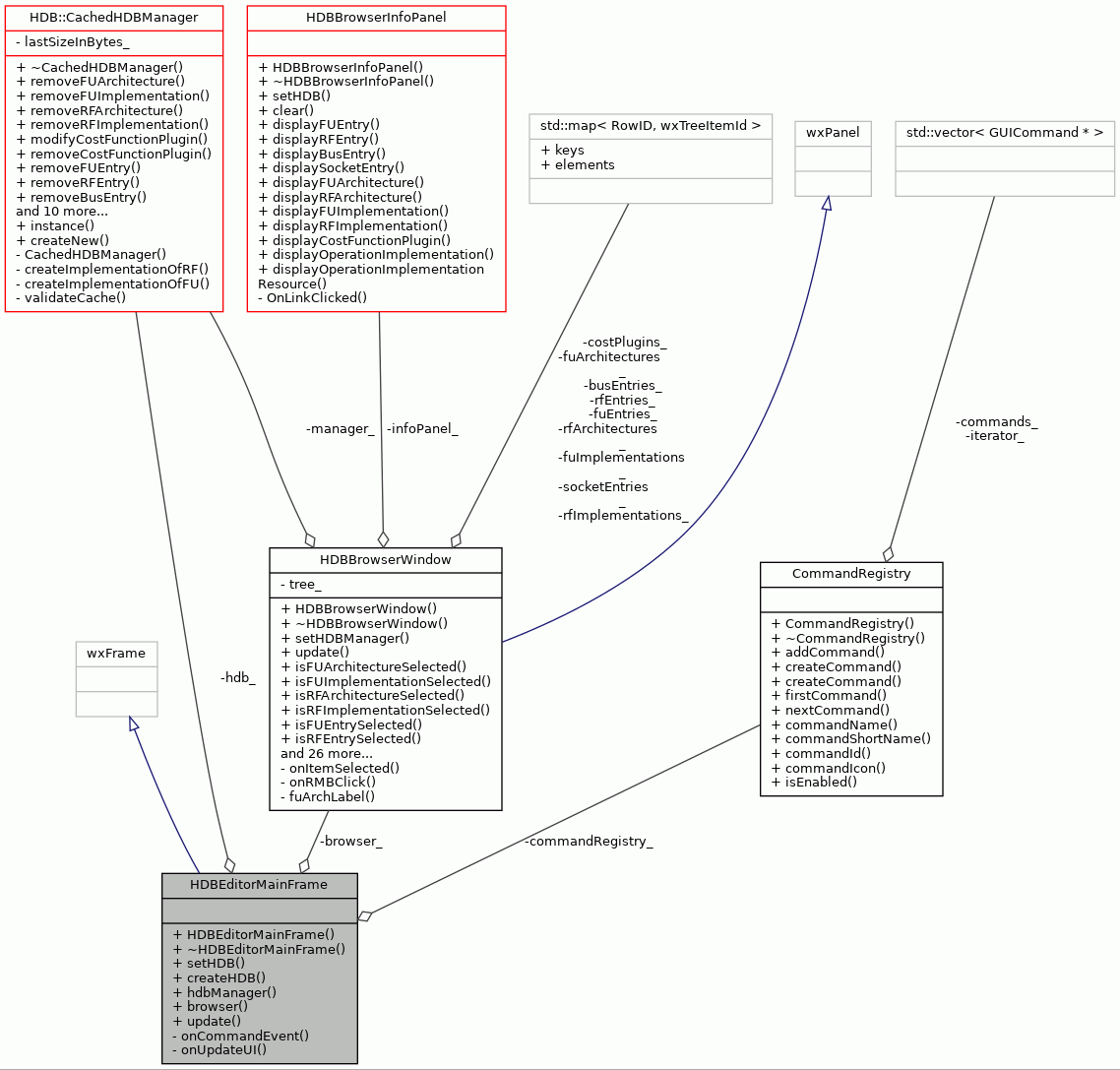

Collaboration diagram for HDBEditorMainFrame:

Public Member Functions
	HDBEditorMainFrame (const wxString &title, const wxPoint &position, const wxSize &size)
virtual	~HDBEditorMainFrame ()
bool	setHDB (const std::string &hdbFile)
bool	createHDB (const std::string &filePath)
HDB::HDBManager *	hdbManager ()
HDBBrowserWindow *	browser () const
void	update ()

Private Member Functions
void	onCommandEvent (wxCommandEvent &event)
void	onUpdateUI (wxUpdateUIEvent &event)

Private Attributes
CommandRegistry *	commandRegistry_
	Command registry.
HDB::CachedHDBManager *	hdb_
HDBBrowserWindow *	browser_

Detailed Description

Main window of the editor.

Definition at line 50 of file HDBEditorMainFrame.hh.

Constructor & Destructor Documentation

HDBEditorMainFrame()

HDBEditorMainFrame::HDBEditorMainFrame	(	const wxString &	title,
		const wxPoint &	position,
		const wxSize &	size
	)

The Constructor.

Parameters

title	Title of the MainFrame.
position	Position of the MainFrame on the screen.
size	Size of the MainFrame on the screen.

Definition at line 83 of file HDBEditorMainFrame.cc.

                       :
    wxFrame(NULL, -1, title, position, size),
    hdb_(NULL) {

    commandRegistry_ = new CommandRegistry();

    wxBoxSizer* sizer = new wxBoxSizer(wxHORIZONTAL);
    browser_ = new HDBBrowserWindow(this, -1);
    sizer->Add(browser_, 1, wxGROW);
    Fit();

    // Create the default menubar.
    wxMenu* fileMenu = new wxMenu;
    fileMenu->Append(HDBEditorConstants::COMMAND_OPEN_HDB, _T("&Open HDB..."));
    fileMenu->Append(
        HDBEditorConstants::COMMAND_CREATE_HDB, _T("&Create HDB..."));
    fileMenu->AppendSeparator();
    fileMenu->Append(HDBEditorConstants::COMMAND_QUIT, _T("&Quit"));

    wxMenu* editMenu = new wxMenu;
    wxMenu* addSubMenu = new wxMenu;

    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_FU_FROM_ADF,
        _T("FU Architecture From ADF..."));
    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_RF_ARCHITECTURE,
        _T("RF Architecture..."));
    addSubMenu->AppendSeparator();

    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_OPERATION_IMPLEMENTATION_RESOURCE,
        _T("Operation Implementation Resource..."));
    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_OPERATION_IMPLEMENTATION,
        _T("Operation Implementation..."));
    addSubMenu->AppendSeparator();

    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_FU_IMPLEMENTATION,
        _T("FU Entry Implementation..."));
    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_RF_IMPLEMENTATION,
        _T("RF Entry Implementation..."));

    addSubMenu->AppendSeparator();
    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_FU_ENTRY, _T("FU Entry"));

    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_RF_ENTRY, _T("RF Entry"));
    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_BUS_ENTRY, _T("Bus Entry"));

    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_SOCKET_ENTRY, _T("Socket Entry"));

    addSubMenu->AppendSeparator();
    addSubMenu->Append(
        HDBEditorConstants::COMMAND_ADD_COST_PLUGIN,
        _T("Cost Function Plugin..."));
    editMenu->Append(-1, _T("Add"), addSubMenu);
    editMenu->AppendSeparator();
    editMenu->Append(
        HDBEditorConstants::COMMAND_SET_COST_PLUGIN,
        _T("Set Cost Function Plugin"));

    editMenu->AppendSeparator();
    editMenu->Append(HDBEditorConstants::COMMAND_DELETE, _T("Delete"));
    editMenu->Append(HDBEditorConstants::COMMAND_MODIFY, _T("Modify..."));

    wxMenu* helpMenu = new wxMenu;

    helpMenu->Append(UserManualCmd::COMMAND_ID, _T("User Manual..."));
    helpMenu->Append(HDBEditorConstants::COMMAND_ABOUT, _T("About..."));

    wxMenuBar* menuBar = new wxMenuBar;
    menuBar->Append(fileMenu, _T("&File"));
    menuBar->Append(editMenu, _T("&Edit"));
    menuBar->Append(helpMenu, _T("&Help"));
    SetMenuBar(menuBar);

    CreateStatusBar();
    SetSizer(sizer);

    commandRegistry_->addCommand(new OpenHDBCmd());
    commandRegistry_->addCommand(new CreateHDBCmd());
    commandRegistry_->addCommand(new HDBEditorDeleteCmd());
    commandRegistry_->addCommand(new HDBEditorModifyCmd());
    commandRegistry_->addCommand(new AddFUArchFromADFCmd());
    commandRegistry_->addCommand(new HDBEditorQuitCmd());
    commandRegistry_->addCommand(new AddFUImplementationCmd());
    commandRegistry_->addCommand(new AddRFArchitectureCmd());
    commandRegistry_->addCommand(new AddRFImplementationCmd());
    commandRegistry_->addCommand(new AddFUEntryCmd());
    commandRegistry_->addCommand(new AddRFEntryCmd());
    commandRegistry_->addCommand(new AddBusEntryCmd());
    commandRegistry_->addCommand(new AddSocketEntryCmd());
    commandRegistry_->addCommand(new AddCostFunctionPluginCmd());
    commandRegistry_->addCommand(new SetCostFunctionPluginCmd());
    commandRegistry_->addCommand(new HDBEditorAboutCmd());
    commandRegistry_->addCommand(new UserManualCmd());
    commandRegistry_->addCommand(new AddOperationImplementationCmd());
    commandRegistry_->addCommand(new AddOperationImplementationResourceCmd());

    SetSizeHints(400,300);
    SetSize(600, 400);
}

References HDBEditorConstants::COMMAND_ABOUT, HDBEditorConstants::COMMAND_ADD_BUS_ENTRY, HDBEditorConstants::COMMAND_ADD_COST_PLUGIN, HDBEditorConstants::COMMAND_ADD_FU_ENTRY, HDBEditorConstants::COMMAND_ADD_FU_FROM_ADF, HDBEditorConstants::COMMAND_ADD_FU_IMPLEMENTATION, HDBEditorConstants::COMMAND_ADD_OPERATION_IMPLEMENTATION, HDBEditorConstants::COMMAND_ADD_OPERATION_IMPLEMENTATION_RESOURCE, HDBEditorConstants::COMMAND_ADD_RF_ARCHITECTURE, HDBEditorConstants::COMMAND_ADD_RF_ENTRY, HDBEditorConstants::COMMAND_ADD_RF_IMPLEMENTATION, HDBEditorConstants::COMMAND_ADD_SOCKET_ENTRY, HDBEditorConstants::COMMAND_CREATE_HDB, HDBEditorConstants::COMMAND_DELETE, UserManualCmd::COMMAND_ID, HDBEditorConstants::COMMAND_MODIFY, HDBEditorConstants::COMMAND_OPEN_HDB, HDBEditorConstants::COMMAND_QUIT, and HDBEditorConstants::COMMAND_SET_COST_PLUGIN.

~HDBEditorMainFrame()

HDBEditorMainFrame::~HDBEditorMainFrame ( )

virtual

The Destructor.

Definition at line 199 of file HDBEditorMainFrame.cc.

                                        {
}

Member Function Documentation

browser()

HDBBrowserWindow * HDBEditorMainFrame::browser

(

)

const

Returns pointer to the HDB browser window.

Returns

HDB Browser window of the application.

Definition at line 335 of file HDBEditorMainFrame.cc.

                                  {
    return browser_;
}

References browser_.

Referenced by HDBEditor::browser().

createHDB()

bool HDBEditorMainFrame::createHDB

(

const std::string &

filePath

)

Creates a new HDB and opens it in the main frame.

Parameters

filePath

Full path of the HDB to be created.

Returns

True, if the HDB was succesfully created and opened, false if not.

Definition at line 283 of file HDBEditorMainFrame.cc.

                                                       {

    if (hdb_ != NULL) {
        hdb_ = NULL;
    }

    try {
        hdb_ = &HDB::CachedHDBManager::createNew(filePath);
    } catch (Exception& e) {
        wxString message = _T("Error creating HDB ");
        message.Append(WxConversion::toWxString(filePath));
        message.Append(_T(":\n\n"));
        message.Append(WxConversion::toWxString(e.errorMessage()));
        ErrorDialog dialog(this, message);
        dialog.ShowModal();
        return false;
    }

    browser_->setHDBManager(*hdb_);
    std::string title = "HDB Editor - " + FileSystem::fileOfPath(filePath);
    SetTitle(WxConversion::toWxString(title));

    return true;

}

References browser_, HDB::CachedHDBManager::createNew(), Exception::errorMessage(), FileSystem::fileOfPath(), hdb_, HDBBrowserWindow::setHDBManager(), and WxConversion::toWxString().

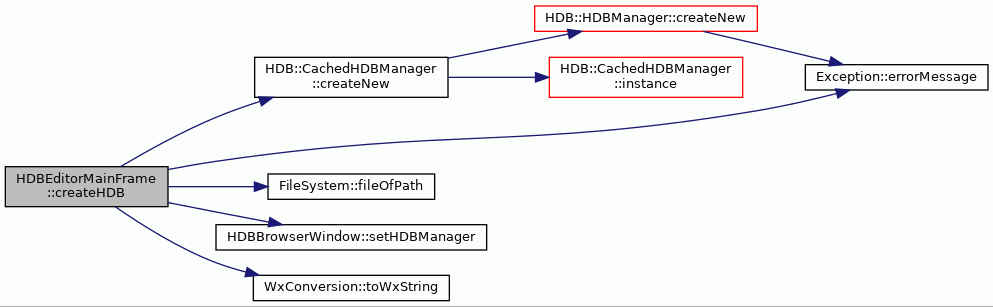

Here is the call graph for this function:

hdbManager()

HDB::HDBManager * HDBEditorMainFrame::hdbManager

(

)

Returns pointer to the HDBManager managing the current HDB.

Returns

Pointer to the HDBManager of the main frame.

Definition at line 315 of file HDBEditorMainFrame.cc.

                               {
    return hdb_;
}

References hdb_.

onCommandEvent()

void HDBEditorMainFrame::onCommandEvent ( wxCommandEvent &  event )

private

Handles menu and toolbar events.

Parameters

event

Event to handle.

Definition at line 210 of file HDBEditorMainFrame.cc.

                                                        {

    GUICommand* command = commandRegistry_->createCommand(event.GetId());

    if (command == NULL) {
    ErrorDialog dialog(
            this, _T("No handler found for the command event!"));
    dialog.ShowModal();
    return;
    }

    command->setParentWindow(this);
    command->Do();
}

References commandRegistry_, CommandRegistry::createCommand(), GUICommand::Do(), and GUICommand::setParentWindow().

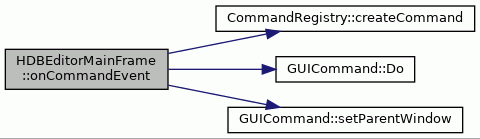

Here is the call graph for this function:

onUpdateUI()

void HDBEditorMainFrame::onUpdateUI ( wxUpdateUIEvent &  event )

private

Updates toolbar and menubar item enabled/disabled states.

Parameters

event

Update event for the menu or toolbar item to be updated.

Definition at line 231 of file HDBEditorMainFrame.cc.

                                                     {

    GUICommand* command = commandRegistry_->createCommand(event.GetId());

    if (command == NULL || command->isEnabled()) {
    event.Enable(true);
    } else {
    event.Enable(false);
    }

    delete command;
}

References commandRegistry_, CommandRegistry::createCommand(), and GUICommand::isEnabled().

Here is the call graph for this function:

setHDB()

bool HDBEditorMainFrame::setHDB

(

const std::string &

hdbFile

)

Sets the HDB to be displayed and modified with the main frame.

Parameters

HDB	to be opened in the main frame.

Returns

True, if the HDB was succesfully opened, false if not.

Definition at line 252 of file HDBEditorMainFrame.cc.

                                                   {

    if (hdb_ != NULL) {
        hdb_ = NULL;
    }

    try {
        hdb_ = &HDB::HDBRegistry::instance().hdb(hdbFile);
    } catch (Exception& e) {
        wxString message = _T("Error opening HDB ");
        message.Append(WxConversion::toWxString(hdbFile));
        message.Append(_T(":\n\n"));
        message.Append(WxConversion::toWxString(e.errorMessage()));
        ErrorDialog dialog(this, message);
        dialog.ShowModal();
        return false;
    }

    browser_->setHDBManager(*hdb_);
    std::string title = "HDB Editor - " + FileSystem::fileOfPath(hdbFile);
    SetTitle(WxConversion::toWxString(title));
    return true;
}

References browser_, Exception::errorMessage(), FileSystem::fileOfPath(), HDB::HDBRegistry::hdb(), hdb_, HDB::HDBRegistry::instance(), HDBBrowserWindow::setHDBManager(), and WxConversion::toWxString().

Referenced by HDBEditor::OnInit().

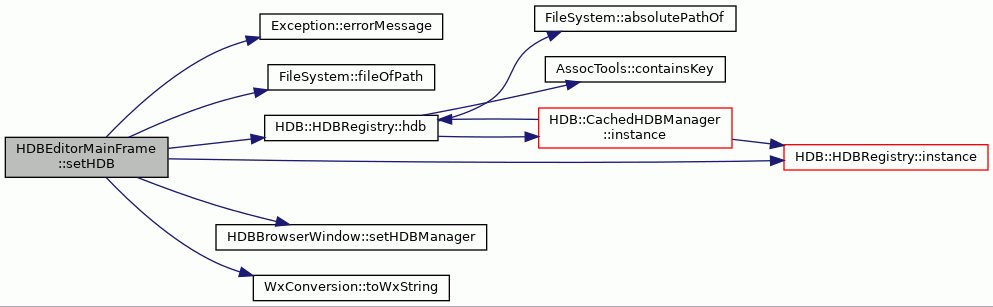

Here is the call graph for this function:

update()

void HDBEditorMainFrame::update

(

)

Updates the HDB window.

Definition at line 324 of file HDBEditorMainFrame.cc.

                           {
    browser_->update();
}

References browser_, and HDBBrowserWindow::update().

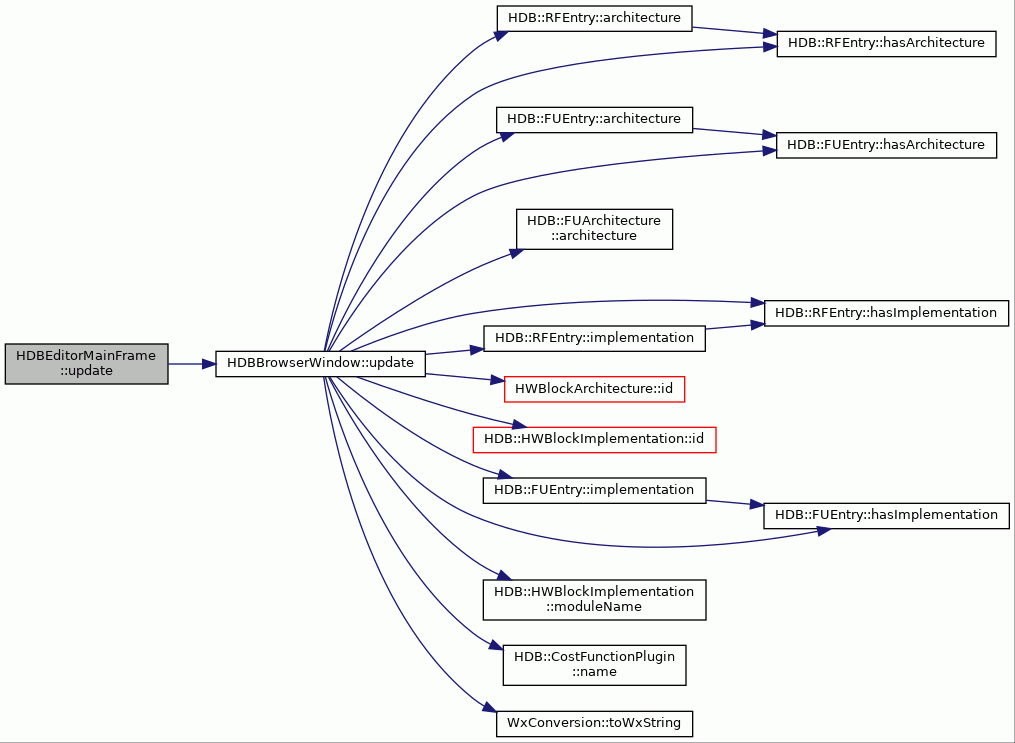

Here is the call graph for this function:

Member Data Documentation

browser_

HDBBrowserWindow* HDBEditorMainFrame::browser_

private

Definition at line 72 of file HDBEditorMainFrame.hh.

Referenced by browser(), createHDB(), setHDB(), and update().

commandRegistry_

CommandRegistry* HDBEditorMainFrame::commandRegistry_

private

Command registry.

Definition at line 69 of file HDBEditorMainFrame.hh.

Referenced by onCommandEvent(), and onUpdateUI().

hdb_

HDB::CachedHDBManager* HDBEditorMainFrame::hdb_

private

Definition at line 71 of file HDBEditorMainFrame.hh.

Referenced by createHDB(), hdbManager(), and setHDB().

---

The documentation for this class was generated from the following files:

• HDBEditorMainFrame.hh
• HDBEditorMainFrame.cc
