InterpolatingRFEstimator Class Reference

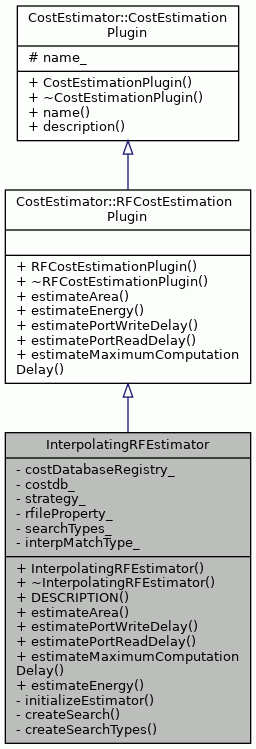

Inheritance diagram for InterpolatingRFEstimator:

Collaboration diagram for InterpolatingRFEstimator:

Public Member Functions
	InterpolatingRFEstimator (const std::string &name)
virtual	~InterpolatingRFEstimator ()
	DESCRIPTION ("RF cost estimator plugin that estimates costs of RFs by generating" "cost database from cost values of HDB and uses interpolation to " "estimate the costs. In case there's no cost data available for the " "given RF the plugin interpolates the estimate if possible.")
bool	estimateArea (const TTAMachine::BaseRegisterFile &rf, const IDF::RFImplementationLocation &, AreaInGates &area, HDB::HDBManager &hdb)
bool	estimatePortWriteDelay (const TTAMachine::RFPort &port, const IDF::RFImplementationLocation &, DelayInNanoSeconds &delay, HDB::HDBManager &hdb)
bool	estimatePortReadDelay (const TTAMachine::RFPort &port, const IDF::RFImplementationLocation &, DelayInNanoSeconds &delay, HDB::HDBManager &hdb)
bool	estimateMaximumComputationDelay (const TTAMachine::BaseRegisterFile &rf, const IDF::RFImplementationLocation &, DelayInNanoSeconds &delay, HDB::HDBManager &hdb)
bool	estimateEnergy (const TTAMachine::BaseRegisterFile &rf, const IDF::RFImplementationLocation &, const TTAProgram::Program &, const ExecutionTrace &trace, EnergyInMilliJoules &energy, HDB::HDBManager &hdb)
Public Member Functions inherited from CostEstimator::RFCostEstimationPlugin
	RFCostEstimationPlugin (const std::string &name)
virtual	~RFCostEstimationPlugin ()
Public Member Functions inherited from CostEstimator::CostEstimationPlugin
	CostEstimationPlugin (const std::string &name)
virtual	~CostEstimationPlugin ()
virtual std::string	name () const
virtual std::string	description () const

Private Types
typedef std::map< const EntryKeyProperty *, CostDBTypes::MatchTypeTable >	MatchTypeMap
	Search type for each entry type.

Private Member Functions
void	initializeEstimator (const HDBManager &hdb)
CostDBTypes::EntryTable	createSearch (const BaseRegisterFile &rf) const
void	createSearchTypes ()

Private Attributes
CostDatabaseRegistry *	costDatabaseRegistry_
	Registry of cost databases.
CostDatabase *	costdb_
	Cost database being used.
SearchStrategy *	strategy_
	Search strategy to be used with the cost database.
EntryKeyProperty *	rfileProperty_
	Entry key property of register file.
MatchTypeMap	searchTypes_
	Types of matches used for searching entries from the cost database.
CostDBTypes::MatchTypeTable	interpMatchType_
	Table of types of match.

Additional Inherited Members
Protected Attributes inherited from CostEstimator::CostEstimationPlugin
std::string	name_
	the name of the plugin class in the HDB; used to identify cost data

Detailed Description

Definition at line 55 of file InterpolatingRFEstimator.cc.

Member Typedef Documentation

MatchTypeMap

typedef std::map< const EntryKeyProperty*, CostDBTypes::MatchTypeTable> InterpolatingRFEstimator::MatchTypeMap

private

Search type for each entry type.

Definition at line 414 of file InterpolatingRFEstimator.cc.

Constructor & Destructor Documentation

InterpolatingRFEstimator()

InterpolatingRFEstimator::InterpolatingRFEstimator ( const std::string &  name )

inline

Definition at line 57 of file InterpolatingRFEstimator.cc.

                                                    :
        RFCostEstimationPlugin(name) {
        costDatabaseRegistry_ = &CostDatabaseRegistry::instance();
    }

References costDatabaseRegistry_, and CostDatabaseRegistry::instance().

Here is the call graph for this function:

~InterpolatingRFEstimator()

virtual InterpolatingRFEstimator::~InterpolatingRFEstimator ( )

inlinevirtual

Definition at line 62 of file InterpolatingRFEstimator.cc.

                                        {
    }

Member Function Documentation

createSearch()

CostDBTypes::EntryTable InterpolatingRFEstimator::createSearch ( const BaseRegisterFile &  rf ) const

inlineprivate

Creates a search to cost database to find entries matching the given register file.

Parameters

rf	Register file which matches are searched.

Returns

Returns entries that matched the register file.

Definition at line 444 of file InterpolatingRFEstimator.cc.

                                               {
    CostDBTypes::EntryTable results;

    RFArchitecture rfArch(&rf);

    CostDBEntryKey* searchKey = new CostDBEntryKey(rfileProperty_);
    searchKey->addField(
        new EntryKeyField(
            new EntryKeyDataInt(rfArch.size()),
            rfileProperty_->fieldProperty(
                CostDBTypes::EKF_NUM_REGISTERS)));
    searchKey->addField(
        new EntryKeyField(
            new EntryKeyDataInt(rfArch.readPortCount()),
            rfileProperty_->fieldProperty(
                CostDBTypes::EKF_READ_PORTS)));
    searchKey->addField(
        new EntryKeyField(
            new EntryKeyDataInt(rfArch.writePortCount()),
            rfileProperty_->fieldProperty(
                CostDBTypes::EKF_WRITE_PORTS)));
    searchKey->addField(
        new EntryKeyField(
            new EntryKeyDataInt(rfArch.width()),
            rfileProperty_->fieldProperty(CostDBTypes::EKF_BIT_WIDTH)));
    searchKey->addField(
        new EntryKeyField(
            new EntryKeyDataInt(rfArch.latency()),
            rfileProperty_->fieldProperty(CostDBTypes::EKF_LATENCY)));
    searchKey->addField(
        new EntryKeyField(
            new EntryKeyDataInt(rfArch.bidirPortCount()),
            rfileProperty_->fieldProperty(
                CostDBTypes::EKF_BIDIR_PORTS)));
    searchKey->addField(
        new EntryKeyField(
            new EntryKeyDataInt(rfArch.maxReads()),
            rfileProperty_->fieldProperty(
                CostDBTypes::EKF_MAX_READS)));
    searchKey->addField(
        new EntryKeyField(
            new EntryKeyDataInt(rfArch.maxWrites()),
            rfileProperty_->fieldProperty(
                CostDBTypes::EKF_MAX_WRITES)));
    searchKey->addField(
        new EntryKeyField(
            new EntryKeyDataBool(rfArch.hasGuardSupport()),
            rfileProperty_->fieldProperty(
                CostDBTypes::EKF_GUARD_SUPPORT)));
    searchKey->addField(
        new EntryKeyField(
            new EntryKeyDataInt(rfArch.guardLatency()),
            rfileProperty_->fieldProperty(
                CostDBTypes::EKF_GUARD_LATENCY)));

    // Perform a database query.
    try {
        results = costdb_->search(*searchKey, interpMatchType_);
    } catch (Exception& e) {
        delete searchKey;
        searchKey = 0;
        throw e;
    }
    delete searchKey;
    searchKey = 0;
    return results;
}

References CostDBEntryKey::addField(), HDB::RFArchitecture::bidirPortCount(), costdb_, CostDBTypes::EKF_BIDIR_PORTS, CostDBTypes::EKF_BIT_WIDTH, CostDBTypes::EKF_GUARD_LATENCY, CostDBTypes::EKF_GUARD_SUPPORT, CostDBTypes::EKF_LATENCY, CostDBTypes::EKF_MAX_READS, CostDBTypes::EKF_MAX_WRITES, CostDBTypes::EKF_NUM_REGISTERS, CostDBTypes::EKF_READ_PORTS, CostDBTypes::EKF_WRITE_PORTS, EntryKeyProperty::fieldProperty(), HDB::RFArchitecture::guardLatency(), HDB::RFArchitecture::hasGuardSupport(), interpMatchType_, HDB::RFArchitecture::latency(), HDB::RFArchitecture::maxReads(), HDB::RFArchitecture::maxWrites(), HDB::RFArchitecture::readPortCount(), rfileProperty_, CostDatabase::search(), HDB::RFArchitecture::size(), HDB::RFArchitecture::width(), and HDB::RFArchitecture::writePortCount().

Referenced by estimateArea(), estimateEnergy(), estimateMaximumComputationDelay(), estimatePortReadDelay(), and estimatePortWriteDelay().

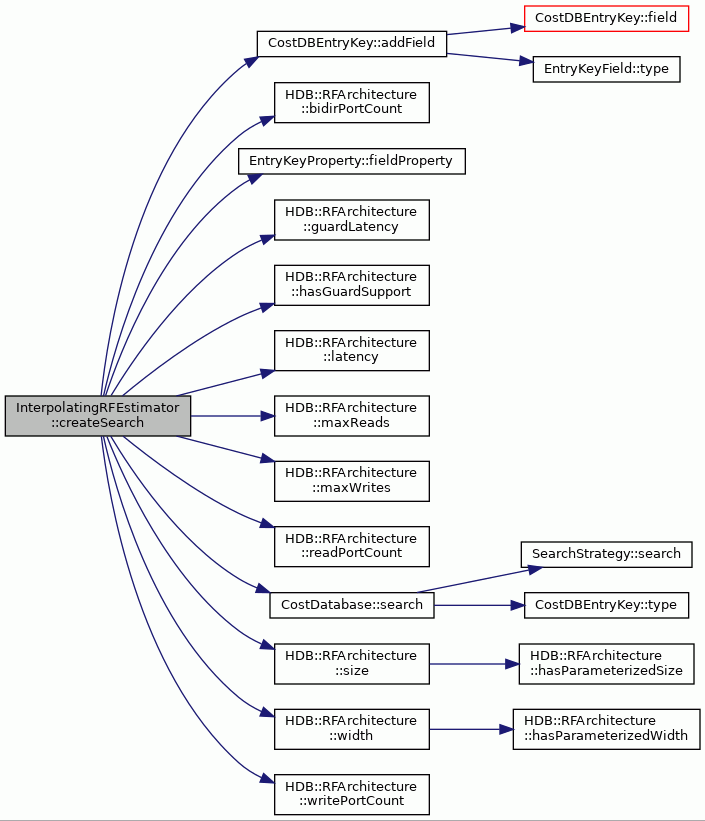

Here is the call graph for this function:

createSearchTypes()

void InterpolatingRFEstimator::createSearchTypes ( )

inlineprivate

Creates types of matches used for searching cost database entries.

Definition at line 516 of file InterpolatingRFEstimator.cc.

                         {

    interpMatchType_.push_back(
        new MatchType(
            rfileProperty_->fieldProperty(CostDBTypes::EKF_NUM_REGISTERS),
            CostDBTypes::MATCH_INTERPOLATION));
    interpMatchType_.push_back(
        new MatchType(
            rfileProperty_->fieldProperty(CostDBTypes::EKF_READ_PORTS),
            CostDBTypes::MATCH_EXACT));
    interpMatchType_.push_back(
        new MatchType(
            rfileProperty_->fieldProperty(CostDBTypes::EKF_WRITE_PORTS),
            CostDBTypes::MATCH_EXACT));
    interpMatchType_.push_back(
        new MatchType(
            rfileProperty_->fieldProperty(CostDBTypes::EKF_BIDIR_PORTS),
            CostDBTypes::MATCH_EXACT));
    interpMatchType_.push_back(
        new MatchType(
            rfileProperty_->fieldProperty(CostDBTypes::EKF_BIT_WIDTH),
            CostDBTypes::MATCH_INTERPOLATION));
    interpMatchType_.push_back(
        new MatchType(
            rfileProperty_->fieldProperty(CostDBTypes::EKF_LATENCY),
            CostDBTypes::MATCH_EXACT));
    interpMatchType_.push_back(
        new MatchType(
            rfileProperty_->fieldProperty(CostDBTypes::EKF_MAX_READS),
            CostDBTypes::MATCH_EXACT));
    interpMatchType_.push_back(
        new MatchType(
            rfileProperty_->fieldProperty(CostDBTypes::EKF_MAX_WRITES),
            CostDBTypes::MATCH_EXACT));
    interpMatchType_.push_back(
        new MatchType(
            rfileProperty_->fieldProperty(CostDBTypes::EKF_GUARD_SUPPORT),
            CostDBTypes::MATCH_EXACT));
    interpMatchType_.push_back(
        new MatchType(
            rfileProperty_->fieldProperty(CostDBTypes::EKF_GUARD_LATENCY),
            CostDBTypes::MATCH_EXACT));
}

References CostDBTypes::EKF_BIDIR_PORTS, CostDBTypes::EKF_BIT_WIDTH, CostDBTypes::EKF_GUARD_LATENCY, CostDBTypes::EKF_GUARD_SUPPORT, CostDBTypes::EKF_LATENCY, CostDBTypes::EKF_MAX_READS, CostDBTypes::EKF_MAX_WRITES, CostDBTypes::EKF_NUM_REGISTERS, CostDBTypes::EKF_READ_PORTS, CostDBTypes::EKF_WRITE_PORTS, EntryKeyProperty::fieldProperty(), interpMatchType_, CostDBTypes::MATCH_EXACT, CostDBTypes::MATCH_INTERPOLATION, and rfileProperty_.

Referenced by initializeEstimator().

Here is the call graph for this function:

DESCRIPTION()

InterpolatingRFEstimator::DESCRIPTION

(

"RF cost estimator plugin that estimates costs of RFs by generating" "cost database from cost values of HDB and uses interpolation to " "estimate the costs. In case there's no cost data available for the " "given RF the plugin interpolates the estimate if possible."

)

estimateArea()

bool InterpolatingRFEstimator::estimateArea ( const TTAMachine::BaseRegisterFile &  rf, const IDF::RFImplementationLocation &  , AreaInGates &  area, HDB::HDBManager &  hdb  )

inlinevirtual

Estimates the register file's area by fetching cost data named 'area' from HDB.

Reimplemented from CostEstimator::RFCostEstimationPlugin.

Definition at line 77 of file InterpolatingRFEstimator.cc.

                            {

//#define DEBUG_AREA_ESTIMATION
        try {
            initializeEstimator(hdb);
            CostDBTypes::EntryTable results = createSearch(rf);
            CostDBTypes::EntryTable::const_iterator i = results.begin();
            area = 0.0;
            // worst case area is returned
            for (;i < results.end(); i++) {
                for (int n = 0; n < (*i)->statisticsCount(); n++) {
                    if (area < (*i)->statistics(n).area()) {
                        area = (*i)->statistics(n).area();
                    }
                }
            }
        } catch (Exception& e) {
#ifdef DEBUG_AREA_ESTIMATION
            std::cout << "Exception: " << e.name() << std::endl
                      << "Error message: " << e.errorMsg() << std::endl
                      << "File: " << e.fileName() << std::endl
                      <<" Line: " e.lineNum() << std::endl;
#endif //DEBUG_AREA_ESTIMATION
            return false;
        }
#ifdef DEBUG_AREA_ESTIMATION
        Application::logStream()
            << rf.name() << " area " << area << std::endl;
#endif //DEBUG_AREA_ESTIMATION
        return true;
    }

References createSearch(), Exception::fileName(), initializeEstimator(), Exception::lineNum(), Application::logStream(), and TTAMachine::Component::name().

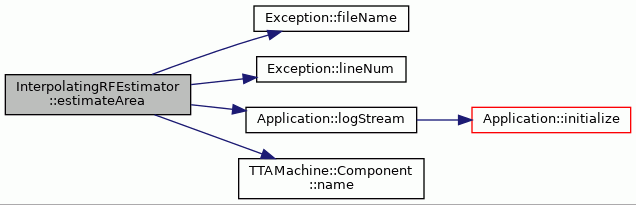

Here is the call graph for this function:

estimateEnergy()

bool InterpolatingRFEstimator::estimateEnergy ( const TTAMachine::BaseRegisterFile &  rf, const IDF::RFImplementationLocation &  , const TTAProgram::Program &  , const ExecutionTrace &  trace, EnergyInMilliJoules &  energy, HDB::HDBManager &  hdb  )

inlinevirtual

Estimates the energy consumed by given RF.

Estimate is done by computing the sum of all register file access type energies and RF idle energy. Register file access energies are stored with entries named 'rf_access_energy Nr Nw'. Nr is the number of read accesses, Nw the number of write accesses. For example, 'rf_access_energy 1 3' is the name of entry which tells how much energy is consumed by the RF in case RF is accessed simultaneously once for reading and trice for writing. Idle energy is stored in entry 'rf_idle_energy'.

Reimplemented from CostEstimator::RFCostEstimationPlugin.

Definition at line 268 of file InterpolatingRFEstimator.cc.

                            {

//#define DEBUG_ENERGY_ESTIMATION
        energy = 0.0;
        ClockCycleCount cyclesWithRFAccess = 0;
        CostDBTypes::EntryTable results;
        try {
            initializeEstimator(hdb);
            results = createSearch(rf);

#ifdef DEBUG_ENERGY_ESTIMATION
            Application::logStream()
                << "## register file " << rf.name() << ": " << std::endl;
#endif

            ExecutionTrace::ConcurrentRFAccessCountList* accessList =
                trace.registerFileAccessCounts(rf.name());
            for (ExecutionTrace::ConcurrentRFAccessCountList::
                     const_iterator i = accessList->begin();
                 i != accessList->end(); ++i) {
                const ExecutionTrace::ConcurrentRFAccessCount& accessCount =
                    *i;

                const std::size_t reads = accessCount.get<0>();
                const std::size_t writes = accessCount.get<1>();
                const ClockCycleCount count = accessCount.get<2>();

                const std::string dataName =
                    std::string("rf_access_energy ") +
                    Conversion::toString(reads) + " " +
                    Conversion::toString(writes);
                try {
                    CostDBTypes::EntryTable::const_iterator i = results.begin();
                    for (;i < results.end(); i++) {

                        // if there are multilpe reults for the rf access
                        // energy, select the worst case
                        // @todo ensure that multiple result is not a bug
                        EnergyInMilliJoules energyTemp = 0.0;
                        for (int n = 0; n < (*i)->statisticsCount(); n++) {
                            if (((*i)->statistics(n).energyReadWrite(
                                     reads, writes) * count) > energyTemp) {
                                energyTemp =
                                    (*i)->statistics(n).energyReadWrite(
                                        reads, writes) * count;
                            }
#ifdef DEBUG_ENERGY_ESTIMATION
                            if (n > 0) {
                                Application::logStream()
                                    << " NOTE: Multiple register access energy "
                                    << "results found!"
                                    << " "
                                    << (*i)->statistics(n).energyReadWrite(
                                        reads, writes)
                                    << std::endl;
                            }
#endif
                        }
                        energy += energyTemp;
                    }
                    cyclesWithRFAccess += count;
                } catch (const KeyNotFound&) {
                    // if no data found, don't even try to estimate the area
                    delete accessList;
                    accessList = NULL;
                    Application::logStream()
                        << "Cost estimation data '" << dataName
                        << "' not found in HDB." << std::endl;
                    return false;
                } catch (const Exception& e) {
                    delete accessList;
                    accessList = NULL;
                    debugLog(e.errorMessage());
                    return false;
                }
            }
            delete accessList;
            accessList = NULL;
        } catch (const Exception& e) {
            debugLog(e.errorMessage());
            return false;
        }

        // add the cost of RF idling
        const ClockCycleCount idleCycles =
            trace.simulatedCycleCount() - cyclesWithRFAccess;
        const std::string dataName = std::string("rf_idle_energy");

        try {
            CostDBTypes::EntryTable::const_iterator i = results.begin();
            for (;i < results.end(); i++) {

                // if there are multilpe reults for the rf idle energy,
                // select the worst case
                // @todo Ensure that multiple results is not a bug
                EnergyInMilliJoules energyTemp = 0.0;
                for (int n = 0; n < (*i)->statisticsCount(); n++) {
                    if (((*i)->statistics(n).energyIdle() * idleCycles) >
                        energyTemp) {

                        energyTemp =
                            (*i)->statistics(n).energyIdle() * idleCycles;
                    }
#ifdef DEBUG_ENERGY_ESTIMATION
                    if (n > 0) {
                        Application::logStream()
                            << " NOTE: Multiple register idle energy "
                            << "results found!"
                            << " " << (*i)->statistics(n).energyIdle()
                            << std::endl;
                    }
#endif
                }
                energy += energyTemp;
            }
        } catch (const KeyNotFound&) {
            // if no data found, don't even try to estimate the area
            Application::logStream()
                << "Cost estimation data '" << dataName
                << "' not found in HDB." << std::endl;
            return false;
        } catch (const Exception& e) {
            debugLog(e.errorMessage());
            return false;
        }

        return true;
    }

References createSearch(), debugLog, Exception::errorMessage(), initializeEstimator(), Application::logStream(), TTAMachine::Component::name(), ExecutionTrace::registerFileAccessCounts(), ExecutionTrace::simulatedCycleCount(), Conversion::toString(), and trace.

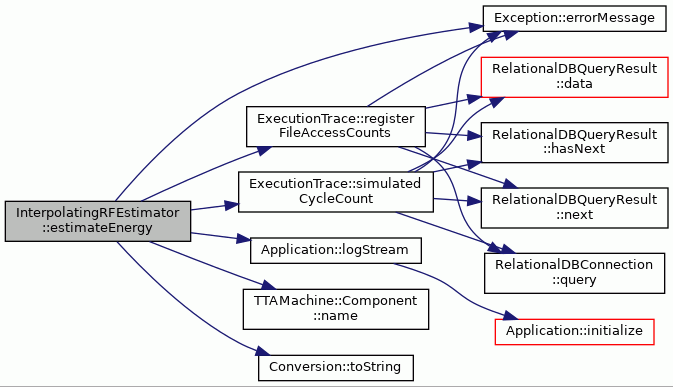

Here is the call graph for this function:

estimateMaximumComputationDelay()

bool InterpolatingRFEstimator::estimateMaximumComputationDelay ( const TTAMachine::BaseRegisterFile &  rf, const IDF::RFImplementationLocation &  , DelayInNanoSeconds &  delay, HDB::HDBManager &  hdb  )

inlinevirtual

Estimates the register file maximum computation delay by fetching cost data named 'computation_delay' from HDB.

Reimplemented from CostEstimator::RFCostEstimationPlugin.

Definition at line 225 of file InterpolatingRFEstimator.cc.

                            {

//#define DEBUG_DELAY_ESTIMATION
        try {
            initializeEstimator(hdb);
            CostDBTypes::EntryTable results = createSearch(rf);
            CostDBTypes::EntryTable::const_iterator i = results.begin();
            delay = 0.0;
            // the worst case is returned if found multiple results
            for (;i < results.end(); i++) {
                for (int n = 0; n < (*i)->statisticsCount(); n++) {
                    if (delay < (*i)->statistics(n).delay()) {
                        delay = (*i)->statistics(n).delay();
                    }
                }
            }
        } catch (Exception& e) {
            return false;
        }
#ifdef DEBUG_DELAY_ESTIMATION
        Application::logStream() << rf.name()
                                 << " computation delay "
                                 << delay << std::endl;
#endif // DEBUG_DELAY_ESTIMATION
        return true;
    }

References createSearch(), initializeEstimator(), Application::logStream(), and TTAMachine::Component::name().

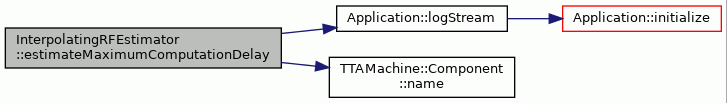

Here is the call graph for this function:

estimatePortReadDelay()

bool InterpolatingRFEstimator::estimatePortReadDelay ( const TTAMachine::RFPort &  port, const IDF::RFImplementationLocation &  , DelayInNanoSeconds &  delay, HDB::HDBManager &  hdb  )

inlinevirtual

Estimates the register file port read delay by fetching cost data named 'output_delay' from HDB.

Assumes that all ports have the same output delay, that is, there is only one 'output_delay' entry for a RF in HDB.

Reimplemented from CostEstimator::RFCostEstimationPlugin.

Definition at line 175 of file InterpolatingRFEstimator.cc.

                            {

//#define DEBUG_DELAY_ESTIMATION
        try {
            initializeEstimator(hdb);
            CostDBTypes::EntryTable results = createSearch(*port.parentUnit());
            CostDBTypes::EntryTable::const_iterator i = results.begin();
            delay = 0.0;
            // worst case delay is returned
            for (;i < results.end(); i++) {
                for (int n = 0; n < (*i)->statisticsCount(); n++) {
#ifndef UNIQUE_PORT_DELAY
                    if (delay < (*i)->statistics(n).delayPort("output_delay")) {
                        delay = (*i)->statistics(n).delayPort("output_delay");
                    }
#endif // UNIQUE_PORT_DELAY
#ifdef UNIQUE_PORT_DELAY
                    // this one is used if defferent ports of an unit
                    // can have different delays
                    if (delay < (*i)->statistics(n).delayPort(port.name())) {
                        delay = (*i)->statistics(n).delayPort(port.name());
                    }
#endif // UNIQUE_PORT_DELAY
                }
            }
        } catch (Exception& e) {
#ifdef DEBUG_DELAY_ESTIMATION
            Application::logStream() << "No output_delay data for register "
                                     << "file "
                                     << port.parentUnit()->name()
                                     << " found in HDB." << std::endl;
#endif // DEBUG_DELAY_ESTIMATION
            return false;
        }
#ifdef DEBUG_DELAY_ESTIMATION
        Application::logStream()
            << port.name() << " (port) delay " << delay << std::endl;
#endif // DEBUG_DELAY_ESTIMATION
        return true;
    }

References createSearch(), initializeEstimator(), Application::logStream(), TTAMachine::Component::name(), TTAMachine::Port::name(), and TTAMachine::RFPort::parentUnit().

Here is the call graph for this function:

estimatePortWriteDelay()

bool InterpolatingRFEstimator::estimatePortWriteDelay ( const TTAMachine::RFPort &  port, const IDF::RFImplementationLocation &  , DelayInNanoSeconds &  delay, HDB::HDBManager &  hdb  )

inlinevirtual

Estimates the register file port write delay by fetching cost data named 'input_delay' from HDB.

Assumes that all ports have the same input delay, that is, there is only one 'input_delay' entry for a RF in HDB.

Reimplemented from CostEstimator::RFCostEstimationPlugin.

Definition at line 121 of file InterpolatingRFEstimator.cc.

                            {

//#define DEBUG_DELAY_ESTIMATION
        try {
            initializeEstimator(hdb);
            CostDBTypes::EntryTable results = createSearch(*port.parentUnit());

            CostDBTypes::EntryTable::const_iterator i = results.begin();
            delay = 0.0;
            // worst case delay is returned
            for (;i < results.end(); i++) {
                for (int n = 0; n < (*i)->statisticsCount(); n++) {
#ifndef UNIQUE_PORT_DELAY
                    if (delay < (*i)->statistics(n).delayPort("input_delay")) {
                        delay = (*i)->statistics(n).delayPort("input_delay");
                    }
#endif // UNIQUE_PORT_DELAY
#ifdef UNIQUE_PORT_DELAY
                    // this one is used if defferent ports of an unit
                    // can have different delays
                    if (delay < (*i)->statistics(n).delayPort(port.name())) {
                        delay = (*i)->statistics(n).delayPort(port.name());
                    }
#endif // UNIQUE_PORT_DELAY
                }
            }
        } catch (Exception& e) {
#ifdef DEBUG_DELAY_ESTIMATION
            Application::logStream() << "No input_delay data for register "
                                     << "file "
                                     << port.parentUnit()->name()
                                     << " found in HDB." << std::endl;
#endif // DEBUG_DELAY_ESTIMATION
            return false;
        }
#ifdef DEBUG_DELAY_ESTIMATION
        Application::logStream()
            << port.name() << " (port) delay " << delay << std::endl;
#endif // DEBUG_DELAY_ESTIMATION
        return true;
    }

References createSearch(), initializeEstimator(), Application::logStream(), TTAMachine::Component::name(), TTAMachine::Port::name(), and TTAMachine::RFPort::parentUnit().

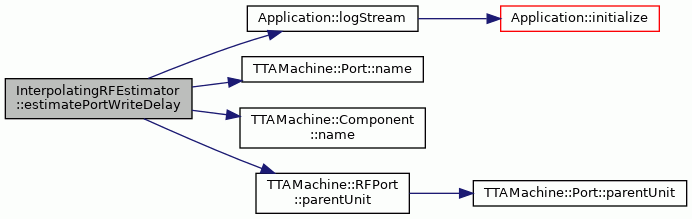

Here is the call graph for this function:

initializeEstimator()

void InterpolatingRFEstimator::initializeEstimator ( const HDBManager &  hdb )

inlineprivate

Initializes the plugin.

Parameters

hdb	The HDB to be used in searching entries. Cost database is created in basis of this HDB.

Definition at line 427 of file InterpolatingRFEstimator.cc.

                                           {

    costdb_ = &costDatabaseRegistry_->costDatabase(hdb);
    strategy_ = new FilterSearch();
    costdb_->setSearchStrategy(strategy_);
    rfileProperty_ = EntryKeyProperty::find(CostDBTypes::EK_RFILE);
    createSearchTypes();
}

References CostDatabaseRegistry::costDatabase(), costDatabaseRegistry_, costdb_, createSearchTypes(), CostDBTypes::EK_RFILE, EntryKeyProperty::find(), rfileProperty_, CostDatabase::setSearchStrategy(), and strategy_.

Referenced by estimateArea(), estimateEnergy(), estimateMaximumComputationDelay(), estimatePortReadDelay(), and estimatePortWriteDelay().

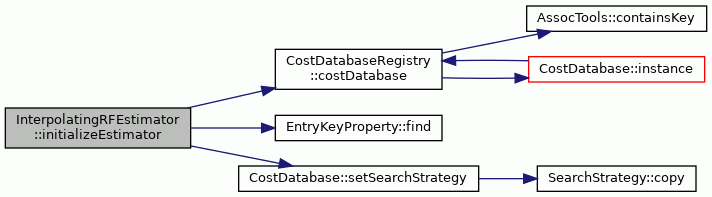

Here is the call graph for this function:

Member Data Documentation

costDatabaseRegistry_

CostDatabaseRegistry* InterpolatingRFEstimator::costDatabaseRegistry_

private

Registry of cost databases.

Definition at line 405 of file InterpolatingRFEstimator.cc.

Referenced by initializeEstimator(), and InterpolatingRFEstimator().

costdb_

CostDatabase* InterpolatingRFEstimator::costdb_

private

Cost database being used.

Definition at line 407 of file InterpolatingRFEstimator.cc.

Referenced by createSearch(), and initializeEstimator().

interpMatchType_

CostDBTypes::MatchTypeTable InterpolatingRFEstimator::interpMatchType_

private

Table of types of match.

Definition at line 418 of file InterpolatingRFEstimator.cc.

Referenced by createSearch(), and createSearchTypes().

rfileProperty_

EntryKeyProperty* InterpolatingRFEstimator::rfileProperty_

private

Entry key property of register file.

Definition at line 411 of file InterpolatingRFEstimator.cc.

Referenced by createSearch(), createSearchTypes(), and initializeEstimator().

searchTypes_

MatchTypeMap InterpolatingRFEstimator::searchTypes_

private

Types of matches used for searching entries from the cost database.

Definition at line 416 of file InterpolatingRFEstimator.cc.

strategy_

SearchStrategy* InterpolatingRFEstimator::strategy_

private

Search strategy to be used with the cost database.

Definition at line 409 of file InterpolatingRFEstimator.cc.

Referenced by initializeEstimator().

---

The documentation for this class was generated from the following file:

• InterpolatingRFEstimator.cc
