MachineTestReporter Class Reference

#include <MachineTestReporter.hh>

Collaboration diagram for MachineTestReporter:
Collaboration graph

Static Public Member Functions

static std::string socketSegmentConnectionError (const TTAMachine::Socket &socket, const TTAMachine::Segment &segment, const MachineTester &tester)

static std::string socketPortConnectionError (const TTAMachine::Socket &socket, const TTAMachine::Port &port, const MachineTester &tester)

static std::string bridgingError (const TTAMachine::Bus &sourceBus, const TTAMachine::Bus &destinationBus, const MachineTester &tester)

static std::string socketDirectionSettingError (const TTAMachine::Socket &socket, TTAMachine::Socket::Direction, const MachineTester &tester)


Detailed Description

Creates string error messages according to the error stated by MachineTester.

Definition at line 45 of file MachineTestReporter.hh.

Member Function Documentation

◆ bridgingError()

string MachineTestReporter::bridgingError ( const TTAMachine::Bus &  sourceBus,
const TTAMachine::Bus &  destinationBus,
const MachineTester &  tester
)
static

Generates a general error message of the error that occurred when tried to bridge the given buses.

Parameters
sourceBusThe source bus.
destinationBusThe destination bus.
testerMachineTester that was used to check if the buses can be joined by a bridge.
Returns
An error message.

Definition at line 219 of file MachineTestReporter.cc.

222 {
223
224 MachineTestReportTextGenerator textGenerator;
225 if (tester.illegalRegistration()) {
226 format text = textGenerator.text(MachineTestReportTextGenerator::
227 TXT_BRIDGE_ILLEGAL_REG);
228 text % sourceBus.name() % destinationBus.name();
229 return text.str();
230 }
231 if (tester.loop()) {
232 format text = textGenerator.text(MachineTestReportTextGenerator::
233 TXT_BRIDGE_LOOP);
234 text % sourceBus.name() % destinationBus.name();
235 return text.str();
236 }
237 if (tester.connectionExists()) {
238 format text = textGenerator.text(MachineTestReportTextGenerator::
239 TXT_BRIDGE_EXISTS);
240 text % sourceBus.name() % destinationBus.name();
241 return text.str();
242 }
243// Bus* straddlingBus = tester.straddlingBus();
244// if (straddlingBus != NULL) {
245// format text = textGenerator.text(MachineTestReportTextGenerator::
246// TXT_BRIDGE_STRADDLING_BUS);
247// text % sourceBus.name() % destinationBus.name() %
248// straddlingBus->name();
249// return text.str();
250// }
251// Socket* crossing = tester.crossingSocket(0);
252// if (crossing != NULL) {
253// Socket* crossing2 = tester.crossingSocket(1);
254// format text = textGenerator.text(MachineTestReportTextGenerator::
255// TXT_BRIDGE_CROSSING_SOCKET);
256// text % sourceBus.name() % destinationBus.name() % crossing->name() %
257// crossing2->name();
258// return text.str();
259// }
260 Bus* branchedBus = tester.branchedBus();
261 if (branchedBus != NULL) {
262 format text = textGenerator.text(MachineTestReportTextGenerator::
263 TXT_BRIDGE_BRANCHED_BUS);
264 text % sourceBus.name() % destinationBus.name() %
265 branchedBus->name();
266 return text.str();
267 }
268// Socket* bindingSocket = tester.bindingSocket();
269// if (bindingSocket != NULL) {
270// format text = textGenerator.text(MachineTestReportTextGenerator::
271// TXT_BRIDGE_BINDING_SOCKET);
272// text % sourceBus.name() % destinationBus.name() %
273// bindingSocket->name();
274// return text.str();
275// }
276// Unit* straddlingUnit = tester.straddlingUnit();
277// if (straddlingUnit != NULL) {
278// format text = textGenerator.text(MachineTestReportTextGenerator::
279// TXT_BRIDGE_STRADDLING_UNIT);
280// text % sourceBus.name() % destinationBus.name() %
281// straddlingUnit->name();
282// return text.str();
283// }
284
285 return "";
286}
MachineTester::illegalRegistration
bool illegalRegistration() const
Definition MachineTester.cc:355
MachineTester::branchedBus
TTAMachine::Bus * branchedBus() const
Definition MachineTester.cc:380
MachineTester::connectionExists
bool connectionExists() const
Definition MachineTester.cc:342
MachineTester::loop
bool loop() const
Definition MachineTester.cc:367
TTAMachine::Component::name
virtual TCEString name() const
Definition MachinePart.cc:125
Texts::TextGenerator::text
virtual boost::format text(int textId)
Definition TextGenerator.cc:94

References MachineTester::branchedBus(), MachineTester::connectionExists(), MachineTester::illegalRegistration(), MachineTester::loop(), TTAMachine::Component::name(), and Texts::TextGenerator::text().

Referenced by TTAMachine::Bridge::Bridge(), and TTAMachine::Bridge::loadState().

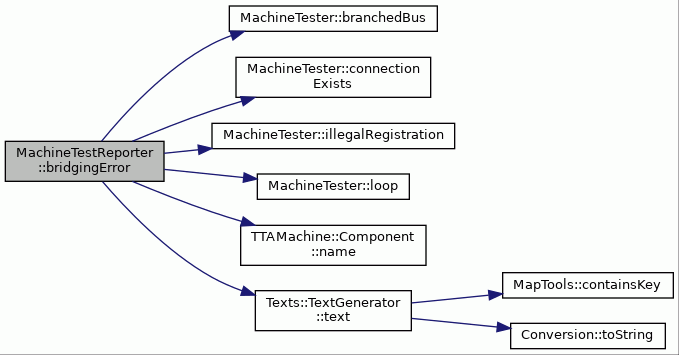

Here is the call graph for this function:

◆ socketDirectionSettingError()

string MachineTestReporter::socketDirectionSettingError ( const TTAMachine::Socket &  socket,
TTAMachine::Socket::Direction  direction,
const MachineTester &  tester
)
static

Generates a general error message of the reason why the direction of the given socket can not be set.

Parameters
socketThe socket.
directionThe direction that was tried to set.
testerThe MachineTester used to check if the direction can be set.
Returns
An error message.

Definition at line 299 of file MachineTestReporter.cc.

302 {
303
304 MachineTestReportTextGenerator textGenerator;
305 if (tester.unknownSocketDirection()) {
306 format text = textGenerator.text(MachineTestReportTextGenerator::
307 TXT_SOCKET_DIR_UNKNOWN);
308 text % socket.name();
309 return text.str();
310 }
311 if (tester.noConnections()) {
312 format text = textGenerator.text(MachineTestReportTextGenerator::
313 TXT_SOCKET_NO_CONN);
314 text % socket.name();
315 return text.str();
316 }
317 Port* sameDirConnection = tester.sameDirSocketConnection(direction);
318 if (sameDirConnection != NULL) {
319 format text = textGenerator.text(MachineTestReportTextGenerator::
320 TXT_SOCKET_SAME_DIR_CONN);
321 if (direction == Socket::OUTPUT) {
322 text % socket.name() % "output" % sameDirConnection->name() %
323 sameDirConnection->parentUnit()->name();
324 } else if (direction == Socket::INPUT) {
325 text % socket.name() % "input" % sameDirConnection->name() %
326 sameDirConnection->parentUnit()->name();
327 } else {
328 assert(false);
329 }
330 return text.str();
331 }
332 Port* forbiddenSocketDir = tester.forbiddenSocketDirection(direction);
333 if (forbiddenSocketDir != NULL) {
334 format text = textGenerator.text(MachineTestReportTextGenerator::
335 TXT_SOCKET_FORBIDDEN_DIR);
336 if (direction == Socket::OUTPUT) {
337 text % socket.name() % "output" % forbiddenSocketDir->name() %
338 forbiddenSocketDir->parentUnit()->name();
339 } else if (direction == Socket::INPUT) {
340 text % socket.name() % "input" % forbiddenSocketDir->name() %
341 forbiddenSocketDir->parentUnit()->name();
342 } else {
343 assert(false);
344 }
345 return text.str();
346 }
347 return "";
348}
assert
#define assert(condition)
Definition Application.hh:86
MachineTester::sameDirSocketConnection
TTAMachine::Port * sameDirSocketConnection(TTAMachine::Socket::Direction direction) const
Definition MachineTester.cc:451
MachineTester::noConnections
bool noConnections() const
Definition MachineTester.cc:437
MachineTester::forbiddenSocketDirection
TTAMachine::Port * forbiddenSocketDirection(TTAMachine::Socket::Direction direction) const
Definition MachineTester.cc:471
MachineTester::unknownSocketDirection
bool unknownSocketDirection() const
Definition MachineTester.cc:424
TTAMachine::Port::parentUnit
Unit * parentUnit() const
TTAMachine::Port::name
virtual std::string name() const
Definition Port.cc:141
TTAMachine::Socket::OUTPUT
@ OUTPUT
Data goes from port to bus.
Definition Socket.hh:60
TTAMachine::Socket::INPUT
@ INPUT
Data goes from bus to port.
Definition Socket.hh:59

References assert, MachineTester::forbiddenSocketDirection(), TTAMachine::Socket::INPUT, TTAMachine::Component::name(), TTAMachine::Port::name(), MachineTester::noConnections(), TTAMachine::Socket::OUTPUT, TTAMachine::Port::parentUnit(), MachineTester::sameDirSocketConnection(), Texts::TextGenerator::text(), and MachineTester::unknownSocketDirection().

Referenced by SocketDialog::onDirection(), and TTAMachine::Socket::setDirection().

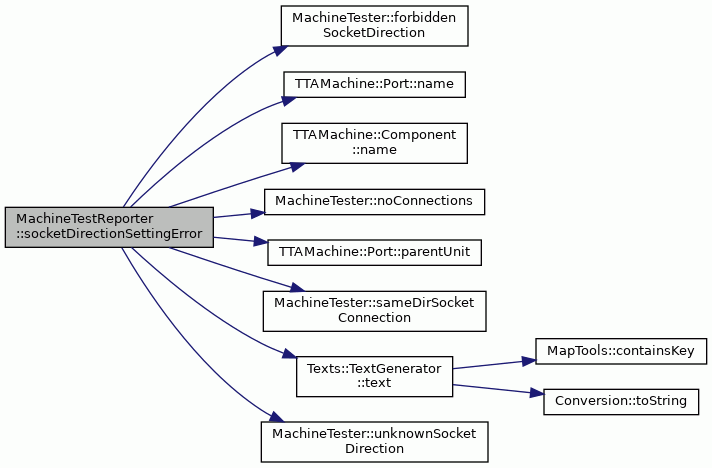

Here is the call graph for this function:

◆ socketPortConnectionError()

string MachineTestReporter::socketPortConnectionError ( const TTAMachine::Socket &  socket,
const TTAMachine::Port &  port,
const MachineTester &  tester
)
static

Generates a general error message of the error that occurred when tried to attach a socket to a port.

Parameters
socketThe socket that was tried to be connected.
portThe port to which the socket was tried to be connected.
testerMachineTester that was used to check if the connection can be made.
Returns
An error message.

Definition at line 150 of file MachineTestReporter.cc.

153 {
154
155 MachineTestReportTextGenerator textGenerator;
156
157 if (tester.illegalRegistration()) {
158 format text = textGenerator.text(MachineTestReportTextGenerator::
159 TXT_SOCKET_PORT_CONN_ILLEGAL_REG);
160 text % socket.name() % port.parentUnit()->name();
161 return text.str();
162 }
163
164 if (tester.connectionExists()) {
165 format text = textGenerator.text(MachineTestReportTextGenerator::
166 TXT_SOCKET_PORT_CONN_EXISTS);
167 text % socket.name() % port.name() % port.parentUnit()->name();
168 return text.str();
169 }
170
171 if (tester.wrongSocketDirection()) {
172 format text = textGenerator.text(
173 MachineTestReportTextGenerator::
174 TXT_SOCKET_PORT_CONN_WRONG_SOCKET_DIR);
175 text % socket.name() % port.name() % port.parentUnit()->name();
176 return text.str();
177 }
178
179 if (tester.maxConnections()) {
180 format text = textGenerator.text(MachineTestReportTextGenerator::
181 TXT_SOCKET_PORT_CONN_MAX_CONN);
182 text % socket.name() % port.name() % port.parentUnit()->name();
183 return text.str();
184 }
185
186// Socket* straddlingUnitConn = tester.straddlingUnitConnection();
187// if (straddlingUnitConn != NULL) {
188// format text = textGenerator.text(
189// MachineTestReportTextGenerator::
190// TXT_SOCKET_PORT_CONN_STRADDLING_UNIT);
191// text % socket.name() % port.name() % port.parentUnit()->name() %
192// straddlingUnitConn->name();
193// return text.str();
194// }
195
196 if (tester.registerFilePortAlreadyConnected()) {
197 format text = textGenerator.text(
198 MachineTestReportTextGenerator::
199 TXT_SOCKET_PORT_CONN_RF_PORT_CONN_EXISTS);
200 text % socket.name() % port.name() % port.parentUnit()->name();
201 return text.str();
202 }
203
204 return "";
205}
MachineTester::wrongSocketDirection
bool wrongSocketDirection() const
Definition MachineTester.cc:397
MachineTester::maxConnections
bool maxConnections() const
Definition MachineTester.cc:410
MachineTester::registerFilePortAlreadyConnected
bool registerFilePortAlreadyConnected() const
Definition MachineTester.cc:488

References MachineTester::connectionExists(), MachineTester::illegalRegistration(), MachineTester::maxConnections(), TTAMachine::Component::name(), TTAMachine::Port::name(), TTAMachine::Port::parentUnit(), MachineTester::registerFilePortAlreadyConnected(), Texts::TextGenerator::text(), and MachineTester::wrongSocketDirection().

Referenced by TTAMachine::Port::attachSocket().

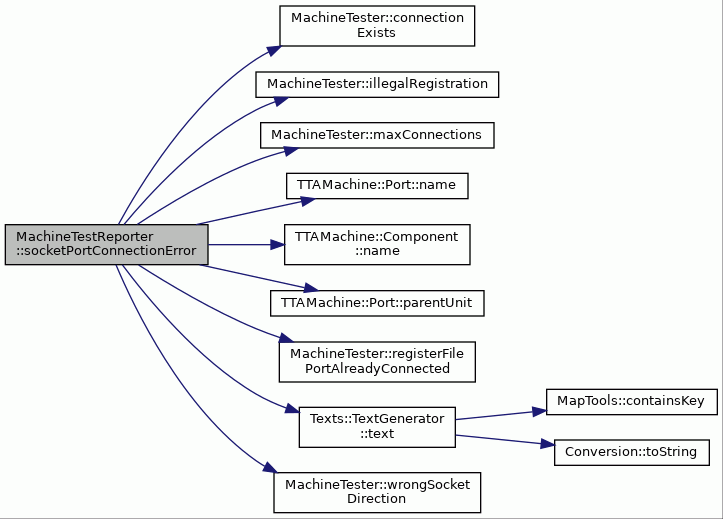

Here is the call graph for this function:

◆ socketSegmentConnectionError()

string MachineTestReporter::socketSegmentConnectionError ( const TTAMachine::Socket &  socket,
const TTAMachine::Segment &  segment,
const MachineTester &  tester
)
static

Generates a general error message of the error that occurred when tried to attach a socket to a segment.

Parameters
socketThe socket that was tried to be connected.
segmentThe segment to which the socket was tried to be connected.
testerMachineTester that was used to check if the connection can be made.
Returns
An error message.

Definition at line 55 of file MachineTestReporter.cc.

58 {
59
60 MachineTestReportTextGenerator textGenerator;
61
62// Bus* sameChainConnection = tester.sameChainConnection();
63// if (sameChainConnection != NULL) {
64// format text = textGenerator.text(MachineTestReportTextGenerator::
65// TXT_SOCKET_SEGMENT_CONN_SAME_CHAIN);
66// text % socket.name() % segment.name() % segment.parentBus()->name() %
67// sameChainConnection->name();
68// return text.str();
69// }
70
71 if (tester.connectionExists()) {
72 format text = textGenerator.text(MachineTestReportTextGenerator::
73 TXT_SOCKET_SEGMENT_CONN_EXISTS);
74 text % socket.name() % segment.name() % segment.parentBus()->name();
75 return text.str();
76 }
77
78 if (tester.illegalRegistration()) {
79 format text = textGenerator.text(MachineTestReportTextGenerator::
80 TXT_SOCKET_SEGMENT_CONN_ILLEGAL_REG);
81 text % socket.name() % segment.parentBus()->name();
82 return text.str();
83 }
84
85// Bus* straddlingBus = tester.straddlingBus();
86// if (straddlingBus != NULL) {
87// format text = textGenerator.text(
88// MachineTestReportTextGenerator::
89// TXT_SOCKET_SEGMENT_CONN_STRADDLING_BUS);
90// text % socket.name() % segment.name() % segment.parentBus()->name() %
91// straddlingBus->name();
92// return text.str();
93// }
94
95// Socket* crossingSocket = tester.crossingSocket(socket);
96// if (crossingSocket != NULL) {
97// format text = textGenerator.text(MachineTestReportTextGenerator::
98// TXT_SOCKET_SEGMENT_CONN_CROSSING);
99// text % socket.name() % segment.name() % segment.parentBus()->name() %
100// crossingSocket->name();
101// return text.str();
102// }
103
104// Unit* straddlingUnit = tester.straddlingUnit();
105// if (straddlingUnit != NULL) {
106// format text = textGenerator.text(
107// MachineTestReportTextGenerator::
108// TXT_SOCKET_SEGMENT_CONN_STRADDLING_UNIT);
109// text % socket.name() % segment.name() % segment.parentBus()->name() %
110// straddlingUnit->name();
111// return text.str();
112// }
113
114 Port* doubleInputConn = tester.sameDirSocketConnection(Socket::INPUT);
115 Port* doubleOutputConn = tester.sameDirSocketConnection(Socket::OUTPUT);
116 Port* forbiddenInputConn =
117 tester.forbiddenSocketDirection(Socket::INPUT);
118 Port* forbiddenOutputConn =
119 tester.forbiddenSocketDirection(Socket::OUTPUT);
120 if (doubleInputConn != NULL || forbiddenInputConn != NULL) {
121 assert(doubleOutputConn != NULL || forbiddenOutputConn != NULL);
122 format text = textGenerator.text(
123 MachineTestReportTextGenerator::
124 TXT_SOCKET_SEGMENT_CONN_BOTH_DIRS_ARE_ILLEGAL);
125 Port* errInputPort = doubleInputConn != NULL ? doubleInputConn :
126 forbiddenInputConn;
127 Port* errOutputPort = doubleOutputConn != NULL ? doubleOutputConn :
128 forbiddenOutputConn;
129 text % socket.name() % errInputPort->name() %
130 errInputPort->parentUnit()->name() % errOutputPort->name() %
131 errOutputPort->parentUnit()->name();
132 return text.str();
133 }
134
135 return "";
136}
TTAMachine::Segment::name
std::string name() const
TTAMachine::Segment::parentBus
Bus * parentBus() const

References assert, MachineTester::connectionExists(), MachineTester::forbiddenSocketDirection(), MachineTester::illegalRegistration(), TTAMachine::Socket::INPUT, TTAMachine::Component::name(), TTAMachine::Port::name(), TTAMachine::Segment::name(), TTAMachine::Socket::OUTPUT, TTAMachine::Segment::parentBus(), TTAMachine::Port::parentUnit(), MachineTester::sameDirSocketConnection(), and Texts::TextGenerator::text().

Referenced by TTAMachine::Socket::attachBus(), TTAMachine::Segment::attachSocket(), and SocketDialog::onAttach().

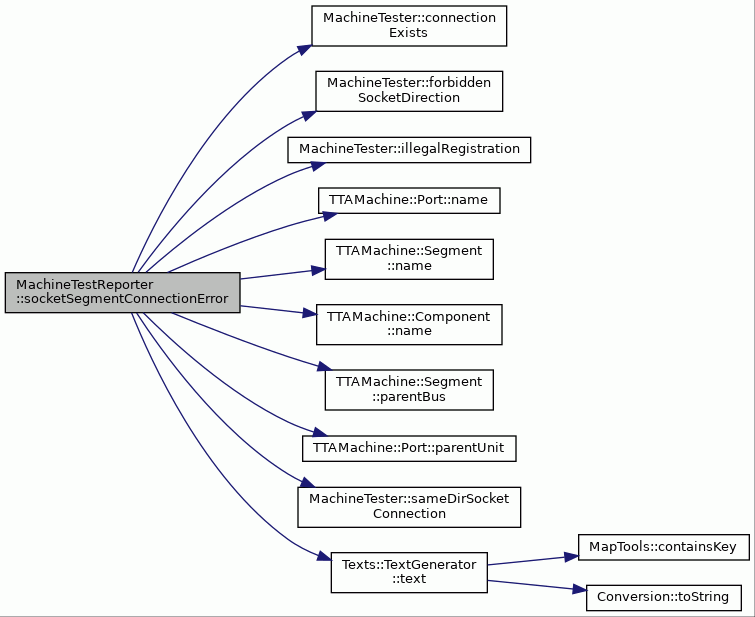

Here is the call graph for this function:
The documentation for this class was generated from the following files:
Generated by doxygen 1.9.8
