#include <ProDeOptions.hh>

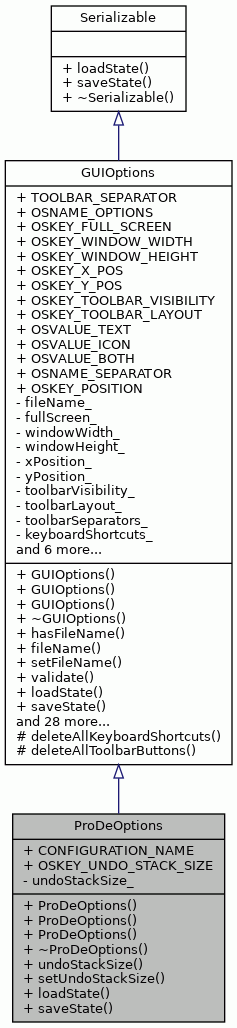

Inheritance diagram for ProDeOptions:

Collaboration diagram for ProDeOptions:

Public Member Functions
	ProDeOptions ()

	ProDeOptions (const ObjectState *state)

	ProDeOptions (const ProDeOptions &old)

virtual	~ProDeOptions ()

int	undoStackSize () const

void	setUndoStackSize (int size)

void	loadState (const ObjectState *state)

ObjectState *	saveState () const

Public Member Functions inherited from GUIOptions
	GUIOptions (std::string name)

	GUIOptions (const GUIOptions &old)

	GUIOptions (const ObjectState *state)

virtual	~GUIOptions ()

bool	hasFileName () const

std::string	fileName () const

void	setFileName (const std::string &fileName)

virtual void	validate () const

bool	fullScreen () const

int	windowWidth () const

int	windowHeight () const

int	xPosition () const

int	yPosition () const

bool	toolbarVisibility () const

ToolbarLayout	toolbarLayout () const

void	setFullScreen (bool fullScreen)

void	setWindowSize (int width, int height)

void	setWindowPosition (int x, int y)

void	setToolbarVisibility (bool visible)

void	setToolbarLayout (ToolbarLayout layout)

void	addKeyboardShortcut (KeyboardShortcut *shortcut)

void	addToolbarButton (ToolbarButton *button)

void	addSeparator (int position)

void	deleteKeyboardShortcut (KeyboardShortcut *shortcut)

void	deleteToolbarButton (ToolbarButton *button)

void	deleteSeparator (int position)

KeyboardShortcut *	keyboardShortcut (const std::string commandName) const

KeyboardShortcut *	firstShortcut () const

KeyboardShortcut *	nextShortcut () const

ToolbarButton *	firstToolbarButton () const

ToolbarButton *	nextToolbarButton () const

int	firstSeparator () const

int	nextSeparator () const

void	clearModified ()

bool	isModified () const

wxToolBar *	createToolbar (wxWindow *parent, CommandRegistry &registry, const wxString &iconsPath)

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	CONFIGURATION_NAME = "prode-configuration"
	ObjectState name for ProDeOptions.

static const std::string	OSKEY_UNDO_STACK_SIZE = "undosize"
	ObjectState attribute key for the size of the undo stack.

Static Public Attributes inherited from GUIOptions
static const std::string	TOOLBAR_SEPARATOR = "-- separator --"
	Toolbar separator name.

static const std::string	OSNAME_OPTIONS = "options"
	ObjectState name for the options.

static const std::string	OSKEY_FULL_SCREEN = "fscreen"
	ObjectState attribute key for full screen feature.

static const std::string	OSKEY_WINDOW_WIDTH = "wwidth"
	ObjectState attribute key for window width.

static const std::string	OSKEY_WINDOW_HEIGHT = "wheight"
	ObjectState attribute key for window height.

static const std::string	OSKEY_X_POS = "xpos"
	ObjectState attribute key for window x position.

static const std::string	OSKEY_Y_POS = "ypos"
	ObjectState attribute key for window y position.

static const std::string	OSKEY_TOOLBAR_VISIBILITY = "tbvisib"
	ObjectState attribute key for toolbar visibility.

static const std::string	OSKEY_TOOLBAR_LAYOUT = "tblayout"
	ObjectState attribute key for toolbar layout.

static const std::string	OSVALUE_TEXT = "text"
	ObjectState attribute value for text layout.

static const std::string	OSVALUE_ICON = "icon"
	ObjectState attribute value for icon layout.

static const std::string	OSVALUE_BOTH = "both"
	ObjectState attribute value for text & icon layout.

static const std::string	OSNAME_SEPARATOR = "separator"
	ObjectState name for separator.

static const std::string	OSKEY_POSITION = "pos"
	ObjectState attribute key for separator position.

Private Attributes
int	undoStackSize_
	Undo stack size.

Additional Inherited Members
Public Types inherited from GUIOptions
enum	ToolbarLayout { TEXT , ICON , BOTH }

Protected Member Functions inherited from GUIOptions
void	deleteAllKeyboardShortcuts ()

void	deleteAllToolbarButtons ()

Detailed Description

Represents the options of the editor.

Definition at line 44 of file ProDeOptions.hh.

Constructor & Destructor Documentation

◆ ProDeOptions() [1/3]

ProDeOptions::ProDeOptions ( )

Constructor.

Definition at line 50 of file ProDeOptions.cc.

                           :
    GUIOptions(CONFIGURATION_NAME),
    undoStackSize_(10) {
}

◆ ProDeOptions() [2/3]

ProDeOptions::ProDeOptions ( const ObjectState * state )

Constructor.

Loads the state from the given ObjectState tree.

Parameters

state The ObjectState tree.

Exceptions

ObjectStateLoadingException If the given ObjectState tree is invalid.

Definition at line 65 of file ProDeOptions.cc.

    : GUIOptions(CONFIGURATION_NAME) {
    loadState(state);
}

References loadState().

Here is the call graph for this function:

◆ ProDeOptions() [3/3]

ProDeOptions::ProDeOptions ( const ProDeOptions & old )

Copy constructor.

This constructor creates identical options with the given options class.

Definition at line 75 of file ProDeOptions.cc.

                                                  :
    GUIOptions(old) {

    undoStackSize_ = old.undoStackSize_;
}

References undoStackSize_.

◆ ~ProDeOptions()

ProDeOptions::~ProDeOptions ( )

virtual

Destructor.

Definition at line 85 of file ProDeOptions.cc.

85 {

86}

Member Function Documentation

◆ loadState()

void ProDeOptions::loadState ( const ObjectState * state )

virtual

Loads the state of the object from the given ObjectState object.

Parameters

state ObjectState from which the state is loaded.

Exceptions

ObjectStateLoadingException If the given ObjectState instance is invalid.

Reimplemented from GUIOptions.

Definition at line 119 of file ProDeOptions.cc.

                                                {
    deleteAllKeyboardShortcuts();
    deleteAllToolbarButtons();

    const string procName = "ProDeOptions::loadState";

    GUIOptions::loadState(state);

    try {
        undoStackSize_ = state->intAttribute(OSKEY_UNDO_STACK_SIZE);
    } catch (...) {
        deleteAllKeyboardShortcuts();
        deleteAllToolbarButtons();
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }
}

References GUIOptions::deleteAllKeyboardShortcuts(), GUIOptions::deleteAllToolbarButtons(), ObjectState::intAttribute(), GUIOptions::loadState(), OSKEY_UNDO_STACK_SIZE, and undoStackSize_.

Referenced by ProDeOptions().

Here is the call graph for this function:

◆ saveState()

ObjectState * ProDeOptions::saveState ( ) const

virtual

Creates an ObjectState object and saves the state of the object into it.

Returns: The created ObjectState object.

Reimplemented from GUIOptions.

Definition at line 142 of file ProDeOptions.cc.

                              {
    ObjectState* state = GUIOptions::saveState();
    state->setAttribute(OSKEY_UNDO_STACK_SIZE, undoStackSize_);
    return state;
}

References OSKEY_UNDO_STACK_SIZE, GUIOptions::saveState(), ObjectState::setAttribute(), and undoStackSize_.

Here is the call graph for this function:

◆ setUndoStackSize()

void ProDeOptions::setUndoStackSize ( int size )

Sets the size of the undo stack.

Parameters

size	The new size.

Definition at line 106 of file ProDeOptions.cc.

                                       {
    undoStackSize_ = size;
}

References undoStackSize_.

Referenced by ProDe::createDefaultOptions(), and ProDeOptionsDialog::writeProDeOptions().

◆ undoStackSize()

int ProDeOptions::undoStackSize ( ) const

Returns the size of the undo stack.

Returns: The size of the undo stack.

Definition at line 95 of file ProDeOptions.cc.

                                  {
    return undoStackSize_;
}

References undoStackSize_.

Referenced by ProDeOptionsDialog::readProDeOptions().

Member Data Documentation

◆ CONFIGURATION_NAME

const string ProDeOptions::CONFIGURATION_NAME = "prode-configuration"

static

ObjectState name for ProDeOptions.

Definition at line 59 of file ProDeOptions.hh.

◆ OSKEY_UNDO_STACK_SIZE

const string ProDeOptions::OSKEY_UNDO_STACK_SIZE = "undosize"

static

ObjectState attribute key for the size of the undo stack.

Definition at line 61 of file ProDeOptions.hh.

Referenced by ProDeOptionsSerializer::convertToConfigFileFormat(), ProDeOptionsSerializer::convertToOptionsObjectFormat(), loadState(), and saveState().

◆ undoStackSize_

int ProDeOptions::undoStackSize_

private

Undo stack size.

Definition at line 65 of file ProDeOptions.hh.

Referenced by loadState(), ProDeOptions(), saveState(), setUndoStackSize(), and undoStackSize().

The documentation for this class was generated from the following files:
