ProGeTestBenchGenerator Class Reference

#include <ProGeTestBenchGenerator.hh>

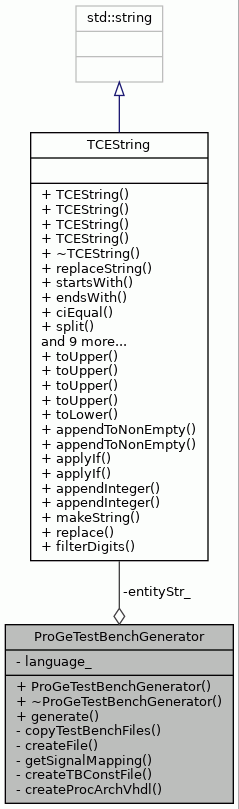

Collaboration diagram for ProGeTestBenchGenerator:

Public Member Functions
	ProGeTestBenchGenerator ()
virtual	~ProGeTestBenchGenerator ()
void	generate (const ProGe::HDL language, const TTAMachine::Machine &mach, const IDF::MachineImplementation &implementation, const std::string &dstDirectory, const std::string &progeOutDir, const std::string &entityStr="tta0")

Private Member Functions
void	copyTestBenchFiles (const std::string &dstDirectory)
void	createFile (const std::string &fileName)
std::string	getSignalMapping (const std::string &fuName, const std::string &epName, bool widthIsOne, const std::string &memoryName, const std::string &memoryLine)
void	createTBConstFile (std::string dstDirectory, const std::string &dmemImage="dmem_init.img", const std::string &dataWidth="", const std::string &addrWidth="")
void	createProcArchVhdl (const std::string &dstDirectory, const std::string &topLevelVhdl, const std::string &signalMappings)

Private Attributes
TCEString	entityStr_
ProGe::HDL	language_

Detailed Description

Class for test bench generating objects.

Base class for script generating.

Definition at line 54 of file ProGeTestBenchGenerator.hh.

Constructor & Destructor Documentation

ProGeTestBenchGenerator()

ProGeTestBenchGenerator::ProGeTestBenchGenerator

(

)

The constructor.

Definition at line 85 of file ProGeTestBenchGenerator.cc.

                                                 {
    // empty
}

~ProGeTestBenchGenerator()

ProGeTestBenchGenerator::~ProGeTestBenchGenerator ( )

virtual

The destructor.

Definition at line 93 of file ProGeTestBenchGenerator.cc.

                                                  {
    // empty
}

Member Function Documentation

copyTestBenchFiles()

void ProGeTestBenchGenerator::copyTestBenchFiles ( const std::string &  dstDirectory )

private

Copies general testbench files to given destination directory.

Parameters

dstDirectory

Destination directory for test bench files.

Definition at line 571 of file ProGeTestBenchGenerator.cc.

                                                                         {
    // create destination directory for the testbench
    if(!FileSystem::createDirectory(dstDirectory) &&
       !FileSystem::fileIsDirectory(dstDirectory)) {
        return;
    }

    const std::string DS = FileSystem::DIRECTORY_SEPARATOR;
    // copy testbench base files to dstDirectory
    string sourceDir = Environment::dataDirPath("ProGe");
    sourceDir = sourceDir + DS + "tb";
    std::list<string> foundSourceFiles;

    string vhdlRegex = ((language_==VHDL)?".*\\.vhdl$":".*\\.v*$");
    FileSystem::findFromDirectory(vhdlRegex, sourceDir, foundSourceFiles);
    std::list<string>::iterator it = foundSourceFiles.begin();
    while (it != foundSourceFiles.end()) {
        FileSystem::copy(*it, dstDirectory);
        it++;
    }

    HDLTemplateInstantiator inst;
    inst.setEntityString(entityStr_);

    inst.instantiateTemplateFile(
        sourceDir + DS +
        ((language_==VHDL)?
        "legacy_testbench.vhdl.tmpl":"legacy_testbench.v.tmpl"),
        dstDirectory + DS +
        ((language_==VHDL)?"testbench.vhdl":"testbench.v"));

    if(language_==VHDL)
        inst.instantiateTemplateFile(
            sourceDir + DS + "proc_ent.vhdl.tmpl",
            dstDirectory + DS + "proc_ent.vhdl");

}

References FileSystem::copy(), FileSystem::createDirectory(), Environment::dataDirPath(), FileSystem::DIRECTORY_SEPARATOR, DS, entityStr_, FileSystem::fileIsDirectory(), FileSystem::findFromDirectory(), HDLTemplateInstantiator::instantiateTemplateFile(), language_, HDLTemplateInstantiator::setEntityString(), and ProGe::VHDL.

Referenced by generate().

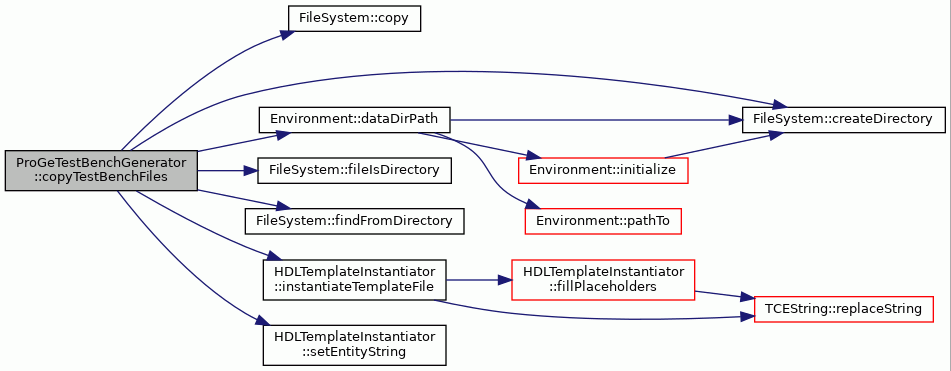

Here is the call graph for this function:

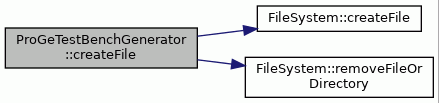

createFile()

void ProGeTestBenchGenerator::createFile ( const std::string &  fileName )

private

Creates a file.

Parameters

Name	of the script file to be created.

Exceptions

IOException

Couldn't create the file.

Definition at line 616 of file ProGeTestBenchGenerator.cc.

                                                             {
    FileSystem::removeFileOrDirectory(fileName);
    bool isCreated = FileSystem::createFile(fileName);
    if (!isCreated) {
        string errorMsg = "Unable to create file " + fileName;
        throw IOException(__FILE__, __LINE__, __func__, errorMsg);
    }
}

References __func__, FileSystem::createFile(), and FileSystem::removeFileOrDirectory().

Referenced by createTBConstFile().

Here is the call graph for this function:

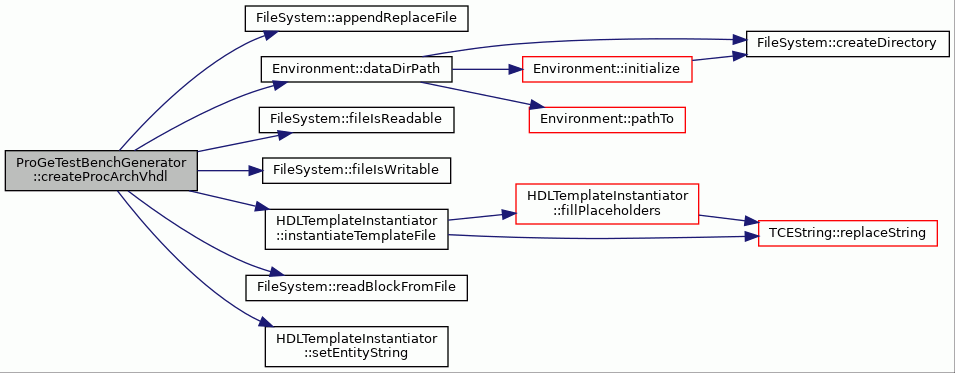

createProcArchVhdl()

void ProGeTestBenchGenerator::createProcArchVhdl ( const std::string &  dstDirectory, const std::string &  topLevelVhdl, const std::string &  signalMappings  )

private

Creates a new proc_arch vhdl file from a template file.

Writes a new toplevel and core signal mapping.

Parameters

dstDirectory	Directory where new proc_arch file is created.
topLevelVhdl	Toplevel vhdl file where toplevel is read for writing to the proc_arch file.
signalMappings	Core signal mappings as a string to be writen to the proc_arch file.

Exceptions

IOException

Problems in handling files.

Definition at line 351 of file ProGeTestBenchGenerator.cc.

                                     {
    if (!FileSystem::fileIsReadable(topLevelVhdl)) {
        string eMsg = "File was not readable: " + topLevelVhdl;
        IOException error(__FILE__, __LINE__, __func__, eMsg);
        throw error;
    }

    string startRE,endRE;
    if(language_==VHDL){
        startRE = std::string(".*entity.") + entityStr_ + ".is.*";
        endRE = std::string(".*end.") + entityStr_ + ";.*";
    } else {
        startRE = std::string(".*module.") + entityStr_;
        endRE = std::string(".*endmodule.*");
    }

    string block = "";
    bool ok =
        FileSystem::readBlockFromFile(
            topLevelVhdl, startRE, endRE, block, false);

    if (!ok || block == "")
        throw IOException(__FILE__, __LINE__, __func__,
                          TCEString(
                              "Could not read processor entity from ") +
                          topLevelVhdl);


    TCEString sourceFile =
        Environment::dataDirPath("ProGe") + FileSystem::DIRECTORY_SEPARATOR +
        "tb" + FileSystem::DIRECTORY_SEPARATOR +
        ((language_==VHDL)?"proc_arch.vhdl.tmpl":"proc_arch.v.tmpl");

    // change proc_arch.vhdl
    string procArch = dstDirectory + FileSystem::DIRECTORY_SEPARATOR +
        ((language_==VHDL)?"proc_arch.vhdl":"proc_arch.v");

    HDLTemplateInstantiator inst;
    inst.setEntityString(entityStr_);
    inst.instantiateTemplateFile(sourceFile, procArch);

    // check if readable and writable
    if(!FileSystem::fileIsReadable(procArch) ||
        !FileSystem::fileIsWritable(procArch)) {

        string eMsg = "File was not readable: " + procArch;
        IOException error(__FILE__, __LINE__, __func__, eMsg);
        throw error;
    }

    if(language_==VHDL){
        startRE = std::string(".*component.") + entityStr_ + ".*";
        endRE = std::string(".*end.component;.*");
        if (!FileSystem::appendReplaceFile(procArch, startRE, block, endRE,
            false)) {

            string eMsg = "Could not write toplevel to: " + procArch;
            IOException error(__FILE__, __LINE__, __func__, eMsg);
            throw error;
        }
    }

    if(language_==VHDL){
        startRE = std::string(".*core.:.") + entityStr_ + ".*";
        endRE = ".*datamem.:.synch_dualport_sram.*";
    }else{
        startRE = entityStr_ + std::string(".*core.*");
        endRE = ".*synch_dualport_sram.*";
    }
    if (!FileSystem::appendReplaceFile(procArch, startRE, signalMappings,
        endRE, false)) {

        string eMsg = "Could not write core to: " + procArch;
        IOException error(__FILE__, __LINE__, __func__, eMsg);
        throw error;
    }
}

References __func__, FileSystem::appendReplaceFile(), Environment::dataDirPath(), FileSystem::DIRECTORY_SEPARATOR, entityStr_, FileSystem::fileIsReadable(), FileSystem::fileIsWritable(), language_, FileSystem::readBlockFromFile(), HDLTemplateInstantiator::setEntityString(), and ProGe::VHDL.

Referenced by generate().

Here is the call graph for this function:

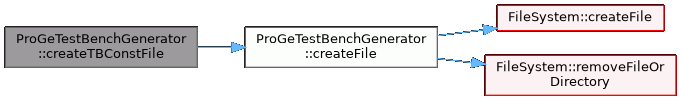

createTBConstFile()

void ProGeTestBenchGenerator::createTBConstFile ( std::string  dstDirectory, const std::string &  dmemImage = "dmem_init.img", const std::string &  dataWidth = "", const std::string &  addrWidth = ""  )

private

Creates test bench constants package vhdl file.

Parameters

dstDirectory	Directory where the file is created.
dataWidth	Memory data width.
addrWidth	Memory address width.

Definition at line 499 of file ProGeTestBenchGenerator.cc.

                                                      {
    string dstFile = dstDirectory + FileSystem::DIRECTORY_SEPARATOR +
                     ((language_ == VHDL) ? "testbench_constants_pkg.vhdl"
                                          : "testbench_constants_pkg.vh");

    createFile(dstFile);

    std::ofstream stream(dstFile.c_str(), std::ofstream::out);
    if(language_==VHDL){
        stream << "package testbench_constants is" << endl
               << "-- width of the data memory" << endl
               << "constant DMEMDATAWIDTH : positive := "
               << ((dataWidth.empty()) ? "1" : dataWidth) << ";" << endl

               << "-- address width of the data memory" << endl
               << "constant DMEMADDRWIDTH : positive := "
               << ((addrWidth.empty()) ? "1" : addrWidth) << ";" << endl

               << "-- simulation run time" << endl
               << "constant RUNTIME : time := 5234 * 10 ns;" << endl

               << "-- memory init files" << endl
               << "constant DMEM_INIT_FILE : string := "
               << ((dataWidth.empty())
                       ? "\"\";"
                       : "\"tb" + FileSystem::DIRECTORY_SEPARATOR +
                             dmemImage + "\";")
               << endl

               << "constant IMEM_INIT_FILE : string := "
               << "\"tb" + FileSystem::DIRECTORY_SEPARATOR +
                      "imem_init.img\";"
               << endl
               << "end testbench_constants;" << endl;
    } else {
        stream << "// width of the data memory" << endl
               << "parameter DMEMDATAWIDTH = "
               << ((dataWidth.empty()) ? "1" : dataWidth) << "," << endl

               << "// address width of the data memory" << endl
               << "parameter DMEMADDRWIDTH = "
               << ((addrWidth.empty()) ? "1" : addrWidth) << "," << endl

               << "// simulation run time" << endl
               << "parameter RUNTIME = `SIMTIME,// ns" << endl

               << "// memory init files" << endl
               << "parameter DMEM_INIT_FILE = "
               << ((dataWidth.empty())
                       ? "\"\","
                       : "\"tb" + FileSystem::DIRECTORY_SEPARATOR +
                             dmemImage + "\",")
               << endl

               << "parameter IMEM_INIT_FILE = "
               << ((addrWidth.empty())
                       ? "\"\""
                       : "\"tb" + FileSystem::DIRECTORY_SEPARATOR +
                             "imem_init.img\"")
               << endl;
    }
    stream.close();
}

References createFile(), FileSystem::DIRECTORY_SEPARATOR, language_, and ProGe::VHDL.

Referenced by generate().

Here is the call graph for this function:

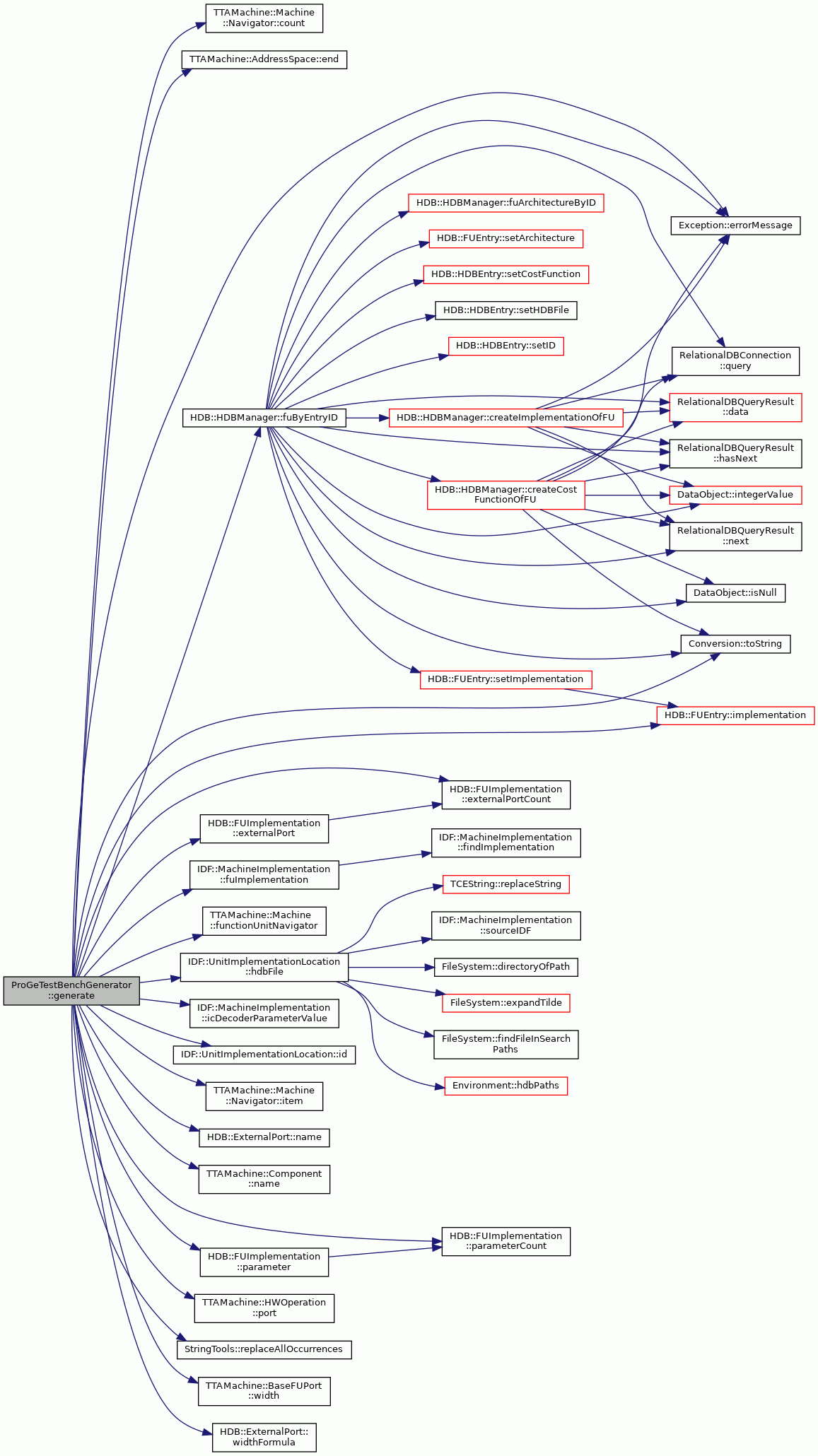

generate()

void ProGeTestBenchGenerator::generate	(	const ProGe::HDL	language,
		const TTAMachine::Machine &	mach,
		const IDF::MachineImplementation &	implementation,
		const std::string &	dstDirectory,
		const std::string &	progeOutDir,
		const std::string &	entityStr = "tta0"
	)

Generates testbench to given destination directory.

At the moment multiple address spaces for FUs are not supported. Only one data memory and instruction memory are usable. There is no code for generating new memory components, this is a todo item for later. There is also additional limit that at most two function units can use the one address space. Most of the TODO comments mark the places where code needs to be changed to accomodate the removal of these limitations.

Parameters

mach	Machine for which test bench is generated
implementation	Implementation of the machine
dstDirectory	Destination directory where test bench is generated
progeOutDir	Processor generators output directory

Exceptions

IOException	Problems in handling files.
OutOfRange	Too many FUs using same address space or same FU uses more than one address space.
InvalidName
InvalidData	FU was not found from HDB.

Definition at line 119 of file ProGeTestBenchGenerator.cc.

                                {
    entityStr_ = entityStr;
    language_  = language;
    // map to store FUs that use address spaces
    std::map<string, std::vector<FunctionUnit*> > ASFUs;

    // for now limit the number of function units that use certain address
    // space
    const unsigned int FUSPERAS = 2;
    // get all address spaces and function units that use them
    // every function unit can use different address space
    Machine::FunctionUnitNavigator FUNav = mach.functionUnitNavigator();
    for (int i = 0; i < FUNav.count(); ++i) {
        FunctionUnit* FU = FUNav.item(i);

        if (FU->hasAddressSpace()) {
            AddressSpace* AS = FU->addressSpace();

            std::map<string, std::vector<FunctionUnit*> >::iterator it
                = ASFUs.find(AS->name());
            if (it != ASFUs.end()) {
                // the number of FUs that can use same address space is
                // limited for now
                if (it->second.size() < FUSPERAS) {
                    it->second.push_back(FU);
                } else {
                    OutOfRange error(
                        __FILE__, __LINE__, __func__,
                         "More than two FUs use same address space.\n");
                    throw error;
                }
            } else {
                std::vector<FunctionUnit*> FUList;
                FUList.push_back(FU);
                ASFUs.insert(make_pair(AS->name(), FUList));
            }
        }
    }

    if (ASFUs.size() > 1) {
        // only one address space for now
        string eMsg = "More than one address space used by FUs.";
        OutOfRange error(__FILE__, __LINE__, __func__, eMsg);
        throw error;
    }

    // copy test bench files used as a template
    copyTestBenchFiles(dstDirectory);

    // for every address space a memory component should be created to
    // the test bench vhdl files
    // TODO: for now it's quite unclear how memory components should be
    //       created in vhdl and is there some clean and dynamic way to do
    //       it. So for now there is no support for multiple address spaces.
    // get this name from address space name when creating dynamically memory
    // units
    const string MEMORYNAME = "dmem";
    std::map<string, std::vector<FunctionUnit*> >::iterator it
        = ASFUs.begin();
    std::map<string, std::vector<FunctionUnit*> >::iterator it_secLast
        = (ASFUs.empty()) ? ASFUs.end() : --(ASFUs.end());
    string LSUMap = "";
    while (it != ASFUs.end()) {
        // go through all FUs that have been mapped to address spaces
        HDB::FUImplementation* fuImplementation = NULL;
        for (unsigned int i = 0; i < it->second.size(); ++i) {
            FunctionUnit* FU = it->second.at(i);

            // get FUs implementation from hdb
            IDF::FUImplementationLocation& impl =
                implementation.fuImplementation(FU->name());

            FUEntry* entry = NULL;
            try {
                HDBManager& manager = HDBRegistry::instance().hdb(
                    impl.hdbFile());
                entry = manager.fuByEntryID(impl.id());
            } catch (const KeyNotFound& e) {
                throw InvalidData(__FILE__, __LINE__, __func__,
                    e.errorMessage());
            }

            // external ports can be found from implementation (hdb)
            fuImplementation = &entry->implementation();
            for (int j = 0, count = fuImplementation->externalPortCount();
                j < count; j++) {

                FUExternalPort& ep = fuImplementation->externalPort(j);
                LSUMap.append(getSignalMapping(FU->name(), ep.name(),
                    (ep.widthFormula() == "1"), MEMORYNAME,
                    ((i > 0) ? "b" : "a"))); // only two FUs for same AS

                if (it == it_secLast && (i+1) == it->second.size() &&
                    (j + 1) == count) {
                    // last mapping
                    LSUMap.append(");\n");
                } else {
                    LSUMap.append(",\n");
                }
            }

        }

        // get data width and address width of memory unit that fu is
        // connected to, only once for every address space
        string dataWidth;
        string addrWidth;
        string dmemImageFilename("dmem_");
        if (ASFUs.size() == 1) {
            dmemImageFilename +=
                ASFUs.begin()->second.at(0)->addressSpace()->name();
            dmemImageFilename += "_";
        }
        dmemImageFilename += "init.img";
        for (int p = 0, count = fuImplementation->parameterCount();
            p < count; ++p) {

            FUImplementation::Parameter param = fuImplementation->parameter(p);
            if (string::npos != param.name.find("dataw")
                && param.type == "integer") {

                if (param.value.length() < 1) {
                    // if width isn't stored read it from port
                    FunctionUnit* FU = it->second.at(0);
                    TTAMachine::HWOperation* hwop = FU->operation(0);
                    dataWidth = Conversion::toString(hwop->port(2)->width());
                } else {
                    dataWidth = param.value;
                }
            } else if (string::npos != param.name.find(ADDR_WIDTH)
                && param.type == "integer") {
                // calculate the internal address width from the address space
                FunctionUnit* FU = it->second.at(0);
                AddressSpace* AS = FU->addressSpace();
                string internalAddrWidth = Conversion::toString(
                    static_cast<int>(ceil(log(AS->end()) / log(2))));

                // locate the external address port and its width formula
                string widthFormula;
                for (int i = 0; i < fuImplementation->externalPortCount();
                     i++) {
                    FUExternalPort& ep = fuImplementation->externalPort(i);
                    if (ep.widthFormula().find(ADDR_WIDTH) != string::npos) {
                        widthFormula = ep.widthFormula();
                        break;
                    }
                }

                if (widthFormula.empty()) {
                    addrWidth = internalAddrWidth;
                } else {
                    addrWidth = StringTools::replaceAllOccurrences(
                        widthFormula, ADDR_WIDTH, internalAddrWidth);
                }
            }
        }
        // TODO: don't create whole file here just add memory widths and
        // the init file entry
        createTBConstFile(
            dstDirectory, dmemImageFilename, dataWidth, addrWidth);
        ++it;
    }

    if (ASFUs.empty()) {
        createTBConstFile(dstDirectory);
    }

    // the beginning of the core FU (load store unit) mappings
    string LSUMapConst;
    if (language == VHDL) {
        LSUMapConst =
            "port map (\n"
            "clk  => clk,\n"
            "rstx => rst_x,\n"
            "busy => '0',\n"
            "imem_en_x => imem_en_x,\n"
            "imem_addr => imem_addr,\n"
            "imem_data => imem_data,\n"
            "locked => locked";
        // Add external debugger ports, if needed
        if (implementation.icDecoderParameterValue("debugger") ==
            "external") {
            LSUMapConst.append(",\n"
                "db_pc_start => (others => '0'),\n"
                "db_tta_nreset => '1',\n"
                "db_lockrq => '0'");
        }
    } else {
        LSUMapConst=
            ".clk                (clk),\n"
            ".rstx               (rst_x),\n"
            ".busy               (1'b0),\n"
            ".imem_en_x          (imem_en_x),\n"
            ".imem_addr          (imem_addr),\n"
            ".imem_data          (imem_data)";
    }

    if (LSUMap.length() < 1) {
        LSUMapConst.append(");\n");
    } else {
        LSUMapConst.append(",\n");
        // append generated mappings
        LSUMapConst.append(LSUMap);
    }

    // read toplevel.vhdl from proge output dir for proc_arch.vhdl
    string toplevel = progeOutDir + FileSystem::DIRECTORY_SEPARATOR +
                      ((language == VHDL) ? "vhdl" : "verilog") +
                      FileSystem::DIRECTORY_SEPARATOR + entityStr +
                      ((language == VHDL) ? ".vhdl" : ".v");

    createProcArchVhdl(dstDirectory, toplevel, LSUMapConst);
}

References __func__, ADDR_WIDTH, copyTestBenchFiles(), TTAMachine::Machine::Navigator< ComponentType >::count(), createProcArchVhdl(), createTBConstFile(), FileSystem::DIRECTORY_SEPARATOR, TTAMachine::AddressSpace::end(), entityStr_, Exception::errorMessage(), HDB::FUImplementation::externalPort(), HDB::FUImplementation::externalPortCount(), FU, HDB::HDBManager::fuByEntryID(), IDF::MachineImplementation::fuImplementation(), TTAMachine::Machine::functionUnitNavigator(), getSignalMapping(), HDB::HDBRegistry::hdb(), IDF::UnitImplementationLocation::hdbFile(), IDF::MachineImplementation::icDecoderParameterValue(), IDF::UnitImplementationLocation::id(), HDB::FUEntry::implementation(), implementation, HDB::HDBRegistry::instance(), TTAMachine::Machine::Navigator< ComponentType >::item(), language_, HDB::ExternalPort::name(), HDB::Parameter::name, TTAMachine::Component::name(), HDB::FUImplementation::parameter(), HDB::FUImplementation::parameterCount(), TTAMachine::HWOperation::port(), StringTools::replaceAllOccurrences(), Conversion::toString(), HDB::Parameter::type, HDB::Parameter::value, ProGe::VHDL, TTAMachine::BaseFUPort::width(), and HDB::ExternalPort::widthFormula().

Referenced by ProGe::ProGeUI::generateTestBench().

Here is the call graph for this function:

getSignalMapping()

std::string ProGeTestBenchGenerator::getSignalMapping ( const std::string &  fuName, const std::string &  epName, bool  widthIsOne, const std::string &  memoryName, const std::string &  memoryLine  )

private

Creates core signal mapping for FUs external port -> data memory.

Maps signals according to some defined naming "standard".

Parameters

fuName	Function unit name.
epName	External port name.
widthIsOne	True if port width is one, false otherwise.
memoryName	Memory name.
memoryLine	Memory port that is used (for dual port memory a or b).

Returns

Signal mapping as a string.

Exceptions

InvalidName

External port name was invalid (not matching).

Definition at line 446 of file ProGeTestBenchGenerator.cc.

                                                              {
    const string sep = "_"; // separator between signal name elements

    // create fu signal name
    string fuSignalName("fu" + sep);
    if(language_==VHDL)
        fuSignalName.append(fuName + sep + epName + ((widthIsOne) ? "(0)" : ""));
    else
        fuSignalName.append(fuName + sep + epName);

    // create memory signal name
    string memSignalName(memoryName + sep);

    if (epName == "data_in") {
        memSignalName.append("q" + sep + memoryLine);
    } else
    if (epName == "data_out") {
        memSignalName.append("d" + sep + memoryLine);
    } else
    if (epName == "addr") {
        memSignalName.append(epName + sep + memoryLine);
    } else
    if (epName == "mem_en_x") {
        memSignalName.append("en" + sep + memoryLine + sep + "x");
    } else
    if (epName == "wr_en_x") {
        memSignalName.append("wr" + sep + memoryLine + sep + "x");
    } else
    if (epName == "wr_mask_x") {
        memSignalName.append("bit" + sep + "wr" + sep + memoryLine + sep
                             + "x");
    } else {
        string eMsg = "External port name didn't match any: " + epName;
        InvalidName error(__FILE__, __LINE__, __func__, eMsg);
        throw error;
    }

    if(language_==VHDL)
        return string(fuSignalName + " => " + memSignalName);

    return string("."+fuSignalName + "(" + memSignalName + ")");
}

References __func__, language_, and ProGe::VHDL.

Referenced by generate().

Member Data Documentation

entityStr_

TCEString ProGeTestBenchGenerator::entityStr_

private

Definition at line 80 of file ProGeTestBenchGenerator.hh.

Referenced by copyTestBenchFiles(), createProcArchVhdl(), and generate().

language_

ProGe::HDL ProGeTestBenchGenerator::language_

private

Definition at line 81 of file ProGeTestBenchGenerator.hh.

Referenced by copyTestBenchFiles(), createProcArchVhdl(), createTBConstFile(), generate(), and getSignalMapping().

---

The documentation for this class was generated from the following files:

• ProGeTestBenchGenerator.hh
• ProGeTestBenchGenerator.cc
