RFDialog Class Reference

#include <RFDialog.hh>

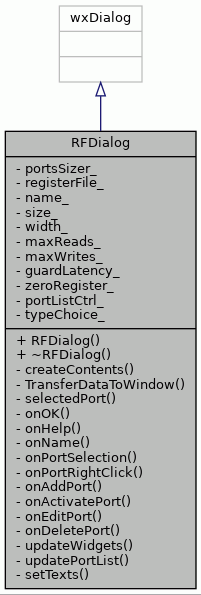

Inheritance diagram for RFDialog:

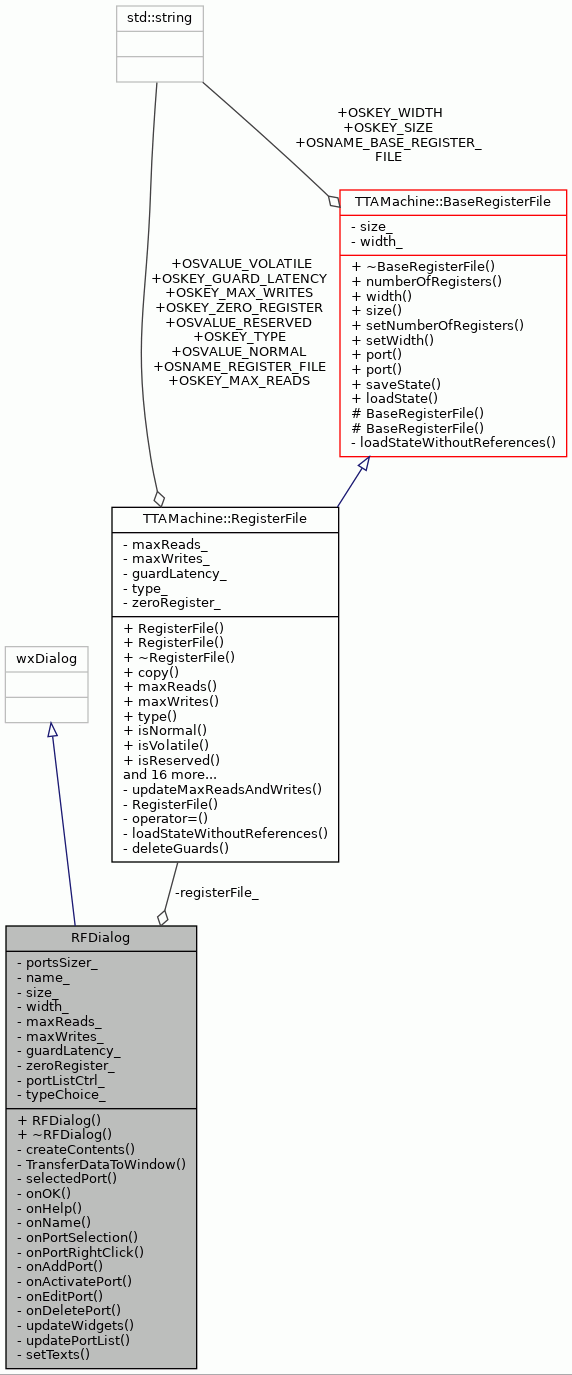

Collaboration diagram for RFDialog:

Public Member Functions
	RFDialog (wxWindow *parent, TTAMachine::RegisterFile *registerFile)
virtual	~RFDialog ()

Private Types
enum	{   ID_NAME = 10000 , ID_TYPE , ID_SIZE , ID_WIDTH ,   ID_MAX_READS , ID_MAX_WRITES , ID_GUARD_LATENCY , ID_PORT_LIST ,   ID_ADD_PORT , ID_EDIT_PORT , ID_DELETE_PORT , ID_HELP ,   ID_LABEL_NAME , ID_LABEL_SIZE , ID_LABEL_WIDTH , ID_LABEL_TYPE ,   ID_LABEL_MAX_READS , ID_LABEL_MAX_WRITES , ID_LABEL_GUARD_LATENCY , ID_ZERO_REGISTER }
	enumerated IDs for the dialog controls More...

Private Member Functions
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
virtual bool	TransferDataToWindow ()
TTAMachine::Port *	selectedPort () const
void	onOK (wxCommandEvent &event)
void	onHelp (wxCommandEvent &event)
void	onName (wxCommandEvent &event)
void	onPortSelection (wxListEvent &event)
void	onPortRightClick (wxListEvent &event)
void	onAddPort (wxCommandEvent &event)
void	onActivatePort (wxListEvent &event)
void	onEditPort (wxCommandEvent &event)
void	onDeletePort (wxCommandEvent &event)
void	updateWidgets ()
void	updatePortList ()
void	setTexts ()

Private Attributes
wxStaticBoxSizer *	portsSizer_
	Sizer containing the port list and associated buttons.
TTAMachine::RegisterFile *	registerFile_
	Register file to modify.
wxString	name_
	Name of the register file.
int	size_
	Number of registers.
int	width_
	Width.
int	maxReads_
	Max reads.
int	maxWrites_
	Maximum writes.
int	guardLatency_
	Guard latency.
bool	zeroRegister_
	Zero register.
wxListCtrl *	portListCtrl_
	Port list control.
wxChoice *	typeChoice_
	Opcode choice control.

Detailed Description

Dialog for editing register file parameters.

Definition at line 47 of file RFDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

enumerated IDs for the dialog controls

Enumerator
ID_NAME
ID_TYPE
ID_SIZE
ID_WIDTH
ID_MAX_READS
ID_MAX_WRITES
ID_GUARD_LATENCY
ID_PORT_LIST
ID_ADD_PORT
ID_EDIT_PORT
ID_DELETE_PORT
ID_HELP
ID_LABEL_NAME
ID_LABEL_SIZE
ID_LABEL_WIDTH
ID_LABEL_TYPE
ID_LABEL_MAX_READS
ID_LABEL_MAX_WRITES
ID_LABEL_GUARD_LATENCY
ID_ZERO_REGISTER

Definition at line 95 of file RFDialog.hh.

         {
        ID_NAME = 10000,
        ID_TYPE,
        ID_SIZE,
        ID_WIDTH,
        ID_MAX_READS,
        ID_MAX_WRITES,
        ID_GUARD_LATENCY,
        ID_PORT_LIST,
        ID_ADD_PORT,
        ID_EDIT_PORT,
        ID_DELETE_PORT,
        ID_HELP,
        ID_LABEL_NAME,
        ID_LABEL_SIZE,
        ID_LABEL_WIDTH,
        ID_LABEL_TYPE,
        ID_LABEL_MAX_READS,
        ID_LABEL_MAX_WRITES,
        ID_LABEL_GUARD_LATENCY,
        ID_ZERO_REGISTER
    };

Constructor & Destructor Documentation

RFDialog()

RFDialog::RFDialog	(	wxWindow *	parent,
		TTAMachine::RegisterFile *	registerFile
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
registerFile	Register file to add/edit.

Definition at line 82 of file RFDialog.cc.

                               :
    wxDialog(parent, -1, _T(""), wxDefaultPosition),
    registerFile_(registerFile),
    name_(_T("")),
    size_(1),
    width_(ModelConstants::DEFAULT_WIDTH),
    maxReads_(0),
    maxWrites_(0),
    zeroRegister_(false),
    portListCtrl_(NULL),
    typeChoice_(NULL) {

    //registerFile_->updateMaxReadsAndWrites();
    createContents(this, true, true);

    FindWindow(wxID_OK)->Disable();
    FindWindow(ID_EDIT_PORT)->Disable();
    FindWindow(ID_DELETE_PORT)->Disable();

    FindWindow(ID_NAME)->SetValidator(wxTextValidator(wxFILTER_ASCII, &name_));

    portListCtrl_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_PORT_LIST));
    typeChoice_ = dynamic_cast<wxChoice*>(FindWindow(ID_TYPE));

    // Set widget validators.
    FindWindow(ID_WIDTH)->SetValidator(wxGenericValidator(&width_));
    FindWindow(ID_SIZE)->SetValidator(wxGenericValidator(&size_));
    FindWindow(ID_GUARD_LATENCY)->SetValidator(
        wxGenericValidator(&guardLatency_));

    FindWindow(ID_ZERO_REGISTER)->SetValidator(
        wxGenericValidator(&zeroRegister_));

    // set widget texts
    setTexts();

    TransferDataToWindow();
}

~RFDialog()

RFDialog::~RFDialog ( )

virtual

The Destructor.

Definition at line 127 of file RFDialog.cc.

                    {
}

Member Function Documentation

createContents()

wxSizer * RFDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the dialog window contents.

This method was generated with wxDesigner.

Returns

Main sizer of the created contents.

Parameters

parent	The dialog window.
call_fit	If true, fits the contents inside the dialog.
set_sizer	If true, sets the main sizer as dialog contents.

Definition at line 536 of file RFDialog.cc.

                                                                        {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxFlexGridSizer *item1 = new wxFlexGridSizer( 2, 0, 0 );

    wxStaticText *item2 = new wxStaticText( parent, ID_LABEL_NAME, wxT("Name:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item2, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxTextCtrl *item3 = new wxTextCtrl( parent, ID_NAME, wxT(""), wxDefaultPosition, wxSize(200,-1), 0 );
    item1->Add( item3, 0, wxGROW|wxALL, 5 );

    wxStaticText *item4 = new wxStaticText( parent, ID_LABEL_TYPE, wxT("Type:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item4, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxString *strs5 = (wxString*) NULL;
    wxChoice *item5 = new wxChoice( parent, ID_TYPE, wxDefaultPosition, wxSize(100,-1), 0, strs5, 0 );
    item1->Add( item5, 0, wxGROW|wxALL, 5 );

    wxStaticText *item6 = new wxStaticText( parent, ID_LABEL_SIZE, wxT("Size:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item6, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxSpinCtrl *item7 = new wxSpinCtrl( parent, ID_SIZE, wxT("1"), wxDefaultPosition, wxSize(-1,-1), 0, 1, 10000, 1 );
    item1->Add( item7, 0, wxGROW|wxALL, 5 );

    wxStaticText *item8 = new wxStaticText( parent, ID_LABEL_WIDTH, wxT("Width:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item8, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxSpinCtrl *item9 = new wxSpinCtrl( parent, ID_WIDTH, wxT("1"), wxDefaultPosition, wxSize(-1,-1), 0, 1, 10000, 1 );
    item1->Add( item9, 0, wxGROW|wxALL, 5 );

    wxStaticText *item10 = new wxStaticText( parent, ID_LABEL_MAX_READS, wxT("Max-Reads:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item10, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxStaticText *item11 = new wxStaticText( parent, ID_MAX_READS, wxT("0"), wxDefaultPosition, wxSize(100,-1), 0);
    item1->Add( item11, 0, wxGROW|wxALL, 5 );

    wxStaticText *item12 = new wxStaticText( parent, ID_LABEL_MAX_WRITES, wxT("Max-Writes:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item12, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxStaticText *item13 = new wxStaticText( parent, ID_MAX_WRITES, wxT("0"), wxDefaultPosition, wxSize(100,-1), 0);
    item1->Add( item13, 0, wxGROW|wxALL, 5 );

    wxStaticText *item14 = new wxStaticText( parent, ID_LABEL_GUARD_LATENCY, wxT("Guard Latency:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item14, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxSpinCtrl *item15 = new wxSpinCtrl( parent, ID_GUARD_LATENCY, wxT("0"), wxDefaultPosition, wxSize(-1,-1), 0, 0, 1, 0 );
    item1->Add( item15, 0, wxGROW|wxALL, 5 );

    item0->Add( item1, 0, wxGROW|wxALL, 5 );

    wxStaticBox *item17 = new wxStaticBox( parent, -1, wxT("Ports:") );
    wxStaticBoxSizer *item16 = new wxStaticBoxSizer( item17, wxVERTICAL );
    portsSizer_ = item16;

    wxListCtrl *item18 = new wxListCtrl( parent, ID_PORT_LIST, wxDefaultPosition, wxSize(160,120), wxLC_REPORT|wxSUNKEN_BORDER );
    item16->Add( item18, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item19 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item20 = new wxButton( parent, ID_ADD_PORT, wxT("&Add.."), wxDefaultPosition, wxDefaultSize, 0 );
    item19->Add( item20, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item21 = new wxButton( parent, ID_EDIT_PORT, wxT("&Edit..."), wxDefaultPosition, wxDefaultSize, 0 );
    item19->Add( item21, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item22 = new wxButton( parent, ID_DELETE_PORT, wxT("&Delete"), wxDefaultPosition, wxDefaultSize, 0 );
    item19->Add( item22, 0, wxALIGN_CENTER|wxALL, 5 );

    item16->Add( item19, 0, wxALIGN_CENTER|wxLEFT|wxRIGHT, 5 );

    item0->Add( item16, 0, wxALIGN_CENTER|wxALL, 5 );

    wxBoxSizer *item23 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item24 = new wxButton( parent, ID_HELP, wxT("&Help"), wxDefaultPosition, wxDefaultSize, 0 );
    item23->Add( item24, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item25 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item23->Add( item25, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item26 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item23->Add( item26, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item23, 0, wxALIGN_CENTER|wxALL, 5 );

    wxCheckBox *item27 = new wxCheckBox( parent, ID_ZERO_REGISTER, wxT("Zero register"), wxDefaultPosition, wxDefaultSize, 0);
    item1->Add( item27, 0, wxALIGN_CENTER_VERTICAL|wxALIGN_CENTER_VERTICAL|wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_ADD_PORT, ID_DELETE_PORT, ID_EDIT_PORT, ID_GUARD_LATENCY, ID_HELP, ID_LABEL_GUARD_LATENCY, ID_LABEL_MAX_READS, ID_LABEL_MAX_WRITES, ID_LABEL_NAME, ID_LABEL_SIZE, ID_LABEL_TYPE, ID_LABEL_WIDTH, ID_MAX_READS, ID_MAX_WRITES, ID_NAME, ID_PORT_LIST, ID_SIZE, ID_TYPE, ID_WIDTH, ID_ZERO_REGISTER, and portsSizer_.

onActivatePort()

void RFDialog::onActivatePort ( wxListEvent &  event )

private

Handles left mouse button double clicks on the port list.

Definition at line 455 of file RFDialog.cc.

                                     {
    wxCommandEvent dummy;
    onEditPort(dummy);
}

References dummy, and onEditPort().

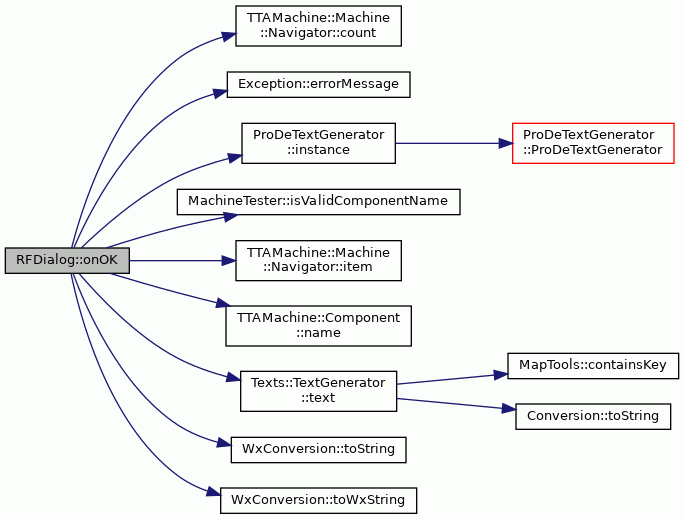

Here is the call graph for this function:

onAddPort()

void RFDialog::onAddPort ( wxCommandEvent &  event )

private

Creates and shows an empty RFPortDialog for adding ports.

Definition at line 412 of file RFDialog.cc.

                                   {

    // Generate name for the new port.
    int i = 1;
    string newName = ProDeConstants::COMP_NEW_NAME_PREFIX_PORT +
        Conversion::toString(i);
    while (registerFile_->hasPort(newName)) {
        newName = ProDeConstants::COMP_NEW_NAME_PREFIX_PORT +
            Conversion::toString(i);
        i++;
    }

    RFPort* port = new RFPort(newName, *registerFile_);
    RFPortDialog portDialog(this, port);
    if (portDialog.ShowModal() == wxID_OK) {
        updatePortList();
    } else {
        delete port;
    }

    updateWidgets();

}

References ProDeConstants::COMP_NEW_NAME_PREFIX_PORT, TTAMachine::Unit::hasPort(), registerFile_, Conversion::toString(), updatePortList(), and updateWidgets().

Here is the call graph for this function:

onDeletePort()

void RFDialog::onDeletePort ( wxCommandEvent &  event )

private

Deletes selected port from the port list.

Definition at line 441 of file RFDialog.cc.

                                      {
    Port* selected = selectedPort();
    assert(selected != NULL);
    delete selected;
    updatePortList();

    updateWidgets();
}

References assert, selectedPort(), updatePortList(), and updateWidgets().

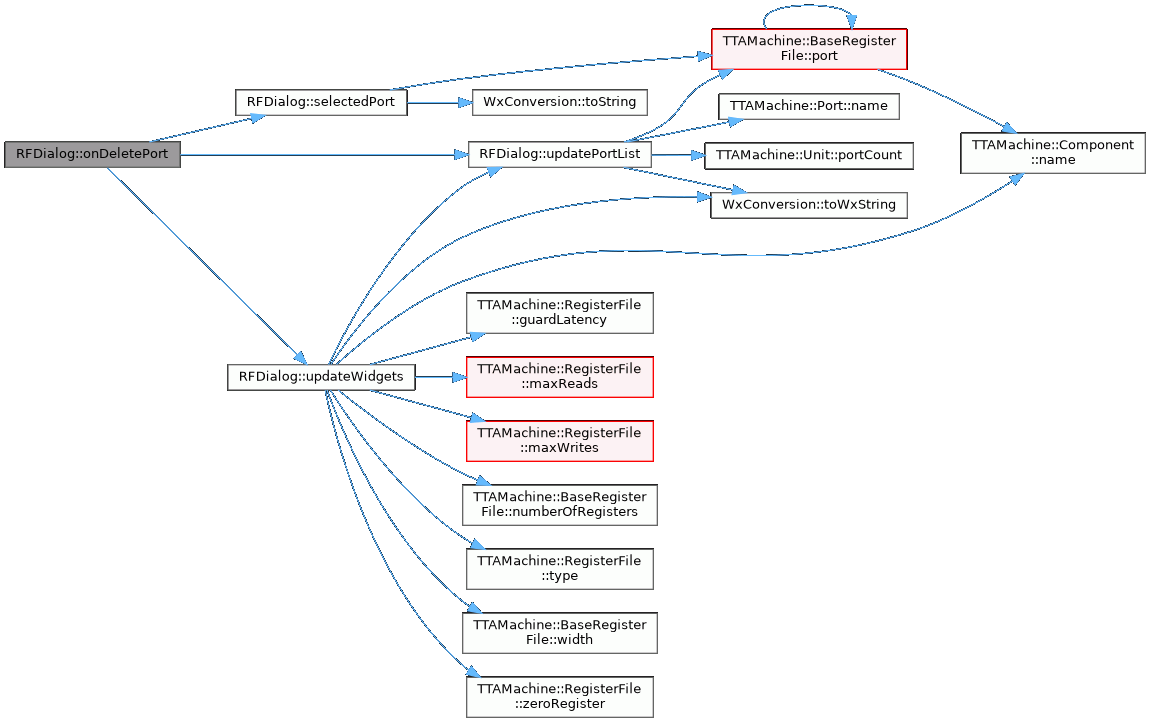

Here is the call graph for this function:

onEditPort()

void RFDialog::onEditPort ( wxCommandEvent &  event )

private

Handles the 'Edit Port' button event.

Opens a RFPortDialog with the selected port's attributes set.

Definition at line 467 of file RFDialog.cc.

                                    {

    Port* port = selectedPort();
    if (port == NULL) {
        // No port selected.
        return;
    }

    RFPortDialog portDialog(this, port);
    if (portDialog.ShowModal() == wxID_OK) {
        updatePortList();
    }
}

References selectedPort(), and updatePortList().

Referenced by onActivatePort().

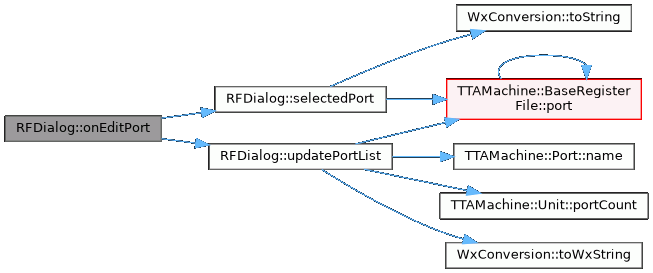

Here is the call graph for this function:

onHelp()

void RFDialog::onHelp ( wxCommandEvent &  event )

private

onName()

void RFDialog::onName ( wxCommandEvent &  event )

private

Checks whether name field is empty and disables OK button of the dialog if it is.

Definition at line 373 of file RFDialog.cc.

                                {
    if (!TransferDataFromWindow()) {
        assert(false);
    }
    wxString trimmedName = name_.Trim(false).Trim(true);
    if (trimmedName == _T("")) {
        FindWindow(wxID_OK)->Disable();
    } else {
        FindWindow(wxID_OK)->Enable();
    }
}

References assert, and name_.

onOK()

void RFDialog::onOK ( wxCommandEvent &  event )

private

Validates input in the controls, and updates the RegisterFile.

Definition at line 285 of file RFDialog.cc.

                              {
    if (!Validate()) {
        return;
    }

    if (!TransferDataFromWindow()) {
        return;
    }

    string trimmedName =
        WxConversion::toString(name_.Trim(false).Trim(true));

    // Check the name validity.
    if (!MachineTester::isValidComponentName(trimmedName)) {
        ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
        format message =
            prodeTexts->text(ProDeTextGenerator::MSG_ERROR_ILLEGAL_NAME);
        InformationDialog warning(
            this, WxConversion::toWxString(message.str()));
        warning.ShowModal();
        return;
    }

    if (registerFile_->name() != trimmedName) {

        Machine::RegisterFileNavigator navigator =
            registerFile_->machine()->registerFileNavigator();

        for (int i = 0; i < navigator.count(); i++) {
            RegisterFile* rf = navigator.item(i);
            if (trimmedName == rf->name()) {
                ProDeTextGenerator* prodeTexts =
                    ProDeTextGenerator::instance();
                format message =
                    prodeTexts->text(ProDeTextGenerator::MSG_ERROR_SAME_NAME);
                format a_rf =
                    prodeTexts->text(ProDeTextGenerator::COMP_A_REGISTER_FILE);
                format machine =
                    prodeTexts->text(ProDeTextGenerator::COMP_MACHINE);
                format rf =
                    prodeTexts->text(ProDeTextGenerator::COMP_REGISTER_FILE);
                message % trimmedName % a_rf.str() % machine.str() % rf.str();
                WarningDialog warning(
                    this, WxConversion::toWxString(message.str()));
                warning.ShowModal();
                return;
            }
        }
    }

    try {
        registerFile_->setName(trimmedName);
        registerFile_->setWidth(width_);
        registerFile_->setNumberOfRegisters(size_);
        registerFile_->setGuardLatency(guardLatency_);
        registerFile_->setZeroRegister(zeroRegister_);
    } catch (Exception& e) {
        InformationDialog dialog(
            this, WxConversion::toWxString(e.errorMessage()));
        dialog.ShowModal();
        return;
    }

    // set register file type
    switch (typeChoice_->GetSelection()) {
    case 0:
        registerFile_->setType(RegisterFile::NORMAL);
        break;
    case 1:
        registerFile_->setType(RegisterFile::RESERVED);
        break;
    case 2:
        registerFile_->setType(RegisterFile::VOLATILE);
        break;
    default:
        assert(false);
    }

    //registerFile_->updateMaxReadsAndWrites();
    EndModal(wxID_OK);
}

References assert, ProDeTextGenerator::COMP_A_REGISTER_FILE, ProDeTextGenerator::COMP_MACHINE, ProDeTextGenerator::COMP_REGISTER_FILE, TTAMachine::Machine::Navigator< ComponentType >::count(), Exception::errorMessage(), guardLatency_, ProDeTextGenerator::instance(), MachineTester::isValidComponentName(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), machine, ProDeTextGenerator::MSG_ERROR_ILLEGAL_NAME, ProDeTextGenerator::MSG_ERROR_SAME_NAME, TTAMachine::Component::name(), name_, TTAMachine::RegisterFile::NORMAL, registerFile_, TTAMachine::Machine::registerFileNavigator(), TTAMachine::RegisterFile::RESERVED, TTAMachine::RegisterFile::setGuardLatency(), TTAMachine::RegisterFile::setName(), TTAMachine::RegisterFile::setNumberOfRegisters(), TTAMachine::RegisterFile::setType(), TTAMachine::BaseRegisterFile::setWidth(), TTAMachine::RegisterFile::setZeroRegister(), size_, Texts::TextGenerator::text(), WxConversion::toString(), WxConversion::toWxString(), typeChoice_, TTAMachine::RegisterFile::VOLATILE, width_, and zeroRegister_.

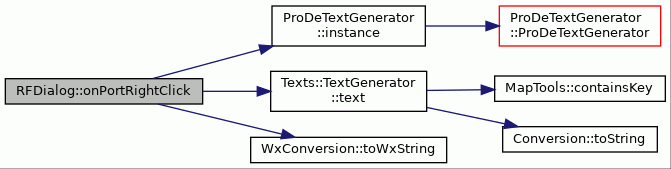

Here is the call graph for this function:

onPortRightClick()

void RFDialog::onPortRightClick ( wxListEvent &  event )

private

Opens a pop-up menu when right mouse button was pressed.

Parameters

event

Information about right mouse click event.

Definition at line 505 of file RFDialog.cc.

                                             {

    portListCtrl_->SetItemState(event.GetIndex(), wxLIST_STATE_SELECTED,
                                wxLIST_STATE_SELECTED);

    wxMenu* contextMenu = new wxMenu();

    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
    format button = prodeTexts->text(
        ProDeTextGenerator::TXT_LABEL_BUTTON_EDIT);
    contextMenu->Append(
        ID_EDIT_PORT, WxConversion::toWxString(button.str()));
    button = prodeTexts->text(
        ProDeTextGenerator::TXT_LABEL_BUTTON_DELETE);
    contextMenu->Append(
        ID_DELETE_PORT, WxConversion::toWxString(button.str()));
    portListCtrl_->PopupMenu(contextMenu, event.GetPoint());
}

References ID_DELETE_PORT, ID_EDIT_PORT, ProDeTextGenerator::instance(), portListCtrl_, Texts::TextGenerator::text(), WxConversion::toWxString(), ProDeTextGenerator::TXT_LABEL_BUTTON_DELETE, and ProDeTextGenerator::TXT_LABEL_BUTTON_EDIT.

Here is the call graph for this function:

onPortSelection()

void RFDialog::onPortSelection ( wxListEvent &  event )

private

Disables and enables Edit and Delete buttons under the port list.

If a port is selected, buttons are enabled. If no port is selected the buttons will be disabled.

Definition at line 488 of file RFDialog.cc.

                                      {
    if (portListCtrl_->GetSelectedItemCount() != 1) {
        FindWindow(ID_DELETE_PORT)->Disable();
        FindWindow(ID_EDIT_PORT)->Disable();
        return;
    }
    FindWindow(ID_DELETE_PORT)->Enable();
    FindWindow(ID_EDIT_PORT)->Enable();
}

References ID_DELETE_PORT, ID_EDIT_PORT, and portListCtrl_.

selectedPort()

Port * RFDialog::selectedPort ( ) const

private

Returns pointer to the port which is selected on the port list.

Returns

Pointer to the port which is selected on the port list.

Definition at line 392 of file RFDialog.cc.

                             {
    long item = -1;
    item = portListCtrl_->GetNextItem(
        item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);

    if (item == -1) {
        return NULL;
    }

    string portName =
        WxConversion::toString(portListCtrl_->GetItemText(item));

    return registerFile_->port(portName);
}

References TTAMachine::BaseRegisterFile::port(), portListCtrl_, registerFile_, and WxConversion::toString().

Referenced by onDeletePort(), and onEditPort().

Here is the call graph for this function:

setTexts()

void RFDialog::setTexts ( )

private

Sets texts for widgets.

Definition at line 135 of file RFDialog.cc.

                   {
    GUITextGenerator* generator = GUITextGenerator::instance();
    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();

    // Dialog title
    format fmt = prodeTexts->text(ProDeTextGenerator::TXT_RF_DIALOG_TITLE);
    SetTitle(WxConversion::toWxString(fmt.str()));

    // buttons
    WidgetTools::setLabel(generator, FindWindow(wxID_OK),
                          GUITextGenerator::TXT_BUTTON_OK);

    WidgetTools::setLabel(generator, FindWindow(wxID_CANCEL),
                          GUITextGenerator::TXT_BUTTON_CANCEL);

    WidgetTools::setLabel(generator, FindWindow(ID_HELP),
                          GUITextGenerator::TXT_BUTTON_HELP);

    WidgetTools::setLabel(generator, FindWindow(ID_ADD_PORT),
                          GUITextGenerator::TXT_BUTTON_ADD_DIALOG);

    WidgetTools::setLabel(generator, FindWindow(ID_EDIT_PORT),
                          GUITextGenerator::TXT_BUTTON_EDIT_DIALOG);

    WidgetTools::setLabel(generator, FindWindow(ID_DELETE_PORT),
                          GUITextGenerator::TXT_BUTTON_DELETE);

    // widget labels
    WidgetTools::setLabel(prodeTexts, FindWindow(ID_LABEL_NAME),
                          ProDeTextGenerator::TXT_LABEL_NAME);

    WidgetTools::setLabel(prodeTexts, FindWindow(ID_LABEL_TYPE),
                          ProDeTextGenerator::TXT_LABEL_TYPE);

    WidgetTools::setLabel(prodeTexts, FindWindow(ID_LABEL_SIZE),
                          ProDeTextGenerator::TXT_LABEL_SIZE);

    WidgetTools::setLabel(prodeTexts, FindWindow(ID_LABEL_WIDTH),
                          ProDeTextGenerator::TXT_LABEL_WIDTH);

    WidgetTools::setLabel(prodeTexts, FindWindow(ID_LABEL_MAX_READS),
                          ProDeTextGenerator::TXT_LABEL_MAX_READS);

    WidgetTools::setLabel(prodeTexts, FindWindow(ID_LABEL_MAX_WRITES),
                          ProDeTextGenerator::TXT_LABEL_MAX_WRITES);

    WidgetTools::setLabel(prodeTexts, FindWindow(ID_LABEL_GUARD_LATENCY),
                          ProDeTextGenerator::TXT_LABEL_GUARD_LATENCY);

    // choicer texts
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_RF_TYPE_NORMAL);
    typeChoice_->Append(WxConversion::toWxString(fmt.str()));
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_RF_TYPE_RESERVED);
    typeChoice_->Append(WxConversion::toWxString(fmt.str()));
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_RF_TYPE_VOLATILE);
    typeChoice_->Append(WxConversion::toWxString(fmt.str()));

    // box sizer label
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_RF_PORTS_BOX);
    WidgetTools::setWidgetLabel(portsSizer_, fmt.str());

    // Create port list column.
    wxListCtrl* portList =
        dynamic_cast<wxListCtrl*>(FindWindow(ID_PORT_LIST));
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_COLUMN_NAME);
    portList->InsertColumn(0, WxConversion::toWxString(fmt.str()),
                           wxLIST_FORMAT_LEFT, 200);
}

References ID_ADD_PORT, ID_DELETE_PORT, ID_EDIT_PORT, ID_HELP, ID_LABEL_GUARD_LATENCY, ID_LABEL_MAX_READS, ID_LABEL_MAX_WRITES, ID_LABEL_NAME, ID_LABEL_SIZE, ID_LABEL_TYPE, ID_LABEL_WIDTH, ID_PORT_LIST, GUITextGenerator::instance(), ProDeTextGenerator::instance(), portsSizer_, WidgetTools::setLabel(), WidgetTools::setWidgetLabel(), Texts::TextGenerator::text(), WxConversion::toWxString(), GUITextGenerator::TXT_BUTTON_ADD_DIALOG, GUITextGenerator::TXT_BUTTON_CANCEL, GUITextGenerator::TXT_BUTTON_DELETE, GUITextGenerator::TXT_BUTTON_EDIT_DIALOG, GUITextGenerator::TXT_BUTTON_HELP, GUITextGenerator::TXT_BUTTON_OK, ProDeTextGenerator::TXT_COLUMN_NAME, ProDeTextGenerator::TXT_LABEL_GUARD_LATENCY, ProDeTextGenerator::TXT_LABEL_MAX_READS, ProDeTextGenerator::TXT_LABEL_MAX_WRITES, ProDeTextGenerator::TXT_LABEL_NAME, ProDeTextGenerator::TXT_LABEL_SIZE, ProDeTextGenerator::TXT_LABEL_TYPE, ProDeTextGenerator::TXT_LABEL_WIDTH, ProDeTextGenerator::TXT_RF_DIALOG_TITLE, ProDeTextGenerator::TXT_RF_PORTS_BOX, ProDeTextGenerator::TXT_RF_TYPE_NORMAL, ProDeTextGenerator::TXT_RF_TYPE_RESERVED, ProDeTextGenerator::TXT_RF_TYPE_VOLATILE, and typeChoice_.

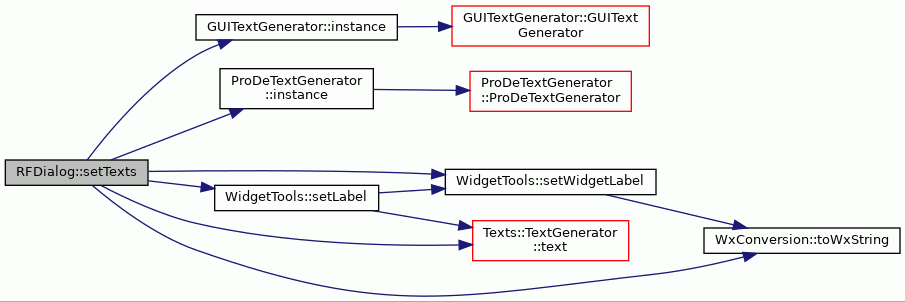

Here is the call graph for this function:

TransferDataToWindow()

bool RFDialog::TransferDataToWindow ( )

privatevirtual

Transfers data from the RegisterFile object to the dialog widgets.

Returns

false, if an error occured in the transfer.

Definition at line 210 of file RFDialog.cc.

                               {

    updateWidgets();

    return wxWindow::TransferDataToWindow();
}

References updateWidgets().

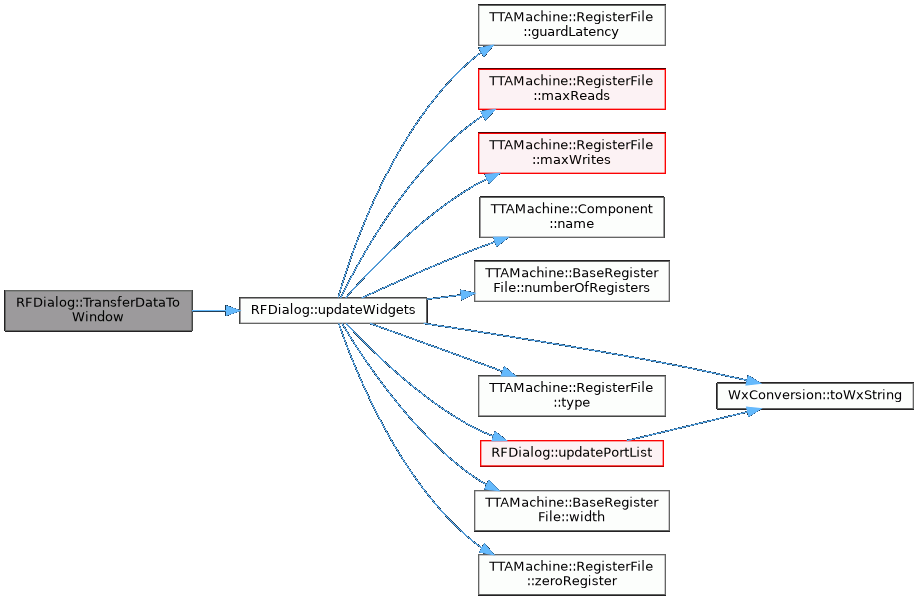

Here is the call graph for this function:

updatePortList()

void RFDialog::updatePortList ( )

private

Updates the port list widget.

Definition at line 269 of file RFDialog.cc.

                         {
    portListCtrl_->DeleteAllItems();
    for (int i=0; i < registerFile_->portCount(); i++) {

        wxString name =
            WxConversion::toWxString(registerFile_->port(i)->name());

        portListCtrl_->InsertItem(i, name);
    }
}

References TTAMachine::Port::name(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), portListCtrl_, registerFile_, and WxConversion::toWxString().

Referenced by onAddPort(), onDeletePort(), onEditPort(), and updateWidgets().

Here is the call graph for this function:

updateWidgets()

void RFDialog::updateWidgets ( )

private

Reads data form the RegisterFile and updates GUI.

Definition at line 223 of file RFDialog.cc.

                        {

    //registerFile_->updateMaxReadsAndWrites();

    name_ = WxConversion::toWxString(registerFile_->name());
    size_ = registerFile_->numberOfRegisters();
    width_ = registerFile_->width();
    maxReads_ = registerFile_->maxReads();
    maxWrites_ = registerFile_->maxWrites();
    guardLatency_ = registerFile_->guardLatency();
    zeroRegister_ = registerFile_->zeroRegister();

    switch (registerFile_->type()) {
    case RegisterFile::NORMAL:
        typeChoice_->SetSelection(0);
        break;
    case RegisterFile::RESERVED:
        typeChoice_->SetSelection(1);
        break;
    case RegisterFile::VOLATILE:
        typeChoice_->SetSelection(2);
        break;
    default:
        assert(false);
    }

    updatePortList();

    // wxWidgets GTK1 version seems to bug with spincontrol validators.
    // The widget value has to be set manually.
    dynamic_cast<wxSpinCtrl*>(FindWindow(ID_SIZE))->SetValue(size_);
    dynamic_cast<wxSpinCtrl*>(FindWindow(ID_WIDTH))->SetValue(width_);
    dynamic_cast<wxStaticText*>(FindWindow(ID_MAX_READS))->SetLabel(
            WxConversion::toWxString(maxReads_));
    dynamic_cast<wxStaticText*>(FindWindow(ID_MAX_WRITES))->SetLabel(
            WxConversion::toWxString(maxWrites_));
    dynamic_cast<wxSpinCtrl*>(
        FindWindow(ID_GUARD_LATENCY))->SetValue(guardLatency_);
    dynamic_cast<wxCheckBox*>(
    FindWindow(ID_ZERO_REGISTER))->SetValue(zeroRegister_);
}

References assert, TTAMachine::RegisterFile::guardLatency(), guardLatency_, ID_GUARD_LATENCY, ID_MAX_READS, ID_MAX_WRITES, ID_SIZE, ID_WIDTH, ID_ZERO_REGISTER, TTAMachine::RegisterFile::maxReads(), maxReads_, TTAMachine::RegisterFile::maxWrites(), maxWrites_, TTAMachine::Component::name(), name_, TTAMachine::RegisterFile::NORMAL, TTAMachine::BaseRegisterFile::numberOfRegisters(), registerFile_, TTAMachine::RegisterFile::RESERVED, size_, WxConversion::toWxString(), TTAMachine::RegisterFile::type(), typeChoice_, updatePortList(), TTAMachine::RegisterFile::VOLATILE, TTAMachine::BaseRegisterFile::width(), width_, TTAMachine::RegisterFile::zeroRegister(), and zeroRegister_.

Referenced by onAddPort(), onDeletePort(), and TransferDataToWindow().

Here is the call graph for this function:

Member Data Documentation

guardLatency_

int RFDialog::guardLatency_

private

Guard latency.

Definition at line 85 of file RFDialog.hh.

Referenced by onOK(), and updateWidgets().

maxReads_

int RFDialog::maxReads_

private

Max reads.

Definition at line 81 of file RFDialog.hh.

Referenced by updateWidgets().

maxWrites_

int RFDialog::maxWrites_

private

Maximum writes.

Definition at line 83 of file RFDialog.hh.

Referenced by updateWidgets().

name_

wxString RFDialog::name_

private

Name of the register file.

Definition at line 75 of file RFDialog.hh.

Referenced by onName(), onOK(), and updateWidgets().

portListCtrl_

wxListCtrl* RFDialog::portListCtrl_

private

Port list control.

Definition at line 90 of file RFDialog.hh.

Referenced by onPortRightClick(), onPortSelection(), selectedPort(), and updatePortList().

portsSizer_

wxStaticBoxSizer* RFDialog::portsSizer_

private

Sizer containing the port list and associated buttons.

Definition at line 70 of file RFDialog.hh.

Referenced by createContents(), and setTexts().

registerFile_

TTAMachine::RegisterFile* RFDialog::registerFile_

private

Register file to modify.

Definition at line 73 of file RFDialog.hh.

Referenced by onAddPort(), onOK(), selectedPort(), updatePortList(), and updateWidgets().

size_

int RFDialog::size_

private

Number of registers.

Definition at line 77 of file RFDialog.hh.

Referenced by onOK(), and updateWidgets().

typeChoice_

wxChoice* RFDialog::typeChoice_

private

Opcode choice control.

Definition at line 92 of file RFDialog.hh.

Referenced by onOK(), setTexts(), and updateWidgets().

width_

int RFDialog::width_

private

Width.

Definition at line 79 of file RFDialog.hh.

Referenced by onOK(), and updateWidgets().

zeroRegister_

bool RFDialog::zeroRegister_

private

Zero register.

Definition at line 87 of file RFDialog.hh.

Referenced by onOK(), and updateWidgets().

---

The documentation for this class was generated from the following files:

• RFDialog.hh
• RFDialog.cc
