#include <RFFactory.hh>

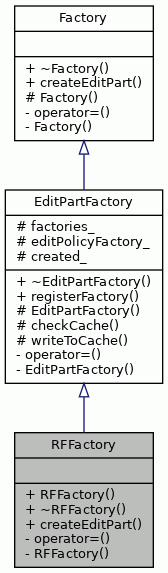

Inheritance diagram for RFFactory:

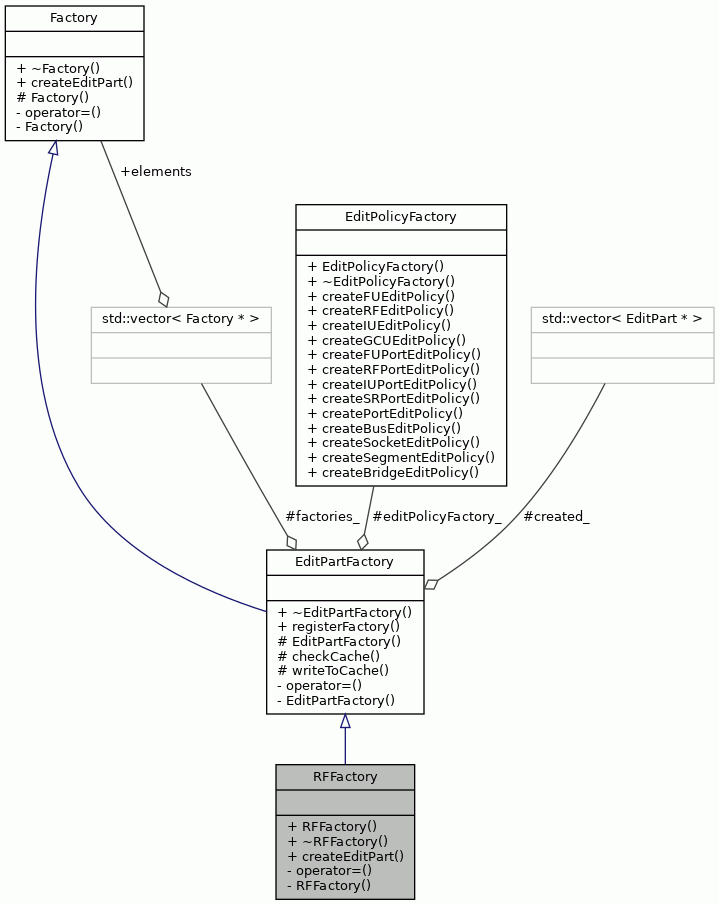

Collaboration diagram for RFFactory:

Public Member Functions
	RFFactory (EditPolicyFactory &editPolicyFactory)

virtual	~RFFactory ()

virtual EditPart *	createEditPart (TTAMachine::MachinePart *component)

Public Member Functions inherited from EditPartFactory
virtual	~EditPartFactory ()

void	registerFactory (Factory *factory)

Public Member Functions inherited from Factory
virtual	~Factory ()

Private Member Functions
RFFactory &	operator= (RFFactory &old)
	Assignment not allowed.

	RFFactory (RFFactory &old)
	Copying not allowed.

Additional Inherited Members
Protected Member Functions inherited from EditPartFactory
	EditPartFactory (EditPolicyFactory &editPolicyFactory)

EditPart *	checkCache (const TTAMachine::MachinePart *component) const

void	writeToCache (EditPart *editPart)

Protected Member Functions inherited from Factory
	Factory ()

Protected Attributes inherited from EditPartFactory
std::vector< Factory * >	factories_
	Registered factories.

EditPolicyFactory &	editPolicyFactory_
	Factory which creates edit policies for edit parts.

Static Protected Attributes inherited from EditPartFactory
static std::vector< EditPart * >	created_
	Container for already created EditParts.

Detailed Description

Factory for creating register file EditParts corresponding to a given Machine RegisterFile object.

Definition at line 45 of file RFFactory.hh.

Constructor & Destructor Documentation

◆ RFFactory() [1/2]

RFFactory::RFFactory ( EditPolicyFactory & editPolicyFactory )

The Constructor.

Definition at line 53 of file RFFactory.cc.

                                                        :
    EditPartFactory(editPolicyFactory) {

    registerFactory(new UnitPortFactory(editPolicyFactory));
}

References EditPartFactory::registerFactory().

Here is the call graph for this function:

◆ ~RFFactory()

RFFactory::~RFFactory ( )

virtual

The Destructor.

Definition at line 62 of file RFFactory.cc.

62 {

63}

◆ RFFactory() [2/2]

RFFactory::RFFactory ( RFFactory & old )

private

Copying not allowed.

Member Function Documentation

◆ createEditPart()

EditPart * RFFactory::createEditPart ( TTAMachine::MachinePart * component )

virtual

Returns an EditPart corresponding to a register file.

Parameters

component Register file of which to create the EditPart.

Returns: NULL if the parameter is not an instance of the RegisterFile class.

Implements Factory.

Definition at line 73 of file RFFactory.cc.

                                                {

    RegisterFile* rf = dynamic_cast<RegisterFile*>(component);

    if (rf != NULL) {
    EditPart* rfEditPart = new EditPart();
    rfEditPart->setModel(rf);

    UnitFigure* fig = new UnitFigure();
    wxString name = WxConversion::toWxString(rf->name().c_str());
    name.Prepend(_T("RF: "));
    fig->setName(name);
    rfEditPart->setFigure(fig);

    for (int i = 0; i < rf->portCount(); i++) {
        vector<Factory*>::const_iterator iter;
        for (iter = factories_.begin(); iter != factories_.end(); iter++) {
        EditPart* portEditPart =
            (*iter)->createEditPart(rf->port(i));
        if (portEditPart != NULL) {

            EditPolicy* editPolicy =
            editPolicyFactory_.createRFPortEditPolicy();

            if (editPolicy != NULL) {
            portEditPart->installEditPolicy(editPolicy);
            }

            rfEditPart->addChild(portEditPart);
        }
        }
    }

        wxString info;
        if (dynamic_cast<UnboundedRegisterFile*>(rf) != NULL) {
            info.Append(_T("?"));
        } else {
            info.Append(WxConversion::toWxString(rf->numberOfRegisters()));
        }
        info.Append(_T("x"));
        info.Append(WxConversion::toWxString(rf->width()));

        fig->setInfo(info);

    rfEditPart->setSelectable(true);

    EditPolicy* editPolicy = editPolicyFactory_.createRFEditPolicy();
    if (editPolicy != NULL) {
        rfEditPart->installEditPolicy(editPolicy);
    }

    return rfEditPart;

    } else {
    return NULL;
    }
}

References EditPart::addChild(), EditPolicyFactory::createRFEditPolicy(), EditPolicyFactory::createRFPortEditPolicy(), EditPartFactory::editPolicyFactory_, EditPartFactory::factories_, EditPart::installEditPolicy(), TTAMachine::Component::name(), TTAMachine::BaseRegisterFile::numberOfRegisters(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), EditPart::setFigure(), UnitFigure::setInfo(), EditPart::setModel(), UnitFigure::setName(), EditPart::setSelectable(), WxConversion::toWxString(), and TTAMachine::BaseRegisterFile::width().

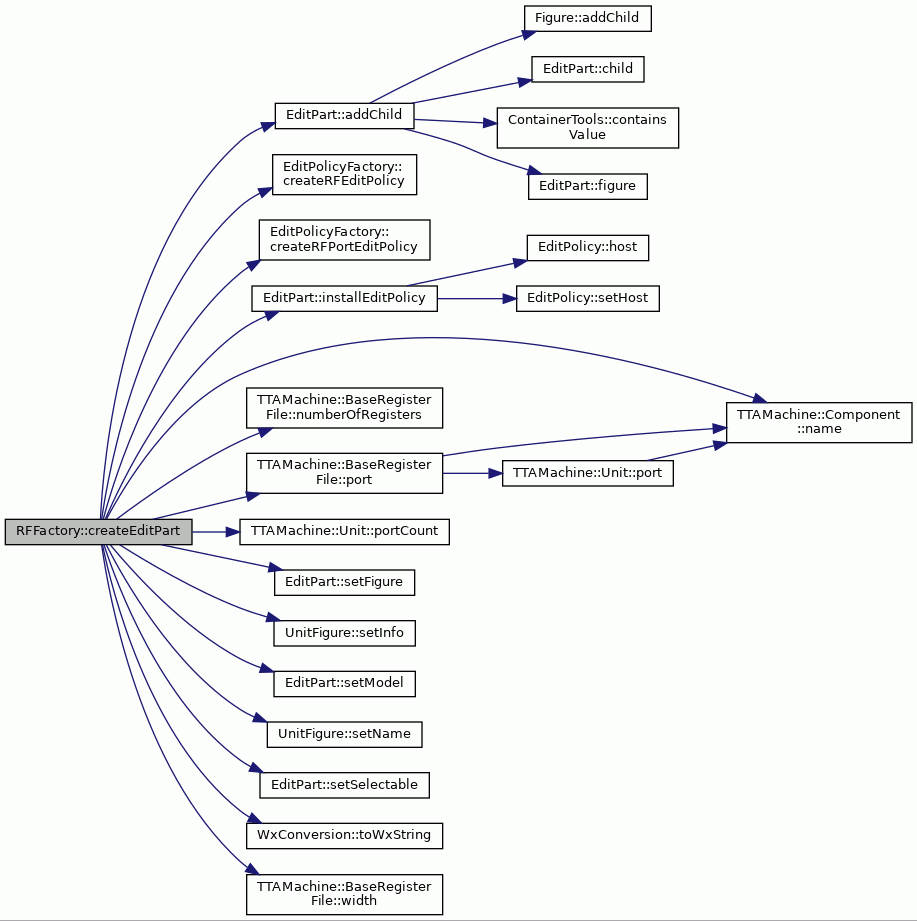

Here is the call graph for this function:

◆ operator=()

RFFactory & RFFactory::operator= ( RFFactory & old )

private

Assignment not allowed.

The documentation for this class was generated from the following files:
