SmartHWOperation Class Reference

#include <SmartHWOperation.hh>

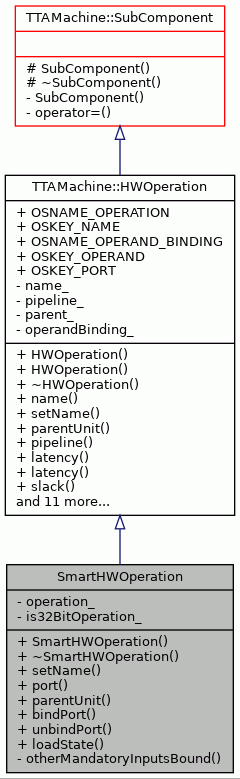

Inheritance diagram for SmartHWOperation:
Inheritance graph

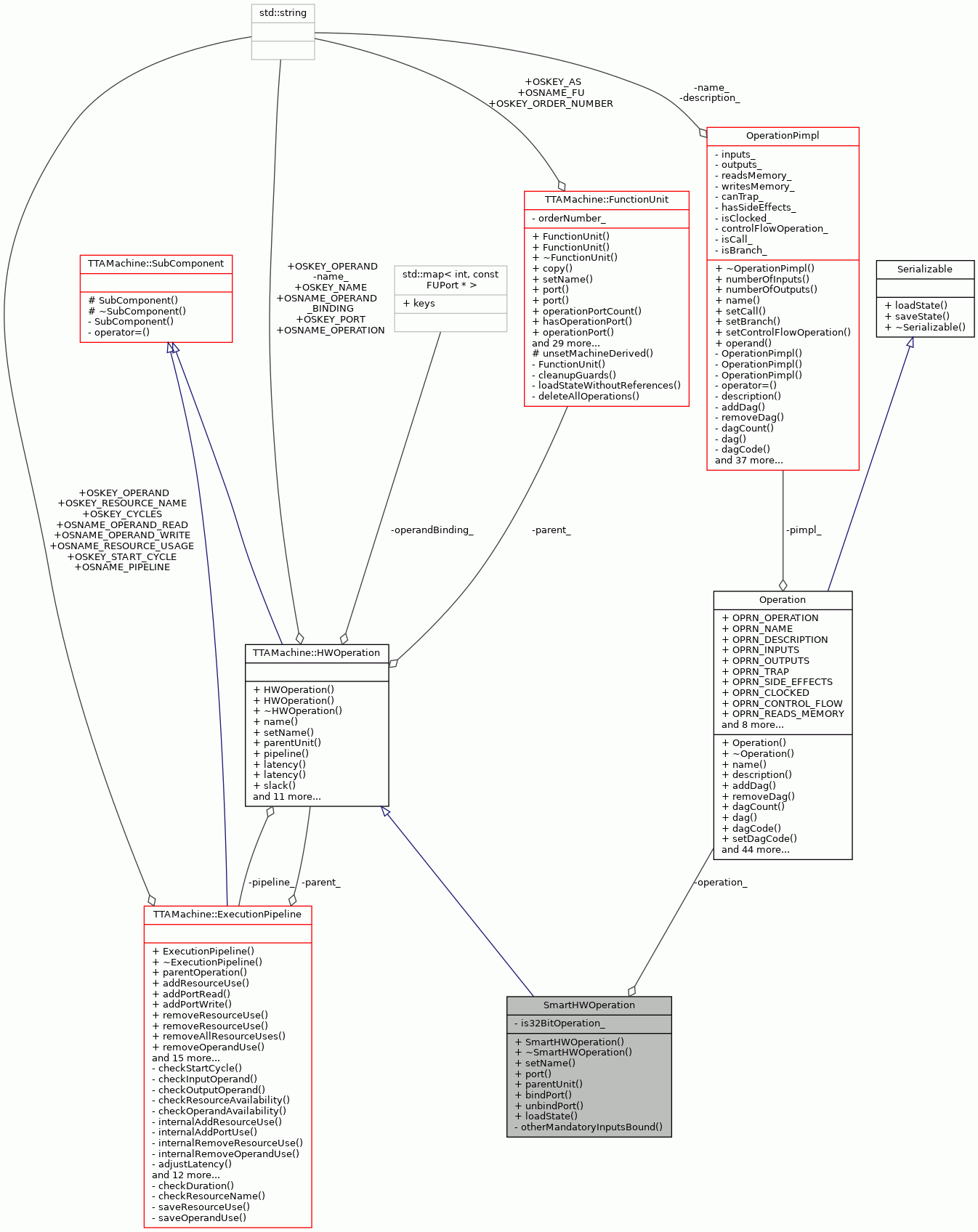

Collaboration diagram for SmartHWOperation:
Collaboration graph

Public Member Functions

 SmartHWOperation (const Operation &operation, UniversalFunctionUnit &parent)

virtual ~SmartHWOperation ()

virtual void setName (const std::string &name)

TTAMachine::FUPortport (int operand) const

UniversalFunctionUnitparentUnit () const

virtual void bindPort (int operand, const TTAMachine::FUPort &port)

virtual void unbindPort (const TTAMachine::FUPort &port)

virtual void loadState (const ObjectState *state)

- Public Member Functions inherited from TTAMachine::HWOperation
 HWOperation (const std::string &name, FunctionUnit &parent)

 HWOperation (const ObjectState *state, FunctionUnit &parent)

 ~HWOperation ()

const std::string & name () const

FunctionUnitparentUnit () const

ExecutionPipelinepipeline () const

int latency () const

int latency (int output) const

int slack (int input) const

int operandCount () const

bool isBound (const FUPort &port) const

bool isBound (int operand) const

int io (const FUPort &port) const

int numberOfInputs () const

int numberOfOutputs () const

virtual ObjectStatesaveState () const

- Public Member Functions inherited from Serializable
virtual ~Serializable ()


Private Member Functions

bool otherMandatoryInputsBound (int operand) const


Private Attributes

const Operationoperation_
 The operation represented by this SmartHWOperation instance.

bool is32BitOperation_
 Tells whether this operation has 32 bits wide operands.


Additional Inherited Members

- Static Public Attributes inherited from TTAMachine::HWOperation
static const std::string OSNAME_OPERATION = "operation"
 ObjectState name for HWOperation.

static const std::string OSKEY_NAME = "name"
 ObjectState attribute key for name of the operation.

static const std::string OSNAME_OPERAND_BINDING = "binding"
 ObjectState name for an operand binding.

static const std::string OSKEY_OPERAND = "operand"
 ObjectState attribute key for operand index.

static const std::string OSKEY_PORT = "port"
 ObjectState attribute key for port name.

- Protected Member Functions inherited from TTAMachine::SubComponent
 SubComponent ()

virtual ~SubComponent ()

- Protected Member Functions inherited from TTAMachine::MachinePart
 MachinePart ()

virtual ~MachinePart ()


Detailed Description

Represents an operation in a function unit. The smart operation automatically creates operand bindings on demand. This kind of operations are used in UniversalFunctionUnit. The last operand requested is bound to the operation code setting port.

Definition at line 47 of file SmartHWOperation.hh.

Constructor & Destructor Documentation

◆ SmartHWOperation()

SmartHWOperation::SmartHWOperation ( const Operation operation,
UniversalFunctionUnit parent
)

The constructor.

Creates the pipeline automatically.

Parameters
operationThe operation to be constructed.
parentThe parent unit of the operation.
Exceptions
ComponentAlreadyExistsIf there is already an operation by the same name in the given function unit.
InvalidNameIf the given operation does not have a valid name.

Definition at line 54 of file SmartHWOperation.cc.

56 : HWOperation(operation.name(), parent), operation_(operation) {
59
60 int inputs = operation.numberOfInputs();
61 int outputs = operation.numberOfOutputs();
62
63 // create pipeline
64 ExecutionPipeline* pLine = pipeline();
65 for (int operand = 1; operand <= inputs; operand++) {
66 pLine->addPortRead(operand, 0, 1);
67 }
68 for (int operand = inputs + 1; operand <= inputs + outputs; operand++) {
69 pLine->addPortWrite(operand, 0, 1);
70 }
71}
virtual TCEString name() const
Definition Operation.cc:93
virtual int numberOfInputs() const
Definition Operation.cc:192
virtual int numberOfOutputs() const
Definition Operation.cc:202
const Operation & operation_
The operation represented by this SmartHWOperation instance.
bool is32BitOperation_
Tells whether this operation has 32 bits wide operands.
void addPortRead(int operand, int start, int duration)
void addPortWrite(int operand, int start, int duration)
ExecutionPipeline * pipeline() const
static bool is32BitOperation(const std::string &opName)

References TTAMachine::ExecutionPipeline::addPortRead(), TTAMachine::ExecutionPipeline::addPortWrite(), UniversalFunctionUnit::is32BitOperation(), is32BitOperation_, Operation::name(), Operation::numberOfInputs(), Operation::numberOfOutputs(), and TTAMachine::HWOperation::pipeline().

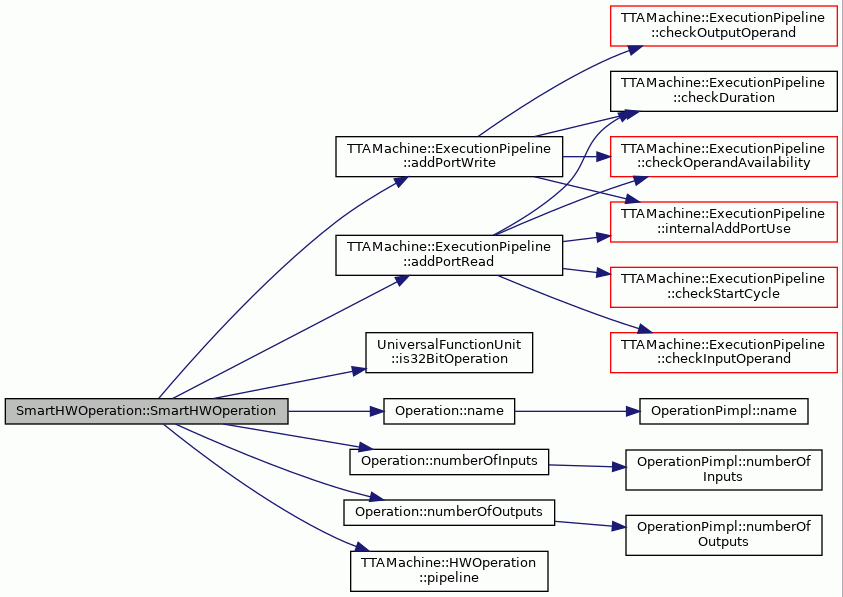

Here is the call graph for this function:

◆ ~SmartHWOperation()

SmartHWOperation::~SmartHWOperation ( )
virtual

The destructor.

Definition at line 76 of file SmartHWOperation.cc.

76 {
77}

Member Function Documentation

◆ bindPort()

void SmartHWOperation::bindPort ( int  operand,
const TTAMachine::FUPort port
)
virtual

Aborts the program. It is not allowed to bind ports manually. DO NOT CALL THIS METHOD!

Parameters
operandNever used.
portNever used.
Exceptions
IllegalRegistrationNever thrown.
ComponentAlreadyExistsNever thrown.
OutOfRangeNever thrown.

Reimplemented from TTAMachine::HWOperation.

Definition at line 205 of file SmartHWOperation.cc.

205 {
206 const string procName = "SmartHWOperation::bindPort";
207 const string errorMsg =
208 "Tried to bind port of SmartHWOperation manually!";
209 Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
211}
static void abortProgram() __attribute__((noreturn))
static void writeToErrorLog(const std::string fileName, const int lineNumber, const std::string functionName, const std::string message, const int neededVerbosity=0)

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

◆ loadState()

void SmartHWOperation::loadState ( const ObjectState state)
virtual

Aborts the program. It is not allowed to load state of SmartHWOperation from an ObjectState tree. DO NOT CALL THIS METHOD!

Parameters
stateNever used.
Exceptions
ObjectStateLoadingExceptionNever thrown.

Reimplemented from TTAMachine::HWOperation.

Definition at line 237 of file SmartHWOperation.cc.

237 {
238 const string procName = "SmartHWOperation::loadState";
239 const string errorMsg =
240 "Tried load state of SmartHWOperation from an ObjectState tree!";
241 Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
243}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

◆ otherMandatoryInputsBound()

bool SmartHWOperation::otherMandatoryInputsBound ( int  operand) const
private

Tells whether other input operands except the given one are bound to some port.

Parameters
operandThe operand.
Returns
True if other inputs are bound, otherwise false.

Definition at line 253 of file SmartHWOperation.cc.

253 {
254
255 assert(operand <= operation_.numberOfInputs());
256
257 for (int opIndex = 1; opIndex <= operation_.numberOfInputs();
258 opIndex++) {
259 if (opIndex == operand) {
260 continue;
261 } else {
262 if (HWOperation::port(opIndex) == NULL) {
263 return false;
264 }
265 }
266 }
267
268 return true;
269}
#define assert(condition)
virtual FUPort * port(int operand) const

References assert, Operation::numberOfInputs(), operation_, and TTAMachine::HWOperation::port().

Referenced by port().

Here is the call graph for this function:

◆ parentUnit()

UniversalFunctionUnit * SmartHWOperation::parentUnit ( ) const

Returns the parent unit of the operation.

Returns
The parent unit.

Definition at line 185 of file SmartHWOperation.cc.

185 {
188 dynamic_cast<UniversalFunctionUnit*>(parent);
189 assert(uFU != NULL);
190 return uFU;
191}
FunctionUnit * parentUnit() const

References assert, and TTAMachine::HWOperation::parentUnit().

Referenced by port().

Here is the call graph for this function:

◆ port()

FUPort * SmartHWOperation::port ( int  operand) const
virtual

Returns the port bound to the given operand. If the given operand is not bound yet, it is automatically bound to a port.

The port to which the operand will be bound depends on the bindings of other operands. Input operands are bound to input ports and output operands to output ports, of course. If all the input operands are bound already except the given one, the given operand will be bound to the operation code setting port.

Parameters
operandThe operand.
Returns
The port to which the operand is bound.

Reimplemented from TTAMachine::HWOperation.

Definition at line 110 of file SmartHWOperation.cc.

110 {
111
112 // if the operand is bound already, just return the port
113 if (HWOperation::port(operand) != NULL) {
114 return HWOperation::port(operand);
115 }
116
117 bool input = true;
118
119 // check whether the operand is input or output operand
120 if (operand > operation_.numberOfInputs() +
122 return NULL;
123 } else if (operand > operation_.numberOfInputs()) {
124 input = false;
125 }
126
127 int bitWidth = is32BitOperation_ ? 32 : 64;
128 int portCount = parentUnit()->portCountWithWidth(bitWidth);
129
130 if (input) {
131 if (otherMandatoryInputsBound(operand)) {
132 // bind to opcode port if other inputs are bound already
133 FUPort* opcodePort;
134 if (is32BitOperation_) {
135 opcodePort =
136 static_cast<FunctionUnit*>(parentUnit())->operationPort(
138 } else {
139 opcodePort =
140 static_cast<FunctionUnit*>(parentUnit())->operationPort(
142 }
143 const_cast<SmartHWOperation*>(this)->
144 HWOperation::bindPort(operand, *opcodePort);
145 return opcodePort;
146
147 } else {
148 // bind to a non-opcode input port otherwise
149 for (int i = 0; i < portCount; i++) {
150 FUPort& port = parentUnit()->portWithWidth(i, bitWidth);
151 if (!isBound(port) && port.inputSocket() != NULL &&
153 const_cast<SmartHWOperation*>(this)->
154 HWOperation::bindPort(operand, port);
155 return &port;
156 }
157 }
158 }
159
160 } else {
161 // bind to some output port
162 for (int i = 0; i < portCount; i++) {
163 FUPort& port = parentUnit()->portWithWidth(i, bitWidth);
164 if (!isBound(port) && port.outputSocket() != NULL) {
165 const_cast<SmartHWOperation*>(this)->
166 HWOperation::bindPort(operand, port);
167 return &port;
168 }
169 }
170 }
171
172 assert(false);
173
174 // dummy return to avoid compilation warning
175 return NULL;
176}
bool otherMandatoryInputsBound(int operand) const
TTAMachine::FUPort * port(int operand) const
UniversalFunctionUnit * parentUnit() const
virtual bool isOpcodeSetting() const
Definition FUPort.cc:195
virtual void bindPort(int operand, const FUPort &port)
bool isBound(const FUPort &port) const
virtual Socket * outputSocket() const
Definition Port.cc:281
virtual Socket * inputSocket() const
Definition Port.cc:261
int portCountWithWidth(int width) const
static const std::string OC_SETTING_PORT_64
Name of the 64 bit wide opcode setting port.
static const std::string OC_SETTING_PORT_32
Name of the 32 bit wide opcode setting port.
TTAMachine::FUPort & portWithWidth(int index, int width) const

References assert, TTAMachine::HWOperation::bindPort(), TTAMachine::Port::inputSocket(), is32BitOperation_, TTAMachine::HWOperation::isBound(), TTAMachine::FUPort::isOpcodeSetting(), Operation::numberOfInputs(), Operation::numberOfOutputs(), UniversalFunctionUnit::OC_SETTING_PORT_32, UniversalFunctionUnit::OC_SETTING_PORT_64, operation_, otherMandatoryInputsBound(), TTAMachine::Port::outputSocket(), parentUnit(), TTAMachine::HWOperation::port(), port(), UniversalFunctionUnit::portCountWithWidth(), and UniversalFunctionUnit::portWithWidth().

Referenced by port().

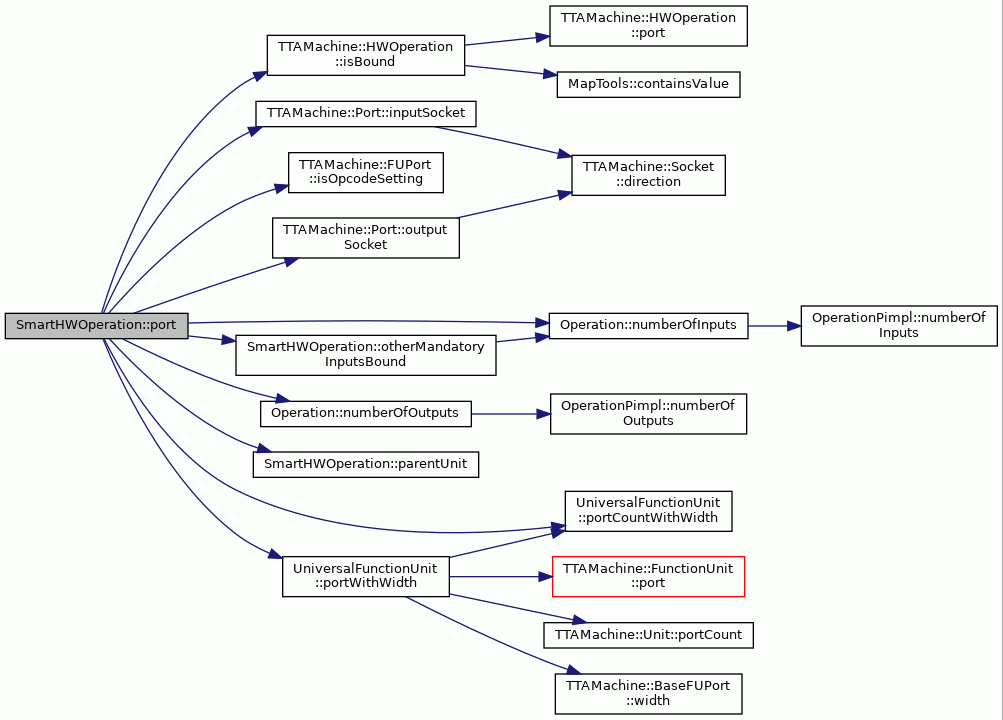

Here is the call graph for this function:

◆ setName()

void SmartHWOperation::setName ( const std::string &  name)
virtual

Aborts the program. It is not allowed to set the name of SmartHWOperation. DO NOT CALL THIS METHOD!

Parameters
nameNever used.
Exceptions
ComponentAlreadyExistsNever thrown.
InvalidNameNever thrown.

Reimplemented from TTAMachine::HWOperation.

Definition at line 89 of file SmartHWOperation.cc.

89 {
90 const string procName = "SmartHWOperation::setName";
91 const string errorMsg = "Tried to set name of SmartHWOperation!";
92 Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
94}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

◆ unbindPort()

void SmartHWOperation::unbindPort ( const TTAMachine::FUPort port)
virtual

Aborts the program. It is not allowed to unbind ports manually. DO NOT CALL THIS METHOD!

Parameters
portNever used.

Reimplemented from TTAMachine::HWOperation.

Definition at line 220 of file SmartHWOperation.cc.

220 {
221 const string procName = "SmartHWOperation::unbindPort";
222 const string errorMsg =
223 "Tried unbind port of SmartHWOperation manually!";
224 Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
226}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

Member Data Documentation

◆ is32BitOperation_

bool SmartHWOperation::is32BitOperation_
private

Tells whether this operation has 32 bits wide operands.

Definition at line 68 of file SmartHWOperation.hh.

Referenced by port(), and SmartHWOperation().

◆ operation_

const Operation& SmartHWOperation::operation_
private

The operation represented by this SmartHWOperation instance.

Definition at line 66 of file SmartHWOperation.hh.

Referenced by otherMandatoryInputsBound(), and port().


The documentation for this class was generated from the following files:
