TTAMachine::SpecialRegisterPort Class Reference

#include <SpecialRegisterPort.hh>

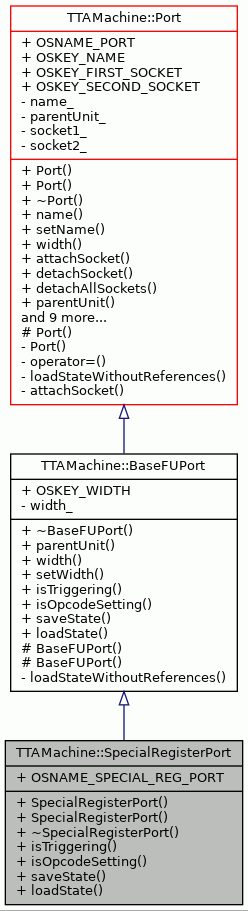

Inheritance diagram for TTAMachine::SpecialRegisterPort:

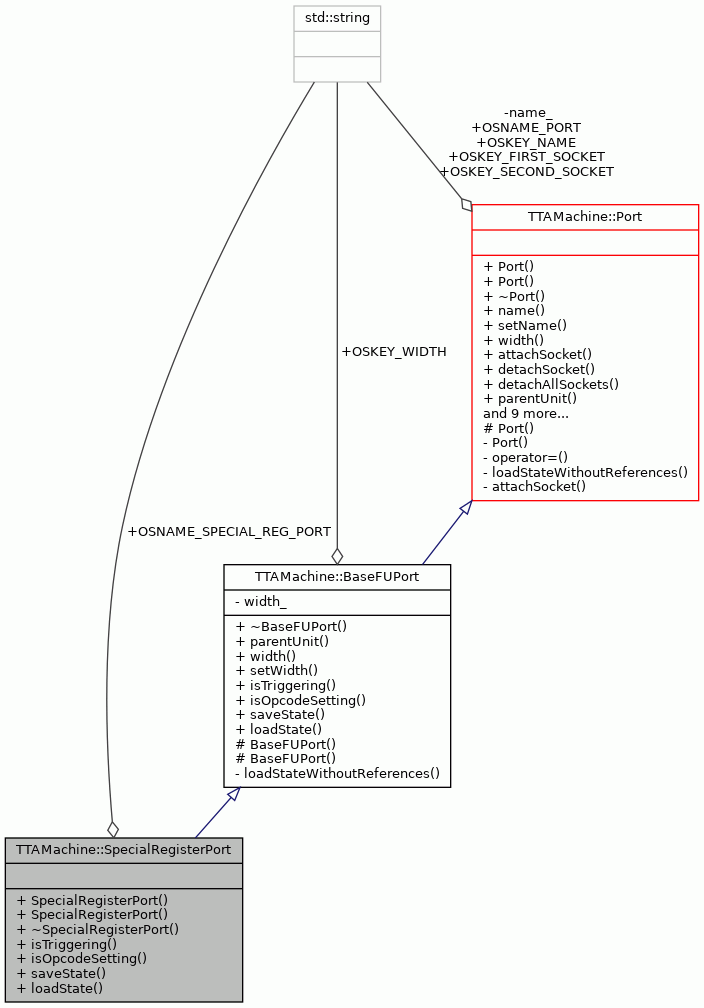

Collaboration diagram for TTAMachine::SpecialRegisterPort:

Public Member Functions
	SpecialRegisterPort (const std::string &name, int width, ControlUnit &parent)
	SpecialRegisterPort (const ObjectState *state, Unit &parent)
virtual	~SpecialRegisterPort ()
virtual bool	isTriggering () const
virtual bool	isOpcodeSetting () const
virtual ObjectState *	saveState () const
virtual void	loadState (const ObjectState *state)
Public Member Functions inherited from TTAMachine::BaseFUPort
virtual	~BaseFUPort ()
FunctionUnit *	parentUnit () const
virtual int	width () const
void	setWidth (int width)
Public Member Functions inherited from TTAMachine::Port
	Port (const std::string &name, Unit &parentUnit)
	Port (const ObjectState *state, Unit &parentUnit)
virtual	~Port ()
virtual std::string	name () const
virtual void	setName (const std::string &name)
virtual void	attachSocket (Socket &socket)
virtual void	detachSocket (Socket &socket)
virtual void	detachAllSockets ()
Unit *	parentUnit () const
virtual Socket *	inputSocket () const
virtual Socket *	outputSocket () const
virtual Socket *	unconnectedSocket (int index) const
virtual int	socketCount () const
virtual bool	isConnectedTo (const Socket &socket) const
virtual bool	isOutput () const
virtual bool	isInput () const
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_SPECIAL_REG_PORT = "sr_port"
	ObjectState name for special register port.
Static Public Attributes inherited from TTAMachine::BaseFUPort
static const std::string	OSKEY_WIDTH = "width"
	ObjectState attribute key for bit width of the port.
Static Public Attributes inherited from TTAMachine::Port
static const std::string	OSNAME_PORT = "port"
	ObjectState name for Port.
static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for the name of the port.
static const std::string	OSKEY_FIRST_SOCKET = "1_socket"
	ObjectState attribute key for the name of the connected socket.
static const std::string	OSKEY_SECOND_SOCKET = "2_socket"
	ObjectState attribute key for the name of the other connected socket.

Additional Inherited Members
Protected Member Functions inherited from TTAMachine::BaseFUPort
	BaseFUPort (const std::string &name, int width, FunctionUnit &parent)
	BaseFUPort (const ObjectState *state, Unit &parent)
Protected Member Functions inherited from TTAMachine::Port
	Port (const std::string &name, FunctionUnit &parentUnit)
Protected Member Functions inherited from TTAMachine::SubComponent
	SubComponent ()
virtual	~SubComponent ()
Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()
virtual	~MachinePart ()

Detailed Description

SpecialRegisterPort class represent a port of a special register in control unit.

An example of such a port is the return address port.

Definition at line 48 of file SpecialRegisterPort.hh.

Constructor & Destructor Documentation

SpecialRegisterPort() [1/2]

TTAMachine::SpecialRegisterPort::SpecialRegisterPort	(	const std::string &	name,
		int	width,
		ControlUnit &	parent
	)

The constructor.

Parameters

name	Name of the port.
width	Bit width of the port.
parent	The function unit to which the port belongs.

Exceptions

InvalidName	If the given name is not a valid component name.
OutOfRange	If the given bit width is less or equal to zero.
ComponentAlreadyExists	If the function unit already has another port by the same name or another port that sets operation code.

Definition at line 57 of file SpecialRegisterPort.cc.

    : BaseFUPort(name, width, parent) {}

SpecialRegisterPort() [2/2]

TTAMachine::SpecialRegisterPort::SpecialRegisterPort	(	const ObjectState *	state,
		Unit &	parent
	)

The constructor.

Loads the state of the object from the given ObjectState tree.

Parameters

state	The ObjectState tree.
parent	The parent unit of the port.

Exceptions

ObjectStateLoadingException

If an error occurs while loading the state.

Definition at line 71 of file SpecialRegisterPort.cc.

    : BaseFUPort(state, parent) {}

~SpecialRegisterPort()

TTAMachine::SpecialRegisterPort::~SpecialRegisterPort ( )

virtual

The destructor.

Definition at line 77 of file SpecialRegisterPort.cc.

                                          {
}

Member Function Documentation

isOpcodeSetting()

bool TTAMachine::SpecialRegisterPort::isOpcodeSetting ( ) const

virtual

Always returns false. SpecialRegisterPort cannot be operation code setting.

Returns

false

Implements TTAMachine::BaseFUPort.

Definition at line 99 of file SpecialRegisterPort.cc.

                                           {
    return false;
}

isTriggering()

bool TTAMachine::SpecialRegisterPort::isTriggering ( ) const

virtual

Always returns false. SpecialRegisterPort cannot be triggering.

Returns

false

Implements TTAMachine::BaseFUPort.

Definition at line 87 of file SpecialRegisterPort.cc.

                                        {
    return false;
}

loadState()

void TTAMachine::SpecialRegisterPort::loadState ( const ObjectState *  state )

virtual

Loads the state of the object from the given ObjectState tree.

Parameters

state

An ObjectState instance representing state of a SpecialRegisterPort.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

Reimplemented from TTAMachine::BaseFUPort.

Definition at line 126 of file SpecialRegisterPort.cc.

                                                       {
    if (state->name() != OSNAME_SPECIAL_REG_PORT) {
        const string procName = "SpecialRegisterPort::loadState";
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    BaseFUPort::loadState(state);
}

References TTAMachine::BaseFUPort::loadState(), ObjectState::name(), and OSNAME_SPECIAL_REG_PORT.

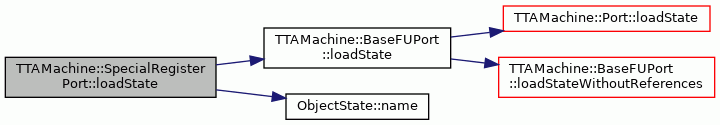

Here is the call graph for this function:

saveState()

ObjectState * TTAMachine::SpecialRegisterPort::saveState ( ) const

virtual

Saves the state of the object to an ObjectState tree and returns it.

Returns

The newly created ObjectState tree.

Reimplemented from TTAMachine::BaseFUPort.

Definition at line 110 of file SpecialRegisterPort.cc.

                                     {
    ObjectState* state = BaseFUPort::saveState();
    state->setName(OSNAME_SPECIAL_REG_PORT);
    return state;
}

References OSNAME_SPECIAL_REG_PORT, TTAMachine::BaseFUPort::saveState(), and ObjectState::setName().

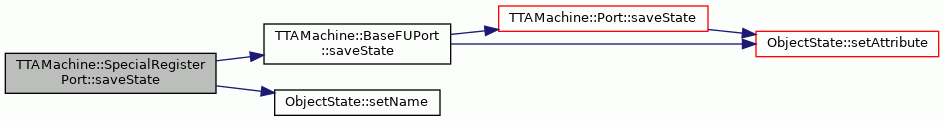

Here is the call graph for this function:

Member Data Documentation

OSNAME_SPECIAL_REG_PORT

const std::string TTAMachine::SpecialRegisterPort::OSNAME_SPECIAL_REG_PORT = "sr_port"

static

ObjectState name for special register port.

Definition at line 62 of file SpecialRegisterPort.hh.

Referenced by ADFSerializer::controlUnitToMDF(), loadState(), TTAMachine::Unit::loadState(), TTAMachine::Unit::loadStateWithoutReferences(), ADFSerializer::machineSRPort(), ADFSerializer::mdfSRPort(), and saveState().

---

The documentation for this class was generated from the following files:

• SpecialRegisterPort.hh
• SpecialRegisterPort.cc
