TTAProgram::AnnotatedInstructionElement Class Reference

#include <AnnotatedInstructionElement.hh>

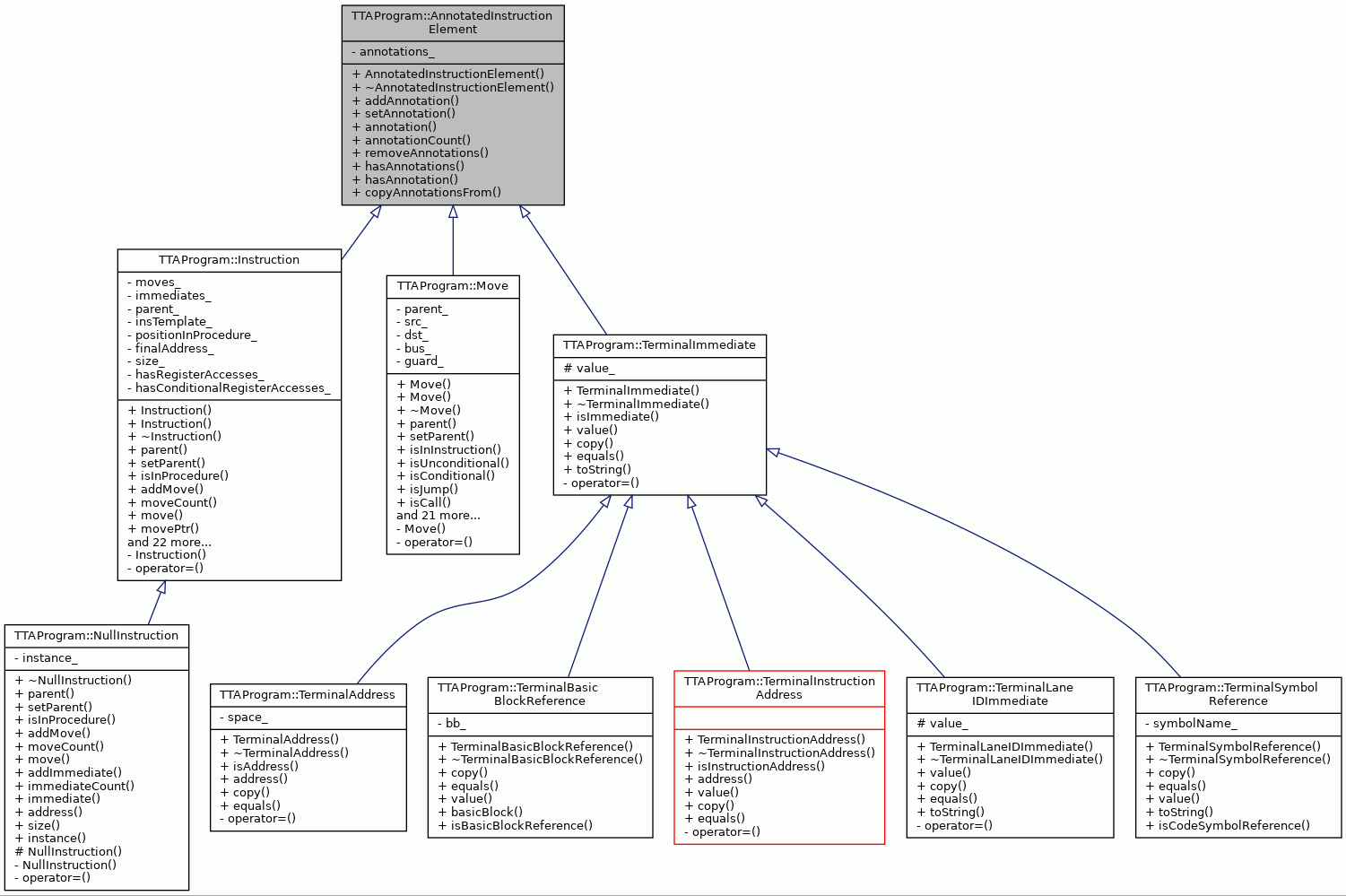

Inheritance diagram for TTAProgram::AnnotatedInstructionElement:
Inheritance graph

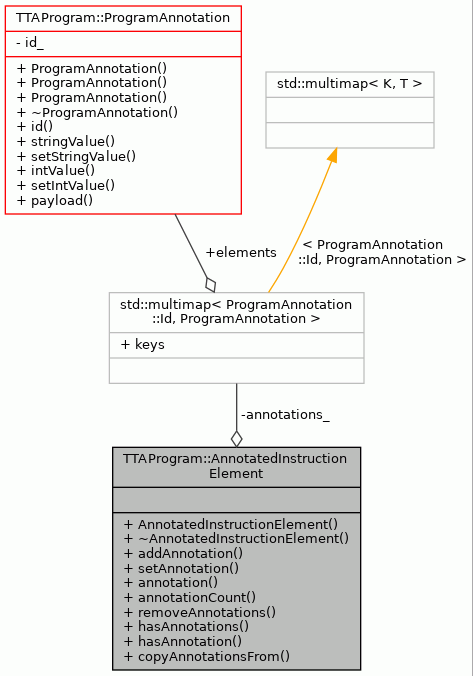

Collaboration diagram for TTAProgram::AnnotatedInstructionElement:
Collaboration graph

Public Member Functions

 AnnotatedInstructionElement ()

 ~AnnotatedInstructionElement ()

void addAnnotation (const ProgramAnnotation &annotation)

void setAnnotation (const ProgramAnnotation &annotation)

ProgramAnnotation annotation (int index, ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

int annotationCount (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

void removeAnnotations (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID)

bool hasAnnotations (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

bool hasAnnotation (ProgramAnnotation::Id id, const TCEString &data) const

void copyAnnotationsFrom (const AnnotatedInstructionElement &other)


Private Types

typedef std::multimap< ProgramAnnotation::Id, ProgramAnnotationAnnotationIndex
 a type for the container of the annotations


Private Attributes

AnnotationIndex annotations_
 container for annotations


Detailed Description

AnnotatedInstructionElements provide an interface for the classes that can be attached an instruction annotation.

Basically the TerminalImmediate and Move inherit this to provide such capabilities.

Definition at line 53 of file AnnotatedInstructionElement.hh.

Member Typedef Documentation

◆ AnnotationIndex

a type for the container of the annotations

Definition at line 76 of file AnnotatedInstructionElement.hh.

Constructor & Destructor Documentation

◆ AnnotatedInstructionElement()

TTAProgram::AnnotatedInstructionElement::AnnotatedInstructionElement ( )

Constructor.

Definition at line 48 of file AnnotatedInstructionElement.cc.

48 {
49}

◆ ~AnnotatedInstructionElement()

TTAProgram::AnnotatedInstructionElement::~AnnotatedInstructionElement ( )

Destructor.

Definition at line 54 of file AnnotatedInstructionElement.cc.

54 {
55}

Member Function Documentation

◆ addAnnotation()

void TTAProgram::AnnotatedInstructionElement::addAnnotation ( const ProgramAnnotation annotation)

Adds an annotation to the instruction element.

Parameters
annotationThe annotation to add.

Definition at line 63 of file AnnotatedInstructionElement.cc.

64 {
65 annotations_.insert(
66 std::pair<ProgramAnnotation::Id, ProgramAnnotation>(
68}
ProgramAnnotation annotation(int index, ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const
AnnotationIndex annotations_
container for annotations
ProgramAnnotation::Id id() const

References annotation(), annotations_, and TTAProgram::ProgramAnnotation::id().

Referenced by llvm::LLVMTCEBuilder::addCandidateLSUAnnotations(), RegisterCopyAdder::addCandidateSetAnnotations(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), InlineAsmParser::addDebugInfoToInlineAsmBB(), llvm::LLVMTCEBuilder::addPointerAnnotations(), annotateAllInputs(), annotateAllOutputs(), llvm::LLVMTCEBuilder::copyFUAnnotations(), TTAProgram::TPEFProgramFactory::createInstruction(), TTAProgram::TPEFProgramFactory::createTerminal(), llvm::LLVMTCEBuilder::debugDataToAnnotations(), DataDependenceGraph::mergeAndKeepSource(), DataDependenceGraph::mergeAndKeepUser(), and BFCopyRegWithOp::splitMove().

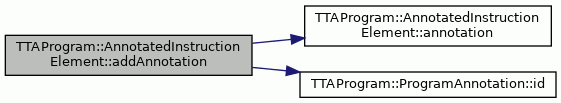

Here is the call graph for this function:

◆ annotation()

ProgramAnnotation TTAProgram::AnnotatedInstructionElement::annotation ( int  index,
ProgramAnnotation::Id  id = ProgramAnnotation::ANN_UNDEF_ID
) const

Returns the annotation at the given index (and id).

Parameters
indexThe index of the annotation.
idThe id of the annotation (optional).
Exceptions
OutOfRangeIf the index is out of range.

Definition at line 100 of file AnnotatedInstructionElement.cc.

101 {
102 std::pair<AnnotationIndex::const_iterator,
103 AnnotationIndex::const_iterator> range(
104 annotations_.end(), annotations_.end());
105
107 // set the iterators to point to the set of elements with the given id
108 range = annotations_.equal_range(id);
109 else
110 // go through all elements
111 range = std::make_pair(annotations_.begin(), annotations_.end());
112
113 AnnotationIndex::const_iterator i = range.first;
114 for (int counter = 0; counter < index; ++counter) {
115 ++i;
116 if (i == annotations_.end())
117 break;
118 }
119
120 if (i == annotations_.end())
121 throw OutOfRange(__FILE__, __LINE__, __func__);
122
123 return (*i).second;
124}
#define __func__
@ ANN_UNDEF_ID
an illegal annotation ID (the id is only 24 bits, this has more meaningful bits)

References __func__, TTAProgram::ProgramAnnotation::ANN_UNDEF_ID, and annotations_.

Referenced by MachineConnectivityCheck::addAnnotatedFUs(), addAnnotation(), PRegionAliasAnalyzer::analyze(), BFOptimization::assign(), TTAProgram::Move::copy(), llvm::LLVMTCEBuilder::copyFUAnnotations(), ControlFlowGraph::createBlock(), TTAProgram::ProgramWriter::createCodeSection(), DataDependenceGraphBuilder::findStaticRegisters(), DataDependenceGraphBuilder::isAlwaysDifferentFU(), DataDependenceGraphBuilder::memoryCategory(), DataDependenceGraph::mergeAndKeepSource(), DataDependenceGraph::mergeAndKeepUser(), setAnnotation(), TTAProgram::Move::sourceFileName(), and TTAProgram::Move::sourceLineNumber().

◆ annotationCount()

int TTAProgram::AnnotatedInstructionElement::annotationCount ( ProgramAnnotation::Id  id = ProgramAnnotation::ANN_UNDEF_ID) const

Returns the count of annotations (with the given id).

Parameters
idThe id of the annotations to count (optional).
Returns
The count of annotations (with the given id).

Definition at line 133 of file AnnotatedInstructionElement.cc.

133 {
135 return static_cast<int>(annotations_.count(id));
136 else
137 return static_cast<int>(annotations_.size());
138}

References TTAProgram::ProgramAnnotation::ANN_UNDEF_ID, and annotations_.

Referenced by MachineConnectivityCheck::addAnnotatedFUs(), BFOptimization::assign(), TTAProgram::Move::copy(), llvm::LLVMTCEBuilder::copyFUAnnotations(), TTAProgram::ProgramWriter::createCodeSection(), DataDependenceGraphBuilder::findStaticRegisters(), BFOptimization::hasAmbiguousResources(), hasAnnotations(), DataDependenceGraphBuilder::memoryCategory(), and TTAProgram::Move::sourceLineNumber().

◆ copyAnnotationsFrom()

void TTAProgram::AnnotatedInstructionElement::copyAnnotationsFrom ( const AnnotatedInstructionElement other)

Copies annotations from another annotated element.

Possible old annotations are deleted.

Definition at line 193 of file AnnotatedInstructionElement.cc.

194 {
195 annotations_ = other.annotations_;
196}

References annotations_.

Referenced by TTAProgram::Instruction::copy().

◆ hasAnnotation()

bool TTAProgram::AnnotatedInstructionElement::hasAnnotation ( ProgramAnnotation::Id  id,
const TCEString data
) const

Returns true in case there's at least one annotation with the given id and the given data.

Definition at line 174 of file AnnotatedInstructionElement.cc.

175 {
176
177 auto range = annotations_.equal_range(id);
178 for (auto i = range.first; i != range.second; i++) {
179 if (i->second.stringValue() == data) {
180 return true;
181 }
182 }
183 return false;
184}

References annotations_.

Referenced by RegisterCopyAdder::isAllowedUnit(), DataDependenceGraphBuilder::isAlwaysDifferentFU(), and ProgramOperation::isLegalFU().

◆ hasAnnotations()

bool TTAProgram::AnnotatedInstructionElement::hasAnnotations ( ProgramAnnotation::Id  id = ProgramAnnotation::ANN_UNDEF_ID) const

Returns true in case there's at least one annotation with the given id.

Parameters
idAn annotation id.
Returns
True in case there's at least one annotation with the given id.

Definition at line 165 of file AnnotatedInstructionElement.cc.

165 {
166 return annotationCount(id) > 0;
167}
int annotationCount(ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

References annotationCount().

Referenced by PRegionAliasAnalyzer::analyze(), CycleLookBackSoftwareBypasser::bypassNode(), ControlFlowGraph::createBlock(), TTAProgram::ProgramWriter::createCodeSection(), llvm::LLVMTCEBuilder::hasAmbiguousASpaceRefs(), ControlFlowGraph::indirectJump(), RegisterCopyAdder::isAllowedUnit(), OutputPSocketBroker::isAlreadyAssigned(), DataDependenceGraphBuilder::isAlwaysDifferentFU(), OutputPSocketBroker::isApplicable(), IUBroker::isApplicable(), TTAProgram::Move::isFunctionCall(), TTAProgram::Move::isReturn(), DataDependenceGraphBuilder::memoryCategory(), BUBasicBlockScheduler::precedingTempMove(), BasicBlockScheduler::scheduleInputOperandTempMoves(), BUBasicBlockScheduler::scheduleInputOperandTempMoves(), SequentialScheduler::scheduleMove(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), TTAProgram::Move::sourceFileName(), TTAProgram::Move::sourceLineNumber(), BasicBlockScheduler::succeedingTempMove(), BF2Scheduler::unreservePreallocatedFUs(), BasicBlockScheduler::unschedule(), and SequentialScheduler::unschedule().

Here is the call graph for this function:

◆ removeAnnotations()

void TTAProgram::AnnotatedInstructionElement::removeAnnotations ( ProgramAnnotation::Id  id = ProgramAnnotation::ANN_UNDEF_ID)

Removes all annotations (with the given id).

Parameters
idThe id of the annotations to remove (optional).

Definition at line 146 of file AnnotatedInstructionElement.cc.

146 {
147
149 annotations_.clear();
150 }
151 AnnotationIndex::iterator i = annotations_.find(id);
152 while (i != annotations_.end()) {
153 annotations_.erase(i);
154 i = annotations_.find(id);
155 }
156}

References TTAProgram::ProgramAnnotation::ANN_UNDEF_ID, and annotations_.

Referenced by BFOptimization::setPrologDstFUAnno(), BFOptimization::setPrologSrcFUAnno(), BFUpdateMoveOnBypass::undoOnlyMe(), BFCopyRegWithOp::undoSplit(), DataDependenceGraph::unMergeUser(), BF2Scheduler::unreservePreallocatedFUs(), BasicBlockScheduler::unschedule(), and SequentialScheduler::unschedule().

◆ setAnnotation()

void TTAProgram::AnnotatedInstructionElement::setAnnotation ( const ProgramAnnotation annotation)

Sets an annotation to the instruction element as the sole annotation of that type.

Removes all annotations with the same type before adding the annotation.

Parameters
annotationThe annotation to set.

Definition at line 79 of file AnnotatedInstructionElement.cc.

80 {
81
82 // hmm.. does multimap::erase(key) remove *all* elements with the given
83 // key, or just first found?
84 // multimap::erase(key) returns the number of elements removed as
85 // size_type, so it erases all matching elements
86 annotations_.erase(annotation.id());
87 annotations_.insert(
88 std::pair<ProgramAnnotation::Id, ProgramAnnotation>(
90}

References annotation(), annotations_, and TTAProgram::ProgramAnnotation::id().

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), llvm::LLVMTCEBuilder::debugDataToAnnotations(), BFRegCopy::operator()(), SequentialScheduler::scheduleMove(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), BFOptimization::setPrologDstFUAnno(), BFOptimization::setPrologSrcFUAnno(), and CopyingDelaySlotFiller::updateJumpsAndCfg().

Here is the call graph for this function:

Member Data Documentation

◆ annotations_

AnnotationIndex TTAProgram::AnnotatedInstructionElement::annotations_
private

The documentation for this class was generated from the following files:
