VhdlRomGenerator Class Reference

#include <VhdlRomGenerator.hh>

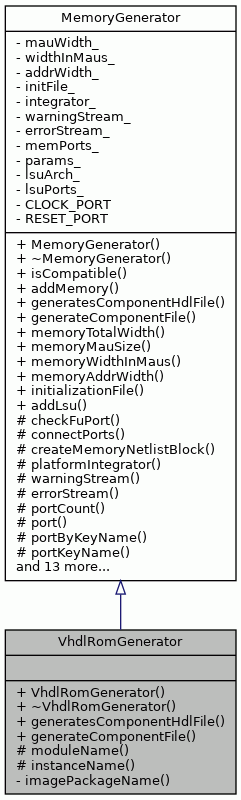

Inheritance diagram for VhdlRomGenerator:
Inheritance graph

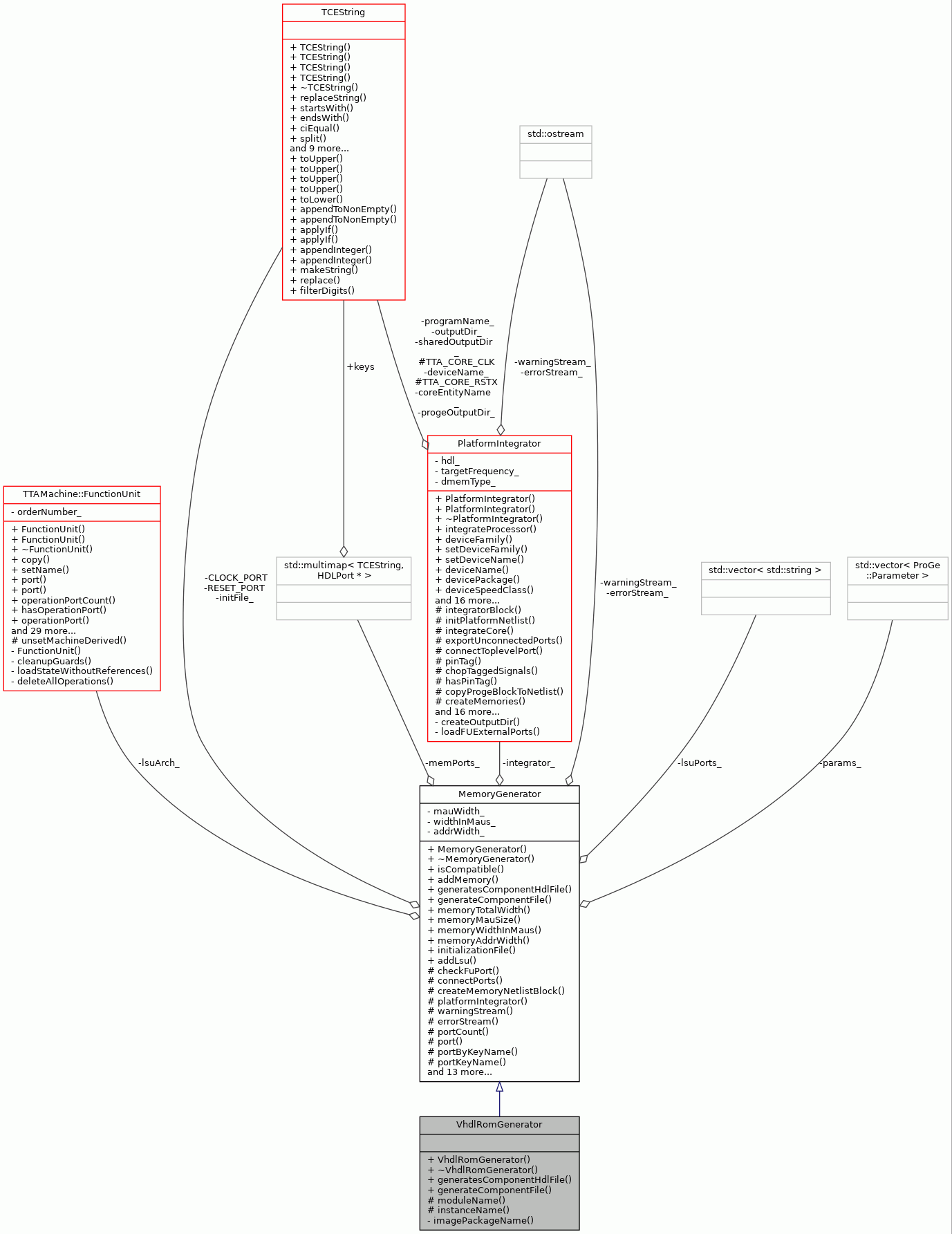

Collaboration diagram for VhdlRomGenerator:
Collaboration graph

Public Member Functions

 VhdlRomGenerator (int memMauWidth, int widthInMaus, int addrWidth, TCEString initFile, const PlatformIntegrator *integrator, std::ostream &warningStream, std::ostream &errorStream)

virtual ~VhdlRomGenerator ()

virtual bool generatesComponentHdlFile () const

virtual std::vector< TCEStringgenerateComponentFile (TCEString outputPath)

- Public Member Functions inherited from MemoryGenerator
 MemoryGenerator (int memMauWidth, int widthInMaus, int addrWidth, TCEString initFile, const PlatformIntegrator *integrator, std::ostream &warningStream, std::ostream &errorStream)

virtual ~MemoryGenerator ()

virtual bool isCompatible (const ProGe::NetlistBlock &ttaCore, int coreId, std::vector< TCEString > &reasons) const

virtual void addMemory (const ProGe::NetlistBlock &ttaCore, ProGe::NetlistBlock &integratorBlock, int memIndex, int coreId)

int memoryTotalWidth () const

int memoryMauSize () const

int memoryWidthInMaus () const

int memoryAddrWidth () const

TCEString initializationFile () const

void addLsu (TTAMachine::FunctionUnit &lsuArch, std::vector< std::string > lsuPorts)


Protected Member Functions

virtual TCEString moduleName () const

virtual TCEString instanceName (int coreId, int memIndex) const

- Protected Member Functions inherited from MemoryGenerator
virtual bool checkFuPort (const std::string fuPort, std::vector< TCEString > &reasons) const

virtual void connectPorts (ProGe::NetlistBlock &netlistBlock, const ProGe::NetlistPort &memPort, const ProGe::NetlistPort &corePort, bool inverted, int coreId)

virtual MemoryGenerator::BlockPair createMemoryNetlistBlock (ProGe::NetlistBlock &integratorBlock, int memIndex, int coreId)

const PlatformIntegratorplatformIntegrator () const

std::ostream & warningStream ()

std::ostream & errorStream ()

int portCount () const

const HDLPortport (int index) const

const HDLPortportByKeyName (TCEString name) const

TCEString portKeyName (const HDLPort *port) const

void addPort (const TCEString &name, HDLPort *port)

int parameterCount () const

const ProGe::Parameterparameter (int index) const

void addParameter (const ProGe::Parameter &add)

TCEString ttaCoreName () const

TCEString memoryIndexString (int coreId, int memIndex) const

TCEString templatePath () const

void instantiateTemplate (const TCEString &inFile, const TCEString &outFile, const TCEString &entity) const

bool hasLSUArchitecture () const

const TTAMachine::FunctionUnitlsuArchitecture () const

TCEString corePortName (const TCEString &portBaseName, int coreId) const


Private Member Functions

TCEString imagePackageName () const


Additional Inherited Members

- Protected Types inherited from MemoryGenerator
typedef std::multimap< TCEString, HDLPort * > PortMap

typedef std::pair< ProGe::NetlistBlock *, ProGe::VirtualNetlistBlock * > BlockPair


Detailed Description

Definition at line 42 of file VhdlRomGenerator.hh.

Constructor & Destructor Documentation

◆ VhdlRomGenerator()

VhdlRomGenerator::VhdlRomGenerator ( int  memMauWidth,
int  widthInMaus,
int  addrWidth,
TCEString  initFile,
const PlatformIntegrator integrator,
std::ostream &  warningStream,
std::ostream &  errorStream
)

Definition at line 50 of file VhdlRomGenerator.cc.

57 :
58 MemoryGenerator(memMauWidth, widthInMaus, addrWidth, initFile,
59 integrator, warningStream, errorStream) {
60
61 addPort("clk", new HDLPort("clock", "1", ProGe::BIT, ProGe::IN, false, 1));
62 addPort("imem_addr", new HDLPort("addr", "addrw", ProGe::BIT_VECTOR,
63 ProGe::IN, false, memoryAddrWidth()));
64
65 addPort("imem_en_x", new HDLPort("en_x", "1", ProGe::BIT,
66 ProGe::IN, false, 1));
67
68 addPort("imem_data", new HDLPort("dataout", "instrw", ProGe::BIT_VECTOR,
69 ProGe::OUT, false, memoryTotalWidth()));
70
71 HDLPort* busyToGnd = new HDLPort("wait", "1", ProGe::BIT, ProGe::OUT,
72 false, 1);
74 addPort("busy", busyToGnd);
75
76 ProGe::Parameter addr("addrw", "integer", "IMEMADDRWIDTH");
77 ProGe::Parameter data("instrw", "integer", "IMEMMAUWIDTH*IMEMWIDTHINMAUS");
78
79 addParameter(addr);
80 addParameter(data);
81}
void setToStatic(ProGe::StaticSignal value)
Definition HDLPort.cc:145
std::ostream & warningStream()
void addParameter(const ProGe::Parameter &add)
void addPort(const TCEString &name, HDLPort *port)
int memoryTotalWidth() const
std::ostream & errorStream()
int memoryAddrWidth() const
@ GND
All port signals set to low.
@ BIT
One bit.
Definition ProGeTypes.hh:47
@ BIT_VECTOR
Several bits.
Definition ProGeTypes.hh:48
@ OUT
Output port.
Definition ProGeTypes.hh:54
@ IN
Input port.
Definition ProGeTypes.hh:53

References MemoryGenerator::addParameter(), MemoryGenerator::addPort(), ProGe::BIT, ProGe::BIT_VECTOR, ProGe::StaticSignal::GND, ProGe::IN, MemoryGenerator::memoryAddrWidth(), MemoryGenerator::memoryTotalWidth(), ProGe::OUT, and HDLPort::setToStatic().

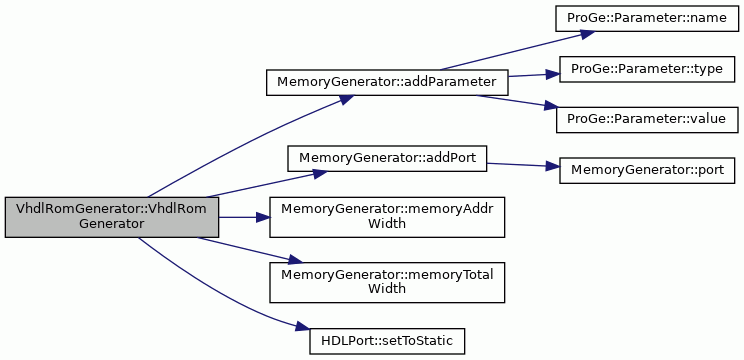

Here is the call graph for this function:

◆ ~VhdlRomGenerator()

VhdlRomGenerator::~VhdlRomGenerator ( )
virtual

Definition at line 83 of file VhdlRomGenerator.cc.

83 {
84}

Member Function Documentation

◆ generateComponentFile()

std::vector< TCEString > VhdlRomGenerator::generateComponentFile ( TCEString  outputPath)
virtual

Implements MemoryGenerator.

Definition at line 94 of file VhdlRomGenerator.cc.

94 {
95
96 TCEString outputFile =
98 << ".vhd";
99
100 std::ofstream file;
101 file.open(outputFile.c_str());
102 if (!file) {
103 TCEString msg = "Couldn't open file " + outputFile + " for writing";
104 IOException exc(__FILE__, __LINE__, "VhdlRomGenerator", msg);
105 throw exc;
106 }
107
108 TCEString indentL1 = StringTools::indent(1);
109 TCEString indentL2 = StringTools::indent(2);
110 std::ostringstream stream;
111 stream
112 << "library ieee;" << endl
113 << "use ieee.std_logic_1164.all;" << endl
114 << "use ieee.std_logic_arith.all;" << endl
115 << "use work." << imagePackageName() << ".all;" << endl << endl
116 << "entity " << moduleName() << " is" << endl << endl
117 << indentL1 << "generic (" << endl
118 << indentL2 << "addrw : integer := 10;" << endl
119 << indentL2 << "instrw : integer := 100);" << endl
120 << indentL1 << "port (" << endl
121 << indentL2 << "clock : in std_logic;" << endl
122 << indentL2 << "en_x : in std_logic; -- not used" << endl
123 << indentL2 << "addr : in std_logic_vector(addrw-1 downto 0);"
124 << endl << indentL2
125 << "dataout : out std_logic_vector(instrw-1 downto 0));" << endl
126 << "end " << moduleName() << ";" << endl << endl;
127
128 stream
129 << "architecture rtl of " << moduleName() << " is" << endl << endl
130 << indentL1
131 << "subtype imem_index is integer range 0 to imem_array'length-1;"
132 << endl
133 << indentL1 << "constant imem : std_logic_imem_matrix"
134 << "(0 to imem_array'length-1) := imem_array;" << endl
135 << indentL1 << "signal en_x_dummy : std_logic;" << endl << endl
136 << "begin --rtl" << endl << endl
137 << indentL1 << "process" << endl
138 << indentL2 << "variable imem_line : imem_index;" << endl
139 << indentL1 << "begin -- process" << endl
140 << indentL2 << "wait until clock'event and clock='1';" << endl
141 << indentL2 << "imem_line := conv_integer(unsigned(addr));" << endl
142 << indentL2 << "dataout <= imem(imem_line);" << endl
143 << indentL1 << "end process;" << endl << endl
144 << indentL1 << "en_x_dummy <= en_x; -- dummy connection" << endl
145 << endl << "end rtl;" << endl;
146
147 file << stream.str();
148 file.close();
149
150 std::vector<TCEString> componentFiles;
151 componentFiles.push_back(outputFile);
152 componentFiles.push_back(initializationFile());
153 return componentFiles;
154}
static const std::string DIRECTORY_SEPARATOR
TCEString initializationFile() const
static std::string indent(int level)
TCEString imagePackageName() const
virtual TCEString moduleName() const

References FileSystem::DIRECTORY_SEPARATOR, imagePackageName(), StringTools::indent(), MemoryGenerator::initializationFile(), and moduleName().

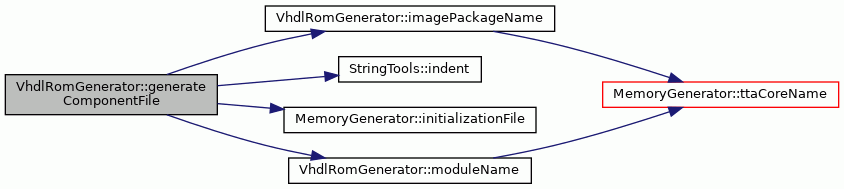

Here is the call graph for this function:

◆ generatesComponentHdlFile()

bool VhdlRomGenerator::generatesComponentHdlFile ( ) const
virtual

Implements MemoryGenerator.

Definition at line 88 of file VhdlRomGenerator.cc.

88 {
89 return true;
90}

◆ imagePackageName()

TCEString VhdlRomGenerator::imagePackageName ( ) const
private

Definition at line 172 of file VhdlRomGenerator.cc.

172 {
173
174 return ttaCoreName() + "_imem_image";
175}
TCEString ttaCoreName() const

References MemoryGenerator::ttaCoreName().

Referenced by generateComponentFile().

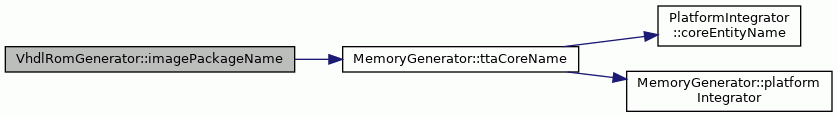

Here is the call graph for this function:

◆ instanceName()

TCEString VhdlRomGenerator::instanceName ( int  coreId,
int  memIndex
) const
protectedvirtual

Implements MemoryGenerator.

Definition at line 165 of file VhdlRomGenerator.cc.

165 {
166
167 TCEString iname("imem_array_instance_");
168 return iname << memoryIndexString(coreId, memIndex);
169}
TCEString memoryIndexString(int coreId, int memIndex) const

References MemoryGenerator::memoryIndexString().

Here is the call graph for this function:

◆ moduleName()

TCEString VhdlRomGenerator::moduleName ( ) const
protectedvirtual

Implements MemoryGenerator.

Definition at line 158 of file VhdlRomGenerator.cc.

158 {
159
160 return ttaCoreName() + "_rom_array_comp";
161}

References MemoryGenerator::ttaCoreName().

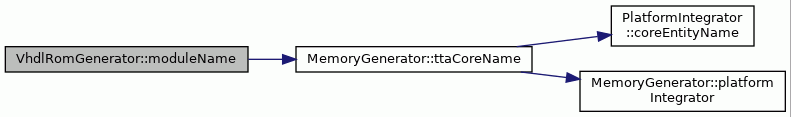

Referenced by generateComponentFile().

Here is the call graph for this function:

The documentation for this class was generated from the following files:
