BlocksTranslator Namespace Reference

Enumerations

enum class  FU_TYPE {
  ID , IU , ALU , RF ,
  MUL , LSU , ABU
}


Functions

void BuildTTAModel (BlocksModel &blocksModel, const std::string &outputName)

TTAMachine::BusCreateConnection (TTAMachine::Machine &mach, TTAMachine::Socket *inputSocket, TTAMachine::Socket *outputSocket, BlocksGCU &gcu)

void Deinitialize (TTAMachine::Machine &mach, std::list< BlocksALUPair * > aluList, std::list< BlocksLSUPair * > lsuList, std::list< BlocksRF * > rfList, std::list< BlocksIMM * > iuList, std::list< BlocksMULPair * > mulList)

void ConnectInputs (TTAMachine::Machine &mach, BlocksGCU &gcu, std::list< BlocksALUPair * > aluList, std::list< BlocksLSUPair * > lsuList, std::list< BlocksRF * > rfList, std::list< BlocksMULPair * > mulList)

TTAMachine::SocketFindOutputSocket (TTAMachine::Machine::SocketNavigator nav, std::string source)


Enumeration Type Documentation

◆ FU_TYPE

enum class BlocksTranslator::FU_TYPE
strong
Enumerator
ID
IU
ALU
RF
MUL
LSU
ABU

Definition at line 44 of file BlocksModel.hh.

44 {
45 ID,
46 IU, // Immediate unit
47 ALU,
48 RF,
49 MUL,
50 LSU, // Load store unit
51 ABU
52};
const string IU
const string RF

Function Documentation

◆ BuildTTAModel()

void BlocksTranslator::BuildTTAModel ( BlocksModel blocksModel,
const std::string &  outputName
)

Build the TTA model (adf file) from the Blocks model.

Parameters
BlocksModelThe Blocks model created from the Blocks 'architecture.xml'.
outputNameThe name of the output adf.

Definition at line 54 of file BlocksTranslator.cc.

55 {
56 Machine ttaMach;
57 ttaMach.setLittleEndian(true);
58 // Create data and instruction adress spaces
59 const int bitWidth = 8;
60 const unsigned int minAddress = 0;
61 // TODO(mm): Allow for different instr mem size than default
62 const unsigned int maxAddressInstr = 2046;
63 // TODO(mm): Allow for different data mem size than default
64 const unsigned int maxAddressData = 32768;
65 AddressSpace asData(
66 "data", bitWidth, minAddress, maxAddressData, ttaMach);
67 AddressSpace asInstr(
68 "instructions", bitWidth, minAddress, maxAddressInstr, ttaMach);
69
70 // Create a list for each functional unit type
71 list<BlocksALUPair*> aluList;
72 list<BlocksLSUPair*> lsuList;
73 list<BlocksRF*> rfList;
74 list<BlocksIMM*> iuList;
75 list<BlocksMULPair*> mulList;
76
77 // Default required unit
78 InstructionTemplate limm("limm", ttaMach);
79 BlocksGCU gcu(
80 ttaMach, "abu",
81 asInstr); // Has to be created here so in IU slot can be added
82
83 // Check which outputs of the FU are used, each output requires a seperate
84 // TTA FU.
85 for (auto& fu : blocksModel.mFunctionalUnitList) {
86 for (auto& source : fu.src) {
87 // Split the string into FU and port
88 string sourcePort = source.substr(source.rfind(".") + 1);
89 string sourceFu = source.substr(0, source.rfind("."));
90 // Set the usesOutx to true
91 for (auto& srcFu : blocksModel.mFunctionalUnitList) {
92 if (srcFu.name == sourceFu) {
93 if (sourcePort == "0")
94 srcFu.usesOut0 = true;
95 else
96 srcFu.usesOut1 = true;
97 }
98 }
99 }
100 }
101
102 // Create for each Blocks unit a TTA unit (except default GCU and IDs)
103 for (auto& fu : blocksModel.mFunctionalUnitList) {
104 switch (fu.type) {
105 case FU_TYPE::ID:
106 break; // Instruction decoders are not taken into account.
107 case FU_TYPE::LSU:
108 lsuList.push_back(new BlocksLSUPair(
109 ttaMach, fu.name, fu.src, asData, fu.usesOut0,
110 fu.usesOut1));
111 break;
112 case FU_TYPE::ALU:
113 aluList.push_back(new BlocksALUPair(
114 ttaMach, fu.name, fu.src, fu.usesOut0, fu.usesOut1));
115 break;
116 case FU_TYPE::RF:
117 rfList.push_back(new BlocksRF(ttaMach, fu.name, fu.src));
118 break;
119 case FU_TYPE::IU:
120 iuList.push_back(new BlocksIMM(ttaMach, fu.name, fu.src));
121 if (iuList.size() == 1)
122 limm.addSlot("ra_out_to_ra_in", 32, *(iuList.back()->iu));
123 break;
124 case FU_TYPE::MUL:
125 mulList.push_back(new BlocksMULPair(
126 ttaMach, fu.name, fu.src, fu.usesOut0, fu.usesOut1));
127 break;
128 case FU_TYPE::ABU:
129 gcu.sources = fu.src;
130 break;
131 default:
132 try {
133 throw "Illegal function unit type in Blocks.xml file, aborting translation. \n";
134 } catch (const char* error) {
135 fprintf(stderr, "%s", error);
137 ttaMach, aluList, lsuList, rfList, iuList, mulList);
138 return;
139 }
140 }
141 }
142
143 ConnectInputs(ttaMach, gcu, aluList, lsuList, rfList, mulList);
144 ttaMach.writeToADF(outputName);
145 Deinitialize(ttaMach, aluList, lsuList, rfList, iuList, mulList);
146}
void setLittleEndian(bool flag)
Definition Machine.hh:259
void writeToADF(const std::string &adfFileName) const
Definition Machine.cc:907
void Deinitialize(TTAMachine::Machine &mach, std::list< BlocksALUPair * > aluList, std::list< BlocksLSUPair * > lsuList, std::list< BlocksRF * > rfList, std::list< BlocksIMM * > iuList, std::list< BlocksMULPair * > mulList)
void ConnectInputs(TTAMachine::Machine &mach, BlocksGCU &gcu, std::list< BlocksALUPair * > aluList, std::list< BlocksLSUPair * > lsuList, std::list< BlocksRF * > rfList, std::list< BlocksMULPair * > mulList)

References TTAMachine::InstructionTemplate::addSlot(), ConnectInputs(), Deinitialize(), BlocksModel::mFunctionalUnitList, TTAMachine::Machine::setLittleEndian(), BlocksGCU::sources, and TTAMachine::Machine::writeToADF().

Referenced by main().

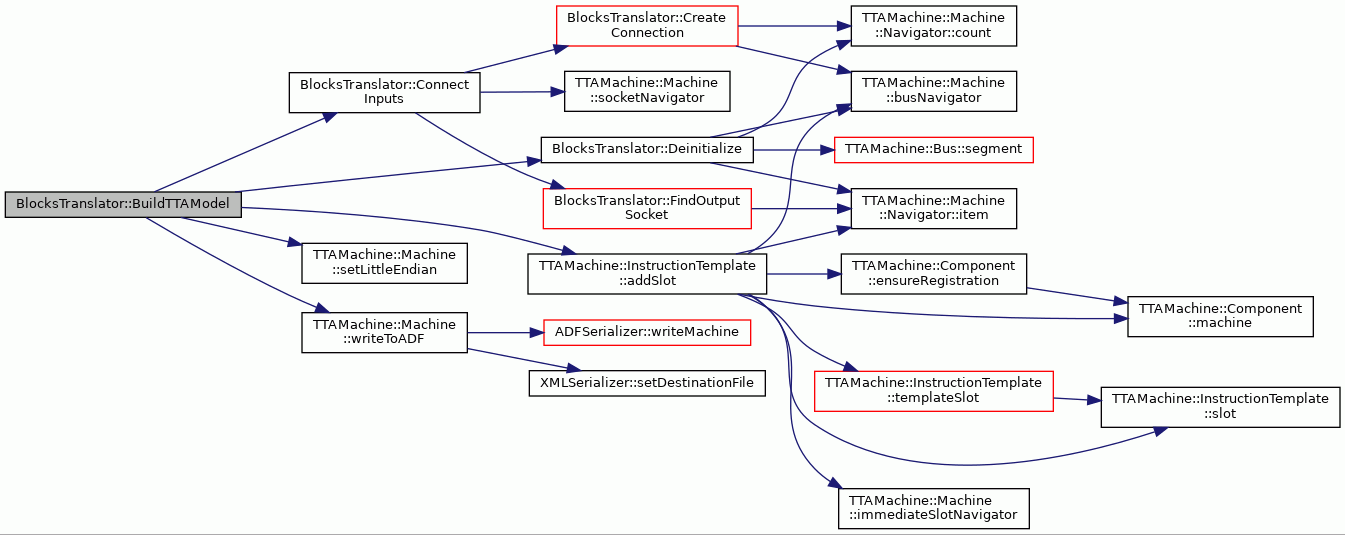

Here is the call graph for this function:

◆ ConnectInputs()

void BlocksTranslator::ConnectInputs ( TTAMachine::Machine mach,
BlocksGCU gcu,
std::list< BlocksALUPair * >  aluList,
std::list< BlocksLSUPair * >  lsuList,
std::list< BlocksRF * >  rfList,
std::list< BlocksMULPair * >  mulList
)

Create all the connectivity in the TTA model.

Parameters
machThe TTA machine where the connections need to be made.
gcuA reference to the TTA GCU (ABU) model.
aluListA list with all ALU pairs currently in the TTA model.
lsuListA list with all LSU pairs currently in the TTA model.
rfListA list with all RFs currently in the TTA model.
mulListA list with all MUL pairs currently in the TTA model.

Definition at line 225 of file BlocksTranslator.cc.

228 {
230 // Create ALU connections (all connections that are an input to the ALUs)
231 for (auto& blocksAlu : aluList) {
232 for (auto& source : blocksAlu->sources) {
233 Socket* outputSocket = FindOutputSocket(nav, source);
235 mach, blocksAlu->in1sock.get(), outputSocket, gcu);
237 mach, blocksAlu->in2sock.get(), outputSocket, gcu);
238 }
239 }
240
241 // Create LSU connections (all connections that are an input to the LSUs)
242 for (auto& lsu : lsuList) {
243 for (auto& source : lsu->sources) {
244 Socket* outputSocket = FindOutputSocket(nav, source);
245 CreateConnection(mach, lsu->in1sock.get(), outputSocket, gcu);
246 CreateConnection(mach, lsu->in2sock.get(), outputSocket, gcu);
247 }
248 }
249
250 // Create MUL connections (all connections that are an input to the MULs)
251 for (auto& mul : mulList) {
252 for (auto& source : mul->sources) {
253 Socket* outputSocket = FindOutputSocket(nav, source);
254 CreateConnection(mach, mul->in1sock.get(), outputSocket, gcu);
255 CreateConnection(mach, mul->in2sock.get(), outputSocket, gcu);
256 }
257 }
258
259 // Create RF connections (all connections that are an input to the RFs)
260 for (auto& rf : rfList) {
261 for (auto& source : rf->sources) {
262 Socket* outputSocket = FindOutputSocket(nav, source);
263 CreateConnection(mach, rf->in1sock, outputSocket, gcu);
264 }
265 }
266
267 // IMM has no input socket so is skipped.
268 // Create GCU connections
269 for (auto& source : gcu.sources) {
270 Socket* outputSocket = FindOutputSocket(nav, source);
271 CreateConnection(mach, gcu.pcIn, outputSocket, gcu);
272 CreateConnection(mach, gcu.valIn, outputSocket, gcu);
273 }
274}
TTAMachine::Socket * pcIn
Definition BlocksGCU.hh:57
TTAMachine::Socket * valIn
Definition BlocksGCU.hh:58
virtual SocketNavigator socketNavigator() const
Definition Machine.cc:368
TTAMachine::Socket * FindOutputSocket(TTAMachine::Machine::SocketNavigator nav, std::string source)
TTAMachine::Bus * CreateConnection(TTAMachine::Machine &mach, TTAMachine::Socket *inputSocket, TTAMachine::Socket *outputSocket, BlocksGCU &gcu)

References CreateConnection(), FindOutputSocket(), BlocksGCU::pcIn, TTAMachine::Machine::socketNavigator(), BlocksGCU::sources, and BlocksGCU::valIn.

Referenced by BuildTTAModel().

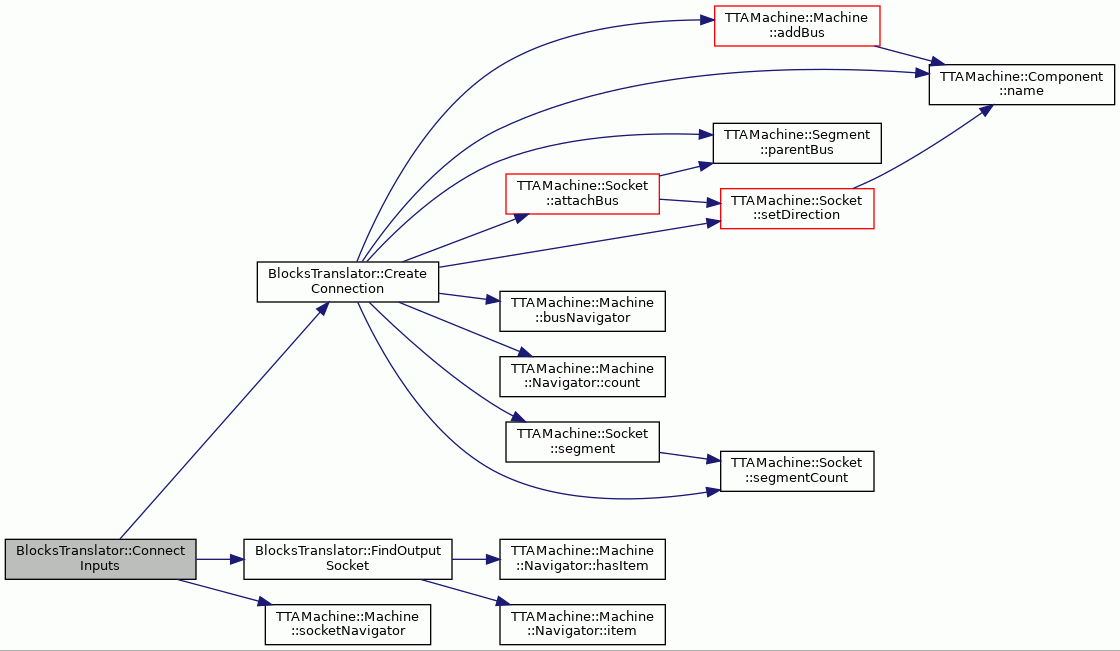

Here is the call graph for this function:

◆ CreateConnection()

Bus * BlocksTranslator::CreateConnection ( TTAMachine::Machine mach,
TTAMachine::Socket inputSocket,
TTAMachine::Socket outputSocket,
BlocksGCU gcu
)

Create a connection between two different sockets. Note: Input := Bus to port, output := Port to bus.

Parameters
machThe TTA machine where the connection needs to be made.
inputSocketA pointer to the TTA input socket that needs to be connected.
outputSocketA pointer to the TTA output socket that needs to be connected.
gcuA reference to the TTA GCU (ABU) model.

Definition at line 160 of file BlocksTranslator.cc.

162 {
163 // TODO(mm): add exception catching where given "input" is not an input
164 // port
165 const int busWidth = 32;
166 const int immWidth = 0;
167 const string& to = inputSocket->name();
168 const string& from = outputSocket->name();
169 Machine::Extension busExt = Machine::Extension::ZERO;
170 Machine::BusNavigator busNav = mach.busNavigator();
171 const string newBusNum = to_string(busNav.count());
172 Bus* ttaBus;
173 // Verify if the socket is already attached to a bus (excluding
174 // 'ra_out_to_ra_in')
175 if (inputSocket->segmentCount() == 0) {
176 ttaBus = new Bus("bus_" + newBusNum, busWidth, immWidth, busExt);
177 mach.addBus(*ttaBus);
178 new Segment("seg1", *ttaBus);
179 if (inputSocket->name() == "ra_in" || inputSocket->name() == "pc") {
180 gcu.pcIn->attachBus(*ttaBus);
181 gcu.raIn->attachBus(*ttaBus);
182 } else {
183 inputSocket->attachBus(*ttaBus);
184 }
185 } else if (
186 inputSocket->segmentCount() == 1 &&
187 inputSocket->segment(0)->parentBus()->name() == "ra_out_to_ra_in") {
188 ttaBus = new Bus("bus_" + newBusNum, busWidth, immWidth, busExt);
189 mach.addBus(*ttaBus);
190 new Segment("seg1", *ttaBus);
191 if (inputSocket->name() == "ra_in" || inputSocket->name() == "pc") {
192 gcu.pcIn->attachBus(*ttaBus);
193 gcu.raIn->attachBus(*ttaBus);
194 } else {
195 inputSocket->attachBus(*ttaBus);
196 }
197 } else if (
198 inputSocket->segmentCount() == 2 &&
199 inputSocket->segment(0)->parentBus()->name() == "ra_out_to_ra_in") {
200 Segment* segment1 = inputSocket->segment(1);
201 ttaBus = segment1->parentBus();
202 }
203 // Not 'ra_out_to_ra_in' and segmentCount == 1
204 else {
205 Segment* segment1 = inputSocket->segment(0);
206 ttaBus = segment1->parentBus();
207 }
208 // Attach busses to sockets
209 outputSocket->attachBus(*ttaBus);
210 outputSocket->setDirection(Socket::Direction::OUTPUT);
211 return ttaBus;
212}
TTAMachine::Socket * raIn
Definition BlocksGCU.hh:55
virtual TCEString name() const
virtual BusNavigator busNavigator() const
Definition Machine.cc:356
virtual void addBus(Bus &bus)
Definition Machine.cc:139
Bus * parentBus() const
void setDirection(Direction direction)
Definition Socket.cc:130
void attachBus(Segment &bus)
Definition Socket.cc:166
Segment * segment(int index) const
Definition Socket.cc:401
int segmentCount() const

References TTAMachine::Machine::addBus(), TTAMachine::Socket::attachBus(), TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Component::name(), TTAMachine::Segment::parentBus(), BlocksGCU::pcIn, BlocksGCU::raIn, TTAMachine::Socket::segment(), TTAMachine::Socket::segmentCount(), and TTAMachine::Socket::setDirection().

Referenced by ConnectInputs().

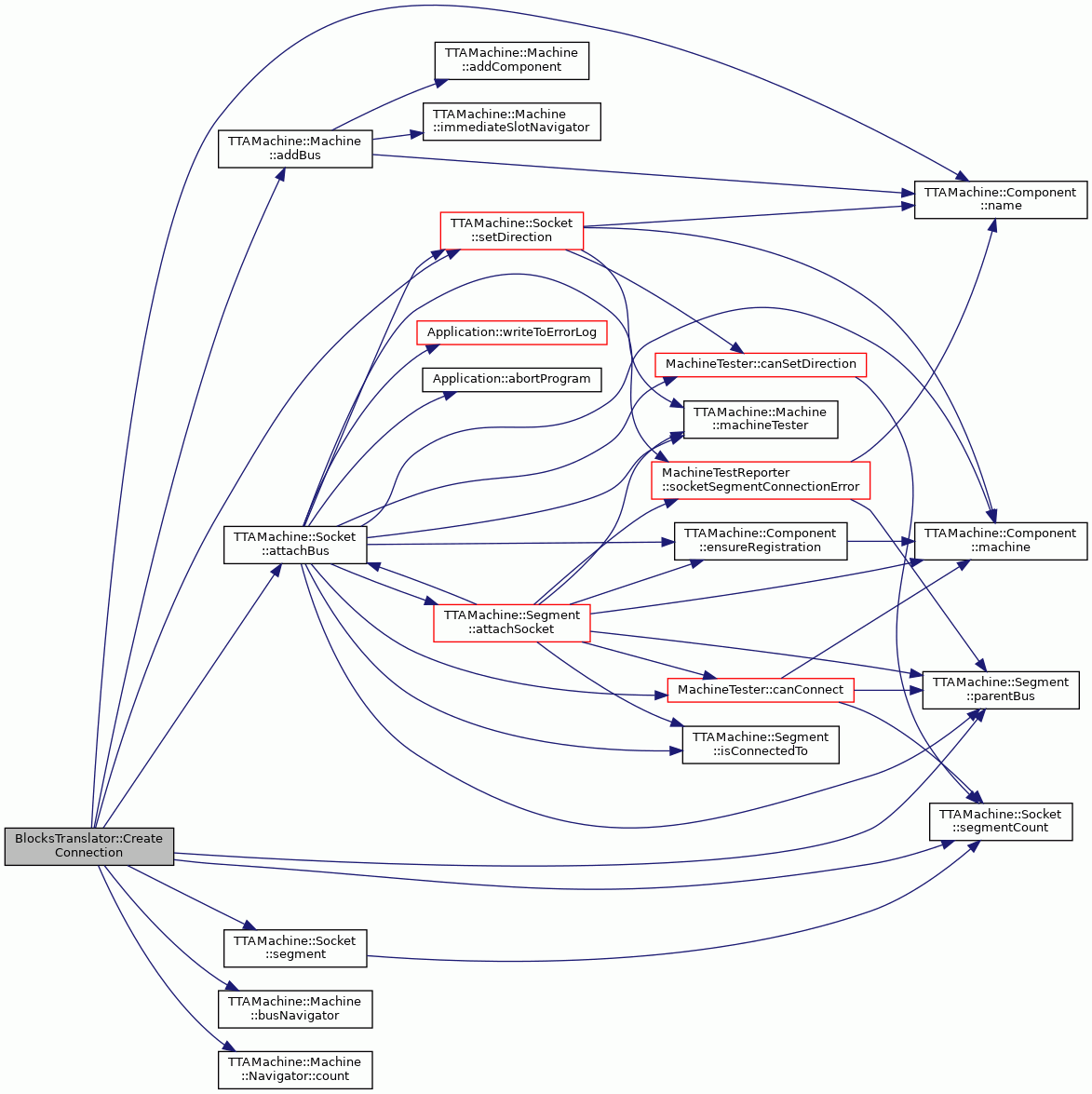

Here is the call graph for this function:

◆ Deinitialize()

void BlocksTranslator::Deinitialize ( TTAMachine::Machine mach,
std::list< BlocksALUPair * >  aluList,
std::list< BlocksLSUPair * >  lsuList,
std::list< BlocksRF * >  rfList,
std::list< BlocksIMM * >  iuList,
std::list< BlocksMULPair * >  mulList
)

Clean up the memory, deletes all FUs and busses.

Parameters
machThe TTA machine where the connections need to be made.
aluListA list with all ALU pairs currently in the TTA model.
lsuListA list with all LSU pairs currently in the TTA model.
rfListA list with all RFs currently in the TTA model.
mulListA list with all MUL pairs currently in the TTA model.

Definition at line 304 of file BlocksTranslator.cc.

307 {
308 while (!aluList.empty()) {
309 delete aluList.front();
310 aluList.pop_front();
311 }
312 while (!lsuList.empty()) {
313 delete lsuList.front();
314 lsuList.pop_front();
315 }
316 while (!rfList.empty()) {
317 delete rfList.front();
318 rfList.pop_front();
319 }
320 while (!iuList.empty()) {
321 delete iuList.front();
322 iuList.pop_front();
323 }
324 while (!mulList.empty()) {
325 delete mulList.front();
326 mulList.pop_front();
327 }
328 // Delete busses
329 Machine::BusNavigator busNav = mach.busNavigator();
330 while (busNav.count() != 0) {
331 Bus* toDelete = busNav.item(busNav.count() - 1);
332 delete toDelete->segment(0);
333 delete toDelete;
334 }
335}
virtual Segment * segment(int index) const
Definition Bus.cc:329
ComponentType * item(int index) const

References TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::Navigator< ComponentType >::item(), and TTAMachine::Bus::segment().

Referenced by BuildTTAModel().

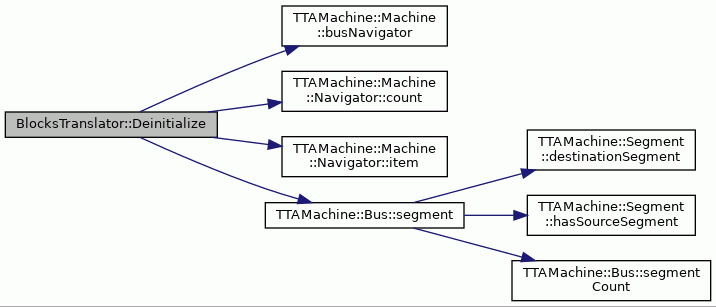

Here is the call graph for this function:

◆ FindOutputSocket()

Socket * BlocksTranslator::FindOutputSocket ( TTAMachine::Machine::SocketNavigator  nav,
std::string  source
)

Find the output socket corresponding to a FU name.

Parameters
navAn instance of a socketnavigator.
sourceThe source of which the handle to the output socket needs to be returned.

Definition at line 284 of file BlocksTranslator.cc.

285 {
286 // String manipulation to get the right format
287 source.replace(source.rfind("."), 1, "_out");
288 assert(
289 nav.hasItem(source) &&
290 "Cannot create connection, output socket not found!");
291 return nav.item(source);
292}
#define assert(condition)
bool hasItem(const std::string &name) const

References assert, TTAMachine::Machine::Navigator< ComponentType >::hasItem(), and TTAMachine::Machine::Navigator< ComponentType >::item().

Referenced by ConnectInputs().

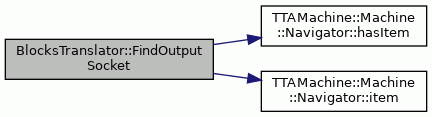

Here is the call graph for this function:
