EnableBPCommand Class Reference

#include <EnableBPCommand.hh>

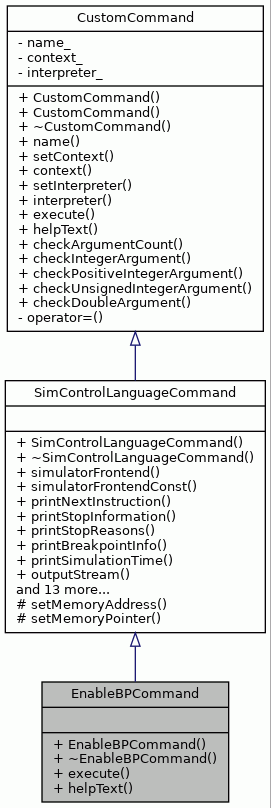

Inheritance diagram for EnableBPCommand:

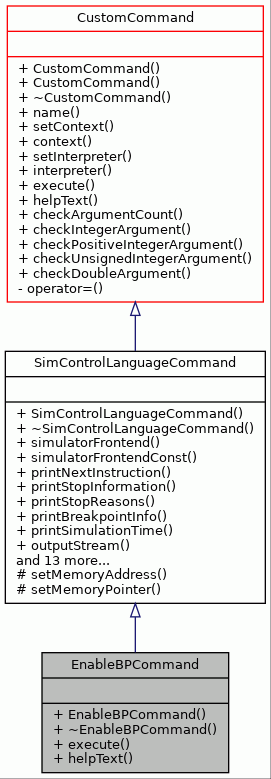

Collaboration diagram for EnableBPCommand:

Public Member Functions
	EnableBPCommand ()
virtual	~EnableBPCommand ()
virtual bool	execute (const std::vector< DataObject > &arguments)
virtual std::string	helpText () const
Public Member Functions inherited from SimControlLanguageCommand
	SimControlLanguageCommand (const std::string &name)
virtual	~SimControlLanguageCommand ()
SimulatorFrontend &	simulatorFrontend ()
const SimulatorFrontend &	simulatorFrontendConst ()
virtual void	printNextInstruction ()
virtual void	printStopInformation ()
virtual void	printStopReasons ()
virtual bool	printBreakpointInfo (unsigned int breakpointHandle)
virtual void	printSimulationTime ()
virtual std::ostream &	outputStream ()
bool	checkSimulationInitialized ()
bool	checkSimulationNotAlreadyRunning ()
bool	checkSimulationStopped ()
bool	checkSimulationEnded ()
bool	checkProgramLoaded ()
bool	checkMachineLoaded ()
InstructionAddress	parseInstructionAddressExpression (const std::string &expression)
TTAProgram::Address	parseDataAddressExpression (const std::string &expression)
bool	parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)
bool	askConditionFromUser (TclConditionScript &target)
bool	askExpressionFromUser (ExpressionScript &target)
bool	verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)
void	setErrorMessage (const TCEString &errorMsg)
Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)
	CustomCommand (const CustomCommand &cmd)
virtual	~CustomCommand ()
std::string	name () const
void	setContext (InterpreterContext *context)
InterpreterContext *	context () const
void	setInterpreter (ScriptInterpreter *si)
ScriptInterpreter *	interpreter () const
bool	checkArgumentCount (int argumentCount, int minimum, int maximum)
bool	checkIntegerArgument (const DataObject &argument)
bool	checkPositiveIntegerArgument (const DataObject &argument)
bool	checkUnsignedIntegerArgument (const DataObject &argument)
bool	checkDoubleArgument (const DataObject &argument)

Additional Inherited Members
Protected Member Functions inherited from SimControlLanguageCommand
bool	setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)
bool	setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)

Detailed Description

Implementation of the "enablebp" command of the Simulator Control Language.

Definition at line 47 of file EnableBPCommand.hh.

Constructor & Destructor Documentation

EnableBPCommand()

EnableBPCommand::EnableBPCommand

(

)

Constructor.

Sets the name of the command to the base class.

Definition at line 52 of file EnableBPCommand.cc.

                                 :
    SimControlLanguageCommand("enablebp") {
}

~EnableBPCommand()

EnableBPCommand::~EnableBPCommand ( )

virtual

Destructor.

Does nothing.

Definition at line 61 of file EnableBPCommand.cc.

                                  {
}

Member Function Documentation

execute()

bool EnableBPCommand::execute ( const std::vector< DataObject > &  arguments )

virtual

Executes the "enablebp" command.

Enables the given breakpoints.

Parameters

arguments

The handle(s) of the breakpoint(s) to enable.

Returns

True in case simulation is initialized and arguments are ok.

Exceptions

NumberFormatException

Is never thrown by this command.

Todo:

Use the count for the step.

Implements CustomCommand.

Definition at line 75 of file EnableBPCommand.cc.

                                                               {
    if (!checkArgumentCount(arguments.size() - 1, 1, INT_MAX)) {
        return false;
    }

    if (!checkSimulationStopped()) {
        if (!checkSimulationInitialized()) {
            return false;
        }
    }

    const std::string firstArgument =
        StringTools::trim(StringTools::stringToLower(
                              arguments[1].stringValue()));

    bool enableOnce = false;
    bool temporary = false;
    int firstHandleIndex = 1;
    if (firstArgument == "once") {
        enableOnce = true;
        firstHandleIndex = 2;
    } else if (firstArgument == "delete") {
        temporary = true;
        firstHandleIndex = 2;
    }

    StopPointManager& breakpointManager =
        simulatorFrontend().stopPointManager();

    if (!verifyBreakpointHandles(arguments, firstHandleIndex)) {
        return false;
    }

    // enable (and modify the properties of) the given breakpoints
    for (size_t i = firstHandleIndex; i < arguments.size(); ++i) {
        const unsigned int breakpointHandle = arguments[i].integerValue();
        breakpointManager.enable(breakpointHandle);
        if (enableOnce) {
            breakpointManager.enableOnceAndDisable(breakpointHandle);
        }
        if (temporary) {
            breakpointManager.enableOnceAndDelete(breakpointHandle);
        }
        printBreakpointInfo(breakpointHandle);
    }
    return true;
}

References CustomCommand::checkArgumentCount(), SimControlLanguageCommand::checkSimulationInitialized(), SimControlLanguageCommand::checkSimulationStopped(), StopPointManager::enable(), StopPointManager::enableOnceAndDelete(), StopPointManager::enableOnceAndDisable(), SimControlLanguageCommand::printBreakpointInfo(), SimControlLanguageCommand::simulatorFrontend(), SimulatorFrontend::stopPointManager(), StringTools::stringToLower(), temporary, StringTools::trim(), and SimControlLanguageCommand::verifyBreakpointHandles().

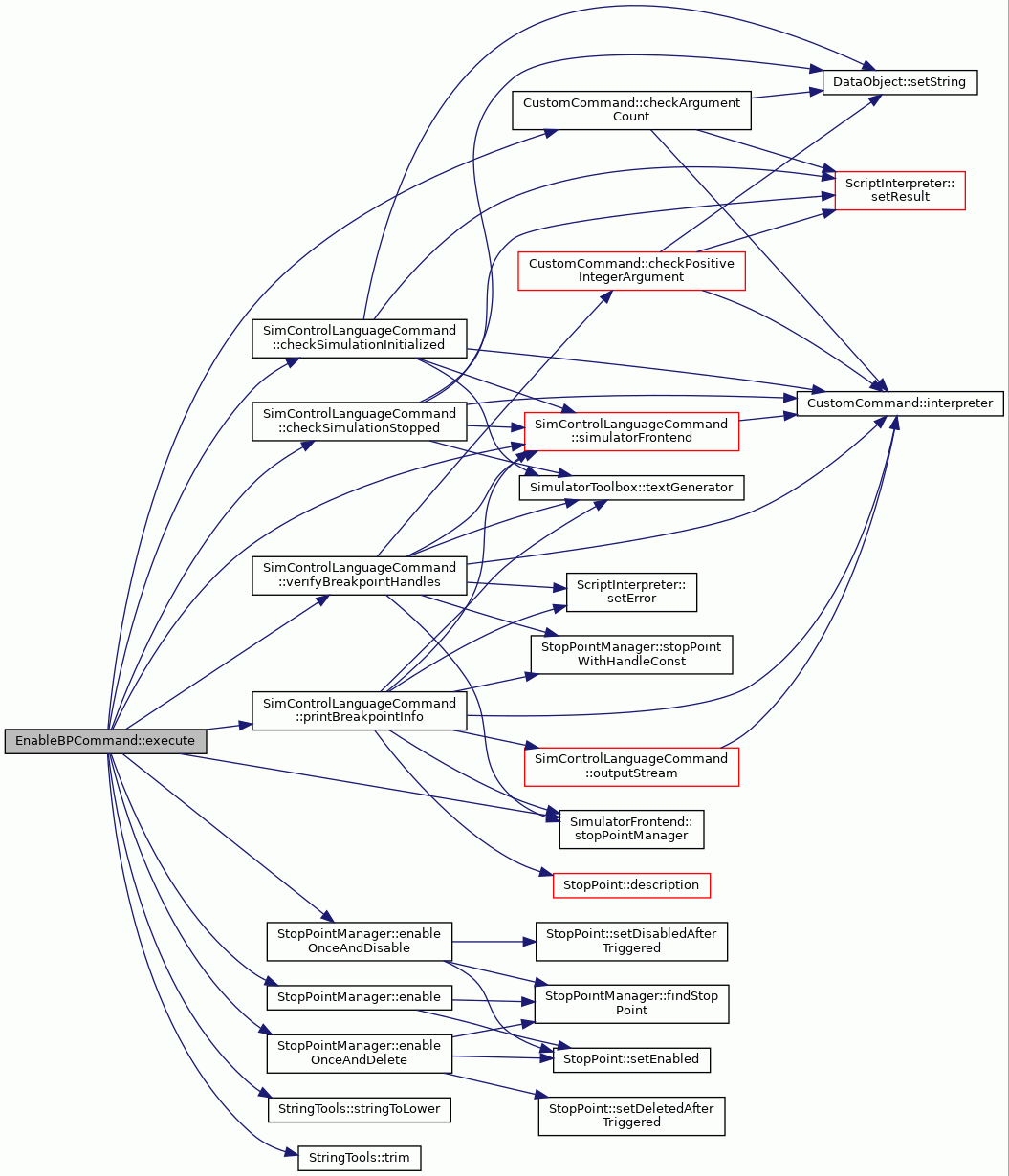

Here is the call graph for this function:

helpText()

std::string EnableBPCommand::helpText ( ) const

virtual

Returns the help text for this command.

Help text is searched from SimulatorTextGenerator.

Returns

The help text.

Todo:

Use SimulatorTextGenerator to get the help text.

Implements CustomCommand.

Definition at line 132 of file EnableBPCommand.cc.

                                {
    return SimulatorToolbox::textGenerator().text(
        Texts::TXT_INTERP_HELP_ENABLEBP).str();
}

References Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), and Texts::TXT_INTERP_HELP_ENABLEBP.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• EnableBPCommand.hh
• EnableBPCommand.cc
