RegisterCopyAdder Class Reference

#include <RegisterCopyAdder.hh>

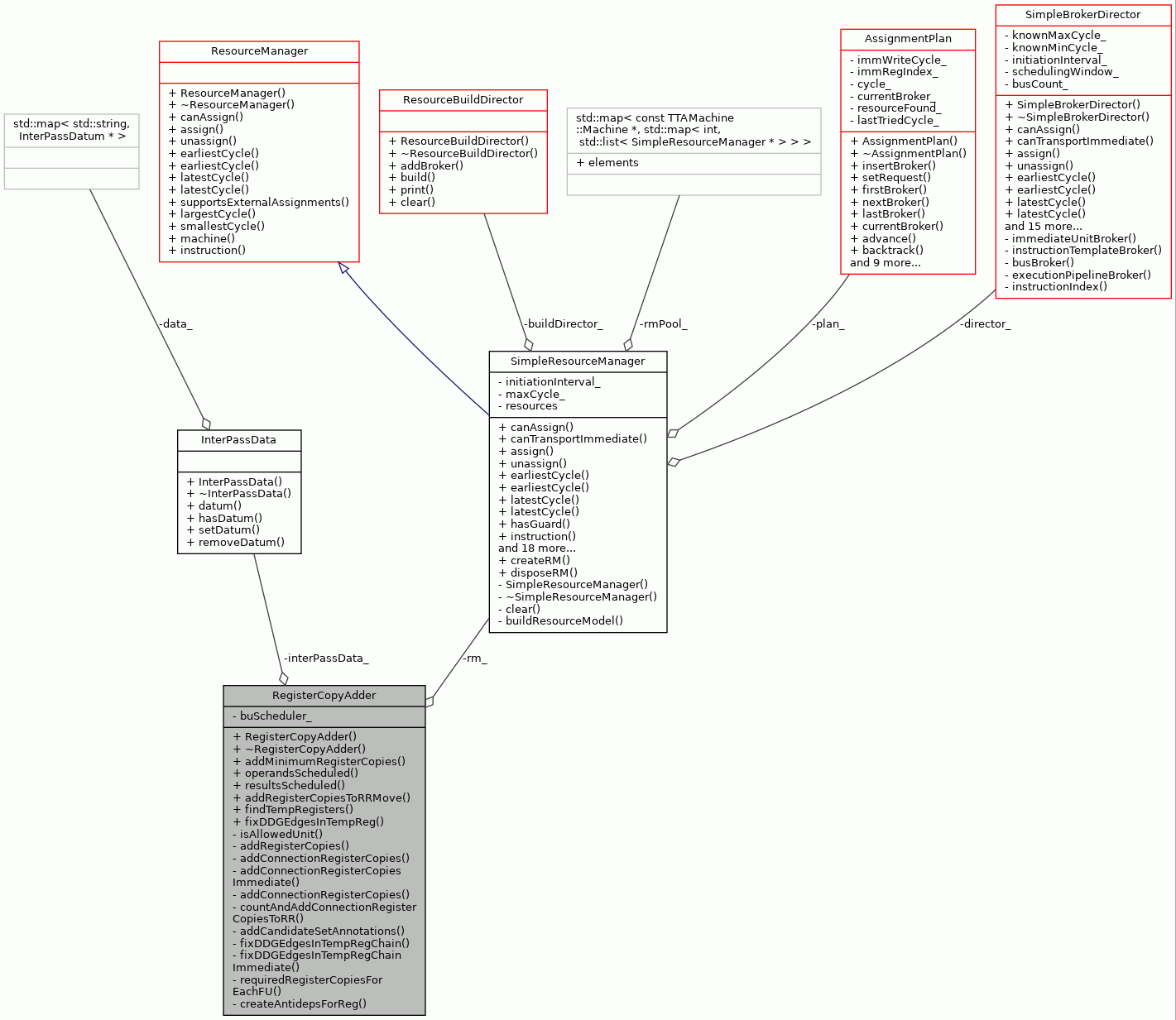

Collaboration diagram for RegisterCopyAdder:

Classes
struct	AddedRegisterCopies

Public Types
typedef std::map< const MoveNode *, DataDependenceGraph::NodeSet >	AddedRegisterCopyMap

Public Member Functions
	RegisterCopyAdder (InterPassData &data, SimpleResourceManager &rm, MoveNodeSelector &selector, bool buScheduler=false)
virtual	~RegisterCopyAdder ()
AddedRegisterCopies	addMinimumRegisterCopies (ProgramOperation &programOperation, const TTAMachine::Machine &targetMachine, DataDependenceGraph *ddg)
void	operandsScheduled (AddedRegisterCopies &copies, DataDependenceGraph &ddg)
void	resultsScheduled (AddedRegisterCopies &copies, DataDependenceGraph &ddg)
AddedRegisterCopies	addRegisterCopiesToRRMove (MoveNode &moveNode, DataDependenceGraph *ddg)

Static Public Member Functions
static void	findTempRegisters (const TTAMachine::Machine &machine, InterPassData &ipd)
static void	fixDDGEdgesInTempReg (DataDependenceGraph &ddg, MoveNode &originalMove, MoveNode *firstMove, MoveNode *lastMove, const TTAMachine::RegisterFile *lastRF, int lastRegisterIndex, BasicBlockNode &currentBBNode, bool bottomUpScheduling, bool loopScheduling)

Private Types
typedef std::map< const TTAMachine::FunctionUnit *, int, TTAMachine::FunctionUnit::Comparator >	RegisterCopyCountIndex
	container for storing the required register copies if the operation was bound to the given FU

Private Member Functions
bool	isAllowedUnit (const TTAMachine::FunctionUnit &fu, const ProgramOperation &po)
AddedRegisterCopies	addRegisterCopies (ProgramOperation &programOperation, const TTAMachine::FunctionUnit &fu, bool countOnly=true, DataDependenceGraph *ddg=NULL, int neededCopies=0)
int	addConnectionRegisterCopies (MoveNode &originalMove, const TTAMachine::Port &sourcePort, const TTAMachine::Port &destinationPort, bool countOnly=true, DataDependenceGraph *ddg=NULL, DataDependenceGraph::NodeSet *addedNodes=NULL, int neededCopies=0)
int	addConnectionRegisterCopiesImmediate (MoveNode &originalMove, const TTAMachine::Port &destinationPort, bool countOnly=true, DataDependenceGraph *ddg=NULL, DataDependenceGraph::NodeSet *addedNodes=NULL)
int	addConnectionRegisterCopies (MoveNode &moveNode, const TTAMachine::FunctionUnit &fu, bool countOnly=true, DataDependenceGraph *ddg=NULL, DataDependenceGraph::NodeSet *addedNodes=NULL, int neededCopies=0)
int	countAndAddConnectionRegisterCopiesToRR (MoveNode &moveNode, DataDependenceGraph *ddg=NULL, DataDependenceGraph::NodeSet *addedNodes=NULL)
void	addCandidateSetAnnotations (ProgramOperation &programOperation, const TTAMachine::Machine &machine)
void	fixDDGEdgesInTempRegChain (DataDependenceGraph &ddg, MoveNode &originalMove, MoveNode *firstMove, std::vector< MoveNode * > intMoves, MoveNode *lastMove, const TTAMachine::RegisterFile *firstRF, std::vector< const TTAMachine::RegisterFile * > intRF, const TTAMachine::RegisterFile *lastRF, int firstRegisterIndex, std::vector< int > intRegisterIndex, int lastRegisterIndex, int regsRequired, BasicBlockNode &currentBBNode)
void	fixDDGEdgesInTempRegChainImmediate (DataDependenceGraph &ddg, MoveNode &originalMove, MoveNode *firstMove, MoveNode *regToRegCopy, MoveNode *lastMove, const TTAMachine::RegisterFile *tempRF1, const TTAMachine::RegisterFile *tempRF2, int tempRegisterIndex1, int tempRegisterIndex2, BasicBlockNode &currentBBNode)
RegisterCopyCountIndex	requiredRegisterCopiesForEachFU (const TTAMachine::Machine &targetMachine, ProgramOperation &programOperation)

Static Private Member Functions
static void	createAntidepsForReg (const MoveNode &defMove, const MoveNode &useMove, const MoveNode &originalMove, const TTAMachine::RegisterFile &rf, int index, DataDependenceGraph &ddg, BasicBlockNode &bbn, bool backwards, bool loopScheduling)

Private Attributes
InterPassData &	interPassData_
	the inter pass data from which to fetch the scratch register list
SimpleResourceManager &	rm_
	the resource manager to check for machine resources in heuristics
bool	buScheduler_
	Indicate that register copy adder is called from bottom up scheduler, this causes search for first scheduled register write instead of last read.

Detailed Description

Adds register copies through connected register files in case of missing connectivity in the operand moves of operations.

In addition, annotates the moves in the operation with missing connectivity with the function unit candidates that are connected to all operand moves of the operation. The annotations should be checked and followed by the resource assignment stage to avoid scheduling failure due to missing connectivity. That is, after executing this pass, the scheduler (and resource assigner) can assume there is enough connectivity in the machine to schedule all moves of the operation (given the candidate FU annotations are adhered to).

Immediates that must be converted to long immediates are annotated with the required IU which is guaranteed to have connectivity to the target FU. The RM/scheduler, when converting a short immediate to a long immediate must take this annotation in account, otherwise scheduling error might occur. It tries to minimize the added temp register copies for the operation by considering all possible FU bindings to each operation.

The pass inputs a DDG with registers allocated but other resources unassigned in the considered operation and outputs a DDG with register copy moves inserted due to missing connectivity. Operation moves are annotated with candidate function units and immediate units for operation and immediate assignments. In case all function units / immediate units are equal candidates according to connectivity, no annotations are inserted as the FU/IU can be assigned freely to the operation/immediate.

The candidate annotatons must be adhered to in resource assignment, otherwise the scheduling might fail due to missing connectivity.

Definition at line 91 of file RegisterCopyAdder.hh.

Member Typedef Documentation

AddedRegisterCopyMap

typedef std::map<const MoveNode*, DataDependenceGraph::NodeSet> RegisterCopyAdder::AddedRegisterCopyMap

Definition at line 102 of file RegisterCopyAdder.hh.

RegisterCopyCountIndex

typedef std::map< const TTAMachine::FunctionUnit*, int, TTAMachine::FunctionUnit::Comparator> RegisterCopyAdder::RegisterCopyCountIndex

private

container for storing the required register copies if the operation was bound to the given FU

Definition at line 231 of file RegisterCopyAdder.hh.

Constructor & Destructor Documentation

RegisterCopyAdder()

RegisterCopyAdder::RegisterCopyAdder	(	InterPassData &	data,
		SimpleResourceManager &	rm,
		MoveNodeSelector &	selector,
		bool	buScheduler = false
	)

Constructor.

Parameters

data	The inter-pass data.
rm	The resource manager used to check for availability of resources.

Definition at line 74 of file RegisterCopyAdder.cc.

                                         :
    interPassData_(data), rm_(rm),
    buScheduler_(buScheduler) {
}

~RegisterCopyAdder()

RegisterCopyAdder::~RegisterCopyAdder ( )

virtual

Destructor.

Definition at line 84 of file RegisterCopyAdder.cc.

                                      {
}

Member Function Documentation

addCandidateSetAnnotations()

void RegisterCopyAdder::addCandidateSetAnnotations ( ProgramOperation &  programOperation, const TTAMachine::Machine &  machine  )

private

Adds candidate FU annotations to the operation moves in case there is a limited set of FUs the operation can be assigned to.

Parameters

programOperation	The operation of which moves to annotate.
machine	The machine which contains the FUs.

Definition at line 2002 of file RegisterCopyAdder.cc.

                                      {

    RegisterCopyCountIndex
        registerCopiesRequired =
        requiredRegisterCopiesForEachFU(machine, programOperation);

    std::set<std::string> candidates;
    // check if there's an FU that requires more than 0 copies even now
    bool allGoodFUCandidates = true;
    // if the long immediate conversion should be performed to ensure
    // connectivity, in that case we add IU candidate sets for the
    // sources of the input moves that have such immediates

    for (std::map<const TTAMachine::FunctionUnit*, int,
             TTAMachine::FunctionUnit::Comparator>::const_iterator
             i = registerCopiesRequired.begin();
         i != registerCopiesRequired.end(); ++i) {

        const TTAMachine::FunctionUnit* u = (*i).first;
        if (!isAllowedUnit(*u, programOperation)) {
            continue;
        }
        if (registerCopiesRequired[u] > 0) {
            allGoodFUCandidates = false;
        } else {
            candidates.insert(u->name());
        }
    }

    // no annotations needed if any selection for the FU is equally good
    // in the connectivity point of view
    if (allGoodFUCandidates) {
        return;
    }



    // add annotations to moves of the ProgramOperation that restrict the
    // choice of FU to the ones that are possible to assign with the current
    // register copies
    for (int input = 0; input < programOperation.inputMoveCount(); ++input) {
        MoveNode& m = programOperation.inputMove(input);

        for (std::set<std::string>::const_iterator i = candidates.begin();
             i != candidates.end(); ++i) {
            std::string candidateFU = (*i);
            TTAProgram::ProgramAnnotation dstCandidate(
                TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_DST,
                candidateFU);
            m.move().addAnnotation(dstCandidate);
        }
    }

    for (int output = 0; output < programOperation.outputMoveCount();
         ++output) {
        MoveNode& m = programOperation.outputMove(output);

        for (std::set<std::string>::const_iterator i = candidates.begin();
             i != candidates.end(); ++i) {
            std::string candidateFU = (*i);
            TTAProgram::ProgramAnnotation srcCandidate(
                TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_SRC,
                candidateFU);
            m.move().addAnnotation(srcCandidate);
        }
    }
}

References TTAProgram::AnnotatedInstructionElement::addAnnotation(), TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_DST, TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_SRC, ProgramOperation::inputMove(), ProgramOperation::inputMoveCount(), isAllowedUnit(), machine, MoveNode::move(), TTAMachine::Component::name(), ProgramOperation::outputMove(), ProgramOperation::outputMoveCount(), and requiredRegisterCopiesForEachFU().

Referenced by addMinimumRegisterCopies().

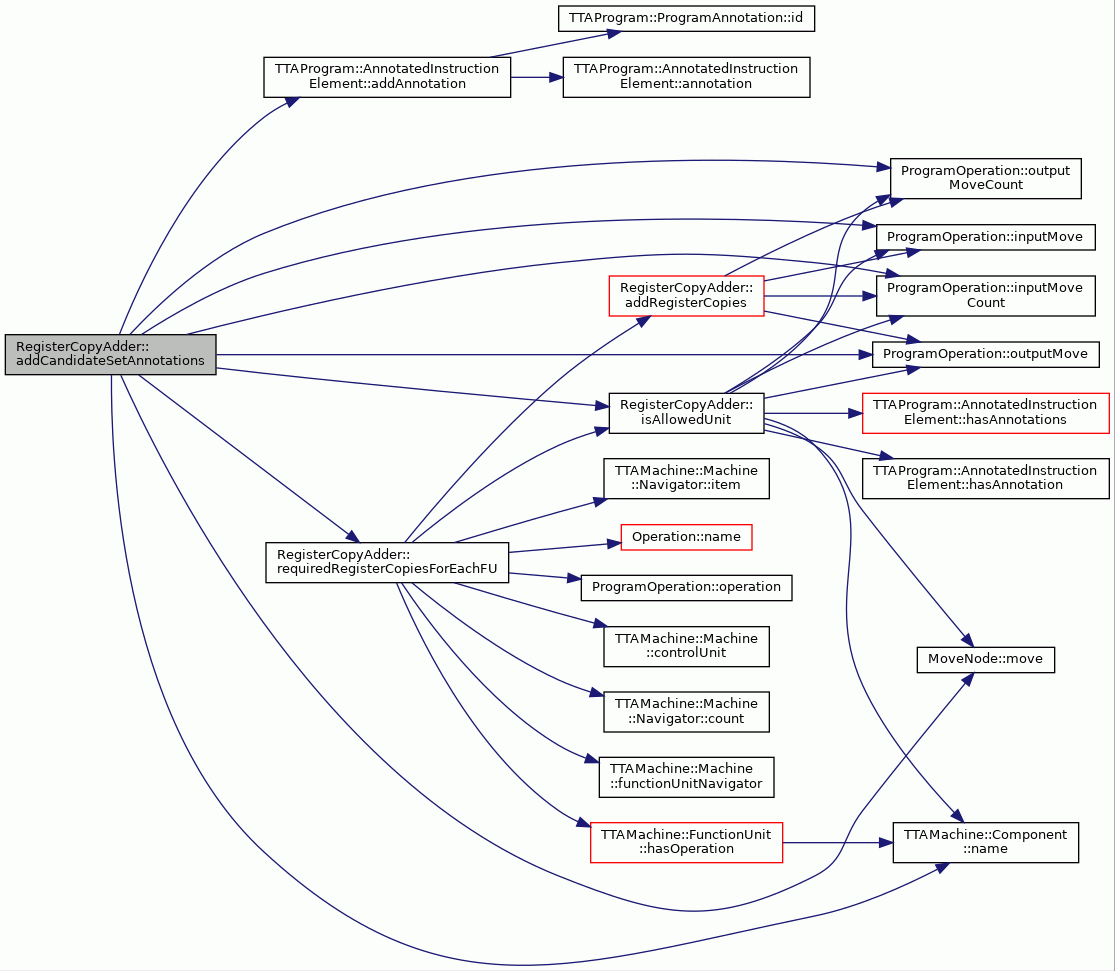

Here is the call graph for this function:

addConnectionRegisterCopies() [1/2]

int RegisterCopyAdder::addConnectionRegisterCopies ( MoveNode &  moveNode, const TTAMachine::FunctionUnit &  fu, bool  countOnly = true, DataDependenceGraph *  ddg = NULL, DataDependenceGraph::NodeSet *  addedNodes = NULL, int  neededCopies = 0  )

private

Adds register copies required for the given transport.

Returns 0 in case there is a connection already.

Parameters

moveNode	The transport.
fu	The assumed function unit assigned to the operation of the move.
countOnly	whether to just count or really do the reg copies.
ddg	ddg to be updated.
addedNode	place to put data about added regcopies.

Returns

Returns the count of register copies required.

Check that there is a bus with wide enough immediate slot that is connected to the target, if not, convert the "constant to an operand move" to "a constant to a register move".

This way we ensure connectivity after IU assignment.

Convert:

IMM -> FU

to

IMM -> RF RF -> FU

In case IMM does not fit in any bus, after scheduler's LIMM conversion, this should end up being:

[IMM -> IU] (long immediate transport) IU -> RF RF -> FU

This should fix the following cases: 1) IMM only fits in a bus that is not directly connected to the FU. 2) IMM does not fit in any bus, thus should be transported through an IU. In that case, ensure connectivity between a IU and FU.

Definition at line 1765 of file RegisterCopyAdder.cc.

                      {

    // collect the set of possible candidate destination ports (in case of
    // RFs, there can be multiple ports)
    TTAProgram::Terminal& dest = moveNode.move().destination();
    std::set<const TTAMachine::Port*> dstPorts;
    if (dest.isGPR()) {
        // add all write ports of the RF to the dstPorts
        const TTAMachine::RegisterFile& rf = dest.registerFile();
        const int ports = rf.portCount();
        for (int p = 0; p < ports; ++p) {
            const TTAMachine::RFPort* port = rf.port(p);
            if (port->isInput())
                dstPorts.insert(port);
        }
    } else if (dest.isFUPort()) {
        if (dynamic_cast<const TTAMachine::SpecialRegisterPort*>(
                &dest.port())) {
            dstPorts.insert(fu.machine()->controlUnit()->returnAddressPort());
        } else {
            // regular FU port
            dstPorts.insert(
                fu.operation(
                    dest.hintOperation().name())->port(dest.operationIndex()));
        }
    } else {
        abortWithError(
            "Unsupported move destination type in move '" +
            moveNode.toString() + "'.");
    }

    // collect the set of possible candidate source ports (in case of
    // RFs, there can be multiple)
    std::set<const TTAMachine::Port*> srcPorts;
    TTAProgram::Terminal& source = moveNode.move().source();
    if (source.isGPR()) {
        // add all read ports of the RF to the srcPorts
        const TTAMachine::RegisterFile& rf = source.registerFile();
        const int ports = rf.portCount();
        for (int p = 0; p < ports; ++p) {
            const TTAMachine::RFPort* port = rf.port(p);
            if (port->isOutput()) {
                srcPorts.insert(port);
            }
        }
    } else if (source.isFUPort()) {

        if (dynamic_cast<const TTAMachine::SpecialRegisterPort*>(
                &source.port())) {
            // source is the return address port, it might be still pointing
            // to the universal_bus, so we'll check where the RA port is
            // connected in the target machine
            srcPorts.insert(fu.machine()->controlUnit()->returnAddressPort());
        } else {
            // a normal FU port
            srcPorts.insert(
                fu.operation(
                    source.hintOperation().name())->port(
                        source.operationIndex()));
        }
    } else if (source.isImmediate() && dest.isFUPort()) {
        /** Check that there is a bus with wide enough immediate slot
            that is connected to the target, if not, convert the "constant to
            an operand move" to "a constant to a register move".

            This way we ensure connectivity after IU assignment. */

        const TTAMachine::Port* destPort = NULL;
        if (dynamic_cast<const TTAMachine::SpecialRegisterPort*>(
                &dest.port())) {
            // the return address port
            destPort = fu.machine()->controlUnit()->returnAddressPort();
        } else {
            destPort =
                fu.operation(
                    dest.hintOperation().name())->port(dest.operationIndex());
        }

        if (destPort == NULL) {
            throw IllegalProgram(
                __FILE__, __LINE__, __func__,
                (boost::format(
                    "Could not find destination FU port candidate for "
                    "move '%s'. Is the operand-port binding missing?")
                 % moveNode.toString()).str());
        }
        const bool connectionFound =
            MachineConnectivityCheck::canTransportImmediate(
                dynamic_cast<const TTAProgram::TerminalImmediate&>(
                    moveNode.move().source()), *destPort);

        // no temp move required, there's at least one bus that can transport
        // the IMM to the target FU directly
        if (connectionFound) {
            return 0;
        }

        // is there a bus (at all) with a wide enough immediate field?
        const bool busFound = rm_.canTransportImmediate(moveNode);

        /**
           Convert:

           IMM -> FU

           to

           IMM -> RF
           RF  -> FU

           In case IMM does not fit in any bus, after scheduler's LIMM
           conversion, this should end up being:

           [IMM -> IU] (long immediate transport)
           IU -> RF
           RF -> FU

           This should fix the following cases:
           1) IMM only fits in a bus that is not directly connected to the FU.
           2) IMM does not fit in any bus, thus should be transported through
              an IU. In that case, ensure connectivity between a IU and FU.
        */

        if (busFound && !connectionFound) {
            // case 1)
            // add SIMM -> RF, RF -> FU, (needs a temp register)
        } else if (!busFound && !connectionFound) {
            // case 2)
            /* Ensure there's at least one IU connecting to the target,
               if there is, no temp register is needed as the connectivity
               appears after LIMM conversion (IU is a register file that
               is guaranteed to be connected at least to a RF that is
               connected to the target, if not directly to the target). */
            TTAMachine::Machine::ImmediateUnitNavigator nav =
                fu.machine()->immediateUnitNavigator();
            for (int i = 0; i < nav.count(); ++i) {
                const TTAMachine::ImmediateUnit* iu = nav.item(i);
                if (MachineConnectivityCheck::isConnected(*iu, *destPort)) {
                    return 0;
                }
            }
            /* None of the IUs are connected to the target FU,
               need to add one or more temp registers. */
        } else {
            abortWithError("Should be an impossible situation.");
        }
        return addConnectionRegisterCopiesImmediate(
            moveNode, *(*dstPorts.begin()), countOnly, ddg, addedNodes);
    } else if (source.isImmediate() && dest.isGPR()) {
        // IMM -> REG should always be possible, at least after LIMM
        // conversion (all IUs must be connected to all RFs), so no temp
        // registers needed
        // register copy adder should not get single immediate moves,
        // only operations anyways
        return 0;
    } else {
        abortWithError(
            "Unsupported move source type in move '" +
            moveNode.toString() + "'.");
    }

    // go through all srcPorts,dstPorts pairs and see which of them require
    // least connection registers and finally select one pair and add
    // connection registers accordingly

    typedef std::set<
    std::pair<const TTAMachine::Port*, const TTAMachine::Port*>,
        TTAMachine::Port::PairComparator >
        CombinationSet;

    CombinationSet pairs = AssocTools::pairs<TTAMachine::Port::PairComparator>(
        srcPorts, dstPorts);

    // check if some portpairs already has connection
    for (CombinationSet::const_iterator i = pairs.begin(); i != pairs.end();
         ++i) {
        const TTAMachine::Port& src = *(*i).first;
        const TTAMachine::Port& dst = *(*i).second;

        if (MachineConnectivityCheck::isConnected(src, dst))
            return 0;
    }


    const std::pair<const TTAMachine::Port*, const TTAMachine::Port*>*
        bestConnection = NULL;
    int registersRequired = INT_MAX;
    for (CombinationSet::const_iterator i = pairs.begin(); i != pairs.end();
         ++i) {
        const TTAMachine::Port& src = *(*i).first;
        const TTAMachine::Port& dst = *(*i).second;

        int regCount = addConnectionRegisterCopies(moveNode, src, dst);

        if (regCount == 0) {
            return 0;
        }

        if (regCount < registersRequired) {
            bestConnection = &(*i);
            registersRequired = regCount;
        }
    }

    if (countOnly) {
        return registersRequired;
    }

    if (bestConnection == NULL) {
        throw IllegalMachine(
            __FILE__, __LINE__, __func__,
            "Could not schedule move '" + moveNode.toString() +
            "' due to missing connectivity. "
            "Add a connection or a register file that connects "
            "the source and the destination.");
    }

    const TTAMachine::Port& src = *(bestConnection->first);
    const TTAMachine::Port& dst = *(bestConnection->second);

    // actually add the connection now that we have found the best way
    return addConnectionRegisterCopies(
        moveNode, src, dst, countOnly, ddg, addedNodes, neededCopies);
}

References __func__, abortWithError, addConnectionRegisterCopies(), addConnectionRegisterCopiesImmediate(), SimpleResourceManager::canTransportImmediate(), MachineConnectivityCheck::canTransportImmediate(), TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAProgram::Move::destination(), TTAProgram::Terminal::hintOperation(), TTAMachine::Machine::immediateUnitNavigator(), MachineConnectivityCheck::isConnected(), TTAProgram::Terminal::isFUPort(), TTAProgram::Terminal::isGPR(), TTAProgram::Terminal::isImmediate(), TTAMachine::Port::isInput(), TTAMachine::Port::isOutput(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), MoveNode::move(), Operation::name(), TTAMachine::FunctionUnit::operation(), TTAProgram::Terminal::operationIndex(), TTAProgram::Terminal::port(), TTAMachine::BaseRegisterFile::port(), TTAMachine::HWOperation::port(), TTAMachine::Unit::portCount(), TTAProgram::Terminal::registerFile(), TTAMachine::ControlUnit::returnAddressPort(), rm_, TTAProgram::Move::source(), and MoveNode::toString().

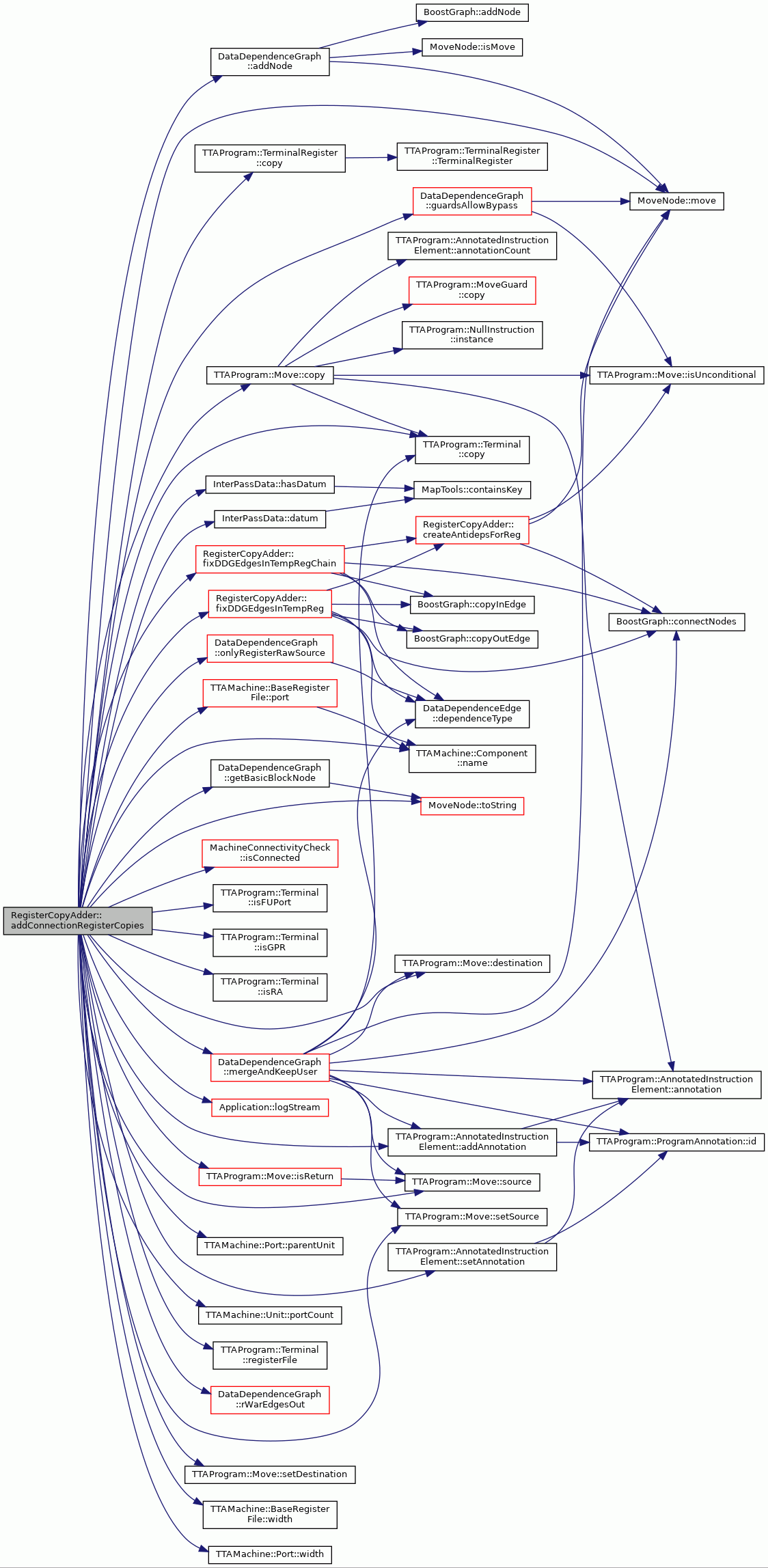

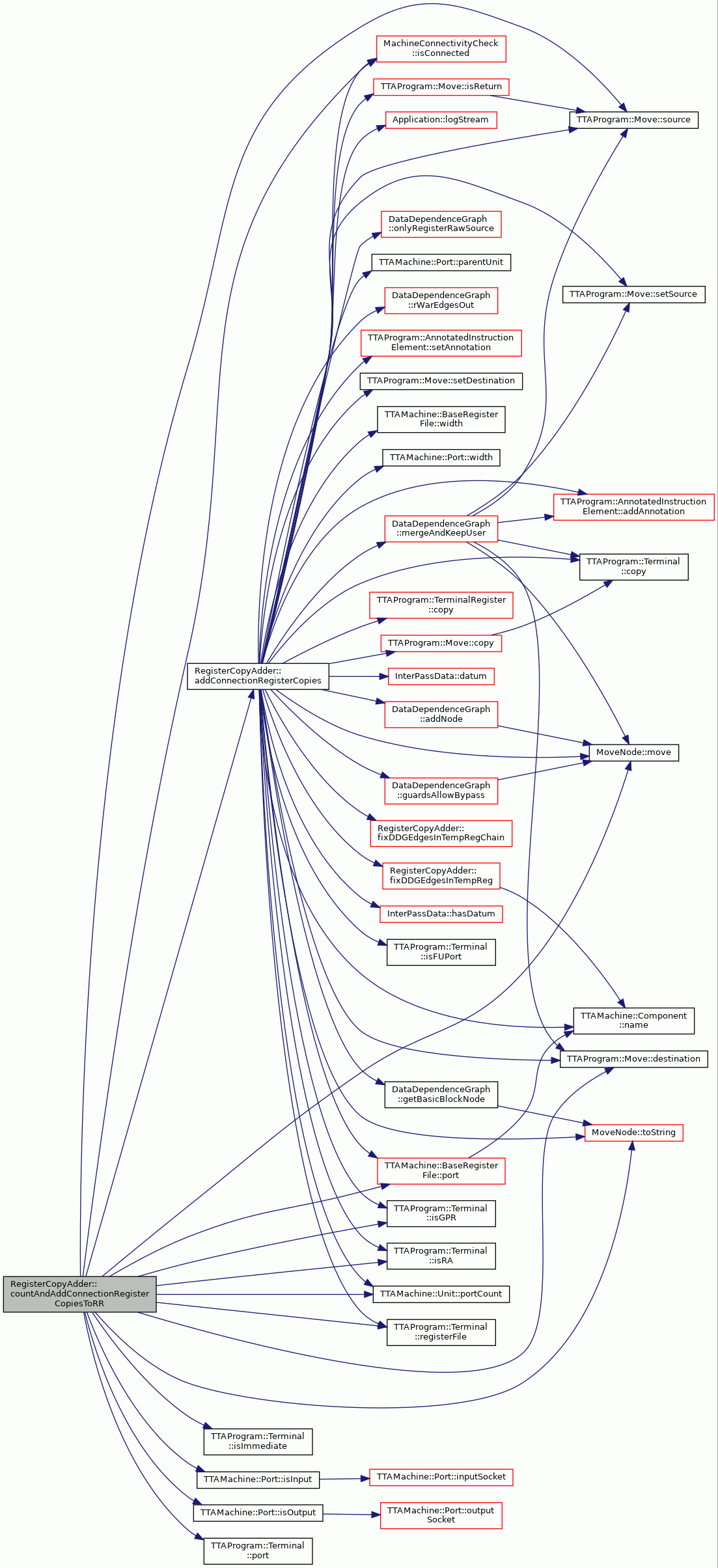

Here is the call graph for this function:

addConnectionRegisterCopies() [2/2]

int RegisterCopyAdder::addConnectionRegisterCopies ( MoveNode &  originalMove, const TTAMachine::Port &  sourcePort, const TTAMachine::Port &  destinationPort, bool  countOnly = true, DataDependenceGraph *  ddg = NULL, DataDependenceGraph::NodeSet *  addedNodes = NULL, int  neededCopies = 0  )

private

Adds or counts register copies required for a move between the given ports.

Returns 0 in case there is a connection already.

Parameters

originalMove	The move that might not be unschedulable due to missing connectivity. Will be modified to read from the temporary reg instead in case connectivity is missing.
sourcePort	The source port.
destinationPort	The destination port.
countOnly	whether to only count or do the register copies.
ddg	ddg to update
addedNodes	place to store information about added regcopies.

Returns

Returns the count of register copies required.

Exceptions

Exception

Throws in case the machine does not have enough connectivity even when 2 register copies are used.

Definition at line 328 of file RegisterCopyAdder.cc.

                      {


    if (MachineConnectivityCheck::isConnected(sourcePort, destinationPort))
        return 0;

    typedef SimpleInterPassDatum<
    std::vector<std::pair<const TTAMachine::RegisterFile*, int> > >
        TempRegData;

    std::string srDatumName = "SCRATCH_REGISTERS";
    if (!interPassData_.hasDatum(srDatumName) ||
        (dynamic_cast<TempRegData&>(
             interPassData_.datum(srDatumName))).size() == 0) {
        // if there are no temp regs, addign them is impossible.
        // but scheduling may be posible with some other FU, so
        // return INT_MAX instead of throwing exception
        // is only counting the amount of regcopies.
        if (countOnly) {
            return INT_MAX;
        }
        throw IllegalProgram(
            __FILE__, __LINE__, __func__,
            "No scratch registers available for temporary moves.");
    }
    const TempRegData& tempRegs =
        dynamic_cast<TempRegData&>(interPassData_.datum(srDatumName));

    const int minRegisterWidth =
        std::min(sourcePort.width(), destinationPort.width());

    // initialize to 0 -> at default the register file has no connectivity
    // information
    // tempRegsDist defines the "distance" (=connectivity level) in terms of
    // reg copies from the source port; 0 = cannot be reached from the source;
    // tempRegsConn stores the index of the register file of the previous
    // connectivity level to which the current register file is connected
    std::vector<int> tempRegsDist(tempRegs.size(), 0);
    std::vector<int> tempRegsConn(tempRegs.size(), 0);
    bool connectionFound = false;

    int lastRegisterIndex = -1;
    int firstRegisterIndex = -1;
    int regsRequired = INT_MAX;
    int lastRegID = -1;

    // find a sequence of temp register moves from source to destination
    // (this algorithm is based on the maze algorithm for ASIC place & route;
    // it assigns to each register file a number that is equal to the
    // distance from the source port; at each level check if the register file
    // can be connected to the destination port)
    const TTAMachine::RegisterFile* lastRF = NULL;
    const TTAMachine::RegisterFile* firstRF = NULL;
    int correctSizeTempsFound = 0;

    // analyze the first level of connections
    // check the temp regs directly connected to source
    for (std::size_t i = 0; i < tempRegs.size(); ++i) {
        const TTAMachine::RegisterFile& rf = *tempRegs.at(i).first;
        if (rf.width() < minRegisterWidth) {
            continue;
        }
        ++correctSizeTempsFound;
        if (MachineConnectivityCheck::isConnected(sourcePort, rf)) {

            // found a RF that is connected to the source port
            tempRegsDist[i] = 1;

            if (MachineConnectivityCheck::isConnected(rf, destinationPort)) {
                // found a RF that is connected both to the src and dst
                lastRegID = i;
                lastRegisterIndex = tempRegs.at(i).second;
                lastRF = &rf;
                connectionFound = true;
                regsRequired = 1;
                break;
            }
        }
    }

    int level = 1;
    int connCount;

    while (!connectionFound) {
        // analyze higher levels of register connections
        connCount = 0;
        level++;
        for (std::size_t i = 0; i < tempRegs.size(); ++i) {
            // select a temp reg without an assigned connections (dist=0)
            if (connectionFound)
                break;
            if (tempRegsDist[i] == 0) {
                const TTAMachine::RegisterFile& rf = *tempRegs.at(i).first;
                if (rf.width() < minRegisterWidth) {
                    continue;
                }
                ++correctSizeTempsFound;

                // check if the selected temp reg can be connected with any of the registers
                // assigned to the previous level
                for (std::size_t j = 0; j < tempRegs.size(); ++j) {
                    if (tempRegsDist[j] == level - 1) {
                        const TTAMachine::RegisterFile& srcRF = *tempRegs.at(j).first;
                        if (MachineConnectivityCheck::isConnected(srcRF, rf)) {

                            // found a RF that is connected to the previous level
                            // => assign it to the current level of connections
                            tempRegsDist[i] = level;
                            // => increase the number of connections established at this level
                            // this is needed to stop the algorithm if no new connection is
                            // established
                            connCount++;
                            // record the source register for the connection
                            // this is needed to reconstruct the path
                            tempRegsConn[i] = j;
                            if (MachineConnectivityCheck::isConnected(rf, destinationPort)) {
                                // found a RF that is connected to the dst
                                lastRegID = i;
                                lastRegisterIndex = tempRegs.at(i).second;
                                lastRF = &rf;
                                connectionFound = true;
                                break;
                            }
                        }
                    }
                }
            }
        }
        if (connCount == 0){
            // no new connection established; the current level is
            // isolated => algorithm stops
            break;
        }
    }


    regsRequired = level;

    if (correctSizeTempsFound == 0) {
        throw IllegalProgram(
            __FILE__, __LINE__, __func__,
            (boost::format(
                "Register allocator didn't reserve a large enough "
                "connectivity register for routing the move %s.")
             % originalMove.toString()).str());
    }

    if (countOnly) {
        return regsRequired;
    }

    if (!connectionFound){
        throw IllegalMachine(
            __FILE__, __LINE__, __func__,
            std::string("Cannot schedule ") +
            originalMove.toString() +
            " ensure that all FUs are connected to at least one RF." +
            destinationPort.parentUnit()->name() + " cannot be reached.");
    }


    // before splitting, annotate the possible return move so we can still
    // detect a procedure return in simulator
    if (originalMove.move().isReturn()) {
        TTAProgram::ProgramAnnotation annotation(
            TTAProgram::ProgramAnnotation::ANN_STACKFRAME_PROCEDURE_RETURN);
        originalMove.move().setAnnotation(annotation);
    }

    // add the register copy moves
    // starting from the destination port and creating all the needed moves

    // find a connected port in the last temp reg file of the chain
    const TTAMachine::RFPort* dstRFPort = NULL;
    for (int p = 0; p < lastRF->portCount(); ++p) {
        const TTAMachine::RFPort* RFport = lastRF->port(p);
        if (MachineConnectivityCheck::isConnected(*RFport, destinationPort)) {
            dstRFPort = RFport;
            break;
        }
    }
    assert(dstRFPort != NULL);

    TTAProgram::TerminalRegister* temp =
        new TTAProgram::TerminalRegister(*dstRFPort, lastRegisterIndex);

    TTAProgram::Terminal* originalDestination =
        originalMove.move().destination().copy();

    MoveNode* firstMove = NULL;
    MoveNode* lastMove = NULL;

    TTAProgram::ProgramAnnotation connMoveAnnotation(
        TTAProgram::ProgramAnnotation::ANN_CONNECTIVITY_MOVE);

    /* Make sure that the original move is still the one that should
       be in the ProgramOperation, i.e., an operation move. The original
       move should be either the last of the chain or the first, in case
       it's input or output move, respectively. In case of register move,
       the original move is considered the fisrt of the chain */


    TTAProgram::Terminal& omDest = originalMove.move().destination();
    // may not catch RA on this one.
    if (omDest.isFUPort() && !omDest.isRA()) {
        assert(neededCopies != 0); // if 0, we should not be here.

        // try to bypass the regcopy away, by using previous value in
        // some reg which is connected to the FU.
        if (ddg != NULL && neededCopies == 1) {
            // 2 == no guard edges, 0 == do not care if backedge
            MoveNode* rawSource =
                ddg->onlyRegisterRawSource(originalMove, 2, 0);

            // if would have war out edges, we would have to handle
            // the war conflicts to those nodes as well, limiting schedule
            if (rawSource != NULL && ddg->rWarEdgesOut(*rawSource) == 0 &&
                ddg->guardsAllowBypass(*rawSource, originalMove)) {
                TTAProgram::Terminal& rawSrcSrc = rawSource->move().source();
                if (rawSrcSrc.isGPR()) {
                    const TTAMachine::RegisterFile& rf =
                        rawSrcSrc.registerFile();
                    if (MachineConnectivityCheck::isConnected(
                            rf, destinationPort)) {
                        delete temp;
                        ddg->mergeAndKeepUser(*rawSource, originalMove);

            /* cannot remove if first or last write?
               as may have refs in live range bookkeeping.
               disable dre here until check ready for this
                        if (!ddg->resultUsed(*rawSource)) {
                            if (rawSource->isScheduled()) {
                                rm_.unassign(*rawSource);
                            }
                            DataDependenceGraph::NodeSet successors =
                                ddg->successors(*rawSource);

                            ddg->removeNode(*rawSource);
                            delete rawSource;

                            // notify selector.
                            for (DataDependenceGraph::NodeSet::iterator
                                     iter = successors.begin();
                                 iter != successors.end(); iter++) {
                                selector_.mightBeReady(**iter);
                            }
                        }
            */
                        // just one regcopy needed and that was bypassed.
                        // we can quit.
                        delete originalDestination;
                        return 0;
                    }
                }
            }
        }

        // input move
        firstMove = new MoveNode(originalMove.move().copy());
        lastMove = &originalMove;
        if (ddg != NULL) {
            BasicBlockNode& bbn = ddg->getBasicBlockNode(originalMove);
            ddg->addNode(*firstMove,bbn);
        }
        // TODO: firstMove leaks if we don't have a ddg.

        if (addedNodes != NULL) {
            addedNodes->insert(firstMove);
        }

        firstMove->move().addAnnotation(connMoveAnnotation);

    } else if (originalMove.move().source().isFUPort()) {
        // output move
        firstMove = &originalMove;
        lastMove = new MoveNode(originalMove.move().copy());
        if (ddg != NULL) {
            BasicBlockNode& bbn = ddg->getBasicBlockNode(originalMove);
            ddg->addNode(*lastMove,bbn);
        }
        if (addedNodes != NULL) {
            addedNodes->insert(lastMove);
        }

        lastMove->move().addAnnotation(connMoveAnnotation);
    } else {
        firstMove = &originalMove;
        lastMove = new MoveNode(originalMove.move().copy());
        if (ddg != NULL) {
            BasicBlockNode& bbn = ddg->getBasicBlockNode(originalMove);
            ddg->addNode(*lastMove,bbn);
        }
        if (addedNodes != NULL) {
            addedNodes->insert(lastMove);
        }

        lastMove->move().addAnnotation(connMoveAnnotation);
    }

    // adding the last move: tempN -> dst
    TTAProgram::TerminalRegister* lastMoveSrc = temp;

    lastMove->move().setSource(lastMoveSrc);
    lastMove->move().setDestination(originalDestination);

#ifdef DEBUG_REG_COPY_ADDER
    Application::logStream()
        << "# Last move of the chain: "
        << std::endl
        << "# " << lastMove->toString() << std::endl;
#endif

    // the lastRF becomes the dst of the following
    // moves
    TTAProgram::TerminalRegister* moveDst = temp;
    MoveNode* regToRegCopy = NULL;

    // add the intermediate moves
    std::vector<MoveNode*> intMoves(regsRequired - 1);
    std::vector<const TTAMachine::RegisterFile*> intRF(regsRequired - 1);
    std::vector<int> intRegisterIndex(regsRequired - 1);


    if (regsRequired >= 2) {
        int tempRegisterIndexDst = lastRegisterIndex;
        int dstID = lastRegID;
        // for each level
        for (int i = 0; i < regsRequired - 1; ++i){
            regToRegCopy = new MoveNode(originalMove.move().copy());
            // retrieving the source and destination  of the current move
            // from tempRegs
            int srcID = tempRegsConn[dstID];
            int tempRegisterIndexSrc = tempRegs.at(srcID).second;
            const TTAMachine::RegisterFile& dstRF = *tempRegs.at(dstID).first;
            const TTAMachine::RegisterFile& srcRF = *tempRegs.at(srcID).first;
            const TTAMachine::RFPort* srcRFPort = NULL;
            for (int p = 0; p < srcRF.portCount(); ++p) {
                const TTAMachine::RFPort* RFport = srcRF.port(p);
                if (MachineConnectivityCheck::isConnected(*RFport, dstRF)) {
                    srcRFPort = RFport;
                    break;
                }
            }
            assert(srcRFPort != NULL);

            TTAProgram::TerminalRegister* moveSrc =
                new TTAProgram::TerminalRegister(
                    *srcRFPort, tempRegisterIndexSrc);
            // temp1 now owned by the regCopy
            regToRegCopy->move().setSource(moveSrc);
            regToRegCopy->move().setDestination(moveDst->copy());

            if (ddg != NULL) {
                BasicBlockNode& bbn = ddg->getBasicBlockNode(originalMove);
                ddg->addNode(*regToRegCopy,bbn);
            }
            if (addedNodes != NULL) {
                addedNodes->insert(regToRegCopy);
            }
            regToRegCopy->move().addAnnotation(connMoveAnnotation);

            //store the intermediate move,
            // its destination RF and related index in a vector
            intMoves[regsRequired - 2 - i] = regToRegCopy;
            intRF[regsRequired - 2 - i] = tempRegs.at(dstID).first;
            intRegisterIndex[regsRequired - 2 - i] = tempRegisterIndexDst;

#ifdef DEBUG_REG_COPY_ADDER
            Application::logStream()
                << "# Intermediate move #" << regsRequired - 2 - i << " :"
                << std::endl
                << "# " << regToRegCopy->toString() << std::endl;
#endif

            // set the current source as destination of the next move
            moveDst = moveSrc;
            tempRegisterIndexDst = tempRegisterIndexSrc;
            dstID = srcID;

        }

        firstRF = tempRegs.at(dstID).first;
        firstRegisterIndex = tempRegisterIndexDst;

    }

    // add the first move
    // src -> temp1
    firstMove->move().setDestination(moveDst->copy());

    if (ddg != NULL) {
        // update the DDG edges
        BasicBlockNode& bbn = ddg->getBasicBlockNode(originalMove);
        if (regsRequired >= 2) {
            fixDDGEdgesInTempRegChain(
                *ddg, originalMove, firstMove, intMoves, lastMove, firstRF,
                intRF, lastRF, firstRegisterIndex, intRegisterIndex,
                lastRegisterIndex, regsRequired, bbn);
        }

        else {
            fixDDGEdgesInTempReg(
                *ddg, originalMove, firstMove, lastMove, lastRF,
                lastRegisterIndex, bbn, buScheduler_, false);
        }
    }

    return regsRequired;
}

References __func__, TTAProgram::AnnotatedInstructionElement::addAnnotation(), DataDependenceGraph::addNode(), TTAProgram::ProgramAnnotation::ANN_CONNECTIVITY_MOVE, TTAProgram::ProgramAnnotation::ANN_STACKFRAME_PROCEDURE_RETURN, assert, buScheduler_, TTAProgram::Move::copy(), TTAProgram::TerminalRegister::copy(), TTAProgram::Terminal::copy(), InterPassData::datum(), TTAProgram::Move::destination(), fixDDGEdgesInTempReg(), fixDDGEdgesInTempRegChain(), DataDependenceGraph::getBasicBlockNode(), DataDependenceGraph::guardsAllowBypass(), InterPassData::hasDatum(), interPassData_, MachineConnectivityCheck::isConnected(), TTAProgram::Terminal::isFUPort(), TTAProgram::Terminal::isGPR(), TTAProgram::Terminal::isRA(), TTAProgram::Move::isReturn(), Application::logStream(), DataDependenceGraph::mergeAndKeepUser(), MoveNode::move(), TTAMachine::Component::name(), DataDependenceGraph::onlyRegisterRawSource(), TTAMachine::Port::parentUnit(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), TTAProgram::Terminal::registerFile(), DataDependenceGraph::rWarEdgesOut(), TTAProgram::AnnotatedInstructionElement::setAnnotation(), TTAProgram::Move::setDestination(), TTAProgram::Move::setSource(), TTAProgram::Move::source(), MoveNode::toString(), TTAMachine::BaseRegisterFile::width(), and TTAMachine::Port::width().

Referenced by addConnectionRegisterCopies(), addRegisterCopies(), and countAndAddConnectionRegisterCopiesToRR().

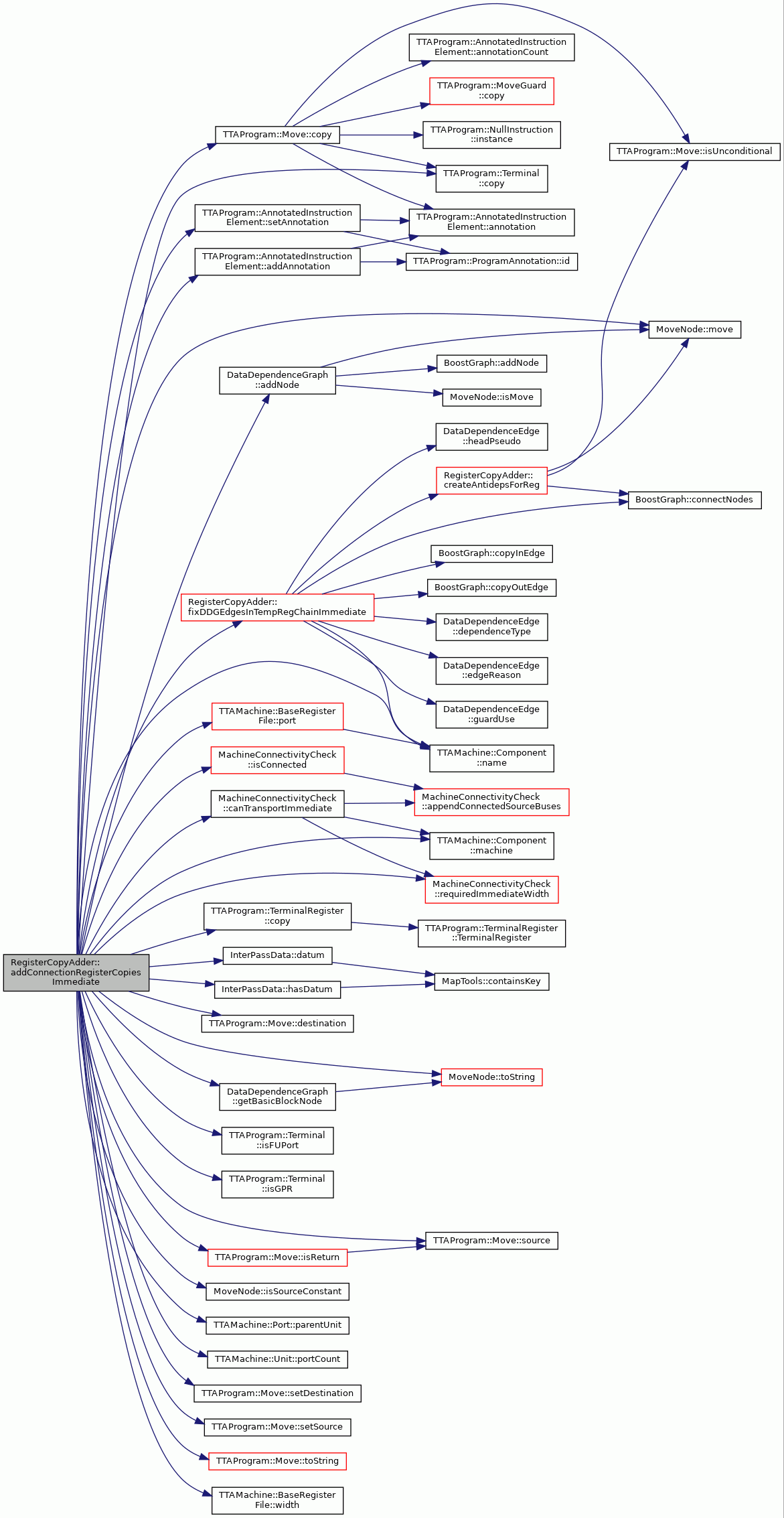

Here is the call graph for this function:

addConnectionRegisterCopiesImmediate()

int RegisterCopyAdder::addConnectionRegisterCopiesImmediate ( MoveNode &  originalMove, const TTAMachine::Port &  destinationPort, bool  countOnly = true, DataDependenceGraph *  ddg = NULL, DataDependenceGraph::NodeSet *  addedNodes = NULL  )

private

Adds register copies required for transporting an immediate to the given port.

If there is at least one IU that is connected to the destination and the immediate is going to be converted to a long immediate, does not add any temp registers, but annotates the move with the IU choice so RM can assign it correctly later.

Parameters

originalMove	The move that cannot be scheduled due to missing connectivity. Will be modified to read from the temporary reg instead.
destinationPort	The destination port.
countOnly	whether to count only or do the reg copies.
ddg	ddg to update, or null if none.
addedNodes	place to put data about added reg copies.

Returns

Returns the count of register copies required.

Exceptions

Exception

Throws in case the machine does not have enough connectivity even when 2 register copies are used or no scratch registers to redirect unconnected moves through.

Todo:

check that the buses support the guard of the original move

Definition at line 767 of file RegisterCopyAdder.cc.

                                            {

    assert(originalMove.isSourceConstant());

    typedef SimpleInterPassDatum<
    std::vector<std::pair<const TTAMachine::RegisterFile*, int> > >
        TempRegData;

    if (!interPassData_.hasDatum("SCRATCH_REGISTERS") ||
        (dynamic_cast<TempRegData&>(
            interPassData_.datum("SCRATCH_REGISTERS"))).size() == 0)
        throw IllegalProgram(
            __FILE__, __LINE__, __func__,
            "No scratch registers available for temporary move for: " +
            originalMove.toString());

    const TempRegData& tempRegs =
        dynamic_cast<TempRegData&>(interPassData_.datum("SCRATCH_REGISTERS"));

    const TTAProgram::TerminalImmediate& immediate =
        dynamic_cast<const TTAProgram::TerminalImmediate&>(
            originalMove.move().source());

    const int immediateBitWidth =
        MachineConnectivityCheck::requiredImmediateWidth(
            false, immediate, *destinationPort.parentUnit()->machine());


    /* Find out an RF that is connected to the target (targetConnectedRF) and
       an RF that can read the immediate.

       Always do at least a single temp move to a temp RF.

       In case there is no immediate slot to the RF and the machine has
       an IU, it will be converted to

       IMM ->IU -> RF -> DEST during resource assignment.

       In case there is an RF than can read the IMM but not write to dest,
       and there is no IU, we need additional temp reg, thus producing:

       IMM -> RF1 -> RF2 -> DEST
    */

    const TTAMachine::RegisterFile* immediateTargetRF = NULL;
    int immediateTargetIndex = -1;

    const TTAMachine::RegisterFile* targetConnectedRF = NULL;
    int targetConnectedIndex = -1;

    int correctSizeTempsFound = 0;
    for (std::size_t i = 0; i < tempRegs.size(); ++i) {
        const TTAMachine::RegisterFile& rf = *tempRegs.at(i).first;
        if (rf.width() < immediateBitWidth) {
            continue;
        }
        ++correctSizeTempsFound;
        if (MachineConnectivityCheck::canTransportImmediate(immediate, rf)) {
            immediateTargetRF = &rf;
            immediateTargetIndex = tempRegs.at(i).second;
        }
        if (MachineConnectivityCheck::isConnected(rf, destinationPort)) {
            /// @todo check that the buses support the guard of the
            /// original move
            targetConnectedRF = &rf;
            targetConnectedIndex = tempRegs.at(i).second;
            if (immediateTargetRF == targetConnectedRF) {
                // found a RF that can take in immediate and write to the
                // destination
                break;
            }
        }
    }

    assert(
        correctSizeTempsFound > 0 &&
        "Register allocator didn't reserve a large enough temp reg!");

    const bool machineHasIU =
        destinationPort.parentUnit()->machine()->
        immediateUnitNavigator().count() > 0;

    if (targetConnectedRF == NULL) {
        if (countOnly) {
            return INT_MAX;
        } else {
            throw IllegalMachine(
                __FILE__, __LINE__, __func__,
                (boost::format(
                    "%s is not connected to any register file, unable to "
                    "schedule.") %
                 destinationPort.parentUnit()->name()).str());
        }
    }

    int tempRegisterIndex1 = -1;
    int tempRegisterIndex2 = -1;

    int regsRequired = INT_MAX;
    // the RF for the first temp reg copy
    const TTAMachine::RegisterFile* tempRF1 = NULL;
    // the RF for the (optional) second temp reg copy
    const TTAMachine::RegisterFile* tempRF2 = NULL;
    if (targetConnectedRF == immediateTargetRF || machineHasIU) {
        // enough to just add a IMM -> TEMPRF -> DEST which
        // gets converted to IMM -> IU -> TEMPRF -> DEST during resource
        // assignment in case there is no immediate slots to the TEMPRF
        tempRF1 = targetConnectedRF;
        tempRegisterIndex1 = targetConnectedIndex;
        regsRequired = 1;
    } else {
        // IMM -> TEMPRF1 -> TEMPRF2 -> DEST
        tempRF1 = immediateTargetRF;
        tempRegisterIndex1 = immediateTargetIndex;
        tempRF2 = targetConnectedRF;
        tempRegisterIndex2 = targetConnectedIndex;
        regsRequired = 2;
    }

    if (countOnly)
        return regsRequired;


    /* two options:
       1:
       IMM -> temp1;
       temp1 -> dst;

       2:
       IMM -> temp1;
       temp1 -> temp2;
       temp2 -> dst;
    */

    // before splitting, annotate the possible return move so we can still
    // detect a procedure return in simulator
    if (originalMove.move().isReturn()) {
        TTAProgram::ProgramAnnotation annotation(
            TTAProgram::ProgramAnnotation::ANN_STACKFRAME_PROCEDURE_RETURN);
        originalMove.move().setAnnotation(annotation);
    }

    // add the register copy moves

    if (tempRF1 == NULL) {
        throw IllegalMachine(
            __FILE__, __LINE__, __func__,
            (boost::format(
                "Unable to schedule move '%s' due to lacking "
                "immediate resources (required width %d bits).")
             % originalMove.move().toString() % immediateBitWidth).
            str());
    }

    // create the first temporary move 'src -> temp1'
    // find a connected port in the temp reg file
    const TTAMachine::RFPort* dstRFPort = NULL;
    for (int p = 0; p < tempRF1->portCount(); ++p) {
        const TTAMachine::RFPort* RFport = tempRF1->port(p);
        if (MachineConnectivityCheck::canTransportImmediate(
                immediate, *RFport)) {
            dstRFPort = RFport;
            break;
        } else {
            // any port will do if there is no immediate slots: IU
            // conversion takes care of the connectivity in that case
            dstRFPort = RFport;
        }
    }

    TTAProgram::TerminalRegister* temp1 =
        new TTAProgram::TerminalRegister(*dstRFPort, tempRegisterIndex1);

    TTAProgram::Terminal* originalDestination =
        originalMove.move().destination().copy();

    MoveNode* firstMove = NULL;
    MoveNode* lastMove = NULL;

    TTAProgram::ProgramAnnotation connMoveAnnotation(
        TTAProgram::ProgramAnnotation::ANN_CONNECTIVITY_MOVE);

    /* Make sure that the original move is still the one that should
       be in the ProgramOperation, i.e., an operation move. The original
       move should be the last of the chain (should be an input move only
       as this is an immediate move). */
    if (originalMove.move().destination().isFUPort() ||
        originalMove.move().destination().isGPR()) {
        // input move
        firstMove = new MoveNode(originalMove.move().copy());
        lastMove = &originalMove;

        if (ddg != NULL) {
            BasicBlockNode& bbn = ddg->getBasicBlockNode(originalMove);
            ddg->addNode(*firstMove,bbn);
        }
        if (addedNodes != NULL) {
            addedNodes->insert(firstMove);
        }

        firstMove->move().addAnnotation(connMoveAnnotation);
    } else {
        abortWithError("Can add imm temp regs only for FU or RF moves.");
    }

    // src -> temp1
    firstMove->move().setDestination(temp1->copy());

    TTAProgram::TerminalRegister* lastMoveSrc = temp1;

    // in the case 2, add the extra register copy 'temp1 -> temp2'
    MoveNode* regToRegCopy = NULL;
    if (tempRF2 != NULL) {
        regToRegCopy = new MoveNode(originalMove.move().copy());

        // find a connected port in the temp2 reg file
        const TTAMachine::RFPort* dstRFPort2 = NULL;
        for (int p = 0; p < tempRF2->portCount(); ++p) {
            const TTAMachine::RFPort* RFport = tempRF2->port(p);
            if (MachineConnectivityCheck::isConnected(
                    *RFport, destinationPort)) {
                dstRFPort2 = RFport;
                break;
            }
        }
        assert(dstRFPort2 != NULL);
        TTAProgram::TerminalRegister* temp2 =
            new TTAProgram::TerminalRegister(*dstRFPort2, tempRegisterIndex2);

        // temp1 -> temp2
        regToRegCopy->move().setSource(temp1); // temp1 now owned by the regCopy
        regToRegCopy->move().setDestination(temp2->copy());
        lastMoveSrc = temp2;

        if (ddg != NULL) {
            BasicBlockNode& bbn = ddg->getBasicBlockNode(originalMove);
            ddg->addNode(*regToRegCopy,bbn);
        }
        if (addedNodes != NULL) {
            addedNodes->insert(regToRegCopy);
        }

        regToRegCopy->move().addAnnotation(connMoveAnnotation);
    }

    // lastMoveSrc={temp1|temp2} -> dst
    lastMove->move().setSource(lastMoveSrc);
    lastMove->move().setDestination(originalDestination);

    if (ddg != NULL) {
        BasicBlockNode& bbn = ddg->getBasicBlockNode(originalMove);
        // update the DDG edges
        fixDDGEdgesInTempRegChainImmediate(
            *ddg, originalMove, firstMove, regToRegCopy, lastMove, tempRF1,
            tempRF2, tempRegisterIndex1, tempRegisterIndex2, bbn);
    }

    return regsRequired;
}

References __func__, abortWithError, TTAProgram::AnnotatedInstructionElement::addAnnotation(), DataDependenceGraph::addNode(), TTAProgram::ProgramAnnotation::ANN_CONNECTIVITY_MOVE, TTAProgram::ProgramAnnotation::ANN_STACKFRAME_PROCEDURE_RETURN, assert, MachineConnectivityCheck::canTransportImmediate(), TTAProgram::Move::copy(), TTAProgram::TerminalRegister::copy(), TTAProgram::Terminal::copy(), InterPassData::datum(), TTAProgram::Move::destination(), fixDDGEdgesInTempRegChainImmediate(), DataDependenceGraph::getBasicBlockNode(), InterPassData::hasDatum(), interPassData_, MachineConnectivityCheck::isConnected(), TTAProgram::Terminal::isFUPort(), TTAProgram::Terminal::isGPR(), TTAProgram::Move::isReturn(), MoveNode::isSourceConstant(), TTAMachine::Component::machine(), MoveNode::move(), TTAMachine::Component::name(), TTAMachine::Port::parentUnit(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), MachineConnectivityCheck::requiredImmediateWidth(), TTAProgram::AnnotatedInstructionElement::setAnnotation(), TTAProgram::Move::setDestination(), TTAProgram::Move::setSource(), TTAProgram::Move::source(), TTAProgram::Move::toString(), MoveNode::toString(), and TTAMachine::BaseRegisterFile::width().

Referenced by addConnectionRegisterCopies().

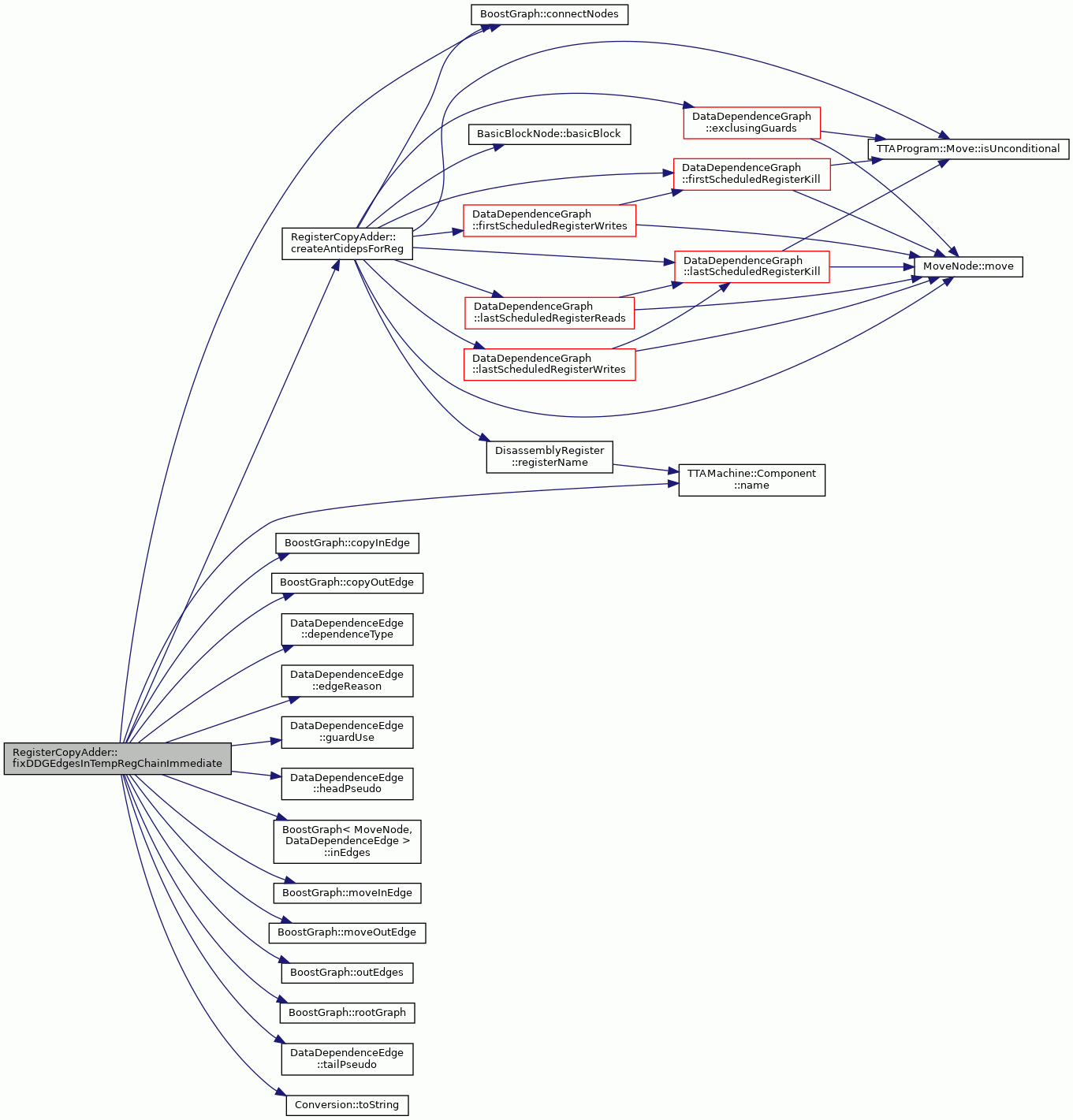

Here is the call graph for this function:

addMinimumRegisterCopies()

RegisterCopyAdder::AddedRegisterCopies RegisterCopyAdder::addMinimumRegisterCopies	(	ProgramOperation &	programOperation,
		const TTAMachine::Machine &	targetMachine,
		DataDependenceGraph *	ddg
	)

Adds minimum register copies required for the given operation.

Adds the register copies to the given DDG along with required new edges between the copy moves and annotates the moves with a candidate set for the FU binding.

Parameters

programOperation	The operation execution.
targetMachine	The target machine.
ddg	ddg which to update when adding temp reg moves. Can be NULL.

Returns

Data which temp reg moves were added.

Exceptions

In	case there was no such FU that could be connected with a temp register chain of maximal length of 2 copies.

Definition at line 139 of file RegisterCopyAdder.cc.

                              {

#ifdef DEBUG_REG_COPY_ADDER
    Application::logStream()
        << "# Add minimum register copies for the following operation: "
        << std::endl
        << "# " << programOperation.toString() << std::endl << std::endl;
#endif

    RegisterCopyCountIndex
        registerCopiesRequired =
        requiredRegisterCopiesForEachFU(targetMachine, programOperation);

    // find the FU which requires least register copies
    int min = INT_MAX;
    const TTAMachine::FunctionUnit* unit = NULL;
    for (RegisterCopyAdder::RegisterCopyCountIndex::const_iterator
             i = registerCopiesRequired.begin();
         i != registerCopiesRequired.end(); ++i) {

        const TTAMachine::FunctionUnit* u = (*i).first;
        if (!isAllowedUnit(*u, programOperation)) {
            continue;
        }
        int copies = (*i).second;
        if (copies < min) {
            min = copies;
            unit = u;
            if (copies == 0) {
                break;
            }
        }
    }

    if (min == 0) {
        // no temp reg copies required for some FU, annotate the moves in case
        // some FUs require the copies and thus the FU selection should be
        // restricted to those which do not require any copies
        addCandidateSetAnnotations(programOperation, targetMachine);
        // return empty
        return AddedRegisterCopies();
    } else if (unit != NULL && min < INT_MAX) {
        // add register copies as if the operation was assigned to that FU
        AddedRegisterCopies copies =
            addRegisterCopies(programOperation, *unit, false, ddg, min);

        // create the FU candidate set now that we have added the register
        // copies
        addCandidateSetAnnotations(programOperation, targetMachine);
        return copies;
    } else {
        throw IllegalMachine(
            __FILE__, __LINE__, __func__,
            std::string("Cannot schedule '") +
            programOperation.toString() +
            "' ensure that at least one FU supports the operation and is "
            "connected to some register file.");
    }
}

References __func__, addCandidateSetAnnotations(), addRegisterCopies(), isAllowedUnit(), Application::logStream(), requiredRegisterCopiesForEachFU(), and ProgramOperation::toString().

Referenced by BasicBlockScheduler::scheduleOperation(), BUBasicBlockScheduler::scheduleOperation(), and SequentialScheduler::scheduleOperation().

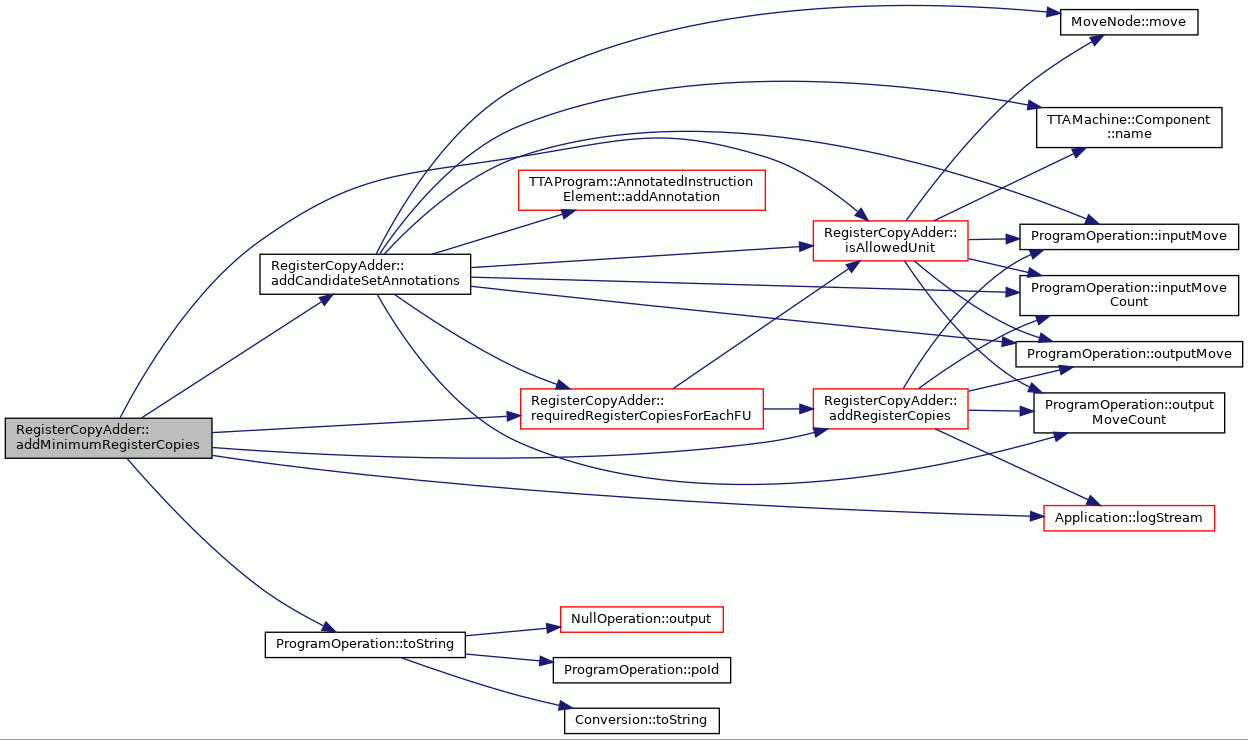

Here is the call graph for this function:

addRegisterCopies()

RegisterCopyAdder::AddedRegisterCopies RegisterCopyAdder::addRegisterCopies ( ProgramOperation &  programOperation, const TTAMachine::FunctionUnit &  fu, bool  countOnly = true, DataDependenceGraph *  ddg = NULL, int  neededCopies = 0  )

private

Adds or counts register copies required for the given operation to be assigned without connectivity problems to the given FU.

Parameters

programOperation	The operation execution.
fu	The function unit the operation should be able to be assigned to.
countOnly	whether to only count or do the register copies.
ddg	ddg to update, or NULL.

Returns

Returns data about register copies required if the given operation execution was assigned to the given FU.

Definition at line 257 of file RegisterCopyAdder.cc.

                      {

    AddedRegisterCopies copies;
    int registerCopyCount = 0;
    for (int input = 0; input < programOperation.inputMoveCount(); ++input) {
        MoveNode& m = programOperation.inputMove(input);
        DataDependenceGraph::NodeSet addedNodes;
        const int count = addConnectionRegisterCopies(
            m, fu, countOnly, ddg, &addedNodes, neededCopies);
        if (count == INT_MAX) {
            if (countOnly)
                return INT_MAX;
            else
                assert(false && "Temp moves not possible for the FU.");
        }
        registerCopyCount += count;
        if (count != 0 && !countOnly) {
            copies.operandCopies_[&m] = addedNodes;
        }
    }

    for (int output = 0; output < programOperation.outputMoveCount();
         ++output) {
        MoveNode& m = programOperation.outputMove(output);
#ifdef DEBUG_REG_COPY_ADDER
        if (!countOnly)
            Application::logStream() << "# Add register copies to \""
                                     << m.toString() << "\" output move."
                                     << std::endl;
#endif
        DataDependenceGraph::NodeSet addedNodes;
        const int count = addConnectionRegisterCopies(
            m, fu, countOnly, ddg, &addedNodes, neededCopies);
        if (count == INT_MAX) {
            if (countOnly)
                return INT_MAX;
            else
                assert(false && "Temp moves not possible for the FU.");
        }
        registerCopyCount += count;
        if (count != 0 && !countOnly) {
            copies.resultCopies_[&m] = addedNodes;
        }
    }
    copies.count_ = registerCopyCount;
    return copies;
}

References addConnectionRegisterCopies(), assert, RegisterCopyAdder::AddedRegisterCopies::count_, ProgramOperation::inputMove(), ProgramOperation::inputMoveCount(), Application::logStream(), RegisterCopyAdder::AddedRegisterCopies::operandCopies_, ProgramOperation::outputMove(), ProgramOperation::outputMoveCount(), RegisterCopyAdder::AddedRegisterCopies::resultCopies_, and MoveNode::toString().

Referenced by addMinimumRegisterCopies(), and requiredRegisterCopiesForEachFU().

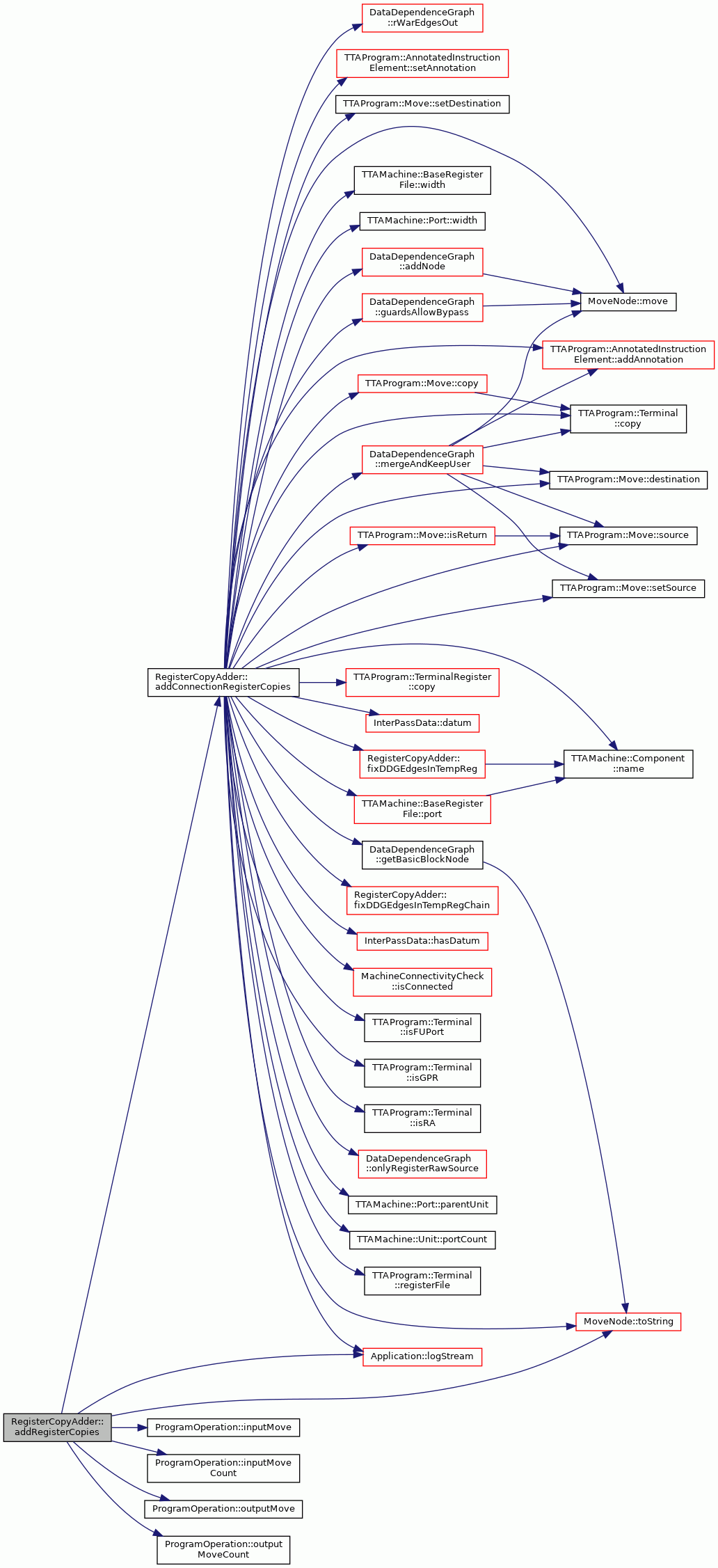

Here is the call graph for this function:

addRegisterCopiesToRRMove()

RegisterCopyAdder::AddedRegisterCopies RegisterCopyAdder::addRegisterCopiesToRRMove	(	MoveNode &	moveNode,
		DataDependenceGraph *	ddg
	)

Adds or counts register copies required for a given R-R move to be assigned without connectivity problems.

Parameters

The	given R-R move.
ddg	ddg to update, or NULL.

Returns

Returns data about register copies required if the given operation execution was assigned to the given FU.

Definition at line 212 of file RegisterCopyAdder.cc.

                              {

    AddedRegisterCopies copies;
    int registerCopyCount = 0;
    DataDependenceGraph::NodeSet addedNodes;

#ifdef DEBUG_REG_COPY_ADDER
    Application::logStream()
        << "# Add register copies to \""
        << moveNode.toString() << "\" R-R move."
        << std::endl << std::endl;
#endif

    const int count = countAndAddConnectionRegisterCopiesToRR(
        moveNode, ddg, &addedNodes);

    if (count == INT_MAX) {
        assert(false &&
               "Temp moves not possible for the Register-Register move.");
    }
    registerCopyCount += count;
    if (count != 0) {
        copies.operandCopies_[&moveNode] = addedNodes;
    }

    copies.count_ = registerCopyCount;
    return copies;

}

References assert, RegisterCopyAdder::AddedRegisterCopies::count_, countAndAddConnectionRegisterCopiesToRR(), Application::logStream(), RegisterCopyAdder::AddedRegisterCopies::operandCopies_, and MoveNode::toString().

Referenced by SequentialScheduler::scheduleRRMove(), BasicBlockScheduler::scheduleRRMove(), and BUBasicBlockScheduler::scheduleRRMove().

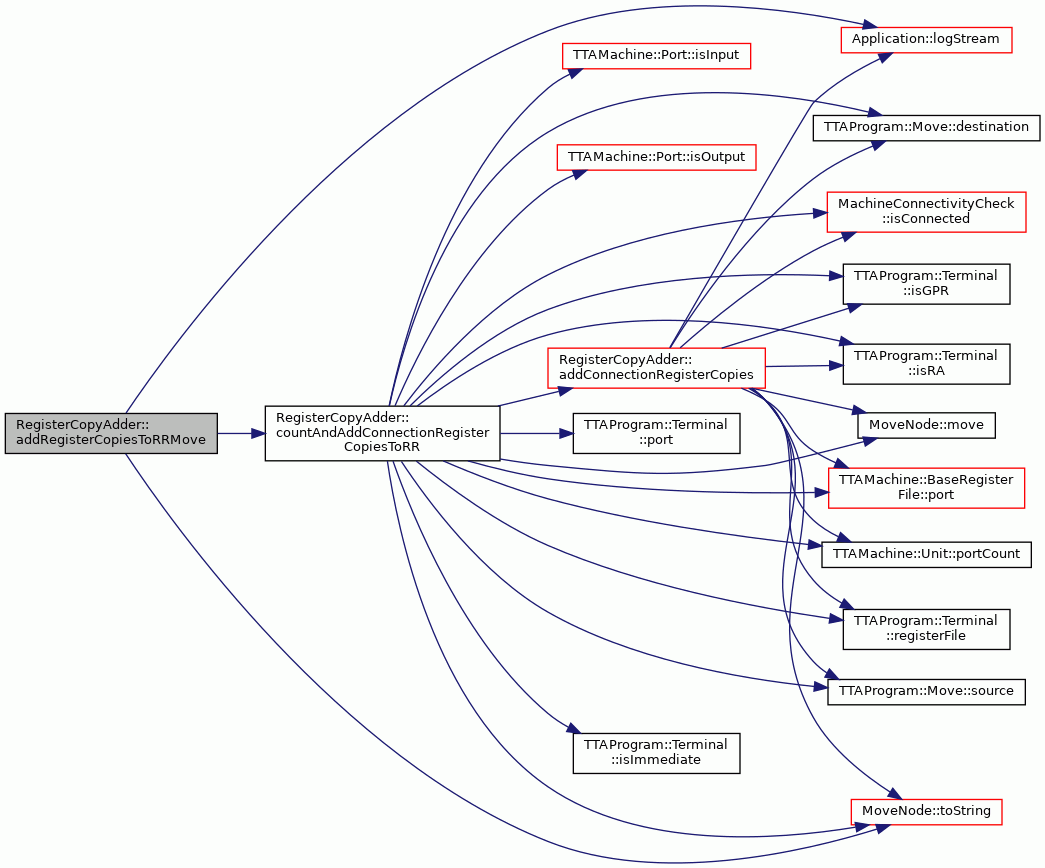

Here is the call graph for this function:

countAndAddConnectionRegisterCopiesToRR()

int RegisterCopyAdder::countAndAddConnectionRegisterCopiesToRR ( MoveNode &  moveNode, DataDependenceGraph *  ddg = NULL, DataDependenceGraph::NodeSet *  addedNodes = NULL  )

private

Adds register copies required for the given RR transport.

Returns 0 in case there is a connection already.

Parameters

moveNode	The transport.
fu	The assumed function unit assigned to the operation of the move.
countOnly	whether to just count or really do the reg copies.
ddg	ddg to be updated.
addedNode	place to put data about added regcopies.

Returns

Returns the count of register copies required.

Definition at line 1638 of file RegisterCopyAdder.cc.

                                            {

    // collect the set of possible candidate destination ports (in case of
    // RFs, there can be multiple ports)
    TTAProgram::Terminal& dest = moveNode.move().destination();
    std::set<const TTAMachine::Port*> dstPorts;
    if (dest.isGPR()) {
        // add all write ports of the RF to the dstPorts
        const TTAMachine::RegisterFile& rf = dest.registerFile();
        const int ports = rf.portCount();
        for (int p = 0; p < ports; ++p) {
            const TTAMachine::RFPort* port = rf.port(p);
            if (port->isInput())
                dstPorts.insert(port);
        }
    } else {
        if (dest.isRA()) {
            dstPorts.insert(&(dest.port()));
        } else {
            abortWithError(
                "Unsupported move destination type in move '" +
                moveNode.toString() + "'.");
        }
    }

    // collect the set of possible candidate source ports (in case of
    // RFs, there can be multiple)
    std::set<const TTAMachine::Port*> srcPorts;
    TTAProgram::Terminal& source = moveNode.move().source();
    if (source.isGPR()) {
        // add all read ports of the RF to the srcPorts
        const TTAMachine::RegisterFile& rf = source.registerFile();
        const int ports = rf.portCount();
        for (int p = 0; p < ports; ++p) {
            const TTAMachine::RFPort* port = rf.port(p);
            if (port->isOutput()) {
                srcPorts.insert(port);
            }
        }
    } else if (source.isImmediate() && dest.isGPR()) {
        // IMM -> REG should always be possible, at least after LIMM
        // conversion (all IUs must be connected to all RFs), so no temp
        // registers needed
        // register copy adder should not get single immediate moves,
        // only operations anyways
        return 0;
    } else {
        abortWithError(
            "Unsupported move source type in move '" +
            moveNode.toString() + "'.");
    }

    // go through all srcPorts,dstPorts pairs and see which of them require
    // least connection registers and finally select one pair and add
    // connection registers accordingly

    typedef std::set<
    std::pair<const TTAMachine::Port*, const TTAMachine::Port*>,
        TTAMachine::Port::PairComparator >
        CombinationSet;

    CombinationSet pairs = AssocTools::pairs<TTAMachine::Port::PairComparator>(
        srcPorts, dstPorts);

    // check if some portpairs already has connection
    for (CombinationSet::const_iterator i = pairs.begin(); i != pairs.end();
         ++i) {
        const TTAMachine::Port& src = *(*i).first;
        const TTAMachine::Port& dst = *(*i).second;

        if (MachineConnectivityCheck::isConnected(src, dst))
            return 0;
    }

    const std::pair<const TTAMachine::Port*, const TTAMachine::Port*>*
        bestConnection = NULL;
    int registersRequired = INT_MAX;
    for (CombinationSet::const_iterator i = pairs.begin(); i != pairs.end();
         ++i) {
        const TTAMachine::Port& src = *(*i).first;
        const TTAMachine::Port& dst = *(*i).second;

        int regCount = addConnectionRegisterCopies(moveNode, src, dst);

        if (regCount == 0) {
            return 0;
        }

        if (regCount < registersRequired) {
            bestConnection = &(*i);
            registersRequired = regCount;
        }
    }

    if (bestConnection == NULL) {
        throw IllegalMachine(
            __FILE__, __LINE__, __func__,
            "Could not schedule move '" + moveNode.toString() +
            "' due to missing connectivity. "
            "Add a connection or a register file that connects "
            "the source and the destination.");
    }

    const TTAMachine::Port& src = *(bestConnection->first);
    const TTAMachine::Port& dst = *(bestConnection->second);

    // actually add the connection now that we have found the best way
    return addConnectionRegisterCopies(
        moveNode, src, dst, false, ddg, addedNodes);
}

References __func__, abortWithError, addConnectionRegisterCopies(), TTAProgram::Move::destination(), MachineConnectivityCheck::isConnected(), TTAProgram::Terminal::isGPR(), TTAProgram::Terminal::isImmediate(), TTAMachine::Port::isInput(), TTAMachine::Port::isOutput(), TTAProgram::Terminal::isRA(), MoveNode::move(), TTAProgram::Terminal::port(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), TTAProgram::Terminal::registerFile(), TTAProgram::Move::source(), and MoveNode::toString().

Referenced by addRegisterCopiesToRRMove().

Here is the call graph for this function:

createAntidepsForReg()

void RegisterCopyAdder::createAntidepsForReg ( const MoveNode &  defMove, const MoveNode &  useMove, const MoveNode &  originalMove, const TTAMachine::RegisterFile &  rf, int  index, DataDependenceGraph &  ddg, BasicBlockNode &  bbn, bool  backwards, bool  loopScheduling  )

staticprivate

Definition at line 1312 of file RegisterCopyAdder.cc.

                         {

    TCEString tempReg = DisassemblyRegister::registerName(rf, index);

    if (backwards) {
        DataDependenceGraph::NodeSet firstScheduledDefs0 =
            ddg.firstScheduledRegisterWrites(rf, index);

        MoveNode* lastScheduledKill0 =
            ddg.lastScheduledRegisterKill(rf, index);

        for (DataDependenceGraph::NodeSet::iterator i =
                 firstScheduledDefs0.begin();
             i != firstScheduledDefs0.end(); i++) {
            if (!ddg.exclusingGuards(**i, useMove)) {
                DataDependenceEdge* war =
                    new DataDependenceEdge(
                        DataDependenceEdge::EDGE_REGISTER,
                        DataDependenceEdge::DEP_WAR, tempReg);
                ddg.connectNodes(useMove, **i, *war);
            }
            if (!ddg.exclusingGuards(**i, defMove)) {
                DataDependenceEdge* waw =
                    new DataDependenceEdge(
                        DataDependenceEdge::EDGE_REGISTER,
                        DataDependenceEdge::DEP_WAW, tempReg);
                ddg.connectNodes(defMove, **i, *waw);
            }
        }

        if (loopScheduling) {
            DataDependenceGraph::NodeSet lastScheduledReads0 =
                ddg.lastScheduledRegisterReads(rf, index);

            for (DataDependenceGraph::NodeSet::iterator i =
                     lastScheduledReads0.begin();
                 i != lastScheduledReads0.end(); i++) {
                if (!ddg.exclusingGuards(**i, defMove)) {
                    DataDependenceEdge* war =
                        new DataDependenceEdge(
                            DataDependenceEdge::EDGE_REGISTER,
                            DataDependenceEdge::DEP_WAR, tempReg,
                            false, false, false, false, 1);
                    ddg.connectNodes(**i, defMove, *war);
                }
            }

            DataDependenceGraph::NodeSet lastScheduledDefs0 =
                ddg.lastScheduledRegisterWrites(rf, index);

            for (DataDependenceGraph::NodeSet::iterator i =
                     lastScheduledDefs0.begin();
                 i != lastScheduledDefs0.end(); i++) {
                if (!ddg.exclusingGuards(**i, defMove)) {
                    DataDependenceEdge* waw =
                        new DataDependenceEdge(
                            DataDependenceEdge::EDGE_REGISTER,
                            DataDependenceEdge::DEP_WAW, tempReg,
                            false, false, false, false, 1);
                    ddg.connectNodes(**i, defMove, *waw);
                }
            }
        }

        if (bbn.basicBlock().liveRangeData_ != NULL) {
            if (lastScheduledKill0 == NULL) {

                LiveRangeData::MoveNodeUseSet& lastWrites0 =
                    bbn.basicBlock().liveRangeData_->regDefines_[tempReg];
                lastWrites0.insert(MoveNodeUse(defMove));

                LiveRangeData::MoveNodeUseSet& lastReads0 =
                    bbn.basicBlock().liveRangeData_->regLastUses_[tempReg];
                lastReads0.insert(MoveNodeUse(useMove));
            }

            // last write, for WaW defs
            LiveRangeData::MoveNodeUseSet& firstDefs =
                bbn.basicBlock().liveRangeData_->regFirstDefines_[tempReg];

            if (originalMove.move().isUnconditional()) {
                LiveRangeData::MoveNodeUseSet& firstReads =
                    bbn.basicBlock().liveRangeData_->regFirstUses_[tempReg];

                firstReads.clear();
                firstDefs.clear();
                // TODO: what about updating the kill bookkeeping?
            }

            // last write for WaW deps
            firstDefs.insert(
                MoveNodeUse(defMove));

            // no need to inser use to anything here. all antideps to to def
        } // update intra-bb-live-info
    } else {
        DataDependenceGraph::NodeSet lastScheduledDefs0 =
            ddg.lastScheduledRegisterWrites(rf, index);

        DataDependenceGraph::NodeSet lastScheduledUses0 =
            ddg.lastScheduledRegisterReads(rf, index);

        MoveNode* firstScheduledKill0 =
            ddg.firstScheduledRegisterKill(rf, index);

        for (DataDependenceGraph::NodeSet::iterator i =
                 lastScheduledUses0.begin();
             i != lastScheduledUses0.end(); i++) {
            if (!ddg.exclusingGuards(**i, defMove)) {
                DataDependenceEdge* war =
                    new DataDependenceEdge(
                        DataDependenceEdge::EDGE_REGISTER,
                        DataDependenceEdge::DEP_WAR, tempReg);
                ddg.connectNodes(**i, defMove, *war);
            }
        }

        for (DataDependenceGraph::NodeSet::iterator i =
                 lastScheduledDefs0.begin();
             i != lastScheduledDefs0.end(); i++) {
            if (!ddg.exclusingGuards(**i, defMove)) {
                DataDependenceEdge* waw =
                    new DataDependenceEdge(
                        DataDependenceEdge::EDGE_REGISTER,
                        DataDependenceEdge::DEP_WAW, tempReg);
                ddg.connectNodes(**i, defMove, *waw);
            }
        }

        if (bbn.basicBlock().liveRangeData_ != NULL) {
            if (firstScheduledKill0 == NULL) {
                // set first use of given reg.
                LiveRangeData::MoveNodeUseSet& firstWrites0 =
                    bbn.basicBlock().liveRangeData_->regFirstDefines_[tempReg];
                firstWrites0.insert(MoveNodeUse(defMove));
            }

            // sets this to be last use of given reg
            LiveRangeData::MoveNodeUseSet& lastReads =
                bbn.basicBlock().liveRangeData_->regLastUses_[tempReg];

            // last write, for WaW defs
            LiveRangeData::MoveNodeUseSet& lastDefs =
                bbn.basicBlock().liveRangeData_->regDefines_[tempReg];

            if (originalMove.move().isUnconditional()) {
                lastReads.clear();
                lastDefs.clear();
                // TODO: what about updating the kill bookkeeping?
            }

            // last read for WaR deps
            lastReads.insert(
                MoveNodeUse(useMove));

            // last write for WaW deps
            lastDefs.insert(
                MoveNodeUse(defMove));
        }
    }
}

References BasicBlockNode::basicBlock(), BoostGraph< GraphNode, GraphEdge >::connectNodes(), DataDependenceEdge::DEP_WAR, DataDependenceEdge::DEP_WAW, DataDependenceEdge::EDGE_REGISTER, DataDependenceGraph::exclusingGuards(), DataDependenceGraph::firstScheduledRegisterKill(), DataDependenceGraph::firstScheduledRegisterWrites(), TTAProgram::Move::isUnconditional(), DataDependenceGraph::lastScheduledRegisterKill(), DataDependenceGraph::lastScheduledRegisterReads(), DataDependenceGraph::lastScheduledRegisterWrites(), TTAProgram::BasicBlock::liveRangeData_, MoveNode::move(), LiveRangeData::regDefines_, LiveRangeData::regFirstDefines_, LiveRangeData::regFirstUses_, DisassemblyRegister::registerName(), and LiveRangeData::regLastUses_.

Referenced by fixDDGEdgesInTempReg(), fixDDGEdgesInTempRegChain(), and fixDDGEdgesInTempRegChainImmediate().

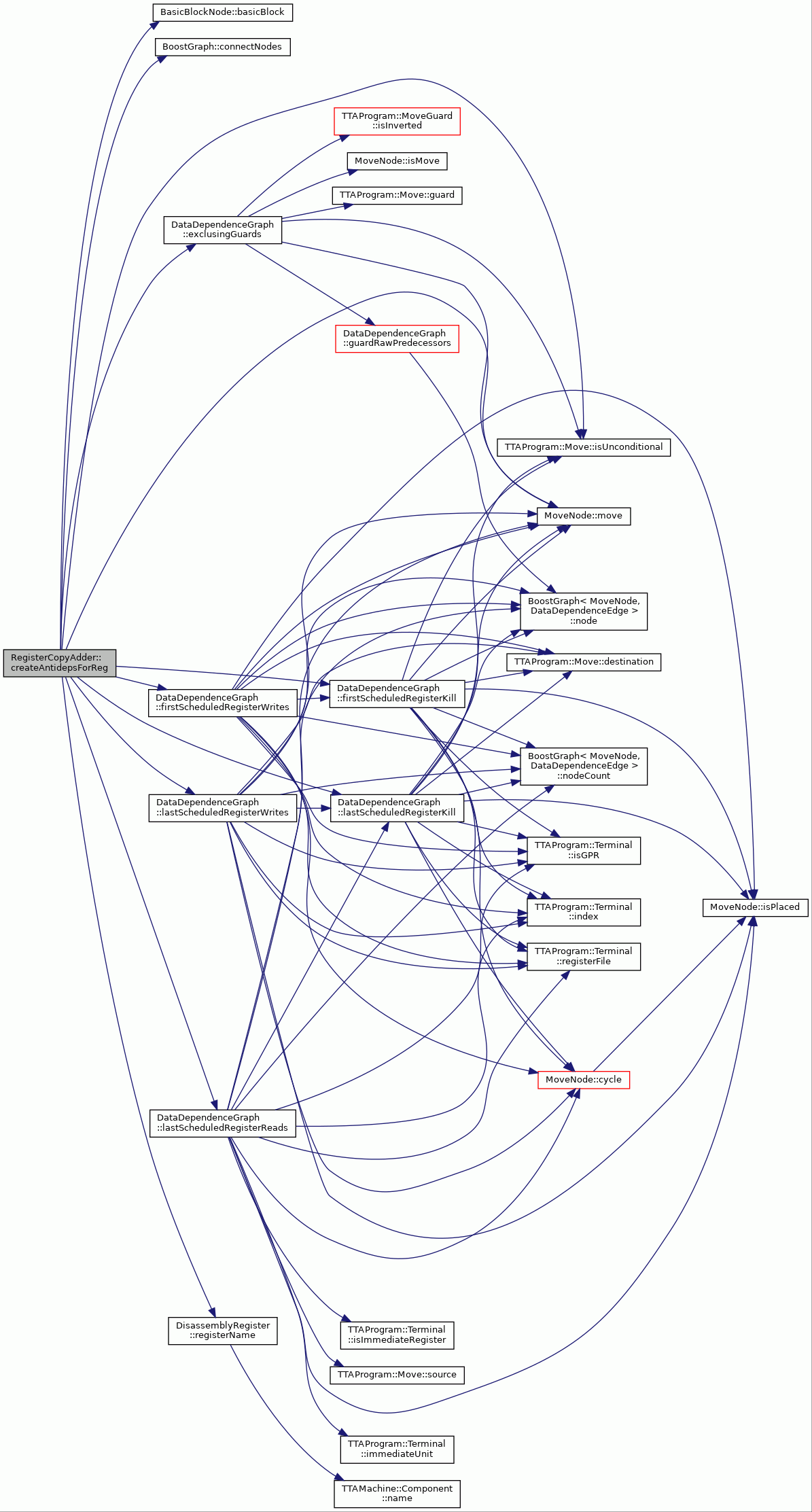

Here is the call graph for this function:

findTempRegisters()

void RegisterCopyAdder::findTempRegisters ( const TTAMachine::Machine &  mach, InterPassData &  ipd  )

static

Find the temporary registers usef for reg copies

Definition at line 2136 of file RegisterCopyAdder.cc.

                                                       {

    auto tempRegRFs = MachineConnectivityCheck::tempRegisterFiles(mach);

    typedef SimpleInterPassDatum<
    std::vector<std::pair<const TTAMachine::RegisterFile*,int> > >
        TempRegData;

    typedef std::pair<const TTAMachine::RegisterFile*, int> Register;

    std::set<Register> guardRegs;
    TempRegData* tempRegData = new TempRegData;

    // find all registers that can be used for guards
    TTAMachine::Machine::BusNavigator busNav = mach.busNavigator();
    for (int i = 0; i < busNav.count(); i++) {
        const TTAMachine::Bus* bus = busNav.item(i);
        for (int j = 0; j < bus->guardCount(); j++) {
            const TTAMachine::RegisterGuard* regGuard =
                dynamic_cast<const TTAMachine::RegisterGuard*>(bus->guard(j));
            if (regGuard != NULL) {
                guardRegs.insert(
                    Register(
                        regGuard->registerFile(), regGuard->registerIndex()));
            }
        }
    }

    std::vector<const TTAMachine::RegisterFile*> tempRegRFVec;
    for (auto rf: tempRegRFs) {
        tempRegRFVec.push_back(rf);
    }
    // Sort temp RFs by width (narrowest first) so reg copies with small
    // registers are preferred.
    auto rfLessFn = [] (const TTAMachine::RegisterFile* rf0,
                        const TTAMachine::RegisterFile* rf1) -> bool {
                            return rf0->width() < rf1->width();
                        };
    std::sort(tempRegRFVec.begin(), tempRegRFVec.end(), rfLessFn);

    // then mark last (non-guard) register of all gotten reg files
    // as tempregcopy reg.
    for (unsigned int i = 0; i < tempRegRFVec.size(); i++) {
        const TTAMachine::RegisterFile* rf = tempRegRFVec.at(i);
        for (int j = rf->size()-1; j >= 0; j--) {
            // if does not have a guard, only then used.
            // if has guard, try next.
            if (!AssocTools::containsKey(guardRegs, Register(rf,j))) {
                tempRegData->push_back(
                    std::pair<const TTAMachine::RegisterFile*,int>(rf, j));
                break; // goto next rf
            }
        }
    }

    ipd.setDatum("SCRATCH_REGISTERS", tempRegData);
}

References TTAMachine::Machine::busNavigator(), AssocTools::containsKey(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Bus::guard(), TTAMachine::Bus::guardCount(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::RegisterGuard::registerFile(), TTAMachine::RegisterGuard::registerIndex(), InterPassData::setDatum(), TTAMachine::BaseRegisterFile::size(), MachineConnectivityCheck::tempRegisterFiles(), and TTAMachine::BaseRegisterFile::width().

Referenced by llvm::LLVMTCEIRBuilder::LLVMTCEIRBuilder().

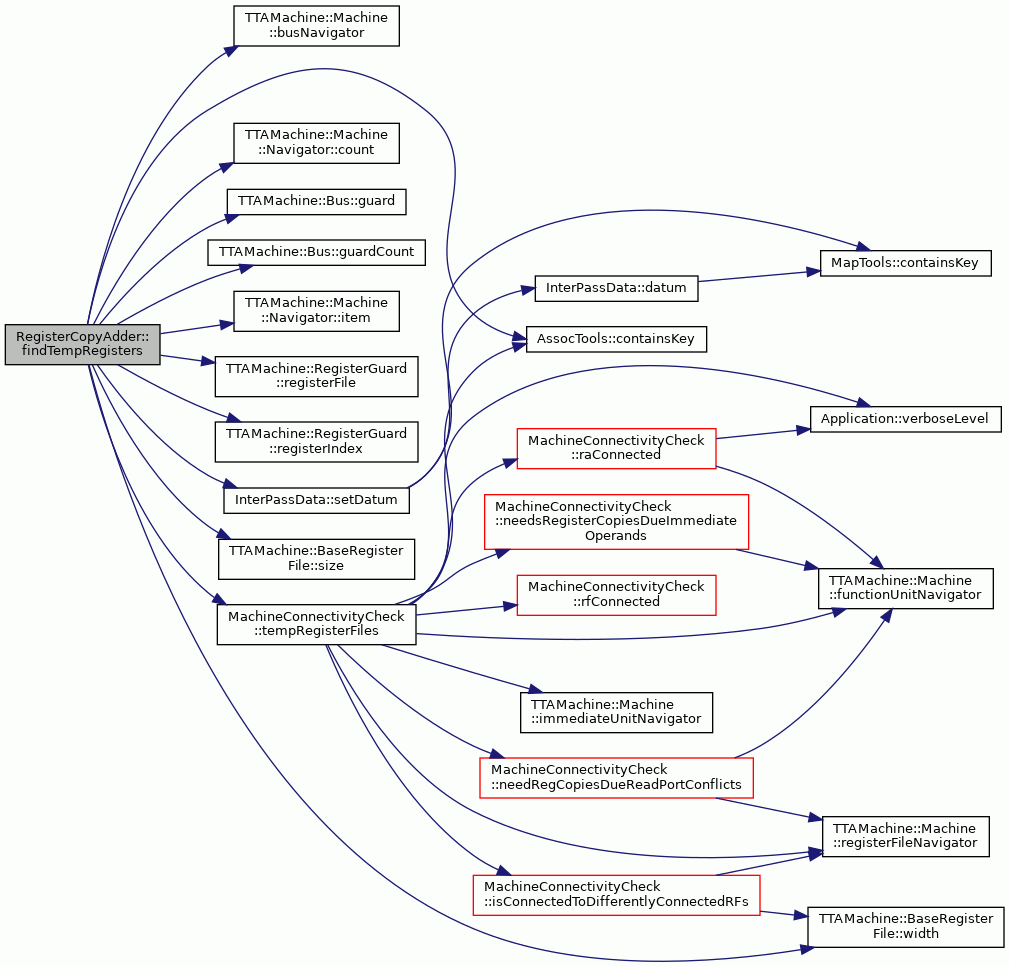

Here is the call graph for this function:

fixDDGEdgesInTempReg()

void RegisterCopyAdder::fixDDGEdgesInTempReg ( DataDependenceGraph &  ddg, MoveNode &  originalMove, MoveNode *  firstMove, MoveNode *  lastMove, const TTAMachine::RegisterFile *  lastRF, int  lastRegisterIndex, BasicBlockNode &  currentBBNode, bool  bottomUpScheduler, bool  loopScheduling  )

static

Fixes edges in DDG when only one additional register is required.

Todo:

currently leaves some inter-bb-antidependencies out, these are caught later when doing delay slot filling in order to get it working.

Parameters

ddg	The DDG to fix.
originalMove	The move which got the temp reg chain added.
firstMove	First move in the chain.
lastMove	The last move in the chain.
tempRF	The RF used for the temp move.
lastRegisterIndex	The index of the temp register.

Definition at line 1048 of file RegisterCopyAdder.cc.

                         {

    // move all incoming edges
    DataDependenceGraph::EdgeSet inEdges =
        ddg.rootGraph()->inEdges(originalMove);
    for (DataDependenceGraph::EdgeSet::iterator i = inEdges.begin();
         i != inEdges.end(); ++i) {
        DataDependenceEdge& edge = **i;
        // only move ra and reg edges
        if ((edge.edgeReason() != DataDependenceEdge::EDGE_REGISTER &&
             edge.edgeReason() != DataDependenceEdge::EDGE_RA) ||
            edge.headPseudo()) {
            continue;
        }

        // guard is copied to all.
        if (edge.guardUse() &&
            edge.dependenceType() == DataDependenceEdge::DEP_RAW) {
            if (lastMove == &originalMove) {
                ddg.rootGraph()->copyInEdge(*firstMove, edge);
            } else {
                ddg.rootGraph()->copyInEdge(*lastMove, edge);
            }
        } else {
            // operand move?
            if (lastMove == &originalMove) {
                if (edge.dependenceType() == DataDependenceEdge::DEP_RAW) {
                    ddg.rootGraph()->moveInEdge(originalMove, *firstMove, edge);
                }
            } else { // result move
                assert (firstMove == &originalMove);
                if (edge.dependenceType() == DataDependenceEdge::DEP_WAR ||
                    edge.dependenceType() == DataDependenceEdge::DEP_WAW) {
                    ddg.rootGraph()->moveInEdge(originalMove, *lastMove, edge);
                }
            }
        }
    }

    // move all outgoing edges
    DataDependenceGraph::EdgeSet outEdges =
        ddg.rootGraph()->outEdges(originalMove);
    for (DataDependenceGraph::EdgeSet::iterator i = outEdges.begin();
         i != outEdges.end(); ++i) {
        DataDependenceEdge& edge = **i;

        // only move ra and reg edges
        if ((edge.edgeReason() != DataDependenceEdge::EDGE_REGISTER &&
             edge.edgeReason() != DataDependenceEdge::EDGE_RA) ||
            edge.tailPseudo()) {
            continue;
        }

        // operand move?
        if (lastMove == &originalMove) {
            if (edge.dependenceType() == DataDependenceEdge::DEP_WAR) {
                // guard war's leave from all nodes.
                if (!edge.guardUse()) {
                    ddg.rootGraph()->moveOutEdge(originalMove, *firstMove, edge);
                } // todo: should be copyOutEdge in else branch but
                // it causes some ddg to not be dag
            }
        } else { // result move
            if (edge.dependenceType() == DataDependenceEdge::DEP_WAW ||
                edge.dependenceType() == DataDependenceEdge::DEP_RAW) {
                ddg.rootGraph()->moveOutEdge(originalMove, *lastMove, edge);
            }
            // copy outgoing guard war
            if (edge.dependenceType() == DataDependenceEdge::DEP_WAR &&
                edge.guardUse()) {
                ddg.rootGraph()->copyOutEdge(*lastMove, edge);
            }
        }
    }


    TCEString tempReg = lastRF->name() + '.' +
        Conversion::toString(lastRegisterIndex);

    // add the new edge(s)
    DataDependenceEdge* edge1 =
    new DataDependenceEdge(
        DataDependenceEdge::EDGE_REGISTER,
        DataDependenceEdge::DEP_RAW, tempReg);
    ddg.connectNodes(*firstMove, *lastMove, *edge1);


    createAntidepsForReg(
        *firstMove, *lastMove, originalMove, *lastRF, lastRegisterIndex,
        ddg, currentBBNode, bottomUpScheduler, loopScheduling);
}

References assert, BoostGraph< GraphNode, GraphEdge >::connectNodes(), BoostGraph< GraphNode, GraphEdge >::copyInEdge(), BoostGraph< GraphNode, GraphEdge >::copyOutEdge(), createAntidepsForReg(), DataDependenceEdge::DEP_RAW, DataDependenceEdge::DEP_WAR, DataDependenceEdge::DEP_WAW, DataDependenceEdge::dependenceType(), DataDependenceEdge::EDGE_RA, DataDependenceEdge::EDGE_REGISTER, DataDependenceEdge::edgeReason(), DataDependenceEdge::guardUse(), DataDependenceEdge::headPseudo(), BoostGraph< GraphNode, GraphEdge >::inEdges(), BoostGraph< GraphNode, GraphEdge >::moveInEdge(), BoostGraph< GraphNode, GraphEdge >::moveOutEdge(), TTAMachine::Component::name(), BoostGraph< GraphNode, GraphEdge >::outEdges(), BoostGraph< GraphNode, GraphEdge >::rootGraph(), DataDependenceEdge::tailPseudo(), and Conversion::toString().

Referenced by addConnectionRegisterCopies().

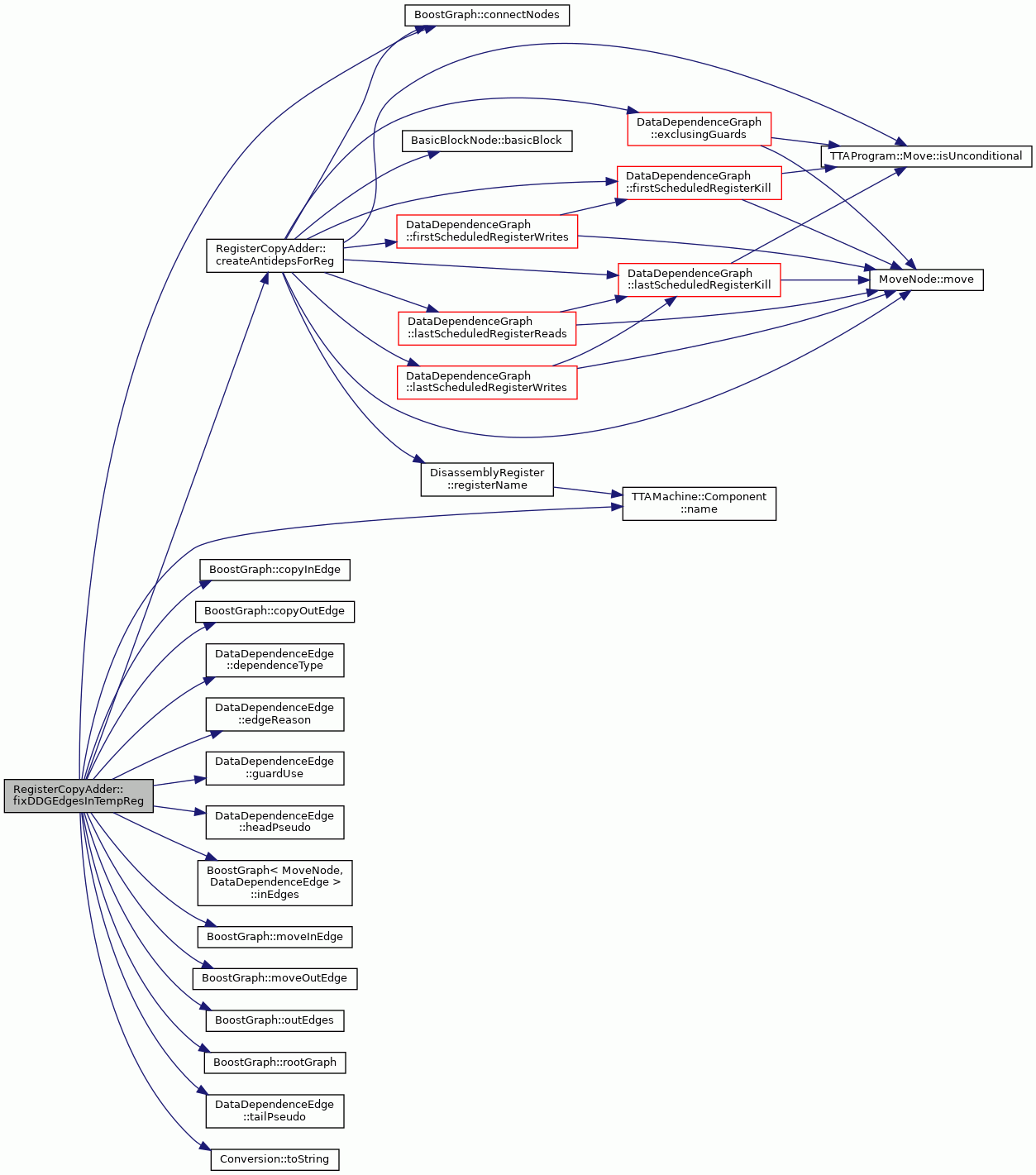

Here is the call graph for this function:

fixDDGEdgesInTempRegChain()

void RegisterCopyAdder::fixDDGEdgesInTempRegChain ( DataDependenceGraph &  ddg, MoveNode &  originalMove, MoveNode *  firstMove, std::vector< MoveNode * >  intMoves, MoveNode *  lastMove, const TTAMachine::RegisterFile *  firstRF, std::vector< const TTAMachine::RegisterFile * >  intRF, const TTAMachine::RegisterFile *  lastRF, int  firstRegisterIndex, std::vector< int >  intRegisterIndex, int  lastRegisterIndex, int  regsRequired, BasicBlockNode &  currentBBNode  )

private

Fixes edges in DDG after creating the temporary register chain.

Todo:

currently leaves some inter-bb-antidependencies out, these are caught later when doing delay slot filling in order to get it working.

Parameters

ddg	The DDG to fix.
originalMove	The move which got the temp reg chain added.
firstMove	First move in the chain.
intMov	A vector containing all the intermediate register to register copies.
lastMove	The last move in the chain.
firstRF	The RF used for the 1st temp move.
lastRF	The RF used for the last temp move.
firstRegisterIndex	The index of the 1st temp register.
lastRegisterIndex	The index of the last temp register.
regsRequired	The number of temp register required.

Definition at line 1170 of file RegisterCopyAdder.cc.

                                   {

    // move all incoming edges
    DataDependenceGraph::EdgeSet inEdges =
        ddg.rootGraph()->inEdges(originalMove);
    for (DataDependenceGraph::EdgeSet::iterator i = inEdges.begin();
         i != inEdges.end(); ++i) {
        DataDependenceEdge& edge = **i;
        // only move ra and reg edges
        if ((edge.edgeReason() != DataDependenceEdge::EDGE_REGISTER &&
             edge.edgeReason() != DataDependenceEdge::EDGE_RA) ||
            edge.headPseudo()) {
            continue;
        }

        // guard is copied to all.
        if (edge.guardUse() &&
            edge.dependenceType() == DataDependenceEdge::DEP_RAW) {

            // grr, these do not contain ALL temp moves
            for (int i = 0; i < regsRequired - 1; ++i) {
                ddg.copyInEdge(*intMoves[i], edge);
            }
            // .. so we need also this.
            // operand move?
            if (lastMove == &originalMove) {
                ddg.copyInEdge(*firstMove, edge);
            } else { // result move
                assert (firstMove == &originalMove);
                ddg.copyInEdge(*lastMove, edge);
            }
        } else {
            // operand move?
            if (lastMove == &originalMove) {
                if (edge.dependenceType() == DataDependenceEdge::DEP_RAW) {
                    ddg.moveInEdge(originalMove, *firstMove, edge);
                }
            } else { // result move
                assert (firstMove == &originalMove);
                if (edge.dependenceType() == DataDependenceEdge::DEP_WAR ||
                    edge.dependenceType() == DataDependenceEdge::DEP_WAW) {
                    ddg.moveInEdge(originalMove, *lastMove, edge);
                }
            }
        }
    }

    // move all outgoing edges
    DataDependenceGraph::EdgeSet outEdges =
        ddg.rootGraph()->outEdges(originalMove);
    for (DataDependenceGraph::EdgeSet::iterator i = outEdges.begin();
         i != outEdges.end(); ++i) {
        DataDependenceEdge& edge = **i;

        // only move ra and reg edges
        if ((edge.edgeReason() != DataDependenceEdge::EDGE_REGISTER &&
             edge.edgeReason() != DataDependenceEdge::EDGE_RA) ||
            edge.tailPseudo()) {
            continue;
        }

        // operand move?
        if (lastMove == &originalMove) {
            if (edge.dependenceType() == DataDependenceEdge::DEP_WAR) {
                // guard war's leave from all nodes.
                if (!edge.guardUse()) {
                    ddg.moveOutEdge(originalMove, *firstMove, edge);
                } // todo: should be copyOutEdge in else branch but
                // it causes some ddg to not be dag
            }
        } else { // result move
            if (edge.dependenceType() == DataDependenceEdge::DEP_WAW ||
                edge.dependenceType() == DataDependenceEdge::DEP_RAW) {
                ddg.moveOutEdge(originalMove, *lastMove, edge);
            }
            // copy outgoing guard war
            if (edge.dependenceType() == DataDependenceEdge::DEP_WAR &&
                edge.guardUse()) {
                ddg.copyOutEdge(*lastMove, edge);
            }
        }
    }

    TCEString firstTempReg = DisassemblyRegister::registerName(
    *firstRF, firstRegisterIndex);

    // add the new edge(s)
    DataDependenceEdge* edgeFirst =
    new DataDependenceEdge(
                DataDependenceEdge::EDGE_REGISTER,
                DataDependenceEdge::DEP_RAW, firstTempReg);
    ddg.connectNodes(*firstMove, *intMoves[0], *edgeFirst);

    createAntidepsForReg(
        *firstMove, *intMoves[0], originalMove,
        *firstRF, firstRegisterIndex, ddg, currentBBNode, buScheduler_, false);

    for (int i = 0; i < regsRequired - 2; ++i) {

        TCEString tempReg = intRF[i+1]->name() + '.' +
            Conversion::toString(intRegisterIndex[i+1]);

        DataDependenceEdge* edgeInt =
            new DataDependenceEdge(
                DataDependenceEdge::EDGE_REGISTER,
                DataDependenceEdge::DEP_RAW, tempReg);
        ddg.connectNodes(*intMoves[i], *intMoves[i + 1], *edgeInt);

        createAntidepsForReg(
            *intMoves[i], *intMoves[i+1], originalMove,
            *intRF[i], intRegisterIndex[i], ddg, currentBBNode, buScheduler_, false);
    }

    TCEString lastTempReg = DisassemblyRegister::registerName(
    *lastRF, lastRegisterIndex);

    DataDependenceEdge* edgeLast =
      new DataDependenceEdge(DataDependenceEdge::EDGE_REGISTER,
                 DataDependenceEdge::DEP_RAW, lastTempReg);
    ddg.connectNodes(*intMoves[regsRequired - 2], *lastMove, *edgeLast);

    createAntidepsForReg(
        *intMoves[regsRequired - 2], *lastMove, originalMove,
        *lastRF, lastRegisterIndex, ddg, currentBBNode, buScheduler_, false);
}

References assert, buScheduler_, BoostGraph< GraphNode, GraphEdge >::connectNodes(), BoostGraph< GraphNode, GraphEdge >::copyInEdge(), BoostGraph< GraphNode, GraphEdge >::copyOutEdge(), createAntidepsForReg(), DataDependenceEdge::DEP_RAW, DataDependenceEdge::DEP_WAR, DataDependenceEdge::DEP_WAW, DataDependenceEdge::dependenceType(), DataDependenceEdge::EDGE_RA, DataDependenceEdge::EDGE_REGISTER, DataDependenceEdge::edgeReason(), DataDependenceEdge::guardUse(), DataDependenceEdge::headPseudo(), BoostGraph< GraphNode, GraphEdge >::inEdges(), BoostGraph< GraphNode, GraphEdge >::moveInEdge(), BoostGraph< GraphNode, GraphEdge >::moveOutEdge(), BoostGraph< GraphNode, GraphEdge >::outEdges(), DisassemblyRegister::registerName(), BoostGraph< GraphNode, GraphEdge >::rootGraph(), DataDependenceEdge::tailPseudo(), and Conversion::toString().

Referenced by addConnectionRegisterCopies().

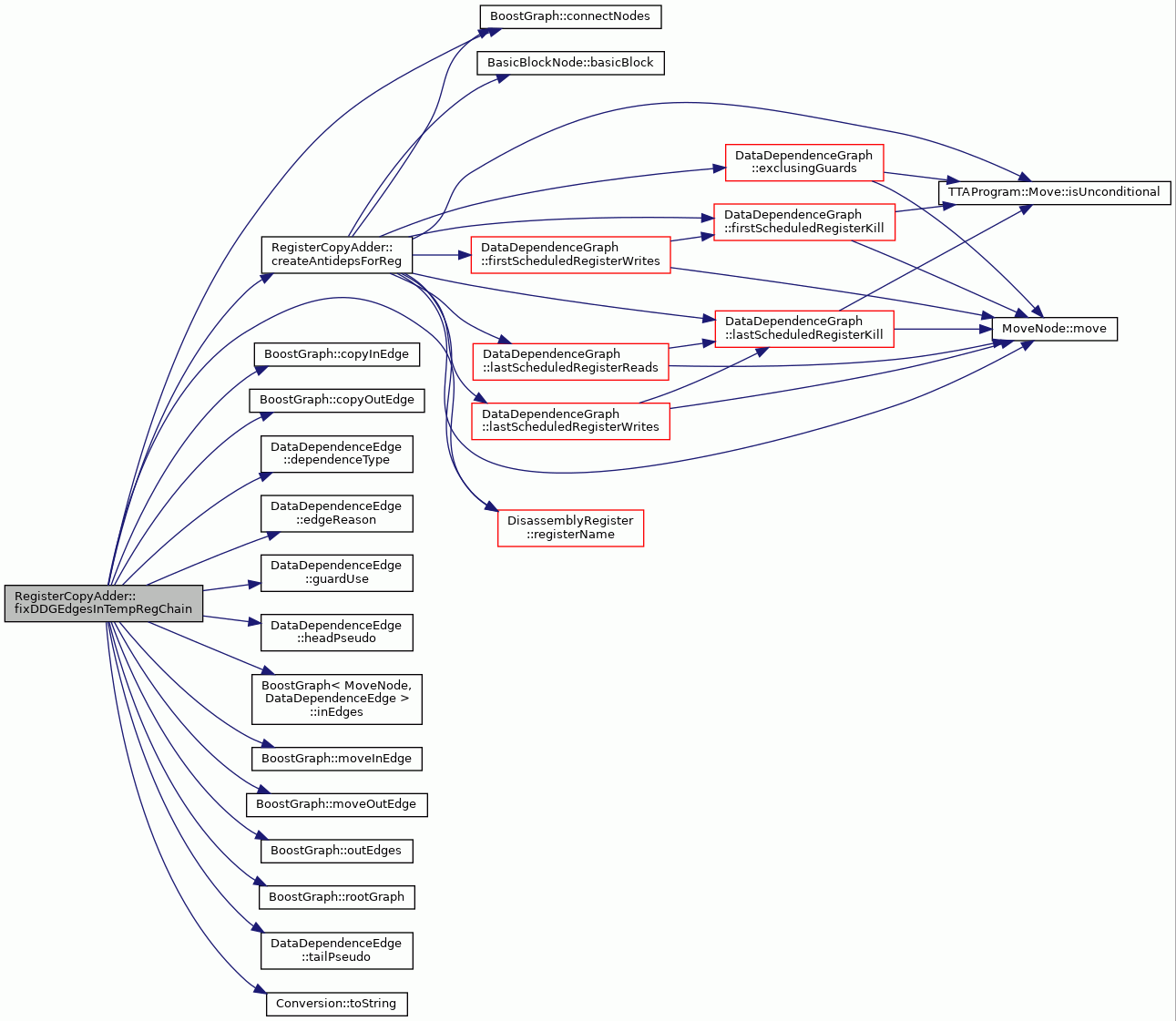

Here is the call graph for this function:

fixDDGEdgesInTempRegChainImmediate()

void RegisterCopyAdder::fixDDGEdgesInTempRegChainImmediate ( DataDependenceGraph &  ddg, MoveNode &  originalMove, MoveNode *  firstMove, MoveNode *  regToRegCopy, MoveNode *  lastMove, const TTAMachine::RegisterFile *  tempRF1, const TTAMachine::RegisterFile *  tempRF2, int  tempRegisterIndex1, int  tempRegisterIndex2, BasicBlockNode &  currentBBNode  )

private

Fixes edges in DDG after creating the temporary register chain for the Immediate Transport.

Todo:

currently leaves some inter-bb-antidependencies out, these are caught later when doing delay slot filling in order to get it working.

Parameters

ddg	The DDG to fix.
originalMove	The move which got the temp reg chain added.
firstMove	First move in the chain.
regToRegCopy	A register to register copy in case of a chain of length 2 (NULL otherwise).
lastMove	The last move in the chain.
tempRF1	The RF used for the 1st temp move.
tempRF2	The RF used for the 2nd temp move (optional).
tempRegisterIndex1	The index of the 1st temp register.
tempRegisterIndex2	The index of the 2nd temp register.

Definition at line 1501 of file RegisterCopyAdder.cc.

                                   {

    // move all incoming edges
    DataDependenceGraph::EdgeSet inEdges =
        ddg.rootGraph()->inEdges(originalMove);
    for (DataDependenceGraph::EdgeSet::iterator i = inEdges.begin();
         i != inEdges.end(); ++i) {
        DataDependenceEdge& edge = **i;
        // only move ra and reg edges
        if ((edge.edgeReason() != DataDependenceEdge::EDGE_REGISTER &&
             edge.edgeReason() != DataDependenceEdge::EDGE_RA) ||
            edge.headPseudo()) {
            continue;
        }

        // guard is copied to all.
        if (edge.guardUse() &&
            edge.dependenceType() == DataDependenceEdge::DEP_RAW) {
            ddg.copyInEdge(*firstMove, edge);
            if (regToRegCopy != NULL) {
                ddg.copyInEdge(*regToRegCopy, edge);
            }
        } else {
            // operand move?
            if (lastMove == &originalMove) {
                if (edge.dependenceType() == DataDependenceEdge::DEP_RAW) {
                    ddg.moveInEdge(originalMove, *firstMove, edge);
                }
            } else { // result move
                assert (firstMove == &originalMove);
                if (edge.dependenceType() == DataDependenceEdge::DEP_WAR ||
                    edge.dependenceType() == DataDependenceEdge::DEP_WAW) {
                    ddg.moveInEdge(originalMove, *lastMove, edge);
                }
            }
        }
    }

    // move all outgoing edges
    DataDependenceGraph::EdgeSet outEdges =
        ddg.rootGraph()->outEdges(originalMove);
    for (DataDependenceGraph::EdgeSet::iterator i = outEdges.begin();
         i != outEdges.end(); ++i) {
        DataDependenceEdge& edge = **i;

        // only move ra and reg edges
        if ((edge.edgeReason() != DataDependenceEdge::EDGE_REGISTER &&
             edge.edgeReason() != DataDependenceEdge::EDGE_RA) ||
            edge.tailPseudo()) {
            continue;
        }

        // operand move?
        if (lastMove == &originalMove) {
            if (edge.dependenceType() == DataDependenceEdge::DEP_WAR) {
                // guard war's leave from all nodes.
                if (!edge.guardUse()) {
                    ddg.moveOutEdge(originalMove, *firstMove, edge);
                } // todo: should be copyOutEdge in else branch but
                // it causes some ddg to not be dag
            }
        } else { // result move
            if (edge.dependenceType() == DataDependenceEdge::DEP_WAW ||
                edge.dependenceType() == DataDependenceEdge::DEP_RAW) {
                ddg.moveOutEdge(originalMove, *lastMove, edge);
            }
            // copy outgoing guard war
            if (edge.dependenceType() == DataDependenceEdge::DEP_WAR &&
                edge.guardUse()) {
                ddg.copyOutEdge(*lastMove, edge);
            }
        }
    }

    TCEString reg1 = tempRF1->name() + '.' +
        Conversion::toString(tempRegisterIndex1);

    // add the new edge(s)
    if (regToRegCopy != NULL) {

        // todo: also update output list.
        TCEString reg2 = tempRF2->name() + '.' +
            Conversion::toString(tempRegisterIndex2);

        DataDependenceEdge* edge1 =
            new DataDependenceEdge(
                DataDependenceEdge::EDGE_REGISTER,
                DataDependenceEdge::DEP_RAW, reg1);
        ddg.connectNodes(*firstMove, *regToRegCopy, *edge1);

        DataDependenceEdge* edge2 =
            new DataDependenceEdge(
                DataDependenceEdge::EDGE_REGISTER,
                DataDependenceEdge::DEP_RAW, reg2);
        ddg.connectNodes(*regToRegCopy, *lastMove, *edge2);

        createAntidepsForReg(
            *firstMove, *regToRegCopy, originalMove,
            *tempRF1, tempRegisterIndex1, ddg, currentBBNode,
            buScheduler_, false);

    } else { // regcopy == nul
        DataDependenceEdge* edge1 =
            new DataDependenceEdge(
                DataDependenceEdge::EDGE_REGISTER,
                DataDependenceEdge::DEP_RAW, reg1);
        ddg.connectNodes(*firstMove, *lastMove, *edge1);

        createAntidepsForReg(
            *firstMove, *lastMove, originalMove,
            *tempRF1, tempRegisterIndex1, ddg, currentBBNode, buScheduler_, false);
    }
}

References assert, buScheduler_, BoostGraph< GraphNode, GraphEdge >::connectNodes(), BoostGraph< GraphNode, GraphEdge >::copyInEdge(), BoostGraph< GraphNode, GraphEdge >::copyOutEdge(), createAntidepsForReg(), DataDependenceEdge::DEP_RAW, DataDependenceEdge::DEP_WAR, DataDependenceEdge::DEP_WAW, DataDependenceEdge::dependenceType(), DataDependenceEdge::EDGE_RA, DataDependenceEdge::EDGE_REGISTER, DataDependenceEdge::edgeReason(), DataDependenceEdge::guardUse(), DataDependenceEdge::headPseudo(), BoostGraph< GraphNode, GraphEdge >::inEdges(), BoostGraph< GraphNode, GraphEdge >::moveInEdge(), BoostGraph< GraphNode, GraphEdge >::moveOutEdge(), TTAMachine::Component::name(), BoostGraph< GraphNode, GraphEdge >::outEdges(), BoostGraph< GraphNode, GraphEdge >::rootGraph(), DataDependenceEdge::tailPseudo(), and Conversion::toString().

Referenced by addConnectionRegisterCopiesImmediate().

Here is the call graph for this function:

isAllowedUnit()

bool RegisterCopyAdder::isAllowedUnit ( const TTAMachine::FunctionUnit &  fu, const ProgramOperation &  po  )

private

Definition at line 2196 of file RegisterCopyAdder.cc.

                                                                  {

    for (int i = 0; i < po.inputMoveCount(); i++) {
        const TTAProgram::Move& move = po.inputMove(i).move();
        if (move.hasAnnotations(
                TTAProgram::ProgramAnnotation::ANN_ALLOWED_UNIT_DST) &&
            !move.hasAnnotation(
                TTAProgram::ProgramAnnotation::ANN_ALLOWED_UNIT_DST,
                fu.name()))
            return false;
        if (move.hasAnnotations(
                TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_DST) &&
            !move.hasAnnotation(
                TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_DST,
                fu.name()))
            return false;
    }

    for (int i = 0; i < po.outputMoveCount(); i++) {
        const TTAProgram::Move& move = po.outputMove(i).move();
        if (move.hasAnnotations(
                TTAProgram::ProgramAnnotation::ANN_ALLOWED_UNIT_SRC) &&
            !move.hasAnnotation(
                TTAProgram::ProgramAnnotation::ANN_ALLOWED_UNIT_SRC,
                fu.name()))
            return false;
        if (move.hasAnnotations(
                TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_SRC) &&
            !move.hasAnnotation(
                TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_SRC,
                fu.name()))
            return false;
    }
    return true;
}

References TTAProgram::ProgramAnnotation::ANN_ALLOWED_UNIT_DST, TTAProgram::ProgramAnnotation::ANN_ALLOWED_UNIT_SRC, TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_DST, TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_SRC, TTAProgram::AnnotatedInstructionElement::hasAnnotation(), TTAProgram::AnnotatedInstructionElement::hasAnnotations(), ProgramOperation::inputMove(), ProgramOperation::inputMoveCount(), MoveNode::move(), TTAMachine::Component::name(), ProgramOperation::outputMove(), and ProgramOperation::outputMoveCount().

Referenced by addCandidateSetAnnotations(), addMinimumRegisterCopies(), and requiredRegisterCopiesForEachFU().

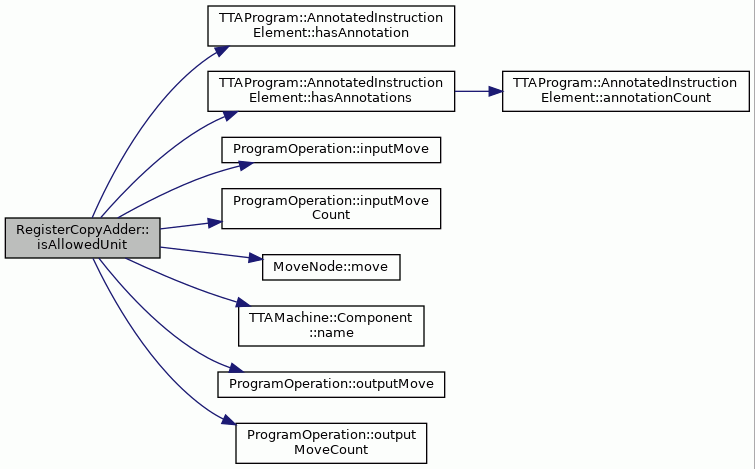

Here is the call graph for this function:

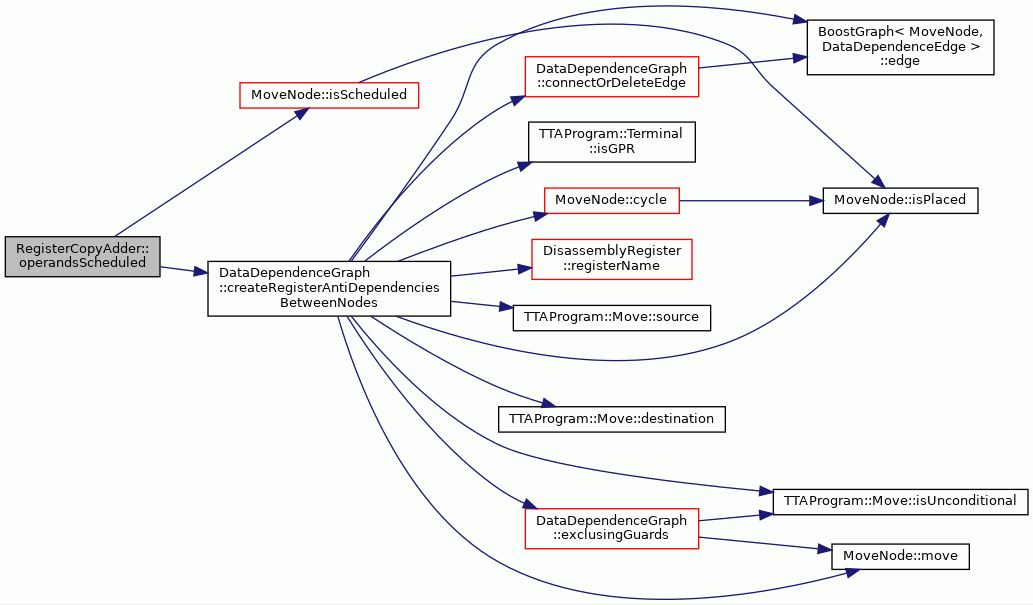

operandsScheduled()

void RegisterCopyAdder::operandsScheduled	(	AddedRegisterCopies &	copies,
		DataDependenceGraph &	ddg
	)

Called after all operands of a move are scheduled. This creates the dependence edges between them.

Parameters

copies	information about all regcopies of the po
ddg	ddg to update

Definition at line 2079 of file RegisterCopyAdder.cc.

                              {

    DataDependenceGraph::NodeSet inputMoves;
    // TODO: sort by cycle, smallest first.
    // input operands scheduled, set the ddg edges between temp reg copies.
    for (RegisterCopyAdder::AddedRegisterCopyMap::iterator iter =
             copies.operandCopies_.begin();
         iter != copies.operandCopies_.end();
         iter++) {
        MoveNode* result = const_cast<MoveNode*>(iter->first);
        assert(result->isScheduled());
        inputMoves.insert(result);
        for (DataDependenceGraph::NodeSet::iterator i2 =
                 iter->second.begin(); i2 != iter->second.end(); i2++) {
            inputMoves.insert(*i2);
        }
    }
    ddg.createRegisterAntiDependenciesBetweenNodes(inputMoves);
}

References assert, DataDependenceGraph::createRegisterAntiDependenciesBetweenNodes(), MoveNode::isScheduled(), and RegisterCopyAdder::AddedRegisterCopies::operandCopies_.

Referenced by BasicBlockScheduler::scheduleOperation(), and BUBasicBlockScheduler::scheduleOperation().

Here is the call graph for this function:

requiredRegisterCopiesForEachFU()

RegisterCopyAdder::RegisterCopyCountIndex RegisterCopyAdder::requiredRegisterCopiesForEachFU ( const TTAMachine::Machine &  targetMachine, ProgramOperation &  programOperation  )

private

Counts the temporary register copies required for each FU in case the given operation was assigned to them.

Parameters

targetMachine

The machine to use.

Returns

An index with temporary register move counts.

Definition at line 95 of file RegisterCopyAdder.cc.

                                        {

    RegisterCopyCountIndex registerCopiesRequired;

    // analyze each FU assignment alternative for the operation
    TTAMachine::Machine::FunctionUnitNavigator FUs =
        targetMachine.functionUnitNavigator();

    for (int i = 0; i <= FUs.count(); i++) {

        // include control unit in the traversed FUs
        const TTAMachine::FunctionUnit& unit =
            (i == FUs.count())?
            (*targetMachine.controlUnit()) : (*FUs.item(i));

        std::string operationName = programOperation.operation().name();
        if (unit.hasOperation(operationName)) {
            if (isAllowedUnit(unit, programOperation)) {
                registerCopiesRequired[&unit] =
                    addRegisterCopies(programOperation, unit).count_;
            }
        }
    }

    return registerCopiesRequired;
}

References addRegisterCopies(), TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), RegisterCopyAdder::AddedRegisterCopies::count_, TTAMachine::Machine::functionUnitNavigator(), TTAMachine::FunctionUnit::hasOperation(), isAllowedUnit(), TTAMachine::Machine::Navigator< ComponentType >::item(), Operation::name(), and ProgramOperation::operation().

Referenced by addCandidateSetAnnotations(), and addMinimumRegisterCopies().

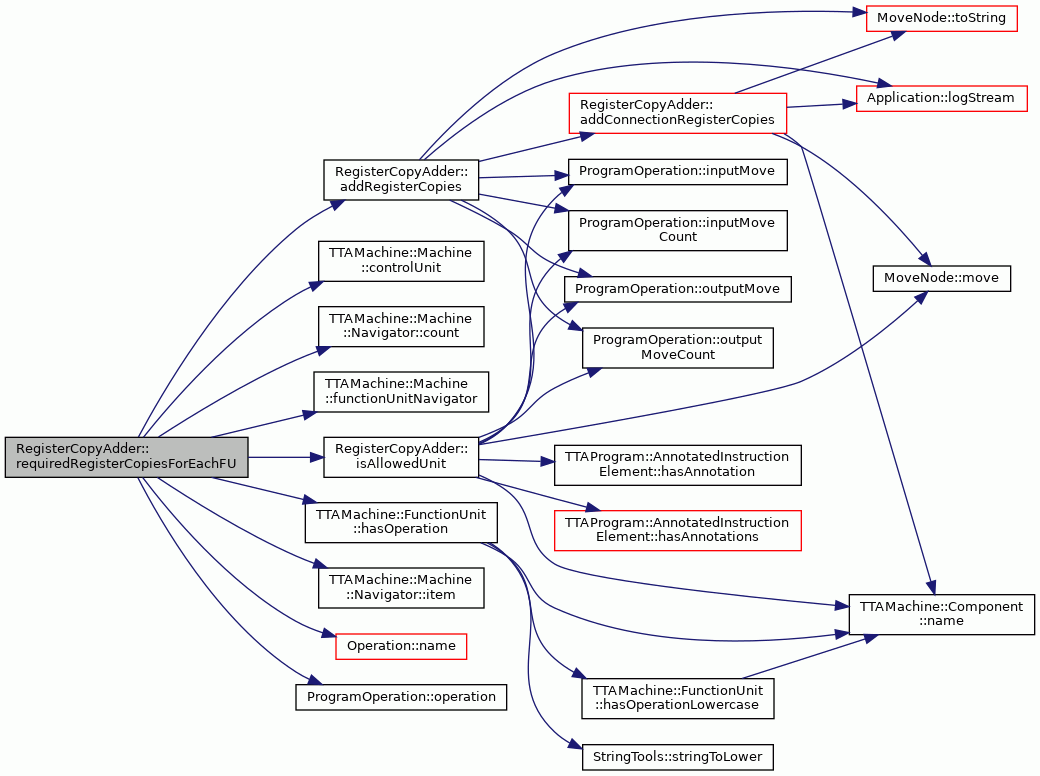

Here is the call graph for this function:

resultsScheduled()

void RegisterCopyAdder::resultsScheduled	(	AddedRegisterCopies &	copies,
		DataDependenceGraph &	ddg
	)

Called after all results of a move are scheduled. This creates the dependence edges between them.

Parameters

copies	information about all regcopies of the po
ddg	ddg to update

Definition at line 2108 of file RegisterCopyAdder.cc.

                              {

    DataDependenceGraph::NodeSet outputMoves;
    // TODO: sort by cycle, smallest first.
    // input operands scheduled, set the ddg edges between temp reg copies.
    for (RegisterCopyAdder::AddedRegisterCopyMap::iterator iter =
             copies.resultCopies_.begin(); iter != copies.resultCopies_.end();
         iter++) {
        MoveNode* result = const_cast<MoveNode*>(iter->first);
        assert(result->isScheduled());
        outputMoves.insert(result);
        for (DataDependenceGraph::NodeSet::iterator i2 =
            iter->second.begin(); i2 != iter->second.end(); i2++) {
            // Temporary result moves could get bypassed.
            if ((*i2)->isScheduled())
                outputMoves.insert(*i2);
        }
    }
    ddg.createRegisterAntiDependenciesBetweenNodes(outputMoves);
}

References assert, DataDependenceGraph::createRegisterAntiDependenciesBetweenNodes(), MoveNode::isScheduled(), and RegisterCopyAdder::AddedRegisterCopies::resultCopies_.

Referenced by BasicBlockScheduler::scheduleOperation(), and BUBasicBlockScheduler::scheduleOperation().

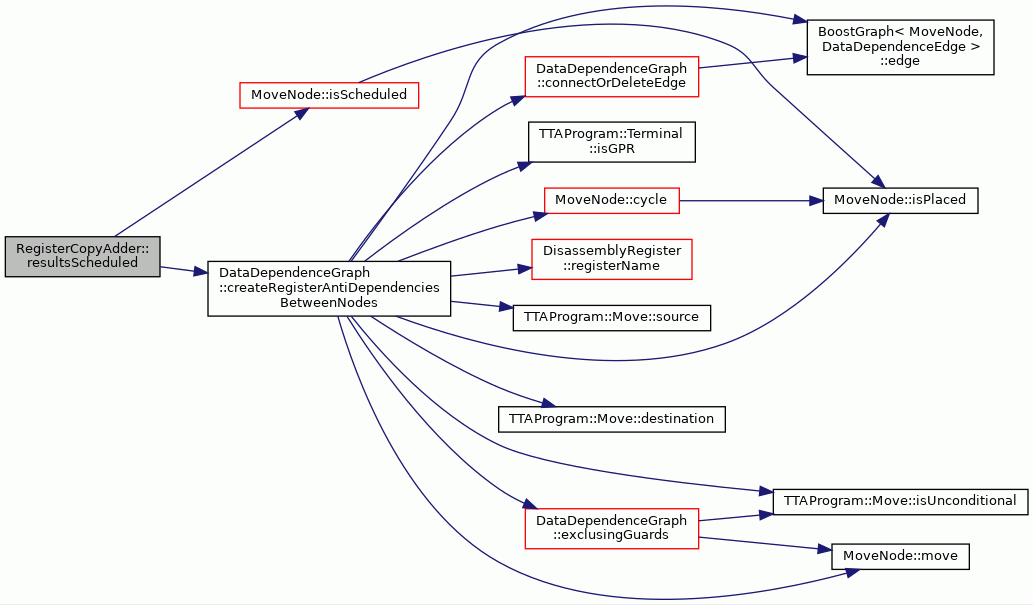

Here is the call graph for this function:

Member Data Documentation

buScheduler_

bool RegisterCopyAdder::buScheduler_

private

Indicate that register copy adder is called from bottom up scheduler, this causes search for first scheduled register write instead of last read.

Definition at line 246 of file RegisterCopyAdder.hh.

Referenced by addConnectionRegisterCopies(), fixDDGEdgesInTempRegChain(), and fixDDGEdgesInTempRegChainImmediate().

interPassData_

InterPassData& RegisterCopyAdder::interPassData_

private

the inter pass data from which to fetch the scratch register list

Definition at line 238 of file RegisterCopyAdder.hh.

Referenced by addConnectionRegisterCopies(), and addConnectionRegisterCopiesImmediate().

rm_

SimpleResourceManager& RegisterCopyAdder::rm_

private

the resource manager to check for machine resources in heuristics

Definition at line 242 of file RegisterCopyAdder.hh.

Referenced by addConnectionRegisterCopies().

---

The documentation for this class was generated from the following files:

• RegisterCopyAdder.hh
• RegisterCopyAdder.cc
