#include <SettingCommand.hh>

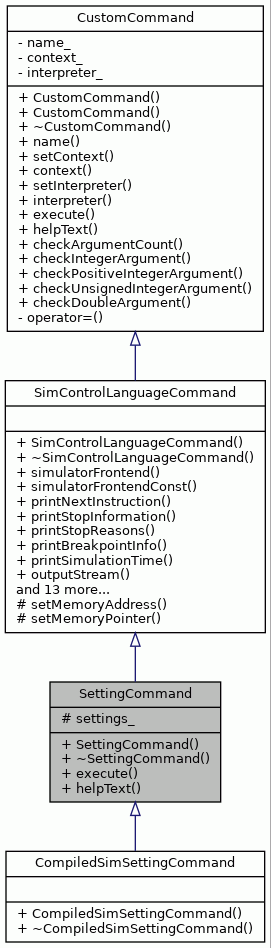

Inheritance diagram for SettingCommand:

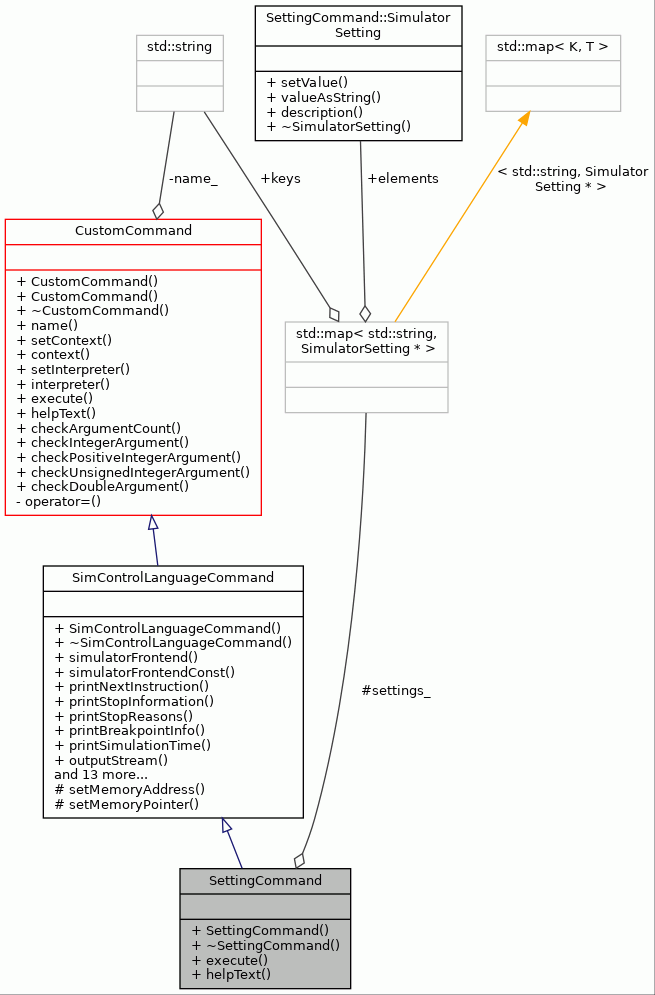

Collaboration diagram for SettingCommand:

Classes
class	SimulatorSetting

Public Member Functions
	SettingCommand ()

virtual	~SettingCommand ()

virtual bool	execute (const std::vector< DataObject > &arguments)

virtual std::string	helpText () const

Public Member Functions inherited from SimControlLanguageCommand
	SimControlLanguageCommand (const std::string &name)

virtual	~SimControlLanguageCommand ()

SimulatorFrontend &	simulatorFrontend ()

const SimulatorFrontend &	simulatorFrontendConst ()

virtual void	printNextInstruction ()

virtual void	printStopInformation ()

virtual void	printStopReasons ()

virtual bool	printBreakpointInfo (unsigned int breakpointHandle)

virtual void	printSimulationTime ()

virtual std::ostream &	outputStream ()

bool	checkSimulationInitialized ()

bool	checkSimulationNotAlreadyRunning ()

bool	checkSimulationStopped ()

bool	checkSimulationEnded ()

bool	checkProgramLoaded ()

bool	checkMachineLoaded ()

InstructionAddress	parseInstructionAddressExpression (const std::string &expression)

TTAProgram::Address	parseDataAddressExpression (const std::string &expression)

bool	parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)

bool	askConditionFromUser (TclConditionScript &target)

bool	askExpressionFromUser (ExpressionScript &target)

bool	verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)

void	setErrorMessage (const TCEString &errorMsg)

Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)

	CustomCommand (const CustomCommand &cmd)

virtual	~CustomCommand ()

std::string	name () const

void	setContext (InterpreterContext *context)

InterpreterContext *	context () const

void	setInterpreter (ScriptInterpreter *si)

ScriptInterpreter *	interpreter () const

bool	checkArgumentCount (int argumentCount, int minimum, int maximum)

bool	checkIntegerArgument (const DataObject &argument)

bool	checkPositiveIntegerArgument (const DataObject &argument)

bool	checkUnsignedIntegerArgument (const DataObject &argument)

bool	checkDoubleArgument (const DataObject &argument)

Protected Types
typedef std::map< std::string, SimulatorSetting * >	SettingMap
	container for simulator settings indexed by name More...

Protected Attributes
SettingMap	settings_
	storage for simulator settings More...

Additional Inherited Members
Protected Member Functions inherited from SimControlLanguageCommand
bool	setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)

bool	setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)

Detailed Description

Implementation of the "setting" command of the Simulator Control Language.

Definition at line 51 of file SettingCommand.hh.

Member Typedef Documentation

◆ SettingMap

typedef std::map<std::string, SimulatorSetting*> SettingCommand::SettingMap

protected

container for simulator settings indexed by name

Definition at line 78 of file SettingCommand.hh.

Constructor & Destructor Documentation

◆ SettingCommand()

SettingCommand::SettingCommand ( )

Definition at line 666 of file SettingCommand.cc.

                                :
     SimControlLanguageCommand("setting") {

     settings_["execution_trace"] =
         new TemplatedSimulatorSetting<BooleanSetting, SetExecutionTrace>(
             SimulatorToolbox::textGenerator().text(
                 Texts::TXT_INTERP_SETTING_EXECTRACE).str());

     settings_["bus_trace"] =
         new TemplatedSimulatorSetting<BooleanSetting, SetBusTrace>(
             SimulatorToolbox::textGenerator().text(
                 Texts::TXT_INTERP_SETTING_BUSTRACE).str());

     settings_["rf_tracking"] =
         new TemplatedSimulatorSetting<BooleanSetting, SetRFTracking>(
             SimulatorToolbox::textGenerator().text(
                 Texts::TXT_INTERP_SETTING_RFTRACKING).str());

     settings_["history_filename"] =
         new TemplatedSimulatorSetting<StringSetting, SetHistoryFilename>(
             SimulatorToolbox::textGenerator().text(
                 Texts::TXT_INTERP_SETTING_HISTORY_FILENAME).str());

     settings_["history_save"] =
         new TemplatedSimulatorSetting<BooleanSetting, SetHistorySave>(
             SimulatorToolbox::textGenerator().text(
                 Texts::TXT_INTERP_SETTING_HISTORY_SAVE).str());

     settings_["history_size"] =
         new TemplatedSimulatorSetting<PositiveIntegerSetting, SetHistorySize>(
             SimulatorToolbox::textGenerator().text(
                 Texts::TXT_INTERP_SETTING_HISTORY_SIZE).str());

     settings_["procedure_transfer_tracking"] =
         new TemplatedSimulatorSetting<
             BooleanSetting, SetProcedureTransferTracing>(
                 SimulatorToolbox::textGenerator().text(
                     Texts::TXT_INTERP_SETTING_PROCEDURE_TRANSFER_TRACKING).
                 str());

     settings_["memory_access_tracking"] =
         new TemplatedSimulatorSetting<
             BooleanSetting, SetMemoryAccessTracking>(
                 SimulatorToolbox::textGenerator().text(
                     Texts::TXT_INTERP_SETTING_MEMORY_ACCESS_TRACKING).
                 str());

     settings_["utilization_data_saving"] =
         new TemplatedSimulatorSetting<
             BooleanSetting, SetUtilizationSaving>(
                 SimulatorToolbox::textGenerator().text(
                     Texts::TXT_INTERP_SETTING_UTILIZATION_SAVING).
                 str());

     settings_["profile_data_saving"] =
         new TemplatedSimulatorSetting<
             BooleanSetting, SetProfileSaving>(
                 SimulatorToolbox::textGenerator().text(
                     Texts::TXT_INTERP_SETTING_PROFILE_SAVING).
                 str());

     settings_["fu_conflict_detection"] =
         new TemplatedSimulatorSetting<
             BooleanSetting, SetFUConflictDetection>(
                 SimulatorToolbox::textGenerator().text(
                     Texts::TXT_INTERP_SETTING_FU_CONFLICT_DETECTION).
                 str());

     settings_["next_instruction_printing"] =
         new TemplatedSimulatorSetting<
             BooleanSetting, SetNextInstructionPrinting>(
                 SimulatorToolbox::textGenerator().text(
                     Texts::TXT_INTERP_SETTING_NEXT_INSTRUCTION_PRINTING).
                 str());

     settings_["simulation_time_statistics"] =
         new TemplatedSimulatorSetting<
             BooleanSetting, SetSimulationTimeStatistics>(
                 SimulatorToolbox::textGenerator().text(
                     Texts::TXT_SIMULATION_TIME_STATISTICS).str());

     settings_["simulation_timeout"] =
         new TemplatedSimulatorSetting<
             PositiveIntegerSetting, SetSimulationTimeout>(
                 SimulatorToolbox::textGenerator().text(
                     Texts::TXT_SIMULATION_TIMEOUT).str());

     settings_["static_compilation"] =
         new TemplatedSimulatorSetting<
             BooleanSetting, SetStaticCompilation>(
                 SimulatorToolbox::textGenerator().text(
                     Texts::TXT_STATIC_COMPILATION).str());

     settings_["call_history_length"] =
         new TemplatedSimulatorSetting<
             PositiveIntegerSetting, SetCallHistoryLength>(
                 "Sets the length of last procedure transfers to save in\n"
                 "memory for call trace printing.");
 }

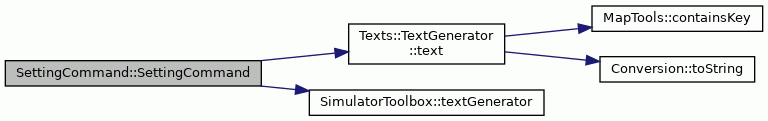

Here is the call graph for this function:

◆ ~SettingCommand()

SettingCommand::~SettingCommand ( )

virtual

Destructor.

Does nothing.

Definition at line 771 of file SettingCommand.cc.

                                 {
     MapTools::deleteAllValues(settings_);
 }

References MapTools::deleteAllValues(), and settings_.

Here is the call graph for this function:

Member Function Documentation

◆ execute()

bool SettingCommand::execute ( const std::vector< DataObject > & arguments )

virtual

Executes the "setting" command.

Command that allows changing and listing simulator's settings. If no arguments are given, all simulator settings are listed in predefined oreder. If one argument is given, it's expected to be a simulator setting, of which current value is printed. If two arguments are given, the first argument tells the name of the setting to modify, and second argument the new value.

Parameters

arguments Read the comment.

Returns: True in case arguments are ok.

Exceptions

NumberFormatException Is never thrown by this command.

Todo:: Use the count for the step.

Implements CustomCommand.

Definition at line 791 of file SettingCommand.cc.

                                                               {
     const int argumentCount = arguments.size() -1;

     if (!checkArgumentCount(argumentCount, 0, 2)) {
         return false;
     }

     // no arguments given, list all the settings and their values,
     // value types and explanations
     if (argumentCount == 0) {
         SettingMap::iterator i = settings_.begin();

         while (i != settings_.end()) {
             outputStream().flags(std::ios_base::left);
             outputStream()
                 << std::setw(30) << (*i).first
                 << std::setw(20) << (*i).second->valueAsString() << " "
                 << (*i).second->description() << std::endl;
             ++i;
         }
         return true;
     }

     SettingMap::iterator settingPosition =
         settings_.find(
             StringTools::stringToLower(arguments.at(1).stringValue()));
     if (settingPosition == settings_.end()) {
         interpreter()->setError(
             SimulatorToolbox::textGenerator().text(
                 Texts::TXT_NO_SUCH_SETTING).str());
         return false;
     }

     SimulatorSetting& setting = *((*settingPosition).second);

     // two arguments given, modify the setting
     if (arguments.size() - 1 == 2) {
         try {
             if (!setting.setValue(
                     *dynamic_cast<SimulatorInterpreter*>(interpreter()),
                     simulatorFrontend(), arguments.at(2))) {
                 return false;
             }
         } catch (const Exception& e) {
             interpreter()->setError(e.errorMessage());
             return false;
         }
     }

     DataObject* result = new DataObject();
     result->setString(setting.valueAsString());
     interpreter()->setResult(result);
     return true;
 }

References CustomCommand::checkArgumentCount(), Exception::errorMessage(), CustomCommand::interpreter(), SimControlLanguageCommand::outputStream(), ScriptInterpreter::setError(), ScriptInterpreter::setResult(), DataObject::setString(), settings_, SettingCommand::SimulatorSetting::setValue(), SimControlLanguageCommand::simulatorFrontend(), StringTools::stringToLower(), SimulatorToolbox::textGenerator(), Texts::TXT_NO_SUCH_SETTING, and SettingCommand::SimulatorSetting::valueAsString().

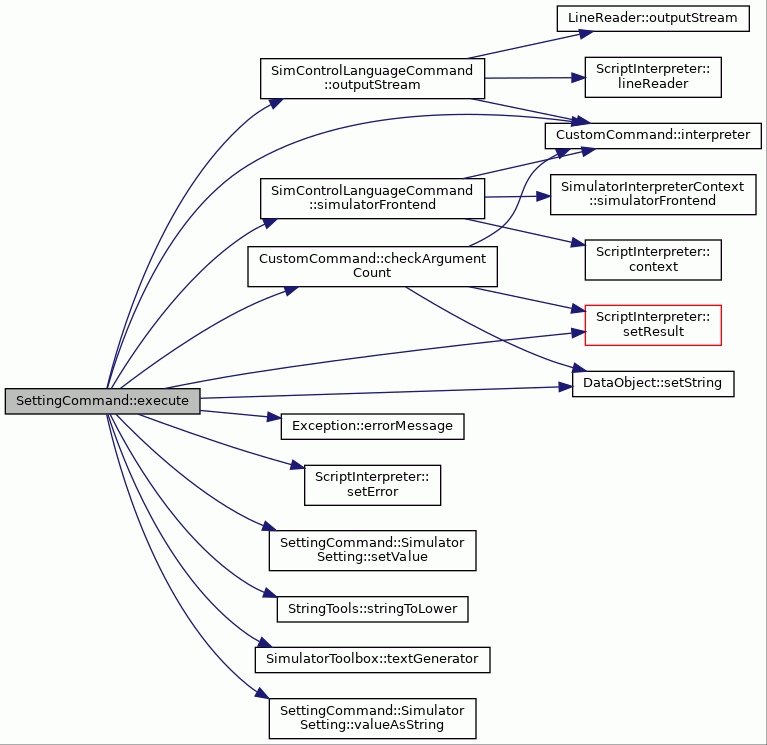

Here is the call graph for this function:

◆ helpText()

std::string SettingCommand::helpText ( ) const

virtual

Returns the help text for this command.

Help text is searched from SimulatorTextGenerator.

Returns: The help text.

Todo:: Use SimulatorTextGenerator to get the help text.

Implements CustomCommand.

Definition at line 855 of file SettingCommand.cc.

                                {
     return SimulatorToolbox::textGenerator().text(
         Texts::TXT_INTERP_HELP_SETTING).str();
 }

References Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), and Texts::TXT_INTERP_HELP_SETTING.

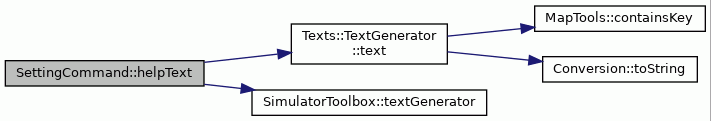

Here is the call graph for this function:

Member Data Documentation

◆ settings_

SettingMap SettingCommand::settings_

protected

storage for simulator settings

Definition at line 80 of file SettingCommand.hh.

Referenced by CompiledSimSettingCommand::CompiledSimSettingCommand(), execute(), SettingCommand(), and ~SettingCommand().

The documentation for this class was generated from the following files:
