TTAUnitTester.cc File Reference

#include <cstdlib>
#include <string>
#include <vector>
#include "MachineImplementation.hh"
#include "Machine.hh"
#include "ADFSerializer.hh"
#include "IDFSerializer.hh"
#include "IDFValidator.hh"
#include "TTAUnitTester.hh"
#include "HDBTester.hh"
#include "Exception.hh"
#include "UnitImplementationLocation.hh"
#include "TTAUnitTesterCmdLineOptions.hh"

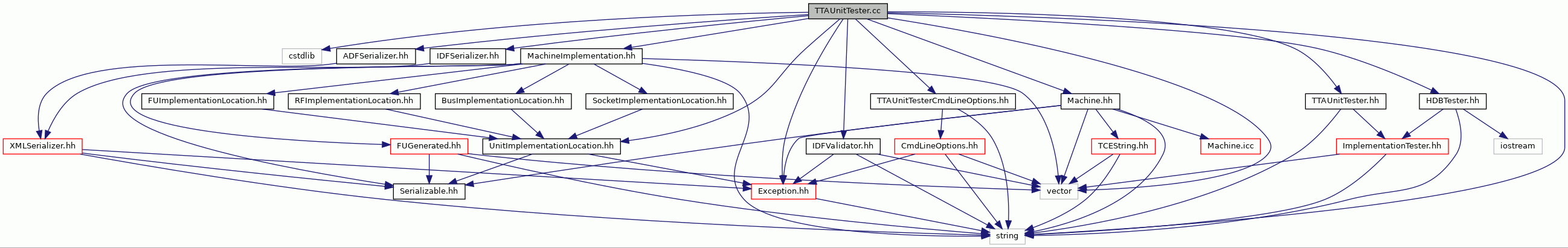

Include dependency graph for TTAUnitTester.cc:

Go to the source code of this file.

Functions
int	main (int argc, char *argv[])
TTAMachine::Machine *	readAdf (std::string adfName)
IDF::MachineImplementation *	readIdf (std::string idfName)
bool	validateIdf (const IDF::MachineImplementation &idf, const TTAMachine::Machine &machine)
bool	testUnits (const IDF::MachineImplementation &idf, VhdlSim simulator, bool verbose, bool leaveDirty)

Detailed Description

Implementation of TTAUnitTester utility program

Author

Otto Esko 2010 (otto.esko-no.spam-tut.fi)

Note

rating: red

Definition in file TTAUnitTester.cc.

Function Documentation

main()

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 48 of file TTAUnitTester.cc.

                                 {

    TTAUnitTesterCmdLineOptions options;
    try {
        options.parse(argv, argc);
    } catch (ParserStopRequest const&) {
        return EXIT_SUCCESS;
    } catch (const IllegalCommandLine& exception) {
        std::cerr << exception.errorMessage() << std::endl;
        return EXIT_FAILURE;
    }

    string idfFile = "";
    if (options.numberOfArguments() == 0) {
        std::cerr << "IDF file was not given" << std::endl;
        options.printHelp();
        return EXIT_FAILURE;
    } else if (options.numberOfArguments() > 1) {
        std::cerr << "Illegal arguments" << std::endl;
        options.printHelp();
        return EXIT_FAILURE;
    } else {
        idfFile = options.idfFileName();
    }

    string adfFile = options.adfFileName();

    string sim = options.vhdlSim();
    VhdlSim simulator = SIM_GHDL;
    if (sim == "modelsim") {
        simulator = SIM_MODELSIM;
    } else {
        simulator = SIM_GHDL;
    }

    bool verbose = options.verbose();
    bool leaveDirty = options.leaveDirty();

    IDF::MachineImplementation* idf = readIdf(idfFile);
    if (!idf) {
        return EXIT_FAILURE;
    }

    // validate idf if adf was given
    if (!adfFile.empty()) {
         TTAMachine::Machine* mach = readAdf(adfFile);
        if (!mach) {
            return EXIT_FAILURE;
        }
        if (!validateIdf(*idf, *mach)) {
            delete(mach);
            delete(idf);
            return EXIT_FAILURE;
        }
        delete(mach);
    }

    if (!testUnits(*idf, simulator, verbose, leaveDirty)) {
        delete(idf);
        return EXIT_FAILURE;
    }

    delete(idf);
    return EXIT_SUCCESS;
}

References Exception::errorMessage(), CmdLineParser::numberOfArguments(), options, CmdLineOptions::parse(), MachInfoCmdLineOptions::printHelp(), readAdf(), readIdf(), SIM_GHDL, SIM_MODELSIM, testUnits(), and validateIdf().

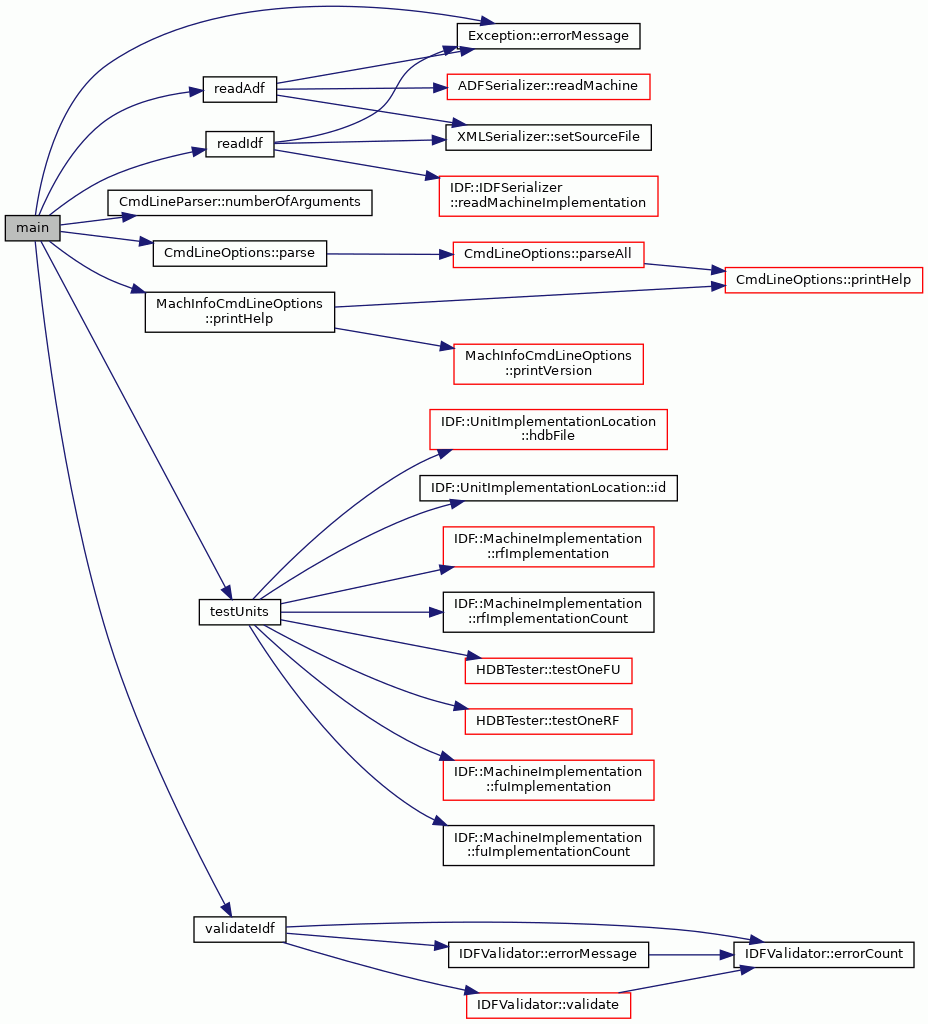

Here is the call graph for this function:

readAdf()

TTAMachine::Machine * readAdf

(

std::string

adfName

)

Definition at line 116 of file TTAUnitTester.cc.

                           {

    ADFSerializer reader;
    reader.setSourceFile(adfName);
    TTAMachine::Machine* mach = NULL;
    try {
        mach = reader.readMachine();
    } catch (Exception& e) {
        std::cerr << "Failed to load ADF file " << adfName << ": "
                  << e.errorMessage() << std::endl;
        return NULL;
    }
    return mach;
}

References Exception::errorMessage(), ADFSerializer::readMachine(), and XMLSerializer::setSourceFile().

Referenced by main().

Here is the call graph for this function:

readIdf()

IDF::MachineImplementation * readIdf

(

std::string

idfName

)

Definition at line 133 of file TTAUnitTester.cc.

                           {

    IDF::IDFSerializer reader;
    reader.setSourceFile(idfName);
    IDF::MachineImplementation* implementation = NULL;
    try {
        implementation = reader.readMachineImplementation();
    } catch (Exception& e) {
        std::cerr << "Failed to load IDF file " << idfName << ": "
                  << e.errorMessage() << std::endl;
        return NULL;
    }
    return implementation;
}

References Exception::errorMessage(), implementation, IDF::IDFSerializer::readMachineImplementation(), and XMLSerializer::setSourceFile().

Referenced by main().

Here is the call graph for this function:

testUnits()

bool testUnits	(	const IDF::MachineImplementation &	idf,
		VhdlSim	simulator,
		bool	verbose,
		bool	leaveDirty
	)

Definition at line 167 of file TTAUnitTester.cc.

                                                      {

    HDBTester tester(std::cout, std::cerr, simulator, verbose, leaveDirty);

    bool allPassed = true;
    for (int i = 0; i < idf.fuImplementationCount(); i++) {
        IDF::UnitImplementationLocation* unit = &idf.fuImplementation(i);
        string hdb = unit->hdbFile();
        int entryId = unit->id();
        if (!tester.testOneFU(hdb, entryId)) {
            allPassed = false;
        }
    }

    for (int i = 0; i < idf.rfImplementationCount(); i++) {
        IDF::UnitImplementationLocation* unit = &idf.rfImplementation(i);
        string hdb = unit->hdbFile();
        int entryId = unit->id();
        if (!tester.testOneRF(hdb, entryId)) {
            allPassed = false;
        }
    }

    return allPassed;
}

References IDF::MachineImplementation::fuImplementation(), IDF::MachineImplementation::fuImplementationCount(), IDF::UnitImplementationLocation::hdbFile(), IDF::UnitImplementationLocation::id(), IDF::MachineImplementation::rfImplementation(), IDF::MachineImplementation::rfImplementationCount(), HDBTester::testOneFU(), and HDBTester::testOneRF().

Referenced by main().

Here is the call graph for this function:

validateIdf()

bool validateIdf	(	const IDF::MachineImplementation &	idf,
		const TTAMachine::Machine &	machine
	)

Definition at line 150 of file TTAUnitTester.cc.

                                      {

    IDFValidator validator(idf, machine);

    bool success = validator.validate();
    if (!success) {
        for (int i = 0; i < validator.errorCount(); i++) {
            std::cerr << validator.errorMessage(i) << std::endl;
        }
    }
    return success;
}

References IDFValidator::errorCount(), IDFValidator::errorMessage(), machine, and IDFValidator::validate().

Referenced by main().

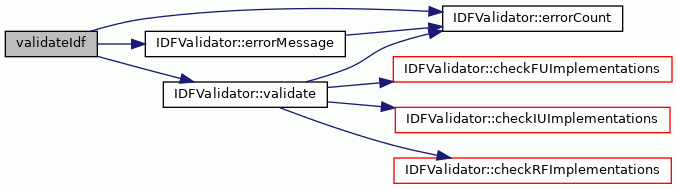

Here is the call graph for this function:
