#include <SimpleResourceManager.hh>

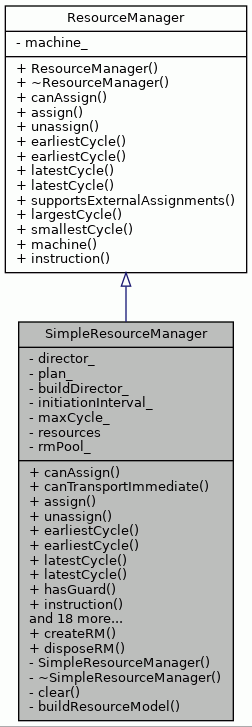

Inheritance diagram for SimpleResourceManager:

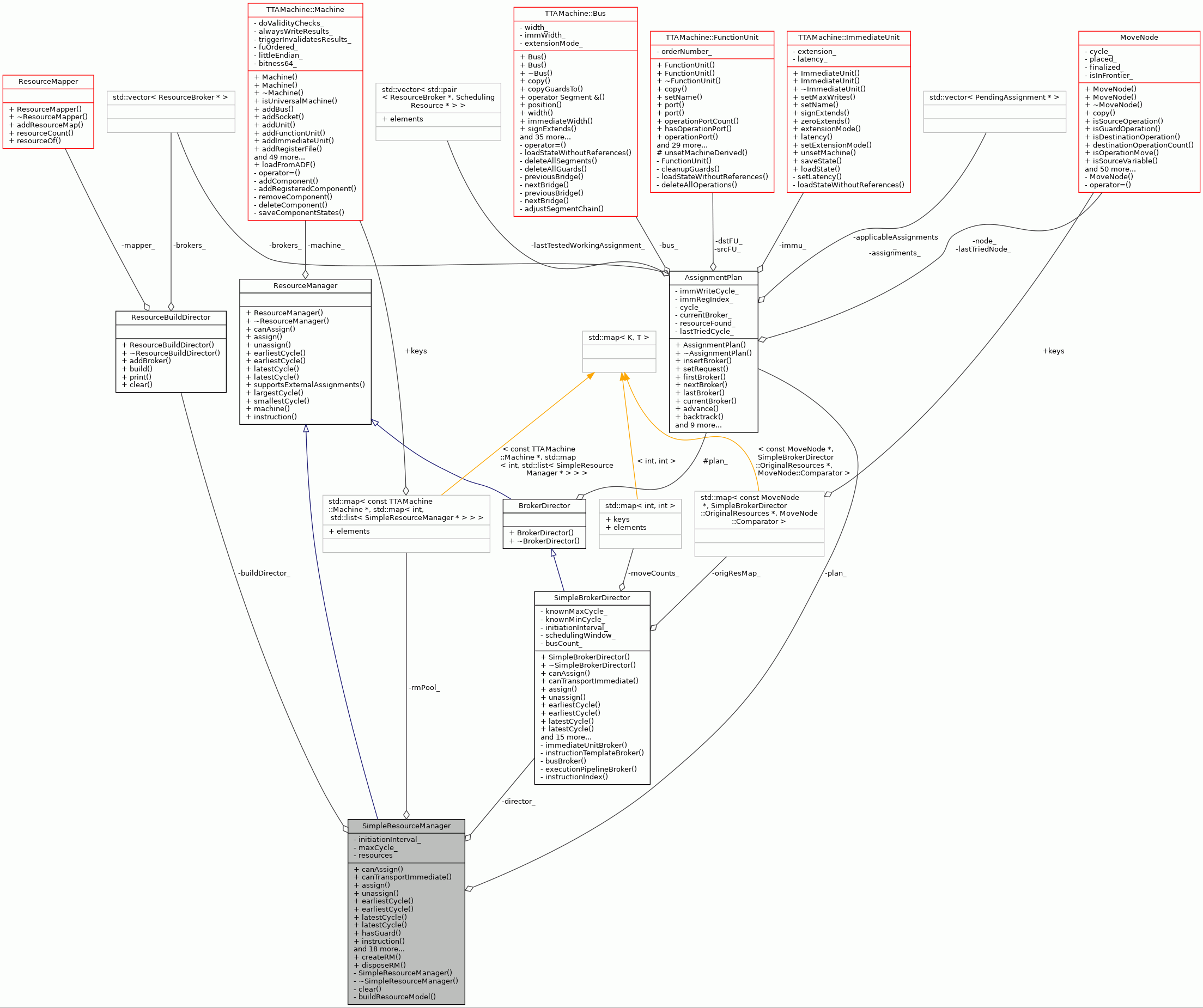

Collaboration diagram for SimpleResourceManager:

Public Member Functions
virtual bool	canAssign (int cycle, MoveNode &node, const TTAMachine::Bus bus=NULL, const TTAMachine::FunctionUnit srcFU=NULL, const TTAMachine::FunctionUnit dstFU=NULL, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) const override

virtual bool	canTransportImmediate (const MoveNode &node, const TTAMachine::Bus *preAssignedBus=NULL) const

virtual void	assign (int cycle, MoveNode &node, const TTAMachine::Bus bus=NULL, const TTAMachine::FunctionUnit srcFU=NULL, const TTAMachine::FunctionUnit dstFU=NULL, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) override

virtual void	unassign (MoveNode &node) override

virtual int	earliestCycle (MoveNode &node, const TTAMachine::Bus bus=NULL, const TTAMachine::FunctionUnit srcFU=NULL, const TTAMachine::FunctionUnit dstFU=NULL, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) const override

virtual int	earliestCycle (int cycle, MoveNode &node, const TTAMachine::Bus bus=NULL, const TTAMachine::FunctionUnit srcFU=NULL, const TTAMachine::FunctionUnit dstFU=NULL, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) const override

virtual int	latestCycle (MoveNode &node, const TTAMachine::Bus bus=NULL, const TTAMachine::FunctionUnit srcFU=NULL, const TTAMachine::FunctionUnit dstFU=NULL, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) const override

virtual int	latestCycle (int cycle, MoveNode &node, const TTAMachine::Bus bus=NULL, const TTAMachine::FunctionUnit srcFU=NULL, const TTAMachine::FunctionUnit dstFU=NULL, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) const override

virtual bool	hasGuard (const MoveNode &node) const

virtual TTAProgram::Instruction *	instruction (int cycle) const override

virtual bool	supportsExternalAssignments () const override

virtual int	largestCycle () const override

virtual int	smallestCycle () const override

virtual void	loseInstructionOwnership (int cycle)

virtual std::shared_ptr< TTAProgram::TerminalImmediate >	immediateValue (const MoveNode &)

virtual int	immediateWriteCycle (const MoveNode &) const

virtual bool	isTemplateAvailable (int, std::shared_ptr< TTAProgram::Immediate >) const

virtual unsigned int	resourceCount () const

virtual void	print (std::ostream &target) const

virtual std::string	toString () const

virtual unsigned	initiationInterval () const

virtual void	clearOldResources ()

void	setDDG (const DataDependenceGraph *ddg)

void	setCFG (const ControlFlowGraph *cfg)

void	setBBN (const BasicBlockNode *bbn)

void	setMaxCycle (unsigned int maxCycle)

int	maxCycle ()

unsigned int	instructionIndex (unsigned int) const

Public Member Functions inherited from ResourceManager
	ResourceManager (const TTAMachine::Machine &machine)

virtual	~ResourceManager ()

const TTAMachine::Machine &	machine () const

Static Public Member Functions
static SimpleResourceManager *	createRM (const TTAMachine::Machine &machine, unsigned int ii=0)

static void	disposeRM (SimpleResourceManager *rm, bool allowReuse=true)

Private Member Functions
	SimpleResourceManager (const TTAMachine::Machine &machine, unsigned int ii=0)

virtual	~SimpleResourceManager ()

void	clear ()
	Clears all bookkeeping done by this RM. The RM can then be reused for different BB.

void	buildResourceModel (const TTAMachine::Machine &machine)

Private Attributes
SimpleBrokerDirector *	director_
	Resource manager's broker director.

AssignmentPlan	plan_
	Resource assignment plan.

ResourceBuildDirector	buildDirector_
	Resource build director.

unsigned int	initiationInterval_

unsigned int	maxCycle_

unsigned int	resources

Static Private Attributes
static std::map< const TTAMachine::Machine , std::map< int, std::list< SimpleResourceManager > > >	rmPool_

Detailed Description

A simple resource manager.

Definition at line 58 of file SimpleResourceManager.hh.

Constructor & Destructor Documentation

◆ SimpleResourceManager()

SimpleResourceManager::SimpleResourceManager	(	const TTAMachine::Machine &	machine,
		unsigned int	ii = `0`
	)

private

Constructor.

Parameters

machine Target machine, ii Initiation interval.

Definition at line 58 of file SimpleResourceManager.cc.

                                                      :
    ResourceManager(machine), director_(NULL),  initiationInterval_(ii),
    maxCycle_(INT_MAX-1) {

    buildResourceModel(machine);
}

References buildResourceModel(), and ResourceManager::machine().

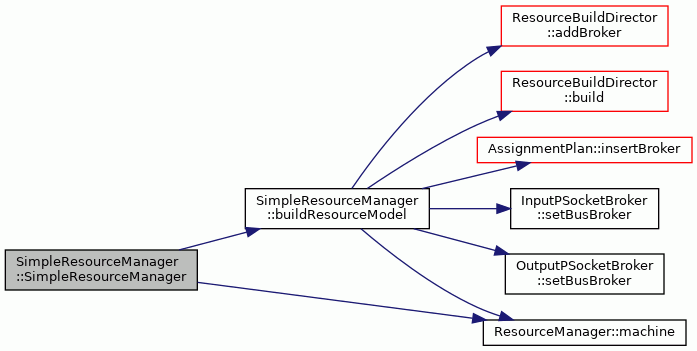

Here is the call graph for this function:

◆ ~SimpleResourceManager()

SimpleResourceManager::~SimpleResourceManager ( )

privatevirtual

Destructor.

Definition at line 162 of file SimpleResourceManager.cc.

                                             {
    delete director_;
}

References director_.

Member Function Documentation

◆ assign()

void SimpleResourceManager::assign	(	int	cycle,
		MoveNode &	node,
		const TTAMachine::Bus *	bus = `NULL`,
		const TTAMachine::FunctionUnit *	srcFU = `NULL`,
		const TTAMachine::FunctionUnit *	dstFU = `NULL`,
		int	immWriteCycle = `-1`,
		const TTAMachine::ImmediateUnit *	immu = `nullptr`,
		int	immRegIndex = `-1`
	)

overridevirtual

Assign all resources needed by a given node starting from given cycle, and place the node in that cycle.

The manager keeps any pre-existing assignment and verifies that assigned resource is available. For all unassigned parts of the node, the resource manager looks for and then assigns the necessary resources. If the node is not fully assigned after the invocation of this operation, it means the assignment attempt failed.

Parameters

cycle	Cycle.
node	Node.
bus	if not null, bus that has to be used.
srcFU	if not null, srcFu that has to be used.
dstFU	if not null, dstFU that has to be used.
immWriteCycle	if not -1 and src is imm, write cycle of limm.

Exceptions

InvalidData exception if given node is already placed in a cycle different from given cycle.

Implements ResourceManager.

Definition at line 221 of file SimpleResourceManager.cc.

                                               {
#ifdef DEBUG_RM
    Application::logStream() << "\tAssign: " << cycle << " " <<
        node.toString() << std::endl;
#endif
    director_->assign(
    cycle, node, bus, srcFU, dstFU, immWriteCycle, immu, immRegIndex);
#ifdef DEBUG_RM
    Application::logStream() << "\tAssign: " << cycle << " " <<
        node.toString() << " OK!" << std::endl;
#endif
}

References SimpleBrokerDirector::assign(), director_, Application::logStream(), and MoveNode::toString().

Referenced by BFOptimization::assign(), BFOptimization::assignCopyToPrologEpilog(), BFOptimization::canAssign(), BFDRELoop::operator()(), BFSchedulePreLoopShared::operator()(), BFAssignToBody::operator()(), BFPostpassLoopDRE::operator()(), BFUnscheduleFromBody::returnOriginal(), BFOptimization::rmEC(), BFOptimization::rmLC(), SequentialScheduler::scheduleMove(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), and BasicBlockScheduler::tryToDelayOperands().

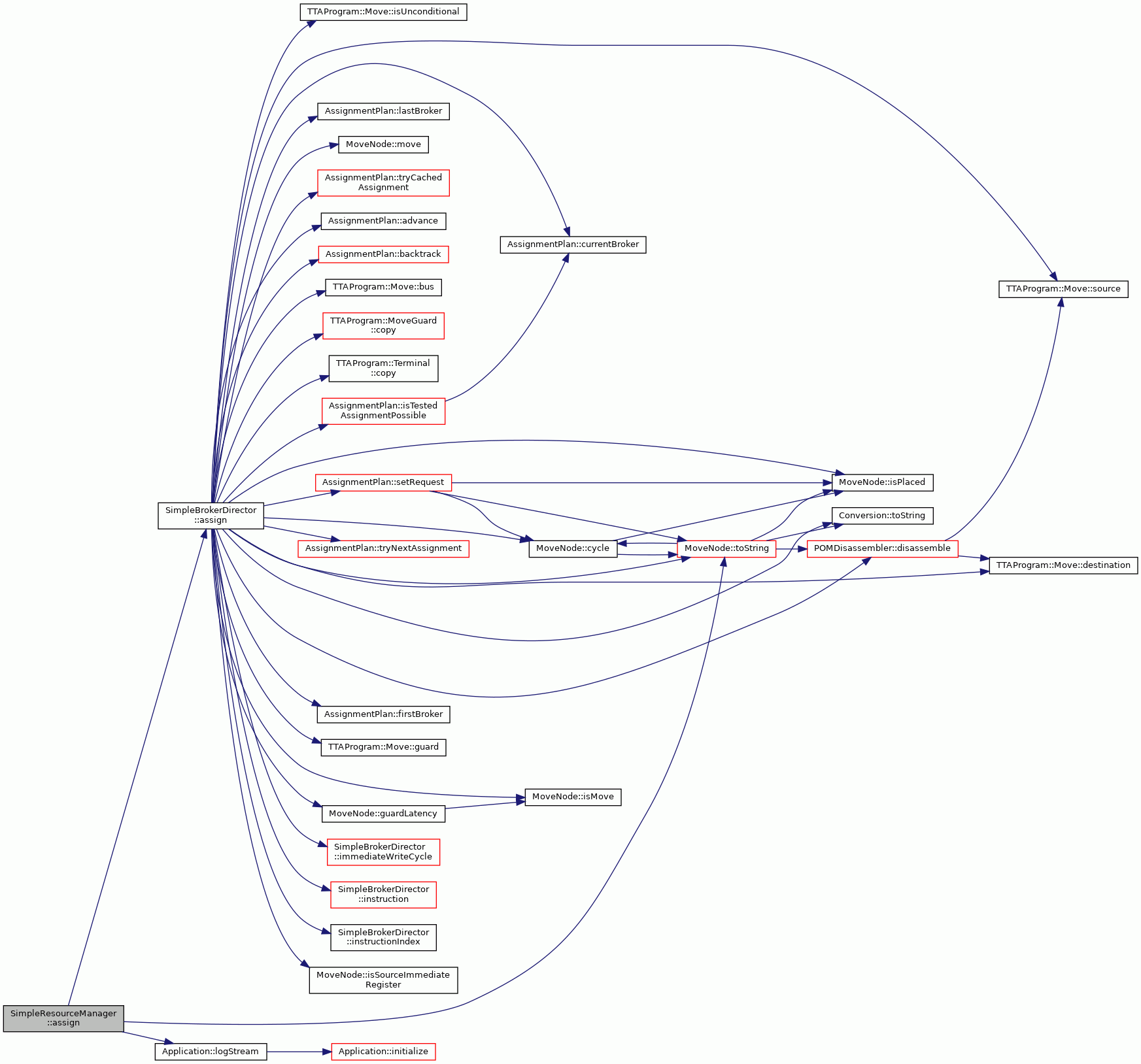

Here is the call graph for this function:

◆ buildResourceModel()

void SimpleResourceManager::buildResourceModel ( const TTAMachine::Machine & machine )

private

Creates brokers and builds resource model.

Definition at line 111 of file SimpleResourceManager.cc.

                                      {

    // instantiate brokers

    std::vector<ResourceBroker*> brokers;

    InputFUBroker* ifb =
        new InputFUBroker("InputFUBroker", initiationInterval_);
    OutputFUBroker* ofb =
        new OutputFUBroker("OutputFUBroker", initiationInterval_);
    brokers.push_back(ifb);
    brokers.push_back(ofb);
    brokers.push_back(new ExecutionPipelineBroker(
                          "ExecutionPipelineBroker", initiationInterval_));
    InputPSocketBroker* ipsb = new InputPSocketBroker(
        "InputPSocketBroker", *ifb, initiationInterval_);
    brokers.push_back(ipsb);
    brokers.push_back(new IUBroker("IUBroker", this, initiationInterval_));
    OutputPSocketBroker* opsb = new OutputPSocketBroker(
        "OutputPSocketBroker", *ofb, this, initiationInterval_);
    brokers.push_back(opsb);
    BusBroker* bb = new BusBroker(
        "BusBroker", *ipsb, *opsb, machine,
        initiationInterval_);
    brokers.push_back(bb);
    brokers.push_back(
        new ITemplateBroker(
            "ITemplateBroker", *bb, this, initiationInterval_));

    ipsb->setBusBroker(*bb);
    opsb->setBusBroker(*bb);

    // build resource model and assignment plan

    for (unsigned int i = 0; i < brokers.size(); i++) {
        brokers[i]->setInitiationInterval(initiationInterval_);
        buildDirector_.addBroker(*brokers[i]);
        plan_.insertBroker(*brokers[i]);
    }

    resources = brokers.size();

    buildDirector_.build(machine);

    director_ = new SimpleBrokerDirector(machine, plan_, initiationInterval_);
}

References ResourceBuildDirector::addBroker(), ResourceBuildDirector::build(), buildDirector_, director_, initiationInterval_, AssignmentPlan::insertBroker(), ResourceManager::machine(), plan_, resources, InputPSocketBroker::setBusBroker(), and OutputPSocketBroker::setBusBroker().

Referenced by SimpleResourceManager().

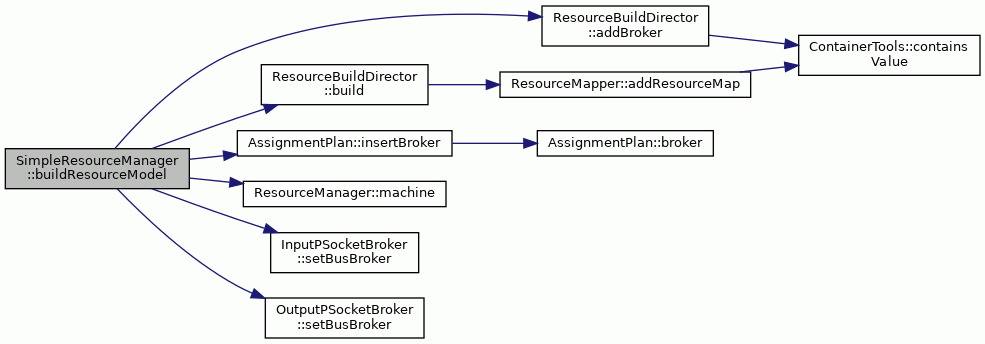

Here is the call graph for this function:

◆ canAssign()

bool SimpleResourceManager::canAssign	(	int	cycle,
		MoveNode &	node,
		const TTAMachine::Bus *	bus = `NULL`,
		const TTAMachine::FunctionUnit *	srcFU = `NULL`,
		const TTAMachine::FunctionUnit *	dstFU = `NULL`,
		int	immWriteCycle = `-1`,
		const TTAMachine::ImmediateUnit *	immu = `nullptr`,
		int	immRegIndex = `-1`
	)		const

overridevirtual

Return true if given node can be assigned without resource conflicts in given cycle.

For those parts of the node that have been already assigned to a resource, the manager simply keeps the assignment and verifies that the resource is available. For those parts that are not yet assigned, the resource manager looks for any compatible resource that could be assigned.

Parameters

cycle	Cycle.
node	Node.
bus	if not null, bus that has to be used.
srcFU	if not null, srcFu that has to be used.
dstFU	if not null, dstFU that has to be used.
immWriteCycle	if not -1 and src is imm, write cycle of limm.

Returns: True if given node can be assigned without resource conflicts in given cycle, false otherwise.

Implements ResourceManager.

Definition at line 186 of file SimpleResourceManager.cc.

                                                        {
#ifdef DEBUG_RM
    Application::logStream() << "\tCanAssign: " << cycle << " " <<
        node.toString() << std::endl;
#endif
    return director_->canAssign(
    cycle, node, bus, srcFU, dstFU, immWriteCycle, immu, immRegIndex);
}

References SimpleBrokerDirector::canAssign(), director_, Application::logStream(), and MoveNode::toString().

Referenced by BFOptimization::canAssign(), BFOptimization::rmEC(), and BFOptimization::rmLC().

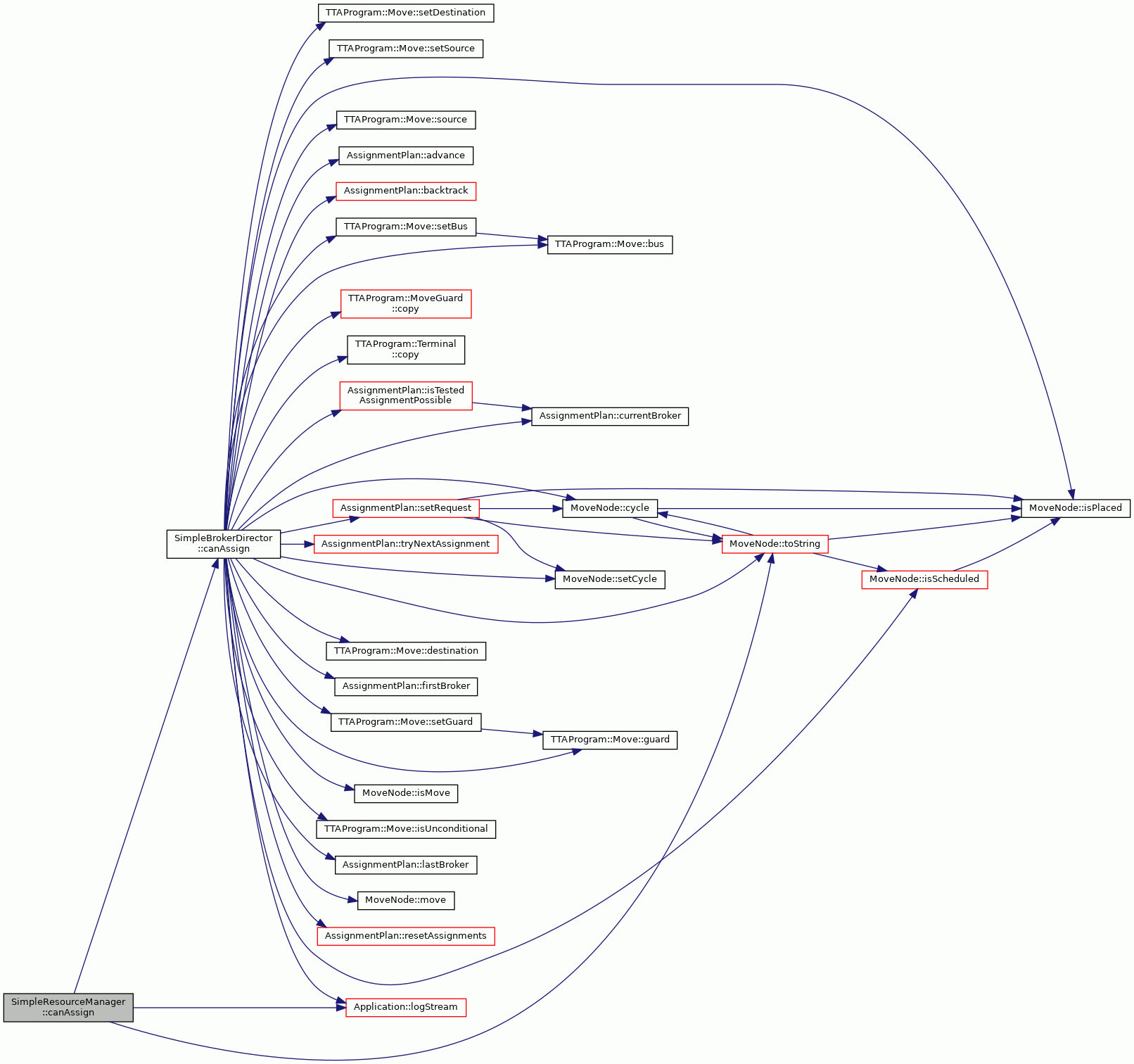

Here is the call graph for this function:

◆ canTransportImmediate()

bool SimpleResourceManager::canTransportImmediate	(	const MoveNode &	node,
		const TTAMachine::Bus *	preassignedBus = `NULL`
	)		const

virtual

Tests if immediate of MoveNode can be transported by any of buses of present machine.

Parameters

node	MoveNode that contains immediate that we test
bus	if non-null, only check immediate from that bus

Returns: true if the immediate in node can be transported by some bus

Definition at line 411 of file SimpleResourceManager.cc.

                                                                     {
    return director_->canTransportImmediate(node, preassignedBus);
}

References SimpleBrokerDirector::canTransportImmediate(), and director_.

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), OutputPSocketBroker::isAlreadyAssigned(), OutputPSocketBroker::isApplicable(), IUBroker::isApplicable(), SequentialScheduler::scheduleMove(), BUBasicBlockScheduler::scheduleMove(), and BasicBlockScheduler::scheduleMove().

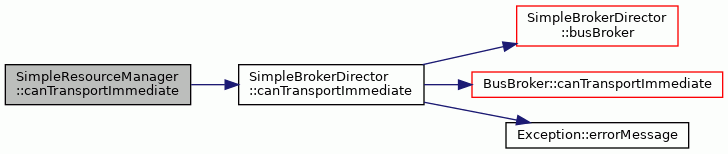

Here is the call graph for this function:

◆ clear()

void SimpleResourceManager::clear ( )

private

Clears all bookkeeping done by this RM. The RM can then be reused for different BB.

Clears a resource manager so that it can be reused for different BB.

After this call the state of the RM should be identical to a new RM.

Definition at line 619 of file SimpleResourceManager.cc.

                                  {
    director_->clearOldResources();
    buildDirector_.clear();
    director_->clear();
    setDDG(NULL);
    setCFG(NULL);
    setBBN(NULL);
}

References buildDirector_, ResourceBuildDirector::clear(), SimpleBrokerDirector::clear(), SimpleBrokerDirector::clearOldResources(), director_, setBBN(), setCFG(), and setDDG().

Referenced by disposeRM(), and BF2Scheduler::scheduleDDG().

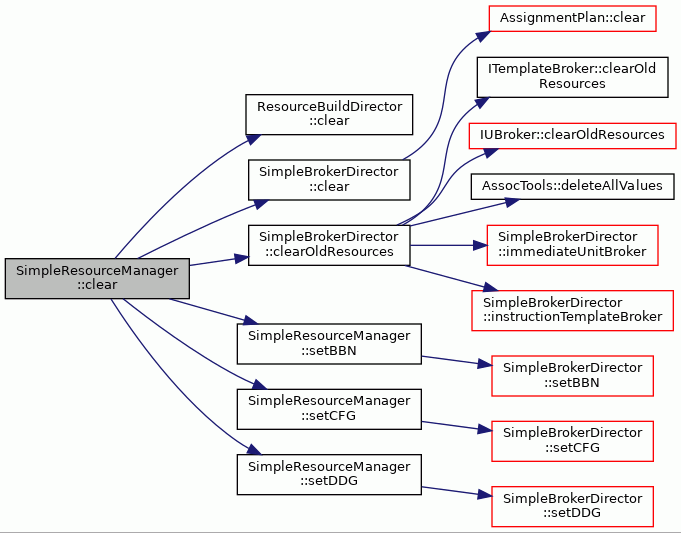

Here is the call graph for this function:

◆ clearOldResources()

void SimpleResourceManager::clearOldResources ( )

virtual

Clears bookkeeping which is needed for unassigning previously assigned moves. After this call these cannot be unassigned, but new moves which are assigned after this call can still be unassigned.

Definition at line 610 of file SimpleResourceManager.cc.

                                         {
    director_->clearOldResources();
}

References SimpleBrokerDirector::clearOldResources(), and director_.

Referenced by BBSchedulerController::executeDDGPass().

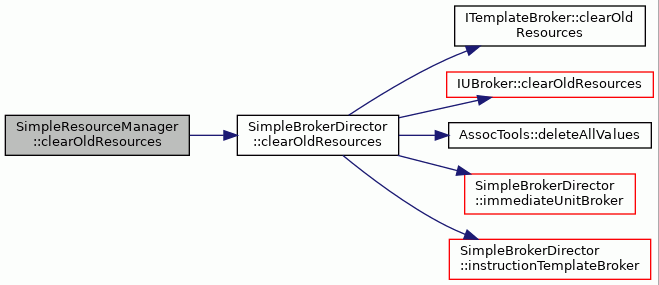

Here is the call graph for this function:

◆ createRM()

SimpleResourceManager * SimpleResourceManager::createRM	(	const TTAMachine::Machine &	machine,
		unsigned int	ii = `0`
	)

static

Factory method for creating resource managers.

Checks a RM pool if a recyclable RM is found for same machine with same II, if found gives that. If not found, creates a new RM.

Definition at line 73 of file SimpleResourceManager.cc.

                                                       {
    std::map<int, std::list< SimpleResourceManager*> >& pool =
        rmPool_[&machine];
    std::list<SimpleResourceManager*>& iipool = pool[ii];
    if (iipool.empty()) {
        return new SimpleResourceManager(machine,ii);
    } else {
        SimpleResourceManager* rm = iipool.back();
        iipool.pop_back();
        return rm;
    }
}

References ResourceManager::machine(), and rmPool_.

Referenced by BasicBlockPass::executeDDGPass(), BBSchedulerController::executeDDGPass(), and SequentialScheduler::handleBasicBlock().

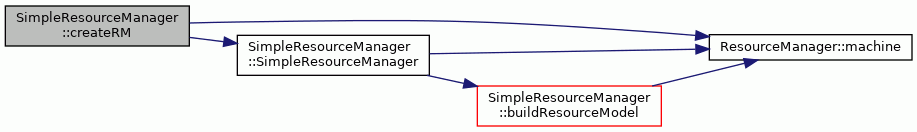

Here is the call graph for this function:

◆ disposeRM()

void SimpleResourceManager::disposeRM	(	SimpleResourceManager *	rm,
		bool	allowReuse = `true`
	)

static

Definition at line 92 of file SimpleResourceManager.cc.

                                                {
    if (rm == NULL) return;
    if (allowReuse) {
        std::map<int, std::list< SimpleResourceManager*> >& pool =
            rmPool_[&rm->machine()];
        pool[rm->initiationInterval()].push_back(rm);
        rm->clear();
    } else {
        delete rm;
        ExecutionPipelineResourceTable::finalize();
    }
}

References clear(), ExecutionPipelineResourceTable::finalize(), initiationInterval(), ResourceManager::machine(), and rmPool_.

Referenced by BasicBlockPass::executeDDGPass(), BBSchedulerController::executeDDGPass(), CopyingDelaySlotFiller::fillDelaySlots(), CopyingDelaySlotFiller::finishBB(), and SequentialScheduler::handleBasicBlock().

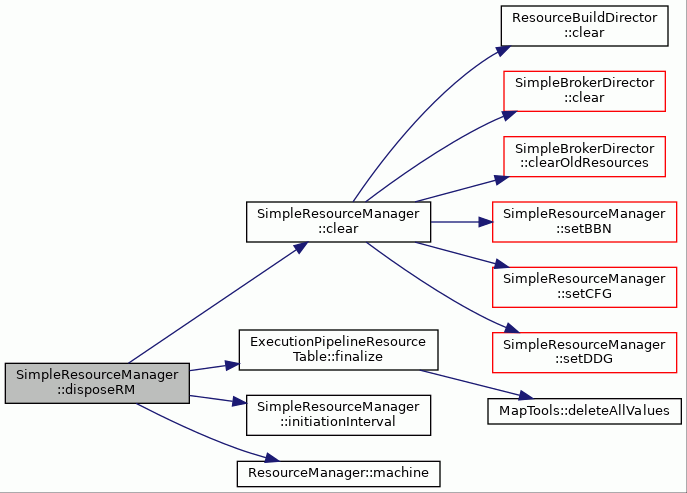

Here is the call graph for this function:

◆ earliestCycle() [1/2]

int SimpleResourceManager::earliestCycle	(	int	cycle,
		MoveNode &	node,
		const TTAMachine::Bus *	bus = `NULL`,
		const TTAMachine::FunctionUnit *	srcFU = `NULL`,
		const TTAMachine::FunctionUnit *	dstFU = `NULL`,
		int	immWriteCycle = `-1`,
		const TTAMachine::ImmediateUnit *	immu = `nullptr`,
		int	immRegIndex = `-1`
	)		const

overridevirtual

Return the earliest cycle starting from the given cycle in which required resources can be assigned to given node.

If the node is partially assigned, the manager keeps existing assignments. This means that a client can apply arbitrary constraints to resource allocation.

Parameters

cycle	Cycle to start from.
node	Node.
bus	if not null, bus that has to be used.
srcFU	if not null, srcFu that has to be used.
dstFU	if not null, dstFU that has to be used.
immWriteCycle	if not -1 and src is imm, write cycle of limm.

Returns: The earliest cycle starting from the given cycle in which required resources can be assigned to given node. Returns -1 if assignment is not possible.

Implements ResourceManager.

Definition at line 313 of file SimpleResourceManager.cc.

                                                            {

    int ec = director_->earliestCycle(
        cycle, node, bus, srcFU, dstFU, immWriteCycle, immu, immRegIndex);
#ifdef DEBUG_RM
    Application::logStream() << "\tEC: " << cycle << " " << node.toString()
                             << std::endl;
    Application::logStream() << "\t\tEC result is: " << ec << std::endl;
#endif
    return ec;
}

References director_, SimpleBrokerDirector::earliestCycle(), Application::logStream(), and MoveNode::toString().

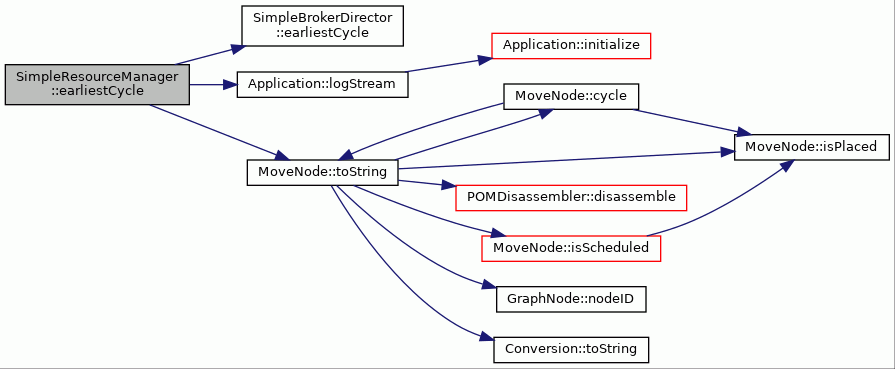

Here is the call graph for this function:

◆ earliestCycle() [2/2]

int SimpleResourceManager::earliestCycle	(	MoveNode &	node,
		const TTAMachine::Bus *	bus = `NULL`,
		const TTAMachine::FunctionUnit *	srcFU = `NULL`,
		const TTAMachine::FunctionUnit *	dstFU = `NULL`,
		int	immWriteCycle = `-1`,
		const TTAMachine::ImmediateUnit *	immu = `nullptr`,
		int	immRegIndex = `-1`
	)		const

overridevirtual

Return the earliest cycle in the scope where all required resources can be assigned to the given node.

If the node is partially assigned, the manager keeps existing assignments. This means that a client can apply arbitrary constraints to resource allocation.

Parameters

node	Node.
bus	if not null, bus that has to be used.
srcFU	if not null, srcFu that has to be used.
dstFU	if not null, dstFU that has to be used.
immWriteCycle	if not -1 and src is imm, write cycle of limm.

Returns: The earliest cycle in the scope where all required resources can be assigned to the given node. -1 if assignment is not possible

Implements ResourceManager.

Definition at line 278 of file SimpleResourceManager.cc.

                                                            {
    int ec =  director_->earliestCycle(
        node, bus, srcFU, dstFU, immWriteCycle, immu, immRegIndex);
#ifdef DEBUG_RM
    Application::logStream() << "\tEC:" << node.toString() << std::endl;
    Application::logStream() << "\t\tEC result is: " << ec << std::endl;
#endif
    return ec;
}

References director_, SimpleBrokerDirector::earliestCycle(), Application::logStream(), and MoveNode::toString().

Referenced by BFOptimization::rmEC(), SequentialScheduler::scheduleMove(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), and BasicBlockScheduler::scheduleOperandWrites().

Here is the call graph for this function:

◆ hasGuard()

bool SimpleResourceManager::hasGuard ( const MoveNode & node ) const

virtual

Tests if any of a buses of machine supports guard needed by a node. Should always return true! Otherwise, scheduler generated code for different machine.

Parameters

node	MoveNode to test

Returns: true if any of buses supports guard needed by node, or if move is not conditional.

Definition at line 426 of file SimpleResourceManager.cc.

                                                          {
    return director_->hasGuard(node);
}

References director_, and SimpleBrokerDirector::hasGuard().

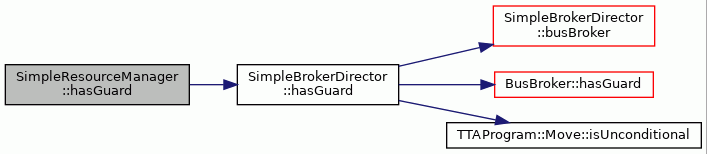

Here is the call graph for this function:

◆ immediateValue()

std::shared_ptr< TTAProgram::TerminalImmediate > SimpleResourceManager::immediateValue ( const MoveNode & node )

virtual

Finds the original terminal with value of immediate.

Parameters

node	node with immediate register source

Returns: terminal with immediate value

Definition at line 509 of file SimpleResourceManager.cc.

                                                          {
    return director_->immediateValue(node);
}

References director_, and SimpleBrokerDirector::immediateValue().

Referenced by ITemplateBroker::assign().

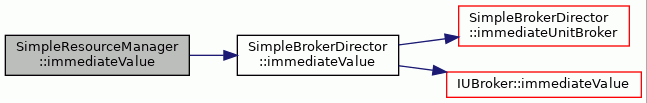

Here is the call graph for this function:

◆ immediateWriteCycle()

int SimpleResourceManager::immediateWriteCycle ( const MoveNode & node ) const

virtual

Finds cycle in which the immediate that is read by node is written.

Parameters

node	with source immediate register

Returns: cycle in which immediate is written to register

Definition at line 520 of file SimpleResourceManager.cc.

                                                                     {
    return director_->immediateWriteCycle(node);
}

References director_, and SimpleBrokerDirector::immediateWriteCycle().

Referenced by ITemplateBroker::assign(), BFShareOperandLate::operator()(), BFShareOperandWithScheduled::operator()(), BFUnscheduleFromBody::unscheduleOriginal(), and BFUnscheduleMove::unscheduleOriginal().

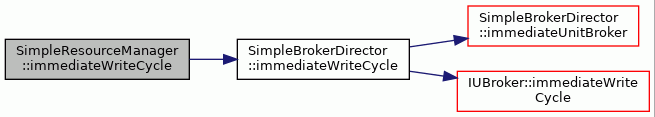

Here is the call graph for this function:

◆ initiationInterval()

virtual unsigned SimpleResourceManager::initiationInterval ( ) const

inlinevirtual

Definition at line 135 of file SimpleResourceManager.hh.

135{return initiationInterval_;}

References initiationInterval_.

Referenced by LoopPrologAndEpilogBuilder::addPrologFromRM(), LoopPrologAndEpilogBuilder::build(), BasicBlockPass::copyRMToBB(), disposeRM(), BUBasicBlockScheduler::findBypassDestinations(), BF2Scheduler::handleLoopDDG(), BF2Scheduler::handleLoopDDG(), BasicBlockScheduler::handleLoopDDG(), BUBasicBlockScheduler::handleLoopDDG(), BFSchedulePreLoopShared::operator()(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleOperandWrites(), BUBasicBlockScheduler::scheduleOperandWrites(), BasicBlockScheduler::scheduleOperation(), BUBasicBlockScheduler::scheduleOperation(), BasicBlockScheduler::tryToSwitchInputs(), and BUBasicBlockScheduler::tryToSwitchInputs().

◆ instruction()

TTAProgram::Instruction * SimpleResourceManager::instruction ( int cycle ) const

overridevirtual

Returns instruction that holds a moves for given cycle and has correct template set.

The instruction ownedship stays in the resource manager until loseInstructionOwnership() is called.

Parameters

cycle Cycle for which to get instruction

Returns: the Instruction with moves and template assigned

Note: This method should be called when whole scope is scheduled

Implements ResourceManager.

Definition at line 442 of file SimpleResourceManager.cc.

                                                  {
    return director_->instruction(cycle);
}

References director_, and SimpleBrokerDirector::instruction().

Referenced by LoopPrologAndEpilogBuilder::addEpilogFromRM(), ResourceConstraintAnalyzer::analyzeMoveNode(), BFOptimization::assignCopyToPrologEpilog(), LoopPrologAndEpilogBuilder::build(), BasicBlockPass::copyRMToBB(), BasicBlockScheduler::handleRemovedResultMoves(), BFShareOperandsLate::operator()(), BFUnscheduleFromBody::returnOriginal(), BFUnscheduleMove::returnOriginal(), and BFShareOperandLate::revert().

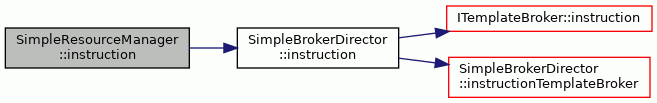

Here is the call graph for this function:

◆ instructionIndex()

unsigned int SimpleResourceManager::instructionIndex ( unsigned int cycle ) const

Return the instruction index corresponding to cycle.

If modulo scheduling is not used (ie. initiation interval is 0), then index is equal to cycle.

Parameters

cycle Cycle to get instruction index.

Returns: Return the instruction index for cycle.

Definition at line 534 of file SimpleResourceManager.cc.

                                                                {
    if (initiationInterval_ != 0) {
        return cycle % initiationInterval_;
    } else {
        return cycle;
    }
}

References initiationInterval_.

Referenced by BFShareOperandsLate::operator()().

◆ isTemplateAvailable()

bool SimpleResourceManager::isTemplateAvailable	(	int	defCycle,
		std::shared_ptr< TTAProgram::Immediate >	immediate
	)		const

virtual

Definition at line 543 of file SimpleResourceManager.cc.

                                                        {

    return director_->isTemplateAvailable(defCycle, immediate);
}

References director_, and SimpleBrokerDirector::isTemplateAvailable().

Referenced by IUBroker::allAvailableResources(), and IUBroker::assign().

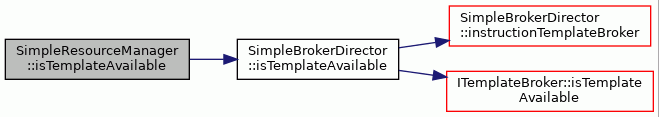

Here is the call graph for this function:

◆ largestCycle()

int SimpleResourceManager::largestCycle ( ) const

overridevirtual

Returns largest cycle known to be used by any of the resources.

Returns: Largest cycle resource manager assigned any resource to.

Implements ResourceManager.

Definition at line 463 of file SimpleResourceManager.cc.

                                         {
#ifdef DEBUG_RM
    Application::logStream() << "\tLargestC." << std::endl;
    int lc = director_->largestCycle();
    Application::logStream() << "\tLargestC got: " << lc << std::endl;
    return lc;
#else
    return director_->largestCycle();
#endif
}

References director_, SimpleBrokerDirector::largestCycle(), and Application::logStream().

Referenced by LoopPrologAndEpilogBuilder::addEpilogFromRM(), BFOptimization::assignCopyToPrologEpilog(), BasicBlockPass::copyRMToBB(), BF2Scheduler::handleDDG(), BUBasicBlockScheduler::handleDDG(), DDGPass::handleDDG(), BasicBlockScheduler::handleDDG(), SequentialScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), and BasicBlockScheduler::scheduleOperation().

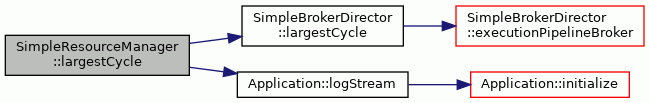

Here is the call graph for this function:

◆ latestCycle() [1/2]

int SimpleResourceManager::latestCycle	(	int	cycle,
		MoveNode &	node,
		const TTAMachine::Bus *	bus = `NULL`,
		const TTAMachine::FunctionUnit *	srcFU = `NULL`,
		const TTAMachine::FunctionUnit *	dstFU = `NULL`,
		int	immWriteCycle = `-1`,
		const TTAMachine::ImmediateUnit *	immu = `nullptr`,
		int	immRegIndex = `-1`
	)		const

overridevirtual

Return the latest cycle starting from the given cycle in which required resources can be assigned to given node.

If the node is partially assigned, the manager keeps existing assignments. This means that a client can apply arbitrary constraints to resource allocation.

Parameters

cycle	Cycle to start from.
node	Node.
bus	if not null, bus that has to be used.
srcFU	if not null, srcFu that has to be used.
dstFU	if not null, dstFU that has to be used.
immWriteCycle	if not -1 and src is imm, write cycle of limm.

Returns: The latest cycle starting from the given cycle in which required resources can be assigned to given node. -1 if assignment is not possible.

Implements ResourceManager.

Definition at line 384 of file SimpleResourceManager.cc.

                                                          {
    int lc = director_->latestCycle(
        cycle, node, bus, srcFU, dstFU, immWriteCycle, immu, immRegIndex);
#ifdef DEBUG_RM
    Application::logStream() << "\tLC: " << cycle << " " << node.toString()
        << std::endl;
    Application::logStream() << "\t\tLC result is: " << lc << std::endl;
#endif
    return lc;
}

References director_, SimpleBrokerDirector::latestCycle(), Application::logStream(), and MoveNode::toString().

Here is the call graph for this function:

◆ latestCycle() [2/2]

int SimpleResourceManager::latestCycle	(	MoveNode &	node,
		const TTAMachine::Bus *	bus = `NULL`,
		const TTAMachine::FunctionUnit *	srcFU = `NULL`,
		const TTAMachine::FunctionUnit *	dstFU = `NULL`,
		int	immWriteCycle = `-1`,
		const TTAMachine::ImmediateUnit *	immu = `nullptr`,
		int	immRegIndex = `-1`
	)		const

overridevirtual

Return the latest cycle in the scope where all required resources can be assigned to the given node.

If the node is partially assigned, the manager keeps existing assignments. This means that a client can apply arbitrary constraints to resource allocation.

Parameters

node	Node.
bus	if not null, bus that has to be used.
srcFU	if not null, srcFu that has to be used.
dstFU	if not null, dstFU that has to be used.
immWriteCycle	if not -1 and src is imm, write cycle of limm.

Returns: The latest cycle in the scope where all required resources can be assigned to the given node. -1 if assignment is not possible. INT_MAX if there is no upper boundary for assignment.

Implements ResourceManager.

Definition at line 349 of file SimpleResourceManager.cc.

                                                          {
    int lc = director_->latestCycle(
        node, bus, srcFU, dstFU, immWriteCycle, immu, immRegIndex);
#ifdef DEBUG_RM
    Application::logStream() << "\tLC: " << node.toString() << std::endl;
    Application::logStream() << "\t\tLC result is: " << lc << std::endl;
#endif
    return lc;
}

References director_, SimpleBrokerDirector::latestCycle(), Application::logStream(), and MoveNode::toString().

Referenced by BFSchedulePreLoopShared::operator()(), BFRemoveGuardsFromSuccs::operator()(), BFOptimization::rmLC(), BUBasicBlockScheduler::scheduleMove(), BUBasicBlockScheduler::scheduleOperandWrites(), and BasicBlockScheduler::tryToDelayOperands().

Here is the call graph for this function:

◆ loseInstructionOwnership()

void SimpleResourceManager::loseInstructionOwnership ( int cycle )

virtual

Transfer the instruction ownership away from this object,

If this method is called, resource manager does not delete it's instructions when it it destroyed.

Definition at line 498 of file SimpleResourceManager.cc.

                                                         {
    director_->loseInstructionOwnership(cycle);
}

References director_, and SimpleBrokerDirector::loseInstructionOwnership().

Referenced by LoopPrologAndEpilogBuilder::addEpilogFromRM(), and BasicBlockPass::copyRMToBB().

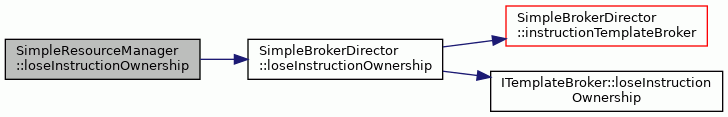

Here is the call graph for this function:

◆ maxCycle()

int SimpleResourceManager::maxCycle ( )

inline

Definition at line 142 of file SimpleResourceManager.hh.

142{ return maxCycle_; }

References maxCycle_.

Referenced by setMaxCycle().

◆ print()

void SimpleResourceManager::print ( std::ostream & target ) const

virtual

Print the contents of resource manager.

Parameters

stream target stream where to print

Definition at line 566 of file SimpleResourceManager.cc.

                                                     {
    if (initiationInterval_ == 0) {
        buildDirector_.print(target, 10);
    } else {
        buildDirector_.print(target, initiationInterval_);
    }

}

References buildDirector_, initiationInterval_, and ResourceBuildDirector::print().

Here is the call graph for this function:

◆ resourceCount()

unsigned int SimpleResourceManager::resourceCount ( ) const

virtual

Return the total number of resources.

Returns: Return the total number of resources.

Definition at line 556 of file SimpleResourceManager.cc.

                                           {
    return resources;
}

References resources.

◆ setBBN()

void SimpleResourceManager::setBBN ( const BasicBlockNode * bbn )

Definition at line 639 of file SimpleResourceManager.cc.

                                                       {
    director_->setBBN(bbn);
}

References director_, and SimpleBrokerDirector::setBBN().

Referenced by clear(), and BBSchedulerController::executeDDGPass().

Here is the call graph for this function:

◆ setCFG()

void SimpleResourceManager::setCFG ( const ControlFlowGraph * cfg )

Definition at line 634 of file SimpleResourceManager.cc.

                                                         {
    director_->setCFG(cfg);
}

References director_, and SimpleBrokerDirector::setCFG().

Referenced by clear(), and BBSchedulerController::executeDDGPass().

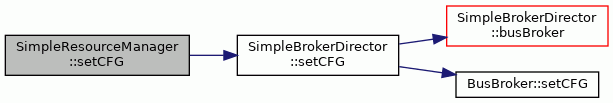

Here is the call graph for this function:

◆ setDDG()

void SimpleResourceManager::setDDG ( const DataDependenceGraph * ddg )

Definition at line 629 of file SimpleResourceManager.cc.

                                                            {
    director_->setDDG(ddg);
}

References director_, and SimpleBrokerDirector::setDDG().

Referenced by clear(), BBSchedulerController::executeDDGPass(), and BF2Scheduler::handleLoopDDG().

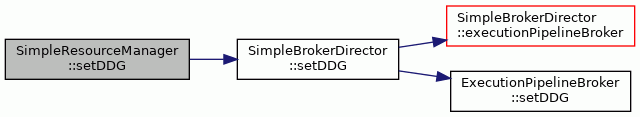

Here is the call graph for this function:

◆ setMaxCycle()

void SimpleResourceManager::setMaxCycle ( unsigned int maxCycle )

Definition at line 647 of file SimpleResourceManager.cc.

                                                             {
    director_->setMaxCycle(maxCycle);
    maxCycle_ = maxCycle;
}

References director_, maxCycle(), maxCycle_, and SimpleBrokerDirector::setMaxCycle().

Referenced by CopyingDelaySlotFiller::addResourceManager(), BUBasicBlockScheduler::handleDDG(), BF2Scheduler::handleLoopDDG(), and BF2Scheduler::scheduleDDG().

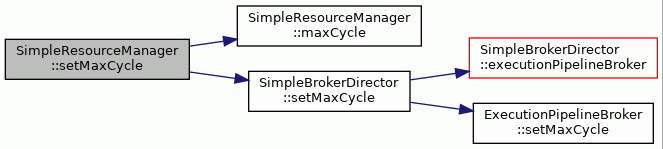

Here is the call graph for this function:

◆ smallestCycle()

int SimpleResourceManager::smallestCycle ( ) const

overridevirtual

Returns smallest cycle known to be used by any of the resources.

Returns: Smallest cycle resource manager assigned any resource to.

Implements ResourceManager.

Definition at line 480 of file SimpleResourceManager.cc.

                                          {
#ifdef DEBUG_RM
    Application::logStream() << "\tSC." << std::endl;
    int sc = director_->smallestCycle();
    Application::logStream() << "\tSC got: " << sc << std::endl;
    return sc;
#else
    return director_->smallestCycle();
#endif
}

References director_, Application::logStream(), and SimpleBrokerDirector::smallestCycle().

Referenced by LoopPrologAndEpilogBuilder::addPrologFromRM(), BFOptimization::assignCopyToPrologEpilog(), LoopPrologAndEpilogBuilder::build(), CopyingDelaySlotFiller::collectMoves(), BasicBlockPass::copyRMToBB(), BasicBlockPass::executeDDGPass(), CopyingDelaySlotFiller::fillDelaySlots(), BF2Scheduler::handleDDG(), BUBasicBlockScheduler::handleDDG(), BF2Scheduler::handleLoopDDG(), BUBasicBlockScheduler::handleLoopDDG(), BF2ScheduleFront::scheduleFrontFromMove(), BUBasicBlockScheduler::scheduleOperation(), and CopyingDelaySlotFiller::tryToFillSlots().

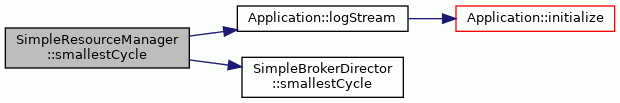

Here is the call graph for this function:

◆ supportsExternalAssignments()

bool SimpleResourceManager::supportsExternalAssignments ( ) const

overridevirtual

Defines if Resource Manager implementation supports node with resources pre assigned by clients.

Returns: For SimpleResourceManager allways false.

Implements ResourceManager.

Definition at line 453 of file SimpleResourceManager.cc.

                                                         {
    return director_->supportsExternalAssignments();
}

References director_, and SimpleBrokerDirector::supportsExternalAssignments().

Here is the call graph for this function:

◆ toString()

std::string SimpleResourceManager::toString ( ) const

virtual

Print the contents of resource manager.

Returns: Return string containing the resource table.

Definition at line 582 of file SimpleResourceManager.cc.

                                      {

    std::stringstream temp;

    if (initiationInterval_ == 0) {
        buildDirector_.print(temp, 10);
    } else {
        buildDirector_.print(temp, initiationInterval_);
    }

    std::string target = "";
    std::string result = "";

    while (getline(temp, target)) {
        // read temp to target
        target += "\n";
        result += target;
    };

    return result;
}

References buildDirector_, initiationInterval_, and ResourceBuildDirector::print().

Here is the call graph for this function:

◆ unassign()

void SimpleResourceManager::unassign ( MoveNode & node )

overridevirtual

Free all resource assignments of the given node.

If the node is only partially assigned, the resource manager ignores those parts of the node that are already unassigned.

Parameters

node	Node to unassign.

Exceptions

InvalidData If the given node is not placed in any cycle. Assigned but not placed nodes are not considered by the resource manager.

Implements ResourceManager.

Definition at line 252 of file SimpleResourceManager.cc.

{
#ifdef DEBUG_RM
    Application::logStream() << "\tUnAssign: " << node.toString() << std::endl;
#endif
    director_->unassign(node);
}

References director_, Application::logStream(), MoveNode::toString(), and SimpleBrokerDirector::unassign().

Referenced by BFOptimization::canAssign(), BFOptimization::rmEC(), BFOptimization::rmLC(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::tryToDelayOperands(), BFOptimization::unassign(), BFOptimization::unassignCopyFromPrologEpilog(), CopyingDelaySlotFiller::unassignTempAssigns(), BFDRELoop::undoOnlyMe(), BFSchedulePreLoopShared::undoOnlyMe(), BFAssignToBody::undoOnlyMe(), BFPostpassLoopDRE::undoOnlyMe(), BasicBlockScheduler::unschedule(), SequentialScheduler::unschedule(), and BFUnscheduleFromBody::unscheduleOriginal().

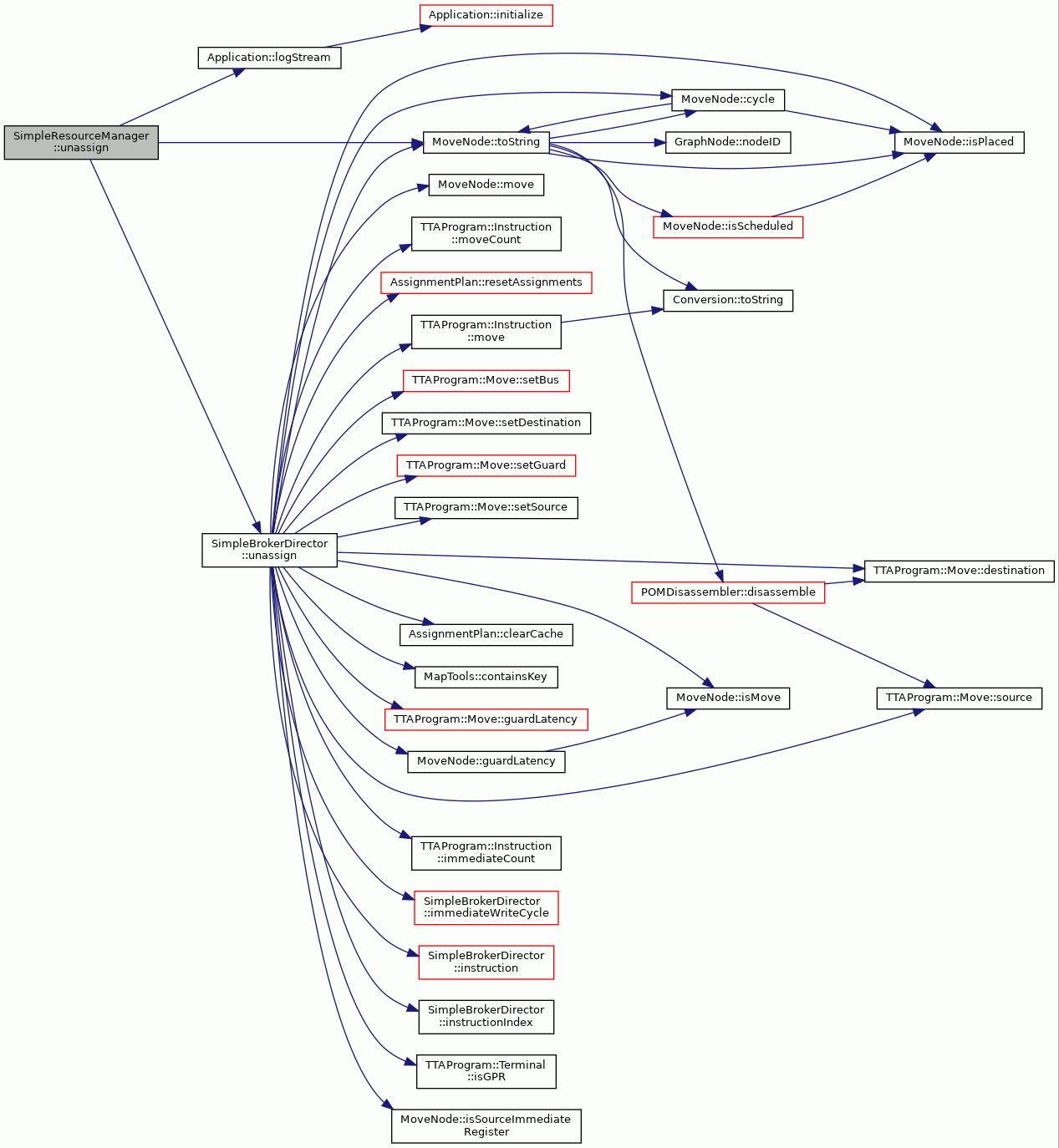

Here is the call graph for this function:

Member Data Documentation

◆ buildDirector_

ResourceBuildDirector SimpleResourceManager::buildDirector_

private

Resource build director.

Definition at line 160 of file SimpleResourceManager.hh.

Referenced by buildResourceModel(), clear(), print(), and toString().

◆ director_

SimpleBrokerDirector* SimpleResourceManager::director_

private

Resource manager's broker director.

Definition at line 156 of file SimpleResourceManager.hh.

Referenced by assign(), buildResourceModel(), canAssign(), canTransportImmediate(), clear(), clearOldResources(), earliestCycle(), earliestCycle(), hasGuard(), immediateValue(), immediateWriteCycle(), instruction(), isTemplateAvailable(), largestCycle(), latestCycle(), latestCycle(), loseInstructionOwnership(), setBBN(), setCFG(), setDDG(), setMaxCycle(), smallestCycle(), supportsExternalAssignments(), unassign(), and ~SimpleResourceManager().

◆ initiationInterval_

unsigned int SimpleResourceManager::initiationInterval_

private

Definition at line 162 of file SimpleResourceManager.hh.

Referenced by buildResourceModel(), initiationInterval(), instructionIndex(), print(), and toString().

◆ maxCycle_

unsigned int SimpleResourceManager::maxCycle_

private

Definition at line 163 of file SimpleResourceManager.hh.

Referenced by maxCycle(), and setMaxCycle().

◆ plan_

AssignmentPlan SimpleResourceManager::plan_

private

Resource assignment plan.

Definition at line 158 of file SimpleResourceManager.hh.

Referenced by buildResourceModel().

◆ resources

unsigned int SimpleResourceManager::resources

private

Definition at line 165 of file SimpleResourceManager.hh.

Referenced by buildResourceModel(), and resourceCount().

◆ rmPool_

std::map< const TTAMachine::Machine *, std::map< int, std::list< SimpleResourceManager * > > > SimpleResourceManager::rmPool_

staticprivate

Definition at line 169 of file SimpleResourceManager.hh.

Referenced by createRM(), and disposeRM().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SimpleResourceManager()

◆ ~SimpleResourceManager()

Member Function Documentation

◆ assign()

◆ buildResourceModel()

◆ canAssign()

◆ canTransportImmediate()

◆ clear()

◆ clearOldResources()

◆ createRM()

◆ disposeRM()

◆ earliestCycle() [1/2]

◆ earliestCycle() [2/2]

◆ hasGuard()

◆ immediateValue()

◆ immediateWriteCycle()

◆ initiationInterval()

◆ instruction()

◆ instructionIndex()

◆ isTemplateAvailable()

◆ largestCycle()

◆ latestCycle() [1/2]

◆ latestCycle() [2/2]

◆ loseInstructionOwnership()

◆ maxCycle()

◆ print()

◆ resourceCount()

◆ setBBN()

◆ setCFG()

◆ setDDG()

◆ setMaxCycle()

◆ smallestCycle()

◆ supportsExternalAssignments()

◆ toString()

◆ unassign()

Member Data Documentation

◆ buildDirector_

◆ director_

◆ initiationInterval_

◆ maxCycle_

◆ plan_

◆ resources

◆ rmPool_
