ImmediateGenerator Class Reference

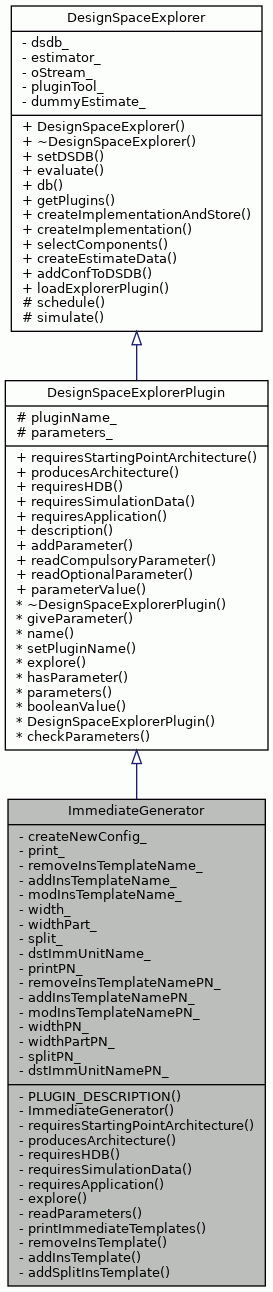

Inheritance diagram for ImmediateGenerator:

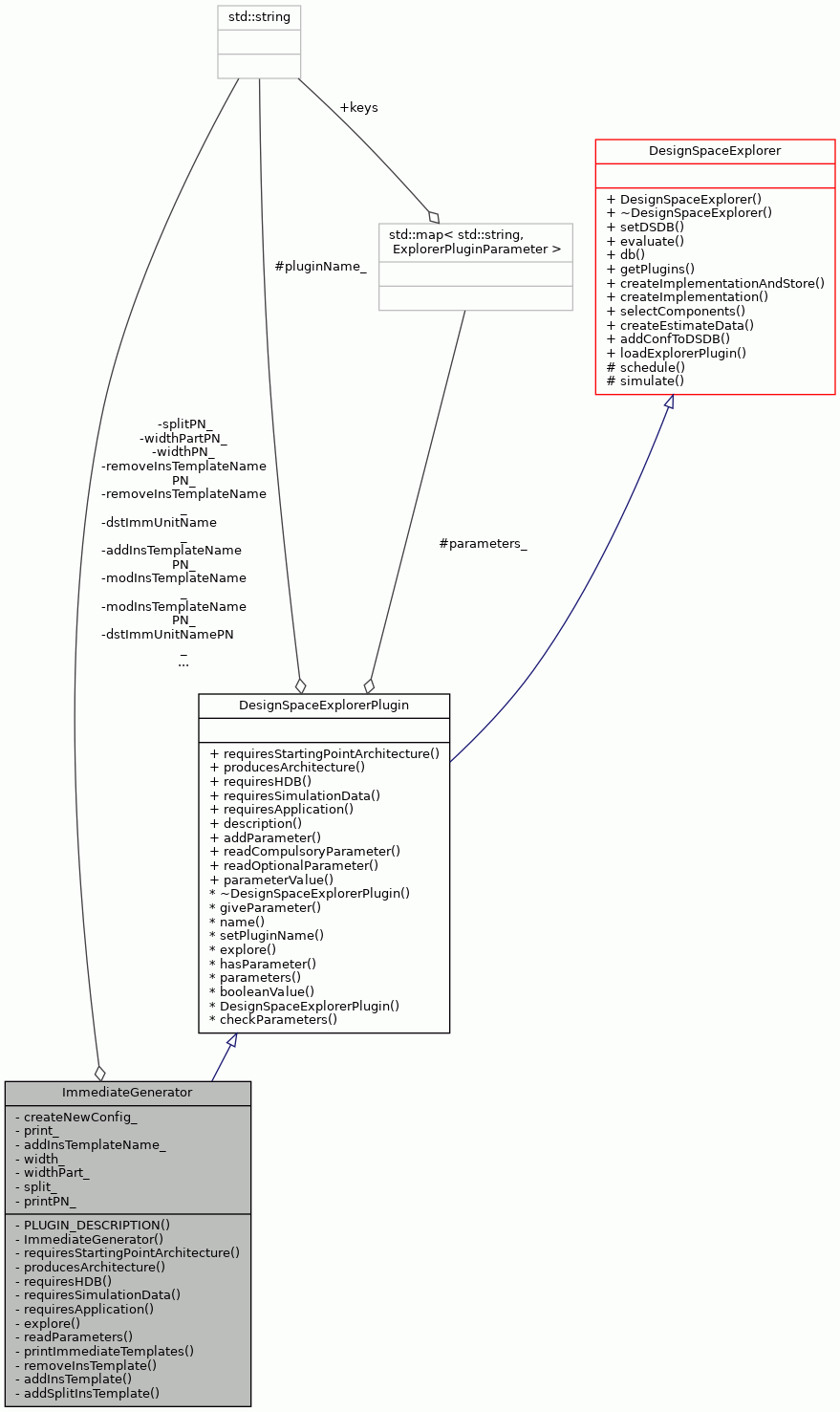

Collaboration diagram for ImmediateGenerator:

Private Member Functions
	PLUGIN_DESCRIPTION ("Creates immediates for configuration.")
	ImmediateGenerator ()
virtual bool	requiresStartingPointArchitecture () const
virtual bool	producesArchitecture () const
virtual bool	requiresHDB () const
virtual bool	requiresSimulationData () const
virtual bool	requiresApplication () const
virtual std::vector< RowID >	explore (const RowID &startPointConfigurationID, const unsigned int &)
void	readParameters ()
void	printImmediateTemplates (TTAMachine::Machine &mach)
void	removeInsTemplate (TTAMachine::Machine &mach, std::string name)
void	addInsTemplate (TTAMachine::Machine &mach, std::string name)
void	addSplitInsTemplate (TTAMachine::Machine &mach, std::string name)

Private Attributes
bool	createNewConfig_
	Boolean value used to decide if new config is created.
bool	print_
	print values
std::string	removeInsTemplateName_
	instruction template name to be removed.
std::string	addInsTemplateName_
	instruction template name to be added.
std::string	modInsTemplateName_
	instruction template name to be modified.
unsigned int	width_
	width of the target template
unsigned int	widthPart_
	minimum width on long instruction slot when splitting the template.
bool	split_
	make evenly bus/slot wise splitted template.
std::string	dstImmUnitName_
	destination immediate unit name

Static Private Attributes
static const std::string	printPN_
static const std::string	removeInsTemplateNamePN_
static const std::string	addInsTemplateNamePN_
static const std::string	modInsTemplateNamePN_
static const std::string	widthPN_
static const std::string	widthPartPN_
static const std::string	splitPN_
static const std::string	dstImmUnitNamePN_

Additional Inherited Members
Public Types inherited from DesignSpaceExplorerPlugin
typedef std::pair< std::string, ExplorerPluginParameter >	Parameter
typedef std::map< std::string, ExplorerPluginParameter >	ParameterMap
typedef std::map< std::string, ExplorerPluginParameter >::iterator	PMIt
typedef std::map< std::string, ExplorerPluginParameter >::const_iterator	PMCIt
Public Member Functions inherited from DesignSpaceExplorerPlugin
virtual std::string	description () const
void	addParameter (TCEString name, ExplorerPluginParameterType type, bool compulsory=true, TCEString defaultValue="", TCEString description="")
template<typename T >
void	readCompulsoryParameter (const std::string paramName, T &param) const
template<typename T >
void	readOptionalParameter (const std::string paramName, T &param) const
template<typename RT >
RT	parameterValue (const std::string &paramName) const
virtual	~DesignSpaceExplorerPlugin ()
virtual void	giveParameter (const std::string &name, const std::string &value)
virtual std::string	name () const
virtual void	setPluginName (const std::string &pluginName)
virtual bool	hasParameter (const std::string &paramName) const
ParameterMap	parameters () const
virtual bool	booleanValue (const std::string &parameter) const
Public Member Functions inherited from DesignSpaceExplorer
	DesignSpaceExplorer ()
virtual	~DesignSpaceExplorer ()
virtual void	setDSDB (DSDBManager &dsdb)
virtual bool	evaluate (const DSDBManager::MachineConfiguration &configuration, CostEstimates &results=dummyEstimate_, bool estimate=false)
virtual DSDBManager &	db ()
std::vector< DesignSpaceExplorerPlugin * >	getPlugins ()
RowID	createImplementationAndStore (const DSDBManager::MachineConfiguration &conf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")
bool	createImplementation (const DSDBManager::MachineConfiguration &conf, DSDBManager::MachineConfiguration &newConf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")
IDF::MachineImplementation *	selectComponents (const TTAMachine::Machine &mach, const double &frequency=0.0, const double &maxArea=0.0, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb") const
void	createEstimateData (const TTAMachine::Machine &mach, const IDF::MachineImplementation &idf, CostEstimator::AreaInGates &area, CostEstimator::DelayInNanoSeconds &longestPathDelay)
RowID	addConfToDSDB (const DSDBManager::MachineConfiguration &conf)
Static Public Member Functions inherited from DesignSpaceExplorer
static DesignSpaceExplorerPlugin *	loadExplorerPlugin (const std::string &pluginName, DSDBManager *dsdb=NULL)
Protected Member Functions inherited from DesignSpaceExplorerPlugin
	DesignSpaceExplorerPlugin ()
void	checkParameters () const
Protected Member Functions inherited from DesignSpaceExplorer
TTAProgram::Program *	schedule (const std::string applicationFile, TTAMachine::Machine &machine, TCEString paramOptions="-O3")
const ExecutionTrace *	simulate (const TTAProgram::Program &program, const TTAMachine::Machine &machine, const TestApplication &testApplication, const ClockCycleCount &maxCycles, ClockCycleCount &runnedCycles, const bool tracing, const bool useCompiledSimulation=false, std::vector< ClockCycleCount > *executionCounts=NULL)
Protected Attributes inherited from DesignSpaceExplorerPlugin
std::string	pluginName_
	the name of the explorer plugin
ParameterMap	parameters_
	Parameters for the plugin.

Detailed Description

Explorer plugin that creates or modifies machine instruction template by adding/removing immediates.

Definition at line 69 of file ImmediateGenerator.cc.

Constructor & Destructor Documentation

ImmediateGenerator()

ImmediateGenerator::ImmediateGenerator ( )

inlineprivate

Definition at line 72 of file ImmediateGenerator.cc.

                        : DesignSpaceExplorerPlugin(),
        createNewConfig_(false),
        print_(false),
        removeInsTemplateName_(""),
        addInsTemplateName_(""),
        modInsTemplateName_(""),
        width_(32),
        widthPart_(8),
        split_(false),
        dstImmUnitName_("") {

        // compulsory parameters
        // no compulsory parameters

        // parameters that have a default value
        addParameter(printPN_, BOOL, false, Conversion::toString(print_));
        addParameter(removeInsTemplateNamePN_, STRING, false, removeInsTemplateName_);
        addParameter(addInsTemplateNamePN_, STRING, false, addInsTemplateName_);
        addParameter(modInsTemplateNamePN_, STRING, false, modInsTemplateName_);
        addParameter(widthPN_, UINT, false, Conversion::toString(width_));
        addParameter(widthPartPN_, UINT, false, Conversion::toString(widthPart_));
        addParameter(splitPN_, BOOL, false, Conversion::toString(split_));
        addParameter(dstImmUnitNamePN_, STRING, false, dstImmUnitName_);
    }

References addInsTemplateName_, addInsTemplateNamePN_, DesignSpaceExplorerPlugin::addParameter(), BOOL, dstImmUnitName_, dstImmUnitNamePN_, modInsTemplateName_, modInsTemplateNamePN_, print_, printPN_, removeInsTemplateName_, removeInsTemplateNamePN_, split_, splitPN_, STRING, Conversion::toString(), UINT, width_, widthPart_, widthPartPN_, and widthPN_.

Here is the call graph for this function:

Member Function Documentation

addInsTemplate()

void ImmediateGenerator::addInsTemplate ( TTAMachine::Machine &  mach, std::string  name  )

inlineprivate

Adds instruction template with a name given as parameter.

Parameters

mach	Target machine.
name	Instruction template name to be added.

Definition at line 320 of file ImmediateGenerator.cc.

                                                                 {
        TTAMachine::InstructionTemplate* insTemplate = NULL;

        try {
            insTemplate = new InstructionTemplate(name, mach);
        } catch (ComponentAlreadyExists& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error while using ImmediateGenerator:" << endl
                << e.errorMessage() << endl;
            verboseLog(msg.str());
            delete insTemplate;
            return;
        } catch (InvalidName& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error while using ImmediateGenerator:" << endl
                << e.errorMessage() << endl;
            verboseLog(msg.str());
            delete insTemplate;
            return;
        }
        createNewConfig_ = true;
    }

References createNewConfig_, Exception::errorMessage(), DesignSpaceExplorerPlugin::name(), and verboseLog.

Referenced by explore().

Here is the call graph for this function:

addSplitInsTemplate()

void ImmediateGenerator::addSplitInsTemplate ( TTAMachine::Machine &  mach, std::string  name  )

inlineprivate

Adds instruction template with a name given as parameter and add bus wise splitted slots to the template.

Parameters

mach	Target machine.
name	Instruction template name to be added.

Definition at line 350 of file ImmediateGenerator.cc.

                                                                      {
        TTAMachine::InstructionTemplate* insTemplate = NULL;

        // find target immediate unit for the instruction template slots
        Machine::ImmediateUnitNavigator IUNav =
            mach.immediateUnitNavigator();

        TTAMachine::ImmediateUnit* immUnit = NULL;
        TTAMachine::ImmediateUnit* dstImmUnit = NULL;
        if (dstImmUnitName_.empty()) {
            // if no destination immediate unit specified take one if exists
            if (IUNav.count() > 0) {
                dstImmUnit = IUNav.item(0);
            } else {
                std::ostringstream msg(std::ostringstream::out);
                msg << "Error while using ImmediateGenerator:" << endl
                    << "No immediate units." << endl;
                verboseLog(msg.str());
                return;
            }
        } else {
            for (int iu = 0; iu < IUNav.count(); iu++) {
                immUnit = IUNav.item(iu);
                if (immUnit->name() == dstImmUnitName_) {
                    dstImmUnit = immUnit;
                }
            }
            if (dstImmUnit == NULL) {
                std::ostringstream msg(std::ostringstream::out);
                msg << "Error while using ImmediateGenerator:" << endl
                    << "Given destination immediate unit \""
                    << dstImmUnitName_ << "\" was not found." << endl;
                verboseLog(msg.str());
                return;
            }
        }

        // add instruction template
        try {
            insTemplate = new InstructionTemplate(name, mach);
        } catch (ComponentAlreadyExists& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error while using ImmediateGenerator:" << endl
                << e.errorMessage() << endl;
            verboseLog(msg.str());
            delete insTemplate;
            insTemplate = NULL;
            return;
        } catch (InvalidName& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error while using ImmediateGenerator:" << endl
                << e.errorMessage() << endl;
            verboseLog(msg.str());
            delete insTemplate;
            insTemplate = NULL;
            return;
        }

        // TODO: split among immediate slots also?
        Machine::BusNavigator busNav = mach.busNavigator();

        int slotCount = (width_/widthPart_);

        // if too few busses to make even one widthPart_ length template slot
        if (busNav.count() < slotCount) {
            slotCount = busNav.count();
        }

        int overSpill = width_ - (slotCount * widthPart_);
        int widthAdd = 0;
        TTAMachine::Bus* busP = NULL;
        for (int bus = 0; bus < slotCount; bus++) {
            busP = busNav.item(bus);

            if (overSpill > 0) {
                if (overSpill < static_cast<int>(
                            busP->width() - widthPart_)) {
                    widthAdd = overSpill;
                    overSpill = -1; // all spilled
                } else {
                    widthAdd = busP->width() - widthPart_;
                    overSpill = overSpill - widthAdd;
                }
            } else {
                widthAdd = 0;
            }

            try {
                insTemplate->addSlot(busP->name(), widthPart_ + widthAdd,
                        *dstImmUnit);
            } catch (const Exception& e) {
                std::ostringstream msg(std::ostringstream::out);
                msg << "Error while using ImmediateGenerator:" << endl
                    << e.errorMessage() << endl;
                verboseLog(msg.str());
                delete insTemplate;
                insTemplate = NULL;
                return;
            }
        }

        // check if all spilled
        if (overSpill > 0) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error while using ImmediateGenerator:" << endl
                << "Immediate template generation failed, width=\"" << width_
                << "\" too great by: \"" << overSpill << "\"" << endl;
            verboseLog(msg.str());
            delete insTemplate;
            insTemplate = NULL;
            return;
        }

        createNewConfig_ = true;
    }

References TTAMachine::InstructionTemplate::addSlot(), TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), createNewConfig_, dstImmUnitName_, Exception::errorMessage(), TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), DesignSpaceExplorerPlugin::name(), TTAMachine::Component::name(), verboseLog, TTAMachine::Bus::width(), width_, and widthPart_.

Referenced by explore().

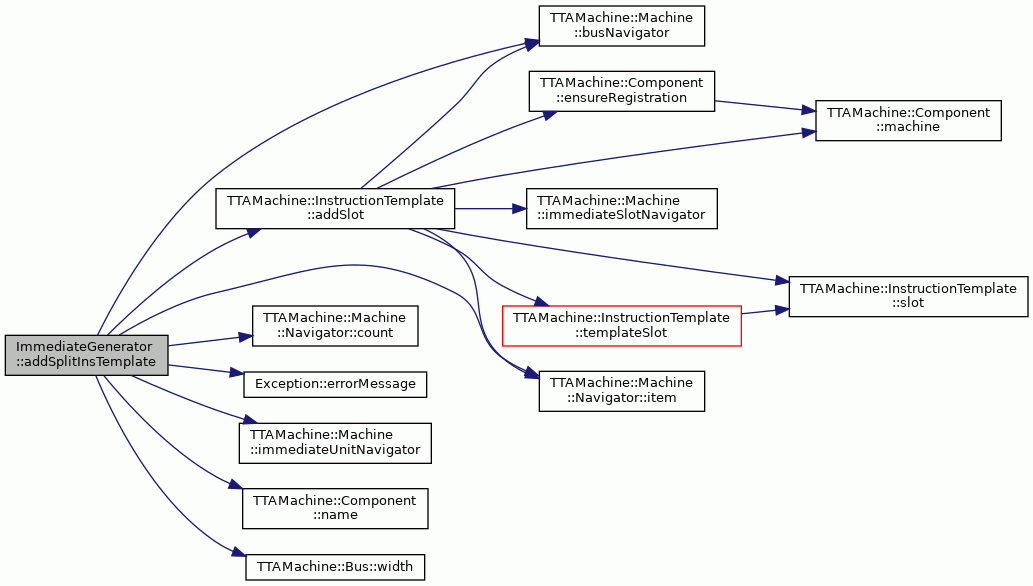

Here is the call graph for this function:

explore()

virtual std::vector< RowID > ImmediateGenerator::explore ( const RowID &  startPointConfigurationID, const unsigned int &    )

inlineprivatevirtual

Explorer plugin that creates or modifies machine instruction templates. TODO: add some modifying functionality.

Supported parameters:

• print, boolean, print information about machines instruction templates.
• remove_it_name, string, remove instruction template with a given name.
• add_it_name, string, add empty instruction template with a given name.
• modify_it_name, string, modify instruction template with a given name.
• width, int, instruction template supported width.
• width_part, int, minimum size of width per slot. Default 8.
• split, boolean, split immediate among slots.
• dst_imm_unit, string, destination immediate unit.

Parameters

startPointConfigurationID

Configuration to optimize.

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 120 of file ImmediateGenerator.cc.

                                                                         {

        // XXX: does this plugin have to touch short immediates.

        std::vector<RowID> result;

        readParameters();

        try {
            DSDBManager& dsdb = db();
            // loads starting configuration
            DSDBManager::MachineConfiguration conf =
                dsdb.configuration(startPointConfigurationID);

            // load machine from configuration
            //Machine* origMach = NULL;
            Machine* mach = NULL;
            try {
                //origMach = dsdb.architecture(conf.architectureID);
                mach = dsdb.architecture(conf.architectureID);
            } catch (const Exception& e) {
                std::ostringstream msg(std::ostringstream::out);
                msg << e.errorMessage() << endl;
                verboseLog(msg.str());
                return result;
            }

            if (!removeInsTemplateName_.empty()) {
                removeInsTemplate(*mach, removeInsTemplateName_);
            }

            if (!addInsTemplateName_.empty()) {
                if (split_) {
                    addSplitInsTemplate(*mach, addInsTemplateName_);
                } else {
                    addInsTemplate(*mach, addInsTemplateName_);
                }
            }

            // print immediate info if print parameter given
            if (print_) {
                printImmediateTemplates(*mach);
            }

            if (createNewConfig_) {
                // create the new configuration to be saved to dsdb
                // do long immediates affect these
                DSDBManager::MachineConfiguration newConf;
                if (conf.hasImplementation) {
                    newConf.hasImplementation = true;
                    IDF::MachineImplementation* idf =
                        dsdb.implementation(conf.implementationID);
                    CostEstimator::Estimator estimator;
                    CostEstimator::AreaInGates area =
                        estimator.totalArea(*mach, *idf);
                    CostEstimator::DelayInNanoSeconds longestPathDelay =
                        estimator.longestPath(*mach, *idf);
                    newConf.implementationID =
                        dsdb.addImplementation(*idf, longestPathDelay, area);
                } else {
                    newConf.hasImplementation = false;
                }
                newConf.architectureID = dsdb.addArchitecture(*mach);
                CostEstimates estimates;

                RowID confID = dsdb.addConfiguration(newConf);
                result.push_back(confID);
            }

        } catch (const Exception& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error while using ImmediateGenerator:" << endl
                << e.errorMessage() << endl;
            verboseLog(msg.str());
            return result;
        }
        return result;
    }

References DSDBManager::addArchitecture(), DSDBManager::addConfiguration(), DSDBManager::addImplementation(), addInsTemplate(), addInsTemplateName_, addSplitInsTemplate(), DSDBManager::architecture(), DSDBManager::MachineConfiguration::architectureID, DSDBManager::configuration(), createNewConfig_, DesignSpaceExplorer::db(), Exception::errorMessage(), DSDBManager::MachineConfiguration::hasImplementation, DSDBManager::implementation(), DSDBManager::MachineConfiguration::implementationID, CostEstimator::Estimator::longestPath(), print_, printImmediateTemplates(), readParameters(), removeInsTemplate(), removeInsTemplateName_, split_, CostEstimator::Estimator::totalArea(), and verboseLog.

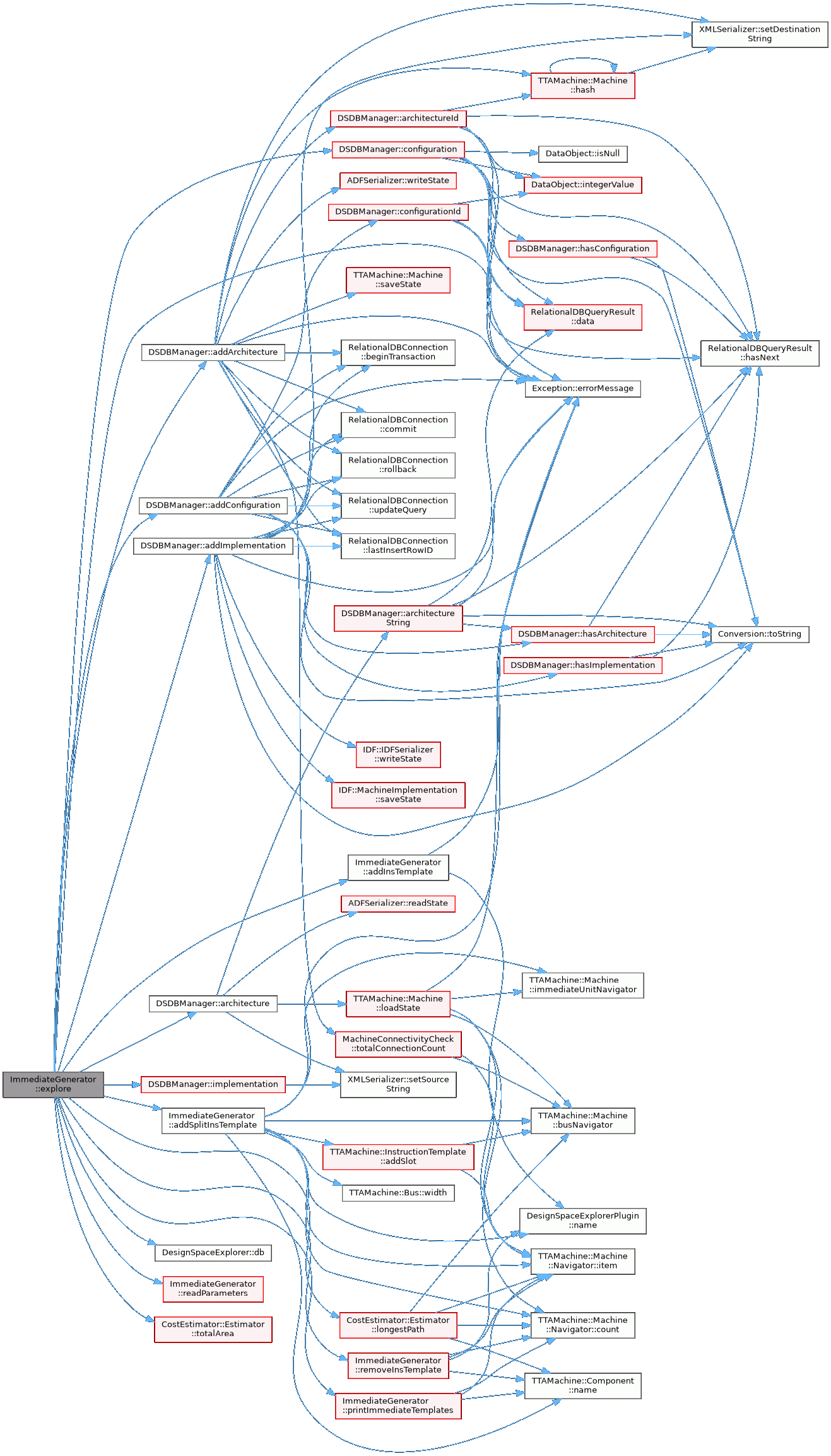

Here is the call graph for this function:

PLUGIN_DESCRIPTION()

ImmediateGenerator::PLUGIN_DESCRIPTION ( "Creates immediates for configuration."  )

private

printImmediateTemplates()

void ImmediateGenerator::printImmediateTemplates ( TTAMachine::Machine &  mach )

inlineprivate

Print info about instruction templates of a given machine.

Parameters

mach	Machine which instruction templates are to be printed.

Definition at line 252 of file ImmediateGenerator.cc.

                                                          {
        Machine::InstructionTemplateNavigator ITNav =
            mach.instructionTemplateNavigator();

        std::ostringstream msg(std::ostringstream::out);
        msg << "====== Instruction templates: =======" << endl;

        TTAMachine::InstructionTemplate* insTemplate = NULL;
        TTAMachine::TemplateSlot* tempSlot = NULL;
        for (int it = 0; it < ITNav.count(); it++) {
            insTemplate = ITNav.item(it);

            msg << "Instruction template: " << insTemplate->name() << endl;
            if (insTemplate->isEmpty()) {
                msg << "\tEmpty instruction template." << endl;
                continue;
            }

            msg << "\tSlot count: " << insTemplate->slotCount() << endl;
            for (int sc = 0; sc < insTemplate->slotCount(); sc++) {
                tempSlot = insTemplate->slot(sc);
                msg << "\t\tSlot name: " << tempSlot->slot() << endl;
                msg << "\t\tSlot width: " << tempSlot->width() << endl;
                msg << "\t\tSlot destination: "
                    << tempSlot->destination()->name() << endl;
            }

            msg << "\tSupported Width: " << insTemplate->supportedWidth() << endl;
            msg << "\tNumber of Destinations: "
                << insTemplate->numberOfDestinations() << endl;
        }
        verboseLog(msg.str());
    }

References TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::TemplateSlot::destination(), TTAMachine::Machine::instructionTemplateNavigator(), TTAMachine::InstructionTemplate::isEmpty(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::name(), TTAMachine::InstructionTemplate::numberOfDestinations(), TTAMachine::TemplateSlot::slot(), TTAMachine::InstructionTemplate::slot(), TTAMachine::InstructionTemplate::slotCount(), TTAMachine::InstructionTemplate::supportedWidth(), verboseLog, and TTAMachine::TemplateSlot::width().

Referenced by explore().

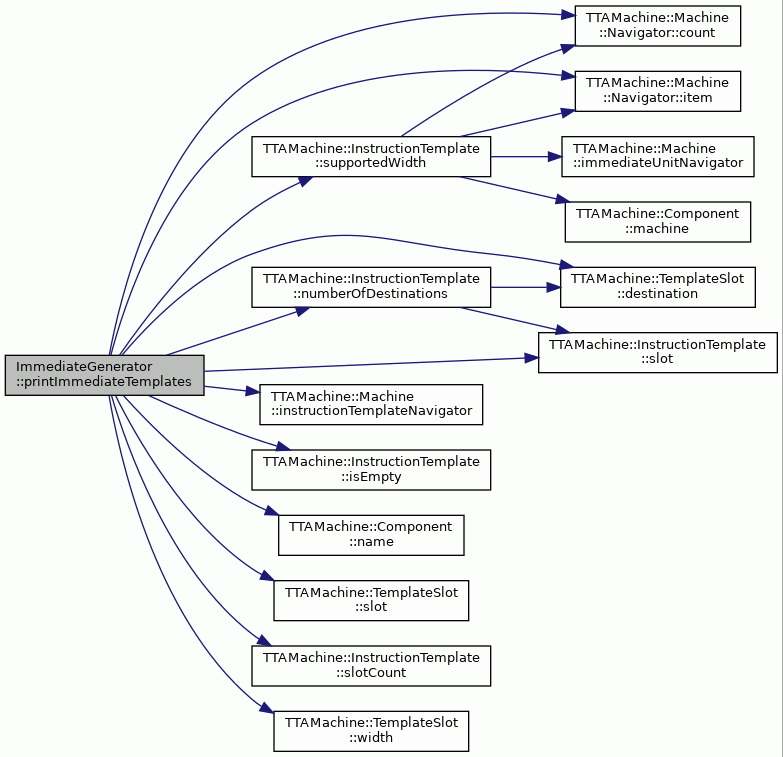

Here is the call graph for this function:

producesArchitecture()

virtual bool ImmediateGenerator::producesArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 98 of file ImmediateGenerator.cc.

{ return true; }

readParameters()

void ImmediateGenerator::readParameters ( )

inlineprivate

Reads the parameters given to the plugin.

Definition at line 235 of file ImmediateGenerator.cc.

                          {
        readCompulsoryParameter(printPN_, print_);
        readCompulsoryParameter(removeInsTemplateNamePN_, removeInsTemplateName_);
        readCompulsoryParameter(addInsTemplateNamePN_, addInsTemplateName_);
        readCompulsoryParameter(modInsTemplateNamePN_, modInsTemplateName_);
        readCompulsoryParameter(widthPN_, width_);
        readCompulsoryParameter(widthPartPN_, widthPart_);
        readCompulsoryParameter(splitPN_, split_);
        readCompulsoryParameter(dstImmUnitNamePN_, dstImmUnitName_);
    }

References addInsTemplateName_, addInsTemplateNamePN_, dstImmUnitName_, dstImmUnitNamePN_, modInsTemplateName_, modInsTemplateNamePN_, print_, printPN_, DesignSpaceExplorerPlugin::readCompulsoryParameter(), removeInsTemplateName_, removeInsTemplateNamePN_, split_, splitPN_, width_, widthPart_, widthPartPN_, and widthPN_.

Referenced by explore().

Here is the call graph for this function:

removeInsTemplate()

void ImmediateGenerator::removeInsTemplate ( TTAMachine::Machine &  mach, std::string  name  )

inlineprivate

Removes instruction template with a name given as parameter.

Parameters

mach	Target machine.
name	Instruction template name to be removed.

Definition at line 292 of file ImmediateGenerator.cc.

                                                                    {
        Machine::InstructionTemplateNavigator ITNav =
            mach.instructionTemplateNavigator();

        TTAMachine::InstructionTemplate* insTemplate = NULL;
        for (int it = 0; it < ITNav.count(); it++) {
            insTemplate = ITNav.item(it);
            if (insTemplate->name() == name) {
                mach.deleteInstructionTemplate(*insTemplate);
                createNewConfig_ = true;
            }
        }

        if (!createNewConfig_) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error while using ImmediateGenerator:" << endl
                << "Instruction template with name \"" << name
                << "\" was not found."  << endl;
            verboseLog(msg.str());
        }
    }

References TTAMachine::Machine::Navigator< ComponentType >::count(), createNewConfig_, TTAMachine::Machine::deleteInstructionTemplate(), TTAMachine::Machine::instructionTemplateNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), DesignSpaceExplorerPlugin::name(), TTAMachine::Component::name(), and verboseLog.

Referenced by explore().

Here is the call graph for this function:

requiresApplication()

virtual bool ImmediateGenerator::requiresApplication ( ) const

inlineprivatevirtual

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 101 of file ImmediateGenerator.cc.

{ return false; }

requiresHDB()

virtual bool ImmediateGenerator::requiresHDB ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 99 of file ImmediateGenerator.cc.

{ return false; }

requiresSimulationData()

virtual bool ImmediateGenerator::requiresSimulationData ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 100 of file ImmediateGenerator.cc.

{ return false; }

requiresStartingPointArchitecture()

virtual bool ImmediateGenerator::requiresStartingPointArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 97 of file ImmediateGenerator.cc.

{ return true; }

Member Data Documentation

addInsTemplateName_

std::string ImmediateGenerator::addInsTemplateName_

private

instruction template name to be added.

Definition at line 219 of file ImmediateGenerator.cc.

Referenced by explore(), ImmediateGenerator(), and readParameters().

addInsTemplateNamePN_

const std::string ImmediateGenerator::addInsTemplateNamePN_

staticprivate

Definition at line 206 of file ImmediateGenerator.cc.

Referenced by ImmediateGenerator(), and readParameters().

createNewConfig_

bool ImmediateGenerator::createNewConfig_

private

Boolean value used to decide if new config is created.

Definition at line 201 of file ImmediateGenerator.cc.

Referenced by addInsTemplate(), addSplitInsTemplate(), explore(), and removeInsTemplate().

dstImmUnitName_

std::string ImmediateGenerator::dstImmUnitName_

private

destination immediate unit name

Definition at line 229 of file ImmediateGenerator.cc.

Referenced by addSplitInsTemplate(), ImmediateGenerator(), and readParameters().

dstImmUnitNamePN_

const std::string ImmediateGenerator::dstImmUnitNamePN_

staticprivate

Definition at line 211 of file ImmediateGenerator.cc.

Referenced by ImmediateGenerator(), and readParameters().

modInsTemplateName_

std::string ImmediateGenerator::modInsTemplateName_

private

instruction template name to be modified.

Definition at line 221 of file ImmediateGenerator.cc.

Referenced by ImmediateGenerator(), and readParameters().

modInsTemplateNamePN_

const std::string ImmediateGenerator::modInsTemplateNamePN_

staticprivate

Definition at line 207 of file ImmediateGenerator.cc.

Referenced by ImmediateGenerator(), and readParameters().

print_

bool ImmediateGenerator::print_

private

print values

Definition at line 215 of file ImmediateGenerator.cc.

Referenced by explore(), ImmediateGenerator(), and readParameters().

printPN_

const std::string ImmediateGenerator::printPN_

staticprivate

Definition at line 204 of file ImmediateGenerator.cc.

Referenced by ImmediateGenerator(), and readParameters().

removeInsTemplateName_

std::string ImmediateGenerator::removeInsTemplateName_

private

instruction template name to be removed.

Definition at line 217 of file ImmediateGenerator.cc.

Referenced by explore(), ImmediateGenerator(), and readParameters().

removeInsTemplateNamePN_

const std::string ImmediateGenerator::removeInsTemplateNamePN_

staticprivate

Definition at line 205 of file ImmediateGenerator.cc.

Referenced by ImmediateGenerator(), and readParameters().

split_

bool ImmediateGenerator::split_

private

make evenly bus/slot wise splitted template.

Definition at line 227 of file ImmediateGenerator.cc.

Referenced by explore(), ImmediateGenerator(), and readParameters().

splitPN_

const std::string ImmediateGenerator::splitPN_

staticprivate

Definition at line 210 of file ImmediateGenerator.cc.

Referenced by ImmediateGenerator(), and readParameters().

width_

unsigned int ImmediateGenerator::width_

private

width of the target template

Definition at line 223 of file ImmediateGenerator.cc.

Referenced by addSplitInsTemplate(), ImmediateGenerator(), and readParameters().

widthPart_

unsigned int ImmediateGenerator::widthPart_

private

minimum width on long instruction slot when splitting the template.

Definition at line 225 of file ImmediateGenerator.cc.

Referenced by addSplitInsTemplate(), ImmediateGenerator(), and readParameters().

widthPartPN_

const std::string ImmediateGenerator::widthPartPN_

staticprivate

Definition at line 209 of file ImmediateGenerator.cc.

Referenced by ImmediateGenerator(), and readParameters().

widthPN_

const std::string ImmediateGenerator::widthPN_

staticprivate

Definition at line 208 of file ImmediateGenerator.cc.

Referenced by ImmediateGenerator(), and readParameters().

---

The documentation for this class was generated from the following file:

• ImmediateGenerator.cc
