#include <MachineCanvas.hh>

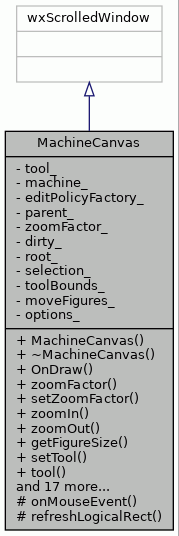

Inheritance diagram for MachineCanvas:

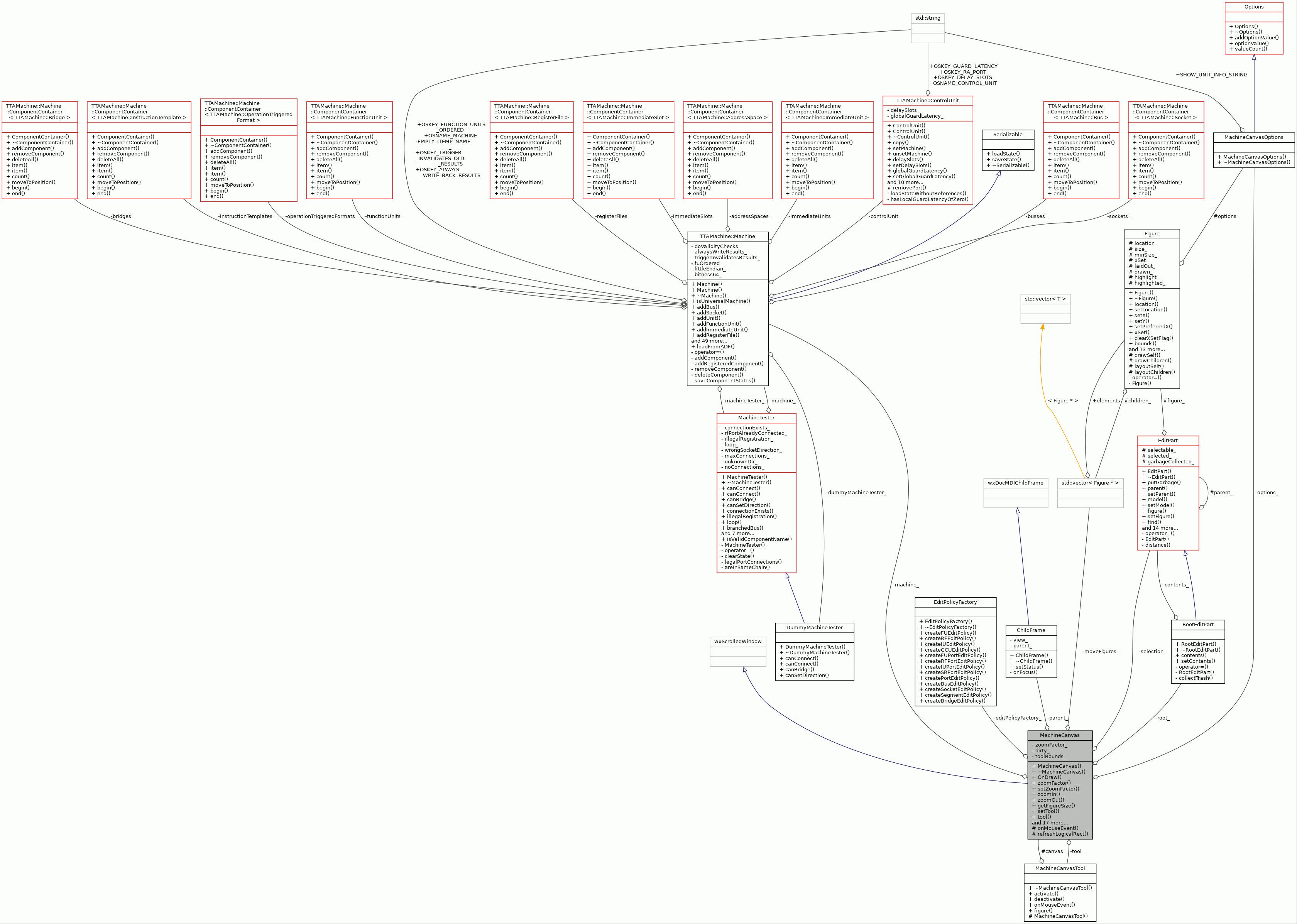

Collaboration diagram for MachineCanvas:

Public Member Functions
	MachineCanvas (wxWindow parent, EditPolicyFactory policyFactory, ChildFrame *parentFrame=nullptr)

virtual	~MachineCanvas ()

virtual void	OnDraw (wxDC &dc)

double	zoomFactor ()

void	setZoomFactor (double factor)

void	zoomIn ()

void	zoomOut ()

wxSize	getFigureSize () const

void	setTool (MachineCanvasTool *tool)

MachineCanvasTool *	tool ()

void	setMachine (TTAMachine::Machine *machine)

void	updateMachine ()

EditPart *	selection ()

EditPart *	findEditPart (int x, int y)

EditPart *	findEditPart (const TTAMachine::MachinePart *model)

bool	hasEditPart (const EditPart *part) const

int	findEditPartsInRange (int x, int y, int range, std::vector< EditPart * > &found)

void	highlight (TTAMachine::MachinePart *model, const wxColour &colour)

void	clearHighlights ()

void	clearSelection ()

void	select (EditPart *part)

void	refreshToolFigure ()

void	addMove (const TTAMachine::Bus bus, const TTAMachine::Port source, const TTAMachine::Port *target)

void	clearMoves ()

bool	saveEPS (const std::string &filename, const std::string &title, const std::string &creator="")

bool	savePNG (const std::string &filename)

MachineCanvasOptions &	options ()

Protected Member Functions
void	onMouseEvent (wxMouseEvent &event)

void	refreshLogicalRect (const wxRect &rectangle)

Private Attributes
MachineCanvasTool *	tool_
	Tool which handles mouse events on the MachineCanvas.

TTAMachine::Machine *	machine_
	Machine to draw on the canvas.

EditPolicyFactory *	editPolicyFactory_
	EditPolicyFactory which creates edit policies for machine components.

ChildFrame *	parent_
	Parent frame which holds the MachineCanvas.

double	zoomFactor_
	Zoom factor of the canvas.

bool	dirty_
	Tells if the figures need to be laid out before next draw.

RootEditPart *	root_
	Root of the machine EditPart hierarchy.

EditPart *	selection_
	Pointer to the the selected component.

wxRect	toolBounds_
	Bounding box of the last tool figure drawn.

std::vector< Figure * >	moveFigures_
	Move figures to be drawn on the canvas.

MachineCanvasOptions	options_

Detailed Description

Machine Object Model visualization canvas.

MachineCanvas is a window which can be utilized to display visualization of a machine object model. The visualization is interactive, and behaviour of machine components can be defined using custom EditPolicies and custom MachineCanvasTools.

Definition at line 64 of file MachineCanvas.hh.

Constructor & Destructor Documentation

◆ MachineCanvas()

MachineCanvas::MachineCanvas	(	wxWindow *	parent,
		EditPolicyFactory *	policyFactory,
		ChildFrame *	parentFrame = `nullptr`
	)

The Constructor, with a parameter for parent frame.

Parameters

parent	Parent frame of the canvas.
policyFactory	EditPolicyFactory for creating edit policies.

Definition at line 70 of file MachineCanvas.cc.

                                                               :
                wxScrolledWindow(parent), tool_(NULL), machine_(NULL),
                    editPolicyFactory_(policyFactory),  parent_(parentFrame),
                    zoomFactor_(1.0), dirty_(true), root_(NULL),
                    selection_(NULL), toolBounds_(0, 0, 0, 0) {

    root_ = new RootEditPart();

    SetScrollRate(20, 20);
    SetVirtualSize(1000, 800);
}

◆ ~MachineCanvas()

MachineCanvas::~MachineCanvas ( )

virtual

The Destructor.

Definition at line 88 of file MachineCanvas.cc.

                              {
    if (root_ != NULL) {
        delete root_;
    }
    clearMoves();
}

References clearMoves(), and root_.

Here is the call graph for this function:

Member Function Documentation

◆ addMove()

void MachineCanvas::addMove	(	const TTAMachine::Bus *	bus,
		const TTAMachine::Port *	source,
		const TTAMachine::Port *	target
	)

Adds a move to be drawn on the canvas.

Parameters

bus	Transport bus of the move.
source	Source port of the move.
target	Target port of the move.

Definition at line 541 of file MachineCanvas.cc.

                                                                             {
    std::string procName = "MachineCanvas::addMove";
    EditPart* busEditPart = findEditPart(bus);

    if (busEditPart == NULL) {
        throw InstanceNotFound(__FILE__, __LINE__, procName);
    }

    Figure* busFigure = busEditPart->figure();
    Figure* sourceFigure = NULL;
    Figure* targetFigure = NULL;

    if (source != NULL) {
        EditPart* sourceEditPart = findEditPart(source);
        if (sourceEditPart == NULL) {
            throw InstanceNotFound(__FILE__, __LINE__, procName);
        }
        sourceFigure = sourceEditPart->figure();
    }

    if (target != NULL) {
        EditPart* targetEditPart = findEditPart(target);
        if (targetEditPart == NULL) {
            throw InstanceNotFound(__FILE__, __LINE__, procName);
        }
        targetFigure = targetEditPart->figure();
    }

    moveFigures_.push_back(
        new MoveFigure(busFigure, sourceFigure, targetFigure));
}

References EditPart::figure(), findEditPart(), and moveFigures_.

Referenced by ProximMachineStateWindow::addMoves().

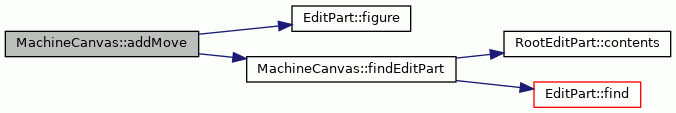

Here is the call graph for this function:

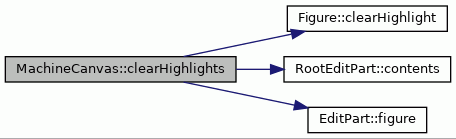

◆ clearHighlights()

void MachineCanvas::clearHighlights ( )

Clears highlighting of all machine components.

Definition at line 527 of file MachineCanvas.cc.

                               {
    if (root_ != NULL && root_->contents() != NULL) {
        root_->contents()->figure()->clearHighlight();
    }
}

References Figure::clearHighlight(), RootEditPart::contents(), EditPart::figure(), and root_.

Referenced by ProximMachineStateWindow::onToggleUtilizations(), and ProximMachineStateWindow::setUtilizationHighlights().

Here is the call graph for this function:

◆ clearMoves()

void MachineCanvas::clearMoves ( )

Clears list of moves to be drawn on the canvas.

Definition at line 577 of file MachineCanvas.cc.

                          {
    SequenceTools::deleteAllItems(moveFigures_);
}

References SequenceTools::deleteAllItems(), and moveFigures_.

Referenced by ProximMachineStateWindow::addMoves(), ProximMachineStateWindow::onToggleMoves(), updateMachine(), and ~MachineCanvas().

Here is the call graph for this function:

◆ clearSelection()

void MachineCanvas::clearSelection ( )

Clears component selection.

Definition at line 395 of file MachineCanvas.cc.

                              {
    if (selection_ != NULL) {
        selection_->setSelected(false);
    }
    selection_ = NULL;
    Refresh();
}

References selection_, and EditPart::setSelected().

Referenced by MDFView::clearSelection(), SelectTool::leftClick(), ProximMachineCanvasTool::onMouseEvent(), ProximMachineStateWindow::onSimulationStop(), and updateMachine().

Here is the call graph for this function:

◆ findEditPart() [1/2]

EditPart * MachineCanvas::findEditPart ( const TTAMachine::MachinePart * model )

Finds an edit part corresponding the given machine part.

Parameters

model MachinePart to find

Returns: Pointer to the found edit part, or NULL if no edit part was found.

Definition at line 436 of file MachineCanvas.cc.

                                                              {
    EditPart* part = NULL;
    if (root_ != NULL && root_->contents() != NULL) {
        part = root_->contents()->find(model);
    }
    return part;
}

References RootEditPart::contents(), EditPart::find(), and root_.

Here is the call graph for this function:

◆ findEditPart() [2/2]

EditPart * MachineCanvas::findEditPart	(	int	x,
		int	y
	)

Finds an edit part at the given coordinates on the canvas.

Parameters

x	X-coordinate of the position to search.
y	Y-coordinate of the position to search.

Returns: Pointer to the found edit part, or NULL if no edit part was found.

Definition at line 421 of file MachineCanvas.cc.

                                        {
    EditPart* part = NULL;
    if (root_ != NULL && root_->contents() != NULL) {
        part = root_->contents()->find(wxPoint(x, y));
    }
    return part;
}

References RootEditPart::contents(), EditPart::find(), and root_.

Referenced by addMove(), ProximMachineCanvasTool::onMouseEvent(), ConnectTool::onMouseEvent(), SelectTool::onMouseEvent(), and ProximMachineStateWindow::onSimulationStop().

Here is the call graph for this function:

◆ findEditPartsInRange()

int MachineCanvas::findEditPartsInRange	(	int	x,
		int	y,
		int	range,
		std::vector< EditPart * > &	found
	)

Finds EditParts around coordinates that are in given range.

Parameters

x	X-coordinate of the position to search.
y	Y-coordinate of the position to search.
range	Search range from position (x, y).
found	Found EditParts after call.

Returns: Number of found EditParts. Zero if found nothing.

Definition at line 454 of file MachineCanvas.cc.

                                 {
    if (root_ != NULL && root_->contents() != NULL) {
        return root_->contents()->findInRange(wxPoint(x, y),
            static_cast<float>(range), found);
    }
    return 0;
}

References RootEditPart::contents(), EditPart::findInRange(), and root_.

Referenced by ConnectTool::onMouseEvent().

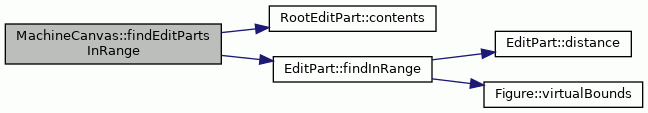

Here is the call graph for this function:

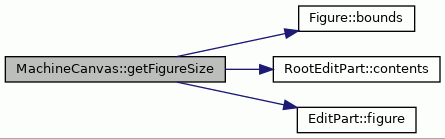

◆ getFigureSize()

wxSize MachineCanvas::getFigureSize ( ) const

Return the original size of the currently loaded Machine Figure

Definition at line 294 of file MachineCanvas.cc.

                                   {
    return root_->contents()->figure()->bounds().GetSize();
}

References Figure::bounds(), RootEditPart::contents(), EditPart::figure(), and root_.

Referenced by FitHeightCmd::Do(), FitWidthCmd::Do(), and FitWindowCmd::Do().

Here is the call graph for this function:

◆ hasEditPart()

bool MachineCanvas::hasEditPart ( const EditPart * part ) const

Looks for given EditPart recursively.

Parameters

part	Part to look up.

Returns: True if canvas has given EditPart.

Definition at line 470 of file MachineCanvas.cc.

                                                     {
    if (root_ != NULL && root_->contents() != NULL) {
        return root_->contents()->hasEditPartRecursive(part);
    }
    return false;
}

References RootEditPart::contents(), EditPart::hasEditPartRecursive(), and root_.

Referenced by ConnectTool::figure().

Here is the call graph for this function:

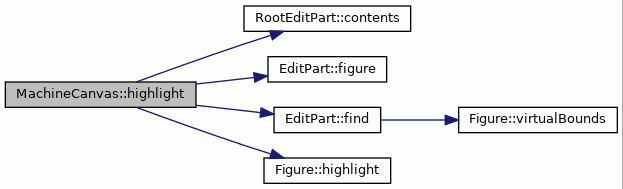

◆ highlight()

void MachineCanvas::highlight	(	TTAMachine::MachinePart *	component,
		const wxColour &	colour
	)

Highlights figure of a machine component.

Definition at line 510 of file MachineCanvas.cc.

                            {

    if (root_->contents() == NULL) {
        return;
    }

    EditPart* editPart = root_->contents()->find(component);
    if (editPart != NULL && editPart->figure() != NULL) {
        editPart->figure()->highlight(colour);
    }
}

References RootEditPart::contents(), EditPart::figure(), EditPart::find(), Figure::highlight(), and root_.

Referenced by ProximMachineStateWindow::setUtilizationHighlights().

Here is the call graph for this function:

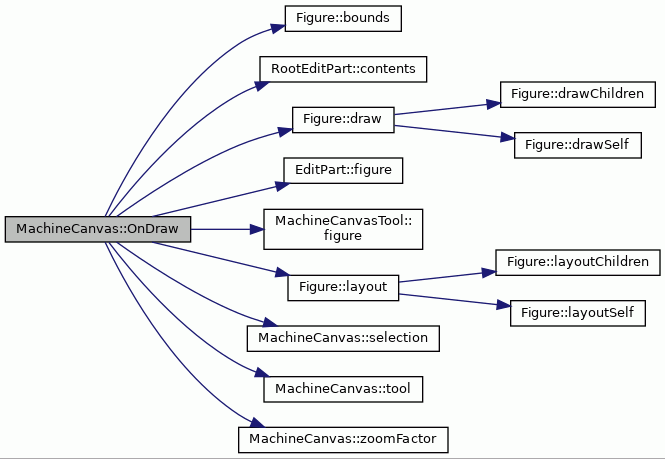

◆ OnDraw()

void MachineCanvas::OnDraw ( wxDC & dc )

virtual

Called when the window needs to be drawn again.

Parameters

dc	The device context where to do the actual drawing.

Definition at line 101 of file MachineCanvas.cc.

                              {

    wxBrush backgroundBrush(*wxLIGHT_GREY, wxSOLID);
    dc.SetBackground(backgroundBrush);

#if wxCHECK_VERSION(3, 0, 0)
    // Do not call Clear() for wxSVGFileDC object cause its not implemented
    try {
        (void)dynamic_cast<wxSVGFileDC&> (dc);
    } catch (const std::bad_cast& e) {
        dc.Clear();
    }
#else
    dc.Clear();
#endif

    // Set the canvas font.
    dc.SetFont(wxFont(10, wxDEFAULT, wxNORMAL, wxNORMAL));

    // Set scaling factor.
    dc.SetUserScale(zoomFactor_, zoomFactor_);
    // draw machine
    if (root_->contents() != NULL) {
        if (dirty_) {
            root_->contents()->figure()->layout(&dc);
            // Set Canvas virtual size according to the size needed by the
            // figures.
            wxRect bounds = root_->contents()->figure()->bounds();
            SetVirtualSize(int(bounds.GetWidth() * zoomFactor()),
                int(bounds.GetHeight() * zoomFactor()));

            dirty_ = false;
        }
        root_->contents()->figure()->draw(&dc);

    }

    // draw tool figure
    if (tool() != NULL) {
        Figure* toolFigure = tool()->figure();
        if (toolFigure != NULL) {
            toolFigure->layout(&dc);
            toolFigure->draw(&dc);
        }
    }

    // Draw moves.
    for (unsigned i = 0; i < moveFigures_.size(); i++) {
        moveFigures_[i]->draw(&dc);
    }

    // Draw selection rectangle.
    if (selection() != NULL) {
        SelectionFigure figure(selection()->figure());
        figure.layout(&dc);
        figure.draw(&dc);
    }
}

References Figure::bounds(), RootEditPart::contents(), dirty_, Figure::draw(), MachineCanvasTool::figure(), EditPart::figure(), Figure::layout(), moveFigures_, root_, selection(), tool(), zoomFactor(), and zoomFactor_.

Referenced by MDFView::OnDraw(), ADFPrintout::OnPrintPage(), saveEPS(), and savePNG().

Here is the call graph for this function:

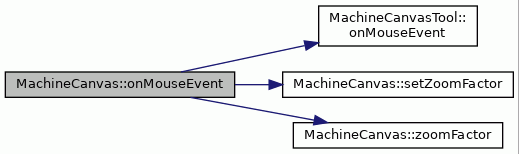

◆ onMouseEvent()

void MachineCanvas::onMouseEvent ( wxMouseEvent & event )

protected

Handles mouse events on the canvas.

Passes the mouse event to the active tool.

Parameters

event Mouse event to pass to the active tool.

Definition at line 265 of file MachineCanvas.cc.

                                               {

    wxClientDC dc(this);
    PrepareDC(dc);
    dc.SetUserScale(zoomFactor_, zoomFactor_);

    // Zoomin/out with mousewheel
    if (event.GetEventType() == wxEVT_MOUSEWHEEL) {
        double factor;

        if (event.GetWheelRotation() > 0) {
            factor = zoomFactor() + CanvasConstants::ZOOM_STEP;
        } else {
            factor = zoomFactor() - CanvasConstants::ZOOM_STEP;
        }
        setZoomFactor(factor);
    }

    if (tool_ != NULL) {
        tool_->onMouseEvent(event, dc);
    }
}

References MachineCanvasTool::onMouseEvent(), setZoomFactor(), tool_, CanvasConstants::ZOOM_STEP, zoomFactor(), and zoomFactor_.

Here is the call graph for this function:

◆ options()

MachineCanvasOptions & MachineCanvas::options ( )

Returns the current options used by machine canvas figures.

Returns: Current machine canvas options.

Definition at line 681 of file MachineCanvas.cc.

                       {
    return options_;
}

References options_.

Referenced by ToggleUnitDetailsCmd::Do(), ToggleUnitDetailsCmd::isChecked(), ProximMachineStateWindow::onToggleUnitInfo(), and ProximMachineStateWindow::onUpdateUIEvent().

◆ refreshLogicalRect()

void MachineCanvas::refreshLogicalRect ( const wxRect & rectangle )

protected

Refreshes area of the MachineCanvas bound by a logical coordinate rectangle.

Parameters

rectangle Area to refresh.

Definition at line 329 of file MachineCanvas.cc.

                                                         {

    int x = 0;
    int y = 0;
    CalcScrolledPosition(int(rectangle.x * zoomFactor_),
        int(rectangle.y * zoomFactor_), &x, &y);
    wxRect zoomed(x, y, int(rectangle.width * zoomFactor_),
        int(rectangle.height * zoomFactor_));

    RefreshRect(zoomed);
}

References zoomFactor_.

Referenced by refreshToolFigure().

◆ refreshToolFigure()

void MachineCanvas::refreshToolFigure ( )

Refreshes the tool figures on the canvas.

Definition at line 164 of file MachineCanvas.cc.

                                 {

    if (toolBounds_.GetWidth() > 0 && toolBounds_.GetHeight() > 0) {
        // Clear previous tool figure.
        refreshLogicalRect(toolBounds_);
    }

    Figure* toolFigure = tool()->figure();
    if (toolFigure != NULL) {
        // Draw new tool figure.
        toolFigure->layout(NULL);
        toolBounds_ = toolFigure->bounds();
        refreshLogicalRect(toolBounds_);
    } else {
        toolBounds_ = wxRect(0, 0, 0, 0);
    }
}

References Figure::bounds(), MachineCanvasTool::figure(), Figure::layout(), refreshLogicalRect(), tool(), and toolBounds_.

Referenced by ConnectTool::onMouseEvent().

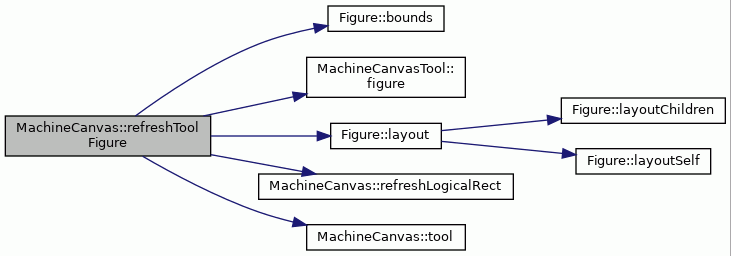

Here is the call graph for this function:

◆ saveEPS()

bool MachineCanvas::saveEPS	(	const std::string &	filename,
		const std::string &	title,
		const std::string &	creator = `""`
	)

Saves the machine figure to an eps file.

Parameters

filename	Name of the eps file.
title	Title of the eps document.
creator	Creator of the eps document.

Returns: True, if the eps was succesfully saved.

Definition at line 617 of file MachineCanvas.cc.

                              {

    EPSDC dc;
    dc.setCreator(creator);

    dc.setTitle(title);
    dc.StartPage();
    OnDraw(dc);
    dc.EndPage();

    std::ofstream file(filename.c_str());

    if (file.bad()) {
        return false;
    }

    dc.writeToStream(file);
    file.close();

    return true;
}

References EPSDC::EndPage(), OnDraw(), EPSDC::setCreator(), EPSDC::setTitle(), EPSDC::StartPage(), and EPSDC::writeToStream().

Referenced by ProDeExportCmd::Do(), and ProximMachineStateWindow::onExport().

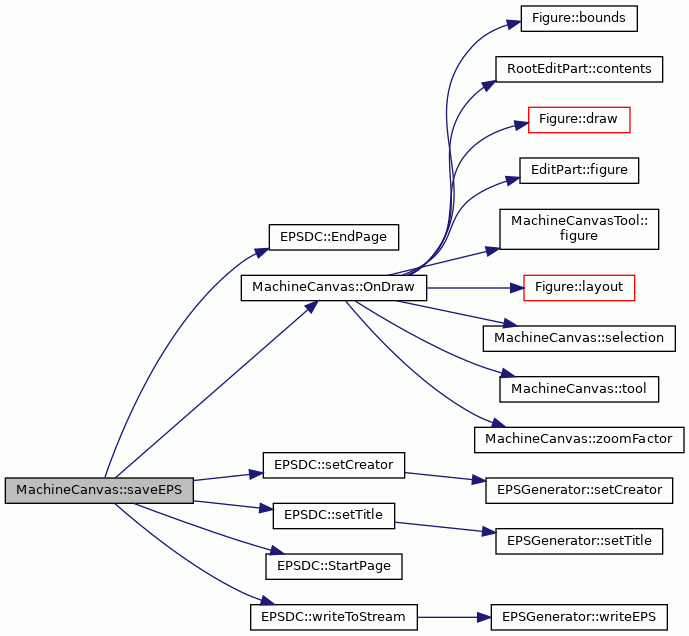

Here is the call graph for this function:

◆ savePNG()

bool MachineCanvas::savePNG ( const std::string & filename )

Saves the machine figure to a .png file.

Parameters

filename Name of the .png file.

Returns: True, if the png was succesfully saved.

Definition at line 648 of file MachineCanvas.cc.

                                                {

    // Refresh machine figure to get the canvas size.
    wxClientDC clientDC(this);
    OnDraw(clientDC);

    // Add minimum coordinates to maximum coordinates to create margins
    // of equal width.
    int width = clientDC.MaxX() + clientDC.MinX();
    int height = clientDC.MaxY() + clientDC.MinY();

    // Create bitmap and a MemoryDC which writes the bitmap.
    wxMemoryDC bitmapDC;
    wxBitmap bitmap(width, height);
    bitmapDC.SelectObject(bitmap);
    OnDraw(bitmapDC);

    wxString file = WxConversion::toWxString(filename);

    // Save bitmap.
    if (bitmap.SaveFile(file, wxBITMAP_TYPE_PNG)) {
        return true;
    }

    return false;
}

References OnDraw(), and WxConversion::toWxString().

Referenced by ProDeExportCmd::Do(), and ProximMachineStateWindow::onExport().

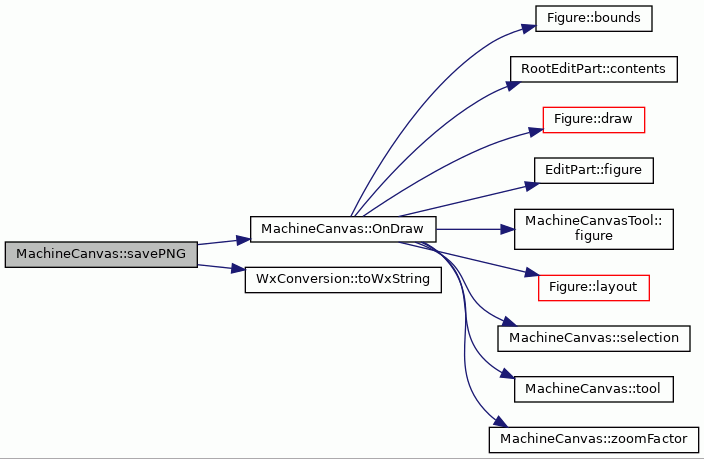

Here is the call graph for this function:

◆ select()

void MachineCanvas::select ( EditPart * part )

Marks an edit part selected.

Previous selection is cleared.

Parameters

part	Edit part to select.

Definition at line 485 of file MachineCanvas.cc.

                                    {
    if (selection_ != NULL) {
        selection_->setSelected(false);
    }

    // segments are not supported so we should select the parent
    // bus instead the segment (a very long standing irritating bug)
    TTAMachine::Segment* segment =
                    dynamic_cast<TTAMachine::Segment*>(part->model());
    if (segment != NULL) {
        // clicked segment, selecting parent bus instead
        part = part->parent();
    }

    selection_ = part;
    if (selection_ != NULL) {
        selection_->setSelected(true);
    }
    Refresh();
}

References EditPart::model(), EditPart::parent(), selection_, and EditPart::setSelected().

Referenced by ConnectTool::leftClick(), SelectTool::leftClick(), ProximMachineCanvasTool::onMouseEvent(), and ProximMachineStateWindow::onSimulationStop().

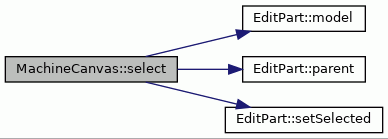

Here is the call graph for this function:

◆ selection()

EditPart * MachineCanvas::selection ( )

Returns pointer to the EditPart of the selected component.

Returns: Pointer to the selected EditPart, or null if selection is empty.

Definition at line 409 of file MachineCanvas.cc.

                         {
    return selection_;
}

References selection_.

Referenced by OnDraw(), ConnectTool::onMouseEvent(), ProximMachineStateWindow::onSimulationStop(), and MDFView::selection().

◆ setMachine()

void MachineCanvas::setMachine ( TTAMachine::Machine * machine )

Sets the machine which is dispalyed on the canvas.

Parameters

machine Machine to display on the canvas.

Definition at line 386 of file MachineCanvas.cc.

                                                    {
    machine_ = machine;
    updateMachine();
}

References machine, machine_, and updateMachine().

Referenced by ProximMachineStateWindow::onProgramLoaded(), MDFView::OnUpdate(), and ProximMachineStateWindow::reset().

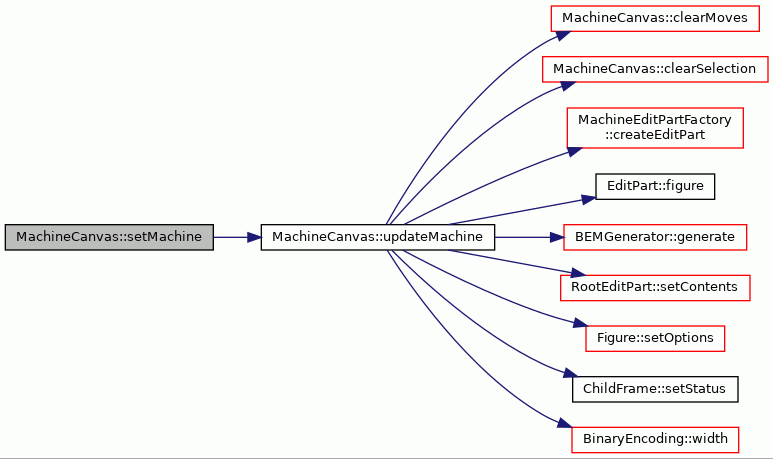

Here is the call graph for this function:

◆ setTool()

void MachineCanvas::setTool ( MachineCanvasTool * tool )

Sets the active tool.

Parameters

tool	MachineCanvasTool to activate.

Definition at line 305 of file MachineCanvas.cc.

                                              {
    if (tool_ != NULL) {
        tool_->deactivate();
        delete (tool_);
    }
    tool_ = tool;
    tool_->activate();
}

References MachineCanvasTool::activate(), MachineCanvasTool::deactivate(), tool(), and tool_.

Referenced by ProximMachineStateWindow::createContents(), EditConnectionsCmd::Do(), SelectCmd::Do(), and MDFView::OnCreate().

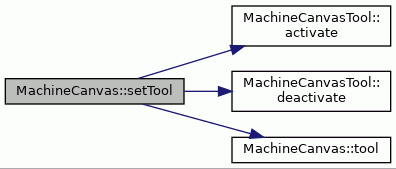

Here is the call graph for this function:

◆ setZoomFactor()

void MachineCanvas::setZoomFactor ( double factor )

Sets the zoom factor of the canvas.

Parameters

factor New zoom factor of the canvas.

Definition at line 188 of file MachineCanvas.cc.

                                          {

    // Limit the min/max size of the zoom factor
    if (factor > CanvasConstants::MAX_ZOOM_FACTOR) {
        factor = CanvasConstants::MAX_ZOOM_FACTOR;
    } else if (factor < CanvasConstants::MIN_ZOOM_FACTOR) {
        factor = CanvasConstants::MIN_ZOOM_FACTOR;
    }

    // when scrolling, try to:
    // * On X direction, keep the middle pointing to same position in machine
    // * On Y direction, keep the upper edge of the windows pointer to
    //   same position in the machine.
    // This code calculates this and does the scrolling.
    int x, y;
    int xSize, ySize;
    int scrollUnitX, scrollUnitY;
    GetScrollPixelsPerUnit(&scrollUnitX, &scrollUnitY);
    GetViewStart(&x, &y);
    x *= scrollUnitX;
    y *= scrollUnitY;
    GetSize(&xSize, &ySize);
    double xPos = (x + (xSize >> 1)) / zoomFactor_;
    double yPos = y / zoomFactor_;
    x = std::max(static_cast<int>(xPos * factor) - (xSize >> 1), 0);
    y = static_cast<int>(yPos * factor);
    Scroll((x + (scrollUnitX >> 1)) / scrollUnitX,
        (y + (scrollUnitY >> 1)) / scrollUnitY);

    // then do the zooming
    zoomFactor_ = factor;
    dirty_ = true;
    Refresh();
}

References dirty_, CanvasConstants::MAX_ZOOM_FACTOR, CanvasConstants::MIN_ZOOM_FACTOR, and zoomFactor_.

Referenced by FitHeightCmd::Do(), FitWidthCmd::Do(), FitWindowCmd::Do(), onMouseEvent(), zoomIn(), and zoomOut().

◆ tool()

MachineCanvasTool * MachineCanvas::tool ( )

Returns pointer to the current tool of the canvas.

Definition at line 318 of file MachineCanvas.cc.

                    {
    return tool_;
}

References tool_.

Referenced by BridgeDialog::BridgeDialog(), BridgeDialog::onCancel(), OnDraw(), BridgeDialog::onOK(), refreshToolFigure(), and setTool().

◆ updateMachine()

void MachineCanvas::updateMachine ( )

Updates the machine from the machine object model.

Definition at line 345 of file MachineCanvas.cc.

                             {

    clearSelection();
    clearMoves();
    dirty_ = true;

    if (machine_ == NULL) {
        root_->setContents(NULL);
        return;
    }

    MachineEditPartFactory factory(*editPolicyFactory_);
    EditPart* contents = factory.createEditPart(machine_);
    assert(root_ != NULL);
    root_->setContents(contents);
    contents->figure()->setOptions(&options_);

    if (parent_ != nullptr) {

        wxString text(_T(""));
        BinaryEncoding* bem(nullptr);
        try {
            bem = BEMGenerator(*machine_).generate();
            int width = bem->width();
            text = wxString::Format(_T("Instruction width: %u"), width);
        } catch (...) {
            text = _T("BEM could not be generated");
        }
        delete bem;
        parent_->setStatus(text, 1);
    }

    Refresh();
}

References assert, clearMoves(), clearSelection(), MachineEditPartFactory::createEditPart(), dirty_, editPolicyFactory_, EditPart::figure(), BEMGenerator::generate(), machine_, options_, parent_, root_, RootEditPart::setContents(), Figure::setOptions(), ChildFrame::setStatus(), and BinaryEncoding::width().

Referenced by ToggleUnitDetailsCmd::Do(), ProximMachineStateWindow::onToggleUnitInfo(), and setMachine().

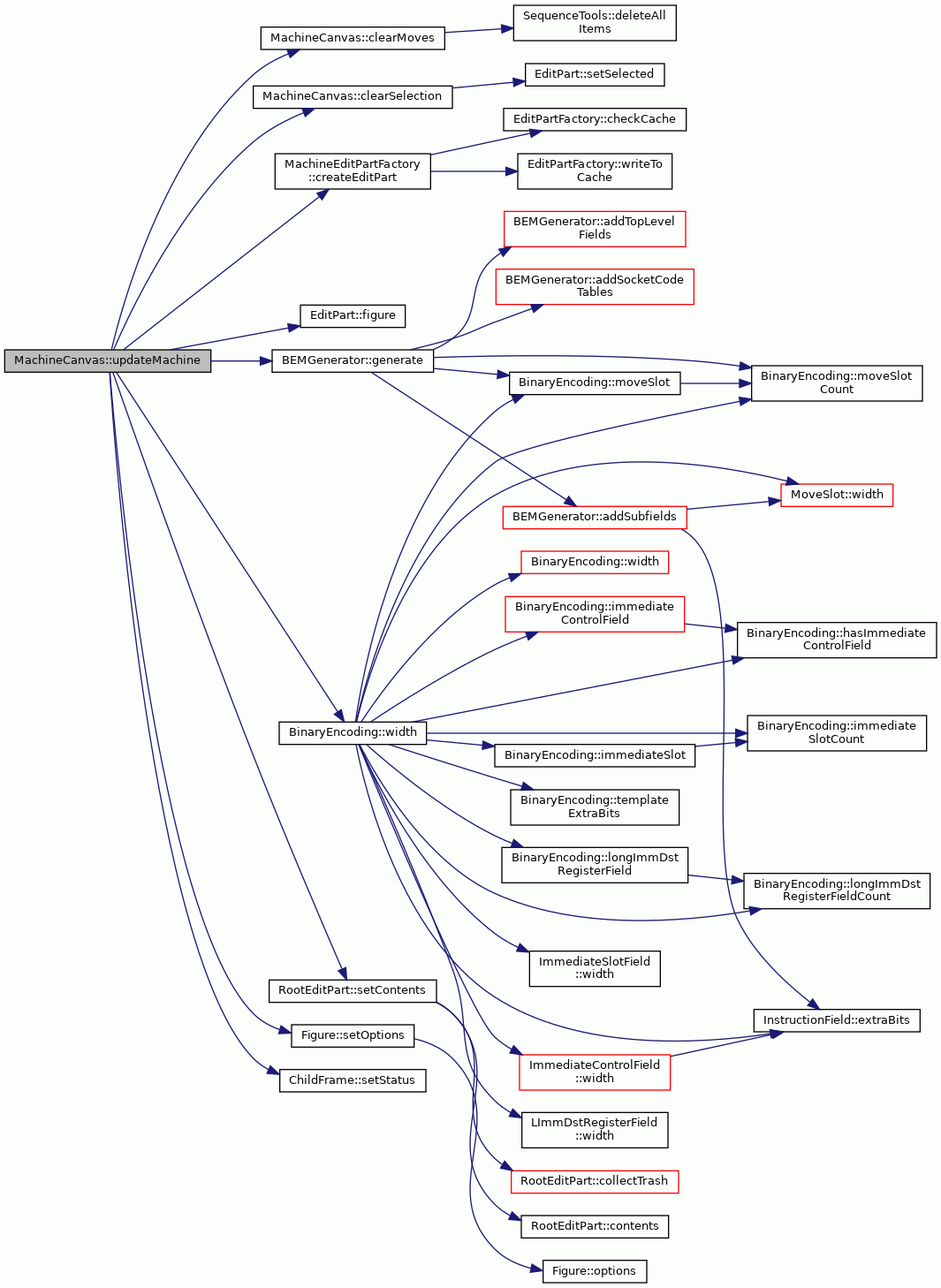

Here is the call graph for this function:

◆ zoomFactor()

double MachineCanvas::zoomFactor ( )

Returns the zoom factor of the canvas.

Returns: Zoom factor of the canvas.

Definition at line 230 of file MachineCanvas.cc.

                          {
    return zoomFactor_;
}

References zoomFactor_.

Referenced by OnDraw(), onMouseEvent(), zoomIn(), and zoomOut().

◆ zoomIn()

void MachineCanvas::zoomIn ( )

Zooms in the canvas by a predefined factor

Definition at line 240 of file MachineCanvas.cc.

                      {
    double factor = zoomFactor() + CanvasConstants::ZOOM_STEP;
    setZoomFactor(factor);
}

References setZoomFactor(), CanvasConstants::ZOOM_STEP, and zoomFactor().

Referenced by ZoomInCmd::Do(), and ProximMachineStateWindow::onZoom().

Here is the call graph for this function:

◆ zoomOut()

void MachineCanvas::zoomOut ( )

Zooms out the canvas by a predefined factor

Definition at line 251 of file MachineCanvas.cc.

                       {
    double factor = zoomFactor() - CanvasConstants::ZOOM_STEP;
    setZoomFactor(factor);
}

References setZoomFactor(), CanvasConstants::ZOOM_STEP, and zoomFactor().

Referenced by ZoomOutCmd::Do(), and ProximMachineStateWindow::onZoom().

Here is the call graph for this function:

Member Data Documentation

◆ dirty_

bool MachineCanvas::dirty_

private

Tells if the figures need to be laid out before next draw.

Definition at line 130 of file MachineCanvas.hh.

Referenced by OnDraw(), setZoomFactor(), and updateMachine().

◆ editPolicyFactory_

EditPolicyFactory* MachineCanvas::editPolicyFactory_

private

EditPolicyFactory which creates edit policies for machine components.

Definition at line 123 of file MachineCanvas.hh.

Referenced by updateMachine().

◆ machine_

TTAMachine::Machine* MachineCanvas::machine_

private

Machine to draw on the canvas.

Definition at line 121 of file MachineCanvas.hh.

Referenced by setMachine(), and updateMachine().

◆ moveFigures_

std::vector<Figure*> MachineCanvas::moveFigures_

private

Move figures to be drawn on the canvas.

Definition at line 140 of file MachineCanvas.hh.

Referenced by addMove(), clearMoves(), and OnDraw().

◆ options_

MachineCanvasOptions MachineCanvas::options_

private

Definition at line 142 of file MachineCanvas.hh.

Referenced by options(), and updateMachine().

◆ parent_

ChildFrame* MachineCanvas::parent_

private

Parent frame which holds the MachineCanvas.

Definition at line 125 of file MachineCanvas.hh.

Referenced by updateMachine().

◆ root_

RootEditPart* MachineCanvas::root_

private

Root of the machine EditPart hierarchy.

Definition at line 132 of file MachineCanvas.hh.

Referenced by clearHighlights(), findEditPart(), findEditPart(), findEditPartsInRange(), getFigureSize(), hasEditPart(), highlight(), OnDraw(), updateMachine(), and ~MachineCanvas().

◆ selection_

EditPart* MachineCanvas::selection_

private

Pointer to the the selected component.

Definition at line 135 of file MachineCanvas.hh.

Referenced by clearSelection(), select(), and selection().

◆ tool_

MachineCanvasTool* MachineCanvas::tool_

private

Tool which handles mouse events on the MachineCanvas.

Definition at line 119 of file MachineCanvas.hh.

Referenced by onMouseEvent(), setTool(), and tool().

◆ toolBounds_

wxRect MachineCanvas::toolBounds_

private

Bounding box of the last tool figure drawn.

Definition at line 137 of file MachineCanvas.hh.

Referenced by refreshToolFigure().

◆ zoomFactor_

double MachineCanvas::zoomFactor_

private

Zoom factor of the canvas.

Definition at line 128 of file MachineCanvas.hh.

Referenced by OnDraw(), onMouseEvent(), refreshLogicalRect(), setZoomFactor(), and zoomFactor().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MachineCanvas()

◆ ~MachineCanvas()

Member Function Documentation

◆ addMove()

◆ clearHighlights()

◆ clearMoves()

◆ clearSelection()

◆ findEditPart() [1/2]

◆ findEditPart() [2/2]

◆ findEditPartsInRange()

◆ getFigureSize()

◆ hasEditPart()

◆ highlight()

◆ OnDraw()

◆ onMouseEvent()

◆ options()

◆ refreshLogicalRect()

◆ refreshToolFigure()

◆ saveEPS()

◆ savePNG()

◆ select()

◆ selection()

◆ setMachine()

◆ setTool()

◆ setZoomFactor()

◆ tool()

◆ updateMachine()

◆ zoomFactor()

◆ zoomIn()

◆ zoomOut()

Member Data Documentation

◆ dirty_

◆ editPolicyFactory_

◆ machine_

◆ moveFigures_

◆ options_

◆ parent_

◆ root_

◆ selection_

◆ tool_

◆ toolBounds_

◆ zoomFactor_
