MachineEditPartFactory Class Reference

#include <MachineEditPartFactory.hh>

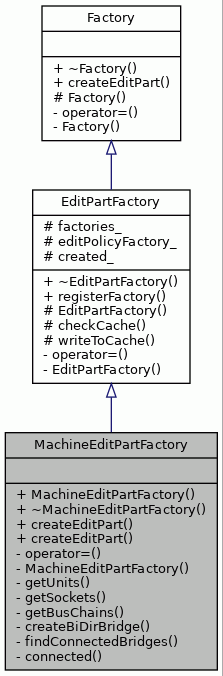

Inheritance diagram for MachineEditPartFactory:

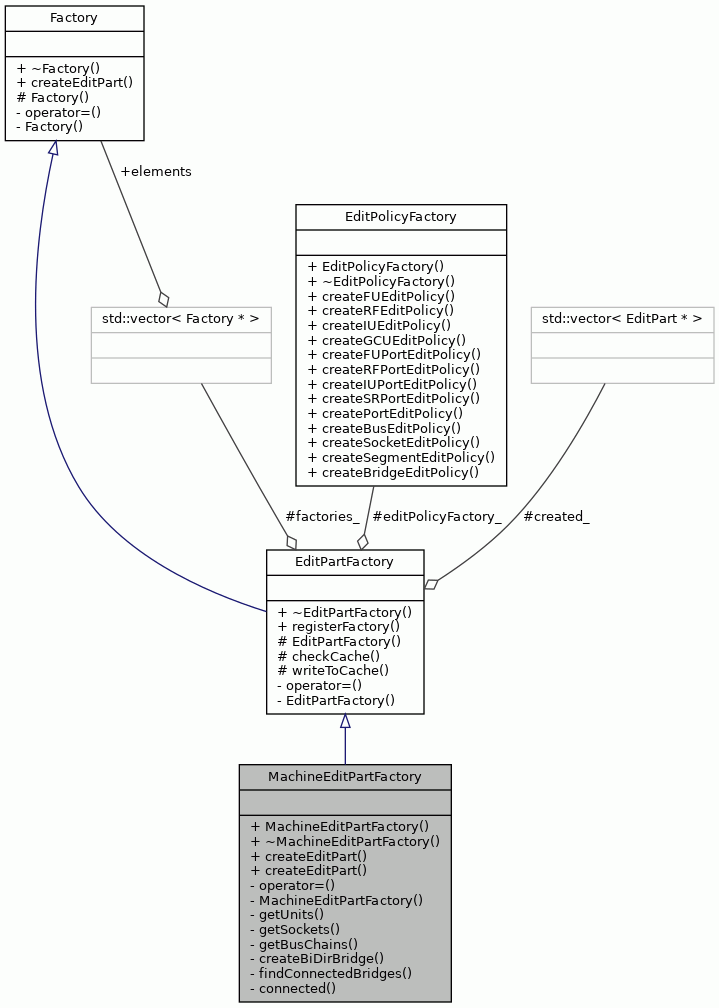

Collaboration diagram for MachineEditPartFactory:

Public Member Functions
	MachineEditPartFactory (EditPolicyFactory &editPolicyFactory)
virtual	~MachineEditPartFactory ()
virtual EditPart *	createEditPart (TTAMachine::MachinePart *component)
EditPart *	createEditPart (TTAMachine::Machine *machine)
Public Member Functions inherited from EditPartFactory
virtual	~EditPartFactory ()
void	registerFactory (Factory *factory)
Public Member Functions inherited from Factory
virtual	~Factory ()

Private Member Functions
MachineEditPartFactory &	operator= (MachineEditPartFactory &old)
	Assignment not allowed.
	MachineEditPartFactory (MachineEditPartFactory &old)
	Copying not allowed.
EditPart *	getUnits (TTAMachine::Machine *machine)
EditPart *	getSockets (TTAMachine::Machine *machine)
EditPart *	getBusChains (TTAMachine::Machine *machine)
ConnectionEditPart *	createBiDirBridge (ConnectionEditPart *bridge, TTAMachine::Bridge *opposite)
void	findConnectedBridges (ConnectionEditPart *&bridgeEditPart, ConnectionEditPart *&biDirBridge, std::vector< TTAMachine::Bridge * > &bridges, TTAMachine::Bus *bus)
bool	connected (const TTAMachine::Bridge *bridge, const TTAMachine::Bus *bus1, const TTAMachine::Bus *bus2)

Additional Inherited Members
Protected Member Functions inherited from EditPartFactory
	EditPartFactory (EditPolicyFactory &editPolicyFactory)
EditPart *	checkCache (const TTAMachine::MachinePart *component) const
void	writeToCache (EditPart *editPart)
Protected Member Functions inherited from Factory
	Factory ()
Protected Attributes inherited from EditPartFactory
std::vector< Factory * >	factories_
	Registered factories.
EditPolicyFactory &	editPolicyFactory_
	Factory which creates edit policies for edit parts.
Static Protected Attributes inherited from EditPartFactory
static std::vector< EditPart * >	created_
	Container for already created EditParts.

Detailed Description

Factory for creating EditParts from any Machine component or the Machine itself.

Definition at line 55 of file MachineEditPartFactory.hh.

Constructor & Destructor Documentation

MachineEditPartFactory() [1/2]

MachineEditPartFactory::MachineEditPartFactory ( EditPolicyFactory &  editPolicyFactory )

explicit

The Constructor.

Definition at line 73 of file MachineEditPartFactory.cc.

                                          :
    EditPartFactory(editPolicyFactory) {

    registerFactory(new GCUFactory(editPolicyFactory));
    registerFactory(new FUFactory(editPolicyFactory));
    registerFactory(new IUFactory(editPolicyFactory));
    registerFactory(new RFFactory(editPolicyFactory));
    registerFactory(new BridgeFactory(editPolicyFactory));
    registerFactory(new SocketFactory(editPolicyFactory));
    registerFactory(new BusFactory(editPolicyFactory));
}

References EditPartFactory::registerFactory().

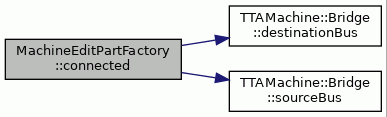

Here is the call graph for this function:

~MachineEditPartFactory()

MachineEditPartFactory::~MachineEditPartFactory ( )

virtual

The Destructor.

Definition at line 90 of file MachineEditPartFactory.cc.

                                                {
}

MachineEditPartFactory() [2/2]

MachineEditPartFactory::MachineEditPartFactory ( MachineEditPartFactory &  old )

private

Copying not allowed.

Member Function Documentation

connected()

bool MachineEditPartFactory::connected ( const TTAMachine::Bridge *  bridge, const TTAMachine::Bus *  bus1, const TTAMachine::Bus *  bus2  )

private

Tells whether a bridge is connected to two specific buses.

Parameters

bridge	The bridge.
bus1	One bus.
bus2	The other bus.

Returns

True if the bridge is connected to the buses, false otherwise.

Definition at line 415 of file MachineEditPartFactory.cc.

                     {

    return (bridge->sourceBus() == bus1 &&
    bridge->destinationBus() == bus2) ||
    (bridge->destinationBus() == bus1 &&
    bridge->sourceBus() == bus2);
}

References TTAMachine::Bridge::destinationBus(), and TTAMachine::Bridge::sourceBus().

Referenced by findConnectedBridges().

Here is the call graph for this function:

createBiDirBridge()

ConnectionEditPart * MachineEditPartFactory::createBiDirBridge ( ConnectionEditPart *  bridge, TTAMachine::Bridge *  opposite  )

private

Creates an EditPart for a bidirectional bridge.

Parameters

bridge	EditPart representing one of the bridges.
opposite	The opposite bridge.

Returns

EditPart for the bidirectional bridge.

Definition at line 340 of file MachineEditPartFactory.cc.

                      {

    ConnectionEditPart* biDirBridge = new ConnectionEditPart();
    biDirBridge->setSelectable(true);
    BidirBridgeFigure* fig = new BidirBridgeFigure();
    fig->setDirection(BridgeFigure::DIR_BIDIR);
    biDirBridge->setFigure(fig);
    EditPart* oppositeBridge = createEditPart(opposite);
    bridge->setSelectable(false);
    oppositeBridge->setSelectable(false);

    biDirBridge->setModel(bridge->model());
    biDirBridge->setSource(bridge->source());
    biDirBridge->setTarget(bridge->target());

    biDirBridge->installEditPolicy(
    editPolicyFactory_.createBridgeEditPolicy());

    biDirBridge->addChild(bridge);
    biDirBridge->addChild(oppositeBridge);

    return biDirBridge;
}

References EditPart::addChild(), EditPolicyFactory::createBridgeEditPolicy(), createEditPart(), BridgeFigure::DIR_BIDIR, EditPartFactory::editPolicyFactory_, EditPart::installEditPolicy(), EditPart::model(), BridgeFigure::setDirection(), EditPart::setFigure(), EditPart::setModel(), EditPart::setSelectable(), ConnectionEditPart::setSource(), ConnectionEditPart::setTarget(), ConnectionEditPart::source(), and ConnectionEditPart::target().

Referenced by findConnectedBridges().

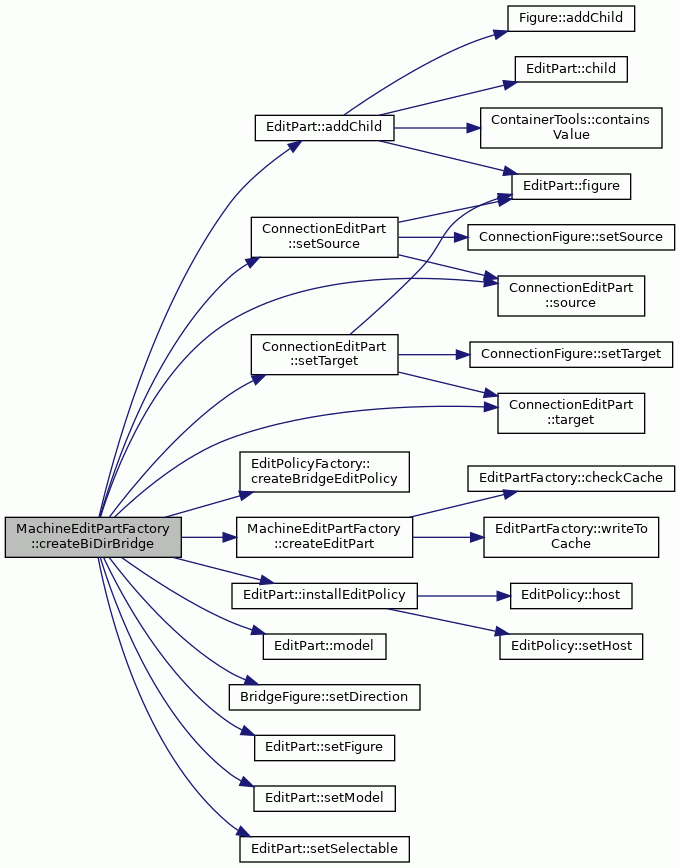

Here is the call graph for this function:

createEditPart() [1/2]

EditPart * MachineEditPartFactory::createEditPart

(

TTAMachine::Machine *

machine

)

Overloaded implementation for creating the contents EditPart from the machine.

Parameters

machine

Machine to create the EditPart from.

Returns

The created contents EditPart corresponding to the machine.

Definition at line 130 of file MachineEditPartFactory.cc.

                                                       {

    EditPart* contents = new EditPart();
    contents->setFigure(new ContentsFigure());

    contents->addChild(getUnits(machine));
    contents->addChild(getSockets(machine));
    contents->addChild(getBusChains(machine));

    return contents;
}

References EditPart::addChild(), getBusChains(), getSockets(), getUnits(), machine, and EditPart::setFigure().

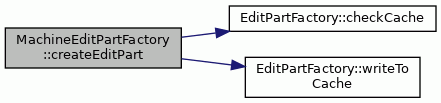

Here is the call graph for this function:

createEditPart() [2/2]

EditPart * MachineEditPartFactory::createEditPart ( TTAMachine::MachinePart *  component )

virtual

Delegates to registered factories to create the EditPart.

Parameters

component

Component of which to create the corresponding EditPart.

Returns

NULL if none of the factories can create the EditPart.

Implements Factory.

Definition at line 101 of file MachineEditPartFactory.cc.

                                                             {

    EditPart* ep = EditPartFactory::checkCache(component);

    if (ep != NULL) {
    return ep;
    }

    vector<Factory*>::const_iterator i = factories_.begin();

    for (; i != factories_.end(); i++) {
    ep = (*i)->createEditPart(component);
    if (ep != NULL) {
        EditPartFactory::writeToCache(ep);
        return ep;
    }
    }

    return NULL;
}

References EditPartFactory::checkCache(), EditPartFactory::factories_, and EditPartFactory::writeToCache().

Referenced by createBiDirBridge(), findConnectedBridges(), getBusChains(), getSockets(), getUnits(), and MachineCanvas::updateMachine().

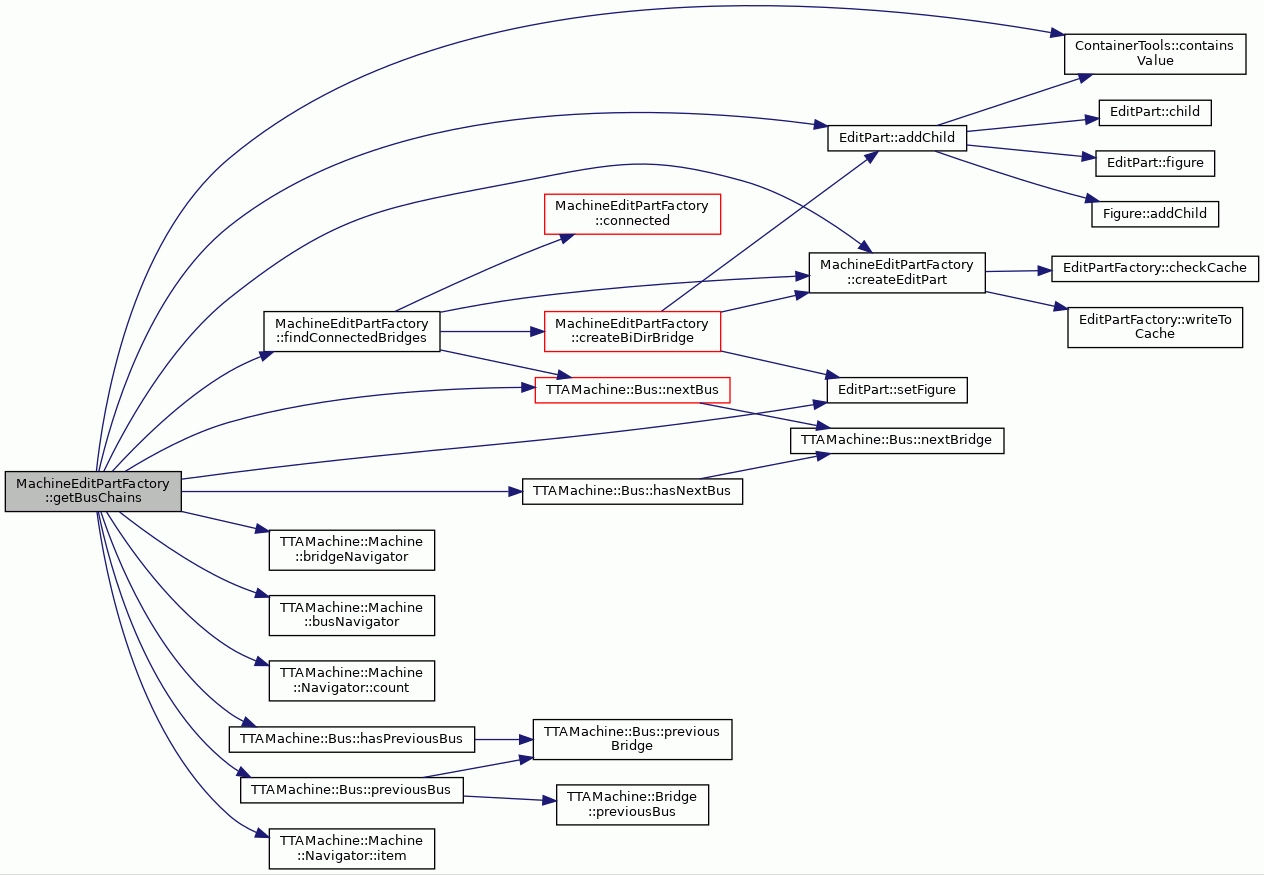

Here is the call graph for this function:

findConnectedBridges()

void MachineEditPartFactory::findConnectedBridges ( ConnectionEditPart *&  bridgeEditPart, ConnectionEditPart *&  biDirBridge, std::vector< TTAMachine::Bridge * > &  bridges, TTAMachine::Bus *  bus  )

private

Finds and returns the bridge or bridges that are connected to a bus.

Parameters

bridgeEditPart	Where to store one bridge, no change if no bridge found.
biDirBridge	Where to store the other bridge, no change if no other bridge found.
bridges	Which bridges to search.
bus	Bus to which the searched bridges should be connected.

Definition at line 377 of file MachineEditPartFactory.cc.

              {

    unsigned int j = 0;

    while (j < bridges.size()) {
    if (connected(bridges[j], bus, bus->nextBus())) {
        bridgeEditPart = dynamic_cast<ConnectionEditPart*>(
        createEditPart(bridges[j]));
        break;
    }
    j++;
    }

    // check if the bridge is bidirectional
    j++;
    while (j < bridges.size()) {
    if (connected(bridges[j], bus, bus->nextBus())) {
        biDirBridge =
        createBiDirBridge(bridgeEditPart, bridges[j]);
        break;
    }
    j++;
    }
}

References connected(), createBiDirBridge(), createEditPart(), and TTAMachine::Bus::nextBus().

Referenced by getBusChains().

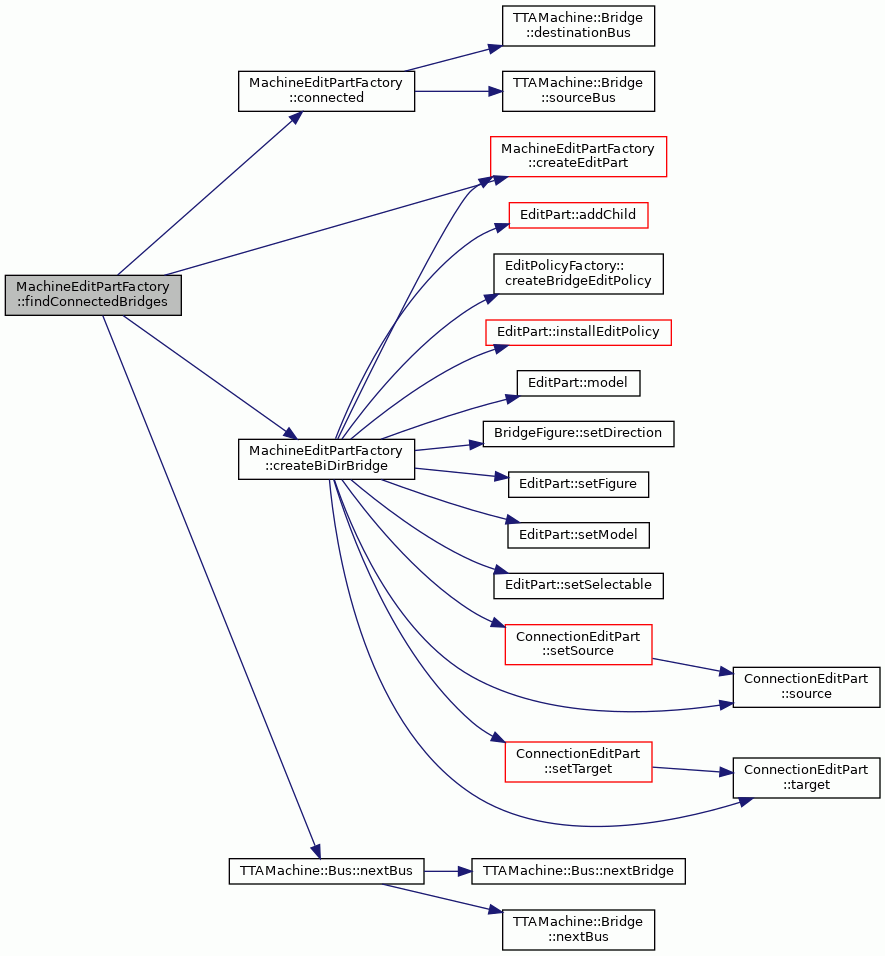

Here is the call graph for this function:

getBusChains()

EditPart * MachineEditPartFactory::getBusChains ( TTAMachine::Machine *  machine )

private

Navigates through the machine and creates a bus container EditPart.

Returns a NULL pointer if there are no buses in the given machine.

Parameters

machine

Machine to navigate through.

Returns

An EditPart containing EditParts for all the buses and bus chains in the given machine or NULL if there aren't any.

Definition at line 239 of file MachineEditPartFactory.cc.

                                                     {

    Machine::BusNavigator busNav = machine->busNavigator();

    EditPart* busContainer = NULL;

    if (busNav.count() > 0) {

    set<Bus*> sorted;
    busContainer = new EditPart();
    busContainer->setFigure(new BusContainerFigure());
    vector<Bus*> buses;

    for (int i = 0; i < busNav.count(); i++) {
        buses.push_back(busNav.item(i));
    }

    // get bridges

    Machine::BridgeNavigator bridgeNav = machine->bridgeNavigator();
    vector<Bridge*> bridges;

    for (int i = 0; i < bridgeNav.count(); i++) {
        bridges.push_back(bridgeNav.item(i));
    }

    // sort the bus chains

    for (unsigned int i = 0; i < buses.size(); i++) {

        if (!ContainerTools::containsValue(sorted, buses[i])) {

        sorted.insert(buses[i]);
        Bus* first = buses[i];

        // browse to the beginning of the chain
        while (first->hasPreviousBus()) {
            first = first->previousBus();
        }

        // start adding buses to the chain

        if (first->hasNextBus()) {

            EditPart* busChain = new EditPart();
            busChain->setFigure(new BusChainFigure());

            while (true) {
            sorted.insert(first);

            // find also the bridge(s) in between
            ConnectionEditPart* bridgeEditPart = NULL;
            ConnectionEditPart* biDirBridge = NULL;

            if (first->hasNextBus()) {
                findConnectedBridges(
                bridgeEditPart, biDirBridge, bridges, first);
            }

            // add the bus and the following bridge to the chain

            EditPart* nextEditPart = createEditPart(first);
            assert(nextEditPart != NULL);
            busChain->addChild(nextEditPart);

            if (biDirBridge != NULL) {
                busChain->addChild(biDirBridge);
            } else if (bridgeEditPart != NULL) {
                busChain->addChild(bridgeEditPart);
            }

            if (first->hasNextBus()) {
                first = first->nextBus();
            } else {
                break;
            }
            }

            busContainer->addChild(busChain);

        } else {
            // add a single bus
            EditPart* busEditPart = createEditPart(buses[i]);
            assert(busEditPart != NULL);
            busContainer->addChild(busEditPart);
        }
        }
    }
    }

    return busContainer;
}

References EditPart::addChild(), assert, TTAMachine::Machine::bridgeNavigator(), TTAMachine::Machine::busNavigator(), ContainerTools::containsValue(), TTAMachine::Machine::Navigator< ComponentType >::count(), createEditPart(), findConnectedBridges(), TTAMachine::Bus::hasNextBus(), TTAMachine::Bus::hasPreviousBus(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine, TTAMachine::Bus::nextBus(), TTAMachine::Bus::previousBus(), and EditPart::setFigure().

Referenced by createEditPart().

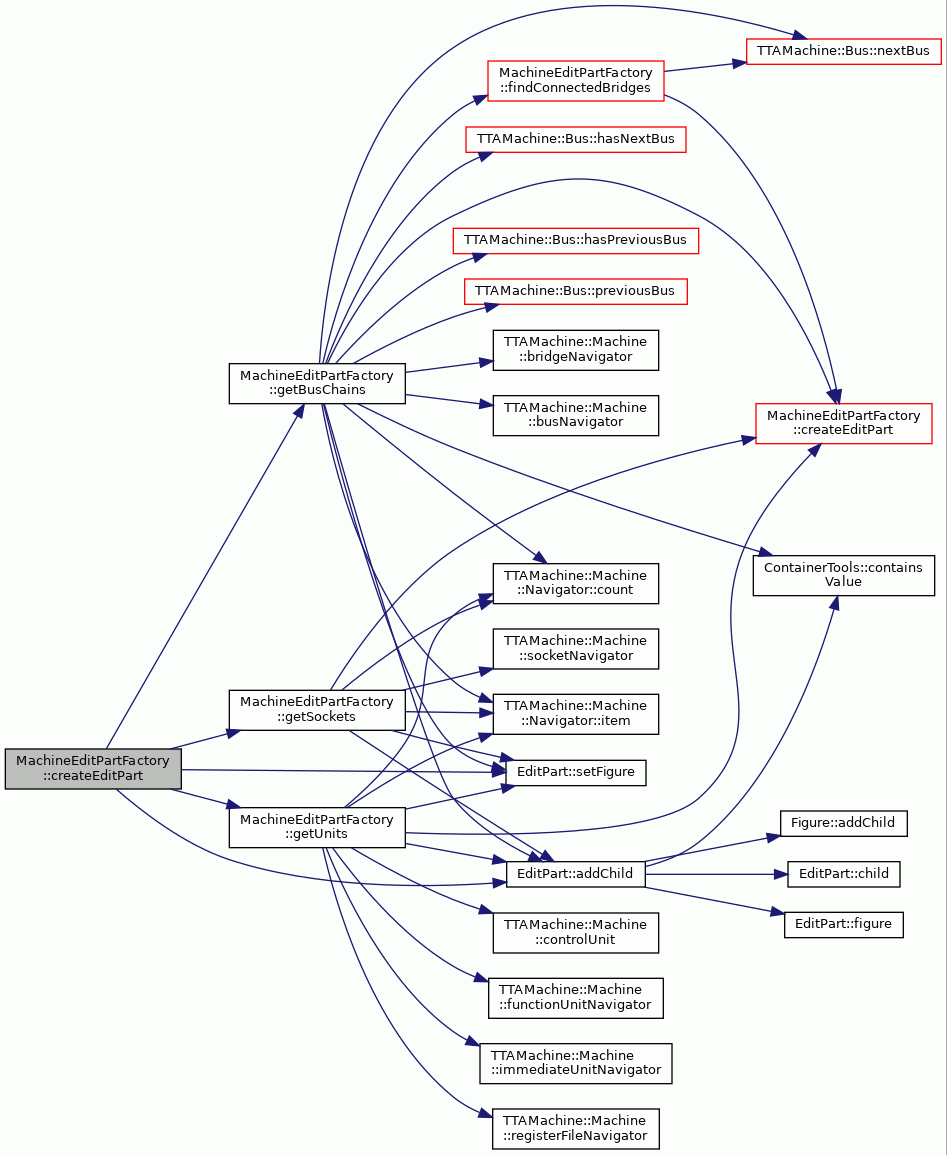

Here is the call graph for this function:

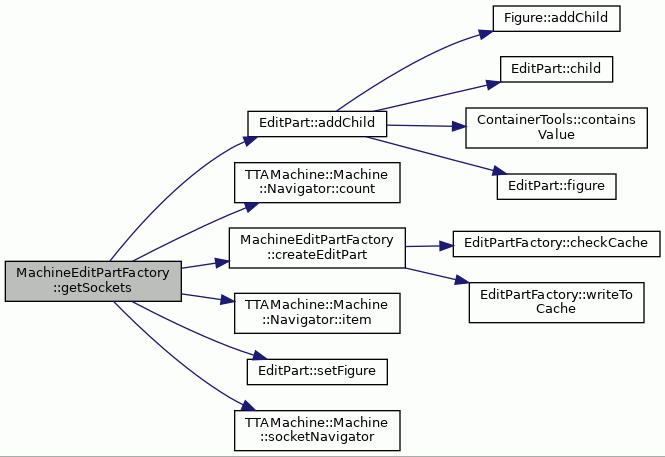

getSockets()

EditPart * MachineEditPartFactory::getSockets ( TTAMachine::Machine *  machine )

private

Navigates through the machine and creates a socket container EditPart.

Returns a NULL pointer if there are no sockets in the given machine.

Parameters

machine

Machine to navigate through.

Returns

An EditPart containing EditParts for all the sockets in the given machine or NULL if there aren't any.

Definition at line 208 of file MachineEditPartFactory.cc.

                                                   {

    Machine::SocketNavigator socketNav = machine->socketNavigator();
    EditPart* sockets = NULL;

    if (socketNav.count() > 0) {

    sockets = new EditPart();
    sockets->setFigure(new SocketContainerFigure());

    for (int i = 0; i < socketNav.count(); i++) {
        Socket* socket = socketNav.item(i);
        EditPart* ep = createEditPart(socket);
        assert(ep != NULL);
        sockets->addChild(ep);
    }
    }

    return sockets;
}

References EditPart::addChild(), assert, TTAMachine::Machine::Navigator< ComponentType >::count(), createEditPart(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine, EditPart::setFigure(), and TTAMachine::Machine::socketNavigator().

Referenced by createEditPart().

Here is the call graph for this function:

getUnits()

EditPart * MachineEditPartFactory::getUnits ( TTAMachine::Machine *  machine )

private

Navigates through the machine and creates a unit container EditPart.

Returns a NULL pointer if there are no units in the given machine.

Parameters

machine

Machine to navigate through.

Returns

An EditPart containing EditParts for all the units in the given machine or NULL if there aren't any.

Definition at line 152 of file MachineEditPartFactory.cc.

                                                 {

    Machine::FunctionUnitNavigator fuNav = machine->functionUnitNavigator();
    Machine::RegisterFileNavigator rfNav = machine->registerFileNavigator();
    Machine::ImmediateUnitNavigator iuNav = machine->immediateUnitNavigator();

    ControlUnit* gcu = machine->controlUnit();
    EditPart* units = NULL;

    if (fuNav.count() > 0 || rfNav.count() > 0 || iuNav.count() > 0 ||
    gcu != NULL) {

    units = new EditPart();
    units->setFigure(new UnitContainerFigure());

    for (int i = 0; i < fuNav.count(); i++) {
        FunctionUnit* fu = fuNav.item(i);
        EditPart* ep = createEditPart(fu);
        assert(ep != NULL);
        units->addChild(ep);
    }

    for (int i = 0; i < rfNav.count(); i++) {
        RegisterFile* rf = rfNav.item(i);
        EditPart* ep = createEditPart(rf);
        assert(ep != NULL);
        units->addChild(ep);
    }

    for (int i = 0; i < iuNav.count(); i++) {
        ImmediateUnit* iu = iuNav.item(i);
        EditPart* ep = createEditPart(iu);
        assert(ep != NULL);
        units->addChild(ep);
    }

    if (gcu != NULL) {
        EditPart* ep = createEditPart(gcu);
        assert(ep != NULL);
        units->addChild(ep);
    }
    }

    return units;
}

References EditPart::addChild(), assert, TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), createEditPart(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine, TTAMachine::Machine::registerFileNavigator(), and EditPart::setFigure().

Referenced by createEditPart().

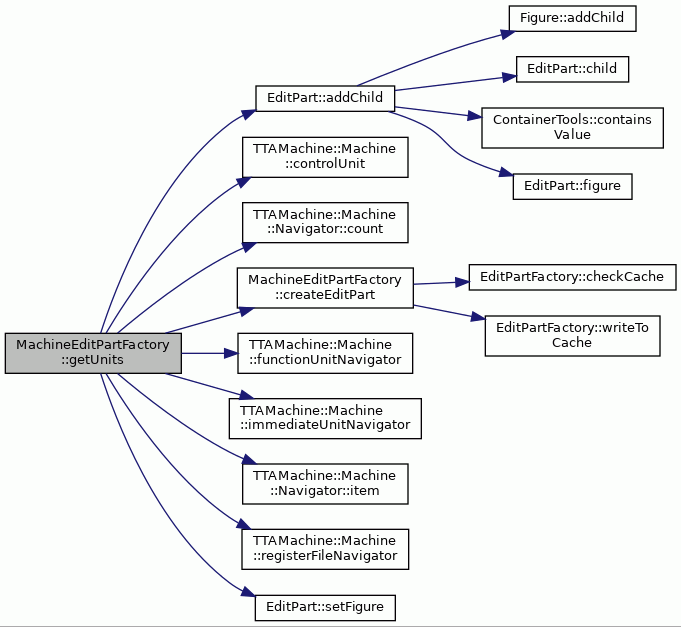

Here is the call graph for this function:

operator=()

MachineEditPartFactory & MachineEditPartFactory::operator= ( MachineEditPartFactory &  old )

private

Assignment not allowed.

---

The documentation for this class was generated from the following files:

• MachineEditPartFactory.hh
• MachineEditPartFactory.cc
