#include <NullSourceField.hh>

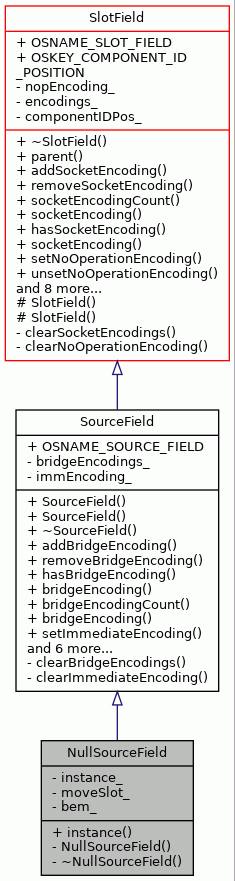

Inheritance diagram for NullSourceField:

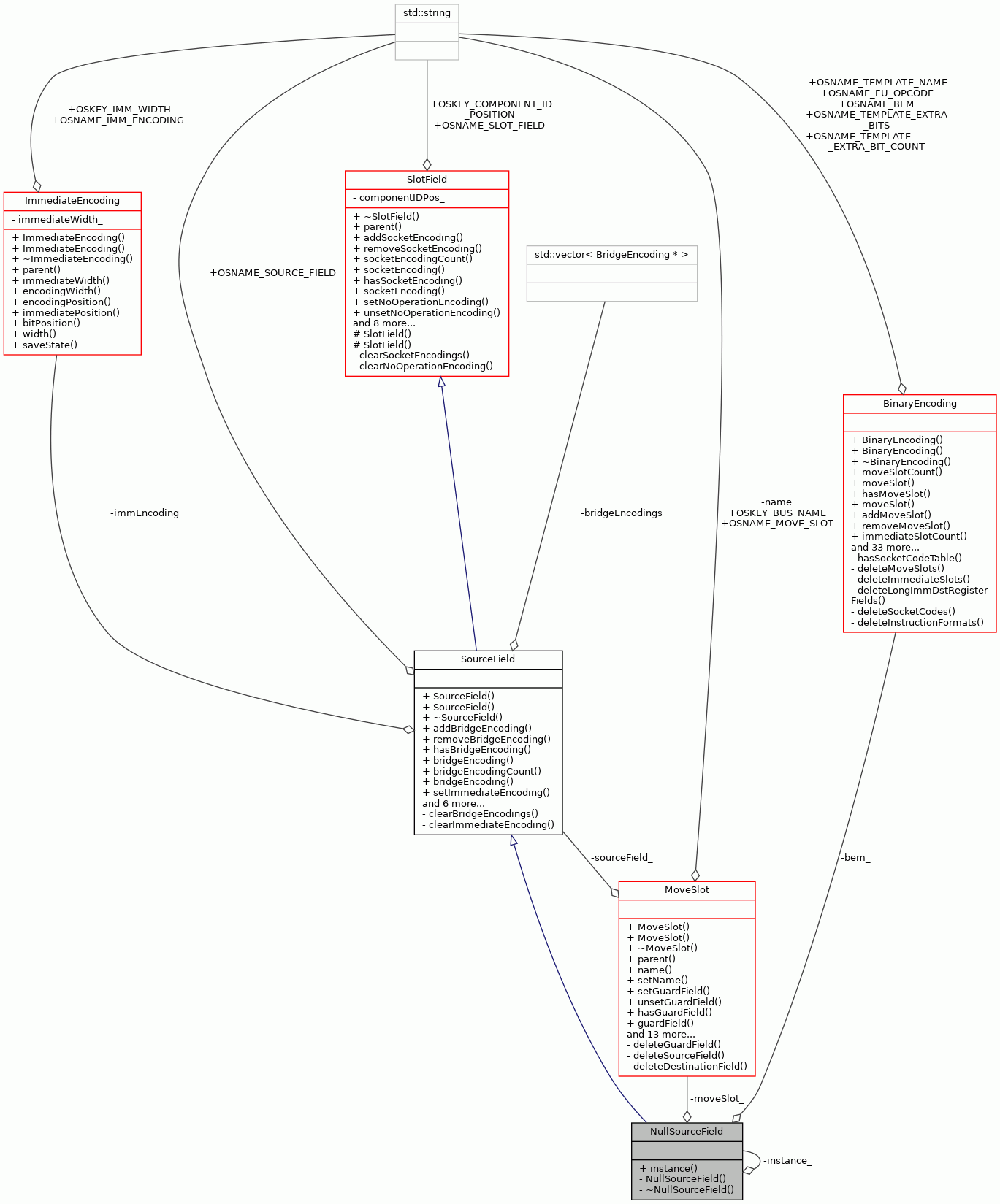

Collaboration diagram for NullSourceField:

Static Public Member Functions
static NullSourceField &	instance ()

Private Member Functions
	NullSourceField ()

virtual	~NullSourceField ()

Static Private Attributes
static NullSourceField	instance_
	The only instance.

static MoveSlot	moveSlot_
	The parent move slot.

static BinaryEncoding	bem_
	The parent binary encoding.

Additional Inherited Members
Public Member Functions inherited from SourceField
	SourceField (BinaryEncoding::Position componentIDPos, MoveSlot &parent)

	SourceField (const ObjectState *state, MoveSlot &parent)

virtual	~SourceField ()

void	addBridgeEncoding (BridgeEncoding &encoding)

void	removeBridgeEncoding (BridgeEncoding &encoding)

bool	hasBridgeEncoding (const std::string &bridge) const

BridgeEncoding &	bridgeEncoding (const std::string &bridge) const

int	bridgeEncodingCount () const

BridgeEncoding &	bridgeEncoding (int index) const

void	setImmediateEncoding (ImmediateEncoding &encoding)

void	unsetImmediateEncoding ()

bool	hasImmediateEncoding () const

ImmediateEncoding &	immediateEncoding () const

virtual int	width () const

virtual void	loadState (const ObjectState *state)

virtual ObjectState *	saveState () const

Public Member Functions inherited from SlotField
virtual	~SlotField ()

MoveSlot *	parent () const

void	addSocketEncoding (SocketEncoding &encoding)

void	removeSocketEncoding (SocketEncoding &encoding)

int	socketEncodingCount () const

SocketEncoding &	socketEncoding (int index) const

bool	hasSocketEncoding (const std::string &socket) const

SocketEncoding &	socketEncoding (const std::string &socket) const

void	setNoOperationEncoding (NOPEncoding &encoding)

void	unsetNoOperationEncoding ()

bool	hasNoOperationEncoding () const

NOPEncoding &	noOperationEncoding () const

BinaryEncoding::Position	componentIDPosition () const

virtual int	childFieldCount () const

virtual InstructionField &	childField (int position) const

Public Member Functions inherited from InstructionField
virtual	~InstructionField ()

InstructionField *	parent () const

int	bitPosition () const

int	relativePosition () const

virtual void	setRelativePosition (int position)

void	setExtraBits (int bits)

int	extraBits () const

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes inherited from SourceField
static const std::string	OSNAME_SOURCE_FIELD = "source_field"
	ObjectState name for source field.

Static Public Attributes inherited from SlotField
static const std::string	OSNAME_SLOT_FIELD = "slot_field"
	ObjectState name for slot field.

static const std::string	OSKEY_COMPONENT_ID_POSITION = "comp_id_pos"
	ObjectState attribute key for component ID position.

Static Public Attributes inherited from InstructionField
static const std::string	OSNAME_INSTRUCTION_FIELD = "instr_field"
	ObjectState name for instruction field.

static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits.

static const std::string	OSKEY_POSITION = "position"
	ObjectState attribute key for the relative position of the field.

Protected Member Functions inherited from SlotField
	SlotField (BinaryEncoding::Position componentIDPos, MoveSlot &parent)

	SlotField (const ObjectState *state, MoveSlot &parent)

Protected Member Functions inherited from InstructionField
	InstructionField (InstructionField *parent)

	InstructionField (const ObjectState state, InstructionField parent)

void	setParent (InstructionField *parent)

Static Protected Member Functions inherited from InstructionField
static void	reorderSubfields (ObjectState *state)

Detailed Description

A null version of SourceField class.

Definition at line 44 of file NullSourceField.hh.

Constructor & Destructor Documentation

◆ NullSourceField()

NullSourceField::NullSourceField ( )

private

The constructor.

Definition at line 44 of file NullSourceField.cc.

                                 :
    SourceField(BinaryEncoding::LEFT ,moveSlot_) {
}

◆ ~NullSourceField()

NullSourceField::~NullSourceField ( )

privatevirtual

The destructor.

Definition at line 52 of file NullSourceField.cc.

52 {

53}

Member Function Documentation

◆ instance()

NullSourceField & NullSourceField::instance ( )

static

Returns the only instance of NullSourceField.

Returns: The instance.

Definition at line 62 of file NullSourceField.cc.

                          {
    return instance_;
}

References instance_.

Referenced by MoveSlot::sourceField().

Member Data Documentation

◆ bem_

BinaryEncoding NullSourceField::bem_

staticprivate

The parent binary encoding.

Definition at line 57 of file NullSourceField.hh.

◆ instance_

NullSourceField NullSourceField::instance_

staticprivate

The only instance.

Definition at line 53 of file NullSourceField.hh.

Referenced by instance().

◆ moveSlot_

MoveSlot NullSourceField::moveSlot_

staticprivate

The parent move slot.

Definition at line 55 of file NullSourceField.hh.

The documentation for this class was generated from the following files:
