ProximMachineStateWindow Class Reference

#include <ProximMachineStateWindow.hh>

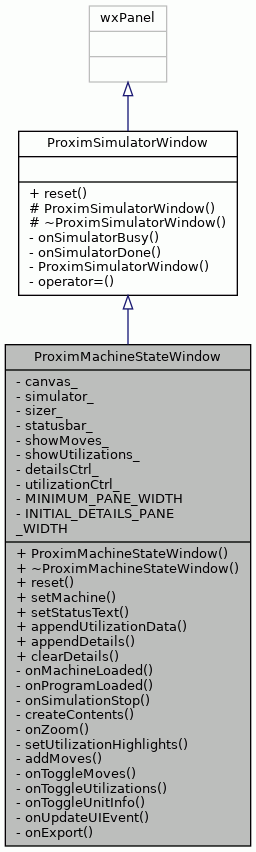

Inheritance diagram for ProximMachineStateWindow:

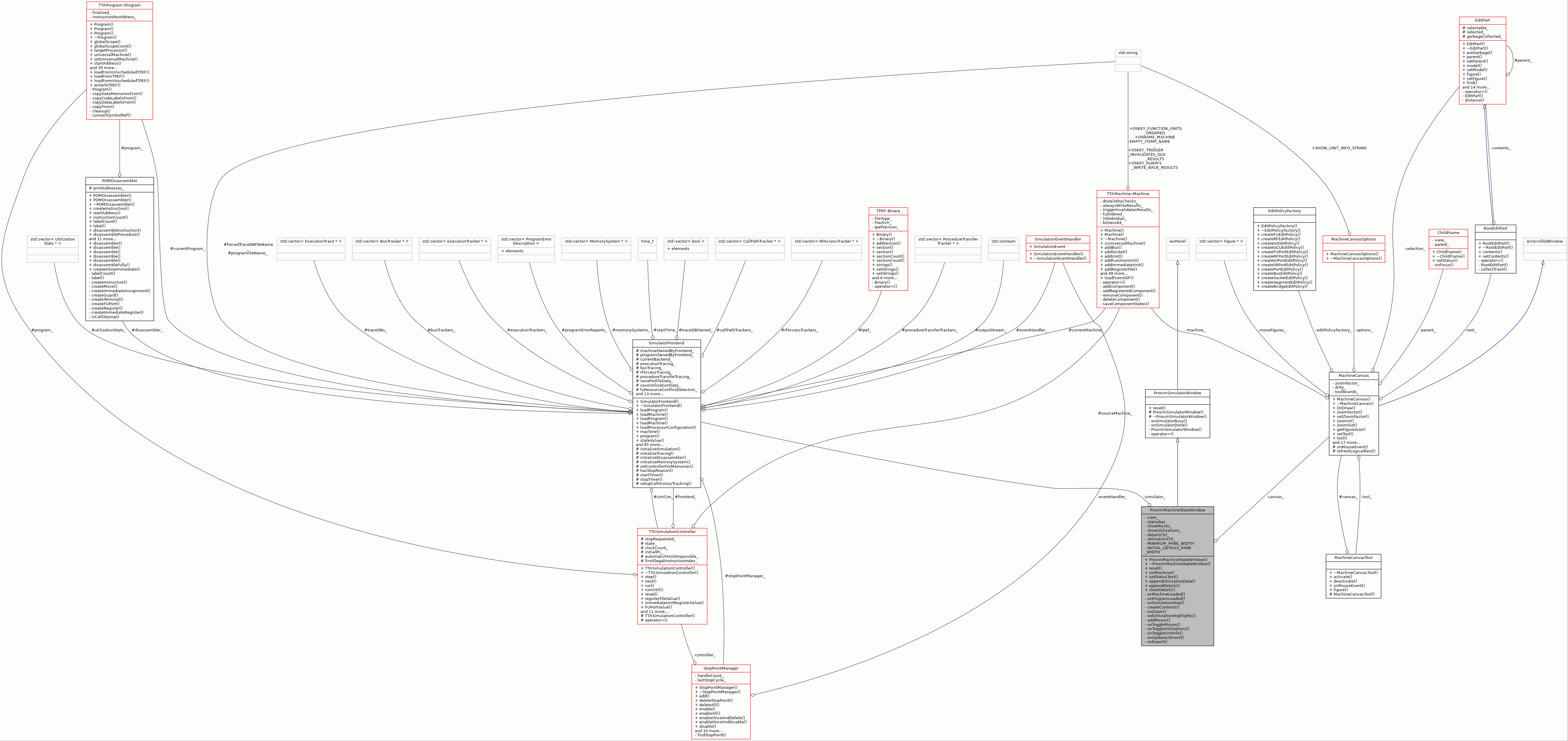

Collaboration diagram for ProximMachineStateWindow:

Public Types
enum	{   COMMAND_ZOOM_IN = 20000 , COMMAND_ZOOM_OUT , COMMAND_TOGGLE_UNIT_INFO , COMMAND_TOGGLE_MOVES ,   COMMAND_TOGGLE_UTILIZATIONS , COMMAND_EXPORT }

Public Member Functions
	ProximMachineStateWindow (ProximMainFrame *parent, int id)
virtual	~ProximMachineStateWindow ()
virtual void	reset ()
void	setMachine (TTAMachine::Machine *machine)
void	setStatusText (std::string status)
void	appendUtilizationData (std::string text)
void	appendDetails (std::string text)
void	clearDetails ()

Private Types
enum	{   ID_MACHINE_CANVAS = 10000 , ID_UTILIZATION_WINDOW , ID_TITLE , ID_DETAILS ,   ID_LINE , ID_LABEL_UTILIZATION , ID_UTILIZATION , ID_SPLITTER }

Private Member Functions
void	onMachineLoaded (const SimulatorEvent &event)
void	onProgramLoaded (const SimulatorEvent &event)
void	onSimulationStop (const SimulatorEvent &event)
void	createContents ()
void	onZoom (wxCommandEvent &event)
void	setUtilizationHighlights ()
void	addMoves ()
void	onToggleMoves (wxCommandEvent &event)
void	onToggleUtilizations (wxCommandEvent &event)
void	onToggleUnitInfo (wxCommandEvent &event)
void	onUpdateUIEvent (wxUpdateUIEvent &event)
void	onExport (wxCommandEvent &event)

Private Attributes
MachineCanvas *	canvas_
	Machine visualization canvas.
SimulatorFrontend *	simulator_
	Simulator instance which contains the registers to display.
wxBoxSizer *	sizer_
	Toplevel sizer for the window widgets.
wxStatusBar *	statusbar_
	Statusbar of the window.
bool	showMoves_
	Tells if the moves are displayed or not.
bool	showUtilizations_
	Tells if the machine part utilizations are displayed or not.
wxTextCtrl *	detailsCtrl_
	Utilziation window where to display utilization data of the components.
wxTextCtrl *	utilizationCtrl_

Static Private Attributes
static const int	MINIMUM_PANE_WIDTH = 150
	Minimum width for the splitter window panes.
static const int	INITIAL_DETAILS_PANE_WIDTH = 200
	Initial width for the component detail pane.

Additional Inherited Members
Protected Member Functions inherited from ProximSimulatorWindow
	ProximSimulatorWindow (ProximMainFrame *mainFrame, wxWindowID id=-1, wxPoint pos=wxDefaultPosition, wxSize size=wxDefaultSize, long style=wxTAB_TRAVERSAL)
virtual	~ProximSimulatorWindow ()

Detailed Description

Proxim subwindow which displays the simulated machine state.

This window listens to SimulatorEvents and updates the window contents automatically.

Definition at line 56 of file ProximMachineStateWindow.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
COMMAND_ZOOM_IN
COMMAND_ZOOM_OUT
COMMAND_TOGGLE_UNIT_INFO
COMMAND_TOGGLE_MOVES
COMMAND_TOGGLE_UTILIZATIONS
COMMAND_EXPORT

Definition at line 68 of file ProximMachineStateWindow.hh.

         {
    COMMAND_ZOOM_IN = 20000,
    COMMAND_ZOOM_OUT,
        COMMAND_TOGGLE_UNIT_INFO,
        COMMAND_TOGGLE_MOVES,
        COMMAND_TOGGLE_UTILIZATIONS,
        COMMAND_EXPORT
    };

anonymous enum

anonymous enum

private

Enumerator
ID_MACHINE_CANVAS
ID_UTILIZATION_WINDOW
ID_TITLE
ID_DETAILS
ID_LINE
ID_LABEL_UTILIZATION
ID_UTILIZATION
ID_SPLITTER

Definition at line 101 of file ProximMachineStateWindow.hh.

         {
    ID_MACHINE_CANVAS = 10000,
        ID_UTILIZATION_WINDOW,
        ID_TITLE,
        ID_DETAILS,
        ID_LINE,
        ID_LABEL_UTILIZATION,
        ID_UTILIZATION,
        ID_SPLITTER
    };

Constructor & Destructor Documentation

ProximMachineStateWindow()

ProximMachineStateWindow::ProximMachineStateWindow	(	ProximMainFrame *	parent,
		int	id
	)

Constructor.

Parameters

parent	Parent window of the window.
id	Window identifier.

Definition at line 94 of file ProximMachineStateWindow.cc.

                                    :
    ProximSimulatorWindow(parent, id, wxDefaultPosition, wxSize(800,600)),
    showMoves_(true), showUtilizations_(true),
    detailsCtrl_(NULL), utilizationCtrl_(NULL) {

    createContents();

    SetSizeHints(400, 300);

    simulator_ = wxGetApp().simulation()->frontend();

    if (simulator_->isSimulationInitialized() ||
        simulator_->isSimulationStopped() ||
        simulator_->isSimulationRunning() ||
        simulator_->hasSimulationEnded()) {

    TTAMachine::Machine* machine =
            const_cast<Machine*>(&ProximToolbox::machine());

    canvas_->setMachine(machine);

    if (showUtilizations_) {
        setUtilizationHighlights();
    }

    }
}

References machine, and ProximToolbox::machine().

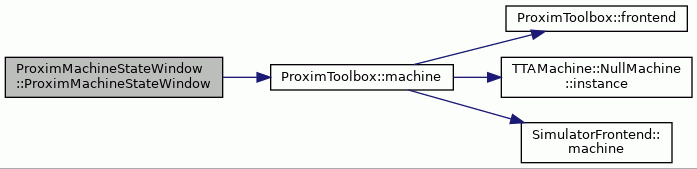

Here is the call graph for this function:

~ProximMachineStateWindow()

ProximMachineStateWindow::~ProximMachineStateWindow ( )

virtual

Destructor.

Definition at line 127 of file ProximMachineStateWindow.cc.

                                                    {
}

Member Function Documentation

addMoves()

void ProximMachineStateWindow::addMoves ( )

private

Adds active moves to be drawn on the canvas.

Definition at line 358 of file ProximMachineStateWindow.cc.

                                   {

    InstructionAddress address = simulator_->lastExecutedInstruction();

    const TTAProgram::Instruction& instruction =
        simulator_->program().instructionAt(address);

    canvas_->clearMoves();
    for (int i = 0; i < instruction.moveCount(); i++) {

        // Check that the move wasn't squashed by a guard.
        const ExecutableInstruction& lastInstruction =
            simulator_->lastExecInstruction();

        if (lastInstruction.moveSquashed(i)) {
            continue;
        }

        // Move not squashed, add move to be drawn on the canvas.
        TTAProgram::Move& move = instruction.move(i);
        const Bus* bus = &move.bus();
        const Port* source = NULL;
        const Port* target = NULL;
        if (move.source().isFUPort() || move.source().isGPR()) {
            source = &move.source().port();
        }
        if (move.destination().isFUPort() || move.destination().isGPR()) {
            target = &move.destination().port();
        }
        canvas_->addMove(bus, source, target);
    }

}

References MachineCanvas::addMove(), TTAProgram::Move::bus(), canvas_, MachineCanvas::clearMoves(), TTAProgram::Move::destination(), TTAProgram::Program::instructionAt(), TTAProgram::Terminal::isFUPort(), TTAProgram::Terminal::isGPR(), SimulatorFrontend::lastExecInstruction(), SimulatorFrontend::lastExecutedInstruction(), TTAProgram::Instruction::move(), TTAProgram::Instruction::moveCount(), ExecutableInstruction::moveSquashed(), TTAProgram::Terminal::port(), SimulatorFrontend::program(), simulator_, and TTAProgram::Move::source().

Referenced by onSimulationStop(), and onToggleMoves().

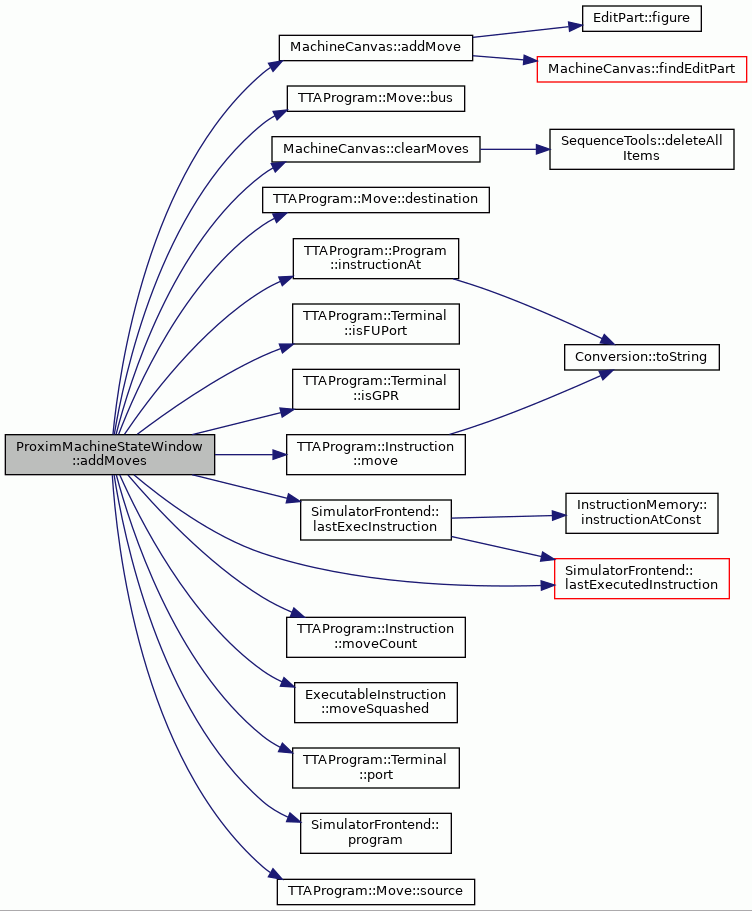

Here is the call graph for this function:

appendDetails()

void ProximMachineStateWindow::appendDetails

(

std::string

text

)

Appends text to the component details widget.

Parameters

text	Text to append.

Definition at line 479 of file ProximMachineStateWindow.cc.

                                                      {
    wxString data = WxConversion::toWxString(text);
    detailsCtrl_->AppendText(data);
}

References detailsCtrl_, and WxConversion::toWxString().

Referenced by ProximBusDetailsCmd::Do(), ProximFUDetailsCmd::Do(), ProximFUPortDetailsCmd::Do(), ProximIUDetailsCmd::Do(), ProximRFDetailsCmd::Do(), and ProximSocketDetailsCmd::Do().

Here is the call graph for this function:

appendUtilizationData()

void ProximMachineStateWindow::appendUtilizationData

(

std::string

text

)

Appends text to the component utilization widget.

Parameters

text	Text to append.

Definition at line 467 of file ProximMachineStateWindow.cc.

                                                              {
    wxString data = WxConversion::toWxString(text);
    utilizationCtrl_->AppendText(data);
}

References WxConversion::toWxString(), and utilizationCtrl_.

Referenced by ProximBusDetailsCmd::Do(), ProximFUDetailsCmd::Do(), ProximIUDetailsCmd::Do(), ProximRFDetailsCmd::Do(), and ProximSocketDetailsCmd::Do().

Here is the call graph for this function:

clearDetails()

void ProximMachineStateWindow::clearDetails

(

)

Clears data in the component details pane.

Definition at line 488 of file ProximMachineStateWindow.cc.

                                       {
    detailsCtrl_->Clear();
    utilizationCtrl_->Clear();
}

References detailsCtrl_, and utilizationCtrl_.

Referenced by ProximMachineCanvasTool::onMouseEvent(), and onSimulationStop().

createContents()

void ProximMachineStateWindow::createContents ( )

private

Creates the window contents.

Code generated by wxWidgets.

Definition at line 199 of file ProximMachineStateWindow.cc.

                                         {

    sizer_ = new wxBoxSizer(wxVERTICAL);

    wxSplitterWindow* splitter = new wxSplitterWindow(
        this, ID_SPLITTER, wxDefaultPosition, wxSize(800,600),
        wxSP_BORDER|wxSP_3D|wxCLIP_CHILDREN);

    wxPanel* left = new wxPanel(splitter, -1);
    wxPanel* right = new wxPanel(splitter, -1);

    // Splitter window left hand pane sizer.
    wxFlexGridSizer* leftSizer = new wxFlexGridSizer(1, 0, 0);
    leftSizer->AddGrowableCol(0);
    leftSizer->AddGrowableRow(1);
    leftSizer->AddGrowableRow(4);

    wxStaticText* title = new wxStaticText(
        left, ID_TITLE, ProximConstants::MACH_WIN_DETAILS_TITLE,
        wxDefaultPosition, wxDefaultSize, 0);

    detailsCtrl_ = new wxTextCtrl(
        left, ID_DETAILS, wxT(""), wxDefaultPosition, wxSize(80,40),
        wxTE_MULTILINE|wxTE_READONLY|wxVSCROLL|wxHSCROLL);

    wxStaticLine* line = new wxStaticLine(
        left, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL);

    wxStaticText* utilizationTitle = new wxStaticText(
        left, ID_LABEL_UTILIZATION,
        ProximConstants::MACH_WIN_UTILIZATION_TITLE, wxDefaultPosition,
        wxDefaultSize, 0);

    utilizationCtrl_ = new wxTextCtrl(
        left, ID_UTILIZATION, wxT(""), wxDefaultPosition, wxSize(80,40),
        wxTE_MULTILINE|wxTE_READONLY|wxVSCROLL|wxHSCROLL);

    leftSizer->Add(title, 0, wxGROW|wxALL, 5);
    leftSizer->Add(detailsCtrl_, 0, wxGROW|wxALL, 5);
    leftSizer->Add(line, 0, wxGROW|wxALL, 5);
    leftSizer->Add(utilizationTitle, 0, wxALIGN_CENTER_VERTICAL|wxALL, 5);
    leftSizer->Add(utilizationCtrl_, 0, wxGROW|wxALL, 5);
    left->SetSizer(leftSizer);


    // Splitter window right hand pane sizer.
    wxFlexGridSizer* rightSizer = new wxFlexGridSizer(1, 0, 0);
    rightSizer->AddGrowableCol(0);
    rightSizer->AddGrowableRow(0);
    canvas_ = new MachineCanvas(right, new ProximEditPolicyFactory());
    statusbar_ = new wxStatusBar(right, -1);
    rightSizer->Add(canvas_, 0, wxGROW|wxALL, 5);
    rightSizer->Add(statusbar_, 0, wxGROW|wxALL, 5);
    right->SetSizer(rightSizer);

    // Set sizers and split the window.
    splitter->SetMinimumPaneSize(MINIMUM_PANE_WIDTH);
    splitter->SplitVertically(left, right);
    splitter->SetSashPosition(INITIAL_DETAILS_PANE_WIDTH);

    sizer_->Add(splitter, 1, wxGROW);
    SetSizer(sizer_);

    // Create tool for the canvas.
    MachineCanvasTool* canvasTool = new ProximMachineCanvasTool(canvas_);
    canvas_->setTool(canvasTool);
}

References canvas_, detailsCtrl_, ID_DETAILS, ID_LABEL_UTILIZATION, ID_LINE, ID_SPLITTER, ID_TITLE, ID_UTILIZATION, INITIAL_DETAILS_PANE_WIDTH, ProximConstants::MACH_WIN_DETAILS_TITLE, ProximConstants::MACH_WIN_UTILIZATION_TITLE, MINIMUM_PANE_WIDTH, MachineCanvas::setTool(), sizer_, statusbar_, and utilizationCtrl_.

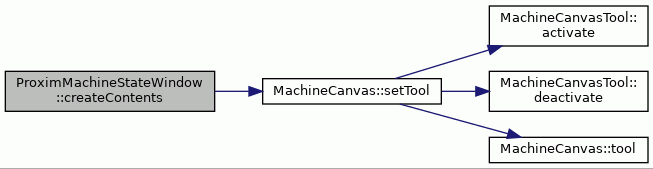

Here is the call graph for this function:

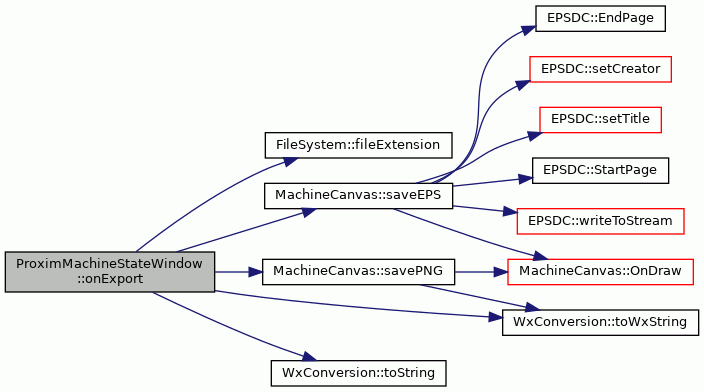

onExport()

void ProximMachineStateWindow::onExport ( wxCommandEvent &  event )

private

Displays a dialog for saving machine figure in a file.

Definition at line 498 of file ProximMachineStateWindow.cc.

                                                  {

    wxString message = _T("Export processor figure.");
    wxString defaultDir = _T(".");
    wxString defaultFile= _T("");
#if wxCHECK_VERSION(3, 0, 0)
    wxString fileTypes = _T("Scalable Vector Graphics (.svg)|*.svg|");
#else
    wxString fileTypes = _T("Encapsulated Postscript (.eps)|*.eps;*.epsi|");
#endif
    fileTypes.Append(_T("Portable Network Graphics (.png)|*.png"));

    wxFileDialog dialog(
        this, message, defaultDir, defaultFile, fileTypes,
        wxSAVE | wxOVERWRITE_PROMPT);

    if (dialog.ShowModal() == wxID_CANCEL) {
        return;
    }

    std::string filename = WxConversion::toString(dialog.GetPath());
    std::string extension = FileSystem::fileExtension(filename);
    std::string creator = "TTA Processor Simulator (Proxim)";
    std::string title = "Processor Simulation";

#if wxCHECK_VERSION(3, 0, 0)
    if (extension == ".svg") {
        if (!canvas_->saveSVG(filename)) {
#else
    if (extension == ".eps" || extension == ".epsi") {
        if (!canvas_->saveEPS(filename, title, creator)) {
#endif
            wxString message = _T("Error saving file '");
            message.Append(dialog.GetPath());
            message.Append(_T("'."));
            ErrorDialog errorDialog(this, message);
            errorDialog.ShowModal();
        }
    } else if (extension == ".png") {
        if (!canvas_->savePNG(filename)) {
            wxString message = _T("Error saving file '");
            message.Append(dialog.GetPath());
            message.Append(_T("'."));
            ErrorDialog errorDialog(this, message);
            errorDialog.ShowModal();
        }
    } else {
        wxString message = _T("File type with extension '");
        message.Append(WxConversion::toWxString(extension));
        message.Append(_T("' is not supported."));
        ErrorDialog dialog(this, message);
        dialog.ShowModal();
    }
}

References canvas_, FileSystem::fileExtension(), MachineCanvas::saveEPS(), MachineCanvas::savePNG(), WxConversion::toString(), and WxConversion::toWxString().

Here is the call graph for this function:

onMachineLoaded()

void ProximMachineStateWindow::onMachineLoaded ( const SimulatorEvent &  event )

private

onProgramLoaded()

void ProximMachineStateWindow::onProgramLoaded ( const SimulatorEvent &  event )

private

Event handler which is called when a new program is loaded in the simulator.

Definition at line 135 of file ProximMachineStateWindow.cc.

                                                               {
    TTAMachine::Machine* machine =
        const_cast<Machine*>(&simulator_->machine());
    canvas_->setMachine(machine);
}

References canvas_, SimulatorFrontend::machine(), machine, MachineCanvas::setMachine(), and simulator_.

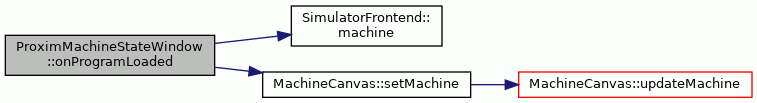

Here is the call graph for this function:

onSimulationStop()

void ProximMachineStateWindow::onSimulationStop ( const SimulatorEvent &  event )

private

Event handler for simulation stop.

Refreshes the register values.

Definition at line 159 of file ProximMachineStateWindow.cc.

                                                                {

    // Store pointer to the selected machine part.
    const MachinePart* selection = NULL;
    if (canvas_->selection() != NULL) {
        selection = canvas_->selection()->model();
    }

    canvas_->clearSelection();
    clearDetails();

    if (showMoves_) {
        addMoves();
    }
    if (showUtilizations_) {
        setUtilizationHighlights();
    }

    canvas_->Refresh();

    // Reselect & display details of the previously selected machine part.
    Request statusRequest(Request::DETAILS_REQUEST);
    if (selection != NULL) {
        EditPart * part = canvas_->findEditPart(selection);
        if (part != NULL && part->canHandle(&statusRequest)) {
            canvas_->select(part);
            ComponentCommand* command = part->performRequest(&statusRequest);
            command->Do();
            delete command;
        }
    }
}

References addMoves(), EditPart::canHandle(), canvas_, clearDetails(), MachineCanvas::clearSelection(), Request::DETAILS_REQUEST, ComponentCommand::Do(), MachineCanvas::findEditPart(), EditPart::model(), EditPart::performRequest(), MachineCanvas::select(), MachineCanvas::selection(), setUtilizationHighlights(), showMoves_, and showUtilizations_.

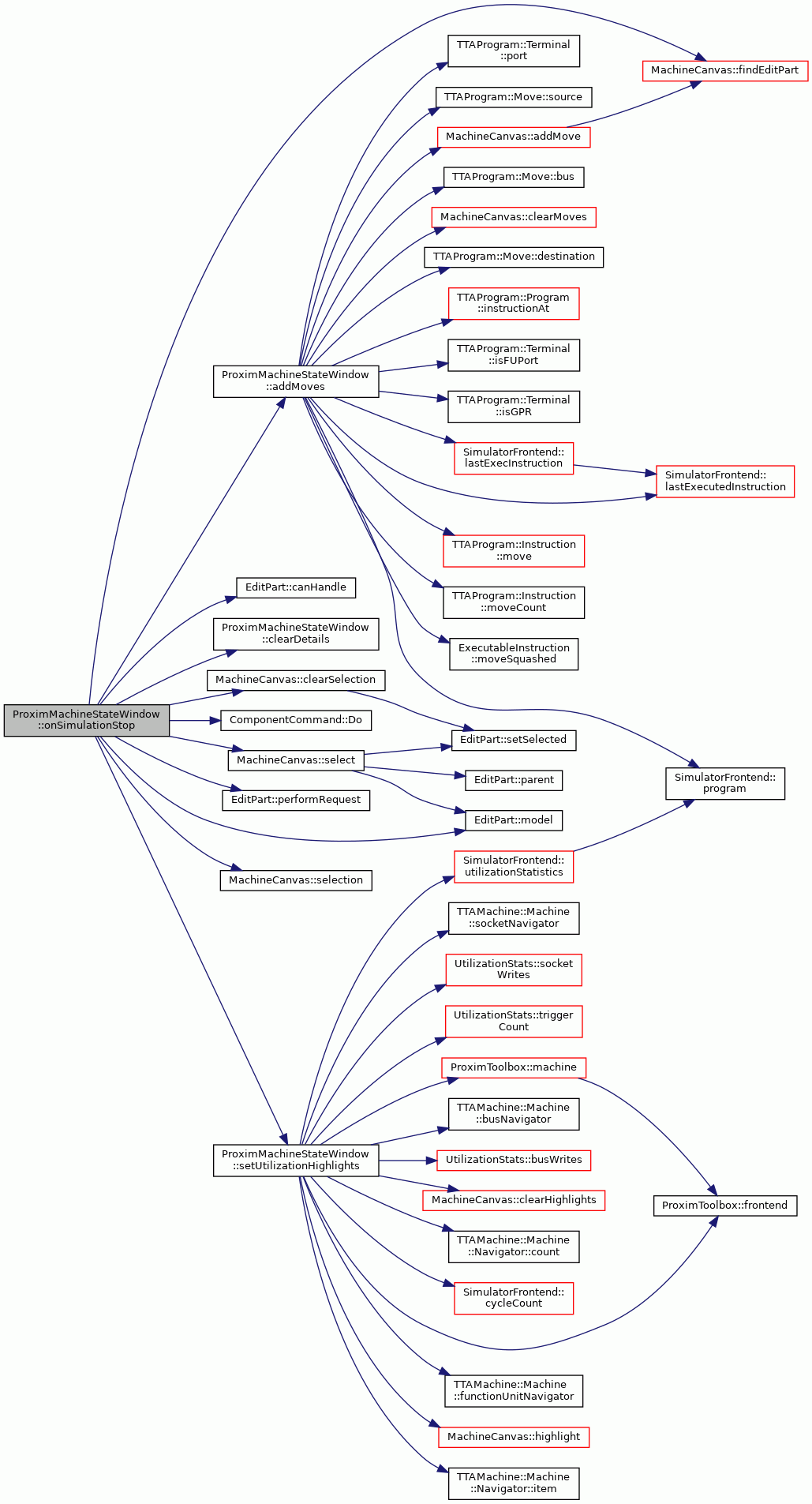

Here is the call graph for this function:

onToggleMoves()

void ProximMachineStateWindow::onToggleMoves ( wxCommandEvent &  event )

private

Toggles the move display on and off.

Definition at line 411 of file ProximMachineStateWindow.cc.

                                                       {
    showMoves_ = !showMoves_;
    if (showMoves_) {
        addMoves();
    } else {
        canvas_->clearMoves();
    }
    canvas_->Refresh();
}

References addMoves(), canvas_, MachineCanvas::clearMoves(), and showMoves_.

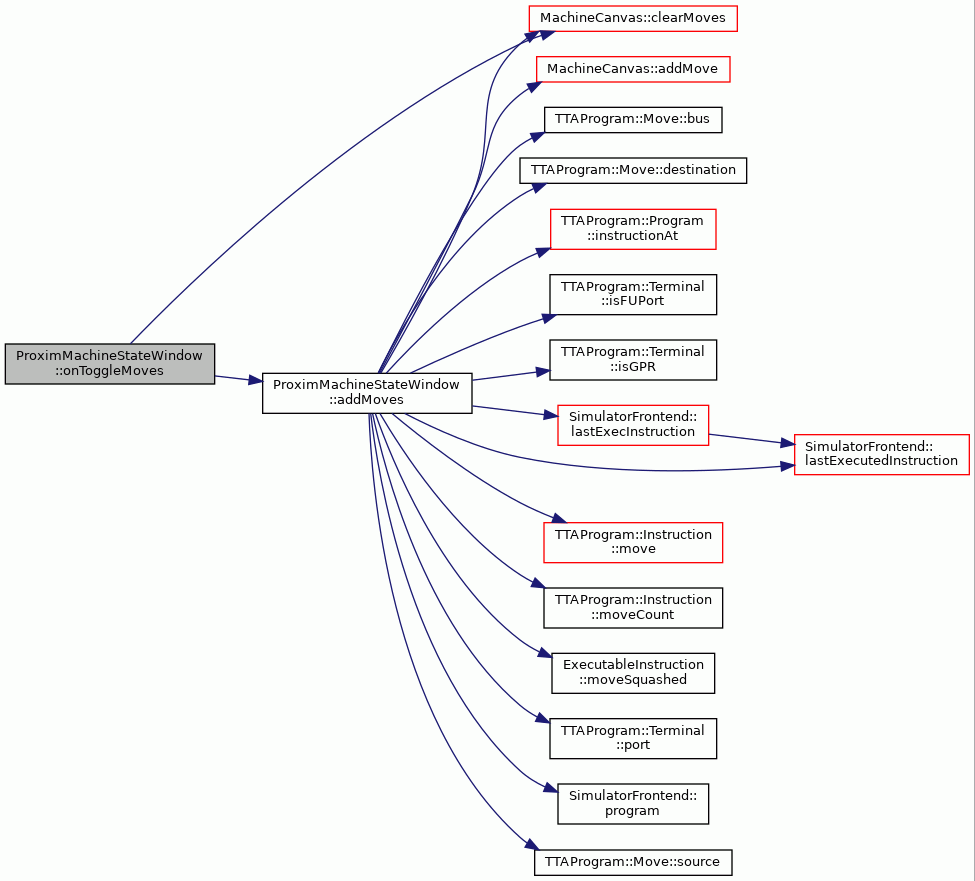

Here is the call graph for this function:

onToggleUnitInfo()

void ProximMachineStateWindow::onToggleUnitInfo ( wxCommandEvent &  event )

private

Toggles the unit info string display on and off.

Definition at line 396 of file ProximMachineStateWindow.cc.

                                                          {

    OptionValue& showInfo = canvas_->options().optionValue(
        MachineCanvasOptions::SHOW_UNIT_INFO_STRING);

    showInfo.setBoolValue(!showInfo.isFlagOn());
    canvas_->updateMachine();

}

References canvas_, OptionValue::isFlagOn(), MachineCanvas::options(), Options::optionValue(), OptionValue::setBoolValue(), MachineCanvasOptions::SHOW_UNIT_INFO_STRING, and MachineCanvas::updateMachine().

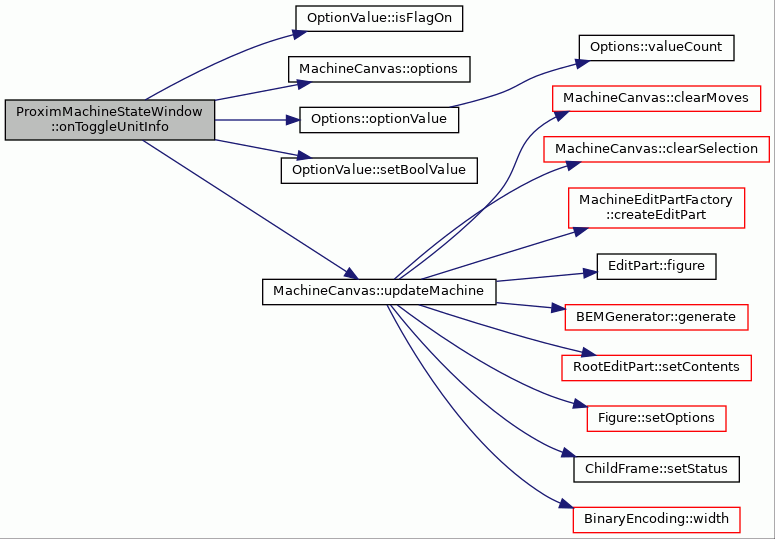

Here is the call graph for this function:

onToggleUtilizations()

void ProximMachineStateWindow::onToggleUtilizations ( wxCommandEvent &  event )

private

Toggles the utilization display on and off.

Definition at line 425 of file ProximMachineStateWindow.cc.

                                                              {

    showUtilizations_ = !showUtilizations_;

    SimulatorFrontend* frontend = ProximToolbox::frontend();
    if (showUtilizations_ && frontend != NULL) {
        setUtilizationHighlights();
    } else {
        canvas_->clearHighlights();
    }
    canvas_->Refresh();
}

References canvas_, MachineCanvas::clearHighlights(), ProximToolbox::frontend(), setUtilizationHighlights(), and showUtilizations_.

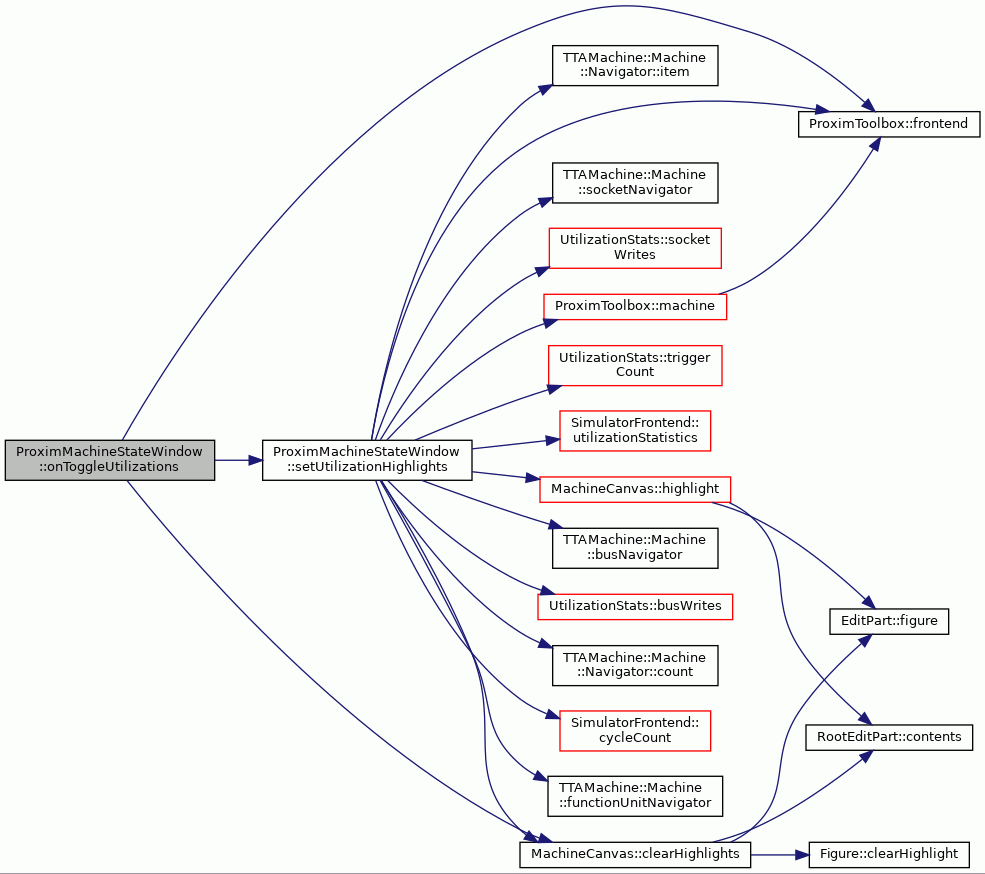

Here is the call graph for this function:

onUpdateUIEvent()

void ProximMachineStateWindow::onUpdateUIEvent ( wxUpdateUIEvent &  event )

private

Event handler for meni item UI update events.

Parameters

event

Update event to handle.

Definition at line 445 of file ProximMachineStateWindow.cc.

                                                                {

    if (event.GetId() == COMMAND_TOGGLE_MOVES) {
        event.Check(showMoves_);
    } else if (event.GetId() == COMMAND_TOGGLE_UTILIZATIONS) {
        event.Check(showUtilizations_);
    } else if (event.GetId() == COMMAND_TOGGLE_UNIT_INFO) {
        OptionValue& showInfo = canvas_->options().optionValue(
            MachineCanvasOptions::SHOW_UNIT_INFO_STRING);
        event.Check(showInfo.isFlagOn());
    } else {
        event.Skip();
    }
}

References canvas_, COMMAND_TOGGLE_MOVES, COMMAND_TOGGLE_UNIT_INFO, COMMAND_TOGGLE_UTILIZATIONS, OptionValue::isFlagOn(), MachineCanvas::options(), Options::optionValue(), MachineCanvasOptions::SHOW_UNIT_INFO_STRING, showMoves_, and showUtilizations_.

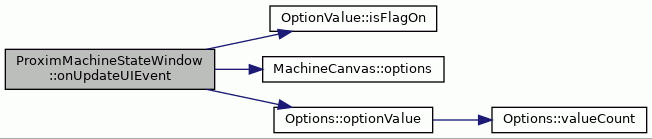

Here is the call graph for this function:

onZoom()

void ProximMachineStateWindow::onZoom ( wxCommandEvent &  event )

private

Handles zoom menu item events.

Parameters

event

Menu event to handle.

Definition at line 286 of file ProximMachineStateWindow.cc.

                                                      {

    // Zoom in.
    if (event.GetId() == COMMAND_ZOOM_IN) {
        canvas_->zoomIn();
    }

    // Zoom out.
    if (event.GetId() == COMMAND_ZOOM_OUT) {
        canvas_->zoomOut();
    }
}

References canvas_, COMMAND_ZOOM_IN, COMMAND_ZOOM_OUT, MachineCanvas::zoomIn(), and MachineCanvas::zoomOut().

Here is the call graph for this function:

reset()

void ProximMachineStateWindow::reset ( )

virtual

Resets the machine displayed on the canvas when the machine is unloaded in the simulator.

Reimplemented from ProximSimulatorWindow.

Definition at line 147 of file ProximMachineStateWindow.cc.

                                {
    canvas_->setMachine(NULL);
}

References canvas_, and MachineCanvas::setMachine().

Here is the call graph for this function:

setMachine()

void ProximMachineStateWindow::setMachine

(

TTAMachine::Machine *

machine

)

setStatusText()

void ProximMachineStateWindow::setStatusText

(

std::string

status

)

Sets the status line text.

Parameters

status

Status text to set.

Definition at line 274 of file ProximMachineStateWindow.cc.

                                                        {
    wxString text = WxConversion::toWxString(status);
    statusbar_->SetStatusText(text);
}

References statusbar_, and WxConversion::toWxString().

Referenced by ProximComponentStatusCmd::Do(), and ProximMachineCanvasTool::onMouseEvent().

Here is the call graph for this function:

setUtilizationHighlights()

void ProximMachineStateWindow::setUtilizationHighlights ( )

private

Sets machine part highlights based on part utilizations.

Definition at line 304 of file ProximMachineStateWindow.cc.

                                                   {

    canvas_->clearHighlights();

    Machine* machine = const_cast<Machine*>(&ProximToolbox::machine());

    const UtilizationStats& stats =
        ProximToolbox::frontend()->utilizationStatistics();

    ClockCycleCount cycles = ProximToolbox::frontend()->cycleCount();

    // Highlight buses.
    const Machine::BusNavigator& busNavigator = machine->busNavigator();
    for (int i = 0; i < busNavigator.count(); i++) {
        ClockCycleCount writes =
            stats.busWrites(busNavigator.item(i)->name());
        double utilization = static_cast<double>(writes) / cycles;
        unsigned value = unsigned(utilization * 255);
        canvas_->highlight(busNavigator.item(i), wxColour(value, 0, 0));
    }

    // Highlight sockets.
    const Machine::SocketNavigator& socketNavigator =
        machine->socketNavigator();

    for (int i = 0; i < socketNavigator.count(); i++) {
        ClockCycleCount writes =
            stats.socketWrites(socketNavigator.item(i)->name());
        double utilization = static_cast<double>(writes) / cycles;
        unsigned value = 255 - unsigned(utilization * 255);
        wxColour colour = wxColour(255, value, value);
        canvas_->highlight(socketNavigator.item(i), colour);
    }

    // Highlight function units.
    const Machine::FunctionUnitNavigator& fuNavigator =
        machine->functionUnitNavigator();

    for (int i = 0; i < fuNavigator.count(); i++) {
        ClockCycleCount writes =
            stats.triggerCount(fuNavigator.item(i)->name());
        double utilization = static_cast<double>(writes) / cycles;
        unsigned value = 255 - unsigned(utilization * 255);
        wxColour colour = wxColour(255, value, value);
        canvas_->highlight(fuNavigator.item(i), colour);
    }

}

References TTAMachine::Machine::busNavigator(), UtilizationStats::busWrites(), canvas_, MachineCanvas::clearHighlights(), TTAMachine::Machine::Navigator< ComponentType >::count(), SimulatorFrontend::cycleCount(), ProximToolbox::frontend(), TTAMachine::Machine::functionUnitNavigator(), MachineCanvas::highlight(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine, ProximToolbox::machine(), TTAMachine::Machine::socketNavigator(), UtilizationStats::socketWrites(), UtilizationStats::triggerCount(), and SimulatorFrontend::utilizationStatistics().

Referenced by onSimulationStop(), and onToggleUtilizations().

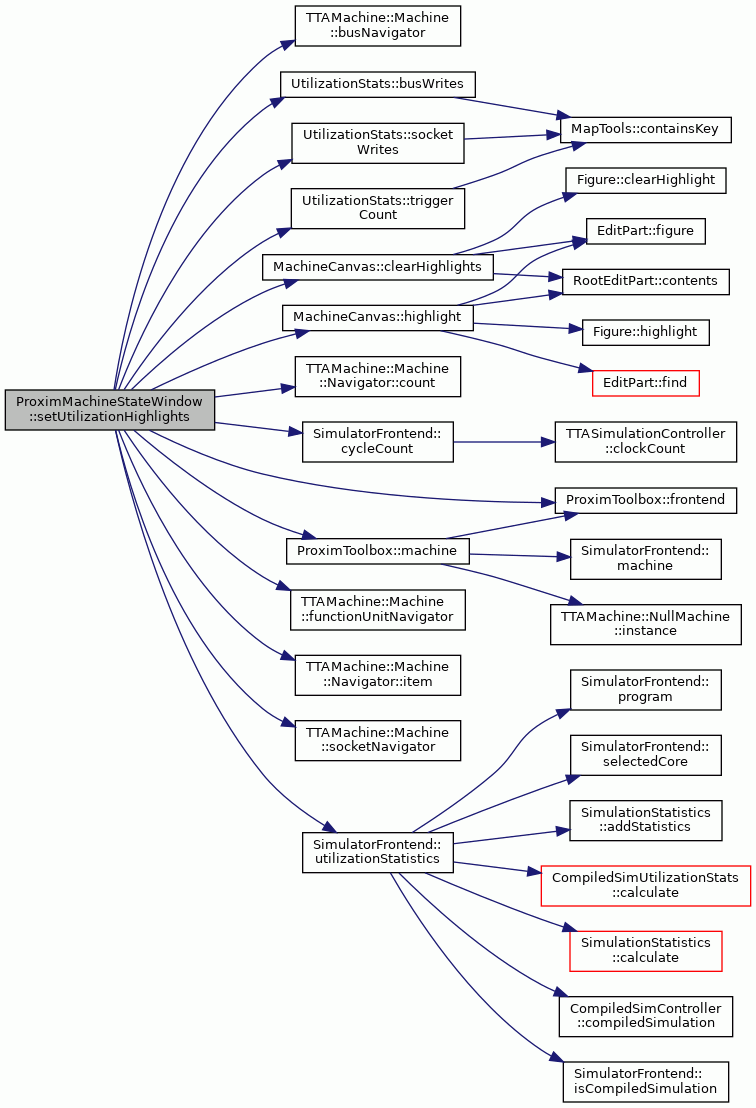

Here is the call graph for this function:

Member Data Documentation

canvas_

MachineCanvas* ProximMachineStateWindow::canvas_

private

Machine visualization canvas.

Definition at line 92 of file ProximMachineStateWindow.hh.

Referenced by addMoves(), createContents(), onExport(), onProgramLoaded(), onSimulationStop(), onToggleMoves(), onToggleUnitInfo(), onToggleUtilizations(), onUpdateUIEvent(), onZoom(), reset(), and setUtilizationHighlights().

detailsCtrl_

wxTextCtrl* ProximMachineStateWindow::detailsCtrl_

private

Utilziation window where to display utilization data of the components.

Definition at line 119 of file ProximMachineStateWindow.hh.

Referenced by appendDetails(), clearDetails(), and createContents().

INITIAL_DETAILS_PANE_WIDTH

const int ProximMachineStateWindow::INITIAL_DETAILS_PANE_WIDTH = 200

staticprivate

Initial width for the component detail pane.

Definition at line 125 of file ProximMachineStateWindow.hh.

Referenced by createContents().

MINIMUM_PANE_WIDTH

const int ProximMachineStateWindow::MINIMUM_PANE_WIDTH = 150

staticprivate

Minimum width for the splitter window panes.

Definition at line 123 of file ProximMachineStateWindow.hh.

Referenced by createContents().

showMoves_

bool ProximMachineStateWindow::showMoves_

private

Tells if the moves are displayed or not.

Definition at line 113 of file ProximMachineStateWindow.hh.

Referenced by onSimulationStop(), onToggleMoves(), and onUpdateUIEvent().

showUtilizations_

bool ProximMachineStateWindow::showUtilizations_

private

Tells if the machine part utilizations are displayed or not.

Definition at line 115 of file ProximMachineStateWindow.hh.

Referenced by onSimulationStop(), onToggleUtilizations(), and onUpdateUIEvent().

simulator_

SimulatorFrontend* ProximMachineStateWindow::simulator_

private

Simulator instance which contains the registers to display.

Definition at line 94 of file ProximMachineStateWindow.hh.

Referenced by addMoves(), and onProgramLoaded().

sizer_

wxBoxSizer* ProximMachineStateWindow::sizer_

private

Toplevel sizer for the window widgets.

Definition at line 96 of file ProximMachineStateWindow.hh.

Referenced by createContents().

statusbar_

wxStatusBar* ProximMachineStateWindow::statusbar_

private

Statusbar of the window.

Definition at line 98 of file ProximMachineStateWindow.hh.

Referenced by createContents(), and setStatusText().

utilizationCtrl_

wxTextCtrl* ProximMachineStateWindow::utilizationCtrl_

private

Definition at line 120 of file ProximMachineStateWindow.hh.

Referenced by appendUtilizationData(), clearDetails(), and createContents().

---

The documentation for this class was generated from the following files:

• ProximMachineStateWindow.hh
• ProximMachineStateWindow.cc
