OutputFUBroker Class Reference

#include <OutputFUBroker.hh>

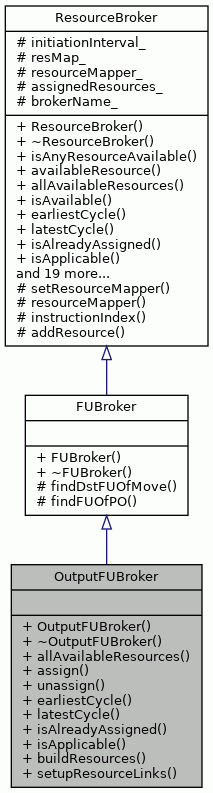

Inheritance diagram for OutputFUBroker:
Inheritance graph

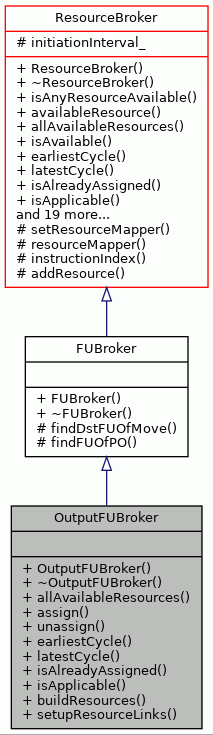

Collaboration diagram for OutputFUBroker:
Collaboration graph

Public Member Functions

 OutputFUBroker (std::string, unsigned int initiationInterval=0)

virtual ~OutputFUBroker ()

virtual SchedulingResourceSet allAvailableResources (int cycle, const MoveNode &node, const TTAMachine::Bus *bus, const TTAMachine::FunctionUnit *srcFU, const TTAMachine::FunctionUnit *dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit *immu, int immRegIndex) const override

virtual void assign (int cycle, MoveNode &node, SchedulingResource &res, int immWriteCycle, int immRegIndex) override

virtual void unassign (MoveNode &node) override

virtual int earliestCycle (int cycle, const MoveNode &node, const TTAMachine::Bus *bus, const TTAMachine::FunctionUnit *srcFU, const TTAMachine::FunctionUnit *dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit *immu, int immRegIndex) const override

virtual int latestCycle (int cycle, const MoveNode &node, const TTAMachine::Bus *bus, const TTAMachine::FunctionUnit *srcFU, const TTAMachine::FunctionUnit *dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit *immu, int immRegIndex) const override

virtual bool isAlreadyAssigned (int cycle, const MoveNode &node, const TTAMachine::Bus *preassignedBus) const override

virtual bool isApplicable (const MoveNode &node, const TTAMachine::Bus *b=0) const override

virtual void buildResources (const TTAMachine::Machine &target) override

virtual void setupResourceLinks (const ResourceMapper &mapper) override

- Public Member Functions inherited from FUBroker
 FUBroker (std::string name, unsigned int initiationInterval=0)

virtual ~FUBroker ()

- Public Member Functions inherited from ResourceBroker
 ResourceBroker (std::string, unsigned int initiationInterval=0)

virtual ~ResourceBroker ()

virtual bool isAnyResourceAvailable (int cycle, const MoveNode &node, const TTAMachine::Bus *bus, const TTAMachine::FunctionUnit *srcFU, const TTAMachine::FunctionUnit *dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit *immu, int immRegIndex) const

virtual SchedulingResourceavailableResource (int cycle, const MoveNode &node, const TTAMachine::Bus *bus, const TTAMachine::FunctionUnit *srcFU, const TTAMachine::FunctionUnit *dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit *immu, int immRegIndex) const

virtual bool isAvailable (SchedulingResource &des, const MoveNode &node, int cycle, const TTAMachine::Bus *bus, const TTAMachine::FunctionUnit *srcFU, const TTAMachine::FunctionUnit *dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit *immu, int immRegIndex) const

SchedulingResourceresourceOf (const TTAMachine::MachinePart &mp) const

virtual const TTAMachine::MachinePartmachinePartOf (const SchedulingResource &r) const

bool hasResourceOf (const TTAMachine::MachinePart &mp) const

bool hasResource (const SchedulingResource &r) const

int resourceCount () const

virtual bool isBusBroker () const

virtual bool isITemplateBroker () const

virtual bool isIUBroker () const

virtual bool isExecutionPipelineBroker () const

void validateResources () const

virtual std::string brokerName () const

void resources (ResourceSet &contents)

virtual void setInitiationInterval (unsigned int cycles)

virtual void clear ()

virtual void setMaxCycle (unsigned int)


Additional Inherited Members

- Public Types inherited from ResourceBroker
typedef std::set< SchedulingResource * > ResourceSet

- Protected Types inherited from ResourceBroker
typedef std::map< const TTAMachine::MachinePart *, SchedulingResource *, TTAMachine::MachinePart::ComparatorResourceMap

typedef std::map< const MoveNode *, SchedulingResource *, MoveNode::ComparatorMoveResMap

- Protected Member Functions inherited from FUBroker
std::pair< bool, const TTAMachine::FunctionUnit * > findDstFUOfMove (const MoveNode &node, const TTAMachine::FunctionUnit *resFU, DataDependenceGraph::NodeSet &processedInputNodes) const

std::pair< bool, const TTAMachine::FunctionUnit * > findFUOfPO (ProgramOperation &po, const TTAMachine::FunctionUnit *resFU) const

- Protected Member Functions inherited from ResourceBroker
void setResourceMapper (const ResourceMapper &mapper)

const ResourceMapperresourceMapper () const

unsigned int instructionIndex (unsigned int) const

void addResource (const TTAMachine::MachinePart &mp, SchedulingResource *res)

- Protected Attributes inherited from ResourceBroker
unsigned int initiationInterval_

ResourceMap resMap_

const ResourceMapperresourceMapper_

MoveResMap assignedResources_

std::string brokerName_


Detailed Description

Output function unit broker.

Definition at line 50 of file OutputFUBroker.hh.

Constructor & Destructor Documentation

◆ OutputFUBroker()

OutputFUBroker::OutputFUBroker ( std::string  name,
unsigned int  initiationInterval = 0
)

Constructor.

Definition at line 65 of file OutputFUBroker.cc.

65 :
66 FUBroker(name, initiationInterval) {
67}

◆ ~OutputFUBroker()

OutputFUBroker::~OutputFUBroker ( )
virtual

Destructor.

Definition at line 72 of file OutputFUBroker.cc.

72 {
73}

Member Function Documentation

◆ allAvailableResources()

SchedulingResourceSet OutputFUBroker::allAvailableResources ( int  cycle,
const MoveNode node,
const TTAMachine::Bus bus,
const TTAMachine::FunctionUnit srcFU,
const TTAMachine::FunctionUnit dstFU,
int  immWriteCycle,
const TTAMachine::ImmediateUnit immu,
int  immRegIndex
) const
overridevirtual

Return all resources managed by this broker that can be assigned to the given node in the given cycle.

Parameters
cycleCycle.
nodeNode.
Returns
All resources managed by this broker that can be assigned to the given node in the given cycle.

Reimplemented from ResourceBroker.

Definition at line 85 of file OutputFUBroker.cc.

92 {
93
94 int modCycle = instructionIndex(cycle);
95 if (!isApplicable(node)) {
96 string msg = "Broker not capable of assigning resources to node: "
97 + node.toString();
98 throw ModuleRunTimeError(__FILE__, __LINE__, __func__, msg);
99 }
100
101 const TTAMachine::FunctionUnit* foundFU = srcFU;
102 int opIndex = -1;
103 ProgramOperation* PO = nullptr;
104 SchedulingResourceSet resourceSet;
105 ResourceMap::const_iterator resIter = resMap_.begin();
106
107 const Operation* op = nullptr;
108
109 if (node.move().source().isFUPort()) {
110 TerminalFUPort& src =
111 static_cast<TerminalFUPort&>(node.move().source());
112
113 if (dynamic_cast<const SpecialRegisterPort*>(&src.port()) != NULL) {
114 // only gcu applies
115 while (resIter != resMap_.end()) {
116 const ControlUnit* gcu =
117 dynamic_cast<const ControlUnit*>((*resIter).first);
118 if (gcu != NULL) {
119 if ((*resIter).second->isAvailable(modCycle)) {
120 resourceSet.insert(*(*resIter).second);
121 }
122 return resourceSet;
123 }
124 resIter++;
125 }
126 abortWithError("No GCU found!");
127 }
128
129 op = &src.hintOperation();
130 opIndex = src.operationIndex();
131
132 // check if a unit has already been assigned to some node
133 // of the same operation and use it.
134 if (node.isSourceOperation()) {
135 PO = &node.sourceOperation();
136 } else {
137 assert(false);
138 }
139 } else {
140 // port guard?
141 PO = &node.guardOperation();
142 opIndex = PO->outputIndexFromGuardOfMove(node);
143 op = &PO->operation();
144 }
145
146 auto a = findFUOfPO(*PO, foundFU);
147 if (a.first) {
148 foundFU = a.second;
149 } else { // conflicting FUs, cannot schedule
150 return SchedulingResourceSet();
151 }
152
153 if (foundFU) {
154 OutputFUResource& fuRes =
155 static_cast<OutputFUResource&>(*resourceOf(*foundFU));
156 // Find what is the port on a new FU for given
157 // operation index. Find a socket for testing.
158 HWOperation* hwOp = foundFU->operation(op->name());
159 assert(hwOp != nullptr);
160 Port* resultPort = hwOp->port(opIndex);
161 assert (resultPort != nullptr);
162 if (fuRes.canAssign(cycle, node, *resultPort)) {
163 resourceSet.insert(fuRes);
164 }
165 return resourceSet;
166 }
167
168 // check if the move has a candidate FU set which limits the
169 // choice of FU for the node
170 std::set<TCEString> candidateFUs;
171 std::set<TCEString> allowedFUs;
172 std::set<TCEString> rejectedFUs;
173
174 // TODO: why is this in loop for operands but not in loop for results?
175 // do multiple return values break or work?
177 candidateFUs, node.move(),
180 allowedFUs, node.move(),
183 rejectedFUs, node.move(),
185
186 // find units that support operation and are available at given cycle
187 while (resIter != resMap_.end()) {
188 const FunctionUnit* unit =
189 static_cast<const FunctionUnit*>((*resIter).first);
190 if (srcFU != NULL && unit != srcFU) {
191 debugLogRM(TCEString("Skipping unit") << unit->name()
192 << " because it's not the pre-set one: "
193 << srcFU->name());
194 resIter++;
195 continue;
196 }
197 // in case the unit is limited by a candidate set, skip FUs that are
198 // not in it
199 debugLogRM(TCEString("checking ") << unit->name());
200 if (candidateFUs.size() > 0 &&
201 !AssocTools::containsKey(candidateFUs, unit->name())) {
202 ++resIter;
203 continue;
204 }
205 if (allowedFUs.size() > 0 &&
206 !AssocTools::containsKey(allowedFUs, unit->name())) {
208 TCEString("skipped ") << unit->name() << " because it was not"
209 " in the allowed set. The set contents: ");
210 for (auto allowedUnit : allowedFUs)
211 debugLogRM(allowedUnit + "\n");
212 ++resIter;
213 continue;
214 }
215
216 if (AssocTools::containsKey(rejectedFUs, unit->name())) {
218 TCEString("skipped ") << unit->name() << " because it was"
219 " in the rejected set.");
220 ++resIter;
221 continue;
222 }
223
224 if (unit->hasOperation(op->name())) {
225 OutputFUResource& fuRes =
226 static_cast<OutputFUResource&>(*resourceOf(*unit));
227 // Find what is the port on a new FU for given
228 // operation index. Find a socket for testing.
229 HWOperation* hwOp = unit->operation(op->name());
230 Port* resultPort = hwOp->port(opIndex);
231 if (fuRes.canAssign(cycle, node, *resultPort)) {
232 debugLogRM("testing " + op->name());
233 resourceSet.insert(*(*resIter).second);
234 } else {
235 debugLogRM("could not assign the fuRes to it.");
236 }
237 } else {
238 debugLogRM(TCEString("does not have operation ") + op->name());
239 }
240 resIter++;
241 }
242 return resourceSet;
243}
#define __func__
#define abortWithError(message)
#define assert(condition)
#define debugLogRM(__X)
static bool containsKey(const ContainerType &aContainer, const KeyType &aKey)
std::pair< bool, const TTAMachine::FunctionUnit * > findFUOfPO(ProgramOperation &po, const TTAMachine::FunctionUnit *resFU) const
Definition FUBroker.cc:77
static void addAnnotatedFUs(std::set< TCEString > &candidateFUs, const TTAProgram::Move &m, TTAProgram::ProgramAnnotation::Id id)
ProgramOperation & sourceOperation() const
Definition MoveNode.cc:453
std::string toString() const
Definition MoveNode.cc:576
ProgramOperation & guardOperation() const
Definition MoveNode.cc:479
TTAProgram::Move & move()
bool isSourceOperation() const
Definition MoveNode.cc:168
virtual TCEString name() const
Definition Operation.cc:93
virtual bool isApplicable(const MoveNode &node, const TTAMachine::Bus *b=0) const override
virtual bool canAssign(const int cycle, const MoveNode &node) const override
const Operation & operation() const
int outputIndexFromGuardOfMove(const MoveNode &node) const
SchedulingResource * resourceOf(const TTAMachine::MachinePart &mp) const
unsigned int instructionIndex(unsigned int) const
ResourceMap resMap_
void insert(SchedulingResource &resource)
virtual TCEString name() const
virtual HWOperation * operation(const std::string &name) const
virtual bool hasOperation(const std::string &name) const
virtual FUPort * port(int operand) const
Terminal & source() const
Definition Move.cc:302
@ ANN_REJECTED_UNIT_SRC
Src. unit rejected.
@ ANN_CONN_CANDIDATE_UNIT_SRC
Src. unit candidate.
@ ANN_ALLOWED_UNIT_SRC
Candidate units can be passed for resource manager for choosing the source/destination unit of the mo...
virtual Operation & hintOperation() const
virtual const TTAMachine::Port & port() const
virtual int operationIndex() const
virtual bool isFUPort() const
Definition Terminal.cc:118

References __func__, abortWithError, MachineConnectivityCheck::addAnnotatedFUs(), TTAProgram::ProgramAnnotation::ANN_ALLOWED_UNIT_SRC, TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_SRC, TTAProgram::ProgramAnnotation::ANN_REJECTED_UNIT_SRC, assert, OutputFUResource::canAssign(), AssocTools::containsKey(), debugLogRM, FUBroker::findFUOfPO(), MoveNode::guardOperation(), TTAMachine::FunctionUnit::hasOperation(), TTAProgram::TerminalFUPort::hintOperation(), SchedulingResourceSet::insert(), ResourceBroker::instructionIndex(), isApplicable(), TTAProgram::Terminal::isFUPort(), MoveNode::isSourceOperation(), MoveNode::move(), TTAMachine::Component::name(), Operation::name(), ProgramOperation::operation(), TTAMachine::FunctionUnit::operation(), TTAProgram::TerminalFUPort::operationIndex(), ProgramOperation::outputIndexFromGuardOfMove(), TTAProgram::TerminalFUPort::port(), TTAMachine::HWOperation::port(), ResourceBroker::resMap_, ResourceBroker::resourceOf(), TTAProgram::Move::source(), MoveNode::sourceOperation(), and MoveNode::toString().

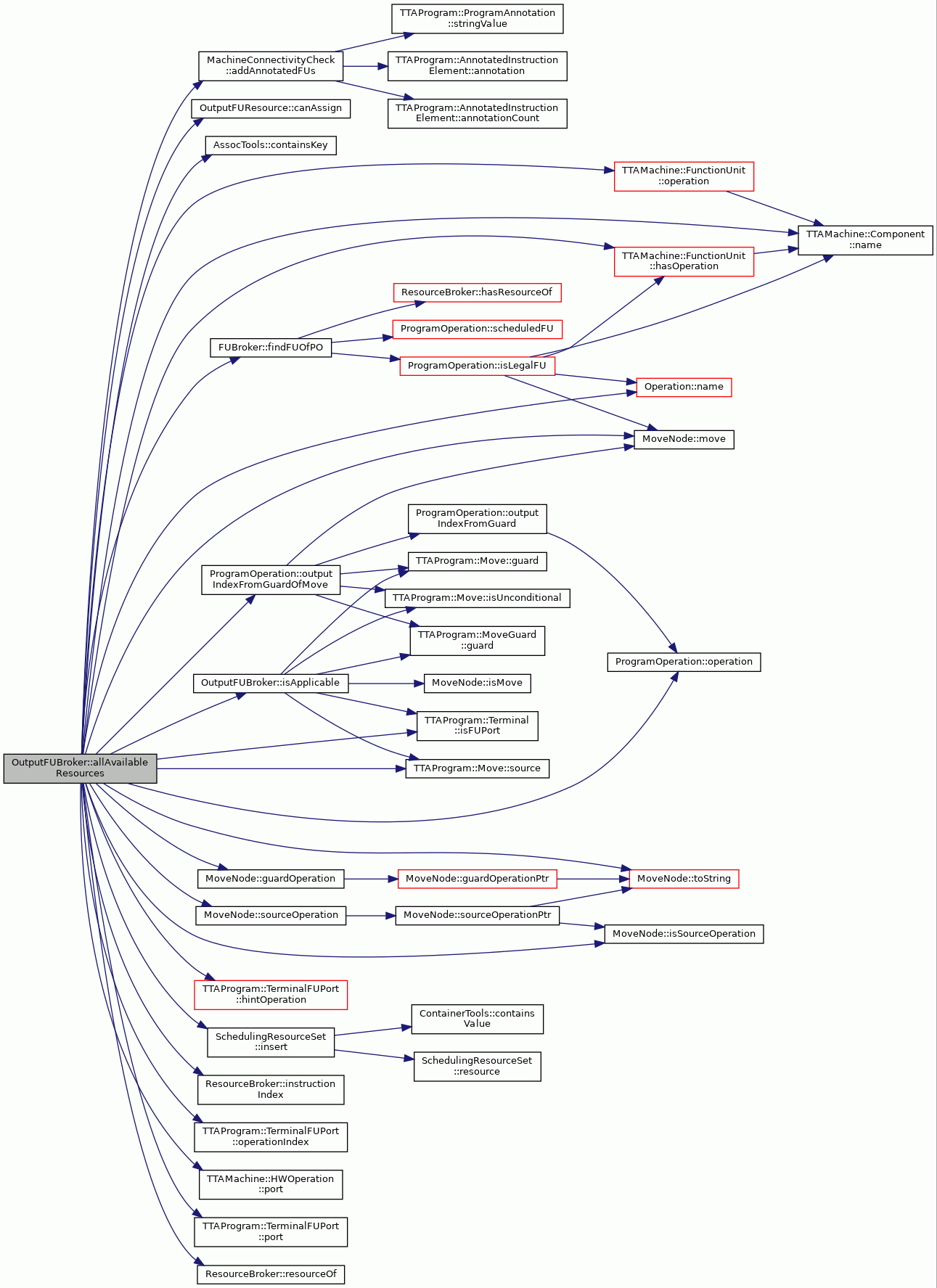

Here is the call graph for this function:

◆ assign()

void OutputFUBroker::assign ( int  cycle,
MoveNode node,
SchedulingResource res,
int  immWriteCycle,
int  immRegIndex
)
overridevirtual

Mark given resource as in use for the given node, and assign the corresponding machine part (if applicable) to the node's move.

If the node is already assigned to given resource, this method does nothing.

Parameters
cycleCycle.
nodeNode to assign.
resResource representing Output of FU
Exceptions
WrongSubclassIf this broker does not recognise the given type of resource.
InvalidParametersIf he given resource cannot be assigned to given node or no corresponding machine part is found.

Implements ResourceBroker.

Definition at line 261 of file OutputFUBroker.cc.

262 {
263 // TODO: this breaks execpipeline
264// cycle = instructionIndex(cycle);
265 if (!isApplicable(node)) {
266 string msg = "Broker not capable of assigning resources to node!";
267 throw WrongSubclass(__FILE__, __LINE__, __func__, msg);
268 }
269
270 if (!hasResource(res)) {
271 string msg = "Broker does not contain given resource.";
272 throw InvalidData(__FILE__, __LINE__, __func__, msg);
273 }
274 OutputFUResource& fuRes = static_cast<OutputFUResource&>(res);
275 Move& move = const_cast<MoveNode&>(node).move();
276
277 int opIndex = -1;
278 const Operation* op = nullptr;
279 TerminalFUPort* src = dynamic_cast<TerminalFUPort*>(&move.source());
280 if (src != nullptr &&
281 dynamic_cast<const SpecialRegisterPort*>(&src->port()) != NULL) {
282 const ControlUnit* gcu =
283 dynamic_cast<const ControlUnit*>(&machinePartOf(res));
284 if (gcu != NULL) {
285 // output of GCU is ra read
286 TerminalFUPort* newSrc =
288 move.setSource(newSrc);
289 Socket* outputSocket = newSrc->port().outputSocket();
290
291 if (outputSocket == NULL) {
292 throw InvalidData(
293 __FILE__, __LINE__, __func__, "GCU is missing RA port - "
294 "socket connection!");
295 }
296 assignedResources_.insert(
297 std::pair<const MoveNode*, SchedulingResource*>(
298 &node, &fuRes));
299 return;
300 } else {
302 "GCU required but tried to assign something else!");
303 }
304 }
305
306 if (node.isSourceOperation()) {
307
308 opIndex = src->operationIndex();
309 op = &src->hintOperation();
310 const FunctionUnit& unit =
311 static_cast<const FunctionUnit&>(machinePartOf(res));
312 HWOperation* hwOp = unit.operation(op->name());
313 TerminalFUPort* newSrc = new TerminalFUPort(*hwOp, opIndex);
314 move.setSource(newSrc);
315 fuRes.assign(cycle, node);
316 assignedResources_.insert(
317 std::pair<const MoveNode*, SchedulingResource*>(
318 &node, &fuRes));
319 } else {
320 assert(node.isGuardOperation());
321 ProgramOperation& po = node.guardOperation();
322 opIndex = po.outputIndexOfMove(node);
323 op = &po.operation();
324
325 fuRes.assign(cycle, node);
326 assignedResources_.insert(
327 std::pair<const MoveNode*, SchedulingResource*>(
328 &node, &fuRes));
329 }
330}
bool isGuardOperation() const
Definition MoveNode.cc:181
virtual void assign(const int cycle, MoveNode &node) override
int outputIndexOfMove(const MoveNode &mn) const
MoveResMap assignedResources_
bool hasResource(const SchedulingResource &r) const
virtual const TTAMachine::MachinePart & machinePartOf(const SchedulingResource &r) const
SpecialRegisterPort * returnAddressPort() const
virtual Socket * outputSocket() const
Definition Port.cc:281
void setSource(Terminal *src)
Definition Move.cc:312

References __func__, abortWithError, assert, OutputFUResource::assign(), ResourceBroker::assignedResources_, MoveNode::guardOperation(), ResourceBroker::hasResource(), TTAProgram::TerminalFUPort::hintOperation(), isApplicable(), MoveNode::isGuardOperation(), MoveNode::isSourceOperation(), ResourceBroker::machinePartOf(), Operation::name(), ProgramOperation::operation(), TTAMachine::FunctionUnit::operation(), TTAProgram::TerminalFUPort::operationIndex(), ProgramOperation::outputIndexOfMove(), TTAMachine::Port::outputSocket(), TTAProgram::TerminalFUPort::port(), TTAMachine::ControlUnit::returnAddressPort(), TTAProgram::Move::setSource(), and TTAProgram::Move::source().

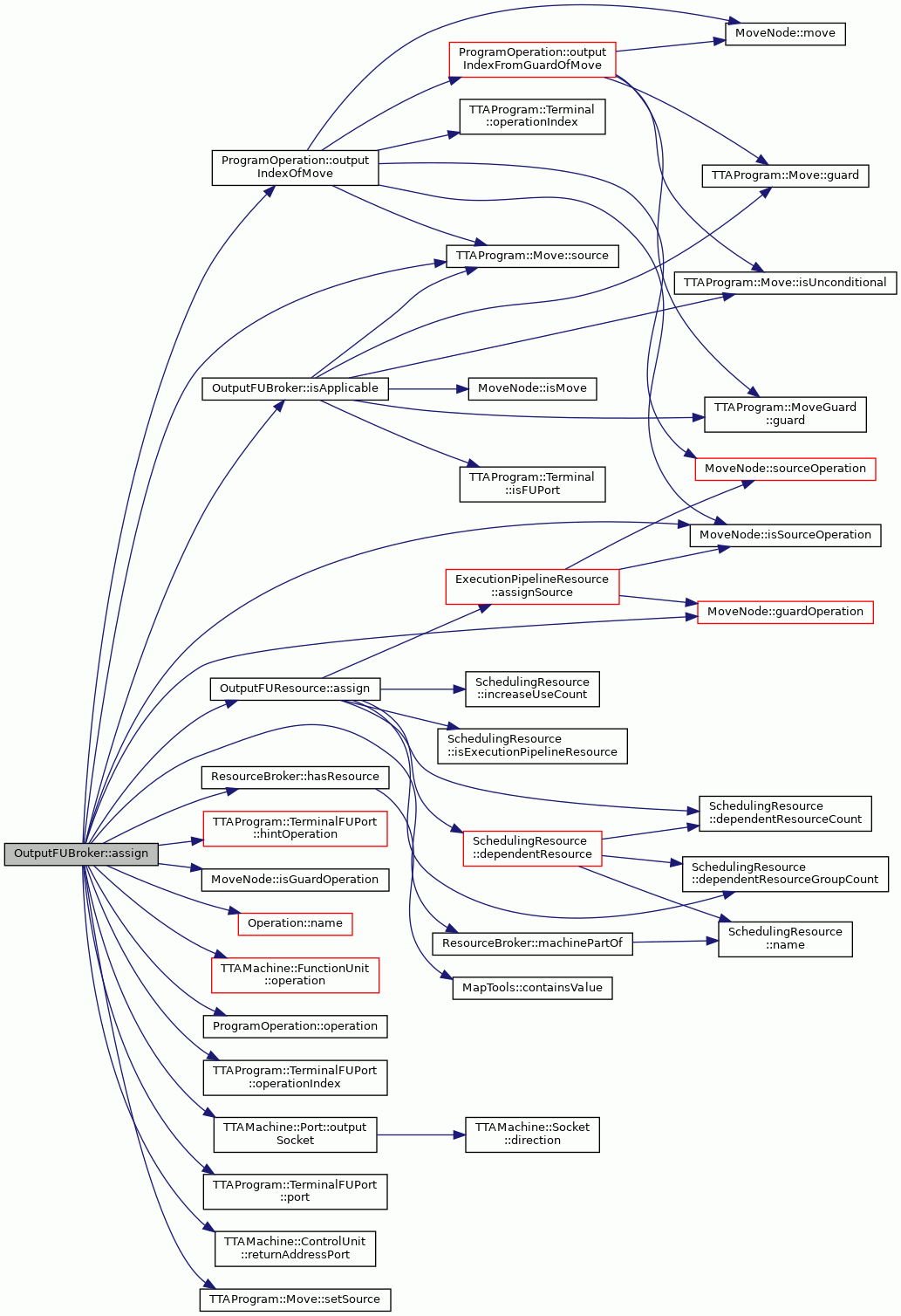

Here is the call graph for this function:

◆ buildResources()

void OutputFUBroker::buildResources ( const TTAMachine::Machine target)
overridevirtual

Build all resource objects of the controlled type required to model scheduling resources of the given target processor.

This method cannot set up the resource links (dependent and related resources) of the constructed resource objects.

Parameters
targetTarget machine.

Implements ResourceBroker.

Definition at line 489 of file OutputFUBroker.cc.

489 {
490
491 std::map<const TTAMachine::FunctionUnit*,int> nopWeights;
492
494 for (int i = 0; i < navi.count(); i++) {
495 FunctionUnit* fu = navi.item(i);
496 OutputFUResource* fuResource = new OutputFUResource(
497 fu->name(), fu->operationCount(), nopWeights[fu]);
498 ResourceBroker::addResource(*fu, fuResource);
499 }
500 ControlUnit* gcu = target.controlUnit();
501 OutputFUResource* fuResource = new OutputFUResource(
502 gcu->name(), gcu->operationCount(),0);
503 ResourceBroker::addResource(*gcu, fuResource);
504}
void addResource(const TTAMachine::MachinePart &mp, SchedulingResource *res)
virtual int operationCount() const
ComponentType * item(int index) const
virtual FunctionUnitNavigator functionUnitNavigator() const
Definition Machine.cc:380
virtual ControlUnit * controlUnit() const
Definition Machine.cc:345

References ResourceBroker::addResource(), TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::name(), and TTAMachine::FunctionUnit::operationCount().

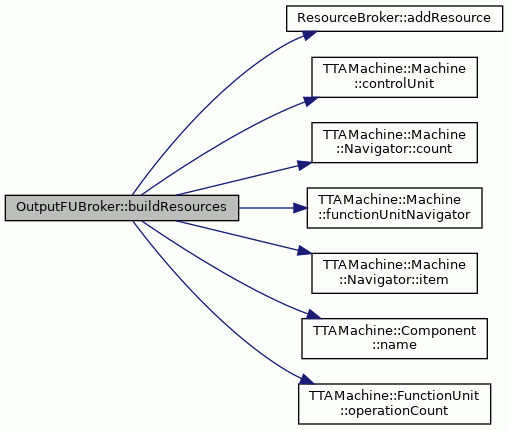

Here is the call graph for this function:

◆ earliestCycle()

int OutputFUBroker::earliestCycle ( int  cycle,
const MoveNode node,
const TTAMachine::Bus bus,
const TTAMachine::FunctionUnit srcFU,
const TTAMachine::FunctionUnit dstFU,
int  immWriteCycle,
const TTAMachine::ImmediateUnit immu,
int  immRegIndex
) const
overridevirtual

Return the earliest cycle, starting from given cycle, where a resource of the type managed by this broker can be assigned to the given node.

Parameters
cycleCycle.
nodeNode.
Returns
The earliest cycle, starting from given cycle, where a resource of the type managed by this broker can be assigned to the given node.

Implements ResourceBroker.

Definition at line 387 of file OutputFUBroker.cc.

392 {
393 abortWithError("Not implemented.");
394 return -1;
395}

References abortWithError.

◆ isAlreadyAssigned()

bool OutputFUBroker::isAlreadyAssigned ( int  cycle,
const MoveNode node,
const TTAMachine::Bus preassignedBus
) const
overridevirtual

Return true if the given node is already assigned a resource of the type managed by this broker, and the assignment appears valid (that is, the broker has marked that resource as in use in the given cycle).

Parameters
cycleCycle. not used.
nodeNode.
Returns
True if the given node is already assigned a resource of the type managed by this broker, and the assignment appears valid (that is, the broker has marked that resource as in use in the given cycle).

Implements ResourceBroker.

Definition at line 432 of file OutputFUBroker.cc.

433 {
434 cycle = instructionIndex(cycle);
435 Terminal& src = const_cast<MoveNode&>(node).move().source();
436 if (src.isFUPort()) {
437 const FunctionUnit& fu = src.functionUnit();
438 if (hasResourceOf(fu)) {
440 return true;
441 }
442 }
443 }
444 if (node.isGuardOperation()) {
445 const FunctionUnit* fu = node.guardOperation().fuFromOutMove(node);
446 if (fu && hasResourceOf(*fu)) {
448 return true;
449 }
450 }
451 }
452 return false;
453}
static bool containsKey(const MapType &aMap, const KeyType &aKey)
const TTAMachine::FunctionUnit * fuFromOutMove(const MoveNode &outputNode) const
bool hasResourceOf(const TTAMachine::MachinePart &mp) const
virtual const TTAMachine::FunctionUnit & functionUnit() const
Definition Terminal.cc:251

References ResourceBroker::assignedResources_, MapTools::containsKey(), ProgramOperation::fuFromOutMove(), TTAProgram::Terminal::functionUnit(), MoveNode::guardOperation(), ResourceBroker::hasResourceOf(), ResourceBroker::instructionIndex(), TTAProgram::Terminal::isFUPort(), and MoveNode::isGuardOperation().

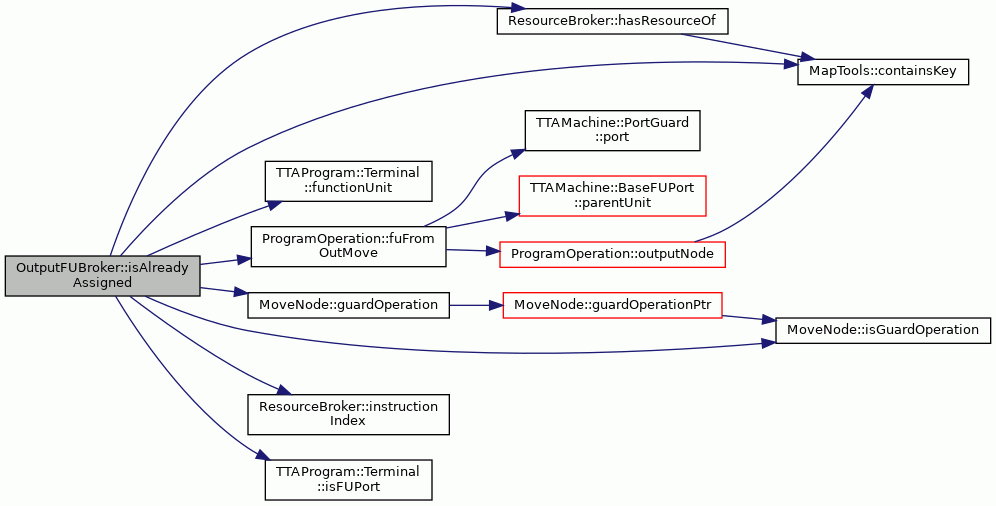

Here is the call graph for this function:

◆ isApplicable()

bool OutputFUBroker::isApplicable ( const MoveNode node,
const TTAMachine::Bus b = 0
) const
overridevirtual

Return true if the given node needs a resource of the type managed by this broker, false otherwise.

Parameters
nodeNode.
Returns
True if the given node needs a resource of the type managed by this broker, false otherwise.

Implements ResourceBroker.

Definition at line 464 of file OutputFUBroker.cc.

465 {
466 if (!node.isMove()) {
467 return false;
468 }
469 Move& move = const_cast<MoveNode&>(node).move();
470 if (move.source().isFUPort() ||
471 (!move.isUnconditional() &&
472 dynamic_cast<const TTAMachine::PortGuard*>(&move.guard().guard()))) {
473 return true;
474 } else {
475 return false;
476 }
477}
bool isMove() const
const TTAMachine::Guard & guard() const
Definition MoveGuard.cc:86
MoveGuard & guard() const
Definition Move.cc:345
bool isUnconditional() const
Definition Move.cc:154

References TTAProgram::Move::guard(), TTAProgram::MoveGuard::guard(), TTAProgram::Terminal::isFUPort(), MoveNode::isMove(), TTAProgram::Move::isUnconditional(), and TTAProgram::Move::source().

Referenced by allAvailableResources(), assign(), and unassign().

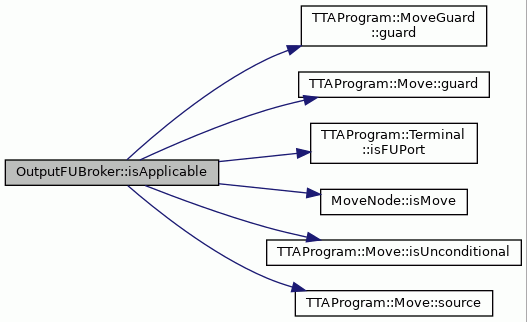

Here is the call graph for this function:

◆ latestCycle()

int OutputFUBroker::latestCycle ( int  cycle,
const MoveNode node,
const TTAMachine::Bus bus,
const TTAMachine::FunctionUnit srcFU,
const TTAMachine::FunctionUnit dstFU,
int  immWriteCycle,
const TTAMachine::ImmediateUnit immu,
int  immRegIndex
) const
overridevirtual

Return the latest cycle, starting from given cycle, where a resource of the type managed by this broker can be assigned to the given node.

Parameters
cycleCycle.
nodeNode.
Returns
The latest cycle, starting from given cycle, where a resource of the type managed by this broker can be assigned to the given node.

Implements ResourceBroker.

Definition at line 409 of file OutputFUBroker.cc.

413 {
414 abortWithError("Not implemented.");
415 return -1;
416}

References abortWithError.

◆ setupResourceLinks()

void OutputFUBroker::setupResourceLinks ( const ResourceMapper mapper)
overridevirtual

Complete resource initialisation by creating the references to other resources due to a dependency or a relation. Use the given resource mapper to lookup dependent and related resources using machine parts as keys.

Parameters
mapperResource mapper.

Implements ResourceBroker.

Definition at line 515 of file OutputFUBroker.cc.

515 {
516
517 setResourceMapper(mapper);
518
519 for (ResourceMap::iterator resIter = resMap_.begin();
520 resIter != resMap_.end(); resIter++) {
521
522 const FunctionUnit* fu =
523 dynamic_cast<const FunctionUnit*>((*resIter).first);
524
525 SchedulingResource* fuResource = (*resIter).second;
526 for (int i = 0; i < fu->portCount(); i++) {
527 Port* port = fu->port(i);
528 if (port->outputSocket() != NULL) {
529 try {
530 SchedulingResource& depRes =
531 mapper.resourceOf(*port->outputSocket());
532 fuResource->addToDependentGroup(0, depRes);
533 } catch (const KeyNotFound& e) {
534 std::string msg = "OutputFUBroker: finding ";
535 msg += " resource for Socket ";
536 msg += " failed with error: ";
537 msg += e.errorMessageStack();
538 throw KeyNotFound(
539 __FILE__, __LINE__, __func__, msg);
540 }
541 }
542 }
543
544 int fuCount = mapper.resourceCount(*fu);
545 for (int i = 0; i < fuCount; i++) {
546 SchedulingResource* depRes = &mapper.resourceOf(*fu, i);
547 if (depRes->isExecutionPipelineResource()){
548 fuResource->addToDependentGroup(1, *depRes);
549 break;
550 }
551 }
552 }
553 // todo: dependent execution pipeline to support trigger-on-result
554}
std::string errorMessageStack(bool messagesOnly=false) const
Definition Exception.cc:138
void setResourceMapper(const ResourceMapper &mapper)
SchedulingResource & resourceOf(const TTAMachine::MachinePart &mp, int index=0) const
int resourceCount(const TTAMachine::MachinePart &mp) const
virtual void addToDependentGroup(const int group, SchedulingResource &resource)
virtual bool isExecutionPipelineResource() const
virtual BaseFUPort * port(const std::string &name) const
virtual int portCount() const
Definition Unit.cc:135

References __func__, SchedulingResource::addToDependentGroup(), Exception::errorMessageStack(), SchedulingResource::isExecutionPipelineResource(), TTAMachine::Port::outputSocket(), TTAMachine::FunctionUnit::port(), TTAMachine::Unit::portCount(), ResourceBroker::resMap_, ResourceMapper::resourceCount(), ResourceMapper::resourceOf(), and ResourceBroker::setResourceMapper().

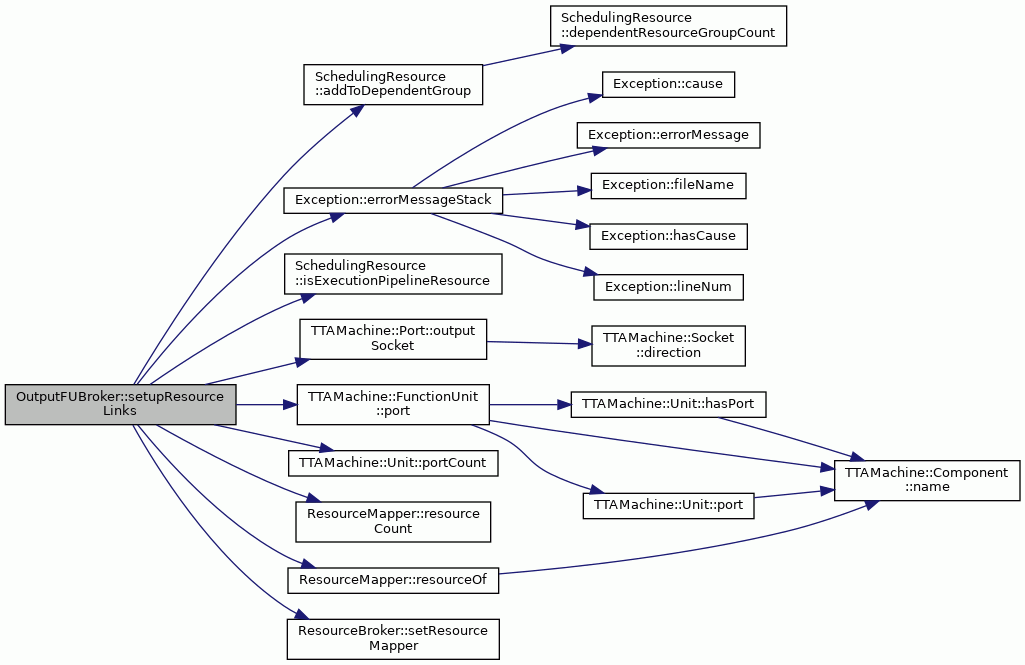

Here is the call graph for this function:

◆ unassign()

void OutputFUBroker::unassign ( MoveNode node)
overridevirtual

Free the resource type managed by this broker and unassign it from given node.

If this broker is not applicable to the given node, or the node is not assigned a resource of the managed type, this method does nothing.

Parameters
nodeNode.

Implements ResourceBroker.

Definition at line 343 of file OutputFUBroker.cc.

343 {
344 if (!isApplicable(node)) {
345 return;
346 }
348
349 TTAProgram::Move& move = node.move();
350 const TerminalFUPort* src = dynamic_cast<const TerminalFUPort*>(&move.source());
351 if (src) {
352 const TerminalFUPort* src = dynamic_cast<const TerminalFUPort*>(&move.source());
353 assert(src);
355 const ControlUnit* gcu =
356 dynamic_cast<const ControlUnit*>(&machinePartOf(res));
357
358 // not ra read? unassign from fu
359 if (gcu == NULL) {
360 OutputFUResource* fuRes = dynamic_cast<OutputFUResource*>(&res);
361 fuRes->unassign(node.cycle(), node);
362 }
363 } else {
364 if (node.isGuardOperation()) {
365 ProgramOperation& gop = node.guardOperation();
366 SchedulingResource& res = *resourceOf(*gop.fuFromOutMove(node));
367 res.unassign(node.cycle(), node);
368 }
369 }
370 // removed from assigned resources also if ra read
371 assignedResources_.erase(&node);
372 }
373}
int cycle() const
Definition MoveNode.cc:421
virtual void unassign(const int cycle, MoveNode &node) override
virtual void unassign(const int cycle, MoveNode &node)=0
virtual const TTAMachine::FunctionUnit & functionUnit() const

References assert, ResourceBroker::assignedResources_, MapTools::containsKey(), MoveNode::cycle(), ProgramOperation::fuFromOutMove(), TTAProgram::TerminalFUPort::functionUnit(), MoveNode::guardOperation(), isApplicable(), MoveNode::isGuardOperation(), ResourceBroker::machinePartOf(), MoveNode::move(), ResourceBroker::resourceOf(), TTAProgram::Move::source(), OutputFUResource::unassign(), and SchedulingResource::unassign().

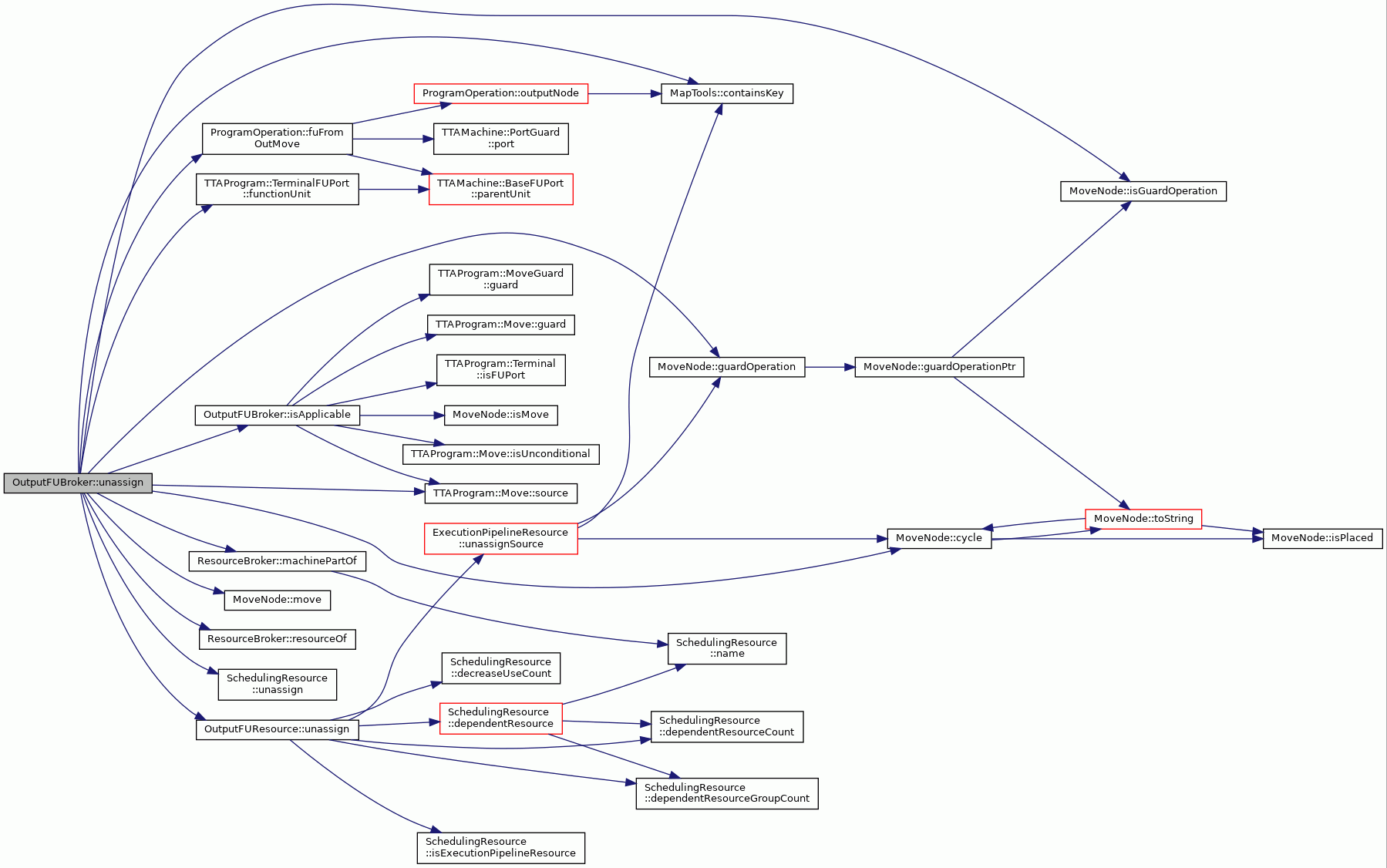

Here is the call graph for this function:

The documentation for this class was generated from the following files:
