#include <SOPCBuilderFileGenerator.hh>

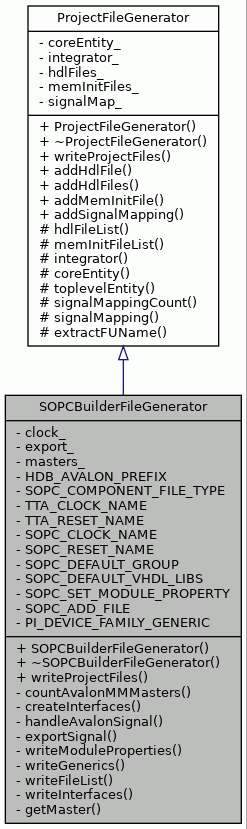

Inheritance diagram for SOPCBuilderFileGenerator:

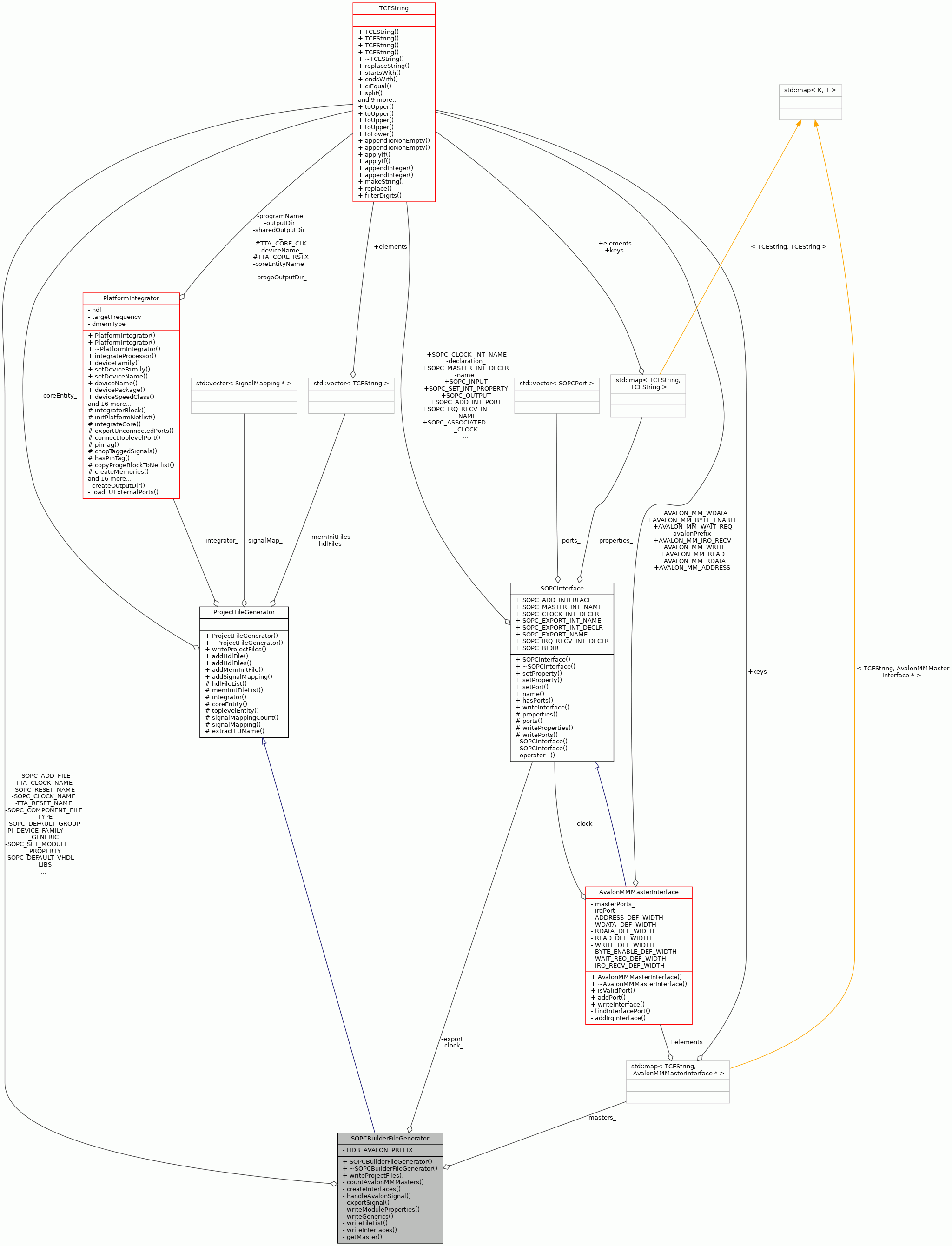

Collaboration diagram for SOPCBuilderFileGenerator:

Public Member Functions
	SOPCBuilderFileGenerator (TCEString toplevelEntity, const PlatformIntegrator *integrator)

virtual	~SOPCBuilderFileGenerator ()

virtual void	writeProjectFiles ()

Public Member Functions inherited from ProjectFileGenerator
	ProjectFileGenerator (TCEString coreEntity, const PlatformIntegrator *integrator)

virtual	~ProjectFileGenerator ()

void	addHdlFile (const TCEString &file)

void	addHdlFiles (const std::vector< TCEString > &files)

void	addMemInitFile (const TCEString &memInit)

void	addSignalMapping (const PlatInt::SignalMapping &mapping)

Private Member Functions
int	countAvalonMMMasters () const

void	createInterfaces ()

bool	handleAvalonSignal (const ProGe::NetlistPort &port)

void	exportSignal (const ProGe::NetlistPort &port)

void	writeModuleProperties (std::ostream &stream)

void	writeGenerics (std::ostream &stream)

void	writeFileList (std::ostream &stream)

void	writeInterfaces (std::ostream &stream) const

AvalonMMMasterInterface *	getMaster (const TCEString &fuName)

Private Attributes
SOPCInterface *	clock_

SOPCInterface *	export_

std::map< TCEString, AvalonMMMasterInterface * >	masters_

Static Private Attributes
static const TCEString	HDB_AVALON_PREFIX = "avalon_d_"

static const TCEString	SOPC_COMPONENT_FILE_TYPE

static const TCEString	TTA_CLOCK_NAME = "clk"

static const TCEString	TTA_RESET_NAME = "rstx"

static const TCEString	SOPC_CLOCK_NAME = "clk"

static const TCEString	SOPC_RESET_NAME = "reset_n"

static const TCEString	SOPC_DEFAULT_GROUP = "User Logic"

static const TCEString	SOPC_DEFAULT_VHDL_LIBS

static const TCEString	SOPC_SET_MODULE_PROPERTY

static const TCEString	SOPC_ADD_FILE

static const TCEString	PI_DEVICE_FAMILY_GENERIC

Additional Inherited Members
Protected Member Functions inherited from ProjectFileGenerator
const std::vector< TCEString > &	hdlFileList () const

const std::vector< TCEString > &	memInitFileList () const

const PlatformIntegrator *	integrator () const

TCEString	coreEntity () const

TCEString	toplevelEntity () const

int	signalMappingCount () const

const PlatInt::SignalMapping *	signalMapping (int index) const

TCEString	extractFUName (const TCEString &port, const TCEString &delimiter) const

Detailed Description

Definition at line 45 of file SOPCBuilderFileGenerator.hh.

Constructor & Destructor Documentation

◆ SOPCBuilderFileGenerator()

SOPCBuilderFileGenerator::SOPCBuilderFileGenerator	(	TCEString	toplevelEntity,
		const PlatformIntegrator *	integrator
	)

Definition at line 70 of file SOPCBuilderFileGenerator.cc.

                                         :
    ProjectFileGenerator(toplevelEntity, integrator),
    clock_(new SOPCInterface(
               SOPCInterface::SOPC_CLOCK_INT_NAME,
               SOPCInterface::SOPC_CLOCK_INT_DECLR)),
    export_(new SOPCInterface(
                SOPCInterface::SOPC_EXPORT_INT_NAME,
                SOPCInterface::SOPC_EXPORT_INT_DECLR)) {

    clock_->setProperty("ptfSchematicName", "\"\"");
    clock_->setPort(TTA_CLOCK_NAME, SOPC_CLOCK_NAME, ProGe::IN, 1);
    clock_->setPort(TTA_RESET_NAME, SOPC_RESET_NAME, ProGe::IN, 1);

    export_->setProperty(
        SOPCInterface::SOPC_ASSOCIATED_CLOCK, clock_->name());
}

References clock_, export_, ProGe::IN, SOPCInterface::name(), SOPCInterface::setPort(), SOPCInterface::setProperty(), SOPCInterface::SOPC_ASSOCIATED_CLOCK, SOPC_CLOCK_NAME, SOPC_RESET_NAME, TTA_CLOCK_NAME, and TTA_RESET_NAME.

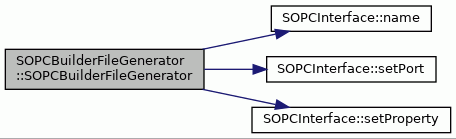

Here is the call graph for this function:

◆ ~SOPCBuilderFileGenerator()

SOPCBuilderFileGenerator::~SOPCBuilderFileGenerator ( )

virtual

Definition at line 90 of file SOPCBuilderFileGenerator.cc.

                                                    {

    if (clock_ != NULL) {
        delete clock_;
    }
    if (export_ != NULL) {
        delete export_;
    }
    MapTools::deleteAllValues(masters_);
}

References clock_, MapTools::deleteAllValues(), export_, and masters_.

Here is the call graph for this function:

Member Function Documentation

◆ countAvalonMMMasters()

int SOPCBuilderFileGenerator::countAvalonMMMasters ( ) const

private

Counts how many Avalon MM Master interfaces toplevel netlis block has.

Avalon MM interface is recognised by the address port. Address signal in first of the 2 mandatory signals in Avalon MM interface. Direction of the address port determines whether it belongs to a master or slave interface.

Returns: Number of found Avalon MM Master interfaces

Definition at line 147 of file SOPCBuilderFileGenerator.cc.

                                                     {

    const ProGe::NetlistBlock& top = integrator()->toplevelBlock();
    TCEString addressPortName =
        HDB_AVALON_PREFIX + AvalonMMMasterInterface::AVALON_MM_ADDRESS;
    int found = 0;
    for (size_t i = 0; i < top.portCount(); i++) {
        TCEString portName = top.port(i).name();
        if (portName.find(addressPortName) != TCEString::npos) {
            if (top.port(i).direction() == ProGe::OUT) {
                found++;
            }
        }
    }
    return found;
}

References AvalonMMMasterInterface::AVALON_MM_ADDRESS, ProGe::NetlistPort::direction(), HDB_AVALON_PREFIX, ProjectFileGenerator::integrator(), ProGe::NetlistPort::name(), ProGe::OUT, ProGe::NetlistBlock::port(), ProGe::NetlistBlock::portCount(), and PlatformIntegrator::toplevelBlock().

Referenced by writeProjectFiles().

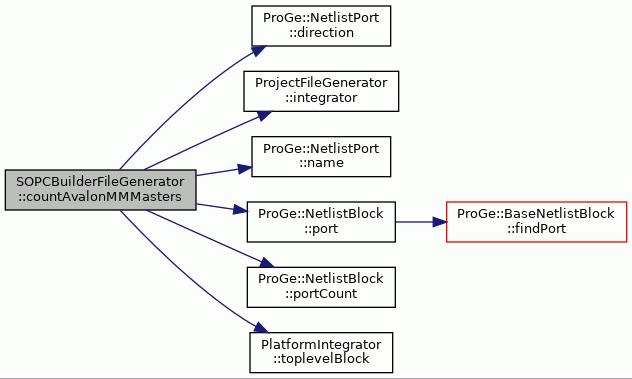

Here is the call graph for this function:

◆ createInterfaces()

void SOPCBuilderFileGenerator::createInterfaces ( )

private

Definition at line 246 of file SOPCBuilderFileGenerator.cc.

                                           {

    const ProGe::NetlistBlock& top = integrator()->toplevelBlock();
    for (size_t i = 0; i < top.portCount(); i++) {
        TCEString portName = top.port(i).name();

        bool needToExport = true;
        if (portName == TTA_CLOCK_NAME || portName == TTA_RESET_NAME) {
            continue;
        } else if (portName.find(HDB_AVALON_PREFIX) != TCEString::npos) {
            needToExport = !handleAvalonSignal(top.port(i));
        }

        if (needToExport) {
            exportSignal(top.port(i));
        }
    }
}

References exportSignal(), handleAvalonSignal(), HDB_AVALON_PREFIX, ProjectFileGenerator::integrator(), ProGe::NetlistPort::name(), ProGe::NetlistBlock::port(), ProGe::NetlistBlock::portCount(), PlatformIntegrator::toplevelBlock(), TTA_CLOCK_NAME, and TTA_RESET_NAME.

Referenced by writeProjectFiles().

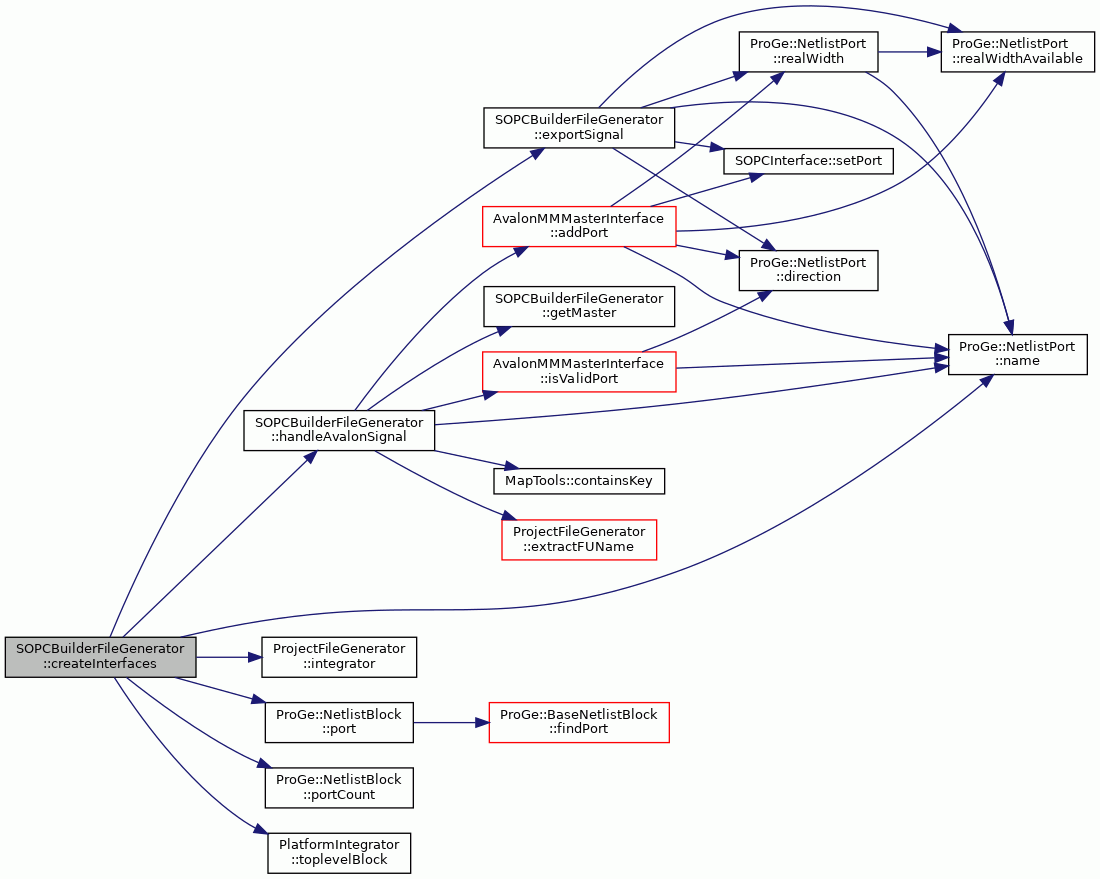

Here is the call graph for this function:

◆ exportSignal()

void SOPCBuilderFileGenerator::exportSignal ( const ProGe::NetlistPort & port )

private

Definition at line 299 of file SOPCBuilderFileGenerator.cc.

                                                                   {

    int width = 32;
    if (port.realWidthAvailable()) {
        width = port.realWidth();
    }
    TCEString intPortName = SOPCInterface::SOPC_EXPORT_NAME;
    export_->setPort(port.name(), intPortName, port.direction(), width);
}

References ProGe::NetlistPort::direction(), export_, ProGe::NetlistPort::name(), ProGe::NetlistPort::realWidth(), ProGe::NetlistPort::realWidthAvailable(), SOPCInterface::setPort(), and SOPCInterface::SOPC_EXPORT_NAME.

Referenced by createInterfaces().

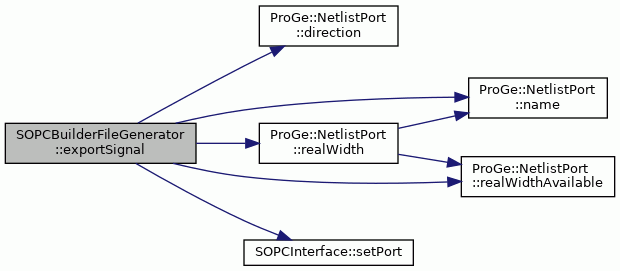

Here is the call graph for this function:

◆ getMaster()

AvalonMMMasterInterface * SOPCBuilderFileGenerator::getMaster ( const TCEString & fuName )

private

Definition at line 334 of file SOPCBuilderFileGenerator.cc.

                                                           {

    std::map<TCEString, AvalonMMMasterInterface*>::iterator iter =
        masters_.find(fuName);

    assert(iter != masters_.end());
    return iter->second;
}

References assert, and masters_.

Referenced by handleAvalonSignal().

◆ handleAvalonSignal()

bool SOPCBuilderFileGenerator::handleAvalonSignal ( const ProGe::NetlistPort & port )

private

Definition at line 267 of file SOPCBuilderFileGenerator.cc.

                                  {

    TCEString fuName = extractFUName(port.name(), HDB_AVALON_PREFIX);

    if (fuName.empty()) {
        TCEString msg = "Failed to extract FU name from: " + port.name();
        InvalidData exc(__FILE__, __LINE__, "SOPCBuilderFileGenerator", msg);
        throw exc;
    }

    if (!MapTools::containsKey(masters_ ,fuName)) {
        TCEString interfaceName =
            fuName + SOPCInterface::SOPC_MASTER_INT_NAME;
        TCEString declr = SOPCInterface::SOPC_MASTER_INT_DECLR;
        masters_[fuName] = new AvalonMMMasterInterface(
            interfaceName, declr, HDB_AVALON_PREFIX, *clock_);
    }

    AvalonMMMasterInterface* master = getMaster(fuName);
    bool isAvalonPort = false;
    if (!master->isValidPort(port)) {
        isAvalonPort = false;
    } else {
        master->addPort(port);
        isAvalonPort = true;
    }
    return isAvalonPort;
}

References AvalonMMMasterInterface::addPort(), clock_, MapTools::containsKey(), ProjectFileGenerator::extractFUName(), getMaster(), HDB_AVALON_PREFIX, AvalonMMMasterInterface::isValidPort(), masters_, ProGe::NetlistPort::name(), SOPCInterface::SOPC_MASTER_INT_DECLR, and SOPCInterface::SOPC_MASTER_INT_NAME.

Referenced by createInterfaces().

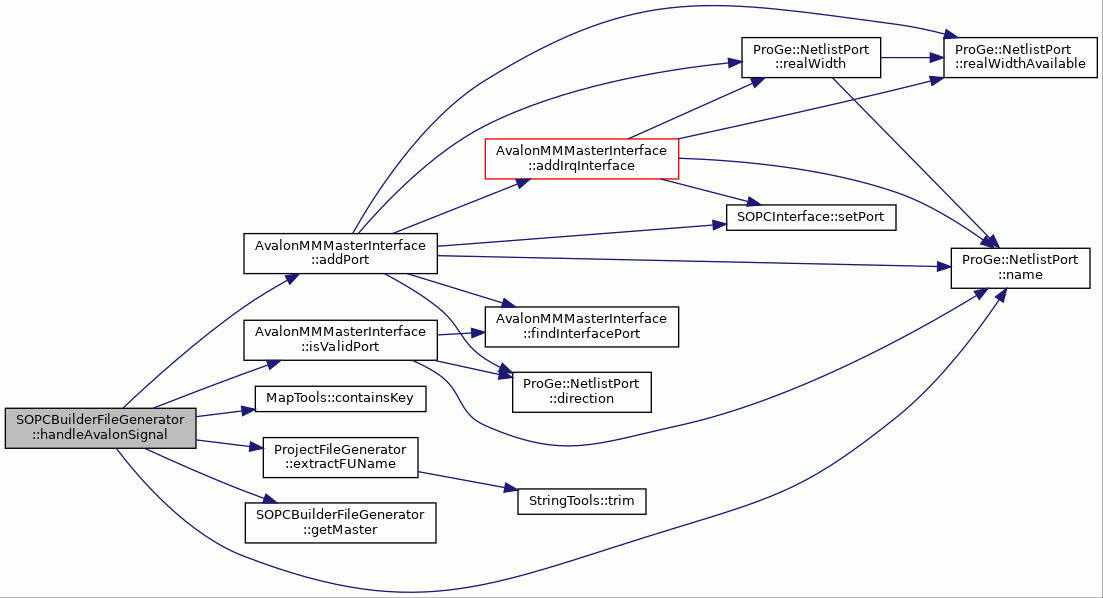

Here is the call graph for this function:

◆ writeFileList()

void SOPCBuilderFileGenerator::writeFileList ( std::ostream & stream )

private

Definition at line 230 of file SOPCBuilderFileGenerator.cc.

                                                          {

    stream << "# module hdl files" << endl;
    for (unsigned int i = 0; i < hdlFileList().size(); i++) {
        stream << SOPC_ADD_FILE << " " << hdlFileList().at(i)
               << " {SYNTHESIS SIMULATION}" << endl;
    }
    for (unsigned int i = 0; i < memInitFileList().size(); i++) {
        stream << SOPC_ADD_FILE << " " << memInitFileList().at(i)
               << " {SYNTHESIS SIMULATION}" << endl;
    }
    stream << endl;
}

References ProjectFileGenerator::hdlFileList(), ProjectFileGenerator::memInitFileList(), and SOPC_ADD_FILE.

Referenced by writeProjectFiles().

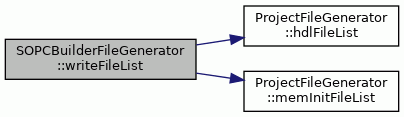

Here is the call graph for this function:

◆ writeGenerics()

void SOPCBuilderFileGenerator::writeGenerics ( std::ostream & stream )

private

Definition at line 198 of file SOPCBuilderFileGenerator.cc.

                                                          {

    const ProGe::NetlistBlock& top = integrator()->toplevelBlock();
    if (top.parameterCount() == 0) {
        return;
    }
    stream << "# toplevel parameters" << endl;
    for (size_t i = 0; i < top.parameterCount(); i++) {
        TCEString line;
        line << "add_parameter " << top.parameter(i).name() << " ";
        if (top.parameter(i).type().lower() == "string") {
            line << "STRING ";
            if (!top.parameter(i).value().startsWith("\"")) line << "\"";
            line << top.parameter(i).value();
            if (!top.parameter(i).value().endsWith("\"")) line << "\"";
        } else if (top.parameter(i).type().lower() == "integer") {
            line << "INTEGER " << top.parameter(i).value();
        } else {
            // unknown type, ignore
            continue;
        }
        stream << line << endl;
        if (top.parameter(i).name().lower() == PI_DEVICE_FAMILY_GENERIC) {
            stream << "set_parameter_property " << PI_DEVICE_FAMILY_GENERIC
                   << " DISPLAY_NAME \"Device family (change if necessary)\""
                   << endl;
        }
    }
    stream << endl;
}

References TCEString::endsWith(), ProjectFileGenerator::integrator(), TCEString::lower(), ProGe::Parameter::name(), ProGe::NetlistBlock::parameter(), ProGe::BaseNetlistBlock::parameterCount(), PI_DEVICE_FAMILY_GENERIC, TCEString::startsWith(), PlatformIntegrator::toplevelBlock(), ProGe::Parameter::type(), and ProGe::Parameter::value().

Referenced by writeProjectFiles().

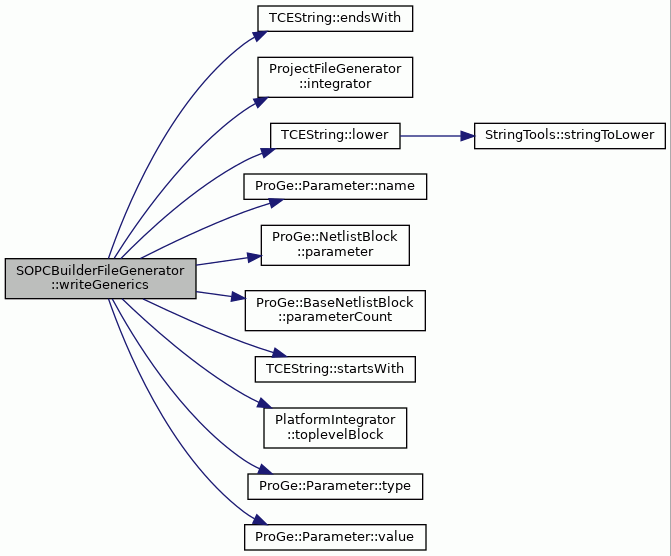

Here is the call graph for this function:

◆ writeInterfaces()

void SOPCBuilderFileGenerator::writeInterfaces ( std::ostream & stream ) const

private

Definition at line 311 of file SOPCBuilderFileGenerator.cc.

                                                                  {

    clock_->writeInterface(stream);

    std::map<TCEString, AvalonMMMasterInterface*>::const_iterator iter =
        masters_.begin();
    while (iter != masters_.end()) {
        AvalonMMMasterInterface* master = iter->second;
        if (master->hasPorts()) {
            master->writeInterface(stream);
        }
        iter++;
    }
    if (export_->hasPorts()) {
        export_->writeInterface(stream);
    }
}

References clock_, export_, SOPCInterface::hasPorts(), masters_, AvalonMMMasterInterface::writeInterface(), and SOPCInterface::writeInterface().

Referenced by writeProjectFiles().

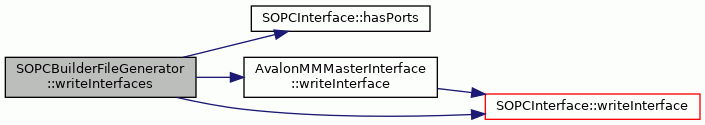

Here is the call graph for this function:

◆ writeModuleProperties()

void SOPCBuilderFileGenerator::writeModuleProperties ( std::ostream & stream )

private

Definition at line 166 of file SOPCBuilderFileGenerator.cc.

                                                                  {

    TCEString property = SOPC_SET_MODULE_PROPERTY;
    stream
        << "# Module properties" << endl
        << property << " NAME " << toplevelEntity() << endl
        << property << " VERSION 1.0" << endl
        << property << " GROUP \"" << SOPC_DEFAULT_GROUP << "\"" << endl
        << property << " DISPLAY_NAME " << toplevelEntity() << endl
        << property << " LIBRARIES {" << SOPC_DEFAULT_VHDL_LIBS;

    if (integrator()->toplevelBlock().netlist().parameterCount() > 0) {
        stream << " work." << toplevelEntity() << "_params.all";
    }
    stream << "}" << endl;

    TCEString toplevelFile =
        integrator()->outputFilePath(toplevelEntity() + ".vhdl");
    stream
        << property << " TOP_LEVEL_HDL_FILE " << toplevelFile << endl
        << property << " TOP_LEVEL_HDL_MODULE " << toplevelEntity() << endl
        << property << " INSTANTIATE_IN_SYSTEM_MODULE true" << endl
        << property << " EDITABLE false" << endl
        << property << " SIMULATION_MODEL_IN_VERILOG false" << endl
        << property << " SIMULATION_MODEL_IN_VHDL false" << endl
        << property << " SIMULATION_MODEL_HAS_TULIPS false" << endl
        << property << " SIMULATION_MODEL_IS_OBFUSCATED false" << endl
        << endl;
}

References ProjectFileGenerator::integrator(), PlatformIntegrator::outputFilePath(), SOPC_DEFAULT_GROUP, SOPC_DEFAULT_VHDL_LIBS, SOPC_SET_MODULE_PROPERTY, and ProjectFileGenerator::toplevelEntity().

Referenced by writeProjectFiles().

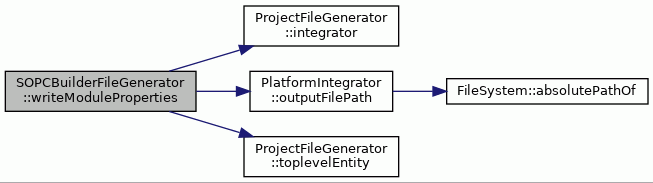

Here is the call graph for this function:

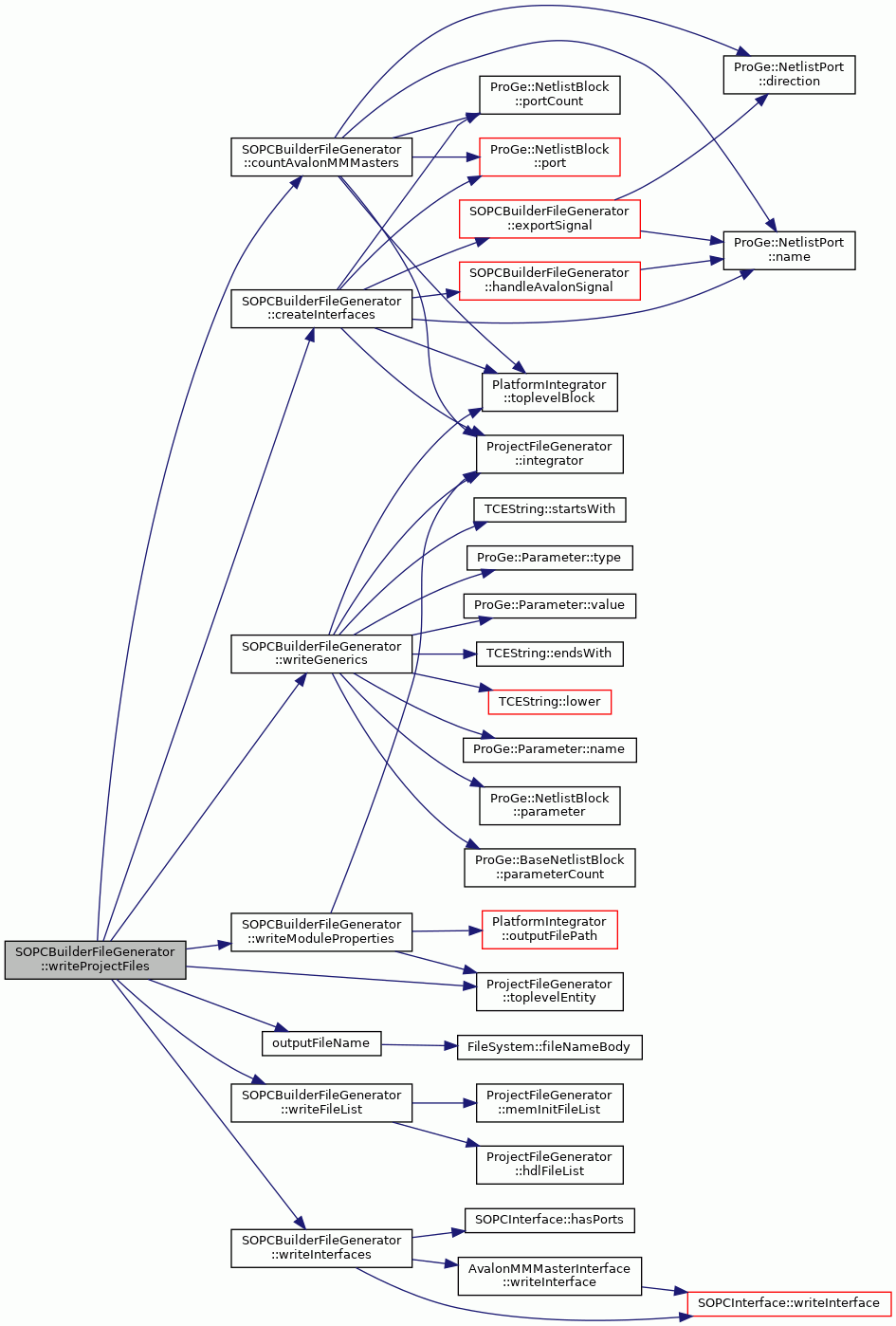

◆ writeProjectFiles()

void SOPCBuilderFileGenerator::writeProjectFiles ( )

virtual

Implements ProjectFileGenerator.

Definition at line 103 of file SOPCBuilderFileGenerator.cc.

                                            {

    int masterInterfaces = countAvalonMMMasters();
    if (masterInterfaces == 0) {
        TCEString msg = "Couldn't find any Avalon MM Master interfaces.";
        InvalidData exc(__FILE__, __LINE__, "SOPCBuilderFileGenerator", msg);
        throw exc;
    }

    createInterfaces();

    TCEString outputFileName = toplevelEntity() + SOPC_COMPONENT_FILE_TYPE;
    ofstream output;
    output.open(outputFileName.c_str());
    if (!output) {
        TCEString msg =
            "Couldn't open file " + outputFileName + " for writing";
        IOException exc(__FILE__, __LINE__, "SOPCBuilderFileGenerator", msg);
        throw exc;
    }

    output << "# Generated by SOPCBuilderGenerator" << endl << endl;
    writeModuleProperties(output);

    writeGenerics(output);

    writeFileList(output);

    writeInterfaces(output);

    output.close();
}

References countAvalonMMMasters(), createInterfaces(), outputFileName(), SOPC_COMPONENT_FILE_TYPE, ProjectFileGenerator::toplevelEntity(), writeFileList(), writeGenerics(), writeInterfaces(), and writeModuleProperties().

Here is the call graph for this function:

Member Data Documentation

◆ clock_

SOPCInterface* SOPCBuilderFileGenerator::clock_

private

Definition at line 75 of file SOPCBuilderFileGenerator.hh.

Referenced by handleAvalonSignal(), SOPCBuilderFileGenerator(), writeInterfaces(), and ~SOPCBuilderFileGenerator().

◆ export_

SOPCInterface* SOPCBuilderFileGenerator::export_

private

Definition at line 76 of file SOPCBuilderFileGenerator.hh.

Referenced by exportSignal(), SOPCBuilderFileGenerator(), writeInterfaces(), and ~SOPCBuilderFileGenerator().

◆ HDB_AVALON_PREFIX

const TCEString SOPCBuilderFileGenerator::HDB_AVALON_PREFIX = "avalon_d_"

staticprivate

Definition at line 80 of file SOPCBuilderFileGenerator.hh.

Referenced by countAvalonMMMasters(), createInterfaces(), and handleAvalonSignal().

◆ masters_

std::map<TCEString, AvalonMMMasterInterface*> SOPCBuilderFileGenerator::masters_

private

Definition at line 77 of file SOPCBuilderFileGenerator.hh.

Referenced by getMaster(), handleAvalonSignal(), writeInterfaces(), and ~SOPCBuilderFileGenerator().

◆ PI_DEVICE_FAMILY_GENERIC

const TCEString SOPCBuilderFileGenerator::PI_DEVICE_FAMILY_GENERIC

staticprivate

Initial value:

=

"dev_family_g"

Definition at line 93 of file SOPCBuilderFileGenerator.hh.

Referenced by writeGenerics().

◆ SOPC_ADD_FILE

const TCEString SOPCBuilderFileGenerator::SOPC_ADD_FILE

staticprivate

Initial value:

=

"add_file"

Definition at line 91 of file SOPCBuilderFileGenerator.hh.

Referenced by writeFileList().

◆ SOPC_CLOCK_NAME

const TCEString SOPCBuilderFileGenerator::SOPC_CLOCK_NAME = "clk"

staticprivate

Definition at line 85 of file SOPCBuilderFileGenerator.hh.

Referenced by SOPCBuilderFileGenerator().

◆ SOPC_COMPONENT_FILE_TYPE

const TCEString SOPCBuilderFileGenerator::SOPC_COMPONENT_FILE_TYPE

staticprivate

Initial value:

=

"_hw.tcl"

Definition at line 81 of file SOPCBuilderFileGenerator.hh.

Referenced by writeProjectFiles().

◆ SOPC_DEFAULT_GROUP

const TCEString SOPCBuilderFileGenerator::SOPC_DEFAULT_GROUP = "User Logic"

staticprivate

Definition at line 88 of file SOPCBuilderFileGenerator.hh.

Referenced by writeModuleProperties().

◆ SOPC_DEFAULT_VHDL_LIBS

const TCEString SOPCBuilderFileGenerator::SOPC_DEFAULT_VHDL_LIBS

staticprivate

Initial value:

=
    "std.standard.all ieee.std_logic_1164.all ieee.std_logic_arith.all "
    "work.globals.all work.util.all work.imem_mau.all"

Definition at line 89 of file SOPCBuilderFileGenerator.hh.

Referenced by writeModuleProperties().

◆ SOPC_RESET_NAME

const TCEString SOPCBuilderFileGenerator::SOPC_RESET_NAME = "reset_n"

staticprivate

Definition at line 86 of file SOPCBuilderFileGenerator.hh.

Referenced by SOPCBuilderFileGenerator().

◆ SOPC_SET_MODULE_PROPERTY

const TCEString SOPCBuilderFileGenerator::SOPC_SET_MODULE_PROPERTY

staticprivate

Initial value:

=

"set_module_property"

Definition at line 90 of file SOPCBuilderFileGenerator.hh.

Referenced by writeModuleProperties().

◆ TTA_CLOCK_NAME

const TCEString SOPCBuilderFileGenerator::TTA_CLOCK_NAME = "clk"

staticprivate

Definition at line 83 of file SOPCBuilderFileGenerator.hh.

Referenced by createInterfaces(), and SOPCBuilderFileGenerator().

◆ TTA_RESET_NAME

const TCEString SOPCBuilderFileGenerator::TTA_RESET_NAME = "rstx"

staticprivate

Definition at line 84 of file SOPCBuilderFileGenerator.hh.

Referenced by createInterfaces(), and SOPCBuilderFileGenerator().

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SOPCBuilderFileGenerator()

◆ ~SOPCBuilderFileGenerator()

Member Function Documentation

◆ countAvalonMMMasters()

◆ createInterfaces()

◆ exportSignal()

◆ getMaster()

◆ handleAvalonSignal()

◆ writeFileList()

◆ writeGenerics()

◆ writeInterfaces()

◆ writeModuleProperties()

◆ writeProjectFiles()

Member Data Documentation

◆ clock_

◆ export_

◆ HDB_AVALON_PREFIX

◆ masters_

◆ PI_DEVICE_FAMILY_GENERIC

◆ SOPC_ADD_FILE

◆ SOPC_CLOCK_NAME

◆ SOPC_COMPONENT_FILE_TYPE

◆ SOPC_DEFAULT_GROUP

◆ SOPC_DEFAULT_VHDL_LIBS

◆ SOPC_RESET_NAME

◆ SOPC_SET_MODULE_PROPERTY

◆ TTA_CLOCK_NAME

◆ TTA_RESET_NAME
