TPEFDumper Class Reference

#include <TPEFDumper.hh>

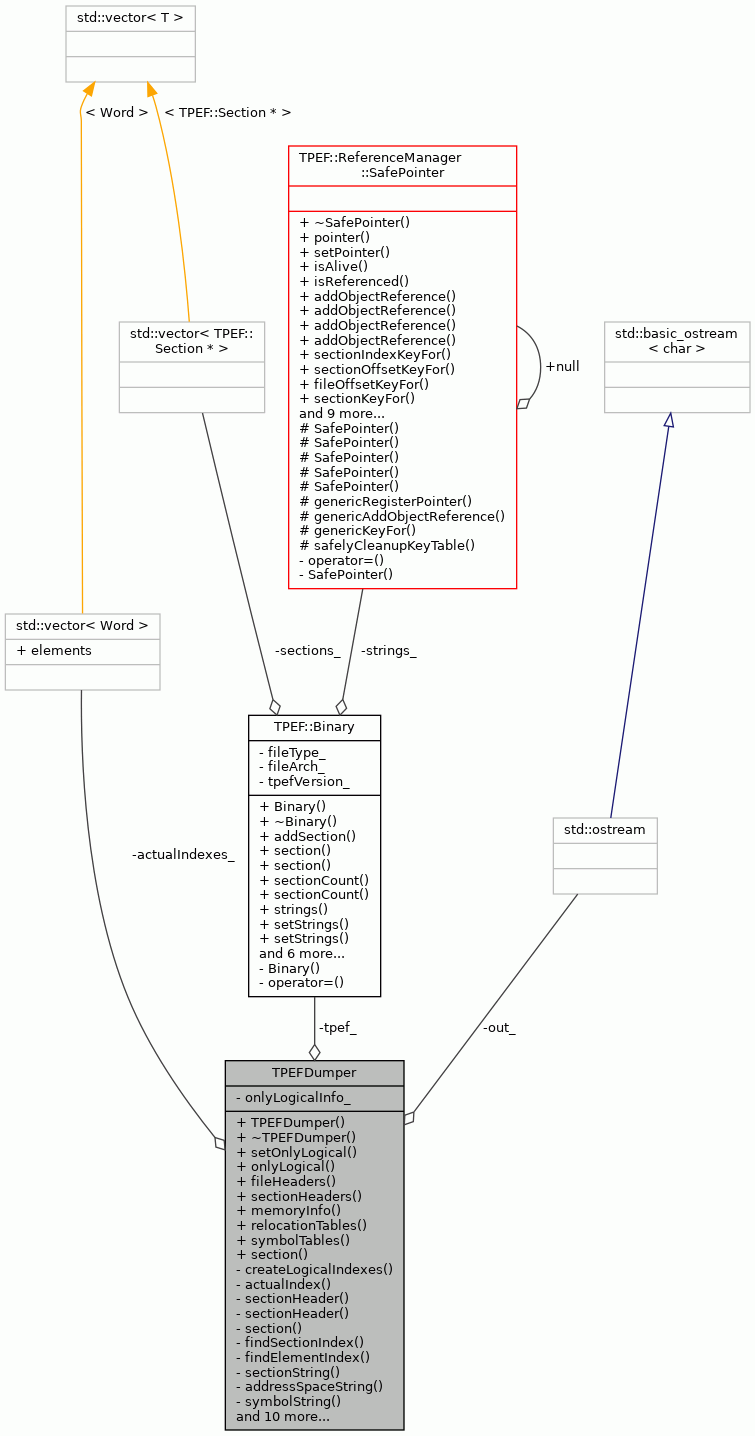

Collaboration diagram for TPEFDumper:
Collaboration graph

Public Member Functions

 TPEFDumper (TPEF::Binary &tpef, std::ostream &out)

virtual ~TPEFDumper ()

void setOnlyLogical (bool flag)

bool onlyLogical () const

void fileHeaders ()

void sectionHeaders ()

void memoryInfo ()

void relocationTables ()

void symbolTables ()

void section (Word sectionIndex)


Private Member Functions

void createLogicalIndexes ()

Word actualIndex (Word logicalIndex) const

std::string sectionHeader ()

std::string sectionHeader (TPEF::Section &sect, bool noIndex=false)

void section (TPEF::Section &sect)

int findSectionIndex (TPEF::Section &sect)

int findElementIndex (TPEF::Section &sect, TPEF::SectionElement &elem)

std::string sectionString (TPEF::Section &sect, bool shortForm=false)

std::string addressSpaceString (TPEF::ASpaceElement &aSpace)

std::string symbolString (TPEF::Section &sect, TPEF::SymbolElement &sym)

std::string sectionTypeString (TPEF::Section::SectionType type, bool shortForm=false)

std::string fileArchString (TPEF::Binary::FileArchitecture arch)

std::string debugElementTypeString (TPEF::DebugElement::ElementType type)

std::string fileTypeString (TPEF::Binary::FileType type)

std::string symbolTypeString (TPEF::SymbolElement::SymbolType type)

std::string symbolBindString (TPEF::SymbolElement::SymbolBinding bind)

std::string relocTypeString (TPEF::RelocElement::RelocType type)

std::string resourceTypeString (TPEF::ResourceElement::ResourceType type)

std::string resourceIdString (HalfWord id, TPEF::ResourceElement::ResourceType type)

void dumpStringSet (std::set< std::string > &aSet) const


Private Attributes

std::vector< Word > actualIndexes_

TPEF::Binary & tpef_

std::ostream & out_

bool onlyLogicalInfo_


Detailed Description

Outputs TPEF hierarchy in textual form.

Definition at line 51 of file TPEFDumper.hh.

Constructor & Destructor Documentation

◆ TPEFDumper()

TPEFDumper::TPEFDumper ( TPEF::Binary &  tpef,
std::ostream &  out
)

Constructor.

Definition at line 95 of file TPEFDumper.cc.

95  :
96  tpef_(tpef), out_(out), onlyLogicalInfo_(false) {
97 }

◆ ~TPEFDumper()

TPEFDumper::~TPEFDumper ( )
virtual

Destructor.

Definition at line 102 of file TPEFDumper.cc.

102  {
103 }

Member Function Documentation

◆ actualIndex()

Word TPEFDumper::actualIndex ( Word  origIndex) const
private

Converts index to print sections in logical order, if onlyLogical() is set.

Parameters
Requestedindex of section.
Returns
Converted or same index that in parameter.

Definition at line 137 of file TPEFDumper.cc.

137  {
138  if (onlyLogical()) {
139  return actualIndexes_[origIndex];
140  } else {
141  return origIndex;
142  }
143 }

References actualIndexes_, and onlyLogical().

Referenced by findSectionIndex(), memoryInfo(), relocationTables(), section(), sectionHeaders(), and symbolTables().

Here is the call graph for this function:

◆ addressSpaceString()

std::string TPEFDumper::addressSpaceString ( TPEF::ASpaceElement &  aSpace)
private

Returns address space element in human readable form.

Parameters
aSpaceAddress space to convert.
Returns
Address space string.

Definition at line 1320 of file TPEFDumper.cc.

1320  {
1321
1322  ASpaceSection* aSpaces = dynamic_cast<ASpaceSection*>(
1323  tpef_.section(Section::ST_ADDRSP,0));
1324
1325  assert(aSpaces != NULL);
1326
1327  StringSection* strings = dynamic_cast<StringSection*>(aSpaces->link());
1328  assert(strings != NULL);
1329
1330  std::string str;
1331  if (aSpaces->isUndefined(&aSpace)) {
1332  str = "undefined";
1333  } else {
1334  // find index
1335  int aSpaceIndex = findElementIndex(*aSpaces, aSpace);
1336
1337  assert(aSpaceIndex != -1);
1338
1339  if (!onlyLogical()) {
1340  str = Conversion::toString(aSpaceIndex) + ":";
1341  }
1342
1343  str +=
1344  Conversion::toString(static_cast<Word>(aSpace.MAU())) + "bit:" +
1345  Conversion::toString(static_cast<Word>(aSpace.align())) + ":" +
1346  Conversion::toString(static_cast<Word>(aSpace.wordSize()));
1347  }
1348
1349  return str;
1350 }

References TPEF::ASpaceElement::align(), assert, findElementIndex(), TPEF::ASpaceSection::isUndefined(), TPEF::Section::link(), TPEF::ASpaceElement::MAU(), onlyLogical(), TPEF::Binary::section(), Conversion::toString(), tpef_, and TPEF::ASpaceElement::wordSize().

Referenced by section(), and sectionHeader().

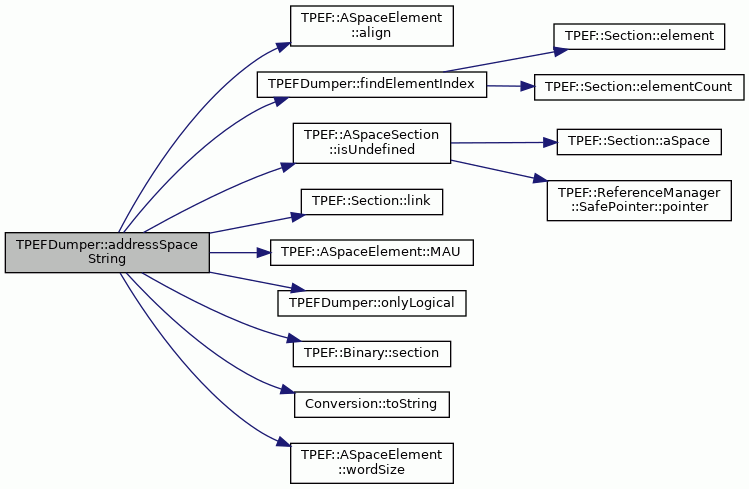

Here is the call graph for this function:

◆ createLogicalIndexes()

void TPEFDumper::createLogicalIndexes ( )
private

Organizes sections alphabetically and creates index table.

NOTE: method does not work if there is two sections with same header string (very rare).

Definition at line 112 of file TPEFDumper.cc.

112  {
113
114  std::map<std::string, Word> organizedSections;
115
116  for (Word i = 0; i < tpef_.sectionCount(); i++) {
117  Section *sect = tpef_.section(i);
118  organizedSections[sectionHeader(*sect, true)] = i;
119  }
120
121  for (std::map<std::string, Word>::iterator
122  iter = organizedSections.begin();
123  iter != organizedSections.end();
124  iter++) {
125
126  actualIndexes_.push_back((*iter).second);
127  }
128 }

References actualIndexes_, TPEF::Binary::section(), TPEF::Binary::sectionCount(), sectionHeader(), and tpef_.

Referenced by setOnlyLogical().

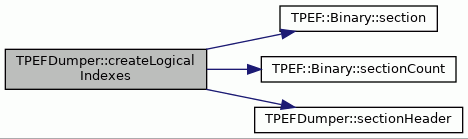

Here is the call graph for this function:

◆ debugElementTypeString()

std::string TPEFDumper::debugElementTypeString ( TPEF::DebugElement::ElementType  type)
private

Returns debug element type string in human readable form.

Parameters
typeType id to convert.convert.
Returns
Type in string form.

Definition at line 1135 of file TPEFDumper.cc.

1135  {
1136
1137  std::string str;
1138
1139  switch (type) {
1140  case DebugElement::DE_STAB: str = "STAB"; break;
1141  default: str = "UNKNOWN";
1142  }
1143
1144  return str;
1145 }

Referenced by section().

◆ dumpStringSet()

void TPEFDumper::dumpStringSet ( std::set< std::string > &  aSet) const
private

Dumps a set of strings to output stream.

Clears dumped set.

Parameters
setSet of strings to print.

Definition at line 1385 of file TPEFDumper.cc.

1385  {
1386  typedef std::set<std::string>::iterator StrSetIter;
1387  for (StrSetIter iter = aSet.begin(); iter != aSet.end(); iter++) {
1388  out_ << *iter << std::endl;
1389  }
1390  aSet.clear();
1391 }

References out_.

Referenced by section().

◆ fileArchString()

std::string TPEFDumper::fileArchString ( TPEF::Binary::FileArchitecture  arch)
private

Returns file architecture type in human readable form.

Parameters
archArchitecture id to convert.
Returns
Architecture id string.

Definition at line 1113 of file TPEFDumper.cc.

1113  {
1114
1115  std::string str;
1116
1117  switch (arch) {
1118  case Binary::FA_NOARCH: str = "NOARCH"; break;
1119  case Binary::FA_TTA_MOVE:str = "TTA_MOVE";break;
1120  case Binary::FA_TTA_TUT: str = "TTA_TUT"; break;
1121  case Binary::FA_TDS_TI: str = "TDS_TI"; break;
1122  default: str = "UNKNOWN";
1123  }
1124
1125  return str + " (" + Conversion::toHexString(arch, 2) + ")";
1126 }

References Conversion::toHexString().

Referenced by fileHeaders().

Here is the call graph for this function:

◆ fileHeaders()

void TPEFDumper::fileHeaders ( )

Prints file headers.

Definition at line 181 of file TPEFDumper.cc.

181  {
182
183  // generate string for strings() field of binary
184  int strSectionIndex = findSectionIndex(*tpef_.strings());
185  std::string strIndexString;
186
187  if (strSectionIndex != -1) {
188  strIndexString = Conversion::toString(strSectionIndex);
189  } else if (tpef_.strings() == NULL) {
190  strIndexString = "No strings section defined";
191  } else {
192  strIndexString = "INVALID TPEF: String section was not found.";
193  }
194
195  out_ << std::left
196  << std::setw(20) << "Section count: " << tpef_.sectionCount()
197  << std::endl
198  << std::setw(20) << "String section: " << sectionString(*tpef_.strings(), false)
199  << std::endl
200  << std::setw(20) << "File architecture: "
201  << fileArchString(tpef_.arch()) << std::endl
202  << std::setw(20) << "File type: " << fileTypeString(tpef_.type())
203  << std::endl << std::endl;
204 }

References TPEF::Binary::arch(), fileArchString(), fileTypeString(), findSectionIndex(), out_, TPEF::Binary::sectionCount(), sectionString(), TPEF::Binary::strings(), Conversion::toString(), tpef_, and TPEF::Binary::type().

Referenced by main().

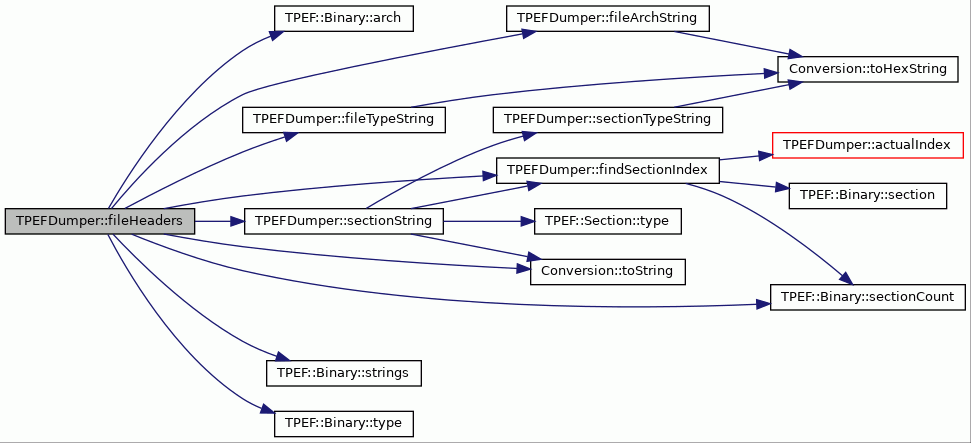

Here is the call graph for this function:

◆ fileTypeString()

std::string TPEFDumper::fileTypeString ( TPEF::Binary::FileType  type)
private

Returns file type in human readable form.

Parameters
typeFile type id to convert.
Returns
File type id string.

Definition at line 1154 of file TPEFDumper.cc.

1154  {
1155
1156  std::string str;
1157
1158  switch (type) {
1159  case Binary::FT_NULL: str = "UNDEF"; break;
1160  case Binary::FT_OBJSEQ: str = "OBJSEQ"; break;
1161  case Binary::FT_PURESEQ: str = "PURESEQ"; break;
1162  case Binary::FT_LIBSEQ: str = "LIBSEQ"; break;
1163  case Binary::FT_MIXED: str = "MIXED"; break;
1164  case Binary::FT_PARALLEL:str = "PARALLEL";break;
1165  default: str = "UNKNOWN";
1166  }
1167
1168  return str + " (" + Conversion::toHexString(type, 2) + ")";
1169 }

References Conversion::toHexString().

Referenced by fileHeaders().

Here is the call graph for this function:

◆ findElementIndex()

int TPEFDumper::findElementIndex ( TPEF::Section &  sect,
TPEF::SectionElement &  elem
)
private

Returns index of element.

If element is not found from section returns -1.

Parameters
sectSection which contains the element.
elemElement whose index is returned.
Returns
Index of element or error code.

Definition at line 1053 of file TPEFDumper.cc.

1053  {
1054  int index = 0;
1055
1056  while (static_cast<Word>(index) < sect.elementCount() &&
1057  sect.element(index) != &elem) {
1058  index++;
1059  }
1060
1061  if (static_cast<Word>(index) < sect.elementCount()) {
1062  return index;
1063  } else {
1064  return -1;
1065  }
1066 }

References TPEF::Section::element(), and TPEF::Section::elementCount().

Referenced by addressSpaceString(), and symbolString().

Here is the call graph for this function:

◆ findSectionIndex()

int TPEFDumper::findSectionIndex ( TPEF::Section &  sect)
private

Returns index of section.

If section is not found from tpef returns -1.

Parameters
sectSection whose index is returned.
Returns
Index of section or error code.

Definition at line 1023 of file TPEFDumper.cc.

1023  {
1024
1025  int index = 0;
1026  while (static_cast<Word>(index) < tpef_.sectionCount() &&
1027  tpef_.section(index) != &sect) {
1028
1029  index++;
1030  }
1031
1032  if (static_cast<Word>(index) < tpef_.sectionCount()) {
1033  for (Word i = 0; i < tpef_.sectionCount(); i++) {
1034  if (actualIndex(i) == static_cast<Word>(index)) {
1035  return i;
1036  }
1037  }
1038  }
1039
1040  return -1;
1041 }

References actualIndex(), TPEF::Binary::section(), TPEF::Binary::sectionCount(), and tpef_.

Referenced by fileHeaders(), sectionHeader(), and sectionString().

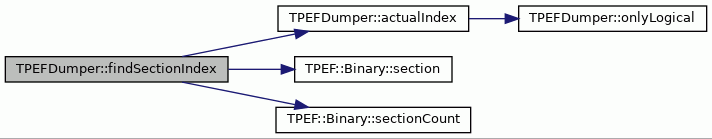

Here is the call graph for this function:

◆ memoryInfo()

void TPEFDumper::memoryInfo ( )

Prints information about needed data address space sizes for initialized and uninitialized data.

Definition at line 232 of file TPEFDumper.cc.

232  {
233
234  out_ << "Minimum sizes for address spaces:" << std::endl << std::endl;
235
236  // map of used address spaces
237  std::map<ASpaceElement*, std::pair<int, int> > neededMAUsOfASpace;
238  // map telling if CODE and/or DATA memory is used in this aspace
239  std::map<ASpaceElement*, std::pair<bool, bool> > typeOfMemNeeded;
240
241  for (Word i = 0; i < tpef_.sectionCount(); i++) {
242  Section& currSect = *tpef_.section(actualIndex(i));
243
244  if (currSect.isProgramSection()) {
245
246  // init new address space limits to 0,0
247  if (neededMAUsOfASpace.find(currSect.aSpace()) ==
248  neededMAUsOfASpace.end()) {
249
250  neededMAUsOfASpace[currSect.aSpace()] = std::pair<int,int>(0,0);
251  typeOfMemNeeded[currSect.aSpace()] = std::pair<bool,bool>(false,false);
252  }
253
254  std::pair<int,int> currentLimits = neededMAUsOfASpace[currSect.aSpace()];
255  int currMin = currSect.startingAddress();
256  int currMax = currMin;
257  std::pair<bool,bool> currentMemtypes = typeOfMemNeeded[currSect.aSpace()];
258
259  if (currSect.type() == Section::ST_CODE) {
260
261  currMax += dynamic_cast<const CodeSection*>
262  (&currSect)->instructionCount();
263  currentMemtypes.first = true;
264
265  } else if (currSect.type() == Section::ST_DATA ||
266  currSect.type() == Section::ST_UDATA ||
267  currSect.type() == Section::ST_LEDATA) {
268
269  currMax += dynamic_cast<const UDataSection*>(
270  &currSect)->lengthInMAUs();
271  currentMemtypes.second = true;
272
273  } else {
274  assert(false && "Unknown program section type");
275  }
276
277  // update limits to map
278  if (currMin < currentLimits.first) {
279  currentLimits.first = currMin;
280  }
281
282  if (currMax > currentLimits.second) {
283  currentLimits.second = currMax;
284  }
285
286  neededMAUsOfASpace[currSect.aSpace()] = currentLimits;
287  typeOfMemNeeded[currSect.aSpace()] = currentMemtypes;
288  }
289  }
290
291  // print out in ASpace order...
292  Section* aSpaces = tpef_.section(Section::ST_ADDRSP, 0);
293
294  for (Word i = 0; i < aSpaces->elementCount(); i++) {
295  ASpaceElement* aSpace =
296  dynamic_cast<ASpaceElement*>(aSpaces->element(i));
297
298  if (neededMAUsOfASpace.find(aSpace) != neededMAUsOfASpace.end()) {
299  int aSpaceSize =
300  neededMAUsOfASpace[aSpace].second -
301  neededMAUsOfASpace[aSpace].first;
302
303  out_ << i << ":";
304  if (typeOfMemNeeded[aSpace].first) out_ << " CODE";
305  if (typeOfMemNeeded[aSpace].second) out_ << " DATA";
306  out_ << ": " << aSpaceSize << " MAU(s)" << std::endl;
307
308  } else {
309  out_ << i << ": not used for data nor instructions."
310  << std::endl;
311  }
312  }
313
314  out_ << std::endl;
315 }

References actualIndex(), TPEF::Section::aSpace(), assert, TPEF::Section::element(), TPEF::Section::elementCount(), TPEF::Section::isProgramSection(), out_, TPEF::Binary::section(), TPEF::Binary::sectionCount(), TPEF::Section::startingAddress(), tpef_, and TPEF::Section::type().

Referenced by main().

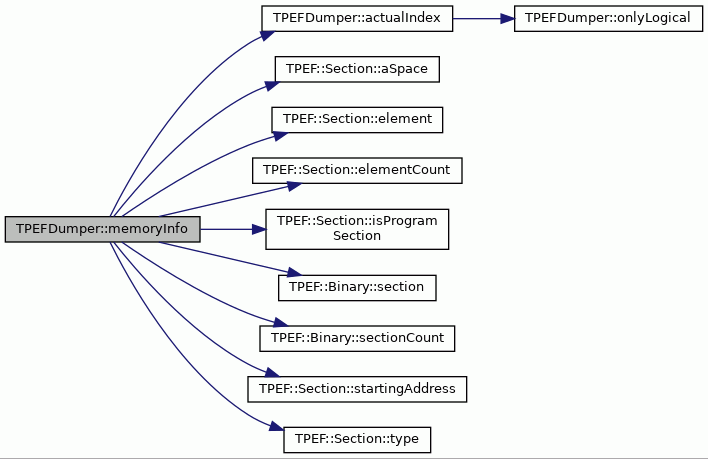

Here is the call graph for this function:

◆ onlyLogical()

bool TPEFDumper::onlyLogical ( ) const

Returns true if dumper is set to print only logical information.

See. setOnlyLogical for more information.

Returns
True if dumper is set to print only logical information.

Definition at line 173 of file TPEFDumper.cc.

173  {
174  return onlyLogicalInfo_;
175 }

References onlyLogicalInfo_.

Referenced by actualIndex(), addressSpaceString(), section(), and symbolString().

◆ relocationTables()

void TPEFDumper::relocationTables ( )

Prints full information of every relocation table in tpef.

Definition at line 321 of file TPEFDumper.cc.

321  {
322
323  for (Word i = 0; i < tpef_.sectionCount(); i++) {
324  Section& currSect = *tpef_.section(actualIndex(i));
325
326  if (currSect.type() == Section::ST_RELOC) {
327  section(currSect);
328  }
329  }
330 }

References actualIndex(), section(), TPEF::Binary::section(), TPEF::Binary::sectionCount(), tpef_, and TPEF::Section::type().

Referenced by main().

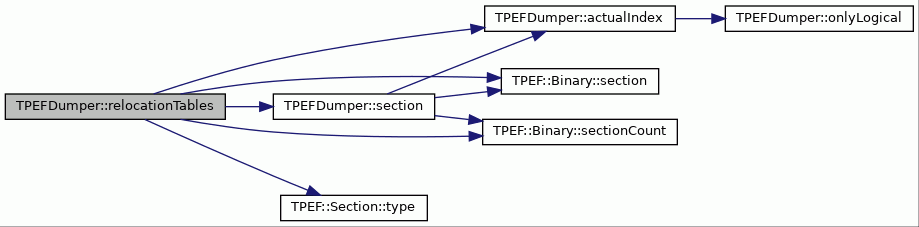

Here is the call graph for this function:

◆ relocTypeString()

std::string TPEFDumper::relocTypeString ( TPEF::RelocElement::RelocType  type)
private

Returns srelocation type in human readable form.

Parameters
typeRelocation type id to convert.
Returns
Relocation type id string.

Definition at line 1223 of file TPEFDumper.cc.

1223  {
1224
1225  std::string str;
1226
1227  switch (type) {
1228  case RelocElement::RT_NOREL: str = "NOREL"; break;
1229  case RelocElement::RT_SELF: str = "SELF"; break;
1230  case RelocElement::RT_PAGE: str = "PAGE"; break;
1231  case RelocElement::RT_PCREL: str = "PCREL"; break;
1232  default: str = "UNKNOWN";
1233  }
1234
1235  return str + " (" + Conversion::toHexString(type, 2) + ")";
1236 }

References Conversion::toHexString().

Referenced by section().

Here is the call graph for this function:

◆ resourceIdString()

std::string TPEFDumper::resourceIdString ( HalfWord  id,
TPEF::ResourceElement::ResourceType  type
)
private

Returns resource id in human readable form.

Parameters
idResource id to convert.
typeResource type of id. (needed for conversion)
Returns
Resource id string.

Definition at line 1269 of file TPEFDumper.cc.

1269  {
1270  std::string str;
1271
1272  switch (type) {
1273
1274  case ResourceElement::MRT_UNIT:
1275  case ResourceElement::MRT_BUS: {
1276  if (id == 0) {
1277  str = "UNIVERSAL";
1278  }
1279  } break;
1280
1281  case ResourceElement::MRT_RF: {
1282  if (id == 0) {
1283  str = "ILLEGAL";
1284  } else if (id == ResourceElement::INT_RF) {
1285  str = "UNIV_INT";
1286  } else if (id == ResourceElement::BOOL_RF) {
1287  str = "UNIV_BOOL";
1288  } else if (id == ResourceElement::FP_RF) {
1289  str = "UNIV_FP";
1290  } else if ((id&ResourceElement::UNIVERSAL_RF_MASK) != 0) {
1291  str = "UNIV_UNKNWN";
1292  }
1293  } break;
1294
1295  case ResourceElement::MRT_IMM: {
1296  if (id == ResourceElement::INLINE_IMM) {
1297  str = "INLINE_IMM";
1298  }
1299
1300  } break;
1301
1302  default:
1303  return Conversion::toHexString(id, 4);
1304  }
1305
1306  if (str != "") {
1307  return str + " (" + Conversion::toHexString(id, 2) + ")";
1308  } else {
1309  return Conversion::toHexString(id, 4);
1310  }
1311 }

References Conversion::toHexString().

Referenced by section().

Here is the call graph for this function:

◆ resourceTypeString()

std::string TPEFDumper::resourceTypeString ( TPEF::ResourceElement::ResourceType  type)
private

Returns resource type in human readable form.

Parameters
typeResource type id to convert.
Returns
Resource type id string.

Definition at line 1245 of file TPEFDumper.cc.

1245  {
1246  std::string str;
1247  switch (type) {
1248  case ResourceElement::MRT_NULL:str = "NULL";break;
1249  case ResourceElement::MRT_BUS: str = "BUS"; break;
1250  case ResourceElement::MRT_UNIT:str = "UNIT";break;
1251  case ResourceElement::MRT_RF: str = "RF"; break;
1252  case ResourceElement::MRT_OP: str = "OP"; break;
1253  case ResourceElement::MRT_IMM: str = "IMM"; break;
1254  case ResourceElement::MRT_SR: str = "SR"; break;
1255  case ResourceElement::MRT_PORT:str = "PORT";break;
1256  default: str = "UNKNOWN";
1257  }
1258  return str + " (" + Conversion::toHexString(type, 2) + ")";
1259 }

References Conversion::toHexString().

Referenced by section().

Here is the call graph for this function:

◆ section() [1/2]

void TPEFDumper::section ( TPEF::Section &  sect)
private

Prints all information of requested section.

Parameters
sectSection to print.

Definition at line 468 of file TPEFDumper.cc.

468  {
469
470  std::set<std::string> organizedElements;
471
472  switch (sect.type()) {
473  case Section::ST_SYMTAB: {
474  out_ << "Symbol table:" << std::endl << std::endl;
475  out_ << sectionHeader() << std::endl;;
476  out_ << sectionHeader(sect) << std::endl;
477
478  out_ << std::endl << std::left;
479
480  if (!onlyLogical()) {
481  out_ << std::setw(6) << "index" << std::right;
482  }
483
484  out_ << std::setw(17) << "type" << std::right
485  << std::setw(15) << "binding"
486  << std::setw(10) << "absolute"
487  << std::setw(12) << "owner"
488  << std::setw(15) << "value"
489  << std::left << "\tname"
490  << std::endl << std::endl;
491
492  StringSection* strings = dynamic_cast<StringSection*>(sect.link());
493
494  for (Word i = 0; i < sect.elementCount(); i++) {
495  SymbolElement* sym =
496  dynamic_cast<SymbolElement*>(sect.element(i));
497
498  std::string isAbso = (sym->absolute()) ? ("yes") : ("no");
499
500  // resolve value
501  std::string symValue;
502  switch (sym->type()) {
503  case SymbolElement::STT_NOTYPE: {
504  symValue = "NONE";
505  } break;
506
507  case SymbolElement::STT_SECTION: {
508  symValue = Conversion::toString(
509  dynamic_cast<SectionSymElement*>(sym)->value());
510  } break;
511
512  case SymbolElement::STT_FILE: {
513  symValue = Conversion::toString(
514  dynamic_cast<FileSymElement*>(sym)->value());
515  } break;
516
517  case SymbolElement::STT_DATA: {
518  UDataSection* uDataSect =
519  dynamic_cast<UDataSection*>(sym->section());
520  assert(uDataSect != NULL);
521
522  DataSymElement* dataSym =
523  dynamic_cast<DataSymElement*>(sym);
524  assert(dataSym != NULL);
525
526  symValue = Conversion::toString(
527  uDataSect->chunkToMAUIndex(dataSym->reference())) +
528  " U";
529
530  } break;
531
532  case SymbolElement::STT_CODE:
533  case SymbolElement::STT_PROCEDURE: {
534  CodeSection* codeSect =
535  dynamic_cast<CodeSection*>(sym->section());
536
537  assert(codeSect != NULL);
538
539  CodeSymElement* codeSym =
540  dynamic_cast<CodeSymElement*>(sym);
541  assert(codeSym != NULL);
542
543  symValue = Conversion::toString(
544  codeSect->indexOfElement(*codeSym->reference())) +
545  " E";
546  } break;
547
548
549  default:
550  symValue = "Unknown symbol type!";
551  };
552
553  std::stringstream elemStr;
554  elemStr << std::left;
555
556  if (!onlyLogical()) {
557  elemStr << std::setw(6)
558  << Conversion::toString(i) + ":"
559  << std::right;
560  }
561
562  elemStr << std::setw(17) << symbolTypeString(sym->type())
563  << std::right
564  << std::setw(15)
565  << symbolBindString(sym->binding())
566  << std::setw(10) << isAbso
567  << std::setw(12)
568  << sectionString(*sym->section(), false)
569  << std::setw(15) << symValue
570  << std::left
571  << "\t" + strings->chunk2String(sym->name());
572
573  if (onlyLogical()) {
574  organizedElements.insert(elemStr.str());
575  } else {
576  out_ << elemStr.str() << std::endl;
577  }
578
579  elemStr.clear();
580  }
581
582  dumpStringSet(organizedElements);
583
584  out_ << std::endl
585  << "U = Minimum allocateable unit index. "
586  << "E = Section element index. "
587  << std::endl;
588  } break;
589
590  case Section::ST_RELOC: {
591  RelocSection& relocSect =
592  dynamic_cast<RelocSection&>(sect);
593
594  out_ << "Relocation table: " << std::endl;
595  out_ << "Referenced section: "
596  << sectionString(*relocSect.referencedSection())
597  << std::endl << std::endl;
598
599  out_ << sectionHeader() << std::endl;
600  out_ << sectionHeader(sect) << std::endl;
601
602  out_ << std::endl << std::left;
603
604  if (!onlyLogical()) {
605  out_ << std::setw(6) << "index" << std::right;
606  }
607
608  out_ << std::setw(17) << "type"
609  << std::right
610  << std::setw(6) << "size"
611  << std::setw(18) << "location"
612  << std::setw(18) << "destination"
613  << std::setw(17) << "address space"
614  << std::left << "\tsymbol"
615  << std::endl << std::endl;
616
617  for (Word i = 0; i < sect.elementCount(); i++) {
618  RelocElement* reloc =
619  dynamic_cast<RelocElement*>(sect.element(i));
620
621
622  std::string locationAddress;
623
624  if (relocSect.referencedSection()->type() == Section::ST_DATA ||
625  relocSect.referencedSection()->type() == Section::ST_LEDATA) {
626  Chunk* srcChunk = dynamic_cast<Chunk*>(reloc->location());
627
628  DataSection* dataSect =
629  dynamic_cast<DataSection*>(relocSect.referencedSection());
630
631  assert(dataSect != NULL);
632
633  locationAddress = Conversion::toString(
634  dataSect->chunkToMAUIndex(srcChunk)) + " U";
635
636  } else if (relocSect.referencedSection()->type() ==
637  Section::ST_CODE) {
638
639  CodeSection* codeSect =
640  dynamic_cast<CodeSection*>(relocSect.referencedSection());
641
642  assert(codeSect != NULL);
643
644  locationAddress = Conversion::toString(
645  codeSect->indexOfElement(
646  *dynamic_cast<InstructionElement*>(
647  reloc->location()))) + " E";
648
649  } else {
650  abortWithError("Section containing relocated elements must"
651  " be DATA or CODE.");
652  }
653
654  std::string destinationAddress;
655  Word dstAddress = 0;
656
657  // if relocation is resolved
658  if (reloc->destination() != NULL) {
659
660  Section& dstSection =
661  TPEFTools::sectionOfElement(tpef_, *reloc->destination());
662
663  if (dstSection.type() == Section::ST_CODE) {
664  CodeSection& codeSect =
665  dynamic_cast<CodeSection&>(dstSection);
666
667  dstAddress = codeSect.indexOfInstruction(
668  *dynamic_cast<InstructionElement*>(reloc->destination()));
669
670  } else if (dstSection.type() == Section::ST_DATA ||
671  dstSection.type() == Section::ST_LEDATA ||
672  dstSection.type() == Section::ST_UDATA) {
673
674  UDataSection& uDataSect =
675  dynamic_cast<UDataSection&>(dstSection);
676
677  assert(uDataSect.belongsToSection(dynamic_cast<Chunk*>(reloc->destination())));
678
679  dstAddress = uDataSect.chunkToMAUIndex(
680  dynamic_cast<Chunk*>(reloc->destination()));
681
682  } else {
683  abortWithError("Destination of relocation must be DATA, "
684  "UDATA or CODE section.");
685  }
686
687  dstAddress += dstSection.startingAddress();
688  }
689
690  std::stringstream elemStr;
691  elemStr << std::left;
692
693  if (!onlyLogical()) {
694  elemStr << std::setw(6) << Conversion::toString(i) + ":"
695  << std::right;
696  }
697
698  elemStr << std::setw(17) << relocTypeString(reloc->type())
699  << std::right
700  << std::setw(6) << static_cast<Word>(reloc->size())
701  << std::setw(18) << locationAddress;
702
703  if (reloc->destination() != NULL) {
704  elemStr << std::setw(18)
705  << Conversion::toString(dstAddress) + " A";
706  } else {
707  elemStr << std::setw(18)
708  << "Unresolved";
709  }
710
711  elemStr << std::setw(17) << addressSpaceString(*reloc->aSpace())
712  << std::left
713  << "\t" + symbolString(*sect.link(), *reloc->symbol());
714
715  if (onlyLogical()) {
716  organizedElements.insert(elemStr.str());
717  } else {
718  out_ << elemStr.str() << std::endl;
719  }
720  }
721
722  dumpStringSet(organizedElements);
723
724  out_ << std::endl
725  << "E = Section element index. "
726  << "U = Minimum allocateable unit Index. "
727  << "A = Address of the address space."
728  << std::endl << std::endl;
729
730  } break;
731
732  case Section::ST_ADDRSP: {
733  out_ << "Address space table:"
734  << std::endl << std::endl;
735
736  out_ << sectionHeader() << std::endl;
737  out_ << sectionHeader(sect) << std::endl;
738
739
740  out_ << std::endl << std::left;
741  if (!onlyLogical()) {
742  out_ << std::setw(6) << "index" << std::right;
743  }
744
745  out_ << std::setw(6) << "MAU"
746  << std::right
747  << std::setw(10) << "alignment"
748  << std::setw(10) << "word size"
749  << std::left << "\tname"
750  << std::endl << std::endl;
751
752  StringSection* strings = dynamic_cast<StringSection*>(sect.link());
753
754  for (Word i = 0; i < sect.elementCount(); i++) {
755  ASpaceElement* aSpace =
756  dynamic_cast<ASpaceElement*>(sect.element(i));
757
758  std::stringstream elemStr;
759
760  elemStr << std::left;
761  if (!onlyLogical()) {
762  elemStr << std::setw(6) << Conversion::toString(i) + ":"
763  << std::right;
764  }
765
766  elemStr << std::setw(6) << static_cast<Word>(aSpace->MAU())
767  << std::right
768  << std::setw(10) << static_cast<Word>(aSpace->align())
769  << std::setw(10) << static_cast<Word>(aSpace->wordSize())
770  << std::left
771  << "\t" + strings->chunk2String(aSpace->name());
772
773  if (onlyLogical()) {
774  organizedElements.insert(elemStr.str());
775  } else {
776  out_ << elemStr.str() << std::endl;
777  }
778  }
779
780  dumpStringSet(organizedElements);
781
782
783  } break;
784
785  case Section::ST_MR: {
786  out_ << "Machine resource table:"
787  << std::endl << std::endl;
788
789  out_ << sectionHeader() << std::endl;
790  out_ << sectionHeader(sect) << std::endl;
791
792  if (onlyLogical()) {
793  out_ << std::endl << std::left
794  << std::setw(12) << "type"
795  << std::right
796  << std::setw(8) << "info"
797  << std::left << "\tname"
798  << std::endl << std::endl;
799  } else {
800  out_ << std::endl << std::left
801  << std::setw(6) << "index"
802  << std::setw(12) << std::right << "type"
803  << std::setw(17) << "id"
804  << std::setw(8) << "info"
805  << std::left << "\tname"
806  << std::endl << std::endl;
807  }
808
809  StringSection* strings = dynamic_cast<StringSection*>(sect.link());
810
811  for (Word i = 0; i < sect.elementCount(); i++) {
812  ResourceElement* res =
813  dynamic_cast<ResourceElement*>(sect.element(i));
814
815  std::stringstream elemStr;
816
817  if (onlyLogical()) {
818  elemStr << std::left
819  << std::setw(12)
820  << resourceTypeString(res->type())
821  << std::right
822  << std::setw(8) << res->info()
823  << std::left
824  << "\t" + strings->chunk2String(res->name());
825
826  organizedElements.insert(elemStr.str());
827
828  } else {
829  out_ << std::left
830  << std::setw(6) << Conversion::toString(i) + ":"
831  << std::setw(12) << std::right
832  << resourceTypeString(res->type())
833  << std::setw(17)
834  << resourceIdString(res->id(), res->type())
835  << std::setw(8) << res->info()
836  << std::left
837  << "\t" + strings->chunk2String(res->name())
838  << std::endl;
839  }
840  }
841
842  dumpStringSet(organizedElements);
843
844
845  } break;
846
847  case Section::ST_CODE: {
848  out_ << "Code section:"
849  << std::endl << std::endl;
850  out_ << sectionHeader() << std::endl;
851  out_ << sectionHeader(sect) << std::endl;
852
853  out_ << std::endl;
854
855  TPEFDisassembler disasm(tpef_);
856
857  for (Word i = 0; i < disasm.instructionCount(); i++) {
858
859  DisassemblyInstruction *instr = disasm.createInstruction(i);
860
861  out_ << std::left << std::setw(10)
862  << Conversion::toString(
863  i + disasm.startAddress()) + ":"
864  << std::left
865  << instr->toString()
866  << std::endl;
867
868  delete instr;
869  }
870
871  } break;
872
873  case Section::ST_DATA: {
874  out_ << "Data section:"
875  << std::endl << std::endl;
876
877  out_ << sectionHeader() << std::endl;
878  out_ << sectionHeader(sect) << std::endl;
879
880  DataSection &data = dynamic_cast<DataSection&>(sect);
881
882  for (Word i = 0; i < data.lengthInMAUs(); i++) {
883
884  if (i%16 == 0) {
885  out_ << std::endl << std::setw(9) <<
886  Conversion::toString(i + data.startingAddress()) + ":";
887  }
888
889  out_ << std::setw(sizeof(MinimumAddressableUnit)*2 + 3)
890  << Conversion::toHexString(data.MAU(i));
891
892  }
893
894  out_ << std::endl;
895  } break;
896
897  case Section::ST_LEDATA: {
898  out_ << "Low Endian Data section:"
899  << std::endl << std::endl;
900
901  out_ << sectionHeader() << std::endl;
902  out_ << sectionHeader(sect) << std::endl;
903
904  DataSection &data = dynamic_cast<DataSection&>(sect);
905
906  for (Word i = 0; i < data.lengthInMAUs(); i++) {
907
908  if (i%16 == 0) {
909  out_ << std::endl << std::setw(9) <<
910  Conversion::toString(i + data.startingAddress()) + ":";
911  }
912
913  out_ << std::setw(sizeof(MinimumAddressableUnit)*2 + 3)
914  << Conversion::toHexString(data.MAU(i));
915
916  }
917
918  out_ << std::endl;
919
920  } break;
921
922  case Section::ST_STRTAB: {
923  out_ << "String section:"
924  << std::endl << std::endl;
925
926  out_ << sectionHeader() << std::endl;
927  out_ << sectionHeader(sect) << std::endl;
928
929  out_ << std::endl << std::left;
930
931  if (!onlyLogical()) {
932  out_ << std::setw(10) << "offset";
933  }
934
935  out_ << std::left << "string "
936  << std::endl << std::endl;
937
938  StringSection &strings = dynamic_cast<StringSection&>(sect);
939
940  for (Word i = 0; i < strings.length(); i++) {
941  std::stringstream elemStr;
942
943  if (!onlyLogical()) {
944  elemStr << std::setw(10) << std::left
945  << Conversion::toString(i) + ":";
946  }
947
948  while (strings.byte(i) != 0) {
949  elemStr << strings.byte(i++);
950  }
951
952  if (onlyLogical()) {
953  organizedElements.insert(elemStr.str());
954  } else {
955  out_ << elemStr.str() << std::endl;
956  }
957  }
958
959  dumpStringSet(organizedElements);
960
961
962  } break;
963
964  case Section::ST_DEBUG: {
965  out_ << "Debug section:"
966  << std::endl << std::endl;
967
968  out_ << sectionHeader() << std::endl;
969  out_ << sectionHeader(sect) << std::endl;
970
971  out_ << std::endl << std::left;
972
973  out_ << std::setw(10) << "type";
974  out_ << std::left << "data "
975  << std::endl << std::endl;
976
977  for (Word i = 0; i < sect.elementCount(); i++) {
978
979  std::stringstream elemStr;
980
981  DebugElement* elem = dynamic_cast<DebugElement*>(sect.element(i));
982
983  elemStr << std::setw(10) << std::left
984  << debugElementTypeString(elem->type());
985
986  for (unsigned int j = 0; j < elem->length(); j++) {
987  elemStr << std::hex << std::setw(3)
988  << static_cast<int>(elem->byte(j));
989  }
990
991  elemStr << "\t"
992  << dynamic_cast<StringSection*>(
993  sect.link())->chunk2String(elem->debugString());
994
995  if (onlyLogical()) {
996  organizedElements.insert(elemStr.str());
997  } else {
998  out_ << elemStr.str() << std::endl;
999  }
1000  }
1001
1002  dumpStringSet(organizedElements);
1003
1004  } break;
1005
1006  default:
1007  out_ << "Printing section type: " << sectionTypeString(sect.type())
1008  << " is not implemented." << std::endl;
1009  }
1010
1011  out_ << std::endl;
1012 }

References abortWithError, TPEF::SymbolElement::absolute(), addressSpaceString(), TPEF::ASpaceElement::align(), TPEF::RelocElement::aSpace(), assert, TPEF::RawSection::belongsToSection(), TPEF::SymbolElement::binding(), TPEF::DataSection::byte(), TPEF::DebugElement::byte(), TPEF::StringSection::chunk2String(), TPEF::RawSection::chunkToMAUIndex(), TPEFDisassembler::createInstruction(), debugElementTypeString(), TPEF::DebugElement::debugString(), TPEF::RelocElement::destination(), dumpStringSet(), TPEF::Section::element(), TPEF::Section::elementCount(), TPEF::ResourceElement::id(), TPEF::CodeSection::indexOfElement(), TPEF::CodeSection::indexOfInstruction(), TPEF::ResourceElement::info(), TPEFDisassembler::instructionCount(), TPEF::DataSection::length(), TPEF::DebugElement::length(), TPEF::RawSection::lengthInMAUs(), TPEF::Section::link(), TPEF::RelocElement::location(), TPEF::ASpaceElement::MAU(), TPEF::DataSection::MAU(), TPEF::ASpaceElement::name(), TPEF::SymbolElement::name(), TPEF::ResourceElement::name(), onlyLogical(), out_, TPEF::DataSymElement::reference(), TPEF::CodeSymElement::reference(), TPEF::RelocSection::referencedSection(), relocTypeString(), resourceIdString(), resourceTypeString(), TPEF::SymbolElement::section(), sectionHeader(), sectionString(), sectionTypeString(), TPEF::RelocElement::size(), TPEFDisassembler::startAddress(), TPEF::Section::startingAddress(), TPEF::RelocElement::symbol(), symbolBindString(), symbolString(), symbolTypeString(), Conversion::toHexString(), Conversion::toString(), DisassemblyInstruction::toString(), tpef_, TPEF::DebugElement::type(), TPEF::RelocElement::type(), TPEF::SymbolElement::type(), TPEF::ResourceElement::type(), TPEF::Section::type(), and TPEF::ASpaceElement::wordSize().

◆ section() [2/2]

void TPEFDumper::section ( Word  sectionIndex)

Prints full information of one section in tpef.

Parameters
sectionIndexIndex of requested section.

Definition at line 353 of file TPEFDumper.cc.

353  {
354  if (sectionIndex < tpef_.sectionCount()) {
355  section(*tpef_.section(actualIndex(sectionIndex)));
356
357  } else {
358  out_ << "There is no section with index: " << sectionIndex
359  << std::endl << std::endl;
360  }
361 }

References actualIndex(), out_, TPEF::Binary::section(), TPEF::Binary::sectionCount(), and tpef_.

Referenced by main(), relocationTables(), and symbolTables().

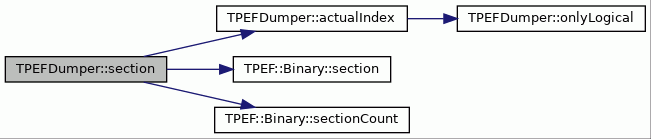

Here is the call graph for this function:

◆ sectionHeader() [1/2]

std::string TPEFDumper::sectionHeader ( )
private

Returns field names (first line of table) of section header table.

Returns
field names (first line of table) of section header table.

Definition at line 369 of file TPEFDumper.cc.

369  {
370  std::stringstream retVal;
371
372  retVal << std::setw(6) << std::left << "index"
373  << std::setw(15)<< std::right << "type"
374  << std::setw(12) << "address"
375  << std::setw(17) << "address space"
376  << std::setw(9) << "flags"
377  << std::setw(12) << "link"
378  << std::setw(15) << "size(B/U/E)"
379  << std::left << "\tname";
380
381  return retVal.str();
382 }

Referenced by createLogicalIndexes(), section(), and sectionHeaders().

◆ sectionHeader() [2/2]

std::string TPEFDumper::sectionHeader ( TPEF::Section &  sect,
bool  noIndex = false
)
private

Returns section header string of one section.

Parameters
sectSection whose header is printed.
Returns
section header information of one section.

Definition at line 391 of file TPEFDumper.cc.

391  {
392
393  std::string nameString;
394  if (tpef_.strings() == NULL) {
395  nameString = "No section name defined.";
396  } else {
397  nameString = tpef_.strings()->chunk2String(sect.name());
398  }
399
400  std::string elementsOrMAUs;
401  if (sect.isChunkable()) {
402
403  if (sect.type() == Section::ST_STRTAB) {
404  elementsOrMAUs = Conversion::toString(
405  dynamic_cast<UDataSection&>(sect).length()) + " B";
406  } else {
407  elementsOrMAUs = Conversion::toString(
408  dynamic_cast<UDataSection&>(sect).lengthInMAUs()) + " U";
409  }
410
411  } else {
412  elementsOrMAUs = Conversion::toString(sect.elementCount()) + " E";
413  }
414
415  int sectIndex = findSectionIndex(sect);
416
417  std::stringstream retVal;
418
419  retVal << std::left;
420  if (!noIndex) {
421  retVal << std::setw(6)
422  << Conversion::toString(sectIndex) + ":"
423  << std::setw(15) << std::right;
424  }
425
426  retVal << sectionTypeString(sect.type())
427  << std::setw(12) << sect.startingAddress()
428  << std::setw(17) << addressSpaceString(*sect.aSpace())
429  << std::setw(9) << Conversion::toHexString((int)sect.flags(),2)
430  << std::setw(12) << sectionString(*sect.link(), false)
431  << std::setw(15) << elementsOrMAUs
432  << std::left << "\t" + nameString;
433
434  return retVal.str();
435 }

References addressSpaceString(), TPEF::Section::aSpace(), TPEF::StringSection::chunk2String(), TPEF::Section::elementCount(), findSectionIndex(), TPEF::Section::flags(), TPEF::Section::isChunkable(), TPEF::Section::link(), TPEF::Section::name(), sectionString(), sectionTypeString(), TPEF::Section::startingAddress(), TPEF::Binary::strings(), Conversion::toHexString(), Conversion::toString(), tpef_, and TPEF::Section::type().

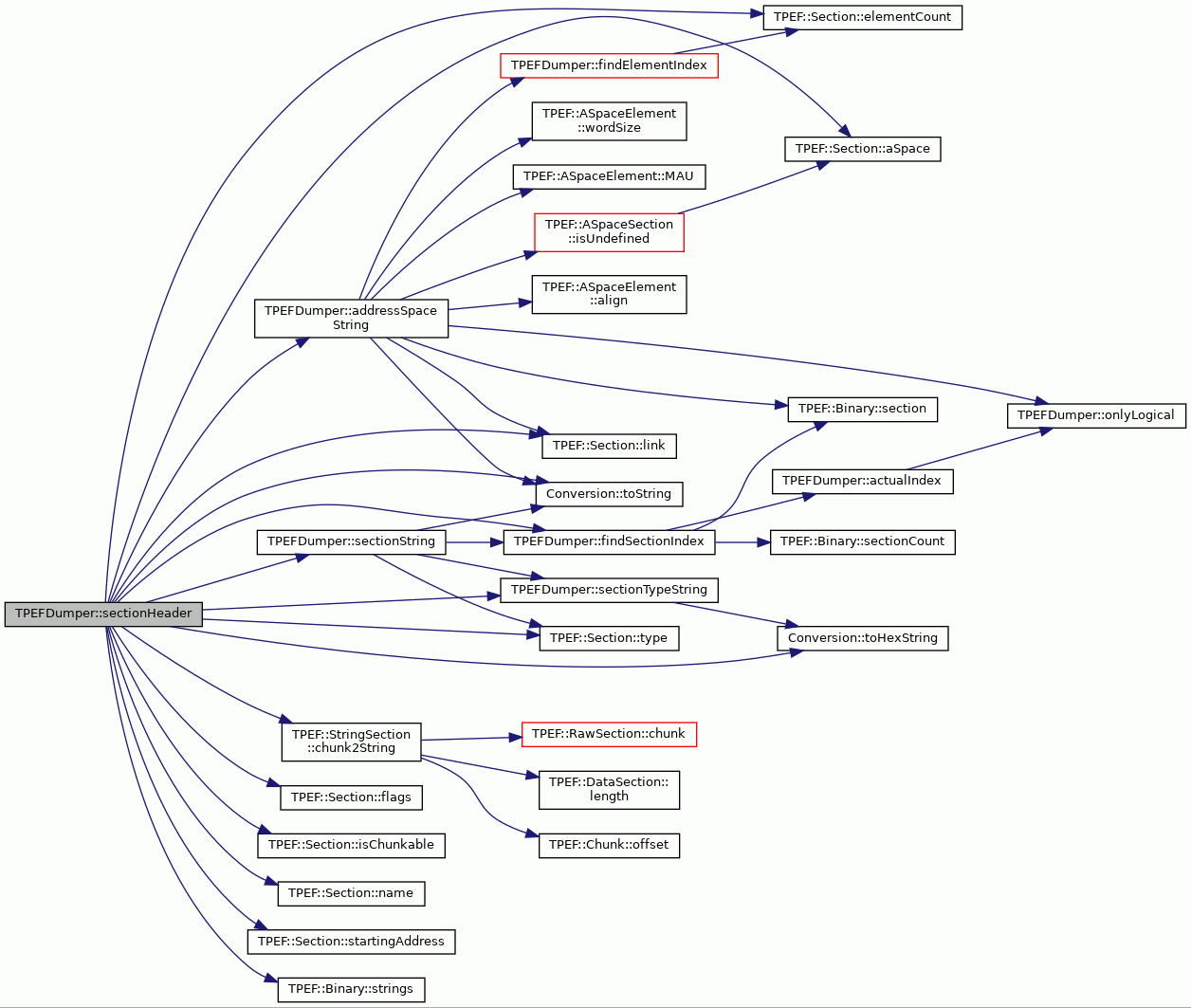

Here is the call graph for this function:

◆ sectionHeaders()

void TPEFDumper::sectionHeaders ( )

Prints one lined section header for every section.

Definition at line 210 of file TPEFDumper.cc.

210  {
211
212  out_ << sectionHeader() << std::endl;
213
214  for (Word i = 0; i < tpef_.sectionCount(); i++) {
215  Section *sect = tpef_.section(actualIndex(i));
216
217  out_ << sectionHeader(*sect) << std::endl;
218  }
219
220  out_ << std::endl
221  << "B = Bytes. U = MAUs. E = SectionElements."
222  << std::endl;
223
224  out_ << std::endl;
225 }

References actualIndex(), out_, TPEF::Binary::section(), TPEF::Binary::sectionCount(), sectionHeader(), and tpef_.

Referenced by main().

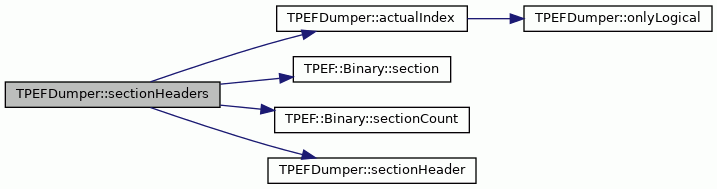

Here is the call graph for this function:

◆ sectionString()

std::string TPEFDumper::sectionString ( TPEF::Section &  sect,
bool  shortForm = false
)
private

Returns section index and/or type information.

Parameters
sectSection whose string is requested.
shortFormIf true then only index is returned.
Returns
Type and/or index of section.

Definition at line 445 of file TPEFDumper.cc.

445  {
446  std::string str;
447
448  int index = findSectionIndex(sect);
449
450  if (index == -1) {
451  str = "FAIL";
452  } else {
453  if (!shortForm) {
454  str = sectionTypeString(sect.type(), true) + ":";
455  }
456  str += Conversion::toString(index);
457  }
458
459  return str;
460 }

References findSectionIndex(), sectionTypeString(), Conversion::toString(), and TPEF::Section::type().

Referenced by fileHeaders(), section(), and sectionHeader().

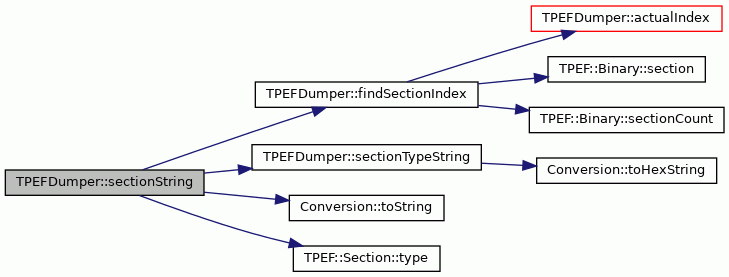

Here is the call graph for this function:

◆ sectionTypeString()

std::string TPEFDumper::sectionTypeString ( TPEF::Section::SectionType  type,
bool  shortForm = false
)
private

Returns section type in human readable form.

Parameters
typeType id to convert.
shortFormIf short form (only enum string) is returned.
Returns
Section type id string.

Definition at line 1076 of file TPEFDumper.cc.

1077  {
1078
1079  std::string typeStr;
1080
1081  switch (type) {
1082  case Section::ST_NULL: typeStr = "NULL"; break;
1083  case Section::ST_STRTAB: typeStr = "STRTAB"; break;
1084  case Section::ST_SYMTAB: typeStr = "SYMTAB"; break;
1085  case Section::ST_DEBUG: typeStr = "DEBUG"; break;
1086  case Section::ST_RELOC: typeStr = "RELOC"; break;
1087  case Section::ST_LINENO: typeStr = "LINENO"; break;
1088  case Section::ST_NOTE: typeStr = "NOTE"; break;
1089  case Section::ST_ADDRSP: typeStr = "ADDRSP"; break;
1090  case Section::ST_MR: typeStr = "MR"; break;
1091  case Section::ST_CODE: typeStr = "CODE"; break;
1092  case Section::ST_DATA: typeStr = "DATA"; break;
1093  case Section::ST_UDATA: typeStr = "UDATA"; break;
1094  case Section::ST_LEDATA: typeStr = "LEDATA"; break;
1095  case Section::ST_DUMMY: typeStr = "DUMMY"; break;
1096  default: typeStr = "UNKNOWN";
1097  }
1098
1099  if (!shortForm) {
1100  typeStr += " (" + Conversion::toHexString(type, 2) + ")";
1101  }
1102
1103  return typeStr;
1104 }

References Conversion::toHexString().

Referenced by section(), sectionHeader(), and sectionString().

Here is the call graph for this function:

◆ setOnlyLogical()

void TPEFDumper::setOnlyLogical ( bool  flag)

Sets if dumper is wanted to print out only logical information of TPEF.

If flag is set then no element or section indexes are dumped, only information that is independent to that how TPEF hierarchy is physically constructed is dumped. With this option user can check for example if two different TPEF files actually contains same program, relocations, symbols etc.

Parameters
flagIf true, then logical printing is set on.

Definition at line 157 of file TPEFDumper.cc.

157  {
158  if (flag) {
159  createLogicalIndexes();
160  }
161
162  onlyLogicalInfo_ = flag;
163 }

References createLogicalIndexes(), and onlyLogicalInfo_.

Referenced by main().

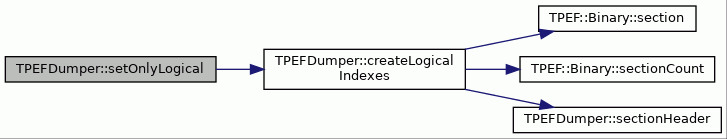

Here is the call graph for this function:

◆ symbolBindString()

std::string TPEFDumper::symbolBindString ( TPEF::SymbolElement::SymbolBinding  bind)
private

Returns symbol binding type in human readable form.

Parameters
bindSymbol binding type id to convert.
Returns
Symbol binding id string.

Definition at line 1202 of file TPEFDumper.cc.

1202  {
1203
1204  std::string str;
1205
1206  switch (bind) {
1207  case SymbolElement::STB_LOCAL: str = "LOCAL"; break;
1208  case SymbolElement::STB_GLOBAL: str = "GLOBAL"; break;
1209  case SymbolElement::STB_WEAK: str = "WEAK"; break;
1210  default: str = "UNKNOWN";
1211  }
1212
1213  return str + " (" + Conversion::toHexString(bind, 2) + ")";
1214 }

References Conversion::toHexString().

Referenced by section().

Here is the call graph for this function:

◆ symbolString()

std::string TPEFDumper::symbolString ( TPEF::Section &  sect,
TPEF::SymbolElement &  sym
)
private

Returns symbol in human readable form.

Parameters
sectSection containing requested symbol.
symSymbol to convert.
Returns
Symbol string.

Definition at line 1360 of file TPEFDumper.cc.

1360  {
1361
1362  std::string str;
1363  int index = findElementIndex(sect, sym);
1364
1365  StringSection* strings = dynamic_cast<StringSection*>(sect.link());
1366  assert(strings != NULL);
1367
1368  if (!onlyLogical()) {
1369  str = Conversion::toString(index) + ":";
1370  }
1371
1372  str += strings->chunk2String(sym.name());
1373
1374  return str;
1375 }

References assert, TPEF::StringSection::chunk2String(), findElementIndex(), TPEF::Section::link(), TPEF::SymbolElement::name(), onlyLogical(), and Conversion::toString().

Referenced by section().

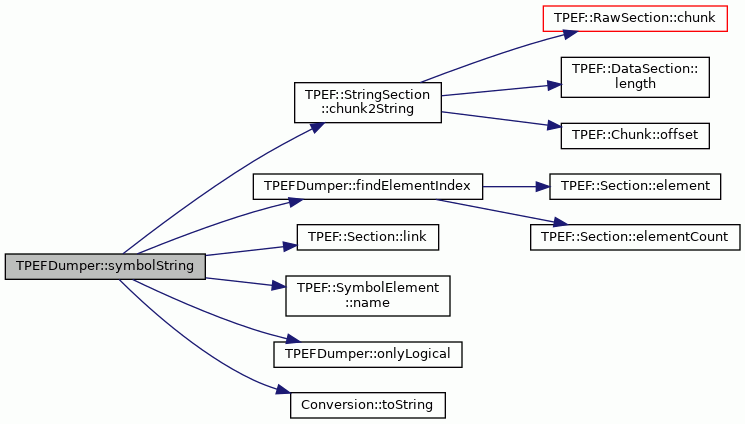

Here is the call graph for this function:

◆ symbolTables()

void TPEFDumper::symbolTables ( )

Prints full information of every symbol table in tpef.

Definition at line 336 of file TPEFDumper.cc.

336  {
337
338  for (Word i = 0; i < tpef_.sectionCount(); i++) {
339  Section& currSect = *tpef_.section(actualIndex(i));
340
341  if (currSect.type() == Section::ST_SYMTAB) {
342  section(currSect);
343  }
344  }
345 }

References actualIndex(), section(), TPEF::Binary::section(), TPEF::Binary::sectionCount(), tpef_, and TPEF::Section::type().

Referenced by main().

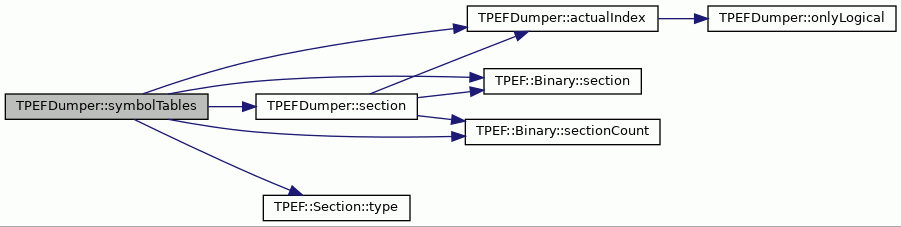

Here is the call graph for this function:

◆ symbolTypeString()

std::string TPEFDumper::symbolTypeString ( TPEF::SymbolElement::SymbolType  type)
private

Returns symbol type in human readable form.

Parameters
typeSymbol type id to convert.
Returns
Symbol type id string.

Definition at line 1178 of file TPEFDumper.cc.

1178  {
1179
1180  std::string str;
1181
1182  switch (type) {
1183  case SymbolElement::STT_NOTYPE: str = "NOTYPE"; break;
1184  case SymbolElement::STT_CODE: str = "CODE"; break;
1185  case SymbolElement::STT_DATA: str = "DATA"; break;
1186  case SymbolElement::STT_FILE: str = "FILE"; break;
1187  case SymbolElement::STT_SECTION: str = "SECTION"; break;
1188  case SymbolElement::STT_PROCEDURE: str = "PROCEDURE"; break;
1189  default: str = "UNKNOWN";
1190  }
1191
1192  return str + " (" + Conversion::toHexString(type, 2) + ")";
1193 }

References Conversion::toHexString().

Referenced by section().

Here is the call graph for this function:

Member Data Documentation

◆ actualIndexes_

std::vector<Word> TPEFDumper::actualIndexes_
private

Definition at line 104 of file TPEFDumper.hh.

Referenced by actualIndex(), and createLogicalIndexes().

◆ onlyLogicalInfo_

bool TPEFDumper::onlyLogicalInfo_
private

Definition at line 109 of file TPEFDumper.hh.

Referenced by onlyLogical(), and setOnlyLogical().

◆ out_

std::ostream& TPEFDumper::out_
private

Definition at line 107 of file TPEFDumper.hh.

Referenced by dumpStringSet(), fileHeaders(), memoryInfo(), section(), and sectionHeaders().

◆ tpef_

TPEF::Binary& TPEFDumper::tpef_
private

Definition at line 106 of file TPEFDumper.hh.

Referenced by addressSpaceString(), createLogicalIndexes(), fileHeaders(), findSectionIndex(), memoryInfo(), relocationTables(), section(), sectionHeader(), sectionHeaders(), and symbolTables().

The documentation for this class was generated from the following files:
TPEF::Section::isChunkable
virtual bool isChunkable() const
Definition: Section.cc:157
TPEFDumper::sectionHeader
std::string sectionHeader()
Definition: TPEFDumper.cc:369
TPEFDumper::fileTypeString
std::string fileTypeString(TPEF::Binary::FileType type)
Definition: TPEFDumper.cc:1154
TPEFDumper::fileArchString
std::string fileArchString(TPEF::Binary::FileArchitecture arch)
Definition: TPEFDumper.cc:1113
TPEF::DataSection::byte
virtual Byte byte(const Chunk *chunk) const
Definition: DataSection.cc:114
TPEF::SectionSymElement
Definition: SectionSymElement.hh:44
TPEF::RawSection::lengthInMAUs
virtual Word lengthInMAUs() const
Definition: Section.cc:285
TPEF::Section::aSpace
ASpaceElement * aSpace() const
TPEF::DataSection::MAU
virtual MinimumAddressableUnit MAU(Word index) const
Definition: DataSection.cc:125
TPEFDumper::onlyLogical
bool onlyLogical() const
Definition: TPEFDumper.cc:173
TPEFDumper::sectionTypeString
std::string sectionTypeString(TPEF::Section::SectionType type, bool shortForm=false)
Definition: TPEFDumper.cc:1076
TPEF::ResourceElement::id
HalfWord id() const
TPEFDumper::actualIndex
Word actualIndex(Word logicalIndex) const
Definition: TPEFDumper.cc:137
TPEF::DebugElement::byte
virtual Byte byte(Word index) const =0
Returns one byte of additional data.
TPEFDumper::symbolString
std::string symbolString(TPEF::Section &sect, TPEF::SymbolElement &sym)
Definition: TPEFDumper.cc:1360
TPEF::InstructionElement
Definition: InstructionElement.hh:77
DisassemblyInstruction::toString
std::string toString() const
Definition: DisassemblyInstruction.cc:135
TPEFDumper::tpef_
TPEF::Binary & tpef_
Definition: TPEFDumper.hh:106
TPEFDumper::actualIndexes_
std::vector< Word > actualIndexes_
Definition: TPEFDumper.hh:104
TPEF::ResourceElement::type
ResourceType type() const
TPEFDumper::debugElementTypeString
std::string debugElementTypeString(TPEF::DebugElement::ElementType type)
Definition: TPEFDumper.cc:1135
TPEF::Section::type
virtual SectionType type() const =0
Returns SectioType of actual section instance.
TPEF::ResourceElement
Definition: ResourceElement.hh:47
TPEF::ASpaceSection::isUndefined
bool isUndefined(ASpaceElement *aSpace) const
Definition: ASpaceSection.cc:93
TPEF::FileSymElement
Definition: FileSymElement.hh:44
TPEF::ASpaceElement::wordSize
Byte wordSize() const
TPEF::DataSection
Definition: DataSection.hh:52
TPEF::Binary::section
Section * section(Word index) const
TPEF::StringSection::chunk2String
std::string chunk2String(const Chunk *chunk) const
Definition: StringSection.cc:72
TPEF::RelocSection::referencedSection
Section * referencedSection() const
TPEF::ASpaceElement::MAU
Byte MAU() const
TPEF::Binary::sectionCount
Word sectionCount() const
TPEFDumper::findSectionIndex
int findSectionIndex(TPEF::Section &sect)
Definition: TPEFDumper.cc:1023
TPEF::SymbolElement::binding
SymbolBinding binding() const
TPEF::RelocElement::size
Byte size() const
TPEF::RelocElement::symbol
SymbolElement * symbol() const
TPEF::RelocSection
Definition: RelocSection.hh:47
Conversion::toString
static std::string toString(const T &source)
TPEF::Section
Definition: Section.hh:64
TPEF::StringSection
Definition: StringSection.hh:48
TPEF::SymbolElement::section
Section * section() const
TPEF::CodeSection::indexOfElement
Word indexOfElement(const InstructionElement &elem) const
Definition: CodeSection.cc:198
TPEF::RawSection::belongsToSection
bool belongsToSection(const Chunk *chunk) const
Definition: Section.cc:238
TPEF::SymbolElement::name
Chunk * name() const
TPEF::ResourceElement::name
Chunk * name() const
TPEF::Section::link
Section * link() const
TPEFDumper::relocTypeString
std::string relocTypeString(TPEF::RelocElement::RelocType type)
Definition: TPEFDumper.cc:1223
TPEF::Section::element
SectionElement * element(Word index) const
assert
#define assert(condition)
Definition: Application.hh:86
TPEFDumper::dumpStringSet
void dumpStringSet(std::set< std::string > &aSet) const
Definition: TPEFDumper.cc:1385
TPEFDumper::out_
std::ostream & out_
Definition: TPEFDumper.hh:107
TPEF::SymbolElement::type
virtual SymbolType type() const =0
Returns type of symbol.
TPEF::DataSymElement::reference
Chunk * reference() const
Definition: DataSymElement.cc:71
TPEF::Binary::strings
StringSection * strings() const
abortWithError
#define abortWithError(message)
Definition: Application.hh:72
TPEF::RelocElement::aSpace
ASpaceElement * aSpace() const
TPEF::Binary::type
FileType type() const
TPEF::DebugElement::type
virtual ElementType type() const =0
TPEFDumper::sectionString
std::string sectionString(TPEF::Section &sect, bool shortForm=false)
Definition: TPEFDumper.cc:445
TPEF::ASpaceElement
Definition: ASpaceElement.hh:48
MinimumAddressableUnit
Word MinimumAddressableUnit
Type for storing a MAU (must be unsigned type!). This limits the maximum size of the simulated minimu...
Definition: BaseType.hh:184
TPEF::UDataSection
Definition: UDataSection.hh:47
TPEF::RelocElement::destination
SectionElement * destination() const
TPEF::RelocElement::type
RelocType type() const
TPEF::ResourceElement::info
Word info() const
TPEF::SymbolElement
Definition: SymbolElement.hh:52
TPEF::SymbolElement::absolute
bool absolute() const
TPEF::ASpaceElement::name
Chunk * name() const
TPEF::DebugElement::length
virtual Word length() const =0
Returns the length of additional data of debug element.
TPEF::DataSymElement
Definition: DataSymElement.hh:41
TPEFDumper::symbolTypeString
std::string symbolTypeString(TPEF::SymbolElement::SymbolType type)
Definition: TPEFDumper.cc:1178
TPEF::CodeSection
Definition: CodeSection.hh:44
TPEF::Binary::arch
FileArchitecture arch() const
TPEF::RelocElement
Definition: RelocElement.hh:51
TPEF::CodeSymElement::reference
InstructionElement * reference() const
Definition: CodeSymElement.cc:71
Conversion::toHexString
static std::string toHexString(T source, std::size_t digits=0, bool include0x=true)
TPEF::Section::name
Chunk * name() const
TPEFDisassembler
Definition: TPEFDisassembler.hh:58
TPEFDumper::resourceIdString
std::string resourceIdString(HalfWord id, TPEF::ResourceElement::ResourceType type)
Definition: TPEFDumper.cc:1269
TPEF::Section::flags
Byte flags() const
TPEFDumper::symbolBindString
std::string symbolBindString(TPEF::SymbolElement::SymbolBinding bind)
Definition: TPEFDumper.cc:1202
TPEF::DebugElement
Definition: DebugElement.hh:56
TPEFDumper::findElementIndex
int findElementIndex(TPEF::Section &sect, TPEF::SectionElement &elem)
Definition: TPEFDumper.cc:1053
TPEF::CodeSymElement
Definition: CodeSymElement.hh:46
TPEF::DataSection::length
virtual Word length() const
Definition: DataSection.cc:210
TPEF::DebugElement::debugString
Chunk * debugString() const
Definition: DebugElement.cc:58
TPEF::Section::isProgramSection
bool isProgramSection() const
TPEF::RelocElement::location
SectionElement * location() const
TPEFDumper::createLogicalIndexes
void createLogicalIndexes()
Definition: TPEFDumper.cc:112
TPEFDumper::onlyLogicalInfo_
bool onlyLogicalInfo_
Definition: TPEFDumper.hh:109
TPEF::ASpaceSection
Definition: ASpaceSection.hh:44
TPEF::CodeSection::indexOfInstruction
Word indexOfInstruction(const InstructionElement &elem) const
Definition: CodeSection.cc:232
TPEF::Section::startingAddress
AddressImage startingAddress() const
TPEF::RawSection::chunkToMAUIndex
virtual Word chunkToMAUIndex(const Chunk *chunk) const
Definition: Section.cc:341
TPEF::Chunk
Definition: Chunk.hh:45
TPEFDumper::section
void section(Word sectionIndex)
Definition: TPEFDumper.cc:353
TPEFDumper::addressSpaceString
std::string addressSpaceString(TPEF::ASpaceElement &aSpace)
Definition: TPEFDumper.cc:1320
TPEFDumper::resourceTypeString
std::string resourceTypeString(TPEF::ResourceElement::ResourceType type)
Definition: TPEFDumper.cc:1245
TPEF::ASpaceElement::align
Byte align() const
DisassemblyInstruction
Definition: DisassemblyInstruction.hh:46
TPEF::Section::elementCount
Word elementCount() const
Generated by   doxygen 1.8.17
