AlteraOnchipRomGenerator Class Reference

#include <AlteraOnchipRomGenerator.hh>

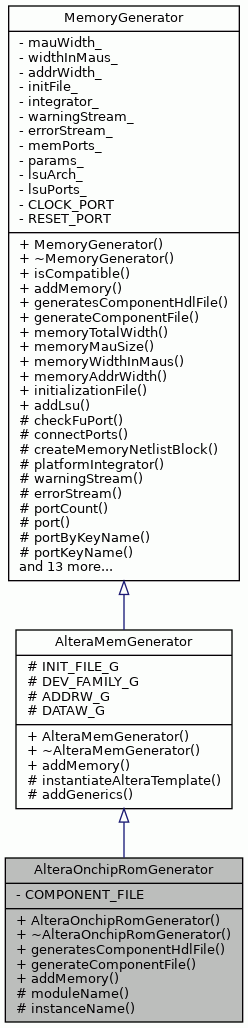

Inheritance diagram for AlteraOnchipRomGenerator:
Inheritance graph

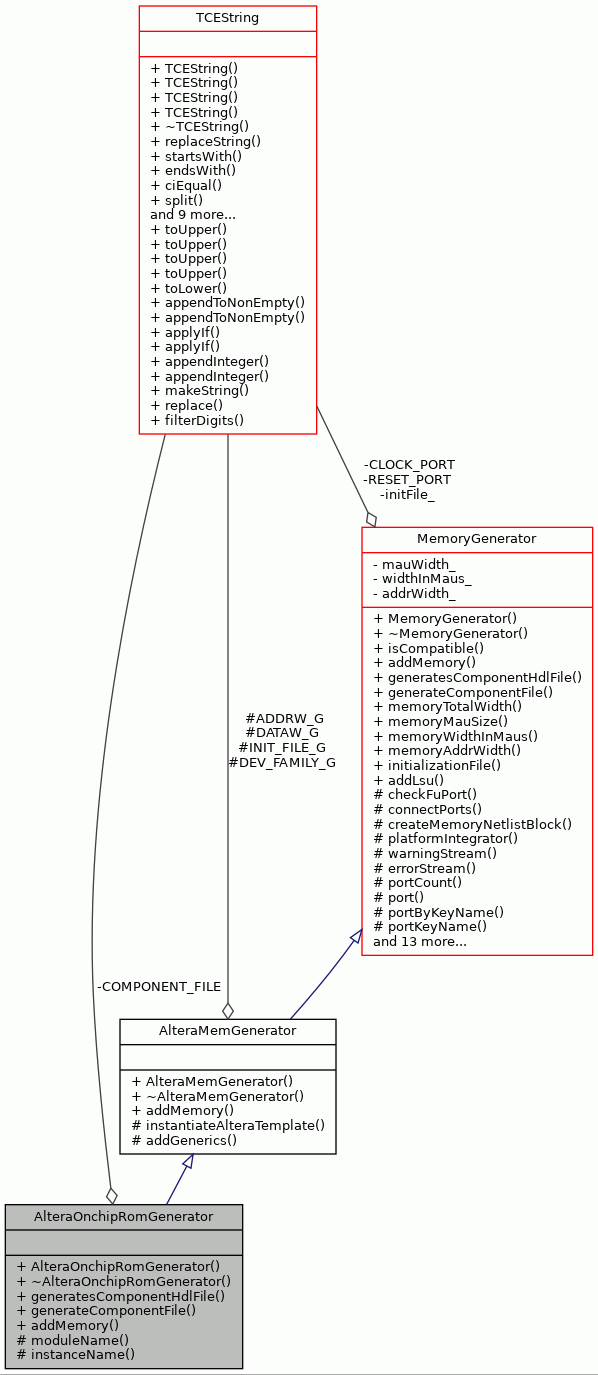

Collaboration diagram for AlteraOnchipRomGenerator:
Collaboration graph

Public Member Functions

 AlteraOnchipRomGenerator (int memMauWidth, int widthInMaus, int addrWidth, TCEString initFile, const PlatformIntegrator *integrator, std::ostream &warningStream, std::ostream &errorStream)

virtual ~AlteraOnchipRomGenerator ()

virtual bool generatesComponentHdlFile () const

virtual std::vector< TCEStringgenerateComponentFile (TCEString outputPath)

virtual void addMemory (const ProGe::NetlistBlock &ttaCore, ProGe::NetlistBlock &integratorBlock, int memIndex, int coreId)

- Public Member Functions inherited from AlteraMemGenerator
 AlteraMemGenerator (int memMauWidth, int widthInMaus, int addrWidth, TCEString initFile, const PlatformIntegrator *integrator, std::ostream &warningStream, std::ostream &errorStream)

virtual ~AlteraMemGenerator ()

- Public Member Functions inherited from MemoryGenerator
 MemoryGenerator (int memMauWidth, int widthInMaus, int addrWidth, TCEString initFile, const PlatformIntegrator *integrator, std::ostream &warningStream, std::ostream &errorStream)

virtual ~MemoryGenerator ()

virtual bool isCompatible (const ProGe::NetlistBlock &ttaCore, int coreId, std::vector< TCEString > &reasons) const

int memoryTotalWidth () const

int memoryMauSize () const

int memoryWidthInMaus () const

int memoryAddrWidth () const

TCEString initializationFile () const

void addLsu (TTAMachine::FunctionUnit &lsuArch, std::vector< std::string > lsuPorts)


Protected Member Functions

virtual TCEString moduleName () const

virtual TCEString instanceName (int coreId, int memIndex) const

- Protected Member Functions inherited from AlteraMemGenerator
std::vector< TCEStringinstantiateAlteraTemplate (const TCEString &templateFile, const TCEString &outputPath) const

virtual void addGenerics (ProGe::NetlistBlock &topBlock, const TCEString &addrWidth, const TCEString &dataWidth, int memIndex)

- Protected Member Functions inherited from MemoryGenerator
virtual bool checkFuPort (const std::string fuPort, std::vector< TCEString > &reasons) const

virtual void connectPorts (ProGe::NetlistBlock &netlistBlock, const ProGe::NetlistPort &memPort, const ProGe::NetlistPort &corePort, bool inverted, int coreId)

virtual MemoryGenerator::BlockPair createMemoryNetlistBlock (ProGe::NetlistBlock &integratorBlock, int memIndex, int coreId)

const PlatformIntegratorplatformIntegrator () const

std::ostream & warningStream ()

std::ostream & errorStream ()

int portCount () const

const HDLPortport (int index) const

const HDLPortportByKeyName (TCEString name) const

TCEString portKeyName (const HDLPort *port) const

void addPort (const TCEString &name, HDLPort *port)

int parameterCount () const

const ProGe::Parameterparameter (int index) const

void addParameter (const ProGe::Parameter &add)

TCEString ttaCoreName () const

TCEString memoryIndexString (int coreId, int memIndex) const

TCEString templatePath () const

void instantiateTemplate (const TCEString &inFile, const TCEString &outFile, const TCEString &entity) const

bool hasLSUArchitecture () const

const TTAMachine::FunctionUnitlsuArchitecture () const

TCEString corePortName (const TCEString &portBaseName, int coreId) const


Static Private Attributes

static const TCEString COMPONENT_FILE


Additional Inherited Members

- Protected Types inherited from MemoryGenerator
typedef std::multimap< TCEString, HDLPort * > PortMap

typedef std::pair< ProGe::NetlistBlock *, ProGe::VirtualNetlistBlock * > BlockPair

- Static Protected Attributes inherited from AlteraMemGenerator
static const TCEString INIT_FILE_G = "init_file_g"

static const TCEString DEV_FAMILY_G = "dev_family_g"

static const TCEString ADDRW_G = "addrw_g"

static const TCEString DATAW_G = "dataw_g"


Detailed Description

Definition at line 43 of file AlteraOnchipRomGenerator.hh.

Constructor & Destructor Documentation

◆ AlteraOnchipRomGenerator()

AlteraOnchipRomGenerator::AlteraOnchipRomGenerator ( int  memMauWidth,
int  widthInMaus,
int  addrWidth,
TCEString  initFile,
const PlatformIntegrator integrator,
std::ostream &  warningStream,
std::ostream &  errorStream
)

Definition at line 44 of file AlteraOnchipRomGenerator.cc.

51 :
52 AlteraMemGenerator(memMauWidth, widthInMaus, addrWidth, initFile,
53 integrator, warningStream, errorStream) {
54
55 bool noInvert = false;
56 bool inverted = true;
57
58 addPort("clk",
59 new HDLPort("clock", "1", ProGe::BIT, ProGe::IN, noInvert, 1));
60 addPort("imem_addr",
61 new HDLPort("address", "IMEMADDRWIDTH", ProGe::BIT_VECTOR,
62 ProGe::IN, noInvert));
63 addPort("imem_en_x",
64 new HDLPort("clken", "1", ProGe::BIT, ProGe::IN, inverted, 1));
65 addPort("imem_data",
66 new HDLPort("q", "IMEMWIDTHINMAUS*IMEMMAUWIDTH",
67 ProGe::BIT_VECTOR, ProGe::OUT, noInvert));
68
69 // these signals are not driven by the imem component, connect to zero
70 HDLPort* busyToGnd =
71 new HDLPort("wait", "1", ProGe::BIT, ProGe::OUT, noInvert, 1);
73 addPort("busy", busyToGnd);
74}
void setToStatic(ProGe::StaticSignal value)
Definition HDLPort.cc:145
std::ostream & warningStream()
void addPort(const TCEString &name, HDLPort *port)
std::ostream & errorStream()
@ GND
All port signals set to low.
@ BIT
One bit.
Definition ProGeTypes.hh:47
@ BIT_VECTOR
Several bits.
Definition ProGeTypes.hh:48
@ OUT
Output port.
Definition ProGeTypes.hh:54
@ IN
Input port.
Definition ProGeTypes.hh:53

References MemoryGenerator::addPort(), ProGe::BIT, ProGe::BIT_VECTOR, ProGe::StaticSignal::GND, ProGe::IN, ProGe::OUT, and HDLPort::setToStatic().

Here is the call graph for this function:

◆ ~AlteraOnchipRomGenerator()

AlteraOnchipRomGenerator::~AlteraOnchipRomGenerator ( )
virtual

Definition at line 77 of file AlteraOnchipRomGenerator.cc.

77 {
78}

Member Function Documentation

◆ addMemory()

void AlteraOnchipRomGenerator::addMemory ( const ProGe::NetlistBlock ttaCore,
ProGe::NetlistBlock integratorBlock,
int  memIndex,
int  coreId
)
virtual

Reimplemented from AlteraMemGenerator.

Definition at line 93 of file AlteraOnchipRomGenerator.cc.

97 {
98
99 // Add generics as string constants!
100 TCEString addrwGeneric = "IMEMADDRWIDTH";
101 TCEString datawGeneric = "IMEMWIDTHINMAUS*IMEMMAUWIDTH";
102 addGenerics(integratorBlock, addrwGeneric, datawGeneric, memIndex);
103
104 MemoryGenerator::addMemory(ttaCore, integratorBlock, memIndex, coreId);
105}
virtual void addGenerics(ProGe::NetlistBlock &topBlock, const TCEString &addrWidth, const TCEString &dataWidth, int memIndex)
virtual void addMemory(const ProGe::NetlistBlock &ttaCore, ProGe::NetlistBlock &integratorBlock, int memIndex, int coreId)

References AlteraMemGenerator::addGenerics(), and MemoryGenerator::addMemory().

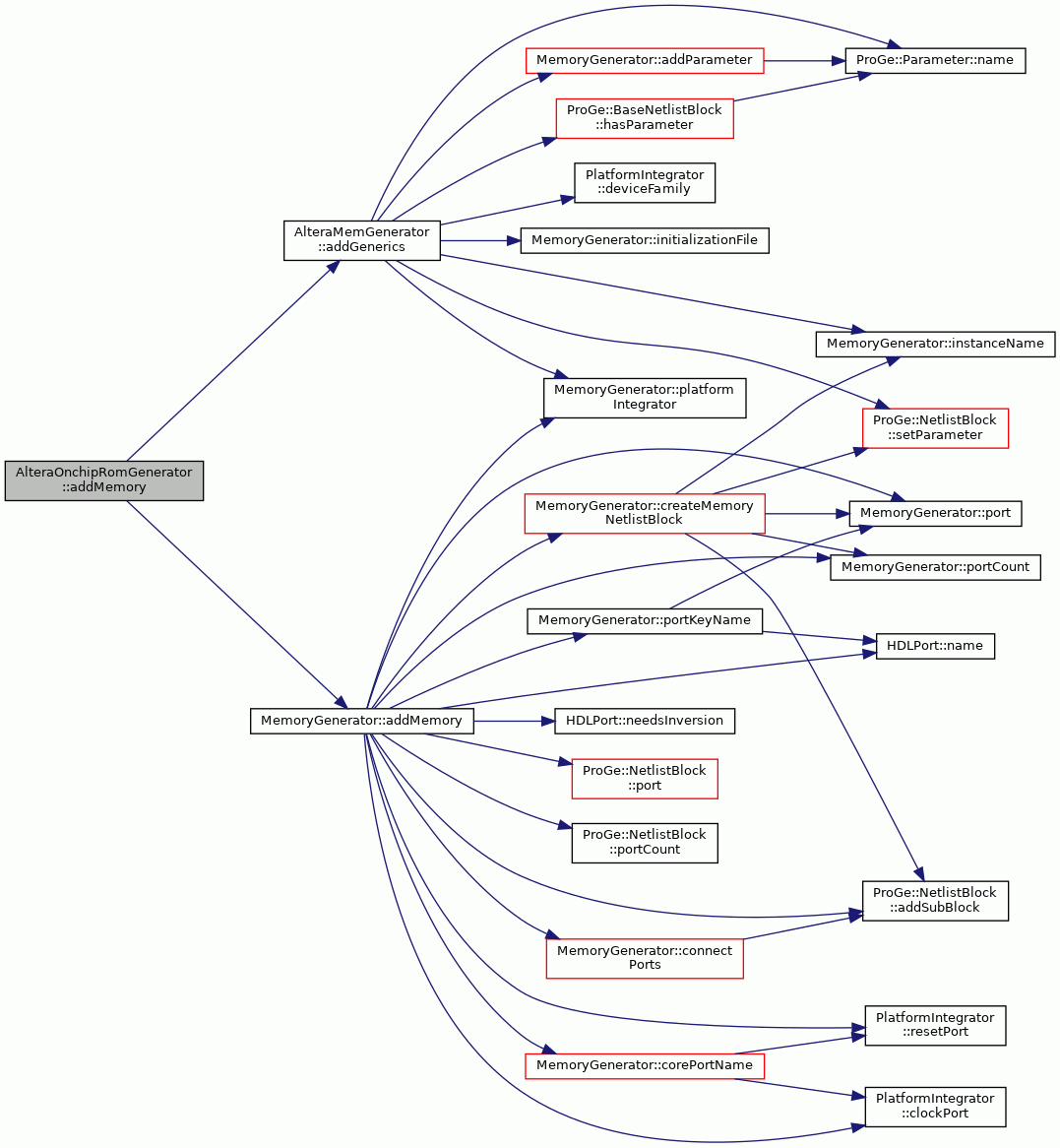

Here is the call graph for this function:

◆ generateComponentFile()

std::vector< TCEString > AlteraOnchipRomGenerator::generateComponentFile ( TCEString  outputPath)
virtual

Implements MemoryGenerator.

Definition at line 87 of file AlteraOnchipRomGenerator.cc.

87 {
88
89 return instantiateAlteraTemplate(COMPONENT_FILE, outputPath);
90}
std::vector< TCEString > instantiateAlteraTemplate(const TCEString &templateFile, const TCEString &outputPath) const
static const TCEString COMPONENT_FILE

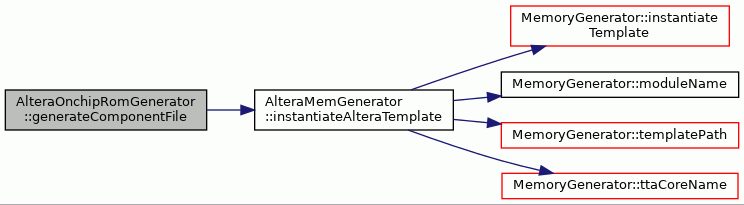

References COMPONENT_FILE, and AlteraMemGenerator::instantiateAlteraTemplate().

Here is the call graph for this function:

◆ generatesComponentHdlFile()

bool AlteraOnchipRomGenerator::generatesComponentHdlFile ( ) const
virtual

Implements MemoryGenerator.

Definition at line 81 of file AlteraOnchipRomGenerator.cc.

81 {
82 return true;
83}

◆ instanceName()

TCEString AlteraOnchipRomGenerator::instanceName ( int  coreId,
int  memIndex
) const
protectedvirtual

Implements MemoryGenerator.

Definition at line 115 of file AlteraOnchipRomGenerator.cc.

115 {
116
117 TCEString iname("onchip_imem_");
118 return iname << memoryIndexString(coreId, memIndex);
119}
TCEString memoryIndexString(int coreId, int memIndex) const

References MemoryGenerator::memoryIndexString().

Here is the call graph for this function:

◆ moduleName()

TCEString AlteraOnchipRomGenerator::moduleName ( ) const
protectedvirtual

Implements MemoryGenerator.

Definition at line 108 of file AlteraOnchipRomGenerator.cc.

108 {
109
110 return ttaCoreName() + "_altera_onchip_rom_comp";
111}
TCEString ttaCoreName() const

References MemoryGenerator::ttaCoreName().

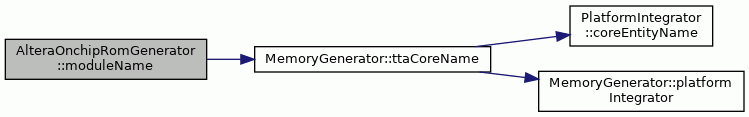

Here is the call graph for this function:

Member Data Documentation

◆ COMPONENT_FILE

const TCEString AlteraOnchipRomGenerator::COMPONENT_FILE
staticprivate
Initial value:
=
"altera_onchip_rom_comp.vhd"

Definition at line 76 of file AlteraOnchipRomGenerator.hh.

Referenced by generateComponentFile().


The documentation for this class was generated from the following files:
