LLVMBackend Class Reference

#include <LLVMBackend.hh>

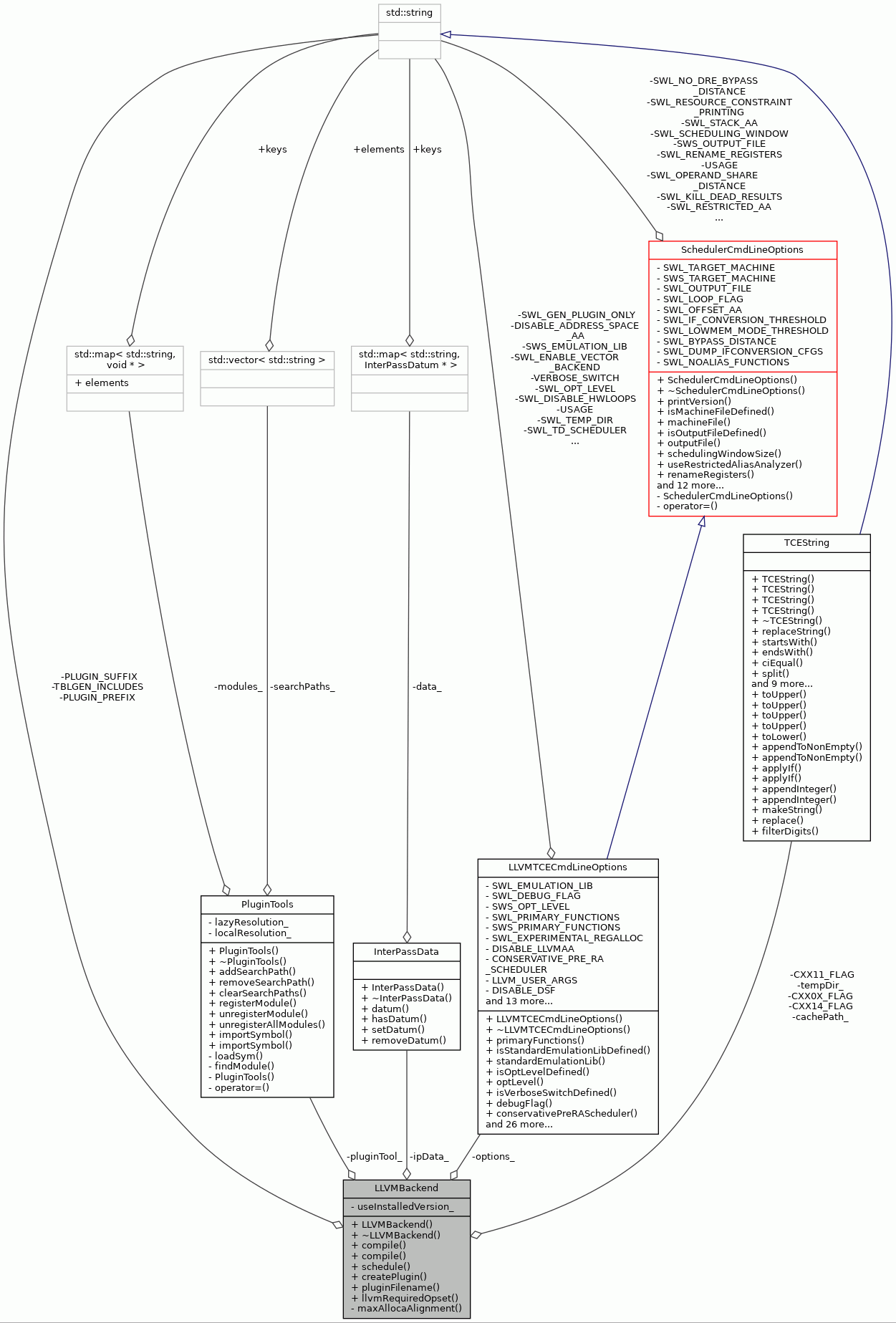

Collaboration diagram for LLVMBackend:

Public Member Functions
	LLVMBackend (bool useInstalledVersion, TCEString tempDir)
virtual	~LLVMBackend ()
void	setMachine (TTAMachine::Machine &target)
TTAProgram::Program *	compile (const std::string &bytecodeFile, const std::string &emulationBytecodeFile, int optLevel, bool debug=false, InterPassData *ipData=NULL)
TTAProgram::Program *	compile (llvm::Module &module, llvm::Module *emulationModule, llvm::TCETargetMachinePlugin &plugin, int optLevel, bool debug=false, InterPassData *ipData=NULL)
TTAProgram::Program *	schedule (const std::string &bytecodeFile, const std::string &emulationBytecodeFile, int optLevel=2, bool debug=false, SchedulingPlan *plan=NULL)
llvm::TCETargetMachinePlugin *	createPlugin ()
std::string	pluginFilename ()

Static Public Member Functions
static OperationDAGSelector::OperationSet	llvmRequiredOpset (bool includeFloatOps, bool isLittleEndian, bool bits64)

Private Member Functions
unsigned	maxAllocaAlignment (const llvm::Module &mod) const

Private Attributes
bool	useInstalledVersion_
	Assume we are running an installed TCE version.
PluginTools	pluginTool_
	Plugin tool for loading target machine plugin.
TCEString	cachePath_
	Path to the cache where precompiled plugins are stored.
TCEString	tempDir_
	Directory to store temporary files.
LLVMTCECmdLineOptions *	options_
InterPassData *	ipData_
TTAMachine::Machine *	mach_
TDGen *	pluginGen_

Static Private Attributes
static const std::string	TBLGEN_INCLUDES = ""
static const std::string	PLUGIN_PREFIX = "tcecc-"
static const std::string	PLUGIN_SUFFIX = ".so"
static const TCEString	CXX0X_FLAG = "-std=c++0x"
static const TCEString	CXX11_FLAG = "-std=c++11"
static const TCEString	CXX14_FLAG = "-std=c++14"
static const TCEString	CXX17_FLAG = "-std=c++17"

Detailed Description

LLVM compiler backend and compiler interface for TCE.

Definition at line 64 of file LLVMBackend.hh.

Constructor & Destructor Documentation

LLVMBackend()

LLVMBackend::LLVMBackend	(	bool	useInstalledVersion,
		TCEString	tempDir
	)

Constructor.

Parameters

useInstalledVersion	Should be true in case we are running an installed TCE (not from the source/build tree).
tempDir	An existing directory where to store temporary files. The directory should be removed by the caller after use.

Definition at line 325 of file LLVMBackend.cc.

                                                                    :
    useInstalledVersion_(useInstalledVersion), tempDir_(tempDir), mach_(NULL),
    pluginGen_(NULL) {

    cachePath_ = Environment::llvmtceCachePath();

    options_ =
        dynamic_cast<LLVMTCECmdLineOptions*>(Application::cmdLineOptions());

    if (options_ != NULL)
        cachePath_ = options_->backendCacheDir();

    PassRegistry &Registry = *llvm::PassRegistry::getPassRegistry();
    llvm::initializeCore(Registry);
    llvm::initializeScalarOpts(Registry);
    llvm::initializeIPO(Registry);
    llvm::initializeAnalysis(Registry);
    llvm::initializeTransformUtils(Registry);
    llvm::initializeInstCombine(Registry);
    llvm::initializeTarget(Registry);
}

References LLVMTCECmdLineOptions::backendCacheDir(), cachePath_, Application::cmdLineOptions(), Environment::llvmtceCachePath(), and options_.

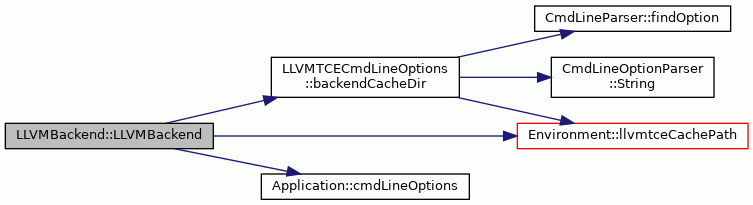

Here is the call graph for this function:

~LLVMBackend()

LLVMBackend::~LLVMBackend ( )

virtual

Destructor.

Definition at line 350 of file LLVMBackend.cc.

                          {
    if (pluginGen_ != NULL) {
        delete pluginGen_;
    }
    pluginGen_ = NULL;

}

References pluginGen_.

Member Function Documentation

compile() [1/2]

TTAProgram::Program * LLVMBackend::compile	(	const std::string &	bytecodeFile,
		const std::string &	emulationBytecodeFile,
		int	optLevel,
		bool	debug = false,
		InterPassData *	ipData = NULL
	)

Compiles bytecode for the given target machine.

Parameters

bytecodeFile	Full path to the llvm bytecode file to compile.
optLevel	Optimization level.
debug	If true, enable LLVM debug printing.

Definition at line 381 of file LLVMBackend.cc.

                                                     {

    assert(mach_ != NULL && "Machine not set, forgot to call setMachine()?");
    // Check target machine
    MachineValidator validator(*mach_);
    std::set<MachineValidator::ErrorCode> checks;
    checks.insert(MachineValidator::GCU_MISSING);
    checks.insert(MachineValidator::GCU_AS_MISSING);
    checks.insert(MachineValidator::USED_IO_NOT_BOUND);
    checks.insert(MachineValidator::PC_PORT_MISSING);
    checks.insert(MachineValidator::RA_PORT_MISSING);
    checks.insert(MachineValidator::FU_PORT_MISSING);
    MachineValidatorResults* res = validator.validate(checks);

    if (res->errorCount() > 0) {
        std::string msg;
        for (int i = 0; i < res->errorCount(); i++) {
            msg += res->error(i).second + "\n";
        }
        delete res; res = NULL;
        throw CompileError(__FILE__, __LINE__, __func__, msg);
    }

    // Load bytecode file.
    std::string errMsgParse;
    LLVMContext context;

    std::unique_ptr<llvm::Module> m;

    ErrorOr<std::unique_ptr<MemoryBuffer>> bufferPtr =
        MemoryBuffer::getFileOrSTDIN(bytecodeFile.c_str());

    if (std::error_code ec = bufferPtr.getError()) {
        std::string msg = "Error reading bytecode file: " + bytecodeFile +
            "\n" + ec.message();
        throw CompileError(__FILE__, __LINE__, __func__, msg);
    }

    // todo: what are these buffers..
    std::unique_ptr<MemoryBuffer> buffer = std::move(bufferPtr.get());
    Expected<std::unique_ptr<llvm::Module> > module =
        parseBitcodeFile(buffer.get()->getMemBufferRef(), context);
    if (Error E = module.takeError()) {
        THROW_EXCEPTION(CompileError, "Error parsing bytecode file: "
            + bytecodeFile);
    }

    // TODO: why does this work? it should not?
//    m.reset(module.get().get());
    m = std::move(module.get());

    if (m.get() == 0) {
        std::string msg = "Error parsing bytecode file: " + bytecodeFile +
            "\n" + errMsgParse;
        throw CompileError(__FILE__, __LINE__, __func__, msg);
    }

    std::unique_ptr<Module> emuM;

    if (!emulationBytecodeFile.empty()) {
        ErrorOr<std::unique_ptr<MemoryBuffer>> emuBufferPtr =
            MemoryBuffer::getFileOrSTDIN(emulationBytecodeFile.c_str());

        if (std::error_code ec = emuBufferPtr.getError()) {
            std::string msg = "Error reading bytecode file: " +
                emulationBytecodeFile +
                " of emulation library:\n" + ec.message();
            throw CompileError(__FILE__, __LINE__, __func__, msg);
        }

        std::unique_ptr<MemoryBuffer> emuBuffer =
            std::move(emuBufferPtr.get());
        Expected<std::unique_ptr<Module> > module =
            parseBitcodeFile(emuBuffer.get()->getMemBufferRef(), context);
        if (Error E = module.takeError()) {
            THROW_EXCEPTION(CompileError, "Error parsing bytecode file: " +
                emulationBytecodeFile + " of emulation library \n"
                + errMsgParse);
        }

        emuM = std::move(module.get());
        if (emuM.get() == 0) {
            std::string msg = "Error parsing bytecode file: " +
                emulationBytecodeFile + " of emulation library \n"
                + errMsgParse;
            throw CompileError(__FILE__, __LINE__, __func__, msg);
        }
    }

    // Create target machine plugin.
#if (!defined(HAVE_CXX11) && !defined(HAVE_CXX0X))
    std::auto_ptr<TCETargetMachinePlugin> plugin(createPlugin());
#else
    std::unique_ptr<TCETargetMachinePlugin> plugin(createPlugin());
#endif

    TTAProgram::Program* result = NULL;
    try {
        // Compile.
        result =
            compile(*m.release(), emuM.release(), *plugin, optLevel,
                    debug, ipData);
    } catch (...) {
        // delete the backend plugin if we don't want to save it
        // Let's hope this doesn't crash as the plugin is loaded to the
        // current process. TCETargetMachinePlugin dtor should unload it.
        if (!options_->saveBackendPlugin()) {
            TCEString pluginPath =
                cachePath_ + DS + pluginFilename();
            FileSystem::removeFileOrDirectory(pluginPath);
        }
        delete res; res = NULL;

        throw;
    }

    // delete the backend plugin if we don't want to save it
    // Let's hope this doesn't crash as the plugin is loaded to the
    // current process. TCETargetMachinePlugin dtor should unload it.
    if (!options_->saveBackendPlugin()) {
        TCEString pluginPath =
            cachePath_ + DS + pluginFilename();
        FileSystem::removeFileOrDirectory(pluginPath);
    }
    delete res; res = NULL;

    return result;
}

References __func__, assert, cachePath_, compile(), createPlugin(), DS, MachineValidatorResults::error(), MachineValidatorResults::errorCount(), MachineValidator::FU_PORT_MISSING, MachineValidator::GCU_AS_MISSING, MachineValidator::GCU_MISSING, mach_, options_, MachineValidator::PC_PORT_MISSING, pluginFilename(), MachineValidator::RA_PORT_MISSING, FileSystem::removeFileOrDirectory(), LLVMTCECmdLineOptions::saveBackendPlugin(), THROW_EXCEPTION, MachineValidator::USED_IO_NOT_BOUND, and MachineValidator::validate().

Referenced by compile(), and main().

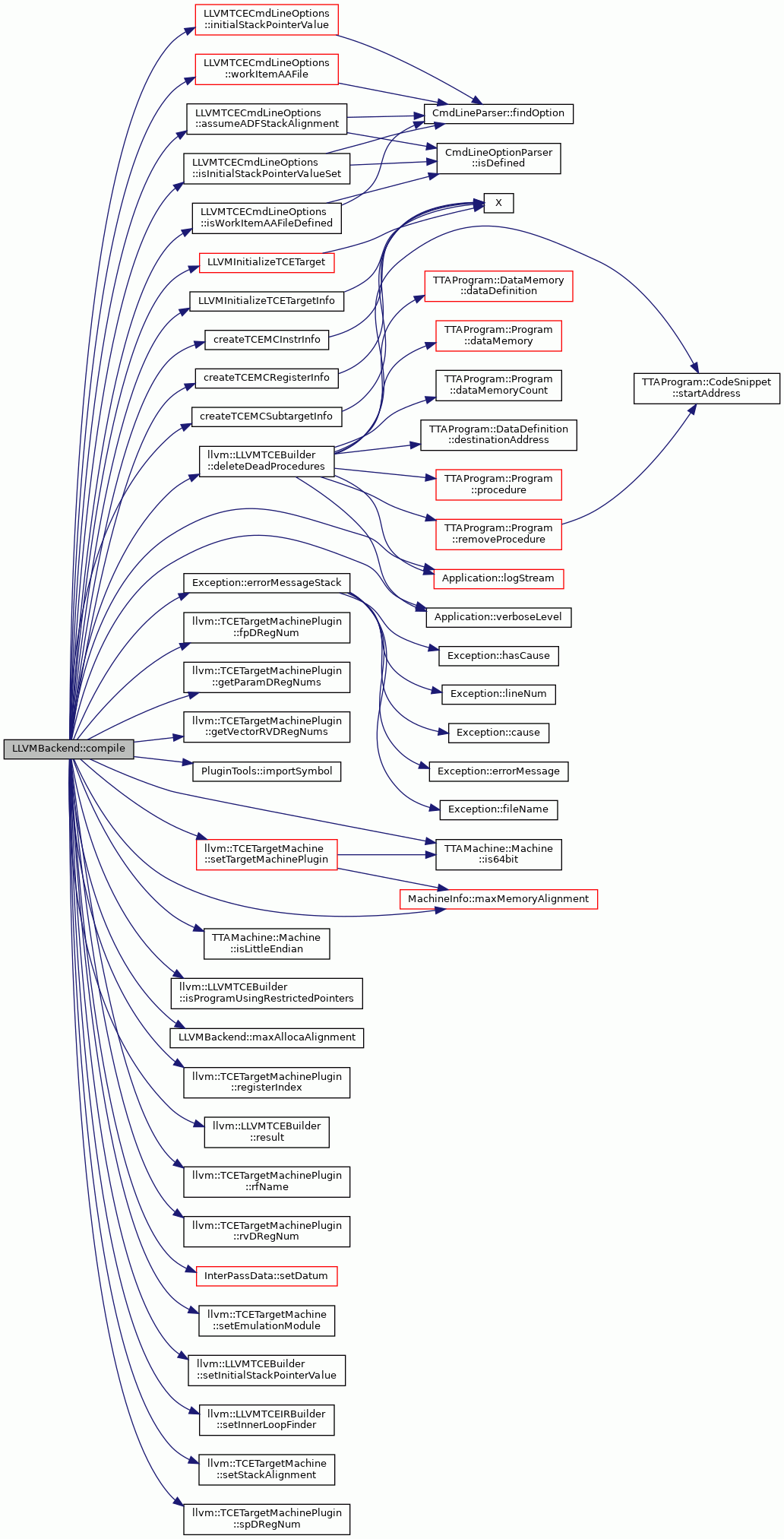

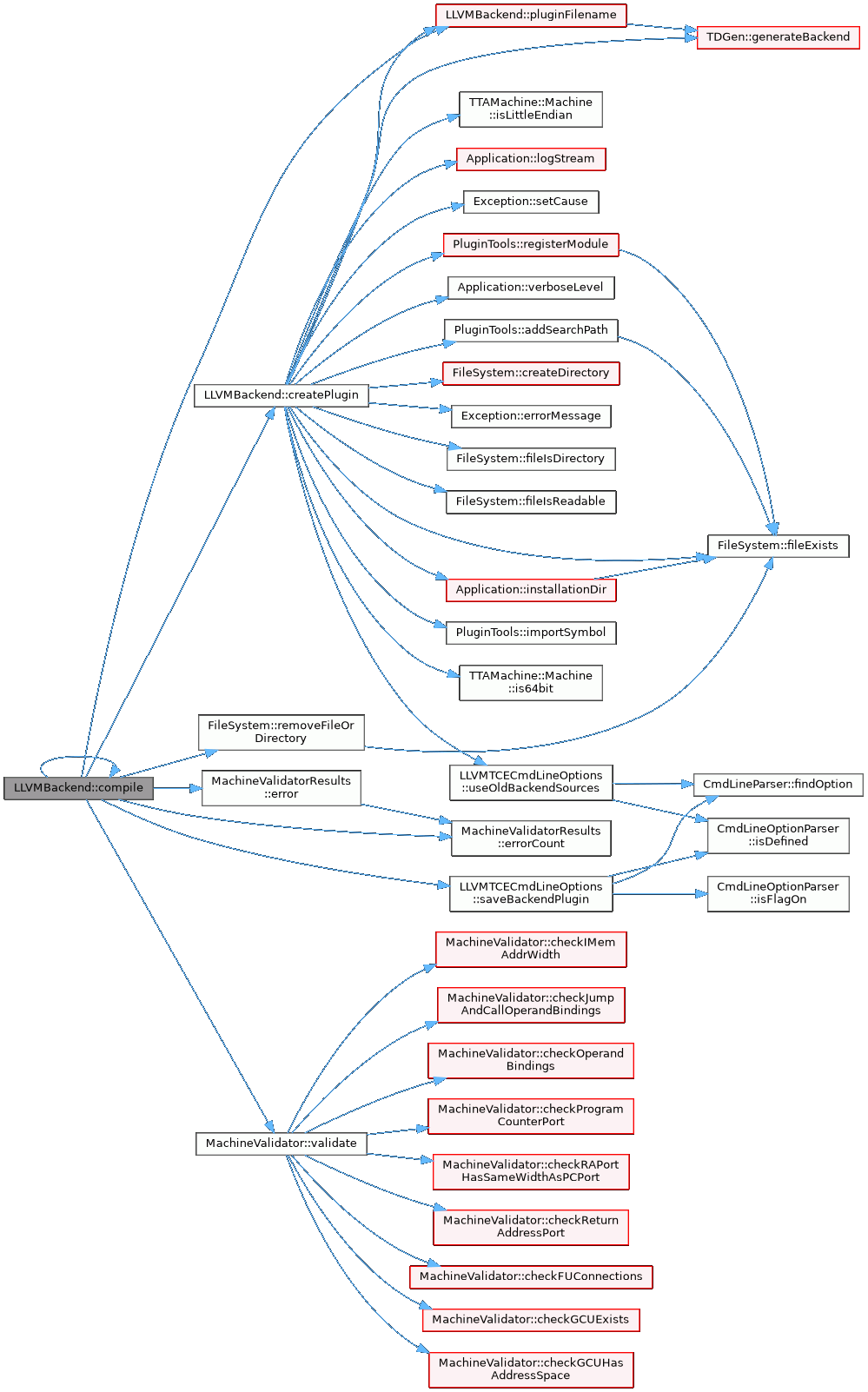

Here is the call graph for this function:

compile() [2/2]

TTAProgram::Program * LLVMBackend::compile	(	llvm::Module &	module,
		llvm::Module *	emulationModule,
		llvm::TCETargetMachinePlugin &	plugin,
		int	optLevel,
		bool	debug = false,
		InterPassData *	ipData = NULL
	)

Compiles given llvm program module for target machine using the given target machine plugin.

Parameters

module	LLVM module to compile.
plugin	Target architecture compiler plugin.
optLevel	Optimization level.
debug	If true, enable LLVM debug printing.

Returns

Module compiled to program for the target architecture.

This is quite straight copy how llc actually creates passes for target.

Definition at line 599 of file LLVMBackend.cc.

                                   {
    assert(mach_ != NULL && "Machine not set, forgot to call setMachine()?");
    ipData_ = ipData;
    // TODO: fixme
    std::string targetStr = "tce-llvm";
    if (mach_->isLittleEndian()) {
        if (mach_->is64bit()) {
            targetStr = "tcele64-llvm";
        } else {
            targetStr = "tcele-llvm";
        }
    }

    std::string errorStr;

    std::string featureString ="";

    // run registering code, which should have been done by LLVM

    // Initialize targets first. needs
    // #include <llvm/Target/TargetSelecty.h>,
    // whose defines collide with tce_config.h

    //InitializeAllTargets();
    //InitializeAllAsmPrinters();

    // Register target to llvm for using lookupTarget
    LLVMInitializeTCETargetInfo();
    LLVMInitializeTCETarget();

    // get registered target machine and set plugin.
    const Target* tceTarget =
        TargetRegistry::lookupTarget(targetStr, errorStr);
    Target* nonconst_target = const_cast<Target*>(tceTarget);

    if (!tceTarget) {
        errs() << errorStr << "\n";
        return NULL;
    }

    TargetRegistry::RegisterMCRegInfo(
        *nonconst_target, createTCEMCRegisterInfo);
    TargetRegistry::RegisterMCInstrInfo(
        *nonconst_target, createTCEMCInstrInfo);
    TargetRegistry::RegisterMCSubtargetInfo(
        *nonconst_target, createTCEMCSubtargetInfo);

    std::string cpuStr = "tce";

    TargetOptions Options;
    Options.UnsafeFPMath = false; //EnableUnsafeFPMath;
    Options.NoInfsFPMath = false; //EnableNoInfsFPMath;
    Options.NoNaNsFPMath = false; //EnableNoNaNsFPMath;
    Options.HonorSignDependentRoundingFPMathOption = false;
    // the stack alignment depends on the widest aligned
    // memory operations supported by the machine and
    // on the maximum alignment of any stack object in
    // the program, recompute this now as the llvm::Module has
    // been loaded
    unsigned maxMachineAlignment = (unsigned)MachineInfo::maxMemoryAlignment(*mach_);
    module.setOverrideStackAlignment(maxMachineAlignment);
    if (options_->assumeADFStackAlignment()) {

        if (maxAllocaAlignment(module) > maxMachineAlignment) {
            abortWithError(
                "Alloca object requires larger stack alignment than widest "
                "memory operation. "
                "We were hoping this wouldn't happen, because now stack "
                "alignment cannot be "
                "figured out just from adf-file. ATM (5/20) this assumption is "
                "made here, "
                "at tcecc::getStackAlignment and at CodeGenerator.cc "
                "constructor.");
        }
    } else {
        module.setOverrideStackAlignment(
            std::max(maxMachineAlignment, maxAllocaAlignment(module)));
    }
    Options.GuaranteedTailCallOpt = true; //EnableGuaranteedTailCallOpt;

    TCETargetMachine* targetMachine =
        static_cast<TCETargetMachine*>(
            tceTarget->createTargetMachine(
                targetStr, cpuStr, featureString, Options,
                Reloc::Model::Static));

    if (!targetMachine) {
        errs() << "Could not create tce target machine" << "\n";
        return NULL;
    }
    // The way to override the stack alignment was
    // changed in LLVM commit 787ee457173c. It's easiest
    // we just pass it through TCETargetMachine for now
    // even though it's really module specific.
    targetMachine->setStackAlignment(
        std::max((unsigned)(mach_->is64bit() ? 8 : 4),
                 module.getOverrideStackAlignment()));

    // This hack must be cleaned up before adding TCE target to llvm upstream
    // these are needed by TCETargetMachine::addInstSelector passes
    targetMachine->setTargetMachinePlugin(plugin, *mach_);
    targetMachine->setEmulationModule(emulationModule);

    /**
     * This is quite straight copy how llc actually creates passes for target.
     */

    llvm::legacy::PassManager Passes;
#define addPass(P) Passes.add(P)

    llvm::raw_fd_ostream sos(STDOUT_FILENO, false);

    targetMachine->addPassesToEmitFile(
        Passes, sos, nullptr, CGFT_AssemblyFile);


    // Add alias analysis pass that is distributed with pocl library.
    if (options_->isWorkItemAAFileDefined()) {
        ImmutablePass* (*creator)();
        std::string file = options_->workItemAAFile();
        bool foundAA = true;
        try {
            pluginTool_.importSymbol(
                "create_workitem_aa_plugin", creator, file);
        } catch(Exception& e) {
            std::string msg = std::string() +
                "Unable to load plugin file '" +
                file + "'. Error: " + e.errorMessageStack();
            if (Application::verboseLevel() > 0) {
                Application::logStream()
                    << msg << std::endl;
                Application::logStream() <<
                    "Most likely too old version of POCL. \
                    TCE will continue without work item alias analysis." <<
                    std::endl;
            }
            foundAA = false;
        }
        if (foundAA)
            addPass(creator());
    }
    if (ipData_ != NULL) {
        // Stack pointer datum.
        RegDatum* spReg = new RegDatum;
        spReg->first = plugin.rfName(plugin.spDRegNum());
        spReg->second = plugin.registerIndex(plugin.spDRegNum());
        ipData_->setDatum("STACK_POINTER", spReg);

        // FP register datum.
        RegDatum* fpReg = new RegDatum;
        fpReg->first = plugin.rfName(plugin.fpDRegNum());
        fpReg->second = plugin.registerIndex(plugin.fpDRegNum());
        ipData_->setDatum("FRAME_POINTER", fpReg);

        // Return value register datum.
        RegDatum* rvReg = new RegDatum;
        rvReg->first = plugin.rfName(plugin.rvDRegNum());
        rvReg->second = plugin.registerIndex(plugin.rvDRegNum());
        ipData_->setDatum("RV_REGISTER", rvReg);

        std::vector<unsigned> paramRegs = plugin.getParamDRegNums();
        for (unsigned int i = 0; i < paramRegs.size(); i++) {
            RegDatum* p = new RegDatum;
            p->first = plugin.rfName(paramRegs[i]);
            p->second = plugin.registerIndex(paramRegs[i]);
            TCEString datumName = "IPARAM";
            datumName << i+2;
            ipData_->setDatum(datumName, p);
        }

        std::vector<unsigned> vectorRVRegs = plugin.getVectorRVDRegNums();
        for (unsigned int i = 0; i < vectorRVRegs.size(); i++) {
            RegDatum* p = new RegDatum;
            p->first = plugin.rfName(vectorRVRegs[i]);
            p->second = plugin.registerIndex(vectorRVRegs[i]);
            TCEString datumName = "VRV_REGISTER";
            datumName << i;
            ipData_->setDatum(datumName, p);
        }

        // TODO: add datums for vector RV registers.
    }

    // Find the inner loops. Must be executed with a separate
    // PassManager as mixing module passes and loop passes does
    // not seem to magically work.
    // TODO: is it safe to trust the llvm::BasicBlock pointers are
    // intact until we run the actual code generation? The loop info
    // is stored using those as indices.
    llvm::legacy::PassManager FPasses;
    InnerLoopFinder* loopFinder = new InnerLoopFinder();
    FPasses.add(loopFinder);
    FPasses.run(module);

    LLVMTCEBuilder* builder = NULL;

    // This is not actuall LLVM pass so we can not get actual AA.
    // It will be picked later, for now just passing NULL.
    // When LLVMTCEIRBuilder is called from TCEScheduler it will require
    // AA parameter.
    AliasAnalysis* AA = NULL;
    LLVMTCEIRBuilder* b =
        new LLVMTCEIRBuilder(*targetMachine, mach_, *ipData, AA);
    b->setInnerLoopFinder(loopFinder);
    builder = b;

    if (options_ != NULL && options_->isInitialStackPointerValueSet()) {
        builder->setInitialStackPointerValue(
            options_->initialStackPointerValue());
    }
    addPass(new ConstantTransformer(*mach_));
    addPass(builder);
    Passes.run(module);

    if (ipData_ != NULL) {
        if (builder->isProgramUsingRestrictedPointers()) {
            ipData_->setDatum("RESTRICTED_POINTERS_FOUND", NULL);
        }
    }
    builder->deleteDeadProcedures();
    return builder->result();
}

References abortWithError, addPass, assert, LLVMTCECmdLineOptions::assumeADFStackAlignment(), createTCEMCInstrInfo(), createTCEMCRegisterInfo(), createTCEMCSubtargetInfo(), llvm::LLVMTCEBuilder::deleteDeadProcedures(), Exception::errorMessageStack(), llvm::TCETargetMachinePlugin::fpDRegNum(), llvm::TCETargetMachinePlugin::getParamDRegNums(), llvm::TCETargetMachinePlugin::getVectorRVDRegNums(), PluginTools::importSymbol(), LLVMTCECmdLineOptions::initialStackPointerValue(), ipData_, TTAMachine::Machine::is64bit(), LLVMTCECmdLineOptions::isInitialStackPointerValueSet(), TTAMachine::Machine::isLittleEndian(), llvm::LLVMTCEBuilder::isProgramUsingRestrictedPointers(), LLVMTCECmdLineOptions::isWorkItemAAFileDefined(), LLVMInitializeTCETarget(), LLVMInitializeTCETargetInfo(), Application::logStream(), mach_, maxAllocaAlignment(), MachineInfo::maxMemoryAlignment(), options_, pluginTool_, llvm::TCETargetMachinePlugin::registerIndex(), llvm::LLVMTCEBuilder::result(), llvm::TCETargetMachinePlugin::rfName(), llvm::TCETargetMachinePlugin::rvDRegNum(), InterPassData::setDatum(), llvm::TCETargetMachine::setEmulationModule(), llvm::LLVMTCEBuilder::setInitialStackPointerValue(), llvm::LLVMTCEIRBuilder::setInnerLoopFinder(), llvm::TCETargetMachine::setStackAlignment(), llvm::TCETargetMachine::setTargetMachinePlugin(), llvm::TCETargetMachinePlugin::spDRegNum(), Application::verboseLevel(), and LLVMTCECmdLineOptions::workItemAAFile().

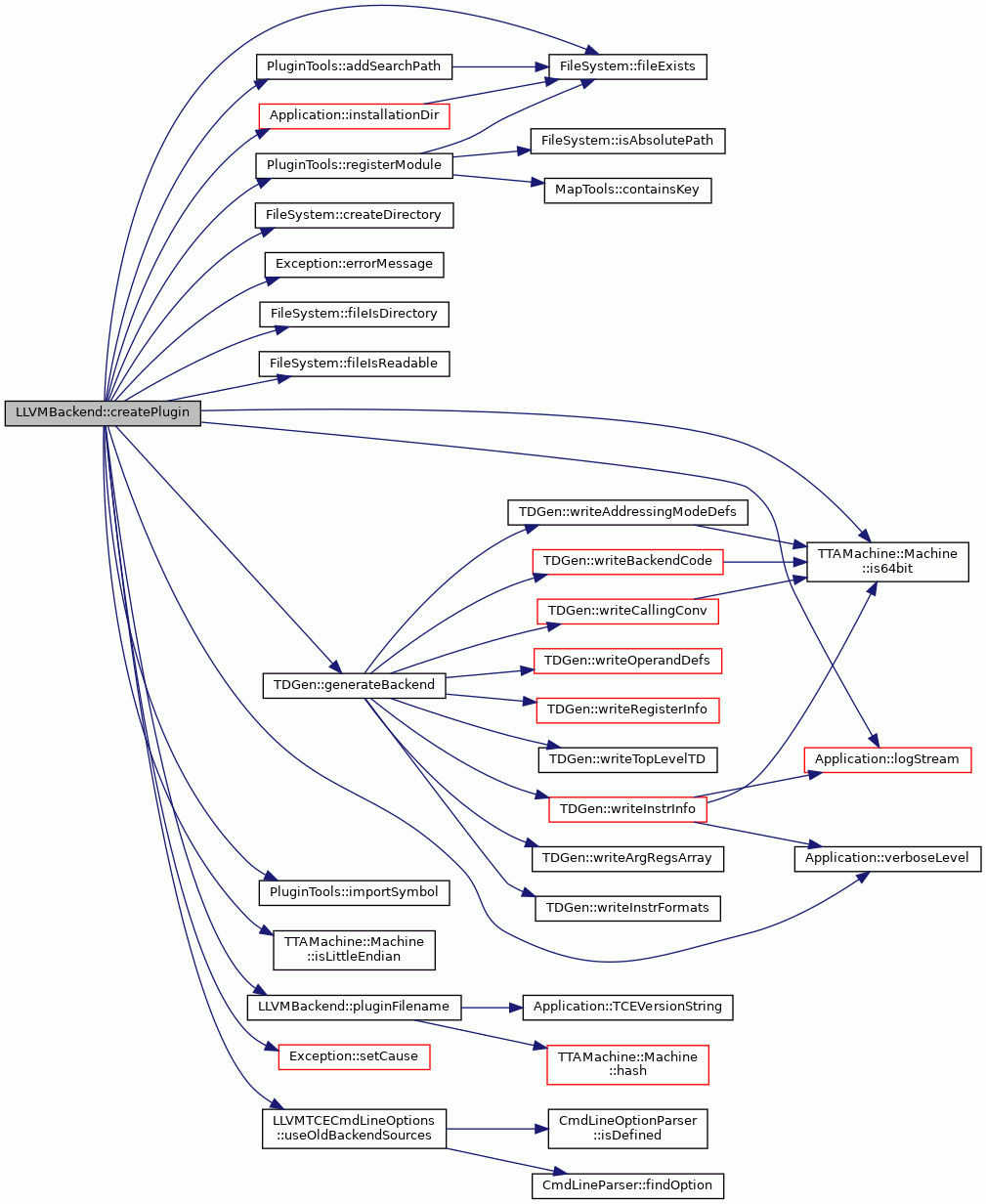

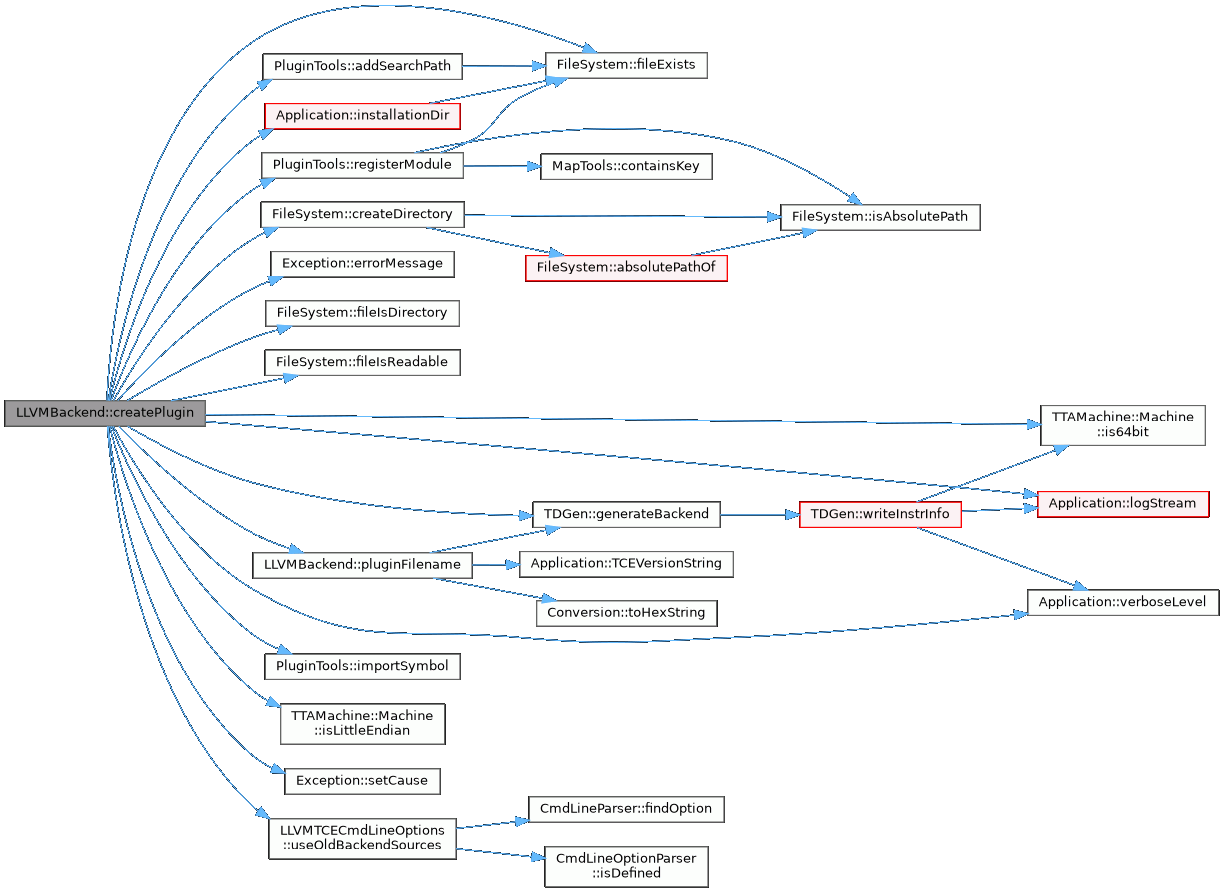

Here is the call graph for this function:

createPlugin()

TCETargetMachinePlugin * LLVMBackend::createPlugin

(

)

Creates TCETargetMachinePlugin for target architecture.

Definition at line 829 of file LLVMBackend.cc.

                          {
    assert(mach_ != NULL && "Machine not set, forgot to call setMachine()?");
    std::string pluginFile = pluginFilename();
    std::string pluginFileName;

    // Create cache directory if it doesn't exist.
    if (!FileSystem::fileIsDirectory(cachePath_)) {
        FileSystem::createDirectory(cachePath_);
    }

    pluginFileName = cachePath_ + DS + pluginFile;

    llvm::SmallString<128> ResultPath;

    // Static plugin source files path.
    std::string srcsPath = "";
    std::string pluginIncludeFlags = "";
    if (useInstalledVersion_) {
        srcsPath = Application::installationDir() +  DS + "include" + DS;
        pluginIncludeFlags = " -I" + srcsPath;
    } else {
        srcsPath = std::string(TCE_SRC_ROOT) + DS +
            "src" + DS + "applibs" + DS + "LLVMBackend" + DS + "plugin" + DS;

        pluginIncludeFlags =
            " -I" + srcsPath +
            " -I" + std::string(TCE_SRC_ROOT) + DS + " " +
            " -I" + std::string(TCE_SRC_ROOT) + DS + "src" + DS + "tools" +
            " -I" + std::string(TCE_SRC_ROOT) + DS + "src" + DS + "base" +
            DS + "mach"
            " -I" + std::string(TCE_SRC_ROOT) + DS + "src" + DS +
            "applibs" + DS + "LLVMBackend" + DS + " " +

            " -I" + std::string(TCE_SRC_ROOT) + DS + "src" + DS +
            "applibs" + DS + "mach" + " " +

            " -I" + std::string(TCE_SRC_ROOT) + DS + "src" + DS +
            "applibs" + DS + "Scheduler" + DS + " " +

            " -I" + std::string(TCE_SRC_ROOT) + DS + "src" + DS +
            "applibs" + DS + "Scheduler" + DS + "Algorithms" + " " +

            " -I`" LLVM_CONFIG " --includedir`" + DS + "llvm" + DS +
            "Target" + DS;

    }


    if (FileSystem::fileExists(pluginFileName) &&
        FileSystem::fileIsReadable(pluginFileName)) {

        try {
            pluginTool_.addSearchPath(cachePath_);
            pluginTool_.registerModule(pluginFile);
            TCETargetMachinePlugin* (*creator)();
            pluginTool_.importSymbol(
                "create_tce_backend_plugin", creator, pluginFile);

            return creator();
        } catch(Exception& e) {
            if (Application::verboseLevel() > 0) {
                Application::logStream()
                    << "Unable to load plugin file " << pluginFileName
                    << ": " << e.errorMessage() << ", "
                    << "regenerating..." << std::endl;
            }
        }
    }

    if (!options_->useOldBackendSources()) {
        // Create target instruction and register definitions in .td files


        try {
            pluginGen_->generateBackend(tempDir_);
        } catch(Exception& e) {
            std::string msg =
                "Failed to build compiler plugin for target architecture: ";
            msg += e.errorMessage();
            CompileError ne(__FILE__, __LINE__, __func__, msg);
            ne.setCause(e);
            throw ne;
        }
    }
    std::string tblgenbin = "llvm-tblgen";

    // Generate TCEGenRegisterNames.inc
    std::string tblgenCmd;

    if (useInstalledVersion_) {
        // This is quite ugly. LLVM include dir is determined by
        // executing llvm-config in the commandline. This doesn't
        // work if llvm-config is not found in path.
        // First check that llvm-config is found in path.
        if (system(LLVM_CONFIG " --version")) {
            std::string msg = "Unable to determine llvm include dir. "
                LLVM_CONFIG " not found in path";

            throw CompileError(__FILE__, __LINE__, __func__, msg);
        }
        // /usr/include needs to be last in case there is old llvm installation
        // from packages
        tblgenCmd = tblgenbin + " " + TBLGEN_INCLUDES +
            pluginIncludeFlags +
            " -I" + tempDir_ +
            " -I`" LLVM_CONFIG " --includedir`" +
            " -I`" LLVM_CONFIG " --includedir`/Target" +
            " -I`" LLVM_CONFIG " --includedir`/llvm/Target" +
            " -I/usr/include ";
    } else {
        tblgenCmd = tblgenbin + " " + TBLGEN_INCLUDES +
            pluginIncludeFlags +
            " -I" + tempDir_ +
            " -I" + LLVM_INCLUDE_DIR +
            " -I" + LLVM_INCLUDE_DIR + "/Target" +
            " -I" + LLVM_INCLUDE_DIR + "/llvm/Target";
    }

    tblgenCmd += " " + tempDir_ + FileSystem::DIRECTORY_SEPARATOR + "TCE.td";

    // Generate TCEGenRegisterInfo.inc
    std::string cmd = tblgenCmd +
        " -gen-register-info" +
        " -o " + tempDir_ + FileSystem::DIRECTORY_SEPARATOR +
        "TCEGenRegisterInfo.inc";

    if (Application::verboseLevel() > 0) {
        Application::logStream() << "LLVMBackend: " << cmd << std::endl;
    }
    int ret = system(cmd.c_str());
    if (ret) {
        std::string msg = std::string() +
            "Failed to build compiler plugin for target architecture.\n" +
            "Failed command was: " + cmd;

        throw CompileError(__FILE__, __LINE__, __func__, msg);
    }

    // Generate TCEGenInstrInfo.inc
    cmd = tblgenCmd +
        " -gen-instr-info" +
        " -o " + tempDir_ + FileSystem::DIRECTORY_SEPARATOR +
        "TCEGenInstrInfo.inc";

    ret = system(cmd.c_str());
    if (ret) {
        std::string msg = std::string() +
            "Failed to build compiler plugin for target architecture.\n" +
            "Failed command was: " + cmd;

        throw CompileError(__FILE__, __LINE__, __func__, msg);
    }

    // Generate TCEGenDAGISel.inc
    cmd = tblgenCmd +
        " -gen-dag-isel" +
        " -o " + tempDir_ + FileSystem::DIRECTORY_SEPARATOR +
        "TCEGenDAGISel.inc";

    ret = system(cmd.c_str());
    if (ret) {
        std::string msg = std::string() +
            "Failed to build compiler plugin for target architecture.\n" +
            "Failed command was: " + cmd;

        throw CompileError(__FILE__, __LINE__, __func__, msg);
    }


    // Generate TCEGenCallingConv.inc
    cmd = tblgenCmd +
        " -gen-callingconv" +
        " -o " + tempDir_ + FileSystem::DIRECTORY_SEPARATOR +
        "TCEGenCallingConv.inc";

    ret = system(cmd.c_str());
    if (ret) {
        std::string msg = std::string() +
            "Failed to build compiler plugin for target architecture.\n" +
            "Failed command was: " + cmd;

        throw CompileError(__FILE__, __LINE__, __func__, msg);
    }

    // Generate TCESuBTargetInfo.inc
    cmd = tblgenCmd +
        " -gen-subtarget" +
        " -o " + tempDir_ + FileSystem::DIRECTORY_SEPARATOR +
        "TCEGenSubTargetInfo.inc";

    ret = system(cmd.c_str());
    if (ret) {
        std::string msg =
            std::string() +
            "Failed to build compiler plugin for target architecture.\n" +
            "Failed command was: " + cmd;

        throw CompileError(__FILE__, __LINE__, __func__, msg);
    }

    // Generate TCEDFAPacketizer.inc
    cmd = tblgenCmd + " -gen-dfa-packetizer" + " -o " + tempDir_ +
          FileSystem::DIRECTORY_SEPARATOR + "TCEGenDFAPacketizer.inc";

    ret = system(cmd.c_str());
    if (ret) {
        std::string msg =
            std::string() +
            "Failed to build compiler plugin for target architecture.\n" +
            "Failed command was: " + cmd;

        throw CompileError(__FILE__, __LINE__, __func__, msg);
    }

    // NOTE: this could be get from Makefile.am
    TCEString pluginSources = srcsPath + "PluginCompileWrapper.cc ";

    TCEString endianOption = mach_->isLittleEndian() ?
        "-DLITTLE_ENDIAN_TARGET" : "";

    TCEString bitnessOption = mach_->is64bit() ? "-DTARGET64BIT" : "";

    std::string tempPluginFileName;
    tempPluginFileName = cachePath_ + DS + pluginFile + ".%%_%%_%%_%%";
    llvm::sys::fs::createUniqueFile(llvm::Twine(tempPluginFileName), ResultPath);
    tempPluginFileName = ResultPath.str().str();
    // Compile plugin to cache.
    // CXX and SHARED_CXX_FLAGS defined in tce_config.h
    cmd = std::string(CXX) +
        " -I" + tempDir_ +
        pluginIncludeFlags +
        " " + SHARED_CXX_FLAGS +
        " " + LLVM_CPPFLAGS;

    if (useInstalledVersion_)
        cmd += " -I`" LLVM_CONFIG " --includedir`";

    cmd +=
        #ifdef LLVM_OLDER_THAN_16
        " " + CXX14_FLAG +
        #else
        " " + CXX17_FLAG +
        #endif
        " " + endianOption +
        " " + bitnessOption +
        " " + pluginSources +
        " -o " + tempPluginFileName;

    if (Application::verboseLevel() > 0) {
        Application::logStream() << "LLVMBackend: " << cmd << std::endl;
    }
    ret = system(cmd.c_str());
    if (ret) {
        std::string msg = std::string() +
            "Failed to build compiler plugin for target architecture.\n" +
            "Failed command was: " + cmd;

        throw CompileError(__FILE__, __LINE__, __func__, msg);
    }

    // move plugin to final location
    llvm::sys::fs::rename(llvm::Twine(tempPluginFileName), llvm::Twine(pluginFileName));

    // Load plugin.
    TCETargetMachinePlugin* (*creator)();
    try {
        pluginTool_.addSearchPath(cachePath_);
        pluginTool_.registerModule(pluginFile);
        pluginTool_.importSymbol(
            "create_tce_backend_plugin", creator, pluginFile);
    } catch(Exception& e) {
        std::string msg = std::string() +
            "Unable to load plugin file '" +
            pluginFileName + "'. Error: " + e.errorMessage();

        IOException ne(__FILE__, __LINE__, __func__, msg);
        throw ne;
    }

    return creator();
}

References __func__, PluginTools::addSearchPath(), assert, cachePath_, FileSystem::createDirectory(), CXX14_FLAG, CXX17_FLAG, FileSystem::DIRECTORY_SEPARATOR, DS, Exception::errorMessage(), FileSystem::fileExists(), FileSystem::fileIsDirectory(), FileSystem::fileIsReadable(), TDGen::generateBackend(), PluginTools::importSymbol(), Application::installationDir(), TTAMachine::Machine::is64bit(), TTAMachine::Machine::isLittleEndian(), Application::logStream(), mach_, options_, pluginFilename(), pluginGen_, pluginTool_, PluginTools::registerModule(), Exception::setCause(), TBLGEN_INCLUDES, tempDir_, useInstalledVersion_, LLVMTCECmdLineOptions::useOldBackendSources(), and Application::verboseLevel().

Referenced by compile().

Here is the call graph for this function:

llvmRequiredOpset()

OperationDAGSelector::OperationSet LLVMBackend::llvmRequiredOpset ( bool  includeFloatOps, bool  littleEndian, bool  bits64  )

static

Returns minimum opset that is required by llvm.

Returns

Minimumn opset that is required for llvm.

Definition at line 151 of file LLVMBackend.cc.

                                                                                   {
    OperationDAGSelector::OperationSet requiredOps;

    if (littleEndian) {
        requiredOps.insert("LD32");
        requiredOps.insert("LD16");
        requiredOps.insert("LDU16");
        requiredOps.insert("LD8");
        requiredOps.insert("LDU8");
        requiredOps.insert("ST32");
        requiredOps.insert("ST16");
        requiredOps.insert("ST8");
    } else {
        requiredOps.insert("LDW");
        requiredOps.insert("LDH");
        requiredOps.insert("LDHU");
        requiredOps.insert("LDQ");
        requiredOps.insert("LDQU");
        requiredOps.insert("STW");
        requiredOps.insert("STH");
        requiredOps.insert("STQ");
    }

    // -- Floating point operations --
    if (includeFloatOps) {
        requiredOps.insert("ADDF");
        requiredOps.insert("SUBF");
        requiredOps.insert("MULF");
        requiredOps.insert("DIVF");
        requiredOps.insert("NEGF");
        requiredOps.insert("SQRTF");

        requiredOps.insert("CFI");
        requiredOps.insert("CFIU");
        requiredOps.insert("CIF");
        requiredOps.insert("CIFU");

        // Ordered FP comparison operations
        requiredOps.insert("EQF");
        requiredOps.insert("NEF");
        requiredOps.insert("LTF");
        requiredOps.insert("LEF");
        requiredOps.insert("GTF");
        requiredOps.insert("GEF");

        // Unordered FP comparison operations
        requiredOps.insert("EQUF");
        requiredOps.insert("NEUF");
        requiredOps.insert("LTUF");
        requiredOps.insert("LEUF");
        requiredOps.insert("GTUF");
        requiredOps.insert("GEUF");

        // Ordered/unordered operations
        requiredOps.insert("ORDF");
        requiredOps.insert("UORDF");

        if (bits64) {
            requiredOps.insert("ADDD");
            requiredOps.insert("SUBD");
            requiredOps.insert("MULD");
            requiredOps.insert("DIVD");
            requiredOps.insert("NEGD");
            requiredOps.insert("SQRTD");

            requiredOps.insert("CDL");
            requiredOps.insert("CDLU");
            requiredOps.insert("CLD");
            requiredOps.insert("CLDU");

            requiredOps.insert("CFD");
            requiredOps.insert("CDF");

            // Ordered FP comparison operations
            requiredOps.insert("EQD");
            requiredOps.insert("NED");
            requiredOps.insert("LTD");
            requiredOps.insert("LED");
            requiredOps.insert("GTD");
            requiredOps.insert("GED");

            // Unordered FP comparison operations
            requiredOps.insert("EQUD");
            requiredOps.insert("NEUD");
            requiredOps.insert("LTUD");
            requiredOps.insert("LEUD");
            requiredOps.insert("GTUD");
            requiredOps.insert("GEUD");

            // Ordered/unordered operations
            requiredOps.insert("ORDD");
            requiredOps.insert("UORDD");
        }
    }

    if (bits64) {
        requiredOps.insert("LDU32"); // TODO not really needed?
        requiredOps.insert("LD64");
        requiredOps.insert("ST64");

        requiredOps.insert("ADD64");
        requiredOps.insert("SUB64");
        requiredOps.insert("MUL64");
        requiredOps.insert("DIV64");
        requiredOps.insert("DIVU64");
        requiredOps.insert("DIV64");
        requiredOps.insert("MOD64");
        requiredOps.insert("MODU64");

        requiredOps.insert("SXH64");
        requiredOps.insert("SXQ64");

        requiredOps.insert("AND64");
        requiredOps.insert("XOR64");
        requiredOps.insert("IOR64");

        requiredOps.insert("SHL64");
        requiredOps.insert("SHR64");
        requiredOps.insert("SHRU64");

        requiredOps.insert("EQ64");
        requiredOps.insert("NE64");
        requiredOps.insert("LT64");
        requiredOps.insert("LTU64");
        requiredOps.insert("LE64");
        requiredOps.insert("LEU64");
        requiredOps.insert("GT64");
        requiredOps.insert("GTU64");
        requiredOps.insert("GE64");
        requiredOps.insert("GEU64");

        return requiredOps;
    } else {
        requiredOps.insert("ADD");
        requiredOps.insert("SUB");
        requiredOps.insert("MUL");
        requiredOps.insert("DIV");
        requiredOps.insert("DIVU");
        requiredOps.insert("DIV");
        requiredOps.insert("MOD");
        requiredOps.insert("MODU");

        requiredOps.insert("SXHW");
        requiredOps.insert("SXQW");

        requiredOps.insert("AND");
        requiredOps.insert("XOR");
        requiredOps.insert("IOR");

        requiredOps.insert("SHL");
        requiredOps.insert("SHR");
        requiredOps.insert("SHRU");

        requiredOps.insert("EQ");
        requiredOps.insert("NE");
        requiredOps.insert("LT");
        requiredOps.insert("LTU");
        requiredOps.insert("LE");
        requiredOps.insert("LEU");
        requiredOps.insert("GT");
        requiredOps.insert("GTU");
        requiredOps.insert("GE");
        requiredOps.insert("GEU");
    }
    return requiredOps;
}

Referenced by TDGen::writeInstrInfo().

maxAllocaAlignment()

unsigned LLVMBackend::maxAllocaAlignment ( const llvm::Module &  mod ) const

private

Ripped from LLVMTargetMachine.cpp

static void printAndVerify(PassManagerBase &PM, bool allowDoubleDefs = false, bool printMF = false) { if (printMF) { PM.add(createMachineFunctionPrinterPass(cerr)); } PM.add(createMachineVerifierPass(allowDoubleDefs)); } Finds the maximum alignment of an alloca in the module.

Used to align the stack for the program image.

Definition at line 531 of file LLVMBackend.cc.

                                                           {
    unsigned maxAlignment = 4;
    for (llvm::Module::const_iterator f = mod.begin(),
             fe = mod.end(); f != fe; ++f) {
        for (llvm::Function::const_iterator bb = f->begin(), be = f->end();
             bb != be; ++bb) {
            const llvm::BasicBlock* basicBlock = &(*bb);
            for (llvm::BasicBlock::const_iterator i = basicBlock->begin(),
                     ie = basicBlock->end(); i != ie; ++i) {
                if (!isa<const llvm::AllocaInst>(i)) continue;
                const llvm::AllocaInst* alloca =
                    dyn_cast<const llvm::AllocaInst>(i);
                #ifdef LLVM_OLDER_THAN_15
                maxAlignment = std::max(maxAlignment,
                                        (unsigned)alloca->getAlign().value());
                                        maxAlignment = std::max(maxAlignment,
                                        (unsigned)alloca->getAlignment());
                #else
                maxAlignment = std::max(maxAlignment,
                                        (unsigned)alloca->getAlign().value());
                                        maxAlignment = std::max(maxAlignment,
                                        (unsigned)alloca->getAlign().value());
                #endif

            }
        }
    }
    return maxAlignment;
}

Referenced by compile().

pluginFilename()

std::string LLVMBackend::pluginFilename

(

)

Returns (hopefully) unique plugin filename for target architecture.

The filename includes also the TCE version string to avoid problems with incompatible backend plugins between TCE revisions. The filename is used for cached plugins.

Returns

Filename for the target architecture.

Definition at line 1121 of file LLVMBackend.cc.

                            {
    assert(pluginGen_ != NULL &&
        "TDPlugin not set, forgot to call setMachine()?");
    const std::string buffer = pluginGen_->generateBackend();

    // Generate a hash based on the backend output
    boost::hash<std::string> stringHasher;
    size_t h = stringHasher(buffer);

    TCEString hash =
        (Conversion::toHexString(buffer.length())).substr(2);

    hash += "_";
    hash += (Conversion::toHexString(h)).substr(2);

    TCEString fileName = hash;
    // add toolset version to the hash
    fileName += "-" + Application::TCEVersionString();
    fileName += PLUGIN_SUFFIX;

    return fileName;
}

References assert, TDGen::generateBackend(), PLUGIN_SUFFIX, pluginGen_, Application::TCEVersionString(), and Conversion::toHexString().

Referenced by compile(), and createPlugin().

Here is the call graph for this function:

schedule()

TTAProgram::Program * LLVMBackend::schedule	(	const std::string &	bytecodeFile,
		const std::string &	emulationBytecodeFile,
		int	optLevel = 2,
		bool	debug = false,
		SchedulingPlan *	plan = NULL
	)

setMachine()

void LLVMBackend::setMachine

(

TTAMachine::Machine &

target

)

Sets the target machine and creates a plugin generator for it.

Parameters

target

The target machine

Definition at line 365 of file LLVMBackend.cc.

                                                 {
    mach_ = ⌖
    if (pluginGen_ != NULL) {
        delete pluginGen_;
    }
    pluginGen_ = new TDGen(target);
}

References mach_, and pluginGen_.

Referenced by main().

Member Data Documentation

cachePath_

TCEString LLVMBackend::cachePath_

private

Path to the cache where precompiled plugins are stored.

Definition at line 102 of file LLVMBackend.hh.

Referenced by compile(), createPlugin(), and LLVMBackend().

CXX0X_FLAG

const TCEString LLVMBackend::CXX0X_FLAG = "-std=c++0x"

staticprivate

Definition at line 115 of file LLVMBackend.hh.

CXX11_FLAG

const TCEString LLVMBackend::CXX11_FLAG = "-std=c++11"

staticprivate

Definition at line 116 of file LLVMBackend.hh.

CXX14_FLAG

const TCEString LLVMBackend::CXX14_FLAG = "-std=c++14"

staticprivate

Definition at line 117 of file LLVMBackend.hh.

Referenced by createPlugin().

CXX17_FLAG

const TCEString LLVMBackend::CXX17_FLAG = "-std=c++17"

staticprivate

Definition at line 118 of file LLVMBackend.hh.

Referenced by createPlugin().

ipData_

InterPassData* LLVMBackend::ipData_

private

Definition at line 108 of file LLVMBackend.hh.

Referenced by compile().

mach_

TTAMachine::Machine* LLVMBackend::mach_

private

Definition at line 109 of file LLVMBackend.hh.

Referenced by compile(), compile(), createPlugin(), and setMachine().

options_

LLVMTCECmdLineOptions* LLVMBackend::options_

private

Definition at line 106 of file LLVMBackend.hh.

Referenced by compile(), compile(), createPlugin(), and LLVMBackend().

PLUGIN_PREFIX

const std::string LLVMBackend::PLUGIN_PREFIX = "tcecc-"

staticprivate

Definition at line 113 of file LLVMBackend.hh.

PLUGIN_SUFFIX

const std::string LLVMBackend::PLUGIN_SUFFIX = ".so"

staticprivate

Definition at line 114 of file LLVMBackend.hh.

Referenced by pluginFilename().

pluginGen_

TDGen* LLVMBackend::pluginGen_

private

Definition at line 110 of file LLVMBackend.hh.

Referenced by createPlugin(), pluginFilename(), setMachine(), and ~LLVMBackend().

pluginTool_

PluginTools LLVMBackend::pluginTool_

private

Plugin tool for loading target machine plugin.

Definition at line 100 of file LLVMBackend.hh.

Referenced by compile(), and createPlugin().

TBLGEN_INCLUDES

POP_COMPILER_DIAGS const std::string LLVMBackend::TBLGEN_INCLUDES = ""

staticprivate

Definition at line 112 of file LLVMBackend.hh.

Referenced by createPlugin().

tempDir_

TCEString LLVMBackend::tempDir_

private

Directory to store temporary files.

Definition at line 104 of file LLVMBackend.hh.

Referenced by createPlugin().

useInstalledVersion_

bool LLVMBackend::useInstalledVersion_

private

Assume we are running an installed TCE version.

Definition at line 97 of file LLVMBackend.hh.

Referenced by createPlugin().

---

The documentation for this class was generated from the following files:

• LLVMBackend.hh
• LLVMBackend.cc
