#include <ProximRegisterWindow.hh>

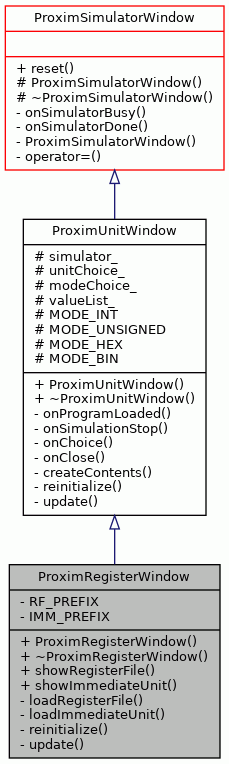

Inheritance diagram for ProximRegisterWindow:

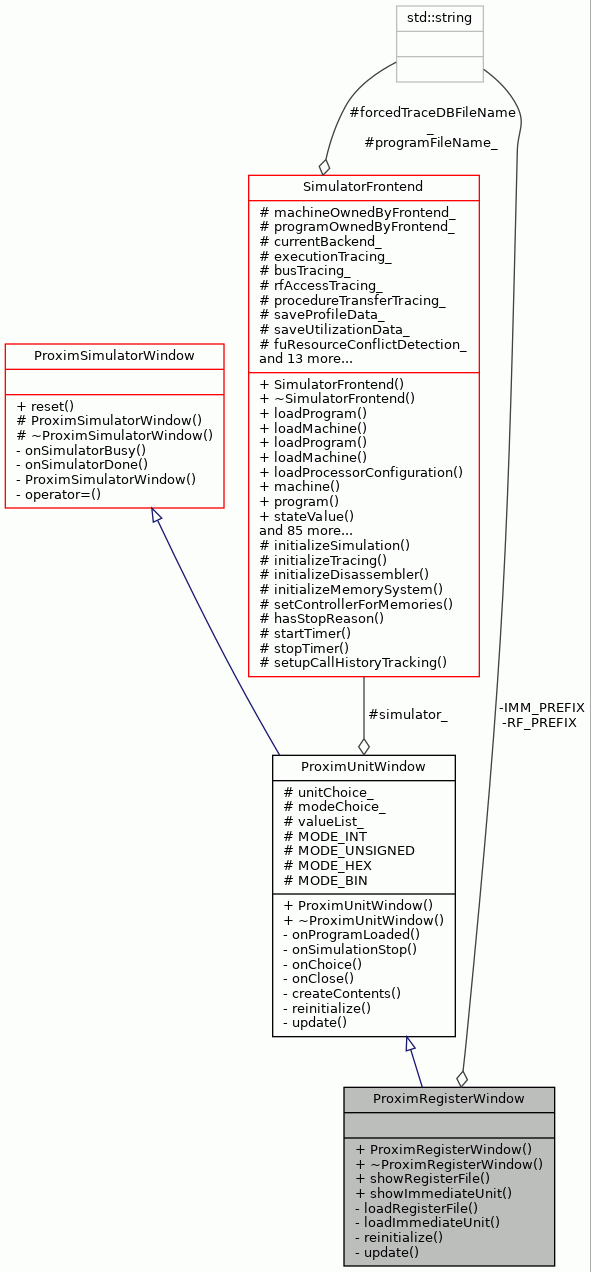

Collaboration diagram for ProximRegisterWindow:

Public Member Functions
	ProximRegisterWindow (ProximMainFrame *parent, int id)

virtual	~ProximRegisterWindow ()

void	showRegisterFile (const std::string &name)

void	showImmediateUnit (const std::string &name)

Public Member Functions inherited from ProximUnitWindow
	ProximUnitWindow (ProximMainFrame *parent, int id)

virtual	~ProximUnitWindow ()

Public Member Functions inherited from ProximSimulatorWindow
virtual void	reset ()

Private Member Functions
void	loadRegisterFile (const TTAMachine::RegisterFile &rf)

void	loadImmediateUnit (const TTAMachine::ImmediateUnit &iu)

virtual void	reinitialize ()

virtual void	update ()

Static Private Attributes
static const std::string	RF_PREFIX = "RF: "
	Prefix for register files in the unit choicer.

static const std::string	IMM_PREFIX = "IMM: "
	Prefix for immediate units in the unit choicer.

Additional Inherited Members
Protected Member Functions inherited from ProximSimulatorWindow
	ProximSimulatorWindow (ProximMainFrame *mainFrame, wxWindowID id=-1, wxPoint pos=wxDefaultPosition, wxSize size=wxDefaultSize, long style=wxTAB_TRAVERSAL)

virtual	~ProximSimulatorWindow ()

Protected Attributes inherited from ProximUnitWindow
SimulatorFrontend *	simulator_
	Simulator instance .

wxChoice *	unitChoice_
	Unit choicer widget.

wxChoice *	modeChoice_
	Value display mode choicer widget.

wxListCtrl *	valueList_
	List widget for the values.

Static Protected Attributes inherited from ProximUnitWindow
static const wxString	MODE_INT = _T("Int")
	String for the mode choicer integer mode.

static const wxString	MODE_UNSIGNED = _T("Unsigned")
	String for the mode choicer unsigned integer mode.

static const wxString	MODE_HEX = _T("Hex")
	String for the mode choicer hexadecimal mode.

static const wxString	MODE_BIN = _T("Binary")
	String for the mode choicer binary mode.

Detailed Description

Proxim subwindow which displays register values.

This window listens to SimulatorEvents and updates the window contents automatically.

Definition at line 54 of file ProximRegisterWindow.hh.

Constructor & Destructor Documentation

◆ ProximRegisterWindow()

ProximRegisterWindow::ProximRegisterWindow	(	ProximMainFrame *	parent,
		int	id
	)

Constructor.

Parameters

parent	Parent window of the window.
id	Window identifier.

Definition at line 73 of file ProximRegisterWindow.cc.

                                    :
    ProximUnitWindow(parent, id) {

    valueList_->InsertColumn(0, _T("Register"), wxLIST_FORMAT_LEFT, 100);
    valueList_->InsertColumn(1, _T("Value"), wxLIST_FORMAT_RIGHT, 120);

    modeChoice_->Disable();

    if (simulator_->isSimulationInitialized() ||
        simulator_->isSimulationStopped() ||
        simulator_->hasSimulationEnded()) {

        reinitialize();
    }
}

References SimulatorFrontend::hasSimulationEnded(), SimulatorFrontend::isSimulationInitialized(), SimulatorFrontend::isSimulationStopped(), ProximUnitWindow::modeChoice_, reinitialize(), ProximUnitWindow::simulator_, and ProximUnitWindow::valueList_.

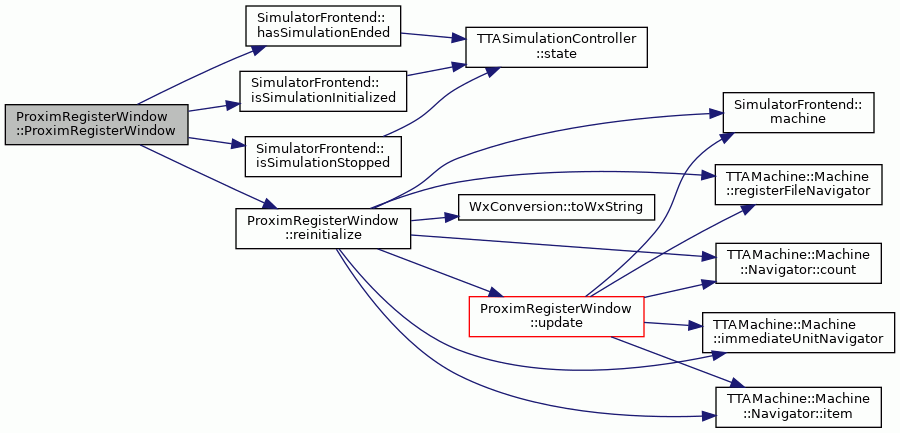

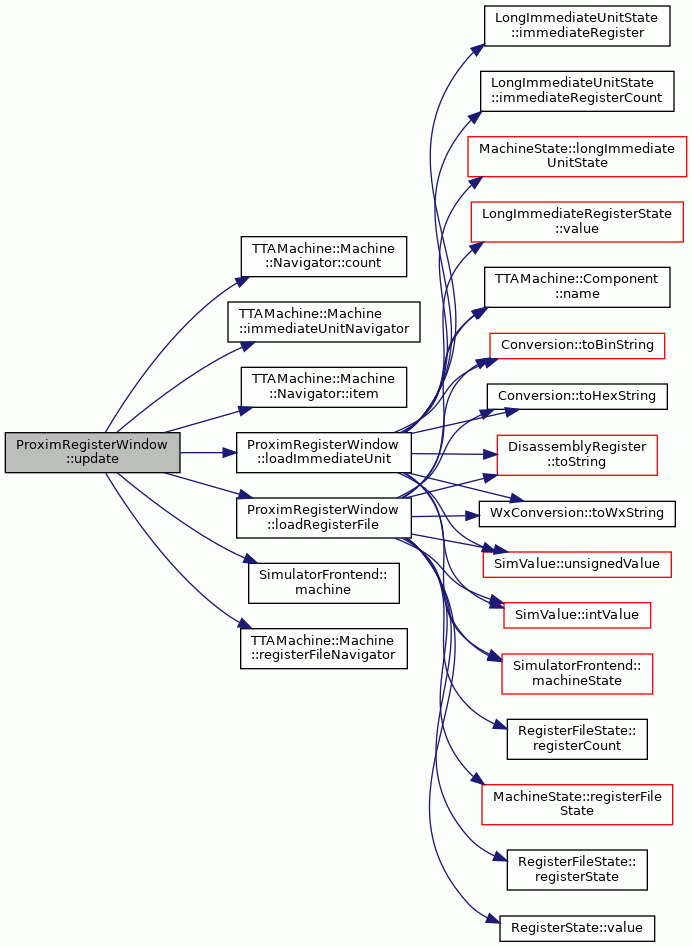

Here is the call graph for this function:

◆ ~ProximRegisterWindow()

ProximRegisterWindow::~ProximRegisterWindow ( )

virtual

Destructor.

Definition at line 93 of file ProximRegisterWindow.cc.

93 {

94}

Member Function Documentation

◆ loadImmediateUnit()

void ProximRegisterWindow::loadImmediateUnit ( const TTAMachine::ImmediateUnit & iu )

private

Loads register file registers to the register list.

Parameters

imm	Immediate Unit to display.

Definition at line 205 of file ProximRegisterWindow.cc.

                                                                {

    valueList_->DeleteAllItems();

    LongImmediateUnitState& immState =
    simulator_->machineState().longImmediateUnitState(imm.name());

    // Append all registers to the register list.
    int row = 0;
    for (int i = 0; i < immState.immediateRegisterCount(); i++) {
    wxString value;

    const LongImmediateRegisterState& state =
            immState.immediateRegister(i);

        wxString mode = modeChoice_->GetStringSelection();

        if (mode == MODE_UNSIGNED) {
        value = WxConversion::toWxString(state.value().unsignedValue());
        } else if (mode == MODE_INT) {
            int intValue = state.value().intValue();
        value = WxConversion::toWxString(intValue);
        } else if (mode == MODE_HEX) {
        value = WxConversion::toWxString(
                Conversion::toHexString(state.value().unsignedValue()));
        } else if (mode == MODE_BIN) {
            int intValue = static_cast<int>(state.value().unsignedValue());
        value = WxConversion::toWxString(
                Conversion::toBinString(intValue));
        }

    DisassemblyRegister r(imm.name(), i);
    valueList_->InsertItem(
        row, WxConversion::toWxString(r.toString()));

    valueList_->SetItem(row, 1, value);
    row++;
    }
}

References LongImmediateUnitState::immediateRegister(), LongImmediateUnitState::immediateRegisterCount(), SimValue::intValue(), MachineState::longImmediateUnitState(), SimulatorFrontend::machineState(), ProximUnitWindow::MODE_BIN, ProximUnitWindow::MODE_HEX, ProximUnitWindow::MODE_INT, ProximUnitWindow::MODE_UNSIGNED, ProximUnitWindow::modeChoice_, TTAMachine::Component::name(), ProximUnitWindow::simulator_, Conversion::toBinString(), Conversion::toHexString(), DisassemblyRegister::toString(), WxConversion::toWxString(), SimValue::unsignedValue(), LongImmediateRegisterState::value(), and ProximUnitWindow::valueList_.

Referenced by update().

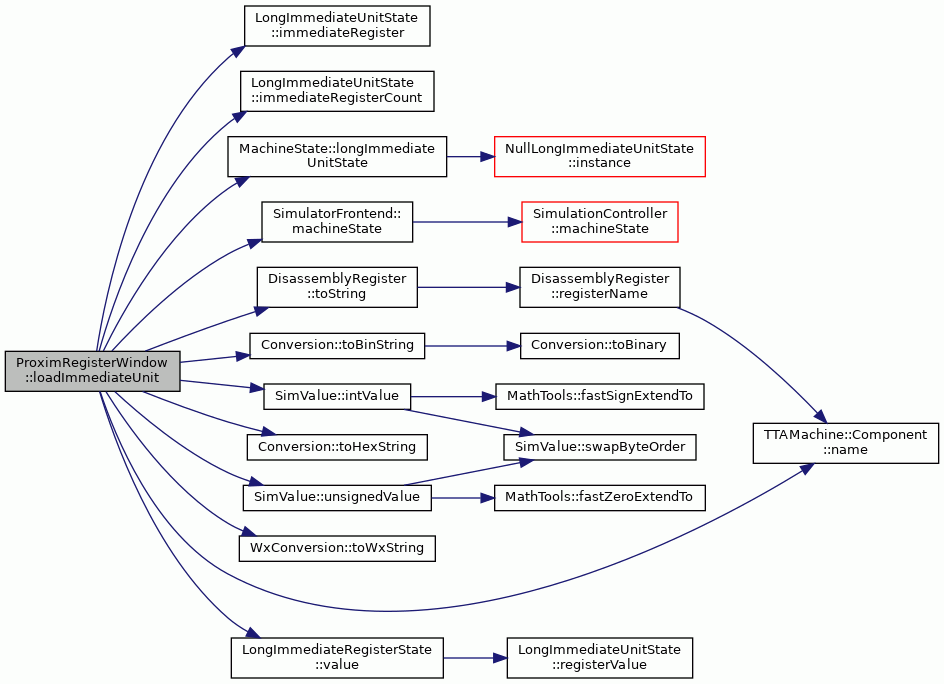

Here is the call graph for this function:

◆ loadRegisterFile()

void ProximRegisterWindow::loadRegisterFile ( const TTAMachine::RegisterFile & rf )

private

Loads register file registers to the register list.

Parameters

rf	Register file to display.

Definition at line 161 of file ProximRegisterWindow.cc.

                                                             {

    valueList_->DeleteAllItems();

    RegisterFileState& rfState =
    simulator_->machineState().registerFileState(rf.name());

    // Append all registers to the register list.
    int row = 0;
    for (unsigned i = 0; i < rfState.registerCount(); i++) {
    wxString value;
    const RegisterState& state = rfState.registerState(i);

        wxString mode = modeChoice_->GetStringSelection();

        if (mode == MODE_UNSIGNED) {
        value = WxConversion::toWxString(state.value().unsignedValue());
        } else if (mode == MODE_INT) {
            int intValue = state.value().intValue();
        value = WxConversion::toWxString(intValue);
        } else if (mode == MODE_HEX) {
        value = WxConversion::toWxString(
                Conversion::toHexString(state.value().unsignedValue()));
        } else if (mode == MODE_BIN) {
            int intValue = state.value().intValue();
        value = WxConversion::toWxString(
                Conversion::toBinString(intValue));
        }

    DisassemblyRegister r(rf.name(), i);
    valueList_->InsertItem(
        row, WxConversion::toWxString(r.toString()));

    valueList_->SetItem(row, 1, value);
    row++;
    }
}

References SimValue::intValue(), SimulatorFrontend::machineState(), ProximUnitWindow::MODE_BIN, ProximUnitWindow::MODE_HEX, ProximUnitWindow::MODE_INT, ProximUnitWindow::MODE_UNSIGNED, ProximUnitWindow::modeChoice_, TTAMachine::Component::name(), RegisterFileState::registerCount(), MachineState::registerFileState(), RegisterFileState::registerState(), ProximUnitWindow::simulator_, Conversion::toBinString(), Conversion::toHexString(), DisassemblyRegister::toString(), WxConversion::toWxString(), SimValue::unsignedValue(), RegisterState::value(), and ProximUnitWindow::valueList_.

Referenced by update().

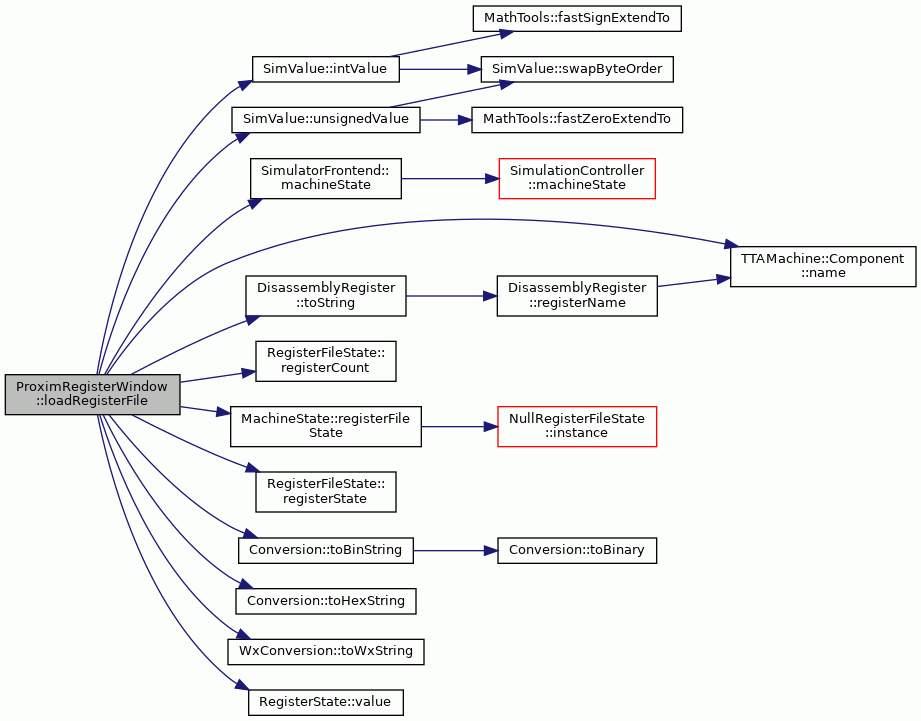

Here is the call graph for this function:

◆ reinitialize()

void ProximRegisterWindow::reinitialize ( )

privatevirtual

Sets the available register file selections in the register file choice.

Reimplemented from ProximUnitWindow.

Definition at line 101 of file ProximRegisterWindow.cc.

                                   {

    unitChoice_->Clear();

    // parallel simulation
    const Machine::RegisterFileNavigator& rfNavigator =
    simulator_->machine().registerFileNavigator();

    for (int i = 0; i < rfNavigator.count(); i++) {
    string rfName = RF_PREFIX + rfNavigator.item(i)->name();
    unitChoice_->Append(WxConversion::toWxString(rfName));
    }

    const Machine::ImmediateUnitNavigator& immNavigator =
    simulator_->machine().immediateUnitNavigator();
    for (int i = 0; i < immNavigator.count(); i++) {
    string rfName = IMM_PREFIX + immNavigator.item(i)->name();
    unitChoice_->Append(WxConversion::toWxString(rfName));
    }

    unitChoice_->SetSelection(0);
    update();
}

References TTAMachine::Machine::Navigator< ComponentType >::count(), IMM_PREFIX, TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), SimulatorFrontend::machine(), TTAMachine::Machine::registerFileNavigator(), RF_PREFIX, ProximUnitWindow::simulator_, WxConversion::toWxString(), ProximUnitWindow::unitChoice_, and update().

Referenced by ProximRegisterWindow().

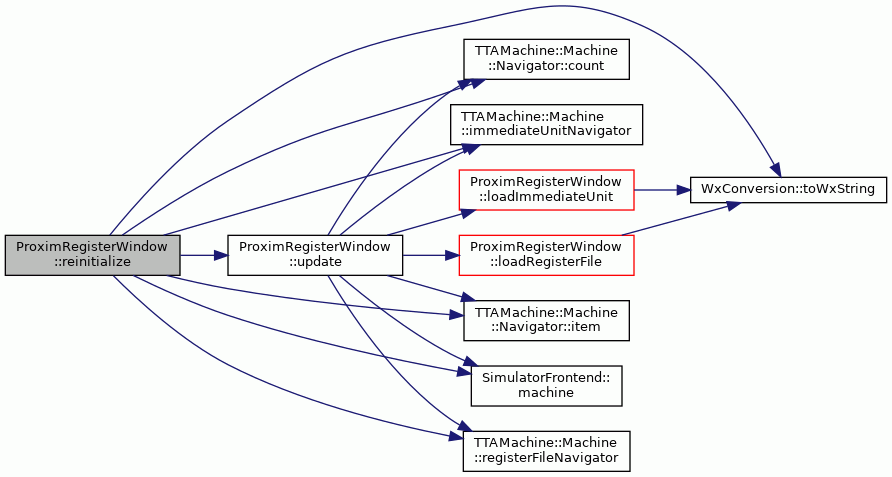

Here is the call graph for this function:

◆ showImmediateUnit()

void ProximRegisterWindow::showImmediateUnit ( const std::string & name )

Sets the immediate unit dipslayed in the window.

Parameters

name	Name of the immediate unit.

Definition at line 265 of file ProximRegisterWindow.cc.

                                                             {

    unitChoice_->SetStringSelection(
        WxConversion::toWxString(IMM_PREFIX + name));
    update();
}

References IMM_PREFIX, WxConversion::toWxString(), ProximUnitWindow::unitChoice_, and update().

Here is the call graph for this function:

◆ showRegisterFile()

void ProximRegisterWindow::showRegisterFile ( const std::string & name )

Sets the registerfile displayed in the window.

Parameters

name	Name of the register file.

Definition at line 252 of file ProximRegisterWindow.cc.

                                                            {

    unitChoice_->SetStringSelection(
        WxConversion::toWxString(RF_PREFIX + name));
    update();
}

References RF_PREFIX, WxConversion::toWxString(), ProximUnitWindow::unitChoice_, and update().

Referenced by ProximShowRegistersCmd::Do().

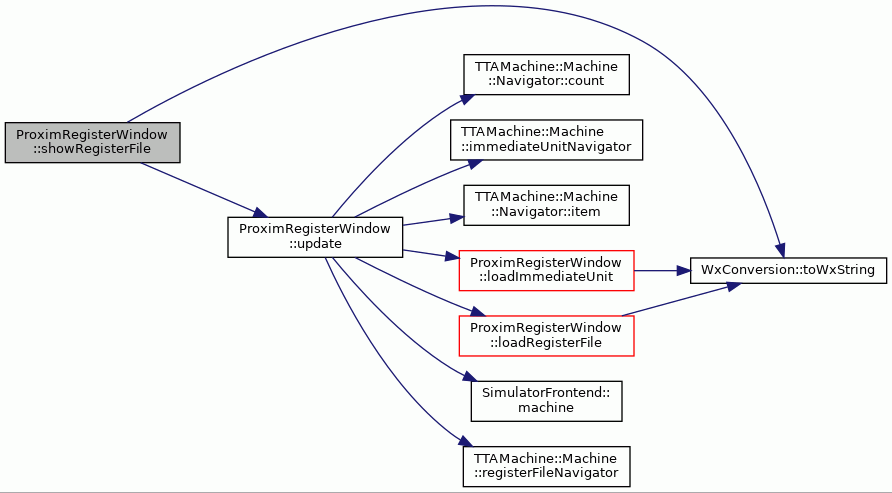

Here is the call graph for this function:

◆ update()

void ProximRegisterWindow::update ( )

privatevirtual

Event handler for the register file choicer.

When the choice selection changes, corresponding register file registers are loaded in the register list.

Reimplemented from ProximUnitWindow.

Definition at line 133 of file ProximRegisterWindow.cc.

                             {

    int rfIndex = unitChoice_->GetSelection();

    modeChoice_->Disable();
    modeChoice_->Enable();

    // Machine is not a universal machine.
    const Machine::RegisterFileNavigator& rfNavigator =
        simulator_->machine().registerFileNavigator();

    if (rfIndex < rfNavigator.count()) {
        loadRegisterFile(*rfNavigator.item(rfIndex));
    } else {
        const Machine::ImmediateUnitNavigator& immNavigator =
            simulator_->machine().immediateUnitNavigator();

        rfIndex = rfIndex - rfNavigator.count();
        loadImmediateUnit(*immNavigator.item(rfIndex));
    }
}

References TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), loadImmediateUnit(), loadRegisterFile(), SimulatorFrontend::machine(), ProximUnitWindow::modeChoice_, TTAMachine::Machine::registerFileNavigator(), ProximUnitWindow::simulator_, and ProximUnitWindow::unitChoice_.

Referenced by reinitialize(), showImmediateUnit(), and showRegisterFile().

Here is the call graph for this function:

Member Data Documentation

◆ IMM_PREFIX

const std::string ProximRegisterWindow::IMM_PREFIX = "IMM: "

staticprivate

Prefix for immediate units in the unit choicer.

Definition at line 70 of file ProximRegisterWindow.hh.

Referenced by reinitialize(), and showImmediateUnit().

◆ RF_PREFIX

const std::string ProximRegisterWindow::RF_PREFIX = "RF: "

staticprivate

Prefix for register files in the unit choicer.

Definition at line 68 of file ProximRegisterWindow.hh.

Referenced by reinitialize(), and showRegisterFile().

The documentation for this class was generated from the following files:
