TTAMachine::PortGuard Class Reference

#include <Guard.hh>

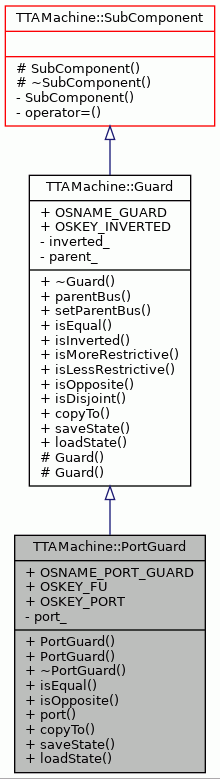

Inheritance diagram for TTAMachine::PortGuard:

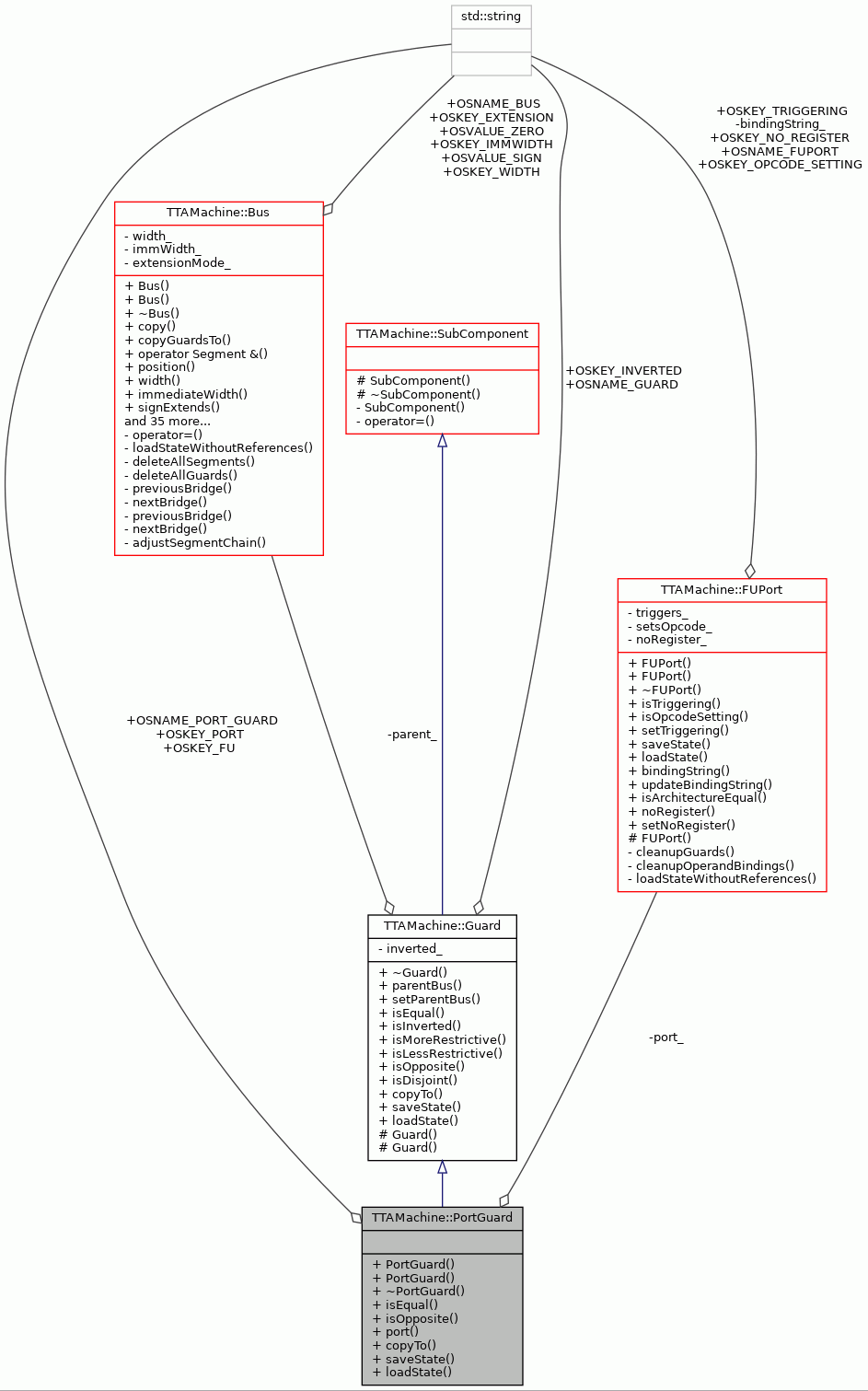

Collaboration diagram for TTAMachine::PortGuard:

Public Member Functions
	PortGuard (bool inverted, FUPort &port, Bus &parentBus)
	PortGuard (const ObjectState *state, Bus &parentBus)
virtual	~PortGuard ()
bool	isEqual (const Guard &guard) const
bool	isOpposite (const Guard &guard) const
FUPort *	port () const
virtual void	copyTo (Bus &parentBus) const
ObjectState *	saveState () const
void	loadState (const ObjectState *state)
Public Member Functions inherited from TTAMachine::Guard
virtual	~Guard ()
virtual Bus *	parentBus () const
virtual void	setParentBus (Bus *parentBus)
virtual bool	isInverted () const
virtual bool	isMoreRestrictive (const Guard &guard) const
virtual bool	isLessRestrictive (const Guard &guard) const
virtual bool	isDisjoint (const Guard &guard) const
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_PORT_GUARD = "portguard"
	ObjectState name for PortGuard ObjectState.
static const std::string	OSKEY_FU = "fu"
	ObjectState attribute key for function unit name.
static const std::string	OSKEY_PORT = "port"
	ObjectState attribute key for port name.
Static Public Attributes inherited from TTAMachine::Guard
static const std::string	OSNAME_GUARD = "guard"
	ObjectState name for guard.
static const std::string	OSKEY_INVERTED = "inverted"
	ObjectState attribute key for inverted feature.

Private Attributes
FUPort *	port_
	Port from which the condition term is taken.

Additional Inherited Members
Protected Member Functions inherited from TTAMachine::Guard
	Guard (bool inverted, Bus *parentBus)
	Guard (const ObjectState *state, Bus &parentBus)
Protected Member Functions inherited from TTAMachine::SubComponent
	SubComponent ()
virtual	~SubComponent ()
Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()
virtual	~MachinePart ()

Detailed Description

Guard where the condition term is taken from the value of an output port of a FunctionUnit.

Definition at line 99 of file Guard.hh.

Constructor & Destructor Documentation

PortGuard() [1/2]

TTAMachine::PortGuard::PortGuard	(	bool	inverted,
		FUPort &	port,
		Bus &	parentBus
	)

Constructor.

Parameters

inverted	Incates whether the condition term is inverted.
port	Port from which the condition term is taken.
parentBus	Parent bus component of the guard.

Exceptions

IllegalRegistration	If the given port is not registered to the same machine as the given parent bus.
ComponentAlreadyExists	If the parent bus already has an equal guard.

Definition at line 196 of file Guard.cc.

    : Guard(inverted, &parentBus), port_(&port) {
    FunctionUnit* unit = port.parentUnit();
    parentBus.ensureRegistration(*unit);
    parentBus.addGuard(*this);
}

References TTAMachine::Bus::addGuard(), TTAMachine::Component::ensureRegistration(), TTAMachine::Guard::parentBus(), TTAMachine::BaseFUPort::parentUnit(), and port().

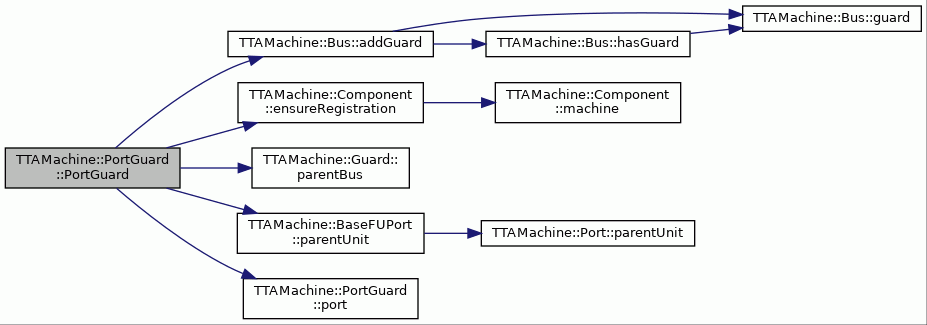

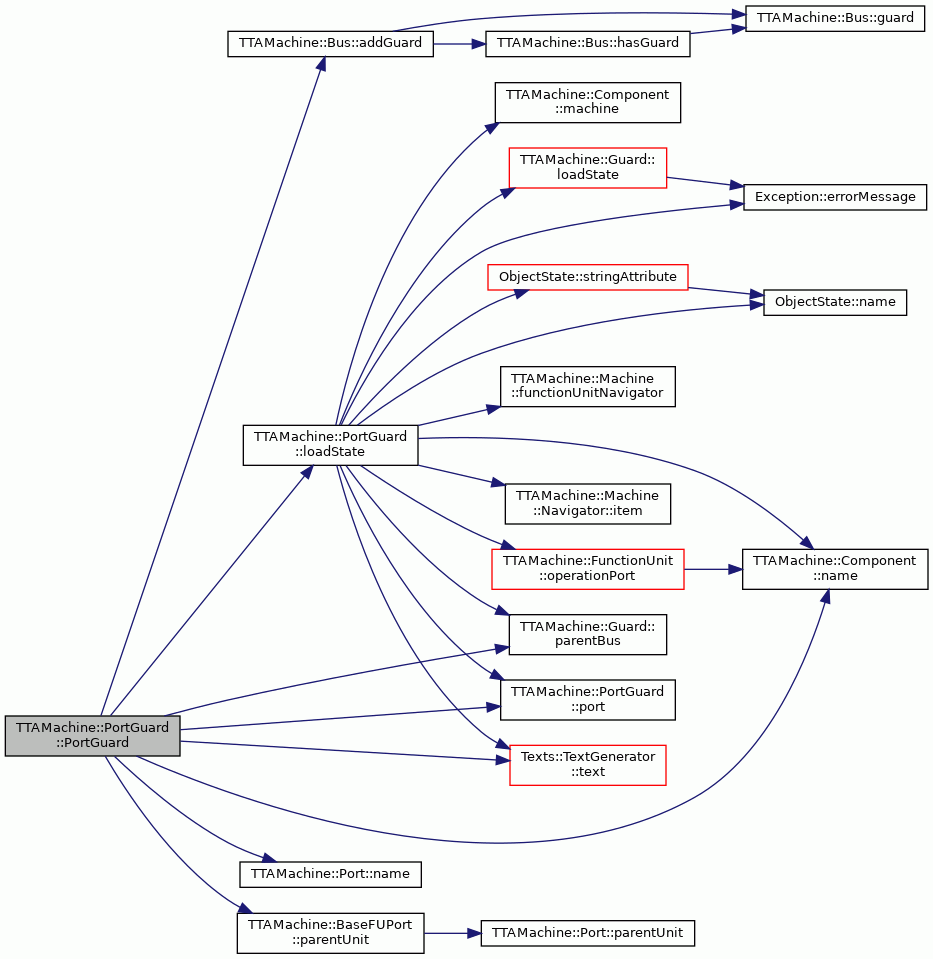

Here is the call graph for this function:

PortGuard() [2/2]

TTAMachine::PortGuard::PortGuard	(	const ObjectState *	state,
		Bus &	parentBus
	)

Constructor.

Loads its state from the given ObjectState instance.

Parameters

state	The ObjectState instance.
parentBus	Parent bus of the guard.

Exceptions

ObjectStateLoadingException

If the reference to the function unit port cannot be resolved or if the given ObjectState instance is invalid.

Definition at line 215 of file Guard.cc.

    : Guard(state, parentBus) {
    loadState(state);
    try {
        parentBus.addGuard(*this);
    } catch (const ComponentAlreadyExists&) {
        const string procName = "PortGuard::PortGuard";
        MOMTextGenerator textGen;
        format errorMsg = textGen.text(
            MOMTextGenerator::TXT_EQUAL_PORT_GUARDS);
        errorMsg % port()->name() % port()->parentUnit()->name() %
            parentBus.name();
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, errorMsg.str());
    }
}

References TTAMachine::Bus::addGuard(), loadState(), TTAMachine::Component::name(), TTAMachine::Port::name(), TTAMachine::Guard::parentBus(), TTAMachine::BaseFUPort::parentUnit(), port(), Texts::TextGenerator::text(), and MOMTextGenerator::TXT_EQUAL_PORT_GUARDS.

Here is the call graph for this function:

~PortGuard()

TTAMachine::PortGuard::~PortGuard ( )

virtual

Destructor.

Definition at line 235 of file Guard.cc.

                      {
}

Member Function Documentation

copyTo()

virtual void TTAMachine::PortGuard::copyTo ( Bus &  parentBus ) const

inlinevirtual

Implements TTAMachine::Guard.

Definition at line 109 of file Guard.hh.

                                              {
        new PortGuard(isInverted(), *port_, parentBus);
    }

References TTAMachine::Guard::isInverted(), TTAMachine::Guard::parentBus(), and port_.

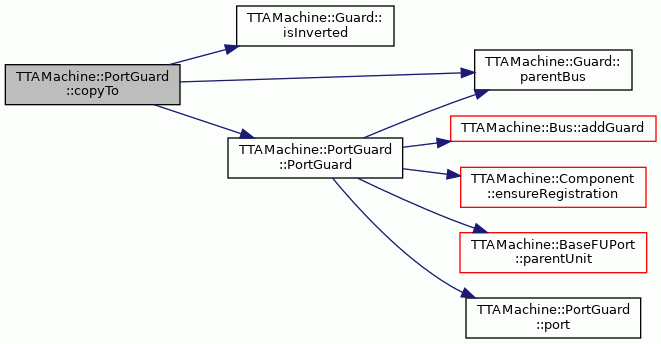

Here is the call graph for this function:

isEqual()

bool TTAMachine::PortGuard::isEqual ( const Guard &  guard ) const

virtual

Returns true if the guard is equal with the given guard.

Parameters

guard

The other guard.

Returns

True if the guard is equal with the given guard.

Implements TTAMachine::Guard.

Definition at line 246 of file Guard.cc.

                                           {
    const PortGuard* portGuard = dynamic_cast<const PortGuard*>(&guard);
    if (portGuard == NULL) {
        return false;
    } else {
        if (port() == portGuard->port() &&
            isInverted() == portGuard->isInverted()) {
            return true;
        } else {
            return false;
        }
    }
}

References TTAMachine::Guard::isInverted(), and port().

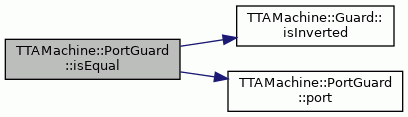

Here is the call graph for this function:

isOpposite()

bool TTAMachine::PortGuard::isOpposite ( const Guard &  guard ) const

virtual

Returns true if the guard is opposite with the given guard, ie. always if one is executed, another is not executed.

Parameters

guard

The other guard.

Returns

True if the guard is opposite with the given guard.

Implements TTAMachine::Guard.

Definition at line 268 of file Guard.cc.

                                              {
    const PortGuard* portGuard = dynamic_cast<const PortGuard*>(&guard);
    if (portGuard == NULL) {
        return false;
    } else {
        if (port() == portGuard->port() &&
            isInverted() != portGuard->isInverted()) {
            return true;
        } else {
            return false;
        }
    }
}

References TTAMachine::Guard::isInverted(), and port().

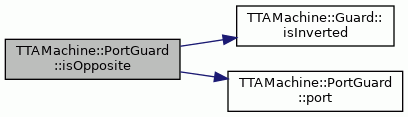

Here is the call graph for this function:

loadState()

void TTAMachine::PortGuard::loadState ( const ObjectState *  state )

virtual

Loads its state from the given ObjectState instance.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid or if the reference to the function unit port cannot be resolved.

Reimplemented from TTAMachine::Guard.

Definition at line 312 of file Guard.cc.

                                             {
    string procName = "PortGuard::loadState";
    MOMTextGenerator textGenerator;

    if (state->name() != OSNAME_PORT_GUARD) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    Guard::loadState(state);

    try {
        string fuName = state->stringAttribute(OSKEY_FU);
        string portName = state->stringAttribute(OSKEY_PORT);

        Machine* mach = parentBus()->machine();
        if (mach == NULL) {
            format text = textGenerator.text(MOMTextGenerator::
                                             TXT_GUARD_REF_LOAD_ERR);
            text % parentBus()->name();
            throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                              text.str());
        }

        Machine::FunctionUnitNavigator fuNav = mach->functionUnitNavigator();
        FunctionUnit* fu = NULL;
        FUPort* port = NULL;

        try {
            fu = fuNav.item(fuName);
        } catch (InstanceNotFound& e) {
            format text = textGenerator.text(MOMTextGenerator::
                                             TXT_GUARD_REF_LOAD_ERR_FU);
            text % parentBus()->name() % fuName;
            throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                              text.str());
        }

        try {
            port = fu->operationPort(portName);
        } catch (InstanceNotFound& e) {
            format text = textGenerator.text(MOMTextGenerator::
                                             TXT_GUARD_REF_LOAD_ERR_PORT);
            text % parentBus()->name() % portName % fuName;
            throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                              text.str());
        }

        port_ = port;

    } catch (Exception& e) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                          e.errorMessage());
    }
}

References Exception::errorMessage(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Guard::loadState(), TTAMachine::Component::machine(), TTAMachine::Component::name(), ObjectState::name(), TTAMachine::FunctionUnit::operationPort(), OSKEY_FU, OSKEY_PORT, OSNAME_PORT_GUARD, TTAMachine::Guard::parentBus(), port(), port_, ObjectState::stringAttribute(), and Texts::TextGenerator::text().

Referenced by PortGuard().

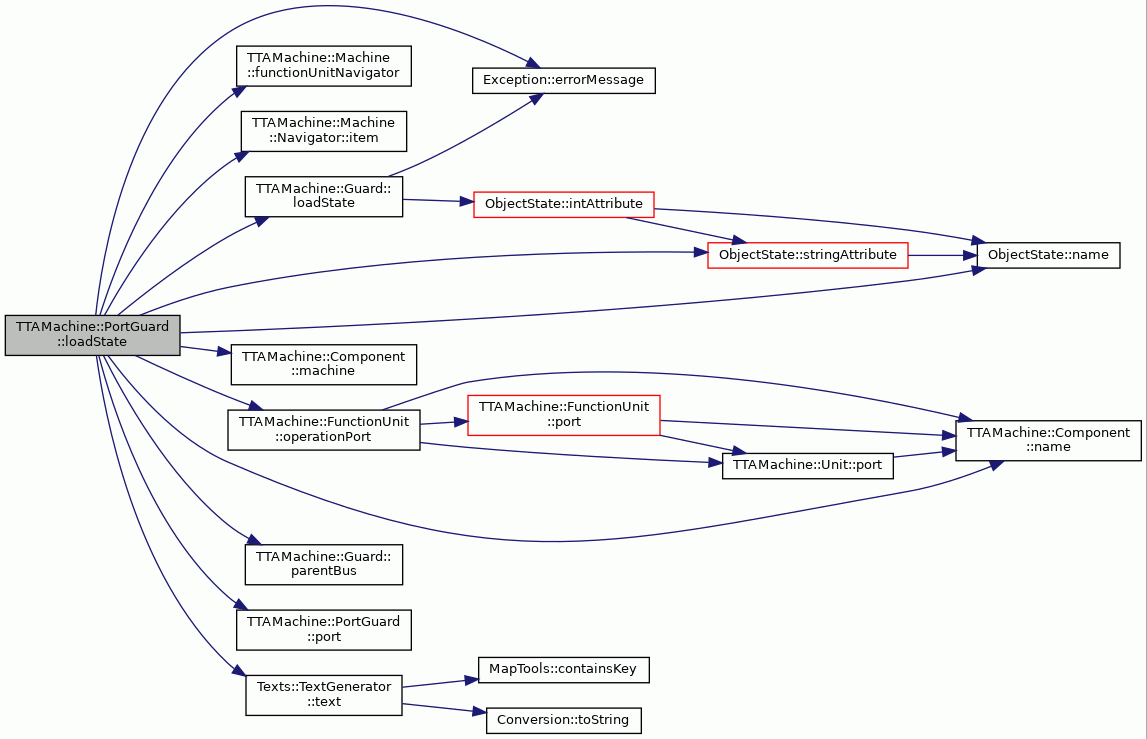

Here is the call graph for this function:

port()

FUPort * TTAMachine::PortGuard::port

(

)

const

Referenced by CodeCompressorPlugin::addBitsForGuardField(), BEMGenerator::addEncodings(), MachineStateBuilder::buildMachineState(), UtilizationStats::calculateForInstruction(), BEMValidator::checkGuardField(), TTAMachine::FunctionUnit::cleanupGuards(), TTAMachine::FUPort::cleanupGuards(), DefaultDecoderGenerator::completeDecoderBlock(), DefaultDecoderGenerator::containsSimilarGuard(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createGuard(), TTAProgram::CodeGenerator::createInverseGuard(), DefaultDecoderGenerator::findGuard(), TTAProgram::TPEFProgramFactory::findGuard(), MachineConnectivityCheck::findPossibleDestinationPorts(), ProgramOperation::fuFromOutMove(), CompiledSimCodeGenerator::generateGuardCondition(), CompiledSimCodeGenerator::generateGuardRead(), DefaultDecoderGenerator::guardPortName(), ProgramOperation::hwopFromOutMove(), isEqual(), isOpposite(), loadState(), BFLateBypassGuard::operator()(), BFEarlyGuardBypass::operator()(), ProgramOperation::outputIndexFromGuard(), PortGuard(), PortGuard(), MachineResourceManager::rFPortOrFUIndexReference(), MachineInfo::supportsPortGuardedJump(), and BusDialog::updateGuardLists().

saveState()

ObjectState * TTAMachine::PortGuard::saveState ( ) const

virtual

Saves the contents to an ObjectState object.

Returns

The created tree ObjectState object.

Reimplemented from TTAMachine::Guard.

Definition at line 289 of file Guard.cc.

                           {

    ObjectState* guardState = Guard::saveState();
    guardState->setName(OSNAME_PORT_GUARD);

    FunctionUnit* unit = port_->parentUnit();
    guardState->setAttribute(OSKEY_FU, unit->name());
    guardState->setAttribute(OSKEY_PORT, port_->name());

    return guardState;
}

References TTAMachine::Component::name(), TTAMachine::Port::name(), OSKEY_FU, OSKEY_PORT, OSNAME_PORT_GUARD, TTAMachine::BaseFUPort::parentUnit(), port_, TTAMachine::Guard::saveState(), ObjectState::setAttribute(), and ObjectState::setName().

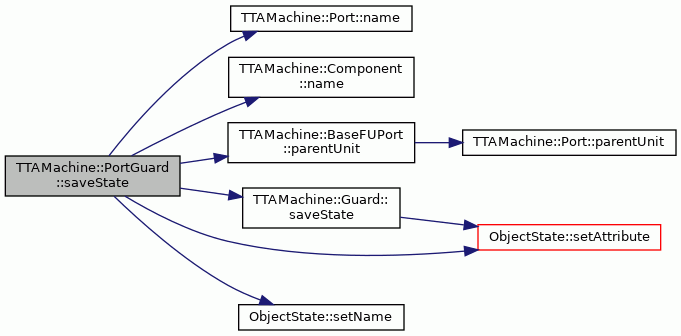

Here is the call graph for this function:

Member Data Documentation

OSKEY_FU

const string TTAMachine::PortGuard::OSKEY_FU = "fu"

static

ObjectState attribute key for function unit name.

Definition at line 119 of file Guard.hh.

Referenced by ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), loadState(), and saveState().

OSKEY_PORT

const string TTAMachine::PortGuard::OSKEY_PORT = "port"

static

ObjectState attribute key for port name.

Definition at line 121 of file Guard.hh.

Referenced by ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), loadState(), and saveState().

OSNAME_PORT_GUARD

const string TTAMachine::PortGuard::OSNAME_PORT_GUARD = "portguard"

static

ObjectState name for PortGuard ObjectState.

Definition at line 117 of file Guard.hh.

Referenced by ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), TTAMachine::Bus::loadState(), loadState(), and saveState().

port_

FUPort* TTAMachine::PortGuard::port_

private

Port from which the condition term is taken.

Definition at line 125 of file Guard.hh.

Referenced by copyTo(), loadState(), and saveState().

---

The documentation for this class was generated from the following files:

• Guard.hh
• Guard.cc
