TTAMachine::RegisterGuard Class Reference

#include <Guard.hh>

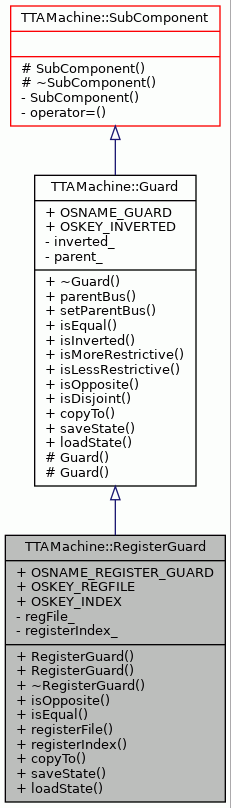

Inheritance diagram for TTAMachine::RegisterGuard:

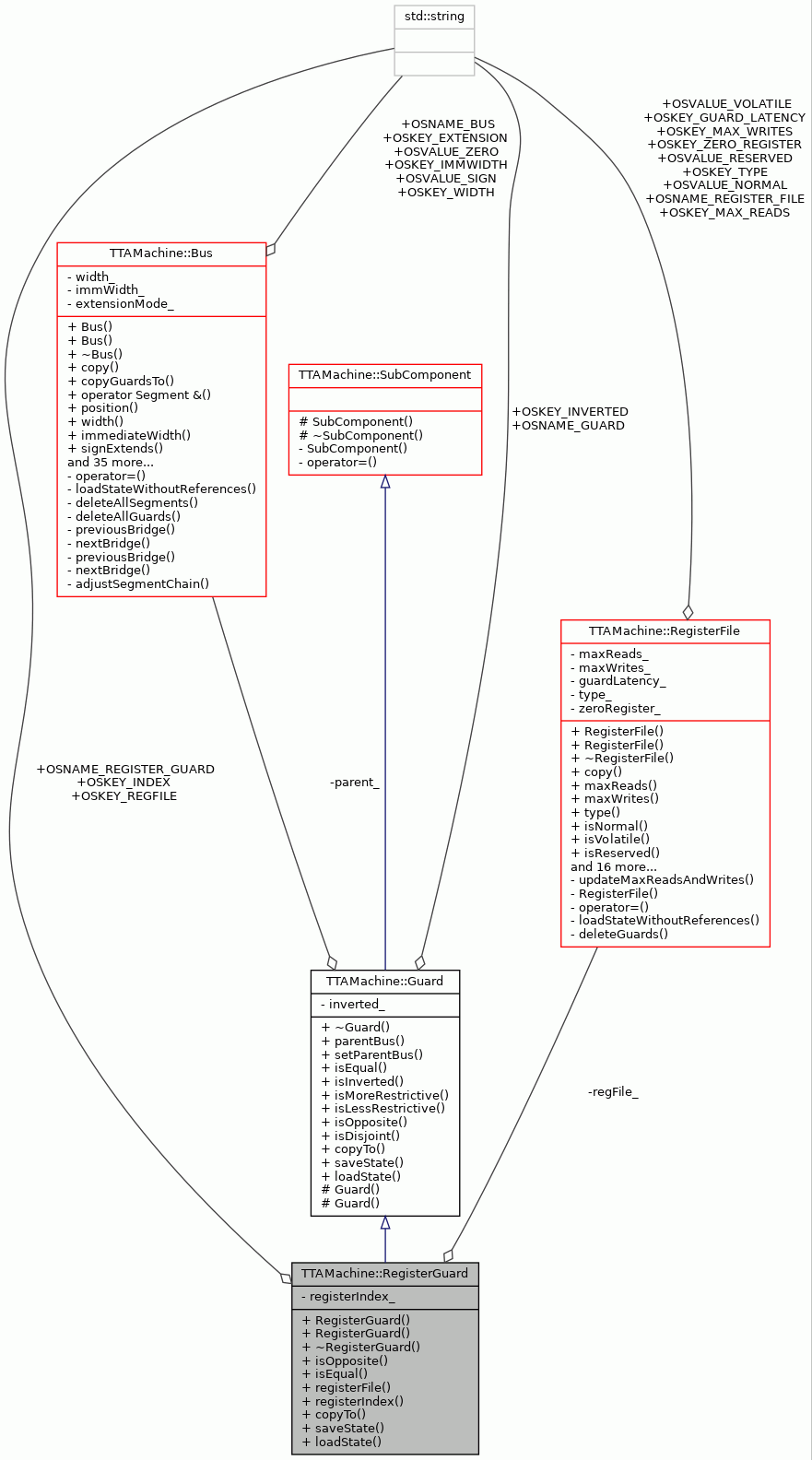

Collaboration diagram for TTAMachine::RegisterGuard:

Public Member Functions
	RegisterGuard (bool inverted, const RegisterFile &regFile, unsigned int registerIndex, Bus *parentBus)
	RegisterGuard (const ObjectState *state, Bus &parentBus)
virtual	~RegisterGuard ()
bool	isOpposite (const Guard &guard) const
bool	isEqual (const Guard &guard) const
const RegisterFile *	registerFile () const
int	registerIndex () const
virtual void	copyTo (Bus &parentBus) const
ObjectState *	saveState () const
void	loadState (const ObjectState *state)
Public Member Functions inherited from TTAMachine::Guard
virtual	~Guard ()
virtual Bus *	parentBus () const
virtual void	setParentBus (Bus *parentBus)
virtual bool	isInverted () const
virtual bool	isMoreRestrictive (const Guard &guard) const
virtual bool	isLessRestrictive (const Guard &guard) const
virtual bool	isDisjoint (const Guard &guard) const
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_REGISTER_GUARD = "registerguard"
	ObjectState name for RegisterGuard.
static const std::string	OSKEY_REGFILE = "regfile"
	ObjectState attribute key for register file name.
static const std::string	OSKEY_INDEX = "index"
	ObjectState attribute key for register index.
Static Public Attributes inherited from TTAMachine::Guard
static const std::string	OSNAME_GUARD = "guard"
	ObjectState name for guard.
static const std::string	OSKEY_INVERTED = "inverted"
	ObjectState attribute key for inverted feature.

Private Attributes
const RegisterFile *	regFile_
	RegisterFile from which the condition term is taken.
int	registerIndex_
	Index of the register from which the condition term is taken.

Additional Inherited Members
Protected Member Functions inherited from TTAMachine::Guard
	Guard (bool inverted, Bus *parentBus)
	Guard (const ObjectState *state, Bus &parentBus)
Protected Member Functions inherited from TTAMachine::SubComponent
	SubComponent ()
virtual	~SubComponent ()
Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()
virtual	~MachinePart ()

Detailed Description

Guard where the condition term is taken from the value of a register (from a RegisterFile).

Definition at line 137 of file Guard.hh.

Constructor & Destructor Documentation

RegisterGuard() [1/2]

TTAMachine::RegisterGuard::RegisterGuard	(	bool	inverted,
		const RegisterFile &	regFile,
		unsigned int	registerIndex,
		Bus *	parentBus
	)

Constructor.

Parameters

inverted	Indicates whether the condition term is inverted.
regFile	RegisterFile from which the condition term is taken.
registerIndex	Index of the register from which the condition term is taken.
parentBus	Parent bus component of the guard.

Exceptions

IllegalRegistration	If the given register file is not registered to the same machine as the parent bus of the guard.
ComponentAlreadyExists	If the parent bus already has an equal guard.
OutOfRange	If the given register file does not have a register by the given register index.
InvalidData	If local + global guard latency would be zero.

Definition at line 393 of file Guard.cc.

    : Guard(inverted, parentBus),
      regFile_(&regFile),
      registerIndex_(registerIndex) {
    if (parentBus) {
        parentBus->ensureRegistration(regFile);
    }
    if ((unsigned)regFile.numberOfRegisters() <= registerIndex) {
        string procName = "RegisterGuard::RegisterGuard";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }

    if (parentBus) {
        // make sure global + local guard latency > 0
        Machine* mach = parentBus->machine();
        ControlUnit* gcu = mach->controlUnit();
        if (gcu != NULL && gcu->globalGuardLatency() == 0 &&
            regFile.guardLatency() == 0) {
            MOMTextGenerator textGen;
            boost::format text = textGen.text(
                MOMTextGenerator::TXT_INVALID_GUARD_LATENCY);
            throw InvalidData(__FILE__, __LINE__, __func__, text.str());
        }
        parentBus->addGuard(*this);
    }
}

References __func__, TTAMachine::Bus::addGuard(), TTAMachine::Machine::controlUnit(), TTAMachine::Component::ensureRegistration(), TTAMachine::ControlUnit::globalGuardLatency(), TTAMachine::RegisterFile::guardLatency(), TTAMachine::Component::machine(), TTAMachine::BaseRegisterFile::numberOfRegisters(), TTAMachine::Guard::parentBus(), registerIndex(), Texts::TextGenerator::text(), and MOMTextGenerator::TXT_INVALID_GUARD_LATENCY.

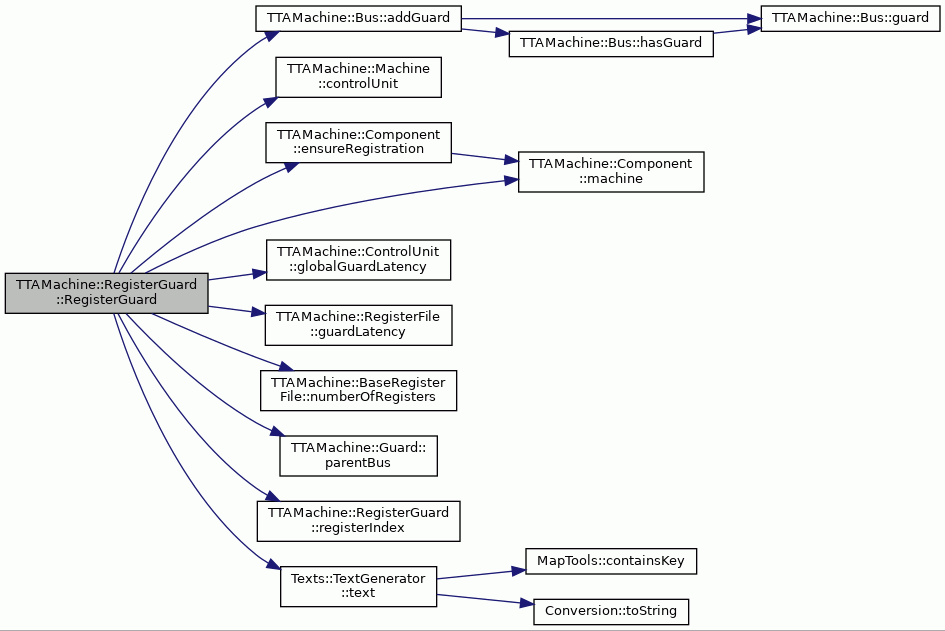

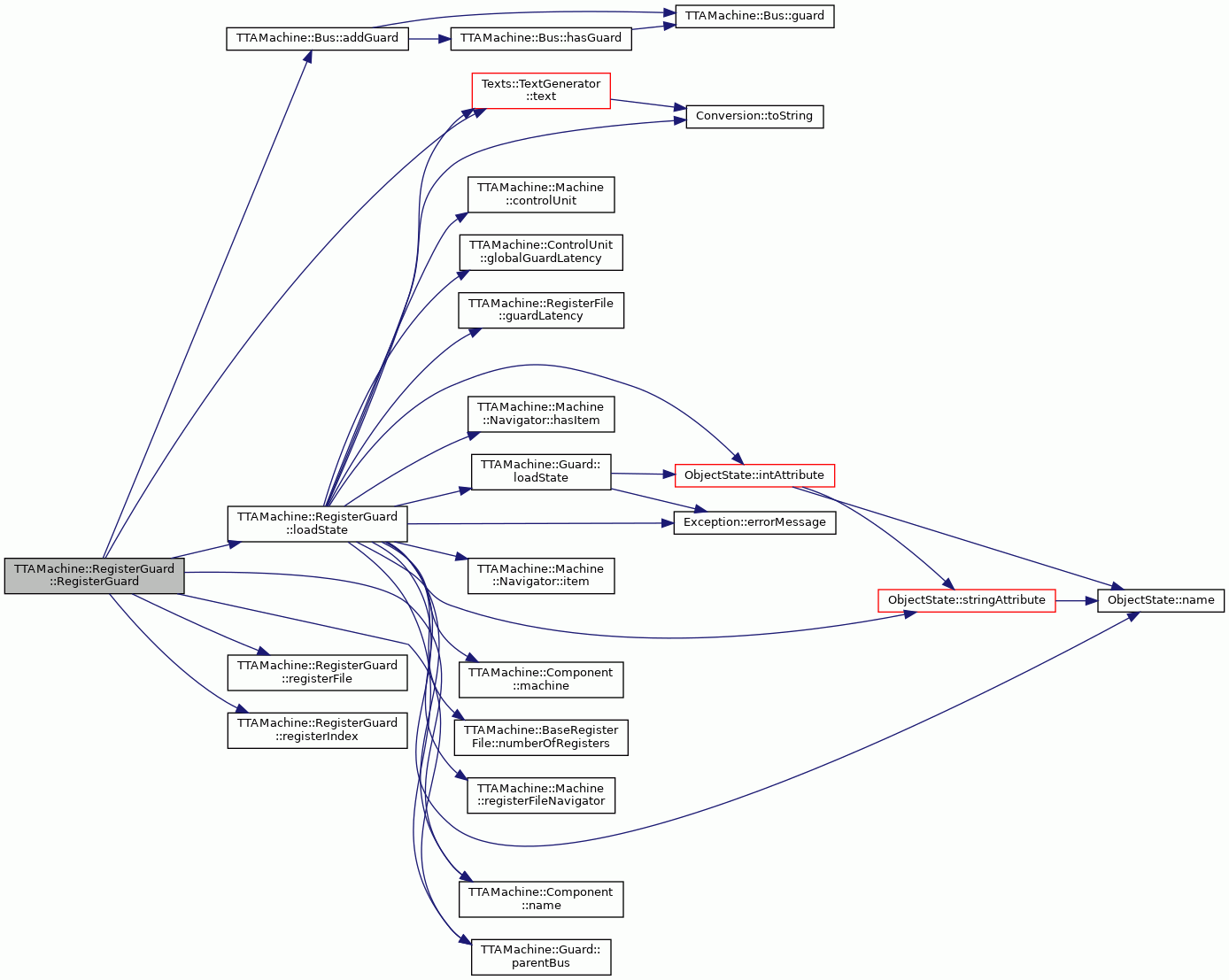

Here is the call graph for this function:

RegisterGuard() [2/2]

TTAMachine::RegisterGuard::RegisterGuard	(	const ObjectState *	state,
		Bus &	parentBus
	)

Constructor.

Creates a skeleton object without references to other machine parts. Loads its state from the given ObjectState instance. This constructor should be used by Bus::loadStateWithoutReferences only. Do not use this constructor.

Parameters

state	The ObjectState instance.
parentBus	Parent bus of the guard.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid or if the reference to the register cannot be resolved.

Definition at line 436 of file Guard.cc.

    : Guard(state, parentBus) {
    loadState(state);
    try {
        parentBus.addGuard(*this);
    } catch (const ComponentAlreadyExists&) {
        const string procName = "RegisterGuard::RegisterGuard";
        MOMTextGenerator textGen;
        format errorMsg = textGen.text(
            MOMTextGenerator::TXT_EQUAL_REGISTER_GUARDS);
        errorMsg % registerIndex() % registerFile()->name() %
            parentBus.name();
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, errorMsg.str());
    }
}

References TTAMachine::Bus::addGuard(), loadState(), TTAMachine::Component::name(), TTAMachine::Guard::parentBus(), registerFile(), registerIndex(), Texts::TextGenerator::text(), and MOMTextGenerator::TXT_EQUAL_REGISTER_GUARDS.

Here is the call graph for this function:

~RegisterGuard()

TTAMachine::RegisterGuard::~RegisterGuard ( )

virtual

Destructor.

Definition at line 456 of file Guard.cc.

                              {
}

Member Function Documentation

copyTo()

virtual void TTAMachine::RegisterGuard::copyTo ( Bus &  parentBus ) const

inlinevirtual

Implements TTAMachine::Guard.

Definition at line 149 of file Guard.hh.

                                              {
        new RegisterGuard(
            isInverted(), *regFile_, registerIndex_,
            &parentBus);
    }

References TTAMachine::Guard::isInverted(), TTAMachine::Guard::parentBus(), regFile_, and registerIndex_.

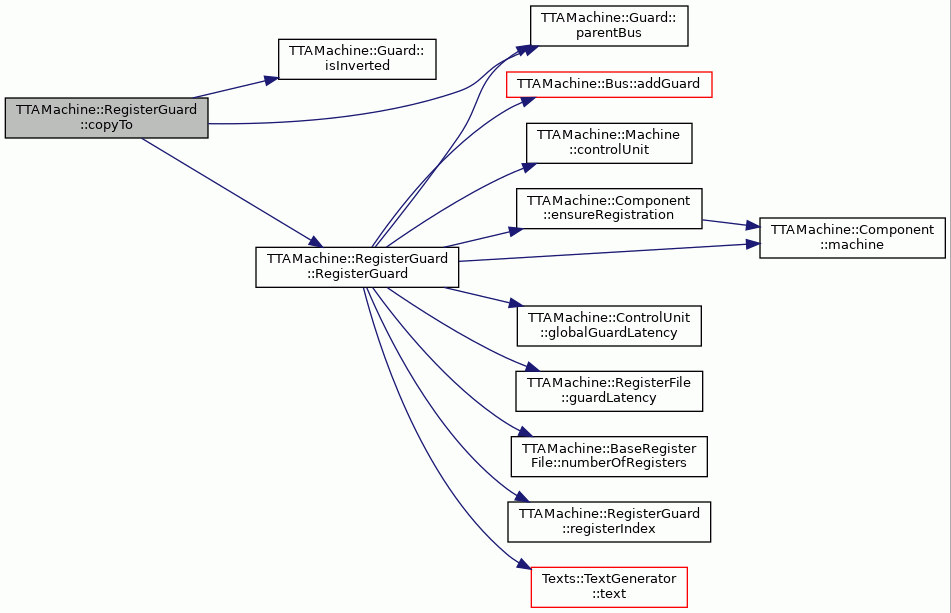

Here is the call graph for this function:

isEqual()

bool TTAMachine::RegisterGuard::isEqual ( const Guard &  guard ) const

virtual

Returns true if the guard is equal with the given guard.

Parameters

guard

The other guard.

Returns

True if the guard is equal with the given guard.

Implements TTAMachine::Guard.

Definition at line 467 of file Guard.cc.

                                               {
    const RegisterGuard* regGuard =
        dynamic_cast<const RegisterGuard*>(&guard);
    if (regGuard == NULL) {
        return false;
    } else {
        if (registerFile() == regGuard->registerFile() &&
            registerIndex() == regGuard->registerIndex() &&
            isInverted() == regGuard->isInverted()) {
            return true;
        } else {
            return false;
        }
    }
}

References TTAMachine::Guard::isInverted(), registerFile(), and registerIndex().

Here is the call graph for this function:

isOpposite()

bool TTAMachine::RegisterGuard::isOpposite ( const Guard &  guard ) const

virtual

Returns true if the guard is opposite with the given guard, ie. always if one is executed, another is not executed.

Parameters

guard

The other guard.

Returns

True if the guard is opposite with the given guard.

Implements TTAMachine::Guard.

Definition at line 491 of file Guard.cc.

                                                  {
    const RegisterGuard* regGuard =
        dynamic_cast<const RegisterGuard*>(&guard);
    if (regGuard == NULL) {
        return false;
    } else {
        if (registerFile() == regGuard->registerFile() &&
            registerIndex() == regGuard->registerIndex() &&
            isInverted() != regGuard->isInverted()) {
            return true;
        } else {
            return false;
        }
    }
}

References TTAMachine::Guard::isInverted(), registerFile(), and registerIndex().

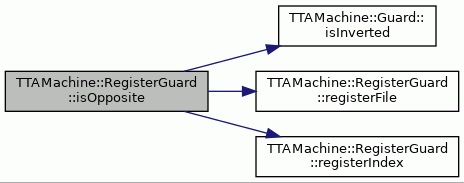

Here is the call graph for this function:

loadState()

void TTAMachine::RegisterGuard::loadState ( const ObjectState *  state )

virtual

Loads its state from the given ObjectState instance.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid or if the reference to the register file cannot be resolved.

Reimplemented from TTAMachine::Guard.

Definition at line 535 of file Guard.cc.

                                                 {
    string procName = "RegisterGuard::loadState";
    MOMTextGenerator textGenerator;

    if (state->name() != OSNAME_REGISTER_GUARD) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    if (!parentBus()->isRegistered()) {
        format text = textGenerator.text(MOMTextGenerator::
                                         TXT_GUARD_REF_LOAD_ERR);
        text % parentBus()->name();
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                          text.str());
    }

    Guard::loadState(state);

    try {
        string regFileName = state->stringAttribute(OSKEY_REGFILE);
        int regIndex = state->intAttribute(OSKEY_INDEX);

        Machine* mach = parentBus()->machine();
        Machine::RegisterFileNavigator regNav =
            mach->registerFileNavigator();
        if (regNav.hasItem(regFileName)) {
            RegisterFile* regFile = regNav.item(regFileName);

            // check local + global guard latency > 0
            ControlUnit* gcu = mach->controlUnit();
            if (regFile->guardLatency() == 0 && gcu != NULL &&
                gcu->globalGuardLatency() == 0) {
                format text = textGenerator.text(
                    MOMTextGenerator::TXT_INVALID_GUARD_LATENCY);
                throw ObjectStateLoadingException(
                    __FILE__, __LINE__, __func__, text.str());
            }

            if (regFile->numberOfRegisters() > regIndex) {
                regFile_ = regFile;
                registerIndex_ = regIndex;
            } else {
                format text = textGenerator.text(
                    MOMTextGenerator::TXT_GUARD_REF_LOAD_ERR_REGISTER);
                text % parentBus()->name() % Conversion::toString(regIndex)
                    % regFileName %
                    Conversion::toString(regFile->numberOfRegisters());
                throw ObjectStateLoadingException(__FILE__, __LINE__,
                                                  procName, text.str());
            }
        } else {
            format text = textGenerator.text(MOMTextGenerator::
                                             TXT_GUARD_REF_LOAD_ERR_RF);
            text % parentBus()->name() % regFileName;
            throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                              text.str());
        }
    } catch (Exception& e) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                          e.errorMessage());
    }
}

References __func__, TTAMachine::Machine::controlUnit(), Exception::errorMessage(), TTAMachine::ControlUnit::globalGuardLatency(), TTAMachine::RegisterFile::guardLatency(), TTAMachine::Machine::Navigator< ComponentType >::hasItem(), ObjectState::intAttribute(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Guard::loadState(), TTAMachine::Component::machine(), TTAMachine::Component::name(), ObjectState::name(), TTAMachine::BaseRegisterFile::numberOfRegisters(), OSKEY_INDEX, OSKEY_REGFILE, OSNAME_REGISTER_GUARD, TTAMachine::Guard::parentBus(), regFile_, TTAMachine::Machine::registerFileNavigator(), registerIndex_, ObjectState::stringAttribute(), Texts::TextGenerator::text(), Conversion::toString(), MOMTextGenerator::TXT_GUARD_REF_LOAD_ERR_REGISTER, and MOMTextGenerator::TXT_INVALID_GUARD_LATENCY.

Referenced by RegisterGuard().

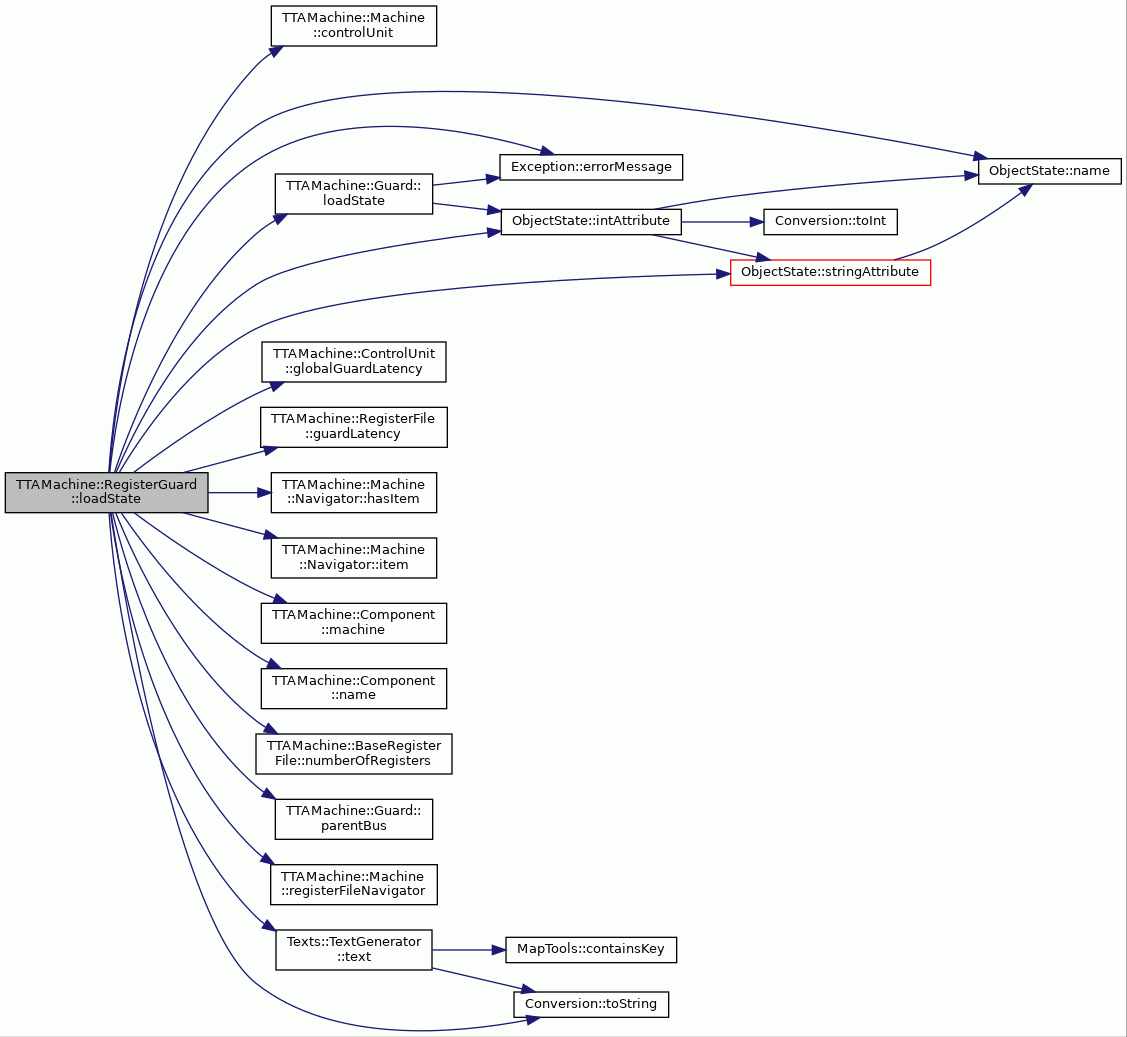

Here is the call graph for this function:

registerFile()

const RegisterFile * TTAMachine::RegisterGuard::registerFile

(

)

const

Referenced by CodeCompressorPlugin::addBitsForGuardField(), BEMGenerator::addEncodings(), ResourceConstraintAnalyzer::analyzeRegisterAntideps(), TDGen::analyzeRegisters(), MachineStateBuilder::buildMachineState(), UtilizationStats::calculateForInstruction(), SimpleIfConverter::canConvert(), ProgrammabilityValidator::checkBooleanRegister(), BEMValidator::checkGuardField(), CompiledSimCodeGenerator::CompiledSimCodeGenerator(), DefaultDecoderGenerator::completeDecoderBlock(), DataDependenceGraphBuilder::constructIndividualFromInlineAsmBB(), DefaultDecoderGenerator::containsSimilarGuard(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createGuard(), llvm::LLVMTCEBuilder::createGuard(), TTAProgram::CodeGenerator::createInverseGuard(), ProgramDependenceGraph::createJump(), TTAMachine::RegisterFile::deleteGuards(), DataDependenceGraph::destRenamed(), CopyingDelaySlotFiller::fillDelaySlots(), findBooleanGuard(), DefaultDecoderGenerator::findGuard(), TTAProgram::TPEFProgramFactory::findGuard(), RegisterRenamer::findGuardRegisters(), RegisterQuantityCheck::findGuardRegisters(), ProgrammabilityValidator::findRegisterGuard(), RegisterCopyAdder::findTempRegisters(), DataDependenceGraph::firstRegisterCycle(), DataDependenceGraph::fixInterBBAntiEdges(), CompiledSimCodeGenerator::generateGuardCondition(), CompiledSimCodeGenerator::generateGuardRead(), TTAProgram::Move::guardLatency(), CompiledSimCodeGenerator::guardPipelineTopSymbol(), DefaultDecoderGenerator::guardPortName(), DataDependenceGraph::guardRenamed(), MachineConnectivityCheck::hasBothGuards(), MachineConnectivityCheck::hasConditionalMoves(), TTAMachine::ControlUnit::hasLocalGuardLatencyOfZero(), isEqual(), isOpposite(), TTAMachine::RegisterFile::isUsedAsGuard(), DataDependenceGraph::lastRegisterCycle(), DataDependenceGraph::lastScheduledRegisterGuardReads(), ListCompareFunction(), MachineInfo::longestGuardLatency(), RFGuardDialog::onOK(), DataDependenceGraphBuilder::processGuard(), MachineResourceManager::registerFileIndexReference(), RegisterGuard(), RegisterRenamer::renameLiveRange(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), MachineResourceManager::rFPortOrFUIndexReference(), DataDependenceGraph::sanityCheck(), SequentialScheduler::scheduleMove(), BFRenameLiveRange::setGuard(), MachineInfo::supportsBoolRegisterGuardedJumps(), PostpassOperandSharer::tryRemoveOperandWrite(), and BusDialog::updateGuardLists().

registerIndex()

int TTAMachine::RegisterGuard::registerIndex

(

)

const

Referenced by CodeCompressorPlugin::addBitsForGuardField(), BEMGenerator::addEncodings(), TDGen::analyzeRegisters(), MachineStateBuilder::buildMachineState(), UtilizationStats::calculateForInstruction(), SimpleIfConverter::canConvert(), ProgrammabilityValidator::checkBooleanRegister(), BEMValidator::checkGuardField(), CompiledSimCodeGenerator::CompiledSimCodeGenerator(), DefaultDecoderGenerator::completeDecoderBlock(), DataDependenceGraphBuilder::constructIndividualFromInlineAsmBB(), DefaultDecoderGenerator::containsSimilarGuard(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createGuard(), llvm::LLVMTCEBuilder::createGuard(), TTAProgram::CodeGenerator::createInverseGuard(), ProgramDependenceGraph::createJump(), TTAMachine::RegisterFile::deleteGuards(), DataDependenceGraph::destRenamed(), CopyingDelaySlotFiller::fillDelaySlots(), DefaultDecoderGenerator::findGuard(), TTAProgram::TPEFProgramFactory::findGuard(), RegisterRenamer::findGuardRegisters(), RegisterQuantityCheck::findGuardRegisters(), ProgrammabilityValidator::findRegisterGuard(), RegisterCopyAdder::findTempRegisters(), DataDependenceGraph::firstRegisterCycle(), DataDependenceGraph::fixInterBBAntiEdges(), CompiledSimCodeGenerator::generateGuardCondition(), CompiledSimCodeGenerator::generateGuardRead(), CompiledSimCodeGenerator::guardPipelineTopSymbol(), DefaultDecoderGenerator::guardPortName(), DataDependenceGraph::guardRenamed(), MachineConnectivityCheck::hasBothGuards(), MachineConnectivityCheck::hasConditionalMoves(), isEqual(), isOpposite(), DataDependenceGraph::lastRegisterCycle(), DataDependenceGraph::lastScheduledRegisterGuardReads(), ListCompareFunction(), DataDependenceGraphBuilder::processGuard(), MachineResourceManager::registerFileIndexReference(), RegisterGuard(), RegisterGuard(), RegisterRenamer::renameLiveRange(), MachineResourceManager::rFPortOrFUIndexReference(), BFRenameLiveRange::setGuard(), PostpassOperandSharer::tryRemoveOperandWrite(), and BusDialog::updateGuardLists().

saveState()

ObjectState * TTAMachine::RegisterGuard::saveState ( ) const

virtual

Saves the contents to an ObjectState object.

Returns

The created ObjectState object..

Reimplemented from TTAMachine::Guard.

Definition at line 514 of file Guard.cc.

                               {

    ObjectState* guardState = Guard::saveState();
    guardState->setName(OSNAME_REGISTER_GUARD);
    guardState->setAttribute(OSKEY_REGFILE, regFile_->name());
    guardState->setAttribute(OSKEY_INDEX, registerIndex_);

    return guardState;
}

References TTAMachine::Component::name(), OSKEY_INDEX, OSKEY_REGFILE, OSNAME_REGISTER_GUARD, regFile_, registerIndex_, TTAMachine::Guard::saveState(), ObjectState::setAttribute(), and ObjectState::setName().

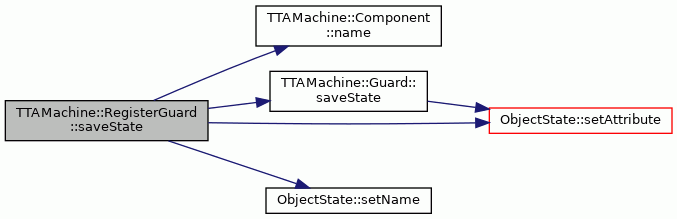

Here is the call graph for this function:

Member Data Documentation

OSKEY_INDEX

const string TTAMachine::RegisterGuard::OSKEY_INDEX = "index"

static

ObjectState attribute key for register index.

Definition at line 163 of file Guard.hh.

Referenced by ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), loadState(), and saveState().

OSKEY_REGFILE

const string TTAMachine::RegisterGuard::OSKEY_REGFILE = "regfile"

static

ObjectState attribute key for register file name.

Definition at line 161 of file Guard.hh.

Referenced by ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), loadState(), and saveState().

OSNAME_REGISTER_GUARD

const string TTAMachine::RegisterGuard::OSNAME_REGISTER_GUARD = "registerguard"

static

ObjectState name for RegisterGuard.

Definition at line 159 of file Guard.hh.

Referenced by ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), TTAMachine::Bus::loadState(), loadState(), and saveState().

regFile_

const RegisterFile* TTAMachine::RegisterGuard::regFile_

private

RegisterFile from which the condition term is taken.

Definition at line 167 of file Guard.hh.

Referenced by copyTo(), loadState(), and saveState().

registerIndex_

int TTAMachine::RegisterGuard::registerIndex_

private

Index of the register from which the condition term is taken.

Definition at line 169 of file Guard.hh.

Referenced by copyTo(), loadState(), and saveState().

---

The documentation for this class was generated from the following files:

• Guard.hh
• Guard.cc
