#include <XilinxBlockRamGenerator.hh>

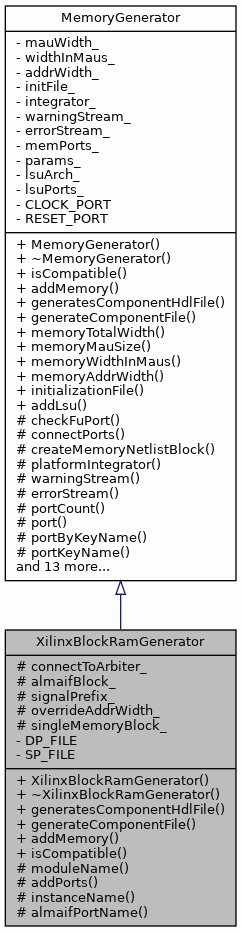

Inheritance diagram for XilinxBlockRamGenerator:

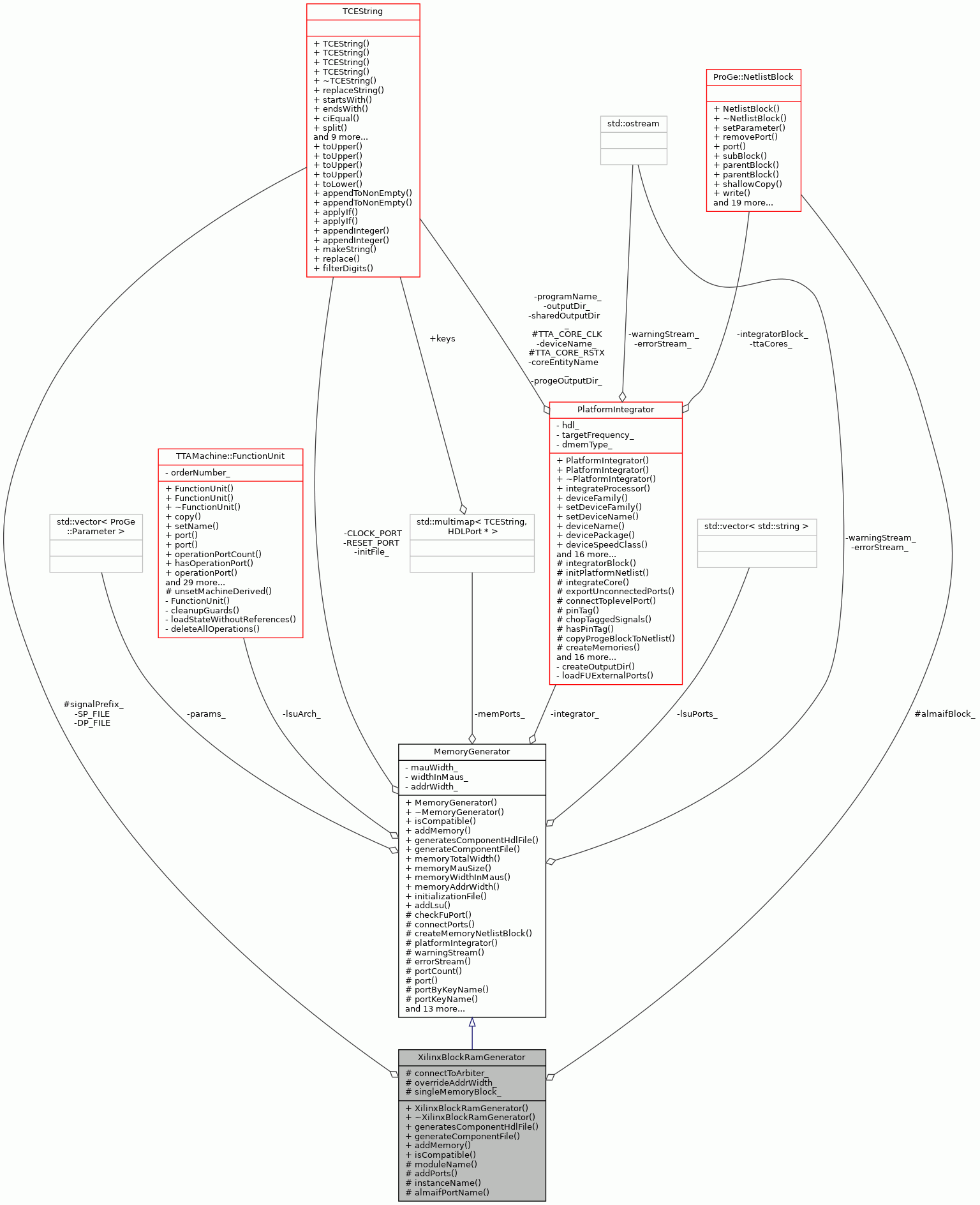

Collaboration diagram for XilinxBlockRamGenerator:

Public Member Functions
	XilinxBlockRamGenerator (int memMauWidth, int widthInMaus, int addrWidth, int portBDataWidth, int portBAddrWidth, const PlatformIntegrator integrator, std::ostream &warningStream, std::ostream &errorStream, bool connectToArbiter=false, ProGe::NetlistBlock almaifBlocks=nullptr, TCEString signalPrefix="", bool overrideAddrWidth=false, bool singleMemoryBlock=false)

virtual	~XilinxBlockRamGenerator ()

virtual bool	generatesComponentHdlFile () const

virtual std::vector< TCEString >	generateComponentFile (TCEString outputPath)

virtual void	addMemory (const ProGe::NetlistBlock &ttaCore, ProGe::NetlistBlock &integratorBlock, int memIndex, int coreId)

virtual bool	isCompatible (const ProGe::NetlistBlock &ttaCore, int coreId, std::vector< TCEString > &reasons) const

Public Member Functions inherited from MemoryGenerator
	MemoryGenerator (int memMauWidth, int widthInMaus, int addrWidth, TCEString initFile, const PlatformIntegrator *integrator, std::ostream &warningStream, std::ostream &errorStream)

virtual	~MemoryGenerator ()

int	memoryTotalWidth () const

int	memoryMauSize () const

int	memoryWidthInMaus () const

int	memoryAddrWidth () const

TCEString	initializationFile () const

void	addLsu (TTAMachine::FunctionUnit &lsuArch, std::vector< std::string > lsuPorts)

Protected Member Functions
virtual TCEString	moduleName () const

void	addPorts (std::string prefix, int addrWidth, int dataWidth)

virtual TCEString	instanceName (int coreId, int) const

TCEString	almaifPortName (const TCEString &portBaseName)

Protected Member Functions inherited from MemoryGenerator
virtual bool	checkFuPort (const std::string fuPort, std::vector< TCEString > &reasons) const

virtual void	connectPorts (ProGe::NetlistBlock &netlistBlock, const ProGe::NetlistPort &memPort, const ProGe::NetlistPort &corePort, bool inverted, int coreId)

virtual MemoryGenerator::BlockPair	createMemoryNetlistBlock (ProGe::NetlistBlock &integratorBlock, int memIndex, int coreId)

const PlatformIntegrator *	platformIntegrator () const

std::ostream &	warningStream ()

std::ostream &	errorStream ()

int	portCount () const

const HDLPort *	port (int index) const

const HDLPort *	portByKeyName (TCEString name) const

TCEString	portKeyName (const HDLPort *port) const

void	addPort (const TCEString &name, HDLPort *port)

int	parameterCount () const

const ProGe::Parameter &	parameter (int index) const

void	addParameter (const ProGe::Parameter &add)

TCEString	ttaCoreName () const

TCEString	memoryIndexString (int coreId, int memIndex) const

TCEString	templatePath () const

void	instantiateTemplate (const TCEString &inFile, const TCEString &outFile, const TCEString &entity) const

bool	hasLSUArchitecture () const

const TTAMachine::FunctionUnit &	lsuArchitecture () const

TCEString	corePortName (const TCEString &portBaseName, int coreId) const

Protected Attributes
const bool	connectToArbiter_

ProGe::NetlistBlock *	almaifBlock_

TCEString	signalPrefix_

const bool	overrideAddrWidth_

const bool	singleMemoryBlock_

Static Private Attributes
static const TCEString	DP_FILE = "xilinx_dp_blockram.vhdl"

static const TCEString	SP_FILE = "xilinx_blockram.vhdl"

Additional Inherited Members
Protected Types inherited from MemoryGenerator
typedef std::multimap< TCEString, HDLPort * >	PortMap

typedef std::pair< ProGe::NetlistBlock , ProGe::VirtualNetlistBlock >	BlockPair

Detailed Description

Definition at line 41 of file XilinxBlockRamGenerator.hh.

Constructor & Destructor Documentation

◆ XilinxBlockRamGenerator()

XilinxBlockRamGenerator::XilinxBlockRamGenerator	(	int	memMauWidth,
		int	widthInMaus,
		int	addrWidth,
		int	portBDataWidth,
		int	portBAddrWidth,
		const PlatformIntegrator *	integrator,
		std::ostream &	warningStream,
		std::ostream &	errorStream,
		bool	connectToArbiter = `false`,
		ProGe::NetlistBlock *	almaifBlocks = `nullptr`,
		TCEString	signalPrefix = `""`,
		bool	overrideAddrWidth = `false`,
		bool	singleMemoryBlock = `false`
	)

Definition at line 47 of file XilinxBlockRamGenerator.cc.

    : MemoryGenerator(
          memMauWidth, widthInMaus, addrWidth, "", integrator, warningStream,
          errorStream),
      connectToArbiter_(connectToArbiter),
      almaifBlock_(almaifBlock),
      signalPrefix_(signalPrefix),
      overrideAddrWidth_(overrideAddrWidth),
      singleMemoryBlock_(singleMemoryBlock) {
    assert (!connectToArbiter || almaifBlock != nullptr);

    ProGe::Parameter dataw = {"dataw_g", "integer",
        Conversion::toString(memoryTotalWidth())};
    ProGe::Parameter addrw = {"addrw_g", "integer",
        Conversion::toString(memoryAddrWidth())};


    ProGe::Parameter second_dataw = {"dataw_b_g", "integer",
        Conversion::toString(portBDataWidth)};
    ProGe::Parameter second_addrw = {"addrw_b_g", "integer",
        Conversion::toString(portBAddrWidth)};

    if (overrideAddrWidth) {
        addrw.setValue("local_mem_addrw_g");
        second_addrw.setValue("local_mem_addrw_g");
    }

    addParameter(dataw);
    addParameter(addrw);

    if (connectToArbiter_) {
        addParameter(second_dataw);
        addParameter(second_addrw);
    }

    addPort("clk", new HDLPort("clk", "1", ProGe::BIT, ProGe::IN, false, 1));
    addPort("rstx", new HDLPort("rstx", "1", ProGe::BIT, ProGe::IN, false, 1));
    if (connectToArbiter) {
        addPorts("a_", memoryAddrWidth(), memoryTotalWidth());
        addPorts("b_", portBAddrWidth, portBDataWidth);
    } else {
        addPorts("", memoryAddrWidth(), memoryTotalWidth());
    }
}

References MemoryGenerator::addParameter(), MemoryGenerator::addPort(), addPorts(), assert, ProGe::BIT, connectToArbiter_, ProGe::IN, MemoryGenerator::memoryAddrWidth(), MemoryGenerator::memoryTotalWidth(), ProGe::Parameter::setValue(), and Conversion::toString().

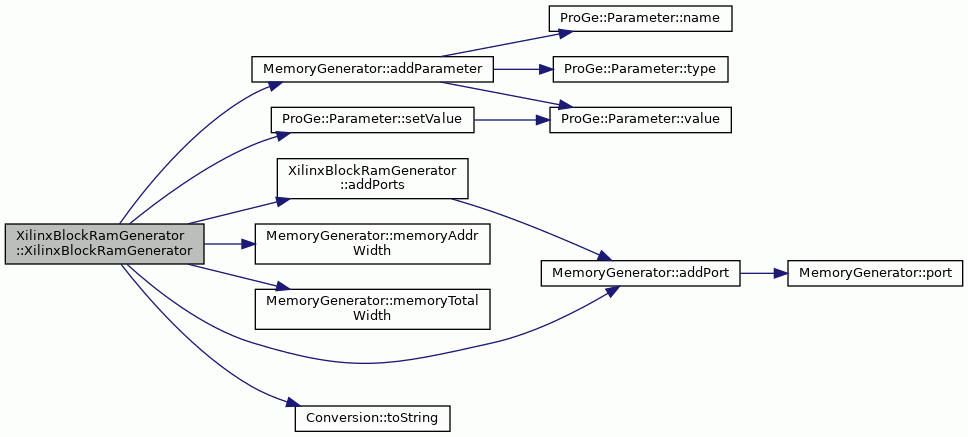

Here is the call graph for this function:

◆ ~XilinxBlockRamGenerator()

XilinxBlockRamGenerator::~XilinxBlockRamGenerator ( )

virtual

Definition at line 97 of file XilinxBlockRamGenerator.cc.

97 {

98}

Member Function Documentation

◆ addMemory()

void XilinxBlockRamGenerator::addMemory	(	const ProGe::NetlistBlock &	ttaCore,
		ProGe::NetlistBlock &	integratorBlock,
		int	memIndex,
		int	coreId
	)

virtual

Reimplemented from MemoryGenerator.

Definition at line 149 of file XilinxBlockRamGenerator.cc.

                              {

    // Do not instantiate multiple physical memories for shared AS when shared
    if (coreId > 0 && connectToArbiter_ && singleMemoryBlock_) {
        return;
    }
    BlockPair blocks =
        createMemoryNetlistBlock(integratorBlock, memIndex, coreId);
    ProGe::NetlistBlock* mem = blocks.first;
    ProGe::VirtualNetlistBlock* virt = blocks.second;
    assert(mem != NULL);
    assert(virt != NULL);

    if (virt->portCount() > 0) {
        integratorBlock.addSubBlock(virt);
    }

    for (int i = 0; i < portCount(); i++) {
        const HDLPort* hdlPort = port(i);
        ProGe::NetlistPort* memPort = mem->port(hdlPort->name());
        if (memPort == NULL) {
            memPort = virt->port(hdlPort->name());
            if (memPort == NULL) {
                TCEString msg = "Port ";
                msg << hdlPort->name() << " not found from netlist block";
                throw InvalidData(__FILE__, __LINE__, "MemoryGenerator", msg);
            }
        }


        TCEString portName = corePortName(portKeyName(hdlPort), coreId);
        const ProGe::NetlistPort* corePort = NULL;
        // clock and reset must be connected to new toplevel ports
        if (portName == platformIntegrator()->clockPort()->name()) {
            corePort = platformIntegrator()->clockPort();
        } else if (portName == platformIntegrator()->resetPort()->name()) {
            corePort = platformIntegrator()->resetPort();
        } else {
            if (connectToArbiter_) {
                portName = almaifPortName(portKeyName(hdlPort));
                corePort = almaifBlock_->port(portName);
            } else {
                corePort = ttaCore.port(portName);
            }
        }
        if (corePort == NULL) {
            TCEString msg = "Port ";
            msg << portName << " not found from";
            if (connectToArbiter_) {
                msg << " AlmaIF ";
            } else {
                msg << " TTA core ";
            }
            msg << "netlist block";
            throw InvalidData(__FILE__, __LINE__, "MemoryGenerator", msg);
        }

        if (connectToArbiter_ && !overrideAddrWidth_ &&
            corePort->realWidth() != memPort->realWidth()) {
            // Assume a private memory, split wide integrator signals accross
            // multiple cores
            int portWidth = memPort->realWidth();
            // This assumes no ports are inverted
            integratorBlock.netlist().connect(*memPort, *corePort,
                                              0, portWidth*coreId,
                                              portWidth);
        } else {
            connectPorts(
                integratorBlock, *corePort, *memPort,
                hdlPort->needsInversion(), coreId);
        }
    }
}

References ProGe::NetlistBlock::addSubBlock(), almaifBlock_, almaifPortName(), assert, PlatformIntegrator::clockPort(), ProGe::Netlist::connect(), MemoryGenerator::connectPorts(), connectToArbiter_, MemoryGenerator::corePortName(), MemoryGenerator::createMemoryNetlistBlock(), HDLPort::name(), HDLPort::needsInversion(), ProGe::NetlistBlock::netlist(), overrideAddrWidth_, MemoryGenerator::platformIntegrator(), ProGe::NetlistBlock::port(), MemoryGenerator::port(), MemoryGenerator::portCount(), ProGe::NetlistBlock::portCount(), MemoryGenerator::portKeyName(), ProGe::NetlistPort::realWidth(), PlatformIntegrator::resetPort(), and singleMemoryBlock_.

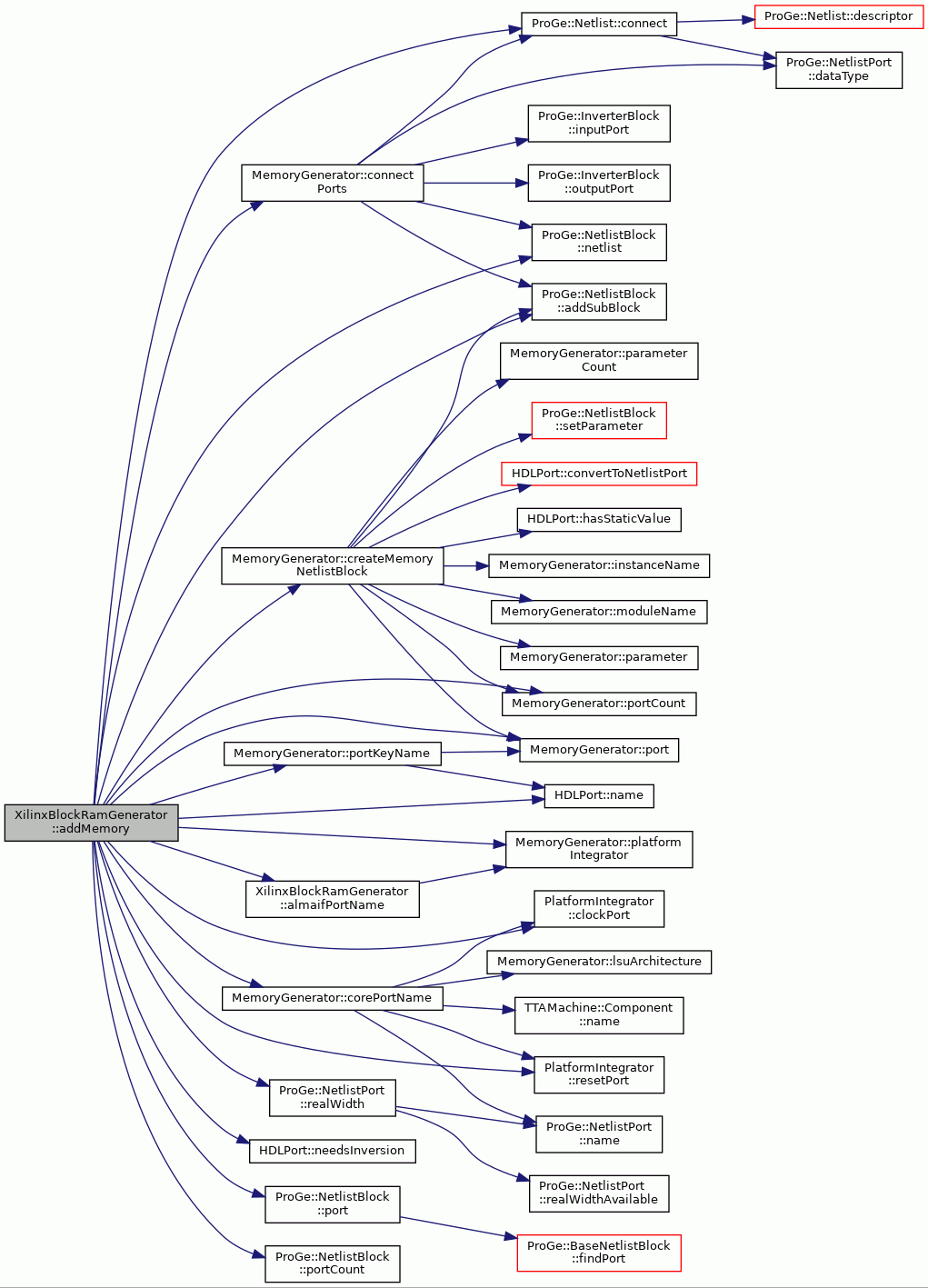

Here is the call graph for this function:

◆ addPorts()

void XilinxBlockRamGenerator::addPorts	(	std::string	prefix,
		int	addrWidth,
		int	dataWidth
	)

protected

Definition at line 106 of file XilinxBlockRamGenerator.cc.

                                                 {
    std::string datawGeneric = "dataw_g";
    std::string addrwGeneric = "addrw_g";
    if (pfx == "b_") {
        datawGeneric = "dataw_b_g";
        addrwGeneric = "addrw_b_g";
    }
    const ProGe::DataType BIT = ProGe::BIT;
    const ProGe::DataType VEC = ProGe::BIT_VECTOR;
    const ProGe::Direction IN  = ProGe::IN;
    const ProGe::Direction OUT = ProGe::OUT;
    const bool noInvert = false;
    addPort(pfx + "avalid_out",
            new HDLPort(pfx + "avalid_in", "1", BIT, IN, noInvert, 1));
    addPort(pfx + "aready_in",
            new HDLPort(pfx + "aready_out", "1", BIT, OUT, noInvert, 1));
    if (!overrideAddrWidth_) {
        addPort(pfx + "aaddr_out",
                new HDLPort(pfx + "aaddr_in", addrwGeneric, VEC, IN, noInvert,
                            addrWidth));
    } else {
        addPort(pfx + "aaddr_out",
                new HDLPort(pfx + "aaddr_in", addrwGeneric, VEC, IN, noInvert));
    }
    addPort(pfx + "awren_out",
            new HDLPort(pfx + "awren_in", "1", BIT, IN, noInvert, 1));
    addPort(pfx + "astrb_out",
            new HDLPort(pfx + "astrb_in", "(" + datawGeneric + "+7)/8", VEC, IN,
                        noInvert, (dataWidth+7)/8));
    addPort(pfx + "adata_out",
            new HDLPort(pfx + "adata_in", datawGeneric, VEC, IN, noInvert,
                        dataWidth));
    addPort(pfx + "rvalid_in",
            new HDLPort(pfx + "rvalid_out", "1", BIT, ProGe::OUT, noInvert, 1));
    addPort(pfx + "rready_out",
            new HDLPort(pfx + "rready_in", "1", BIT, IN, noInvert, 1));
    addPort(pfx + "rdata_in",
            new HDLPort(pfx + "rdata_out", datawGeneric, VEC, OUT, noInvert,
                        dataWidth));
}

References MemoryGenerator::addPort(), ProGe::BIT, ProGe::BIT_VECTOR, ProGe::IN, ProGe::OUT, and overrideAddrWidth_.

Referenced by XilinxBlockRamGenerator().

Here is the call graph for this function:

◆ almaifPortName()

TCEString XilinxBlockRamGenerator::almaifPortName ( const TCEString & portBaseName )

protected

Definition at line 263 of file XilinxBlockRamGenerator.cc.

                                                                     {
    // clock and reset port names are global
    if (portBaseName == platformIntegrator()->clockPort()->name() ||
        portBaseName == platformIntegrator()->resetPort()->name()) {
        return portBaseName;
    }

    return signalPrefix_ + "_" + portBaseName;
}

References MemoryGenerator::platformIntegrator(), and signalPrefix_.

Referenced by addMemory().

Here is the call graph for this function:

◆ generateComponentFile()

std::vector< TCEString > XilinxBlockRamGenerator::generateComponentFile ( TCEString outputPath )

virtual

Implements MemoryGenerator.

Definition at line 227 of file XilinxBlockRamGenerator.cc.

                                                                   {
    TCEString inputFile =
        templatePath() << FileSystem::DIRECTORY_SEPARATOR
                       << (connectToArbiter_ ? DP_FILE : SP_FILE);
    TCEString outputFile;
    outputFile << outputPath << FileSystem::DIRECTORY_SEPARATOR
               << moduleName() << ".vhdl";

    FileSystem::copy(inputFile, outputPath);
    std::vector<TCEString> files;
    files.push_back(outputFile);
    return files;
}

References connectToArbiter_, FileSystem::copy(), FileSystem::DIRECTORY_SEPARATOR, DP_FILE, moduleName(), SP_FILE, and MemoryGenerator::templatePath().

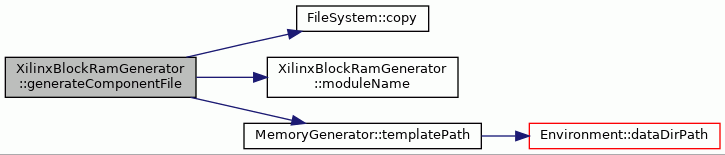

Here is the call graph for this function:

◆ generatesComponentHdlFile()

bool XilinxBlockRamGenerator::generatesComponentHdlFile ( ) const

virtual

Implements MemoryGenerator.

Definition at line 101 of file XilinxBlockRamGenerator.cc.

                                                         {
    return true;
}

◆ instanceName()

TCEString XilinxBlockRamGenerator::instanceName	(	int	coreId,
		int
	)		const

protectedvirtual

Implements MemoryGenerator.

Definition at line 253 of file XilinxBlockRamGenerator.cc.

                                                           {
    TCEString iname = "onchip_mem_";

    if (coreId != -1) {
        iname << "core" << coreId << "_";
    }
    return iname << signalPrefix_;
}

References signalPrefix_.

◆ isCompatible()

bool XilinxBlockRamGenerator::isCompatible	(	const ProGe::NetlistBlock &	ttaCore,
		int	coreId,
		std::vector< TCEString > &	reasons
	)		const

virtual

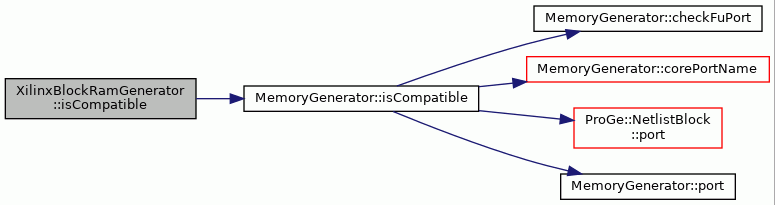

Tests that the memory generator is compatible with TTA core. If incompatible, reasons are appended to the reasons vector

Parameters

ttaCore	TTA toplevel
coreId	The core ID number
reasons	Reasons why incompatible

Returns: is memory generator compatible with the TTA core

Reimplemented from MemoryGenerator.

Definition at line 274 of file XilinxBlockRamGenerator.cc.

                                                         {
    if (connectToArbiter_) {
        // TODO: Actually check almaifBlock_ ports?
        return true;
    } else {
        return MemoryGenerator::isCompatible(ttaCore, coreId, reasons);
    }
}

References connectToArbiter_, and MemoryGenerator::isCompatible().

Here is the call graph for this function:

◆ moduleName()

TCEString XilinxBlockRamGenerator::moduleName ( ) const

protectedvirtual

Implements MemoryGenerator.

Definition at line 243 of file XilinxBlockRamGenerator.cc.

                                          {
    TCEString name = "xilinx_";
    if (connectToArbiter_)
        name += "dp_";
    name += "blockram";
    return name;
}

References connectToArbiter_.

Referenced by generateComponentFile().

Member Data Documentation

◆ almaifBlock_

ProGe::NetlistBlock* XilinxBlockRamGenerator::almaifBlock_

protected

Definition at line 82 of file XilinxBlockRamGenerator.hh.

Referenced by addMemory().

◆ connectToArbiter_

const bool XilinxBlockRamGenerator::connectToArbiter_

protected

Definition at line 81 of file XilinxBlockRamGenerator.hh.

Referenced by addMemory(), generateComponentFile(), isCompatible(), moduleName(), and XilinxBlockRamGenerator().

◆ DP_FILE

const TCEString XilinxBlockRamGenerator::DP_FILE = "xilinx_dp_blockram.vhdl"

staticprivate

Definition at line 89 of file XilinxBlockRamGenerator.hh.

Referenced by generateComponentFile().

◆ overrideAddrWidth_

const bool XilinxBlockRamGenerator::overrideAddrWidth_

protected

Definition at line 84 of file XilinxBlockRamGenerator.hh.

Referenced by addMemory(), and addPorts().

◆ signalPrefix_

TCEString XilinxBlockRamGenerator::signalPrefix_

protected

Definition at line 83 of file XilinxBlockRamGenerator.hh.

Referenced by almaifPortName(), and instanceName().

◆ singleMemoryBlock_

const bool XilinxBlockRamGenerator::singleMemoryBlock_

protected

Definition at line 85 of file XilinxBlockRamGenerator.hh.

Referenced by addMemory().

◆ SP_FILE

const TCEString XilinxBlockRamGenerator::SP_FILE = "xilinx_blockram.vhdl"

staticprivate

Definition at line 90 of file XilinxBlockRamGenerator.hh.

Referenced by generateComponentFile().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ XilinxBlockRamGenerator()

◆ ~XilinxBlockRamGenerator()

Member Function Documentation

◆ addMemory()

◆ addPorts()

◆ almaifPortName()

◆ generateComponentFile()

◆ generatesComponentHdlFile()

◆ instanceName()

◆ isCompatible()

◆ moduleName()

Member Data Documentation

◆ almaifBlock_

◆ connectToArbiter_

◆ DP_FILE

◆ overrideAddrWidth_

◆ signalPrefix_

◆ singleMemoryBlock_

◆ SP_FILE
