#include <AvalonIntegrator.hh>

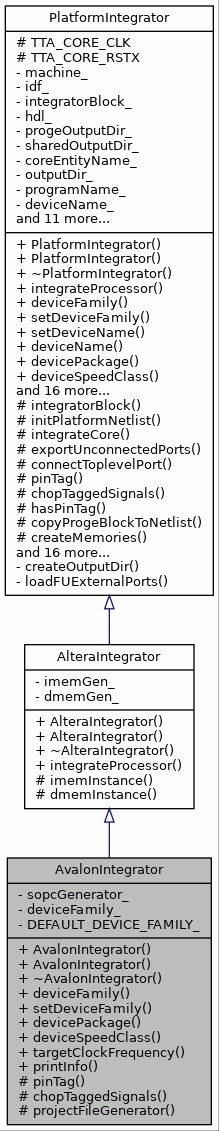

Inheritance diagram for AvalonIntegrator:

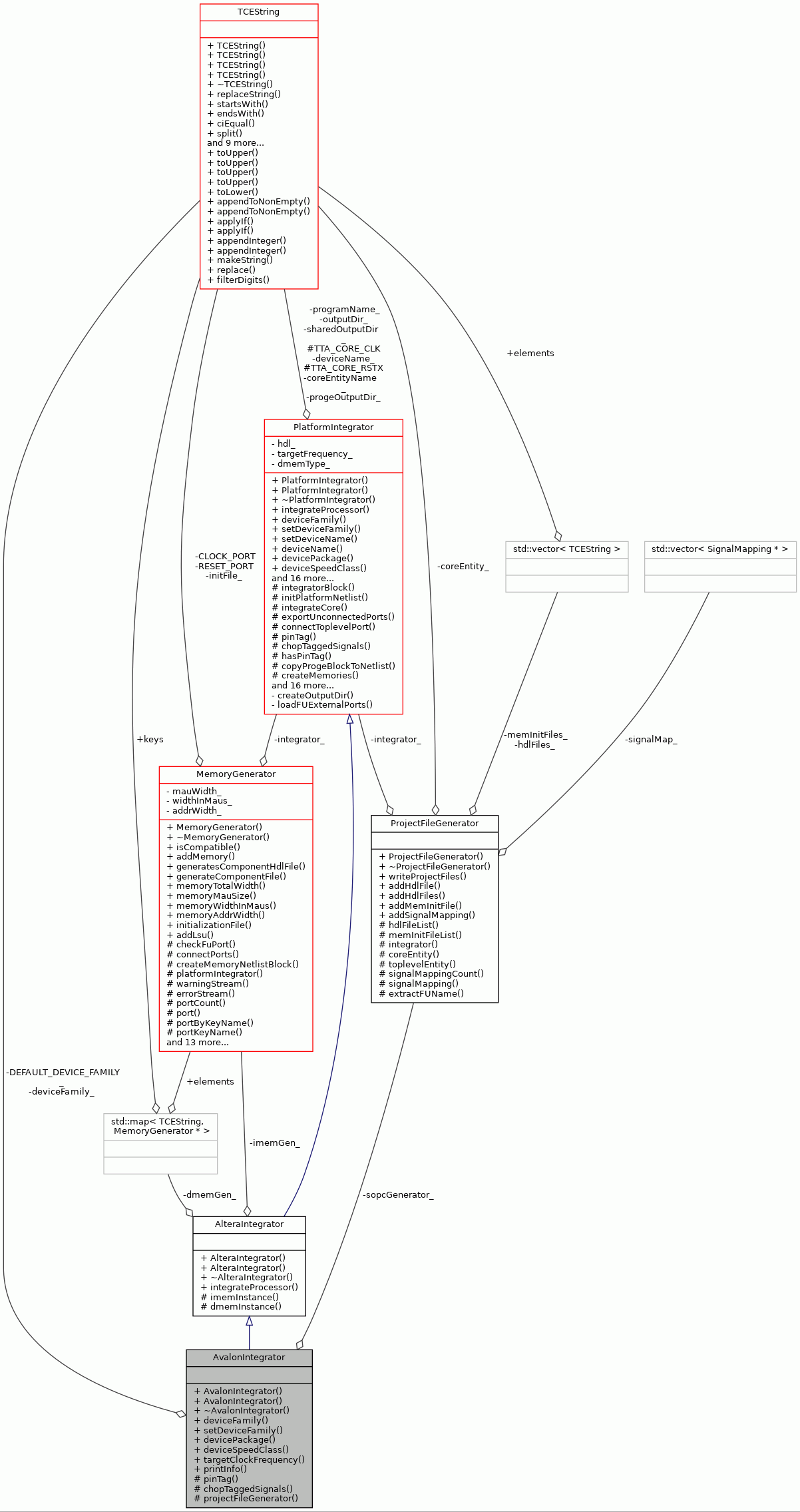

Collaboration diagram for AvalonIntegrator:

Public Member Functions
	AvalonIntegrator ()

	AvalonIntegrator (const TTAMachine::Machine machine, const IDF::MachineImplementation idf, ProGe::HDL hdl, TCEString progeOutputDir, TCEString coreEntityName, TCEString outputDir, TCEString programName, int targetClockFreq, std::ostream &warningStream, std::ostream &errorStream, const MemInfo &imem, MemType dmemType)

virtual	~AvalonIntegrator ()

virtual TCEString	deviceFamily () const

virtual void	setDeviceFamily (TCEString devFamily)

virtual TCEString	devicePackage () const

virtual TCEString	deviceSpeedClass () const

virtual int	targetClockFrequency () const

virtual void	printInfo (std::ostream &stream) const

Public Member Functions inherited from AlteraIntegrator
	AlteraIntegrator ()

	AlteraIntegrator (const TTAMachine::Machine machine, const IDF::MachineImplementation idf, ProGe::HDL hdl, TCEString progeOutputDir, TCEString entityName, TCEString outputDir, TCEString programName, int targetClockFreq, std::ostream &warningStream, std::ostream &errorStream, const MemInfo &imem, MemType dmemType)

virtual	~AlteraIntegrator ()

virtual void	integrateProcessor (const ProGe::NetlistBlock *progeBlock)

Public Member Functions inherited from PlatformIntegrator
	PlatformIntegrator ()

	PlatformIntegrator (const TTAMachine::Machine machine, const IDF::MachineImplementation idf, ProGe::HDL hdl, TCEString progeOutputDir, TCEString coreEntityName, TCEString outputDir, TCEString programName, int targetClockFreq, std::ostream &warningStream, std::ostream &errorStream, const MemInfo &imem, MemType dmemType)

virtual	~PlatformIntegrator ()

void	setDeviceName (TCEString devName)

TCEString	deviceName () const

const ProGe::NetlistBlock &	progeBlock () const

const ProGe::NetlistBlock &	toplevelBlock () const

void	setSharedOutputDir (const TCEString &sharedDir)

TCEString	outputPath () const

TCEString	outputFilePath (TCEString fileName, bool absolute=false) const

TCEString	coreEntityName () const

const TTAMachine::Machine *	machine () const

const IDF::MachineImplementation *	idf () const

const MemInfo &	imemInfo () const

const MemInfo &	dmemInfo (TTAMachine::AddressSpace *as) const

const MemInfo &	dmemInfo (int index) const

int	dmemCount () const

ProGe::NetlistPort *	clockPort () const

ProGe::NetlistPort *	resetPort () const

Protected Member Functions
virtual TCEString	pinTag () const

virtual bool	chopTaggedSignals () const

virtual ProjectFileGenerator *	projectFileGenerator () const

Protected Member Functions inherited from AlteraIntegrator
virtual MemoryGenerator &	imemInstance (MemInfo imem, int coreId)

virtual MemoryGenerator &	dmemInstance (MemInfo dmem, TTAMachine::FunctionUnit &lsuArch, std::vector< std::string > lsuPorts)

Protected Member Functions inherited from PlatformIntegrator
ProGe::NetlistBlock *	integratorBlock ()

virtual void	initPlatformNetlist (const ProGe::NetlistBlock *progeBlock)

virtual bool	integrateCore (const ProGe::NetlistBlock &cores, int coreId)

virtual void	exportUnconnectedPorts (int coreId)

virtual void	connectToplevelPort (const ProGe::NetlistPort &corePort, const TCEString signalPrefix="")

virtual bool	hasPinTag (const TCEString &signal) const

void	copyProgeBlockToNetlist (const ProGe::NetlistBlock *progeBlock)

virtual bool	createMemories (int coreId)

virtual bool	generateMemory (MemoryGenerator &memGen, std::vector< TCEString > &generatedFiles, int memIndex, int coreId)

virtual void	writeNewToplevel ()

void	addProGeFiles () const

TCEString	programName () const

TCEString	progeFilePath (TCEString fileName, bool absolute=false) const

TCEString	chopSignalToTag (const TCEString &original, const TCEString &tag) const

void	progeOutputHdlFiles (std::vector< TCEString > &files) const

std::ostream &	warningStream () const

std::ostream &	errorStream () const

TCEString	platformEntityName () const

void	parseDataMemories ()

void	clearDataMemories ()

MemInfo	readLsuParameters (const TTAMachine::FunctionUnit &lsu)

Private Attributes
ProjectFileGenerator *	sopcGenerator_

TCEString	deviceFamily_

Static Private Attributes
static const TCEString	DEFAULT_DEVICE_FAMILY_ = "Stratix II"

Additional Inherited Members
Static Protected Attributes inherited from PlatformIntegrator
static const TCEString	TTA_CORE_CLK = "clk"

static const TCEString	TTA_CORE_RSTX = "rstx"

Detailed Description

Definition at line 39 of file AvalonIntegrator.hh.

Constructor & Destructor Documentation

◆ AvalonIntegrator() [1/2]

AvalonIntegrator::AvalonIntegrator ( )

Definition at line 40 of file AvalonIntegrator.cc.

                                   :
     AlteraIntegrator(), sopcGenerator_(NULL) {
 }

◆ AvalonIntegrator() [2/2]

AvalonIntegrator::AvalonIntegrator	(	const TTAMachine::Machine *	machine,
		const IDF::MachineImplementation *	idf,
		ProGe::HDL	hdl,
		TCEString	progeOutputDir,
		TCEString	coreEntityName,
		TCEString	outputDir,
		TCEString	programName,
		int	targetClockFreq,
		std::ostream &	warningStream,
		std::ostream &	errorStream,
		const MemInfo &	imem,
		MemType	dmemType
	)

Definition at line 44 of file AvalonIntegrator.cc.

                      :
     AlteraIntegrator(machine, idf, hdl, progeOutputDir, coreEntityName,
                      outputDir, programName, targetClockFreq, warningStream,
                      errorStream, imem, dmemType),
     sopcGenerator_(new SOPCBuilderFileGenerator(coreEntityName, this)),
     deviceFamily_(DEFAULT_DEVICE_FAMILY_) {
 }

◆ ~AvalonIntegrator()

AvalonIntegrator::~AvalonIntegrator ( )

virtual

Definition at line 65 of file AvalonIntegrator.cc.

                                     {

     if (sopcGenerator_ != NULL) {
         delete sopcGenerator_;
     }
 }

References sopcGenerator_.

Member Function Documentation

◆ chopTaggedSignals()

bool AvalonIntegrator::chopTaggedSignals ( ) const

protectedvirtual

Implements PlatformIntegrator.

Definition at line 99 of file AvalonIntegrator.cc.

                                           {

     return false;
 }

◆ deviceFamily()

TCEString AvalonIntegrator::deviceFamily ( ) const

virtual

Returns the FPGA device family

Implements PlatformIntegrator.

Definition at line 113 of file AvalonIntegrator.cc.

                                      {

     return deviceFamily_;
 }

References deviceFamily_.

◆ devicePackage()

TCEString AvalonIntegrator::devicePackage ( ) const

virtual

Returns the device package name

Implements PlatformIntegrator.

Definition at line 127 of file AvalonIntegrator.cc.

                                       {
     return "";
 }

◆ deviceSpeedClass()

TCEString AvalonIntegrator::deviceSpeedClass ( ) const

virtual

Returns the device speed class

Implements PlatformIntegrator.

Definition at line 132 of file AvalonIntegrator.cc.

                                          {
     return "";
 }

◆ pinTag()

TCEString AvalonIntegrator::pinTag ( ) const

protectedvirtual

Implements PlatformIntegrator.

Definition at line 92 of file AvalonIntegrator.cc.

                                {

     return "avalon_d";
 }

◆ printInfo()

void AvalonIntegrator::printInfo ( std::ostream & stream ) const

virtual

Prints information about the platform

Implements PlatformIntegrator.

Definition at line 73 of file AvalonIntegrator.cc.

                                                     {

     stream
         << "Integrator name: AvalonIntegrator" << endl
         << "---------------------------------" << endl
         << "Creates a SOPC Builder component from TTA core." << endl
         << "Processor must have avalon_lsu or avalon_sfu (from avalon.hdb) "
         << "for correct behaviour." << endl
         << "Supported instruction memory types are 'onchip' and 'vhdl_array."
         << endl
         << "If 'normal' lsu is used, supported data memory type is 'onchip'."
         << endl
         << "If avalon_lsu is used, data memory type must be 'none'." << endl
         << "FPGA device family can be changed. Default device family is "
         << DEFAULT_DEVICE_FAMILY_ << endl << endl;
 }

References DEFAULT_DEVICE_FAMILY_.

◆ projectFileGenerator()

ProjectFileGenerator * AvalonIntegrator::projectFileGenerator ( ) const

protectedvirtual

Implements PlatformIntegrator.

Definition at line 106 of file AvalonIntegrator.cc.

                                              {

     return sopcGenerator_;
 }

References sopcGenerator_.

◆ setDeviceFamily()

void AvalonIntegrator::setDeviceFamily ( TCEString devFamily )

virtual

Set the FPGA device family.

Intended for TTA IP integration. Integrator can device whether this overrides the default device family.

Implements PlatformIntegrator.

Definition at line 120 of file AvalonIntegrator.cc.

                                                      {

     deviceFamily_ = devFamily;
 }

References deviceFamily_.

◆ targetClockFrequency()

int AvalonIntegrator::targetClockFrequency ( ) const

virtual

Returns the target clock frequency in MHz

Reimplemented from PlatformIntegrator.

Definition at line 137 of file AvalonIntegrator.cc.

                                              {
     return 1;
 }

Member Data Documentation

◆ DEFAULT_DEVICE_FAMILY_

const TCEString AvalonIntegrator::DEFAULT_DEVICE_FAMILY_ = "Stratix II"

staticprivate

Definition at line 86 of file AvalonIntegrator.hh.

Referenced by printInfo().

◆ deviceFamily_

TCEString AvalonIntegrator::deviceFamily_

private

Definition at line 84 of file AvalonIntegrator.hh.

Referenced by deviceFamily(), and setDeviceFamily().

◆ sopcGenerator_

ProjectFileGenerator* AvalonIntegrator::sopcGenerator_

private

Definition at line 82 of file AvalonIntegrator.hh.

Referenced by projectFileGenerator(), and ~AvalonIntegrator().

The documentation for this class was generated from the following files:
