AlteraIntegrator Class Reference

#include <AlteraIntegrator.hh>

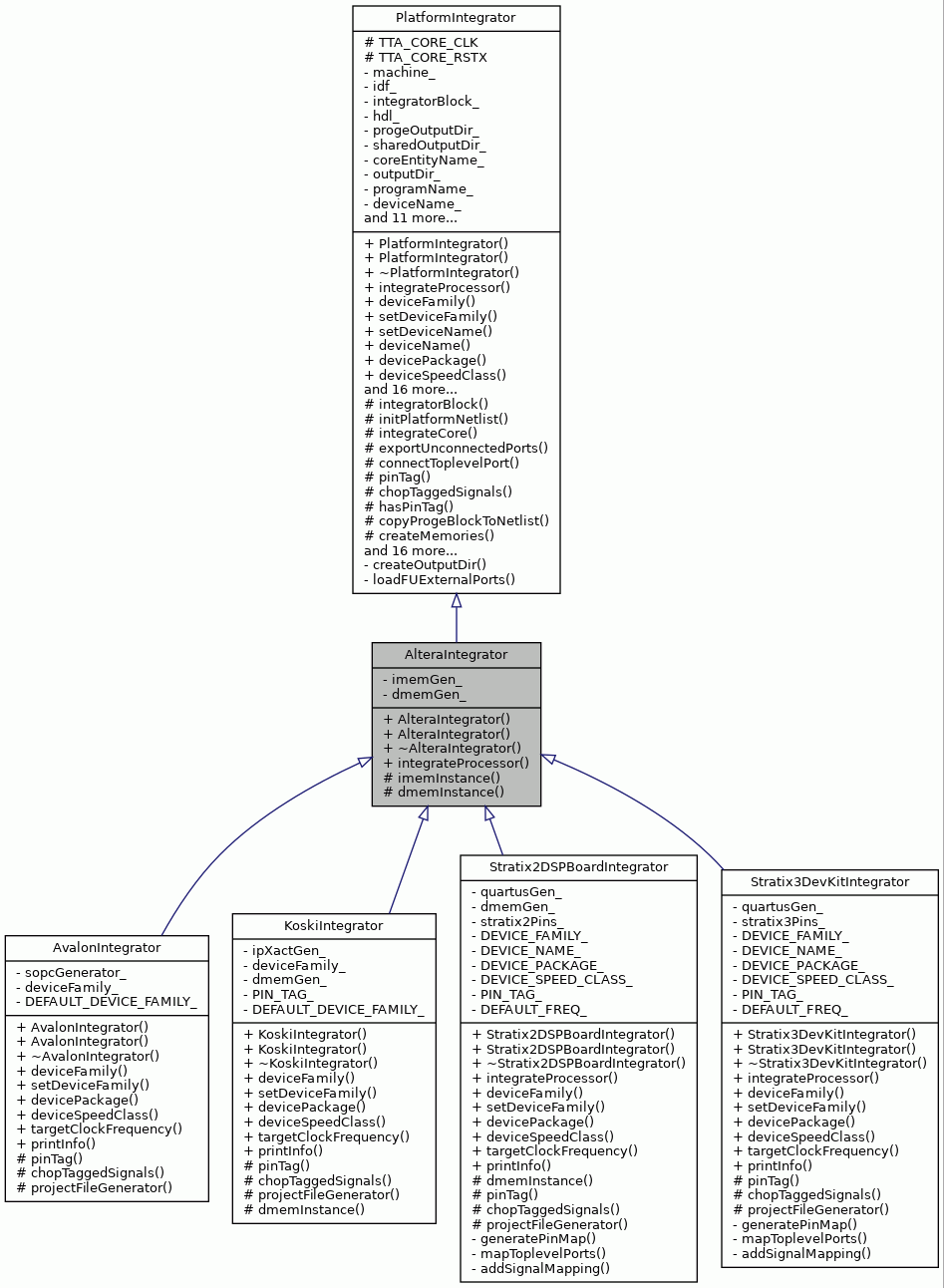

Inheritance diagram for AlteraIntegrator:

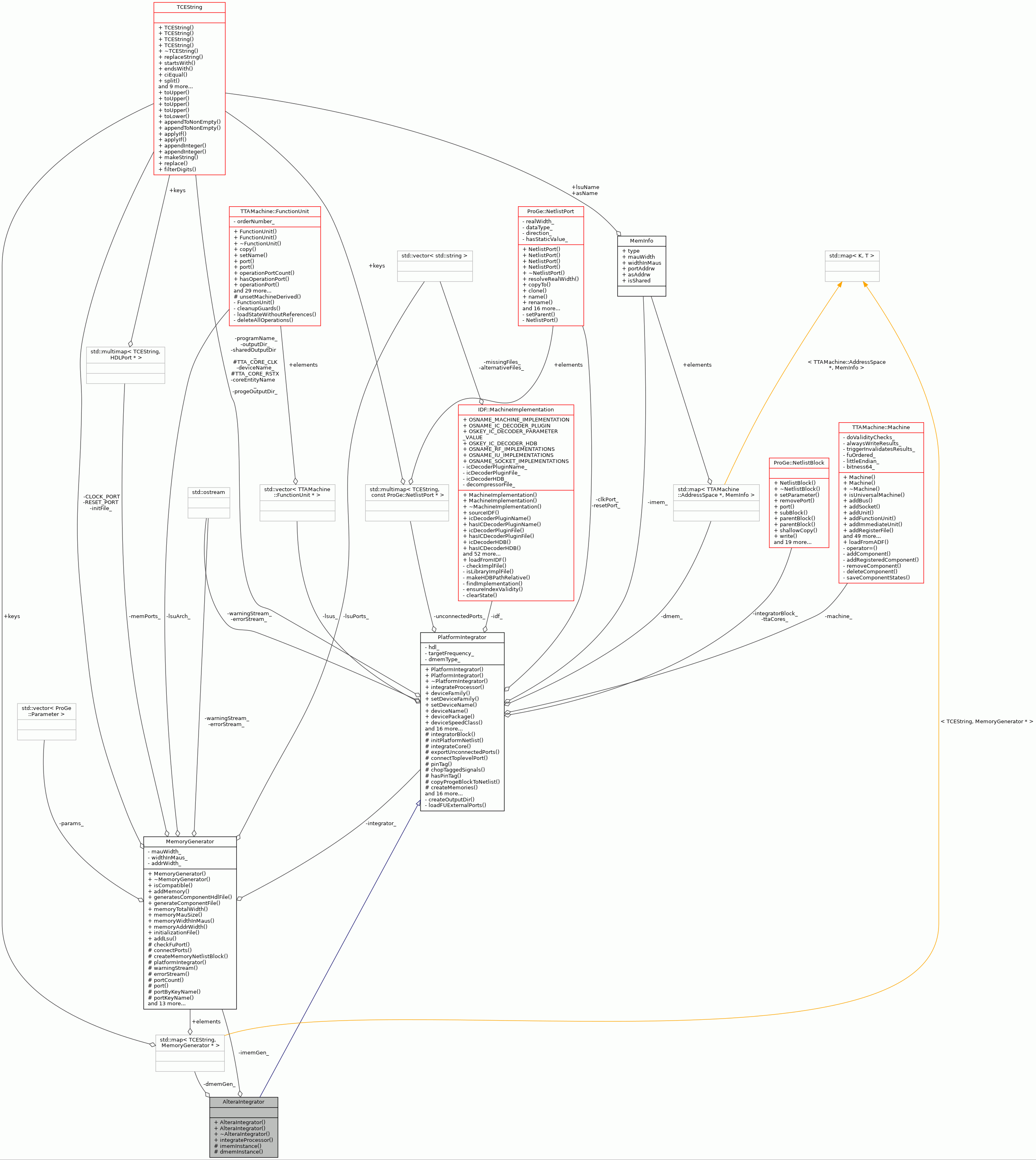

Collaboration diagram for AlteraIntegrator:

Public Member Functions
	AlteraIntegrator ()
	AlteraIntegrator (const TTAMachine::Machine *machine, const IDF::MachineImplementation *idf, ProGe::HDL hdl, TCEString progeOutputDir, TCEString entityName, TCEString outputDir, TCEString programName, int targetClockFreq, std::ostream &warningStream, std::ostream &errorStream, const MemInfo &imem, MemType dmemType)
virtual	~AlteraIntegrator ()
virtual void	integrateProcessor (const ProGe::NetlistBlock *progeBlock)
Public Member Functions inherited from PlatformIntegrator
	PlatformIntegrator ()
	PlatformIntegrator (const TTAMachine::Machine *machine, const IDF::MachineImplementation *idf, ProGe::HDL hdl, TCEString progeOutputDir, TCEString coreEntityName, TCEString outputDir, TCEString programName, int targetClockFreq, std::ostream &warningStream, std::ostream &errorStream, const MemInfo &imem, MemType dmemType)
virtual	~PlatformIntegrator ()
virtual TCEString	deviceFamily () const =0
virtual void	setDeviceFamily (TCEString devFamily)=0
void	setDeviceName (TCEString devName)
TCEString	deviceName () const
virtual TCEString	devicePackage () const =0
virtual TCEString	deviceSpeedClass () const =0
virtual int	targetClockFrequency () const
virtual void	printInfo (std::ostream &stream) const =0
const ProGe::NetlistBlock &	progeBlock () const
const ProGe::NetlistBlock &	toplevelBlock () const
void	setSharedOutputDir (const TCEString &sharedDir)
TCEString	outputPath () const
TCEString	outputFilePath (TCEString fileName, bool absolute=false) const
TCEString	coreEntityName () const
const TTAMachine::Machine *	machine () const
const IDF::MachineImplementation *	idf () const
const MemInfo &	imemInfo () const
const MemInfo &	dmemInfo (TTAMachine::AddressSpace *as) const
const MemInfo &	dmemInfo (int index) const
int	dmemCount () const
ProGe::NetlistPort *	clockPort () const
ProGe::NetlistPort *	resetPort () const

Protected Member Functions
virtual MemoryGenerator &	imemInstance (MemInfo imem, int coreId)
virtual MemoryGenerator &	dmemInstance (MemInfo dmem, TTAMachine::FunctionUnit &lsuArch, std::vector< std::string > lsuPorts)
Protected Member Functions inherited from PlatformIntegrator
ProGe::NetlistBlock *	integratorBlock ()
virtual void	initPlatformNetlist (const ProGe::NetlistBlock *progeBlock)
virtual bool	integrateCore (const ProGe::NetlistBlock &cores, int coreId)
virtual void	exportUnconnectedPorts (int coreId)
virtual void	connectToplevelPort (const ProGe::NetlistPort &corePort, const TCEString signalPrefix="")
virtual TCEString	pinTag () const =0
virtual bool	chopTaggedSignals () const =0
virtual bool	hasPinTag (const TCEString &signal) const
void	copyProgeBlockToNetlist (const ProGe::NetlistBlock *progeBlock)
virtual bool	createMemories (int coreId)
virtual bool	generateMemory (MemoryGenerator &memGen, std::vector< TCEString > &generatedFiles, int memIndex, int coreId)
virtual void	writeNewToplevel ()
virtual ProjectFileGenerator *	projectFileGenerator () const =0
void	addProGeFiles () const
TCEString	programName () const
TCEString	progeFilePath (TCEString fileName, bool absolute=false) const
TCEString	tbFilePath (TCEString fileName, bool absolute=false) const
TCEString	chopSignalToTag (const TCEString &original, const TCEString &tag) const
void	progeOutputHdlFiles (std::vector< TCEString > &files) const
std::ostream &	warningStream () const
std::ostream &	errorStream () const
TCEString	platformEntityName () const
void	parseDataMemories ()
void	clearDataMemories ()
MemInfo	readLsuParameters (const TTAMachine::FunctionUnit &lsu)

Private Attributes
MemoryGenerator *	imemGen_
std::map< TCEString, MemoryGenerator * >	dmemGen_

Additional Inherited Members
Static Protected Attributes inherited from PlatformIntegrator
static const TCEString	TTA_CORE_CLK = "clk"
static const TCEString	TTA_CORE_RSTX = "rstx"

Detailed Description

Definition at line 39 of file AlteraIntegrator.hh.

Constructor & Destructor Documentation

AlteraIntegrator() [1/2]

AlteraIntegrator::AlteraIntegrator

(

)

Definition at line 44 of file AlteraIntegrator.cc.

                                  : PlatformIntegrator() {
}

AlteraIntegrator() [2/2]

AlteraIntegrator::AlteraIntegrator	(	const TTAMachine::Machine *	machine,
		const IDF::MachineImplementation *	idf,
		ProGe::HDL	hdl,
		TCEString	progeOutputDir,
		TCEString	entityName,
		TCEString	outputDir,
		TCEString	programName,
		int	targetClockFreq,
		std::ostream &	warningStream,
		std::ostream &	errorStream,
		const MemInfo &	imem,
		MemType	dmemType
	)

Definition at line 48 of file AlteraIntegrator.cc.

                     :
    PlatformIntegrator(machine, idf, hdl, progeOutputDir, coreEntityName,
                       outputDir, programName, targetClockFreq, warningStream,
                       errorStream, imem, dmemType),
    imemGen_(NULL), dmemGen_() {
}

~AlteraIntegrator()

AlteraIntegrator::~AlteraIntegrator ( )

virtual

Definition at line 68 of file AlteraIntegrator.cc.

                                    {

    if (imemGen_ != NULL) {
        delete imemGen_;
    }
    if (!dmemGen_.empty()) {
        std::map<TCEString, MemoryGenerator*>::iterator iter =
            dmemGen_.begin();
        while (iter != dmemGen_.end()) {
            delete iter->second;
            iter++;
        }
    }
}

References dmemGen_, and imemGen_.

Member Function Documentation

dmemInstance()

MemoryGenerator & AlteraIntegrator::dmemInstance ( MemInfo  dmem, TTAMachine::FunctionUnit &  lsuArch, std::vector< std::string >  lsuPorts  )

protectedvirtual

Implements PlatformIntegrator.

Reimplemented in KoskiIntegrator, and Stratix2DSPBoardIntegrator.

Definition at line 134 of file AlteraIntegrator.cc.

                                   {
    MemoryGenerator* memGen = NULL;
    if (dmemGen_.find(dmem.asName) != dmemGen_.end()) {
        memGen = dmemGen_.find(dmem.asName)->second;
    } else {
        if (dmem.type == ONCHIP) {
            TCEString initFile = programName() + "_" + dmem.asName + ".mif";
            // onchip mem size is scalable, use value from adf's Address Space
            int addrw = dmem.portAddrw;
            memGen =
                new AlteraOnchipRamGenerator(
                    dmem.mauWidth, dmem.widthInMaus, addrw, initFile,
                    this, warningStream(), errorStream());
            projectFileGenerator()->addMemInitFile(initFile);
        } else {
            TCEString msg = "Unsupported data memory type";
            throw InvalidData(__FILE__, __LINE__, "AlteraIntegrator", msg);
        }
        memGen->addLsu(lsuArch, lsuPorts);
        dmemGen_[dmem.asName] = memGen;
    }
    return *memGen;
}

References MemoryGenerator::addLsu(), ProjectFileGenerator::addMemInitFile(), MemInfo::asName, dmemGen_, PlatformIntegrator::errorStream(), MemInfo::mauWidth, ONCHIP, MemInfo::portAddrw, PlatformIntegrator::programName(), PlatformIntegrator::projectFileGenerator(), MemInfo::type, PlatformIntegrator::warningStream(), and MemInfo::widthInMaus.

Referenced by Stratix2DSPBoardIntegrator::dmemInstance().

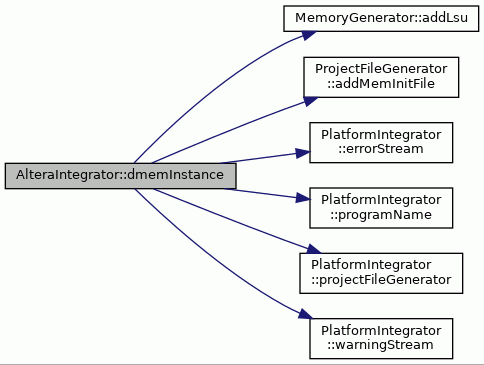

Here is the call graph for this function:

imemInstance()

MemoryGenerator & AlteraIntegrator::imemInstance ( MemInfo  imem, int  coreId  )

protectedvirtual

Implements PlatformIntegrator.

Definition at line 104 of file AlteraIntegrator.cc.

                                                       {
    assert(imem.type != UNKNOWN && "Imem type not set!");

    TCEString initFile;
    if (imem.type == ONCHIP) {
        initFile = programName() + ".mif";
        projectFileGenerator()->addMemInitFile(initFile);
    } else if (imem.type == VHDL_ARRAY) {
        initFile = programName() + "_imem_pkg.vhdl";
    }

    if (imemGen_ == NULL) {
        if (imem.type == ONCHIP) {
            imemGen_ =
                new AlteraOnchipRomGenerator(
                    imem.mauWidth, imem.widthInMaus, imem.portAddrw, initFile,
                    this, warningStream(), errorStream());
        } else if (imem.type == VHDL_ARRAY) {
            imemGen_ = new VhdlRomGenerator(
                imem.mauWidth, imem.widthInMaus, imem.portAddrw, initFile,
                this, warningStream(), errorStream());
        } else {
            TCEString msg = "Unsupported instruction memory type";
            throw InvalidData(__FILE__, __LINE__, "AlteraIntegrator", msg);
        }
    }
    return *imemGen_;
}

References ProjectFileGenerator::addMemInitFile(), assert, PlatformIntegrator::errorStream(), imemGen_, MemInfo::mauWidth, ONCHIP, MemInfo::portAddrw, PlatformIntegrator::programName(), PlatformIntegrator::projectFileGenerator(), MemInfo::type, UNKNOWN, VHDL_ARRAY, PlatformIntegrator::warningStream(), and MemInfo::widthInMaus.

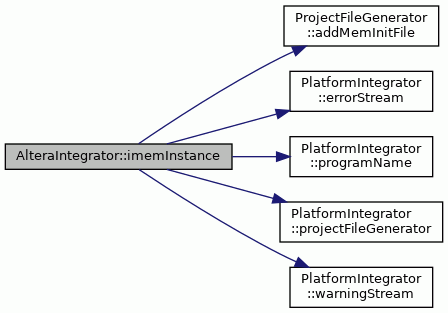

Here is the call graph for this function:

integrateProcessor()

void AlteraIntegrator::integrateProcessor ( const ProGe::NetlistBlock *  progeBlock )

virtual

Integrates the TTA core(s) generated by ProGe

Parameters

progeBlock

The toplevel netlist block created by ProGe

Implements PlatformIntegrator.

Reimplemented in Stratix2DSPBoardIntegrator, and Stratix3DevKitIntegrator.

Definition at line 85 of file AlteraIntegrator.cc.

                                                     {

    initPlatformNetlist(progeBlockInOldNetlist);

    const NetlistBlock& core = progeBlock();
    int coreId = -1;
    if (!integrateCore(core, coreId)) {
        return;
    }

    writeNewToplevel();

    addProGeFiles();

    projectFileGenerator()->writeProjectFiles();
}

References PlatformIntegrator::addProGeFiles(), PlatformIntegrator::initPlatformNetlist(), PlatformIntegrator::integrateCore(), PlatformIntegrator::progeBlock(), PlatformIntegrator::projectFileGenerator(), PlatformIntegrator::writeNewToplevel(), and ProjectFileGenerator::writeProjectFiles().

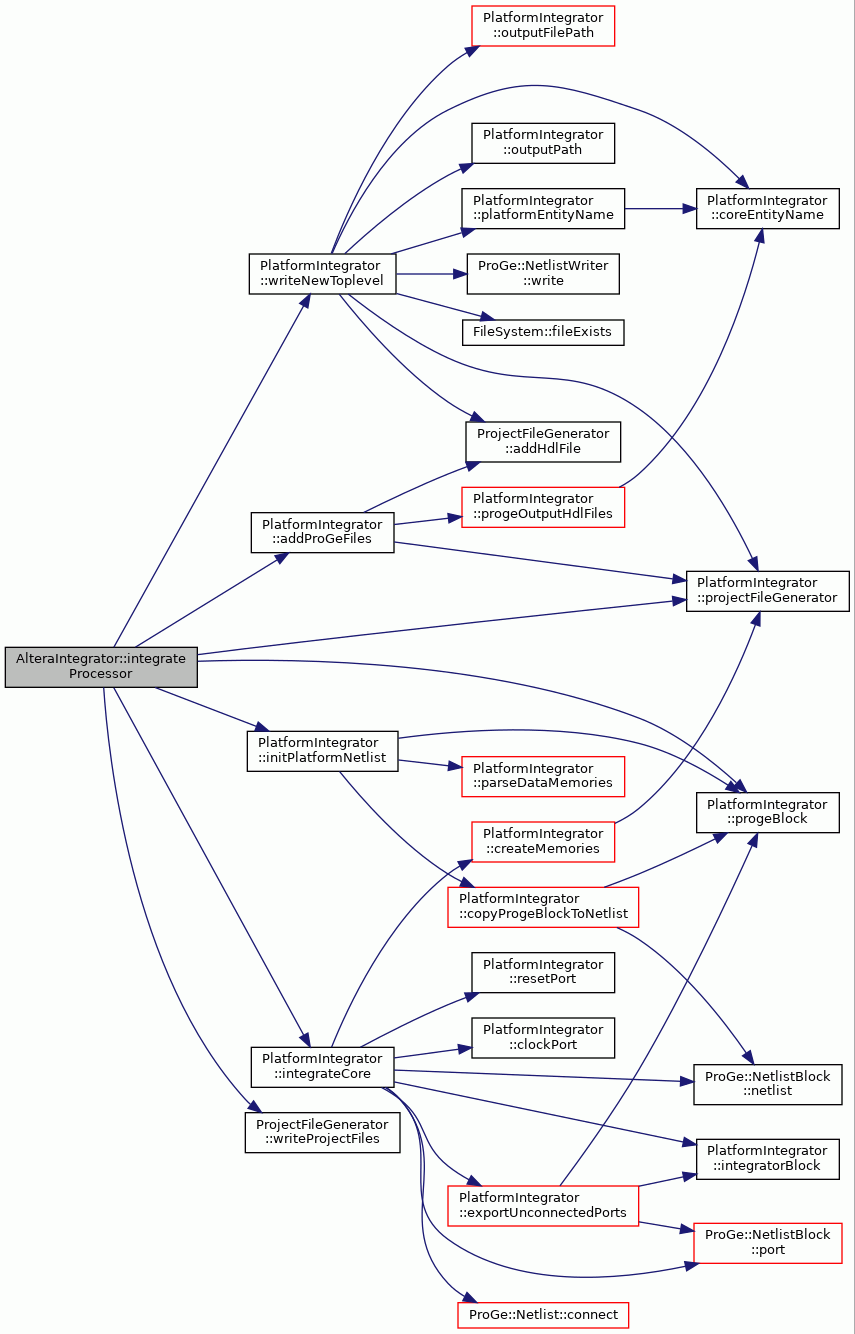

Here is the call graph for this function:

Member Data Documentation

dmemGen_

std::map<TCEString, MemoryGenerator*> AlteraIntegrator::dmemGen_

private

Definition at line 74 of file AlteraIntegrator.hh.

Referenced by dmemInstance(), and ~AlteraIntegrator().

imemGen_

MemoryGenerator* AlteraIntegrator::imemGen_

private

Definition at line 73 of file AlteraIntegrator.hh.

Referenced by imemInstance(), and ~AlteraIntegrator().

---

The documentation for this class was generated from the following files:

• AlteraIntegrator.hh
• AlteraIntegrator.cc
