BFRescheduleSuccessorsClose Class Reference

#include <BFRescheduleSuccessorsClose.hh>

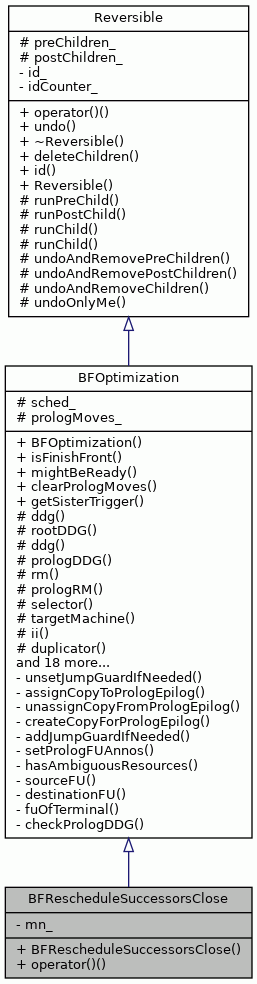

Inheritance diagram for BFRescheduleSuccessorsClose:
Inheritance graph

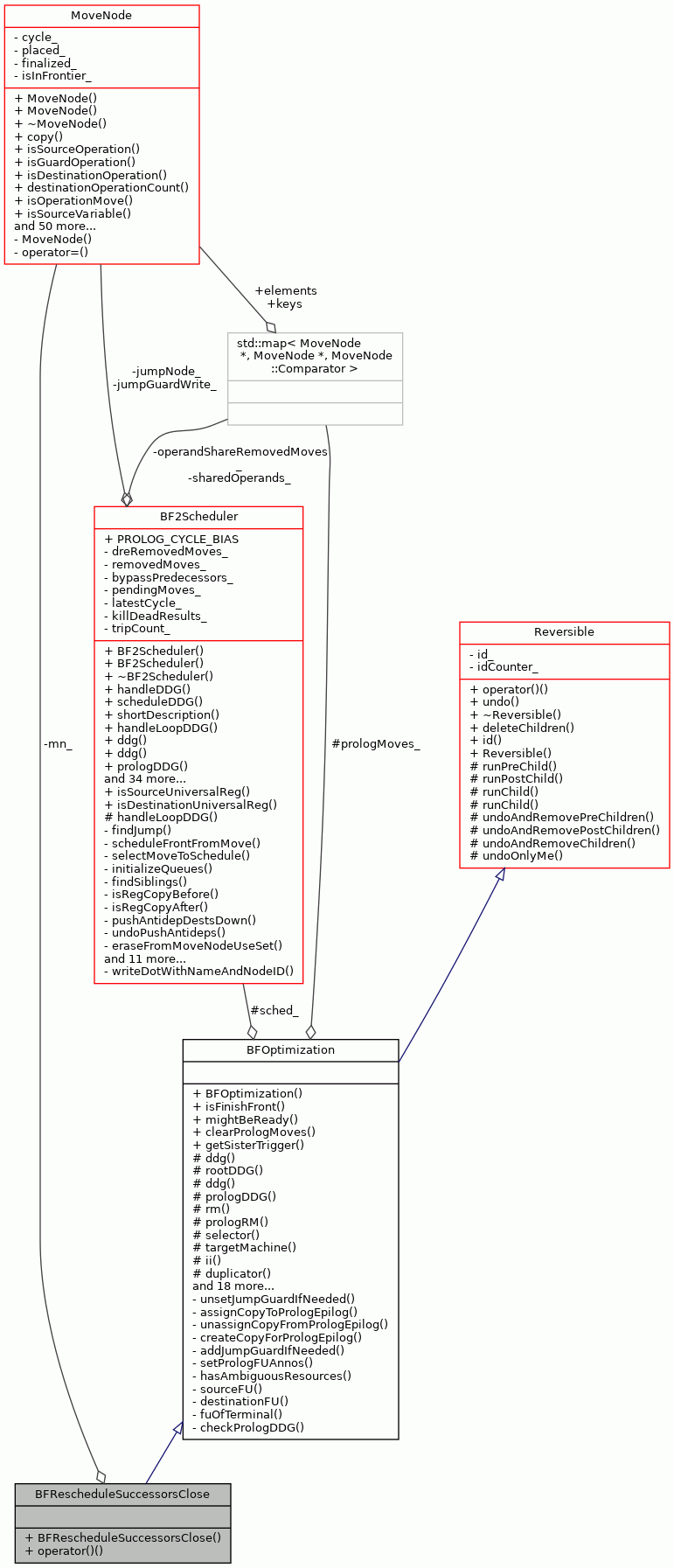

Collaboration diagram for BFRescheduleSuccessorsClose:
Collaboration graph

Public Member Functions

 BFRescheduleSuccessorsClose (BF2Scheduler &sched, MoveNode &mn)

bool operator() ()

- Public Member Functions inherited from BFOptimization
 BFOptimization (BF2Scheduler &sched)

virtual bool isFinishFront ()

virtual void mightBeReady (MoveNode &mn)

- Public Member Functions inherited from Reversible
virtual void undo ()

virtual ~Reversible ()

void deleteChildren (std::stack< Reversible * > &children)

int id ()

 Reversible ()


Private Attributes

MoveNodemn_


Additional Inherited Members

- Static Public Member Functions inherited from BFOptimization
static void clearPrologMoves ()

static MoveNodegetSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

- Protected Member Functions inherited from BFOptimization
DataDependenceGraphddg ()

DataDependenceGraphrootDDG ()

const DataDependenceGraphddg () const

DataDependenceGraphprologDDG ()

SimpleResourceManagerrm () const

SimpleResourceManagerprologRM () const

BUMoveNodeSelectorselector ()

const TTAMachine::MachinetargetMachine () const

unsigned int ii () const

MoveNodeDuplicatorduplicator () const

virtual bool assign (int cycle, MoveNode &, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU_=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setJumpGuard (MoveNode &mn)

void unsetJumpGuard (MoveNode &mn)

bool needJumpGuard (const MoveNode &mn, int cycle)

int jumpGuardAvailableCycle (const MoveNode &mn)

bool canBeSpeculated (const Operation &op)

bool canBeSpeculated (const MoveNode &mn)

bool usePrologMove (const MoveNode &mn)

bool canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFileRFReadPortCountPreventsScheduling (const MoveNode &mn)

bool immCountPreventsScheduling (const MoveNode &mn)

- Protected Member Functions inherited from Reversible
bool runPreChild (Reversible *preChild)

bool runPostChild (Reversible *preChild)

bool runChild (std::stack< Reversible * > &children, Reversible *child)

bool runChild (Reversible *child, bool pre)

void undoAndRemovePreChildren ()

void undoAndRemovePostChildren ()

void undoAndRemoveChildren (std::stack< Reversible * > &children)

virtual void undoOnlyMe ()

- Protected Attributes inherited from BFOptimization
BF2Schedulersched_

- Protected Attributes inherited from Reversible
std::stack< Reversible * > preChildren_

std::stack< Reversible * > postChildren_

- Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode *, MoveNode *, MoveNode::ComparatorprologMoves_


Detailed Description

Definition at line 47 of file BFRescheduleSuccessorsClose.hh.

Constructor & Destructor Documentation

◆ BFRescheduleSuccessorsClose()

BFRescheduleSuccessorsClose::BFRescheduleSuccessorsClose ( BF2Scheduler sched,
MoveNode mn
)
inline

Member Function Documentation

◆ operator()()

bool BFRescheduleSuccessorsClose::operator() ( )
virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 42 of file BFRescheduleSuccessorsClose.cc.

42 {
43
44#ifdef DEBUG_BUBBLFISH_SCHEDULER
45 std::cerr << "\t\t\tRescheduling successors close" << std::endl;
46#endif
47 bool pushed = false;
48 auto succs = ddg().successors(mn_);
49 for (auto i: succs) {
50 if (i->isScheduled()) {
51 if (ddg().earliestCycle(*i) < i->cycle()) {
52 auto resched = new BFRescheduleResultClose(sched_, *i, 0);
53 pushed |= runPreChild(resched);
54 }
55 }
56 }
57 return pushed;
58}
BF2Scheduler & sched_
DataDependenceGraph & ddg()
virtual NodeSet successors(const Node &node, bool ignoreBackEdges=false, bool ignoreForwardEdges=false) const
bool runPreChild(Reversible *preChild)

References BFOptimization::ddg(), DataDependenceGraph::earliestCycle(), mn_, Reversible::runPreChild(), BFOptimization::sched_, and BoostGraph< GraphNode, GraphEdge >::successors().

Here is the call graph for this function:

Member Data Documentation

◆ mn_

MoveNode& BFRescheduleSuccessorsClose::mn_
private

Definition at line 56 of file BFRescheduleSuccessorsClose.hh.

Referenced by operator()().


The documentation for this class was generated from the following files:
