Reversible Class Reference

#include <Reversible.hh>

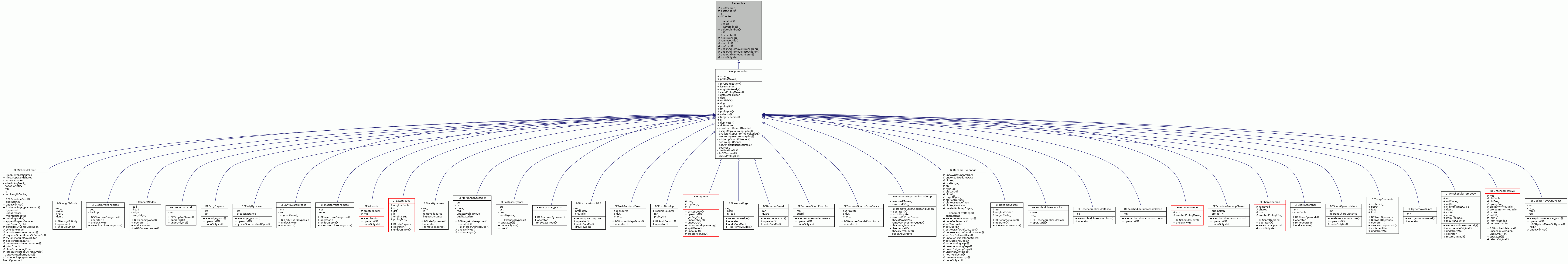

Inheritance diagram for Reversible:

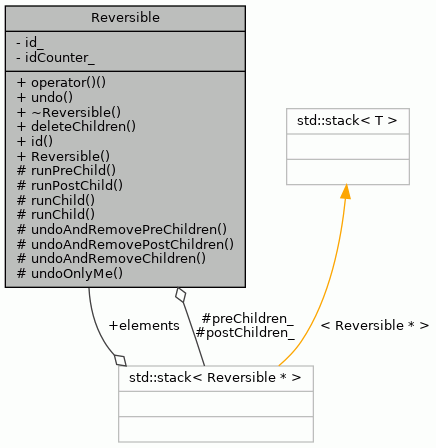

Collaboration diagram for Reversible:

Public Member Functions
virtual bool	operator() ()=0
virtual void	undo ()
virtual	~Reversible ()
void	deleteChildren (std::stack< Reversible * > &children)
int	id ()
	Reversible ()

Protected Member Functions
bool	runPreChild (Reversible *preChild)
bool	runPostChild (Reversible *preChild)
bool	runChild (std::stack< Reversible * > &children, Reversible *child)
bool	runChild (Reversible *child, bool pre)
void	undoAndRemovePreChildren ()
void	undoAndRemovePostChildren ()
void	undoAndRemoveChildren (std::stack< Reversible * > &children)
virtual void	undoOnlyMe ()

Protected Attributes
std::stack< Reversible * >	preChildren_
std::stack< Reversible * >	postChildren_

Private Attributes
int	id_

Static Private Attributes
static int	idCounter_ = 0

Detailed Description

Definition at line 36 of file Reversible.hh.

Constructor & Destructor Documentation

~Reversible()

Reversible::~Reversible ( )

virtual

Delete the undo information. cannot revert after this

Definition at line 35 of file Reversible.cc.

                        {
    deleteChildren(postChildren_);
    deleteChildren(preChildren_);
}

References deleteChildren(), postChildren_, and preChildren_.

Here is the call graph for this function:

Reversible()

Reversible::Reversible ( )

inline

Definition at line 44 of file Reversible.hh.

: id_(idCounter_++) {}

Member Function Documentation

deleteChildren()

void Reversible::deleteChildren

(

std::stack< Reversible * > &

children

)

Delete children without reverting them. They cannot be reverted after this

Definition at line 42 of file Reversible.cc.

                                                               {
    while (!children.empty()) {
        Reversible* child = children.top();
        assert(child != nullptr);
        children.pop();
        delete child;
    }
}

References assert.

Referenced by ~Reversible().

id()

int Reversible::id ( )

inline

Definition at line 43 of file Reversible.hh.

{ return id_; }

References id_.

operator()()

virtual bool Reversible::operator() ( )

pure virtual

This performs the operation. Returns true if success, false if fail.

Implemented in BFClearLiveRangeUse, BFDREEarly, BFDRELate, BFDRELoop, BFDropPreShared, BFEarlyBypasser, BFInsertLiveRangeUse, BFKillNode, BFLateBypass, BFLateBypasses, BFLateBypassGuard, BFPushAntidepDown, BFPushAntidepsDown, BFPushDepsUp, BFPushMoveUp, BFPushMoveUp2, BFRegCopy, BFRemoveLoopChecksAndJump, BFRenameLiveRange, BFRenameSource, BFRescheduleResultClose, BFRescheduleResultsClose, BFRescheduleSuccessorsClose, BFScheduleBU, BFScheduleExact, BFSchedule, BFSchedulePreLoopShared, BFScheduleTD, BFShareOperand, BFShareOperandLate, BFShareOperands, BFShareOperandsLate, BFShareOperandWithScheduled, BFSwapOperands, BFUnscheduleMove, BF2ScheduleFront, BFAssignToBody, BFConnectNodes, BFEarlyBypass, BFEarlyGuardBypass, BFMergeAndKeepUser, BFPostpassBypass, BFPostpassBypasser, BFPostpassDRE, BFPostpassLoopDRE, BFRemoveEdge, BFRemoveGuard, BFRemoveGuardFromSucc, BFRemoveGuardsFromSuccs, BFTryRemoveGuard, BFUnscheduleFromBody, and BFUpdateMoveOnBypass.

runChild() [1/2]

bool Reversible::runChild ( Reversible *  child, bool  pre  )

protected

Tries to run another Reversible and takes ownership of it.

Parameters

if	pre is true, make it a pre-child, if pre is false, make it a post-child.

Returns

true if running child succeeded, false if failed.

Definition at line 151 of file Reversible.cc.

                                                     {
    if (pre) {
        return runPreChild(child);
    } else {
        return runPostChild(child);
    }
}

References runPostChild(), and runPreChild().

Here is the call graph for this function:

runChild() [2/2]

bool Reversible::runChild ( std::stack< Reversible * > &  children, Reversible *  child  )

protected

Tries to run another Reversible and takes ownership of it.

If the running succeeds, makes it a child. If the running fails, deletes it.

Returns

true if running child succeeded, false if failed.

Definition at line 109 of file Reversible.cc.

                                                                       {
    if ((*child)()) {
        children.push(child);
        return true;
    } else {
        delete child;
        return false;
    }
}

Referenced by runPostChild(), runPreChild(), and BFMergeAndKeepUser::updateEdges().

runPostChild()

bool Reversible::runPostChild ( Reversible *  postChild )

protected

Tries to run another Reversible (after running this).

If the running succeeds, makes it a post-child. If the running fails, deletes it.

Returns

true if running child succeeded, false if failed.

Definition at line 139 of file Reversible.cc.

                                                   {
    return runChild(postChildren_, postChild);
}

References postChildren_, and runChild().

Referenced by BFRegCopy::createAntidepsForReg(), BFLateBypass::operator()(), BFLateBypasses::operator()(), BFPushAntidepsDown::operator()(), BFPushMoveUp2::operator()(), BFRescheduleResultClose::operator()(), BFScheduleBU::operator()(), BFScheduleExact::operator()(), BFScheduleTD::operator()(), BFShareOperandLate::operator()(), BFShareOperandsLate::operator()(), BFEarlyBypass::operator()(), BFMergeAndKeepUser::operator()(), BFPostpassBypass::operator()(), BFRemoveGuardFromSucc::operator()(), BFRemoveGuardsFromSuccs::operator()(), BFTryRemoveGuard::operator()(), runChild(), BFRegCopyAfter::splitMove(), BFRegCopyBefore::splitMove(), and BFPostpassBypasser::tryBypassNode().

Here is the call graph for this function:

runPreChild()

bool Reversible::runPreChild ( Reversible *  preChild )

protected

Tries to run another Reversible (before running this).

If the running succeeds, makes it a pre-child. If the running fails, deletes it.

Returns

true if running child succeeded, false if failed.

Definition at line 127 of file Reversible.cc.

                                                 {
    return runChild(preChildren_, preChild);
}

References preChildren_, and runChild().

Referenced by BF2ScheduleFront::getMoveNodeFromFrontBU(), BFDropPreShared::operator()(), BFEarlyBypasser::operator()(), BFLateBypasses::operator()(), BFPushDepsUp::operator()(), BFPushMoveUp::operator()(), BFRenameSource::operator()(), BFRescheduleResultClose::operator()(), BFRescheduleResultsClose::operator()(), BFRescheduleSuccessorsClose::operator()(), BFScheduleBU::operator()(), BFScheduleExact::operator()(), BFScheduleTD::operator()(), BFShareOperands::operator()(), BFEarlyBypass::operator()(), BFMergeAndKeepUser::operator()(), BFPostpassBypass::operator()(), BFRemoveGuard::operator()(), BFRemoveGuardFromSucc::operator()(), runChild(), BF2ScheduleFront::scheduleMove(), and BF2ScheduleFront::tryToScheduleMoveOuter().

Here is the call graph for this function:

undo()

void Reversible::undo ( )

virtual

Undoes this and all children.

Definition at line 69 of file Reversible.cc.

                 {
    undoAndRemovePostChildren();
    undoOnlyMe();
    undoAndRemovePreChildren();
}

References undoAndRemovePostChildren(), undoAndRemovePreChildren(), and undoOnlyMe().

Referenced by BFLateBypass::operator()(), BFPushMoveUp2::operator()(), BFRescheduleResultClose::operator()(), BFScheduleBU::operator()(), BFScheduleExact::operator()(), BFEarlyBypass::operator()(), BFPostpassBypass::operator()(), BFRemoveGuardFromSucc::operator()(), BFRemoveGuardsFromSuccs::operator()(), BF2Scheduler::revertTopOpt(), BF2ScheduleFront::scheduleFrontFromMove(), undoAndRemoveChildren(), BF2Scheduler::unschedule(), and BFMergeAndKeepUser::updateEdges().

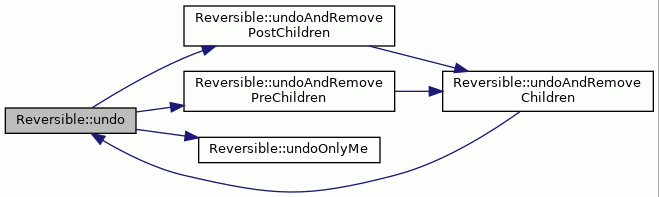

Here is the call graph for this function:

undoAndRemoveChildren()

void Reversible::undoAndRemoveChildren ( std::stack< Reversible * > &  children )

protected

Undoes one stack of children.

Definition at line 55 of file Reversible.cc.

                                                                 {
    while (!children.empty()) {
        Reversible* child = children.top();
        assert(child != nullptr);
        children.pop();
        child->undo();
        delete child;
    }
}

References assert, and undo().

Referenced by BFPushMoveUp::operator()(), undoAndRemovePostChildren(), undoAndRemovePreChildren(), and BFRescheduleMove::undoOnlyMe().

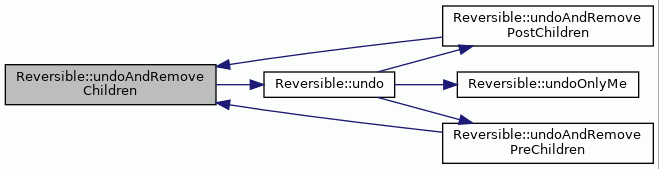

Here is the call graph for this function:

undoAndRemovePostChildren()

void Reversible::undoAndRemovePostChildren ( )

protected

Recursively calls undo for all children that were performed after this. So these are undoed before this is undoed

Definition at line 89 of file Reversible.cc.

                                      {
    undoAndRemoveChildren(postChildren_);
}

References postChildren_, and undoAndRemoveChildren().

Referenced by BFRegCopyAfter::splitMove(), and undo().

Here is the call graph for this function:

undoAndRemovePreChildren()

void Reversible::undoAndRemovePreChildren ( )

protected

Recursively calls undo for all children that were performed before this. So these are undoed after this is undoed

Definition at line 80 of file Reversible.cc.

                                     {
    undoAndRemoveChildren(preChildren_);
}

References preChildren_, and undoAndRemoveChildren().

Referenced by BFLateBypasses::operator()(), BFPushDepsUp::operator()(), BFScheduleBU::operator()(), BFScheduleExact::operator()(), BFScheduleTD::operator()(), BFPostpassBypass::operator()(), and undo().

Here is the call graph for this function:

undoOnlyMe()

void Reversible::undoOnlyMe ( )

protectedvirtual

Undoes the operations done by this class but not children. This method should be overloaded by most derived classes.

Reimplemented in BFClearLiveRangeUse, BFDRELoop, BFDropPreShared, BFInsertLiveRangeUse, BFKillNode, BFLateBypass, BFLateBypassGuard, BFRegCopy, BFRemoveLoopChecksAndJump, BFRescheduleMove, BFScheduleBU, BFScheduleExact, BFScheduleMove, BFSchedulePreLoopShared, BFScheduleTD, BFShareOperand, BFShareOperandLate, BFShareOperands, BFShareOperandsLate, BFShareOperandWithScheduled, BFSwapOperands, BFUnscheduleMove, BF2ScheduleFront, BFAssignToBody, BFConnectNodes, BFEarlyBypass, BFEarlyGuardBypass, BFMergeAndKeepUser, BFPostpassBypass, BFPostpassLoopDRE, BFRemoveEdge, BFRemoveGuard, BFRemoveGuardFromSucc, BFRenameLiveRange, BFUnscheduleFromBody, and BFUpdateMoveOnBypass.

Definition at line 98 of file Reversible.cc.

{}

Referenced by undo().

Member Data Documentation

id_

int Reversible::id_

private

Definition at line 61 of file Reversible.hh.

Referenced by id().

idCounter_

int Reversible::idCounter_ = 0

staticprivate

Definition at line 62 of file Reversible.hh.

postChildren_

std::stack<Reversible*> Reversible::postChildren_

protected

Definition at line 58 of file Reversible.hh.

Referenced by BFLateBypass::operator()(), BFLateBypassGuard::operator()(), BFPushAntidepsDown::operator()(), BFPostpassBypasser::operator()(), BFRemoveGuardsFromSuccs::operator()(), runPostChild(), undoAndRemovePostChildren(), and ~Reversible().

preChildren_

std::stack<Reversible*> Reversible::preChildren_

protected

Definition at line 57 of file Reversible.hh.

Referenced by BFPushDepsUp::operator()(), BFPushMoveUp::operator()(), BFScheduleBU::operator()(), runPreChild(), undoAndRemovePreChildren(), and ~Reversible().

---

The documentation for this class was generated from the following files:

• Reversible.hh
• Reversible.cc
