#include <MoveNodeDuplicator.hh>

Collaboration diagram for MoveNodeDuplicator:

Public Member Functions
	MoveNodeDuplicator (DataDependenceGraph &oldDDG, DataDependenceGraph &newDDG)

std::pair< MoveNode *, bool >	duplicateMoveNode (MoveNode &mn, bool addToDDG, bool ignoreSameBBBackEdges)

std::shared_ptr< TTAProgram::Move >	duplicateMove (TTAProgram::Move &old)

ProgramOperationPtr	duplicateProgramOperationPtr (ProgramOperationPtr old)

void	disposeMoveNode (MoveNode *newMN)

void	setBBN (BasicBlockNode &bbn)

MoveNode *	getMoveNode (MoveNode &mn)

ProgramOperationPtr	getProgramOperation (ProgramOperationPtr old)

void	dumpDDG ()

Private Attributes
std::map< ProgramOperation *, ProgramOperationPtr, ProgramOperation::Comparator >	programOperations_

std::map< ProgramOperation *, ProgramOperationPtr, ProgramOperation::Comparator >	oldProgramOperations_

std::map< MoveNode , MoveNode , MoveNode::Comparator >	moveNodes_

std::map< MoveNode , MoveNode , MoveNode::Comparator >	oldMoveNodes_

std::map< TTAProgram::Move *, std::shared_ptr< TTAProgram::Move > >	moves_

BasicBlockNode *	bbn_

DataDependenceGraph *	oldDDG_

DataDependenceGraph *	newDDG_

DataDependenceGraph *	bigDDG_

Detailed Description

Definition at line 38 of file MoveNodeDuplicator.hh.

Constructor & Destructor Documentation

◆ MoveNodeDuplicator()

MoveNodeDuplicator::MoveNodeDuplicator	(	DataDependenceGraph &	oldDDG,
		DataDependenceGraph &	newDDG
	)

This class is used for copying moves from a basic block to another corresponding basic block, copying also the programoperation structure.

Definition at line 48 of file MoveNodeDuplicator.cc.

                                                              :
    oldDDG_(&oldDDG), newDDG_(&newDDG),
    bigDDG_(static_cast<DataDependenceGraph*>(oldDDG.rootGraph())) { }

Member Function Documentation

◆ disposeMoveNode()

void MoveNodeDuplicator::disposeMoveNode ( MoveNode * newMN )

Definition at line 53 of file MoveNodeDuplicator.cc.

                                                        {
    if (newMN == NULL) {
        return;
    }
    if (newMN->isScheduled()) {
        std::cerr << "\t\t\t\t\tCannot dispose scheduled mn: "
                  << newMN->toString() << std::endl;
        assert(false);
    }
    assert(!newMN->isScheduled());
    std::map<MoveNode*,MoveNode*,MoveNode::Comparator>::iterator i =
        oldMoveNodes_.find(newMN);
    // already disposed?
    if (i == oldMoveNodes_.end()) {
        return;
    }
    MoveNode* old = i->second;
    moveNodes_.erase(old);
    oldMoveNodes_.erase(newMN);
    TTAProgram::Move* oldMove = &old->move();
    moves_.erase(oldMove);
    if (newDDG_->hasNode(*newMN)) {
        newDDG_->removeNode(*newMN);
    }
    delete newMN;
}

References assert, BoostGraph< GraphNode, GraphEdge >::hasNode(), MoveNode::isScheduled(), MoveNode::move(), moveNodes_, moves_, newDDG_, oldMoveNodes_, DataDependenceGraph::removeNode(), and MoveNode::toString().

Referenced by BFOptimization::canAssign(), BFDRELoop::operator()(), BFSchedulePreLoopShared::operator()(), BFOptimization::rmEC(), BFOptimization::rmLC(), BFOptimization::unassignCopyFromPrologEpilog(), BFDRELoop::undoOnlyMe(), BFSchedulePreLoopShared::undoOnlyMe(), and BFMergeAndKeepUser::undoOnlyMe().

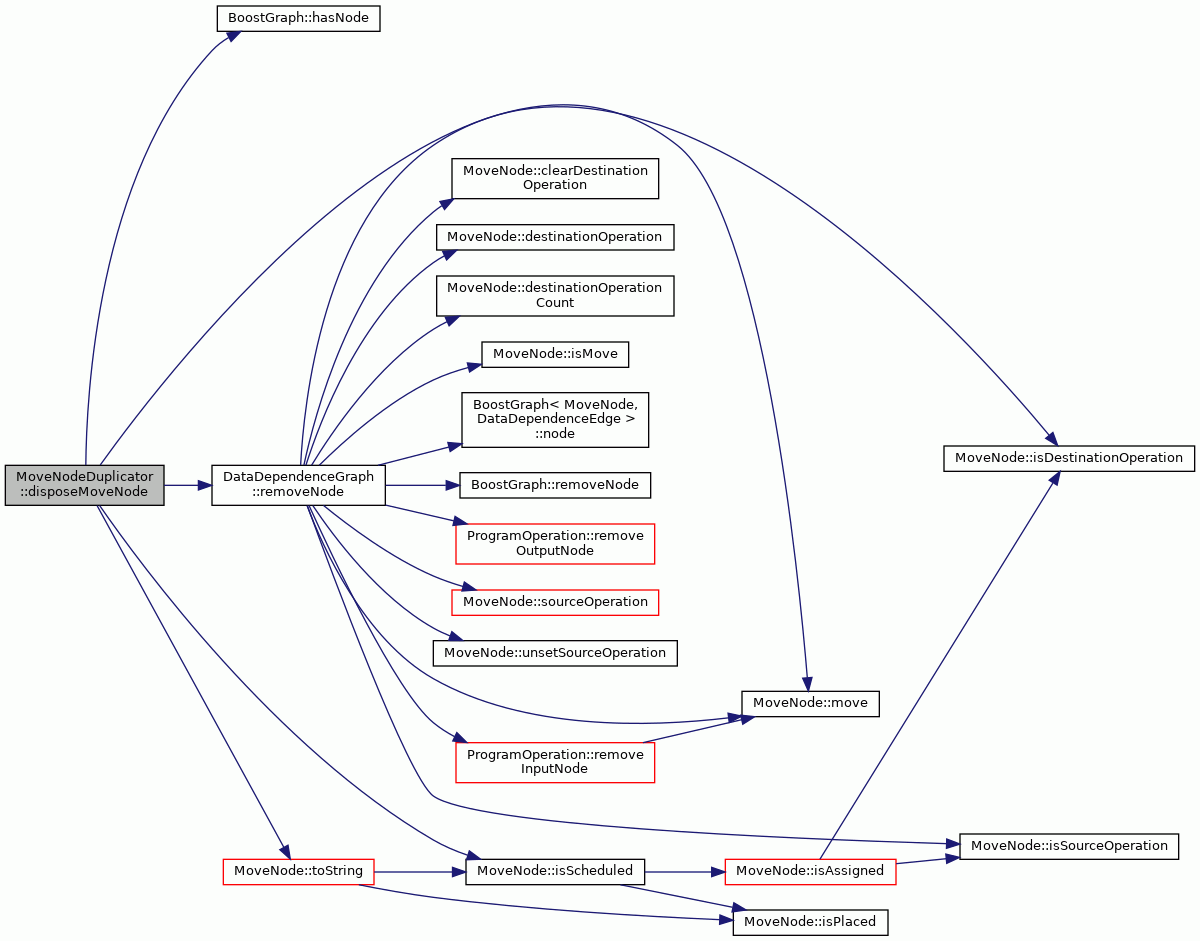

Here is the call graph for this function:

◆ dumpDDG()

void MoveNodeDuplicator::dumpDDG ( )

Definition at line 273 of file MoveNodeDuplicator.cc.

                                 {
    newDDG_->writeToDotFile("prolog_ddg.dot");
}

References newDDG_, and GraphBase< GraphNode, GraphEdge >::writeToDotFile().

Here is the call graph for this function:

◆ duplicateMove()

std::shared_ptr< TTAProgram::Move > MoveNodeDuplicator::duplicateMove ( TTAProgram::Move & old )

Definition at line 199 of file MoveNodeDuplicator.cc.

                                                     {
    if (AssocTools::containsKey(moves_,&old)) {
        return moves_[&old];
    } else {
        MoveNode& oldMN = oldDDG_->nodeOfMove(old);
        std::shared_ptr<TTAProgram::Move> newMove(old.copy());
        newMove->setBus(UniversalMachine::instance().universalBus());

        TTAProgram::Terminal& source = newMove->source();
        if (oldMN.isSourceOperation()) {
            if (oldMN.isScheduled()) {
                assert(source.isFUPort());
                std::string fuName = source.functionUnit().name();
                //TODO: which is the correct annotation here?
                TTAProgram::ProgramAnnotation srcUnit(
                    TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_SRC,
                    fuName);
                newMove->setAnnotation(srcUnit);
                const Operation &srcOp = oldMN.sourceOperation().operation();
                const TTAMachine::HWOperation& hwop =
                    *UniversalMachine::instance().universalFunctionUnit().
                    operation(srcOp.name());
                newMove->setSource(new TTAProgram::TerminalFUPort(
                                       hwop, old.source().operationIndex()));
            }
        } else {
            if (source.isRA()) {
                newMove->setSource(
                    new TTAProgram::TerminalFUPort(
                        *UniversalMachine::instance().controlUnit()->
                        returnAddressPort()));
            }
        }

        TTAProgram::Terminal& dest = newMove->destination();
        if (oldMN.isDestinationOperation()) {
            assert(dest.isFUPort());

            if (oldMN.isScheduled()) {
                std::string fuName = dest.functionUnit().name();
                //TODO: which is the correct annotation here?
                TTAProgram::ProgramAnnotation dstUnit(
                    TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_DST,
                    fuName);
                newMove->setAnnotation(dstUnit);
                const Operation &dstOp =
                    oldMN.destinationOperation().operation();
                TTAMachine::HWOperation& hwop =
                    *UniversalMachine::instance().universalFunctionUnit().
                    operation(dstOp.name());
                newMove->setDestination(new TTAProgram::TerminalFUPort(
                                            hwop, old.destination().
                                            operationIndex()));
            } else {
                if (dest.isRA()) {
                    newMove->setDestination(
                        new TTAProgram::TerminalFUPort(
                            *UniversalMachine::instance().controlUnit()->
                            returnAddressPort()));
                }
            }
        }

        moves_[&old] = newMove;

        // set guard of new move to be same as old move.
        if (!old.isUnconditional()) {
            TTAProgram::MoveGuard* g = old.guard().copy();
            newMove->setGuard(g);
        }
        return newMove;
    }
}

References TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_DST, TTAProgram::ProgramAnnotation::ANN_CONN_CANDIDATE_UNIT_SRC, assert, AssocTools::containsKey(), TTAProgram::Move::copy(), TTAProgram::MoveGuard::copy(), TTAProgram::Move::destination(), MoveNode::destinationOperation(), TTAProgram::Terminal::functionUnit(), TTAProgram::Move::guard(), UniversalMachine::instance(), MoveNode::isDestinationOperation(), TTAProgram::Terminal::isFUPort(), TTAProgram::Terminal::isRA(), MoveNode::isScheduled(), MoveNode::isSourceOperation(), TTAProgram::Move::isUnconditional(), moves_, TTAMachine::Component::name(), Operation::name(), DataDependenceGraph::nodeOfMove(), oldDDG_, ProgramOperation::operation(), TTAProgram::Terminal::operationIndex(), TTAProgram::Move::source(), MoveNode::sourceOperation(), and UniversalMachine::universalFunctionUnit().

Referenced by duplicateMoveNode().

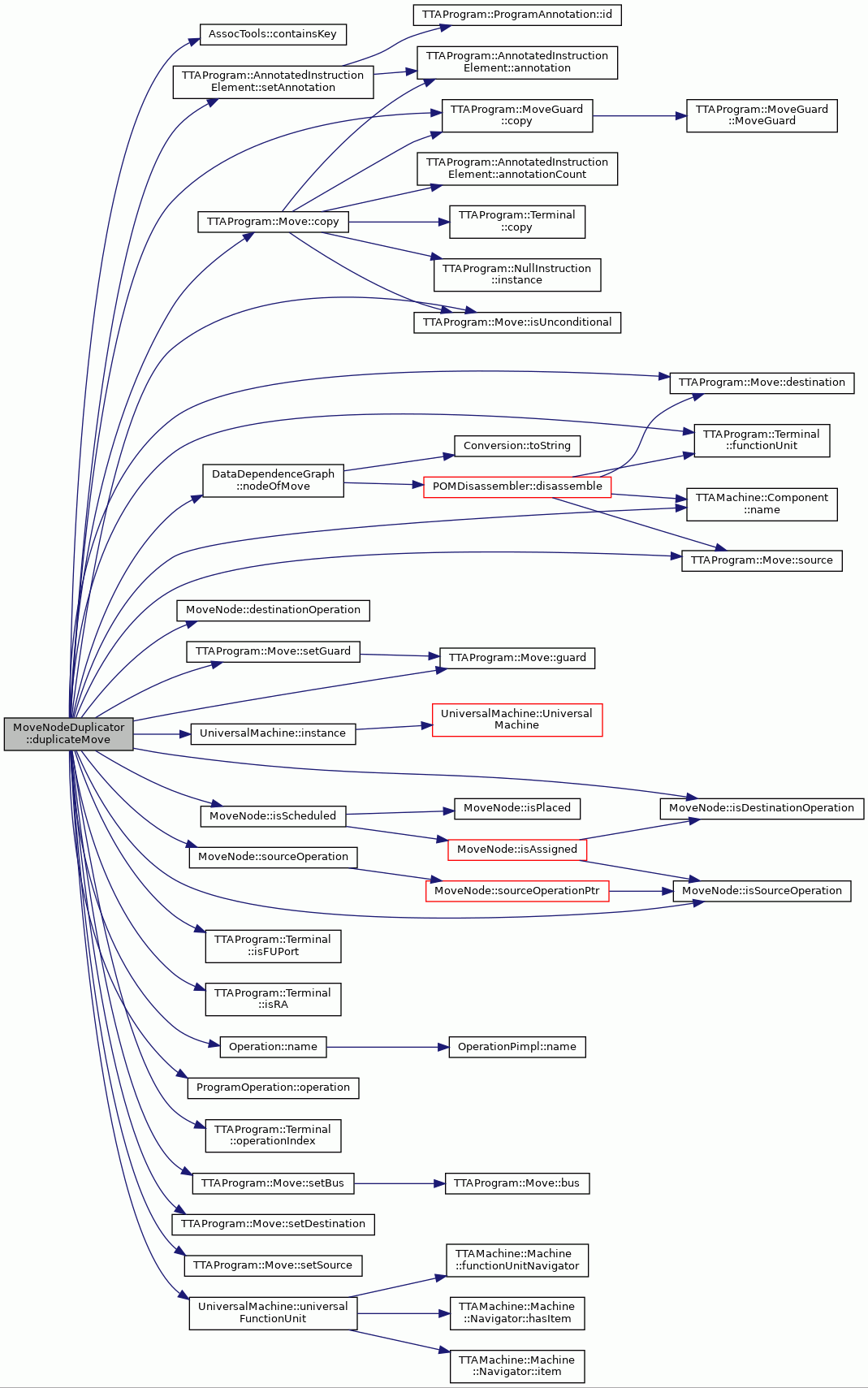

Here is the call graph for this function:

◆ duplicateMoveNode()

std::pair< MoveNode *, bool > MoveNodeDuplicator::duplicateMoveNode	(	MoveNode &	old,
		bool	addToDDG,
		bool	ignoreSameBBBackEdges
	)

Duplicates a corresponding MoveNode a given move in the next BB.

If no corresponding MoveNode created, creates one

Parameters

old	ProgramOperation in jump target BB.

Returns: new MoveNode for this BB.

Definition at line 106 of file MoveNodeDuplicator.cc.

                                                              {
    std::map<MoveNode*,MoveNode*,MoveNode::Comparator>::iterator iter =
        moveNodes_.find(&old);

    if (iter != moveNodes_.end()) {
        MoveNode* node = iter->second;
        if (addToDDG) {
            if (!newDDG_->hasNode(*node)) {
                newDDG_->addNode(*node, *bbn_);
                bigDDG_->copyDependencies(old,*node, ignoreSameBBBackEdges, false);
            }
        }
    }
    if (AssocTools::containsKey(moveNodes_,&old)) {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        std::cerr << "\t\t\t\t\told mn found: "
                  << moveNodes_[&old]->toString() << std::endl;
#endif
        return std::make_pair(moveNodes_[&old], false);
    } else {
        auto movePtr = duplicateMove(old.move());
        MoveNode *newMN = new MoveNode(movePtr);

        // TODO: only add to ddg if really scheduling, not for testing?
        if (addToDDG) {
            newDDG_->addNode(*newMN, *bbn_);
            bigDDG_->copyDependencies(old,*newMN, ignoreSameBBBackEdges, false);
        }

        moveNodes_[&old] = newMN;
        oldMoveNodes_[newMN] = &old;
        if (old.isSourceOperation()) {
            newMN->setSourceOperationPtr(
                duplicateProgramOperationPtr(old.sourceOperationPtr()));
            newMN->sourceOperation().addOutputNode(*newMN);
            assert(newMN->isSourceOperation());
        }
        if (old.isDestinationOperation()) {
            for (unsigned int i = 0;
                 i < old.destinationOperationCount(); i++) {
                newMN->addDestinationOperationPtr(
                    duplicateProgramOperationPtr(
                        old.destinationOperationPtr(i)));
                newMN->destinationOperation(i).addInputNode(*newMN);
            }
            assert(newMN->isDestinationOperation());
        }
        if (old.isGuardOperation()) {
            newMN->setGuardOperationPtr(
                duplicateProgramOperationPtr(old.guardOperationPtr()));
            newMN->guardOperation().addGuardOutputNode(*newMN);
            assert(newMN->isGuardOperation());
        }
        return std::make_pair(newMN, true);
    }
}

References MoveNode::addDestinationOperationPtr(), ProgramOperation::addGuardOutputNode(), ProgramOperation::addInputNode(), DataDependenceGraph::addNode(), ProgramOperation::addOutputNode(), assert, bbn_, bigDDG_, AssocTools::containsKey(), DataDependenceGraph::copyDependencies(), MoveNode::destinationOperation(), MoveNode::destinationOperationCount(), MoveNode::destinationOperationPtr(), duplicateMove(), duplicateProgramOperationPtr(), MoveNode::guardOperation(), MoveNode::guardOperationPtr(), BoostGraph< GraphNode, GraphEdge >::hasNode(), MoveNode::isDestinationOperation(), MoveNode::isGuardOperation(), MoveNode::isSourceOperation(), MoveNode::move(), moveNodes_, newDDG_, oldMoveNodes_, MoveNode::setGuardOperationPtr(), MoveNode::setSourceOperationPtr(), MoveNode::sourceOperation(), and MoveNode::sourceOperationPtr().

Referenced by BFOptimization::canAssign(), BFOptimization::createCopyForPrologEpilog(), BFDRELoop::operator()(), BFSchedulePreLoopShared::operator()(), BFMergeAndKeepUser::operator()(), BFOptimization::rmEC(), and BFOptimization::rmLC().

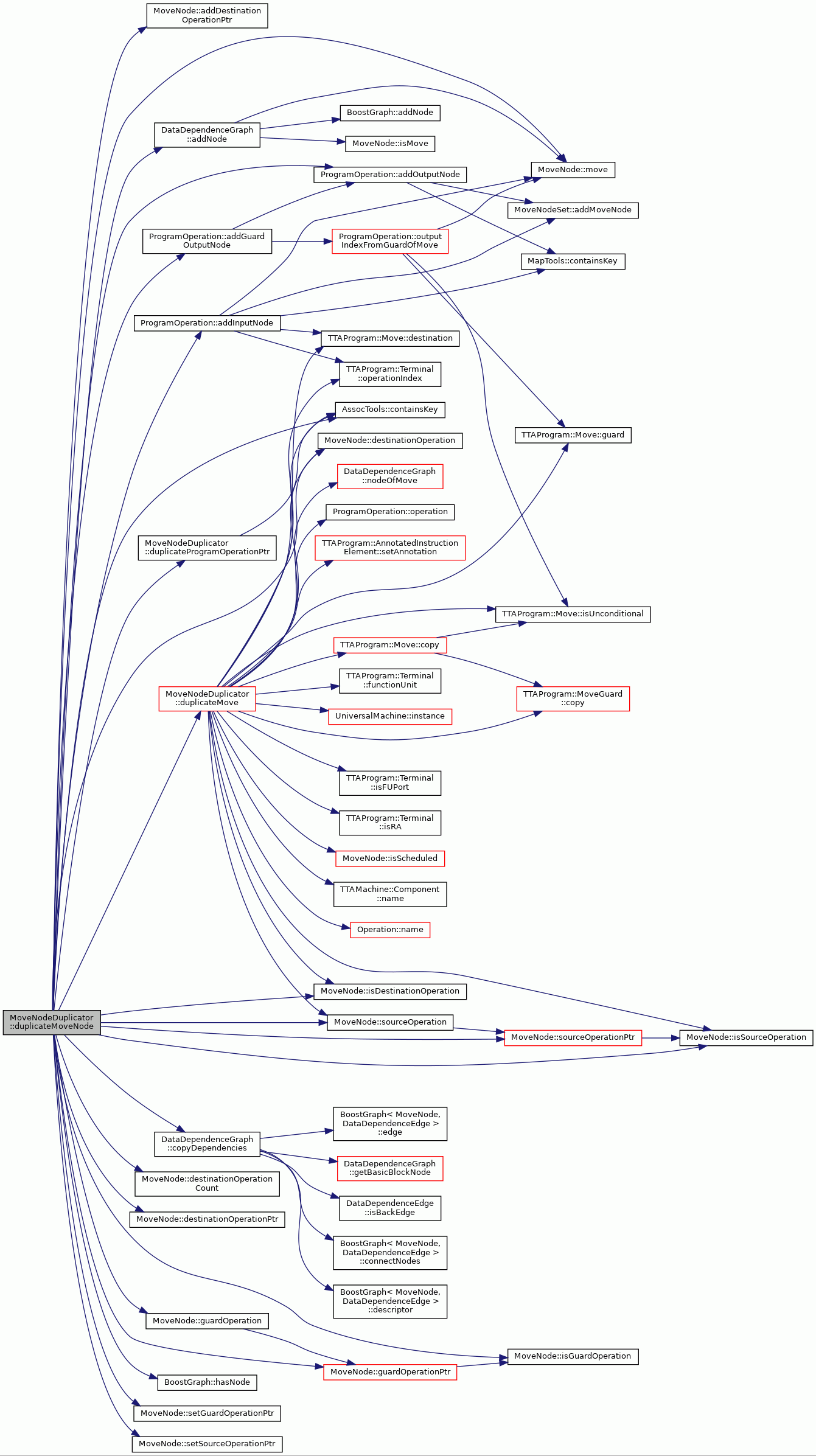

Here is the call graph for this function:

◆ duplicateProgramOperationPtr()

ProgramOperationPtr MoveNodeDuplicator::duplicateProgramOperationPtr ( ProgramOperationPtr old )

Gets a corresponding ProgramOperation to a given move in the next BB.

If no corresponding ProgramOperation created, creates one

Parameters

old	ProgramOperation in jump target BB.

Returns: new ProgramOperation for this BB.

Definition at line 173 of file MoveNodeDuplicator.cc.

                             { // , BasicBlockNode& bbn) {
    if (AssocTools::containsKey(programOperations_, old.get())) {
        return programOperations_[old.get()];
    } else {
        ProgramOperationPtr po =
            ProgramOperationPtr(
                new ProgramOperation(old->operation()));
        programOperations_[old.get()] = po;
        oldProgramOperations_[po.get()] = old;
        return po;
    }
}

References AssocTools::containsKey(), oldProgramOperations_, and programOperations_.

Referenced by duplicateMoveNode(), and BFShareOperand::operator()().

Here is the call graph for this function:

◆ getMoveNode()

MoveNode * MoveNodeDuplicator::getMoveNode ( MoveNode & mn )

Definition at line 85 of file MoveNodeDuplicator.cc.

                                             {
    std::map<MoveNode*,MoveNode*,MoveNode::Comparator>::iterator iter =
        moveNodes_.find(&old);
if (iter != moveNodes_.end()) {
        return iter->second;
    }
    return NULL;
}

References moveNodes_.

Referenced by BF2Scheduler::finalizeSchedule(), BFLateBypass::operator()(), BFShareOperand::operator()(), BFShareOperandLate::operator()(), BFShareOperandWithScheduled::operator()(), BFMergeAndKeepUser::operator()(), BFPostpassLoopDRE::operator()(), BFRemoveGuardFromSucc::operator()(), BFShareOperand::undoOnlyMe(), BFRemoveGuardFromSucc::undoOnlyMe(), and BFUnscheduleMove::unscheduleOriginal().

◆ getProgramOperation()

ProgramOperationPtr MoveNodeDuplicator::getProgramOperation ( ProgramOperationPtr old )

Definition at line 188 of file MoveNodeDuplicator.cc.

                                                               {
    auto i = programOperations_.find(old.get());
    if (i != programOperations_.end()) {
        return i->second;
    } else {
        return ProgramOperationPtr(nullptr);
    }
}

References programOperations_.

Referenced by BFShareOperand::operator()(), and BFShareOperand::undoOnlyMe().

◆ setBBN()

void MoveNodeDuplicator::setBBN ( BasicBlockNode & bbn )

inline

Definition at line 52 of file MoveNodeDuplicator.hh.

                                     {
        bbn_ = &bbn;
    }

References bbn_.

Referenced by BF2Scheduler::handleLoopDDG().

Member Data Documentation

◆ bbn_

BasicBlockNode* MoveNodeDuplicator::bbn_

private

Definition at line 77 of file MoveNodeDuplicator.hh.

Referenced by duplicateMoveNode(), and setBBN().

◆ bigDDG_

DataDependenceGraph* MoveNodeDuplicator::bigDDG_

private

Definition at line 80 of file MoveNodeDuplicator.hh.

Referenced by duplicateMoveNode().

◆ moveNodes_

std::map<MoveNode*,MoveNode*,MoveNode::Comparator> MoveNodeDuplicator::moveNodes_

private

Definition at line 72 of file MoveNodeDuplicator.hh.

Referenced by disposeMoveNode(), duplicateMoveNode(), and getMoveNode().

◆ moves_

std::map<TTAProgram::Move*,std::shared_ptr<TTAProgram::Move> > MoveNodeDuplicator::moves_

private

Definition at line 75 of file MoveNodeDuplicator.hh.

Referenced by disposeMoveNode(), and duplicateMove().

◆ newDDG_

DataDependenceGraph* MoveNodeDuplicator::newDDG_

private

Definition at line 79 of file MoveNodeDuplicator.hh.

Referenced by disposeMoveNode(), dumpDDG(), and duplicateMoveNode().

◆ oldDDG_

DataDependenceGraph* MoveNodeDuplicator::oldDDG_

private

Definition at line 78 of file MoveNodeDuplicator.hh.

Referenced by duplicateMove().

◆ oldMoveNodes_

std::map<MoveNode*,MoveNode*,MoveNode::Comparator> MoveNodeDuplicator::oldMoveNodes_

private

Definition at line 74 of file MoveNodeDuplicator.hh.

Referenced by disposeMoveNode(), and duplicateMoveNode().

◆ oldProgramOperations_

std::map<ProgramOperation*, ProgramOperationPtr, ProgramOperation::Comparator> MoveNodeDuplicator::oldProgramOperations_

private

Definition at line 70 of file MoveNodeDuplicator.hh.

Referenced by duplicateProgramOperationPtr().

◆ programOperations_

std::map<ProgramOperation*, ProgramOperationPtr, ProgramOperation::Comparator> MoveNodeDuplicator::programOperations_

private

Definition at line 65 of file MoveNodeDuplicator.hh.

Referenced by duplicateProgramOperationPtr(), and getProgramOperation().

The documentation for this class was generated from the following files:

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MoveNodeDuplicator()

Member Function Documentation

◆ disposeMoveNode()

◆ dumpDDG()

◆ duplicateMove()

◆ duplicateMoveNode()

◆ duplicateProgramOperationPtr()

◆ getMoveNode()

◆ getProgramOperation()

◆ setBBN()

Member Data Documentation

◆ bbn_

◆ bigDDG_

◆ moveNodes_

◆ moves_

◆ newDDG_

◆ oldDDG_

◆ oldMoveNodes_

◆ oldProgramOperations_

◆ programOperations_
